H965AR - Humidifier PureGuardian - Free user manual and instructions

Product Type	Ultrasonic Cool Mist Humidifier
Brand	PureGuardian
Model	H965AR
Tank Capacity	3.785 L (1.0 gal)
Continuous Humidification Duration	Up to 70 hours per tank
Silver Clean™ Technology	Integrated into the tank to limit mold growth
Main Features	Mist adjustment, LED nightlight, water refill indicator
Power	Standard electrical outlet (120 V)
Controls	On/Off button with mist adjustment
Light Indicator	Red LED for low water level
Nightlight	LED illuminating the tank with adjustment
Automatic Shut-off	Yes, when water level is insufficient
Maintenance	Regular cleaning of the ultrasonic disc with included brush
Recommended Descaling	White vinegar and water solution (1:1) to dissolve deposits
Water Usage	Soft or distilled water recommended to reduce white dust
Included Spare Parts	Cleaning brush, mist nozzle
Limited Warranty	3 years
Safety	Burn protection, do not use additives

Frequently Asked Questions - H965AR PureGuardian

Why is my humidifier not producing mist?

Check the power outlet, ensure the tank is properly installed and the ultrasonic disc is clean. If the problem persists, clean the disc with the included brush.

How to clean the ultrasonic disc?

Unplug the unit, remove the tank, empty the water from the base. Use only the included cleaning brush to gently scrub the disc. Never use abrasive objects.

What type of water should I use?

Use soft or distilled water. Hard water can cause white dust deposits and requires more frequent cleaning.

Why is water accumulating around the unit?

Reduce the mist level. Make sure the unit is on a level surface and the mist nozzle is not directed at objects. Place the unit on a waterproof surface.

How to descale the humidifier?

Unplug the unit. Fill the base with a solution of 1 teaspoon white vinegar to 1 teaspoon water. Let sit for 5 minutes, then clean with a soft cloth. Rinse thoroughly with water.

The humidifier emits a bad odor, what should I do?

This indicates insufficient maintenance or stagnant water. Thoroughly clean the unit, including the tank and base, and fill with fresh water.

The nightlight is not working, what should I check?

Check the nightlight setting (button next to the nozzle). If still off, make sure the tank is properly installed, as the light turns on via a contact. If the problem persists, contact customer service.

Can I use essential oils in the water?

No. Using additives (essential oils, perfumes, eucalyptus, etc.) can damage the unit's materials and void the warranty.

The unit shuts off by itself, why?

The refill indicator turns red and the unit turns off when the water level is too low. Add water and the unit will restart automatically. Also check that the tank is properly positioned.

How to store the humidifier at the end of the season?

Clean and descale the unit. Dry it completely, do not leave water in the base or tank. Place it back in its original carton and store in a cool, dry place.

USER MANUAL H965AR PureGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

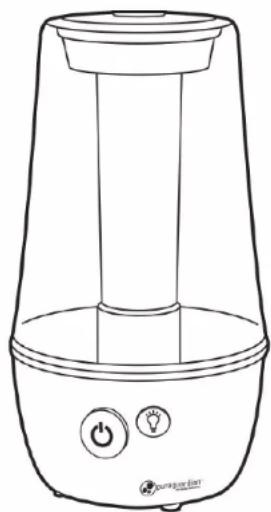

Line drawing of a portable kitchen appliance with control buttons (no text or symbols)

Ultrasonic Humidifier

Model No. H965

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0318

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.
• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.
  Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.

For more information go to www.P65Wamings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Ultrasonic Cool Mist

TANK CAPACITY: 1.0 gallons

SUCCESSIVE HUMIDITY HOURS: Up to approximately 70 hours between tank refills.

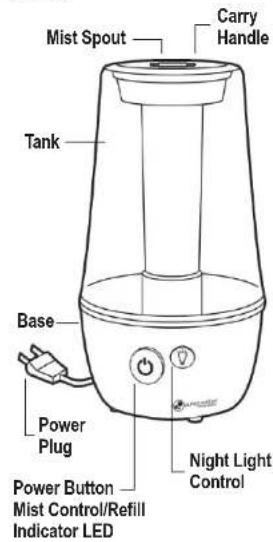

PARTS

SILVER CLEAN™

TECHNOLOGY

Silver Clean™ technology is embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

FEATURED HIGHLIGHTS

POWER BUTTON

Turns humidifier on/off.

MIST CONTROL

The spray volume or amount of mist that is produced by the unit can be adjusted to three levels based on need.

WATER REFILL INDICATOR

When the unit is low on water the Power Button Light turns red, and the unit will shut off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled.

NIGHT LIGHT

An LED illuminates the tank for a soft glow night light

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

FILLING - Make sure unit is unplugged.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

1. Separate the tank from the base of the unit.

1. Flip over water tank and open the tank lid, turning it to the left.

Line drawing of a water tap with a container and pipe (no text or symbols)

1. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.

1. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water.

Diagram of a blender with a lid and base, showing a downward arrow indicating compression or disassembly (no text or symbols present)

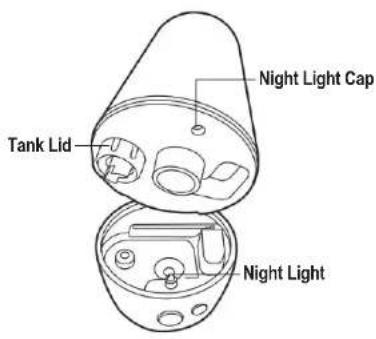

1. Attach the tank to the base of the unit by aligning night light (in base) with night light cap (in tank). Plug in.

Simple black circular icon with a power button symbol inside, no text or labels present.

6. Power Button

Before turning on make sure there is water in the unit. Press the Power button.

CLEANING

1. Always unplug the unit before servicing in any way.

GENERAL CLEANING

1. Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
2. Water tank. Empty water tank. Pull and remove mist spout out of the tank. Clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended). Return mist spout after cleaning.
3. Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the tank and empty all water from unit base and tank.
3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits.

Do not scrub or scrape the ultrasonic disk.

Ultrasonic Disk

Simple line drawing of a hand holding a circular button with a small square button, no text or symbols present.

*Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp white vinegar and 1 tsp water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.Tank Installation: Make sure the tank is correctly attached.The surface of the ultrasonic disk is dirty: Clean ultrasonic diskThe desired humidity is lower than the current humidity in the room.Check Humidistat settings.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank.The desired humidity is lower than the current temperature:Check Humidistat settings.Detergent residue and/or oil ingredients from cosmetics, etc. may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.If you use hard water, replace with softer water.
Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working No or	ow water. Unplug unit and refill tank.The desired humidity is lower than the current humidity in the room.Check humidistat settings.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting.Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Water dripping when refilling.	Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting.
Increased noise level. Unit must be placed on a flat, level, hard surface. Make sure it is NOT placed on a soft or absorbent surface.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

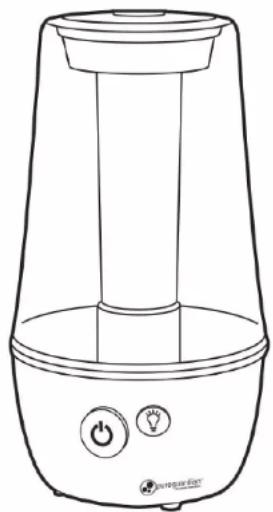

Line drawing of a portable kitchen blender with control buttons (no text or symbols)

Guardian Technologies will not accept responsibility for damage caused by water spillage.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Line drawing of a water tap dispensing liquid into a cup (no text or symbols)

Simple line drawing of a blender with a lid and base, showing a downward arrow indicating compression or disassembly (no text or symbols)

Simple black circular icon with a power button symbol on white background (no text or labels)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

Line drawing of a portable kitchen blender with control buttons (no text or symbols)

Simple line drawing of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Line drawing of a water tap in a bucket with a handle (no text or symbols)

Diagram of a blender with a lid and base, showing internal components and a downward arrow (no text or symbols)

Simple black circular icon with a power button symbol on white background (no text or numbers)

Simple line drawing of a mechanical component with concentric circles and a pointer (no text or symbols)

Simple line drawing of a mechanical component with concentric circles and a pointer (no text or symbols)
