Product Type	Wi-Fi Repeater
Brand	AVM
Model	FRITZ!WLAN Repeater 450E
Dimensions	101 mm x 76 mm x 76 mm
Weight	approx. 120 g
Power Supply	230 V, 50 Hz A/C
Power Consumption	approx. 5 W
Wireless Standards	IEEE 802.11n/g/b (2.4 GHz)
Maximum Speed	up to 450 Mbit/s (gross)
Wireless Security	WPA, WPA2 (802.11i)
Ports	1 Gigabit Ethernet port (RJ45)
Antennas	3 integrated antennas
Main Functions	Wi-Fi extension, wireless bridge and LAN bridge, WPS, WiFi Mesh
Configuration	Via web browser (http://fritz.repeater) or WPS button
Package Contents	1 repeater, 1 LAN cable
Care and Cleaning	Unplug before cleaning, use a damp cloth
Safety	For indoor dry use, do not open, avoid liquids
Warranty	5-year manufacturer's warranty
Operating Temperature	0 °C to +40 °C
Country of Origin	Germany

Frequently Asked Questions - FRITZ!WLAN Repeater 450E AVM

How to install my FRITZ!WLAN Repeater 450E using the WPS button?

Plug the repeater near your base station. Press the WPS button on the repeater (the WLAN LED flashes). Within 2 minutes, press the WPS button on your base station. The connection is established when the Power, WLAN, and LAN LEDs stay lit. Then move the repeater to a halfway point.

How to configure the repeater without WPS?

Plug the repeater near the base station. Connect your computer to the repeater's Wi-Fi network (default key: 00000000). Open a browser and go to http://fritz.repeater. Follow the setup wizard to connect the repeater to your Wi-Fi network.

What to do if the Power LED flashes?

A flashing Power LED means the repeater is starting up or the firmware is being updated. If the flashing persists for more than a few minutes, check that the repeater is properly powered and the base station is on. Otherwise, perform a factory reset.

Can I use the FRITZ!WLAN Repeater 450E with a router of another brand?

Yes, it is compatible with any 2.4 GHz base station supporting WPA/WPA2. For configuration without WPS, use the wizard via http://fritz.repeater. Advanced WiFi Mesh features require a FRITZ!Box with FRITZ!OS 6.90 or later.

How to activate the WiFi Mesh feature?

If you have a FRITZ!Box with FRITZ!OS 6.90 or higher, the repeater automatically activates WiFi Mesh when it connects. You can also activate Mesh by pressing the WPS button on the repeater for 6 seconds (the WLAN LED flashes quickly). See the manual for more details.

How to reset the repeater to factory settings?

Press and hold the WPS button for 15 seconds. All LEDs flash, then the repeater restarts with factory settings. The default Wi-Fi key becomes 00000000.

How to update the repeater firmware?

Access the repeater's user interface via http://fritz.repeater. Go to System / Update. If an update is available, follow the instructions. If you use a FRITZ!Box, updates can be performed directly from the box's interface.

What are the LED indicators and their meaning?

Three LEDs: Power (power and signal quality: solid on = good connection; flashing = startup or update), WLAN (solid on = Wi-Fi active; flashing = WPS in progress or Mesh activation), LAN (solid on = device connected via cable).

What is the power consumption of the FRITZ!WLAN Repeater 450E?

Total consumption is approximately 5 watts during normal operation.

Is the repeater compatible with 5 GHz Wi-Fi?

No, the FRITZ!WLAN Repeater 450E operates only on the 2.4 GHz band (802.11b/g/n standards). It does not support the 5 GHz band.

USER MANUAL FRITZ!WLAN Repeater 450E AVM

The valid licensing conditions are presented in the FRITZ!WLAN Repeater 450E user interface under "Help / Legal Notice".

In accordance with the Waste of Electrical and Electronic Equipment Directive, the FRITZIWLAN Repeater 450E and its cable may not be disposed with household waste. Please bring these to your local collection points for disposal.

Customer Service

•Service en.avm.de/service
•Manual en.avm.de/service/manuals
• Support en.avm.de/service/support-request/your-support-request
• Download en.avm.de/service/downloads

FRITZ!WLAN Repeater

450E

en.avm.de

AVM GmbH, Alt-Moabit 95, D-10559 Berlin, Germany [e-mail]

Installation and Operation

English 4

Deutsch 16

Español 28

Français 40

Italiano 52

Nederlands 66

Package Contents and Device Features

White and red FRTZ Wireless router device with indicator lights (no visible text or symbols on body)

1 FRITZ!WLAN Repeater 450E

Line drawing of a 1 LAN cable with two connectors (no text or symbols on the cable itself)

WPS button

• Initiating WPS
  •Enabling Mesh WiFi
  •Restoring factory settings

Wireless LAN function

• Expanding the wireless radio network
  •802.11 n/g/b in the 2.4 GHz band

Status display

•Quality of the wireless radio signal
- Connection status

LAN port

• Connect network devices by cable
• Connect Internet router by cable

Security

• Operate the FRITZ!WLAN Repeater 450E in a dry place that is free of dust and protected from direct sunlight. Provide for sufficient ventilation.
  ● The FRITZ!WLAN Repeater 450E is intended for indoor use only.
  ● Never let liquids get inside the FRITZ!WLAN Repeater 450E.
• Insert the FRITZ!WLAN Repeater 450E into an electrical outlet that is easy to reach.
• Do not open the FRITZIWLANRepeater 450E housing. Opening and/or repairing the device can present a hazard.
  ● Unplug the FRITZ!WLAN Repeater 450E from the outlet before cleaning. Clean the device using a moist cloth.

This Is the FRITZ!WLAN Repeater 450E

This quick introduction shows you the possibilities for deploying and operating your FRITZ!WLAN Repeater 450E. Comprehensive information and technical details are presented in the PDF manual available on our website en.avm.de/service.

The FRITZ!WLAN Repeater 450E is a wireless repeater that extends the range of your wireless network. Computers, tablets, Smart TV and other wireless devices can use the FRITZ!WLAN Repeater 450E as the access point to your internet router and the home network. In the FRITZ!Box home network, the FRITZ!WLAN Repeater 450E automatically adopts the FRITZ!Box's settings. With a FRITZ!Box that has FRITZ!OS 6.90 or higher installed, you can also benefit from expanded Mesh WiFi functionality. More detailed information about the benefits and the configuration of Mesh WiFi is presented at

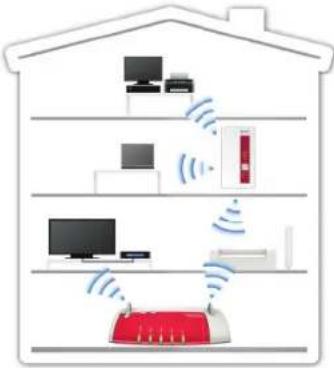

FRITZ/WLAN Repeater 450E in a home network

en.avm.de/mesh-networking.

The FRITZ!WLAN Repeater 450E comes with a user interface which you can open in a web browser on all connected devices.

Have fun with your FRITZ!WLAN Repeater 450E!

Operating Modes

The FRITZ!WLAN Repeater 450E can work in two different operating modes:

Wireless Bridge (Preset)

The WLAN bridge connects the FRITZ!WLAN Repeater 450E with your Internet router via wireless LAN. Computers and other network devices are connected to the FRITZ!WLAN Repeater 450E via Wireless LAN or with a LAN cable. Read the description starting on page 8.

LAN Bridge

The LAN bridge connects the FRITZ!WLAN Repeater 450E with your internet router using a LAN cable. Computers and other network devices are connected with the FRITZ!WLAN Repeater 450E via Wireless LAN. The LAN bridge operating mode can be configured in the user interface of the FRITZ!WLAN Repeater 450E. For more information, see also the FRITZ!WLAN Repeater 450E manual at en.avm.de/service.

Connecting the FRITZ!WLAN Repeater 450 with Wireless LAN at the Touch of a Button

Requirements (Preconfigured in and Fulfilled by a FRITZ!Box)

- Wireless access point that supports WPS with the WPA or WPA2 encryption standard - The SSID (name of the wireless radio network) is set to "visible" in the wireless access point, and the MAC address filter is disabled for the initial configuration.

Establishing a Connection to the Computer

1. Insert the FRITZ!WLAN Repeater 450E in an outlet in the vicinity of your wireless access point (for instance, a FRITZ!Box).
2. Press the "WPS" button on the FRITZ!WLAN Repeater 450E until the "WLAN" LED starts to flash.
3. Within two minutes, press the button on your wireless access point that initiates WPS. For more information, see the documentation of this device. The FRITZ!WLAN Repeater 450E adopts the SSID (radio network name) and the network key from your wireless access point and establishes a secure wireless connection. Once the connection has been established, the "Power", "WLAN" and "LEDs light up."
4. Insert the FRITZIWLAN Repeater in an outlet located about halfway between your wireless access point and the wireless devices to be added to the wireless network.
   The FRITZ!WLAN Repeater 450E is connected with your home network by wireless LAN. Check the settings and perform an update if necessary. Continue reading on page 10.

1

2

Wireless LAN

3

4

Connecting Using the Wizard

Requirements

The MAC filter must be switched off for the initial configuration. This is the default setting on a FRITZ!Box.

Establishing a Connection to the Computer

1. Insert the FRITZ!WLAN Repeater 450E in an outlet in the vicinity of your wireless access point (for instance, a FRITZ!Box).
2. Start the wireless LAN software on your computer, select the wireless radio network of your FRITZ!WLAN Repeater 450E and establish a connection.
3. Enter the network key. In the FRITZ!WLAN Repeater 450E the network key is preset to 00000000 (eight zeros).
   The computer establishes a connection to the FRITZ!WLAN Repeater 450E. Once the connection has been established, the "Power", "WLAN" and "LEDs light up."
4. Insert the FRITZ!WLAN Repeater in an outlet located about halfway between your wireless access point and the wireless devices to be added to the wireless network.

Starting the Configuration Wizard

1. Open the web browser on your computer and enter http://fritz.repeater in the address bar. The configuration wizard appears.
2. The wizard guides you through configuration of the wireless connection between the FRITZ!WLAN Repeater 450E and your wireless access point.
   The FRITZ!WLAN Repeater 450E is connected with your home network by wireless LAN. Check the settings and perform an update if necessary. Continue reading on page 11.

FRITZ!WLAN Repeater in the Home Network

In the home network of a FRITZ!Box, it is especially easy and convenient for your FRITZ! devices to work together.

On a FRITZ!Box with FRITZ!OS Version 6.90 or Higher

• During registration with FRITZ!Boxes with FRITZ!OS 6.90 or higher, the FRITZ!WLAN Repeater automatically adopts the FRITZ!Box's wireless LAN settings.
• When settings on the FRITZ!Box are changed, the FRITZ!WLAN Repeater adopts these changes automatically.
• Updates for the FRITZ!WLAN Repeater 450E can be performed directly in the graphic display of the FRITZ!Box user interface under Home Network / Home Network Overview.
• The FRITZ!WLAN Repeater benefits from expanded Mesh WiFi functionality. Note the instructions at en.avm.de/mesh-networking

On a FRITZ!Box with FRITZ!OS up to Version 6.6x

- During registration with FRITZ!Boxes with FRITZ!OS up to version 6.6x, FRITZ!WLAN Repeater 450E automatically adopts the FRITZ!Box's wireless LAN settings.

- Updates for the FRITZ!WLAN Repeater can be performed directly in the FRITZ!Box user interface under Home Network / Home Network Overview.

On a Wireless Access Point from Another Manufacturer

• For registration with a wireless access point via WPS, the FRITZ!WLAN Repeater adopts the SSID (radio network name) and network key of the wireless access point.
• Updates are performed directly in the user interface of your FRITZ!WLAN Repeater under System / Update.

The FRITZ!WLAN Repeater user interface can be opened on all connected devices using the IP address it was assigned by your wireless access point.

First check the user interface of your wireless access point to find out what IP address the FRITZ!WLAN Repeater was assigned, and then enter this IP address in the address line of a web browser. See the documentation for your wireless access point.

LEDs and Buttons

The LEDs show the operating status:

	on fl ashing
Power	Quality of the wireless radio signal	Connection to the wireless access point is interrupted
	FRITZ!WLAN Repeater 450E is ready for operation	•The FRITZ!WLAN Repeater 450E is being started.•Updating FRITZIOS
WLAN	Wireless LAN function enabled	• WPS in progress flashes fast: WPS was aborted•Enabling Mesh WiFi•Adopting the wireless LAN settings
LAN	Network device connected
all		Loading factory settings

Operate the FRITZ!WLAN Repeater 450E using the WPS button:

	Press the WPS button
Initiate WPS / Enable Mesh WiFi	1 second
Connect with another access point	6 seconds
Factory settings	15 seconds

Technical Specifications

• IEEE 802.11n, compatible with IEEE 802.11g/b
• Up to 450 Mbit/s (gross); the user data rate that can actually be achieved is somewhat below the specified values.
  WPA, WPA2 (802.11i)
• Ethernet: LAN port over RJ45 port (gigabit Ethernet, 10/100/1000 Base-T)
  ● Total power consumption: approx. 5 W
  ● WLAN: 2.4 GHz max. 100 mW
  230 V, 50 Hz A/C
• 0 °C to +40 °C
  ● Dimensions: 101 mm x 76 mm x 76 mm
  ● Weight: approx. 120 g
• Antennas: three integrated antennas

System Requirements

● Wireless access point compliant with IEEE 802.11b/g/n, 2.4 GHz, automatic IP address assignment (DHCP)
● The wireless access point must support the encryption standard WPA or WPA2.
- For expanded Mesh WiFi functions: FRITZ!Box with FRITZ!OS version 6.90 or higher
- For initial configuration with WPS: WPS-compliant wireless access point
- For initial configuration without WPS: computer with wireless LAN that supports the WPA encryption standard
- For the first configuration of wireless LAN: If the MAC address fi lter is active in the wireless access point, the MAC address of the FRITZ!WLAN Repeater must be entered as an exception in the MAC address fi lter.

Service

Service information and help can be found on our website and in the social networks:

Service

en.avm.de/service

Manual

en.avm.de/nc/service/downloads

Support Request

en.avm.de/service/support-request/your-support-request

Social Networks

Legal notices and technical specifications are presented in the FRITZ!Box Help and in the manual.

CE Declaration

AVM declares herewith that the device is compliant with the basic requirements and the relevant rules in directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The long version of the declaration of CE conformity is available at http://en.avm.de/ce.

Manufacturer's Warranty

We offer a manufacturer's warranty of 5 years for this original product. The warranty period begins with the purchase date from the first end user. Compliance with the warranty period can be proven by submission of the original invoice or comparable documents. This warranty does not restrict your warranty rights based on the contract of sale or other statutory rights.

Within the warranty period, we will remove defects to the product which are demonstrably due to faults in materials or manufacturing. Our warranty does not cover defects which occur due to incorrect installation, improper use, non-observance of instructions in the user manual, normal wear and tear or defects in the environment of the system (third-party hardware or software). We may, at our discretion, repair or replace the defective product. Claims other than the right to the removal of defects which is mentioned in these terms of warranty are not constituted.

We guarantee that the software conforms with general specifications, not, however, that the software meets your individual requirements. Delivery costs will not be reimbursed. Products which have been replaced revert to our ownership. Claims recognized under warranty entail neither an extension or recommencement of the warranty period. If we reject a warranty claim, this claim lapses no later than six months after being rejected by us.

This warranty shall be governed by German substantive law, to the exclusion of the United Nations Convention on Contracts for the International Sale of Goods (CISG).

1 FRITZ!WLAN Repeater 450E

Line drawing of a 1 LAN-Kabel cable with two connectors (no text or symbols on the cable itself)
