USER MANUAL CasaTherm 1500 CasaFan

RISCALDATORE A RAGGI INFRAROSSI CON LAMPADE ALOGENE AL QUARZO

HALOGEN QUARTZ INFRARED HEATER

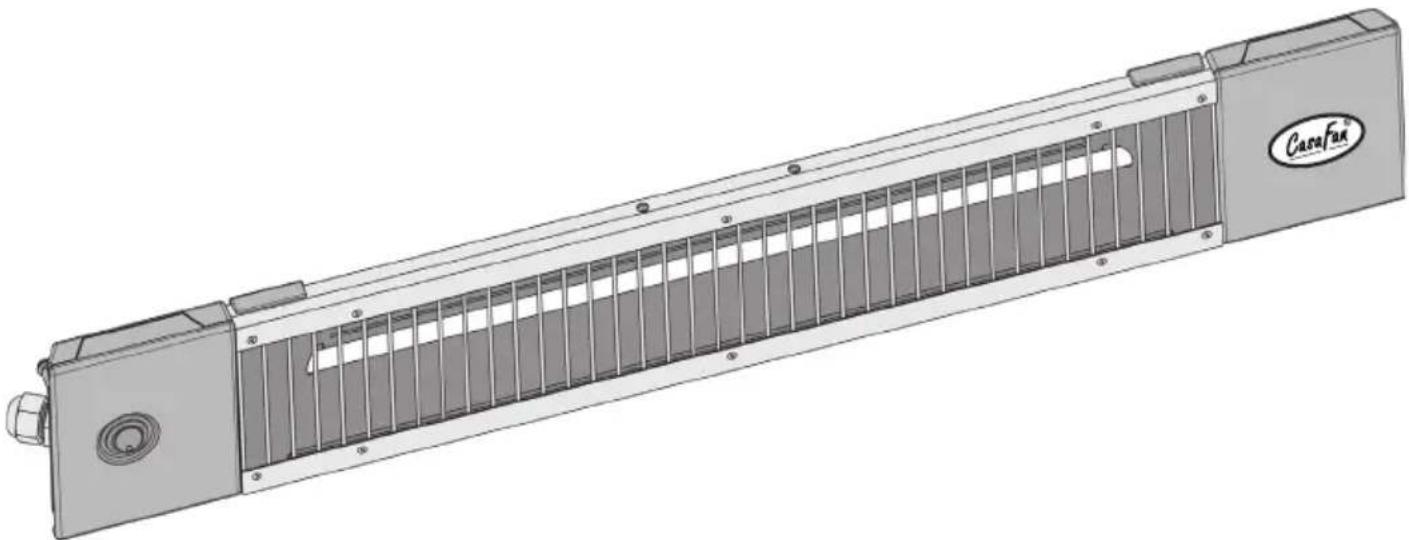

CasaTherm® 1500 Slimdesign Gold

Technical line drawing of a rectangular industrial component with internal grating and mounting bracket (no text or symbols)

USO E MANUTENZIONE

USE AND MAINTENANCE

EMPLOI ET ENTRETIEN

Technical illustration of a brick wall assembly with internal components and mounting hardware (no text or symbols)

Technical line drawing of a mechanical assembly with chain links and mounting brackets (no text or symbols)

Technical illustration of a mechanical assembly with exploded view and close-up details (no text or symbols)

3D rendering of a metal L-shaped bracket with mounting holes and a vertical arrow indicating a measurement or force (no text or symbols present)

Diagram of a mechanical or electrical component with curved lines and a central positive charge symbol, no text or labels present.

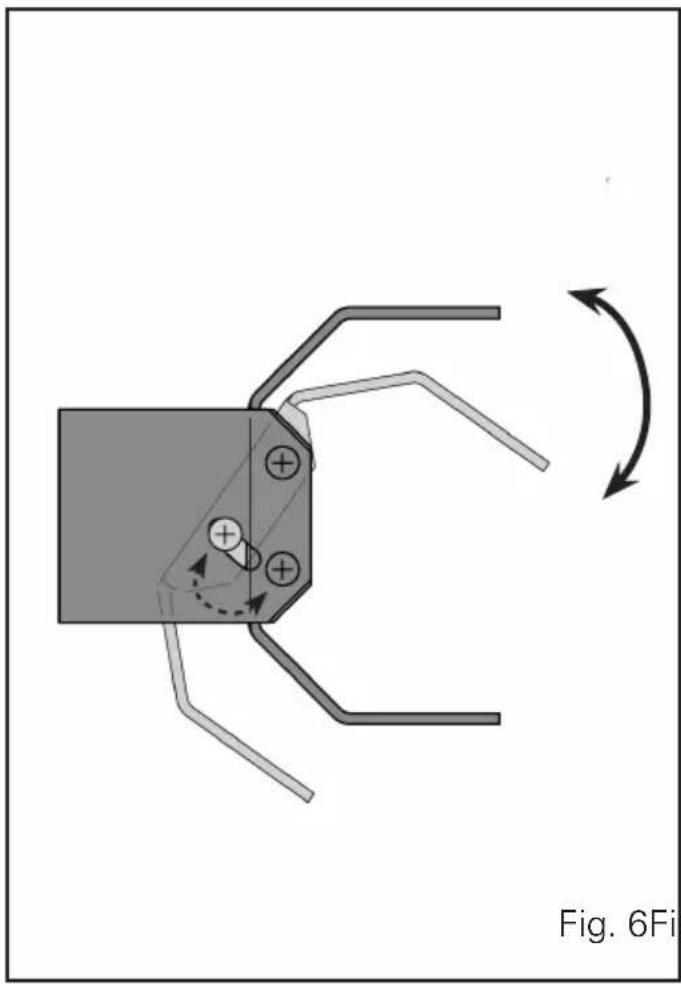

Fig. 6 Fig. 5

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

1. IMPORTANT SAFETY INSTRUCTIONS

Before using your appliance, read carefully the instructions contained in this booklet, which furnish important information regarding installation, use and maintenance safety. The booklet must be kept and delivered to the new user in case of cession of the machine. The Manufacturer reserves the right to vary the features of the product without prior notice. The technical data are merely indicative.

1. This appliance is intended solely for the use it has been designed for, namely room heating. The Manufacturer is not responsible for any damage that could happen for improper use.
2. After unpacking make sure that the appliance is complete and shows no signs of visible damage or tampering.
3. Keep packing materials, which are potential dangers, away from children.
4. The appliance is not suited for persons (as well as children) physically, mentally, sensory disabled, or with no experience, unless they have been supervised or directed by someone responsible of their safety.
5. Do not let the children play with the appliance.
6. Before inserting the plug make sure that the voltage is the same as indicated on the device.
7. Do not use in presence of gas, inflammable or explosive liquids or substances.
8. Some fundamental rules which apply to all electrical devices must be observed when using the heater:
9. Do not touch the heather with wet hands.
10. Do not handle with bare feet.
11. Do not pull the electric cord or the device itself to unplug it from the socket; pull the plug directly.

12. Do not let children play with the electrical appliance.

13. Avoid the use of an extension cord with this product, because the extension cord may overheat and cause a risk of fire.

14. Do not apply any modification to the product that could compromise the safety.

15. Keep connections dry.

16. If the power supply cord is damaged, avoid to use the appliance. For power cord replacing, please contact the manufacturer or the technical service or a person with similar qualification, in order to avoid any risk.

17. If the appliance is not used for a long period, disconnect it from the power supply.

18. Always unplug the appliance before doing any maintenance operation.

2. ELECTRICAL INSTALLATION

Installation should always be carried out by a qualified electrician or a competent person in accordance with the standards HD 384 CENELEC for Europe, or international IEC 60346-7-708 1988, and the standard AS/NZS 3000 (Australian wiring rules). The energy supply must be done through a properly grounded socket.

In case of directly connection to supply line an overvoltage category III bipolar circuit breaker with contact opening distance of at least 3 mm must be fitted upstream from the supply line.

Be careful to connect the infrared heater to a supply line protected by 16A fuses not quick-acting type.

• The heaters should always be installed horizontally only using the mounting brackets provided. This ensures correct positioning and adequate clearance.
• A minimum air gap of 150 mm should always be allowed between the top of the heater and a ceiling or roof. The appliance should be 600 mm far from the walls (fig.1).
• A safety distance of not less than 1000 mm should always be left in front of the Casa-Therm heaters or too near.
• This unit should be mounted at a minimum of 1500 mm above ground level (fig.1). If installed in a toilet, the height should be 2250 mm in zone 1 and zone 2; in zone 3 the minimum above ground level is 1500 mm, according with the rules of each Country.
• Be sure that the heater is not facing the ceiling or inflammable substances.
• The appliance must not be located neither directly below, nor in front of a socket-outlet.
• The heater must be installed so as to prevent that the switches can be touched from those who are in the shower.
• Ensure that there is no possibility of inflammable material, combustible material or curtains coming into contact with the heater, or lie near the heater.
• Heaters should not be installed in areas where hazardous vapours may be present. Defined in BS5345.
• The heaters are fitted with safety guards. These are intended only to stop large objects from hitting the emitters. On no account should the heater be operated with the guard removed.
• For consumer use the heaters are fitted with high temperature silicone rubber flexible cable (H05 RN-F) conforming to BS 6500.
• The models for professional use, that are marked with a "P" in the code, do not have the power cord and the switch. For professional installation, cabling of the same specification should be selected.
• The product is in class I and IP55, which is the protection rate for the units to be used even outdoor. For keeping the protection rate of the appliance, the connection of the appliance with the power supply must be done by means of a minimum IP55 system, as per the standards HD 384 CENELEC for Europe, or international IEC 60346-7-708 1988, and the standard AS/NZS 3000 (Australian wiring rules).
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Avoid to touch the metal parts.

3. LOCATION

The range of CasaTherm heaters has been designed to provide flexibility in positioning. Three different options can be chosen:

• Wall mounting using the support provided (included). Before drilling holes into the wall for fixing the rawlplugs, ensure that it is solid and that there are no electrical cables or suchlike behind. Using a 5 mm drill bit, drill 2 holes into the wall and fix the support using the supplied rawlplugs. In doing so, ensure that the slots in the support are located at its lower end (Fig. 2 and Fig. 2-A), and the arrow on the label is turned up (Fig. 5).

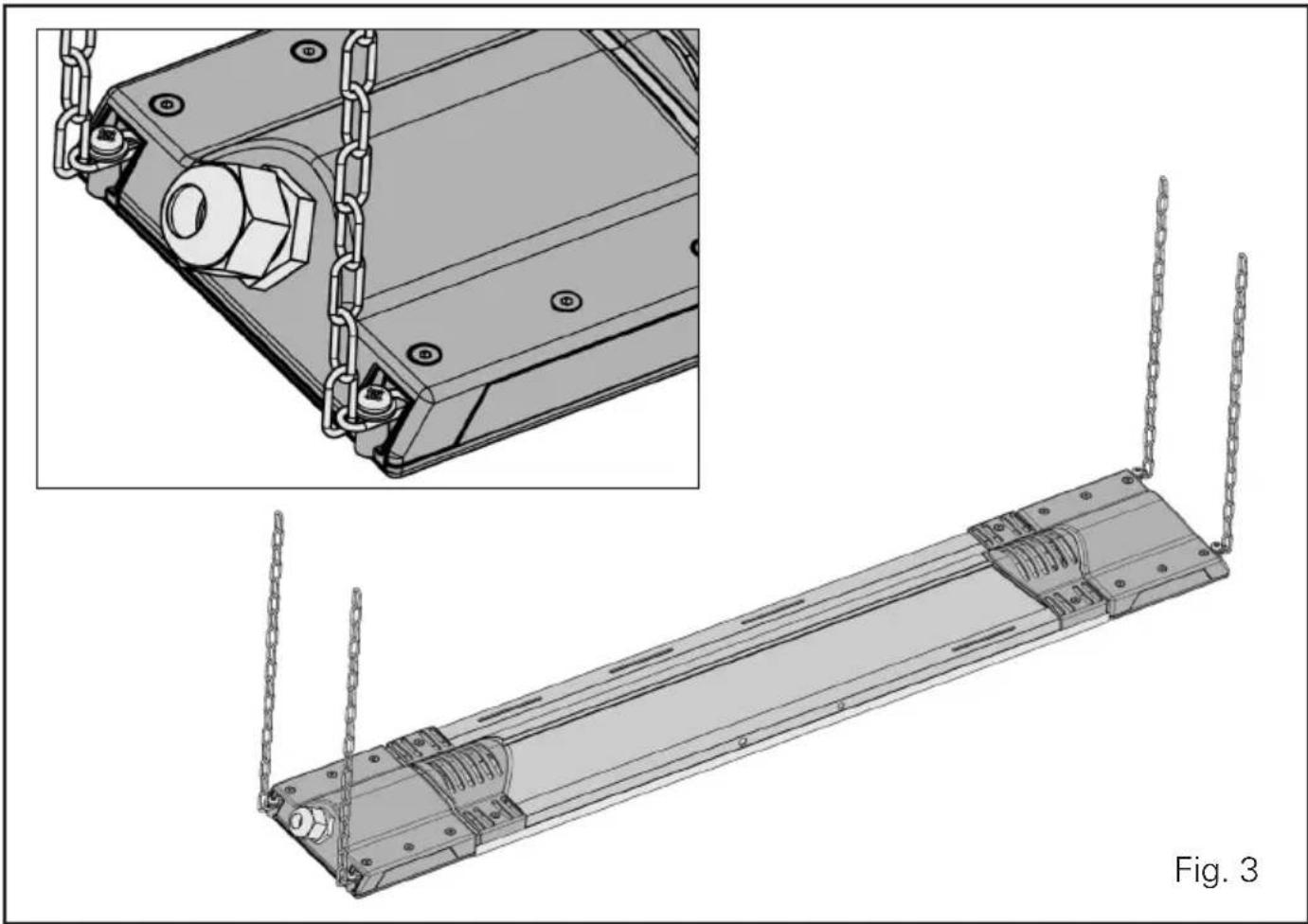

• Ceiling mounting with chains. Before drilling holes, ensure that the area of ceiling on which it is intended to fix the appliance is solid and that there are no electrical cables or suchlike behind. Fit the chains to the appliance as shown in Fig. 3.

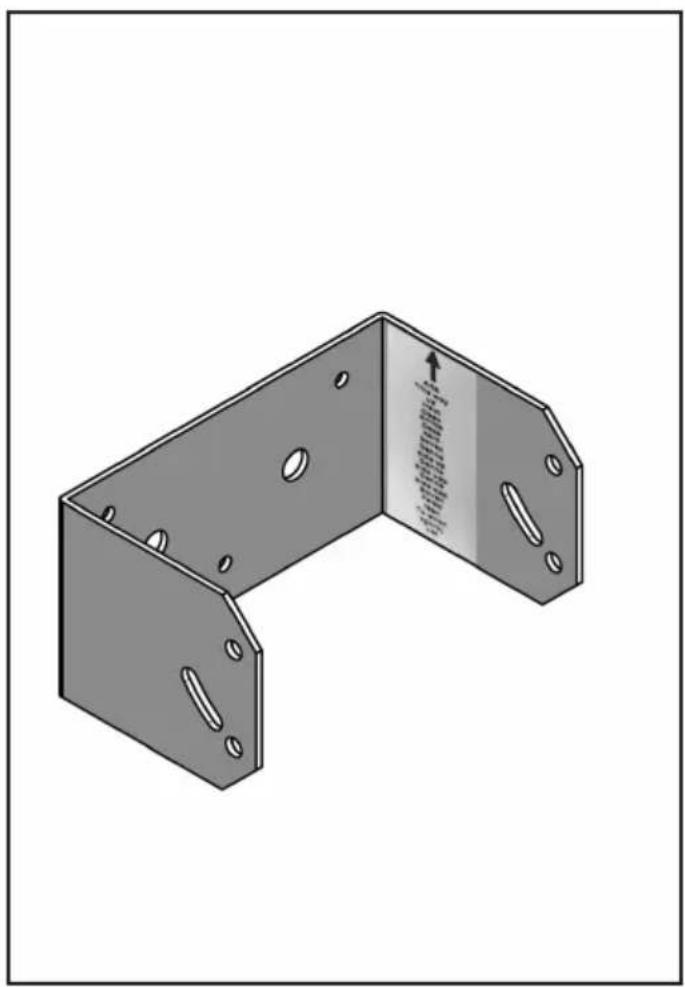

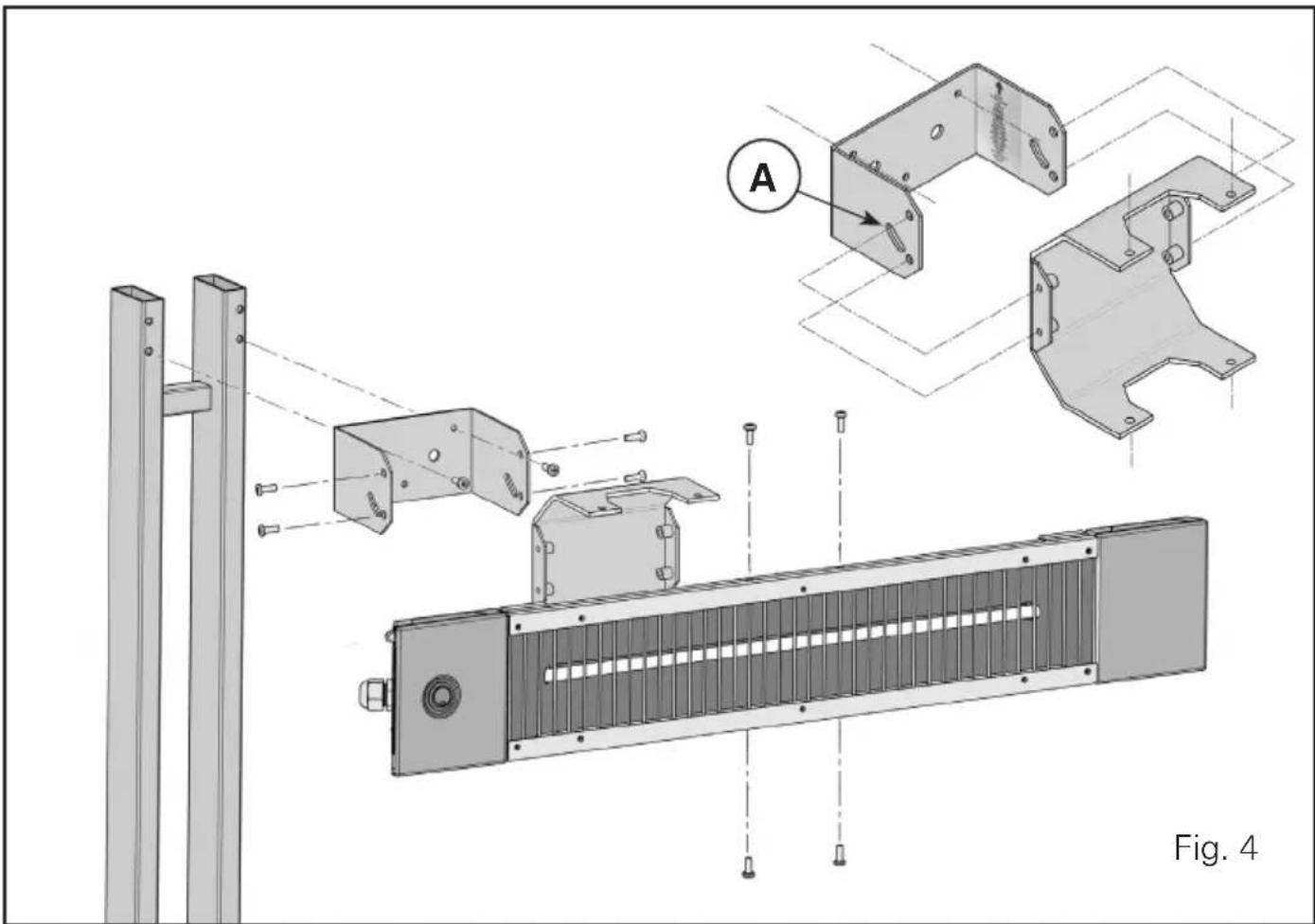

- Upright mounting (code 702, optional). Ensure that the slots in the support (cod. 003205, optional) are located at its lower end (Fig. 4 and Fig. 4-A), and the arrow on the label is turned up (Fig. 5).

The wall/pole bracket (code 003205, optional) allows the mounting of the appliance in either perpendicular or tilted position. In the first case, fix the two parts of the bracket by the screws on the 4 holes at the side; in the second, fix the two parts of the bracket by the screws on the upper 2 holes at the side and 2 slots below. (See Fig. 6).

Use only the upright "Totem" that can be ordered as accessory (cod. 702).

Ensure that the power cable cannot come into contact with the reflector of the appliance and does not intrude into the area of light flux.

4. USE

The CasaTherm range consists of a 1500 W and a 2000 W heater. The essential element of the heater is the halogen filled quartz linear lamp with a tungsten element. The heater operates at full output almost immediately. The heating reaches a distance of about 3 meters in front of the appliance.

Avoid exposing skin to the rays of the appliance for distances less than 50 cm.

Avoid exposing eyes to the rays of the appliance for distances less than 2.70 m.

All users should be made aware of all aspects of operation and safety and these instructions should be retained for reference.

• Switch on the heater (in the models that have the switch. Fig 1-A).
• Ensure that the rays of the heater are directed towards the area it is wished to heat. If necessary, change the angle of inclination by loosening the support screws.
• Do not use the heater directly near a bathtub, a shower, a swimming pool.
• In unoccupied premises it is recommended that the heating system is switched off and isolated from the electrical supply.

5. MAINTENANCE

CasaFan CasaTherm heaters contain no moving parts and therefore very little maintenance is required other than to ensure that there is no excessive build-up of dust/dirt on the reflectors or emitters as this can cause overheating and premature emitter failure. To clean the appliance, wipe off with a damp cloth.

The accumulation of limestone or incrustations reduces the life and the efficiency of the lamp; it is suggested therefore to avoid the continued use in presence of water or salt fog. Eventual leavings of salt water will have to be removed before the use, after having disconnected the appliance, by means of soak in sweet water.

6. EMITTER AND SILICON BUMPERS REPLACEMENT

The emitters used in the CasaTherm are robust and if knocks and shock vibrations are avoided, they will last for around 5000 hours. When changing the lamp, also the silicon bumpers

connected with the lamp must be substituted. They should be substituted even before if there are signs of aging. Due to the special sealing and anti-shock design of the heater, the emitters are not intended to be user replaceable. Please ensure that all emitters are replaced via the CasaFan service network.

1. TECHNICAL FEATURES

70728
Power supply	220-240 V ~ 50-60 Hz
Power	1500 W
Insulation Class	I
Protection level	IP55
Lamp	Quartz - tungsten wire (GOLD)
Lamp life (hours)	5000
Emission	IR-A
Range (m2)	6÷9
Weight (kg)	1,1÷1,3
Dimensions (mm)	730x38x120

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Blank gray image with no visible content, text, or symbols

1. INSTRUCTIONS IMPORTANTES POUR LA SÉCURITÉ

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Blank gray image with no visible content, text, or symbols

1. AVVERTENZE IMPORTANTI PER LA SICUREZZA

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Blank gray image with no visible content, text, or symbols

Symbol of a trash bin crossed out by two diagonal lines, representing waste or discharge (no text or numbers present)

Blank gray image with no visible content, text, or symbols

1. IMPORTANTES INSTRUÇÕES PARA A SEGURANÇA

Symbol of a trash bin crossed with diagonal lines, representing waste or discharge (no text or numbers present)

Blank gray image with no visible content, text, or symbols

1. TURVAOHJEITA

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels present)

DE ACHTUNG

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This

indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement. It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials sed in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance.

Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

FR ATTENTION

CasaFan reserves the right to make improving changes on products on sale.
