Brand	CasaFan
Model	CasaTherm W2000
Product type	Halogen infrared radiator (RILH)
Power	2000 W
Rated voltage	220-240 V ~50 Hz
Protection class	I / IP65
Dimensions (Diameter x Height)	485 x 130 x 112 mm
Weight	3.5 kg
Use	Indoor and outdoor supplementary heating (IP55)
Installation	Wall mounting with swivel bracket included
Control	Infrared remote control included
Package contents	Radiator, wall bracket, screws, wall plugs, remote control
Safety distance	Min. 2 m from flammable objects, 50 cm from ceiling
Maintenance	External cleaning with dry cloth or soft brush
Protection	Do not cover, do not use in dusty environments
Repairability	Repair only by an authorized service
Compliance	WEEE Directive 2002/96/EC

Frequently Asked Questions - CasaTherm W2000 CasaFan

How to install the CasaTherm W2000 heater?

Follow figures 1 to 4 in the manual. Attach the wall bracket with the supplied wall plugs and screws, then hang the heater. Ensure a distance of at least 2 m from flammable materials and 50 cm from the ceiling. The appliance must be mounted horizontally.

What is the power and voltage of the CasaTherm W2000?

The power is 2000 W and the rated voltage is 220-240 V ~50 Hz. The mains must be protected by a fuse of at least 16 A.

Can I use this heater outdoors?

Yes, thanks to its protection rating IP65, it can be used temporarily outdoors. However, avoid very dusty or humid environments.

How to clean the CasaTherm W2000 heater?

Unplug the appliance and wait for it to cool down. Clean the exterior and the grille with a dry cloth or soft brush. Do not use flammable products or water.

What to do if the heater does not work?

Check the domestic mains fuses (must be time-delayed) and the connection. If the problem persists, unplug the appliance and contact an authorized service.

What safety distances must be observed?

Maintain a distance of at least 2 m from flammable objects (curtains, furniture) and 50 cm from the ceiling. In workshops with flammable substances, the minimum distance is 4 m.

Is the heater supplied with a remote control?

Yes, an infrared remote control is included in the packaging, as well as the wall bracket and screws.

Can I use an extension cable?

Only use an extension cable if it is suitable for the 2000 W power and has been checked by a qualified technician. Otherwise, plug directly into a wall socket.

How to store the appliance when not in use?

Unplug it, clean it, then store it covered in a dry place to protect it from dust.

What to do if the cable is damaged?

Do not use the appliance. The mains cable can only be replaced by a repair workshop authorized by the manufacturer, as special tools are required.

USER MANUAL CasaTherm W2000 CasaFan

Line drawing of a mechanical component with slots and mounting base (no text or symbols)

HALOGEN-INFRAROTHEIZSTRAHLER

HALOGEN INFRARED HEATER

RÉCHAUFFEUR À RAYONS INFRAROUGES AVEC LAMPES HALOGÈNES RISCALDATORE A RAGGI INFRAROSSI CON LAMPADE ALOGENE

CasaTherm® W 1500/2000 Gold-LowGlare

CE

GB Table of Contents:

Content of Packing 4
Notice of Assembly/Installation 5
Installation/Assembly 6
Operation 7
Technical Data 11
Important Safety Advices 12
Advices for Operation 12
Cleaning/Maintenance 12
Storage 13
Help with Faults 13
Accessories (optional) 22

T Indice:

Top-down schematic of a rectangular ventilation system with slatted grilles and ventilation slots (no text or labels)

Simple diagram of a dumbbell with a numbered circle above it (no text or symbols on the diagram itself)

Two identical mechanical bolt components with threaded ends, shown in line drawing style (no text or symbols)

Line drawing of a metal sheet with bolt holes and a circular hole, labeled with number 2 (no text or symbols on the diagram itself)

D	GB	FR	I
1. Strahler mit Gehäuse	1. Heater	1. Radiateur	1. Riscaldatore

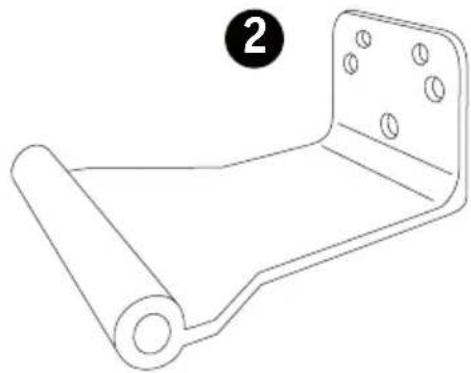

2. Wandhalterung	2. Wall fi xing accessory	2. Support de montage mural	2. Supp. per installaz. a muro
3. Schraube mit Dübel 5 x 65 (2 x)	3. Anchor bolt with nut 5 x 65 (2x)	3. Cheville avec vis 5 x 65 (2x)	3. Caviglia a Vite 5 x 65 (2x)
4. Stift m. Verschraubunger	4. Threaded pin with nuts	4. Vis à cuvette	4. Vite senza testa con intagli

Bedienung

Operation

Fonctionnement

Funzionamento

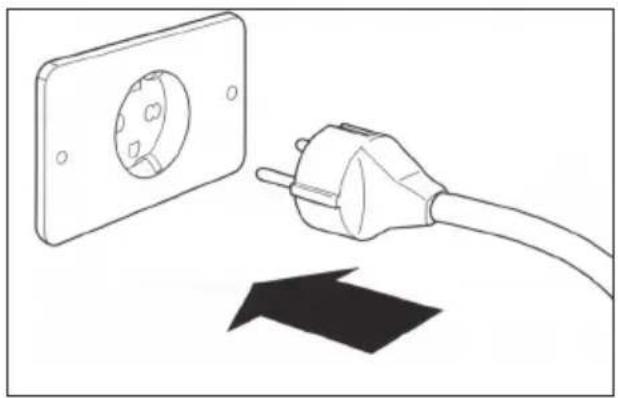

ON

Line drawing of a hand holding an electrical plug next to a wall socket (no text or symbols)

OFF

Line drawing of a hand holding an electrical plug next to a wall socket (no text or symbols)

About this operating instructions

Before using the CasaFan heater, read the operating instructions carefully. Keep the operating instructions within reach. Never pass the heater onto another person without the operating instructions.

Explanation of symbols:
Dangerous electric voltage	Careful
Warn the user of the dangers caused by electricity	Particular note for the user.

Describing the CasaFan Halogen Infrared Heater

The heater is concepted as an addition heater. The use in machines which are outside and unprotected, in garages or rooms in danger of fire or explosion, is not permitted. By IP55 degree of protection it can be used in humid areas and outside.

Technical data:

	CasaTherm W1500 Gold Low Glare	CasaTherm W2000 Gold Low Glare
Mains voltage: 220 - 240 V, ~50 Hz
Power: 1500 Watt 2000 Watt
Protection clas: I / IP65
Dimensions ∅ x H (mm)	485 x 130 x 112
Weight (kg): 3,5

Caution! Only operate the unit when completely assembled!

- Unpack the CasaFan Halogen Infrared Heater, check if everything is present (see Figure on page 4) and for visible signs of damage.
1. Heater 2. Wall fixing accessory 3. Anchor bolt (2x)
4. Threaded pin with 2 nuts

- Dispose of packaging taking the environment into account and keep out of the reach of children.

Assembly

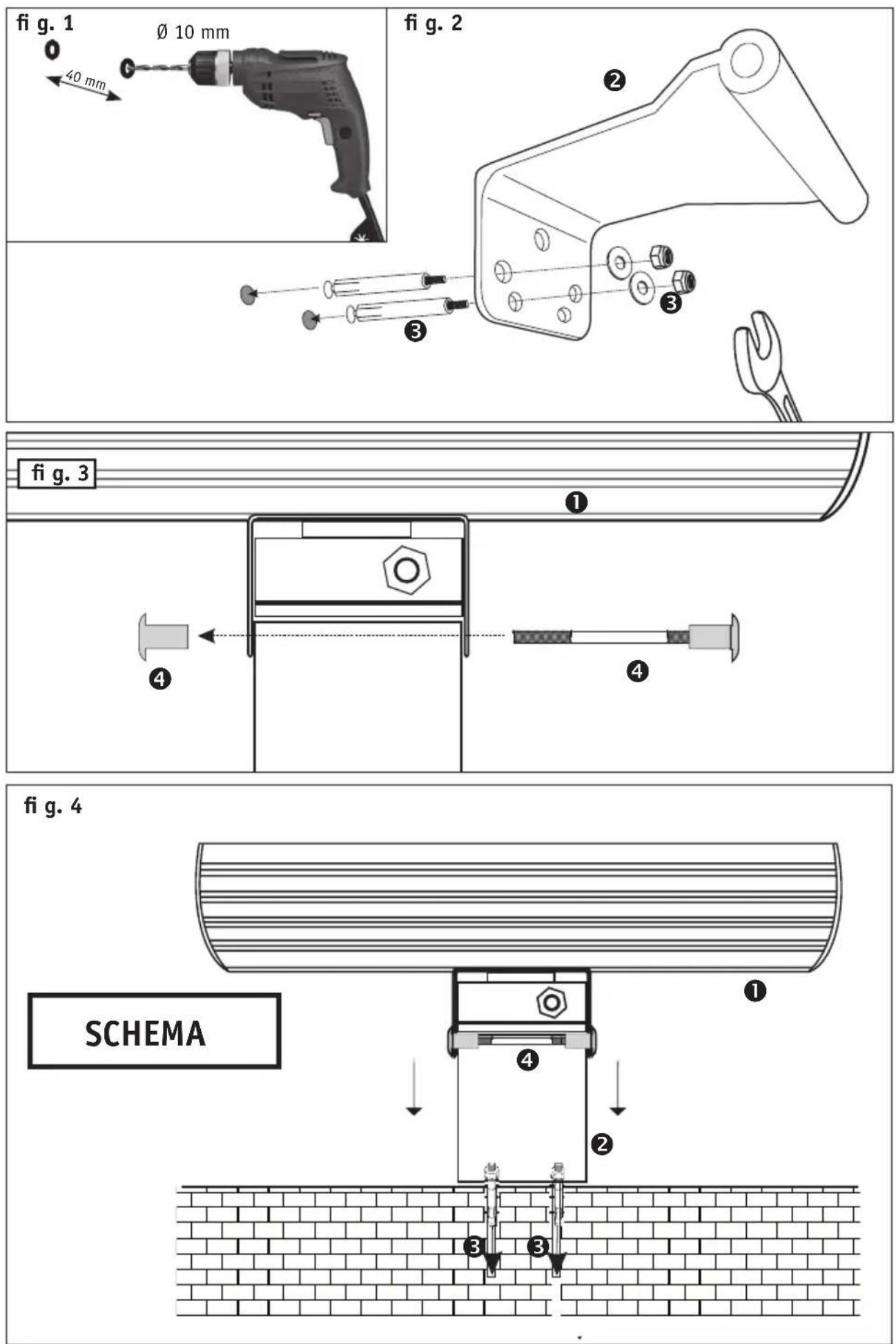

Please proceed as per figure 1 - 4 on page 6 of these operating instructions. Please pay attention to the safety advices for installation on page 5 and 11 - 13.

When dealing with electricity and heater products, just conforming to all the safety and precautionary measures can not describe every danger situation. They do not replace sensible procedures and care, which you have to take into account when first initiating and then running your halogen infrared heater.

Assembly and place of installation

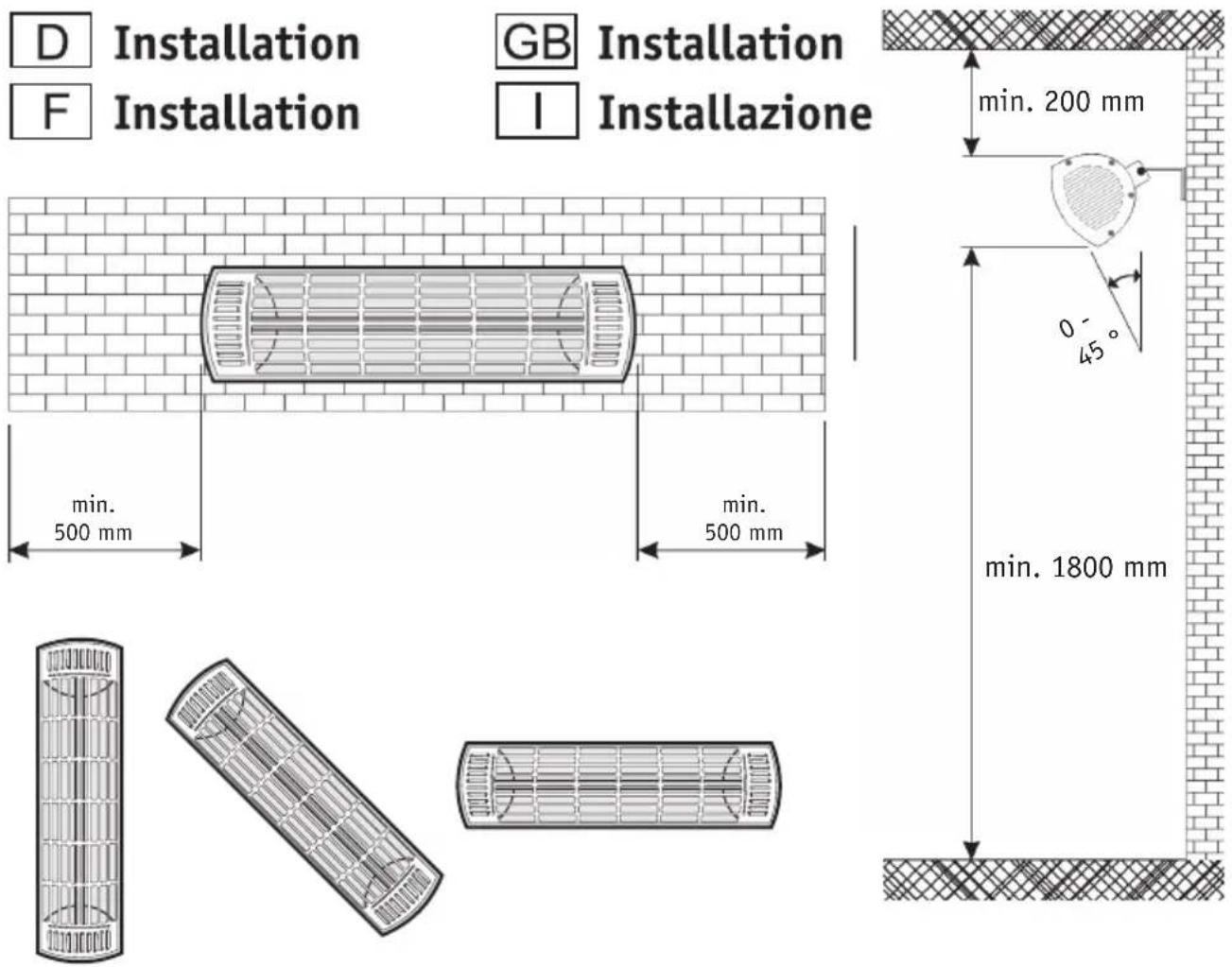

- Never install the Halogen Infrared Heater (HIH) near to or facing towards inflammable surfaces. HIH must be positioned at a distance of not less than 2 m from objects made of flammable materials, such as cardboard or fabric, and from glass doors and windows. The heater must never be mounted in such a way that it points directly towards a wall or ceiling. When the appliance is installed in environments (e.g. workshops or car parks) containing flammable or combustible substances (paints, solvents, etc.), HIH must be positioned at a

GB

distance of not less than 4 m from the source of danger. The minimum distance to easily flammable ceilings is 50 cm.

• Do not use the appliance where flammable vapours are present (spirit, insecticides, petrol, etc.).
• HIH is not indicated for installation in extremely dusty environments, in which the bulb might be damaged.
• In order to avoid creating a fire hazard, the appliance must never be installed with the radiating elements close to or facing towards curtains, beds or other objects or materials that are liable to burn easily; always ensure that these objects are at a suitable minimum distance, to avoid any risk of fire or heat damage.
• WARNING: never position HIH directly under a power socket.

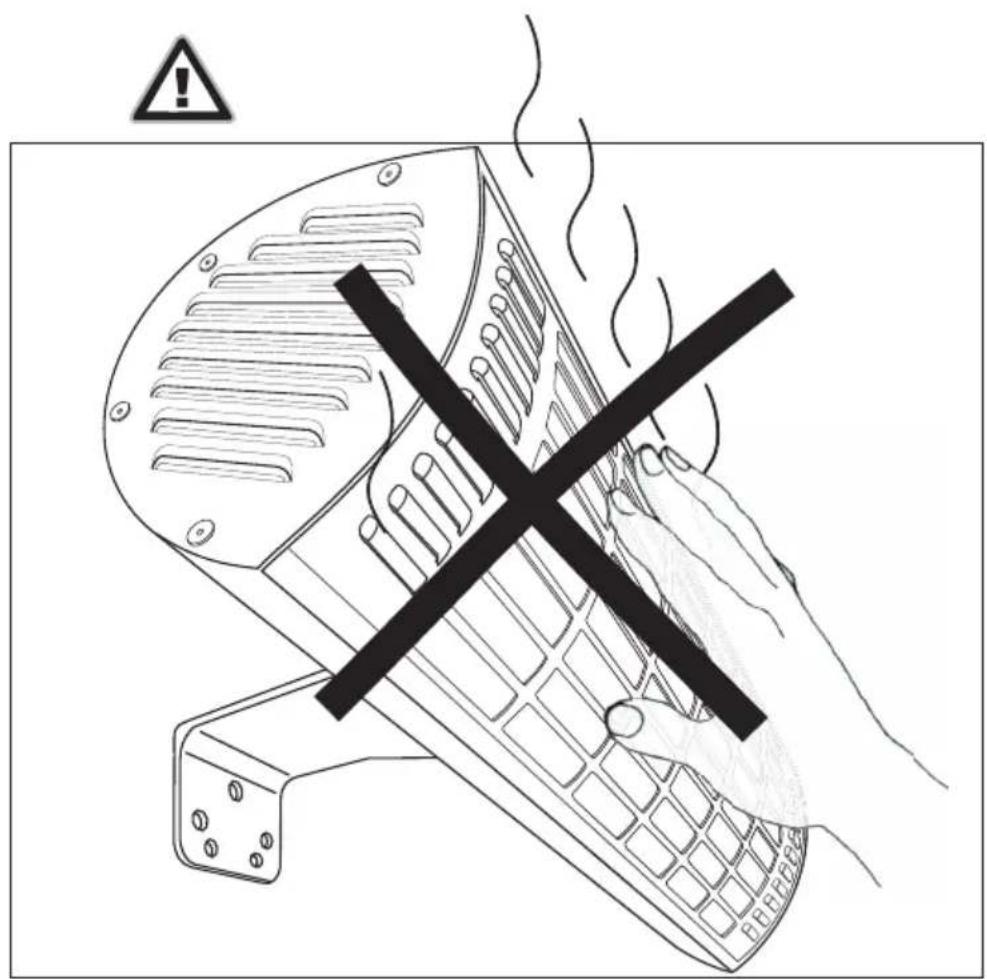

• The appliance becomes very hot during use. Avoid all contact between your skin and the hot surfaces of the appliance. Switch the appliance off and wait at least 5 minutes for it to cool down before performing any work on it
• Do not cover or block the front heat irradiation grille.
• Do not cover or block the appliance during use.
• Keep the front grille clean.
• The appliance must always be mounted horizontally.

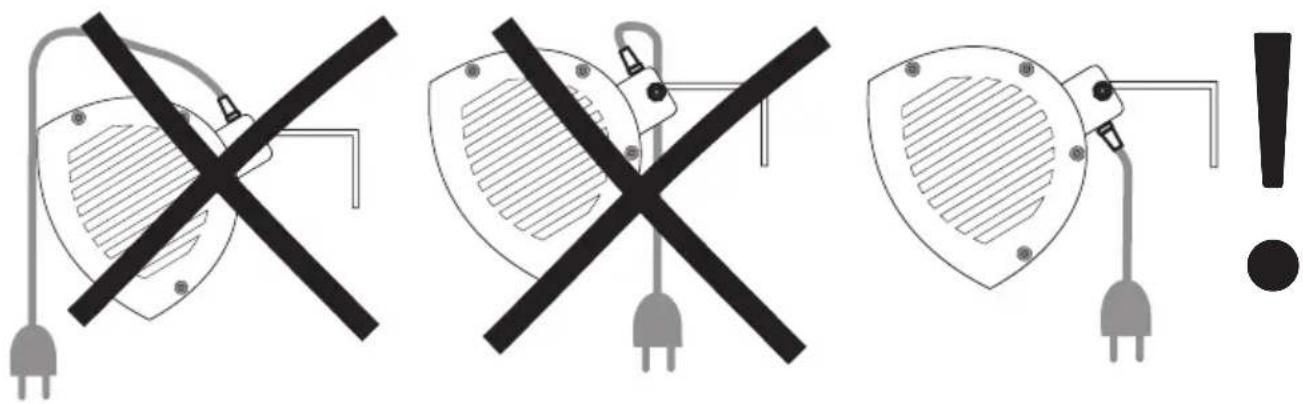

• Never wrap the power supply cord on the unit.
• The unit must be handled with care, and avoid of vibration or hitting.
• Don't use this unit as a cloth or towel dryer or for drying anything else.
• Don't use this unit as a sauna heater or as a room heater of heating storing.
• Don't use this unit in place of animal propagating and raising.

When using any electric units, several basic rules have to always followed, as detailed below:

General

• The voltage details on the nameplate are to conform with the available mains voltage.
• The house fuse installed may resist at least 1500/2000 W, a 16 A non fast acting fuse should be preferred.
• The building mains must be earthed!
• Only operate the unit when completely assembled!

Operation

• If mounted on a stand, the unit is to be operated on a level, stable base.
• Position the mains cable such that no danger of tripping is possible in order to avoid throwing, or pulling the unit over.
• Do no push objects through the guard.
• The units are never be touched when having wet or moist hands.
• The units are never be used if you are barefooted.
• Never connected to an extension cord unless it's approved for at least 10 A.
• The units are never be used in a the bathroom or shower unless you take exceptional care.
• Do not pull on the cable or unit in order to separate the plug from the socket.
• Do not subject the unit to detrimental environmental influences (strong sunlight etc).
• Never allow unsupervised children, or incapable persons, to use it.
• Never immerse an electrical device in water.
• Check regularly, but most definitely before every use, the mains cable and mains plug for damage.
• If any damage is visible, then further use of the unit must not be made.
• If any damage and/or reduced functioning occurs, switch off and do not manipulate the unit.
• If, in such as event, a repair is necessary, contact an authorised by the manufacturer custo-

mer service point.

- Always take note of the general safety rules when using electrical equipment.

Maintenance/cleaning notes

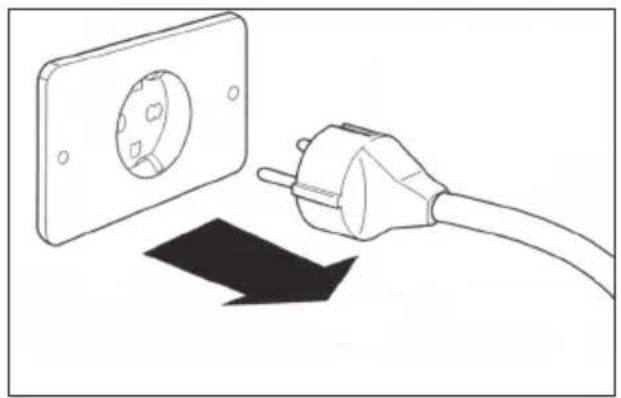

• Before carrying out any cleaning or maintenance work, remove the plug or switch off the electrical equipment!
• Clean the surface of the housing and the guard with a dry cleaning cloth and a damp brush.
• Do not use petrol or any similar light flammable cleaning material.

Storage

• If the fan is not to be used for some time, then store it in a dry room.
• In addition, you could put a cover on your unit to protect it from dust or dirt deposits.

Disposal

• Remove mains plug
• Cut through the mains cable at the plug
• Dispose of the unit in a proper manner.

Help with faults

Problem Suggestions for rectification
The heater does not work. 1- Check main	and ancillary fuses. It should be an non-fast acting fuse dimensioned for the maximum power of your heater.2- Check heater for correct connection to the power socket.
If the above information does not fix the problem, unplug the heater by removing the plug from the wall socket.In the case of a damage or breakdown, please leave the heater with a qualified electrician to fix the problem.If the power cord on the unit is damaged it may only be replaced by a repair facility authorised by the manufacturer. Replacement of the power cord requires special tools.
Attention: Any repairs including replacing the halogen heating lamp should only be carried out by a qualified electrician or by a recommended service center!

This product conforms to EU Directive 2002/96/EC. This appliance bears the symbol of the barred waste bin. This indicates that, at the end of its useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment, or returned to a retailer on purchase of a replacement.

It is the user's responsibility to dispose of this appliance trough the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the shop from which you purchased the appliance. Manufacturers and importers fulfil their responsibilities for recycling, processing and environmentally compatible disposal either directly or by participating in collective systems.

FR

ATTENTION

Technical line drawing of a mechanical assembly with two plates and a central cylindrical component (no text or symbols)

Pivoting wall fixture

Technical line drawing of a mechanical bracket with mounting holes and a threaded fastener (no text or symbols)

SSK1 #71011

Sonnenschirmklemme

Parasol fixture

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Klemme für Rohre/Standaufsteller Pipe clamp fixture/Stand mounting Support de montage tuyau/Montant Staffa per montaggio a tubi/Colonna

STA1 #70010

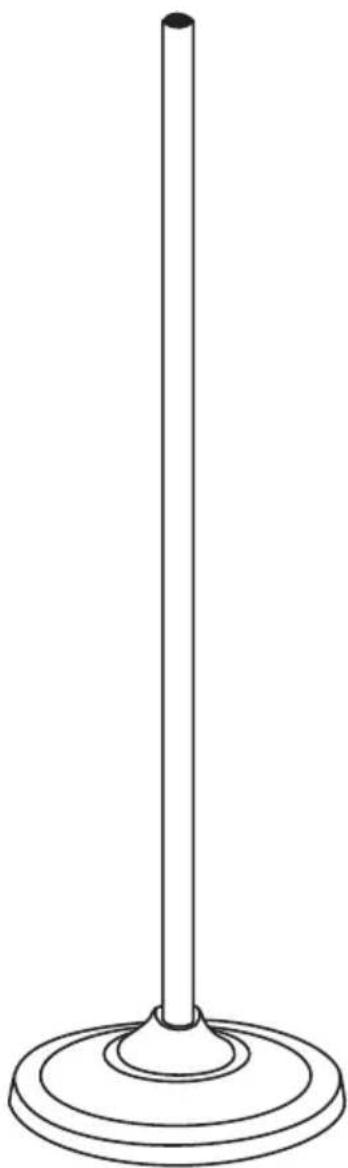

Standaufsteller 2,5 m Stand mounting 2,5 m Montant 2,5 m Colonna 2,5 m

Simple line drawing of a vertical pole with circular base (no text or symbols)

CasaFan reserves the right to make improving changes on products on sale.
