HmIPWTH1 - Thermostat Homematic IP - Free user manual and instructions

Product type	Wall thermostat
Brand	Homematic IP
Model	HmIPWTH1
Dimensions (without frame)	55 x 55 x 23.5 mm
Dimensions (with frame)	86 x 86 x 25 mm
Power supply	2 batteries 1.5 V LR03/Micro/AAA
Battery life	Approximately 2 years (typical use)
Main functions	Temperature and humidity measurement, control of underfloor heating and radiators, automatic, manual and holiday modes, weekly programming, Boost function, control lock, temperature offset, actuator connection test
Maintenance and cleaning	Soft, dry, lint-free cloth; lukewarm water if necessary; avoid solvents
Safety	Risk of battery explosion, do not open, keep out of reach of children, use in dry indoor areas
Radio frequency	868.3 MHz / 869.525 MHz
Radio range (open field)	Typ. 250 m
Protection rating	IP20
Ambient temperature	0 to 35 °C
Mounting	On wall (screws or adhesive), on flush-mount box, in compatible multiple frame (Berker, ELSO, GIRA, Merten, JUNG)
Package contents	Wall thermostat, wall mount, 2 adhesive strips, 2 screws, 2 wall plugs, 2 batteries, 2 instruction manuals, safety sheet

Frequently Asked Questions - HmIPWTH1 Homematic IP

How to install the Homematic IP HmIPWTH1 wall thermostat?

You can mount it on the wall using the included double-sided adhesive strips or with screws (drilling 5 mm). For mounting on a flush-mount box, use the provided holes. Make sure the arrow on the mounting plate is pointing upwards. Then place the frame and the electronic module by snapping the locking tabs.

How to replace the batteries of the wall thermostat?

Remove the electronic module by grasping it from the side and pulling it out of the frame. Turn it over, insert two new LR03/Micro/AAA batteries respecting polarity (see markings). Replace the module into the frame ensuring "TOP" is at the top and the tabs snap into place.

What are the available operating modes?

The thermostat offers automatic mode (following the weekly profile), manual mode (fixed temperature set manually) and holiday mode (constant temperature for a defined period). You can also lock the control and use the Boost function.

How to program a weekly heating profile?

Programming is done via the Homematic IP app or the WebUI interface. You can define up to 6 heating phases (13 switching points) per day, with target temperatures for each time period. The thermostat then follows this profile in automatic mode.

What to do in case of communication failure with the Access Point or the actuator?

Check the radio connection and range. Make sure the Access Point is on and properly configured. You can perform a connection test from the thermostat menu (symbol ). If the problem persists, restart the devices.

How to restore factory settings of the HmIPWTH1?

Remove the electronic module, take out one battery, then reinsert it while holding the system button for 4 seconds until the LED flashes orange quickly. Release, then press the system button again for 4 seconds until the LED turns green. The device restarts with factory settings.

What is the radio range of the wall thermostat?

The radio range in open field is typically 250 meters. Indoors, it may vary depending on building materials and obstacles (walls, furniture). The frequencies used are 868.3 MHz and 869.525 MHz.

How to clean the wall thermostat?

Use a soft, dry, lint-free cloth. For stubborn dirt, lightly dampen the cloth with lukewarm water. Do not use cleaners containing solvents, as they could damage the plastic casing.

Can the wall thermostat be mounted on a flush-mount box?

Yes, the thermostat can be mounted on a flush-mount box (installation box) using the provided holes (I) on the mounting plate. Make sure the box contains no bare wires and entrust the electrical installation to a professional if necessary.

What do the different LED flashing sequences mean?

Short orange flash: radio transmission. Long green: operation successful. Long red: operation failed or Duty Cycle limit reached. Short orange every 10 s: active learning mode. Orange then green after battery insertion: test display. See manual for more details.

USER MANUAL HmIPWTH1 Homematic IP

Printed in Hong Kong

SET 88.0 °C % AUTOMANU BOOST

3

>PC< G H PA66

4

I J J I

5

K

6

Line drawing of a hand holding a digital camera module (no text or symbols)

7

Line drawing of a hand holding a battery and its open rear panel (no text or symbols)

8

Line drawing of a hand inserting a device into a wall-mounted panel (no text or symbols)

Inhaltsverzeichnis

1 Homematic IP Wall Thermostat – basic
1 Wall mounting bracket
2 Double-sided adhesive strips
2 Screws 3.0 x 30 mm
2 Plugs 5 mm
2 1.5 V LR6/mignon/AA batteries
2 operating manuals
1 Supplement sheet with safety instructions

Documentation © 2023 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

157380 (web)

Version 1.0 (01/2023)

Table of contents

1 Information about this manual 30
2 Hazard information 30
3 Function and device overview 31
4 General system information....33
5 Start-up....33

5.1 Pairing the Homematic IP Access Point 33
5.2 Installation....34

5.2.1 Adhesive strip mounting 35
5.2.2 Screw mounting 35
5.2.3 Mounting on flush-mounted boxes 36
5.2.4 Installation in multiple combinations....37

6 Operating modes and configuration 38

6.1 Automatic mode....38
6.2 Manual operation....39
6.3 Selecting the desired temperature display....39
6.4 Holiday mode 40
6.5 Operating lock....40
6.6 Programming of heating schedules 40

6.6.1 Week profile....40
6.6.2 Optimum start/stop function 40

6.7 Date and time....40
6.8 Offset temperature....40
6.9 Linking the floor heating actuator 41
6.10 Communication test 41

7 Operation 41
8 Changing the batteries 42
9 Troubleshooting 43

9.1 Low battery 43
9.2 Command not confirmed....43
9.3 Duty cycle 44
9.4 Error codes and flashing sequences ....44

10 Restoring factory settings 45
11 Maintenance and cleaning....46
12 General information about radio operation....46
13 Technical specifications 47

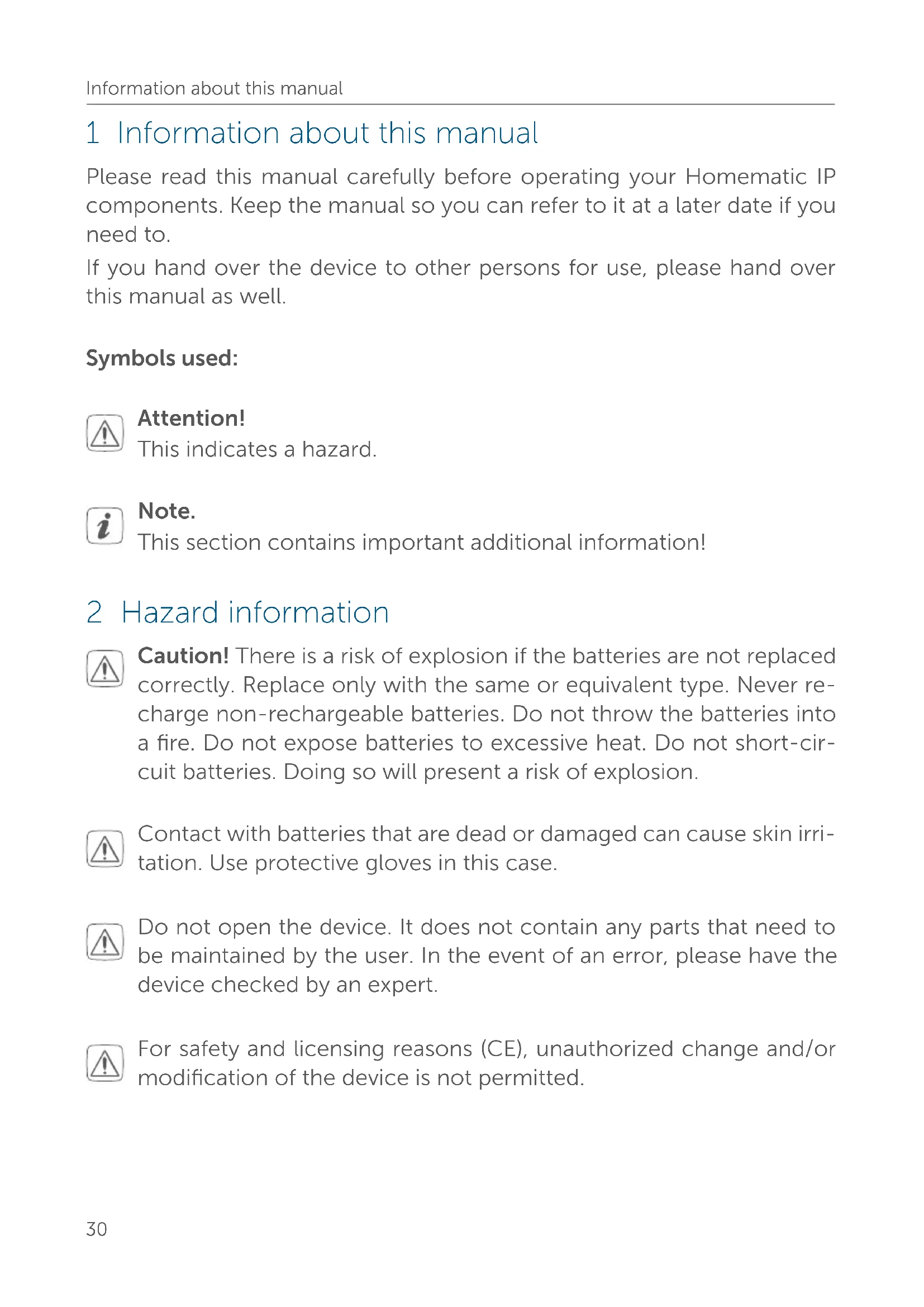

1 Information about this manual

Please read this manual carefully before operating your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to.

If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note.

This section contains important additional information!

2 Hazard information

Caution! There is a risk of explosion if the batteries are not replaced correctly. Replace only with the same or equivalent type. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion.

Contact with batteries that are dead or damaged can cause skin irritation. Use protective gloves in this case.

Do not open the device. It does not contain any parts that need to be maintained by the user. In the event of an error, please have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy: do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We accept no liability for damage to property or personal injury caused by improper use or failure to observe the hazard warnings. In such cases, all warranty claims are void. We accept no liability for any consequential damage.

The device must only be operated within residential buildings.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and will invalidate any warranty or liability.

3 Function and device overview

The Homematic IP Wall Thermostat offers time-controlled regulation of floor heating systems in connection with Homematic IP Floor Heating Actuators or conventional radiators using Homematic IP Radiator Thermostats according to individually tailored heating phases.

The wall thermostat serves to measure the temperature and humidity in a room. The data is cyclically transmitted to a floor heating actuator or radiator thermostats in order to regulate the room temperature precisely.

You can pair the wall thermostats with a Homematic IP CCU3 or connect it to the Homematic IP access point in order to control the device comfortably via the Homematic IP app.

Thanks to battery operation, the device is highly flexible where mounting and selecting a mounting location are concerned. The device is mounted

and removed very easily with the supplied clip-on frame using screws or adhesive strips. It is compatible with a number of different surfaces including furniture, brick walls, tiles or glass. It is also possible to integrate the wall thermostat into existing switches.

Device overview (see figure 1):

(A) Clip-on frame
(B) Electronic unit (thermostat)
(C) Display
(D) System button (pairing button and LED)
(E) Control wheel
(F) Mounting plate

Display overview (see figure 2):

°C	Set/actual temperature
%	Humidity
	Warning about condensation
	Open window symbol
	Battery symbol
	Radio transmission
BOOST	Boost function
MANU	Manual operation
AUTO	Automatic mode
	Holiday mode
	Heat
	Cool
	Operating lock
SET	Setpoint temperature

More detailed descriptions of the symbol functions can be found in the chapter see „6 Operating modes and configuration“ on page 38.

4 General system information

This device is part of the climate control solution of Homematic IP and works with the Homematic IP radio protocol. All devices of the climate control solution can be configured comfortably and individually with a smartphone via the Homematic IP app. The available functions provided by the Homematic IP system in combination with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.homematic-ip.com.

5 Start-up

Please read this entire section before starting the pairing procedure.

The wall thermostat must first be added in order to be able to communicate with other devices in your system. To control your heating, you can teach the wall thermostat to the Homematic IP Access Point as described in see „5.1 Pairing the Homematic IP Access Point“ on page 33.

For more information on teaching and setting up the wall thermostat using a CCU3, please refer to the WebUI manual on our homepage at www.homematic-ip.com.

5.1 Pairing the Homematic IP Access Point

First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the Access Point operating manual.

To add your wall thermostat to the access point, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select "Add device".

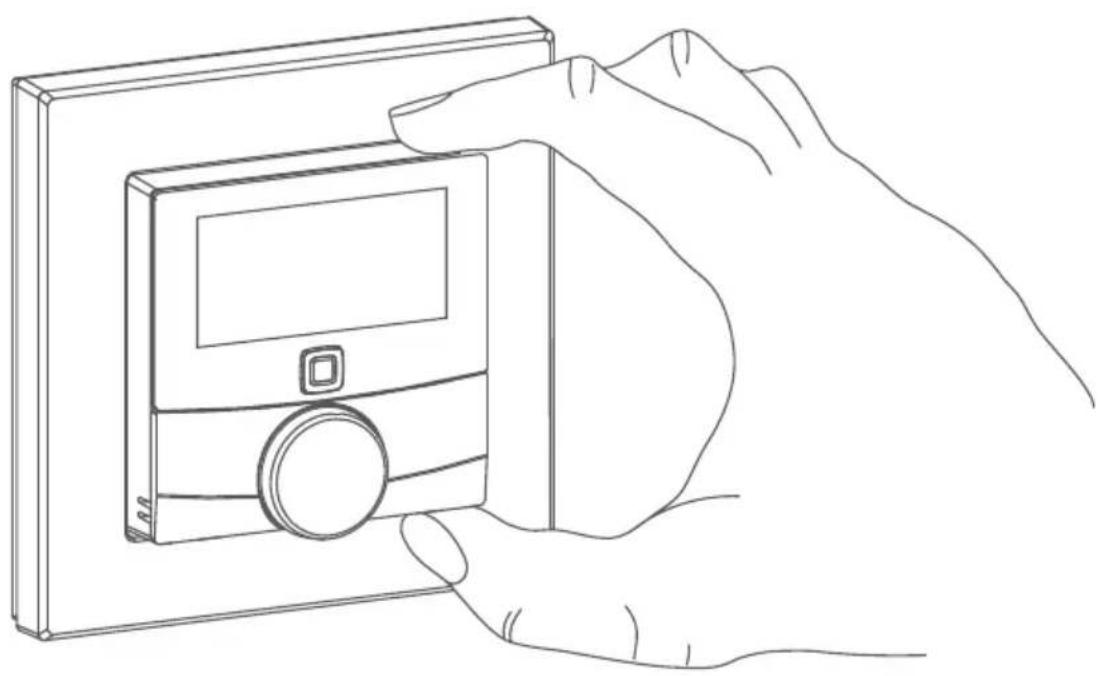

• To remove the electronic unit (B) from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6).
• Turn over the electronic unit (B).

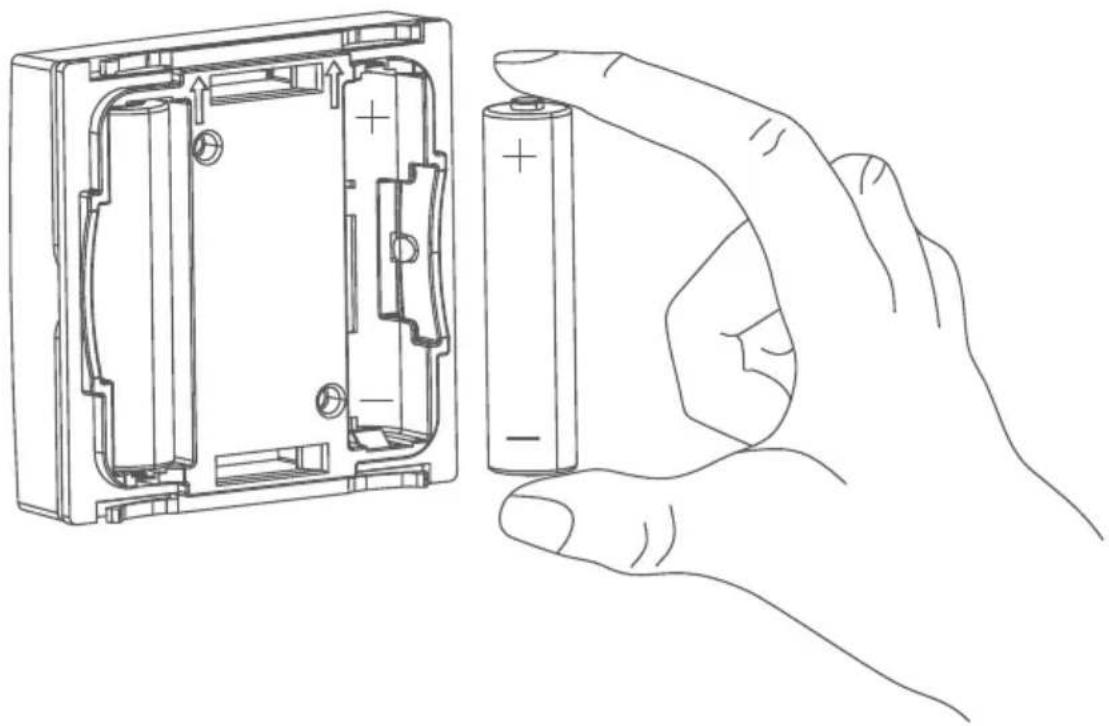

• Remove the insulation strip from the battery compartment of the wall thermostat.
• The pairing mode is active for 3 minutes.

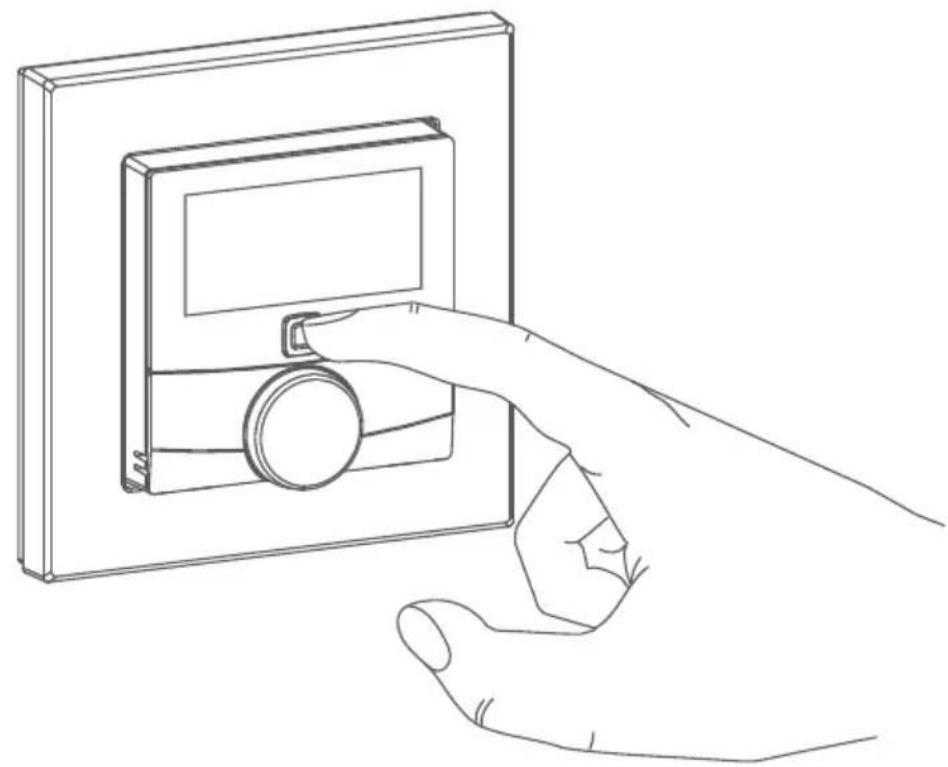

You can manually start the pairing mode for another 3 minutes by pressing the system button (D) briefly (see figure 8).

• Your device will automatically appear in the Homematic IP app.
• To confirm, enter the last four digits of the device number (SG-TIN) in your app, or scan the QR code. The device number can be found on the sticker supplied or attached to the device.
• Wait until pairing is completed.
• If pairing was successful, the LED lights up green. The device is now ready for use.
• If the LED lights up red, please try again.
• Select the desired solution for your device.
• Allocate the device to a room and give the device a name.

5.2 Installation

Please read this entire section before starting the installation.

You can use the supplied clip-on frame (A) to mount the wall thermostat or easily integrate it into an existing switch (see see „5.2.4 Installation in multiple combinations“ on page 37).

If you want to mount the wall thermostat with the supplied clip-on frame, you can use

• the supplied double-sided adhesive strips or
• the supplied screws

to fix it to a wall.

You can also mount the wall thermostat on a flush-mounting box.

5.2.1 Adhesive strip mounting

For mounting the assembled wall thermostat with the adhesive strips, please proceed as follows:

- Choose a site for installation.

Make sure that the mounting surface is smooth, solid, non-disturbed, free of dust, grease and solvents and not too cold to ensure long-time adherence.

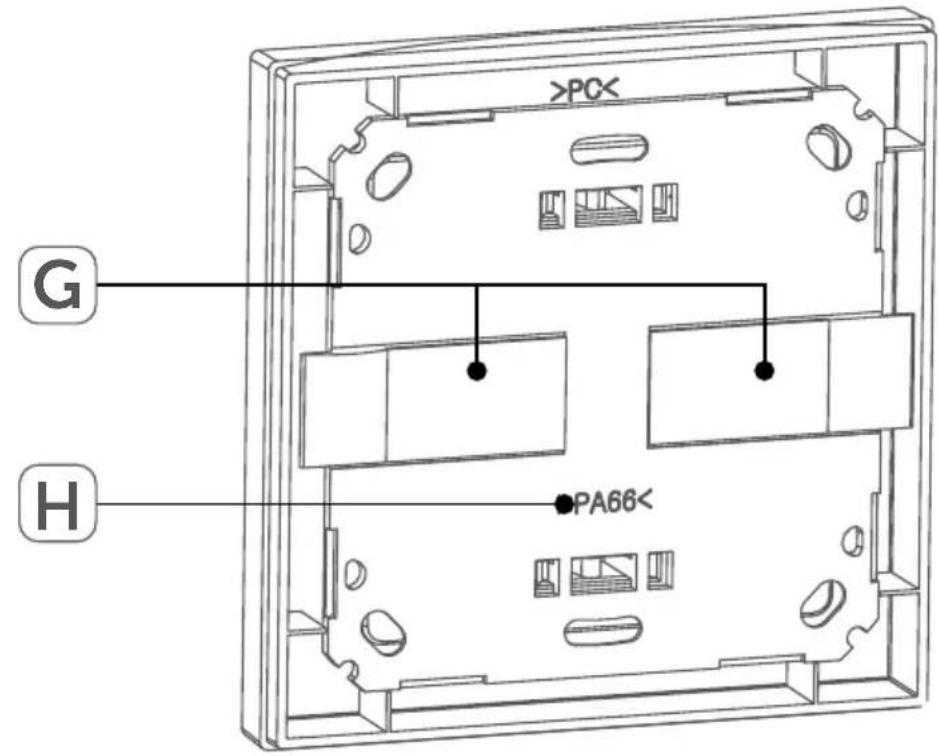

• Fix the adhesive strips (G) on the back side of the mounting plate (F) in the provided area. Make sure that you can read the letters on the back side (H) (see figure 3) and that the clips on the mounting plate latch into the openings on the wall thermostat.
• Remove the protective film from the adhesive strips.
• Press the assembled wall thermostat with the back side to the wall in the position where it should subsequently be attached.

5.2.2 Screw mounting

For mounting the wall thermostat by screws, please proceed as follows:

- Choose a site for installation.

Make sure that no electricity or similar lines run in the wall at this location!

• Position the mounting plate (F) on the desired site on the wall. Make sure that the arrow on the mounting plate is pointing upwards.

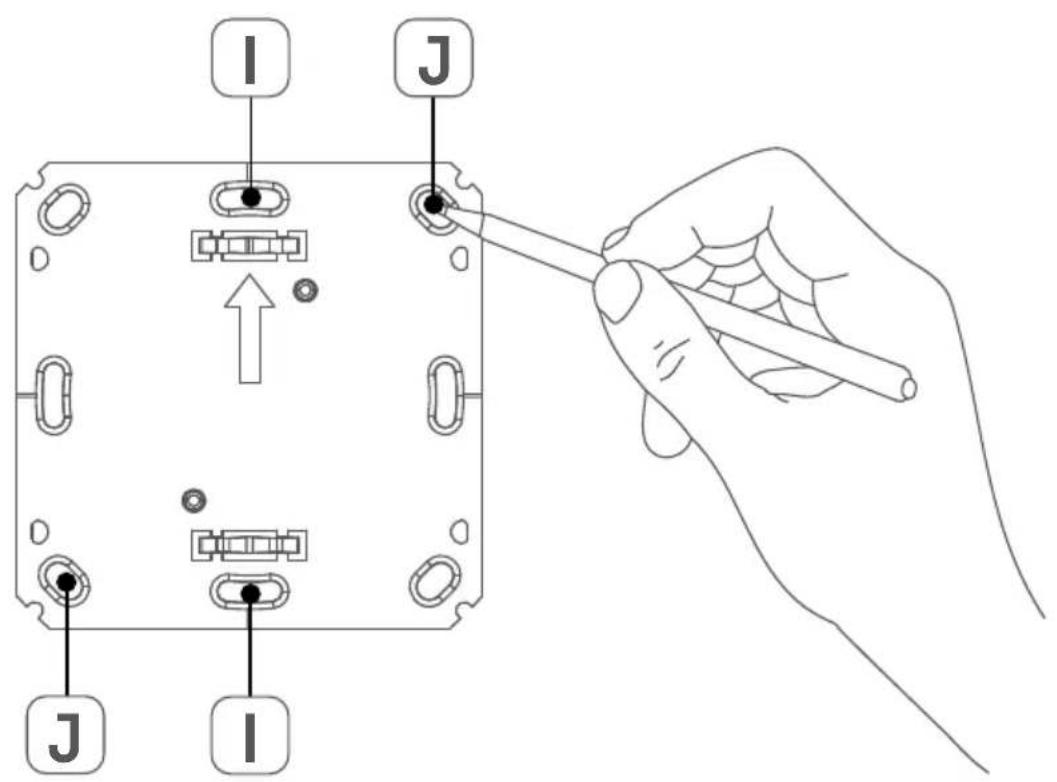

• Use a pen to mark the positions of bore holes (J) (diagonally opposite) in the mounting plate on the wall (see figure 4).
• Now drill the bore holes.

If you are working with a stone wall, use a 5 mm drill bit for the wall plugs supplied. If you are working with wooden walls, you can use a 1.5 mm drill bit to make it easier to screw in the screws.

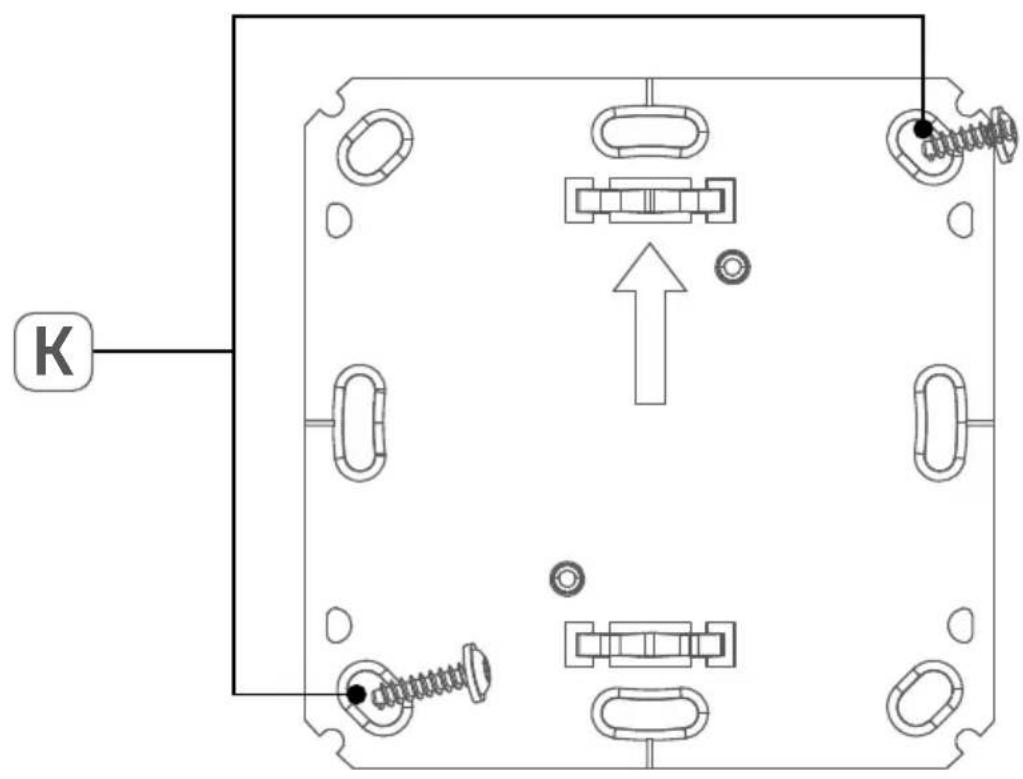

• Use the supplied screws and plugs (K) to fasten the mounting plate to the wall (see figure 5).
• Attach the clip-on frame (A) to the mounting plate.
• Place the electronic unit (B) back into the frame (see figure 1). Make sure that "TOP" and the arrows on the back side point upwards and that the clips on the mounting plate latch into the openings on the electronic unit.

5.2.3 Mounting on flush-mounted boxes

You can mount the wall thermostat on flush-mounting/installation boxes using the holes (I) (see figure 4).

If the device is mounted to a flush-mounting box, there may be no open conductor ends.

If changes or works have to be made on the house installation (e.g. extension, bypass of switch- or socket inserts) or the low-voltage distribution for mounting or installing the device, the following safety instruction must be considered:

Please note! Only to be installed by persons with the relevant electro-technical knowledge and experience!*

Incorrect installation can endanger

• your own life,
  • and the lives of other users of the electrical system.

Incorrect installation also means that you are running the risk of serious damage to property, e.g. from fire. You risk personal liability for personal injury and property damage.

Consult an electrician!

\*Specialist knowledge required for installation:

The following specialist knowledge is particularly important during installation:

• The "5 safety rules" to be used: disconnect from mains; safeguard from switching on again; check that no voltage is present in system; earth and short circuit; cover or cordon off neighbouring live parts;
• Select suitable tool, measuring equipment and, if necessary, personal safety equipment;
• Evaluation of measuring results;
• Selection of electrical installation material for safeguarding shut-off conditions;
  • IP protection types;
  • Installation of electrical installation material;
• Type of supply network (TN system, IT system, TT system) and the resulting connecting conditions (classical zero balancing, protective earthing, required additional measures etc.).

5.2.4 Installation in multiple combinations

You can mount the wall thermostat with the attachment frame (A) provided or use it with frames of other manufacturers as well as integrate the electronic unit (B) into a multi-gang frame. You can flexibly fix the mounting plate (F) to the wall using adhesive strips or screws. For mounting with multiple combinations, make sure that the mounting plate of the wall thermostat is seamlessly aligned to the already fixed mounting plate/ retaining ring.

The wall thermostat is designed to fit into frames supplied by the following manufacturers:

Manufacturer Frame
Berker S.1, B.1, B.3, B.7 glass
ELSO Joy
GIRA System 55,	Standard 55, E2, E22, Event, Esprit
merten 1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan
JUNG A 500, AS	500, A plus, A creation

6 Operating modes and configuration

After pairing and mounting the device, you can individually adjust the settings to your personal needs via the configuration menu. To do this, proceed as follows:

• Press and hold down the control wheel (E) to open the configuration menu.
• Select the desired symbol by turning the control wheel and pressing it briefly if you want to adjust the settings of the following menu items.

Press and hold down the control wheel to get back to the previous level.

The menu automatically closes without applying changes if there is no operation for more than 1 minute.

6.1 Automatic mode
6.2	MANU	Manual operation
6.3	LCD	Selecting the desired temperature display
06:10		Communication test

6.1 Automatic mode

In automatic mode, the temperature is controlled in accordance with the set week profile (see see „6.6.1 Week profile“ on page 40). Manual changes that are set via the control wheel (E) are activated until the next point at which the profile changes. Afterwards, the defined heating schedule will be activated again. To activate the automatic mode, please proceed as follows:

• Press and hold down the control wheel (E) to open the configuration menu.
• Select the AUTO symbol by turning the control wheel and confirm by pressing the control wheel briefly.

6.2 Manual operation

In manual mode, the temperature is controlled in accordance with the current temperature set via the control wheel (E). The temperature remains activated until the next manual change. To activate the manual mode, please proceed as follows:

• Press and hold down the control wheel (E) to open the configuration menu.
• Select the MANU symbol by turning the control wheel and confirm by pressing the control wheel briefly.
• Turn the control wheel to set the desired temperature.

6.3 Selecting the desired temperature display

You can adjust the temperature to be displayed. You can also define whether the humidity value shall be displayed or not.

• Press and hold down the control wheel (E) to open the configuration menu.
• Select the LCD symbol by turning the control wheel and confirm by pressing the control wheel briefly.

• Turn the control wheel and select

• "°C" to display the actual temperature,

• "SET" to display the setpoint temperature,
• “%” and °for alternating between the actual temperature and humidity display and confirm by pressing the control wheel briefly.

Please note that the settings described below (chapter 6.4 to chapter 6.9) can only be set up via the Homematic IP App or WebUI. For more information, see the user manual on our homepage at www.homematic-ip.com.

6.4 Holiday mode

The holiday mode can be used if you want to maintain a fixed temperature for a certain period (e.g. during your holidays or a party).

6.5 Operating lock

Operation of the device can be locked to avoid settings being changed unintended (e.g. through involuntary touch).

6.6 Programming of heating schedules

You can use this menu item for configuring heating and cooling profiles and to adjust the week profiles according to your personal needs.

If the selected schedule is a heating schedule, the room is heated as soon as the temperature falls below the defined value. If the selected profile is a cooling profile, the room is cooled as soon as the temperature increases the defined value.

6.6.1 Week profile

In the week schedule, for each weekday up to 6 heating schedules(13 change settings) can be set separately. The programming is carried out for the selected days, whereby temperature settings have to be set for the entire period between 00:00 and 23:59h.

6.6.2 Optimum start/stop function

To reach the desired temperature in the room at the defined time you can activate the optimum start/stop function.

6.7 Date and time

You can set the year, month, day and time.

6.8 Offset temperature

As the temperature is measured on the wall thermostat, the temperature distribution can vary throughout a room. To adjust for this, a temperature offset of ±3.5 ^ can be set. If, for example, 18 ^ is measured instead of the 20 ^ set, an offset of -2.0 ^ must be set. An offset temperature of 0.0 ^ is set in the factory settings.

6.9 Linking the floor heating actuator

To use a Homematic IP floor heating actuator with the Homematic IP wall thermostat, it must first be taught to the Homematic IP Access Point and then linked to the wall thermostat.

For more information on the configuration options, please refer to the operating instructions of the Homematic IP floor heating actuator and the Homematic IP user manual.

6.10 Communication test

You can check the connection between your Homematic IP Wall Thermostat and the Homematic IP Floor Heating Actuator. During this test, the wall thermostat transmits a switching command to the floor heating actuator. Depending on the current status of the actuator, the device is switched on or off for confirmation after receiving the command.

• Press and hold down the control wheel (E) to open the configuration menu.
• Select the ⏻ symbol by turning the control wheel and confirm by pressing the control wheel briefly.

7 Operation

After configuration, simple operations are available directly on the device.

If the wall thermostat is in standby mode, please press the control wheel (E) once before operation to activate the device.

- Temperature: Turn the control wheel (E) to the right or to the left to manually change the temperature. In automatic mode, the manually set temperature will remain the same until the next point at which the schedule changes. Afterwards, the defined heating schedule will be activated again. During manual operation, the temperature remains activated until the next manual change.

- Boost function for Homematic IP Radiator Thermostats: Press the control wheel (E) of the wall thermostat briefly to activate

the boost function for heating up the radiator quickly and briefly by opening the valve. There will be a pleasant room temperature right away because of the radiated heat.

8 Changing the batteries

If the symbol for empty batteries (☐) appears in the display or in the app, please replace the used batteries by two new LR03/micro/AAA batteries. You must observe the correct battery polarity.

To replace the batteries of the wall thermostat, please proceed as follows:

• Once mounted, the electronic unit (B) can easily be pulled out of the frame (A) and removed from the mounting plate (F). To remove the electronic unit from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6). You do not need to open the device.
• Turn the electronic unit over to remove or insert the batteries.
• Insert two new 1.5 V LR03/micro/batteries into the battery compartment, making sure that you insert them the right way round (see figure 7).
• Put the electronic unit back into the frame. Make sure that "TOP" and the arrows on the back side of the electronic unit point upwards and that the clips on the mounting plate latch into the openings on the electronic unit.
• Please pay attention to the flashing signals of the device LED while inserting the batteries (see see „9.4 Error codes and flashing sequences“ on page 44).

Once the batteries have been inserted, the wall thermostat will perform a self-test/restart (approx. 2 seconds). Afterwards, initialisation is carried out. The test display will indicate that initialisation is complete: orange and green lighting.

Caution! There is a risk of explosion if the batteries are not replaced correctly. Never recharge non-rechargeable batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion.

Leaking or damaged batteries can cause burns if they come into contact with the skin, so use suitable protective gloves in this case.

Used batteries should not be disposed of with regular domestic waste! Instead, take them to your local battery disposal point.

9 Troubleshooting

9.1 Low battery

Provided that the voltage value permits it, the wall thermostat will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly once the batteries have been allowed a brief recovery period.

If the voltage drops too far during transmission, the empty battery symbol (0) and the corresponding error code will be displayed on the device (see see „9.4 Error codes and flashing sequences“ on page 44). In this case, replace the empty batteries by two new batteries (see see „8 Changing the batteries“ on page 42).

9.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see see „12 General information about radio operation“ on page 46). This may be caused by the following:

• Receiver cannot be reached.
• Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is faulty.

9.3 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive pairing processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by three slow flashes of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

9.4 Error codes and flashing sequences

Error and flashing codes	Meaning Solution
Battery symbol (☐)	Battery voltage too low	Replace the batteries of the device (see see „8 Changing the batteries“ on page 42).
Antenna symbol flashing (☐)	Communication error with Homematic IP access point/floor heating actuator	Please check the connection to the Homematic IP access point/floor heating actuator.
Flashing humidity symbol (%)	Humidity limit (60%) in the room is exceeded	Ventilate the room and switch from cooling to heating mode, if required
Flashing condensation and cooling symbol (☐)	Humidity input of Multi IO Box has been activated	Ventilate the room and switch from cooling to heating mode, if required
Lock symbol (☐) Operating lock activated		Deactivate the operating lock via the app.
Short orange flashes	Radio transmission/attempting to transmit/data transmission	Wait until the transmission is completed.
1x long green flash	Operation confirmed	You can continue operation.
1x long red flash Operation	operation failed	Try again (see see „9.2 Command not confirmed“ on page 43).
Short orange flashes (every 10 seconds)	Pairing mode active	Please enter the last four numbers of the device serial number for confirmation (see see „5.1 Pairing the Homematic IP Access Point“ on page 33).
Short orange lighting (after green or red confirmation)	Batteries empty Re	place the batteries (see see „8 Changing the batteries“ on page 42).
1x long red flash Transmission	transmission failed or duty cycle limit is reached	Please try again (see „9.2 Command not confirmed“ on page 43 or see „9.3 Duty cycle“ on page 44).
6x long red flashes Device defective Please	Device defective Please	ase see your app for error message or contact your retailer.
1x orange and 1x green light (after inserting batteries)	Test display After the test display has stopped, you can continue.

10 Restoring factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the wall thermostat, please proceed as follows:

• To remove the electronic unit (B) from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6).

• Remove one battery.

• Insert the battery ensuring that the polarity is correct (see figure 7) and press and hold down the system button (D) for 4s at the same time, until the LED will quickly start flashing orange (see figure 8).

• Release the system button.
• Press and hold down the system button again for 4 seconds, until the LED lights up green.
• Release the system button again to conclude the procedure.

The device will perform a restart.

11 Maintenance and cleaning

The device does not require you to carry out any maintenance other than replacing the battery when necessary. Leave any maintenance or repair to a specialist.

Clean the device using a soft, clean, dry and lint-free cloth. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

12 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity play an important role, as do on-site structural/ening conditions.

eQ-3 AG, Maiburger Straße 29, 26789 Leer, Germany hereby declares that the radio equipment type Homematic IP HmIP-WTH-1 is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.homematic-ip.com

13 Technical specifications

Device short description: HmIP-WTH-1

Supply voltage: 2x 1.5 V LR03/micro/AAA

Current consumption: 50 mA max.

Battery life: 2 years (typical)

Protection rating: IP20

Ambient temperature: 0 to 35 °C

Dimensions (W x H x D):

Without frame: 55 x 55 x 23.5 mm

Including frame: 86 x 86 x 25 mm

Weight: 100 g (including batteries)

Radio frequency: 868.3 MHz/869.525 MHz

Receiver category: SRD category 2

Typical range in open space: 250 m

Duty cycle: < 1 % per h/< 10 % per h

Method of operation: Type 1

Pollution degree: 2

Subject to modifications.

Instructions for disposal

Do not dispose of the device with normal domestic waste! Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

CE The CE mark is a free trademark that is intended exclusively for the authorities and does not imply any assurance of properties.

For technical support, please contact your retailer.

Poids : 100 g (piles comprises)

Printed in Hong Kong

Dimensioni (L x A x P):

Printed in Hong Kong

Free download of the Homematic IP app!

Blue QR code image, scannable for digital information retrieval

Download on the

App Store

Blue QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

ANDROID APP ON

Google play

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

eQ-3 AG

Maiburger Straße 29

26789 Leer / GERMANY

www.eQ-3.de
