Product type	Tube microphone preamplifier
Model	WA-MPX (single-channel) / WA-2MPX (dual-channel)
Dimensions (estimated)	483 x 44 x 200 mm (19" x 1.75" x 8")
Weight (estimated)	4.5 kg
Power supply	115 V / 230 V selectable, internal, IEC socket
Maximum gain	90 dB (with gain booster)
Tubes per channel	2x 12AX7, 1x 12AU7
Transformers	CineMag USA custom-wound, large core
Microphone input impedance	600 Ω (normal) / 150 Ω (tone engaged)
Outputs	XLR and TRS balanced line level
Inputs	Microphone XLR, instrument TS, line TRS
Filters	High-pass 80 Hz, low-pass 2 kHz
Tape saturation	Selectable, adds compression and harmonic distortion
Phantom power	+48 V switchable
Tone control	Modifies input transformer impedance
VU meter	Output level indicator
Frequency response	20 Hz - 20 kHz
Warranty	1 year (registration within 14 days)
Maintenance	Clean with a dry cloth
Safety	Do not use near water; refer servicing to qualified personnel
Replacement parts	Contact Warm Audio

Frequently Asked Questions - WAMPX Warm Audio

How do I connect a microphone to the WA-MPX?

Connect your microphone to the XLR input on the rear of the unit. Ensure that +48 V phantom power is enabled if using a condenser microphone. For dynamic or ribbon microphones, leave it off.

What does the tone switch do?

The Tone switch changes the input transformer impedance from 600 Ω to 150 Ω (pressed in). This adds a more aggressive and thick tonal coloration, ideal for extra punch. Try both positions to find the desired sound.

How do I use the tape saturation?

Engage the tape saturation switch to add additional natural compression and harmonic distortion. This simulates the saturation of old magnetic tape, bringing analog warmth to your signal.

What is the difference between the WA-MPX and WA-2MPX models?

The WA-MPX is a single-channel preamp, while the WA-2MPX is a dual-channel preamp. The WA-2MPX offers two identical channels, each with its own controls, allowing stereo recording or processing two independent sources.

How do I adjust the gain and output level?

Use the preamp gain knob to adjust the tube amplification. The output level knob acts as an attenuator to avoid overloading the next stage. Increase gain to saturate the tubes, then adjust output level for appropriate volume.

What to do if no sound comes out?

Check that the power switch is on (LED lit). Make sure the microphone cable is properly connected and the microphone is working. Check gain and output level settings. If the problem persists, verify connections and power supply.

Can I use condenser microphones with this unit?

Yes, the WA-MPX provides switchable +48 V phantom power. Engage the +48 V switch to power condenser microphones. Do not engage it with dynamic or ribbon microphones to avoid damage.

How do I reverse polarity?

Press the polarity switch (φ symbol) to reverse the signal phase. This is useful when using multiple microphones to avoid phase cancellation. Engage it if the sound seems hollow or unbalanced.

What is the role of the 80 Hz high-pass filter?

The 80 Hz high-pass filter removes frequencies below 80 Hz, reducing unwanted low-frequency noise like vibrations or rumble. Use it to clean up the signal from sources producing excessive low-end.

How do I maintain the unit?

Clean the unit with a dry, soft cloth. Avoid any liquids or chemicals. Unplug it during thunderstorms or extended non-use. For any repairs, contact Warm Audio or a qualified technician.

USER MANUAL WAMPX Warm Audio

Authentic Reproduction Of The Most Revered Tape-Era Tube Mic Preamp

- ENGLISH (PG 1) • FRANÇAIS (PG 12) • ESPAÑOL (PG 23) • DEUTSCH (PG 34)

Front panel of a black-and-white industrial audio amplifier with control knobs and a digital display (no visible text or symbols on main body)

WA-2MPX

Front view of a black industrial audio amplifier front panel with multiple knobs and a digital display (no visible text or symbols on main body)

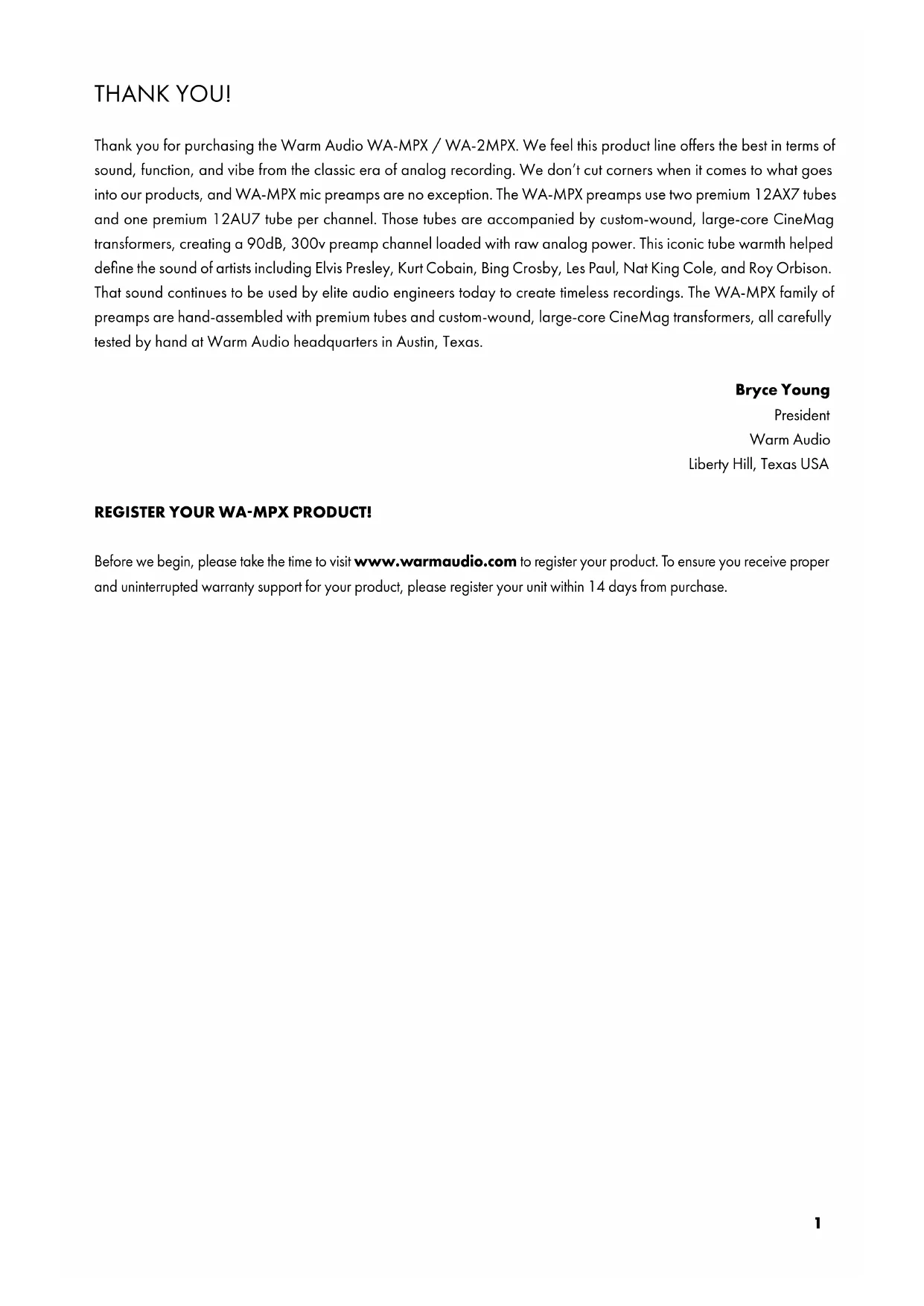

THANK YOU!

Thank you for purchasing the Warm Audio WA-MPX / WA-2MPX. We feel this product line offers the best in terms of sound, function, and vibe from the classic era of analog recording. We don't cut corners when it comes to what goes into our products, and WA-MPX mic preamps are no exception. The WA-MPX preamps use two premium 12AX7 tubes and one premium 12AU7 tube per channel. Those tubes are accompanied by custom-wound, large-core CineMag transformers, creating a 90dB, 300v preamp channel loaded with raw analog power. This iconic tube warmth helped define the sound of artists including Elvis Presley, Kurt Cobain, Bing Crosby, Les Paul, Nat King Cole, and Roy Orbison. That sound continues to be used by elite audio engineers today to create timeless recordings. The WA-MPX family of preamps are hand-assembled with premium tubes and custom-wound, large-core CineMag transformers, all carefully tested by hand at Warm Audio headquarters in Austin, Texas.

Bryce Young

President

Warm Audio

Liberty Hill, Texas USA

REGISTER YOUR WA-MPX PRODUCT!

Before we begin, please take the time to visit www.warmaudio.com to register your product. To ensure you receive proper and uninterrupted warranty support for your product, please register your unit within 14 days from purchase.

WARRANTY STATEMENT

Warm Audio warranties this product to be free from defect in materials and workmanship for one year from the date of purchase, for the original purchaser to whom this equipment is registered. This warranty is non-transferrable.

This warranty is void in the event of damage incurred from unauthorized service to this unit, or from electrical or mechanical modification to this unit. This warranty does not cover damage resulting from abuse, accidental damage, misuse, improper electrical conditions such as mis-wiring, incorrect voltage or frequency, unstable power, disconnection from earth ground (for products requiring a 3 pin, grounded power cable), or from exposure to hostile environmental conditions such as moisture, humidity, smoke, fire, sand or other debris, and extreme temperatures.

Warm Audio will, at its sole discretion, repair or replace this product in a timely manner. This limited warranty extends only to products determined to be defective and does not cover incidental costs such as equipment rental, loss of revenue, etc. Please visit us at www.warmaudio.com for more information on your warranty, or to request warranty service.

This warranty applies to products sold in the United States of America. For warranty information in any other country, please refer to your local Warm Audio distributor. This warranty provides specific legal rights, which may vary from state to state. Depending on the state in which you live, you may have rights in addition to those covered in this statement. Please refer to your state laws or see your local Warm Audio retailer for more information.

NON-WARRANTY SERVICE

If you have a defective unit that is outside of our warranty period or conditions; we are still here for you and can get your unit working again for a modest service fee. Please visit us at www.warmaudio.com to contact us about setting up a repair or for more information.

With proper care, your Warm Audio gear should last a lifetime and provide a lifetime of enjoyment. We believe the best advertisement we can have is a properly working unit being put to great use. Let's work together to make it happen.

NOW LETS GET STARTED!

The Warm Audio WA-MPX preamps are some of the highest quality microphone preamplifiers on the market in their price range. They use custom-made components similarly found in preamplifiers with much higher price tags. Home-based musicians and professional studios alike will find the WA-MPX models to be extremely powerful, versatile and fully professional pieces of gear that are capable of warming and shaping both input signals and mixes in a way that is very pleasing to the ear.

The information contained in this manual is written to help you quickly get started using your WA-MPX / WA-2MPX.

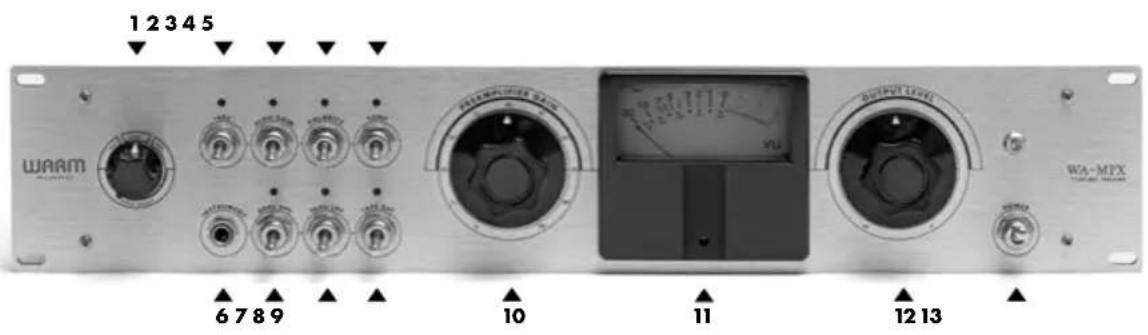

TECHNICAL SPECS - FRONT PANEL [SINGLE-CHANNEL]

Note: All applicable LEDs on WA-MPX models will illuminate when their corresponding switches are engaged

1 2 3 4 5 WARM 6 7 8 9 10 11 12 13 OUTPUT LIFET WA-MFX

1. Input Select Switch

This switch selects either mic, instrument, or line level input.

2. +48V Switch

This switch provides power for condenser mics and any other devices requiring continuous phantom power through the XLR input. This power is supplied at a constant level to prevent any degradation of audio quality.

3. High Gain Switch

This switch engages the third tube in the channel circuit for an added 20db (from 70dB to 90dB) of clean gain for low-output mics and low-volume sources - like ribbons and certain dynamic microphones.

4. Polarity Switch

This switch inverts the polarity of the signal. Use the polarity switch when recording with more than one open microphone to combat phase cancellation between microphones.

TECHNICAL SPECS - FRONT PANEL [SINGLE-CHANNEL]

5. Tone Switch

This switch changes the input transformer configuration from a 1:9 (step up) turns ratio to a steeper 1:18 (step up) turns ratio, drawing out a greater degree of coloration and impact from the input transformer. When engaged, the input impedance of the WA-MPX is 150 ohms. When disengaged, the input impedance of the WA-MPX is 600 ohms. This feature will make a noticeable tone change to most microphones. The 600 ohms impedance setting is recommended for condenser and dynamic microphones, and 150 ohms is recommended for dynamic and ribbons. This switch is labeled "Tone" for a reason; most listeners will find the unswitched setting to be more open and natural, with the engaged setting to be more punchy, aggressive, or thick. We strongly suggest you experiment with both settings on all sources to find the best possible tone for your recordings. As with all things, let your ear be the final judge on which setting to use for any given situation.

6. TS Instrument Input

You can connect a variety of instruments via the instrument input on the front panel of the WA-MPX including: acoustic and electric guitars, bass guitar, keyboards, synths and drum machines.

7. 80Hz Hi-Pass Filter

This switch removes frequencies below 80Hz to help control unwanted bass noise from unruly sources.

8. 2kHz Low-Pass Filter

This switch removes frequencies above 2kHz for more punch and focused midrange.

9. Tape Saturation Control

This switch adds a dedicated circuit of discrete analog components to the already warm tubes, delivering tape-style saturation - with added natural compression and harmonic distortion.

10. Preamplifier Gain

This knob adjusts the amount of tube gain applied in the WA-MPX channel circuit.

11. VU Meter

The VU meter allows for accurate monitoring of the signal volume exiting the WA-MPX channel.

12. Output Level

This knob acts as a 600Ω output attenuator, controlling the signal exiting the WA-MPX channel. The output level ensures that the amplified signal doesn't exit the WA-MPX at too-high a volume and prevents overloading the inputs on your recording interface or the next device in the signal chain. It also gives greater ability to drive the gain of the preamp harder resulting in greater colorization and tone shaping within the various settings.

13. Power Switch

This switch is used to power the unit on and off. LED light will indicate if the unit is powered on. To extend the life of the electronics please turn WA-MPX units off when not in use.

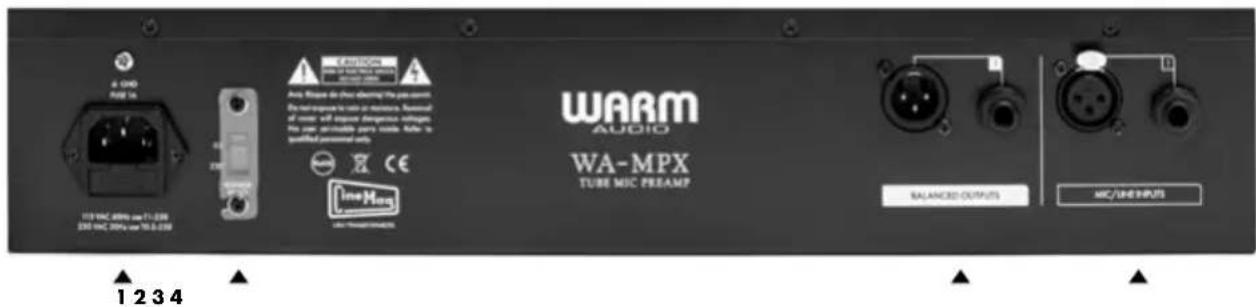

A CHD RMS TA 20 25 100 VAC 400V bus T1-238 200 VAC 300V bus T0.2-238 E:A BHTON Auto filter do other clearing the program. Extracoups to turn or move. Based of notes will require discharges - inages: the last portable party node. Note to qualified personnel only. WARM AUDIO WA-MPX TURE MIC FREAMP SALANCED OUTPUTS MIC/LINE INPUTS 1 2 3 4

1. IEC AC POWER INLET

Connect the accompanying power cord to power the unit.

2. Voltage Switch

Always use the correct rating (115v or 230v) that corresponds with local power requirements, as indicated by the red voltage switch.

3. Balanced Line Outputs (XLR & TRS)

Balanced outputs are provided on an XLR and 1/4" TRS connection for convenience.

4. Mic / Line Input

The back of the unit offers both Mic (XLR) and Line (TRS) balanced inputs for convenience. The mic input is designed for dynamic, condenser and ribbon microphones. Other instruments or devices that put out a low level microphone signal can also be plugged into this input. The line input is designed for line level instruments or sources that put out line level signals such as some keyboards, electric instruments or audio interface outputs.

WA-2MPX TECHNICAL SPECS - FRONT & REAR PANEL [DUAL-CHANNEL]

A simple list of feature / specification identification will be provided below the WA-2MPX product images. For detailed descriptions of the feature functionality, please refer to the descriptions found in the WA-MPX (single-channel) technical specs section.

Note: All applicable LEDs on WA-2MPX models will illuminate when their corresponding switches are engaged

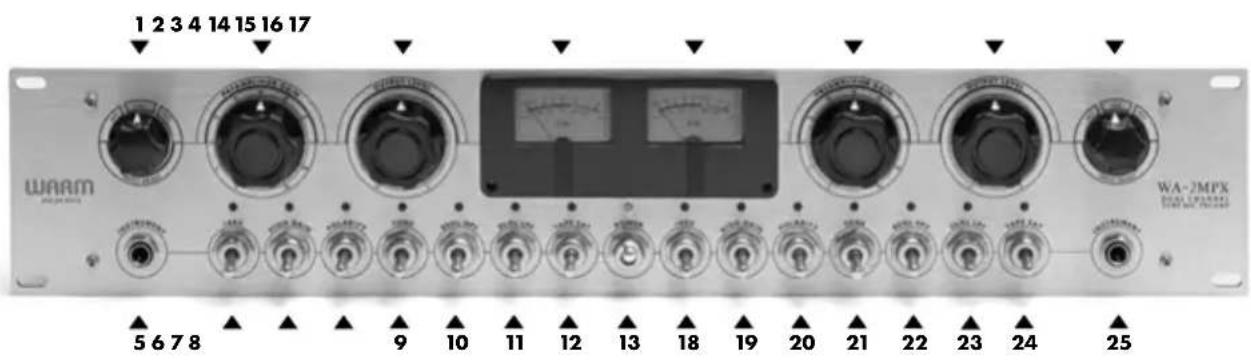

WA-2MPX - FRONT PANEL [DUAL-CHANNEL]

1 2 3 4 14 15 16 17 WARM WA-2MPX 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24 25

1. Input Select Switch
2. Preamplifier Gain
3. Output Level
4. VU Meter
5. TS Instrument Input
6. +48V Switch
7. High Gain Switch
8. Polarity Switch
9. Tone Switch
10. 80Hz Hi-Pass Filter
11. 2kHz Low-Pass Filter
12. Tape Saturation Control

13. Power Switch

14. [Channel 2] VU Meter

15. [Channel 2] Preamplifier Gain
16. [Channel 2] Output Level
17. [Channel 2] Input Select Switch
18. [Channel 2] +48V Switch
19. [Channel 2] High Gain Switch
20. [Channel 2] Polarity Switch
21. [Channel 2] Tone Switch
22. [Channel 2] 80Hz Hi-Pass Filter
23. [Channel 2] 2kHz Low-Pass Filter
24. [Channel 2] Tape Saturation Control
25. [Channel 2] TS Instrument Input

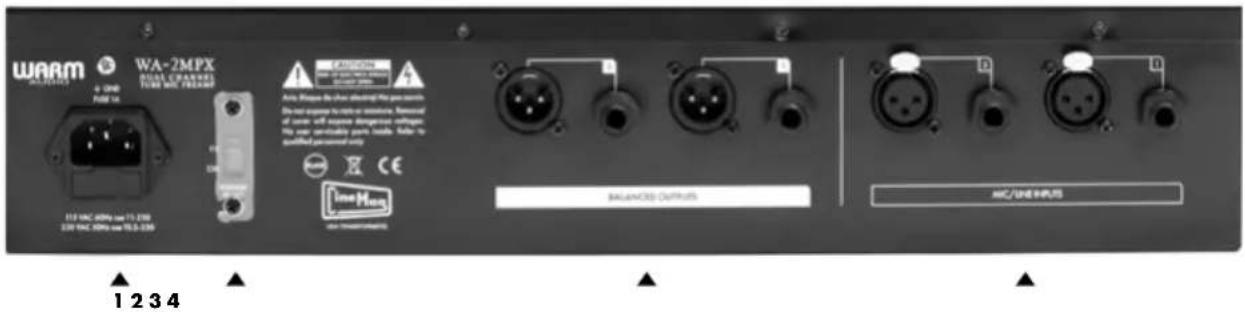

warm WALAWAY WA-2MPX DUAL CRATINGS TWO NOT APPLIC 1 2 3 4 A. Capacitors B. DIP C. E. D. A. Data: Please be done afterting the power output. The set requires to drive or transmit. Potential of user will expose dangerous relapses the user's maximum power needs. Refer to qualified performance only. Time Maps One Transmitter BALANCED OUTPUTS MAC/THE INPUTS

1. IEC AC POWER INLET

Connect the accompanying power cord to power the unit.

2. Voltage Switch

Always use the correct rating (115v or 230v) that corresponds with local power requirements, as indicated by the red voltage switch.

3. Balanced Line Outputs (XLR & TRS)

Balanced outputs are provided on an XLR and 1/4" TRS connection for convenience.

4. Mic / Line Input

The back of the unit offers both Mic (XLR) and Line (TRS) balanced inputs for convenience. The mic input is designed for dynamic, condenser and ribbon microphones. Other instruments or devices that put out a low level microphone signal can also be plugged into this input. The line input is designed for line level instruments or sources that put out line level signals such as some keyboards, electric instruments or audio interface outputs.

WA-MPX SAMPLE HOOKUP DIAGRAM [SINGLE-CHANNEL]

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A WARM AUDIO WA-MPX TUBE MIC PREAMP METER ADJUST PRE-EMPHASE STEREO LINK BALANCED OUTPUTS BALANCED INPUTS

RECORDING INTERFACE

In this example, a microphone is connected to a WA-MPX input, which sends signal into the WA-2A compressor via a balanced XLR patch cable, which feeds in the LINE LEVEL input of your recording interface/recorder.

Note: it is important to use a line level input on your recording device as opposed to a microphone or instrument level input.

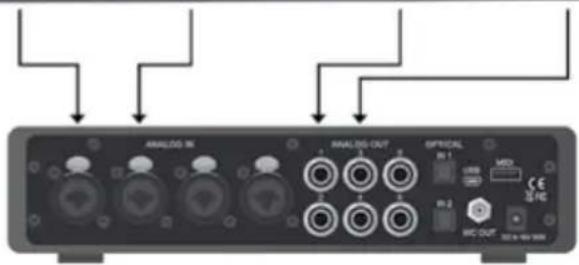

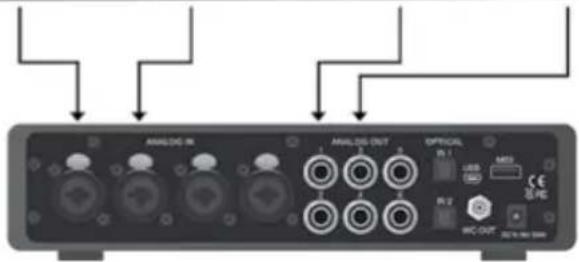

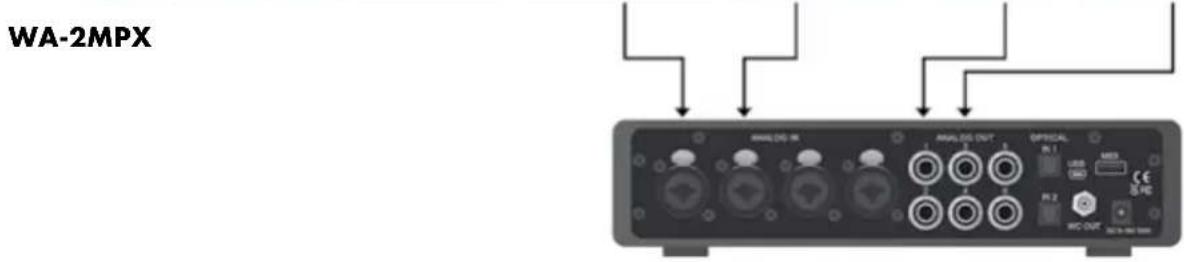

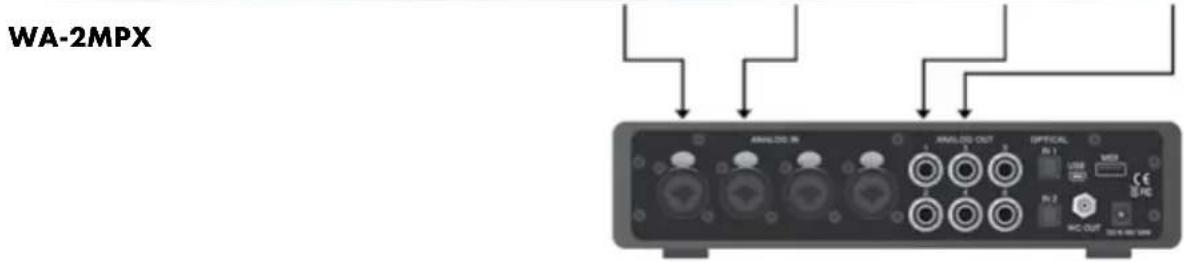

WA-2MPX SAMPLE HOOKUP DIAGRAM [DUAL-CHANNEL]

warm WALAWAY 4-0MPX WALAWAY 16 WA-2MPX REAL CHANNELS TYPE WITH PROGRAMS CUSTOPS Any Bitumen is clear above the power output. Do broadband to access network. However of users will ensure discharges without any the user can't be suitable for any mode. Note to qualified personnel only. Time M BALANCED OUTPUTS AC/LINE INPUTS

WA-2MPX

ANALDO IN ANALDO OUT OPTICAL R 1 M2 LED USB CC PC R 2 MC OUT

ADD ANALOG SATURATION TO STEREO MIXES WITH YOUR RECORDING INTERFACE

One great way to get that extra analog color to final mixes or masters is to run the stereo outputs through premium, discrete analog gear. Using the WA-2MPX, you can send audio to a set of stereo outs on your recording interface, into the WA-2PMX inputs, and then route the outputs on WA-2MPX to stereo inputs on your recording interface. Those new input channels will fully pass through the discrete analog components inside WA-2MPX.

Try flipping on the tape saturation switch for added compression, saturation (harmonic distortion), and modified tone filtering for even more tape-era analog mojo!

Note: Remember that the WA-2MPX OUTPUTS go to interface INPUTS, and WA-2MPX INPUTS go to interface OUTPUTS. Your interface will require 2 extra INPUTS and 2 extra OUTPUTS to route the audio this way.

SPECIFICATIONS

Note: Most specifications and component counts listed are "per-channel"

• Authentic Reproduction Of The Most Revered Tape-Era Tube Microphone Preamp
- Fully Discrete, Hand-Built Construction With 3 Tubes Per Channel For Ultimate Analog Tone
- Selectable Tape Saturation Adds Harmonic Distortion & Natural Compression
• 90dB Of Analog Tube Gain Per Channel
- Custom-Wound, Large-Core CineMag USA Transformers
• Mic Input: 600Ω Transformer (6000Ω Rated)
- Mic Input With "Tone" Engaged: 150Ω Transformer (1500Ω Rated)
• Premium (2X) 12AX7 & (1X) 12AU7 Tubes Per Channel
- 600Ω Output Attenuator
- Engage High Gain Control For An Added 20db (From 70db To 90db) Of Clean Gain For Low-Output Mics And Low-Volume Sources
• 48v Phantom Power & Polarity Switch
- Classic Warm Audio Tone Control That Alters The Input Transformer Impedance Adding Extra Analog Color
- 80Hz Hi-Pass Filter
• 2kHz Low-Pass Filter To Focus Preamp Power & Warmth On Mids For Added Punch & Clarity
- Inputs: XLR Mic, TS Instrument & TRS Line
• Outputs: XLR / TRS Line Level
• VU Meter Level Indication
• Frequency Response: 20Hz-20kHz
• Aluminum Faceplate, Steel Chassis, & Vintage Bakelite-Style Knobs
- Internal IEC 115v/230v Power Inlet

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions – All of the safety and operating instructions should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

FRANÇAIS

MERCI!

WA-2MPX - PANNEAU AVANT [DUAL-CHANNEL]

1 2 3 4 14 15 16 17 WARM WA-2MPX 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24 25

WA-2MPX - PANNEAU ARRIÈRE [DUAL-CHANNEL]

warm 0.3MPX POME 16 WA-2MPX RUBI CHANNELS TUBE MHC POWER Auto: Wi-Fi is the clean electric bus controls Do not appear to read on a network. Remove of carrier will express diagnostic parameters If your current parts enable it for qualified current unit) Time Max AC/LINE INPUTS BALANCED OUTPUTS 1 2 3 4

1. EMBASE SECTEUR IEC

WARM 4 GPE RMS TA WA-2MPX DUAL TRAVES TURY MEL PRESSURE CAUTIONS A1: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000 Auto, please be clear awarding the powertrain. Do not recover to its own resistance. The main of user will ensure disapproval against the user convertible point mode. Refer to qualified personnel only. Time H Time H BALANCED OUTPUTS MC/UNENHRS

WA-2MPX

ANALOG 36 ANALOG OUT OPTICAL M1 M2 MIC OUT CE FC

AJOUTER UNE SATURATION ANALOGIQUE AUX MIXAGES STÉRÉO AVEC VOTRE INTERFACE D'ENREGISTREMENT

A CND A28 14 Auto https://a28/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14/14 WARM AUDIO WA-MPX TUBE MIC PREAMP SALANCED OUTPUTS MIC/LIME INPUTS 1 2 3 4

1. ENTRADA DE CORRIENTE ALTERNA IEC

WA-2MPX — PANEL FRONTAL [DOBLE CANAL]

1 2 3 4 14 15 16 WARM WA-2MPX DUAL CHANNELS TOMATO PARAMETER 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24

WA-2MPX — PANEL TRASERO [DOBLE CANAL]

WARM 4-2MPX WA-2MPX Dual Channels TUB/NCI/ASAM Power V 107.10C 40MHz low TL-238 200 MHz 50MHz low TL-238 CAUTION Auto: Window is close outside the power controls. Do not appear to turn or switch. Based on user will express voltage thresholds. If you are non-able ports enable. Better to qualified power input only) CE Line Mask USB Power Source BALANCED OUTPUTS MC/ONE INPUTS ▲ 1 2 3 4 ▲ ▲ ▲ ▲

1. ENTRADA DE CORRIENTE ALTERNA IEC

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

warm 4 GPR PUE 16 WA-2MPX DUAL CHANNELS CORE WITH PUE/SM CAUTIONS DO NOT OPEN ON DO NOT OPEN Active: Bitumen de cias ohcing the case exists. Do not undergo any or no motion. Potential of power will improve discharges or charges. The case is not possible partly inside. Rather to qualified personnel only. Time Hours with lower power output BALANCE OUTPUT MC/THE/MOS

WA-2MPX ANALOG IN ANALOG OUT OPTICAL R1 MSP USB CC PC NC OUT

warm WA-2MPX Dual channel Dual Wi-Fi 1 2 3 4 TET WAC 480Hz/17.200 300 WAC 200Hz/16.5-200 LineMan BALANCE OUTPUT MC/THE INPUTS

1. EINGANGSBUCHSE FÜR IEC-NETZKABEL

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

AUFNAHME-INTERFACE

warm WALAWA 4.0 MPX 200 MPX WA-2MPX DUAL CABBRETS TUBE MWC PREDISH CABO 750mm 1000000000000000000000000000000000000000000000000000000000000000000000 Auto, please be clear above the power supply. Do not support the current requirements. Remove of power will support discharges or inscriptions. No user applicable parts inside. Prefer to qualified personnel only. LineM LineM CE DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/ BALANCED OUTPUTS MC/SHEI RUTS

WA-2MPX AMALOG IN AMALOG OUT SPECIAL MST CE AC PC MC OUT

HINZUFÜGEN VON ANALOGER SÄTTIGUNG ZU STEREOMISCHUNGEN MIT IHREM AUFNAHME-INTERFACE

WARM AUDIO WA-MPX TUBE MIC PREAMP MAC/IRE INPUTS 1 2 3 4

1. IEC 交流电源接入口

连接随附的电源线为设备供电。

1. 电压开关

WARM 4-0Hz FIRE 1A WA-2MPX DOUBLE CHANNELS TOMA AND PRESSOR CANTIONS Auto. Please do this alerting the power source. Do not expose to the or more noise. Remove of one will expose dangerous signals. The user's candidate parts inside. See to qualified power source only. TimeMbox DC/DC 30Hz/DC/DC 30Hz BALANCED OUTPUTS MC/TIME INPUTS ▲ 1 2 3 4 ▲

1. IEC 交流电源接入口

连接随附的电源线为设备供电。

1. 电压开关

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

录音接口

WARM 4.0 MPX PUB 1A WA-2MPX RATIO CHANNELS TORT WAT PRECUM 111/19C, 40Hz, max 71.038 200/19C, 30Hz, max 151.238 C E LUTION Power output (400V) / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 100V / 1 Auto: Besur de chea shoutif the par-neurs. Do not expand to any non-standers. Structural of corner with open dispersion relapses. The user transmissible party mode. Refer to qualified personnel only. Time Mask CALANCE OUTPUTS AC/ONE INPUTS

WA-2MPX ANALOG IN ANALOG OUT OFFICIAL IN 1 LED USB MOS CE PC IN 2 MC OUT 30Hz-800 MHz

用您的录接口为立体声混音添加模拟饱和度

WARM AUDIO WA-MPX TUBE MIC PREAMP BALANCED OUTPUTS MIC/LINE INPUTS 1 2 CAUTION Active Flange de chlor shouting the power source: On our response to one or more. Removal of noise will expose resistance - voltage: The last reversible party mode. After to qualified personnel only. Line Max Line Transforms

1. IEC AC 전원 인입부

WARM 4-0Hz FIRE 1A WA-2MPX DOUBLE CHANNELS TOMA AND PRESSOR CANTIONS Auto. Please do this alerting the power source. Do not expose to the or more noise. Remove of one will expose dangerous signals. The user's candidate parts inside. See to qualified power source only. TimeMbox DC/DC 30Hz/DC/DC 30Hz BALANCED OUTPUTS MC/TIME INPUTS ▲ 1 2 3 4 ▲

1. IEC AC 전원 인입부

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

레코딩 인터페이스

WARM WA-2MPX BLUE CHANNELS TWO NET PREAM 115 10kV, 40Hz, max T1-200 230 90kV, 40Hz, max E8.0-200 EASTRON Able: Desays the least important the power output. The best provides the power source. Recommended of sensor w/8 engine during the network. The user's performance parts available. Refer to specified personnel only. BALANCED OUTPUTS MC/UNENUS WA-2MPX ANALOG OUT OPTICAL BL1 USB MOS CE S/PC PL2 MC OUT

© 2022 Warm Audio™ LLC.

Liberty Hill, Texas USA | www.warmaudio.com
