WA-19 - Microphone Warm Audio - Free user manual and instructions

Brand	Warm Audio
Model	WA-19
Type	Dynamic Cardioid Studio Microphone
Polar Pattern	Cardioid
Frequency Response	30Hz – 18kHz
Impedance	200 Ohms
Max SPL	145dB
Sensitivity (Modern)	-53dB ±3dB at 1kHz (0dB=1V/Pa)
Sensitivity (Vintage)	-74dBv re. 1 v/dyne/cm²
Connector	XLR
Color Options	Nickel or Black
Length	6 in (152 mm)
Diameter	1.4 in (36 mm)
Weight	0.5 lbs (227 g)
High-Pass Filter	Variable acoustic, 50Hz, cut up to 10dB
Design	Transformerless
Special Features	Dynamic humbucking coil; reduced proximity effect via ventilated slots
Warranty	1 year limited, non-transferable
Registration	Recommended at www.warmaudio.com

Frequently Asked Questions - WA-19 Warm Audio

What is the variable acoustic high-pass filter on the WA-19?

The WA-19 features a variable acoustic high-pass filter ring that can cut up to 10dB at 50Hz to reduce unwanted low frequencies without electronic phase shift.

Does the WA-19 require phantom power?

No, the WA-19 is a dynamic microphone and does not require phantom power; it works with standard XLR microphone inputs.

What are the best applications for the WA-19?

The WA-19 is versatile and suitable for vocals, acoustic guitar, snare drum, overheads/cymbals, guitar cabinets, and more. Its cardioid pattern and off-axis rejection make it ideal for crowded studio setups.

How do I clean and maintain the WA-19?

Clean the grille with a soft brush or cloth. Avoid moisture and extreme temperatures. Store in a dry place. Do not disassemble.

What is the warranty period for the WA-19?

Warm Audio offers a 1-year limited warranty from the date of purchase for the original registered owner. It covers defects in materials and workmanship.

How do I register my WA-19 for warranty?

Visit www.warmaudio.com and register your product to ensure proper warranty support.

Can the WA-19 handle high sound pressure levels?

Yes, with a maximum SPL of 145dB, it can handle loud sources like guitar cabinets and drums.

Does the WA-19 have a frequency response similar to vintage mics?

Yes, it faithfully recreates the tone of 1960s studio dynamics with a frequency response of 30Hz-18kHz and added clarity.

What is the polar pattern of the WA-19?

It has a cardioid polar pattern, which picks up sound from the front and rejects from the sides and rear.

How does the WA-19 reduce proximity effect?

Ventilated slots behind the capsule reduce proximity effect, allowing you to place the mic closer without excessive bass buildup.

USER MANUAL WA-19 Warm Audio

Thank you for purchasing the Warm Audio WA-19 dynamic studio microphone. We feel this product offers the best in terms of sound, function, and vibe from the classic era of analog recording. We don't cut corners when it comes to what goes into our products, and the WA-19 is no exception.

The WA-19 is a faithful recreation of one of the most favored studio dynamic microphones of the 1960s. The earliest mics in production found their way into legendary studios and have been featured on classic live performances enjoyed by millions. We at Warm Audio are very excited to bring this studio treasure to life and we hope you try it on studio & live vocals, overheads, acoustic guitar and many other recording applications.

With no-compromise components and elite build quality, the WA-19 delivers the ideal balance between dynamic functionality and studio richness/detail for the ultimate dynamic studio mic experience.

Bryce Young

President

Warm Audio

Austin, Texas USA

REGISTER YOUR WA-19!

Before we begin, please take the time to visit www.warmaudio.com to register your product. To ensure you receive proper and uninterrupted warranty support for your product, please register your unit within

WARRANTY STATEMENT

Warm Audio warranties this product to be free from defect in materials and workmanship for one year from the date of purchase, for the original purchaser to whom this equipment is registered. This warranty is non-transferrable.

This warranty is void in the event of damage incurred from unauthorized service to this unit, or from electrical or mechanical modification to this unit. This warranty does not cover damage resulting from abuse, accidental damage, misuse, improper electrical conditions such as mis-wiring, incorrect voltage or frequency, unstable power, disconnection from earth ground (for products requiring a 3 pin, grounded power cable), or from exposure to hostile environmental conditions such as moisture, humidity, smoke, fire, sand or other debris, and extreme temperatures.

Warm Audio will, at its sole discretion, repair or replace this product in a timely manner. This limited warranty extends only to products determined to be defective and does not cover incidental costs such as equipment rental, loss of revenue, etc. Please visit us at www.warmaudio.com for more information on your warranty, or to request warranty service.

This warranty applies to products sold in the United States of America. For warranty information

in any other country, please refer to your local Warm Audio distributor. This warranty provides specific legal rights, which may vary from state to state. Depending on the state in which you live, you may have rights in addition to those covered in this statement. Please refer to your state laws or see your local Warm Audio retailer for more information.

NON-WARRANTY SERVICE

If you have a defective unit that is outside of our warranty period or conditions; we are still here for you and can get your unit working again for a modest service fee. Please visit us at

www.warmaudio.com to contact us about setting up a repair or for more information.

With the proper care, your Warm Audio gear should last a lifetime and provide a lifetime of enjoyment. We believe the best advertisement we can have is a properly working unit being put to great use. Let's work together to make it happen.

NOW LET'S GET STARTED!

INTRODUCTION

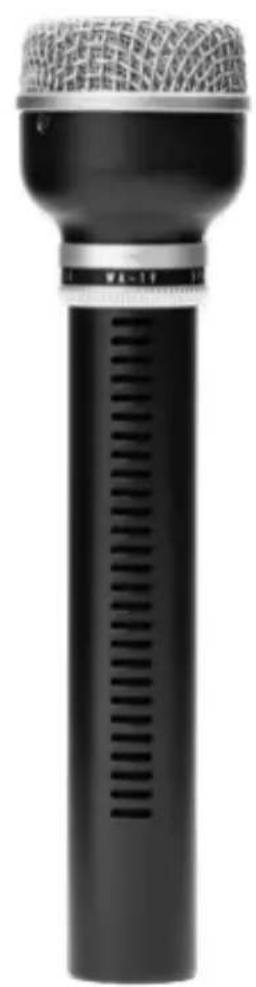

Close-up of a metallic cylindrical microphone with mesh grille and ventilation slots (no visible text or symbols)

Black and white photo of a standard microphone with visible grille and speaker grille (no text or symbols)

Bringing back one of the most favored studio dynamic mics of the 1960s, the WA-19 blends some of the most desirable traits of dynamic mics, like critical off-axis rejection, reduced proximity effect, and rugged metal construction, with added clarity and richer detail similar to studio-worthy condenser tones. The acoustic high-pass filter ring can cut up to 10dB at 50Hz to remove unwanted low frequencies - especially helpful for dense mixes and high track counts. A bygone favorite at the most famous recording studios and used on legendary live performances, the original was placed on vocals, acoustic guitar, snare, cymbals/overheads, guitar cabs and so much more. Reviving the original tone & capabilities (without the hassle of vintage repairs), the WA-19 delivers the ideal balance between dynamic functionality and condenser-like character for a dynamic studio mic that you'll want to try on almost anything.

As a transformerless design, the WA-19 excels with fast transient response and clarity, revealing a level of detail in studio sources uncommonly found in a dynamic mic. The added variable acoustic high-pass filter can cut up to 10dB at 50Hz (without any electronic phase shift often incurred from preamp high-pass filters) to remove unwanted low frequencies - especially helpful for dense mixes and high track counts.

Like the original used on many live sets, legendary studios, and used on numerous classic recordings, the WA-19 delivers a unique combination of dynamic-style noise rejection and condenser-like clarity.

LEGENDARY TONES

The WA-19 adds clarity + air compared to other studio dynamic mics that are readily available without the directional and sensitivity issues associated with condensers. An ideal balance when detail is required in mixes that will have higher track counts.

CONTROL THE BOOM & BASS

The WA-19 manages unruly low end frequencies in two distinct ways. First, the WA-19 has a variable acoustic high-pass filter ring that cuts up to 10dB at 50 Hz, ideal for tightening up the tone and adding upper-midrange emphasis without any electronic phase shift. Ventilated slots on the WA-19 behind the capsule reduce proximity effect, eliminating boomy bass associated with placing the mic closer to the source.

GREAT SOUND WITH ANY PLACEMENT

The thin pencil-style body design of the WA-19 allows for easy mic placement in crowded studio situations where mics are on top of each other - like miking a full drum kit. WA-19 has a dynamic humbucking coil that helps the mic deliver elite off-axis rejection, especially in lower frequency with minimal noise, making it easy to grab tight bottom snare tones without excess kick drum bleed.

SPECIFICATIONS

• Dynamic Cardioid Studio Microphone
- Faithfully Recreating One Of The Most Favored Studio Dynamic Mics Of The 1960s
- Variable 50Hz Acoustic High-Pass Filter with 0 to -10dB Range
• Polar Pattern: Cardioid | Impedance: 200 Ohms
• Frequency Response: 30Hz – 18Khz
- Max SPL: 145dB
- Sensitivity (Modern Measurement): -53dB +/-3dB at 1Khz (0dB=1V/Pa)
- Sensitivity (Vintage Measurement): -74dBv re.1 v/dyne/cm ²
- Connector: XLR
• Color: Nickel or Black
• Length: 6" | Diameter: 1.4" | Weight: .5 lbs
