WA2MPX - Receiver Warm Audio - Free user manual and instructions

Product type	Dual channel tube microphone preamplifier
Brand	Warm Audio
Model	WA-2MPX
Dimensions (W x H x D)	48.3 x 4.4 x 20.3 cm (19 x 1.75 x 8 inches) approx.
Weight	4.5 kg (10 lb) approx.
Power supply	115 V / 230 V, switchable via red button; IEC input
Maximum gain	90 dB per channel (70 dB without boost, 90 dB with boost)
Tubes per channel	2 x 12AX7, 1 x 12AU7
Transformers	CineMag USA, custom wound, large core
Inputs	Microphone XLR (600 Ω or 150 Ω with Tone), Instrument TS, Line TRS
Outputs	Balanced XLR, balanced 1/4" TRS
Main features	Input selection, 48V phantom power, gain boost, polarity inversion, Tone switch (impedance), 80 Hz high-pass filter, 2 kHz low-pass filter, tape saturation, 600 Ω output attenuator, VU meter
Maintenance	Clean with a dry cloth; turn off the device when not in use
Safety	Do not use near water, do not obstruct ventilation, refer repairs to qualified personnel
Spare parts / repairability	Contact Warm Audio via www.warmaudio.com for repairs or parts
Warranty	1 year for the first registered buyer; registration within 14 days
Country of manufacture	Hand assembled and inspected in Austin, Texas, USA

Frequently Asked Questions - WA2MPX Warm Audio

What is the difference between the WA-MPX and the WA-2MPX?

The WA-MPX is a single-channel preamp, while the WA-2MPX has two independent channels, allowing you to process two microphones or sources simultaneously.

How to activate tape saturation?

Use the 'Tape Saturation' switch on each channel. It adds harmonic distortion and natural compression, mimicking the sound of tape recording.

What does the Tone switch do?

The Tone switch changes the turns ratio of the input transformer: when pressed in, impedance switches to 150 Ω for a punchier, more aggressive sound; when out, impedance is 600 Ω for a more open sound.

How to connect a dynamic or condenser microphone?

Plug the microphone into the XLR input on the front or back. For a condenser microphone, activate +48V phantom power with the corresponding switch. Dynamic microphones do not require phantom power.

What are the recommended settings for recording an electric guitar?

Connect the guitar to the instrument input (TS jack) on the front. Set the input selector to 'Inst'. Adjust the gain to get a sufficient level, then use the output level to avoid saturating your audio interface. Try enabling the 2 kHz low-pass filter for a more focused sound or tape saturation to add character.

Can I use the WA-2MPX to process a stereo mix?

Yes, you can route a stereo mix through both channels. Connect your interface outputs to the WA-2MPX line inputs (via TRS), then the WA-2MPX outputs to your interface inputs. This adds analog coloration to the mix.

How to replace the tubes?

Unplug the device, remove the cover (if qualified). The tubes are standard 12AX7 and 12AU7. Gently remove the old tube and insert the new one. Replace the cover. Only qualified personnel should perform this operation.

What is the power consumption?

The consumption is not specified, but with three tubes per channel (6 total) and the internal power supply, it is estimated at about 50-60 W.

How to clean the preamp?

Use a dry, soft cloth. Do not use chemicals or liquids. Make sure the device is unplugged when cleaning.

What to do if the device does not turn on?

Check that the power cord is properly connected and that the voltage switch (115V/230V) is set correctly. If the problem persists, contact Warm Audio support.

USER MANUAL WA2MPX Warm Audio

Authentic Reproduction Of The Most Revered Tape-Era Tube Mic Preamp

- ENGLISH (PG 1) • FRANÇAIS (PG 12) • ESPAÑOL (PG 23) • DEUTSCH (PG 34)

Front panel of a black audio amplifier with control knobs and a digital display (no visible text or symbols on main body)

WA-2MPX

Front panel of a warm audio amplifier with multiple knobs and a digital display (no visible text or symbols on main body)

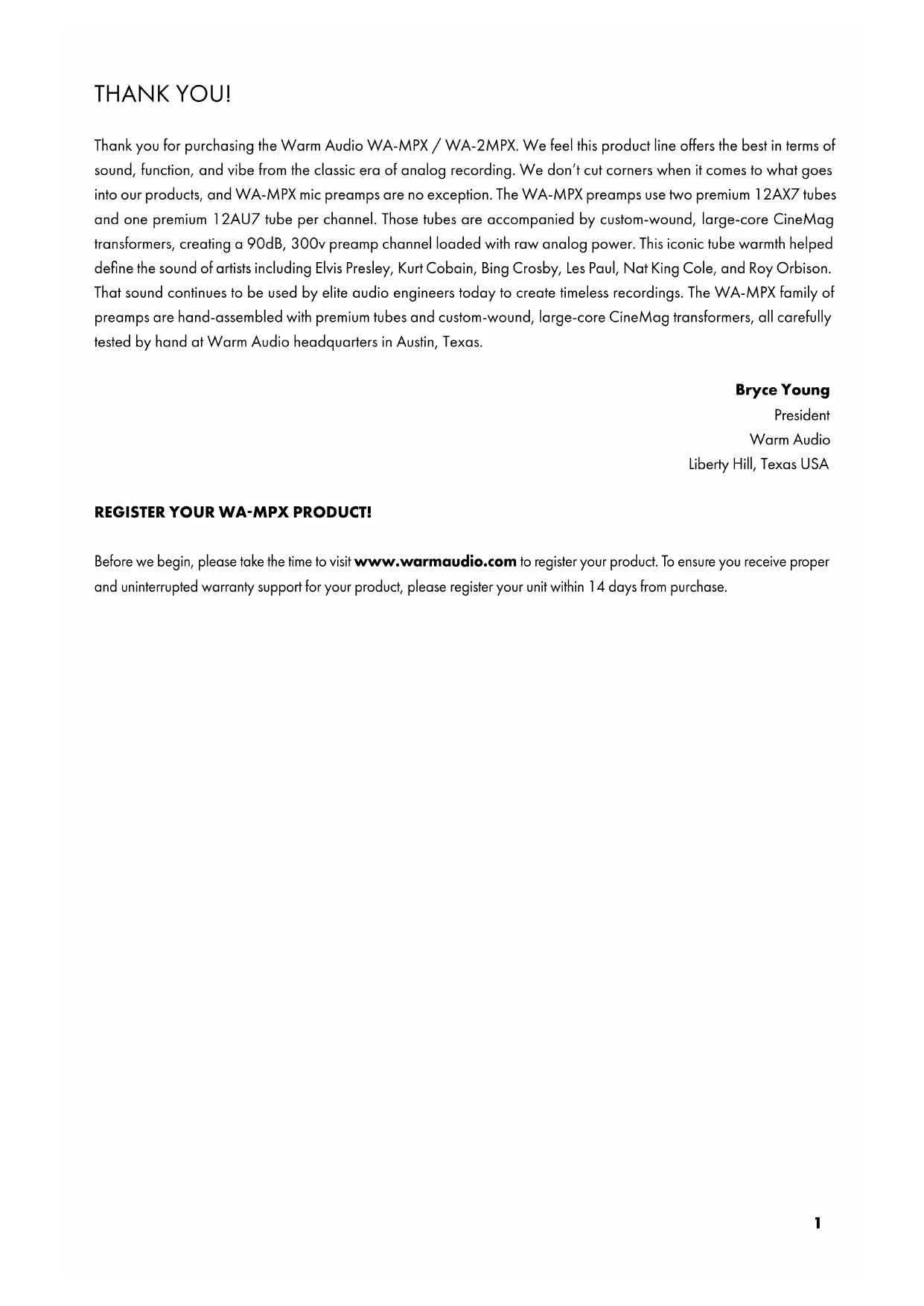

THANK YOU!

Thank you for purchasing the Warm Audio WA-MPX / WA-2MPX. We feel this product line offers the best in terms of sound, function, and vibe from the classic era of analog recording. We don't cut corners when it comes to what goes into our products, and WA-MPX mic preamps are no exception. The WA-MPX preamps use two premium 12AX7 tubes and one premium 12AU7 tube per channel. Those tubes are accompanied by custom-wound, large-core CineMag transformers, creating a 90dB, 300v preamp channel loaded with raw analog power. This iconic tube warmth helped define the sound of artists including Elvis Presley, Kurt Cobain, Bing Crosby, Les Paul, Nat King Cole, and Roy Orbison. That sound continues to be used by elite audio engineers today to create timeless recordings. The WA-MPX family of preamps are hand-assembled with premium tubes and custom-wound, large-core CineMag transformers, all carefully tested by hand at Warm Audio headquarters in Austin, Texas.

Bryce Young

President

Warm Audio

Liberty Hill, Texas USA

REGISTER YOUR WA-MPX PRODUCT!

Before we begin, please take the time to visit www.warmaudio.com to register your product. To ensure you receive proper and uninterrupted warranty support for your product, please register your unit within 14 days from purchase.

WARRANTY STATEMENT

Warm Audio warranties this product to be free from defect in materials and workmanship for one year from the date of purchase, for the original purchaser to whom this equipment is registered. This warranty is non-transferrable.

This warranty is void in the event of damage incurred from unauthorized service to this unit, or from electrical or mechanical modification to this unit. This warranty does not cover damage resulting from abuse, accidental damage, misuse, improper electrical conditions such as mis-wiring, incorrect voltage or frequency, unstable power, disconnection from earth ground (for products requiring a 3 pin, grounded power cable), or from exposure to hostile environmental conditions such as moisture, humidity, smoke, fire, sand or other debris, and extreme temperatures.

Warm Audio will, at its sole discretion, repair or replace this product in a timely manner. This limited warranty extends only to products determined to be defective and does not cover incidental costs such as equipment rental, loss of revenue, etc. Please visit us at www.warmaudio.com for more information on your warranty, or to request warranty service.

This warranty applies to products sold in the United States of America. For warranty information in any other country, please refer to your local Warm Audio distributor. This warranty provides specific legal rights, which may vary from state to state. Depending on the state in which you live, you may have rights in addition to those covered in this statement. Please refer to your state laws or see your local Warm Audio retailer for more information.

NON-WARRANTY SERVICE

If you have a defective unit that is outside of our warranty period or conditions; we are still here for you and can get your unit working again for a modest service fee. Please visit us at www.warmaudio.com to contact us about setting up a repair or for more information.

With proper care, your Warm Audio gear should last a lifetime and provide a lifetime of enjoyment. We believe the best advertisement we can have is a properly working unit being put to great use. Let's work together to make it happen.

NOW LETS GET STARTED!

The Warm Audio WA-MPX preamps are some of the highest quality microphone preamplifiers on the market in their price range. They use custom-made components similarly found in preamplifiers with much higher price tags. Home-based musicians and professional studios alike will find the WA-MPX models to be extremely powerful, versatile and fully professional pieces of gear that are capable of warming and shaping both input signals and mixes in a way that is very pleasing to the ear.

The information contained in this manual is written to help you quickly get started using your WA-MPX / WA-2MPX.

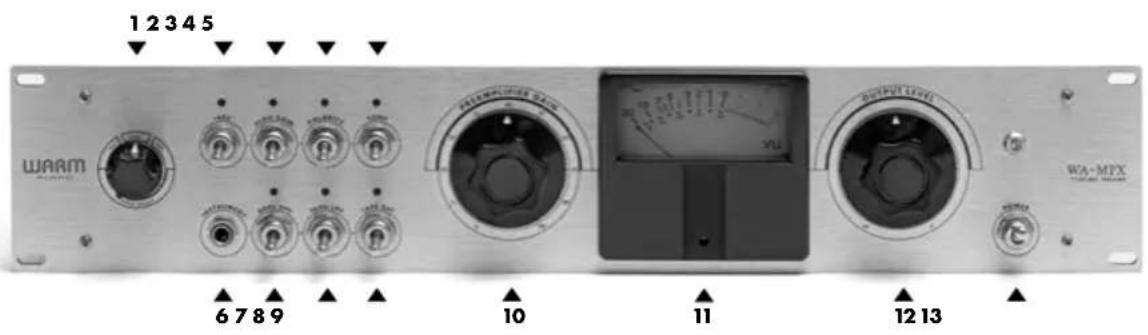

TECHNICAL SPECS - FRONT PANEL [SINGLE-CHANNEL]

Note: All applicable LEDs on WA-MPX models will illuminate when their corresponding switches are engaged

1 2 3 4 5 WARM 6 7 8 9 10 11 12 13 OUTPUT LIFET WA-MFX

1. Input Select Switch

This switch selects either mic, instrument, or line level input.

2. +48V Switch

This switch provides power for condenser mics and any other devices requiring continuous phantom power through the XLR input. This power is supplied at a constant level to prevent any degradation of audio quality.

3. High Gain Switch

This switch engages the third tube in the channel circuit for an added 20db (from 70dB to 90dB) of clean gain for low-output mics and low-volume sources - like ribbons and certain dynamic microphones.

4. Polarity Switch

This switch inverts the polarity of the signal. Use the polarity switch when recording with more than one open microphone to combat phase cancellation between microphones.

TECHNICAL SPECS - FRONT PANEL [SINGLE-CHANNEL]

5. Tone Switch

This switch changes the input transformer configuration from a 1:9 (step up) turns ratio to a steeper 1:18 (step up) turns ratio, drawing out a greater degree of coloration and impact from the input transformer. When engaged, the input impedance of the WA-MPX is 150 ohms. When disengaged, the input impedance of the WA-MPX is 600 ohms. This feature will make a noticeable tone change to most microphones. The 600 ohms impedance setting is recommended for condenser and dynamic microphones, and 150 ohms is recommended for dynamic and ribbons. This switch is labeled "Tone" for a reason; most listeners will find the unswitched setting to be more open and natural, with the engaged setting to be more punchy, aggressive, or thick. We strongly suggest you experiment with both settings on all sources to find the best possible tone for your recordings. As with all things, let your ear be the final judge on which setting to use for any given situation.

6. TS Instrument Input

You can connect a variety of instruments via the instrument input on the front panel of the WA-MPX including: acoustic and electric guitars, bass guitar, keyboards, synths and drum machines.

7. 80Hz Hi-Pass Filter

This switch removes frequencies below 80Hz to help control unwanted bass noise from unruly sources.

8. 2kHz Low-Pass Filter

This switch removes frequencies above 2kHz for more punch and focused midrange.

9. Tape Saturation Control

This switch adds a dedicated circuit of discrete analog components to the already warm tubes, delivering tape-style saturation - with added natural compression and harmonic distortion.

10. Preamplifier Gain

This knob adjusts the amount of tube gain applied in the WA-MPX channel circuit.

11. VU Meter

The VU meter allows for accurate monitoring of the signal volume exiting the WA-MPX channel.

12. Output Level

This knob acts as a 600Ω output attenuator, controlling the signal exiting the WA-MPX channel. The output level ensures that the amplified signal doesn't exit the WA-MPX at too-high a volume and prevents overloading the inputs on your recording interface or the next device in the signal chain. It also gives greater ability to drive the gain of the preamp harder resulting in greater colorization and tone shaping within the various settings.

13. Power Switch

This switch is used to power the unit on and off. LED light will indicate if the unit is powered on. To extend the life of the electronics please turn WA-MPX units off when not in use.

A CHD RMS TA 20 25 100 VAC 400V bus T1-238 200 VAC 300V bus T0.2-238 E:A BHTON Auto filter do other clearing the program. One response to turn or resistors. Based of noise will require diagnosis - voltage. The last portable party node. Note to qualified personnel only. WARM AUDIO WA-MPX TURE MIC FREAMP SALANCED OUTPUTS MIC/LINE INPUTS 1 2 3 4

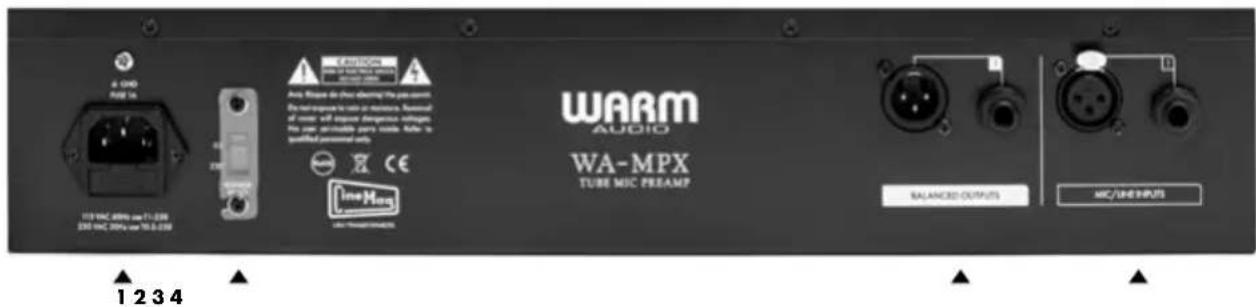

1. IEC AC POWER INLET

Connect the accompanying power cord to power the unit.

2. Voltage Switch

Always use the correct rating (115v or 230v) that corresponds with local power requirements, as indicated by the red voltage switch.

3. Balanced Line Outputs (XLR & TRS)

Balanced outputs are provided on an XLR and 1/4" TRS connection for convenience.

4. Mic / Line Input

The back of the unit offers both Mic (XLR) and Line (TRS) balanced inputs for convenience. The mic input is designed for dynamic, condenser and ribbon microphones. Other instruments or devices that put out a low level microphone signal can also be plugged into this input. The line input is designed for line level instruments or sources that put out line level signals such as some keyboards, electric instruments or audio interface outputs.

WA-2MPX TECHNICAL SPECS - FRONT & REAR PANEL [DUAL-CHANNEL]

A simple list of feature / specification identification will be provided below the WA-2MPX product images. For detailed descriptions of the feature functionality, please refer to the descriptions found in the WA-MPX (single-channel) technical specs section.

Note: All applicable LEDs on WA-2MPX models will illuminate when their corresponding switches are engaged

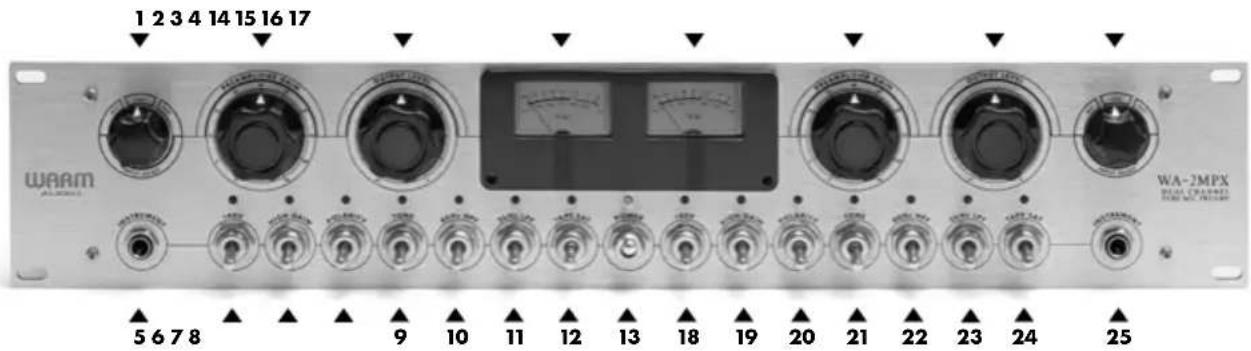

WA-2MPX - FRONT PANEL [DUAL-CHANNEL]

1 2 3 4 14 15 16 17 WARM WA-2MPX 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24 25

1. Input Select Switch
2. Preamplifier Gain
3. Output Level
4. VU Meter
5. TS Instrument Input
6. +48V Switch
7. High Gain Switch
8. Polarity Switch
9. Tone Switch
10. 80Hz Hi-Pass Filter
11. 2kHz Low-Pass Filter
12. Tape Saturation Control

13. Power Switch

14. [Channel 2] VU Meter

15. [Channel 2] Preamplifier Gain
16. [Channel 2] Output Level
17. [Channel 2] Input Select Switch
18. [Channel 2] +48V Switch
19. [Channel 2] High Gain Switch
20. [Channel 2] Polarity Switch
21. [Channel 2] Tone Switch
22. [Channel 2] 80Hz Hi-Pass Filter
23. [Channel 2] 2kHz Low-Pass Filter
24. [Channel 2] Tape Saturation Control
25. [Channel 2] TS Instrument Input

warm WALAWAY WA-2MPX DUAL CRATINGS TWO WITH AIRLINES A C E P A 1 2 3 4 TAI VAC, 200Hz, one TA-2.000 250 VAC, 200Hz, one TA-3.000 Balanced OUTPUTS BALANCED OUTPUTS ACC/LINE INPUTS

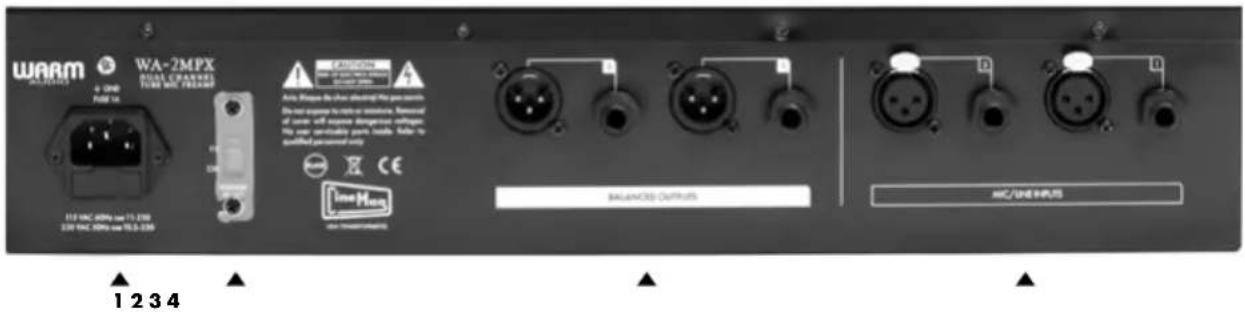

1. IEC AC POWER INLET

Connect the accompanying power cord to power the unit.

2. Voltage Switch

Always use the correct rating (115v or 230v) that corresponds with local power requirements, as indicated by the red voltage switch.

3. Balanced Line Outputs (XLR & TRS)

Balanced outputs are provided on an XLR and 1/4" TRS connection for convenience.

4. Mic / Line Input

The back of the unit offers both Mic (XLR) and Line (TRS) balanced inputs for convenience. The mic input is designed for dynamic, condenser and ribbon microphones. Other instruments or devices that put out a low level microphone signal can also be plugged into this input. The line input is designed for line level instruments or sources that put out line level signals such as some keyboards, electric instruments or audio interface outputs.

WA-MPX SAMPLE HOOKUP DIAGRAM [SINGLE-CHANNEL]

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A WARM AUDIO WA-MPX TUBE MIC PREAMP METER ADJUST PRE-EMPHASE STEREO LINK BALANCED OUTPUTS BALANCED INPUTS

RECORDING INTERFACE

In this example, a microphone is connected to a WA-MPX input, which sends signal into the WA-2A compressor via a balanced XLR patch cable, which feeds in the LINE LEVEL input of your recording interface/recorder.

Note: it is important to use a line level input on your recording device as opposed to a microphone or instrument level input.

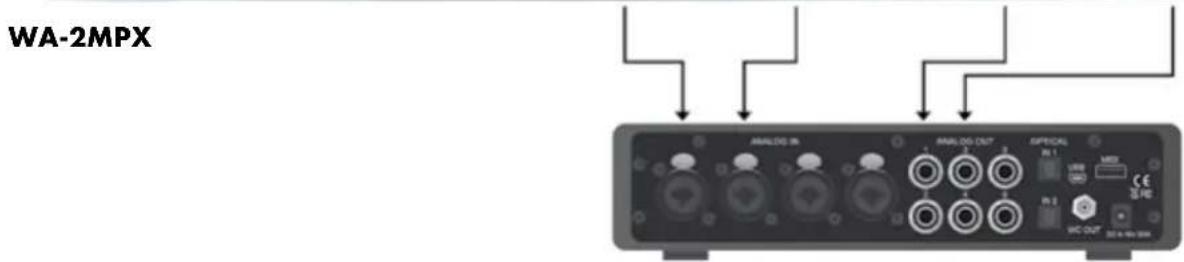

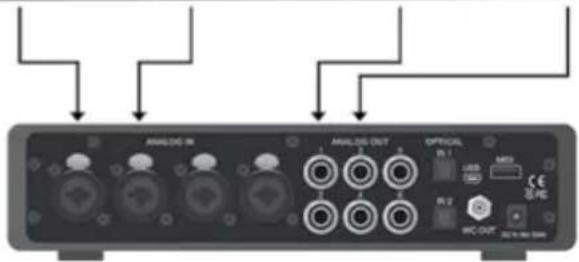

WA-2MPX SAMPLE HOOKUP DIAGRAM [DUAL-CHANNEL]

warm WALAWAY 4-100V POWER 16 WA-2MPX REAL CHANNELS TYPE WITH PROGRAMS CUSTOPS Any Bitumen is clear above the power output. Do broadband to access network. However of users will ensure discharges or charges. The user can't be suitable for any mode. Note to qualified personnel only. Time/Time BALANCED OUTPUTS AC/LINE INPUTS

WA-2MPX

ANALDO IN ANALDO OUT OPTICAL R 1 M2 LED USB CC PC R 2 MC OUT

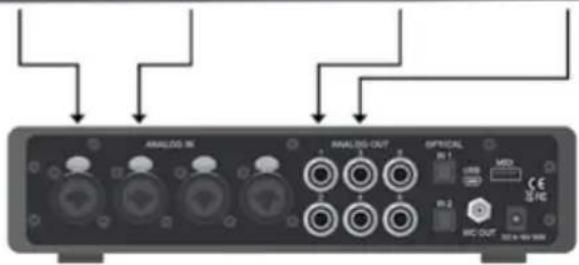

ADD ANALOG SATURATION TO STEREO MIXES WITH YOUR RECORDING INTERFACE

One great way to get that extra analog color to final mixes or masters is to run the stereo outputs through premium, discrete analog gear. Using the WA-2MPX, you can send audio to a set of stereo outs on your recording interface, into the WA-2PMX inputs, and then route the outputs on WA-2MPX to stereo inputs on your recording interface. Those new input channels will fully pass through the discrete analog components inside WA-2MPX.

Try flipping on the tape saturation switch for added compression, saturation (harmonic distortion), and modified tone filtering for even more tape-era analog mojo!

Note: Remember that the WA-2MPX OUTPUTS go to interface INPUTS, and WA-2MPX INPUTS go to interface OUTPUTS. Your interface will require 2 extra INPUTS and 2 extra OUTPUTS to route the audio this way.

SPECIFICATIONS

Note: Most specifications and component counts listed are "per-channel"

• Authentic Reproduction Of The Most Revered Tape-Era Tube Microphone Preamp
- Fully Discrete, Hand-Built Construction With 3 Tubes Per Channel For Ultimate Analog Tone
- Selectable Tape Saturation Adds Harmonic Distortion & Natural Compression
• 90dB Of Analog Tube Gain Per Channel
- Custom-Wound, Large-Core CineMag USA Transformers
• Mic Input: 600Ω Transformer (6000Ω Rated)
- Mic Input With "Tone" Engaged: 150Ω Transformer (1500Ω Rated)
• Premium (2X) 12AX7 & (1X) 12AU7 Tubes Per Channel
- 600Ω Output Attenuator
- Engage High Gain Control For An Added 20db (From 70db To 90db) Of Clean Gain For Low-Output Mics And Low-Volume Sources
• 48v Phantom Power & Polarity Switch
- Classic Warm Audio Tone Control That Alters The Input Transformer Impedance Adding Extra Analog Color
- 80Hz Hi-Pass Filter
• 2kHz Low-Pass Filter To Focus Preamp Power & Warmth On Mids For Added Punch & Clarity
- Inputs: XLR Mic, TS Instrument & TRS Line
• Outputs: XLR / TRS Line Level
• VU Meter Level Indication
• Frequency Response: 20Hz-20kHz
• Aluminum Faceplate, Steel Chassis, & Vintage Bakelite-Style Knobs
- Internal IEC 115v/230v Power Inlet

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions – All of the safety and operating instructions should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug the apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

FRANÇAIS

MERCI!

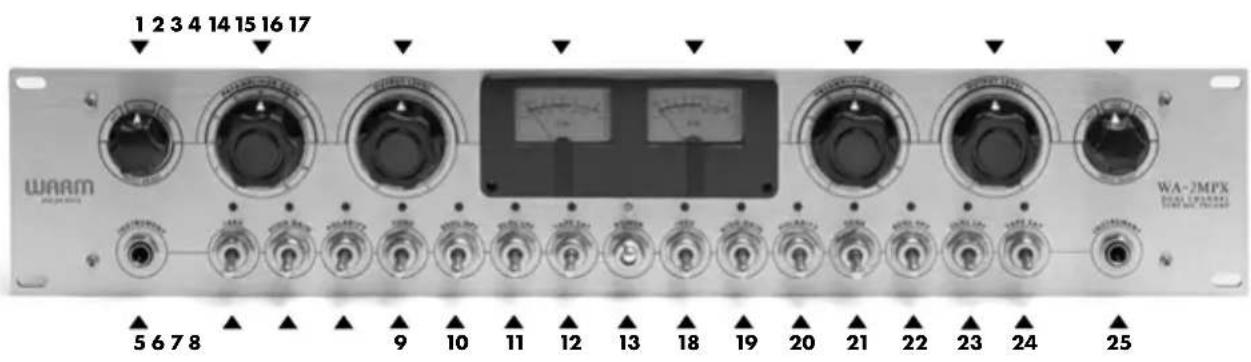

WA-2MPX - PANNEAU AVANT [DUAL-CHANNEL]

1 2 3 4 14 15 16 17 WARM WA-2MPX 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24 25

WA-2MPX - PANNEAU ARRIÈRE [DUAL-CHANNEL]

warm 0.3MPX POME 16 WA-2MPX RUBI CHANNELS TUBE MHC POWER Auto: Wi-Fi is the clean electric bus controls Do not appear to read on a network. Remove of carrier will express diagnostic parameters If your current parts enable it for qualified current unit) Time Max AC/LINE INPUTS BALANCED OUTPUTS 1 2 3 4

1. EMBASE SECTEUR IEC

WARM 4 GPE RMS 1A WA-2MPX DUAL TRAVES TURY MEL PRESSURE CAUTIONS WALI 300 MHz Auto, please do check awarding the power Do not recover to its own resistance. The level of user will ensure disapproval against the user convertible point mode. Refer to qualified personnel only. Time H Power BALANCED OUTPUTS MC/UNENUE

WA-2MPX

ANALOG 36 ANALOG OUT OPTICAL M1 M2 MIC OUT CE FC

AJOUTER UNE SATURATION ANALOGIQUE AUX MIXAGES STÉRÉO AVEC VOTRE INTERFACE D'ENREGISTREMENT

A CND A28 14 Auto https://a28.org/14.000 Diet not exposed to radio or wireless. Required of user will require discharges or voltages. The user portable parts needs to be qualified password only. WARM AUDIO WA-MPX TUBE MIC PREAMP SALANCED OUTPUTS MIC/UE INPUTS 1 2 3 4

1. ENTRADA DE CORRIENTE ALTERNA IEC

WA-2MPX — PANEL FRONTAL [DOBLE CANAL]

1 2 3 4 14 15 16 WARM WA-2MPX UAL CHANNELS DUAL CHANNELS 5 6 7 8 9 10 11 12 13 18 19 20 21 22 23 24

WA-2MPX — PANEL TRASERO [DOBLE CANAL]

WARM 4-0Hz Power V WA-2MPX Dual Channels TUB/NCI/ASAM Auto: Windows is also operating the power commands. One port is open or closed. Based on the user will express dynamic signals. The other non-standable ports enable to be qualified (optional only). Line Max USB Power Management BALANCED OUTPUTS MC/SNE INPUTS 1 2 3 4

1. ENTRADA DE CORRIENTE ALTERNA IEC

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

warm 4 GPR PUE 16 WA-2MPX DUAL CHANNELS CORE WITH PUE/SM CAUTIONS DO NOT OPEN ON DO NOT OPEN Active: Bitumen de cias ohcing the case exists. Do not undergo to ensure or manage. Potential of power will improve diagnostic requirements. The case is not available. Note needs. Refer to qualified personnel only. Time Hours with lower power output BALANCE OUTPUT MC/THE/MOS

WA-2MPX ANALOG IN ANALOG OUT OPTICAL R1 MSP USB CC PC NC OUT

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

AUFNAHME-INTERFACE

warm WALAWA 4.0 MPX 200 MPX WA-2MPX DUAL CABBRETS TUBE WITH PETER Auto, please be clear above the power supply. Do not require the current requirements. Remove of power will support discharges or losses. No more noticeable parts inside. Prefer to qualified personnel only. Line Max Power DC/HEA PRESS BALANCED OUTPUTS MC/HEA PRESS

WA-2MPX AMALOG IN AMALOG OUT SPECIAL MST CE AC PC MC OUT

HINZUFÜGEN VON ANALOGER SÄTTIGUNG ZU STEREOMISCHUNGEN MIT IHREM AUFNAHME-INTERFACE

WARM 4-0Hz FIRE 1A WA-2MPX DOUBLE CHANNELS TONE ANN PRESSOR CANTIONS Auto. Please do this alerting the power system. Do not engage to train or move. Available of one will ensure dangerous signals. The user's candidate parts inside. Note: to qualified power system only. TimeMbox ACI MC 40Hz on T1-030 200 VAC 20Hz on T0.5-030 BALANCED OUTPUTS MC/LINE INPUTS ▲ 1 2 3 4 ▲ ▲ ▲ ▲

1. IEC 交流电源接入口

连接随附的电源线为设备供电。

1. 电压开关

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

录音接口

WA-2MPX ANALOG IN ANALOG OUT OFFICIAL IN 1 LED USB MOS CE PC IN 2 MC OUT 30Hz-800 MHz

用您的录接口为立体声混音添加模拟饱和度

CAUTION Active response to noise showing the power source: On our response to noise or noise. Remove of noise will ensure integration - voltage: The user requires parts made. Note to qualified personnel only. WARM AUDIO WA-MPX TUBE MIC PREAMP BALANCED OUTPUTS MIC/LINE INPUTS 1 2

1. IEC AC 전원 인입부

WARM 4-0Hz FIRE TA WA-2MPX DOUBLE CHANNELS TOMA AND PRESSOR CANTIONS Auto. Please do this alerting the power source. Do not engage to train or move. Available of one will ensure dangerous signals. The user's candidate parts inside. Note: to qualified power source only. TimeM CE Balanced Outputs MC/LINE INPUTS 1 2 3 4

1. IEC AC 전원 인입부

WA-MPX WA-2A LEVELING AMPLIFIER WA-2A

레코딩 인터페이스

WARM WA-2MPX BLUE CHANNELS TWO NET PREAM 115 10kV, 40Hz, max T1-200 200 MHz, 40Hz, max E8.0-200 EASTRON Power 1A Auto: Desays the least important the power output. The best provides the power source. Recommended of sensor w/8 engine during the network. The user's performance parts available. Refer to specified personnel only. BALANCED OUTPUTS MC/UNENUS WA-2MPX ANALOG OUT OPTICAL BL1 LED MOS CE S/PC BL2 MC OUT

© 2022 Warm Audio™ LLC.

Liberty Hill, Texas USA | www.warmaudio.com
