WT 494 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Product type	Clock radio
Brand	TECHNOLINE
Model	WT 494
Main power	5 V DC - 1200 mA power adapter (model HX06-0501200-AG-001)
Backup battery	1 x CR2032 lithium button cell (not included)
Display	LED with HI/LO brightness adjustment and ambient dial
Temperature	Range: 0°C to 50°C (32°F to 122°F); display in °C or °F
Radio	FM with wire antenna; 20 presets
Alarms	2 independent alarms with buzzer or radio; buzzer duration 5 min, radio 1 h
Snooze function	Adjustable from 5 to 60 minutes (default 5 min)
Sleep timer	Radio auto-off: 5 to 90 minutes
USB charging port	Type A, for charging mobile phones (tablets and computers not compatible)
Ambient lighting	Yes, adjustable via dial
Time format	12h or 24h
Care and cleaning	Soft cloth dampened with soapy water; unplug before cleaning
Safety	Do not open rear panel; indoor use only; observe battery polarity
Disposal instructions	Do not dispose of with household waste; take to a store or recycling center

Frequently Asked Questions - WT 494 TECHNOLINE

How to set the time on the WT 494?

Press SET once. The hours blink: use ▲/▼ to set them. Press SET again for minutes. Continue to set 12/24 h format, snooze duration and temperature unit. No key pressed for 10 seconds exits setting mode.

How to set alarm 1 or 2?

Press and hold ON·OFF until the alarm icon blinks. Use ▲/▼ for hours, then press ON·OFF for minutes. Press and hold ON·OFF again to choose sound source (bu = buzzer, rd = radio). For radio, adjust volume with ▲/▼. Press SET to save and exit.

How to install the backup battery?

Place the device face down. Use a coin to turn the battery compartment cover counterclockwise. Insert a new CR2032 battery with the + pole facing up. Close the cover by turning clockwise.

How to store FM stations?

In radio mode, tune to a station. Press and hold SET until 'P01' blinks. Press SET once to store. For other presets, use ▲/▼ to select a P number (up to P20) and repeat.

Why is FM reception poor?

Fully extend the FM antenna wire and orient it in different directions. Move the device away from fluorescent lamps and other electronic devices that may cause interference.

How to activate the snooze function?

When the alarm sounds, press the snooze button once (not explicitly named, but it's the repeat key). The alarm stops and sounds again after the set delay (default 5 minutes, adjustable 5 to 60 min).

How to adjust the screen brightness?

In normal mode, press the brightness key (the one without a specific icon) to toggle between HI and LO. Turn the dial on the right side for fine adjustment of low brightness and ambient lighting.

How to display the indoor temperature?

Press the DOWN/TIME/TEMPERATURE key once to display the temperature. Press again to return to the time. A long press alternates between time and temperature.

Can I charge my phone via the USB port?

Yes, connect your charging cable (your phone's cable) to the USB type A port on the back. Make sure to use the original power adapter (5 V-1.2 A). Charging of iPads or laptops is not possible.

What to do if the clock shows wrong time or doesn't work?

Unplug the DC jack at the back and remove the backup battery. Replug the DC jack, then reinstall the battery observing polarity. Settings return to default; set the time and alarms again.

USER MANUAL WT 494 TECHNOLINE

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO GROOD ZZ· SET DRIVEY

B B1 SL B2 PM B3 B4 12:38 B5

C C1 HI↑ LO↓ CE CPU000 STUAL DC/CLV C6 C2 C5 C3 C4

DE1

Übersicht

A – Draufsicht

A1: VOLUME SET -Taste

A2: RADIO / SLEEP -Taste

A3: SNOOZE / DIMMER -Taste A4: SET -Taste

A6: DOWN / TIME / TEMPERATURE -Taste

A5: ALARM 1-2 / SET / ON-OFF -Taste

A7: UP -Taste

B – Vorderseite

B1: ALARM 1 ON -Symbol

B2: SLEEP -Symbol

B3: PM -Symbol B4: ALARM 2 ON -Symbol

B5: Stimmungslicht

C – Rückseite

PFLEGE IHRES PRODUKTS

LED Clock Radio with Temperature, Mood Light and USB Charging Port

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO GLEEP Zz SET DRIVE ▲

B B1 SL B2 PM B3 B4 12:38 B5

C C1 HI↑ LO↓ CE CP2000 DC1000 DC1000 C6 C2 C5 C3 C4

EN1

OVERVIEW

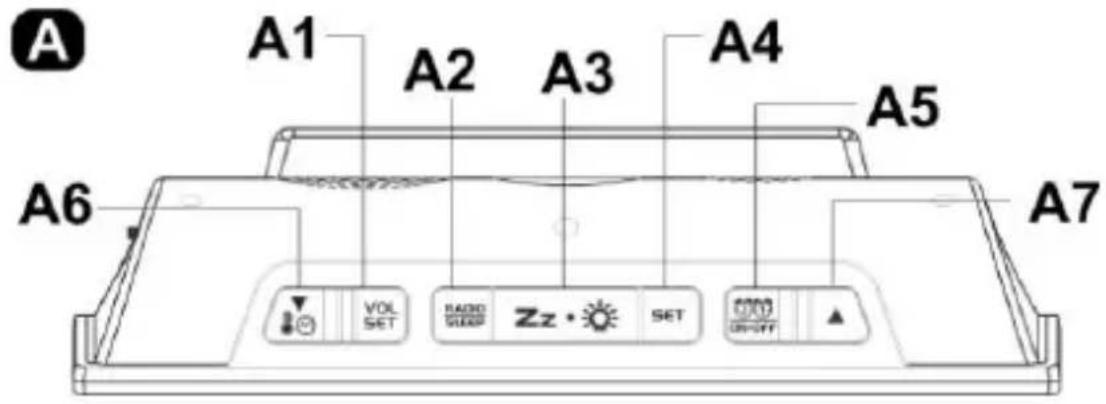

A – Top view

A1: VOLUME SET button

A2: RADIO / SLEEP button

A3: SNOOZE / DIMMER button A4: SET button

A6: DOWN / TIME / TEMPERATURE button

A5: ALARM 1-2 / SET / ON-OFF button

A7: UP button

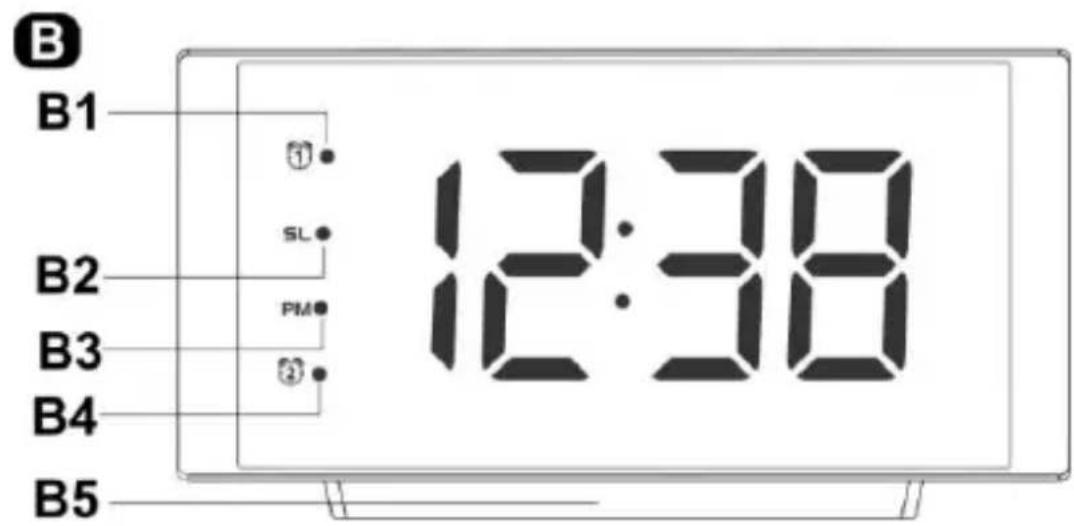

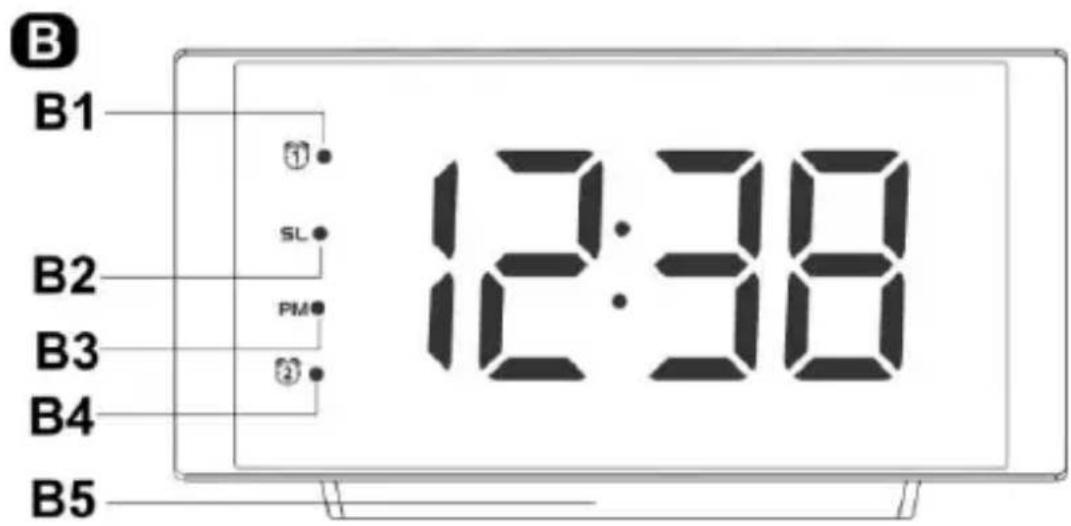

B - Front view

B1: ALARM 1 ON icon

B2: SLEEP icon

B3: PM icon

B4: ALARM 2 ON icon

B5: Mood light

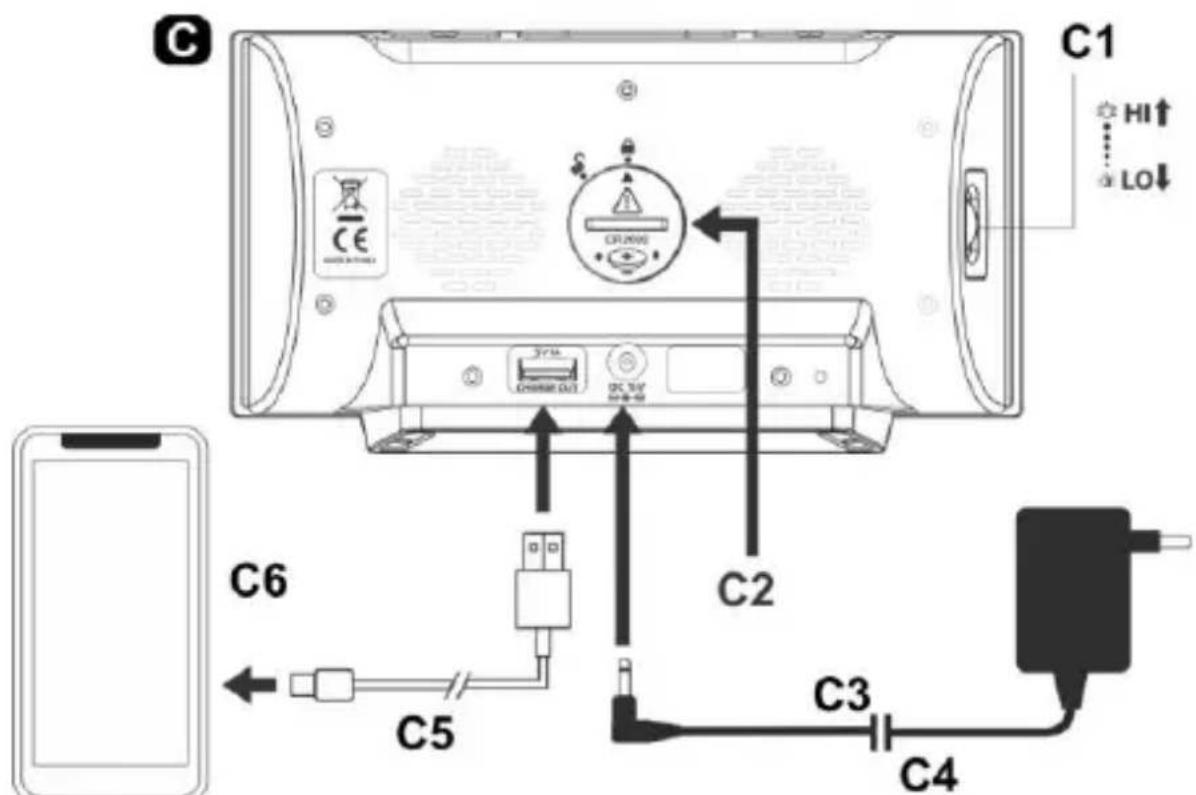

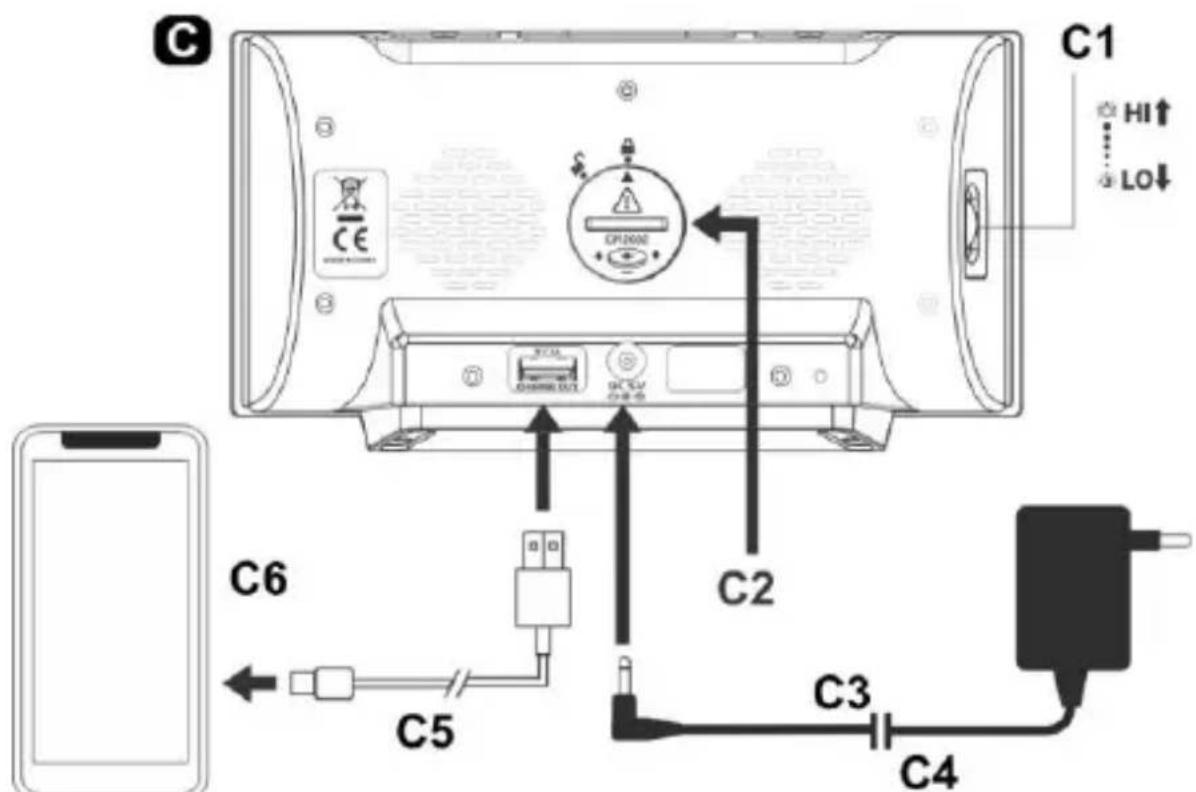

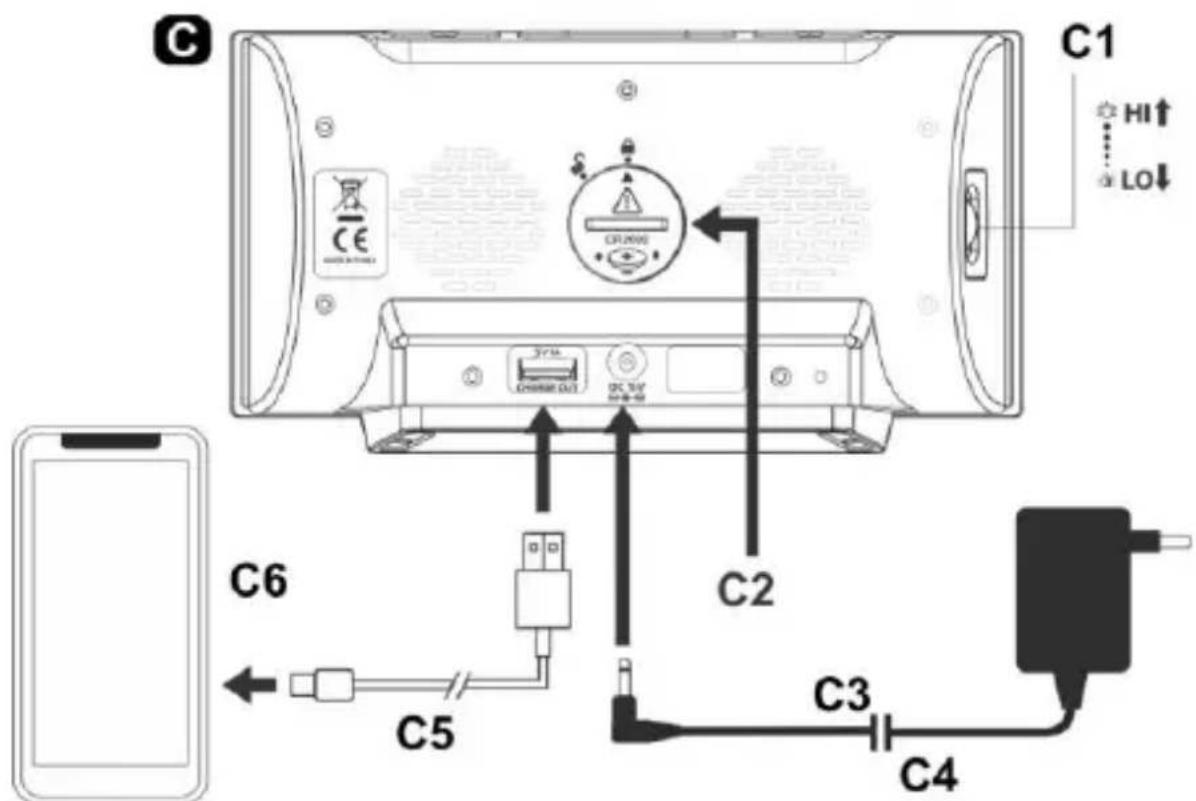

C - Back view

C1: Low dimmer brightness rotary dial C2: Backup battery (1 x CR2032, not included)

C3: Insert DC jack to power up your unit C4: 5V – 1200mA AC/DC adapter

C5: USB charging cable (not included) C6: Mobile devices (not applicable for tablet / iPad)

Please read these instructions carefully and keep the manual for future reference.

Only use the original power supply unit HX06-0501200-AG-001.

Plug in the AC/DC adaptor to an AC household outlet, and then plug the DC jack to the back of the

unit. The time display is turned on (at Lo-dim brightness). Press once to turn the time display to high brightness if needed.

TO INSTALL BACKUP BATTERY

Your clock radio requires one lithium cell “CR2032” battery (not included) to provide backup power to it in the event of a temporary power interruption.

1. Place your clock radio face down on a flat and soft surface.

2. Use a coin to turn the battery cover anti-clockwise at the back of your unit.

3. Insert one new lithium cell “CR2032” battery into the battery compartment by observing the “+” polarity facing upward.

4. Replace the battery cover and turn clockwise to lock it.

Remarks:

• Do not use old or used battery.
• Do not use rechargeable battery.
• New battery is recommended for optimal usage of this clock.

If AC power is interrupted and backup batteries are being used, the time and all settings of your unit will be kept. The alarm, radio and mood light do not function and the time display does not light up.

TO SET TIME AND SNOOZE DURATION (default time is at 0:00)

1. Press SET once, the hour digits "0" flash. Press ▲ or ▼ to set the hours. Press and hold ▲ or ▼ will accelerate setting at high speed.

2. Press SET once again, the minute digits "00" flash. Press ▲ or ▼ to set the minutes. Press and hold ▲ or ▼ will accelerate setting at high speed.

3. Press SET once again, “24Hr” will flash, press ▲/▼ to select “12 Hr” or “24 Hr” time format. For 12Hr time format, “PM” will appear on the left of time digits to indicate the afternoon time. There is no AM icon to indicate before-noon time.

4. Press SET once again, "n05" flash, press ▲ or ▼ to set the snooze duration (from 5 min to 60 min.).
5. Press SET once again, “°C” flashes, press ▲ or ▼ to select temperature readout in °C or °F.
6. Press SET again to confirm. The set time is displayed.

Note: the clock exits the set mode when no key is pressed in approximate 10 seconds.

TO SET ALARM 1 AND ALARM 2 (default alarm time at 6:00 AM)

1. Press and hold ON-OFF, LED and hour digit "6" flash, press ▲ or ▼ to set the desired hour. Press and hold ▲ to accelerate setting at high speed.

1. Press ON·OFF once again, the minute digits "00" flash. Press ▲ or ▼ to set desired minutes. Press and hold ▲ or ▼ to accelerate setting at high speed.

1. Press hold ON·OFF once again, LED displays "bu" (buzzer)., Press ▲ or ▼ to select the wake-up sound sources :-

$$ \mathbf {b u} = \text { B u z z e r } $$

$$ \mathbf {r d} = \text { R a d i o } $$

1. If "rd" (wake-to-radio) is selected, LED display "HI". Press ▲ or ▼ to select the wake up volume of radio to "LO". This selection does not apply for "bu" (wake-to-buzzer).

1. Press ON·OFF once again, LED and Alarm 2's hour digit "6" flash. Repeat Step 1 to 3 above to set Alarm 2.
2. In the middle of setting the alarm, press SET once to store your alarm setting and exit the alarm set mode.

Note: the clock exits the alarm set mode when no key is pressed in approximate 10 seconds.

TO TURN ON OR OFF ALARM 1 AND 2

1. Press once to activate Alarm 1, LED appears.
2. Press once again to activate Alarm 2, LED appears.
3. Press once again to activate both Alarm 1 and 2. Both LED and LED appear.
4. Press once again to deactivate both alarms (both ① LED and ② LED disappear).

TO STOP AND RESET THE ALARM TO COME ON THE NEXT DAY

When alarm 1 or 2 is sounding, the related alarm icon flashes. Press once to stop the alarm

and reset it to come on the following day. After that both and/or LED remain on the display.

TO ACTIVATE THE SNOOZE FUNCTION (default snooze duration is 5 minutes)

When alarm is sounding, press once, the alarm will be silenced momentarily and come on again after the set snooze duration.

Note: if your second alarm activates while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

TO SET UP THE FM ANTENNA

Extend the FM wire antenna fully and vary the direction for best FM reception. Do not strip, alter or attach to other antennas.

TO LISTEN TO THE FM RADIO

1. To turn on the radio, press RADIO/SLEEP once, the display shows "rd" and then the radio frequency readings in Mhz.

2. Press or to tune the radio to a desired station. Press and hold or to scan for the next clear station.

3. To adjust the volume, press VOL SET once, the display shows "L05", press ▲ or ▼ to adjust volume from L01 (minimum) to L16 (maximum).

4. Press RADIO/SLEEP to turn off the radio.

Remark: keep your radio away from fluorescent lamps or other electronic devices, which may cause interference to the radio.

AUTO STORE FM STATION IN MEMORY

At FM mode, press and hold the unit will search station and store in memory automatically.

TO STORE FM RADIO STATIONS IN MEMORY

This clock radio features a total of 20 preset memories of FM stations. These allow you to preset your favorite stations and access them quickly.

1. Press RADIO/SLEEP once to turn on the radio. Then tune to a FM radio station you like to preset.
2. Press and hold the SET until "P01" flashes. Press SET once to store to "P01".
3. Press ▲ or ▼ to select another station you like to preset (the radio frequency is displayed).
4. Press and hold SET until "P02" flashes. Press ▲ once to select 'P02", then press SET once to store to "P02".
5. Repeat Step 2 to 4 to store radio stations to P03 through P20.
6. To remove a pre-stored station, repeat steps 2 to 4 to store another station in its place.

TO SELECT A PRESET RADIO STATION

When the radio is on, press SET once. Then press ▲ or ▼ repeatedly to select a preset station.

TO SET SLEEP TIMER

1. When the radio is on, press and hold RADIO/SLEEP, the sleep time "05" (5 minutes) appears on the display.
2. Press RADIO/SLEEP repeatedly to select a period (in minutes) from 05, 10, 15, 30, 45, 60, 75, 90 or OFF.
3. The clock radio reverts to the time display automatically in a few seconds. Press and hold RADIO/SLEEP to see the sleep time remaining.
4. Press RADIO/SLEEP once to deactivate the radio and the sleep function before the sleep time has elapsed.

TO INTERCHANGE TIME AND THE TEMPERATURE DISPLAY

1. Press once to view indoor temperature readout. Press once again to return to time display.
2. Press and hold 🔒, a single tune will be heard. Your clock radio will scroll between time and
   temperature display alternately. Press and hold a double tune will be heard. Your clock radio will return to time or temperature display.

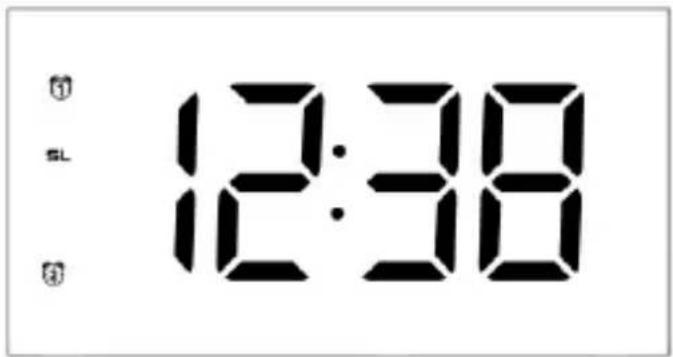

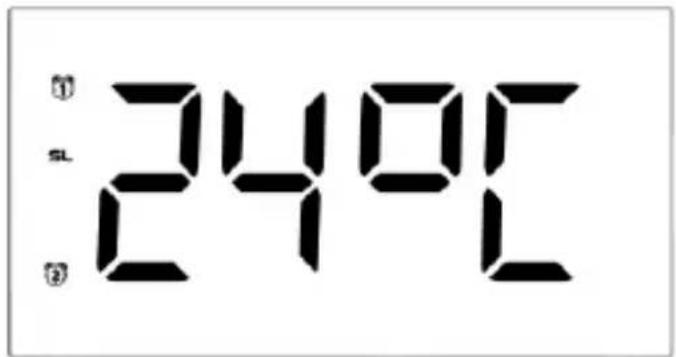

TIME DISPLAY TEMPERATURE DISPLAY

12:38 SL

① SL ③ 240℃

TO USE THE HI-LO DIMMER

At normal time display mode, press time or temperature display.

once to adjust the brightness (HI / LO) of the

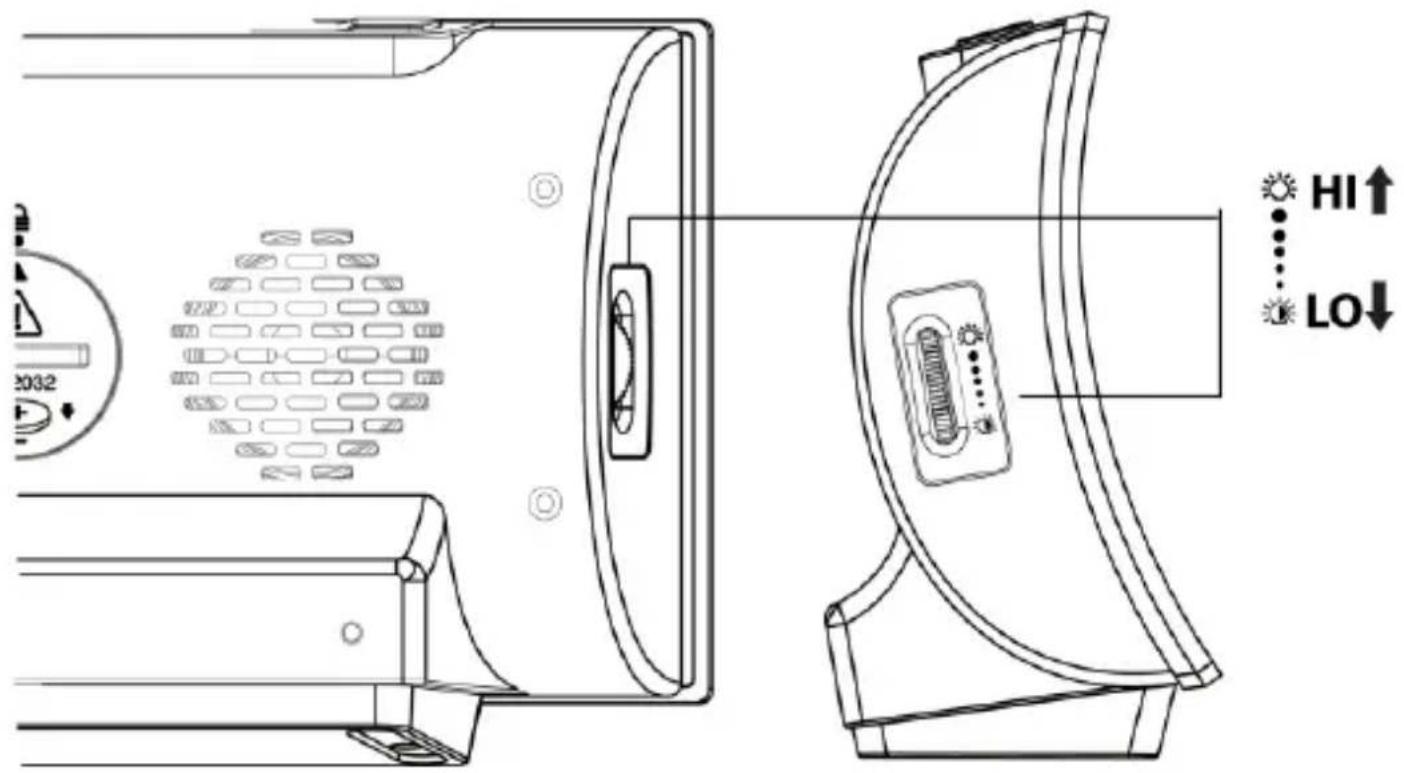

TO ADJUST THE LO-DIM BRIGHTNESS OF THE TIME DISPLAY AND THE MOOD LIGHT

When the time / temperature display is at Lo-dim brightness, rotate the dial on the right side of the clock radio. Turn upward for higher brightness and downward for lower brightness.

2032 HI↑ LO↓

TO CHARGE MOBILE DEVICES WITH THE USB PORT

Connect the charging cable of your mobile phone to the A-type USB port at the back of the unit, then connect the other end to your mobile phone. The clock radio will charge the mobile phone automatically.

Remarks :

1. Make sure the original cable of your mobile phone is used as the charging cable for charging
2. Make sure the original adaptor (5V-1.2A) enclosed with your clock radio is being used to power your clock radio. Using other adaptors may not charge your phone.
3. iPad and Notepad charging is not supported.

TROUBLE SHOOTING

If your clock displays irrelevant time or does not function properly, which maybe caused by electrostatic discharge or other interference. Unplug the DC jack at the back of the unit, slide open the battery cover and take out the batteries. Then re-plug the DC jack and reinstall batteries by observing the correct +/- polarity. Your unit will be reset to default settings and you need to set it again.

CARE OF YOUR PRODUCT

1. Place your unit on a stable surface, away from sources of direct sunlight or excessive heat or moisture.
2. Protect your furniture when placing your units on a natural wood and lacquered finish by using a cloth or protective material between it and the furniture.
3. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as Benzine, thinner or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning.

4. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

5. If the unit is not to be used for a prolonged period, such as a month or longer, remove the batteries to prevent possible corrosion. Should the battery compartment become corroded or dirty, clean the compartment thoroughly and replace the batteries.

6. Do not open the inner back case or tamper with any components of this clock.
7. Do not plug in any other AC/AC or AC/DC adaptor with incorrect specifications or voltage.

Hereby, Technotrade declares that this product WT 494 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665004945

SPECIFICATIONS

Alarm duration Buzzer 5 minutes/ Radio 1 hour

Snooze duration 5 to 60 minutes

Temperature range 0^ +50^ / +32^ +122^

Default settings:-

Time 12/24HR format

Alarm 1 and 2 6:00am (OFF)

Snooze duration 05 (5 minutes)

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Install batteries correctly by matching the polarities (+/-).
- Always replace a complete set of batteries.
- Never mix used and new batteries.
- Remove exhausted batteries immediately.
- Remove batteries when not in use.
- Do not recharge and do not dispose of batteries in fire as the batteries may explode.
- Ensure batteries are stored away from metal objects as contact may cause a short circuit.
- Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
- Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General

household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO SLEEP ZZ SET RADIO OUT ON/OFF

B B1 SL B2 PM B3 B4 B5 12:38

C C1 HI↑ LO↓ CE CPU/2000 SYM CHINAIC OUT DC-357 DO-358 C2 C6 C5 C3 C4

FR1

VUE D'ENSEMBLE

A - Vue de dessus

A1: Touche VOLUME SET

A3: Touche SNOOZE/DIMMER

A5: Touche ALARM 1-2/SET/ON-OFF

A7: Touche UP

B - Vue avant

B1. Icône ALARM 1 ON

B3. Icône PM

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)

FR

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO SLEEP ZZ SET RADIO OUT ON/OFF

B B1 SL B2 PM B3 B4 B5 12:38

C C1 HI↑ LO↓ CE C2 C6 C5 C3 C4

ES1

VISTA GENERAL

A - Vista superior

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO SLEEP ZZ SET RADIO OUT ON/OFF

B B1 SL B2 PM B3 B4 B5 12:38

C C1 HI↑ LO↓ CE CPU/2000 SYM CHINAIC OUT DC-357 DO-358 C2 C6 C5 C3 C4

NL1

OVERZICHT

A - BOVENAANZICHT

A1: Knop VOLUME SET

A3: Knop SNOOZE/DIMMER

A5: Knop ALARM 1-2 SET/ON-OFF

A7: UP-toets

B - Vooraanzicht

B1. Icoontje ALARM 1 ON

B3. PM-icoontje

B5. Sfeerlicht

C - Achteraanzicht

C1: Regelknop helderheid HI-LO

A A1 A2 A3 A4 A5 A6 A7 VOLT SET RADIO SLEEP ZZ SET RADIO OUT ON/OFF

B B1 SL B2 PM B3 B4 B5 12:38

C C1 HI↑ LO↓ CE CPU/2000 SYM CHINAIC OUT DC-357 40-80-80 C2 C6 C5 C3 C4

PANORAMICA

A - Vista superiore

A1: Pulsante VOLUME SET

A3: Pulsante SNOOZE/LIGHT

A5: Pulsante ALARM 1-2 SET/ON-OFF

A7: Pulsante UP

B - Vista frontale

B1. Icona ALARM 1 ON

B3. Icona PM

B5. Luce d'atmosfera

C - Vista posteriore

B1. Ikona ALARM 1 ON

B3. Ikona PM

B4. Ikona ALARM 2 ON

A1: Przycisk VOLUME SET

A3: Przycisk SNOOZE/DIMMER

A5: Przycisk ALARM 1-2 SET/ON-OFF

A7: Przycisk UP

B - Widok z przodu

B1. Ikona ALARM 1 ON

B3. ikona PM

B4. Ikona ALARM 2 ON
