USER MANUAL Naples Audizio

MANUEL D'INSTRUCTIONS

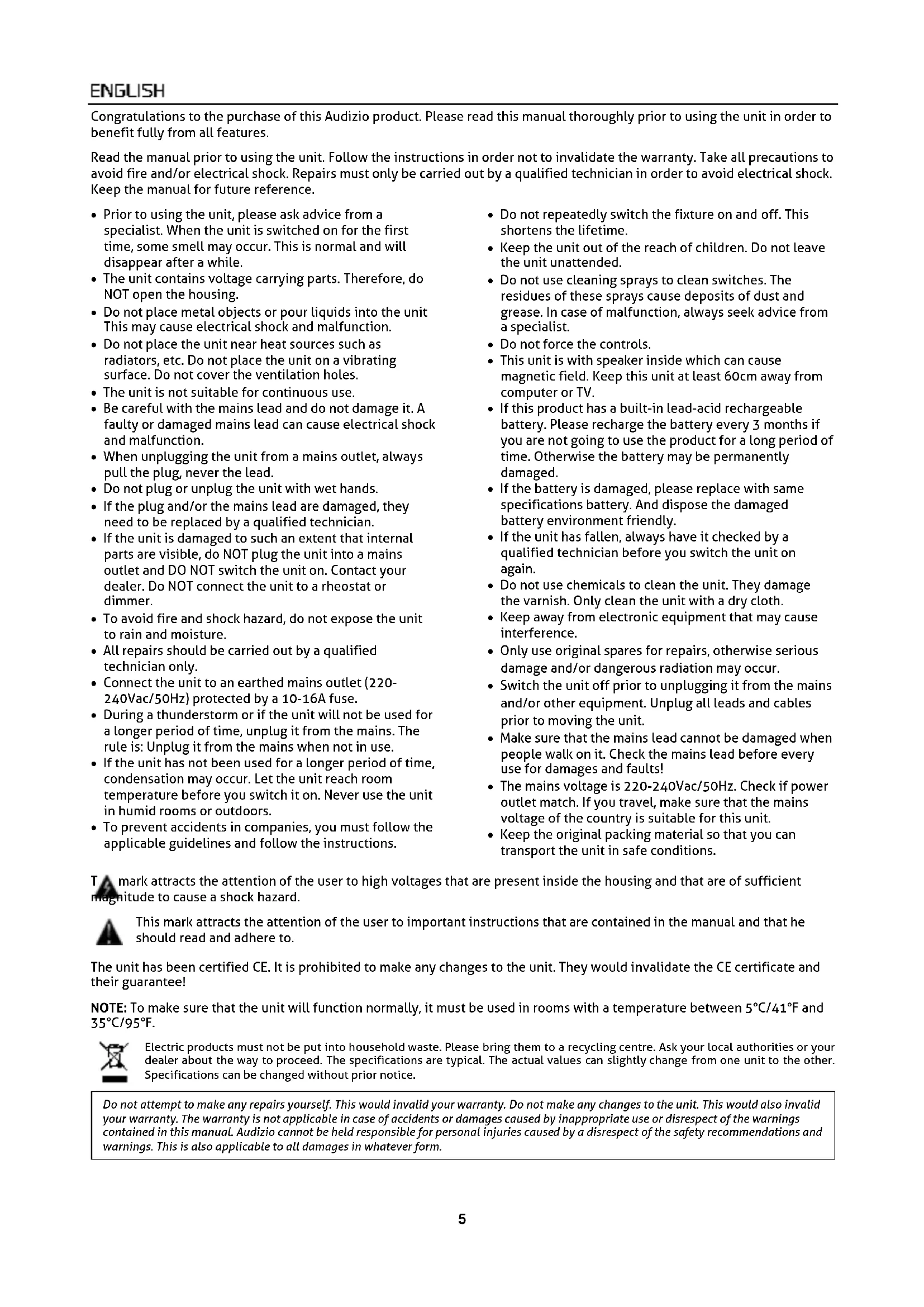

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.

• The unit contains voltage carrying parts. Therefore, do NOT open the housing.

• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.

• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.

• The unit is not suitable for continuous use.

• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.

• When unplugging the unit from a mains outlet, always pull the plug, never the lead.

• Do not plug or unplug the unit with wet hands.

• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.

• To avoid fire and shock hazard, do not expose the unit to rain and moisture.

• All repairs should be carried out by a qualified technician only.

• Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse.

• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guidelines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the lifetime.

• Keep the unit out of the reach of children. Do not leave the unit unattended.

• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

• Do not force the controls.

• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.

• If this product has a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.

• If the battery is damaged, please replace with same specifications battery. And dispose the damaged battery environment friendly.

• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.

• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.

• Keep away from electronic equipment that may cause interference.

• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.

• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.

• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!

• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.

• Keep the original packing material so that you can transport the unit in safe conditions. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.6 CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

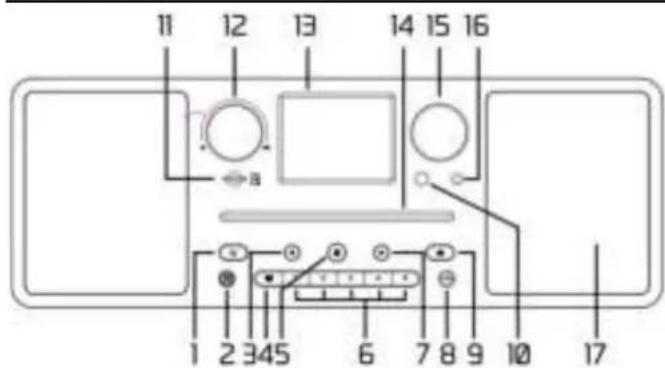

Press to put the radio in-/out of- standby mode.

Alarm clock setting.

Back to previous menu. [Internet radio/DAB/FM] Short press to return to the last level of the menu. Long press to skip to the previous preset/station [Media player: UPnP/USB/CD/Micro SD] Short press to return to the list of media files. Long press to rewind the track. [BT Streaming] Short press to skip to previous track. Long press to exit the BT mode.

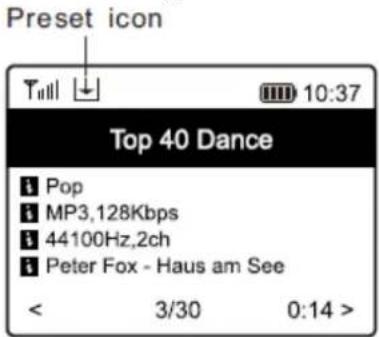

Press and hold to preset a particular station. Press to recall the favourite list.

Long press to preset a particular station. Short press to recall the station.

Proceed to next menu. [Internet radio/DAB/FM] When the radio is playing and displays the details of the selected station, short press repeatedly to view station information or display the clock. Long press to skip to the next station/preset. When in My Favorite list, short press to enter edit menu. [Media player UPnP/USB/CD/Micro SD] Long press to fast forward. [BT Streaming] Short press to skip to the next track. Long press to disconnect the paired device.

/EQ Access the home screen. Press this button (repeatedly; depends on which menu the device is in) to return to the playing screen. Long press to access the EQ setting menu.

Rotate to adjust the volume level. Press to (un)mute.

Rotate to scroll up/down within a menu. Press to confirm menu options inputs. [FM] Rotate the knob to manual tune the FM frequencies. [Internet radio/DAB] Rotate to change to next/previous station. [Media player UPnP/BT/USB/CD/MicroSD] Rotate to skip to next/previous track. Press to pause/play the music.

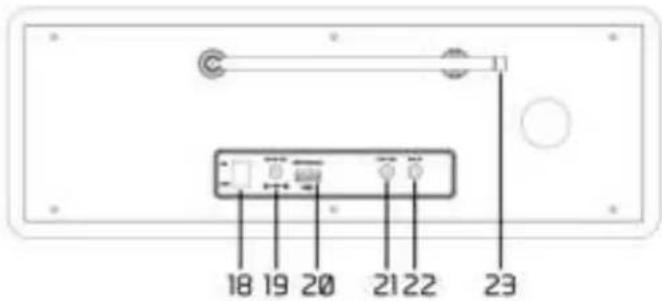

20. USB port (for playback only)

: Press to toggle between standby and operation : Mute 0-9: Input index numbers : Save the current playing station as favourite/preset ▲ : Cursor up ◄ : Cursor left / back to previous menu : Alarm button : Sleep Timer Mode: Switch between radio modes : Home : Previous station on the list/previous track media sources Local: Access the local station list (Local area set up in Configuration) : Recall the favorite list OK: Confirm button ►: Cursor right ▼: Cursor down Vol+: Volume up Vol-: Volume down EQ: Equalizer : Next station on the list/next track on media sources : Play/pause for media sources/ play/stop for Internet radio Dimmer: Access the Dimmer menu to adjust the brightness of the display Info: Quick access to Network and System information On the alpha-numeric keypad, press the button repeatedly to cycle through the characters assigned to each button. Refer to the following list. To input a character, highlight it and press the [OK] button to confirm and input the next character. When it comes to the last character of the password, press [OK] to complete the entry. Button 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>? Button 2: 2ABCabc Button 3: 3DEFdef Button 4: 4GHIghi Button 5: 5JKLjkl Button 6: 6MNOmno Button 7: 7PQRSpqrs Button 8: 8TUVtuv Button 9: 9WXYZwxyz Button 0: 08 Use the [Tune/OK] knob to scroll through the characters, highlight it and press [Tune/OK] button to confirm and input the next character. When it comes to the last character of the password, press [Tune/OK] to confirm and complete the entry. Note: The password is case sensitive. Please ensure the following is ready: You have a broadband internet connection. A wireless broadband router is connected to the internet successfully. The radio supports Wireless B, G and N connection (Wireless N router can also be used with the setting on B or G). You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption code/password. You need to key in the correct code when the radio is connected to the wireless router for network connection. If you do not know the code/password, please contact the person/technician who set up the router/network for you. The radio can work via Wireless network connection (Wi-Fi connection). The radio is powered by the mains adapter. A 12V 2A external power adapter is included. Connect the power adapter to the radio and the mains socket. Make sure to set the power switch to ON (I; backside of device) to power the device. The display will illuminate. The button on the front of the device is designated to function as standby switch only. Internet connection can be setup via Wireless network (WiFi). Your radio requires a broadband Internet connection.

• If this is first time use, the Configure Network wizard will be displayed. Choose Yes to start configuring network. Press the [◄] button to highlight Yes and press [Tune/OK] to confirm. Select Add/Remove AP from the list, use the [Tune/OK] knob to scroll and press it to confirm, then choose Add AP (Scan):

• It will start scanning the available Wi-Fi networks. Scroll to your network and press [Tune/OK] to confirm. If your Wi- Fi network is password protected, it will ask you to enter the password. Note: The password is case sensitive. Please consult with the one who setup your network if you don't know the password.

• When the Wi-Fi connection is successful, “Association Complete” will be shown briefly. The Wi-Fi signal bar will appear on the top left corner of the display: Press [ /EQ] to enter the home screen. Scroll by rotating the [Tune/OK] knob or the [◄ / ►] button on remote: My Favorite - To show the list of favorite stations which have been assigned to the presets. There are up to 150 presets available. Internet Radio - Start exploring worldwide radio stations here. Media Centre - You can browse and stream music from your network via UPnP or DLNA compatible devices. DAB+/DAB Radio - Pick up DAB+ and DAB radio signal if available in your local area (no internet connection required). FM Radio - Receive FM radio stations in your local area (no internet connection required). BT - BT playback, to play audio streamed (receive) from another BT enabled device after pairing. AUX In - Play music from external media devices by connecting the Aux-in jack. CD Player - Play CD MP3. USB - Play music from a USB drive. Micro SD - Play music from a Micro SD card. Alarm - Alarm clock. Two alarm settings available. Sleep Timer - Enable the timer to turn the radio in standby mode after the selected time has elapsed. Configuration - Options/settings available to personalize.9 On the main menu, choose Internet Radio and you will find the options below:

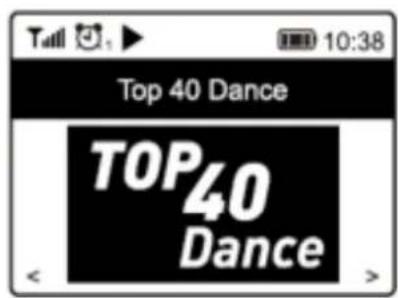

Skytune Select Skytune to start enjoying thousands of radio stations over the world. You can filter your search by Region, Music genre and talks. The Local Radio lets you access the stations available in your local area quickly. Note: You can change the Local Radio area under Configuration> Local radio setup. When you scroll along the list of Globe All and want to quickly reach to a certain point of the long list, input the index number on the remote control to quickly jump to that point. For example, on the remote control, input 28 and press OK, it will highlight the station no. 28. Search Instead of browsing the radio station list, you can input a few characters of the desired station to filter out / short list the stations. History The radio memorizes the stations you have listened up to 99 stations. If you have listened more than 99 stations, it will supersede the first station that you have listened. Start playing internet radio When a radio station starts playing, more radio information can be displayed. Press the [►] button in the state of the playing screen below:

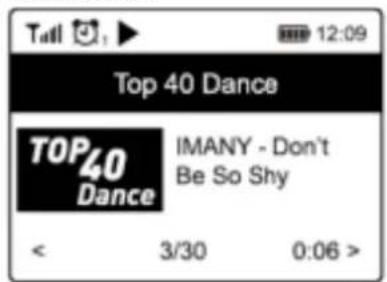

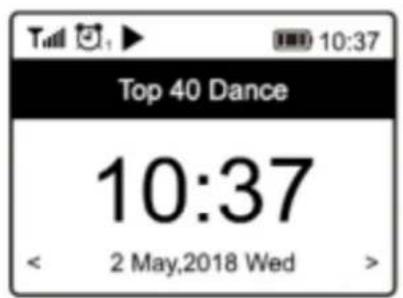

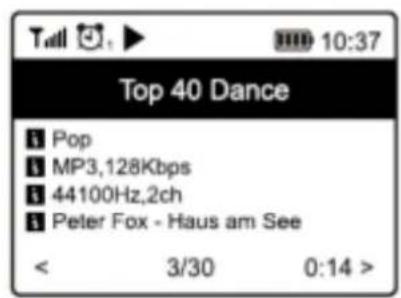

Every time you press the [►] button, it will toggle between the big clock and the radio channel information:

My Favorite This is to show the list of your Favorite stations which have been assigned to the presets.10 Preset a station When a radio station is playing, press the [ ] button on the remote control or press and hold the [ ] on the unit, you will see the icon appears as below. It means the station is added to the Favorite list. The new added station will always show in the last item on the Favorite list. You can store up to 150 presets. Recall a station Press the [ ] button on the remote control or press the [ ] briefly on the radio unit to recall the list of presets, or navigate to My Favourite on the home screen and select it to confirm. Edit your favorite list On the Favorite list, choose the radio station you want to edit then press the [►] button on the remote control (or press [►] on the unit). It will enter the Edit menu with the following options:

• Move down - To move down the ranking of a station

• Move up - To move up the ranking of a station

• Delete - To delete a particular station

• Move to top - To move the station to the top of the favorite list

• Move to bottom - To move the station to the bottom of the favorite list The device supports UPnP and is DLNA-compatible. This provides the opportunity to stream music from your network. However, this requires you to have a compatible device in your network that can function as a server. This can be e.g., a network hard drive or a conventional PC with e.g., Windows 8 via which access to the shared folder or media sharing is permitted. The folders can then be browsed and played on the radio. Note: Please make sure your computer is on the same Wi-Fi network as the Radio before you start using this function. Music streaming

• Once the UPnP/DLNA compatible server is configured to share media files with your radio, you can start music streaming.

• On the main menu, select Media Centre and choose UPnP.

• It may take a few seconds for the radio to complete the scan for available UPnP servers. If no UPnP servers are found, it will show Empty List.

• After a successful scan is done, select your UPnP server.

• The radio will show the media categories available from the UPnP server, e.g. 'Music', 'Playlists' etc.

• Choose the media files that you wish to play. You can set the mode of playback under Configuration > Playback setup. My Playlist You can make your own playlist for the UPnP music files. Choose and highlight the song you want to add to playlist, press and hold the [Tune/OK] knob or press and hold the [OK] button on remote, until the sign appears. The song will be added to My playlist. Clear My Playlist Remove all songs in “My Playlist” to allow a new playlist to be prepared. Note: If you have DLNA compatible servers available, follow the steps described above to browse the audio files from DLNA compatible device on the radio to play. If there is Digital Audio Broadcasting (DAB) in your area, the Radio can pick up the DAB stations (no internet connection is required). The Radio supports both DAB and DAB+. Place the Radio close to the window and extend the antenna as far as it can go to get the best reception. Sometimes you may need to adjust the direction of the antenna to improve reception. Press the Home button, scroll to DAB Radio or use the [Mode] button on remote to switch to DAB Radio. Press [OK] to start. It will ask whether you want to scan DAB stations. Press [Tune/OK] knob (or OK on remote) to start scanning and it will show the progress on the number of channels received. When it is done, a preset page will be displayed.11 You can select the channel and start listening to it. To add the channel to My Favourites, press the [ ] button on remote or press and hold the [ ] button on the radio, and it will add to the favourites list. Press the [◄] button to return to the Preset list. Note: When a DAB station is playing, press [►] to view more radio information. Each time you press [►], it will display various information at a time such as radio frequency, rolling texts (if available) and a big time clock. New digital radio stations should be picked up automatically by the radio if they are part of a multiplex you already received. Otherwise, you need to do the Preset Scan again. To receive FM stations (no internet connection is required), place the radio closest to a window and extend the antenna as far as possible to get the best reception. Sometimes you may need to adjust the direction of the antenna to improve reception. On the home screen, scroll to FM Radio or use the [Mode] button on the remote to switch to FM Radio. Press the [Tune/OK] knob (or OK on remote) to start. It will ask whether you want to scan FM stations. Confirm to start scanning, it will show the number of channels found. When it is done, it will automatically save the found channels on presets and display the list. You can select the channel and start listening. Whenever you want to add to My Favourite, press the [ ] button on remote or press and hold the [ ] button on the radio, it will add the radio station to the favourite list. Always press the [◄] button to return to the Preset list. Note - When it is playing FM radio, press the [►] button to view more radio information, each time you press the [►] button, it will display various information at a time such as radio frequency and big clock display Manual Tune To manual tune a frequency, rotate the [Tune/OK] knob and press [Tune/OK] to confirm. Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive a music stream from the BT transmitting device. If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Push the Menu button to display the selection menu for the different operating modes.

• Use the up/down button to select the operating mode BT and push the dial switch.

• Switch your BT device to which you want to pair the radio to and activate the pairing mode here. The device scans for BT devices in the reception range.

• When the radio is found, your BT device shows its name Audizio Naples.

• Select the radio at your BT device.

• Start playback on your BT device. You can listen to music from other media devices by connecting to the 3.5 mm aux-in jack on the rear side of the radio. Use a cable with a 3.5mm pin at both ends (3.5mm-3.5mm). Connect one end to the aux-in jack on the radio, the other end to the headphone jack on the media device (if equipped with LINE-output). The CD drive on the radio is a slot-in type. Gently insert the CD in the slot (with label side up), it will be pulled in automatically. It will take a moment to read the disc before it starts playing the first track. Skip to the next or previous track by rotating the [Tune/OK] knob. Pressing and holding the [►] or [◄] buttons will invoke fast forwarding/rewinding. To pause/play the music, press [Tune/OK]. Press [ ] to stop playing or long press the button to eject the CD. The radio will switch to CD mode when a CD is inserted. Another option to listen to your favorite music is via USB drive. Insert the USB drive in the port at the back of the radio. Press the home button and navigate to "USB", press OK to confirm. It will take a moment to read the USB drive before it starts playing the music. Skip to the next or previous track by rotating the [Tune/OK] knob. Press and hold the [►] or [◄] buttons will invoke fast forwarding/rewinding. To pause/play the music, press in the [Tune/OK] knob.12 Note: If a USB drive is not recognized, the list of files on the drive is corrupted or a file in the list is not played, please connect the USB drive to a PC, format the device and try again. The supported file system is FAT12, FAT16 and FAT32. A USB drive requiring high power (more than 500mA or 5V) is not supported. Compatible audio format: MP3. To play music from a Micro SD memory card, simply insert a Micro SD card into its port on the front of the radio (with label side up). Press the home button and navigate to "Micro SD", press OK to confirm. It will take a moment to read the Micro SD card before it can begin playing music. Skip to the next or previous track by rotating the [Tune/OK] knob. Press and hold the [►] or [◄] buttons will invoke fast forwarding/rewinding. To pause/play the music, press [Tune/OK]. Note: If a Micro SD is not recognized or does not play properly, the list of files on the device is corrupted or a file in the list is not played, please format the memory card (all the files will be deleted) and try again. The supported file system is FAT12, FAT16 and FAT 32. Compatible audio format: MP3.

• Press the home button, navigate to Alarm and press OK, or press [ ] on the remote control.

• Select either Alarm 1 or Alarm 2, choose Turn on to activate the Alarm.

• Follow the alarm wizard instructions to set the alarm.

• The wizard will guide you through the settings below: Time - Set the time for the alarm. Sound - You can choose Wake to Tone, My Favourite, Wake to FM Radio or Wake to DAB Radio as the alarm source. Note: Wake to FM or wake to DAB: Only the preset stations can be used as alarm (if the preset scan has been completed). Repeat - You can schedule the alarm as you desire: Everyday, Once or Multiple Days. Alarm Volume - Adjust the volume of the alarm as you like by rotating the [Tune/OK] knob or [▲/▼] button on remote. Alarm duration - There are number of duration choices available. You can set the preferred duration for the alarm to sound. When the time is due, it wil turn off automatically.

• After the above settings are completed, press the [◄] button to exit and make sure the Alarm is turned on. You will see the Alarm icon appear on the display if it is activated. Note: If the selected alarm source is not available, the Wake to Tone will be released. Stopping Alarm/Activate the Snooze function When the alarm goes off, press the [ ] to stop the alarm or press the [Tune/OK] knob to activate the Snooze feature. When the Snooze is activated, the alarm is muted for 9 minutes and sounds again when the time is due. You can repeat the process multiple times. To stop the "Snooze" function, press the [

You can set the timer to let the radio turn to Standby mode after the selected time elapsed (in range of 15 minutes to 180 minutes) There are several timer options to choose from. Press [ ] on the remote control to set the timer. You will see the icon appear on the display if the timer is set.

Here you will find the complete range of settings/options available to configure your radio. On the main menu, navigate to Configuration setting. Press OK and you will see a list of options available.13 Network

• Network Options Always on: The WLAN function remains switched on (faster access when switching from other modes of radio). Auto off in 30s: The WLAN function shuts down after 30 seconds when not in use (to save energy).

• Wi-Fi Channels Not all of the Wi-Fi channels are available in every country. There may be variation between different countries. Therefore, it is necessary to choose the Wi-Fi channels to ensure the Wi- Fi performs satisfactorily. The channels are already set according to the requirement in different countries. Choose the country you are staying in from the list to get the correct channel.

• Add / Remove AP Add AP (scan) - It will scan out a list of routers around. Add AP (WPS button) - Choose this option to connect your Wi-Fi router via WPS (if the router has a WPS button). Remove AP - If you have already added a router and want to remove it, choose this option. Note: It is recommended to place the radio within 2 meters from the router for better success rate.

• AP If you have added more than one router to the radio and want to switch to another one, select this option to change.

• Signal This is to show the strength of the Wi-Fi signal as received by the radio. Usually signal levels lower than -70dBm is classed as weaker level and if it affects the reception of your radio, you may need to optimize the router location or check if there is any problem with the router itself.

• IP The IP is set to Dynamic by default. Select to change Fixed IP according to your network condition.

• DNS The DNS is set to Dynamic by default. Select to change <Fixed> DNS according to your network condition. Date and Time The radio will set your local time automatically after the internet connection is completed. If you want to do manual setting, change it by the following options:

• Time zone Auto-set Time Zone: This option is set by default. Manual-set Time Zone: Choose this option if you want to set the time in another region. Choose and highlight the region/city you prefer and press OK to confirm. Coupled with NTP (use network time) and DST (Daylight Saving Time) will be adjusted automatically if you choose to use network time (NTP).

• Set Time Format Choose either 12-hour or 24-hour notation you prefer.

• DST (Daylight Saving Time) Enable on/off

• NTP (Use network time) NTP is designed to synchronize a device's clock with a time server. Your radio will synchronize the time server by default every time it powers up and connects to Internet. This ensures a very high degree of accuracy in the radio's clock. You can change to use other time server by inputting the URL address (see below NTP server). You can choose “Do not use network time” if you don't want it to. If you choose not to use NTP for clock synchronization, highlight the NTP (Network Time Protocol) and press OK to make the change. You will see the Set Date & Time appear on the menu. Select it and adjust the date and time as you desire.

• NTP Server NTP is designed to synchronize a device's clock with a time server. Here it shows the server being used for the radio. Language The default language is set to English. You can choose other languages as preferred. Scroll with the [▲/▼] buttons on remote or the [Tune/OK] knob to the symbol and press [OK]. Scroll to highlight and press [OK] to select your language of choice. English, French, Spanish, Italian, German, Dutch, Polish, Russian and Simplified Chinese are available. DAB set up

• DAB full scan You can always carry out a new scanning of DAB channels by selecting this option. All current presets and channels will be erased.

• DAB station list The scanned DAB stations will be listed here for management. You can move the position of- or delete any station. Scroll to the station and press [►]. A pop-up window will be presented: Move up, Move down and Delete. FM set up

• FM area Choose the Region according to your physical location to define the search range for the radio.

• Scan setting Either "All stations" or "strong stations" (with stronger signal) can be selected for the scan.

• Audio setting14 You can choose to set "Auto Stereo" or "Forced mono" for the reception.

• FM full scan You can always carry out a new scan of FM channels by selecting this option. All current presets and channels will be erased. The preset list will be saved unless a new preset scan is carried out.

• FM station list You can adjust the preset ranking by Move down, Move up or Delete it. Highlight one of the presets, then press [►], the edit menu will be entered. Press [◄] to return to the preset list. Local Radio The radio is set by default to detect the radio stations in your local area automatically through internet connection. These stations can be accessed by pressing the [Local] button on remote. You can also set Local in another region if you want. Highlight the Local Radio and press [OK]. Choose Manual-set Local radio to change the region setting. Playback Setup This is to set the mode of playback under UPnP/DLNA compatible streaming: Repeat All, Repeat One, Shuffle or Normal. Resume Play Options This is to set the device whether to return to the last operating mode when it is switched on or displays the home screen. Power-On Options This is to select the state of the radio after a power reset or power cut, whether to return to Standby or the state subject to the option selected from the "Resume play options". Dimmer You can set the backlight level for the display as you prefer. There are two settings:

• Mode - Normal or Power Saving Normal - the display will stay with the same level of brightness all the time without dim down. Dim - the display will dim down after 20 seconds if no operation is made on the radio.

• Level - Bright and Dim Bright - This is to adjust the level of brightness in Normal mode. Dim - This is to adjust the level of brightness in Dim mode.

• Dimmer in Standby (Standby is only enabled when power is connected) The display brightness in standby mode can be adjusted manually by turning [Tune/OK] or press the [▲/▼] buttons on the remote. If no further input is registered within 20 seconds, it will stay with the dim value as set in Configuration. EQ (Equalizer) Various music genres can be set. Buffer Time Sometimes you may experience uneven playback of the internet radio. This can happen if the internet connection is slow or network congestion occurs. To help improving the situation, you can choose longer buffer time to get a few seconds of radio stream before beginning to play. The default value is 2 seconds. You can choose 5 seconds if you prefer to have a longer buffering time. AUX-In Gain If the volume level of the connected auxiliary device is too low, even when the volume on the device is set to maximum, you may want to adjust the gain to 6dB to achieve a higher volume level. Reset CD Door In case the CD cannot be ejected, select this option and choose Yes to confirm. It will take a few seconds to release the CD. Information View the Network and System Information of your radio. To access this information quickly, press the [Info] button on the remote control. When using your PC to manage My favorite stations, you have to use the IP address. This info can be viewed from here. Then type in the IP address Configuration > Info > Network > IP ) to your PC's browser input window. Software Update There may be software release to upgrade features of the radio from time to time. Check the update regularly to keep your radio up to date with the latest software. Reset to Default You can do the reset to clear all the settings and return to default settings. ** Please note all the Station presets, Settings and Configuration will be erased after you have performed the reset.15 Experience an easy way to control tuning internet radio channels and manage your favorites-list via PC or Smart phone web browsers. The supported browsers are Internet Explorer and Chrome.

• Connect your PC or Smart phone to the same Wi-Fi network as your radio.

• Browse or enter the name to search the radio channel, a list of internet radio channels will be displayed.

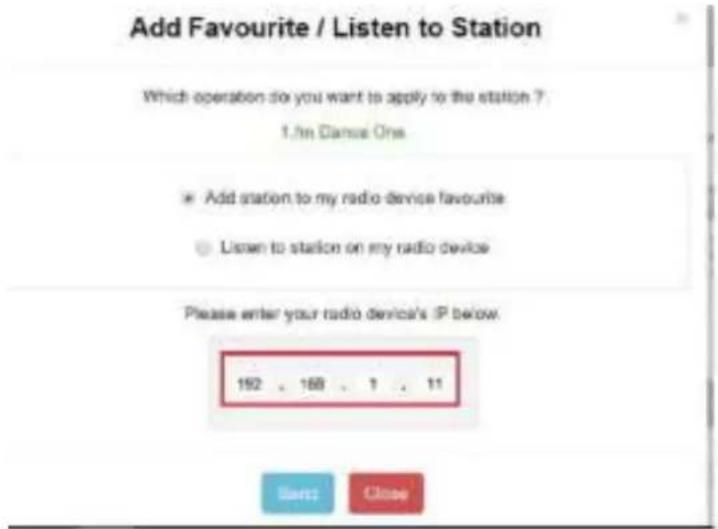

• It will prompt you whether to "Add Favourite" or "Listen to Station". Enter the IP address of your radio (e.g.

The IP address can be located on the radio unit as follow:

• On the remote control, press the [Info] button, choose Network and scroll to IP to view the IP address

• On the radio, return to the main menu. Navigate to Configuration > Information > Network Information > IP - Select "Listen to Station", click "Send" and the radio unit will switch playing the channel and the "My Favourite" page will pop up on the web browser. You can then choose to add the playing station to favourite or manage your list by other edit options. Any changes will synchronize to the radio unit immediately.16

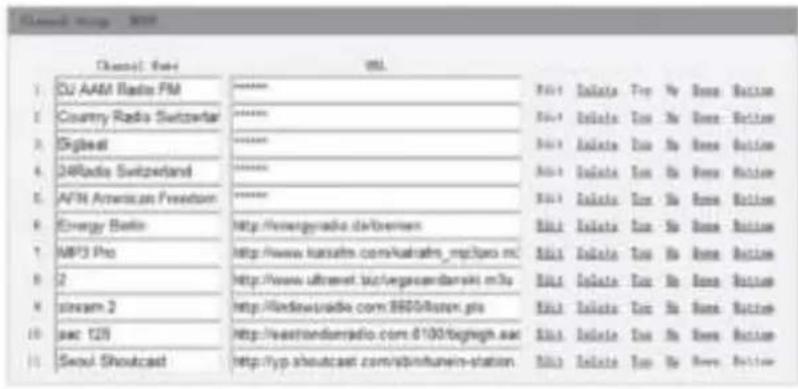

You can also add the radio channel if you know the published audio stream URL with the streaming format as follow:

1. Transport: HTTP progressive like HLS and HTTP like Shoutcast, Icecast

Problem Cause Solutions Cannot connect to Wi-Fi network Network down Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network.

• Check that a DHCP server is available, or that you have configured a static IP address on the radio.

• Check that you firewall is not blocking any outgoing ports. As a minimum the radio needs access to UDP and TCP ports 80,443 and 8008, DNS port 53. Router restricts access to listed MAC addresses Obtain the MAC address from Configuration > Information > Network > Wi-Fi MAC and add to the allowed equipment list on your access point. Note: The radio has separate MAC addresses for wired and wireless networks. Insufficient Wi-Fi signal strength Check distance to router; see if a computer can connect to the network in this location

• Optimize the distance of the router’s location Unknown encryption method Change encryption method on router. The radio supports

Firewall preventing access Windows Media Player: varies — non-Microsoft firewalls may require configuration for UPnP. If your radio can connect to the network successfully, but is unable to play particular stations

• The station is not broadcasting at this time of the day (remember it may be located in a different time zone).

• The station has too many people trying to attach to the radio station server and the server capacity is not large enough.

• The station has reached the maximum allowed number of simultaneous listeners.

• The link on the radio is out of date. This is updated automatically every day, so the next time you turn on the link will be recognized. No DAB/FM reception

• Please carry out “Reset to default” on the radio and extend the antenna.

• Move the radio close to the window. DAB/FM radio reception is poor

• Please check that the aerial is extended for the maximum signal strength and adjust the direction to improve reception.

• Check that you do not have other electrical equipment too close to your radio, causing interference. No sound

• Adjust the volume level of the external powered speaker.

• Please check if the power of the external powered speaker is switched on.

1. If the Internet Radio keeps re-buffering radio station:

The Internet Radio is streaming the data from the radio station via your broadband connection, if there is a high error rate on your broadband connection, or the connection is intermittent, then it will cause the Internet Radio to pause until the connection is re-established and it has received enough data to start playing again. If your Internet Radio keeps stopping, please check the DSL modem to ensure that the Broadband line is not suffering a high error rate or disconnections. If you are experiencing these problems, you will need to contact your broadband supplier.

2. What is Buffering?

When playing a stream, the Internet Radio/Media player, downloads a small amount of the stream before it starts playing. This is used to fill in any gaps in the stream that may occur if the internet or the wireless network is busy. The Internet Radio streams music data from the PC while you are listening. If a stream gets blocked or experiences internet congestion while transferring it may stop/interfere with the quality of play. If this happens, check your internet connection speed- it must be faster than the speed of the streams.

3. My radio is working but some stations cannot be played.

2. Wat is buffering?

Alarm clock setting.

1. Transport: HTTP progressive like HLS and HTTP like Shoutcast, Icecast

• DST (Day Light Saving Time) Permitir on/off

1. Transport: HTTP progressive like HLS and HTTP like Shoutcast, Icecast

• Adjust the volume level of the external powered speaker.

• Please check if the power of the external powered speaker is switched on. Radio se queda congelada o no responde

• DST (Day Light Saving) Activation on/off.

1. Transport: HTTP progressive like HLS and HTTP like Shoutcast, Icecast

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject:

• Restriction of Hazardous Substances (RoHS) 2011/65/EUSpecifications and design are subject to change without prior notice. www.audizio.com Copyright © 2022 by Tronios The Netherlands
