USER MANUAL HWS42DGAU1 HAIER

WARNING:Risk of fire/flammable mate-

rial. since fl ammable materials are used. Take care material.

• Legend Warning – Important Safety information General infor mation and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal o ce. Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! Risk of injury or suff ocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance. Old appliances still have some residual value. An environmentally friendly method of dis- posal will ensure that valuable raw materials can be recovered and used again. Cyclopentane, a ammable substance not harmful to ozone, is used as an expander for the insulationg foam. By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the pro- duct, handled by the professionals. 2EN Content 1- Safety information p. 4
• 2- Safety tips p. 7
• 3- Maintenance p. 11
• 4-Accessories p. 13
• 5- Product description p. 14
• 6- Installation p. 15
• 7- Use p. 18
• 8- Energy saving tips p. 21
• 9 - Equipment p. 22
• 10- Care and cleaning p. 23
• 11- Troubleshooting p. 24
• 12- Technical data p. 27
• 13- Customer Service p. 28
• 14- Wine bottle stacking 3Safety information p. 29

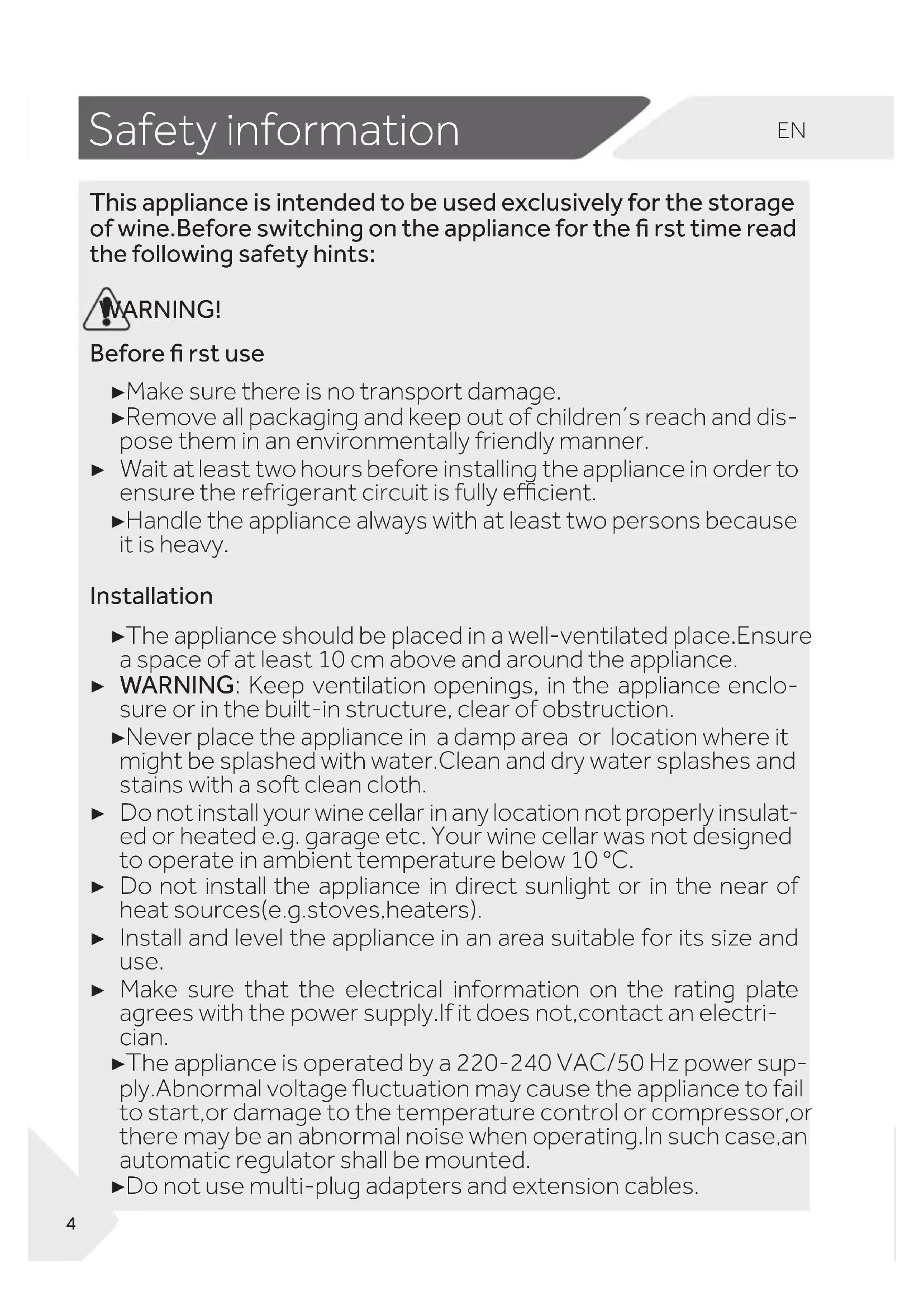

This appliance is intended to be used exclusively for the storage of wine.Before switching on the appliance for the fi rst time read the following safety hints: WARNING! Before fi rst use ▶ Make sure there is no transport damage. ▶ Remove all packaging and keep out of children´s reach and dis- pose them in an environmentally friendly manner. ▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully ecient. ▶ Handle the appliance always with at least two persons because it is heavy. Installation ▶ The appliance should be placed in a well-ventilated place.Ensure a space of at least 10 cm above and around the appliance. ▶ WARNING: Keep ventilation openings, in the appliance enclo- sure or in the built-in structure, clear of obstruction. ▶ Never place the appliance in a damp area or location where it might be splashed with water.Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install your wine cellar in any location not properly insulat- ed or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 10 °C. ▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ Make sure that the electrical information on the rating plate agrees with the power supply.If it does not,contact an electri- cian. ▶ The appliance is operated by a 220-240 VAC/50 Hz power sup- ply.Abnormal voltage uctuation may cause the appliance to fail to start,or damage to the temperature control or compressor,or there may be an abnormal noise when operating.In such case,an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. 4EN Safety information WARNING! ▶ WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance. ▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ▶ Do not step on the power cable. ▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. ▶ Only for UK: The appliance´s power cable is tted with 3-cord (grounding) plug that ts a standard 3-cord (grounded) socket. Never cut o or dismount the third pin (grounding). After the appliance is installed, the plug should be accesible. ▶ WARNING: Do not damage the refrigerant circuit. Daily use ▶ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the ap- pliance in a safe way and understand the hazards involved. ▶ Children shall not play with the appliance. ▶ Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances. ▶ Keep away children under 3 years of age from the appliance un- less they are constantly supervised. ▶ Cleaning and user maintenance shall not be made by children with out supervision. ▶ The appliance must be positioned so that the plug is accessible. ▶ If coal gas or other inammable gas is leaking into vicinity of the appliance,turn o the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance . ▶ Wait at least 7 minutes to reconnect the power after the power has been disconnected. ▶ Do not lift the appliance by its door handles. ▶ The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked in- side the appliance. 5Safety information

WARNING! ▶ Notice that the appliance is set for operation at the secic am- bient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. ▶ Do not place unstable articles(heavy objects,containers lled with water) on top of the appliance,to avoid personal injury caused by falling or electric shock caused by contact with water. ▶ Open and close the door only with the handles.The gap between the door and the cabinet is very narrow.Do not put your hands in these areas to avoid pinching your ngers.Open or close the appliance doors only when there are no children standing within the range of door movement. ▶ Do not store or use inammable,explosive or corrosive materi- als in the appliance or in the vicinity. ▶ Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. ▶ Do not store medicines, bacteria or chemical agents in the ap- pliance.This appliance is a household appliance.It is not recom- mended to store materials that require strict temperatures. ▶ Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst ▶ Do not touch the inside surface of the appliance compartment when in operation,especially with wet hands,as your hands may freeze onto the surface. ▶ For proper wine cooling,do not overload the appliance. ▶ Unplug the appliance in the event of a power interruption or be- fore cleaning.Allow at least 7 minutes before restarting the ap- pliance, as frequent starting may damage the compressor. ▶ WARNING: Do not use electrical devices inside the appliance,unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service(see warranty card). ▶ To prolong the service life of the appliance, avoid turning it o. ▶ Never place the appliance horizontally on the ground.After tilting the appliance more than 45°,wait for 24hours before plugging it in. 6EN Safety Tips WARNING! Maintenance / cleaning ▶ Make sure children are supervised if they carry out cleaning and maintenance. ▶ Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 7 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. ▶ Hold the plug, not the cable, when unplugging the appliance. ▶ Do not clean the appliance with hard brushes, wire brushes, de- tergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special re- frigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with wa- ter and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher. ▶ WARNING: Do not use mechanical devices or other means to ac- celerate the defrosting process, other than those recommended by the manufacturer. ▶ If the supply cord is damaged, it must be replaced by the manu- facturer, its service agent or similarly qualied persons in order to avoid a hazard. ▶ Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. ▶ If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in or- der to avoid a hazard. ▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by re, as well as increased energy consumption. 7EN Safety Tips ▶ Do not spray or ush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass door with hot water. Sudden temper- ature change may cause the glass to break. ▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside. Refrigerant gass information WARNING! The appliance contains the ammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open re sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse it imme- diately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not

tamper with it. Since the ammable refrigerants are used, please, install, handle and service the appliance strictly according to the in- struction and contact the professional agent or our after-sales ser- vice to dispose of the appliance. 8EN Safety Tips Intended use This appliance is intended to be used in household and similar ap- plications such as - sta kitchen areas in shops, oces and other working environ- ments; - farm houses and by clients in hotels, motels and other residen- tial type environments; - bed and breakfast type environments; - catering and similar non-retail applications. ▶ To ensure the safe preservation of wine, please comply with this instruction for use. ▶ The details on the most appropriate part in the compartment of the appliance where specic types of food shall be stored, con- sidering the distribution of temperature that can be present in the dierent compartments of the appliance are in the other part of the manual. Changes or modications to the device are not allowed. Unin- tended use may cause hazards and loss of warranty claims. 9EN Safety Tips

Disposal The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative con- sequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this prod- uct. For more detailed information about recycling of this product, please contact your local city o ce, your household waste disposal service or the shop where you purchased the product. Since the ammable insulation blowing gases are used, please con- tact the professional agent or our after-sale service to dispose of the appliance. WARNING! Risk of injury of suffocation! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before be- ing properly disposed of. Disconnect the appliance from the mains supply. Cut o the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance. 10EN Maintenance ▶ WARNING: Disconnect the appliance from the power supply be- fore cleaning. ▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder,petrol,amyl acetate,acetone and similar organic solutions,acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Clean the appliance when only little or no wine is stored.It is only necessary to clean it when it is dirty. ▶ Clean the inside and housing of the ap- pliance with a sponge damped in warm water and neutral detergent ▶ Rinse with clean warm water and dry with soft cloth. ▶ Do not clean any of the parts of the ap- pliance in a dishwasher. ▶ Allow at least 7 minutes before re- starting the appliance as frequent starting may damage the compresssor. Clean the door gasket: ▶ The door gaskets should be cleaned every 3 months to assure a proper seal. As below : Remove: Grasp the door gasket and pull it out according to the direction of ar- row to remove the whole door gasket in order. Dip the brush with water or food grade alcohlo,clean up the door gasket groove rstly by pulling back and forth the brush. Then wipe door gasket sur- face with a towel dipped with water or food grade alcohol. Finally,wash the door gasket clean and wipe it dry with a clean towel. 11EN Maintenance Installation door gasket after cleaning: Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove , and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove. Cleaning the shelves: ▶ All shelves can be taken out for cleaning. ▶ Take out all bottles. ▶ Lift each shelf a little and take it out. ▶ Clean the shelf with a soft towel. ▶ Wait until the shelves are dry before putting them back in.

Wait at least 7 minutes to reconnet the power after the power has been disconnected. 12EN Accessories Check the accessories and literature in accordance with this list: without isolation. Name User Manual Service Card Shelf Small shelf Hinger Cover Energy Label Key Left cam of door manual HWS77GDAU1 1 1 6 1 1 1 2 2 HWS42GDAU1 1 1 3 1 1 1 2 2 13Product description

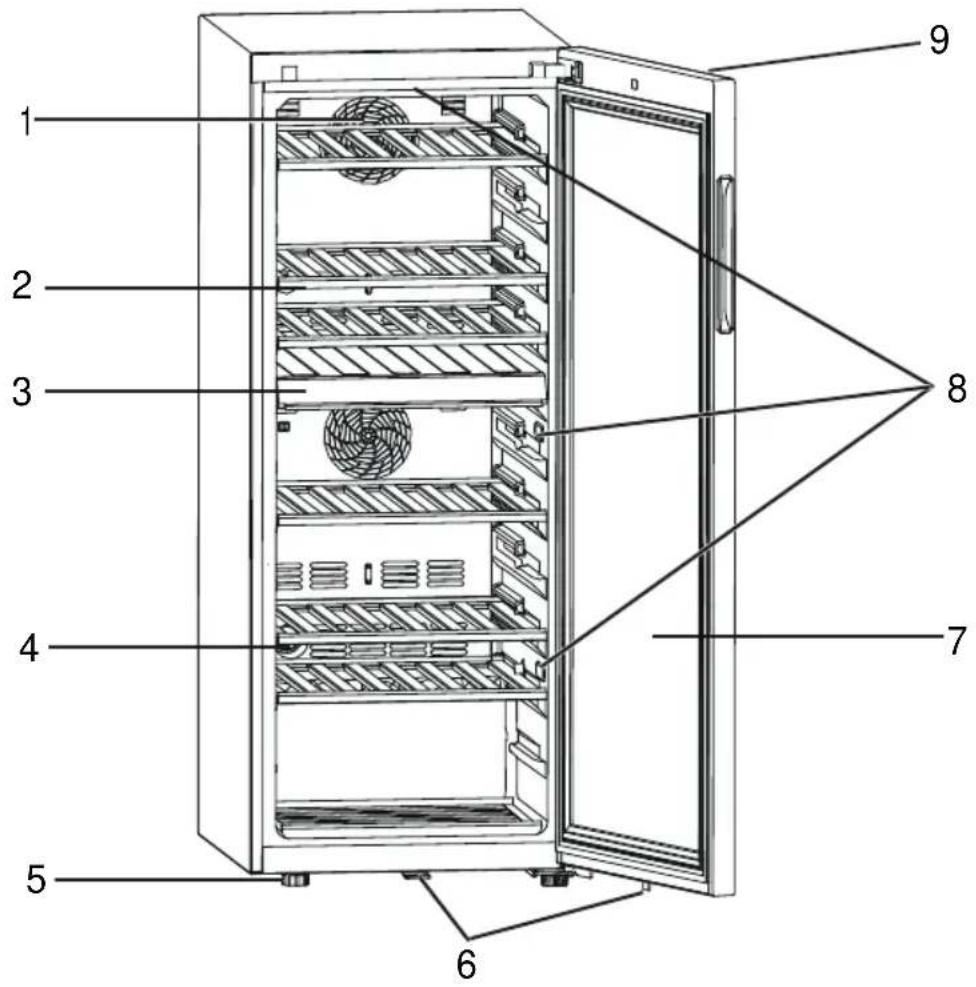

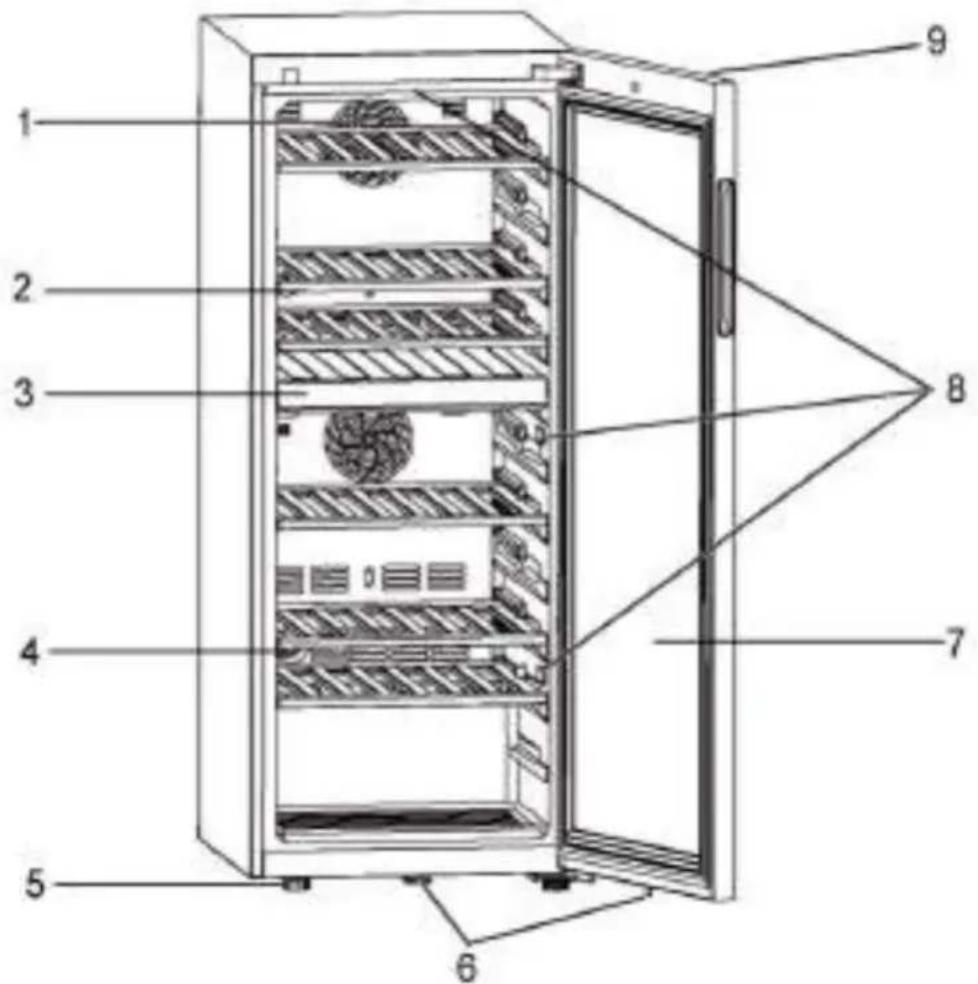

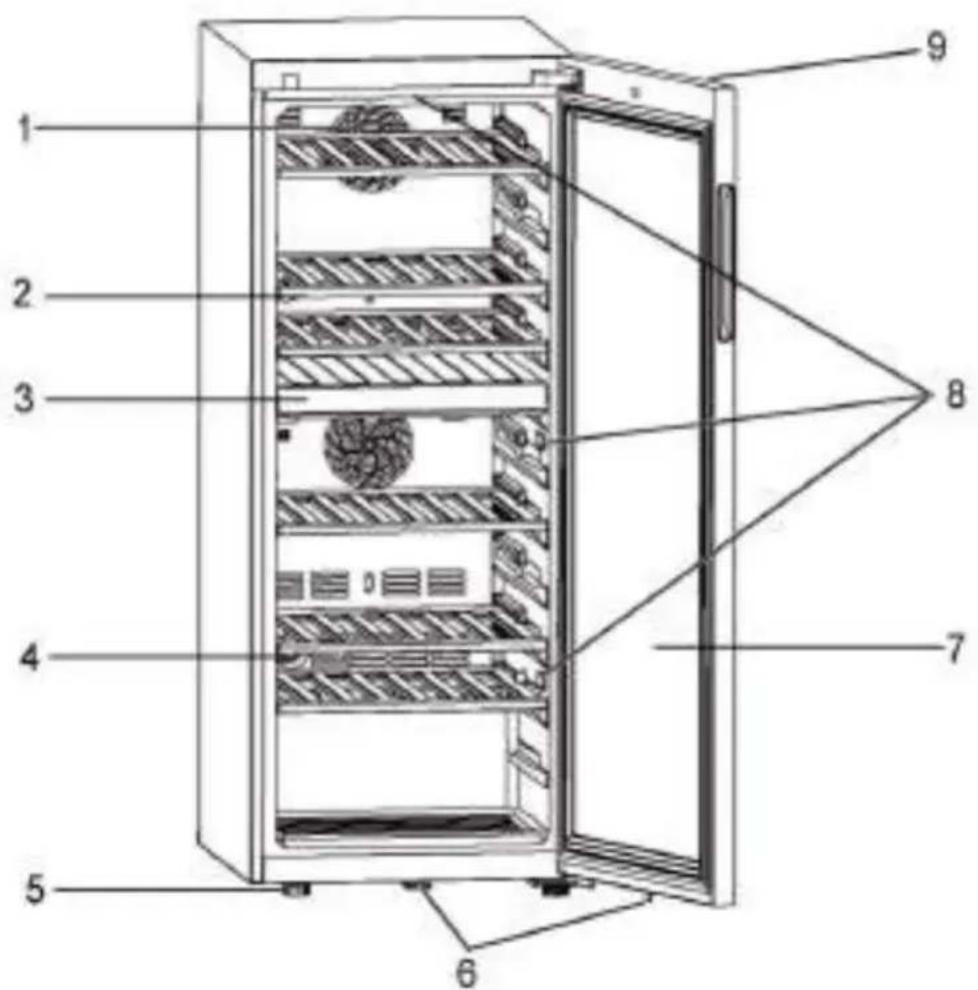

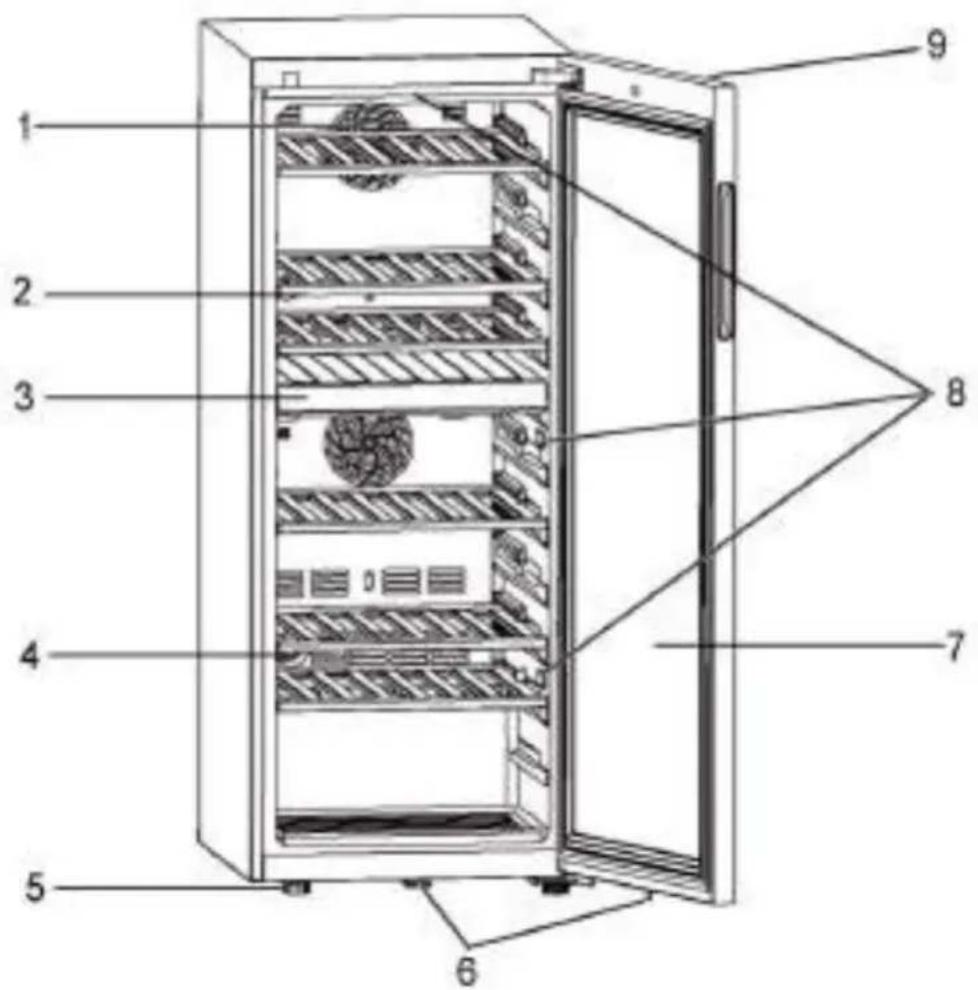

9. Display (on front of the door)

Picture of appliance

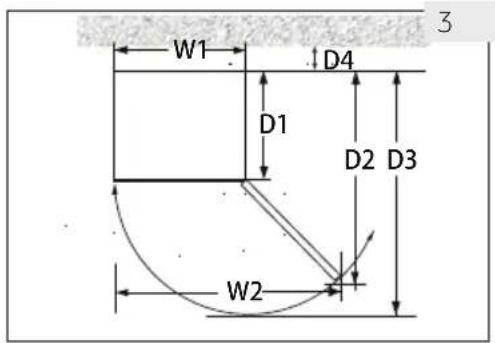

Required space to open the door (Fig. 3): Width in mm Depth in mm Distance to wall in mm W1 W2 D1 D2 D3 D4

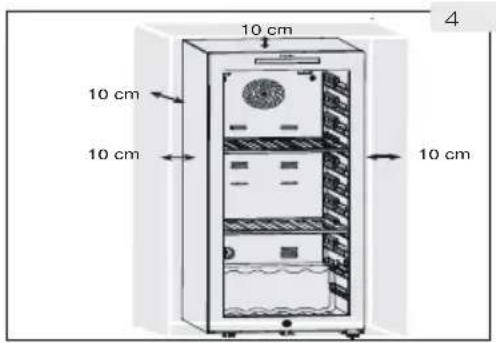

For safety and energy reasons, the required ventilation distance of 10 cm in all directions must be observed (Fig. 4). WARNING! ▶ Keep ventilation openings in the appliance or in the in-built structure clear of ob- struction.

▶ Take the appliance out of the packaging. ▶ Remove all packaging materials including the foam base and all adhesive tape hold- ing the accessories.

2. Environmental conditions

the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

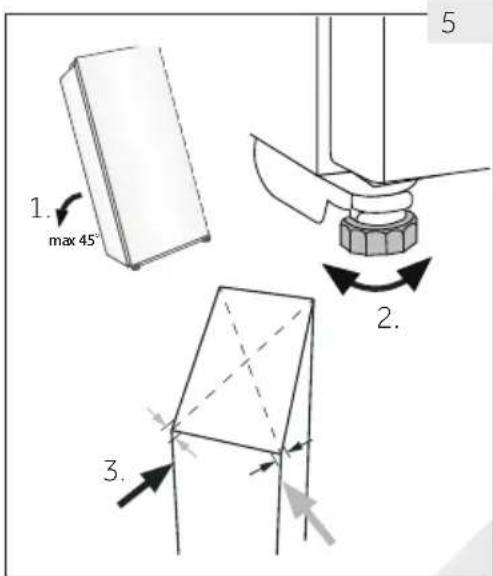

2. Set the adjustable front feet to the desired level

3. The stability can be checked by alternately

bumping on the diagonals. The slight swaying should be the same in both directions. Other- wise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door. max 45°

6. Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:Rotate the adjustable feet (Fig. 6) to turn them up or down: ▶ Turning the feet clockwise raises the appliance. ▶ Turning the feet counterclockwise lower the appli-ance. WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card). WARNING! ▶ The appliance is heavy. You need two persons to carry out the door reversibility. ▶ Do not tilt the appliance more than 45 ° to prevent damage of the cooling system.

8. Electrical connection

Before each connection check if: ▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶Connect the plug to a properly installed household socket.

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appli-ance is tilted. Before connecting the appliance to the power supply, wait 24 hours (Fig. 7) so that the oil runs back into the capsule.

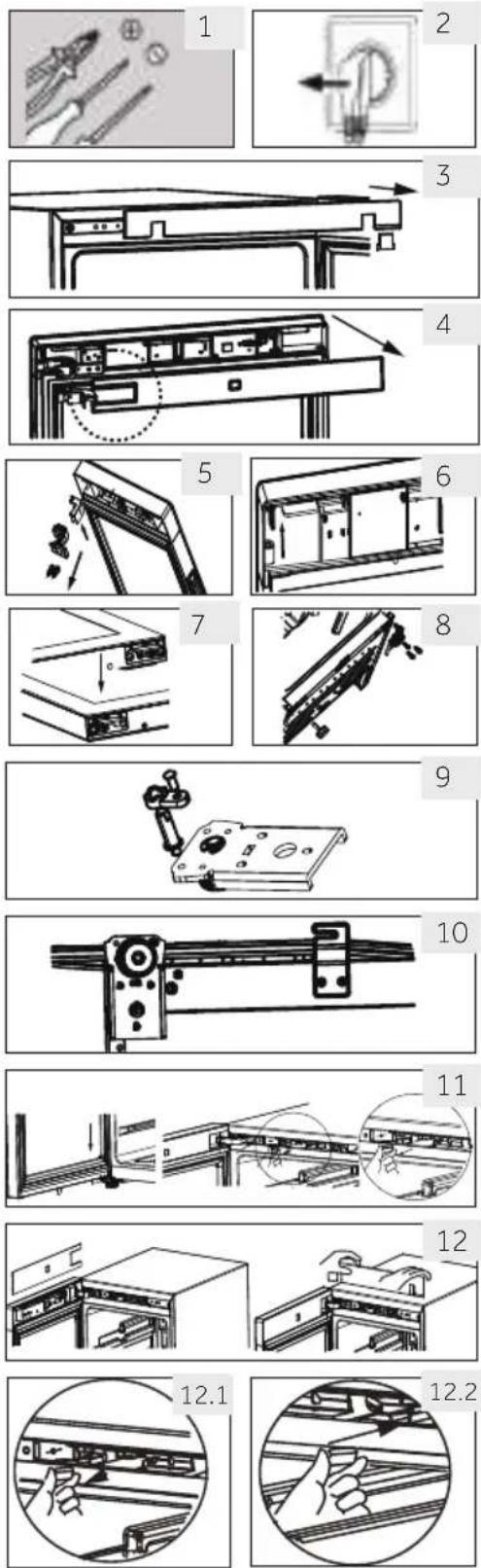

9. Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability

2. Unplug the appliance.

3. Open the door, take down the front strip and

side and placed on the right side of the gap.

4. Unplug the connection cable.Pull-out the upper

part of the door seal, and take down the door back strip. (Remove from the left side opening)

5. Remove 2 screws on the upper hinge.

6. Remove cover and hinge, remove axe cover

then assemble to the other side, then install the hinge in the axe.

7. Remove the cam and door holder, move the

door holder to another side of the door. Install the new cam form the gift bag.

8. Cabinet tilted (less than 45°), remove the bot-

tom hinge (3 screws) for backup.

9. Remove the lower hinge cam and hinge shaft.

Install the shaft on the right side of the lower hinge. Take out the cam from the instruc- tion bag and install it on the lower hinge shaft.

10. Install the lower hinge and the bottom foot on

the other side of the cabinet. Lubricate the cam.

the upper hinge with two screws on the cabinet. Fix the signal wires in the middle of the upper hinge groove, and take the hinge cover in the instruction bag and fasten it on the upper hinge.

12. Install the door seal and the door strip on

the door. Insert the pair of door signal wires, move the magnetic switch (12.1) to the right mounting slot (12.2) of the upper beam box, and fasten the front trim of the cabinet.

13. Make sure the door is able to open and close in a

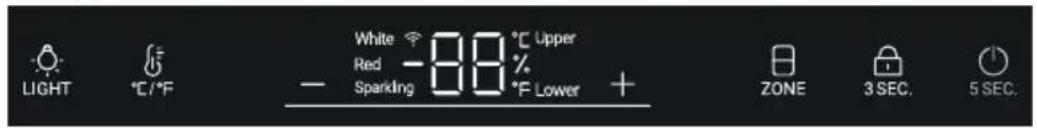

The buttons on the control panel are touch keys, which respond when lightly touched with

▶ Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children’s reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION. ▶ Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments. ▶ The temperature is automatically set to 12 °C. If desired, you can change the tem- perature manually. Please see TEMPERATURE.

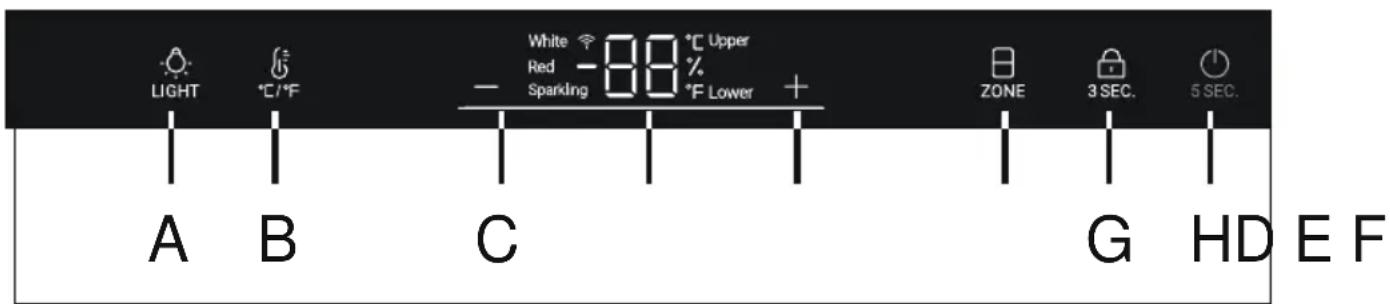

3. Description for control panel

The control panel automatically locks from any key presses after 30 seconds from being enabled,the is light.To activate keylock press the button for 3 seconds, when locked the back lit LED lights will dim. Button A is not locked . When the display is unlocking,press the button H for 5seconds, the wine cellar power on.When the display is locking,the button H can’t operate. A Interior light/Wi-Fi button B °C /°Fconvertion button C Temperature adjust button:down D Display E Temperature adjust button:up F Temperature zone selection G Lock button H Power button1. Temperature zone selection In the unlocking state, the " " icon is fully on.if the current display is in the upper temperature zone, the upper icon is on and the lower icon is off. At this time, press the " " key, the lower icon will be on and the upper icon will be off.

2. Temperature setting

In the unlocking state, when the "upper" icon is on, the upper temperature zone temp- erature can be adjusted; Press or when”Upper”light on,to increase or decrease the temperature.When the desired temperature has reached,press the button.After that the temperature setting is completed and 3seconds. later,the temperature display area will stop flashing,then the temperature display would show the current temperature. The temperature range is 5 to 20 degree. When the "lower" icon is on, t he temperature in the lower temperature zone can be adjusted

Use Red wine +13°C to +20°C (+55°F to + 68°C) Sparkling wine Prosecco +5°C to +8°C (+41°F to +47°F) White wine +9°C to +12°C (+48°F to +54°F)

6.Temperature setting Notice Presettings ▶ Once you have plugged the unit into an electrical outlet,let the unit for at least 30 minutes to acclimatize itself before making any adjustments. ▶ When the appliance is switched on after disconnection from the main power supply,it may take several hours for the correct temperatures to be reached.The exact time varies depending on the environment and the temperature setting. 7.Standby-mode The following drinking temperatures are recommended for the different types of wine. The display screen is dimmed automatically 30 seconds. It lights up automatically when any key is touched or the door is opened. Recommended temperature settings If you store wine for long periods of time, it should be stored at a temperature between +10°C and +12 °C(50°F and +54°F).

8. Lighting mode setting

Press the button. When the lights in the cabinet are on, the lights will be lighted up gradually. When pressed theUse

Notice Influences on temperatures The temperature inside the appliance is influenced by the following factors: ▶ Ambient temperature ▶ Frequency of door opening ▶ Amount of stored bottles ▶ The location of the appliance The default setting is 12°C When display stops flashing, it goes back to showing the current temperature inside the wine cellar. It will take some time to reach the set temperature.

If the door is kept open for over 1 min, buzzer will be beeping to give an alarm till the door is closed or any key on display panel can be operated and then the buzzer will stop beeping. The wine cellar has a low temperature compensation function to ensure the stability of the temperature: When the ambient temperature is lower than the set temperature, the wine cellar automatically starts the low temperature compensation function, heating the application.When the temperature in the application reaches the set temperature, the Press the button, switch between Fahrenheit and Celsius. If a power outage, the cellar will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power outage .

Standard Frequency Band(s) [MHz] Maximum power [mW]Band(s) [MHz] PRODUCT INFORMATION How to activate Wi-Fi module:

• Press the light button for 3 seconds to activate the

• The Wi-Fi module is switched on the Wi-Fi icon starts to blink

• If the wine cellar is enrolled but the Wi-Fi is off the icon will blink

• If the wine cellar is enrolled and connected the Wi-Fi icon is always on

• Download the hOn app on the stores Step 2

• Log in or sign up Step 3

• Add a new appliance selecting the wine cellar from the list

• Press the light button on the product for 3s to activate the Wi-Fi Step 6

• The wi-fi icon will blink, the pairing process is in progress

• You will have 5 minutes to complete the pairing process

• When the process is completed the Wi-Fi icon will stop blinking and it will remain always on NOTEEN Engergy saving tips

Energy saving tips ▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set.

▶ Keep door seals clean so that the door always closes correctly. 23EN Equipment

1. The shelves are designed for easy storage and easy removal of the wine.They

can be cleaned with a soft towel.

2. Regualr bottles with diameter of 76mm can be stacked.

3. Magnum bottles can be stacked on the bottom shelf.

4. The quantitiy can vary from the depicted number or bottles if they are stacked

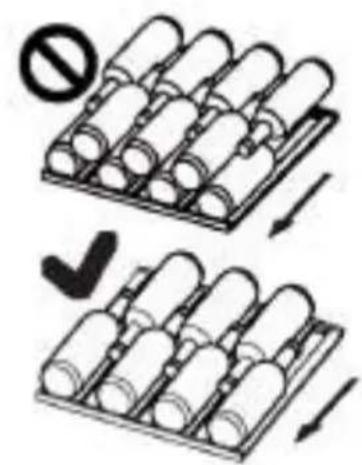

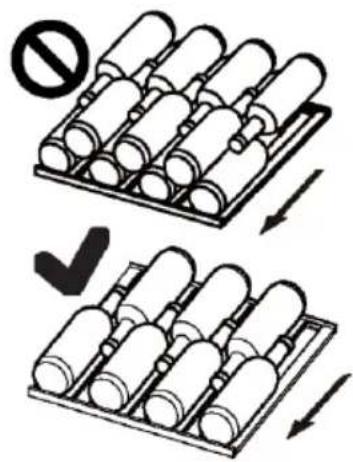

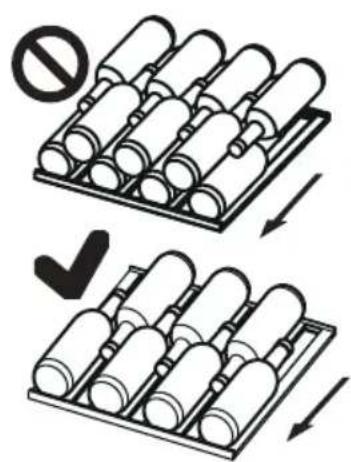

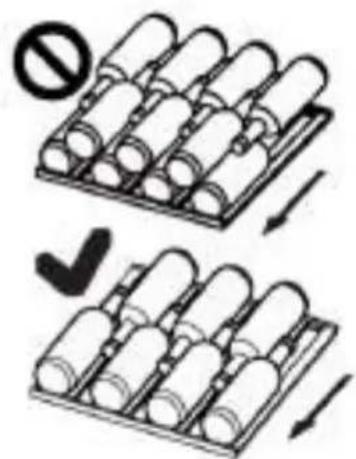

We recommend that the number of wine bottles should not exceed two layers on each shelf,and the bearing capacity of the wine shelves should not exceed 20 kg. Before placing prevent bottles hitting the glass door upon closing. The LED interior light comes on when the door is opened.To turn on the light while the door is closed,touch the when the wine cellar is not being viewed. To lock the wine cellar,close the door and put the key in the lock: ▶ Lock the door by turning the key counterclockwise; ▶ Unlock the door by turning the key clockwise. Advice for the layout of your wine cellar 24EN Care and cleaning The defrosting of the wine cellar is done automatically; no manual operation is needed. Take the ter by the handle.Turn it to the left and remove. Insert with the handle in a vertical position.Turn it to the right and insert.

The lamp uses LED as its light source,featuring low energy consumption and long service life. If there is any abnormality,please contact the customer service.See CUSTOMER SERVICE. 2.Replacing the LED lamp Unplug the power cord. Clean the appliance and door gaskets as described above. Keep the door open to prevent the creation of bad odours inside.

3. Non-use for a longer period

1. Remove all bottles and unplug the appliance.

2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.

3. Do not tilt the wine cellar more than 45° to avoid damaging the refrigerating system.

4. Moving the appliance

The way in which wines continue to mature depends on the ambient conditions.The quality of the air is therefore decisive for preserving the wine. An activated carbon lter has been tted inthe lower area of the rear wall of the appliance to through put remains at an optimum quality.

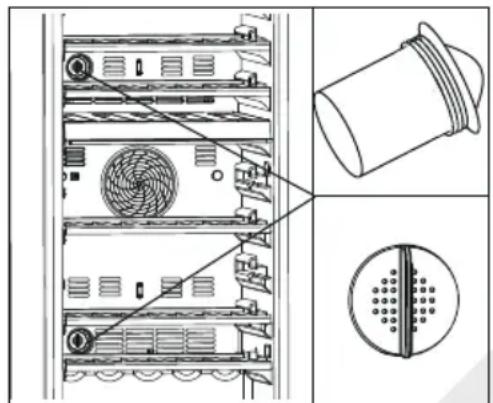

5. Air exchange with activated carbon filter

Voltage12V; Max power:8W(forHWS77GDAU1) Voltage12V; Max power:5W(forHWS42GDAU1) Parameters of LED lamp: Changing the filter: Inserting the filter: WARNING! Do not replace the LED lamp yourself. It must only be replaced by either the manufac- turer or the authorised service agent.

Notice We recommend that you replace the lter once a year.Fiters can be obtained from your dealer.EN Troubleshooting of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. Error Code Cause Solution

The appliance gives a high-temper- ature warning when the upper com- partment’s temperature has been higher than 25 °C for 3 hours. Ambient temperature is too high. The appliance working tempera ture should be between 10°C and 38 °C. Ambient temperature is too low. The appliance working tempera- ture should be between 10 °C and 38 °C.

The compressor stops working when the temperature is lower than 0 °C. The low temperature warning is given when the temperature has been lower than 0 °C for 2 hours. WARNING! ▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or 26EN Troubleshooting Problem Possible Cause Possible Solution The compressor does not work.

• Mains plug is not connected in the mains socket.

• Connect the mains plug. The appliance runs frequently or runs for a too long period of time.

• The outdoor temperature is too high.

for a period of time.

• A door of the appliance is not tightly closed.

• The door has been opened too frequently or for too long.

• The door gaskets are dirty, worn, cracked or mismatched.

• The required air circulation is not guaranteed.

• The temperature is set too low.

• In this case, it is normal for the appliance to run longer.

• Normally, it takes a while for the appliance to cool down completely.

• Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.

• Do not open the door too fre- quently.

• Clean the door gasket or replace them by the customer service.

• Ensure adequate ventilation.

• The problem will resolved itself when the desired temperature has been reached. The inside of the wine cellar is dirty and/or smells..

• The inside of the wine cellar needs cleaning.

• Clean the inside of the wine cel- lar. It is not cold enough inside the appli- ance.

• The temperature is set too high.

• Bottles have been added recently.

• A door of the appliance is not tightly closed.

• The door has been opened too frequently or for too long.

• The door gaskets are dirty, worn, cracked or mismatched.

• Reset the temperature.

• Allow time for recently added bottles to reach desired tem- perature.

• Do not open the door too frequently.

• Clean the doorgasket or replace them by the customer service.. It is too cold inside the appliance.

• The temperature is set too low. • Reset the temperature. Moisture formation on the inside of the refrigerator com- partment.

• The climate is too warm and too- damp.

• A door of the appliance is not tightly closed.

• The door has been opened too frequently or for too long..

• Increase the temperature.

• Do not open the door/drawer too frequently. 27Troubleshooting

Problem Possible Cause Possible Solution Moisture accumulates on the wine cellar;s outside surface

• The climate is too warm and too damp

• The door is not closed tightly.The cold air in the appliance and the warm air outside it condensates.

• This is normal in damp climate and will change when the hu- midity decreases.

• Ensure that the door is shut tightly and that the gaskets seal properly. The appliance makes abnormal sounds

• The appliance is not located on level ground.

• The appliance touches some ob- ject around it.

• Ajust the feet to level the appli- ance.

• Remove objects around the appliance. A slight sound is to be heard si milar water.

• This is normal • - The interior light- ing or cooling system does not work.

• Mains plug is not connected to the mains socket.

• The power supply is not intact.

• The LED-lamp is out of order.

• Connect the mains plug.

• Check the electrical supply to- the room.Call the local electric- ity company.

• Please call the service for changing The sides of the cooler and door strip get warm

• This is normal. • - The door does not shut properly

• The appliance is not level.

• The door is blocked.

• Level the appliance with the leveling feet.

• Check for blockages like bottles or shelves. 28EN Troubleshooting

Rated bottle capacity

Household refrigeration category 2 2 A A Annual energy consumption (kWh/year)

Storage volume (L) 106 190 Climate class: This appliance is intended to be used at an ambient temperatur between 10 °C and 38 °C

Type of appliance Freestanding Freestanding This appliance is intended to be used exclusively for the storage of wine. Yes Yes Dimensions (D/W/H in mm) 585/497/820 585/497/1270

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the correspon- ding harmonised standards, which provide for CE marking.

Explanations: 1)based on standard test results for 24 hours.The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc. 2)The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light.EN Customer Service

We recommend our Haier Customer Service and the use of original spare parts. ▶ your local dealer or

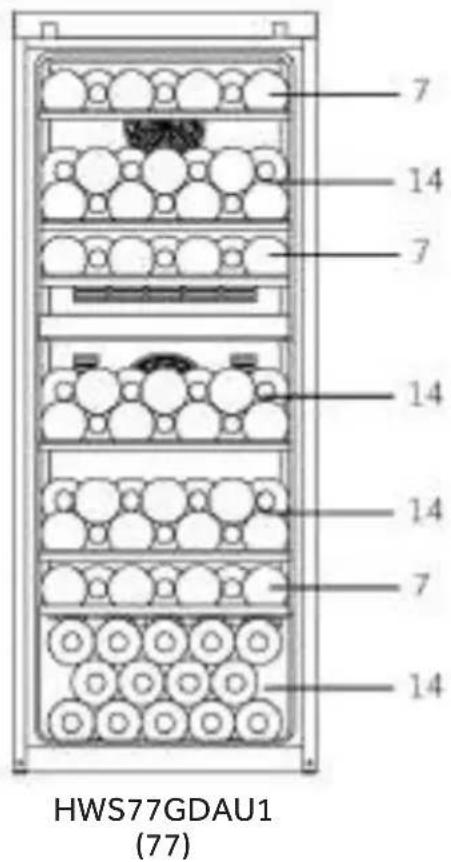

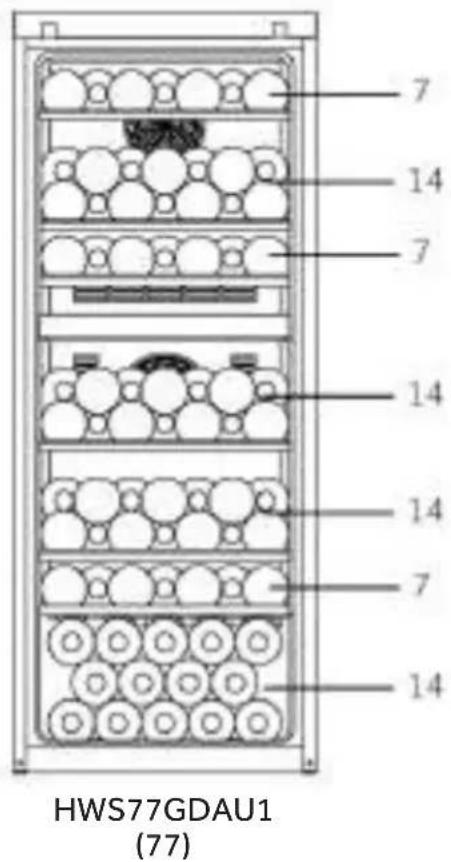

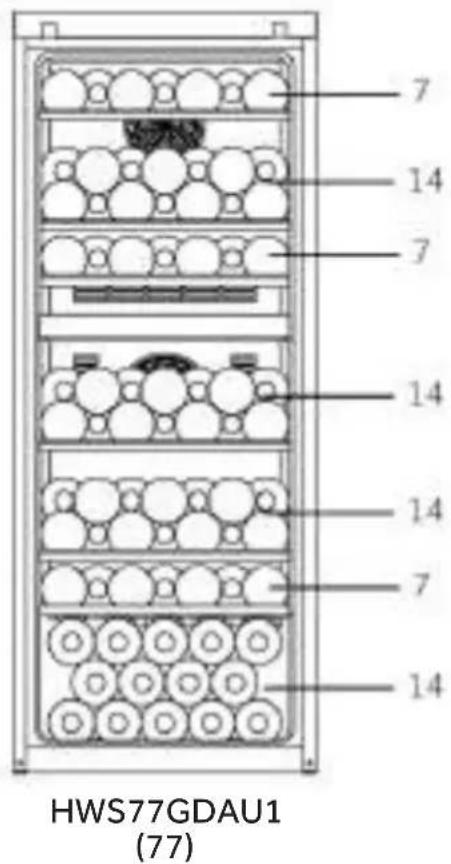

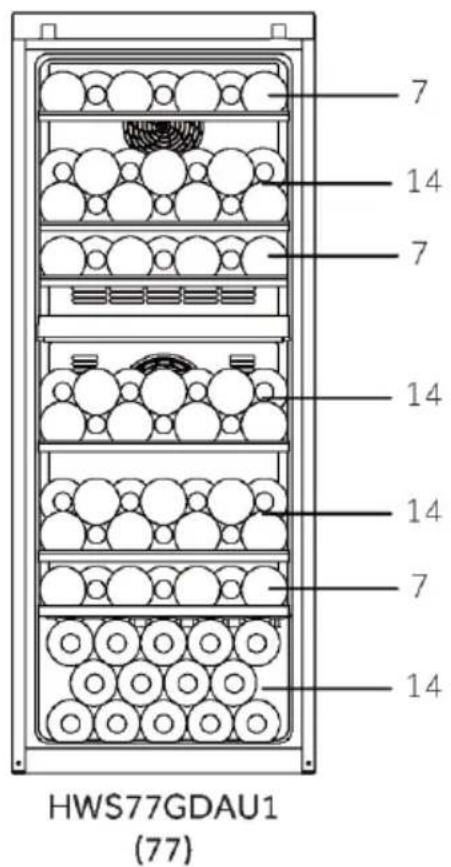

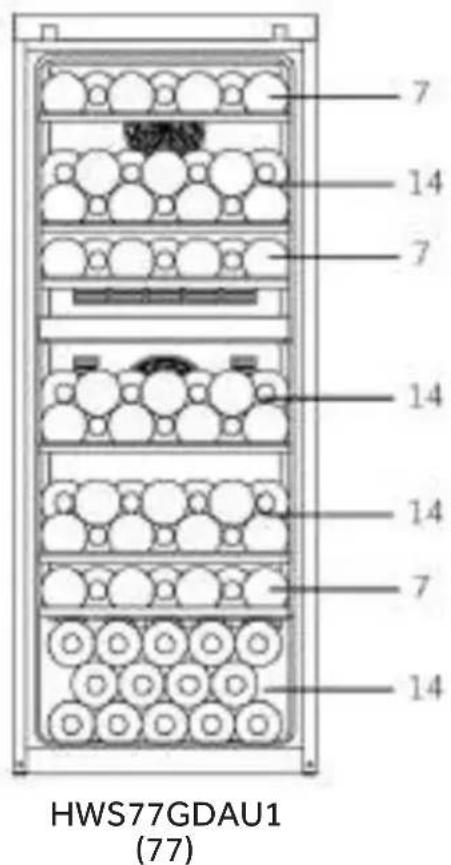

30EN Wine bottle stacking

76.1mm 750ml 300.5mm
