USER MANUAL CFA3100 ABUS

Warning symbol with exclamation mark and icon of a box containing 'i'

Line drawing of a handheld device with a curved handle and control panel (no text or symbols)

CE

DE Montage- und Bedienungsanleitung 3 - 16
GB Fitting and operating instructions 17 - 30
FR Instructions de montage et d'utilisation 31 - 44
NL Montage- en gebruikshandleiding 45 - 58
IT Istruzioni di montaggio ed uso 59 - 72
ES Instrucciones de montaje y funcionamiento 73 - 86

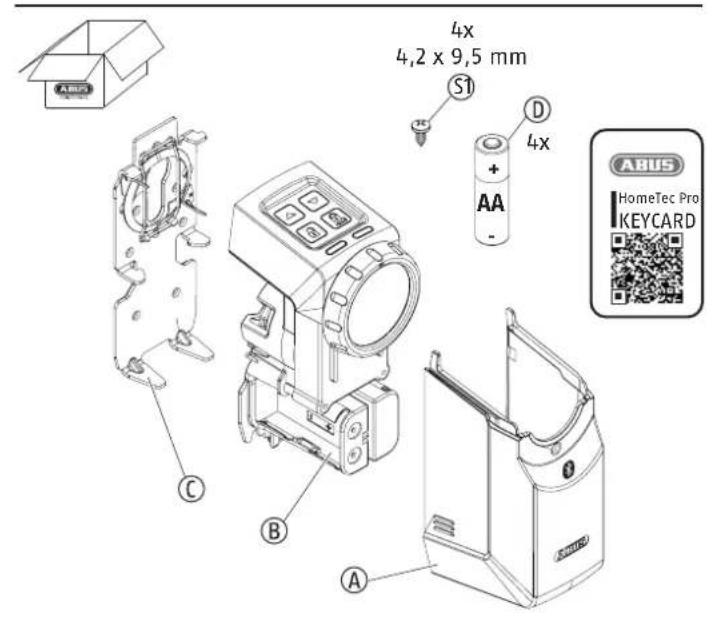

4x 4,2 x 9,5 mm S1 D 4x + AA - C B A ABUS HomeTec Pro KEYCARD

TOOLS Option 1 Optie 1 Opzione 1 Opción 1 Option 2 Optie 1 Opzione 1 Opción 1 optional: en option : optioneel: opzionale: optional: 3 mm

Diagram of a door handle with a lock and X-axis indicator (no text or symbols)

2.2d 2 check! check!

2.3

2,3a 2 Y Y = 4 - 7 mm

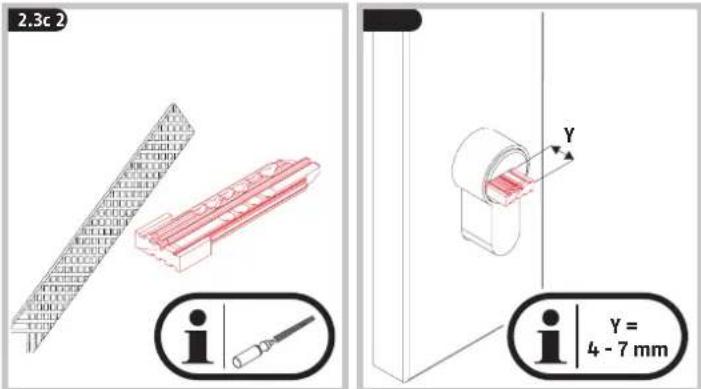

2.3c 2 Y Y = 4 - 7 mm

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly with red fasteners, shown alongside a pipe connection detail (no text or symbols)

2.9a 2 I D 4x 2.9a ready to use

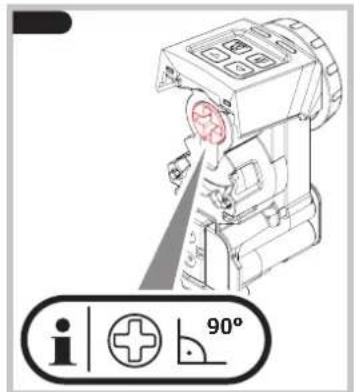

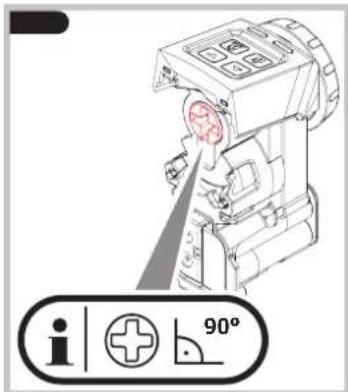

i | + 90°

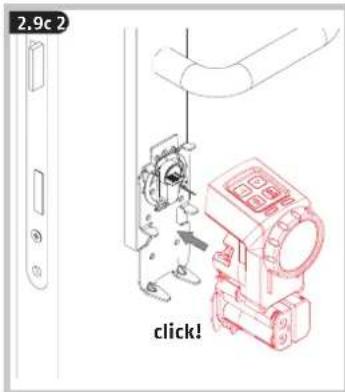

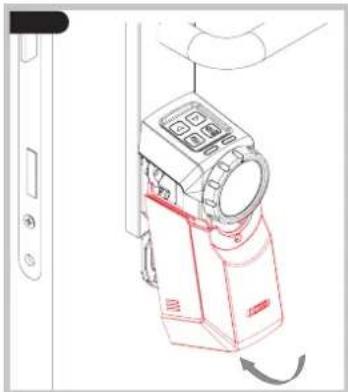

2,9c 2 click!

Line drawing of a mechanical device with a scroll wheel and control panel (no text or symbols)

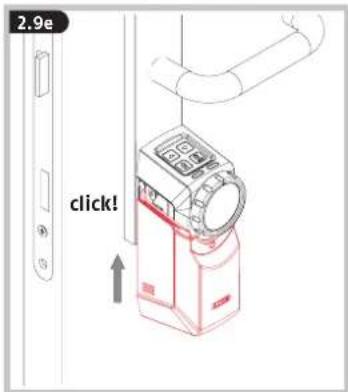

2.9e click!

3.

HomeTec Pro App

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

4.1c i

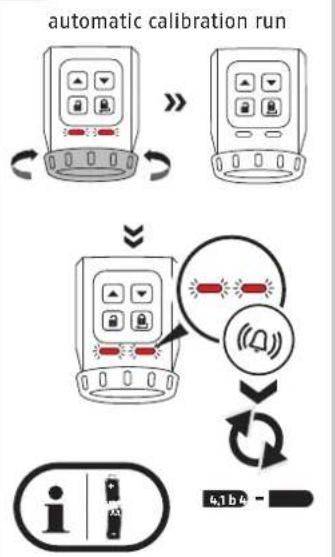


GB Thank you for choosing this ABUS product!

Please read this guide carefully before installation and use. Keep these instructions and provide all users with instruction on how to use it.

Content

Scope of delivery 2

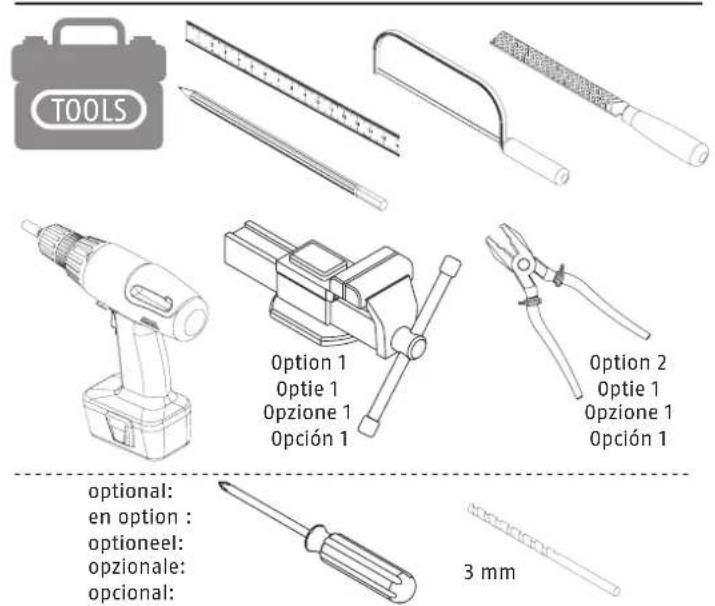

Tools required 2

1. Possible uses and important information ....18
2. Installation instructions .... 19
3. HomeTec Pro App 26
4. Battery replacement 28
5. Tips for troubleshooting 29
6. Technical data 29
7. Legal information 30

1. Possible uses and important information

HomeTec Pro

HomeTec Pro is an equipment kit for the motorized locking and unlocking of inward-opening doors. The system consists of the door lock drive in addition to other optional components. In order to use the door lock drive as intended, you will need a Bluetooth®-enabled smartphone (Bluetooth® 4.0 LE or higher), a currently supported iOS or Android software version and the free ABUS HomeTec Pro app for iOS or Android.

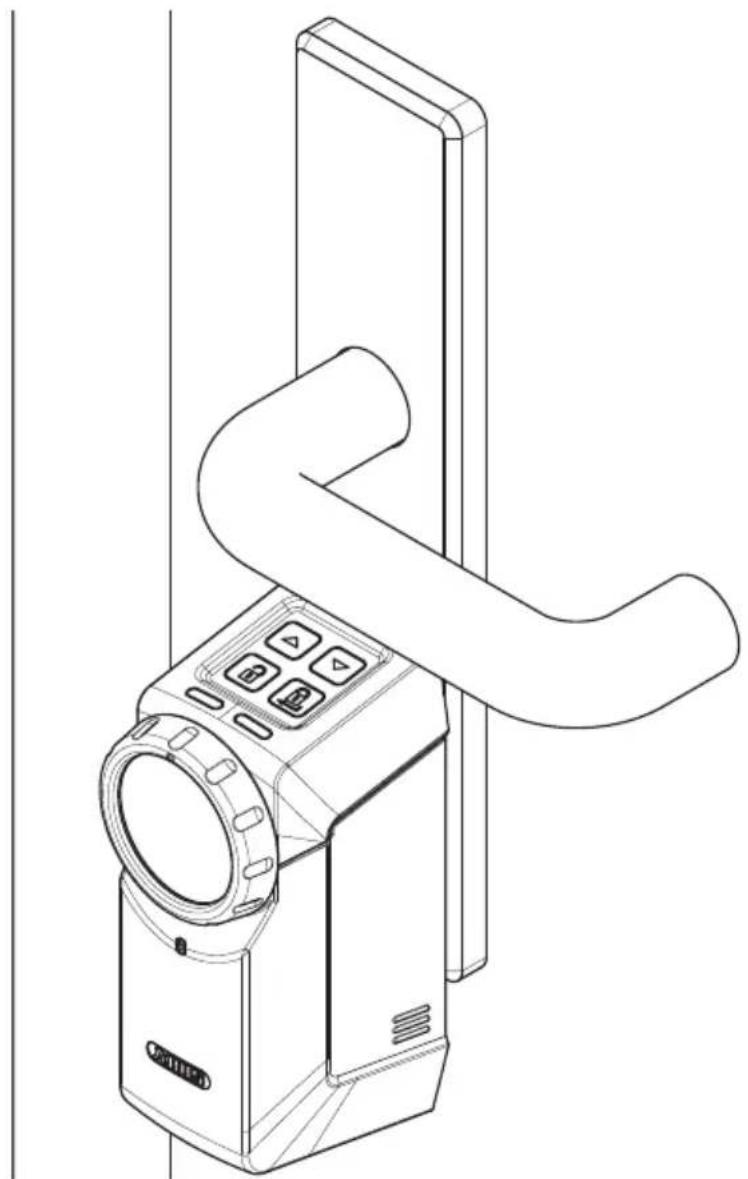

Bluetooth® door lock drive CFA3100

For the door lock drive to work, the cylinder must protrude 7-12 mm on the inside of the door (plus the thickness of the fitting or collar). Because the drive operates with a key permanently inserted in the lock, the cylinder must have an „emergency" feature on both sides where the door can be closed from both sides even if another key is inserted on the opposite side. In addition, the door lock must be a profile cylinder compliant with DIN 18252. Please check the setup of your door and cylinder lock before installation. Make sure that the door and cylinder are operating properly and smoothly.

This product is designed for use in dry interior conditions only and may not be installed on fire doors or emergency exits! The door lock drive can not be used in conjunction with automatically locking mortise locks and panic locks. The use on doors with automatically locking elements which are activated exclusively via the lock latch and which do not include the lock bolt is however possible.

Like all technical devices, HomeTec Pro can malfunction for a variety of reasons. For this reason, you should always carry a key for the lock with you or store it in a safe location that can be reached in the event of a fault (ABUS KeyGarage, neighbour, office etc.) As before, the door can be opened from the outside using the key. In the event of an emergency or panic situation, a fault or dead batteries, the door can always be mechanically unlocked from inside by hand using the operating wheel. Operation from outside by key or from inside by rotary wheel is only intended for emergency situations. Continued use of a key from the outside can negatively affect the lifespan of the profile cylinder. In order to use the system as intended, all users should be given permission via the app or access via optional components.

The contents of this installation and operating manual reflect the current status at the time of printing. The printed manual may be outdated at the time of the product's entry into service due to updates and further developments.

We therefore ask you to visit our website www.ahte.com

„CFA3100“ into the search bar. You'll always find the current and complete version of the installation and operating instructions on the product page under the „Downloads“ column.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ABUS August Bremicker Söhne KG is under license. Other trademarks and brand names are those of their respective owners.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries and regions. App Store is a service mark of Apple Inc.

Google Play and the Google Play logo are trademarks of Google LLC.

1. Installation instructions

		[x023]
Iconexplanation	Caution!	Furtherfitting / usingdetails	Door cylinder has to operate evenwith a key inserted on the inside.

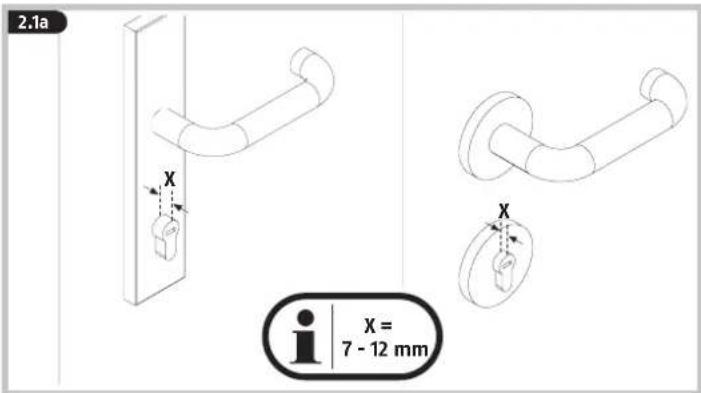

2.1a X X = 7 - 12 mm

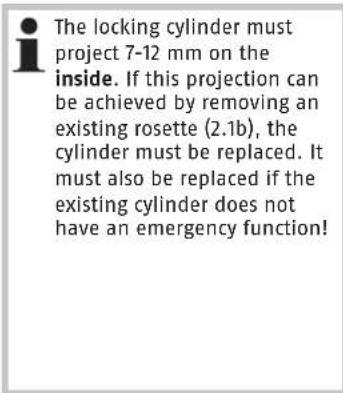

The locking cylinder must project 7-12 mm on the inside. If this projection can be achieved by removing an existing rosette (2.1b), the cylinder must be replaced. It must also be replaced if the existing cylinder does not have an emergency function!

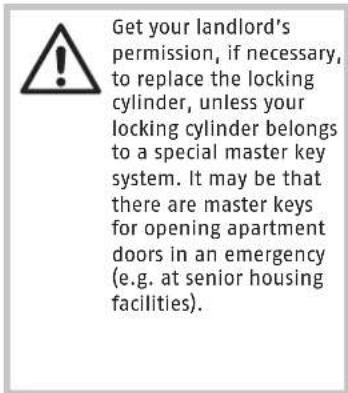

Get your landlord's permission, if necessary, to replace the locking cylinder, unless your locking cylinder belongs to a special master key system. It may be that there are master keys for opening apartment doors in an emergency (e.g. at senior housing facilities).

Technical line drawing of a pipe fitting with a close-up view of a mechanical component (no text or symbols)

2.1c X X = 7 - 12 mm?

	X = 7-12 mm		ok / not ok	continue with
√	√	»»	√	»» 2.3a
√	×	»»	×	»» 2.2a
×	√	»»	×	»» 2.2a
×	×	»»	×	»» 2.2a

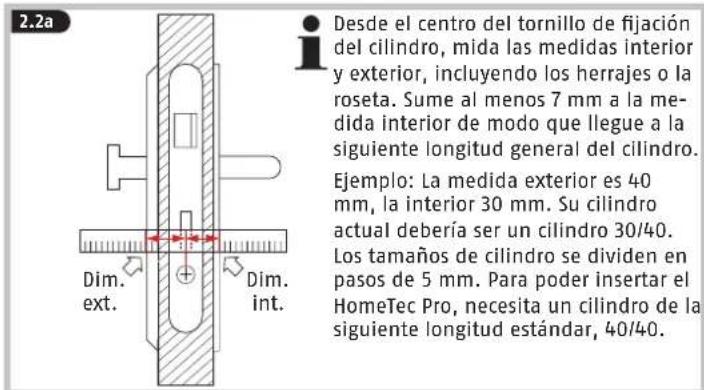

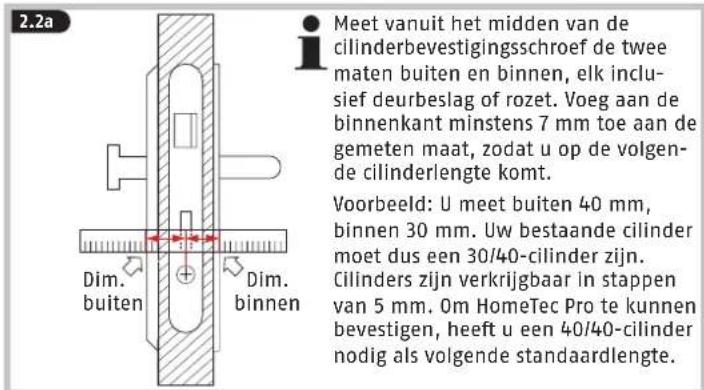

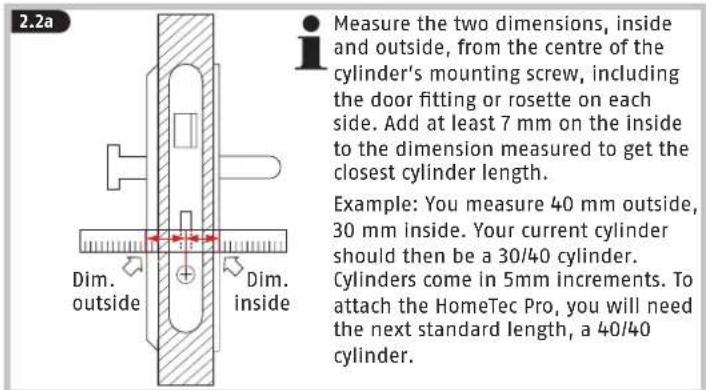

2.2a i Measure the two dimensions, inside and outside, from the centre of the cylinder's mounting screw, including the door fitting or rosette on each side. Add at least 7 mm on the inside to the dimension measured to get the closest cylinder length. Example: You measure 40 mm outside, 30 mm inside. Your current cylinder should then be a 30/40 cylinder. Cylinders come in 5mm increments. To attach the HomeTec Pro, you will need the next standard length, a 40/40 cylinder.

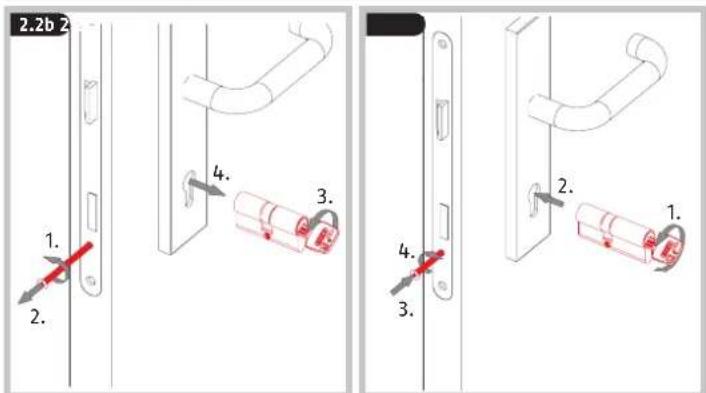

2.2b 2 1. 2. 4. 3. 4. 3. 2. 1.

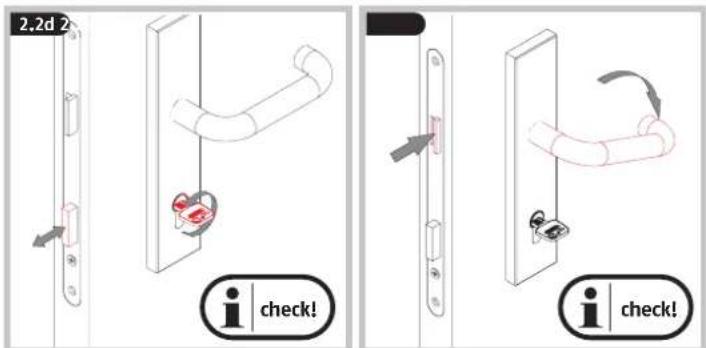

2.2d 2 i check! i check!

2.3

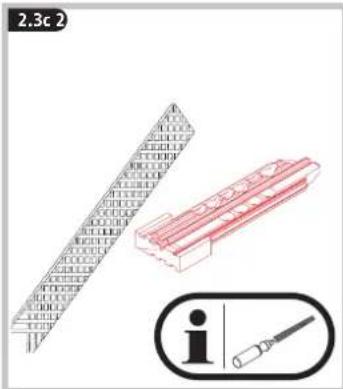

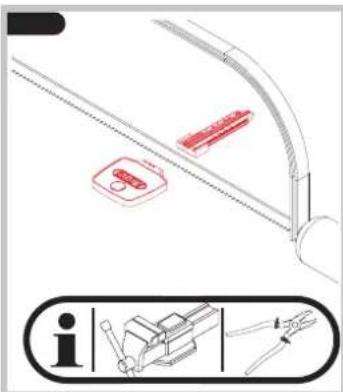

Saw off the head of a key. Warning! ABUS accepts no liability for damages. Obtain consent from your landlord if applicable.

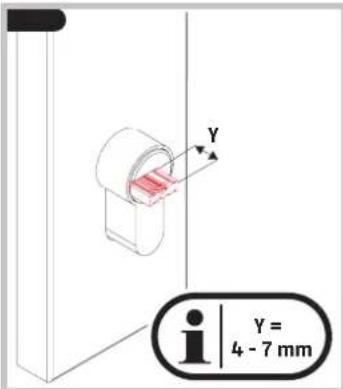

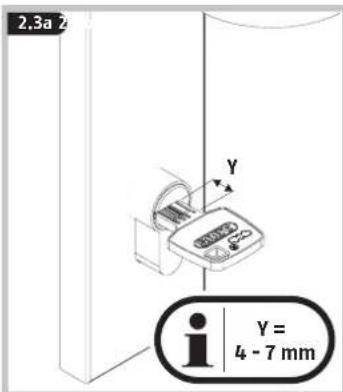

2,3a 2 Y Y = 4 - 7 mm

Technical diagram showing mechanical assembly with labeled parts and a warning icon

Illustration of a medical device with a triangular ruler and a red rectangular device, accompanied by an information icon (no text or symbols on the devices themselves)

Y Y = 4 - 7 mm

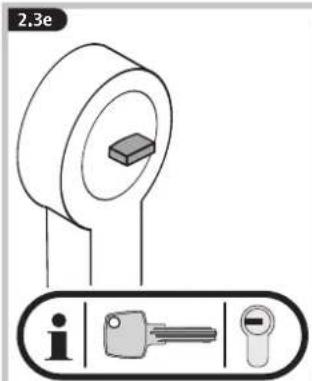

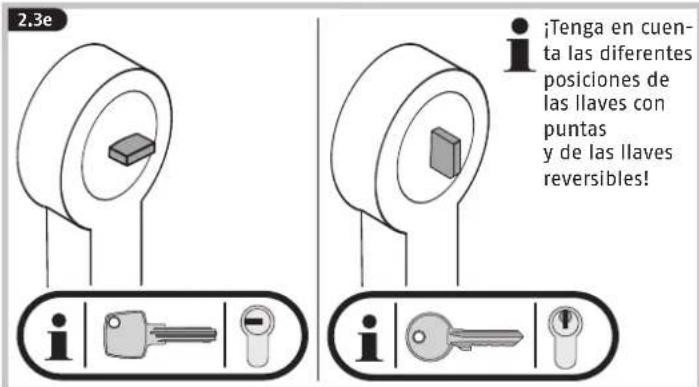

2.3e i

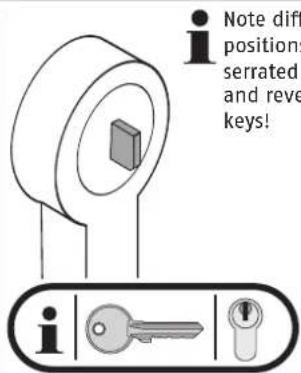

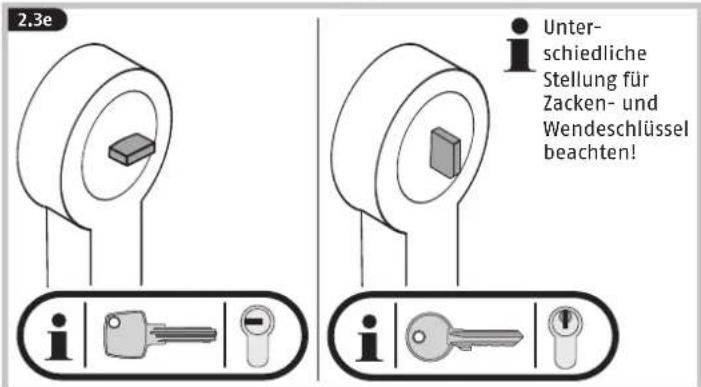

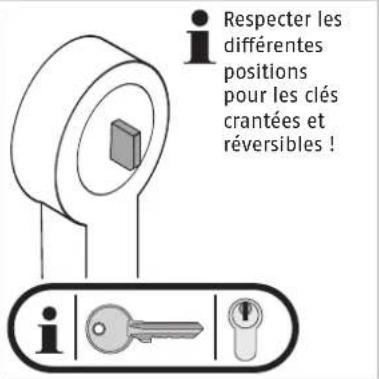

Note diff positions serrated and reve keys!

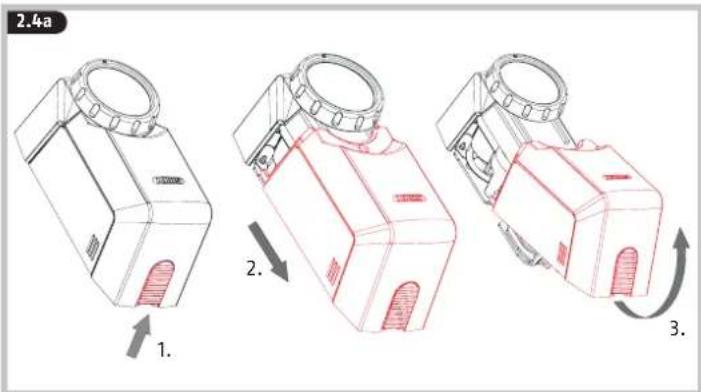

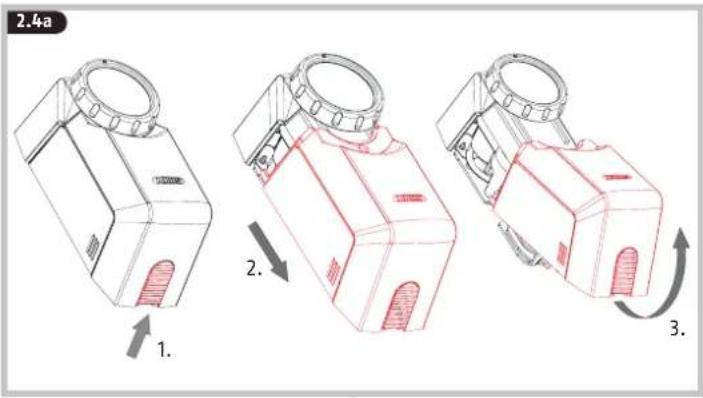

2.4a 1. 2. 3.

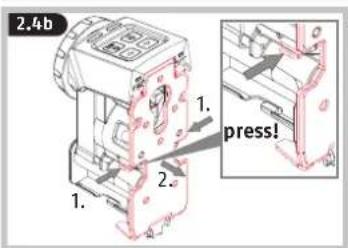

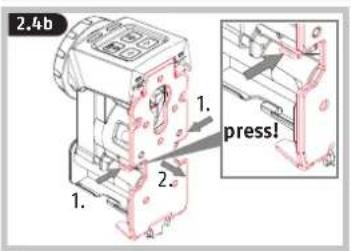

2.4b 1. press! 1. 2.

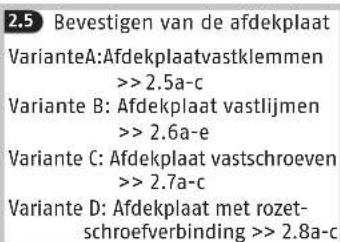

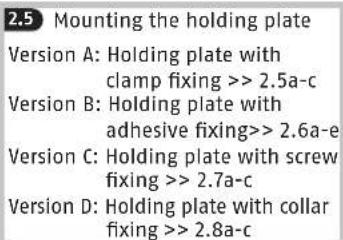

2.5 Mounting the holding plate Version A: Holding plate with clamp fixing >> 2.5a-c Version B: Holding plate with adhesive fixing>> 2.6a-e Version C: Holding plate with screw fixing >> 2.7a-c Version D: Holding plate with collar fixing >> 2.8a-c

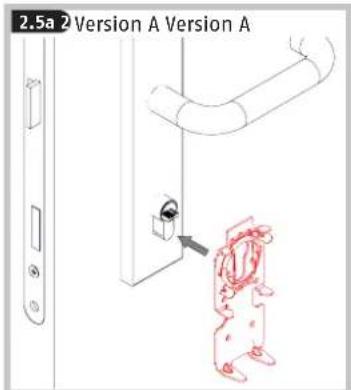

2.5a 2 Version A Version A

Technical line drawing of a mechanical device with no visible text or symbols

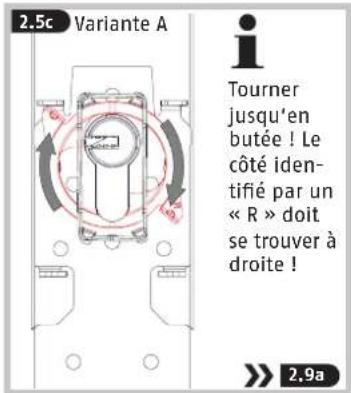

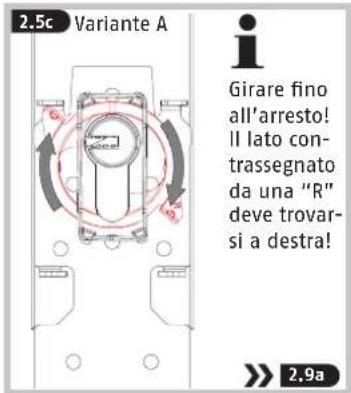

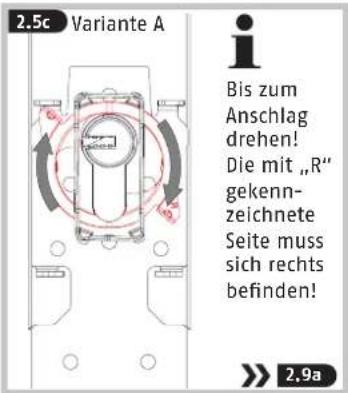

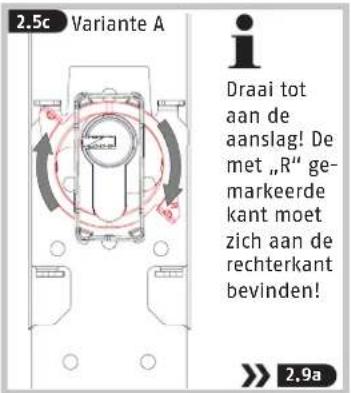

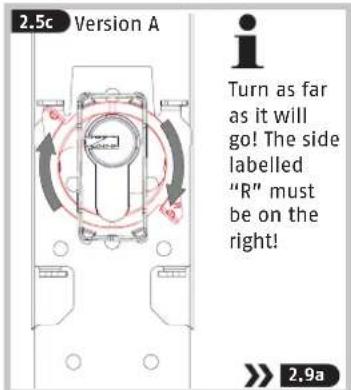

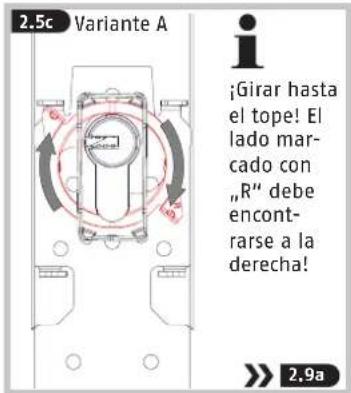

2.5c Version A i Turn as far as it will go! The side labelled "R" must be on the right! 2.9a

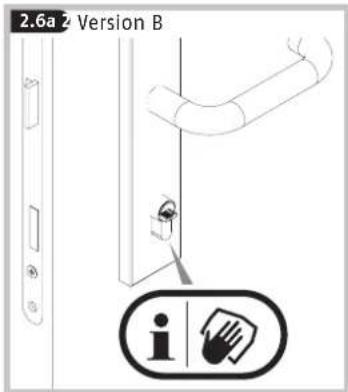

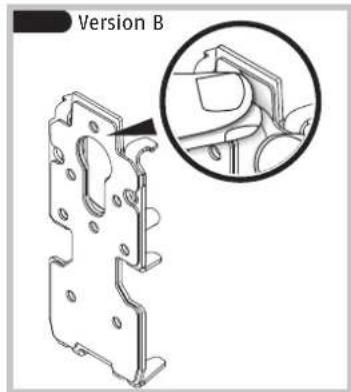

2.6a 2 Version B i I

Version B

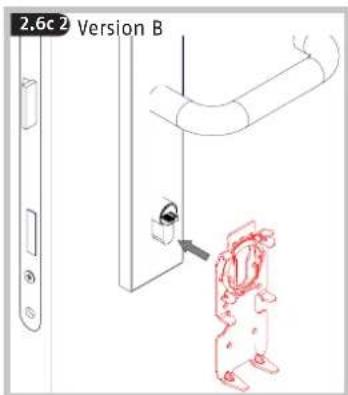

2.6c 2 Version B

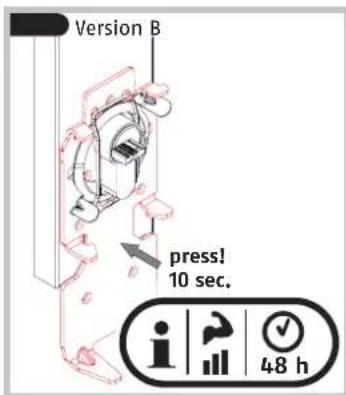

Version B press! 10 sec.

2.6e Version B Turn as far as it will go! The side labelled "R" must be on the right! 2.9a

Do not drill mortice lock screws! Shorten, if necessary

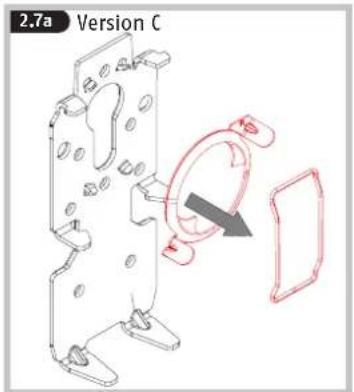

2.7a Version C

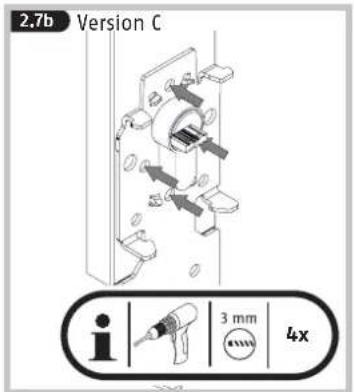

2.7b Version C i | 3 mm | 4x

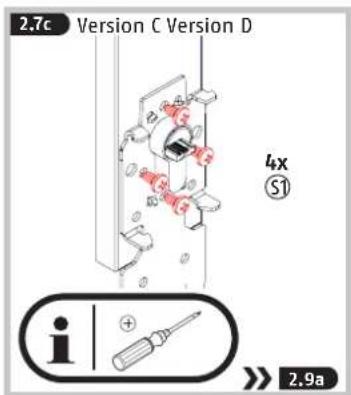

2.7c Version C Version D 4X ① i | + 2.9a

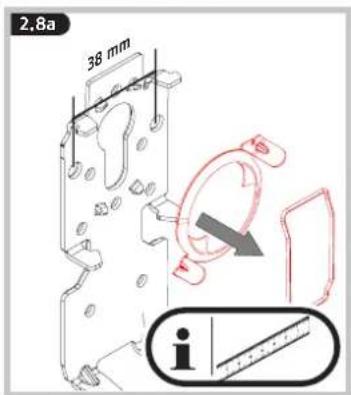

2.8a 38 mm i

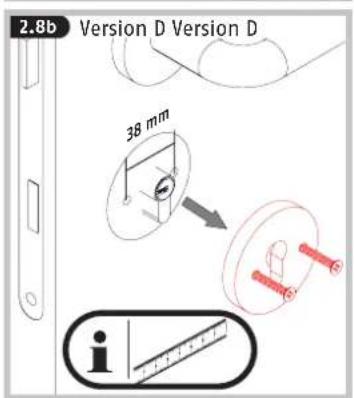

2.8b Version D Version D 38 mm i

Technical line drawing of a mechanical clamp or bracket assembly with red fasteners, shown alongside a separate view of a bent pipe (no text or symbols present)

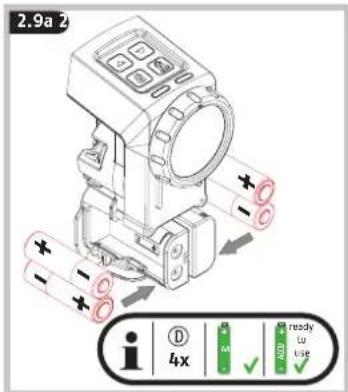

2.9a 2 I D 4x 2.9a ready to use

i | + 90°

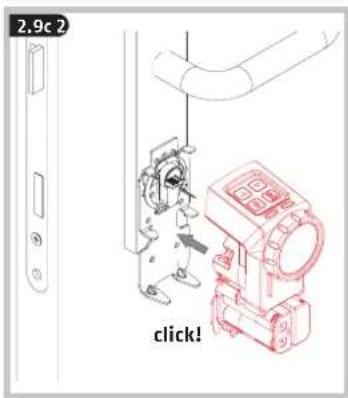

2,9c 2 click!

Line drawing of a mechanical device with a scroll wheel and control panel (no text or symbols)

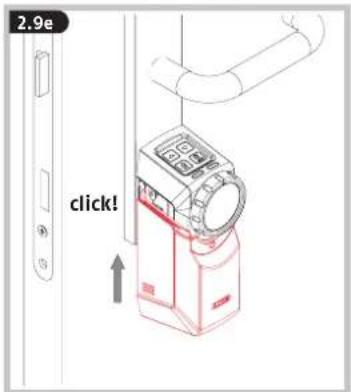

2.9e click!

3.

HomeTec Pro App

• Download the ABUS HomeTec Pro app and enable Bluetooth® on your smartphone.
• Start the app and follow the instructions in the app.
• As an alternative to a smartphone, the door lock drive can also be operated with other HomeTec Pro components.
• Pay attention to the assignment of the different Keycards to the products, and always scan the correct Keycard.
• To program a component (e.g. CFF3100 remote control), start by pressing the button "Add HomeTec Pro/component".
• It is imperative to keep the ABUS Keycard(s) in a secure place even after completing the setup! You need the Keycard for software updates, if you lose your smartphone, and for proof of ownership for matters related to warranty claims and repair. Do not give the Keycard to third parties.

To guarantee proper function, we expressly recommend performing updates in the app and software/firmware updates for HomeTec Pro components in a timely manner. The app will provide information on this. You can also perform the respective update in the component's settings.

3.1 Operating keys and LED displays for the drive

Navigation Unlock / Exit LED Lock / Confirm shining flashing flashing rapidly

3.2

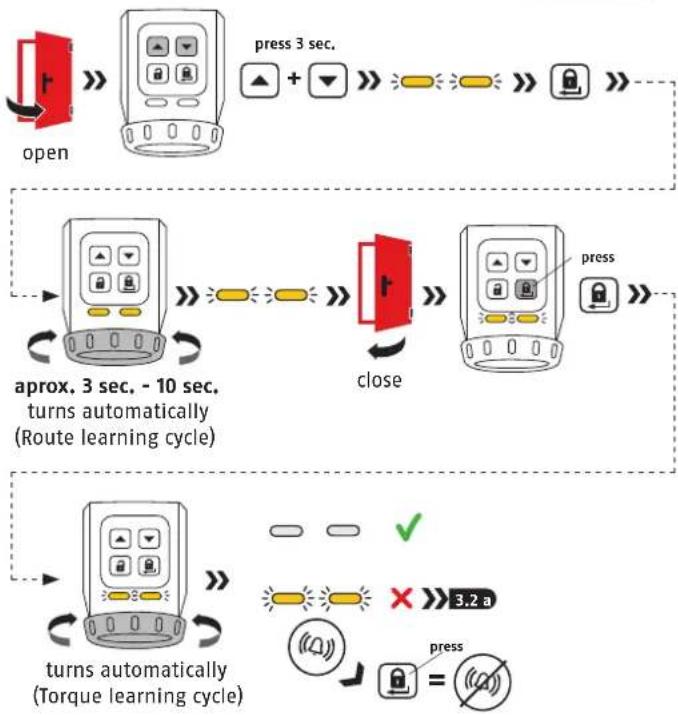

Optional: Program the drive on the door in its factory default state or after a factory reset (programming is intended to be done in the ABUS HomeTec Pro app)

3.2 a

Rapidly flashing LEDs and rapid beep indicate a fault to be rectified

check! Adjustment of the door or cylinder. 3.2

Battery replacement

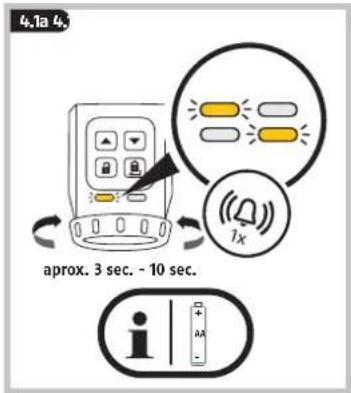

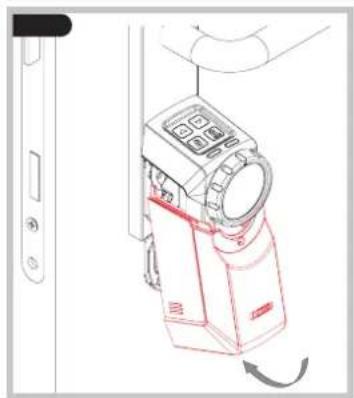

4.1a 4. aprox. 3 sec. - 10 sec. i AA -

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

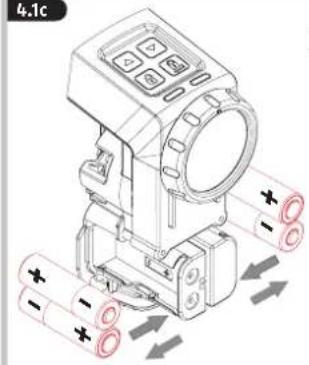

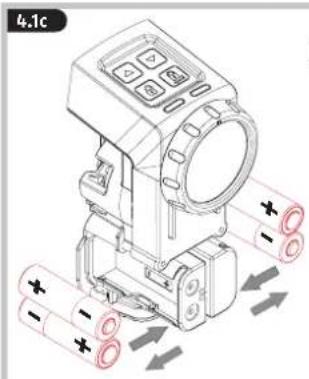

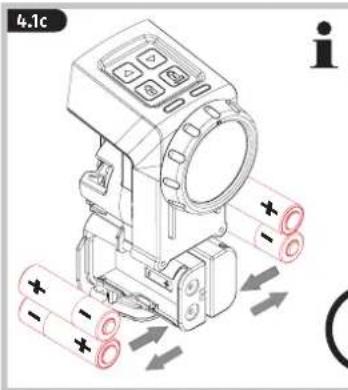

4.1c

4.1c

Replace all the batteries! First remove the four batteries and then insert four new batteries / accus "ready to use".

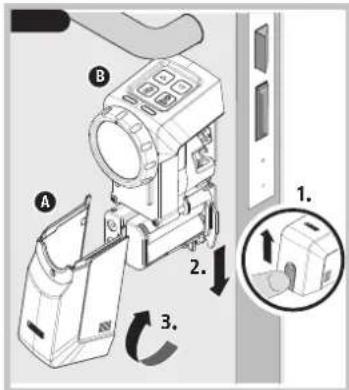

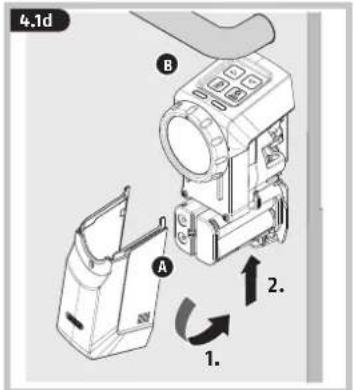

4.1d A B 1. 2.

4.1e

Tips for troubleshooting

Fault / information Cause Solution
After the teach-in process, the LEDs flash during the first locking process and a sustained acoustic signal sounds	The door was not closed during the second part of the teach-in process	Repeat the teach-in process and close the door at the specified time
The LEDs flash during normal service and a sustained acoustic signal sounds	- The door is not closed during operation so >> the drive pushes the door bolt against the door edgeor- at least one battery is inserted the wrong >> way roundor- the locking mechanism is stiff or the door is calibrated incorrectly >>	- Close the door and repeat operation- open the battery compartment and check the polarity of the batteries/insert the batteries correctly >> 4.- set the door correctly Lubricate the locking mechanism
An acoustic signal sounds before every rotational movement by the drive	The batteries are dead Change the batteries >> 4.
Before opening the door, the drive carries out a reference movement	The door has since been manually opened/closed using a key or the drive's handwheel has been turned	No action is required.A reference movement is necessary to identify the correct position after the drive has been manually turned using a key from outside or the hand-wheel from inside.

Tecnical data

Dimensions 138 x 52 x 65 mm
Weight (without batteries) 418 grams
IP class IP 20
Battery type 4 * AA 1,5 V alkaline
Operating temperature range 0°C to +40°C
Radio frequency 2,402 GHz - 2,480 GHz
Max. radiated transmission power	< 10dBm eirp
Encryption	AES-128-Bit

7. Legal information

Battery instructions

• This product contains four 1,5 V alkaline AA batteries.
- Keep batteries out of the reach of children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. Seek immediate medical attention in this event!
- Batteries must be inserted with the correct polarity (+ and -).
- Empty batteries must be removed or replaced immediately.
- Different battery types, or new and used batteries, must not be mixed. - The battery terminals must not be short-circuited.
- Risk of burns from contact with leaking or damaged batteries! In these cases, use suitable protective gloves and clean the battery compartment with a dry cloth.
- Batteries must not be dismantled, punctured, damaged, shortcircuited, heated, charged or thrown into an open fire (risk of explosion!).
- Do not use or store the product in areas where the temperature could reach below 0^ or above +40^ . Do not expose the product to direct sunlight for long periods of time.

EU Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with Directives 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: docs.abus.com

UK Declaration of Conformity

Hereby, ABUS August Bremicker Söhne KG declares that the radio equipment type HomeTec Pro is in compliance with the Radio Equipment Regulations 2017 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the UK declaration of conformity is available at the following internet address: docs.abus.com

Disposal

It is your responsibility to delete all stored personal data prior to disposal of the product. This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the applicable legal requirements. Electrical appliances, rechargeable batteries and batteries must not be disposed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and disposed of separately before disposal. Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority responsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer.

Warranty

ABUS products are designed, manufactured and tested in accordance with applicable regulations with great care. The warranty exclusively covers faults that are caused by material or manufacturing defects. If a material or manufacturing defect can be proven, the HomeTec Pro will be repaired or replaced at the discretion of the warrantor. In such cases, the warranty ends with the termination of the original warranty period. Any further claims are expressly excluded.

ABUS assumes no liability for defects or damage that has been caused by external influences (e.g. transport, external forces), improper use, normal wear and tear or non-compliance with this operating and installation instructions document. The included batteries are not covered by the warranty. If a warranty claim is asserted, the product must be returned with the original receipt with date of purchase and a brief written description of the fault.

Subject to technical alterations. No liability for mistakes and printing errors.

Pure technical diagram of a pipe connection with a lock and X-axis indicator (no text or symbols)

2.1c X X = 7 - 12 mm?

	X = 7-12 mm		ok / pas ok	continuer avec
√	√	»»	√	»» 2.3a
√	×	»»	×	»» 2.2a
×	√	»»	×	»» 2.2a
×	×	»»	×	»» 2.2a

2.2d 2 check! check!

2.3

Technical diagram showing mechanical assembly with labeled parts and a warning icon

Illustration of a medical device with a triangular ruler and a red rectangular device, accompanied by an icon labeled 'i' (no text or symbols on the devices themselves)

Y Y = 4 - 7 mm

2.3e i

Technical line drawing of a mechanical device with no visible text or symbols

Variante B press! 10 sec. 48 Std

Technical line drawing of a mechanical clamp or bracket assembly with red connectors (no text or symbols)

2.9a 2 I D 4x 2.9a ready to use

i | + 90°

2.9c 2 click!

Technical line drawing of a mechanical device with a scroll wheel and adjustment knob (no text or symbols)

2.9e click!

3.

Application HomeTec Pro

4.1a 4. ca. 3 sec. - 10 sec.

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

4.1c i

2.1a X X = 7 - 12 mm

Technical line drawing of a pipe fitting and a circular component with a handle, no text or symbols present

2.1c X X = 7 - 12 mm?

	X = 7-12 mm		ok / niet ok	verder met
√	√	»	√	»» 2.3a
√	×	»	×	»» 2.2a
×	√	»	×	»» 2.2a
×	×	»	×	»» 2.2a

2.2d 2 check! check!

2.3

Technical diagram showing mechanical assembly with labeled parts and a warning icon

Illustration of a medical device with a triangular ruler and a red rectangular device, accompanied by an icon of a syringe (no text or symbols present)

Y Y = 4 - 7 mm

2.3e i

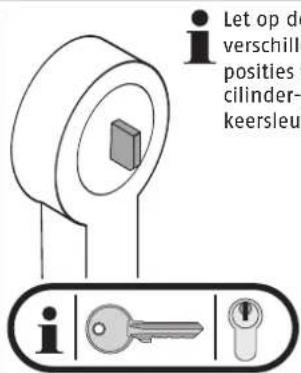

Let op de verschill- posities cylinder- keersleu

2.4a 1. 2. 3.

2.4b 1. pressl 1. 2.

Technical line drawing of a mechanical assembly with no visible text or symbols

Variante B press! 10 sec. 48 Std

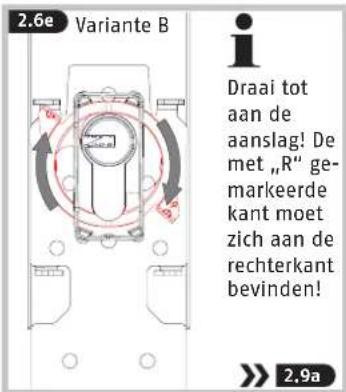

Technical line drawing of a mechanical clamp or bracket assembly with red fasteners, no text or symbols present

2.9a 2 I D 4x 2.9a ready to use

i | + 90°

2,9c 2 click!

Line drawing of a mechanical device with a scroll wheel and control panel (no text or symbols)

2.9e click!

3.

HomeTec Pro-app

4.1a 4. ca. 3 sec. - 10 sec.

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

Technical illustration of a mechanical device with battery and sensor components, no visible text or symbols

Diagram of a door handle with a key inserted, showing no text or symbols

2.2d 2 check! check!

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly with red fasteners, shown alongside a separate view of a bent pipe (no text or symbols present)

2.9a 2 I D 4x 2.9a ready to use

i | + 90°

2,9c 2 click!

Line drawing of a mechanical device with a scroll wheel and control panel, no text or symbols present

2.9e click!

3.

App HomeTec Pro

4.1a 4. ca. 3 sec. - 10 sec.

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

4.1c i

2.1a X X = 7 - 12 mm

Technical line drawing of a pipe fitting with a close-up view of the lock (no text or symbols)

2.1c X X = 7 - 12 mm?

	X = 7-12 mm		ok / no ok	sigue
√	√	»»	√	»» 2.3a
√	×	»»	×	»» 2.2a
×	√	»»	×	»» 2.2a
×	×	»»	×	»» 2.2a

2.2d 2 check! check!

2.3c 2 Y Y = 4 - 7 mm

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly with red fasteners, shown alongside a pipe connection detail (no text or symbols)

2.9a 2 I D 4x 2.9a ready to use

i | + 90°

2,9c 2 click!

Line drawing of a mechanical device with a scroll wheel and control panel (no text or symbols)

2.9e click!

3.

App HomeTec Pro

4.1a 4. ca. 3 sec. - 10 sec.

Diagram of a washing machine with labeled parts and directional arrows indicating motion steps

4.1c i

ABUS August Bremicker Söhne KG

D 58292 Wetter | Germany.

Tel.: [phone]

www.abus.com|[e-mail]
