Product type	Combined refrigerator with built-in water dispenser
Brand	Candy
Model	CSC818EXWD
Power supply	220-240 V ~ 50 Hz
Climate class	SN (10-32°C), N (16-32°C), ST (16-38°C), T (16-43°C)
Refrigerant	R600a (flammable)
Display	Touch LED with backlight, energy saving mode
Main functions	Super freeze, Super cool, Vacation mode, Door open alarm, Key lock, Automatic defrost
Water dispenser	Built-in, 2 L drinking water tank with child lock
Refrigerator compartment	Adjustable temperature from 2°C to 8°C, tempered glass shelves, vegetable drawer, bottle door bins
Freezer compartment	Adjustable temperature from -18°C to -23°C, drawers, freezing capacity (not specified)
Energy efficiency class	F (LED light source class F)
Warranty	2 years (EU), varies by country
Spare parts availability	Thermostats, sensors, printed circuits and light sources: 7 years; handles, hinges, bins and baskets: 7 years; door seals: 10 years
Cleaning and maintenance	Clean with soft cloth and mild detergent; automatic defrost; do not use abrasive products
Safety	Child lock for water dispenser, panel key lock, flammable refrigerant gas R600a
Usage	Domestic and similar applications (offices, hotels, etc.)
Weight	Not specified (approximately 70-80 kg according to similar models)

Frequently Asked Questions - CSC818EXWD CANDY

How to set the refrigerator and freezer temperature?

Use the Refrigerator and Freezer buttons on the touch control panel. Press to scroll through available temperatures: 2 to 8°C for the refrigerator (default 5°C) and -18 to -23°C for the freezer (default -18°C).

What should I do if the audible alarm sounds?

The alarm sounds if the door remains open for more than one minute. Close the door completely to stop it. Also check that nothing is obstructing the closure.

How to use the water dispenser?

Fill the drinking water tank (max 2 L) located in the refrigerator. Press the lever to dispense water. The child lock prevents accidental dispensing: slide the safety lever to the right to unlock.

How to lock the control panel?

Press the Lock button on the panel. The lock icon appears. To unlock, press and hold the same button for 3 seconds.

What is the Super Freeze function?

Activate Super Freeze to freeze fresh food faster. The compressor runs continuously until the temperature reaches -28°C or for a maximum of 24 hours, then automatically returns to normal mode.

How to activate Vacation mode?

Press the Function button several times until Vacation mode is selected. The refrigerator maintains 8°C and the freezer -15°C, ideal for extended absence with few food items.

Is defrosting manual or automatic?

This model has automatic defrost. No manual intervention is needed. The appliance defrosts regularly and water drains through an orifice.

How to clean the interior of the refrigerator?

Turn off and unplug the appliance. Use a soft damp cloth with a mild detergent. Never use abrasive products, solvents or bleach. Wipe dry and let it air dry before plugging back in.

Why is the refrigerator making noise?

Operating noises are normal: compressor, refrigerant circulation, material expansion. If noise becomes excessive, check that the appliance is level and not touching furniture.

Where can I find spare parts for this model?

Parts such as thermostats, sensors, circuits and LEDs are available for 7 years after end of production. Handles, hinges, bins and baskets: 7 years; door seals: 10 years. Contact after-sales service via the Candy website.

USER MANUAL CSC818EXWD CANDY

SIGURNOSNE INFORMACije

Pazljivo procitajte uputstvo za rad i ugradnju!

farmy, v hotely, motely a jiné typy residenci

• nocleháry (B & B)

AiaKoTTnC/EePyOToiOn n Diaepiogatoc yuyeiou

I IatnoTE TnapaTeTapeVa To Koupti "psiyeio" yia 5 deutepoaleTTA via va evpyoToInOeTe / aTnepeyoToInOeTe To diaepiaqa uyeiou, otav to diapepiaqa uyeiou eivai aTnepeyoToInuevo, n npiaikn oovn eepokpaiaoc uyeiou Oa 03noi. Katw anTo nv kataotaan attepeyoToInOnc Tou uyeiou, TATnoTE TnapaTeTapeVa To KOUPTI "psiyeio" yia 5 deutepoaleTTa Yia va eTavaekkivnoeTe n aeitoupyia uyeiou.

AειTOUpyia

OaAos yuyeiwV

O thalaoosuyeiou xpoiopoioieitai kupiw sya tv arothkeuon tropipimw v tou diatnpouvtai ia ikpo xpoviko diaotma.

O aalaoosuyeiouivai kataaannoc yia nTv aTOnkkeuon poutw,
lambdaikov, TOTuv kai aAww TPOpiuov TOU ka tavaawoov TPoopaata.
Poteivetai va oppayizovtai ta TpopiKa iTn ouvexia va toTOneTouvta
oto ayeyio.

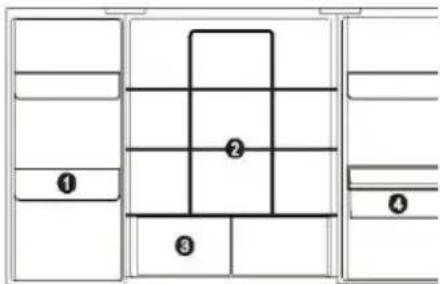

Pntevopva Tmuata Oalapou yuyeiou ia diapopa tropipka kai ovopa TOKIIAc:

① Diakoc Tóptac yuyéiou: yaaktokopiKa Tpoiovta, Tpópiμa με oouec, kπ.
② Fuαλiva páφiα ψuyeiou: tpóφiμa με δημntpiaká, yαλα, kλπ.
③Σρτάρι Συγείου: φρούτα, λαχανικά, κλήπ.
Mnxaviouoipou vepou yuyeiou: npoei va aTOnkuei anuEiae vpo kai noto

Omyies yia to moxao kaeisowmuatos ia taiia

Pnntote to oXoXo KLEIDomega 1ia TAIaIaE TOV aTIXeipa OaC
WcKATEUbuvon otwKATW ① KAIO OXHOsc Vepou 2Oa KLEIDOWei
YIA VA aTITpey ta TAIaIa anTOva TAPOV Vepo.
Pnntote TTPOs TIV AVTIETN KATEUbuvon YIA VA EKEAIEDWOTE KAI VA TApETEVpO

Todas las figuras de este manual son esquemáticas;algunas caractécticas y dispositivosSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOSESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESESE

Operating Instructions

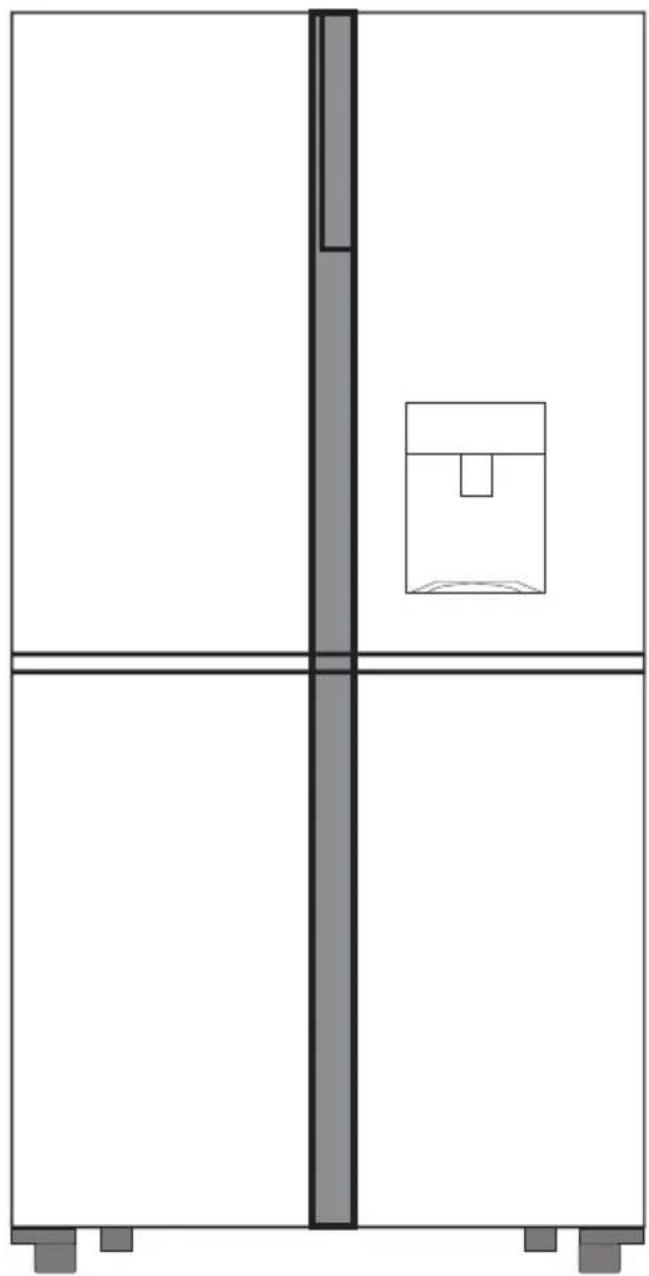

Model:CSC818EXWD

Please read the Operating Instructions carefully before operating. Please keep it properly for reference.

Table of Contents

Safety information

Safety information 2
7
Conformity 7
Guarantee 7
Energy Saving 8

Product Introduction

Product features 8
Product components 9

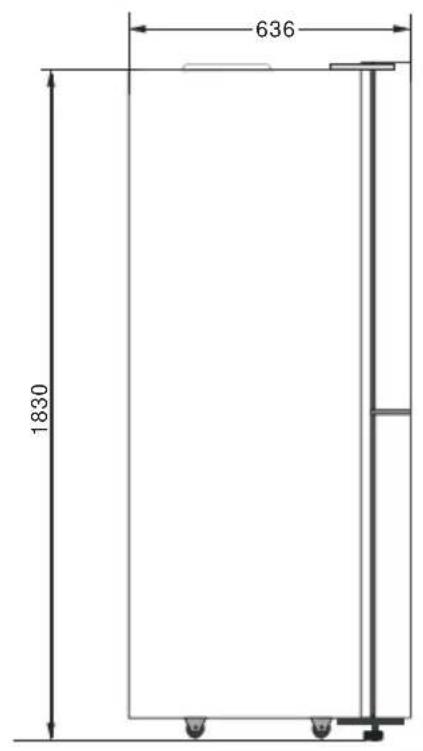

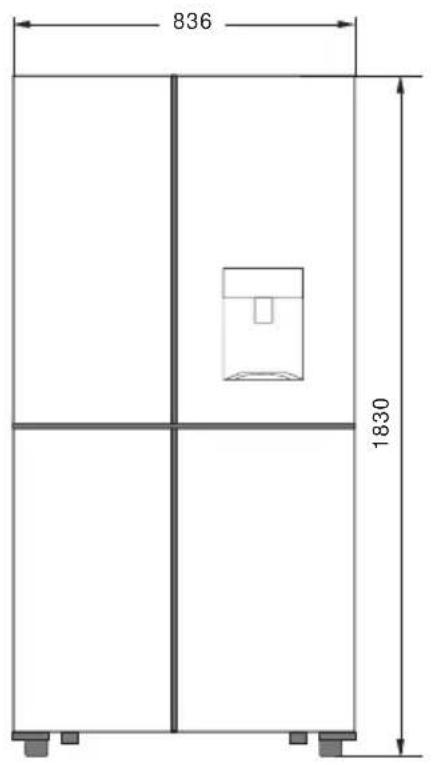

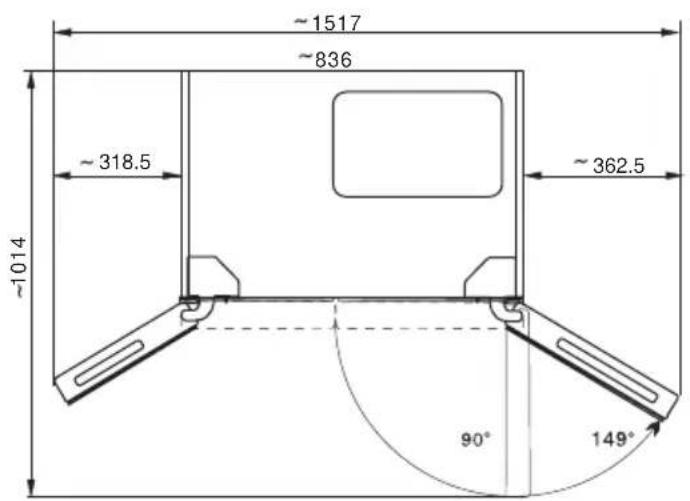

Installation dimension 10

Installation

Transport 11
Place environment 11
Adjust plastic feet 11

Operation

Before using 12
Starting and functions setting 12

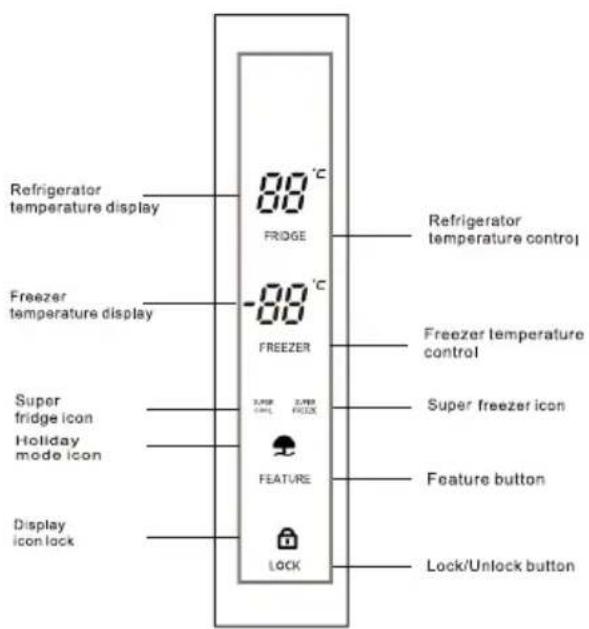

Control panel 12
Feature selection 13
Freezer compartment settings 13
Refrigerator compartment settings 14
Lock/unlock button 14
Open door alarm 14
Fridge compartment switch off/on 14

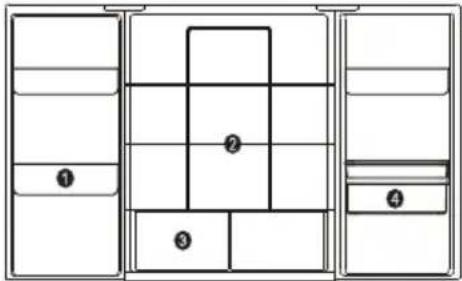

Refrigerator chamber 15
Instructions for child lock level 16
Fill the tank with pure drink water 16

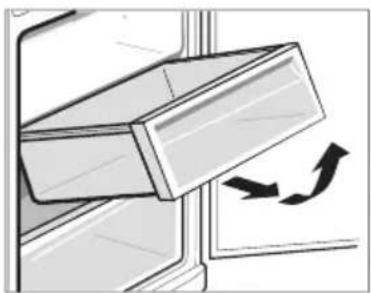

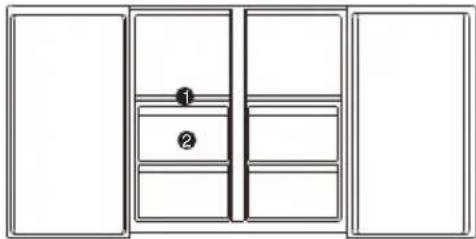

Freezing chamber 17
Storage of foods 18

Maintenance

Defrosting 19
Cleaning 19
General information 19
Normal phenomena 20
Trouble shooting 21
AVAILABILITY OF SPARE PARTS 21
TECHNICAL ASSISTANCE 21

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.
• Do not damage the refrigerant circuit.
• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.

• Install and level the appliance in an area suitable for its size and use.

• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

• Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials.
• FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
• If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• Do not excessively pull or fold the power cord or touch the plug with wet hands.

• Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.
  Children should not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
  FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
• Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
• Before performing any operation, unplug the power cord from the power socket.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.
  Supervise children while the appliance is being cleaned or maintained.
• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
• If the refrigerant circuit should be damaged:
• Switch off the appliance and pull out the mains plug,
• Keep naked flames and/or ignition sources away from the appliance,
• Thoroughly ventilate the room for several minutes,
• Inform customer service.
• WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

• WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.

• Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

• The product is designed and built for domestic household use only.

• Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

• FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine

• FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

• FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs

• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted

• Replaceable (LED only) light source by a professional.

• This product contains a light source of energy efficiency class F

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Guarantee

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Energy Saving

For better energy saving we suggest :

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated roo.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functionalizing of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
  Defrost the appliance in case there is ice to facilitate the transfer of cold.
  In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
  Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance

Product Introduction

Product features

Energy saving and noise reduction It contains super freeze, energy saving, noise reduction, optimal refrigeration system to achieve.
Precise temperature control Microcomputer control system separate to set, control and display the R-temperature and F-temperature, more precise control.
Automatic defrosting Special program to reduce the temperature fluctuation of the fridge, it's for keeping food fresh.
LED display and touch button Control board respectively display refrigerator and freezer chamber temperature setting and functional status; touch button operation is convenient.
Door-opening alarm system If more than 1 minute door-opening, alarm system will remind you to close the door.
Tempered glass, safe and reliable Tempered glass, safe and reliable, easy clean and durable.
Easy clean and removable door seal Door seal is easy clean and removable, and long service life.

Product Introduction

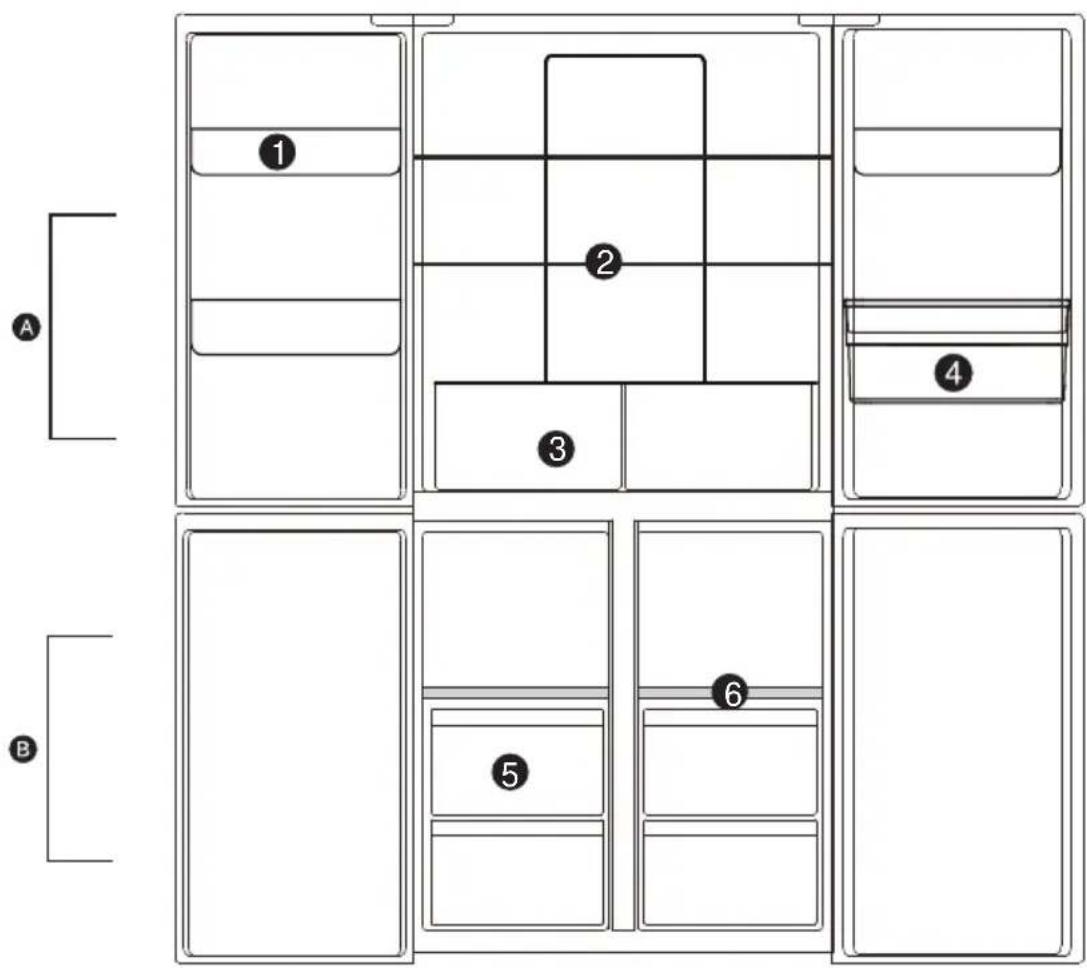

Product components

All figures in this manual are schematic; some features and devices may not be consistent fully with your refrigerator and the specific structure and configuration shall be subject to the actual product.

The appearance and specifications of the actual product may differ depending on the model.

A Refrigerator compartment

1 Refrigerator door tray
2 Refrigerator glass shelves
3 Refrigerator drawer
4 Refrigerator drinking machine

B Freezer compartment

5 Freezer drawer
6 Freezer glass shelf

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.

Product Introduction

Installation dimension

Select a good location to place your appliance where it is flat and easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture.

The figure above is schematic for installation only, not representing the actual product. The specific dimension shall be subject to the product that you have bought.

To ensure proper air circulation around the fridge, please maintain sufficient space. If install the top panel or closet, please maintain sufficient space to move when necessary.

Installation

Transport

Do not carry the refrigerator horizontally or reversely.
- Do not carry the refrigerator by holding the door or handle; the refrigerator shall be carried by lifting the bottom.

Place environment

The refrigerator must be placed on a hard, flat ground; if cushioning is needed, stable, hard, nonflammable cushion blocks shall be used, rather than the foam backing of refrigerator.
The refrigerator shall be kept away from damp locations where water is easy to splash; water or dirt shall be removed with soft cloth timely to prevent rusting which may have an effect on the electrical characteristics.
Place the refrigerator in a well-ventilated place, reserve a certain space around and behind the refrigerator, and do not cover or block the air grille on the rear cover plate of compressor at the back of refrigerator; Keep the refrigerator away from heat source or direct sunlight.

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;
• temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ ;
• subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ ;
• tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C ;

Adjust plastic feet

• When the refrigerator stays in the packing box, plastic feet are in tightened state. After carrying it out from the packing box for placement, please make sure to adjust two front plastic feet until the height is suitable; just adjust two plastic feet with a wrench or directly by hand.
  Plastic feet and rear rollers must touch the ground to prevent the refrigerator from movement, vibration or noise. When moving the refrigerator, adjust plastic feet counterclockwise to keep them off the ground, and then push the refrigerator gently to move it.

Operation

Before Using

Remove all packages, including the foam backing at the bottom of refrigerator and the tapes fixing accessories in the box.
Place the refrigerator to a proper position, and adjust the feet to level. It is better to clean the refrigerator before use.
Remove the film: There is a layer of transparent film on the panel of our product, which can protect products from being scratched in the process of production and transportation, and you can choose to reserve or remove the film as needed.
Place the refrigerator and adjust to level, clean it, let the refrigerator stand for above 2 6 hours, and then power on to ensure that the refrigerator can operate normally.

Starting and function setting

Starting

Connect the power cord, and turn on the power switch.
Upon startup for the first time, the screen will display respective set temperature values (the temperature of refrigerating chamber is set as 5^ , temperature of freezing chamber -18^ )

Function setting of LED display

The default mode is energy saving upon startup: The screen displays for 20 s and then goes off. This mode to save energy and prolong the service life of LED lights.

Control panel

Operation

Feature selection

Each press of the "Feature" button will cycle through the operating modes.

■ Holiday Mode - the refrigerator will run at 8^ while the freezer will operate at -15^ .
Super freezer: Starting the super freezer mode, the temperature on the display remains unchanged and the refrigerator operates according to the quick freezing mode. When the temperature of the freezer sensor reaches or is lower than -28 °C or the compressor runs continuously for 24 hours, the freezer will automatically exit the super freezer mode, and the icon of the super freezer mode will turn off. The freezer will then continue to operate at the previous setting.
Super fridge mode - When the super fridge mode is selected, the fridge compartment reaches the set temperature in the shortest period, in order to keep the food as fresh as possible. under this mode, the set temperature of the fridge compartment locks on 2^ The program runs 150mins maximally then exits automatically, the super fridge icon goes out, which represent the super fridge function is disable, the set temperature returns to the last one before the super fridge mode operates.

Freezer compartment settings

The default temperature of the freezer is -18^ . To change the temperature press the "Freezer" button to cycle through the set temperatures.

Set Temperature

-18°C -15°C
-19°C -16°C
-20°C -17°C
-21℃
-22°C
-23°C

CAUTION: Do not put fresh foods directly on the frozen foods.

Operation

Refrigerator compartment settings

The default temperature of the refrigerator is 5^ . To change the temperature press the "Fridge" button to cycle through the set temperatures.

Set temperature

5℃

8^ C

4℃

7^ C

3^ C

6^

2^ C

Lock/unlock button

This product has button lock function.

Press the "Lock" button will enable lock mode and the lock icon will be visible.

While the refrigerator is in this mode the other buttons on the control panel will not function, when the buttons are touched a chime will sound and the lock icon will flash.

To exit lock mode press and hold the lock button for 3 seconds until the icon is no longer displayed.

Opendooralarm

• if the refrigerator door is opened for more than 1 minute, the display panel buzzer will sound three times continuously, if the door will not be closed, it will sound three times continuously every 30 seconds until all the doors are closed.

Fridge compartment switch off/on

• Long press "fridge" button for 5s or 10s to set fridge compartment on/off, when fridge compartment is switched off, the fridge digital display temperature will go off; under the fridge compartment switched off state, long press "fridge" button for 5s or 10s to restart fridge function.

Operation

Refrigerator chamber

The refrigerator chamber is mainly used to store foods that are preserved for a short time.

The refrigerator chamber is suitable for storing fruits, vegetables, drinks and other foods that will be eaten recently. It is suggested to seal foods and then put them into the refrigerator.

Suggested sections of refrigerator chamber for various foods and variety name:

① Refrigerator door tray : dairy products, odorous foods, etc.;
② Refrigerator glass shelves : wheaten foods, milk, etc.;
③ Refrigerator drawer : fruits, vegetables, etc.;
④ Refrigerator drinking machine :can store water and drink directly (Only direct drinking water or mineral water can be stored in the water tank).

Fruit and vegetable box

The refrigerating chamber has a fruit and vegetable box, which can retain the moisture of fruits and vegetables and keep the humidity of the box proper. It is suitable for storing fruits and vegetables.

Bottle Shelf

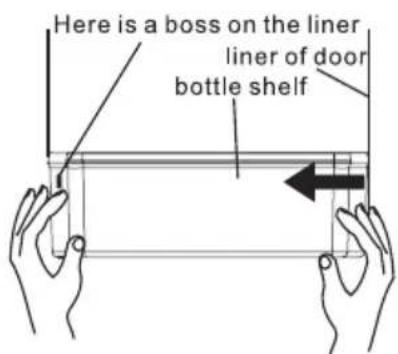

Disassembly: Hold both sides of the bottle shelf with both hands. Push it from the side without the boss and push it inward as the direction of the arrow. When pushing hard, please note that the buckle on the edge of bottle shelf is separated from the groove of the liner. Then bottle shelf can be removed.

Installation:Hold both sides of the bottle shelf with both hands. Install the buckle of the boss side at first. Then push the other side inward slightly, the buckle can be fixed.

Operation

Instructions for child lock lever

Press the child's lock lever with your thumb as the direction as below ① and the water lever ② will be locked to prevent children from taking any water.

Press in the opposite direction to unlock and take water

Fill the tank with pure drink water ()

Open the inlet cover of water tank ① Slowly fill the tank with pure drinking water up to the maximum fill line marked with "2L". Then close the inlet cover ① To prevent any spills, please use a narrow-bore container to charge water.

• Only direct drinking water or mineral water can be stored in the water tank

Operation

Freezing chamber

The freezing chamber is used to freeze foods, store deeply frozen foods and make ice cubes. It can preserve foods for a long time.

The freezing chamber is suitable for retaining the freshness of foods for a long time. When storing meat, it is suggested to cut the meat into pieces which are easy to take out, and mark the freezing date to prevent foods from exceeding the time limit.

Suggested sections of freezing chamber for various foods and variety name:

① Glass shelve: frozen foods, such as fishes, maets and ice creams;
② ① ②

Drawer of freezing chamber

The upper drawer of freezing chamber can freeze and store large-volume foods, and the lower drawer is mainly used to store frozen foods.

CAUTION

The food especially the oily food which stored in refrigerator, please avoid the direct contact with the liner. When the interior stained with oil or oily food soup stains, should be cleaned immediately to avoid the long contact with the liner which may lead to the liner corrosion and cracking.

Operation

Storage of foods

Instructions for storing foods

Position different food in different compartments according to be below

CAUTION

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments. ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the risper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do no need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meet, poultry, fish ·Middle drawer for frozen vegetables, chips. ·Top tray for ice cream, frozen fruit, frozen baked goods.

• It's suggested to set the temperature at 4^ in the fridge compartment, and, whether possible, at -18^ in the freezer compartment.
• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.
• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6^ , two stars -12^ , three stars -18^ )

Maintenance

Defrosting

This production has automatic defrosting function, without manual operation.

Cleaning

Precautions for internal and external cleaning of refrigerator:

Before cleaning, always turn off the power switch, disconnect the power plug.
During cleaning, make sure that no water will enter the switch, control panel, door lamp and top control box.
Remove dirt from the outside of refrigerator with mild cleaner, then wipe with clean soft cloth, and let the refrigerator dry naturally.
When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry naturally. Wet soft cloth with warm water or neutral cleaner to wipe the refrigerator body except the door sealing strip.
It is forbidden to flush the refrigerator directly with water, which will affect electrical insulation properties, etc.
It is forbidden to clean the refrigerator with metal wipers, ware brushes, coarse abrasive cleaners, strong alkaline detergents, or flammable or toxic cleaning fluids.

After cleaning, connect the power plug of refrigerator, and connected with the refrigerator.

General information

On vacation

When you want to leave for vacation, you had better to make the refrigerator operate continuously and leave foods that can be stored for a short time. If you want to stop the refrigerator, remove all foods, disconnect the power plug, clean the inside of refrigerator fully, and open the door to avoid producing abnormal odors.

At power failure

Generally, short-term power failure will not affect the temperature of the refrigerator sharply. However, if power failure lasts for a long time, you shall reduce the opening frequency of refrigerator, and shall not put fresh foods into the refrigerator (prevent rise in the temperature of refrigerator from speeding up).
If you know power failure is coming, you can turn on the "Super Freezer" function in advance to keep the temperature of refrigerator to the lowest value.

Shutdown

Generally, it is not suggested to stop refrigerator or turn off the power switch; otherwise, the life of refrigerator may be affected.

Maintenance

Normalphenomena

Button failure

Please check the control board whether the fridge under lock mode. When under lock mode, all buttons can't work.

Low voltage, the compressor can't start

You should purchase pressurizer of more than 1000W when the area of the appliance installation, that's better to protect your fridge.

Long time to start

When the ambient temperature too high, it will take long time to start the appliance.

Middle beams feel hot

Middle beams feel hot after a period of time of the appliance run, it belongs to the normal phenomenon.

Dew drops

When external air flows into the cool inner surface of the fridge, dew drops can be formed.

If the humidity of the installed location is high or during the rainy season, dew drops can form on the outer side of the fridge. This is a natural phenomenon that occurs during the humid weather, Wipe the water drops with a dry cloth.

Noise

When you operate the fridge for the first time, the fridge will operate at high speed to cool fast and the sound can seem louder. When the internal temperature falls below a certain level, the noise will subside.

When the operation of the compressor is starting or ending; various parts expanding/contracting or various control devices operating or temperature change within the fridge, you will hear the sounds, these are normal sounds.

Compressor hot

When working, the temperature of the compressor outer is more than 80^ , please do not touch the compressor, it may cause serious injury.

Compressor long time running

When the ambient temperature too high or put too much fresh foods into the fridge, it will take long time to cool down until the appliance run at the setting temperature.

Maintenance

Trouble shooting

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

Fault	Possible cause	Remedial action
No display on the display panel	The mains plug of the appliance is not in the socket properly. The fuse for the domestic supply is switched off.	Check whether the power is on; the fuse must be switched on.
Alarm sound	Door is slightly open or not close more than 1 minute.	Close the door completely.
The compressor do not work	It's under defrosting mode. Power is not connected well.	It's normal for defrosting; Check whether the power is connected well.
Compressor runs too long	The fridge has recently been dis- connected for a period of time; Put too much fresh or hot food; Doors are opened too frequently or too long.	It takes some hours for the fridge to cool down completely; Hot food will cause the fridge to run longer until the desired temperature is reached; Warm air entering the fridge cause it to run longer. Open the door less often.
Vibrating noise	Floor is uneven or weak; Items placed on the top of the fridge are vibrating; Fridge is touching wall or cabinets.	Be sure floor is level and solid and can adequately support fridge; Remove items; Move fridge so that does not touch the wall or cabinets;
Peculiar smell inside the refrigerator	Is there any spoiled or rotten food produce inside the product? Spillages can cause smells and odours. Does the product require cleaning? Is there strong smelling food produce in the appliance? (Stong cheese, smoked fish etc).	Remove any spoiled or rotten produce. Cleaning the product periodically ensures no stong odours. Produce with strong odours can be kept in air tight containers or sealed bags.

AVAILABILITY OF SPARE PARTS

"Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market".

TECHNICAL ASSISTANCE

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance. For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance
