This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Always switch off and remove the charger from the socket before cleaning the appliance or any maintenance task. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord. If the area to be cleaned contains a balcony or stairs, a physical barrier should be used to prevent access to the balcony or stairs and ensure safe operation. Small children and pets must be supervised while the Robot is cleaning. Always store the appliance indoors. Do not use outdoors or expose the appliance to the elements, humidity or heating sources (oven, replace, wet oor). Do not expose the Robot or accessories to excessive heat / cold (keep between 0-30°C). Do not drop the Robot or use any accessory if it has been dropped, damaged, left outdoors or dropped in water. Never unplug or pull the mains power adaptor by the power cord. Do not use to clean stairs. Battery Charging Use only the original charger supplied with the appliance. Check that your supply voltage is the same as that stated on the charger. Never charge the batteries in temperatures above 30°C or below 0°C. Plug the charger delivered with this appliance into a suitable socket. Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10 minutes. Seek medical attention. It is normal for the charger to become warm to the touch when charging. Use only attachments, consumables or spares recommended or supplied by Hoover. Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items. Do not spray with or pick up ammable liquids, cleaning uids, aerosols or their vapours. Do not continue to use your appliance or charger if it appears faulty. Hoover service: To ensure the continued safe and efcient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer. Do not use the appliance to clean animals or people. Do not replace the Robot batteries with non-rechargeable batteries. If the Robot will not be used for a long time (several weeks), unplug the mains power adaptor. End of life battery removal If the appliance is to be disposed of the batteries must rst be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Run the appliance until it stops because the batteries are fully discharged. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Hoover Customer Centre or proceed according to the following instructions. Unplug the charger and switch off the Robot. Turn the Robot over and place on a level surface. Remove the screws and battery compartment cover. Remove the battery pack. [Fig. 16] NOTE: Should you experience any difculty in dismantling the unit or for more detailed information on treatment, recovery and recycling of this appliance, please contact your local city ofce or your household waste disposal service.

• Certain Models Only ** May vary according to model GB3

Please read the following information carefully before using your Robot or its accessories. Do not disassemble the Robot and do not attempt to repair it yourself. If a fault occurs, please contact the Hoover after Sales Service for professional advice. Stairs: The Robot uses sensors to avoid falling down steps, stairs or over an edge. In some situations the sensors can become confused. The Robot cannot detect steps that are less than 8cm in height. Steps less than 8cm may cause the Robot to fall down. If available, set No-go areas or Virtual walls through the app to protect your Robot from falling. Highly reective or very dark surfaces used on some steps or stairs, such as glass or polished ceramics may cause the Robot to fall down.

available set No-go areas or Virtual walls through the app or place a carpet on the lower step to protect your Robot from falling. Using your Robot on mezzanines, landings or raised areas without borders should be avoided. If available set No-go areas or Virtual walls through the app to prevent your Robot entering these areas. Battery Use: Your Robot is powered by rechargeable, high capacity lithium ion batteries. These rechargeable batteries are guaranteed for a period of 6 months if they are maintained and operated according to this User Manual. In the event of a signicant drop in the Robot’s performance, replacement batteries can be obtained from your Hoover retailer. Only use Hoover approved replacement parts for your Robot. Use of parts that are not approved by Hoover are dangerous and will invalidate your warranty. Only use the supplied charging station and mains power adaptor to recharge your Robot. Use of the incorrect charging station or mains power adaptor is dangerous and will invalidate your warranty. Frequency bands 2412 MHz to 2472 MHz Maximum RF power transmitted in the frequency band

The Environment The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city ofce, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2014/53/EU and 2011/65/EU . To receive a copy of the declaration of conformity, please contact the manufacturer through the website: www.candy-group.com CANDY HOOVER GROUP Srl Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy GB1

PACKAGING Do not dispose of your Robot packaging. It may be required for the validity of your guarantee in the future. When unpacking your Robot and its accessories, take care to keep bags away from babies, young children and animals to avoid the risk of suffocation. Before rst use, charge your appliance for 4-6 hours. [Fig. 1] Do not expose the Robot’s mains power adaptor to temperatures below 0°C or above 30°C as this may damage the battery. The mains power adaptor must only be connected to a standard mains power outlet. BATTERY For optimum battery performance it is recommended that you keep your robot batteries fully charged. When the robot is not in use it should be left connected to the charger base. The robot has an intelligent charging system. This prevents the batteries from becoming overcharged. To avoid accidents, make sure that every person in the room is aware of the presence of the robot.

Before use, remove obstacles that may get in the path of the Robot. Pay attention to:

• Objects that can be easily knocked over.

• Edges of carpets or rugs that it may get caught on.

• Floor length curtains and tablecloths.

• Heat sources or ammable items.

• Power cords and cables.

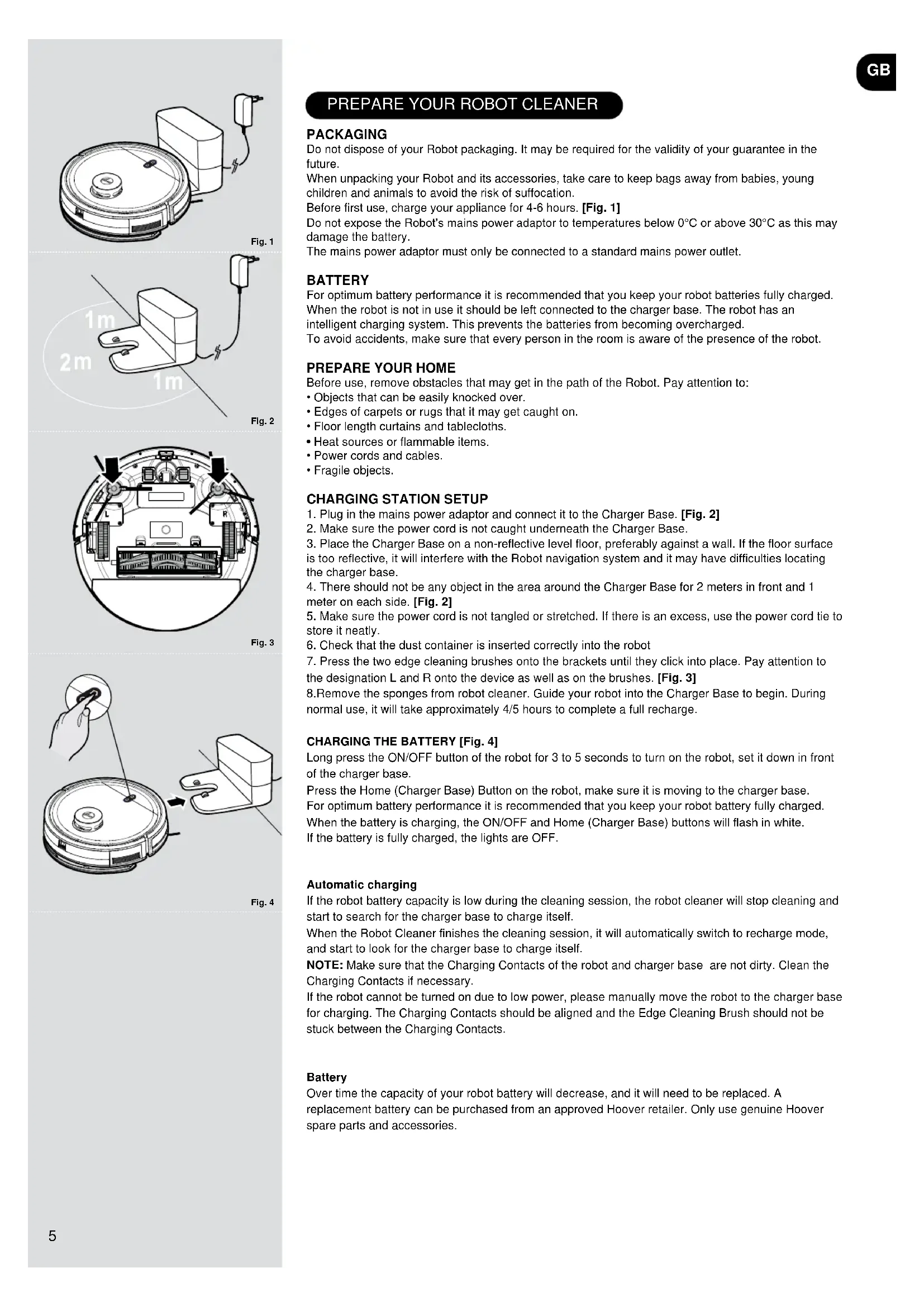

1. Plug in the mains power adaptor and connect it to the Charger Base. [Fig. 2]

2. Make sure the power cord is not caught underneath the Charger Base.

3. Place the Charger Base on a non-reective level oor, preferably against a wall. If the oor surface

is too reective, it will interfere with the Robot navigation system and it may have difculties locating the charger base.

4. There should not be any object in the area around the Charger Base for 2 meters in front and 1

meter on each side. [Fig. 2]

5. Make sure the power cord is not tangled or stretched. If there is an excess, use the power cord tie to

6. Check that the dust container is inserted correctly into the robot

7. Press the two edge cleaning brushes onto the brackets until they click into place. Pay attention to

the designation L and R onto the device as well as on the brushes. [Fig. 3] 8.Remove the sponges from robot cleaner. Guide your robot into the Charger Base to begin. During normal use, it will take approximately 4/5 hours to complete a full recharge. CHARGING THE BATTERY [Fig. 4] Long press the ON/OFF button of the robot for 3 to 5 seconds to turn on the robot, set it down in front of the charger base. Press the Home (Charger Base) Button on the robot, make sure it is moving to the charger base. For optimum battery performance it is recommended that you keep your robot battery fully charged. When the battery is charging, the ON/OFF and Home (Charger Base) buttons will ash in white. If the battery is fully charged, the lights are OFF. Automatic charging If the robot battery capacity is low during the cleaning session, the robot cleaner will stop cleaning and start to search for the charger base to charge itself. When the Robot Cleaner nishes the cleaning session, it will automatically switch to recharge mode, and start to look for the charger base to charge itself. NOTE: Make sure that the Charging Contacts of the robot and charger base are not dirty. Clean the Charging Contacts if necessary. If the robot cannot be turned on due to low power, please manually move the robot to the charger base for charging. The Charging Contacts should be aligned and the Edge Cleaning Brush should not be stuck between the Charging Contacts. Battery Over time the capacity of your robot battery will decrease, and it will need to be replaced. A replacement battery can be purchased from an approved Hoover retailer. Only use genuine Hoover spare parts and accessories. Fig. 4 GB6

USING YOUR ROBOT CLEANER

• Home (Charger Base) Button Short press: Recharge Long press: App Connection Light Indicator: White light ashing: charging White Light Flashing Rapidly: App Connection

• ON/OFF Power Button Long press: power on (if robot is off) Long press: power off (if robot is on) Short press: start/pause (if robot is in sleep mode) Light Indicator: Blue light ashing: standby mode Blue light is always on: working mode Blue light off: sleep mode

1. The operation process of the robot: sleep mode standby mode working mode

A. Sleep mode: When the robot is in standby mode, and has not been working for 3 minutes, it will automatically enter the sleep mode. When the robot is in sleep mode, the button light is off, and the robot is still. B. Standby mode: When the robot is in standby mode, the button light is ashing blue, and the robot is still. C. Working mode: When the robot is working, the button light is always on with blue, and the robot is in cleaning session. Mopping Function When in cleaning mode with mopping function activated, please make sure water tank is lled with clean water and mop pad and mop pad holder are attached correctly to the water tank. [Fig. 5] Pull out the water tank and ll it with clean water through the dedicated opening, until the maximum level indicated. Attach mop pad to the holder and then insert them under the water tank. Please make sure they are correctly inserted in the dedicated openings below the water tank. Ret water tank into the robot. Fill water tank with water only. Other liquids may corrode the water tank. Use only cold/room temperature water. Hot water may cause damages to water tank. Please notice that it takes a couple of minutes for the mop pad to be fully wet. If preferred, wet the mop pad removing any excess of water before activating mopping function. When mopping function is not activated, remove mop pad, mop holder and empty water tank from any residual water. [Fig. 6] Regularly wash the mop pad after each use to maintain cleaning quality.

Pause means that the robot is switched from the working mode to the standby mode. This can be operated by pressing the “on/off” button on the robot, or via the mobile App. Attention! [Fig. 7] If the robot is in sleep mode, press the “ON/OFF” button on the robot twice to make it start cleaning. If the robot is not used for a long time, long press the “ON/OFF” button to shut down the robot. When the robot encounters a crash, please press the Reset button on the horn for 2-3 seconds with a needle less than 2mm to forcibly shut down. APP DOWNLOAD AND CONNECTION VIA THE WIFI [Fig. 8] In order to access all the Robot’s Functions from anywhere, it is suggested to download the HG5 APP. You will be able to control the Robot in the most efcient way.

1. Download the “HG5“ APP from your App Store, Google Play or APP Gallery.

2. Open the APP, create an account with your email and a password. Conrm login.

3. Ensure your mobile device is connected to WiFi.

4. Click the “add device” on APP, follow instructions to complete the pairing.

WARNING The WiFi name cannot exceed 32 characters. If the connection is failed, follow below steps to check:

• Make sure to have inserted correct WiFi password

• Make sure to set your WiFi network to 2.4GHz

• Make sure the Robot is not too far away from the router. Fig. 7 Fig. 6 Fig. 5 Fig. 8 GB7

After having successfully paired your robot you can create the map of your home. This will let you access fully customizable settings and cleaning schedules of your robot. Click on the Robot icon to access the map page. Remember to remove any obstacle on the oor (cables, socks, shoes) before power on the robot. Click on POWER ON button to let the robot start mapping your apartment. You’ll see the map creating on your home page. Once the robot has scanned your whole apartment you’ll see the complete map on your phone. You can give a name to each room, customize it and set up a dedicated cleaning schedule (suction power level, mopping level, frequency of cleaning, etc.). -Cleaning Time: indicates the duration of the latest cleaning session -Area Cleaned: indicates the square meters covered by the robot during the latest cleaning session -Battery: current level of the battery

Robot starts cleaning following the current cleaning settings.

The robot will come back to the charger base. *All the other icons will turn on and be available only after clicking on Power On icon.

Select a specic place on the map, the robot will go there and start its cleaning session following the current cleaning settings.

Select a specic room on the map, the robot will go there and start its cleaning session following the room cleaning settings.

Select a specic area on the map, the robot will go there and start its cleaning session following the current cleaning settings.

Dene a specic area where the robot won’t be allowed to go. You can dene no-go areas for mopping, for vacuum or both.

Customise rooms on the map. It is possible to merge or split different rooms, fully reset the map, rename rooms, set cleaning schedule for each room, set cleaning sequence for rooms.

Full settings list of the robot

Before performing any maintenance task, ensure the robot is switched off.

1. Turn the robot off and remove it from charger base.

2. Use a dry cloth to clean all surfaces. DO NOT allow water into any part of the product whilst

cleaning. After vacuuming, remove the water tank and the dust container.

1. Press the release button and pull it out. [Fig. 9]

2. Lift up the dust container through the handle, [Fig, 10] open the dust container where indicated

releasing the clip, [Fig. 11] Empty the dust container over a dust bin. [Fig. 12]

3. Use the cleaning brush when necessary to remove any excess dust from the internal surface of the

dust container or lter surface

4. Ret the dust container with water tank into the robot.

CLEANING THE FILTERS

The Robot is tted with a pre-motor lter. To maintain optimum cleaning performance, regularly clean the lter cover and the pre-motor lter. They should be cleaned after the dust container has been emptied 5 times and should not be washed.

1. After vacuuming, remove the water tank and the dust container. Press the release button and pull it

from lter mesh and clean them separately. The assembly is done in reverse order, make sure the lter is assembled correctly. [Fig. 13,14] IMPORTANT: Regularly check and maintain the lters following the lter maintenance instructions. This will maintain maximum cleaning performance. Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 9 GB8 Fig. 21 Fig. 20 Fig. 17 Fig. 18 Fig. 19 Fig. 22 Fig. 23 If the lter mesh and lter are damaged, they should be removed immediately and replaced in time to avoid damage to the vacuum motor.

1. Remove mop pad holder and mop pad from water tank. [Fig. 15,16]

2. Remove mop pad from mop pad holder.

3. Wash the mop pad manually or with washing machine.

4. Let it dry completely before using it again.

CLEANING THE AGITATOR

Regularly clean the agitator to maintain maximum cleaning performance.

1. Turn the Robot OFF and turn it over.

2. Press the clips on the sole plate remove the agitator cover. [Fig. 17]

3. Lift up the agitator by grasping one end of agitator. [Fig. 18]

4. Use the Cleaning Brush to remove any entanglement from the agitator and the dirt on the bristles.

Do not lose the rubber sleeve on the ball bearing.

5. After cleaning, put the agitator and the agitator cover back into the robot.

Attention: All maintenance tasks should be carried out after taking out the Dust Container, to avoid the dirt in the Dust Container being dumped out accidentally.

CLEANING THE EDGE CLEANING BRUSHES

When the edge brushes become dirty, clean them with clean water and dry it before use; if the edge brush is damaged and cannot work normally, please replace it. Attention! When replacing the edge cleaning brushes, match the “L” and “R” marks on the brush with the “L” and “R” at the bottom of the robot. CLEANING THE DRIVE WHEELS [Fig. 19]

1. Switch the Robot off and turn it over.

2. Remove any dirt or hair trapped in the wheels.

3. Clean the wheels with a dry cloth.

CLEANING THE ANTI-FALL SENSOR LENS [Fig. 20] To maintain the safe operation of your robot it is important to keep the Anti fall sensors clean. There are 3 sensors located on the bottom side of the robot. Turn the robot upside down and clean them with dry cloth to remove any accumulation of dust, dirt or debris. BATTERY REPLACEMENT [Fig. 21]

1. Use a screwdriver to remove the screws from the battery cover at the bottom of the robot;

2. Remove the battery cover.

3. Disconnect the connector and remove the battery from the compartment;

4. Put the new battery into the compartment and reconnect to the connector. Pay attention to the

correct alignment of the connector and the wires. Ret the battery cover and close it with the screws.

5. Power on to check whether it is normal.

Attention! Please recycle the replaced batteries in an environmentally friendly method to avoid pollution. IMPORTANT NOTICE Only use approved replacement parts for your robot. Using parts not validated by Hoover is dangerous and will invalidate your guarantee. lf the robot will not to be used for several months, please remove the batteries and store in a cool dry location. IMPORTANT: Always make sure your device is switched off before maintenance. Always use two hands to lift and carry, and ensure the robot is held level. [Fig. 22] When liting the robot cleaner, ensure you do not grip the water tank to avoid accidental opening. (Fig. 23) You should avoid using your robot cleaner in direct sunlight or on dark polished surfaces as these conditions will adversely affect the behaviour of your robot. Fig. 16 Fig. 15 GB9 IMPORTANT INFORMATION Hoover Spares and Consumables Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number. Quality Hoover’s factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001. Your Guarantee The guarantee conditions for this appliance are as dened by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Subject to change without notice. TROUBLESHOOTING If you have any problem with your robot, follow this simple check list before calling the Hoover Customer Service Centre.

• Robot doesn’t work when it is switched on Light Indicator of ON/OFF and Home Buttons Actions White & blue ashing Check edge cleaning brushes are clean and placed correctly Check agitator is clean and placed correctly White on Check if the dust container is inserted correctly White & light blue lights ashing Check the drive wheels are clean and functioning Blue & light blue lights ashing Check the anti-fall sensors and frontal bumper are clean and functioning White ashing Check the Lidar tower is functioning

• Robot doesn’t automatically recharge Make sure there are no barriers between the robot and the charger base, and no objects in the area around the charger base for 2 meters in front and 1 meter to each side.

• Robot is trapped Robot will attempt to free itself but in some cases, assist the robot manually.

• Robot is very noisy while cleaning Clean the dust container and lter, clean and check the agitator and drive wheels.

• Cleaning power is weak. Clean the dust container and lter, clean and check the agitator and drive wheels.

• Mopping function doesn’t work Check if there is enough clean water in the water tank. Check if mop pad holder and mop pad are inserted correctly on the robot. GB10
