Product type	Robot vacuum
Brand	Hoover
Model	HG550DP 011
Power supply	Rechargeable lithium-ion battery, AC adapter 100-240 V
Battery life	Approximately 120 minutes (depending on usage)
Charging time	4-6 hours (first charge), 4-5 hours (subsequent cycles)
Dustbin capacity	Approximately 300 ml (built-in dustbin)
Dust collection base	With disposable dust bag, automatic emptying
Main functions	Automatic cleaning, mapping, no-go zones, vacuuming and sweeping, auto-return to base
Connectivity	Wi-Fi 2.4 GHz, HG5 app (iOS/Android)
Sensors	Anti-drop sensors (3), laser telemetry, front bumper
Brushes	Central brush (agitation) + 2 side brushes (L/R)
Filtration	Mesh filter, EPA filter (pre-motor), exhaust filter on base
Dimensions (approx.)	Approximately 35 cm diameter, 10 cm height
Weight (approx.)	Approximately 3 kg
Noise level	Approx. 60 dB (normal operation)
Maintenance and cleaning	Regular cleaning of dustbin, filters, brushes, sensors and wheels
Safety	Automatic stop in case of fall, obstacle detection, supervision recommended for children and animals
Spare parts and repairability	Hoover parts available (battery, brushes, filters, bags); repairs by authorized center
General information	Household use only, operating temperature 0-30°C, manufacturer warranty

Frequently Asked Questions - HG550DP 011 HOOVER

How to install the HG5 app and connect the robot to Wi-Fi?

Download the HG5 app from the App Store, Google Play or App Gallery. Create an account with your email, make sure your mobile is connected to 2.4 GHz Wi-Fi. Click 'Add Device' and follow the instructions. The network name must not exceed 32 characters.

How to charge the robot for the first time?

Before first use, charge the robot for 4 to 6 hours. Place the robot in front of the dust collection base, press and hold the Power button to turn it on, then press the Home (charging base) button for it to connect there.

What to do if the robot does not recharge automatically?

Check that there are no obstacles within 2 meters in front and 1 meter on each side of the base. Make sure the charging contacts are clean and the robot can freely access the base.

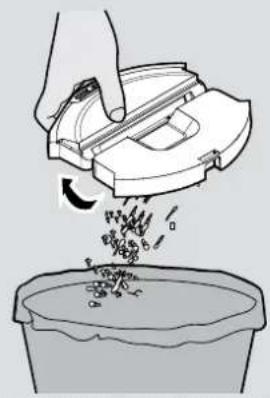

How to clean the dustbin and filters?

Turn off the robot. Press the release button to remove the dustbin. Empty it into a trash can. For the filters, remove the mesh and EPA filter, clean them separately with the provided brush. Do not wash the filters. Reassemble in reverse order.

How to replace the dust bag of the base?

Open the lid of the collection base. Lift the collar of the dust bag to remove it. Dispose of it carefully. Insert a new bag by pushing the collar until it clicks. Close the lid.

What to do if the robot is very noisy or has weak suction?

Clean the dustbin and filters. Check the agitator (central brush) and drive wheels for tangled hair or debris. Excess dirt can reduce performance.

How to replace the battery?

Turn off the robot. Turn it over, unscrew the battery cover. Disconnect the connector and remove the old battery. Insert the new battery respecting the connector orientation. Replace the cover and tighten with screws. Use only a Hoover battery.

The robot does not detect stairs, what to do?

Clean the anti-drop sensors located under the robot with a dry cloth. If the problem persists, set no-go zones via the app to avoid falls. Sensors may malfunction on very reflective surfaces or steps less than 8 cm.

Can I use the robot on carpets or rugs?

Yes, the robot can clean carpets and rugs. Make sure the edges are not too high (risk of getting stuck). The central brush and side brushes adapt to different floor types.

How to customize rooms and cleaning schedules?

After mapping via the HG5 app, you can merge or split rooms, rename them, set suction power per room, and schedule cleaning sessions. Use the 'Customize' and 'Settings' icons in the app.

USER MANUAL HG550DP 011 HOOVER

USER MANUAL (GB)......2

GUIDE D'UTILISATION (FR)......10

MANUALE D'USO (IT)......26

GEBRUIKERSHANDLEIDING (NL) .34

MANUAL DE INSTRUÇÕES (PT) ....42

MANUAL DE USUARIO (ES)......50

BRUGERVEJLEDNING (DK) .....58

BRUKERHÄNDBOK (NO)......66

BRUKSANVISNING (SE)....74

KÄYTTÖOHJE (FI) 82

NAVODILA ZA UPORABO (SI).....122

POUŽIVATELŠKÁ PRÍRUČKA (SK)...130

KULLANIM KILAVUZU (TR) .....138

FELHASZNÁLÓI KÉZIKÖNYV (HU) ..146

Line drawing of a robotic vacuum cleaner with a central cover and control panel (no text or symbols)

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Always switch off and remove the charger from the socket before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised Hoover service engineer must replace the power cord.

If the area to be cleaned contains a balcony or stairs, a physical barrier should be used to prevent access to the balcony or stairs and ensure safe operation. Small children and pets must be supervised while the Robot is cleaning.

Always store the appliance indoors. Do not use outdoors or expose the appliance to the elements, humidity or heating sources (oven, fireplace, wet floor).

Do not expose the Robot or accessories to excessive heat / cold (keep between 0-30°C).

Do not drop the Robot or use any accessory if it has been dropped, damaged, left outdoors or dropped in water.

Never unplug or pull the mains power adaptor by the power cord.

Do not use to clean stairs.

Battery Charging

Use only the original charger supplied with the appliance.

Check that your supply voltage is the same as that stated on the charger.

Never charge the batteries in temperatures above 30^ C or below 0^ C.

Plug the charger delivered with this appliance into a suitable socket.

Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

It is normal for the charger to become warm to the touch when charging.

Use only attachments, consumables or spares recommended or supplied by Hoover.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not continue to use your appliance or charger if it appears faulty.

Hoover service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

Do not use the appliance to clean animals or people.

Do not replace the Robot batteries with non-rechargeable batteries.

If the Robot will not be used for a long time (several weeks), unplug the mains power adaptor.

End of life battery removal

If the appliance is to be disposed of the batteries must first be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Run the appliance until it stops because the batteries are fully discharged. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Hoover Customer Centre or proceed according to the following instructions. Unplug the charger and switch off the Robot. Turn the Robot over and place on a level surface. Remove the screws and battery compartment cover. Remove the battery pack. [Fig. 16]

NOTE: Should you experience any difficulty in dismantling the unit or for more detailed information on treatment, recovery and recycling of this appliance, please contact your local city office or your household waste disposal service.

IMPORTANT NOTES BEFORE USE

Please read the following information carefully before using your Robot or its accessories.

Do not disassemble the Robot and do not attempt to repair it yourself. If a fault occurs, please contact the Hoover after Sales Service for professional advice.

Stairs: The Robot uses sensors to avoid falling down steps, stairs or over an edge. In some situations the sensors can become confused.

The Robot cannot detect steps that are less than 8cm in height. Steps less than 8cm may cause the Robot to fall down. If available, set No-go areas or Virtual walls through the app to protect your Robot from falling.

Highly reflective or very dark surfaces used on some steps or stairs, such as glass or polished ceramics may cause the Robot to fall down. If available set No-go areas or Virtual walls through the app or place a carpet on the lower step to protect your Robot from falling.

Using your Robot on mezzanines, landings or raised areas without borders should be avoided. If available set No-go areas or Virtual walls through the app to prevent your Robot entering these areas.

Battery Use: Your Robot is powered by rechargeable, high capacity lithium ion batteries. These rechargeable batteries are guaranteed for a period of 6 months if they are maintained and operated according to this User Manual.

In the event of a significant drop in the Robot's performance, replacement batteries can be obtained from your Hoover retailer.

Only use Hoover approved replacement parts for your Robot. Use of parts that are not approved by Hoover are dangerous and will invalidate your warranty.

Only use the supplied charging station and mains power adaptor to recharge your Robot. Use of the incorrect charging station or mains power adaptor is dangerous and will invalidate your warranty.

Frequency bands 2412 MHz to 2472 MHz
Maximum RF power transmitted In the frequency band	802.11 b: +15.95 dBm802.11 g: +14.91 dBm802.11 n20: +13.78 dBm

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2014/53/EU and 2011/65/EU. To receive a copy of the declaration of conformity, please contact the manufacturer through the website: www.candy-group.com

CANDY HOOVER GROUP Srl Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

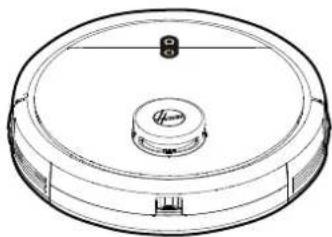

CONTENTS OF THE BOX

Technical line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank white rectangle with black border (no text or symbols)

Robot Cleaner Dust Collection Base User Manual

Pure electrical circuit lines without any symbols

X4 Edge Cleaning Brush Additional Filter for Robot Cleaning Brush

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Additional Filter For Dust Collection Base Additional Bag For Dust Collection Base

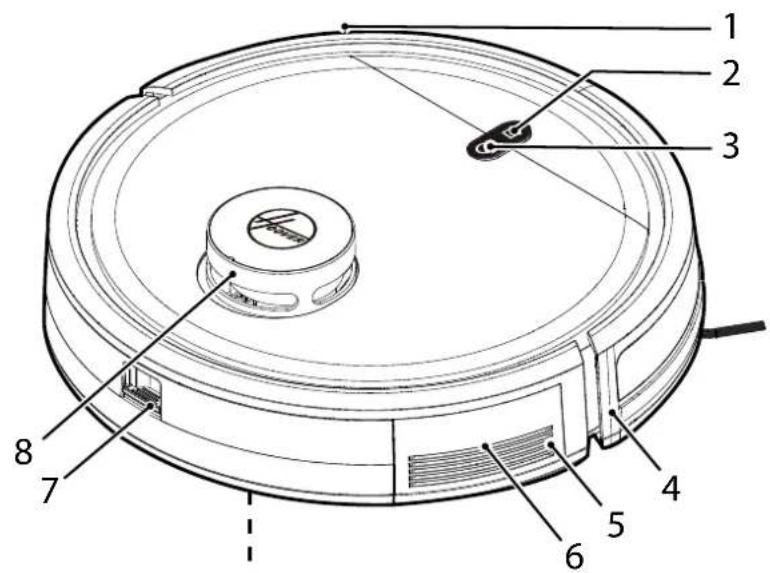

GETTING TO KNOW YOUR ROBOT CLEANER

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

1 Frontal Bumper
2 HOME (Charger Base) Button
3 ON/OFF Power Button
4	Front Signal Receiver
5 Speaker
6 Reset button (red button)
7 Dust Container Release Button
8	Lidar Tower

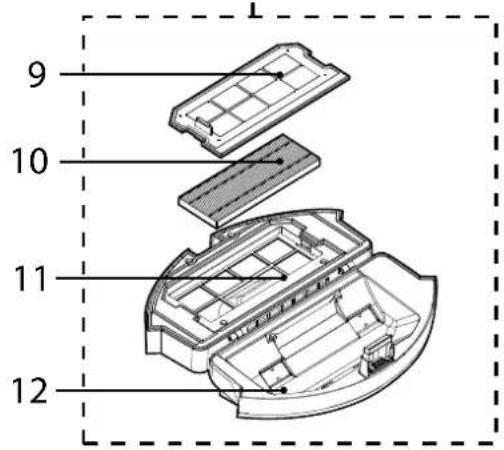

9 Filter Mesh
10 EPA Filter
11 Top cover of Dust Container
12	Bottom cover of Dust Container

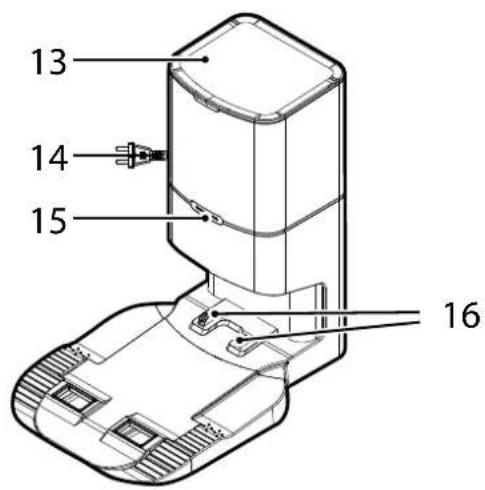

13 Dust Collection Base Top Cover
14 Power Supply Connector
15 Dust Collection Base Indicator
16	Dust Collection Base Charge contacts

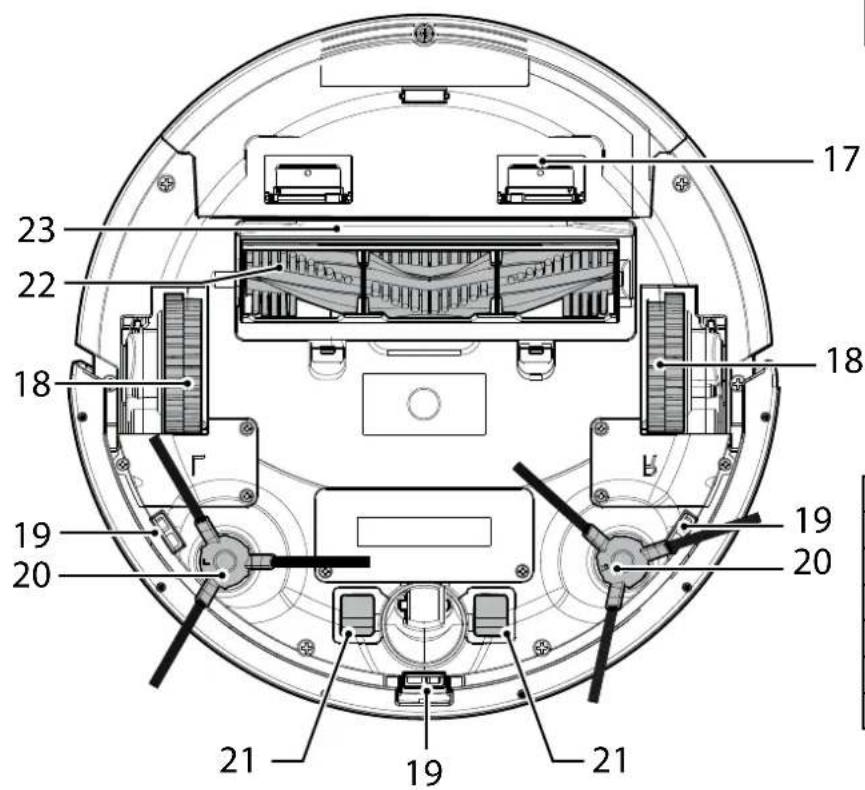

17 23 22 18 18 19 20 19 21 19 21 20

17 Dust Container
18	Drive Wheel
19 Anti-Fall Sensor
20 Edge Cleaning Brush
21 Robot Charging Contacts
22 Agitator
23 Agitator Top Cover

PREPARE YOUR ROBOT CLEANER

PACKAGING

Do not dispose of your Robot packaging. It may be required for the validity of your guarantee in the future.

When unpacking your Robot and its accessories, take care to keep bags away from babies, young children and animals to avoid the risk of suffocation.

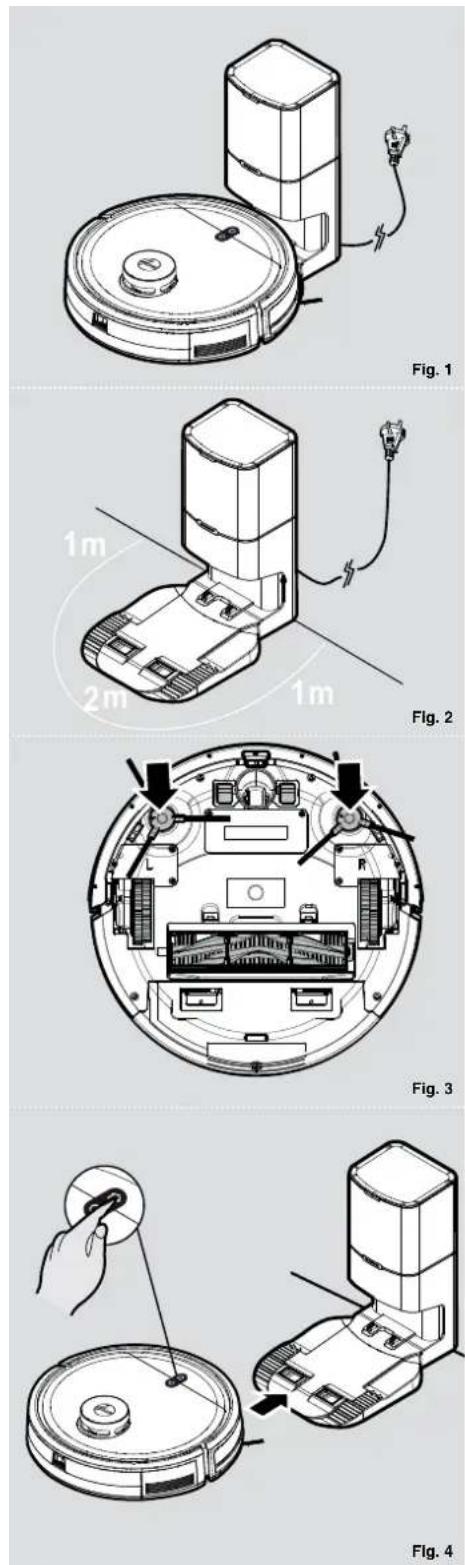

Before first use, charge your appliance for 4-6 hours. [Fig. 1]

Do not expose the dust collection base to temperatures below 0^ or above 30^ as this may damage the battery.

The dust collection base must only be connected to a standard mains power outlet.

BATTERY

For optimum battery performance it is recommended that you keep your robot batteries fully charged. When the robot is not in use it should be left connected to the dust collection base. The robot has an intelligent charging system. This prevents the batteries from becoming overcharged.

To avoid accidents, make sure that every person in the room is aware of the presence of the robot.

PREPARE YOUR HOME

Before use, remove obstacles that may get in the path of the Robot. Pay attention to:

• Objects that can be easily knocked over.
• Edges of carpets or rugs that it may get caught on.
  • Floor length curtains and tablecloths.
• Heat sources or flammable items.
  • Power cords and cables.
• Fragile objects.

DUST COLLECTION BASE SETUP

1. Plug in the dust collection base. [Fig. 2]
2. Make sure the power cord is not caught underneath the Dust collection Base.
3. Place the Dust collection Base on a non-reflective level floor, preferably against a wall. If the floor surface is too reflective, it will interfere with the Robot navigation system and it may have difficulties locating the Dust collection base.
4. There should not be any object in the area around the Dust collection Base for 2 meters in front and 1 meter on each side. [Fig. 2]
5. Make sure the power cord is not tangled or stretched. If there is an excess, rewind it on Dust Collection Base back.
6. Check that the dust container is inserted correctly into the robot and that the dust bag is correctly inserted into the Dust Collection Base.
7. Press the two edge cleaning brushes onto the brackets until they click into place. Pay attention to the designation L and R onto the device as well as on the brushes. [Fig. 3]
8. Remove the sponges from robot cleaner. Guide your robot into the dust collection Base to begin. During normal use, it will take approximately 4/5 hours to complete a full recharge.

CHARGING THE BATTERY [Fig. 4]

Long press the ON/OFF button of the robot for 3 to 5 seconds to turn on the robot, set it down in front of the dust collection base.

Press the Home (Charger Base) Button on the robot, make sure it is moving to the dust collection base.

For optimum battery performance it is recommended that you keep your robot battery fully charged. When the battery is charging, the ON/OFF and Home (Charger Base) buttons will flash in white. If the battery is fully charged, the lights are OFF.

Automatic charging

If the robot battery capacity is low during the cleaning session, the robot cleaner will stop cleaning and start to search for the dust collection base to charge itself.

When the Robot Cleaner finishes the cleaning session, it will automatically switch to recharge mode, and start to look for the dust collection base to charge itself.

NOTE: Make sure that the Charging Contacts of the robot and dust collection base are not dirty.

Clean the Charging Contacts if necessary.

If the robot cannot be turned on due to low power, please manually move the robot to the dust collection base for charging. The Charging Contacts should be aligned and the Edge Cleaning Brush should not be stuck between the Charging Contacts.

Battery

Over time the capacity of your robot battery will decrease, and it will need to be replaced. A replacement battery can be purchased from an approved Hoover retailer. Only use genuine Hoover spare parts and accessories.

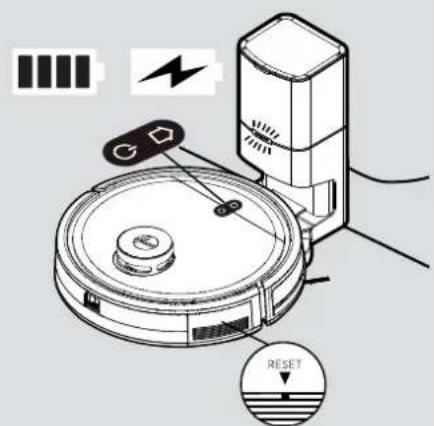

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

USING YOUR ROBOT CLEANER

• Home (Charger Base) Button

Short press: Recharge

Long press: App Connection

Light Indicator:

White light flashing: charging

White Light Flashing Rapidly: App Connection

• ON/OFF Power Button

Long press: power on (if robot is off)

Long press: power off (if robot is on)

Short press: start/pause (if robot is in sleep mode)

Light Indicator:

Blue light flashing: standby mode

Blue light is always on: working mode

Blue light off: sleep mode

Dust Collection Base Light Indicator

Green light is always on: standby mode

Green light flashing: collection mode to empty robot dust container

Blue light is always on: charging mode

Red light always on: collection error

Red light flashing: dust bag is full or not inserted correctly

Light off: dust collection base is fully charged

1. The operation process of the robot: sleep mode > standby mode > working mode

A. Sleep mode: When the robot is in standby mode, and has not been working for 3 minutes, it will automatically enter the sleep mode. When the robot is in sleep mode, the button light is off, and the robot is still.

B. Standby mode: When the robot is in standby mode, the button light is flashing blue, and the robot is still.

C. Working mode: When the robot is working, the button light is always on with blue, and the robot is in cleaning session.

2. Pause

Pause means that the robot is switched from the working mode to the standby mode. This can be operated by pressing the "on/off" button on the robot, or via the mobile App.

Attention! [Fig. 5]

If the robot is in sleep mode, press the "ON/OFF" button on the robot twice to make it start cleaning.

If the robot is not used for a long time, long press the "ON/OFF" button to shut down the robot. When the robot encounters a crash, please press the Reset button on the horn for

2-3 seconds with a needle less than 2mm to forcibly shut down.

APP DOWNLOAD AND CONNECTION VIA THE WIFI [Fig. 6]

In order to access all the Robot's Functions from anywhere, it is suggested to download the HG5 APP. You will be able to control the Robot in the most efficient way.

1. Download the "HG5" APP using the QR code or from your App Store, Google Play or APP Gallery.

2. Open the APP, create an account with your email and a password. Confirm login.

3. Ensure your mobile device is connected to WiFi.

4. Click the "add device" on APP, follow instructions to complete the pairing.

WARNING

The WiFi name cannot exceed 32 characters.

If the connection is failed, follow below steps to check:

- Make sure to have inserted correct WiFi password

• Make sure to set your WiFi network to 2.4GHz

- Make sure the Robot is not too far away from the router.

WITH HG5 APP

After having successfully paired your robot you can create the map of your home. This will let you access fully customizable settings and cleaning schedules of your robot.

Click on the Robot icon to access the map page. Remember to remove any obstacle on the floor (cables, socks, shoes) before power on the robot.

Click on POWER ON button to let the robot start mapping your apartment. You'll see the map creating on your home page. Once the robot has scanned your whole apartment you'll see the complete map on your phone. You can give a name to each room, customize it and set up a dedicated cleaning schedule (suction power level, mopping level, frequency of cleaning, etc.).

- Cleaning Time: indicates the duration of the latest cleaning session

- Area Cleaned: indicates the square meters covered by the robot during the latest cleaning session

- Battery: current level of the battery

- POWER ON ( )

Robot starts cleaning following the current cleaning settings.

- BACK TO CHARGE (💡)

The robot will come back to the charger base.

* All the other icons will turn on and be available only after clicking on Power On icon.

- GO TO PLACE (●)

Select a specific place on the map, the robot will go there and start its cleaning session following the current cleaning settings.

- SELECT ROOM (☐)

Select a specific room on the map, the robot will go there and start its cleaning session following the room cleaning settings.

- SELECT AREA (☐)

Select a specific area on the map, the robot will go there and start its cleaning session following the current cleaning settings.

- NO-GO AREAS (Z)

Define a specific area where the robot won't be allowed to go. You can define no-go areas for mopping, for vacuum or both.

- CUSTOMISE (山口)

Customise rooms on the map. It is possible to merge or split different rooms, fully reset the map, rename rooms, set cleaning schedule for each room, set cleaning sequence for rooms.

- SETTINGS (…)

Full settings list of the robot

MAINTAINING YOUR ROBOT CLEANER

EMPTYING THE DUST CONTAINER

Before performing any maintenance task, ensure the robot is switched off.

1. Turn the robot off and remove it from dust collection base.

2. Use a dry cloth to clean all surfaces. DO NOT allow water into any part of the product whilst cleaning.

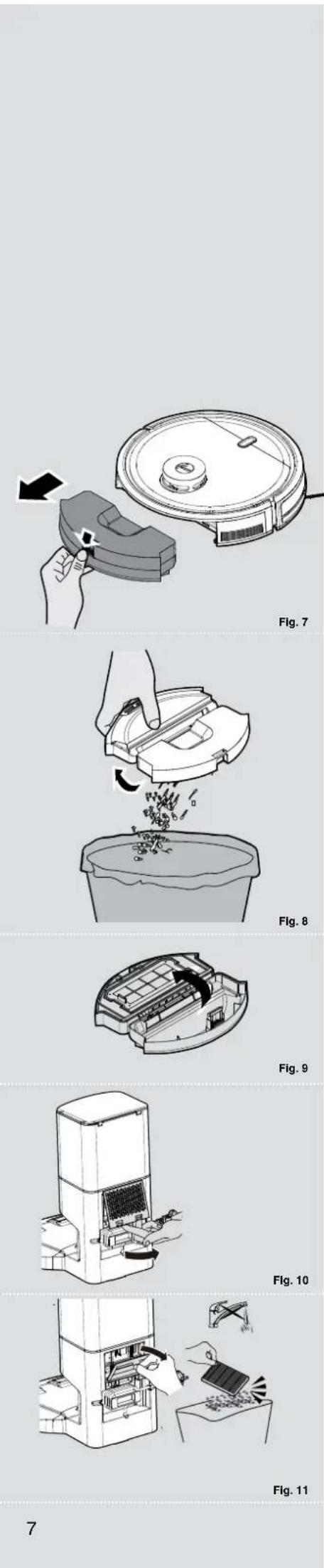

CLEANING DUST CONTAINER

1. Dust container will be automatically emptied every time the robot goes back to the dust collection base.

2. If extra maintenance is needed, press the released button and pull out the dust container. [Fig. 7]

3. Empty the dust container over a dust bin. [Fig. 8]

4. Use the cleaning brush when necessary to remove any excess dust from the internal surface of the dust container or filter surface.

5. Refit the dust container into the robot.

CLEANING THE FILTERS

The Robot is fitted with a pre-motor filter. To maintain optimum cleaning performance, regularly clean the filter cover and the pre-motor filter. They should be cleaned after the dust container has been emptied 5 times and should not be washed.

1. After vacuuming, remove the dust container, press the release button and pull it out. [Fig. 7]

2. Empty dust container. [Fig. 8] Open the dust container, remove the filter mesh with filter together, then remove EPA filter from filter mesh and clean them separately. The assembly is done in reverse order, make sure the filter is assembled correctly. [Fig. 9]

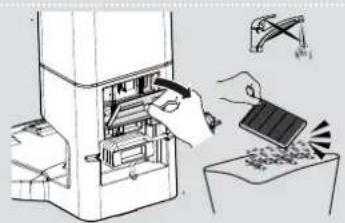

The dust collection station is fitted with an exhaust filter.

1. Unclip the exhaust filter cover and remove the exhaust filter. [Fig. 10,11]

2. Replace with a new exhaust filter or clean it. The assembly is done in reverse order, make sure the exhaust filter and exhaust filter cover is assembled correctly.

IMPORTANT: Regularly check and maintain the filters following the filter maintenance instructions.

This will maintain maximum cleaning performance.

If the filter mesh and filter are damaged, they should be removed immediately and replaced in time to avoid damage to the vacuum motor.

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand cleaning a circular device with a tool, no text or symbols visible

Fig. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Fig. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

CLEANING THE AGITATOR

Regularly clean the agitator to maintain maximum cleaning performance.

1. Turn the Robot OFF and turn it over.

2. Press the clips on the sole plate remove the agitator cover. [Fig. 12]

3. Lift up the agitator by grasping one end of agitator. [Fig. 13]

4. Use the Cleaning Brush to remove any entanglement from the agitator and the dirt on the bristles.

Do not lose the rubber sleeve on the ball bearing.

1. After cleaning, put the agitator and the agitator cover back into the robot.

Attention: All maintenance tasks should be carried out after taking out the Dust Container, to avoid the dirt in the Dust Container being dumped out accidentally.

CLEANING THE EDGE CLEANING BRUSHES

When the edge brushes become dirty, clean them with clean water and dry it before use; if the edge brush is damaged and cannot work normally, please replace it.

Attention!

When replacing the edge cleaning brushes, match the "L" and "R" marks on the brush with the "L" and "R" at the bottom of the robot.

CLEANING THE DRIVE WHEELS [Fig. 14]

1. Switch the Robot off and turn it over.
2. Remove any dirt or hair trapped in the wheels.
3. Clean the wheels with a dry cloth.

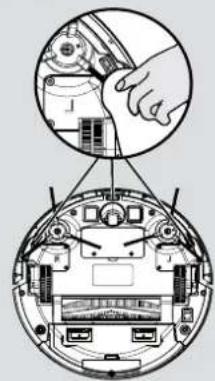

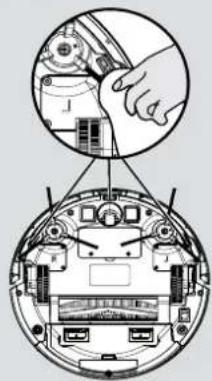

CLEANING THE ANTI-FALL SENSOR LENS [Fig. 15]

To maintain the safe operation of your robot it is important to keep the Anti fall sensors clean.

There are 3 sensors located on the bottom side of the robot. Turn the robot upside down and clean them with dry cloth to remove any accumulation of dust, dirt or debris.

REPLACING THE DUST BAG [Fig. 16,17]

When the dust bag in the dust collection base is full you need to replace it.

1. Open the dust collection base cover.
2. Remove the dust bag by lifting up the dust bag collar. The dust bag should be disposed correctly and carefully.
3. Place a new dust bag into the dust collection base inserting the collar.
4. Close the dust collection base cover.

BATTERY REPLACEMENT [Fig. 18]

1. Use a screwdriver to remove the screws from the battery cover at the bottom of the robot;
2. Remove the battery cover.
3. Disconnect the connector and remove the battery from the compartment;
4. Put the new battery into the compartment and reconnect to the connector. Pay attention to the correct alignment of the connector and the wires. Refit the battery cover and close it with the screws.
5. Power on to check whether it is normal.

Attention!

Please recycle the replaced batteries in an environmentally friendly method to avoid pollution.

IMPORTANT NOTICE

Only use approved replacement parts for your robot.

Using parts not validated by Hoover is dangerous and will invalidate your guarantee.

If the robot will not to be used for several months, please remove the batteries and store in a cool dry location.

IMPORTANT: Always make sure your device is switched off before maintenance. Always use two hands to lift and carry, and ensure the robot is held level. [Fig. 19]

When liting the robot cleaner, ensure you do not grip the dust container to avoid accidental opening.

[Fig. 20]

You should avoid using your robot cleaner in direct sunlight or on dark polished surfaces as these conditions will adversely affect the behaviour of your robot.

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

TROUBLESHOOTING

If you have any problem with your robot, follow this simple check list before calling the Hoover Customer Service Centre.

• Robot doesn't work when it is switched on

Light Indicator of ON/OFF and Home Buttons	Actions
White & blue flashing	Check edge cleaning brushes are clean and placed correctly
	Check agitator is clean and placed correctly
White on Check if the dust container is inserted correctly
White & light blue lights flashing Check	the drive wheels are clean and functioning
Blue & light blue lights flashing	Check the anti-fall sensors and frontal bumper are clean and functioning
White flashing Check the Lidar tower is functioning

- Robot doesn't automatically recharge

Make sure there are no barriers between the robot and the charger base, and no objects in the area around the charger base for 2 meters in front and 1 meter to each side.

- Robot is trapped

Robot will attempt to free itself but in some cases, assist the robot manually.

- Robot is very noisy while cleaning

Clean the dust container and filter, clean and check the agitator and drive wheels.

- Cleaning power is weak.

Clean the dust container and filter, clean and check the agitator and drive wheels.

- Dust collection station doesn't work

Check if the dust bag and filter are inserted correctly.

Check if the dust bag is full. If yes, replace with a new dust bag.

IMPORTANT INFORMATION

Hoover Spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

INSTRUCTIONS POUR UNE UTILISATION EN SÉCURITÉ

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

UTILISATION DE VOTRE ROBOT

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram of a robotic device with a hand inserting a cable into a circular housing (no text or symbols present)

Fig. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

NETTOYAGE DE L'AGITATEUR

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cross mark (no text or symbols)

DÉPANNAGE

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank white square with a thin black border (no text or symbols)

Pure electrical circuit lines without any symbols

Isometric view of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Abb. 5

Circular device with Wi-Fi signal icon above it, no text or symbols present

Abb. 6

VERWENDUNG DES SAUGROBOTERS

• Home-Taste (Ladestation)

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Abb. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Abb. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Abb. 14

Diagram showing a hand connecting a device to a circular component with internal components (no text or symbols visible)

Abb. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Abb. 16

Illustration of a hand placing a component into a container (no text or symbols visible)

Abb. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Abb. 18

Technical line drawing of a circular mechanical device with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with vertical lines, no text or symbols present

Line drawing of a mechanical component with a triangular base and circular top (no text or symbols)

Technical diagram of a circular device with numbered components for identification

9 10 11 12

13 14 15 16

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

UTILIZZO DEL ROBOT

- ACCENSIONE (POWER ON) (▲)

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Fig. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container with a lid (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

PULIZIA DEL RULLO

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Afb. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Afb. 6

UW ROBOT GEBRUIKEN:

• Home (Laadbasis) Knop

Korte druk: Opladen

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Afb. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Afb. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Afb. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Afb. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Afb. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Afb. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Afb. 18

SCHOONMAKEN VAN DE AGITATOR

Illustration of hands holding a circular device with a knob, no text or symbols present

Afb. 19 Afb. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

PROBLEEM OPLOSSEN

Line drawing of a circular robotic vacuum cleaner with a central hub and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

UTILIZAR O SEU ASPIRADOR ROBOT

Illustration of a robotic vacuum cleaner with a hand adjusting the component (no text or symbols present)

Illustration of a hand using a cleaning tool to clean granular material in a bucket (no text or symbols)

Fig. 8

Fig. 9

Line drawing of a laboratory instrument with a control panel and base, no visible text or symbols

Fig. 10

Illustration of a printer's internal structure being processed with a tool, showing no text or symbols.

Fig. 11

Diagram of a robotic vacuum cleaner with exposed internal components and two upward arrows indicating motion (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram of a robotic device with a hand inserting a cable into a circular housing (no text or symbols visible)

Fig. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

LIMPAR O AGITADOR

Limpe o agitador regularmente para manter o máximo desempenho de limpeza.

Illustration of hands holding a circular device with a central knob and a checkmark indicating rotation (no text or symbols)

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

USO DEL ROBOT

Diagram of a robotic vacuum cleaner with exposed internal components and two upward arrows indicating motion (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram of a robotic device with a hand inserting a cable into a circular housing (no text or symbols present)

Fig. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

Illustration of hands holding a circular device with a central knob and a checkmark indicating rotation (no text or symbols)

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

Technical line drawing of a circular mechanical component with a central knob and mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with vertical lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

BRUG AF DIN ROBOT ST∅VSUGER

• Hjem (ladestation) knap

Kort tryk: Genoplad

Langt tryk: App forbindelse

Lysindikator:

RENG∅RING AF ST∅VBEHOLDER

Diagram of a robotic vacuum cleaner with exposed internal components and two upward arrows indicating motion (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram showing a hand holding a device above a circular view of the internal components (no text or symbols visible)

Fig. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

RENG∅RING AF RULLEB∅RSTERNE

UDSKIFTNING AF ST∅VPOSEN [Fig. 16,17]

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a train or station with a cable (no text or symbols)

FEJLFINDING

Technical line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

X4 koster for kantrengjøring Ekstra Filter for Robot Rengjøringskost

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

KLARGJ∅R HJEMMET DITT

Før bruk må du fjerne hindre som kan være i veien for roboten. Vær oppmerksom på:

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

BRUK AV ROBOT-RENGJ∅RINGSAPPARATET

T∅MME ST∅VBEHOLDEREN

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Fig. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a black object into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

RENGJ∅RING AV AGITATOREN

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a small train or vehicle (no text or symbols)

FEILS∅KING

Technical line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Robotrengörare Dammuppsamlingsbas Bruksanvisning

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Fig. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Fig. 6

ATT ANVÄNDA DIN ROBOTDAMMSUGARE

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Fig. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Fig. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Fig. 14

Diagram showing a hand operating a device with a close-up view of the internal components (no text or symbols present)

Fig. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Fig. 16

Line drawing of a hand placing a black object into a container (no text or symbols)

Fig. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Fig. 18

RENGÖRA AGITATORN

Illustration of hands holding a circular device with a knob, no text or symbols present

Fig. 19 Fig. 20

Line drawing of a hand holding a small train or vehicle (no text or symbols)

FELSÖKNING

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank white rectangle with black border (no text or symbols)

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Kuva 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Kuva 6

ROBOTTI-IMURIN KÄYTTÖ

PÖLYSÄILIÖN TYHJENNYS

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Kuva 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Kuva 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Kuva 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Kuva 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Kuva 16

Line drawing of a hand placing a black object into a container (no text or symbols)

Kuva 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Kuva 18

HARJAN PUHDISTAMINEN

Technical line drawing of a circular mechanical component with a central knob and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Eik. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Eik. 6

ΧΡΗΣΗ ΤΟΥ ΡΟΜΠΟΤ

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Eik. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Eik. 13

Illustration of a hand cleaning a circular device with a tool, no text or symbols visible

Eik. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Eik. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Eik. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Eik. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Eik. 18

Illustration of hands holding a circular device with a knob, no text or symbols present

Eik. 19 Eik. 20

Line drawing of a hand holding a train or station with a cross mark (no text or symbols)

Technical line drawing of a circular robotic vacuum cleaner with a central hub and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform vertical lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Рис. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Рис.6

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Рис. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Рис. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Рис. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Рис. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Рис. 16

Line drawing of a hand placing a black object into a container (no text or symbols)

Рис. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Рис. 18

ОЧИСТКА ВРАЩАЮЩЕЙСЯ ЩЕТКИ

Illustration of hands holding a circular device with a knob, no text or symbols present

Рис. 19 Рис. 20

Line drawing of a hand holding a train with a cross mark (no text or symbols)

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank rectangular frame with no text, numbers, or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with vertical lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Rys. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Rys. 6

KORZYSTANIE Z ROBOTA-ODKURZACZA

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Rys. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Rys. 13

Illustration of a hand cleaning a circular device with internal components (no text or symbols)

Rys. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Rys. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Rys. 16

Line drawing of a hand placing a component into a container with a lid (no text or symbols)

Rys. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Rys. 18

CZYSZCZENIE SZCZOTEK OBROTOWYCH

Illustration of hands holding a circular device with a knob, no text or symbols present

Rys. 19 Rys. 20

Line drawing of a hand holding a train with a cross mark (no text or symbols)

ROZWIĄZYWANIE PROBLEMÓW

Technical line drawing of a circular mechanical component with a central hub and mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with uniform horizontal lines (no text or symbols)

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Obr. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Obr. 6

POUŽITÍ ROBOTICKÉHO VYSAVAČE

Obr. 7 Obr. 8 Obr. 9 Obr. 10 Obr. 11

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Obr. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Obr. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Obr. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Obr. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Obr. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Obr. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Obr. 18

ČIŠTĚNÍ ROTAČNÍHO KARTÁČE

Illustration of hands holding a circular device with a knob, no text or symbols present

Obr. 19 Obr. 20

Line drawing of a hand holding a train with a cross mark (no text or symbols)

ŘEŠENÍ POTÍŽÍ

NAVODILA ZA VARNO UPORABO

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

4x Krtačka za čiščenje robov Dodatni filter za Robota Krtača za čiščenje

3D rendering of a rectangular grid pattern with horizontal lines, no text or symbols present

Dodatni filter za postajo za zbiranje prahu Dodatna vreča za postajo za zbiranje prahu

SPOZNAJTE SVOJ ROBOTSKI SESALNIK

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

Slika 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Slika 6

UPORABA VAŠEGA ROBOTSKEGA SESALNIKA

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Sllka 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Slika 13

Illustration of a hand cleaning a circular device with internal components (no text or symbols)

Slika 14

Diagram showing a hand inserting a component into an electronic device (no text or symbols present)

Slika 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Slika 16

Line drawing of a hand placing a black plastic component into a container (no text or symbols)

Slika 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Silka 18

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with parallel lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, power switch, and reset button labeled in English

Obr. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

Obr. 6

POUŽÍVANIE ROBOTICKÉHO VYSÁVAČA

• Tlačidlo HOME - Domov (dobíjacia základňa)

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Obr. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Obr. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Obr. 14

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Obr. 15

Illustration of a hand inserting a component into a device (no text or symbols visible)

Obr. 16

Line drawing of a hand placing a component into a container with a lid (no text or symbols)

Obr. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Obr. 18

ČISTENIE ROTAČNEJ KEFY

Illustration of hands holding a circular device with a knob, no text or symbols present

Obr. 19 Obr. 20

Line drawing of a hand holding a train or station with a cross mark (no text or symbols)

RIEŠENIE PROBLÉMOV

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure electrical circuit lines without any symbols

Isometric view of a rectangular grid pattern with vertical lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with battery, battery icon, and reset button labeled in English

Şek. 5

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP IN Google play

Şek. 6

ROBOT SÜPÜRGENİZİN KULLANIMI

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

Şek. 12

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

Şek. 13

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

Şek. 14

Diagram showing a hand holding a device above a circular view of the internal components (no text or symbols visible)

Şek. 15

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Şek. 16

Line drawing of a hand placing a component into a container (no text or symbols)

Şek. 17

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

Şek. 18

KARIŞTIRICININ TEMİZLENMESİ

Illustration of hands holding a circular device with a knob, no text or symbols present

Şek. 19 Şek. 20

Line drawing of a hand holding a train with a cross mark (no text or symbols)

SORUN GİDERME

Technical line drawing of a circular mechanical component with a central knob and mounting base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

3D rendering of a rectangular grid pattern with vertical lines, no text or symbols present

Technical diagram of a circular device with numbered components for identification

13 14 15 16

9 10 11 12

Diagram of a robotic vacuum cleaner with labeled control buttons and battery icons

5 ábra

Download on the App Store EXPLORE IT ON AppGallery

ANDROID APP ON Google play

6 ábra

A ROBOTPORSZÍVÓ HASZNÁLATA

Technical diagram of a circular device with internal components and two arrows indicating assembly or movement (no text or symbols present)

12 ábra

Cross-sectional diagram of a circular electronic device with internal components and an arrow indicating a specific area (no text or symbols present)

13 ábra

Illustration of a hand holding a tool interacting with a circular device component (no text or symbols visible)

14 ábra

Diagram showing a hand holding a device above a circular view of the internal components (no text or symbols visible)

15 ábra

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

16 ábra

Line drawing of a hand placing a component into a container (no text or symbols)

17 ábra

Diagram of a robotic vacuum cleaner with internal components and a hand adjusting the part (no text or symbols visible)

18 ábra
