USER MANUAL Easy 1561120 Toolcraft

5 Taste ON/OFF MANUAL

6 Taste OK

7 Taste ZONE 1 2

START WATER HOW LONG WATER DAY SU MO TU WE TH FR SA ZONE ① 2 FOR MANN DELAY PRESS + OUT OFF

SET TIME START WATER HOW LONG OFF Auta OUTA EVERY DAY SU MO TU WE TH FR SA ZONE ① 2 FOR RAIN DELAY PRESS + HOW OVERTI

SET TIME START WATER HOW LONG AUTO OFF A N O F W O H T E H P E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E H T E I J K L M N O P R S D L YPRANBCDEF

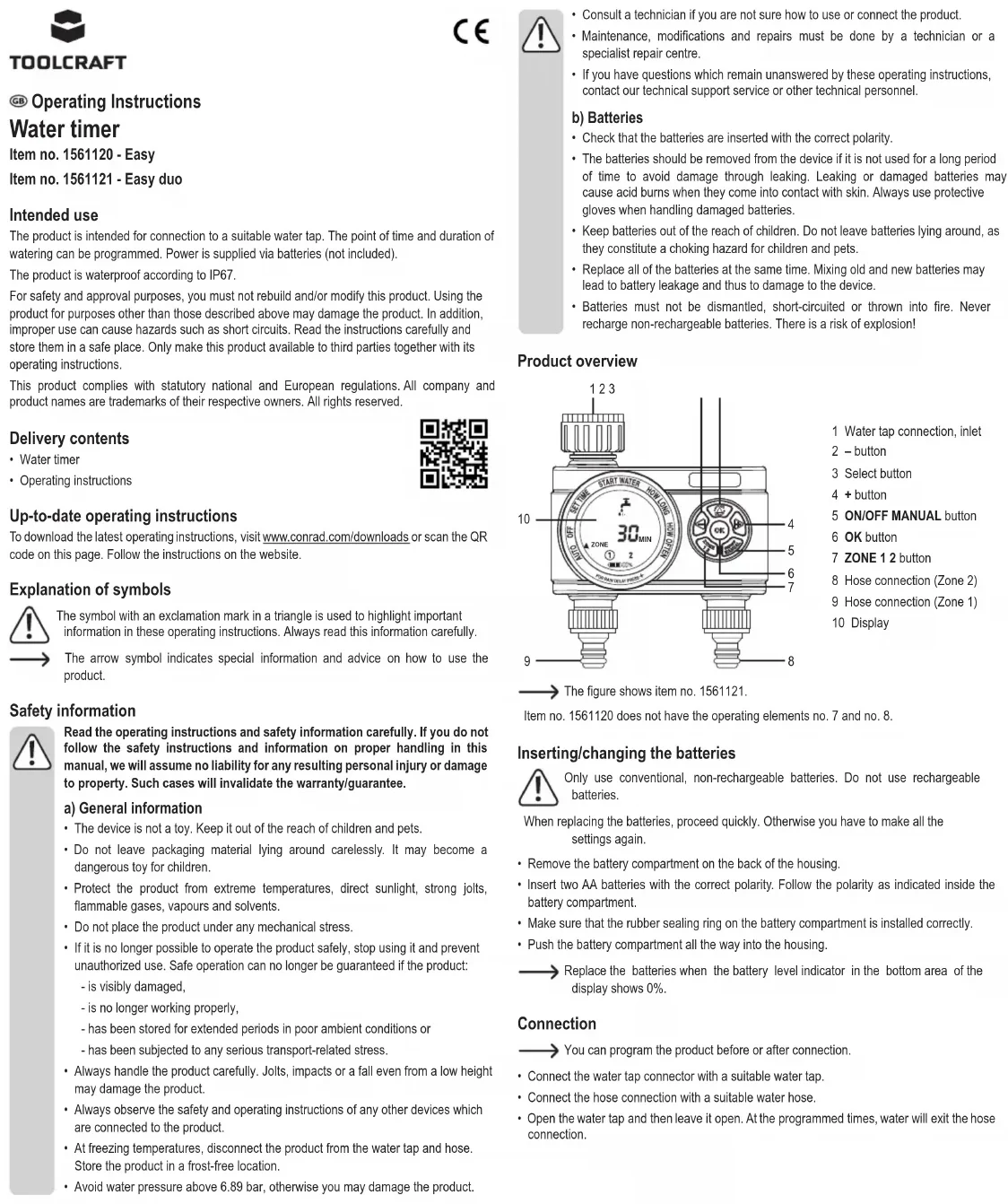

GB Operating Instructions

Water timer

Item no. 1561120 - Easy

Item no. 1561121 - Easy duo

Intended use

The product is intended for connection to a suitable water tap. The point of time and duration of watering can be programmed. Power is supplied via batteries (not included).

The product is waterproof according to IP67.

For safety and approval purposes, you must not rebuild and/or modify this product. Using the product for purposes other than those described above may damage the product. In addition, improper use can cause hazards such as short circuits. Read the instructions carefully and store them in a safe place. Only make this product available to third parties together with its operating instructions.

This product complies with statutory national and European regulations. All company and product names are trademarks of their respective owners. All rights reserved.

Delivery contents

- Water timer

- Operating instructions

Up-to-date operating instructions

To download the latest operating instructions, visit www.conrad.com/downloads or scan the QR code on this page. Follow the instructions on the website.

Explanation of symbols

The symbol with an exclamation mark in a triangle is used to highlight important information in these operating instructions. Always read this information carefully.

The arrow symbol indicates special information and advice on how to use the product.

Safety information

Read the operating instructions and safety information carefully. If you do not follow the safety instructions and information on proper handling in this manual, we will assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee.

a) General information

• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. It may become a dangerous toy for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, stop using it and prevent unauthorized use. Safe operation can no longer be guaranteed if the product:
• is visibly damaged,
• is no longer working properly,
• has been stored for extended periods in poor ambient conditions or
• has been subjected to any serious transport-related stress.

• Always handle the product carefully. Jolts, impacts or a fall even from a low height may damage the product.

• Always observe the safety and operating instructions of any other devices which are connected to the product.

- At freezing temperatures, disconnect the product from the water tap and hose. Store the product in a frost-free location.

- Avoid water pressure above 6.89 bar, otherwise you may damage the product.

• Consult a technician if you are not sure how to use or connect the product.
• Maintenance, modifications and repairs must be done by a technician or a specialist repair centre.
• If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.

b) Batteries

• Check that the batteries are inserted with the correct polarity.
• The batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking. Leaking or damaged batteries may cause acid burns when they come into contact with skin. Always use protective gloves when handling damaged batteries.
• Keep batteries out of the reach of children. Do not leave batteries lying around, as they constitute a choking hazard for children and pets.
• Replace all of the batteries at the same time. Mixing old and new batteries may lead to battery leakage and thus to damage to the device.
• Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-rechargeable batteries. There is a risk of explosion!

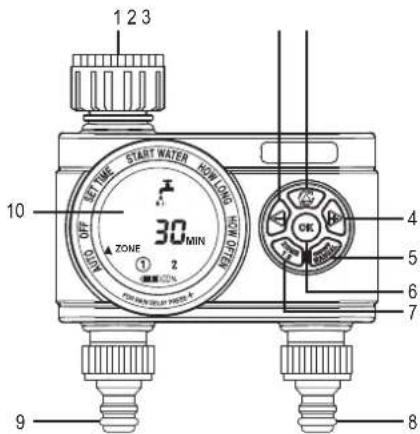

Product overview

1 2 3 START WATER NOW LONG OFF 30 MIN ZONE 1 2 OK 4 5 6 7 9 8

1 Water tap connection, inlet
2 - button
3 Select button
4 + button
5 ON/OFF MANUAL button
6 OK button
7 ZONE 1 2 button
8 Hose connection (Zone 2)
9 Hose connection (Zone 1)
10 Display

The figure shows item no. 1561121.

Item no. 1561120 does not have the operating elements no. 7 and no. 8.

Inserting/changing the batteries

Only use conventional, non-rechargeable batteries. Do not use rechargeable batteries.

When replacing the batteries, proceed quickly. Otherwise you have to make all the settings again.

• Remove the battery compartment on the back of the housing.
• Insert two AA batteries with the correct polarity. Follow the polarity as indicated inside the battery compartment.
• Make sure that the rubber sealing ring on the battery compartment is installed correctly.
• Push the battery compartment all the way into the housing.

Replace the batteries when the battery level indicator in the bottom area of the display shows 0%.

Connection

You can program the product before or after connection.

• Connect the water tap connector with a suitable water tap.
• Connect the hose connection with a suitable water hose.
• Open the water tap and then leave it open. At the programmed times, water will exit the hose connection.

Operation

Selecting a menu item

Press the select button (upper middle button) to select the next menu item. The menu items are printed on the edge of the display. The selected menu item is indicated by the triangular arrow.

Zone selection (only item no. 1561121)

For the menu items START WATER, HOW LONG and HOW OFTEN, press the ZONE 1 2 button to select one of the two hose connections for the program. The selected zone is marked by a circle.

You can program both hose connections independently of each other.

Settings

a) Time and day

• Select the menu item SET TIME.
• Select the current day of the week with the + or - button. The day of the week is marked by a frame.

SU Sunday

MO Monday

TU Tuesday

WE Wednesday

TH Thursday

FR Friday

SA Saturday

• Press the OK button to confirm. The time flashes.
• Set the current time with the + or - button. Press and hold the button for fast setting.

→ The time is in the 12-hour format.

AM = midnight to noon

PM = afternoon until midnight

- Press the OK button to confirm.

SET TIME START WATER HOW LONG OFF AUTO TIME AM 7:00 TODAY SU FR SATHWETUMO FOR RAIN DELAY PRESS + 100%

b) Start time

• Select the menu item START WATER.
• Set the start time with the + or - button. Press and hold the button for fast setting.

SETTIME AUTO OFF OFF SET START WATER OFF ZONE ① 2 FOR RAIN DELAY PRESS + HOW LONG HOW OPEN

START WATER HOW LONG WHY ONION SET TIME AM 12:00 ZONE ① 2 FOR RAIN DELAY PRESS +

c) Watering duration

• Select the menu item HOW LONG.
• Set the duration between 1 and 360 minutes with the + or - button.

SET TIME AUTO OFF WATER ZONE ① 2 0 MIN HOW LONG HOW OFFEN FOR RAIN DELAY PRESS +

d) Watering interval / cycle

On specified days

• Select the menu item HOW OFTEN.
• Select a day with the + or - button. Press the OK button.

The days when the watering program is active are marked with a frame.

- Set the repeat interval in hours for the selected days. To do this, repeatedly press the + button until EVERY HRS appears on the display. Set the hours with the + or - button.

SET TIME START WATER HOW LONG HOW OFF AUTO WATER DAY SU FR SATHVETUMO ZONE ① 2 FOR RAIN DELAY PRESS +

SET TIME START WATER HOW LONG OFF OHIO SU MO TU WE TH FR SA ZONE ① 2 EVERY HRS FOR RAIN DELAY PRESS +

Interval

• Select the menu item HOW OFTEN.
  • Repeatedly press the + button until EVERY DAY appears on the display.
• Set the days with the + or - button. Select the option EVERY 1 DAY to water every day.

START WATER HOW LONG WATER DAY SU MO TU WE TH FR SA ZONE ① 2 HOW GAIN DELAY PRESS + AUTO OFF SET TIME

SET TIME START WATER HOW LONG HORN ON OFF AUTE EVERY DAY SU NO TU WE TH FR S4 ▶ ZONE ① 2 FOS RAIN DELAY PRESS ★

SET TIME START WATER HOW LONG A NO OFF EVERY DAY ZONE ① 2 FOR PAIN DELAY PRESS

Activating automatic watering

• Select the menu item AUTO. The device will now water according to the settings.
  • The display shows the following information consecutively:

• Current time and current day

• Next start time for zone 1
• Next start time for zone 2 (optional)

SET TIME START WATER HOW LONG TIME AM 8:10 TODAY FR AUTO OFF OFF ON RAW DELAY PRESS ★ ON LONG DELAY PRESS ★

SET TIME START WATER HOW LONG OFF MOUT OFF NEXT START TIME AM 10:30 TU ZONE ① ② FOR MAIN DELAY PRESS

SET TIME START WATER HOW LONG NO OFF NOW NEXT START TIME PM 6:00 FR ZONE 1 ② FOR RAW DELAY PRESS ★

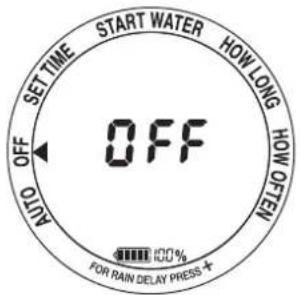

Disabling automatic watering

Select the menu item OFF.

SET TIME START WATER HOW LONG HOW GREEN OFF AUTO 00% FOR RAIN DELAY PRESS ★

Delaying automatic watering

If it is supposed to rain, you can delay automatic watering for a fixed period. After this delay, the program continues automatically.

• Select the menu item AUTO.
• Press the + button. The display shows DELAY.
• Press the + or – button to set the duration. You can set 12 hours or 1 to 7 full days.

- To undo this delay, repeatedly press the – button when selecting the duration until the current time is displayed.

SET TIME START WATER HOW LONG OFF TIME AM 8:10 TODAY FR AUTO FOR RAIN DELAY PRESS + 100%

SET TIME START WATER HOW LONG OFF AUTO DELAY DAY FR ZONE 1 2 FOR RAIN DELAY PRESS + H00%

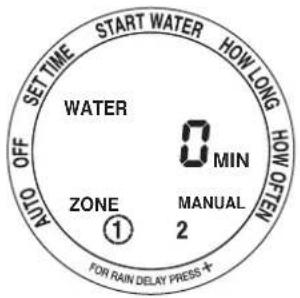

Manual watering

→ Manual watering will not work while automatic watering is delayed (see previous chapter).

• Press the ON/OFF MANUAL button.
• Set the duration between 1 and 360 minutes with the + or - button.
• Press the OK button to confirm.

SET TIME START WATER HOW LONG OFF WATER 0 MIN AUTO ZONE MANUAL ① 2 FOR RAIN DELAY PRESS ★

Resetting

Press and hold the OK button for 7 seconds to reset the product to the factory settings. All settings will be lost.

SET TIME AUTO OFF AUTO RESET FOR RAIN DELAY PRESS START WATER HOW LONG HOW OFFEN

SET TIME START WATER HOW LONG OFF TIME TIME AM 7:00 TODAY MO SURFANGATH FOR RAIN DELAY PRESS + 100%

Storage in winter

• Turn off the tap. Disconnect the product from the water tap.
• To open the valve and allow any remaining water to drain, press the ON/OFF MANUAL button. Set a duration of 1 minute. Press the OK button to confirm.
• Let the product dry completely.
• Remove the batteries.
• Store the product in a dry place.

Care and cleaning

• Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these may damage the housing or cause the product to malfunction.
• Use a dry, lint-free cloth to clean the product. Use a damp cloth and a mild detergent to remove tougher stains.
• If necessary, remove filth from the water tap connection.

Disposal

a) Product

Electronic devices are recyclable waste and must not be placed in household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations.

Remove any inserted batteries and dispose of them separately from the product.

b) Batteries

You are required by law to return all used batteries (Battery Directive). They must not be placed in household waste.

Batteries that contain hazardous substances are labelled with this symbol to indicate that disposal in domestic waste is forbidden. The abbreviations for heavy metals in batteries are: Cd = Cadmium, Hg = Mercury, Pb = Lead (indicated on the battery, e.g. below the waste icon on the left).

Used batteries can be returned to local collection points, our stores or battery retailers. You thus fulfil your statutory obligations and contribute to the protection of the environment.

Technical data

Power supply 2x AA battery

Water pressure....max. 6.89 bar (100 psi)

Operating/storage conditions.....0 to +60 °C, 10 – 100 % RH

Dimensions (W x H x D).... 135 x 165 x 63 mm
