USER MANUAL Mambo 10090 CECOTEC

1. Parts and components 42

5. Cleaning and maintenance 52

9. Disposal of old electrical appliances 54

10. Technical support and warranty 55

2. Stainless-steel jar

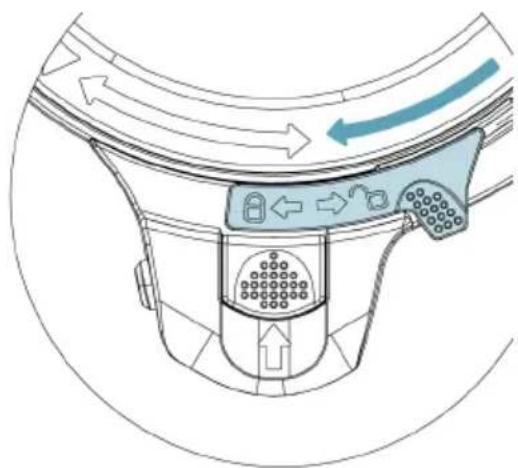

Lid assembly Step 1 Fig. 2 Place the lid on the jar, press it down until it is correctly xed and then, turn it counterclockwise. Step 2 Step 2.1 Fig. 3 Turn the side rotation-lock tab. Fig. 4 The switch will automatically return to the initial position, enabling moving the fastener. Step 2.3 Fig. 5 Slide the fastener that enables turning the motor on. Fig. 643 ENGLISH Opening the lid Step 1 Fig. 7 Press the selector knob to stop the motor from running. Step 2 Step 2.1 Fig. 8 Slide the fastener that enables turning the motor on. Step 2.2 Fig. 9 Press the switch to unlock the side tab. Step 2.3 Fig. 10 Lift the side tab to enable opening the lid. Fig. 11 Step 3 Fig. 12 Turn the lid counterclockwise. Jar assembly - The high-quality stainless steel jar is dishwasher safe and compatible with all the cooking functions. - The ceramic jar with highly non-stick properties allows performing perfect results in all of your preparations, especially the most delicate ones such as béchamel, creamy soups, melted chocolate, etc. Warning The ceramic jar cannot be used with the blades. It is only compatible with the MamboMix spoon. Fig. 13 Note The jar has marks on one of its sides. Its effective maximum capacity is 2L. Do not exceed this quantity to ensure good operation.

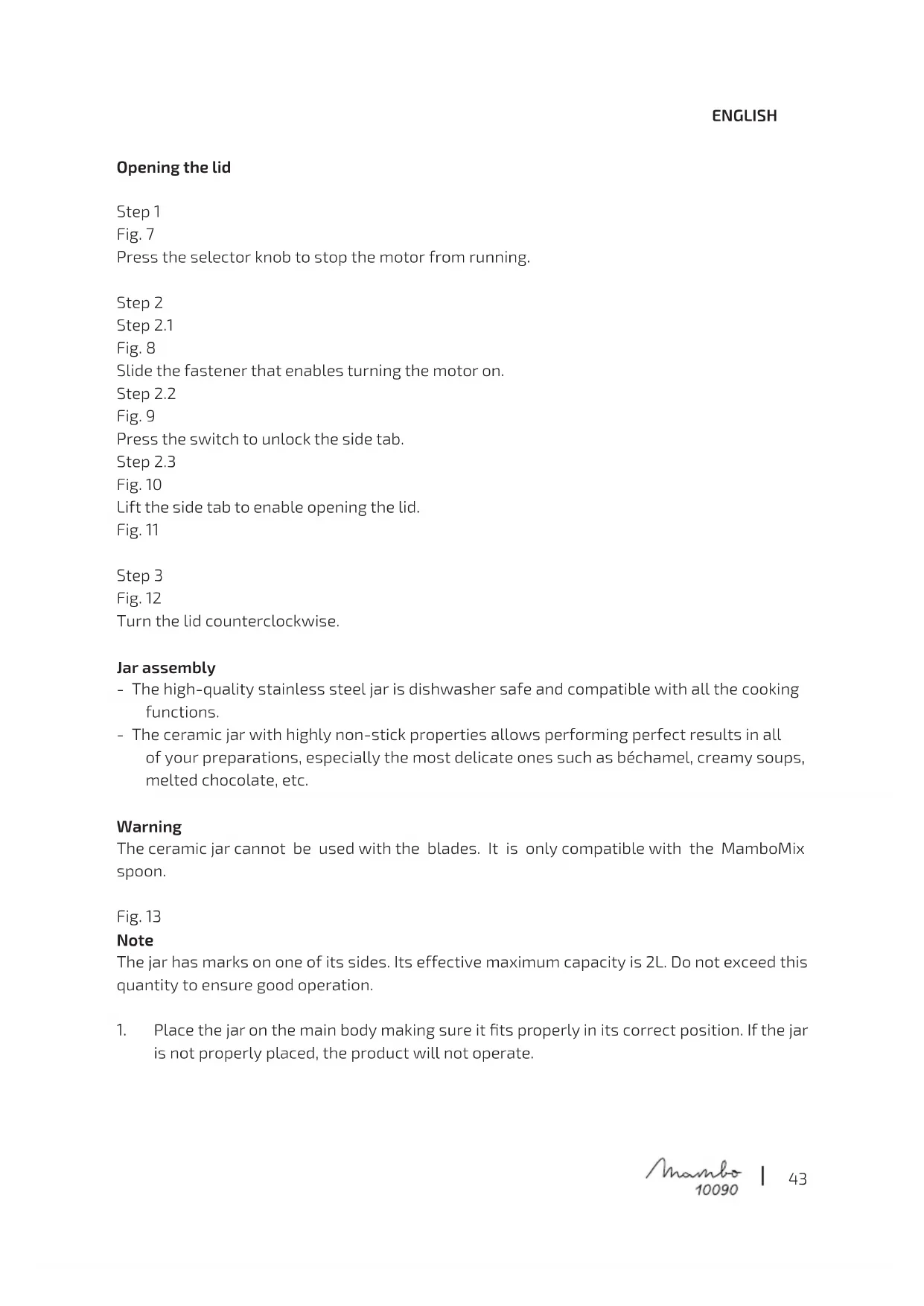

1. Place the jar on the main body making sure it ts properly in its correct position. If the jar

is not properly placed, the product will not operate.44 ENGLISH Blade assembly

1. Fix the sealing ring on the blades unit, introduce it in the jar and place it on the base’s gap.

2. Hold the blades unit’s top part rmly and turn the jar upside down. Make sure it is in its

3. Install the xing bracket to the jar’s bottom part and turn it clockwise in order to x the

you hold the blades unit rmly to avoid it from falling and causing damage. Fig.14. Warnings - Use a cloth to cover the blades unit before handling them to avoid injuries. - Assemble the xing bracket and the sealing ring properly to avoid food or liquids being cooked from splattering. MamboMix spoon - This accessory is designed for kneading, stirring and mixing foods without cutting them. - Remove the blades unit by holding them tightly, turning the jar upside down and turning the xing bracket anticlockwise. Warning - Do not use this accessory for speeds over 3 as the jar could vibrate and result in risk. Fig.15. - The distance between the MamboMix spoon and the jar’s wall is 1 cm, therefore food might get stuck. If this happens, the product’s motor will stop operating as a self-protection method. Use the spatula to mix and remove the stuck food for the appliance to resume the cooking process. Measuring cup - The measuring cup is used as the product’s lid to prevent splashing and heat loss and is used to measure food quantity. Its maximum capacity is 150 ml. - When cooking with functions without temperature, place the measuring cup on the cover’s gap. - Turn it clockwise to lock it and anticlockwise to open it and take it out. Fig.16. Warnings - Use this measuring cup and no other accessory or object to close the jar’s cover. - When cooking without temperature setting (mashing, stirring or mincing), turn the measuring cup clockwise until it is locked into place. - When cooking with temperature setting, place the measuring cup in the lid’s whole without locking it in place. This way, steam will be safely released.45 ENGLISH Spatula Fig.17. The spatula is the only tool suitable for stirring food inside the jar, other tools could scratch and damage the surface. It cannot be used while the product is operating with the blades or the buttery whisk. Buttery whisk Fig.18. - This accessory works installed on top of the blades unit, this way it helps mix food and it is not cut by the blades. It helps food mixing and removes lumps. - Install the buttery on the blades unit by matching the shaft’s centre with the buttery’s gap and push it down. Warning - Do not operate the appliance unless the accessory is xed in its place. - Do not operate it with speeds over 4. - Do not use the buttery at the same time as the spatula. - Do not pour food in while it is operating with this accessory to avoid it from damaging or getting blocked. Basket Fig.19. The basket allows carrying out different functions: - Straining, juicer or sauces, dips etc. After blending, cooking or preparing sauce, assemble the basket in the jar and pour the mixture. - Cooking soft foods, such as pasta or noodles. - Cooking side dishes such as rice or potatoes. Steamer

1. The steamer includes 3 parts: a small steamer, a big one and the lid.

2. Close the steamer with its lid before using it.

3. Place the steamer on the jar, making sure it ts.

Warning - Do not touch or get close to the steamer to avoid burns. - Do not cover the steamer’s holes with any cloth or object. Steam may come out from the edge or other parts causing risk of burns. - Allow steam to be released through the cover’s middle hole and sides; this way, steam circulation will be improved, allowing a more even cooking of foods.46 ENGLISH

Note The product will produce a light smell when it is used for the rst time and will disappear after a few minutes. This is due to the manufacturing rests and does not affect to its operating. - Take the product out of the box and remove all packaging materials. - Make sure the product is in good conditions. If any sign of visible damage is observed, contact immediately with our ofcial Technical Support Service. - Place the appliance on a clean, stable and at surface. Do not place it close to the edge, inside built-in wardrobes or hanging brackets. - Clean the appliance before using it for the rst time. - Connect it to a power supply and press the power switch to turn it on. The machine will beep and the display will turn on.

On/off Use this switch to switch the product on and off. Start/pause Fig.20.

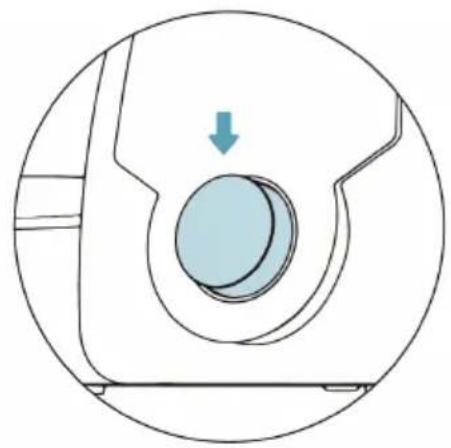

1. Press the knob on the product’s front part to activate the device.

2. From the main display, select the desired function.

3. During the conguration process, hold down the knob for 2 seconds to reset all the

4. While it is cooking, press the knob to stop it and long-press it for 2 seconds to reset all

5. After 10 minutes of no operation, the device will enter standby mode.

6. Once the desired setting or program has been selected, press the knob to activate it and

the device will automatically start operating.

7. During operation, press the knob to pause the cooking process. The display will show

“PAUSE”. You can open the lid, stir or mix food, remove the jar etc. Then, place every element back in its correct position and press the knob again to resume operation. After 10 minutes in pause, the device will automatically turn off.

8. Use the knob to adjust all settings: time, temperature etc. Turn it clockwise to increase the

value and anticlockwise to decrease it.47 ENGLISH Timer

adjust the desired minutes. Press it again to switch to seconds, the seconds digits will ash. Press it again to switch to hours. Turn the knob left or right to adjust the desired hours.

3. During operation, press the timer button and the device will start counting down

4. If the timer has not been set, the product will operate with the preset times:

- Heating (without blending): max. 12 hours. - Blending (speed 1-4): max 1 hour. - Beat (speed 5-10): max. 5 mins. Stopwatch function

1. Te set a time countdown without any other function (to ferment, let cool or let food sit if

indicated by a recipe), follow these steps:

6. Press the timer button again to switch to seconds, the seconds digits will ash.

7. Press the timer button again to switch to hours.

8. Turn the knob left or right to adjust the desired hours.

9. To conrm, press the start/stop knob.

10. The stopwatch will start counting down and will beep when time has elapsed.

1. Press this button to enter speed-setting mode. The speed icon will ash on the display.

2. Turn the knob left to decrease speed and right to increase it, from level 1 to 10.

3. If the selected speed is 5-10, the timer will only be set up to 5 minutes. For the rest of the

speed options, 1 hour. Warning - When speed changes from 5 to 6 or when the device starts working, the device could emit some noise. This is completely normal and does not affect the device’s operation. - To crush or chop hard or large quantities of food, select speed 5 at rst and then switch it to 10 to ensure perfect performance. Temperature

1. Press this button to enter temperature-setting mode. The temperature icon will ash on

the display.48 ENGLISH

2. Turn the knob left to decrease the temperature and right to increase it, from 37 ºC to 120

ºC. The selected temperature value will blink until the robot reaches the set temperature.

3. The temperature indicator will turn on red when the jar reaches very high temperatures,

as a warning to avoid burns.

4. If the temperature icon is red and you want to operate the machine at a high speed, reduce

the food quantity to below 1.5L. Heating power

1. Press this button to enter heat-power setting mode. The heat power icon will ash on

2. Turn the knob left to decrease heat power and right to increase it, from level 1 to 10.

3. Low heat power is suggested to cook fatty foods to avoid it from burning and small

quantities of food, as both require precise temperature and control.

4. High heating power will cook food much faster.

5. The heat power function will not activate unless the temperature is set too. It is suggested

to use the default setting for each temperature level. Scale - Mambo 10090 includes a built-in kitchen scale. It weights up to 4,999 grams, in a 1-gram interval. - To activate the scale function, the robot must be in pause mode and the lid must be unlocked (Fig.8.). The scale icon will be displayed on the panel when the scale is ready to be used. - The scale cannot be used with the lid closed. If the lid is closed, the scale icon will remain off and the display will show “ABRIR TAPA OPEN LID”. - Tap the scale icon, the display will show “0 00 0” by default, indicating the scale has been activated. Ingredients are weighed as they are introduced in the jar, and the display shows the exact value. - If there are ingredients inside the jar already and new ones are introduced, the scale will add both values and the display will show the total weigh. If food is removed from the jar, the scale will take away that weight from the total and will display the nal value. The display might show negative values when food is removed from the inside of the jar. Tare function - To restore the weight displayed and tare the scale with food inside the jar, tap the scale icon. The display will show “0 00 0” again and the robot will be ready to weight new foods. - To quit the scale menu and return to pause mode, tap any of the robot icons. The display will show the parameters previously set. Turbo - When the robot is paused, press this button for the appliance to operate at maximum49 ENGLISH speed. The display will show TURBO ashing. - Stop pressing the button for the appliance to stop operating under this function. The robot will automatically stop. - This function can only operate for 1 minute maximum each time. Warning When the TURBO function is activated, the device could emit some noise. This is completely normal and does not affect the device’s operation. ScreenBlock - To block the display’s functions, hold down the speed button for 5 seconds. All the function buttons and the start/stop knob will be blocked. - In order to enable them again, hold down the speed button again for 5 seconds. This action can be done while the robot is in standby or during cooking. Functions

1. Chop: Chop all kinds of ingredients, from meat or sh to fruit or vegetables. Perfect cuts

2. Mince: Mince vegetables, meat, spices and crush ice easily in just a few seconds. Perfect

for processing raw ingredients.

3. Mash: Prepare sauces and creams with perfect textures or mash cold or hot ingredients

just by adjusting speed and time to each food type.

4. Grind: Perfect ground level for all your recipes. Grind coffee, seeds, rice and dry nuts. It

also allows preparing homemade our.

5. Pulverise: Pulverise any type of ingredient until it reaches the nest texture. Prepare icing

sugar or vanilla sugar for confectionery recipes.

6. Grate: Introduce ingredients in the jar, do not exceed halfway the jar, and set speed 10 for

some seconds. Perfect results.

7. Blend: Blend perfect mixtures in the most simple way. Prepare delicious milkshakes,

sponge cake dough, pancakes, crepes, beat eggs and more.

8. Whip: Whip cream or egg whites until stiff thanks to its buttery whisk. This is the ideasl

function to turn into a professional cook.

9. Emulsify: This functions allows preparing dips, dressings and different types of

mayonnaise easily. Just introduce ingredients in the jar, Mambo will do the rest. Emulsies evenly for you to nish off your dishes as desired.

10. Mix: Perform homogeneous mixtures with its 10 Mambo speeds. Perfect doughs obtained

in the simplest way.

11. Cook: Cook all types of dishes, such as stews, chicken with almonds or ratatouille, all of

them perfectly textured.

12. Stir: Stir foodstuffs as it cooks them to ensure uniform heating and to achieve professional

textures. Cook delicious risottos, pasta salads, custard or prepare hot chocolate.50 ENGLISH

13. Steam: This function is ideal for steaming the healthiest recipes. It allows saving time

thanks to its 2-level steamer, as you can cook more than 1 dish at once.

14. Poach: Progressive and little-by-little cooking, with absolute control over temperature

and time. Perfectly poached without paying attention to the clock. Perfect for obtaining soft, juicy results.

15. Comt: Process ingredients at low temperatures and obtain irresistible results. This

technique is ideal for cooking all types of foodstuffs, especially meat, hard sh and all kinds of poultry.

16. Knead: Knead perfect doughs in one whole piece. Kneading has never been as easy as

with the exclusive MamboMix spoon. It does not cut dough, instead it stretches it out for perfect results. Enjoy homemade bread and pizzas at any time.

17. Boil: Pour enough water into the jar as to cover all the ingredients, set 120 ºC and heating

power 10, and then choose the desired cooking time depending on the ingredients.

18. Keep warm: Keep your dishes hot until they are served. After cooking your dishes, just set

the robot at 60 ºC for liquid dishes or 60 ºC for solid dishes for the desired amount of time.

19. Precision cooking: This function is the widest and most general function out of all. It

allows cooking any type of dish with absolute control over power.

20. Ferment: Use this function to prepare excellent doughs. It nishes off bread or

confectionery recipes in little time, making dough rise quickly just by keeping it in the cup at 50 ºC and speed 0.

21. Bain Marie: Prepare perfect ans and tender vegetables. To use this function, ll the jar

with 2 litres of water, set no speed, 120 ºC and heating power 10. When it starts boiling, lower heating power to 9 and and introduce the custard moulds until the base touches water.

22. Turbo: Process hard ingredients in the most effective way. Do not ll the jar over halfway

to achieve maximum performance.

23. SlowMambo: The best risottos and traditional stews with its exclusive MamboMix spoon

and SlowMambo motion. This unique Mambo motion allows stirring and mixing recipes as if it was done with a real spoon.

24. Juice: Prepare lemonade, juices and multi-fruit shakes in just a few seconds.

25. Stir-frying: Stir-frying ingredients before cooking them enhances avours and improves

nal results. Stir-fry from garlics to meats. Brown foodstuffs to taste, adjusting power and time.

26. Reheat: Mambo allows reheating cooked food. If it has cooled down, it was cooked the

day before or has thawed, reheat it at 87 ºC and heating power 7. Just a few minutes and ready!

27. Yoghurt: Prepare homemade yoghurts easily. Just out all the ingredients in the jar and

Mambo will do the rest for you. It keeps the mixture at ferment temperature so that the next morning yoghurt is ready to cool and eat.

28. Basket: It can be used to steam food inside the jar, and allows preparing up to 4 dishes

at once. It also can be used to allow better evaporation of food or liquids, instead of the51 ENGLISH measuring cup.

29. Simmer: The traditional stews that require long-lasting cooking processes can be now

done with Mambo. Slow cooking, long hours, the best avours.

30. Zero speed: Cooking without speed setting allows you to cook without the lid and to stir

it when desired. You can taste food as you cook it, as if it was cooked in a conventional pot or pan. Warnings - Do not open the lid while the blades are operating, the jar’s content could spill out. - Once you have nished mashing, wait at least 10 seconds before opening the lid. - When the appliance is operated at any speed over 6, and at temperatures over 60 ºC, make sure the measuring cup is placed correctly to avoid food from splashing. - Do not activate the mashing function with more than 1.5L of liquids or hot ingredients. - When operating functions with temperature, do not lock the measuring cup to allow steam to be released. Suggested speed and capacity for each accessory Accessory Imagen Function Speed setting Capacity Operating time Stainless-steel blades Fig.11. Chop (+) 5 2L max. 1 min. Chop (++) 10 2L max. 1 min. MamboMix Spoon Fig.12. Knead dough for bread, pizza, etc. 2-3 800 g dough max. 5-20 min. Knead dough for noodles 3 400 g dough max. 3 min.52 ENGLISH Buttery whisk Fig.13. Stir 1-3 2L max. 30 min. Whisk egg whites or cream 4 2L max. 10 min. Steamer Fig.14. Steam vegetables N/A 3.5L max. 15 min. Steam meat N/A 3.5L max. 20-30 min.

5. CLEANING AND MAINTENANCE

- The stainless-steel jar is dishwasher safe. Fig.25. Warning Assemble the part as shown below, only when the stainless-steel jar is washed in the dishwasher. - The ceramic jar is not dishwasher safe. Clean it with lukewarm water and soap. Then rinse and dry it thoroughly. Do not immerse or expose to water the connectors located on the bottom part of the ceramic jar. Fig.26. - When cleaning the ceramic jar, be careful not to soak it in water and avoid the bottom part, where the heating element is, from getting wet. - Clean the food processor after each use. - Turn off and unplug the appliance from the power supply and allow it to cool down before cleaning it. - Wash the buttery whisk and the rest of the accessories with warm soapy water. Rinse and dry thoroughly. - Wipe the main body with a clean damp cloth. If food residue remains, dampen the cloth in warm soapy water before wiping it. Never immerse the main body in water or other liquid. - In order to maintain the good performance of your appliance, check and clean the removable bottom part of the jar after each use. Wipe it with a soft damp cloth and dry it thoroughly before using it again. - If the appliance is not going to be used for a long time, unplug it from the power supply and53 ENGLISH store it in a cool and safe place. - The blades and the MamboMix spoon are dishwasher safe.

CERRAR TAPA CLOSE LID Lock system fault The jar or the jar’s lid are not xed properly. Re-assemble the jar and jar lid, make sure all the parts are assembled properly and tightly and try operating it again.

COLOCAR JARRA PUT JUG Temperature sensor error The jar is not in its correct position or connection of the temperature sensor at the jar base is damaged. Re-assemble the jar and make sure it is xed properly.

CONTENIDO SUPERADO FULL CONTENT The motor is blocked. There is too much food inside the jar. Remove some food from inside the jar or cut the food to smaller pieces and restart the machine.

ALTA TEMP HIGH TEMP The temperature is too high. There is no or very little food in the jar and the set temperature is too high for too much time. Add food in the jar.

MOTOR TEMP The motor’s temperature is too high. The robot has been operating with too much food for a long time. Stop operating the machine and allow it to cool down before restarting it again. E6 The change in speed could not be done successfully. Speed change between low level (1-5) and high level (6-10) was blocked. Remove the jar, turn the xing bracket manually and place the jar again in place. Restart the robot.

FALLO ENGRANAJE GEAR FAULT and E8 FALLO NTC NTC FAULT Please, contact the Technical Support Service of Cecotec at +96 321 07 28.54 ENGLISH E12 PESO SUPERADO OVER WEIGHT Scale measurement error. The maximum measuring value has been exceeded. Remove weight from the scale until it reaches a value below 4.999 g. E14 FALLO WIFI WIFI FAULT Linking process error. An error occurred at some point of the linking process. Switch it off. Start the linking process again. If the problem continues, contact the Technical Support Service of Cecotec [phone].

Mambo 10090 multifunctional food processor has a Smartphone App that connects the device through W-Fi and allows complete control of the cooking processes. See App manual.

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), species that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation to dispose of the appliance correctly. Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.55 ENGLISH

10. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual. The warranty will not cover the following situations: - The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer. - The product has been disassembled, modied, or repaired by persons, not authorised by the ofcial Technical Support Service of Cecotec. - Faults deriving from the normal wear and tear of its parts, due to use. The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone] 728.56 FRANÇAIS
