SV 1020 - Iron Orbegozo - Free user manual and instructions

Product type	Flat iron
Brand	Orbegozo
Model	SV 1020
Power supply	110-120 V / 220-240 V, 50-60 Hz
Power	900-1100 W
Soleplate	Non-stick (base plate)
Water tank	With filling cap
Functions	Steam ironing, dry ironing, steam burst, spray
Temperature control	Adjustment dial with positions 0, 00, 000
Indicator light	Indicates power on
Foldable handle	With folding lock
Voltage selector	Allows selection between 120 V and 230 V
Cord protection	Protective sleeve
Approximate dimensions	30 x 15 x 15 cm
Approximate weight	1.5 kg
Maintenance	Empty the tank after use, let it cool, clean the soleplate
Safety	Automatic shut-off not mentioned, but hot surface indicated
Warranty	Compliant with current legislation, keep the receipt

Frequently Asked Questions - SV 1020 Orbegozo

How to use the steam function?

Turn the temperature control to position 0, 00 or 000. Wait for the indicator light to turn off, then press the Steam burst button.

How to fill the water tank?

Unplug the iron, open the filling cap (D) and pour water. Do not exceed the maximum level. Close the cap.

How to use the spray function?

Make sure there is enough water in the tank, then press the Spray button (B) to spray water through the spray nozzle (E).

How to fold the handle?

To fold the handle, press the folding handle lock (I). To raise it, pull upward without touching the lock.

How to adjust the voltage?

Check that the voltage selector (A) is in the correct position (120V or 230V) corresponding to your mains before plugging in the appliance.

What to do if the iron does not heat up?

Check that the voltage selector is correctly positioned and that the outlet is powered. If the problem persists, contact technical support.

How to clean the iron?

Unplug it, let it cool, then wipe the soleplate with a damp cloth. Never immerse the iron in water.

How to store the iron after use?

Unplug, empty remaining water, turn the steam control to minimum, temperature to minimum, let it cool and store in a dry place.

Is the iron suitable for children?

No, children under 8 years old must be kept away. The appliance can be used by children over 8 years old under supervision.

Where to find repair service?

Visit the website Orbegozo technical assistance or contact customer service via the email indicated in the manual.

USER MANUAL SV 1020 Orbegozo

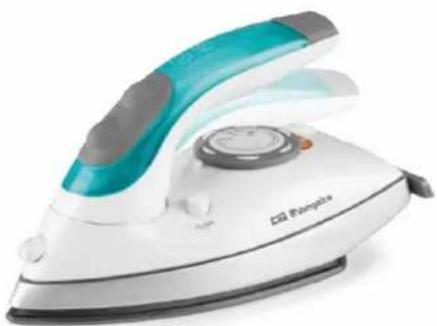

White and teal electric iron with 'Bluepiria' branding, no visible text or symbols on body

SV 1020

Sonifer,S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

White and teal electric iron with a gray handle, no visible text or symbols on the device itself.

SPRAY

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.

16. Only connect the appliance to an earthed wall socket.
17. Do not use the appliance if the plug, the cord or the appliance itself shows visible damage, or if the appliance has been dropped or is leaking.
18. Check the cord regularly for possible damage.
19. The soleplate can heat up a lot and, if it is touched, can cause burns.
20. Do not let the cord contact with soleplate when it is hot.

21. When you have finished ironing, clean the appliance, fill or empty the water tank or when you leave the iron even if only for a moment, set the steam control to 0 position, put the iron on its base support and unplug of the mains.

22. Always place and use the iron on stable and horizontal surface.

23. The iron must not be left unattended while it is connected to the supply mains.
24. Remove the plug from the socket before filling the appliance with water.
25. The filling hole should not be open during operation
26. The appliance must be used and placed on a stable surface.
27. When placed on its stand, make sure that the surface on which the stand is placed is stable.
28. The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water.
29. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
30. The travelling irons are not designed for a regular use.
31. ATTENTION. Hot surface.
32. The surface can become hot during operation

IMPORTANT SAFETY PRECAUTIONS

Check that the voltage rating on the product's nameplate matches the mains supply voltage. Choose within the range between 120 V and 230 V by turning the "voltage selector" switch. Before plugging the iron into the mains, check that the "voltage selector" switch is in the right position.. Please remember that if the switch is in the wrong setting, it may cause a failure or the required temperature may not be reached.

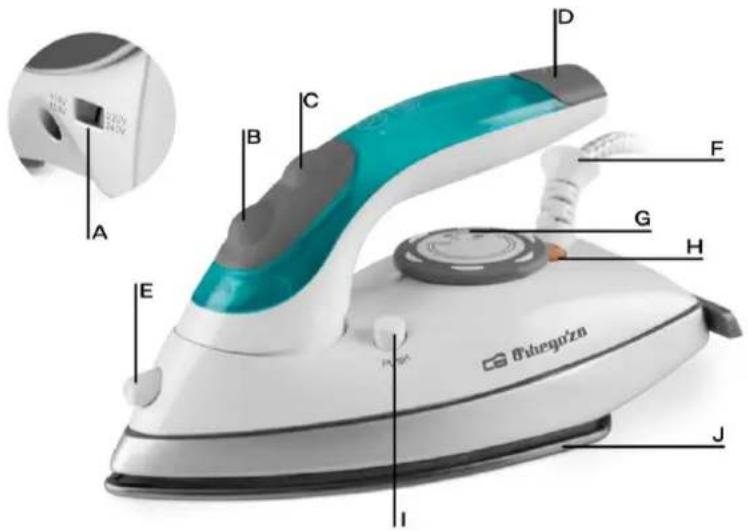

A. Voltage selector
B. Spraying button
C. Steamburst button
D. Water filling cap
E. Spraying mouth
F. Power cord protection
G. Temperature control
H. Light indicator
I. Foldable Handle lock
J. Non-stick base plate

White and teal iron iron with a control knob, no visible text or symbols on the device itself.

How to use the foldable handle lock:

When you want to fold the handle, please press the lock down; if you want open the foldable handle, please pull up the handle without touching the lock.

FILLING WATER

1. Before filling water, please pull out the plug first.
2. Set the steam control to the minimum position.
3. Pull down the cover of water filling mouth, and then fill water.

SPRAYING

Press the spraying button, steam will be sprayed out from the spraying nozzle. At that time, you should keep enough water in the water tank.

STEAM IRONING

1. To use steam ironing turn the temperature control at the "o.", "oo" or "ooo" position.
2. After the indicator goes out, press the Steam burst button and the steam will be sprayed.

DRY IRONING

Turn the steam control to the selected position and without pushing the Steam burst button, start dry ironing.

STORAGE

After using, pull out the plug, pour out the remaining water, turn the steam control to minimum, turn the temperature control to minimum power, let the iron cool down, put the iron on the safe and dry place.

MAIN TECHNICAL PARAMETERS

Appliance	Voltage	Frequency	Power
SV 1020	110-120V/220-240V	50-60 Hz	900-1100 W

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website).
