SE6000HRWS00BNO4 - Solar panel SolarEdge - Free user manual and instructions

Product Type	StorEdge Single-Phase Inverter with HD-Wave Technology
Brand	SolarEdge
Model	SE6000HRWS00BNO4
Rated Power	6000 W
Power Supply	230 V AC Single Phase
Frequency	50 / 60 Hz
Compatible Battery	LG Chem RESU7H / RESU10H
Connectivity	RS485, Modbus, SetApp
Protection	IP65
Dimensions (approx.)	540 x 315 x 190 mm
Weight (approx.)	20 kg
Installation	Wall-mounted, indoor or outdoor
Main Functions	Energy storage, maximum self-consumption, monitoring via SetApp
Energy Meter	Integrated or external (Modbus)
Configuration	Via SetApp application
Maintenance and Cleaning	Check connections, clean the heatsink with a dry cloth
Safety	Disconnect battery before wiring, ON/OFF/P switch
General Information	12-year warranty (standard), technical support available

Frequently Asked Questions - SE6000HRWS00BNO4 SolarEdge

How to power off the LG Chem battery before wiring?

Turn off the circuit breaker, then the disconnect switch or the auxiliary power switch of the battery.

Which cables to use to connect the inverter to the battery?

Use DC and RS485 cables conforming to the installation guide specifications. The exact wiring depends on the battery model.

How to configure the battery in SetApp?

In SetApp, go to Commissioning > Communication > RS485-1, select Protocol > Modbus (Multiple Device), then Add Modbus Device > Battery. The battery is identified automatically.

What to do if the battery self-test fails?

Check that the power and communication cables between the battery and inverter are properly connected. Also ensure that the inverter's ON/OFF/P switch is set to ON.

How to configure maximum self-consumption?

In SetApp, select Commissioning > Power Control > Energy Manager > Energy Control > Maximum Self-Consumption.

What does the error 'S_OK - Server Connected' mean?

It indicates that the inverter is properly connected to the monitoring platform. Check this in SetApp under Commissioning > Status.

How to check the battery status after installation?

In SetApp, go to Commissioning > Communication > RS485-1, select the battery, then Battery Information.

Can the system be installed without an energy meter?

Yes, but in that case, set the left DIP switch to ON (RS485 termination). However, a meter is recommended for self-consumption management.

How to test communication with the energy meter?

After configuration in SetApp, if the CT rate returns to 0, check the RS485 and CT connections. You can also run a self-test.

What is the power-up procedure after installation?

First turn on the battery disconnect/auxiliary switch, then the circuit breaker, then set the inverter's ON/OFF/P switch to ON.

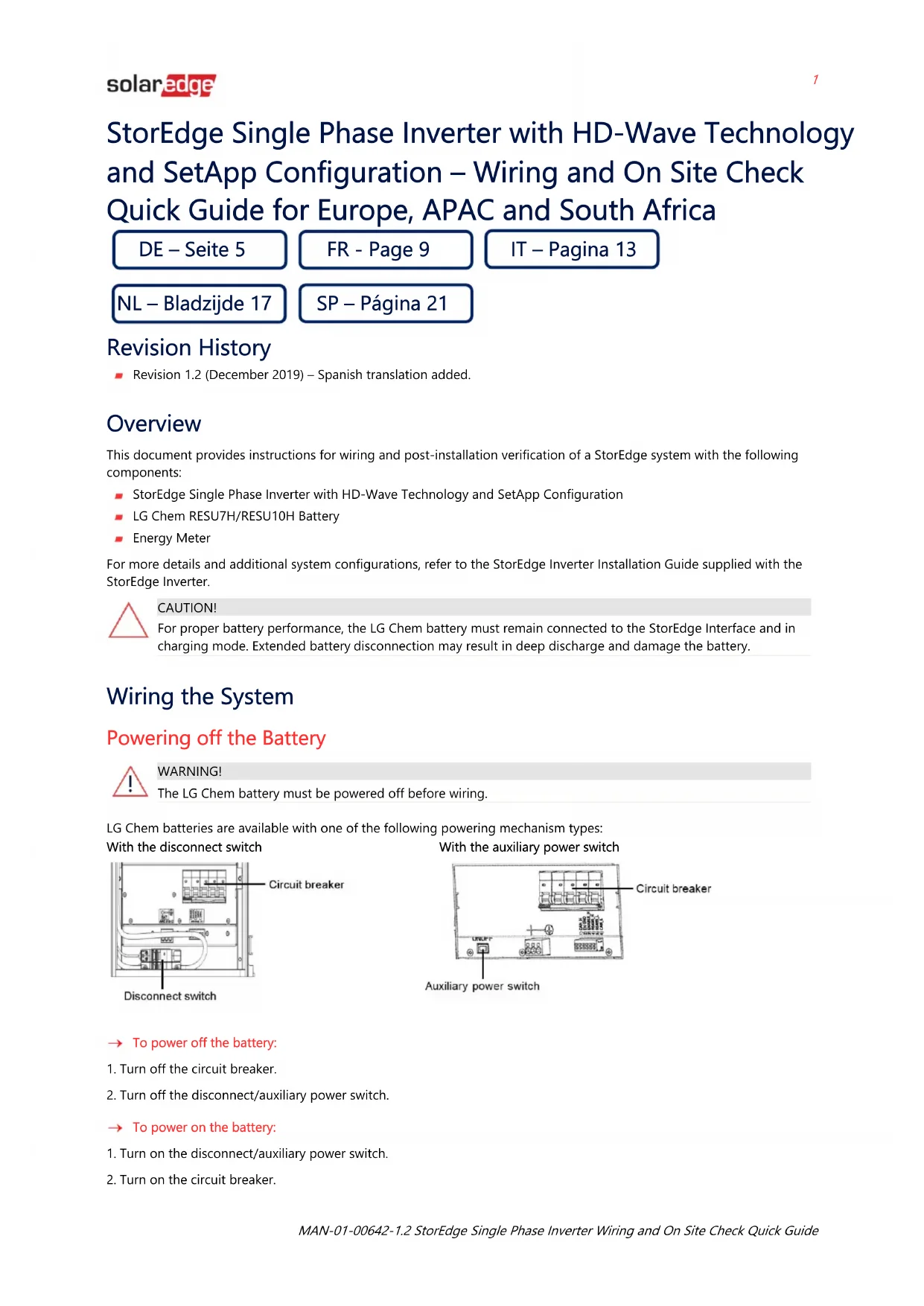

USER MANUAL SE6000HRWS00BNO4 SolarEdge

StorEdge Single Phase Inverter with HD-Wave Technology and SetApp Configuration – Wiring and On Site Check Quick Guide for Europe, APAC and South Africa

DE-Section 5

FR - Page 9

IT - Page 13

NL - Bladzijde 17

SP-Pagina21

Revision History

Revision 1.2 (December 2019) - Spanish translation added.

Overview

This document provides instructions for wiring and post-installation verification of a StorEdge system with the following components:

StorEdge Single Phase Inverter with HD-Wave Technology and SetApp Configuration
LG Chem RESU7H/RESU10H Battery
Energy Meter

For more details and additional system configurations, refer to the StorEdge Inverter Installation Guide supplied with the StorEdge Inverter.

CAUTION!

For proper battery performance, the LG Chem battery must remain connected to the StorEdge Interface and in charging mode. Extended battery disconnection may result in deep discharge and damage the battery.

Wiring the System

Powering off the Battery

WARNING!

The LG Chem battery must be powered off before wiring.

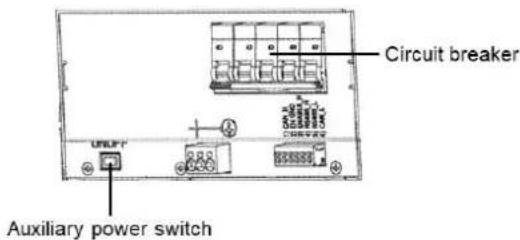

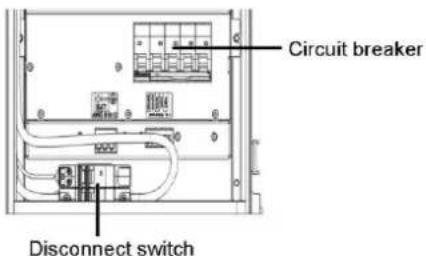

LG Chem batteries are available with one of the following powering mechanism types: With the disconnect switch With the auxiliary power swit

With the auxiliary power switch

To power off the battery:

1. Turn off the circuit breaker.
2. Turn off the disconnect/auxiliary power switch.

To power on the battery:

1. Turn on the disconnect/auxiliary power switch.
2. Turn on the circuit breaker.

Connecting System Components

Connect the system components as shown in the diagram below.

Pay attention to:

Cable types
DIP switch setup

If no Energy Meter is connected, terminate the inverter's RS485 bus by switching the left DIP switch ON.

MAN-01-00642-1.2 StorEdge Single Phase Inverter Wiring and On Site Check Quick Guide

Post Installation Verification and Configuration

Use the checklist below to verify that the system is properly connected and configured.

Installation and Wiring

1. Make sure the distances between the system components are as specified in the installation guide.
2. Take a picture of each of the system components after wiring them and send the pictures to SolarEdge support.

Inverter
StorEdge Interface
Battery
Energy Meter

1. Make sure the battery splash cover is closed.
2. Make sure the DIP switches of all components are set as shown in the connection diagram.
3. Make sure all DC, communication and AC cabling connections are completed as follows:

Check the AC wiring and the AC circuit breaker on the AC distribution panel.
Check the string DC input voltage. Expect 1V per optimizer in a string.
Make sure all components are properly grounded.
Check the DC connections on the battery and StorEdge Interface.
Check the RS485 connection between the battery and inverter.
Check the CT, AC and RS485 connections to the Energy Meter.

1. Check connection to Monitoring Platform:

In SetApp, select Commissioning > Status.
Check that S_OK - Server Connected appears in the main inverter section.

Configuring the Battery and Meter

1. Switch the inverter ON/OFF/P switch to OFF.
2. Access SetApp and select Commissioning > Communication.
3. From the Communication screen, select RS485-1 > Protocol > Modbus (Multi-Device).
4. Return to the previous screen and select Add Modbus Device > Battery.
5. Verify the battery information by selecting Battery 1 > Battery Information.
6. In the RS485-1 screen, select Add Modbus Device > Meter.
7. Set the meter's CT Rating according to the CT specifications. If the CT rating value returns to 0, check communication with the CT.

8. Select Meter 1 > Meter Function > Export + Import (E+I).

9. Run a battery self-test:

Make sure the battery's circuit breaker switch is ON.
Switch the inverter ON/OFF/P switch to ON.
In SetApp, select Commissioning > Maintenance > Diagnostics > Self-Test > Battery Self-Test > Run Test.
Wait for all tests to complete and check the results in the summary table.

If any of the tests have failed, see the table below for possible solutions:

Test Results	Solution
Charge failed	Check that the power and communication cables between the battery and inverter are properly connected.
Discharge failed	Check that the power and communication cables between the battery and inverter are properly connected.
Communication	Check that the communication cables between the battery and inverter are properly connected.
Inverter switch is off	Switch the inverter ON/OFF/P switch to ON.

To show the last test results:

Select Commissioning > Maintenance > Diagnostics > Self-Test > Battery Self-Test > Show Last Results.

Setting up the Maximize Self-consumption (MSC)

1. Access SetApp and select Commissioning > Power Control.
2. Select Energy Manager > Energy Control > Maximum Self Consumption.

Support Contact Information

If you have technical queries concerning our products, please contact us:

http://https://www.solaredge.com/service/support

Before contact, make sure to have the following information at hand:

Model and serial number of the product in question.
The error indicated on the product mobile application LCD screen or on the monitoring platform or by the LEDs, if there is such an indication.
System configuration information, including the type and number of modules connected and the number and length of strings.
The communication method to the server, if the site is connected.
The product's software version as it appears in the ID status screen.

http://https://www.solaredge.com/service/support

http://https://www.solaredge.com/service/support

http://https://www.solaredge.com/it/service/support
