DGN576SNCD - Grill plate Dyna-Glo - Free user manual and instructions

Product Type	Double chamber charcoal grill
Brand	Dyna-Glo
Model	DGN576SNCD
Fuel	Charcoal or wood
Usage	Outdoor use only, in a well-ventilated area
Cooking surface	4 porcelain cooking grids (heat-resistant)
Warming rack	Yes, removable
Charcoal pan height adjustment	Adjustable crank to control temperature
Air adjustment	2 side draft registers + chimney register
Ash system	Removable ash pan with handle
Temperature indicator	Yes, on the lid (up to 260 °C / 500 °F)
Side tables	2 (right and left) with supports
Storage basket	Yes, under the grill
Wheels and casters	2 wheels + 2 swivel casters
Feet	With metal feet
Access doors	2 side doors for adding charcoal
Removable divider	Allows cooking in separate zones
Material	Steel with porcelain coating on grids
Warranty	1 year against manufacturing defects (parts)
Assembly	Recommended 2 people, time ~50 min
Customer service	1-877-447-4768 (Mon-Fri, 8:30am-4:30pm CST)
Country of origin	Made by GHP Group Inc, USA

Frequently Asked Questions - DGN576SNCD Dyna-Glo

What type of appliance is this?

This is a double chamber charcoal grill, model DGN576SNCD, by Dyna-Glo.

How to assemble the grill?

Assembly requires two people and about 50 minutes. Follow the manual instructions, attaching the wheels, feet, side tables, registers, crank, and lid. Use the provided hardware (screws, bolts, pins).

How to light the charcoal?

Open the lid, remove the grids, set the charcoal pan at mid-height, arrange the briquettes in an even layer, light them, then lower the pan to the low position. Wait for flames before replacing the grids using heat-resistant gloves.

How to adjust the temperature?

Use the crank to raise or lower the charcoal pan. Open the side draft registers to increase air flow (max temperature 260 °C). Close them to lower the temperature. The chimney register also helps regulate air.

Can the grill be used indoors?

No, this grill is for outdoor use only. Burning charcoal indoors can cause fatal carbon monoxide poisoning.

How to clean the grill?

Let it cool completely. Clean the inside with a damp cloth, the grids with warm water (do not use cold water on a hot grid). The ash pan can be removed from the front. Do not use abrasive cleaners on porcelain surfaces.

Where can I find replacement parts?

Call customer service at 1-877-447-4768 or refer to the parts list in the manual. Parts are shipped free under warranty.

How to use the divider?

Remove the grids and warming rack, insert the divider between the support brackets. This allows cooking with two different heat zones (direct and indirect cooking).

What is the warranty?

Limited 1-year warranty against manufacturing defects (parts). The paint is warranted against defects, but not rust from normal use.

Is the grill heavy?

Yes, the unit is heavy. Two people are recommended for assembly and moving. Never move the grill while in use or when ashes are hot.

USER MANUAL DGN576SNCD Dyna-Glo

Assembly Instructions....6

Operating Instructions 15

Care and Maintenance 17

Warranty 17

Replacement Parts List 18

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at: 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.

CAUTION

- THIS UNIT IS HEAVY. TWO PEOPLE REQUIRED FOR SAFE ASSEMBLY. Some parts may contain sharp edges. Wear protective gloves if necessary. Read and follow all safety statements, warnings, assembly instructions, and use and care instructions before attempting to assemble and use.

WARNING

• Keep a fire extinguisher near this product at all times.
• This grill is for outdoor use only in well-ventilated areas.
• The use of alcohol, prescription or non-prescription drugs may impair the user's ability to properly assemble and safely operate this appliance.

SAFETY INFORMATION

• Use caution when lifting and moving the unit to avoid back strain or back injury. Do not move the unit while it is in use.
• DO NOT operate the unit near or under flammable or combustible materials such as decks, porches or carports. A minimum clearance of 36 in. (91.4 cm) is recommended. DO NOT operate the unit under overhead construction.
• A minimum clearance to combustible construction is 36 in. (91.4 cm) from sides and back.
• DO NOT use this appliance as a heater.
• Operate the unit on a stable, level, non-flammable surface such as asphalt, concrete or solid ground. DO NOT operate the unit on flammable material such as carpet or wood deck.
• Use caution when assembling and operating this unit to avoid cuts and scrapes from edges.
• DO NOT use this product in a manner other than its intended purpose. It is NOT intended for commercial use. It is not intended to be installed or used in or on a recreational vehicle and/or boats.
• DO NOT store this unit near gasoline or other combustible liquids or where other combustible vapors may be present.
• DO NOT store or operate this product in an area accessible to children or pets. Store this unit in a dry protected location.
• DO NOT leave the unit unattended while in use.
• DO NOT leave hot ashes unattended until the grill cools completely.
• DO NOT move the unit while in use or while ashes are still hot. Allow the unit to cool completely before moving or storing.
• NEVER use gasoline or other highly volatile fluids as a starter.
  • Always cook your food on the grate after the flame is burned out.
• Dispose of cold ashes by wrapping them in heavy-duty aluminum foil and placing in a noncombustible container. Make sure that there are no other combustible materials in or near the container.
• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then remove the ashes from the unit, using heat-resistant gloves along with long metal tongs or fireplace shovel. Place the coals in aluminum foil and soak them completely with water before disposing of them in a noncombustible container.
• Allow the unit to cool completely before conducting any routine cleaning or maintenance.

CALIFORNIA PROPOSITION 65

- Fuels used in wood and charcoal burning appliances and the products of combustion of such fuels contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

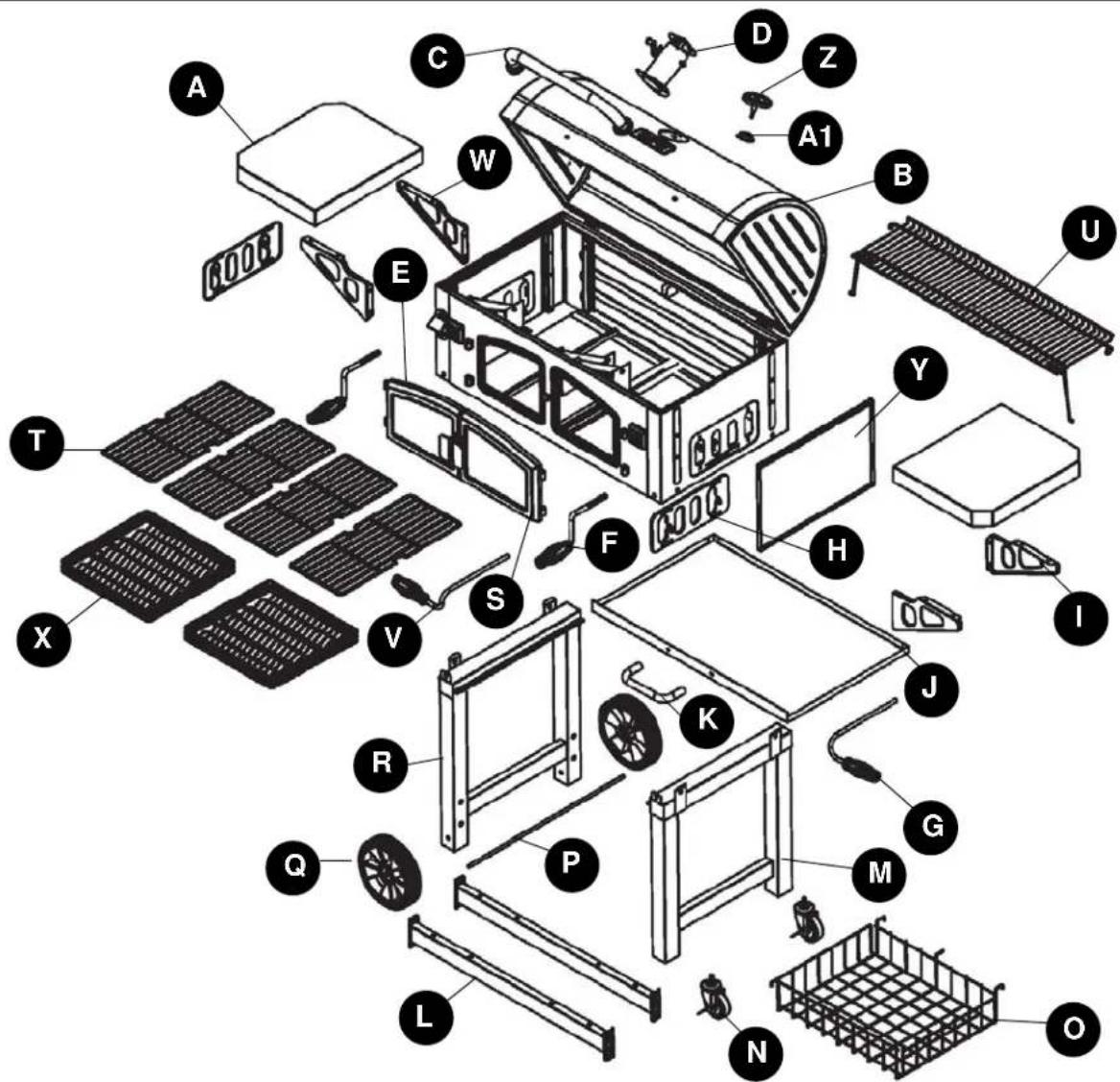

PART	DESCRIPTION	QUANTITY
A Side Shelf 2
B Lid and Firebox Assembly 1
C Lid Handle Assembly 1
D Smoke Stack Assembly 1
E Charcoal Access Door-Left 1
F Crank Handle 2
G Damper Handle-Right		1
H Damper		2
I Side Shelf Support-Right Rear/Left Front		2
J Ash Tray		1
K Ash Tray Handle		1
L Cart Brace		2
M Right Leg Assembly		1
N Caster		2

PART	DESCRIPTION	QUANTITY
O	Storage Basket	1
P	Axle	1
Q	Wheel	2
R	Left Leg Assembly	1
S	Charcoal Access Door-Right	1
T	Grate	4
U	Warming Rack	1
V	Damper Handle-Left	1
W	Side Shelf Support-Left Rear/Right Front	2
X	Charcoal Tray	2
Y	Divider Panel	1
Z	Temperature Gauge	1
A1	Temperature Gauge Nut Bezel	1

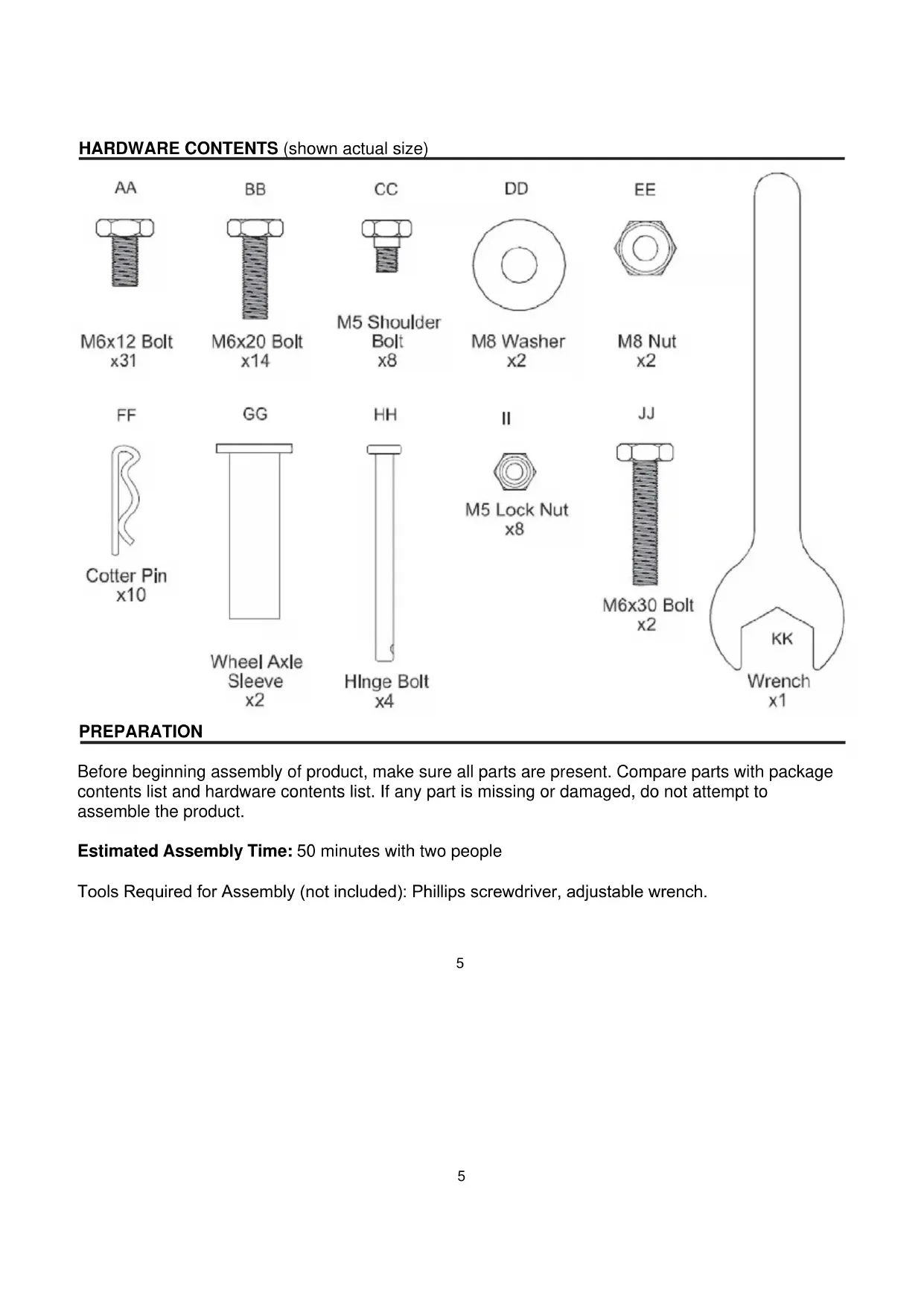

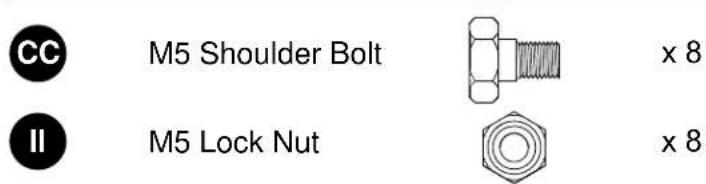

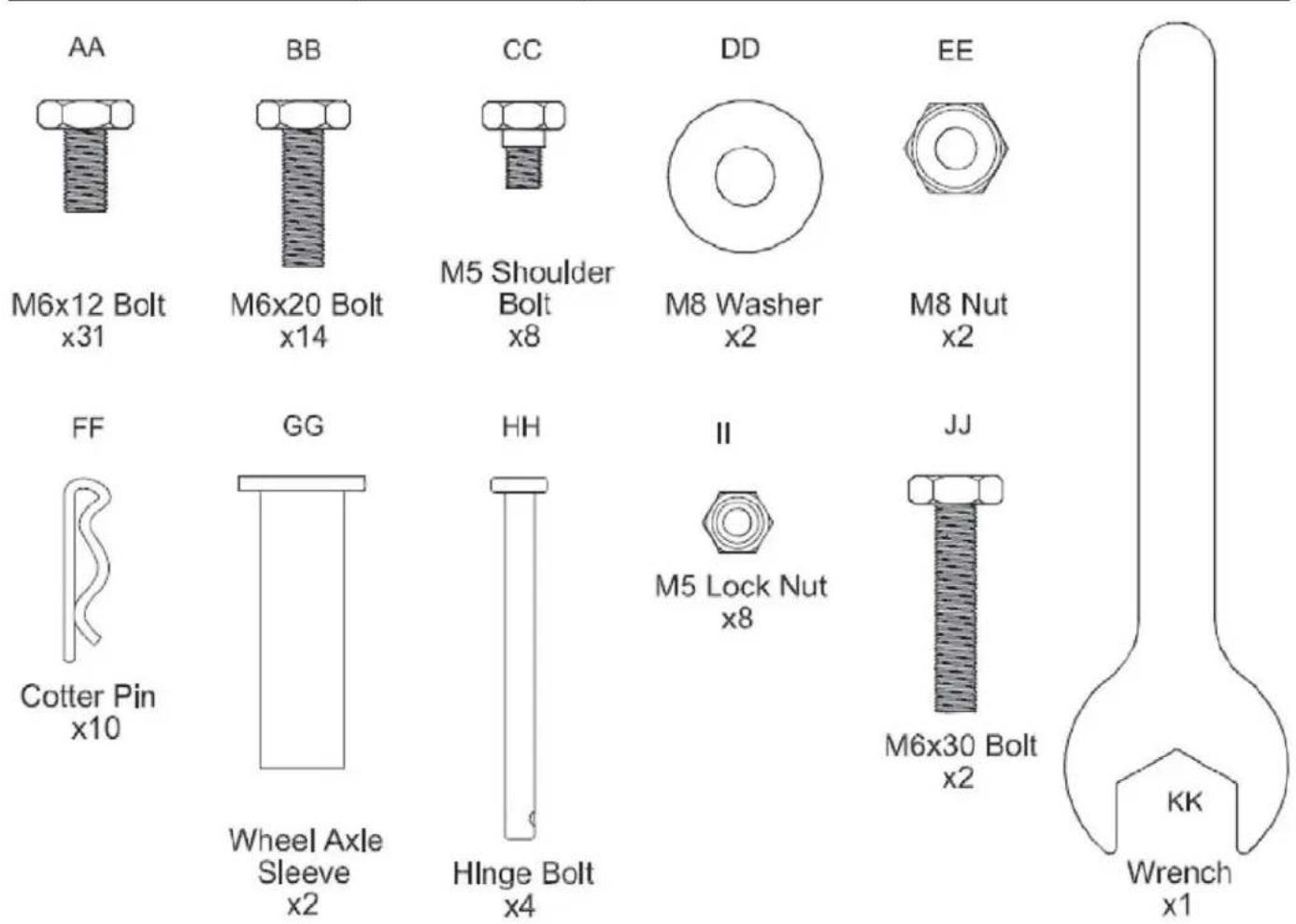

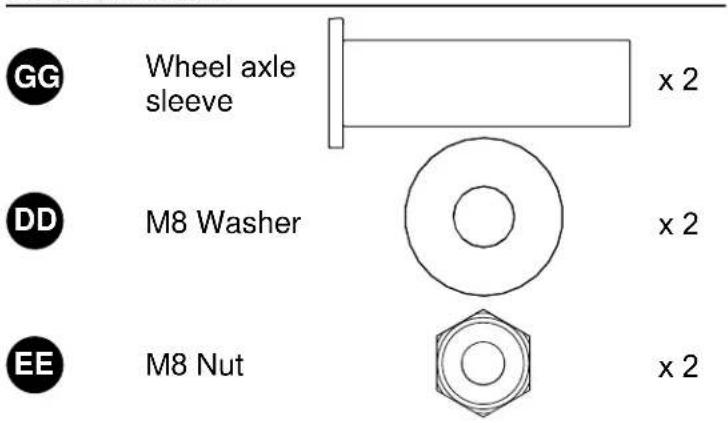

HARDWARE CONTENTS (shown actual size)

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 50 minutes with two people

Tools Required for Assembly (not included): Phillips screwdriver, adjustable wrench.

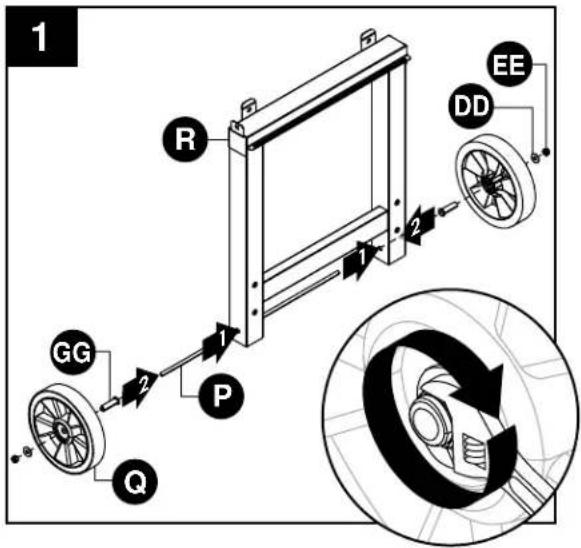

1. Insert axle (P) into left leg assembly (R). Attach one wheel (Q) to each side of axle (P) using one wheel axle sleeve (GG), one M8 washer (DD), and one M8 nut (EE).

Hardware Used

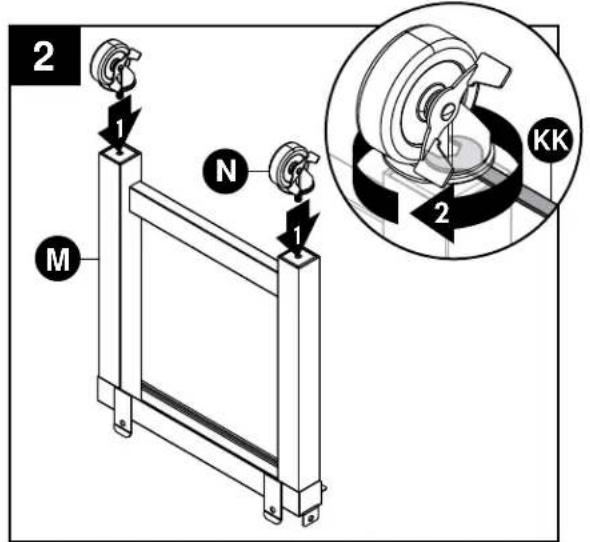

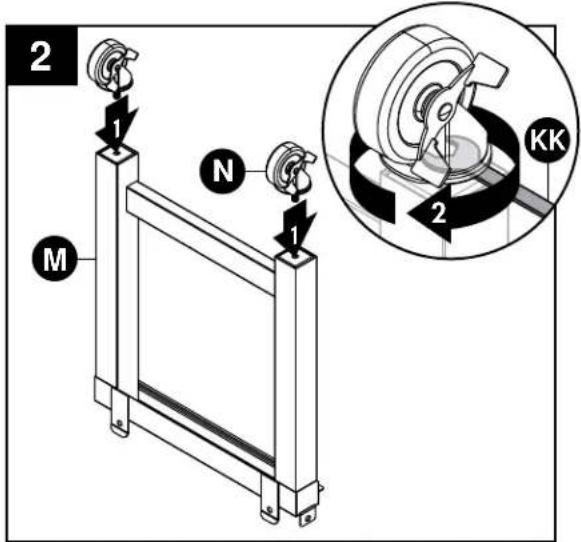

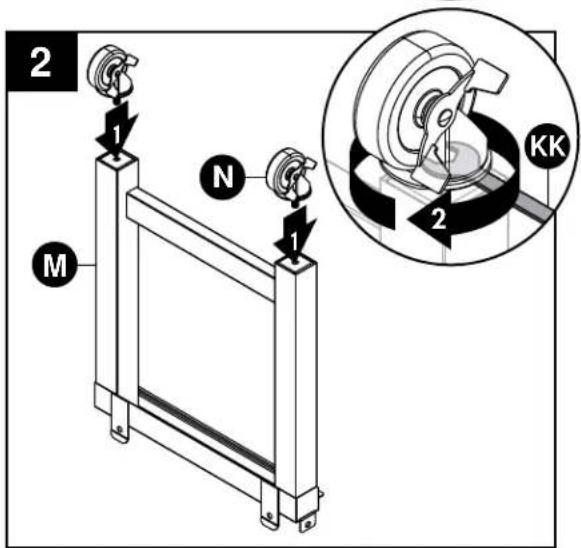

1. Attach two casters (N) to right leg assembly (M) and secure with wrench (KK).

Hardware Used

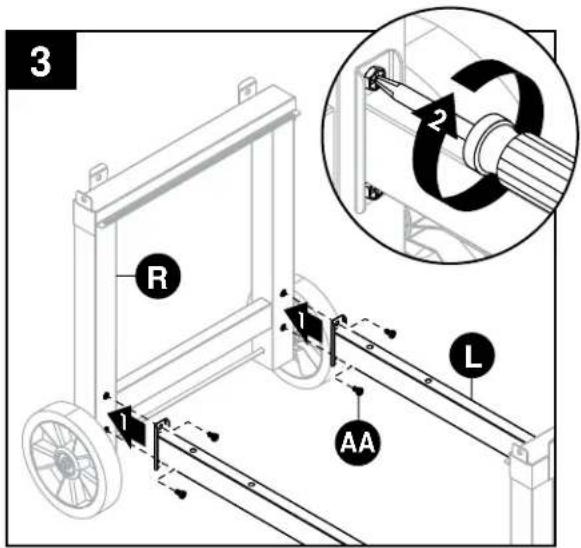

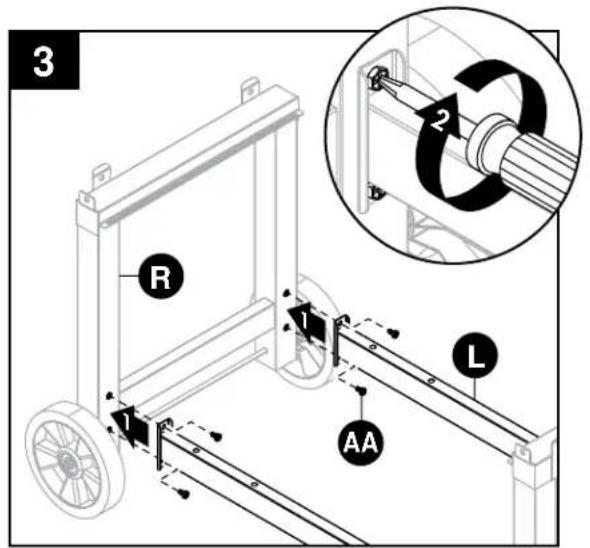

1. Attach two cart braces (L) to left leg assembly (R) using two M6x12 bolts (AA) on each side.

Hardware Used

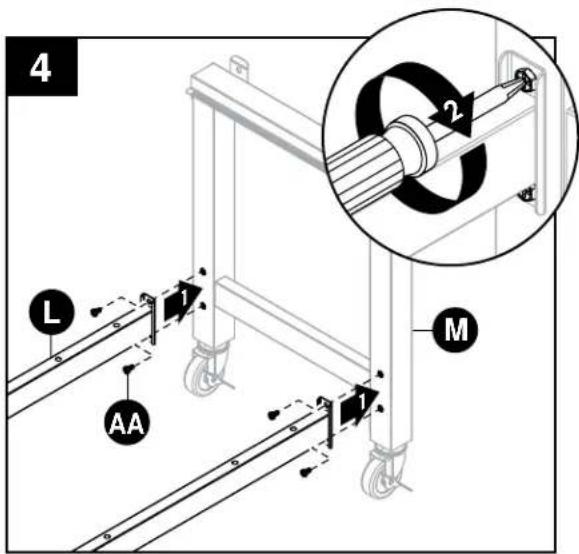

1. Attach two cart braces (L) to right leg assembly (M) using two M6x12 bolts (AA) on each side.

Hardware Used

M6x12 Bolt

x 4

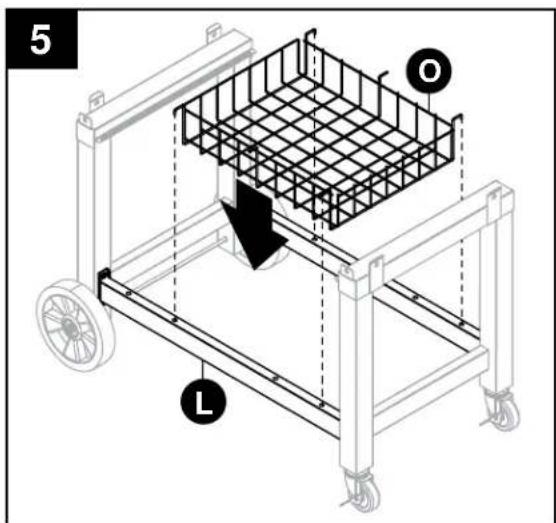

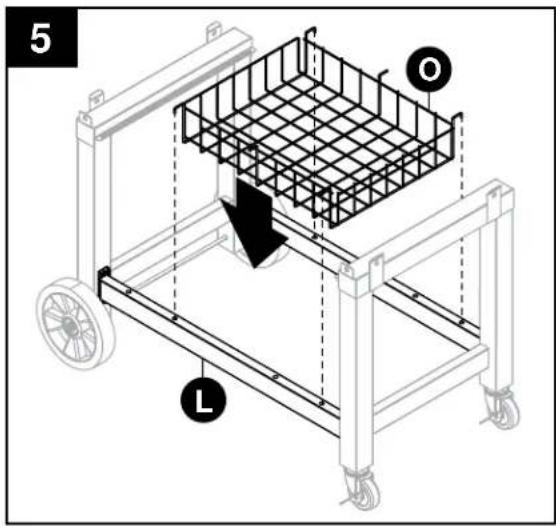

1. Attach storage basket (O) to cart braces (L).

NOTE: Make sure four hooks on storage basket (O) are fully inserted into holes on cart braces (L).

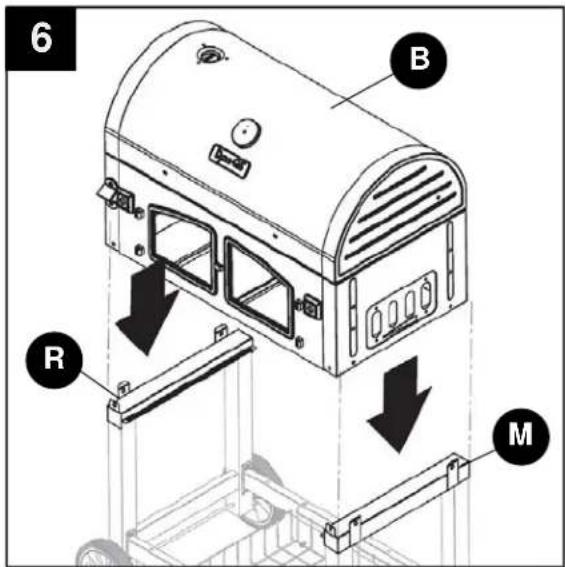

1. With the help of a second person, set lid and firebox assembly (B) on top of left leg assembly (R) and right leg assembly (M).

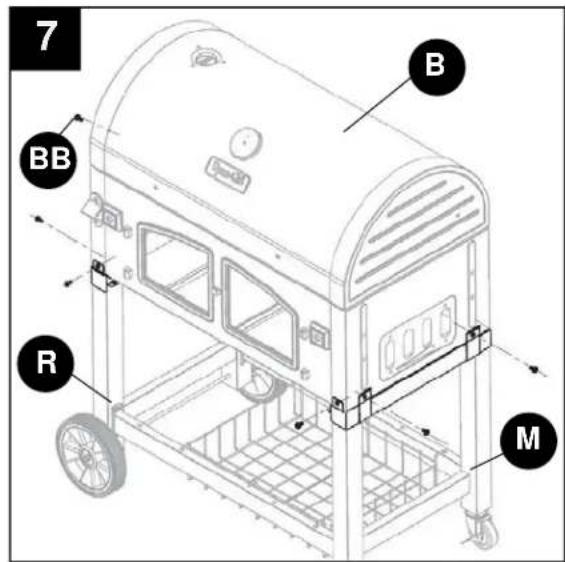

1. Secure lid and firebox assembly (B) on top of left leg assembly (R) and right leg assembly (M) using six M6x20 bolts (BB).

Hardware Used

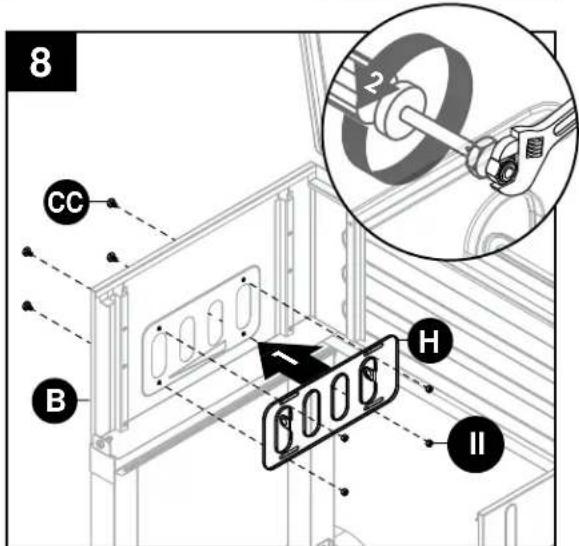

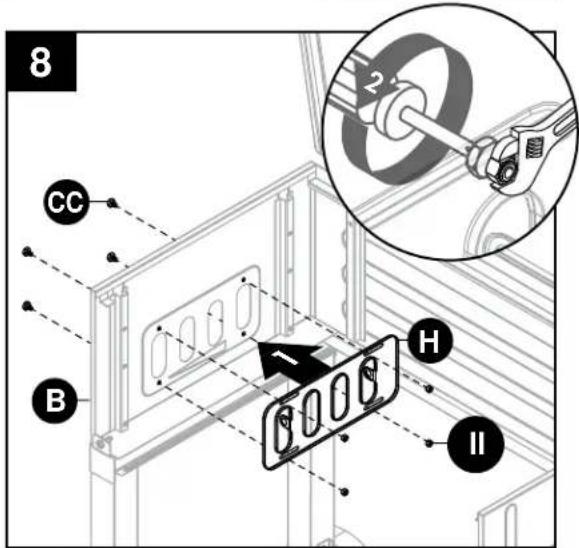

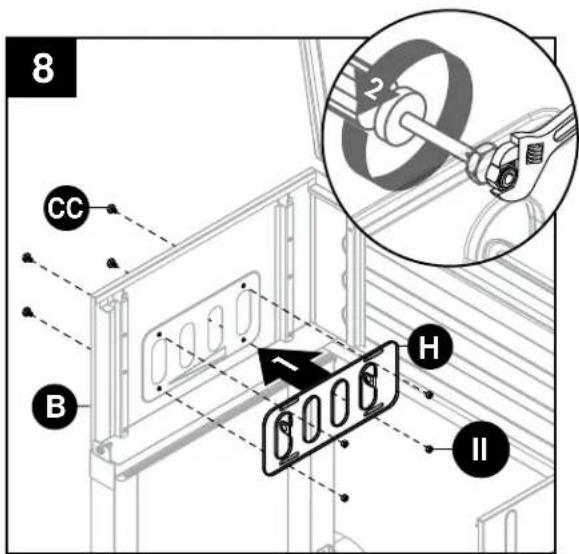

1. Attach damper (H) to inside of lid and firebox assembly (B) using four M5 shoulder bolts (CC) and four M5 lock nuts (II). Repeat for remaining damper (H).

NOTE: For clarity, illustration is shown with front of lid and firebox assembly (B) removed.

Hardware Used

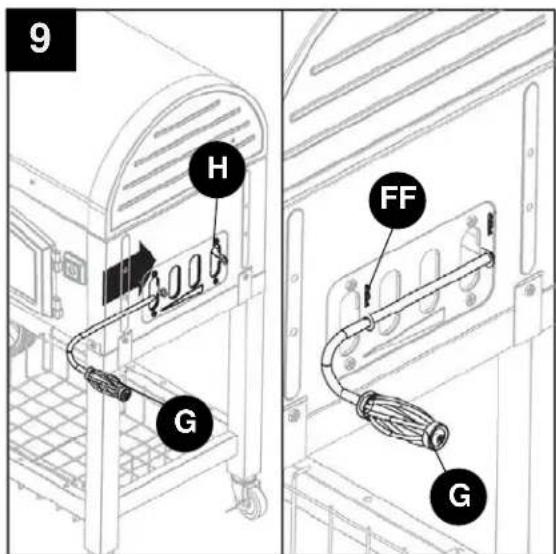

1. Insert damper handle – right (G) into the two holes on right side damper (H). Secure with two cotter pins (FF). Repeat for damper handle – left (V).

Hardware Used

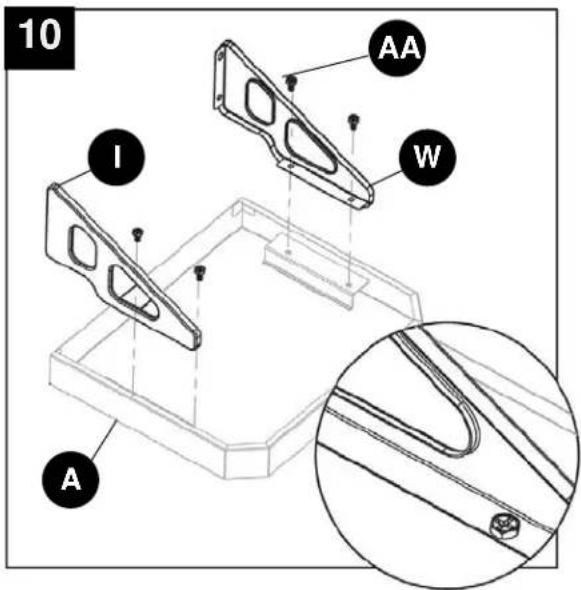

1. With shelf upside down, attach side shelf support – left rear/right front (W) and side shelf support – left front/right rear (I) to side shelf (A) using four M6x12 bolts (AA) on each side. Repeat for remaining shelf (A).

Hardware Used

M6x12 Bolt

x 8

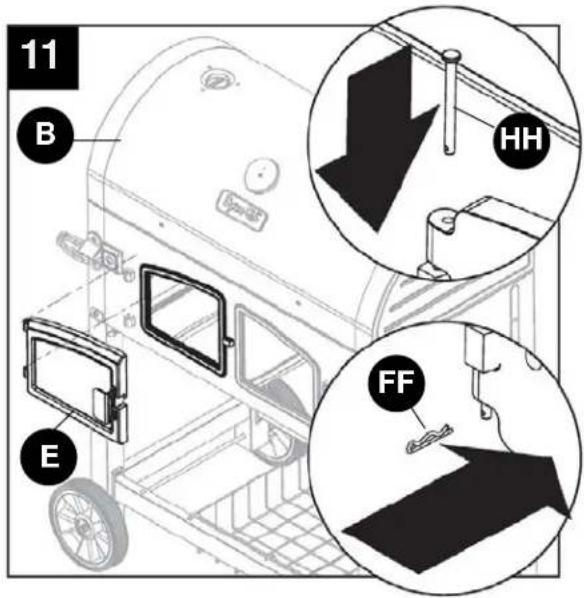

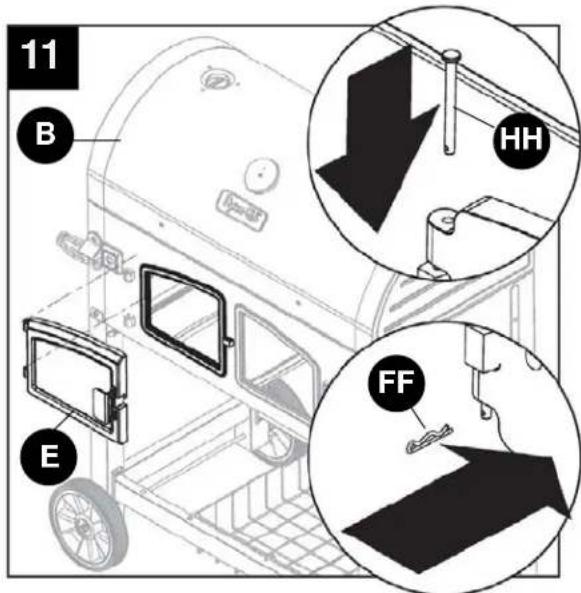

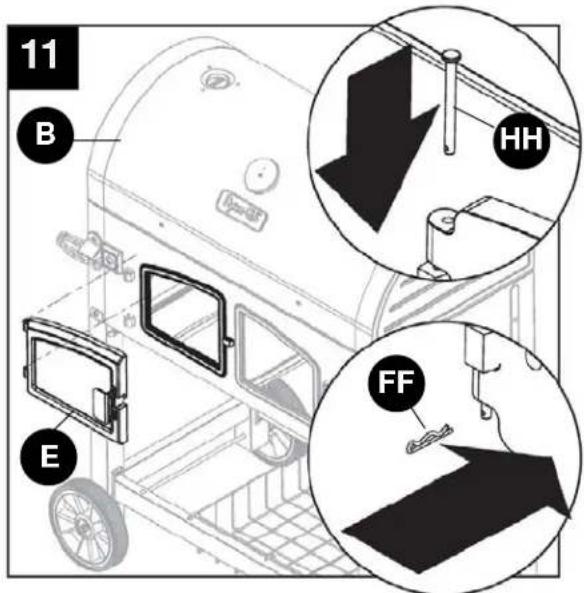

1. Attach left charcoal access door (E) to lid and firebox assembly (B). Insert two hinge bolts (HH) into hinges on charcoal access door (E) and secure with two cotter pins (FF). Repeat for right charcoal access door (S).

Hardware Used

Hinge Bolt

Cotter Pin

x 4

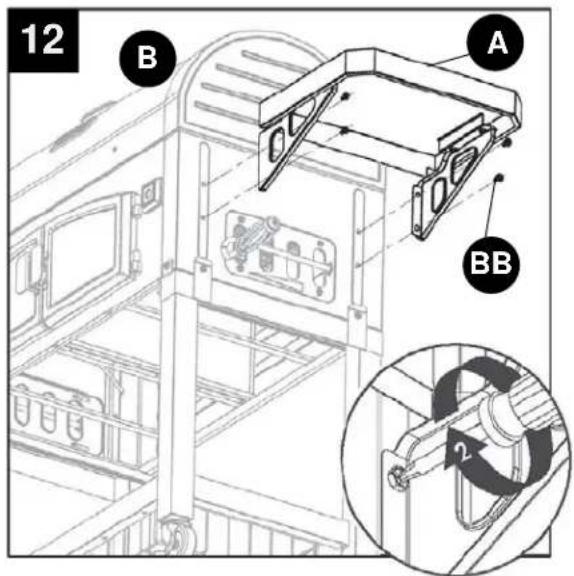

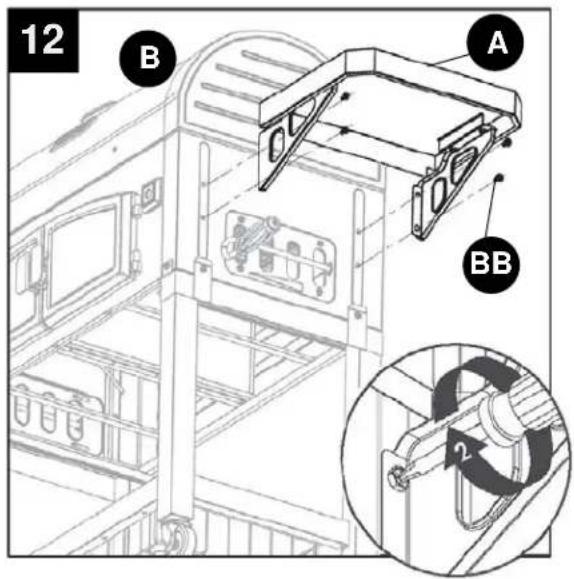

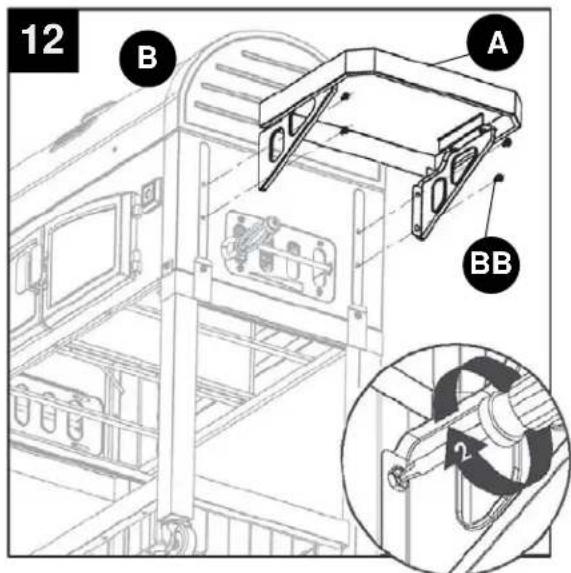

1. Attach right side shelf (A) to lid and firebox assembly (B) using four M6x20 bolts (BB). Repeat on left side with remaining side shelf (A).

NOTE: First secure two upper M6x20 bolts (BB), then lower M6x20 bolts (BB).

Hardware Used

M6x20 Bolt

x 8

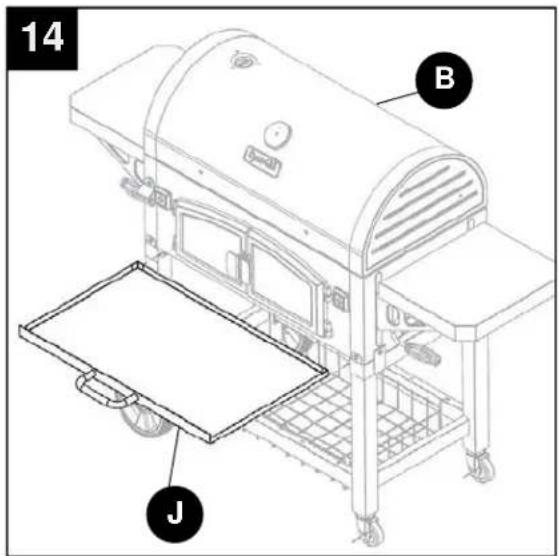

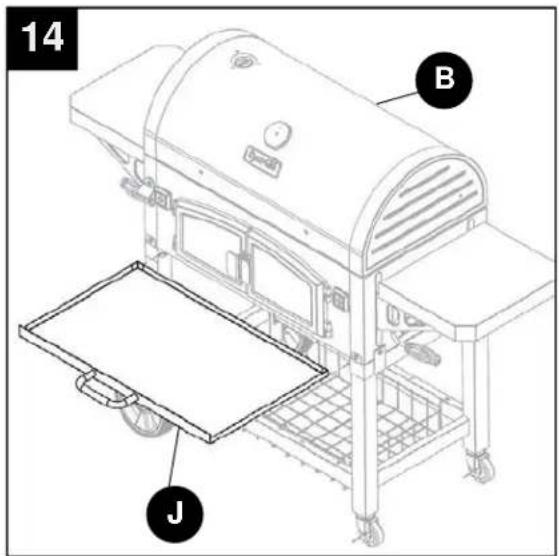

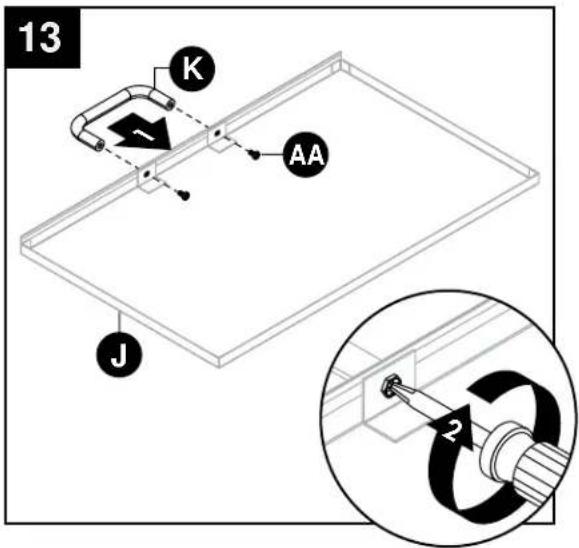

1. Attach ash tray handle (K) to ash tray (J) using two M6x12 bolts (AA).

Hardware Used

M6x12 Bolt

x 2

1. Insert ash tray (J) into lid and firebox assembly (B).

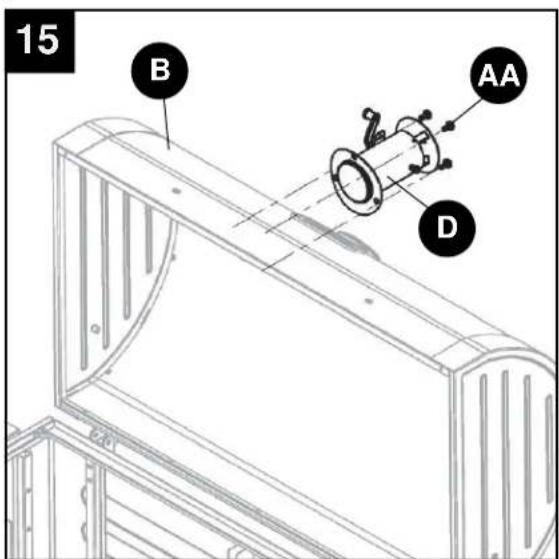

2. Attach smoke stack assembly (D) to lid and firebox assembly (B) using three M6x12 bolts (AA).

NOTE: Make sure the smoke stack damper adjustment handle faces the front of the grill.

Hardware Used

M6x12 Bolt

x 3

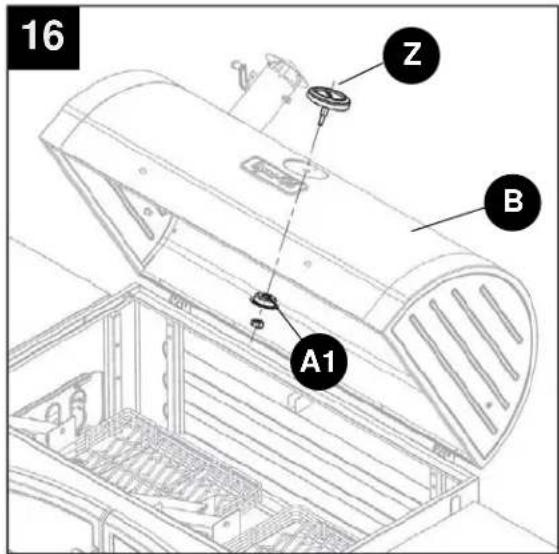

1. Attach temperature gauge (Z) and temperature gauge nut bezel (A1) to lid and firebox assembly (B) using pre-assembled nut.

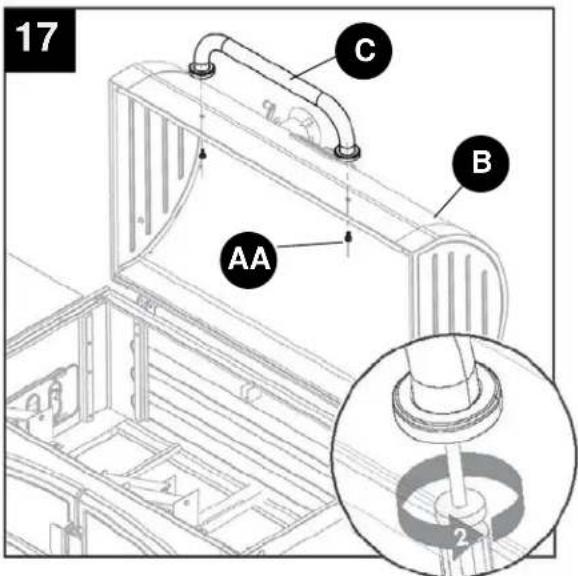

2. Attach lid handle assembly (C) to lid and firebox assembly (B) using two M6x12 bolts (AA).

Hardware Used

M6x12 Bolt

x 2

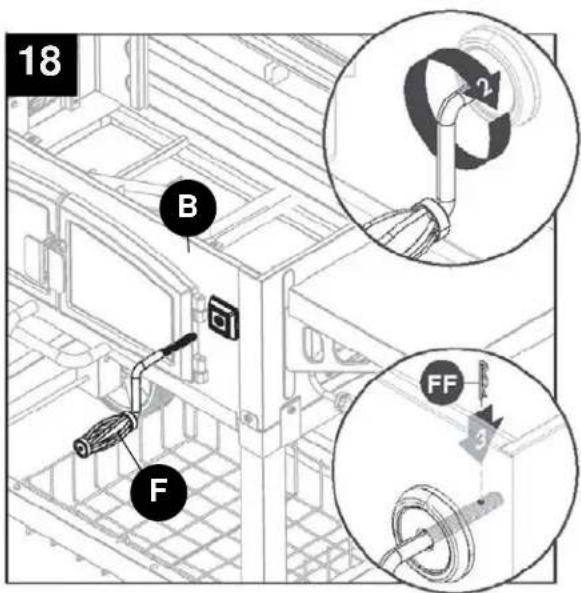

1. Thread crank handle (F) into lid and firebox assembly (B). Secure with one cotter pin (FF). Repeat for remaining crank handle (F).

Hardware Used

Cotter Pin

x 2

ASSEMBLY INSTRUCTIONS

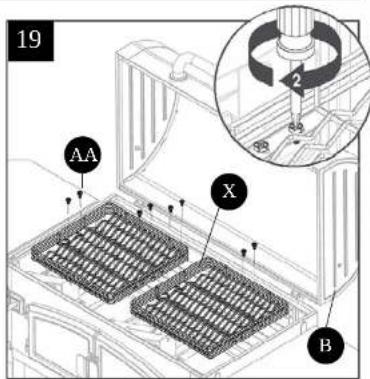

1. Attach two charcoal trays (X) to inside of lid and [rebox assembly (B) using four M6x12 bolts (AA) each.

Hardware Used

M6x12 Bolt

x8

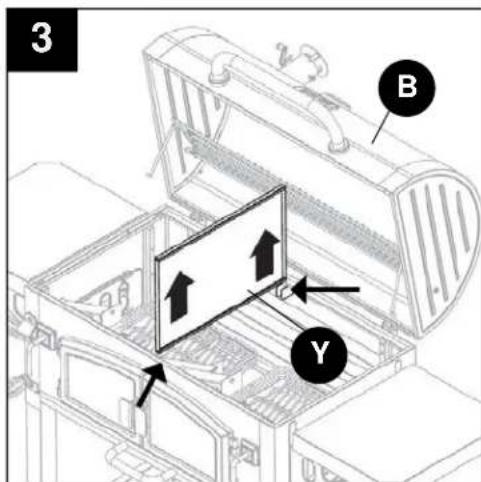

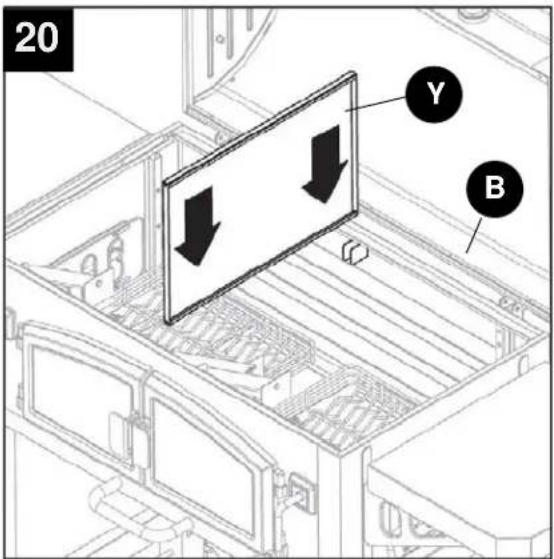

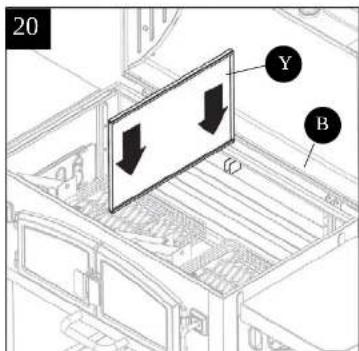

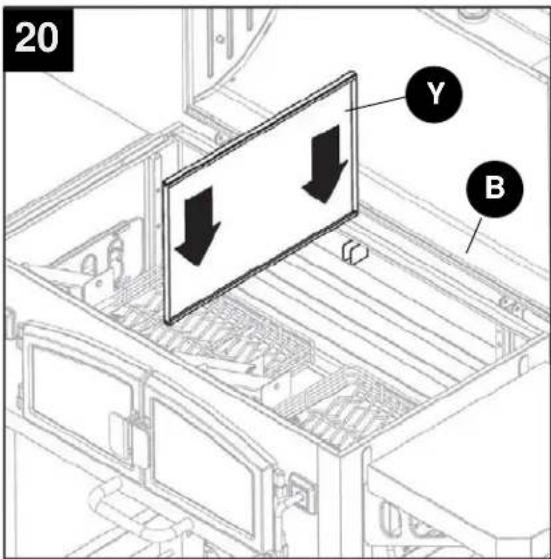

1. Insert the divider panel (Y) into the inside of the lid and Irebox assembly (B).

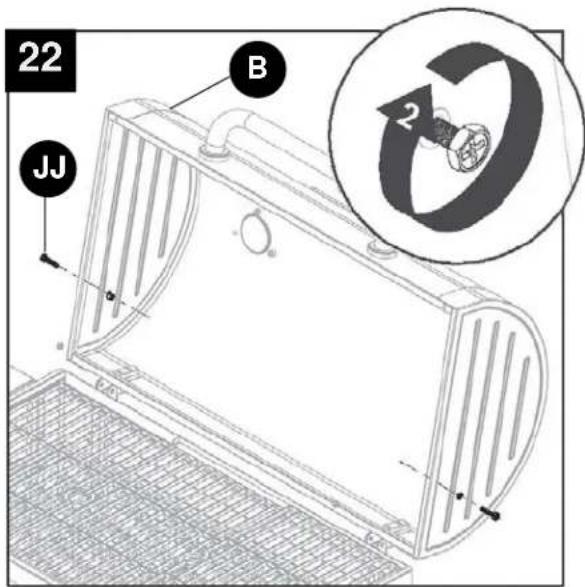

1. Attach one M6x30 bolt (JJ) on each side of lid and firebox assembly (B). DO NOT fully tighten.

Hardware Used

M6x30 Bolt

x 2

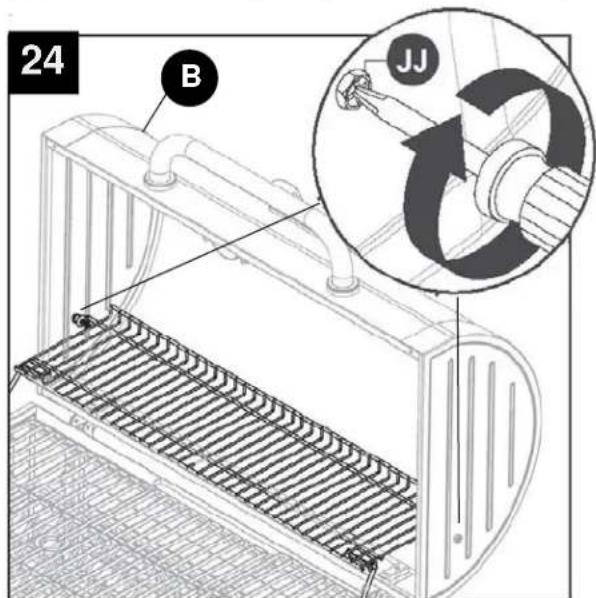

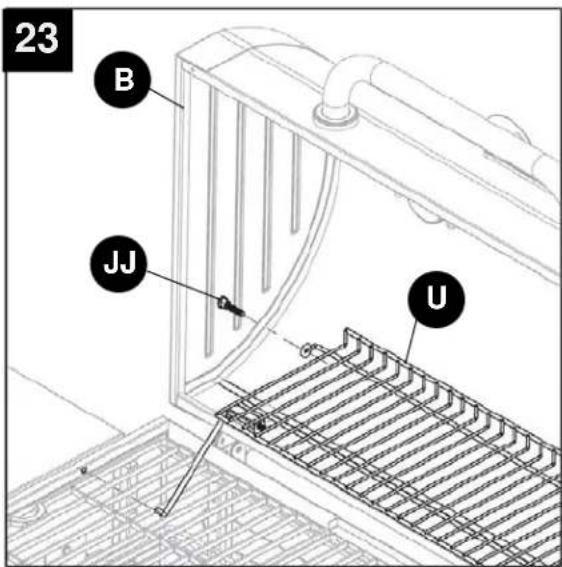

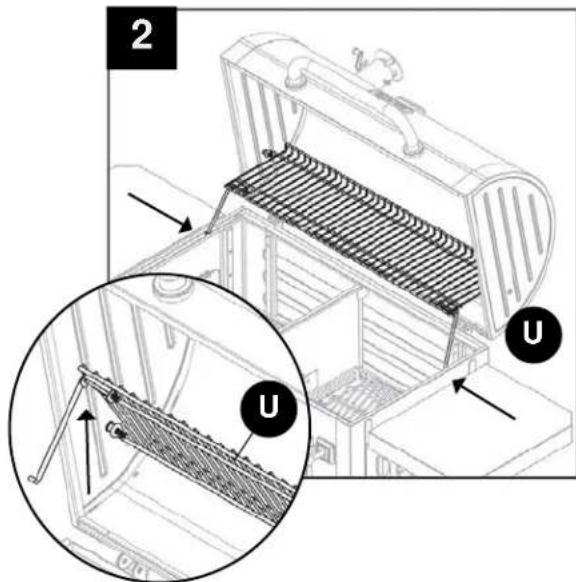

1. Insert one end of warming rack (U) onto M6x30 bolt (JJ) and into the hole on lid and firebox assembly (B). Repeat for other side.

2. Fully tighten M6x30 bolts (JJ) on each side of lid and firebox assembly (B).

Removing divider panel from grill

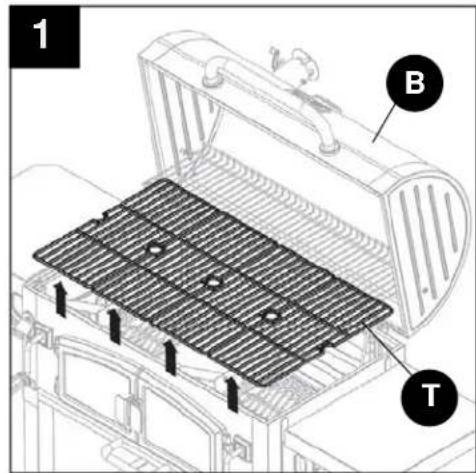

1. Remove four grates (T) in lid and firebox assembly (B).

2. Remove warming rack supports (U), from the firebox, by pressing both bars in towards the center of the grill. Swing the warming rack (U) up, to make clearance for the divider panel (Y).

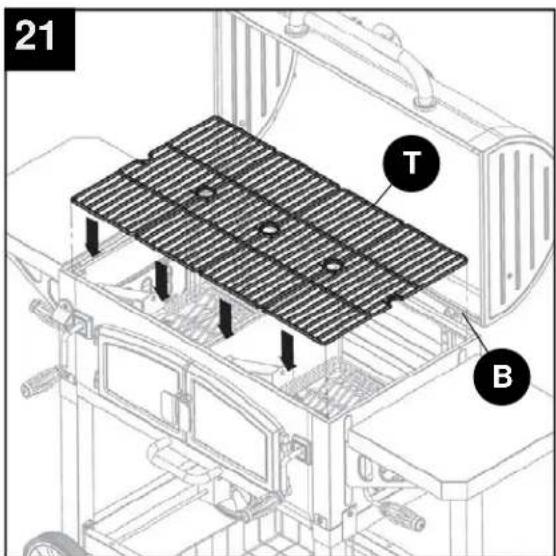

3. Remove divider panel (Y) from firebox assembly (B). Return grates and warming rack to their original positions.

NOTE: When placing the divider panel into the firebox assembly (B), please make sure the bottom of the divider fits between the support brackets located on the front and back sides of the firebox.

DANGER

- CARBON MONOXIDE HAZARD. Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, vehicles or tents.

This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised or lowered to desired height. This allows for different heat settings depending on the food you are cooking and the temperature at which you want to cook. It also allows easy cleaning of the interior of the firebox after the unit has cooled down completely. It is not recommended to raise a fully loaded charcoal tray higher than the middle height setting.

NOTE: The grate is coated with porcelain which is a fragile coating. Handle with care to avoid damage. DO NOT cool the grate in cold water while it is still hot or the coating may crack. Let the grate cool off by itself.

Charcoal Lighting Instructions

• Open grill top.
• Remove cooking grates.
• Adjust the preferred charcoal tray(s) to the center position, and place one even row of charcoal briquettes in the tray.
• Make sure that charcoal does not go above the top of the tray.
• Light briquettes.
• Move charcoal tray(s) to the bottom position.
• With the top open, allow the briquettes to fully ignite (to the point where there is no further flame).
• Once the briquettes are lit, put the grates back in the grill using heat resistant gloves.
• Adjust charcoal tray as required to achieve the proper temperature.

Adjusting Temperature

- For maximum heat/temperature, open both side air vents located on the side of the main body as required. To reduce the heat/temperature, close the air vents on the side of the main body.

NOTE: The temperature should not go above 500^ F( 260^ C). If the temperature goes above 500^ F ( 260^ C), you should open the lid and allow the briquettes to cool. The proper cooking temperature should not exceed 500^ F ( 260^ C).

Seasoning Unit

1. Before your first cooking you should season the unit to enhance the cooking and to provide better overall durability. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to foods.
2. Remove all retail hangtags that are on the unit, making sure NOT to remove safety markings from the unit.
3. Place one even row of charcoal briquettes in both charcoal trays. Make sure that charcoal does not go above the top of the trays.
4. Coat interior surfaces with vegetable cooking oil.
5. Light briquettes and set charcoal tray at medium height by cranking the crank handle.
6. Sustain burn for about two hours with lid closed and all dampers to 1/4 of the way open. Allow the unit to cool down properly.
7. Once this is completed, the unit is ready for use.

Rust can appear on the inside of your grill. Maintaining a light coating of vegetable oil on interior surfaces will aid in the protection of your grill. Exterior surfaces of the grill may need occasional touch up. We recommend the use of commercially available black high temperature spray paint. NEVER PAINT THE INTERIOR OF THE UNIT!

Operating The Front Door, Dampers, And Smoke Stack

WARNING: These metal parts could be very hot while grilling. Always operate these parts while wearing a heat-resistant glove.

• To open the door, lift the door slightly and pull.
• To close the door, lift the door slightly and push the door to the door frame catch.
• To adjust the side dampers, pull or push damper handle until desired air flow is achieved.
• To adjust the smoke stack, move the smoke stack adjustment handle away from the smoke stack and raise or lower the adjustment handle until the desired air flow is achieved.

Grilling

Charcoal is recommended, however wood or a combination of both may be used as the fuel source for grilling if the fuel source is placed and ignited on the charcoal pan. Do not build too large a fire. We recommend starting a fire with no more than 2 lbs of charcoal per tray (approximately 30 briquettes per tray) and adding more as needed during cooking. After allowing the fire to burn down, place the cooking grates in the unit. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and or property damage.

WARNING

• Most surfaces on this unit are hot when in use. Use extreme caution. Keep others away from unit.
  • Always wear protective clothing to prevent injury.
• Keep children and pets away.
• DO NOT move this unit during operation.
• Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states, the use of charcoal starter is prohibited by law. In this case, paraffin-based starter cubes can be substituted for charcoal starter. Never use charcoal starter fluid with an electric starter.

Grill Maintenance

Frequency of cleaning is determined by how often the grill is used. Make sure coals are completely extinguished and the grates are cooled down before cleaning inside of the unit. To remove the stains on the lid and front panel caused by fumigation while grilling, use of a cleaning pad is recommended. Wipe out the interior of unit with a cloth or paper towel. Clean the grates with warm water and pat dry. The coating is fragile. Do not knock, hit or drop the grates.

WARRANTY

1-Year Limited Warranty

This charcoal grill is warranted for 1 year against broken or damaged parts at the time of purchase. It is warranted to be free of defects. Paint is warranted to be free of defects except for rust, which may appear after repeated use.

This warranty does not cover damage or issues related to neglect, abuse, or modifications to the appliance. Repair labor is not covered.

All parts that meet the warranty requirements will be shipped at no charge via the discretion of GHP Group, Inc (ground shipments, US Mail, or Parcel Post ONLY). Any special handling charges (i.e. Second Day, overnight, etc.) will be the responsibility of the consumer.

All warranty claims apply only to the original purchaser and require a proof of purchase verifying purchase date. This service is available by calling toll free 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.

NOTICE: Some states do not allow the exclusion or limitations of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which may vary from state to state.

Manufactured by:

GHP Group Inc.

8280 Austin Avenue

Morton Grove, IL, USA

60053-3207

Item Name: Dual Chamber Charcoal Grill

Model #: DGN576SNC-D

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.

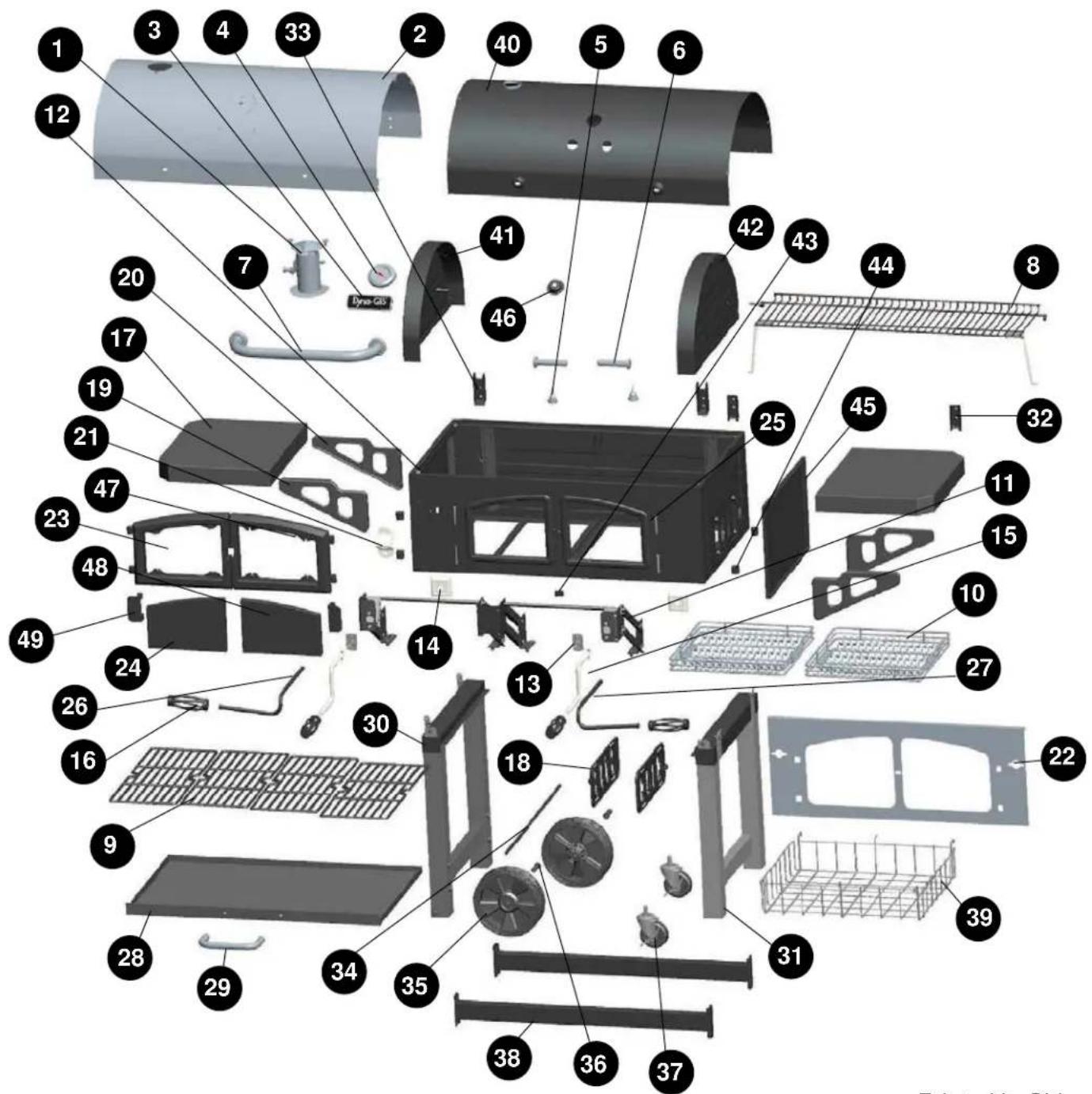

PART	DESCRIPTION
n/a	Hardware pack	404-03025-00
n/a	Owner's/instruction manual	70-10-022
1	Smoke stack-stainless steel	404-01002-05
2	Lid outer	404-03003-03
3	DynaGlo badge	213-02002
4	Temperature gauge – with nut	213-02005
5	Lid bumper	403-01002-07
6	Lid pin with cotter pin	404-03002-03
7	Lid handle with hardware	403-01002-02
8	Warming rack with supports	403-03007-00
9	Cooking grate – 1 piece	403-03006-00
10	Charcoal tray (left or right)	404-03003-02
11	Charcoal tray adjustment arm assembly (left or right)	403-03003-04
12	Firebox bottom assembly ONLY, WITHOUT – side damper, charcoal pan/tray, arm assembly to charcoal pan/tray, crank arm assembly, front access door, and bottle opener	414-03003-01
13	Threaded mount for charcoal tray adjustment crank	404-02003-10
14	Charcoal tray adjustment crank handle bezel-with screws (left or right)	403-03003-05
15	Charcoal tray adjustment crank only (left or right)	403-02003-02
16	Charcoal tray adjustment crank handle or side damper adjustment crank handle (same)	403-02003-05
17	Side shelf	414-03004-01
18	Side damper adjustment plate – left or right	403-02003-08
19	Side shelf support-left front or right rear (same)	403-01004-01
20	Side shelf support-left rear or right front (same)	403-01004-02
21	Bottle opener	403-01003-05
22	Stainless front for firebox	414-03003-02
23	Charcoal access door frame only – left	404-03014-02
24	Charcoal access door insert with hardware – left	404-03015-01
25	Charcoal access door hinge pin with cotter pin	401-01013-03
26	Side damper adjustment bar – left (without wire grip)	404-02003-06
27	Side damper adjustment bar-right (without wire grip)	404-02003-07
28	Ash pan without handle	403-03005-01
29	Ash pan handle with hardware	403-01005-02
30	Left leg assembly	403-03001-01
31	Right leg assembly	403-03001-02
32	Upper lid hinge	404-03002-04
33	Lower lid hinge	404-03002-02
34	Axle rod for wheels	403-01018-00
35	Wheel	403-01019-00
36	Sleeve for wheel axle	403-01021-00
37	Caster (includes wrench)	403-01014-02
38	Bottom brace-front or rear (same)	403-03016-00
39	Storage basket	403-01015-00
40	Lid inner	404-01002-06
41	End cap--left	404-01002-07

REPLACEMENT PARTS LIST

PART	DESCRIPTION
42	End cap--right	404-01002-08
43	Charcoal access door latch	403-03017-00
44	Charcoal access door hinge for firebox – with hardware	404-03016-00
45	Divider panel	404-03006-01
46	Temperature gauge nut bezel	213-02006
47	Charcoal access door frame only – right	404-03014-01
48	Charcoal access door insert with hardware – right	404-03015-02
49	Charcoal access door handle (left or right)	404-03017-01

Printed in China

Dyna-Glo™

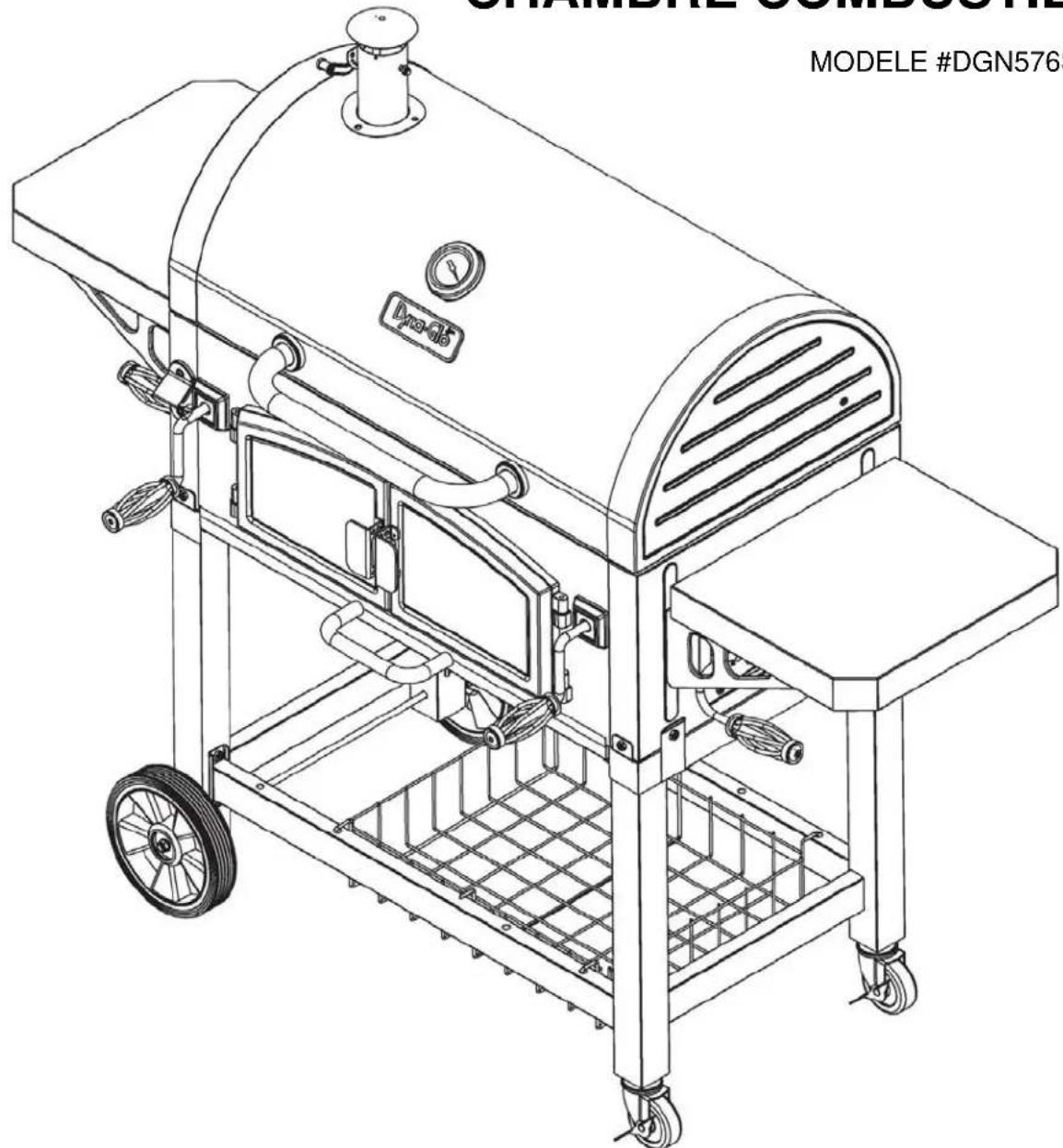

GRIL À CHARBON

DE BOIS À DOUBLE

CHAMBRE COMBUSTIBLE

MODELE #DGN576SNC-D

JOIGNEZ VOTRE REÇU ICI

INSTRUCTIONS POUR L'ASSEMBLAGE

Modele #: DGN576SNC-D

Imprimé en Chine

Dyna-Glo™

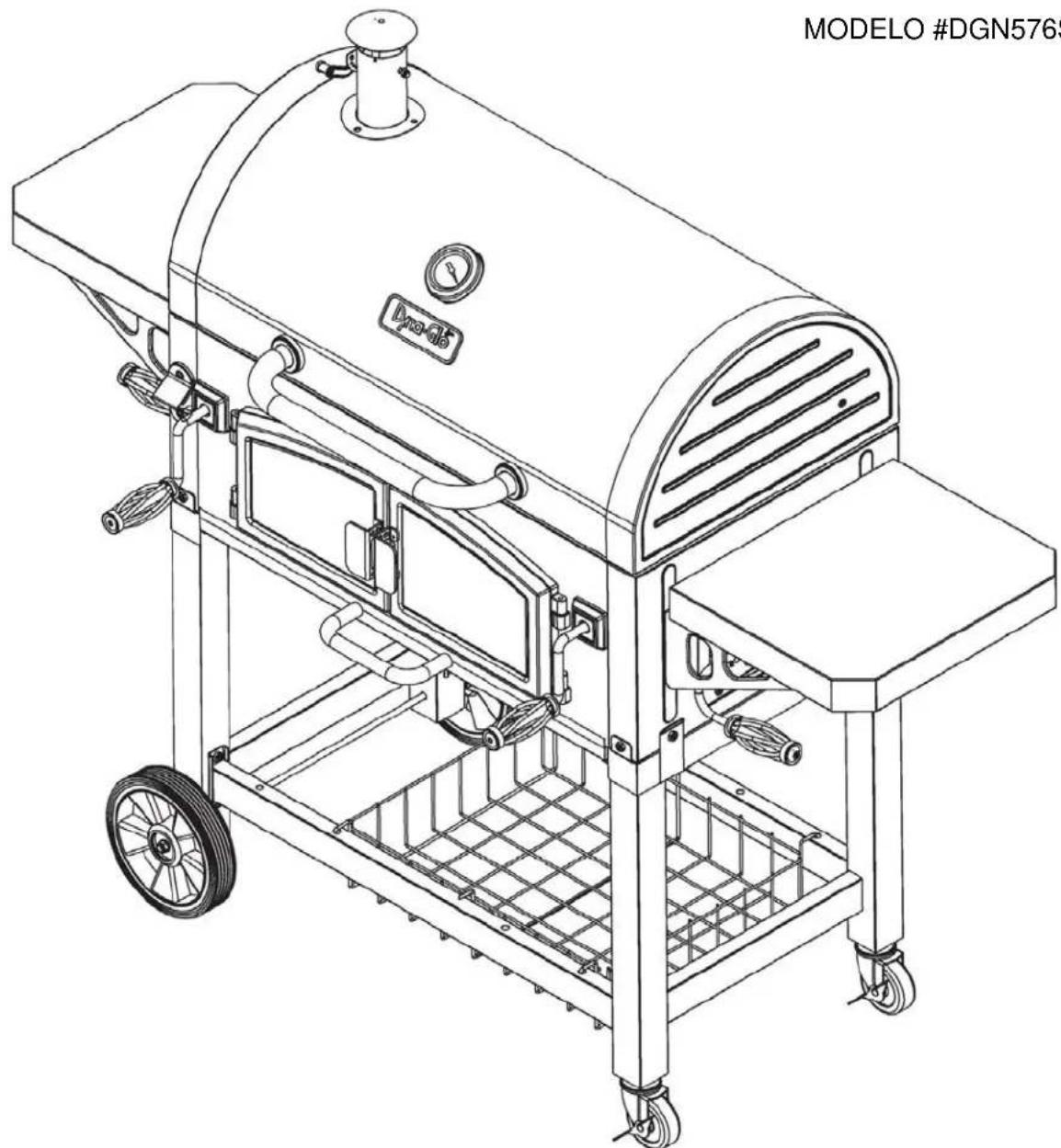

HORNO PARRILLA DE CAMARA DOBLE

MODELO #DGN576SNC-D

ADJUNTE SU RECIBO AQUÍ

INSTRUCCIONES DE ENSAMBLAJE

1. Acople la manija de la bandeja de ceniza (K) a la bandeja de ceniza (J) utilizando dos tornillos M6x12 (AA).

Impreso en China
