Product Type	Dual Fuel Grill (gas and charcoal)
Brand	Dyna-Glo
Model	DGP730SNBD
Use	Outdoor only
Gas fuel	Liquefied propane (20 lb max tank, not included)
Charcoal fuel	Charcoal briquettes (about 4 lbs recommended)
Rated power (gas)	24,000 BTU/h
Number of gas burners	2 main burners (per exploded view)
Cooking grates	4 cooking grates + 2 warming racks
Lid	2 independent lids (gas and charcoal) with thermometer and draft regulator
Ignition	Electronic by AAA battery (included) or match
Total cooking area	Approximately 730 sq cm (combined gas + charcoal area)
Built-in storage	Cabinet with doors (2) and shelf for gas tank
Side tables	2 small folding tables
Grease collector	Removable grease tray + container
Recommended cleaning	Mild soap and warm water; burn off residue after each use
Weight	Approximately 35 kg (estimated)
Dimensions (L x W x H)	Approximately 122 x 61 x 112 cm (estimated)
Warranty	1 year limited on parts; 90 days on paint
Customer service	1-877-447-4768 (Mon-Fri, 8:30-16:30 CST)

Frequently Asked Questions - DGP730SNBD Dyna-Glo

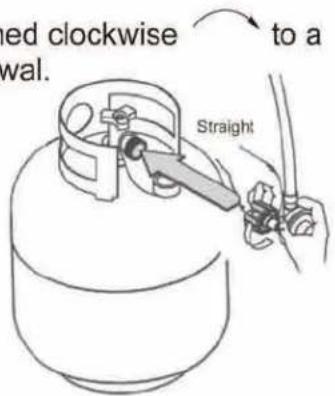

How to connect a propane tank to the grill?

Make sure the tank is 20 lbs max, equipped with an overfill protection device. Ensure the tank valve is closed and the control knobs are 'OFF'. Remove the protective cap, insert the regulator stem into the outlet hose, hand-tighten the coupling nut clockwise until it stops. Do not use tools.

How to detect a gas leak?

Prepare a soapy solution (1 part liquid dish soap to 3 parts water). Open the tank valve, spray the solution on all connections (valve, hose, regulator). If bubbles appear, there is a leak. Immediately close the valve and repair or replace the defective part.

What to do if the gas burner does not ignite with the electronic igniter?

First, check that the AAA battery is correctly inserted (positive side forward). Clean the ignition electrode with rubbing alcohol and a cotton swab. Ensure the electrode wires are securely connected. If the spark is weak or absent, replace the battery.

Can I use charcoal in the gas section?

No. The gas section is designed for propane only. Charcoal must be used in the separate charcoal firebox. Never mix fuels.

How to clean the cooking surface after use?

After each use, burn off residue by turning burners to high for 15 minutes with lid closed. Then let cool, brush grates with a wire brush. For deep cleaning, use mild dish soap and warm water.

What safety distance should be maintained around the grill?

Maintain a clearance of at least 36 inches (92 cm) from combustible materials on sides and back. Do not place grill under a flammable structure. Use only on a stable, non-combustible surface.

How to adjust temperature in the charcoal section?

Use the louvered vents on the lid to regulate air and thus temperature. Open them for more heat, close to reduce. You can also adjust the height of the charcoal grate using the crank: higher gives more heat, lower less.

What is the maximum recommended charcoal capacity?

Do not exceed 4 lbs (about 55 briquettes) for initial lighting. You can add more during cooking if needed. Never fill the charcoal grate above the average level to avoid excessive temperatures.

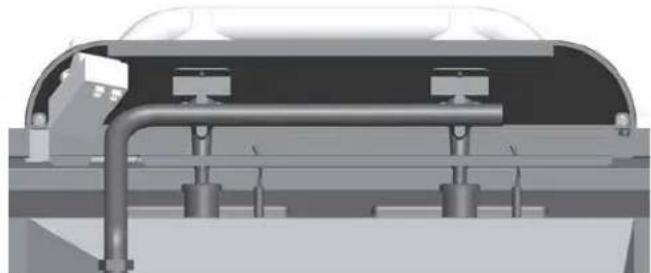

How to maintain the gas burner?

Regularly clean the burner ports with a pin or paperclip to remove obstructions. Check that the venturi tube is free of spider webs or debris. Ensure the burner is correctly positioned in the combustion chamber.

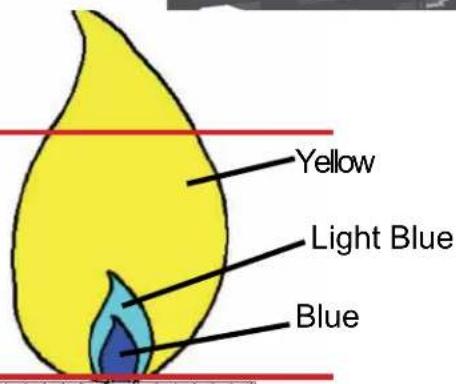

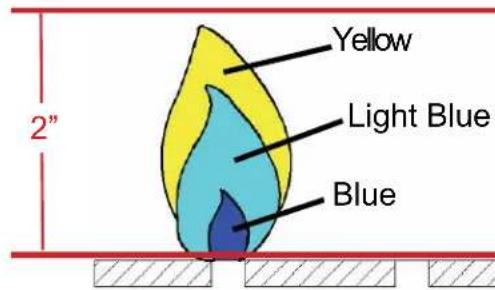

What to do if the burner flame is weak?

This may be due to the excess flow device activating. Close the tank valve, set all knobs to 'OFF', then slowly open the tank valve. Wait 10 seconds before relighting. If problem persists, check gas level or regulator condition.

USER MANUAL DGP730SNBD Dyna-Glo

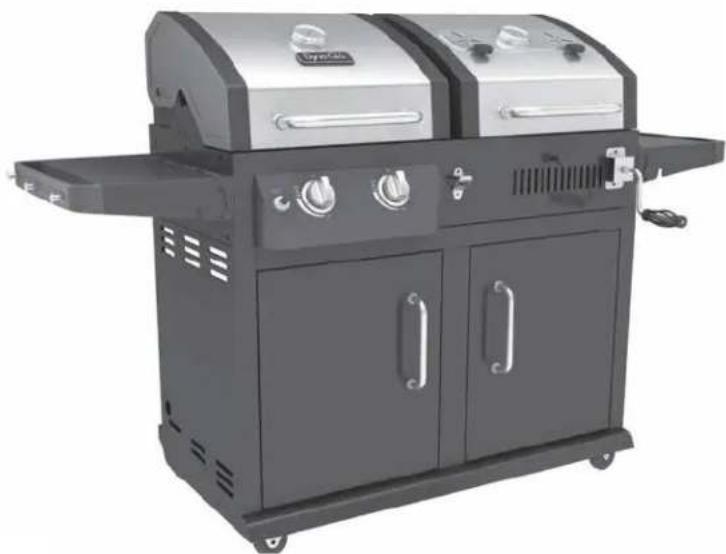

USER'S MANUAL AND OPERATING INSTRUCTIONS

ANS Z21.58b-2012 CSA1.6b-2012

Outdoor Cooking Gas Appliance

Assembler/Installer: This manual contains important information necessary for the proper assembly and safe use of this appliance. Read and follow all warnings and instructions before assembling and using this appliance. Leave these instructions with the consumer.

Consumer/User: Follow all warnings and instructions when using this appliance. Retain these instructions for future reference.

DANGER:

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING:

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
3. This grill is for outdoor use only, and shall not be used in a building, garage, under overhangs or any other enclosed area.
4. Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m., CST, Monday - Friday or e-mail us at [e-mail].

STOP!

NO NEED TO RETURN TO THE STORE

Questions With The Assembly?

Require Parts Information?

Product Under Manufacturers Warranty?

Call Toll Free: 1-877-447-4768

8:30 a.m. - 4:30 pm CST, Monday - Friday

Retain This Owner's Manual And Proof Of Purchase For Future Reference

To help us help you

Fill in the information below:

Place of Purchase

Model NumberDate of Purchase

Product Serial No

MODEL NUMBER AND PRODUCT SERIAL NUMBER CAN BE FOUND ON THE RATING LABEL OF YOUR GRILL.

TABLE OF CONTENTS

6DIHW\ ,QIRUPDWLRQ 2
3DFNDJH &RQWHQWV 5
,OOXVWUDWHG 3DUWV /LVW
+DUGZDUH &RQWHQWV 6
Assembly Instructions 8
Operation Instructions 22
Care and Maintenance 29
Troubleshooting 33

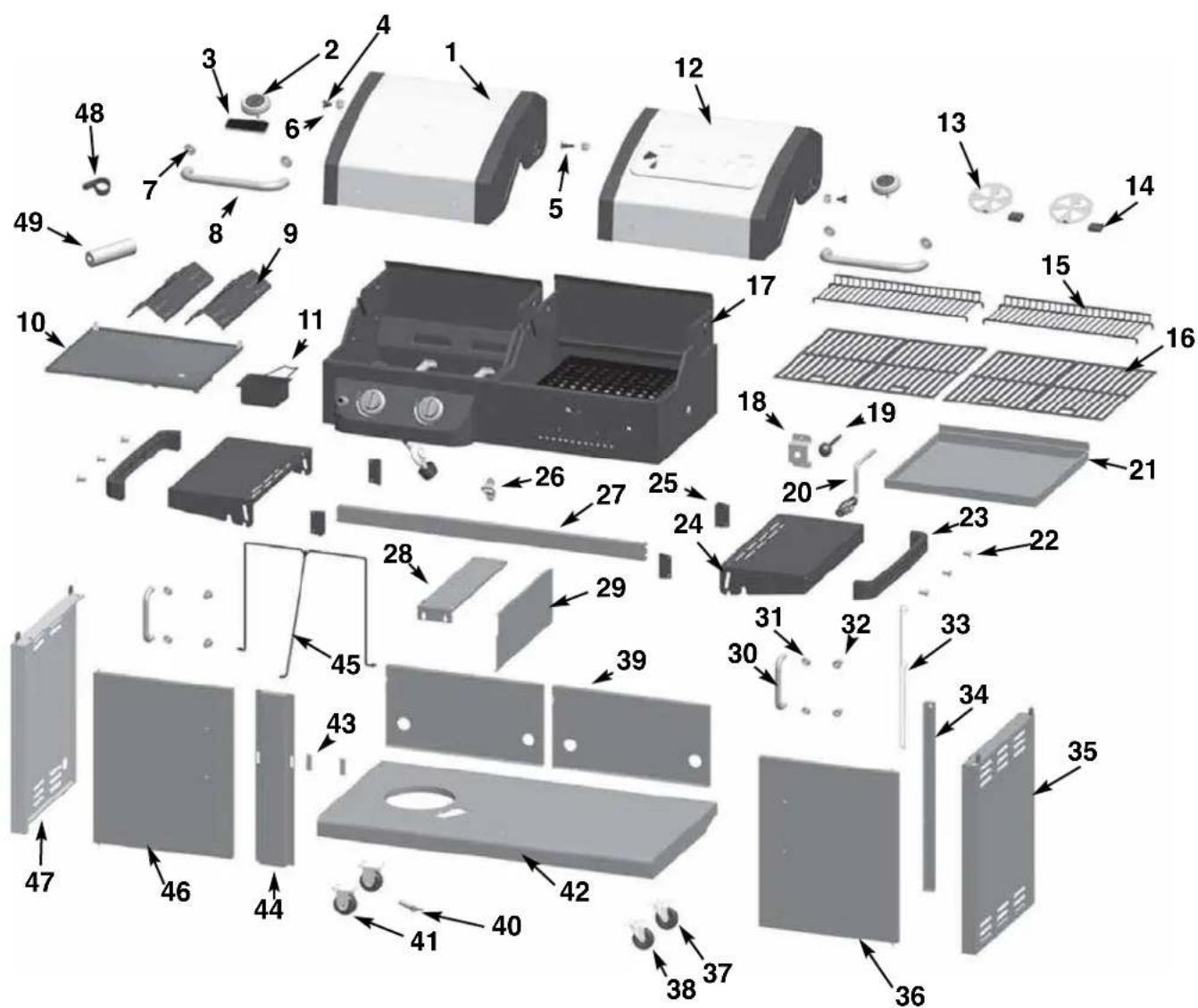

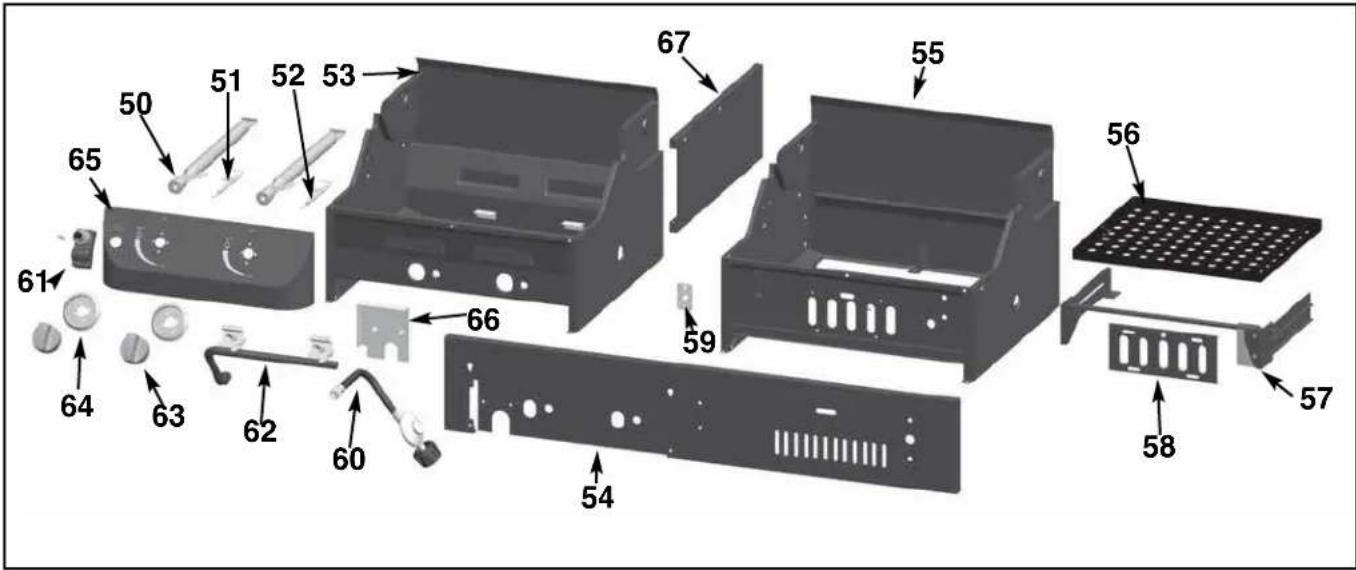

Replacements Parts List 36
Warranty 40

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at: 1-877-447-4768, 8:30 a.m. - 4:30 p.m., CST, Monday - Friday.

• This grill is for outdoor use only in well-ventilated areas.
• Keep a Class B fire extinguisher near this product at all times.
• DO NOT store or use gasoline or any other flammable vapors and liquids within 25 feet (8 m) of this or any other appliance.
• An LP Cylinder not connected for use should be stored a minimum of 10 feet (3 m) away from this or any other appliance.
• DO NOT operate the unit near or under flammable or combustible materials such as decks, porches or carports. A minimum clearance of 36 in. (92 cm) is recommended. DO NOT operate the unit under overhead construction.
• A minimum clearance to combustible construction is 36 in. (92 cm) from sides and back.
• The propane grill side is for use with propane gas only (propane gas cylinder not included).
• Never attempt to attach this grill to the self-contained propane system of a boat, camper trailer, motor home or house.
• Never use charcoal lighter fluid on the GAS grill side.
• Do not use gasoline, kerosene or alcohol for lighting. The LP gas supply cylinder used with this appliance must be:

(a) Constructed and marked in accordance with the Specifications for LP-Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; and
(b) Provided with a listed overfilling prevention device.
(c) Provided with a cylinder connection device compatible with the connector for outdoor cooking appliances. This grill is not intended to be used in or installed on recreational vehicles and/or boats.

• DO NOT use this product in a manner other than its intended a purpose. It is NOT intended for commercial use.
• Do not attempt to move the grill while it is lit, when it is hot, while in use, or while ashes are still hot. The casters should be locked when not moving the grill.
• DO NOT leave hot ashes unattended until the grill cools completely.
  DO NOT use this appliance as a heater.
• Operate the unit on a stable, level, non-flammable surface such as asphalt, concrete or solid ground. DO NOT operate the unit on flammable material such as carpet or wood deck.
• Use caution when assembling and operating this unit to avoid cuts and scrapes from edges.
• Do not use the grill unless it is completely assembled and all parts are securely fastened and tightened.
• Use caution when lifting and moving the unit to avoid back strain or back injury.
• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all times.

SAFETY INFORMATION

• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc...).
• Do not alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or leaks, the hose must be replaced prior to operating the appliance. The replacement hose assembly will be that which is specified by GHP Group, listed in the repair parts list in this manual.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Never keep a filled container in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.
• Keep the grill's valve compartment, burners and circulating air passages clean. Inspect the grill before each use. Do not obstruct the flow of gas or ventilation air.
• The use of alcohol, prescription or non-prescription drugs may impair the operator's ability to properly assemble or safely operate the grill.
• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn you severely.
• Always cook your food on the charcoal grate after the flame has burned out.
• Dispose of cold ashes by wrapping them in a heavy-duty aluminum foil and placing in a noncombustible container. Make sure that there are no other combustible materials in or near the container.
• If you must dispose of ashes in less time then it takes for the ashes to completely cool down, then remove the ashes from the unit, keeping them in the heavy-duty foil, and soak them completely with water before disposing of them in a noncombustible container.
• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.
• Do not place this grill on any type of tabletop surface. The grill should be placed on a flat and level surface.
• Do not use the grill in high winds.
• Do not modify this grill for use with other indoor or outdoor fixtures, such as countertops or drop-in grill islands.
• Do not use this grill indoors.

CALIFORNIA PROPOSITION 65

1. Fuels used in gas, charcoal, wood, or oil fired appliances and the products of combustion of such fuels, contain Chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
2. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

SAFETY INFORMATION

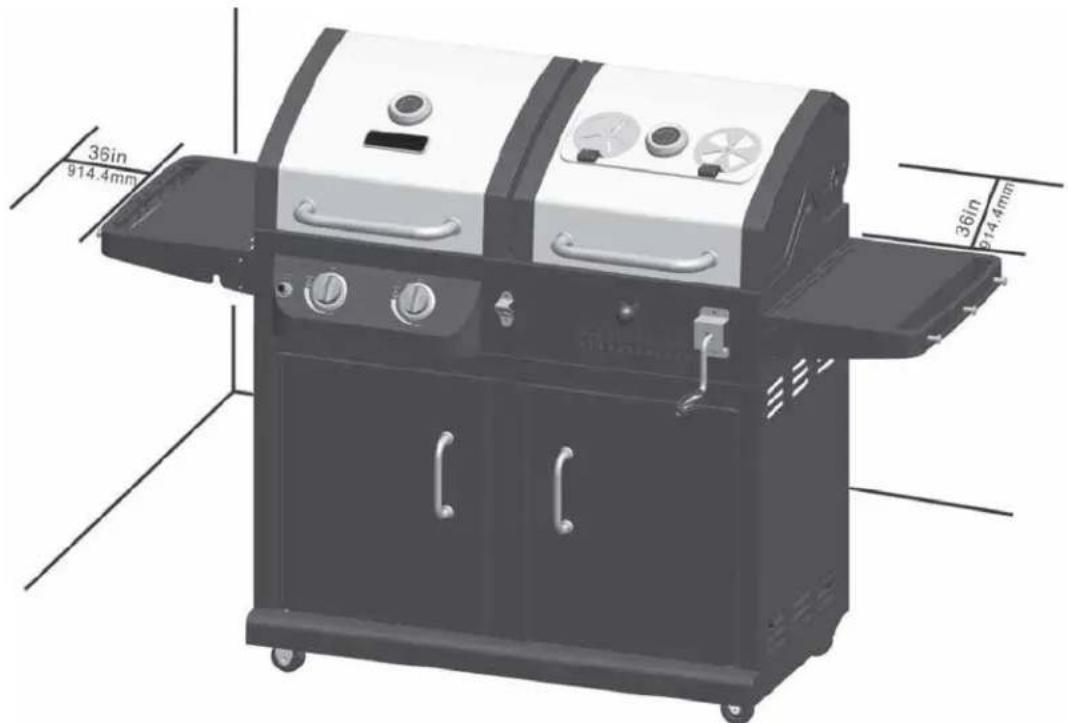

WARNING

Do not place the grill under overhead combustible construction or awnings. Minimum clearance from sides and back of unit to combustible construction, 36 inches (914.4mm) from sides and back.

All of the above noted clearances are with respect to combustible wood structures or construction. Greater clearances are recommended for vinyl structures or construction.

NOTE: The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.

DANGER

CARBON MONOXIDE HAZARD

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, garages, vehicles, or tents.

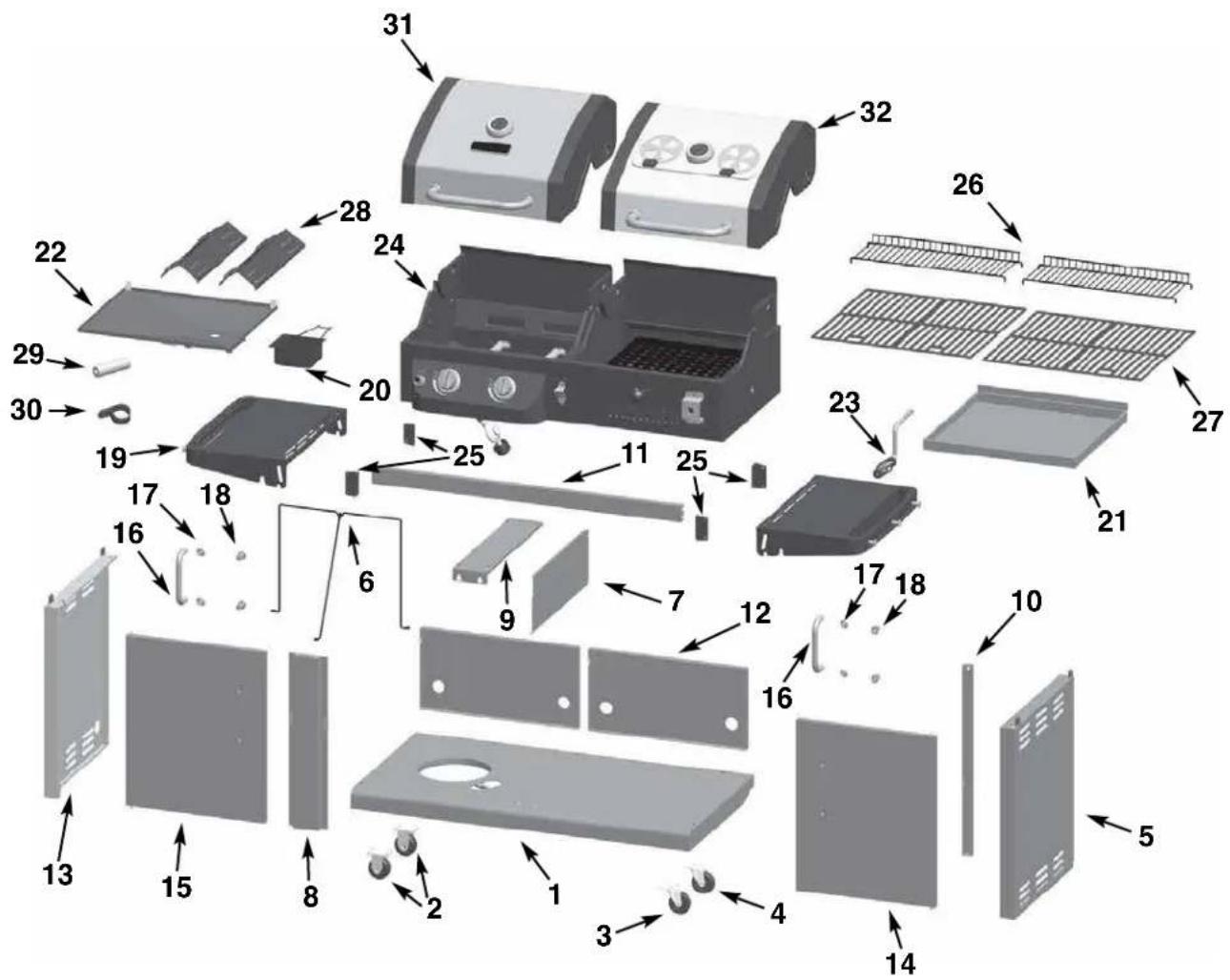

PACKAGE CONTENTS

BEFORE STARTING ASSEMBLY, UNPACK CARTON AND VERIFY CONTENTS. COMPRE ENCLOSED PARTS WITH PACKAGE CONTENTS LIST AND DIAGRAM. IF ANY PART IS MISSING OR DAMAGED, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT. CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.

1-877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.

Part No.	Description	Qty	Part No.	Description	Qty
1 bottom shelf 1 17 door handle bezel 4
2 direction caster 2 18 door handle sleeve 4
3 non-locking swivel caster 1 19 side table 2
4	locking swivel caster	1	20	grease cup	1
5	cart right side panel	1	21	ash pan	1
6	LP cylinder exclusion	1	22	grease pan	1
7	heat shield	1	23	charcoal tray adjustment handle	1
8	cart front vertical beam	1	24	grill body	1
9	cart middle cross beam	1	25	side table support	4
10	cart rear vertical beam	1	26	warming rack	2
11	upper front door brace	1	27	cooking grate	4
12	cart rear panel	2	28	heat tent	2
13	cart left side panel	1	29	AAA battery (1.5V)	1
14	right door assembly	1	30	LP gas hose holder	1
15	left door assembly	1	31	Gas grill lid assembly	1
16	door handle	2	32	Charcoal grill lid assembly	1

PACKAGE CONTENTS

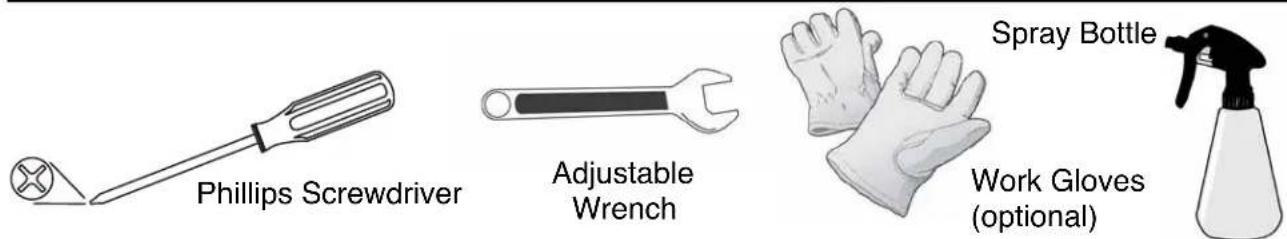

Tools Required for Unpacking, Assembly and Leak Testing of This Product:

Estimated Assembly Time: 30-45 minutes

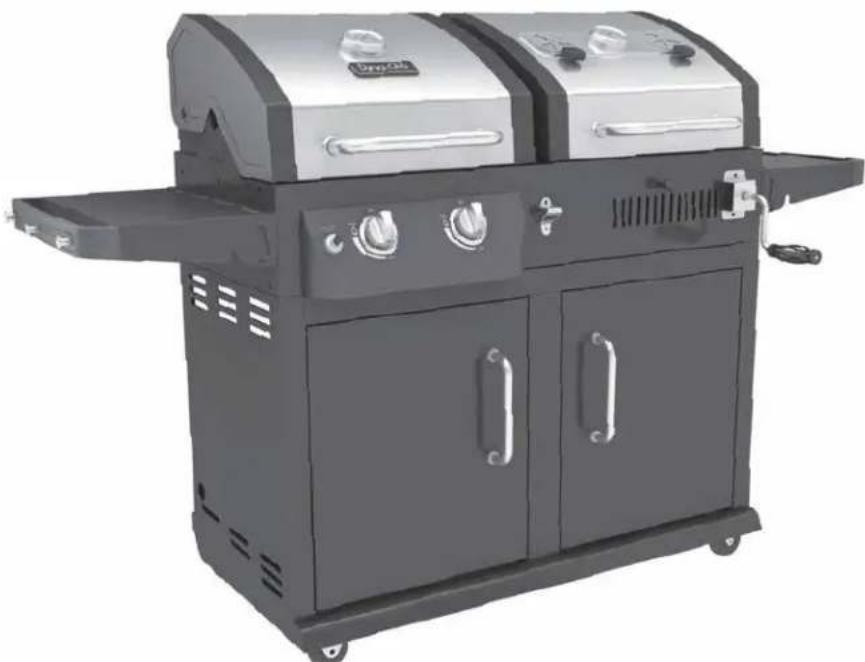

Dual Fuel Grill

Dyna-Glo

HARDWARE CONTENTS

Part Description Qty Fig
A M6x12 Screw 52
A M6x12 Screw 4 (Pre-assembled in cabinet door handles)
B M6 Plain Washer 23
C M6 Spring Washer 16
D M4x12 Screw 8
E M6 Shoulder Screw 8
F M4 Nut 1
G Cotter Pin 1
H Lid Pivot Pin A - Left & Right 2
I	Lid Pivot Pin B - Middle	1
J	Cap Nut	3

ASSEMBLY INSTRUCTIONS

NOTE: Use caution when assembling and operating this unit to avoid cuts and scrapes from edges.

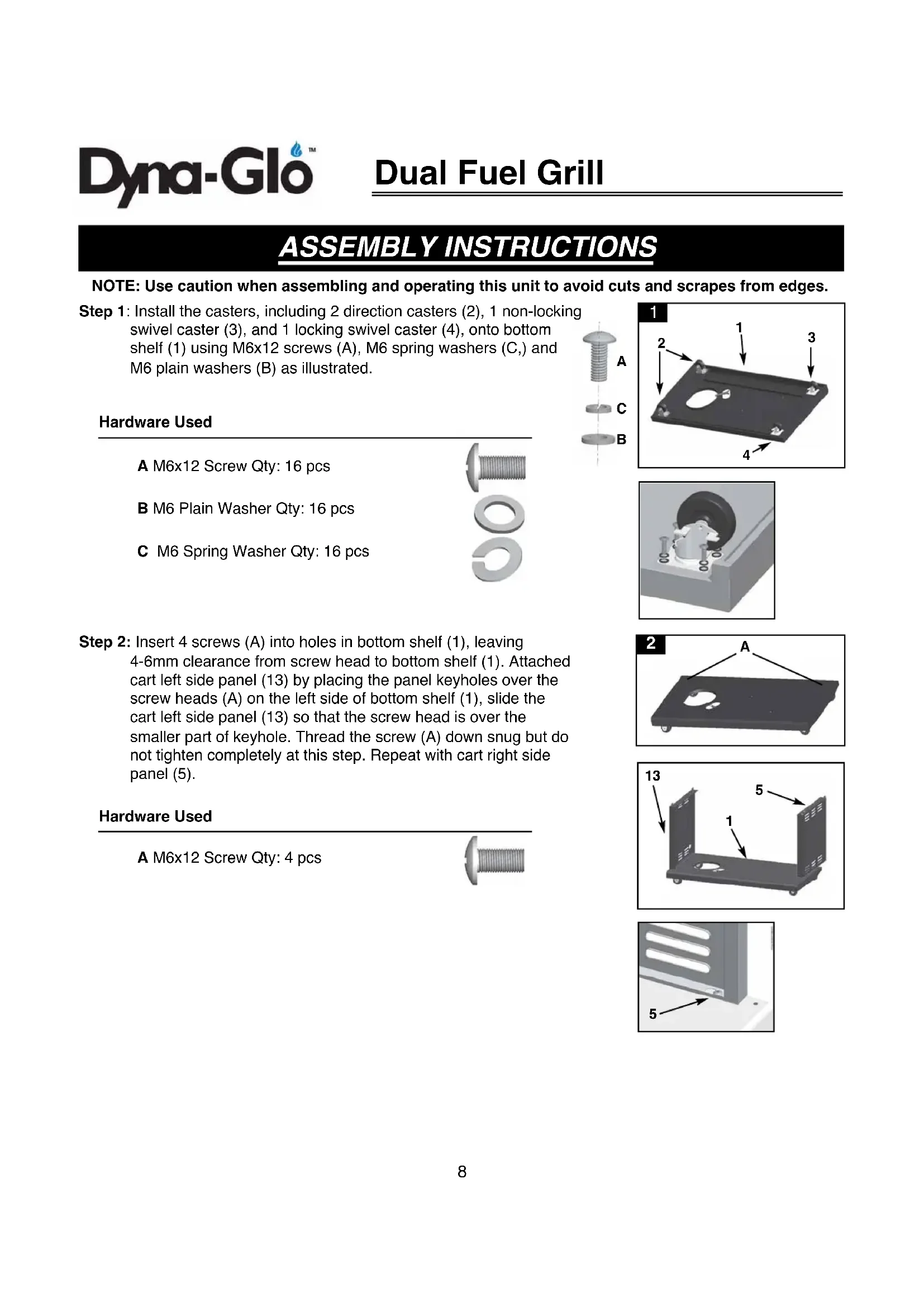

Step 1: Install the casters, including 2 direction casters (2), 1 non-locking swivel caster (3), and 1 locking swivel caster (4), onto bottom shelf (1) using M6x12 screws (A), M6 spring washers (C,) and M6 plain washers (B) as illustrated.

Hardware Used

A M6x12 Screw Qty: 16 pcs
B M6 Plain Washer Qty: 16 pcs
C M6 Spring Washer Qty: 16 pcs

Step 2: Insert 4 screws (A) into holes in bottom shelf (1), leaving 4-6mm clearance from screw head to bottom shelf (1). Attached cart left side panel (13) by placing the panel keyholes over the screw heads (A) on the left side of bottom shelf (1), slide the cart left side panel (13) so that the screw head is over the smaller part of keyhole. Thread the screw (A) down snug but do not tighten completely at this step. Repeat with cart right side panel (5).

Hardware Used

A M6x12 Screw Qty: 4 pcs

ASSEMBLYINSTRUCTIONS

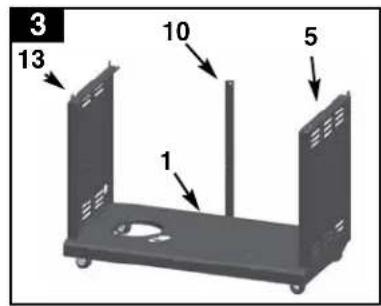

Step 3: Attach cart rear vertical beam (10) to the middle of the back in bottom shelf (1) by using one M6x12 screw (A). Tighten the screw.

Hardware Used

A M6x12 Screw Qty: 1 pcs

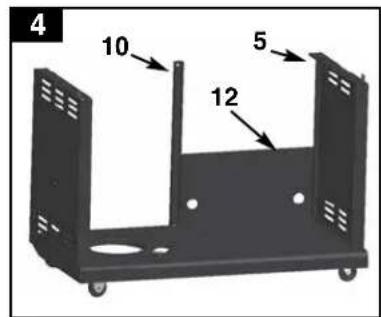

Step 4: Insert one M6x12 screw (A) into each of the rear holes of the cart right side panel and cart rear vertical beam (5 & 10), leaving 4-6mm clearance from screw head to the right side panel and cart rear vertical beam (5 & 10). Attached one of the cart rear panels (12) by sliding the keyholes in the cart rear panel over the inserted screws and then push with force. Secure the cart rear panel (12) to the bottom shelf (1) by using two M6x12 screws (A). Tighten the two M6x12 screws on cart right side panel and cart rear vertical beam (5 & 10).

Hardware Used

A M6x12 Screw Qty: 4 pcs

ASSEMBLY INSTRUCTIONS

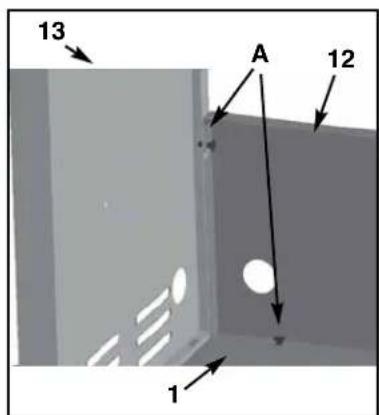

Step 5: Insert one M6x12 screw (A) into each of the rear holes of the cart left side panel and cart rear vertical beam (13 & 10), leaving 4-6mm clearance from screw head to the cart left side panel and cart rear vertical beam (13 & 10). Attach the other cart rear panels (12) by sliding the keyholes in the cart rear panel over the inserted screws and then push with force. Secure the cart rear panel (12) to the bottom shelf (1) by using two M6x12 screws (A). Tighten the two M6x12 screws on cart left side panel and cart rear vertical beam (13 & 10).

Hardware Used

A M6x12 Screw Qty: 4 pcs

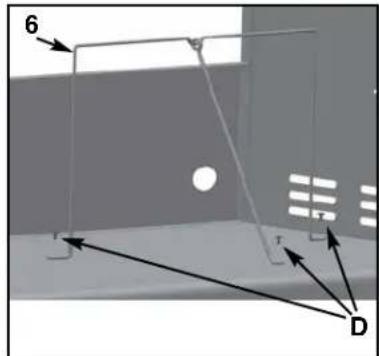

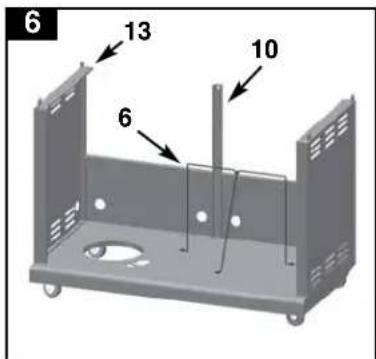

Step 6: Attach LP cylinder exclusion (6) to the bottom shelf (1) by using three M4x12 screws (D).

Hardware/Parts Used

D M4x12 Screw Qty: 3 pcs

ASSEMBLYINSTRUCTIONS

Step 7: Preassemble cart front vertical beam (8) and upper front door brace (11) as "T" shape by using two M6x12 screws (A).

Hardware/Parts Used

A M6x12 Screw Qty: 2 pcs

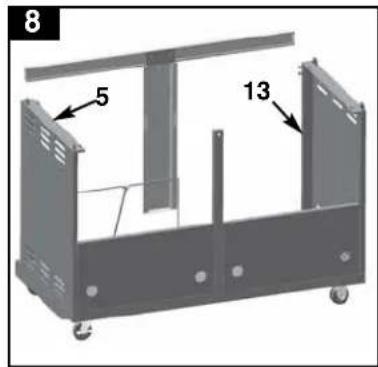

Step 8: Preassemble cart front vertical beam (8) and upper front door brace (11) as "T" shape assembly. Insert two M6x12 screws (A) into each of the top mounting holes (labeled as AA) on the cart left side panel and cart right side panel (13 & 5), leaving 4-6mm clearance from screw head to the cart left side panel and cart right side panel (13 & 5). Attach the Cart front vertical beam (8) and upper front door brace (11) assembly by placing the key holes over the inserted screw head (A) on the side panels (13 & 5), slide the upper front door brace (11) so that the screw head is over the smaller hole. Secure the screws, but do not tighten completely this time. Secure another two M6x12 screws into holes (labeled as BB). Finally, secure the cart front vertical beam (8) to bottom shelf (labeled as CC) by using two M6x12 screws (A).

Hardware Used

A M6x12 Screw Qty: 6 pcs

ASSEMBLY INSTRUCTIONS

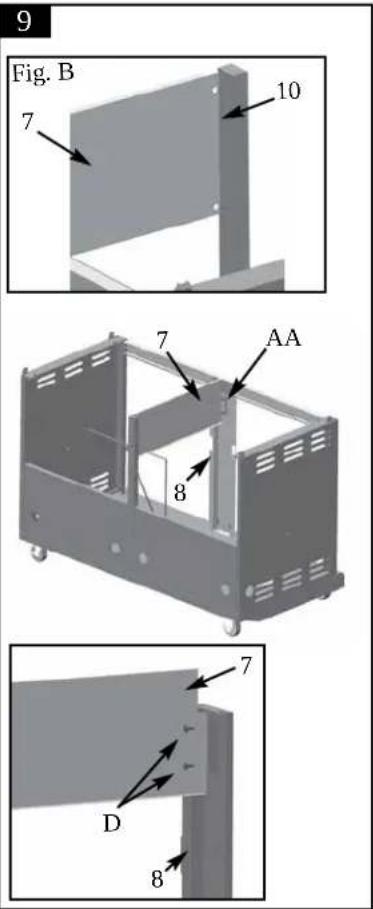

Step 9: Place the heat shield (7) into the cart rear vertical beam (10), as illustrated on below magnifying figure B. Secure heat shield (7) to the cart front vertical beam (8, labeled as AA) by using two M4x12 screws (D), secure heat shield (7) to cart rear vertical beam (10, labeled as CC) by using two M4x12 screws (D).

Hardware Used

DM4x12 Screw Qty: 4 pcs

ASSEMBLYINSTRUCTIONS

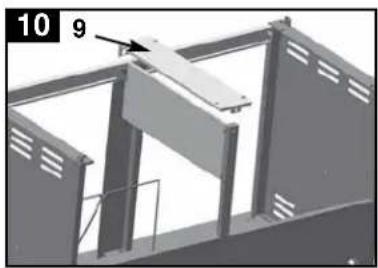

Step 10: Insert two M6x12 screws (A) into upper front door brace (11, labeled as AA and BB), leaving 4-6mm clearance from screw head to the upper front door brace (11). Attach the Cart middle cross beam (9) by placing the keyholes over the screw head (A) on the upper front door brace (11), slide the cart middle cross beam (9) so that the screw head is over the smaller part of keyhole. Secure the screws but do not tighten completely this time. Install one M6x12 screw (A), labeled as CC. Tighten the screws.

View from the back.

Hardware Used

A M6x12 Screw Qty: 3 pcs

ASSEMBLY INSTRUCTIONS

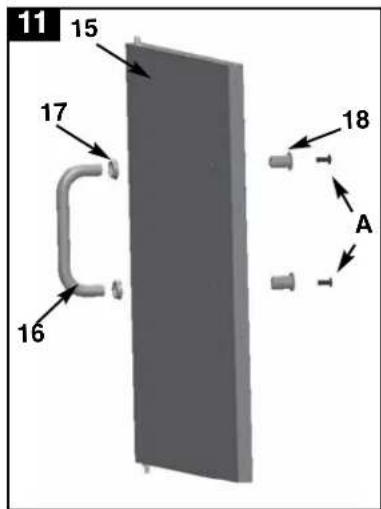

Step 11: Remove preassembled two M6x12 screws (A) and door handle sleeve (18) from the door handle. Insert the 2 door sleeves (18) into the holes located on the back of left door assembly (15), insert two M6x12 screws (A) into the door handle sleeve (18), through the door handle bezels (17) and into the thread holes in the door handles. Tighten the screws. Repeat with right door assembly (14).

Hardware Used

A M6x12 Screw Qty: 4 pcs

(Pre-assembled in cabinet door handles)

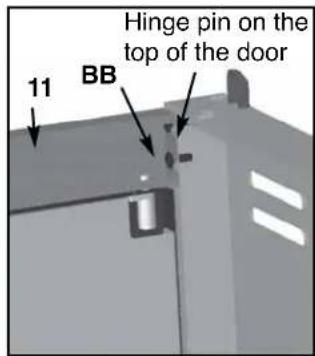

Step 12: Insert the bottom hinge pin of left door assembly (15) into the hole (labeled as AA) on bottom shelf (1). Press the hinge pin on the top of left door assembly (15) by hand and insert into the hole (labeled as BB) of upper front brace (11). Repeat the same with right door assembly (14).

ASSEMBLYINSTRUCTIONS

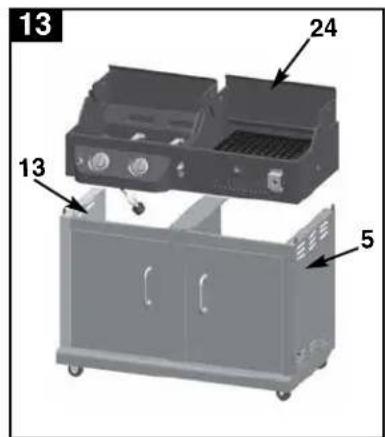

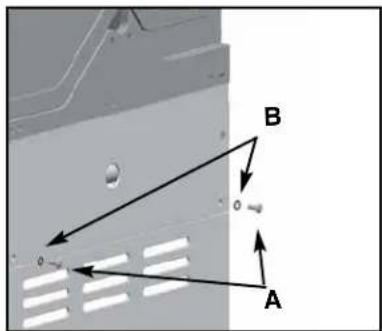

Step 13: Carefully place the grill body (24) onto the cart left side panel and cart right side panel (13 & 5). Adjust the grill body (24) so that the holes in the grill body (24) are aligned with the holes in the tabs of the cart side panels (13 & 5). NOTE: Make sure the gas hose is inside the cart. Fasten the grill body (24) by using two M6x12 screws (A) and plain washer (B) on each side.

Hardware Used

A M6x12 Screw Qty: 4 pcs

B M6 Plain Washer Qty: 4 pcs

ASSEMBLY INSTRUCTIONS

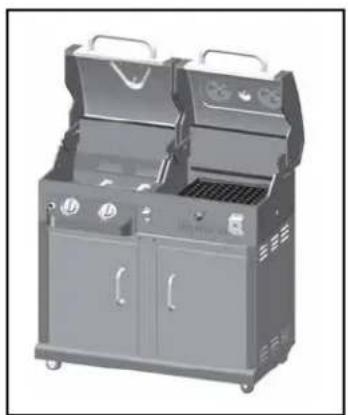

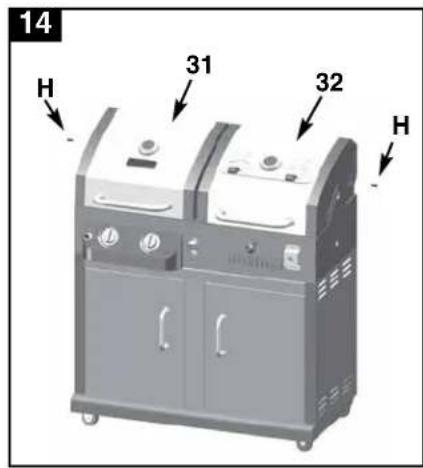

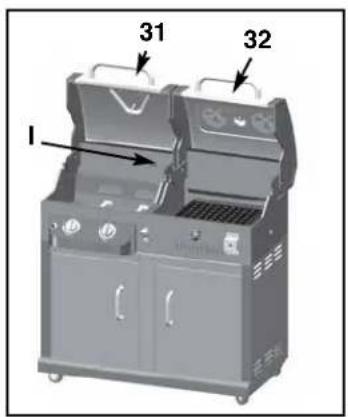

Step 14: Carefully place Gas grill lid assembly (31) and charcoal grill lid assembly (32) onto the gas grill and charcoal firebox separately. Insert 1 Lid pivot pin A -left & right HH into the hole in left side panel of gas grill firebox through the left mounting hole on the left of gas grill lid assembly (31); Insert 1 Lid pivot pin A - left & right (H) into the hole in right side panel of char coal grill firebox through the right mounting hole on the right of charcoal grill lid assembly (32); Insert 1 Lid pivot pin B- Middle II into the hole in the right side of gas grill firebox through the hold in the right of gas grill lid assembly (31), the hole in the left of charcoal grill lid assembly (32), and the hole in the left of charcoal grill firebox. Note: lift the grill gas lid assembly (31) and charcoal grill lid assembly (32) while inserting the Lid pivot pins, make sure the holes are in position. Secure Lid pivot pin A - reft & right (H) and Lid pivot pin B - Middle II with 3 cap nuts (J)and 3 plain washers (B).

Hardware Used

H Lid Pivot Pin A Qty: 2 pcs

I Lid Pivot Pin B Qty: 1 pcs

J Cap Nut Qty: 3 pcs

B M6 Plain Washer Qty: 3 pcs

ASSEMBLYINSTRUCTIONS

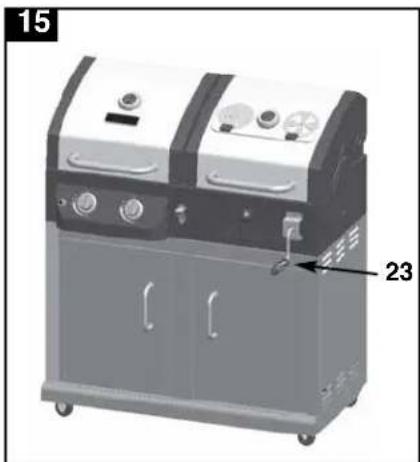

Step 15: Attach the Charcoal tray adjustment handle (23) to grill body (24) by rotating the handle clockwise. Insert the cotter pin (G) while the Charcoal tray adjustment handle (23) rotates in position.

Hardware Used

G Cotter Pin Qty: 1 pcs

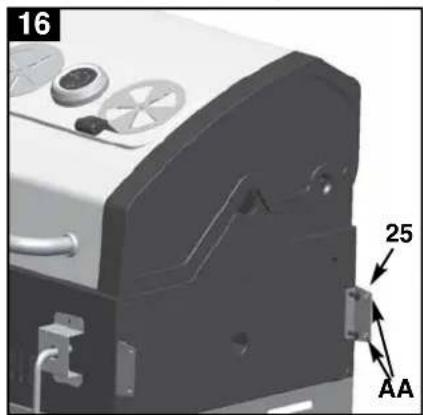

Step 16: Install four side table supports (25) with two M6x12 screws (A) separately into holes (labeled as AA) in side of grill body (24) and tighten the screws.

Hardware Used

A M6x12 Screw Qty: 8 pcs

ASSEMBLYINSTRUCTIONS

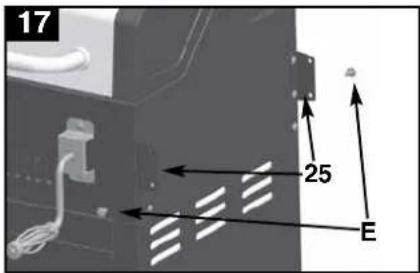

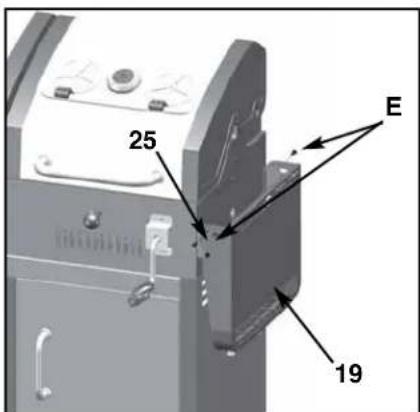

Step 17: First, Secure 2 shoulder screws (E) into holes of side table supports (25) as shown. Secure side table (19) onto side table support (25) by tightening 2 shoulder screws (E) into holes as shown. Repeat step with the other side table.

Hardware Used

EM6 Shoulder Screw Qty: 8 pcs

WARNING: IT IS VERY IMPORTANT TO CHECK AND ENSURE THAT EACH AND EVERY BURNER IS FULLY ENGAGED WITH THE ADJACENT VALVE ORIFICE BEFORE COMPLETING STEP 18.

FAILURE TO DO SO MAY

RESULT IN FIRE OR

EXPLOSION, POSSIBLY

CAUSING SERIOUS

INJURY OR DEATH. REFER TO MAINTENANCE

SECTION INSTRUCTIONS TO PROPERLY CHECK

THE ENGAGEMENT.

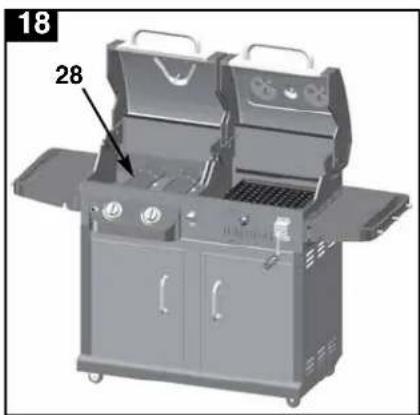

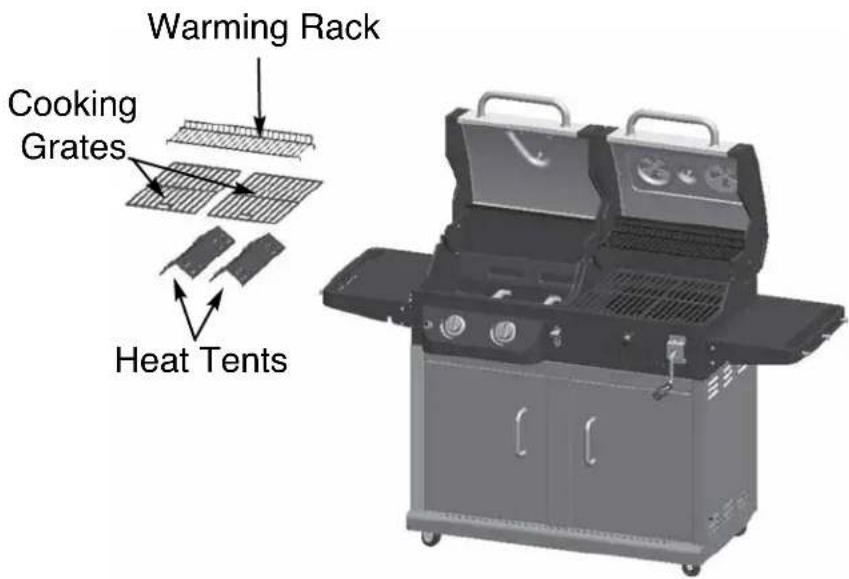

Step 18: Place the heat tent (28) into gas grill body (24).

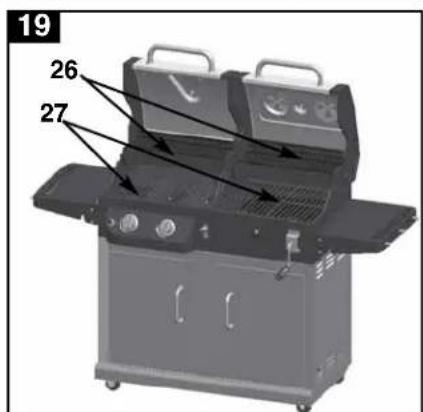

Step 19: Place the cooking grate (27) into the grill body (24), then attach the warming rack (26) onto the grill body (24). Note: The warming rack (26) inserts into the four holes that on both sides of grill body (24).

ASSEMBLY INSTRUCTIONS

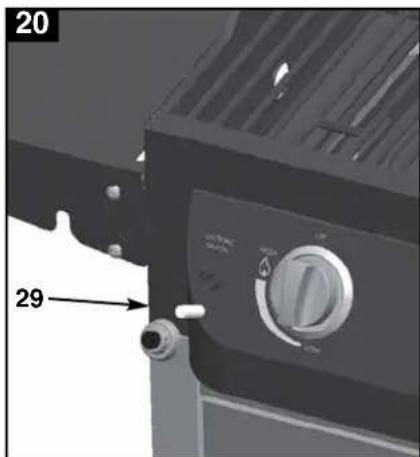

Step 20: Unscrew the igniter cap and insert the AAA battery (29) into the igniter body with positive + end facing out. Replace the igniter cap.

Step 21: Insert the grease pan (22) into position by sliding it in the gas grill body from the rear (as illustrated) along the rails located just below the underside of grill body.

NOTE: Grease pan MUST be in position as illustrated below (grease cup support rails on your left while facing the rear of the grill).

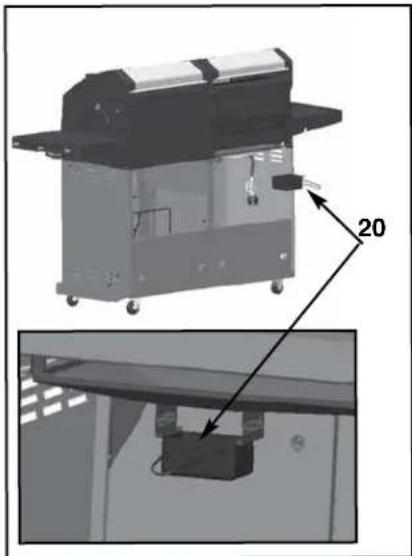

Insert grease cup (20) into position by sliding it onto the support rails on the bottom side of grease pan.

ASSEMBLYINSTRUCTIONS

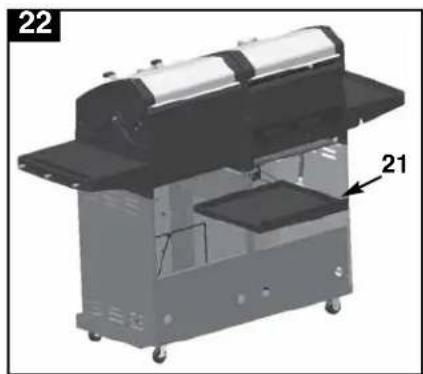

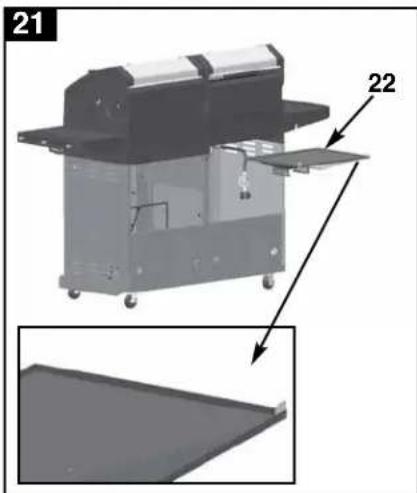

Step 22: Insert the charcoal pan (21) into the support rails on the bottom of charcoal grill body.

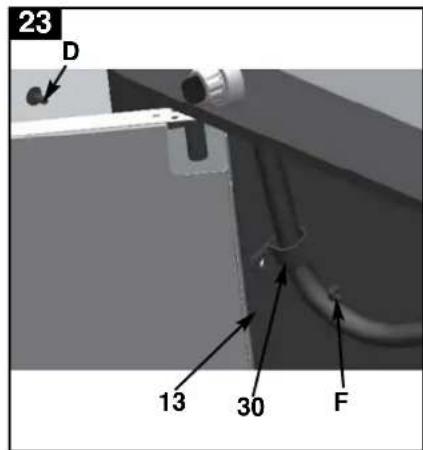

Step 23: Secure gas hose and LP gas hose holder (30) assembly onto cart left side panel assembly (13) by tightening one M4x12 screw (D) and one M4 nut (F) into hole into cart left side table. NOTE: The LP gas hose holder (30) must completely circle the gas hose before securing onto cart left side panel (13) as illustrated.

Hardware Used

D M4x12 Screw Qty: 1 pcs

FM4 Nut Qty: 1 pcs

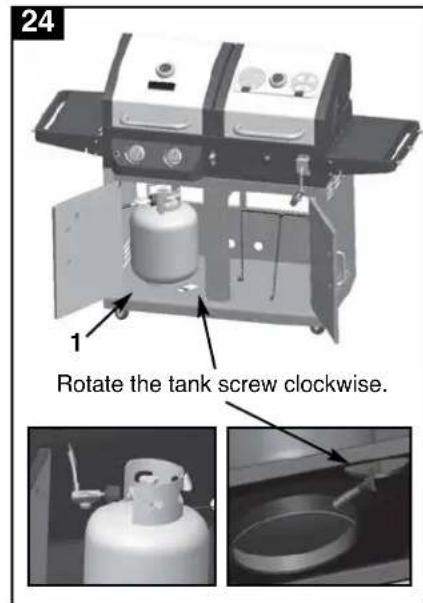

Step 24: Open the cart door assembly (15 & 14) and insert the LP gas cylinder (sold separately) into the nesting hole located in the bottom shelf (1). Align the hand screw coupling of the hose/regulator with the threaded valve of the cylinder by turning the LP gas cylinder until positioned correctly. Hand tighten the hose/regulator coupling to the threaded valve of the LP gas cylinder. Tighten the tank screw until the cylinder is secure inside the nesting hole of the bottom shelf (1).

ASSEMBLYINSTRUCTIONS

Fully Assembled Grill

Front View

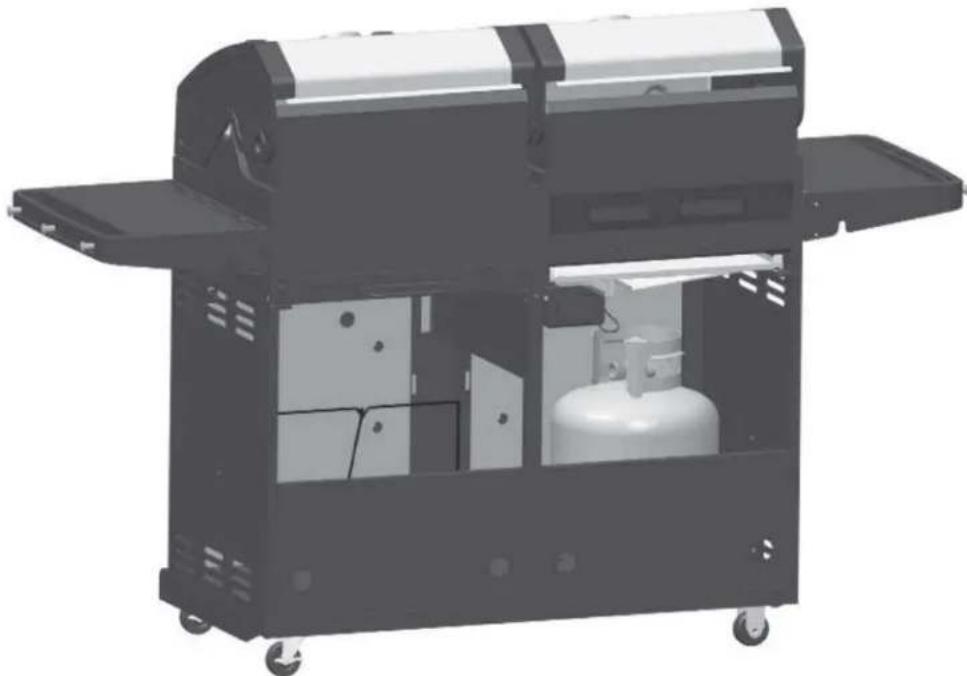

Rear View

OPERATION INSTRUCTIONS FOR GAS BURNERS

CAUTION

Only use the regulator and hose assembly provided! If a replacement is necessary, please call our customer service center. Do not use replacement parts that are not intended for this grill.

Connecting Gas Cylinder:

CONNECTING GAS CYLINDER

The propane gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; and Provided with a listed overfilling prevention device.

Use only 20-pound cylinders (Height 17.75 in./450.85mm, Diameter tank 12 in./304.80mm, Diameter foot 8 in./203.20mm) equipped with a cylinder connection device compatible with the connection for outdoor cooking appliances. The cylinder must include a collar to protect the cylinder valve. The gas cylinder should not be dropped or handled roughly!

If the appliance is not in use, the gas cylinder must be disconnected. Storage of an appliance indoors is permissible ONLY if the cylinder is disconnected and removed from the appliance. Cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area. Your cylinder must never be stored where temperatures can reach over 125^ .

Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

Before connection, be sure that there is no debris caught in the outlet of the gas cylinder, outlet of the regulator valve or in the outlet of the burner and burner ports. Connect regulator valve and hand-tighten firmly. Keep the propane cylinder valve closed and disconnect the propane cylinder from the regulator valve when the grill is not in use.

DO NOT obstruct the flow of combustion air and ventilation air to the grill. The propane cylinder must be arranged for vapor withdrawal and equipped with a listed overfilling prevention device. Please use the proper cylinder orientation to provide vapor withdrawal. NOTE: The cylinder must be fully upright for the cylinder to have vapor withdrawal only.

Correct

Wrong

Wrong

OPERATION INSTRUCTIONS FOR GAS BURNERS

CAUTION

a. Do not store a spare LP-gas cylinder under or near this appliance.
b. Never fill the cylinder beyond 80 percent full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may occur.

NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible with the appliance nesting hole and retention means. Refer to Step 24 of the Assembly Instructions for correct cylinder to cylinder holder connection.

WARNING

ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.

CONNECTING THE LP TANK

1. The knob on the LP tank must be closed. Make sure that the knob is turned clockwise to a full stop. The cylinder supply system must be arranged for vapor withdrawal.
2. Check that the control knob on the control unit is turned OOFF.
3. Remove the protective cap from the LP tank valve and coupling nut.
4. Hold the regulator in one hand and insert the nipple into the valve outlet. Be sure the nipple is centered in the valve outlet. The coupling nut connects to the large outside threads on the valve outlet. Use care - do not cross thread the connection.
5. Hand-tighten the coupling nut clockwise until it comes to a full stop. Firmly tighten by hand only. Do not use tools.

To Disconnect: Fully close the tank valve by turning clockwise.
Turn the coupling nut counterclockwise until the regulator assembly detaches.

WARNING

In the connection process, make sure:

• the regulator inlet connector mates with the cylinder valve outlet properly, safely and firmly, and;
• the LP-Gas hose does not come in contact or remain in contact with the firebox.

OPERATION INSTRUCTIONS FOR GAS BURNERS

CHECKING FOR LEAKS

After all connections are made, check all connections and fittings on the LP gas tank valve, gas hose and regulator for leaks with a water and soap solution.

To prevent fire or explosion while testing for a leak:

Always perform leak test prior to lighting the grill.
- Do not smoke while testing for a leak.
Always perform leak tests outdoors in a well ventilated area.
- Do not use any source of flame while testing for leaks.
- Do not use the grill until any and all leaks are corrected.
If you are unable to correct a leak, disconnect the propane supply

a n d c a 1 a

PERFORM LEAK TEST

Prepare leak test solution by combining 1 part liquid dish soap with 3 parts water.

T o t a I s 0 l u t P u t I e a k t e

• Ensure all control knobs are in the ODF position.
• Open LP gas tank valve.
• Spray leak test solution on all gas carrying connections and fittings.

Presence of bubbles at areas of applied test solution indicates a gas leak.

I f I e a k s a r i m m e d i a t e y D o n o t u s e

Lighting the Gas Grill

BEFORE FIRST USE

Remove all hangings or plastic straps, if present.

Before you cook on your new gas grill, it is important to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed and all main burner control knobs in the highest position. This will clean the internal parts by burning off any residue and odor from the manufacturing process. NOTE: Burn off is NOT necessary for side burner.

CAUTION: If the flame extinguishes accidentally during ignition or operation, immediately TURN OFF the cylinder valve and then TURN OFF the control knobs.

OPERATION INSTRUCTIONS FOR GAS GRILL

GAS GRILL LIGHTING INSTRUCTIONS

Warning: Do not lean over grill when lighting. Read instructions before lighting.

1. Check that the control knobs are in the OFF position.
2. Open valve at tank fully by turning counter-clockwise.
3. Open lid during lighting.
4. Push igniter down 3 to 4 seconds while turning right side control knob to the HIGH position. The burner should ignite.
5. Repeat for all other burners. If ignition does not take place within 5 seconds, immediately turn the control knob to the OFF position. Wait 5 minutes and repeat step 4 above or refer to match lighting instructions.

If the burner still does not light, check that there is gas in the cylinder and follow the match lighting instructions.

OPERATION INSTRUCTIONS FOR GAS GRILL

LIGHTING THE GAS GRILL WITH A MATCH

Warning: Do not lean over grill when lighting. Read instructions before lighting.

1. Open the lid
2. Insert a match in the end of the match holder that is installed on the inside of the cabinet door.
3. Light the match.
4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner between the heat tents as shown. Make sure the lit match is close to the burner ports.
5. Press in the control knob that operates the burner and rotate counter-clockwise to High position and burner should light immediately.
6. Repeat 2~5 steps to lighting the remaining burners.
7. Adjust burners to desired cooking settings.

CAUTION

Make sure all burner controls are off, except for the burner being lit and the burners that have been lit.

Lighting the gas grill with the match holder.

SHUTDOWN INSTRUCTIONS

1. Turn control knobs clockwise to the OFF position.
2. Close valve at tank fully by turning clockwise.
3. Close lid.

Turn off LP supply at cylinder when appliance is not in use.

Lighting the Charcoal Grill

DANGER

CARBON MONOXIDE HAZARD

Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor.

NEVER burn charcoal inside homes, garages, vehicles, or tents.

Warning: Do not lean over grill when lighting. Read instructions before lighting.

You can begin cooking when briquettes have a light coating of grey ash (approx. 25-30 minutes).

Adjusting Temperature

This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised or lowered to desired height. This allows for different heat settings depending on the food you are cooking and the temperature you want to cook at. It also allows easy cleaning of the interior of the firebox after the unit has cooled down completely. It is not recommended to raise a fully loaded charcoal tray higher than the middle height setting.

NOTE: The grate is coated with porcelain which is a fragile coating. Handle with care to avoid damage. Do not cool the grate in cold water while it is still hot or the coating may crack. Let the grate cool off by itself.

For maximum heat/temperature, open both louvered air vents located on the grill lid as required. To reduce the heat/temperature, close the air vents.

NOTE: The proper cooking temperature should not go above 500^ . If the temperature goes above 500^ , close the air vents until temperature drops to 500^ or lower and the next time you grill, reduce the quantity of briquettes that you place in the charcoal tray.

Seasoning Unit

1. Before your first cooking you should season the unit to enhance the cooking and to provide better overall durability. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your foods.
2. Remove all retail hangtags that are on the unit, making sure NOT to remove safety markings from the unit.
3. SEASON UNIT: before first cooking, place about 40 briquettes in the charcoal pan. Do not place any briquettes against walls of the pan.
4. Coat interior surfaces of charcoal grill only with vegetable cooking oil.
   Light briquettes and set ash pan at medium height by cranking the crank handle.

• Sustain burn for about two hours with lid closed and all dampers to 1/4 open. Allow the unit to cool down properly.
• Once this is completed, the unit is ready for use.

Rust can appear on the inside of your grill. Maintaining a light coating of vegetable oil on interior surfaces will aid in the protection of your grill. Exterior surfaces of the grill may need occasional touch up. We recommend the use of commercially available black high temperature spray paint. NEVER PAINT THE INTERIOR OF THE UNIT!

WARNING: These metal parts could be very hot while grilling. Always operate these parts while wearing a heat-resistant glove.

Grilling

Charcoal is recommended as the fuel source for grilling, placed and ignited on the charcoal pan. Do not build too large of a fire. We recommend starting a fire with no more than 3 pounds of charcoal (approximately 55 briquettes) and adding more as needed during cooking. After allowing the fire to burn down, place the cooking grates in the unit. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and or property damage.

CARE AND MAINTENANCE

Cooking Grates

The best time to 'burn-off' the cooking grates is after every use (approx. 15 minutes). The grill is already hot from cooking thus requiring less fuel to obtain necessary temperature for 'burn-off'.

To "Burn Off" or heat clean your grill, turn the burners to highest position and run for 15 minutes with the lid closed. Then turn off the burners and use a wire brush to clean excess food residue from the grates. NOTE: "Burn Off" is NOT necessary for side burner.

The porcelain grates have an enamel finish (similar to glass) and should be handled with care not to chip.

Other Parts

CAUTION: Ensure the grill is cool before cleaning and conducting tentance and with the gas supply turned off at the LP-Gas cylinder.

The electronic ignition requires one "AAA" alkaline battery, which is included.

WARNING

DO NOT mix old and new batteries.

DO NOT mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.

DO NOT dispose of batteries in fire. Improper disposal may cause batteries to leak or explode.

Recommended Cleaning Supplies

Mild liquid dish soap, warm water, nylon cleaning pad, wire brush DO NOT use cleaners that contain acid, mineral spirits or any abrasive substance.

Outside Surfaces

It is recommended to use only mild dish soap and hot water to clean grill and grill parts. Rinse with warm water.

Inside Bottom Pan of Grill Body

To avoid flare-ups, the bottom pan of the cooking box should be kept clean on a regular basis. Remove residue using a brush, scraper and/or cleaning pad. Wash with mild dish soap and warm water. Rinse with warm water. Avoid water splashing into venture tubes of burners.

Heat Tents

Clean residue with wire brush and wash with mild dish soap and warm water. Rinse with warm water.

Grease Cup

Empty the grease cup and clean with mild dish soap and warm water on a regular basis.

CARE AND MAINTENANCE

Burner Assembly

Removing the Gas Burner Assembly

1. Make sure all control knobs are in the OFF position, LP tank valve is closed, and the tank is disconnected from regulator and removed from grill.
2. Open lid and remove warming rack, cooking grates, and heat tents.

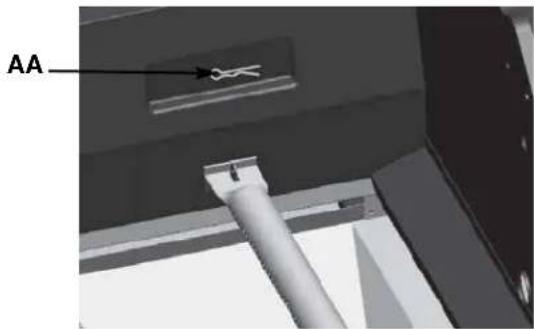

1. Remove hinge pins (labeled as AA in figure below).

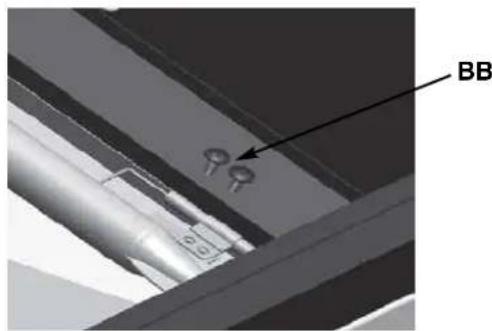

1. Remove screws (labeled as BB in figure below).

CARE AND MAINTENANCE

Burner Assembly

Cleaning the Burner Assembly - Make sure the grill is cool

1. Ensure all burner ports are clear of clogs. Use of a pin or paper clip works well.
2. Ensure burner is free of any damage. If damage is found, replace with new burner.
3. Ensure the end of the burner and primary air screen are clear from insect nests, dirt or debris.

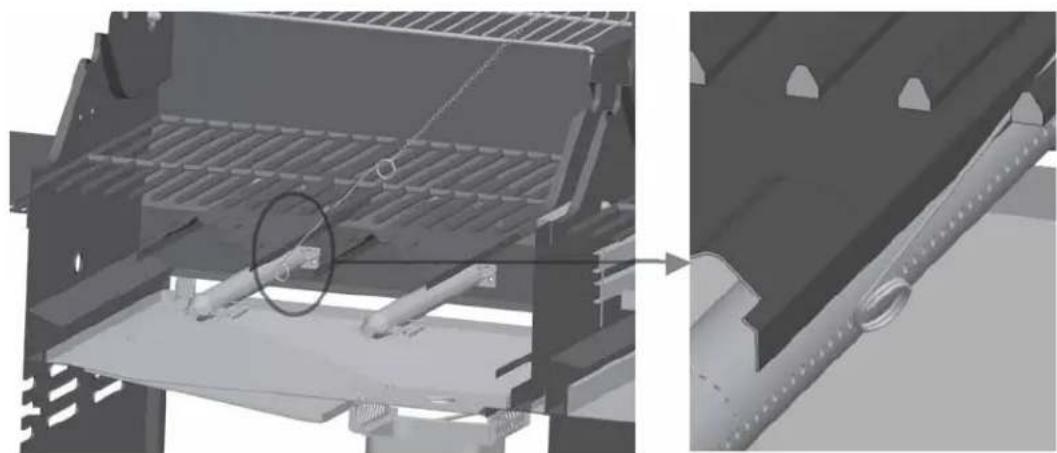

Re-installing the Burner

• Ensure the gas valve orifices are correctly positioned inside burner inlet (venturi).
• The use of a flashlight may be necessary to ensure the correct position.

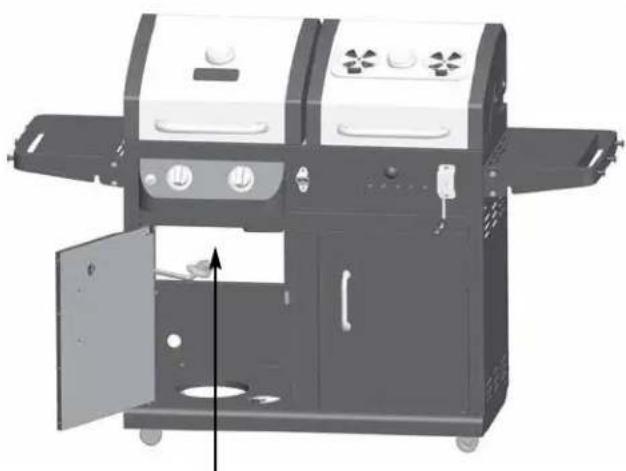

• It is recommended to view the correct position through the firebox vent holes as illustrated.

View the correct position from the bottom of firebox.

Bottom View

Correct Wrong
Wrong

WARNING: If the instructions above are not followed, a fire or explosion may result, possibly causing serious bodily injury or death.

CARE AND MAINTENANCE

Checking The Flame

For maximum fuel efficiency and cooking performance, flame should be a blue-yellow color and be between 1-2 inches high.

To check the flame, view the flame through the hole in the left side of the firebox as shown.

Hole for viewing the flame

Good Flame Bad Flame

Other Care and Maintenance

It is recommended that inspection and service on this appliance be conducted annually by a qualified service person.

It is recommended that you regularly check that the outdoor cooking appliance area is clear and free from combustible material, gasoline and other flammable vapors and liquids.

It is recommended that you regularly check that the flow of combustion and ventilation air is not obstructed.

It is recommended that you regularly check that the ventilation openings of the cylinder enclosure (cabinet) are free and clear from debris.

It is recommended that you regularly check and clean the burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill.

TROUBLESHOOTING

Problem Possible	Causes Possible Solutions
No gas flow or an obstructed gas flow.	Tank valve not on or fully opened. Empty tank. Poor connection between valve regulator and LP cylinder coupling. Burner inlet blocked.	Fully open tank valve by turning counterclockwise. Check fuel level and replace fuel if necessary. Turn off grill knobs, close the LP cylinder value at top of cylinder and check the connection between the regulator valve and cylinder coupling. Disconnect and reconnect, if necessary. Clean the burner inlet (venturi) and burner as described by the Care and Maintenance section in the Manual.
The burner will not light using the ignitor procedure (weak or no spark being generated).	The ignition electrode may be covered with grease or residue. The ignition electrode may have a loose or disconnected wire. Cracked or broken ignition electrode. Dead battery or faulty battery connection.	Turn control knobs to the off position and clean the ignition electrode with rubbing alcohol and cotton swab. Check the connection and reconnect any loose or disconnected wires. Replace ignition electrode (see Replacement Parts List). Perform any of the following: a. Replace battery b. Check to see if battery is inserted correctly. c. Check for any corrosion around battery terminals. d. Check wire connections as stated above.

TROUBLESHOOTING

Problem Possible	Causes Possible Solutions
The burner will not light with a match.	·Match not reaching burners (when holding match with hand).·Empty tank.·Poor connection between valve regulator and LP cylinder coupling.·Burner inlet blocked.	·Use match holder found in cabinet door.·Check fuel level and refill tank if necessary.·Turn off grill knobs, close the LP cylinder value at top of cylinder and check the connection between the regulator valve and cylinder coupling.Disconnect and reconnect, if necessary.·Clean the burner inlet (venturi) and burner as described by the Care and Maintenance section in the Manual.
Low Heat.	·The LP-Gas regulator is equipped with an excess flow device that allows sufficient gas to the burners under normal circumstances. Rapid changes in pressure can trigger this device and prevent all but minimal flow of gas to the burner, causing a low flame and low heat output. This is typically caused by the LP-Gas cylinder valve being turned open when one or more burner valves (control knobs) is in the open position causing a surge of pressure that activates the excess flow device.	·Follow these steps:1. Close the LP-Gas cylinder valve on the top of the cylinder.2. Make sure the burner valves are in the “OFF” position.3. Slowly open the LP-Gas cylinder valve and wait 10 seconds.4. Follow the lighting instructions.

TROUBLESHOOTING

Problem Possible	Causes Possible Solutions
Excessive flare-ups.	•Grease and/or residue build-up on heat tents or in firebox. •Excessive dripping of fat or marinade from food. •Cooking temperature too high.	•Clean the grill components. •Trim the fat from meat and use non-oil based marinades. •Lower temperature accordingly.

REPLACEMENT PARTS

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m., CST, Monday - Friday

REPLACEMENT PARTS

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. - 4:30 p.m., CST, Monday - Friday

17 Complete Sub-Assembly

DYNA-GLO DUAL FUEL GRILL - MODEL #DGB730SNB/DGP730SNB-D

Diag. Warranty Ref #: Part Description Part #
1	Grill lid assembly-gas grill	144-02001
2	Temperature gauge with nut	104-12005
3	Badge-Dyna-Glo	104-22006
4	Lid pivot pin-left and right	104-12002
5	Lid pivot pin-middle	144-22002
6	Cap nut-specially secures lid pivot pin	104-12001
7	Lid handle bezel	104-12004
8	Lid handle	104-12003
9	Heat tent	144-13003
10	Grease pan	144-04013
11	Grease cup	104-04014
12	Grill lid assembly-charcoal grill	154-02001
13	Lid damper in the charcoal Lid outer	154-12001
14	Lid damper handle-charcoal	154-12002
15	Warming rack	144-13001
16	Cooking grate	144-13002

REPLACEMENT PARTS

DYNA-GLO DUAL FUEL GRILL - MODEL #DGB730SNB/DGB730SNB-D - Continued

17	Firebox assembly - includes burners/LP gas valve & manifold assembly/LP gas hose & regulator/control panel/ignition wire/ electrode/charcoal tray.	144-03001
18	Charcoal tray adjustment handle bezel	154-13001
19	Charcoal door front damper handle	154-13002
20	Charcoal tray adjustment handle	154-13003
21	Ash pan	154-13104
22	Tool hook	104-14002
23	Tower bar	104-14001
24	Side table	104-04001
25	Side table support	104-04003
26	Bottle opener	144-14004
27	Upper front door brace	144-04011
28	Cart middle cross beam	144-14001
29	Heat shield	144-14002
30	Door handle	104-14021
31	Door handle bezel	104-14022
32	Door handle sleeve	104-14023
33	Match holder	104-14024
34	Cart rear vertical beam	144-14003
35	Cart right side panel	144-04010
36	Right door assembly	144-04020
37	Locking swivel caster - Includes 4 screws/flat washers/spring washers	104-04019
38	Non-locking swivel caster - Includes 4 screws/flat washers/spring washers	104-04017
39	Cart rear panel	144-04008
40	LP cylinder retention screw	104-04012
41	Direction caster - Includes 4 screws/flat washers/spring washers	104-04018
42	Bottom panel	144-04006
43	Door magnet	104-14020
44	Cart front vertical beam	144-54020
45	LP cylinder exclusion	144-14006
46	Left door assembly	144-44020
47	Cart left side panel	144-04009
48	Hose holder	104-04007
49	AAA battery (1.5V)	102-05002
50	Main burner-with cotter pin	104-13011
51	Ignition electrode A-with short ignition wire	144-13012
52	Ignition electrode B- with long ignition wire	144-23012
53	Firebox assembly-gas	144-13004
54	Firebox front outer panel	144-13005

REPLACEMENT PARTS

DYNA-GLO DUAL FUEL GRILL - MODEL #DGB730SNB/DGB730SNB-D - Continued

55	Firebox assembly-charcoal	154-13004
56	Charcoal tray	154-23001
57	Charcoal tray adjustment arm assembly	154-23002
58	Front Damper (charcoal grill control panel)	154-23003
59	Threaded mount for charcoal tray adjustment crank	154-23004
60	LP gas hose and regulator assembly	104-13014
61	Electronic ignition	144-13007
62	LP gas valve & manifold	144-13006
63	Control knob bezel	104-13009
64	Control knob	104-13010
65	Control panel	144-13008
66	Heat shield for electronic ignition	144-13013
67	Firebox divider panel	144-33006
n/a	Hardware pack	144-05001
n/a	Instruction Manual	70-10-020

LIMITED WARRANTY

Item Name: Dual Fuel Grill

Model #: DGB730SNB/DGB730SNB-D

Rated BTU: 24,000 BTU/Hr

This Dual Fuel Grill is warranted against broken or damaged parts at the time of purchase. All parts carry a one (1) year limited warranty. Paint is warranted to be free of defects for 90 days except for rust, which may appear after repeated use.

This warranty does not cover damage or issues related to neglect, abuse or modifications to the appliance. Repair labor is not covered.

All parts that meet the warranty requirements will be shipped at no charge via the discretion of GHP Group Inc. (ground shipments, US Mail or Parcel Post ONLY). Any special handling charges (i.e. Second Day, Over night, etc.) will be the responsibility of the consumer.

All warranty claims apply only to the original purchaser and require a proof of purchase verifying purchase date. Do not return parts to the GHP Group Inc. address without first obtaining a return authorization number from our customer service department. This service is available by calling toll free: 1-877-447-4768, 8:30 am to 4:30 pm CST, Monday through Friday.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state.

GHP Group Inc.

8280 Austin Avenue

Morton Grove, IL USA 60053-3207

Toll Free: 1-877-447-4768

GUIDE D'UTILISATION ET MODE D'EMPLOI

ANS Z21.58b-2012 CSA1.6b-2012
