USER MANUAL DGN576DNCD Dyna-Glo

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday, or log on to [e-mail]

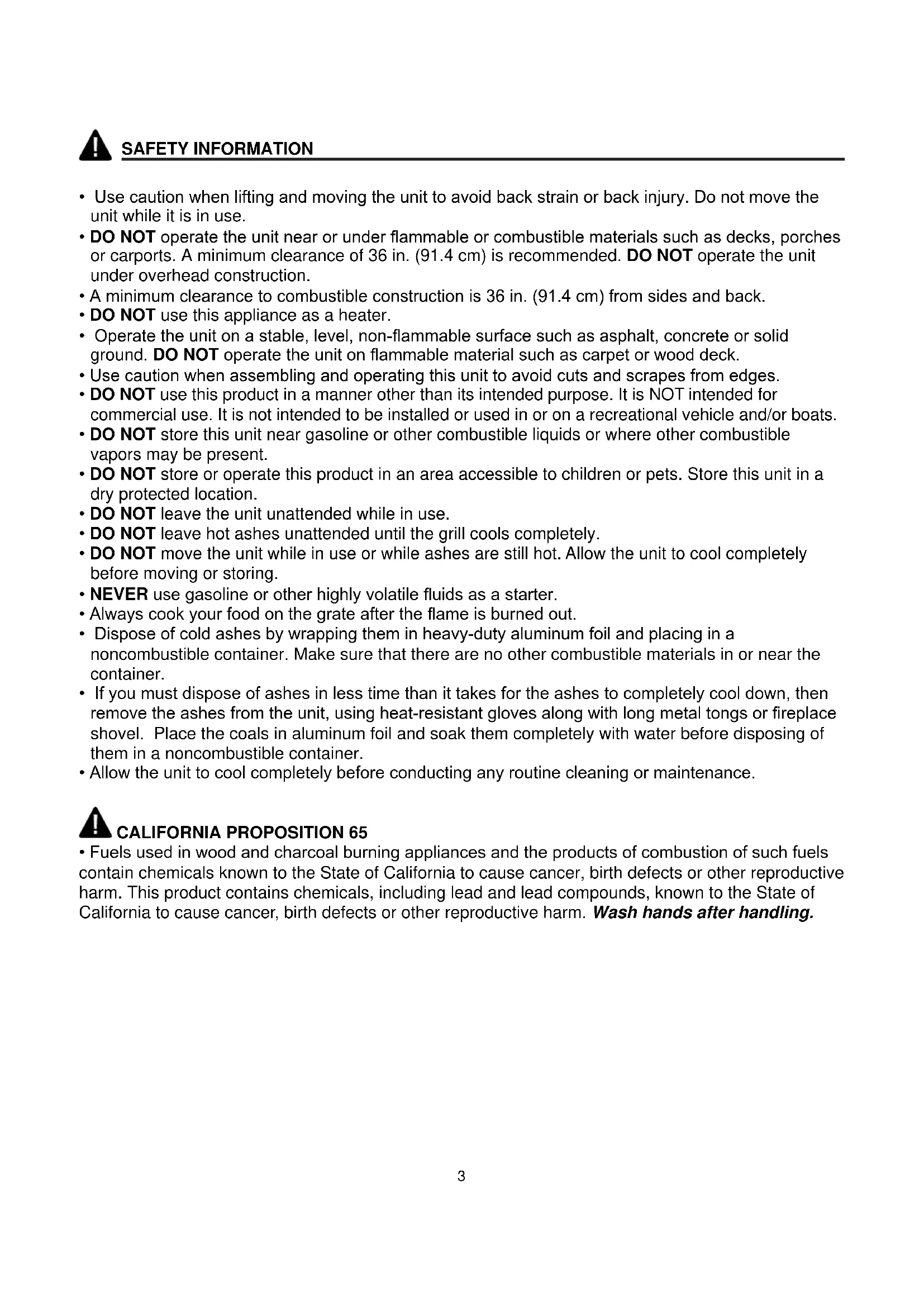

• THIS UNIT IS HEAVY. TWO PEOPLE REQUIRED FOR SAFE ASSEMBLY. Some parts may contain sharp edges. Wear protective gloves if necessary. Read and follow all safety statements, warnings, assembly instructions, and use and care instructions before attempting to assemble and use. WARNING

• Keep a re extinguisher near this product at all times.

• This grill is for outdoor use only in well-ventilated areas.

• The use of alcohol, prescription or non-prescription drugs may impair the user’s ability to properly assemble and safely operate this appliance. SAFETY INFORMATION3

• Use caution when lifting and moving the unit to avoid back strain or back injury. Do not move the unit while it is in use.

• DO NOT operate the unit near or under ammable or combustible materials such as decks, porches or carports. A minimum clearance of 36 in. (91.4 cm) is recommended. DO NOT operate the unit under overhead construction.

• A minimum clearance to combustible construction is 36 in. (91.4 cm) from sides and back.

• DO NOT use this appliance as a heater.

• Operate the unit on a stable, level, non-ammable surface such as asphalt, concrete or solid ground. DO NOT operate the unit on ammable material such as carpet or wood deck.

• Use caution when assembling and operating this unit to avoid cuts and scrapes from edges.

• DO NOT use this product in a manner other than its intended purpose. It is NOT intended for commercial use. It is not intended to be installed or used in or on a recreational vehicle and/or boats.

• DO NOT store this unit near gasoline or other combustible liquids or where other combustible vapors may be present.

• DO NOT store or operate this product in an area accessible to children or pets. Store this unit in a dry protected location.

• DO NOT leave the unit unattended while in use.

• DO NOT leave hot ashes unattended until the grill cools completely.

• DO NOT move the unit while in use or while ashes are still hot. Allow the unit to cool completely before moving or storing.

• NEVER use gasoline or other highly volatile uids as a starter.

• Always cook your food on the grate after the ame is burned out.

• Dispose of cold ashes by wrapping them in heavy-duty aluminum foil and placing in a noncombustible container. Make sure that there are no other combustible materials in or near the container.

• If you must dispose of ashes in less time than it takes for the ashes to completely cool down, then remove the ashes from the unit, using heat-resistant gloves along with long metal tongs or replace shovel. Place the coals in aluminum foil and soak them completely with water before disposing of them in a noncombustible container.

• Allow the unit to cool completely before conducting any routine cleaning or maintenance. CALIFORNIA PROPOSITION 65

• Fuels used in wood and charcoal burning appliances and the products of combustion of such fuels contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. This product contains chemicals, including lead and lead compounds, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. SAFETY INFORMATION44

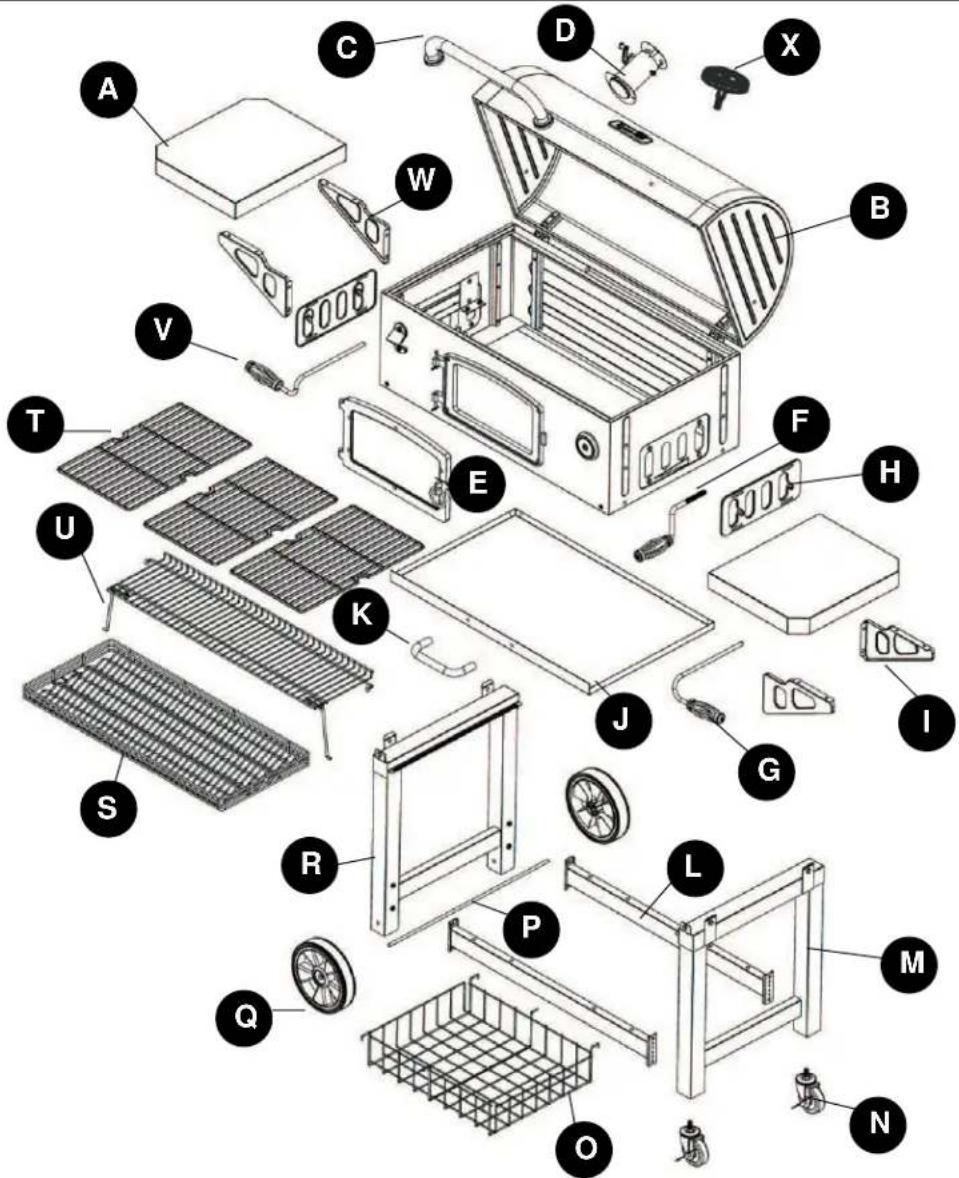

M Right Leg Assembly 1 N Caster 2 O Storage Basket 1 P Axle 1 Q Wheel 2 R Left Leg Assembly 1 S Charcoal Tray 1 T Grate 3 U Warming Rack 1 V Damper Handle – Left 1

Side Shelf Support – Left Rear/Right Front Temperature Gauge

PREPARATION HARDWARE CONTENTS (shown actual size) Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 50 minutes with two people Tools Required for Assembly (not included): Phillips screwdriver, adjustable wrench.6 ASSEMBLY INSTRUCTIONS

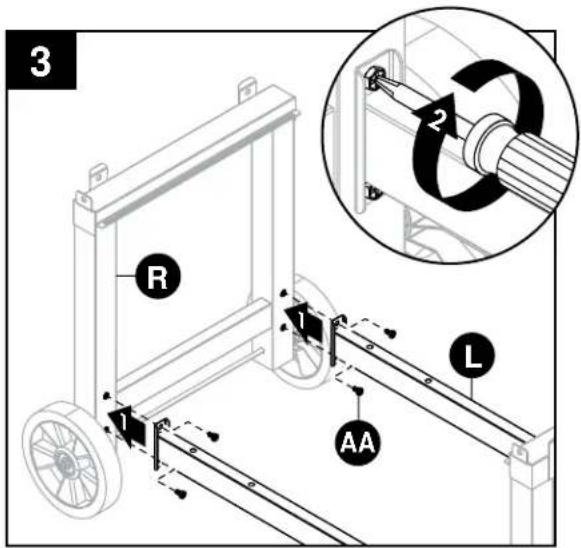

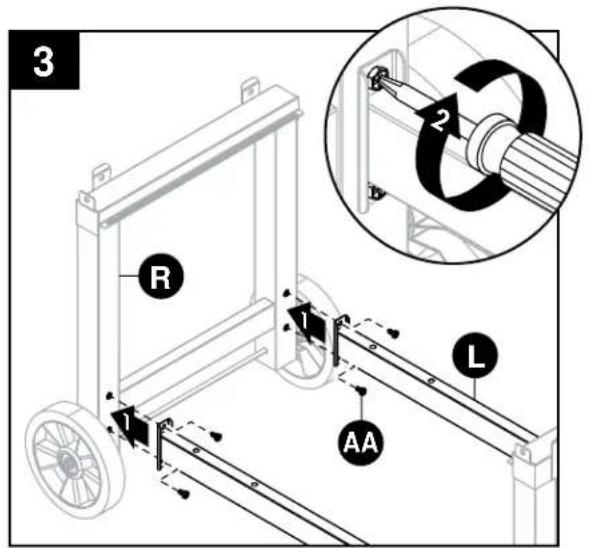

3. Attach two cart braces (L) to left leg assembly (R)

using two M6x12 bolts (AA) on each side.

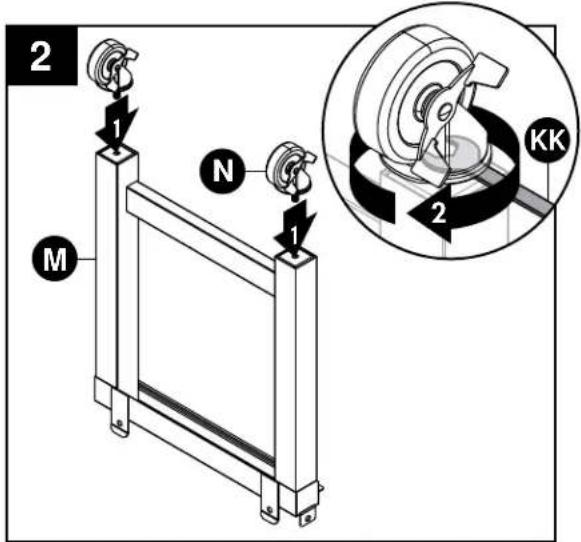

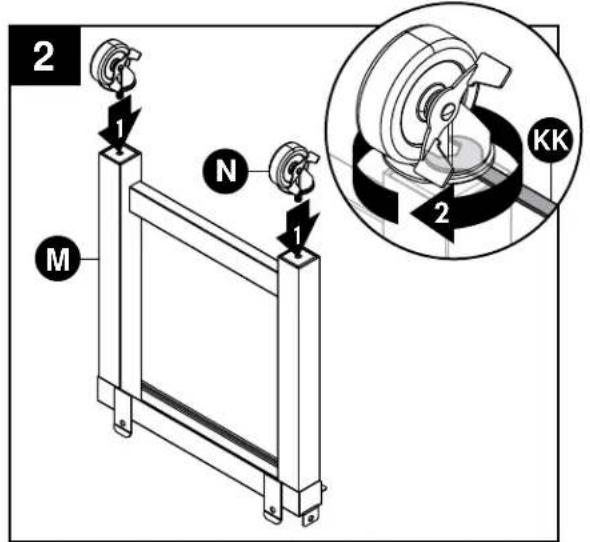

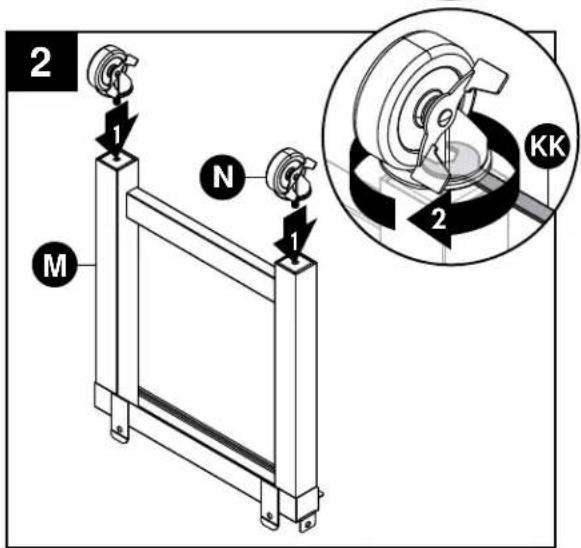

2. Attach two casters (N) to right leg assembly (M)

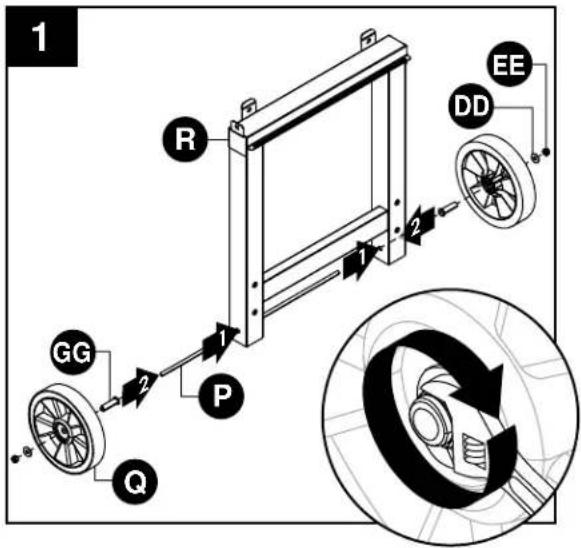

1. Insert axle (P) into left leg assembly (R). Attach

one wheel (Q) to each side of axle (P) using one wheel axle sleeve (GG), one M8 washer (DD), and one M8 nut (EE).

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

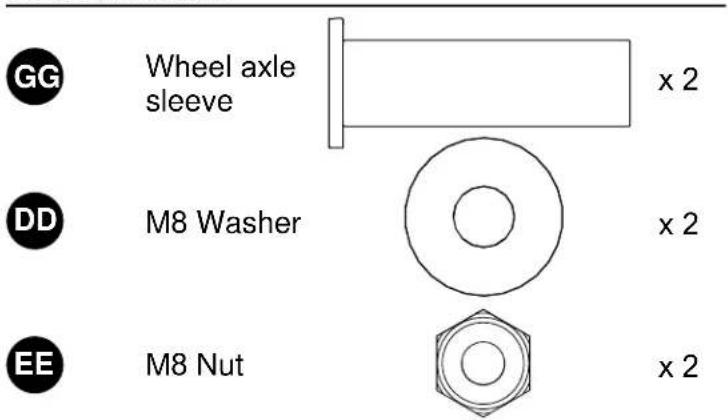

Wheel axle sleeve Wrench (not to scale) x 2 x 1

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

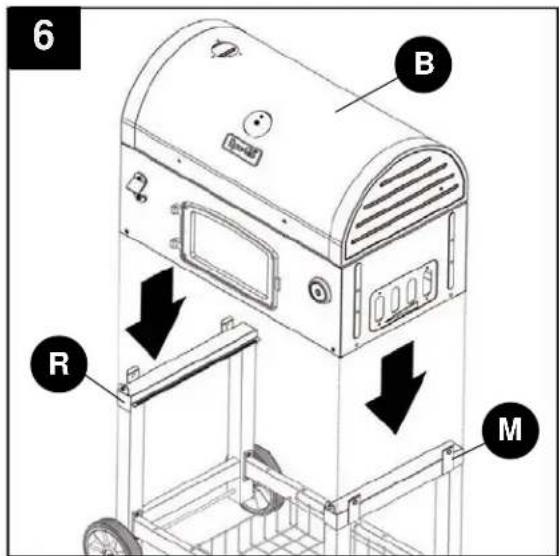

6. With the help of a second person, set lid and

rebox assembly (B) on top of left leg assembly (R) and right leg assembly (M).

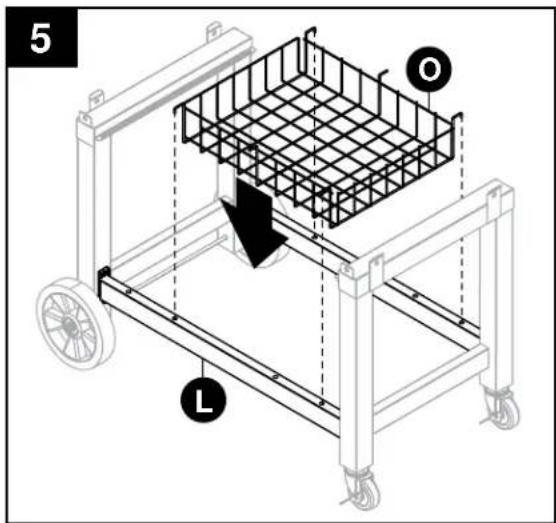

5. Attach storage basket (O) to cart braces (L).

NOTE: Make sure four hooks on storage basket (O) are fully inserted into holes on cart braces (L).

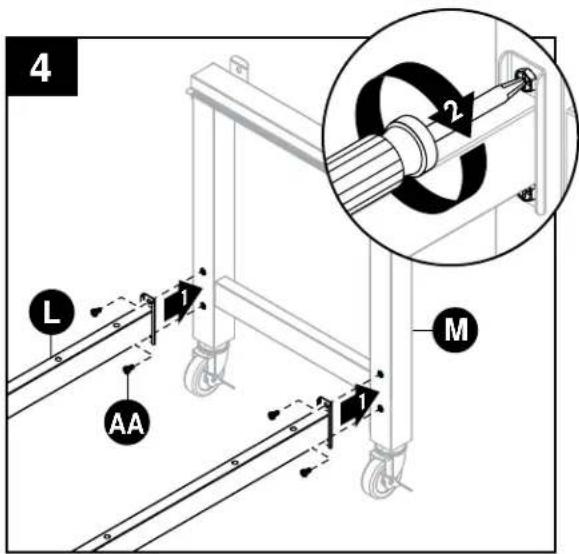

4. Attach two cart braces (L) to right leg assembly (M)

using two M6x12 bolts (AA) on each side.

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

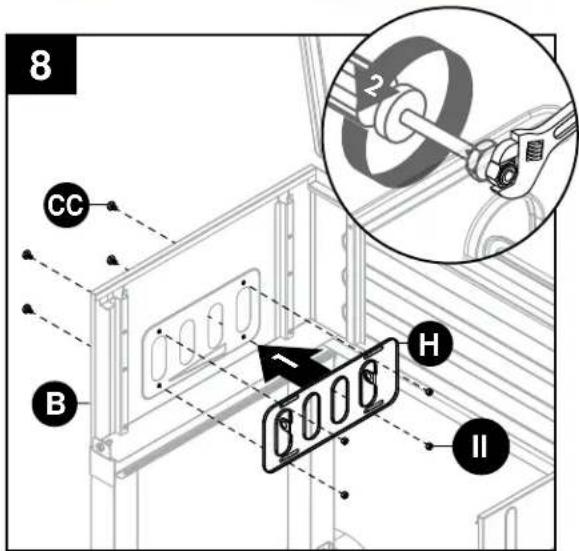

8. Attach damper (H) to inside of lid and rebox

assembly (B) using four M5 shoulder bolts (CC) and four M5 lock nuts (II). Repeat for remaining damper (H). NOTE: For clarity, illustration is shown with front of lid and rebox assembly (B) removed. Hardware Used Hardware Used M6x20 Bolt M5 Shoulder Bolt M5 Lock Nut x 6 x 8 x 8

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

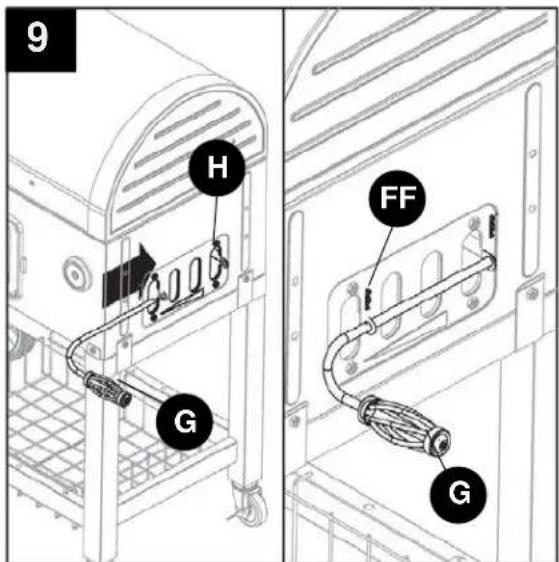

9. Insert damper handle – right (G) into the two holes

on right side damper (H). Secure with two cotter pins (FF). Repeat for damper handle – left (V). Hardware Used Cotter Pin x 4

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

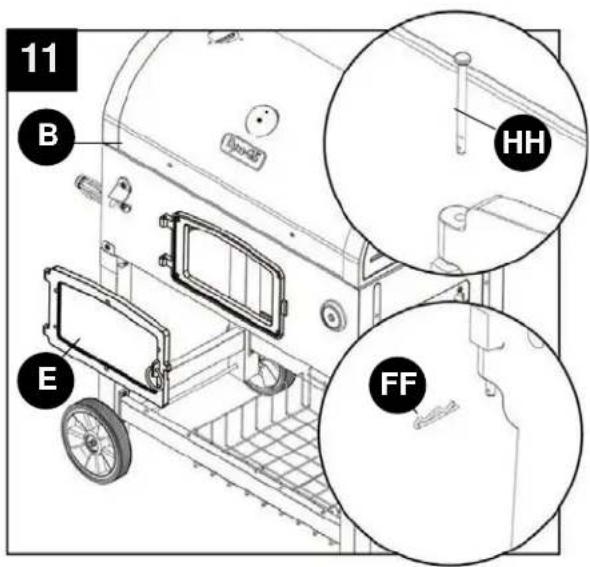

rebox assembly (B). Insert two hinge bolts (HH) into hinges on charcoal access door (E) and secure with two cotter pins (FF). Hardware Used Cotter Pin Hinge Bolt x 2 x 2

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

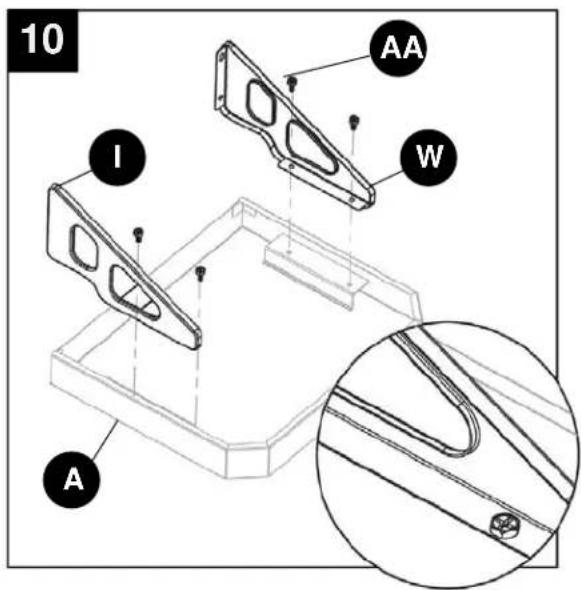

10. With shelf upside down, attach side shelf

support – left rear/right front (W) and side shelf support – left front/right rear (I) to side shelf (A) using four M6x12 bolts (AA) on each side. Repeat for remaining shelf (A). Hardware Used M6x12 Bolt x 8

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

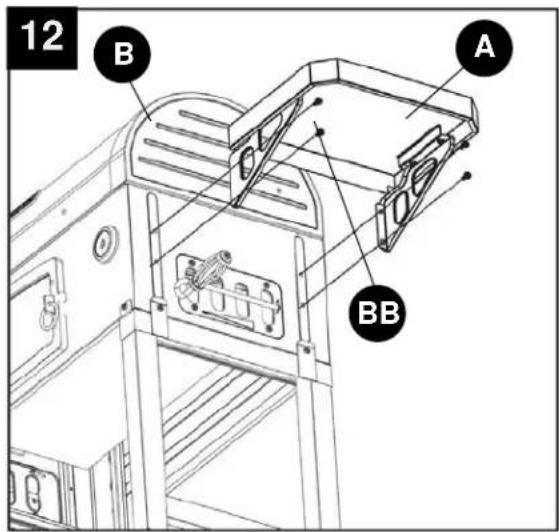

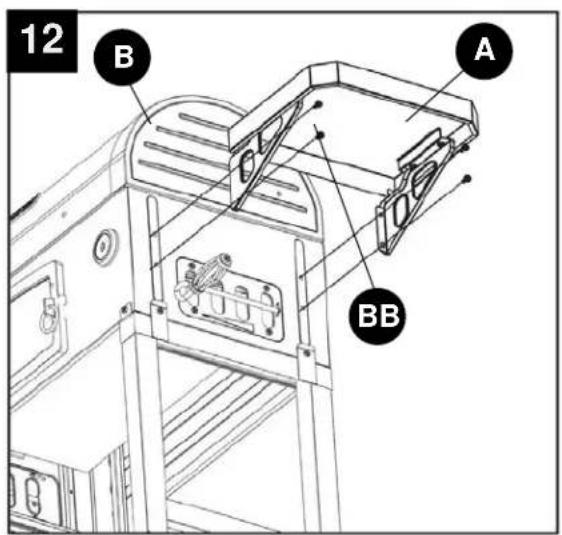

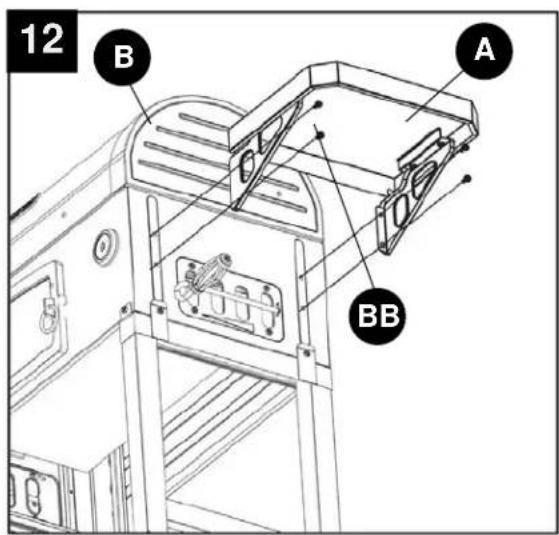

assembly (B) using four M6x20 bolts (BB). Repeat on left side with remaining side shelf (A). NOTE: First secure two upper M6x20 bolts (BB), then lower M6x20 bolts (BB). Hardware Used M6x20 Bolt x 8

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

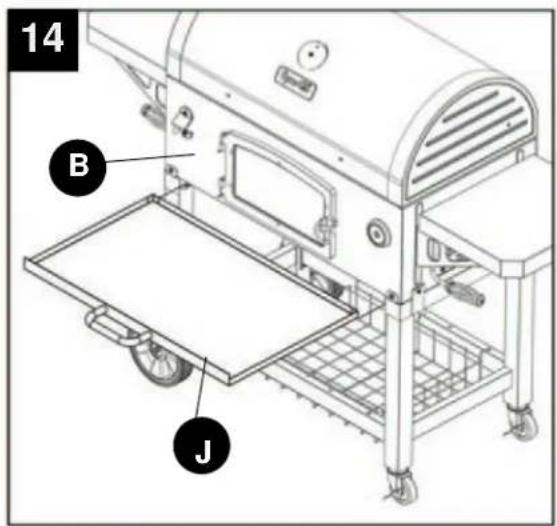

14. Insert ash tray (J) into lid and rebox

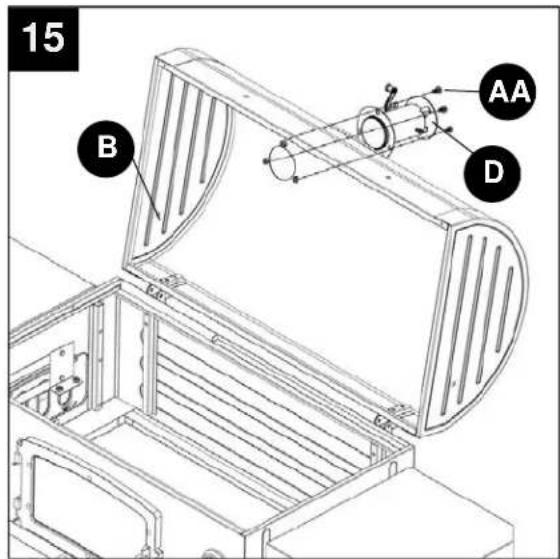

15. Attach smoke stack assembly (D) to lid and

rebox assembly (B) using three M6x12 bolts (AA). NOTE: Make sure the smoke stack damper adjustment handle faces the front of the grill. Hardware Used M6x12 Bolt x 3

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

two M6x12 bolts (AA). Hardware Used M6x12 Bolt x 2

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

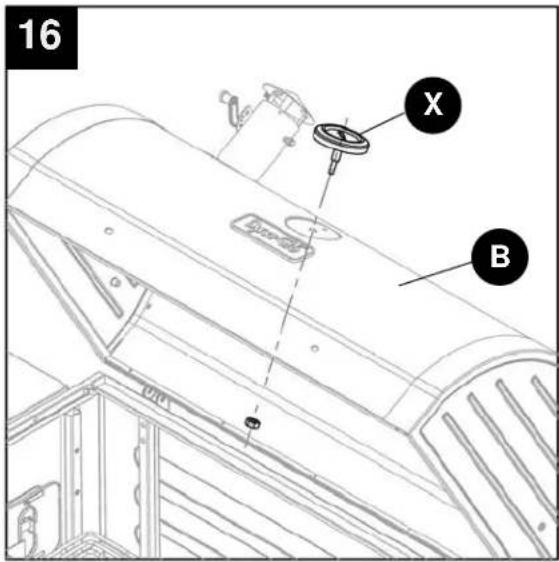

16. Attach temperature gauge (X) to lid and rebox

assembly (B) using pre-assembled nut .

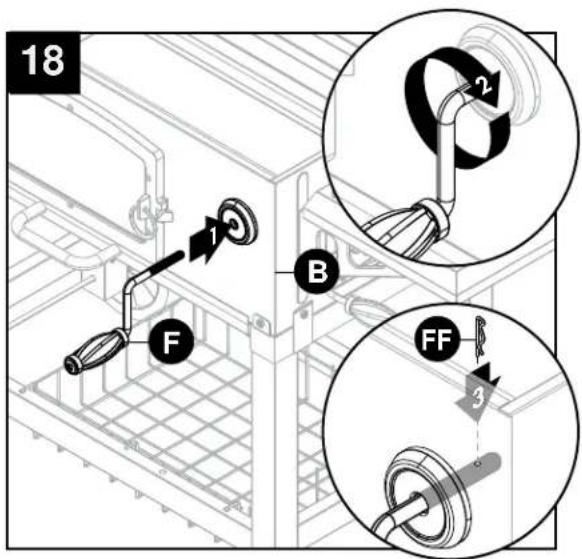

18. Thread crank handle (F) into lid and rebox

assembly (B). Secure with one cotter pin (FF). Hardware Used Cotter Pin x 1

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

assembly (B) using two M6x12 bolts (AA).

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

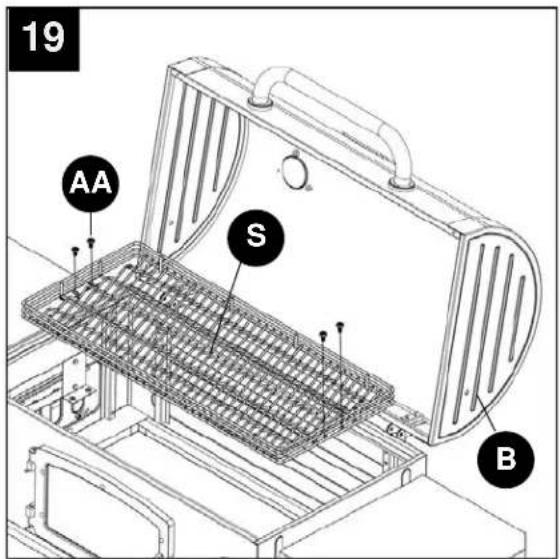

19. Attach charcoal tray (S) to inside of lid and

rebox assembly (B) using four M6x12 bolts (AA).

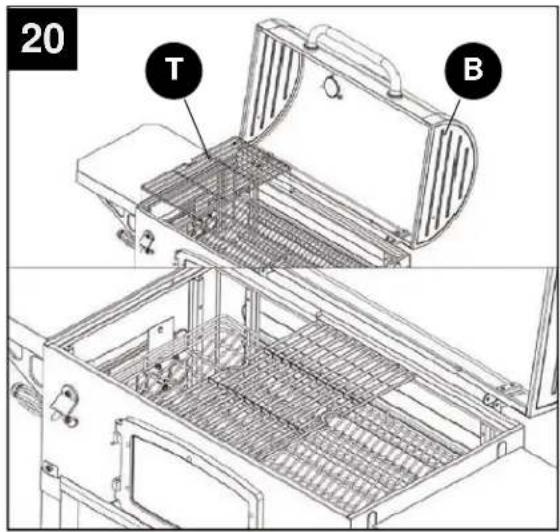

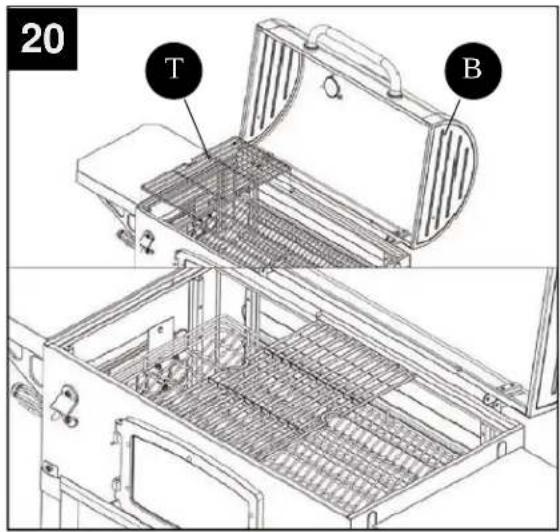

20. Place one grate (T) onto the far left side of

grate frame inside the lid and rebox assembly (B). Slide to center of grill.

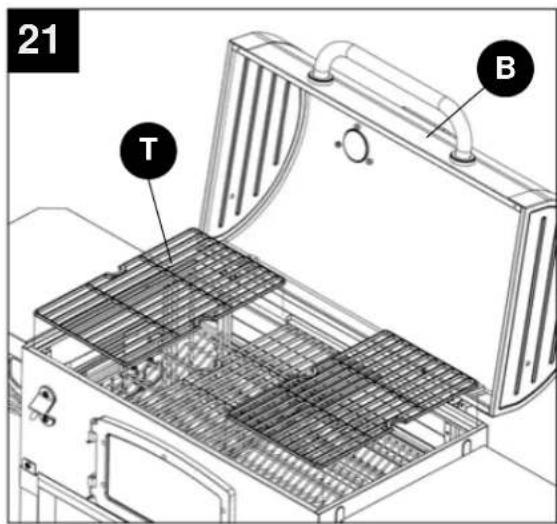

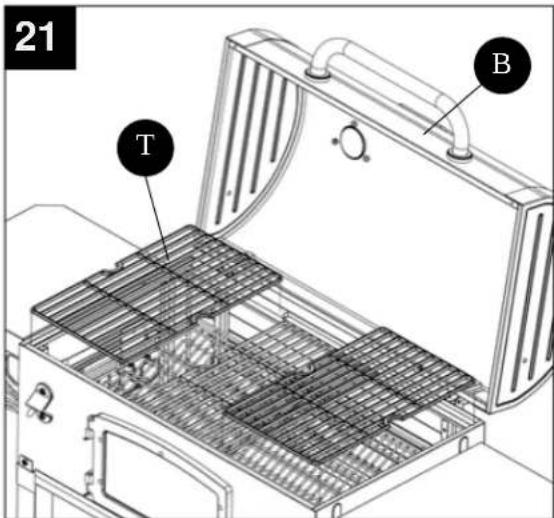

21. Place a second grate (T) on the lower grate

frame of the lid and rebox assembly (B) (far left side). Place the third grate (T) on the upper grate frame of the lid and rebox assembly (B) as shown.

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

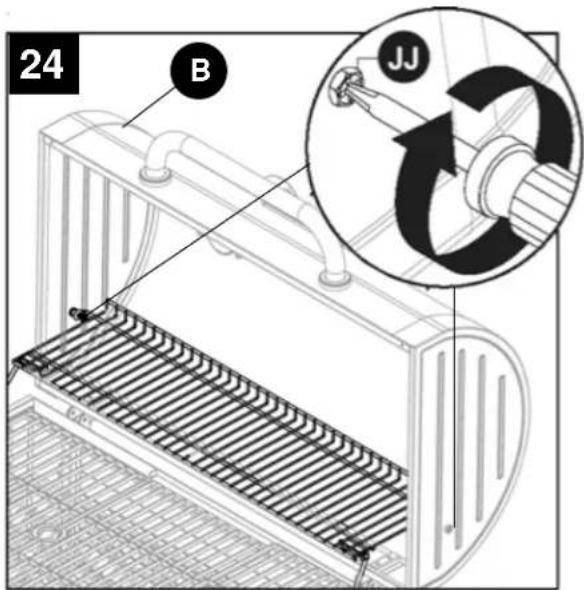

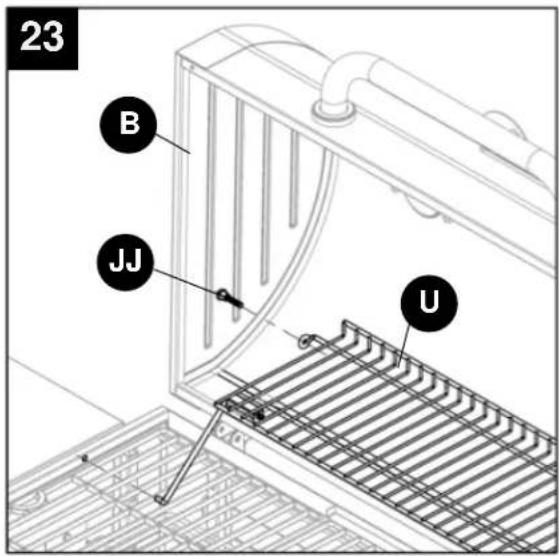

23. Insert one end of warming rack (U) onto M6x30

bolt (JJ) and into the hole on lid and rebox assembly (B). Repeat for other side.

24. Fully tighten M6x30 bolts (JJ) on each side of lid

and rebox assembly (B).

M6x12 Bolt Qty. 27 M6x20 Bolt Qty. 14 M5 Shoulder Bolt Qty. 8 M8 Washer Qty. 2 M8 Nut Qty. 2 Wheel Axle Sleeve Qty. 2 Hinge Bolt Qty. 2 M6 Lock Nut Qty. 3 M5 Lock Nut Qty. 8 M6x30 Bolt Qty. 2

Wrench Qty. 1 Cotter Pin Qty. 7

• CARBON MONOXIDE HAZARD. Burning charcoal inside can kill you. It gives off carbon monoxide, which has no odor. NEVER burn charcoal inside homes, vehicles or tents. This grill has an adjustable charcoal tray. By turning the crank handle, the charcoal tray can be raised or lowered to desired height. This allows for different heat settings depending on the food you are cooking and the temperature at which you want to cook. It also allows easy cleaning of the interior of the rebox after the unit has cooled down completely. It is not recommended to raise a fully loaded charcoal tray higher than the middle height setting. NOTE: The grate is coated with porcelain which is a fragile coating. Handle with care to avoid damage. DO NOT cool the grate in cold water while it is still hot or the coating may crack. Let the grate cool off by itself. Charcoal Lighting Instructions

• Remove cooking grates.

• Adjust charcoal tray to the center position.

• Place one even row of charcoal briquettes in the charcoal tray. Make sure that charcoal does not go above the top of the tray.

• Move charcoal tray to the bottom position.

• With the top open, allow the briquettes to fully ignite (to the point where there is no further ame).

• Once the briquettes are lit, put the grates back in the grill using heat-resistant gloves..

• Adjust charcoal tray as required to achieve the proper temperature. Adjusting Temperature

• For maximum heat/temperature, open both side air vents located on the side of the main body as required. To reduce the heat/temperature, close the air vents on the side of the main body. NOTE: The temperature should not go above 500ºF (260°C). If the temperature goes above 500ºF(260°C), you should open the lid and allow the briquettes to cool. The proper cooking temperature should not exceed 500ºF (260°C). Seasoning Unit

1. Before your rst cooking you should season the unit to enhance the cooking and to provide better

overall durability. Failure to properly follow these steps may damage the nish and/or impart metallic avors to foods.

2. Remove all retail hangtags that are on the unit, making sure NOT to remove safety markings from

3. Place one even row of charcoal briquettes in the charcoal tray. Make sure that charcoal does not

go above the top of the tray.

4. Coat interior surfaces with vegetable cooking oil.

5. Light briquettes and set charcoal tray at medium height by cranking the crank handle.

6. Sustain burn for about two hours with lid closed and all dampers to 1/4 of the way open. Allow the

unit to cool down properly.

7. Once this is completed, the unit is ready for use.15

OPERATING INSTRUCTIONS Rust can appear on the inside of your grill. Maintaining a light coating of vegetable oil on interior surfaces will aid in the protection of your grill. Exterior surfaces of the grill may need occasional touch up. We recommend the use of commercially available black high temperature spray paint. NEVER PAINT THE INTERIOR OF THE UNIT! Operating The Front Door, Dampers, And Smoke Stack

WARNING: These metal parts could be very hot while grilling. Always operate these parts while

wearing a heat-resistant glove.

• To open the door, lift the door slighty and pull.

• To close the door, lift the door slightly and push the door to the door frame catch.

• To adjust the side dampers, pull or push damper handle until desired air ow is achieved.

• To adjust the smoke stack, move the smoke stack adjustment handle away from the smoke stack and raise or lower the adjustment handle until the desired air ow is achieved. Grilling Charcoal is recommended, however wood or a combination of both may be used as the fuel source for grilling if the fuel source is placed and ignited on the charcoal pan. Do not build too large a re. We recommend starting a re with no more than 4 lbs. of charcoal (approximately 60 briquettes) and adding more as needed during cooking. After allowing the re to burn down, place the cooking grates in the unit using heat-resistant gloves. Failure to read and follow instructions for lighting charcoal may result in serious personal injury and or property damage. WARNING

• Most surfaces on this unit are hot when in use. Use extreme caution. Keep others away from unit.

• Always wear protective clothing to prevent injury.

• Keep children and pets away.

• DO NOT move this unit during operation.

• Never substitute gasoline, kerosene or alcohol for charcoal starter. In some states, the use of charcoal starter is prohibited by law. In this case, parafn-based starter cubes can be substituted for charcoal starter. Never use charcoal starter uid with an electric starter.16 1-Year Limited Warranty This charcoal grill is warranted for 1 year against broken or damaged parts at the time of purchase. It is warranted to be free of defects. Paint is warranted to be free of defects except for rust, which may appear after repeated use. This warranty does not cover damage or issues related to neglect, abuse, or modications to the appliance. Repair labor is not covered. All parts that meet the warranty requirements will be shipped at no charge via the discretion of GHP Group, Inc (ground shipments, US Mail, or Parcel Post ONLY). Any special handling charges (i.e. Second Day, overnight, etc.) will be the responsibility of the consumer. All warranty claims apply only to the original purchaser and require a proof of purchase verifying purchase date. This service is available by calling toll free 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday. NOTICE: Some states do not allow the exclusion or limitations of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights and you may also have other legal rights which may vary from state to state. Manufactured by: GHP Group Inc. 8280 Austin Avenue Morton Grove, IL, USA 60053-3207 Item Name: Heavy-Duty Charcoal Grill Model #: DGN576DNC-D WARRANTY

CARE AND MAINTENANCE

Grill Maintenance Frequency of cleaning is determined by how often the grill is used. Make sure coals are completely extinguished and the grates are cooled down before cleaning inside of the unit. To remove the stains on the lid and front panel caused by fumigation while grilling, use of a cleaning pad is recommended. Wipe out the interior of unit with a cloth or paper towel. Clean the grates with warm water and pat dry. The coating is fragile. Do not knock, hit or drop the grates.17

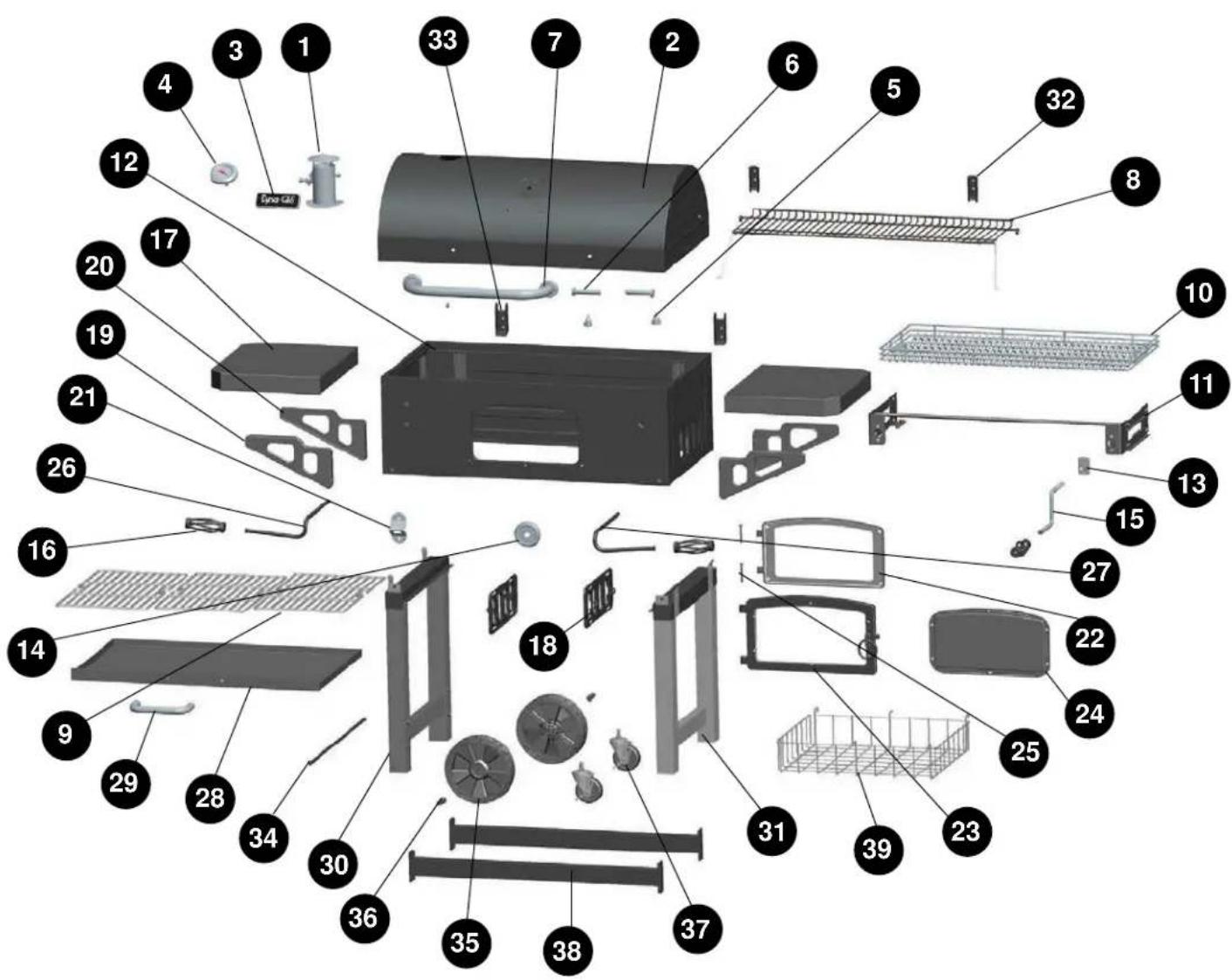

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m. CST, Monday – Friday.
