USER MANUAL STARLASERBL Ibiza Light

WITH WASH LED AND LED RING

MANUAL Ref. STAR-LASER FR - Manuel d'Utilisation - p. 6DE - Bedienungsanleitung - S. 10NL - Handleiding - p. 13ES - Manual de Uso - p. 17RO - Manual de Instrucţiuni - p. 21SI - Navodila za uporabo - s. 24IT - Manuale di istruzioni - p. 28PT - Manual de Instruções - p. 32HR - Upute za uporabu - s. 36STAR-LASER-BL STAR-LASER-WHCode: 15-1948 Code: 15-1947Manual - STAR-LASER

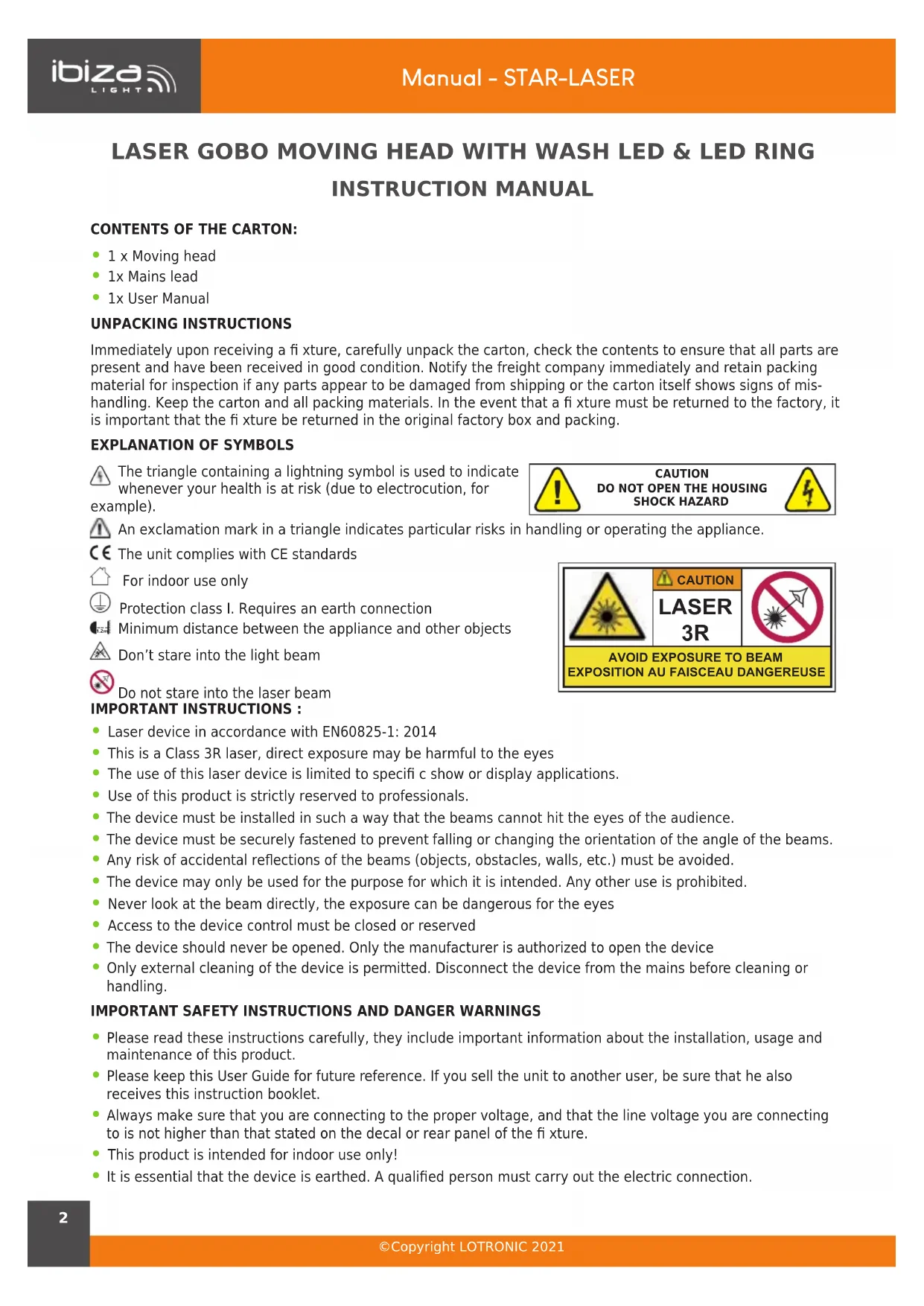

©Copyright LOTRONIC 2021 LASER GOBO MOVING HEAD WITH WASH LED & LED RING INSTRUCTION MANUAL CONTENTS OF THE CARTON:

• 1x User Manual UNPACKING INSTRUCTIONSImmediately upon receiving a 󰊟 xture, carefully unpack the carton, check the contents to ensure that all parts are present and have been received in good condition. Notify the freight company immediately and retain packing material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mis-handling. Keep the carton and all packing materials. In the event that a 󰊟 xture must be returned to the factory, it is important that the 󰊟 xture be returned in the original factory box and packing.EXPLANATION OF SYMBOLSThe triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.The unit complies with CE standardsFor indoor use only Protection class I. Requires an earth connection 1.2m Minimum distance between the appliance and other objectsDon’t stare into the light beam Do not stare into the laser beamIMPORTANT INSTRUCTIONS :
• Laser device in accordance with EN60825-1: 2014

• This is a Class 3R laser, direct exposure may be harmful to the eyes

• The use of this laser device is limited to speci󰊟 c show or display applications.

• Use of this product is strictly reserved to professionals.

• The device must be installed in such a way that the beams cannot hit the eyes of the audience.

• The device must be securely fastened to prevent falling or changing the orientation of the angle of the beams.

• Any risk of accidental re󰊠 ections of the beams (objects, obstacles, walls, etc.) must be avoided.

• The device may only be used for the purpose for which it is intended. Any other use is prohibited.

• Never look at the beam directly, the exposure can be dangerous for the eyes

• Access to the device control must be closed or reserved

• The device should never be opened. Only the manufacturer is authorized to open the device

• Only external cleaning of the device is permitted. Disconnect the device from the mains before cleaning or handling.IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS
• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the 󰊟 xture.
• This product is intended for indoor use only!

• It is essential that the device is earthed. A quali󰊟 ed person must carry out the electric connection. CAUTION

• To prevent risk of 󰊟re or shock, do not expose 󰊟xture to rain or moisture. Make sure there are no 󰊠ammable materials close to the unit while operating.

• The unit must be installed in a location with adequate ventilation, at least 1.2m from adjacent surfaces. Be sure that no ventilation slots are blocked.

• Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse size and type.

• Secure 󰊟xture to fastening device using a safety chain. Never carry the 󰊟xture solely by its head. Use its carry- ing handles.

• Maximum ambient temperature (Ta) is 35°C. Do not operate the 󰊟xture at temperatures higher than this.

• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the near- est authorized technical assistance center. Always use the same type of spare parts.

• Don’t connect the device to a dimmer pack.

• Make sure the power cord is never crimped or damaged.

• Never disconnect the power cord by pulling or tugging on the cord.

• Avoid direct eye exposure to the light source while it is on.

• The product is for decorative purposes only and not suitable as a household room illumination.

• The light source of this luminaire is not replaceable. When it reaches the end of its life time, the whole unit must be discarded.

• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. INSTALLATION The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is 󰊟rmly 󰊟xed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can hold 12 times the weight of the unit when installing the 󰊟xture. The equipment must be 󰊟xed by professionals at a place where is out of the reach of people and where nobody can pass by or under it. FUSE REPLACEMENT

• With a 󰊠at head screwdriver wedge the fuse holder out of its housing.

• Remove the damaged fuse from its holder and replace with exactly the same type of fuse.

• Insert the fuse holder back in its place and reconnect power.

• The fuse is located inside this compartment. Remove using a 󰊠at head screwdriver. FIXTURE LINKING You will need a serial data link to run light shows of one or more 󰊟xtures using a DMX-512 controller or to run synchronized shows on two or more 󰊟xtures set to a master/slave operating mode. The combined number of channels required by all 󰊟xtures on a serial data link determines the number of 󰊟xtures that the data link can support. Console Light1 Light2 Light3 Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended seri- al data link distance: 100 meters. Maximum recommended number of 󰊟xtures on a serial data link: 32 󰊟xtures CABLE CONNECTORS Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

INPUT COMMON DMX + DMX- Resistance 120 ohm 1/ 4w between pin 2 (DMX-) and pin 3 (DMX+) of the last fixture. Termination reduces signal errors. To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator. CAUTION Do not allow contact between the common and the 󰊟xture’s chassis ground. Grounding the common can causeManual - STAR-LASER

©Copyright LOTRONIC 2021 a ground loop, and your 󰊟xture may perform erratically. Test cables with an ohm meter to check correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. SETTING UP A DMX SERIAL DATA LINK

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the con-

2. Connect the end of the cable coming from the controller which will have a (female) 3 pin connector to the

input connector of the next 󰊟xture consisting of a (male) 3 pin connector.

3. Then, proceed to connect from the output as stated above to the input of the following 󰊟xture and so on.

MASTER/SLAVE FIXTURE LINKING

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the 󰊟rst

2. Connect the end of the cable coming from the 󰊟rst 󰊟xture which will have a (female) 3 pin connector to the

input connector of the next 󰊟xture consisting of a (male) 3 pin connector. Then, proceed to connect from the output as stated above to the input of the following 󰊟xture and so on Often, the set up for Master-Slave and Stand-alone operation requires that the 󰊟rst 󰊟xture in the chain be initial

ized for this purpose via either settings in the control panel or DIP-switches. Secondarily, the 󰊟xtures that follow may also require a slave setting. Please consult the '' Operating Instructions» section in this manual for complete instructions for this type of setup and con󰊟guration.

NAVIGATION THROUGH THE CONTROL PANEL

Access control panel functions using the four panel buttons located directly underneath the LCD Display.. Button Function MENU Used to access the menu or to return to a previous menu option UP Scrolls through menu options in ascending order DOWN Scrolls through menu options in descending order ENTER Used to select and store the current menu or option within a menu When a menu function is selected, the display will show immediately the 󰊟rst available option for the selected menu function. To select a menu item, press <ENTER>. MENU MAP Press the <MODE> button repeatedly until you reach the desired menu function. Use the <UP> and <DOWN> buttons to navigate through the menu options. Press the <ENTER> button to select the menu function current

ly displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the <MODE> button. After a few seconds, the LED Display will switch o󰊞 during operation until another button is pressed. Addr d001-d512 512 address setting CHnd 18CH 18 channel settings 13CH 13 channel setting SLnd Auto Self running mode Soun Sound controlled mode SHnd SH 0 E󰊞ect 0 (recommended) SH 1 E󰊞ect 1 SH 2 E󰊞ect 2 SH 3 E󰊞ect 3 SEnS 0-99 Voice sensitivity adjustment LEd OFF Display o󰊞 after 5 seconds of inactivity ON Display always on dISP no Display reverse YES Display positive UPDOWN MENU ENTER

YES Restore factory settings REST YES System reset TABLE OF DMX CHANNELS: SEE AT THE END OF THE MANUAL FIXTURE CLEANING The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the 󰊟xture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.

• Clean with soft cloth using normal glass cleaning 󰊠uid.

• Always dry the parts carefully.
