SUB 915 - Subwoofer DB Technologies - Free user manual and instructions

Product Type	Active Subwoofer
Brand	DB Technologies
Model	SUB 915
Dimensions (W x H x D)	620 x 457 x 620 mm
Weight	34.8 kg
Amplifier	DIGIPRO G3 Class D
RMS Power	900 W
Frequency Response (-10 dB)	45 Hz - crossover frequency
Max SPL at 1 m	133 dB
Speaker	15" (38 cm) with 4" voice coil
Crossover Frequency (variable)	70, 80, 90, 100, 110 Hz
Power Supply	PowerCON TRUE1
Input Connector	Balanced XLR female
Output Connector	Balanced XLR male (Xover/Link)
DSP Control	Polarity (Normal/Reverse), Delay (0-4.5 ms), Input Sensitivity, Xover/Link
RDNet Network	EtherCON/RJ45 (Data In/Out, LED Link, Active, Remote Preset Active)
Cabinet Material	Multi-layer wood with black protective paint
Protective Grille	CNC machined (do not disassemble)
Handles	2 side handles
Pole Mount Installation	Yes (35 mm diameter, M20 pre-disposition)
Power Consumption (idle)	21 W
Inrush Current	21 A
Protection	Peak, RMS, Thermal Limiter

Frequently Asked Questions - SUB 915 DB Technologies

How to turn on the SUB 915 subwoofer?

Connect the supplied PowerCON TRUE1 power cable to the mains connector, then insert and turn the connector to lock. The subwoofer turns on automatically. Set the input sensitivity to 0 dB before powering on.

What to do if the subwoofer does not turn on?

Check that the power cable is properly inserted and that the mains socket works. Check the fuse (MAINS FUSE holder). If the problem persists, contact an authorized repairer.

Why is there no sound?

Check that the audio signal reaches the XLR input and that the cable is not damaged. Make sure the source (mixer) is active and the input sensitivity is high enough. The Signal/ON LED should be on.

How to connect a passive speaker to the subwoofer?

Connect the subwoofer's XOVER/LINK output to the speaker's input. Set the Xover/Link selector to XOVER and choose the desired crossover frequency (70-110 Hz) with the rotary control.

What is the difference between Link and Xover modes?

In Link mode, the output signal is the same as that applied to the woofer. In Xover mode, the signal is filtered according to the selected crossover frequency (typically 120 Hz to relay to speakers).

Can I use the subwoofer outdoors?

Yes, the wooden cabinet with protective paint allows indoor and outdoor use under cover. Avoid direct exposure to rain or excessive humidity.

How to adjust the subwoofer delay?

Use the Subwoofer Delay rotary control to set a delay from 0 to 4.5 ms (in 0.5 ms steps). This allows temporal alignment of the subwoofer with other speakers.

What does the Limiter LED mean?

The Limiter LED lights up when the internal protection circuit is active (peak, RMS, or thermal limiting). This indicates that the subwoofer is being pushed to its limits. Reduce the input level to avoid distortion.

How to update the firmware?

Use the USB Data Service port (USB type B connector) to connect the subwoofer to a computer. Download the latest firmware from dbtechnologies.com and follow the instructions in the manual.

Can I stack other speakers on the subwoofer?

Yes, the subwoofer has an M20 pre-disposition for a 35 mm pole. Use the DS2-S or DS-2 accessory to install a speaker on top. Secure it firmly to prevent tipping.

USER MANUAL SUB 915 DB Technologies

Technical line drawing of a rectangular electronic enclosure with mounting holes and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic enclosure with mounting holes and internal compartments (no text or symbols)

USER MANUAL - Section 1

The warnings in this manual must be observed together with the "User Manual - Section 2".

According to the standards EN 55103 this equipment is designed and suitable to operate in E3 (or lower E2, E1) Electromagnetic environments.

FCC CLASS B STATEMENT ACCORDING TO TITLE 47, CHAPTER I, SUBCHAPTER A, PART 15, SUBPART B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WARNING

Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or properties. For safety reasons di not place one loudspeaker on top of another without proper fastening systems. Before hanging the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation. If you use the loudspeakers outdoor avoid spots exposed to bad weather conditions.

Contact dBTechnologies for accessories to be used with the speakers. dBTechnologies will not accept any responsibility for damages caused by inappropriate accessories or additional devices.

SUB 915 - SUB918 Cod. 420120322 REV. 1.0

ITALIANO

ENGLISH

DEUTSCH

FRANÇAIS

ESPAÑOL

SUB915 - SUB918 Cod. 420120322 REV. 1.0

INDICE

2. PRIMA ACCENSIONE.... 10

COLLEGAMENTO DEGLI INGRESSI E RILANCIO AUDIO.... 11

INGRESSI E USCITE 16

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Pure technical drawing of a rectangular frame with dimension标注 (no text or symbols)

Simple line drawing of a rectangular frame with dimension label 720 (no text or symbols beyond the measurement)

SUB 915 - SUB918 Cod. 420120322 REV. 1.0

Diagram of a device rear panel with internal circuitry and directional arrows indicating flow or movement (no text or symbols)

MAINS LINKAUTO-RANGE MAINS INPUT 230-360V~50-60Hz 2.7A 100-120V~50-6Hz 4.7A 238-320V~[43.3Amax] 390Wmax 100-120V~[45.3Amax] 180Wmax MAINS FUSE SUB QAS SUB QAS SUB INDUSTRIES S.E.L. Sub Industries B. Localized Caspstone 2022 VALEKINDIA (HCL - RAY) EWC CE

SUB915 - SUB918 Cod. 420120322 REV. 1.0

4. Xover/Link rotary

6. LED (Limiter, Signal/ON)

CAUTION RISK OF ELECTRONIC SUPPORT NOT OPEN "ATTENTION" SUPPORT DE "CHASE" ELECTRONIC NET SUFFER MAINS INPUT 220-240V~ 50-60Hz 2,7A 100-120V~ 50-60Hz 4,7A MAINS LINKAUTO-RANGE 220-240V~ (13,3Amax) 3050Wmax 100-120V~ (15,3Amax) 1680Wmax MAINS FUSE 220-240V~ (T4A L 250V~ 100-120V~ (T8A L 250V~) RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE SUB 915 SUB 918 The short coils with part 13 of the RC blocks. Occurrence is applied to the leading two conditions. The device may not cause horizontal protection, and the device must change any performance reduced, including interference, the may cause resistance. SUB 915 SUB 918 AES INDUSTRIALE S.R.L. Via Broodulin, B Localito Crescaggiano 40063 VAL SAMIDOGIA (BO) - ITALY EMC CE

7. Subwoofer Delay

- Subwoofer Polarity:

Technical line drawing of a mechanical device with two stacked components (no text or symbols)

Two identical mechanical or electrical components with vertical posts and mounting base (no text or symbols visible)

SUB915 - SUB918 Cod. 420120322 REV. 1.0

4. RISOLUZIONE DEI PROBLEMI

Controlli:

Delay, Xover/Link, Polarity, Sensitivity

INGRESSI E USCITE

Ingressi:	2 x XLR Balanced Inputs
Uscite:	2x XLR Balanced Outputs

PRODUCT OVERVIEW.... 19

USER REFERENCE 19

MECHANICAL AND ACOUSTICAL FEATURES 20

DIMENSIONS 20

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS.... 21

INPUT, OUTPUT AND CONTROL SECTION 22

POWER SUPPLY UNIT SECTION 23

2. FIRST POWER-UP 24

INPUT CONNECTIONS AND AUDIO DAISY CHAIN 25

3. USAGE EXAMPLES...... 27

FLOOR USAGE 27

USAGE WITH SPEAKER IN A STACK 27

USAGE ON SUBWOOFER WITH TELESCOPIC POLE 27

4. TROUBLESHOOTING 28

5. SPECIFICATIONS 29

GENERAL INFORMATION 29

ACOUSTICAL SPECIFICATIONS.... 29

AMPLIFIER 29

PROCESSOR.... 30

USER INTERFACE 30

INPUTS & OUTPUTS.... 30

POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION) 30

DIMENSIONS 31

SUB 915 - SUB918 Code 420120322 REV. 1.0

1. GENERAL INFORMATION

WELCOME!

Thanks for purchasing a product designed and developed in Italy by dBTechnologies! This ergonomic and versatile active subwoofer is the result of a long experience in the sound reinforcement industry, making use of optimized sound, electronic and material research solutions.

PRODUCT OVERVIEW

The new SUB 900 subwoofers are equipped with a 15" woofer (SUB 915) and an 18" woofer (SUB 918), respectively. Accurate design and sound optimisation allow for high-quality performance in a compact product. Cabinets high ergonomics and ease of handling make them easy to transport. SUB 915 and SUB 918 main features are:

• an ergonomic, compact and versatile project, for both indoors and outdoors
• reliable, silent digital amplifier
  • dedicated DSP controls, with Polarity, Delay, Xover, Sensitivity selection

- wooden cabinets for acoustic performance optimisation, with resistant external surfaces for both indoor and outdoor use

USER REFERENCE

To make the most of your subwoofer, we recommend that you:

• read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product.
• Register your product at http://www.dbtechnologies.com under "SUPPORT".
• keep proof of purchase and WARRANTY (User manual "section 2").

SUB915 - SUB918 Code 420120322 REV. 1.0

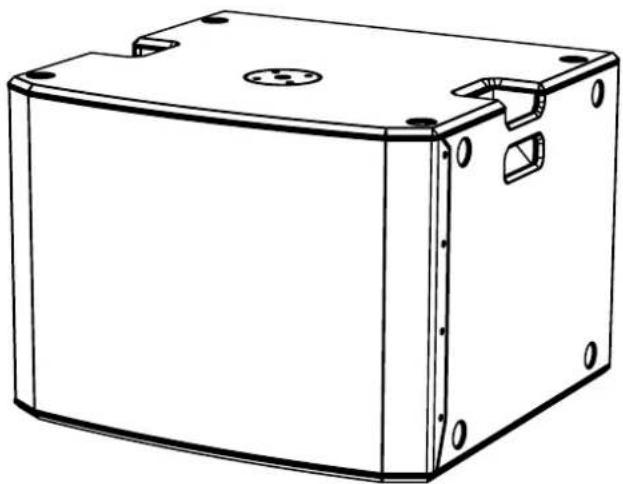

MECHANICAL AND ACOUSTICAL FEATURES

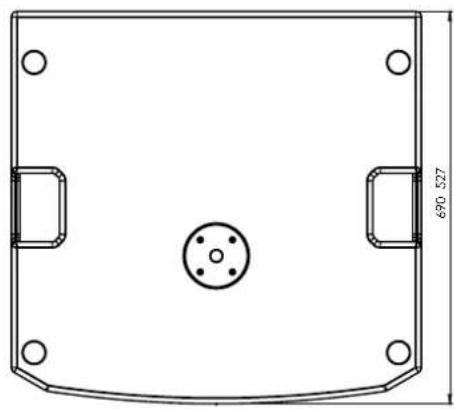

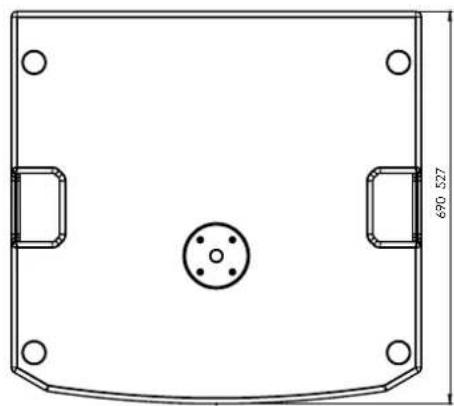

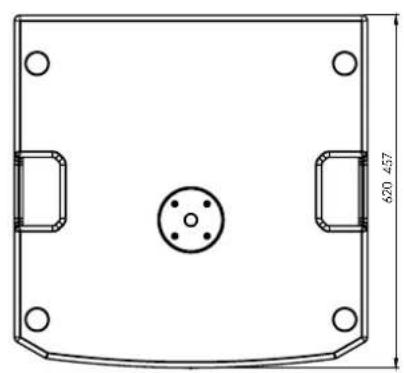

DIMENSIONS

SUB 915 and S918 have the following sizes:

• SUB 915: 620 x 457 x 620 (mm)
• SUB 918: 720 x 530 x 690 (mm)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Pure technical drawing of a rectangular frame with dimension标注 (no text or symbols)

Simple line drawing of a rectangular frame with dimension label 720 (no text or symbols beyond the measurement)

SUB 915 - SUB918 Code 420120322 REV. 1.0

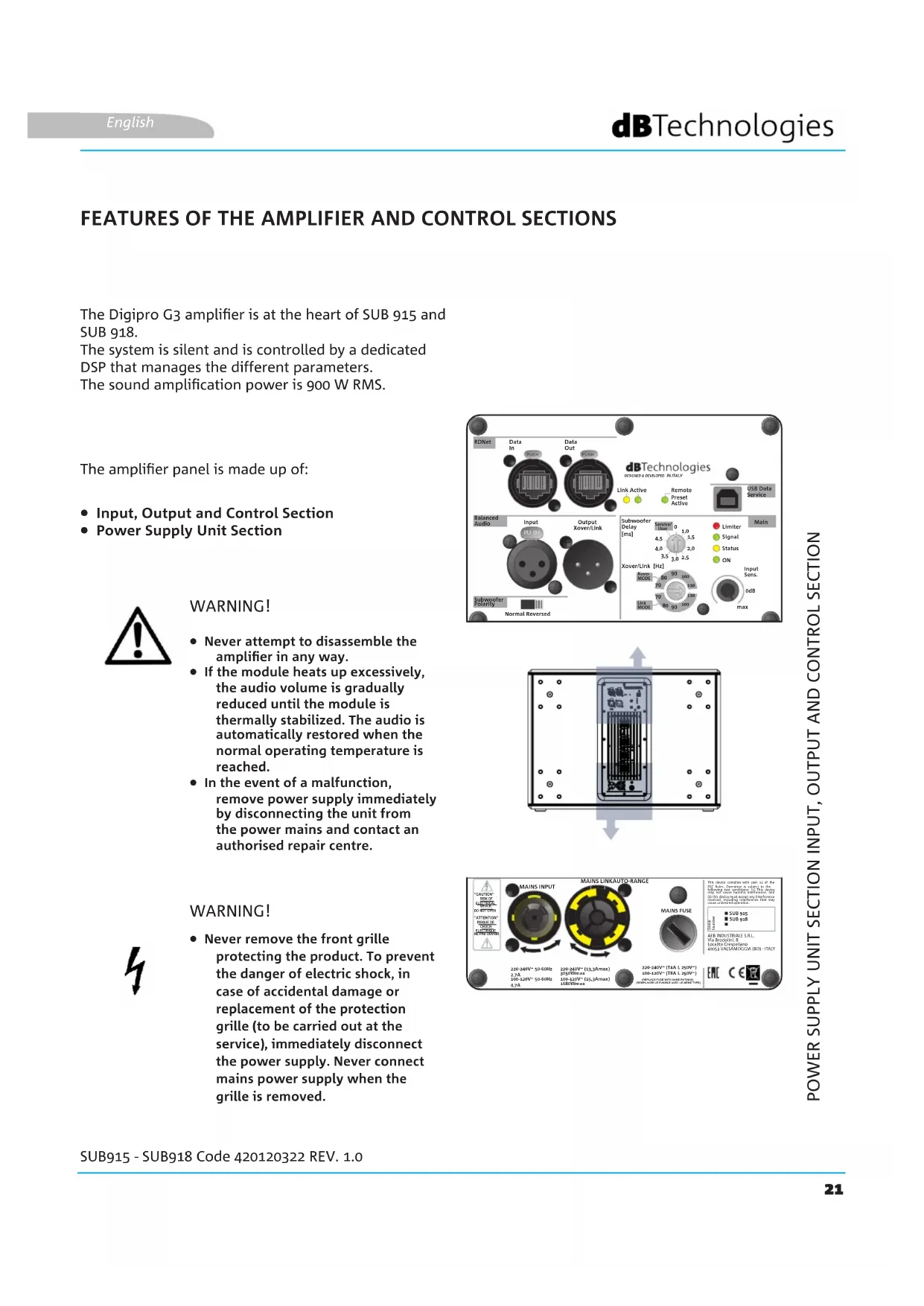

FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS

The Digipro G3 amplifier is at the heart of SUB 915 and SUB 918.

The system is silent and is controlled by a dedicated DSP that manages the different parameters.

The sound amplification power is 900 W RMS.

The amplifier panel is made up of:

• Input, Output and Control Section
• Power Supply Unit Section

WARNING!

• Never attempt to disassemble the amplifier in any way.
• If the module heats up excessively, the audio volume is gradually reduced until the module is thermally stabilized. The audio is automatically restored when the normal operating temperature is reached.
• In the event of a malfunction, remove power supply immediately by disconnecting the unit from the power mains and contact an authorised repair centre.

dBTechologies SERVICES DEVELOPED IN IFLAY Link Active Remote Preset Active USB Data Service Balanced Audio Input Output Xover/Link Subwoofer Delay [ms] Main Subwoofer Delay [ms] Limiter Signal Status ON Xover/Link [Hz] Input Sons. 0dB max Subwoofer Polarity Normal Reversed

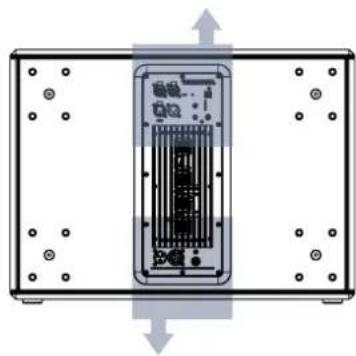

Diagram of a device internal structure with arrows indicating direction (no text or symbols)

MAINS LINKAUTO-RANGE MAINS INPUT 230-360V~50-60Hz 2.7A 200-120V~50-6Hz 4.7A 238-360V~[43.3Amax] 390WMax 100-120V~[35.3Amax] 180WMax MAINS FUSE SUB OUT SUB OUT SUB INDUSTRIES S.E.L. Sub Industries B.C. Localized Capacitors 2022 CALIFORNICUM (BCL-TAIY) ENC C E

WARNING!

- Never remove the front grille protecting the product. To prevent the danger of electric shock, in case of accidental damage or replacement of the protection grille (to be carried out at the service), immediately disconnect the power supply. Never connect mains power supply when the grille is removed.

SUB915 - SUB918 Code 420120322 REV. 1.0

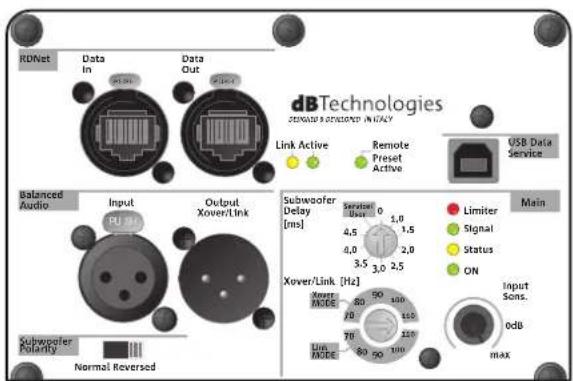

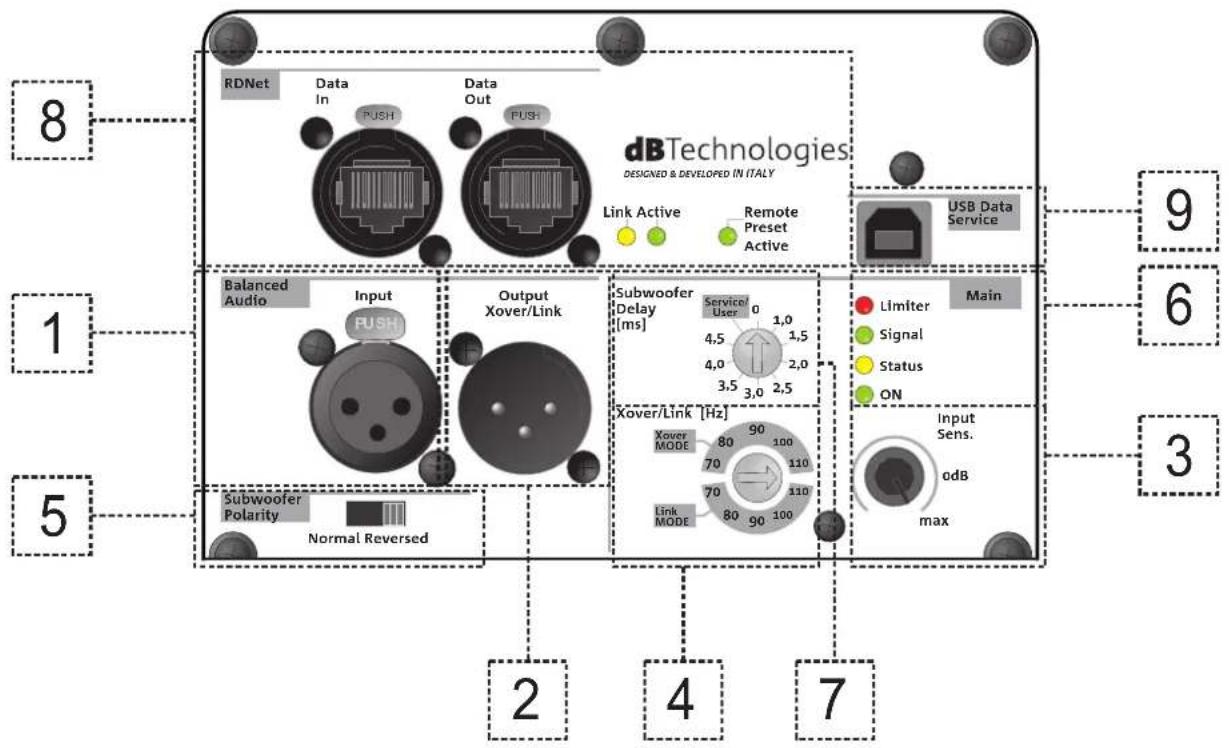

INPUT, OUTPUT AND CONTROL SECTION

RDNet Data In PUSH Data Out PUSH dB Technologies DESIGNED & DEVELOPED IN ITALY Link Active Remote Preset Active USB Data Service Balanced Audio Input PUSH Output Xover/Link Subwoofer Delay [ms] 0 1,0 4,5 1,5 4,0 2,0 3,5 3,0 2,5 Limiter Main Signal Status ON Xover/Link [Hz] Xover MODE 80 90 100 70 110 70 110 Link MODE 80 90 100 Input Sens. odB max Subwoofer Polarity Normal Reversed 2 4 7 8 9 6 3

1. INPUT

XLR (balanced) input connector. For further details concerning connection, refer to INPUT CONNECTIONS AND AUDIO DAISY CHAIN.

2. OUTPUT

XLR (balanced) output connector. Select the cut-off frequency based on the Xover/Link mode using the relevant rotary control. For further details concerning connection, refer to INPUT CONNECTIONS AND AUDIO DAISY CHAIN.

3. Input Sensitivity

Rotary control to adjust the input sensitivity.

4. Xover/Link rotary

Selector that allows setting the cut-off frequency based on the selected mode (Link/Xover). It acts on the daisy-chained signal from Xover/Link Output connectors.

5. Subwoofer Polarity selector

Selector that allows adjusting the Polarity (Normal or Reverse)

6. LED (Limiter, Signal/ON)

Indicator LEDs. The Limiter LED turns on when the internal protection circuit is triggered, while Signal/ON indicates subwoofer power-up as well as the presence of an input audio signal.

SUB 915 - SUB918

Code 420120322 REV. 1.0

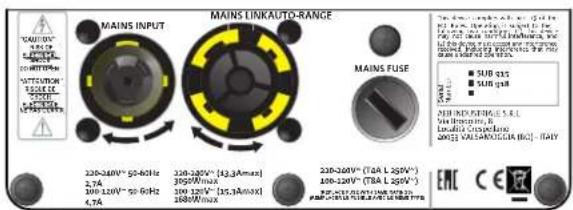

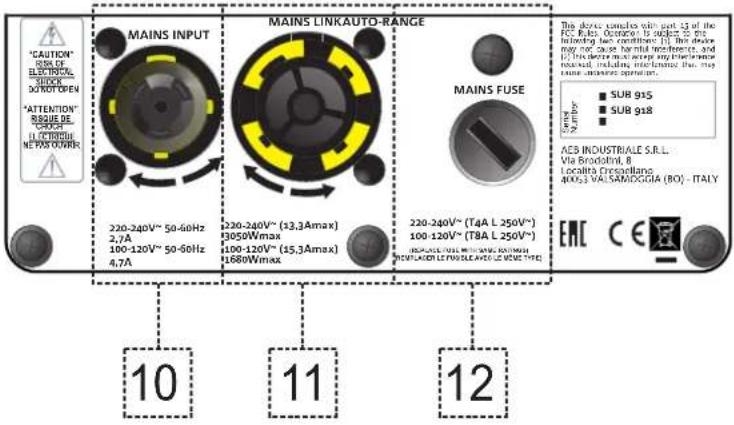

POWER SUPPLY UNIT SECTION

CAUTION RISK OF ELECTRONIC SUPPORT NOT OPEN "ATTENTION" SUPPORT DE "CHASE" ELECTRONIC NET SUFFER MAINS INPUT 220-240V~ 50-60Hz 2,7A 100-120V~ 50-60Hz 4,7A MAINS LINKAUTO-RANGE 220-240V~ (13,3Amax) 3050Wmax 100-120V~ (15,3Amax) 1680Wmax MAINS FUSE 220-240V~ (T4A L 250V~ 100-120V~ (T8A L 250V~) RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE SUB 915 SUB 918 The short coils with part 13 of the RC blocks. Occurrence to optes to the leading two conditions. The device may not cause horizontal protection, and the device must change any performance reduced, including interference, the may continue operation. AEB INDUSTRIALE S.R.L. Via Broodulin, B Localito Crescillano 40063 VAL SAMIDOGIA (BO) - ITALY EMC CE

7. Subwoofer Delay

Rotary control that allows setting the delay in ms.

8. RDNet section with control LEDs

Section compatible with network cables with etherCON/RJ45 connectors.

In particular, "Data in" must be connected to devices such as RDNet Control 2 or Control 8; "Data Out" is used to link the network to additional modules of the line array in daisy-chain configuration.

The LEDs relating to module network operation (RDNet) ensure real-time monitoring.

In particular, if "Link" is on the RDNet network is active and has acknowledged the device, if "Active" is flashing there is data traffic, if "Remote Preset Active" is on all local control on the amplifier panel are bypassed by the RDNet remote control.

9. Service Data USB

USB connector for firmware update.

10. MAINS INPUT

Compatible with powerCON TRUE1 ^® connector.

11. MAINS LINK

Compatible with powerCON TRUE1 ^® connector for power daisy chain to other modules.

To find the maximum number of modules that can be connected in a re-linked system, see the TECHNICAL SPECIFICATIONS section.

12. MAINS FUSE

Housing for the mains fuse

SUB915 - SUB918

Code 420120322 REV. 1.0

2. FIRST POWER-UP

The package of SUB 915 / SUB 918 subwoofer contains:

• 915 or 918 subwoofer
• POWERCON TRUE1 power cable
- quick start user manual and warranty documents in hard copy

CONFIGURATION AND OPTIMISATION

The subwoofer will turn on after inserting, turning and connecting the powerCON TRUE1 ^® connector to the power supply.

For subwoofer use optimisation in given configurations, the control panel displays the following:

- Xover/Link [Hz]:

1. Link (the signal present at OUTPUTS is the one applied to the woofer)
2. Xover (the signal present at OUTPUTS is filtered with a crossover frequency of 120 Hz, for daisy chain to a speaker, such as B-HYPE and OPERA)

- Subwoofer Polarity:

1. Normal (audio signal normal polarity)
2. Reverse (reverse polarity, useful for wavefront optimisation through acoustic wave phase reversal)

- Subwoofer Delay:

It is possible to select the applicable delay for various configurations, according to what is stated on the silk-screen print.

Before power-up, set Input Sensitivity level selector to 0 dB

SUB 915 - SUB918 Code 420120322 REV. 1.0

INPUT CONNECTIONS AND AUDIO DAISY CHAIN

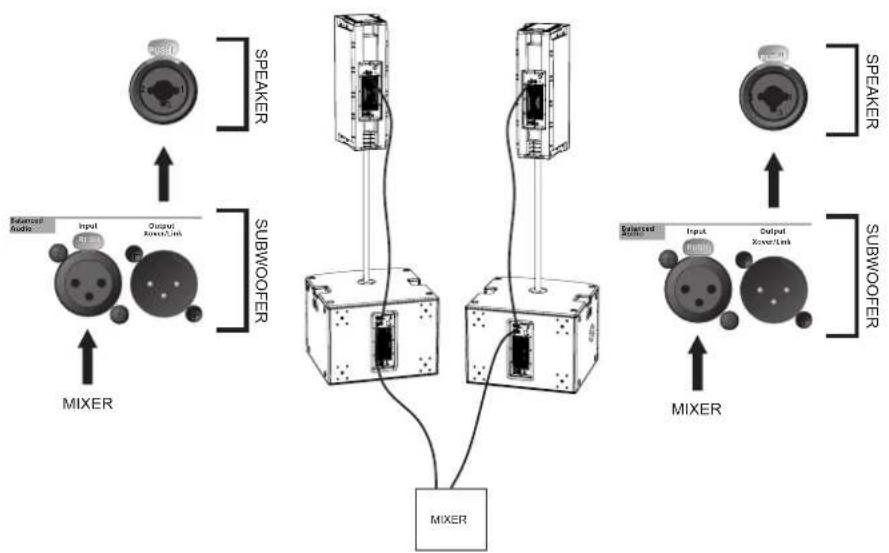

Two example figures are shown for illustrative purposes only.

In the event of a connection between subwoofer and speaker:

1. Connect mixer output to subwoofer input connector
2. Connect subwoofer output connector to speaker input.
3. Set subwoofer OUTPUT XOVER/LINK [4] to XOVER, in order to daisy-chain a signal to the speaker having a crossover frequency that can be selected with the Xover/Link rotary control [Hz]

MIXER

• Balanced

• Unbalanced


3. USAGE EXAMPLES

• Types of installation other than those here described are not allowed.
• Never use the handles to suspend the subwoofer
• Always check that the positioning is stable and that the installation does not pose a danger to people, animals or property.

FLOOR USAGE

915 and 918 subwoofers may be used directly on the floor.

USAGE WITH SPEAKER IN A STACK

A speaker may be installed directly on 915 or 918 subwoofer by means of a DS2-S 35 mm diameter mini-pole (e.g. series: INGENIA, B-HYPE, OPERA).

An additional fastener is required.

Technical line drawing of a mechanical device with two stacked components (no text or symbols)

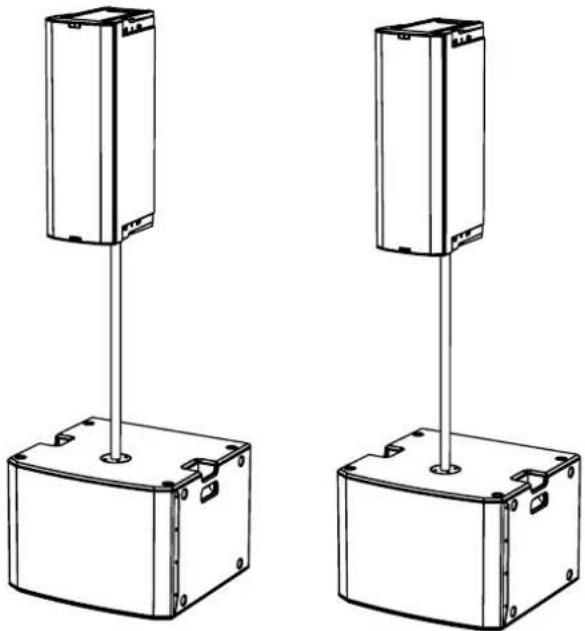

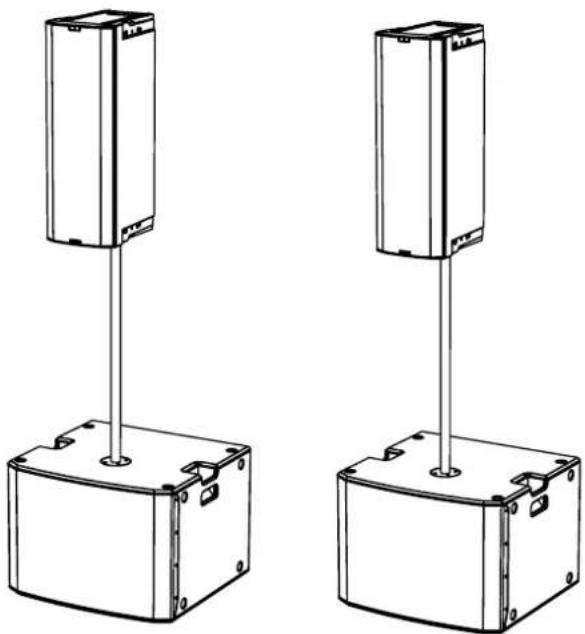

USAGE ON SUBWOOFER WITH TELESCOPIC POLE

It is possible to use only one speaker mounted on a 35 mm diameter pole. The reference accessory is DS-2 (telescopic pole). An additional fastener is required.

Two identical electrical enclosure units with vertical posts and mounting holes, shown from different angles (no text or symbols)

SUB915 - SUB918 Code 420120322 REV. 1.0

4. TROUBLESHOOTING

The subwoofer will not turn on:

1. Check that power supply is present upstream of the installation.
2. Ensure that the power supply cable is properly plugged in.

The subwoofer turns on but produces no sound:

1. Check that the input connection of the audio signal is correctly performed.
2. Check the cables for damage.
3. Ensure that the mixer or audio source is on and an output signal is present.
4. Check the general level through the "Input Sensitivity" control.

Loudspeaker sound is inappropriate:

1. Check the cables for damage and replace them as required (a damaged cable may lead to signal loss or alteration).
2. Check that the settings on the control panel are correctly set.

SUB 915 - SUB918 Code 420120322 REV. 1.0

5. SPECIFICATIONS

GENERAL INFORMATION

Type:

Active subwoofer

ACOUSTICAL SPECIFICATIONS

Frequency response [-10dB]:	45 - Cut freq Hz (SUB 915) / 42 -Cut Freq Hz (SUB 918)
Max SPL (1m):	133 dB (SUB 915) / 134 dB (SUB 918)
LF:	15” (SUB 915) / 18” (SUB 918)
LF voice coil:	4”
Crossover frequency:	Variable (70 Hz - 80 Hz - 90 Hz - 100 Hz - 110 Hz)

AMPLIFIER

Type:	DIGIPRO G3
Amplification class	Class D
Power supply	PowerCON TRUE1
RMS amplifier power:	900 W

SUB915 - SUB918 Code 420120322 REV. 1.0

PROCESSOR

Internal controller:	28-bit/56-bit DSP
Limiter:	Peak, RMS, Thermal

USER INTERFACE

Controls:

Delay, Xover/Link, Polarity, Sensitivity

INPUTS & OUTPUTS

Inputs:	2 x XLR Balanced Inputs
Outputs:	2x XLR Balanced Outputs

POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION)

Absorption at 1/8th of power in medium use conditions (*):	1.2 A (220-240V~) - 2 A (110-120V~)
Absorption at 1/3rd of power in maximum use conditions (**):	2.7 A (220-240V~) - 4.7 A (110-120V~)
Absorption with speaker on in no-signal condition (idle):	21 W
Inrush current:	21.04 A

* NOTE FOR INSTALLER: Values refer to 1/8th of power, under average operating conditions (music programme with occasional or no clipping). For any type of configuration we recommend to consider them as minimum sizing values.
** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values.

SUB 915 - SUB918 Code 420120322 REV. 1.0

DIMENSIONS

Material:	Plywood (with protective black paint)
Grille:	NC-machined
Handles:	2, on sides
Pole mount:	Yes, 36 mm (provision: M20)
Width:	620 mm (SUB 915) 720 mm (SUB 918)
Height:	457 mm (SUB 915) 530 mm (SUB 918)
Depth:	620 mm (SUB 915) 690 mm (SUB 918)
Weight:	34.8 kg (SUB 915) 41.8 kg (SUB 918)

Product features, specifications and appearance are subject to changes without prior notice. dBTechnologies reserves the right to make changes or improvements in design or manufacture without any obligation to incorporate such changes or improvements in products manufactured before their introduction.

AEB

A.E.B. Industriale Srl

Via Brodolini, 8

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Pure technical drawing of a rectangular frame with dimension标注 (no text or symbols)

Simple line drawing of a rectangular frame with dimension label 720 (no text or symbols beyond the measurement)

Diagram of a device internal structure with arrows indicating direction (no text or symbols)

MAINS LINKAUTO-RANGE MAINS INPUT 230-360V~50-60Hz 2.7A 100-120V~50-60Hz 4.7A 238-360V~[43.3Amax] 390WMax 100-120V~[15.3Amax] 180WMax MAINS FUSE SUB QAS SUB QAS SUB INDUSTRIES S.E.L. Sub Industries B. Locator Caspstone 2022 VALEKINDIA (HCL - RAY) EWC CE

4. Xover/Link rotary

6. LED (Limiter, Signal/ON)

CAUTION RISK OF ELECTRONIC SUPPORT NOT OPEN "ATTENTION" SUPPORT DE "CHASE" ELECTRONIC NET SUFFER MAINS INPUT 220-240V~ 50-60Hz 2,7A 100-120V~ 50-60Hz 4,7A MAINS LINKAUTO-RANGE 220-240V~ (13,3Amax) 3050Wmax 100-120V~ (15,3Amax) 1680Wmax MAINS FUSE 220-240V~ (T4A L 250V~ 100-120V~ (T8A L 250V~) RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE SUB 915 SUB 918 The short coils with part 13 of the RC blocks. Occurrence to optes to the leading two conditions. The device may not cause horizontal protection, and the device must change any performance reduced, including interference, the may continue operation. AEB INDUSTRIALE S.R.L. Via Broodulin, B Localito Crescillano 40063 VAL SAMIDOGIA (BO) - ITALY EMC CE

7. Subwoofer Delay

- Subwoofer Polarity:

Technical line drawing of a mechanical device with two stacked components (no text or symbols)

VERWENDUNG AUF EINEM SUBWOOFER MIT TELESKOPPFOSTEN

Two identical mechanical or electrical enclosure units with vertical posts and mounting holes, shown from different angles (no text or symbols)

DONNÉES ACOUSTIQUES 57

AMPLIFICATEUR 57

PROCESSEUR 58

INTERFACE UTILISATEUR 58

ENTRÉES ET SORTIES.... 58

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION / INSTALLATION) 58

DIMENSIONS 59

SUB 915 - SUB918 Code 420120322 RÉV. 1.0

1. INFORMATIONS GÉNÉRALES

BIENVENUS!

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Pure technical drawing of a rectangular frame with dimension标注 (no text or symbols)

Simple line drawing of a rectangular frame with dimension label 720 (no text or symbols beyond the measurement)

SUB 915 - SUB918 Code 420120322 RÉV. 1.0

CARACTÉRISTIQUES DE LA SECTION D'AMPLIFICATION ET DE CONTRÔLE

Diagram of a device internal structure with arrows indicating direction (no text or symbols)

MAINS LINKAUTO-RANGE MAINS INPUT 230-360V~50-60Hz 2.7A 100-120V~50-60Hz 4.7A 238-360V~[43.3Amax] 390WMax 100-120V~[15.3Amax] 180WMax MAINS FUSE SUB QAS SUB QAS SUB INDUSTRIES S.E.L. Sub Industries B. Locator Caspstone 2022 VALEKINDIA (HCL - RAY) EWC CE

SUB915 - SUB918 Code 420120322 RÉV. 1.0

SECTION D'ENTRÉE, DE SORTIE ET DE CONTRÔLE

RDNet Data In PUSH Data Out PUSH dB Technologies DESIGNED & DEVELOPED IN ITALY Link Active Remote Preset Active USB Data Service Balanced Audio Input PUSH Output Xover/Link Subwoofer Delay [ms] 0 1,0 4,5 1,5 4,0 2,0 3,5 3,0 2,5 Xover/Link [Hz] Limiter Main Signal Status ON Xover MODE 80 90 100 70 110 70 110 Link MODE 80 90 100 Input Sens. odB max Subwoofer Polarity Normal Reversed 2 4 7 8 9 6 3

1. ENTRÉE

4. Xover/Link rotary

6. LED (Limiter, Signal/ON)

CAUTION RISK OF ELECTRONIC SUPPORT NOT OPEN "ATTENTION" SUPPORT DE "CHASE" ELECTRONIC NET SUFFER MAINS INPUT 220-240V~ 50-60Hz 2,7A 100-120V~ 50-60Hz 4,7A MAINS LINKAUTO-RANGE 220-240V~ (13,3Amax) 3050Wmax 100-120V~ (15,3Amax) 1680Wmax MAINS FUSE 220-240V~ (T4A L 250V~ 100-120V~ (T8A L 250V~) RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE SUB 915 SUB 918 The short coils with part 13 of the RC blocks. Occurrence to optes to the leading two conditions. The device may not cause horizontal protection, and the device must change any performance reduced, including interference, the may continue operation. AEB INDUSTRIALE S.R.L. Via Broodulin, B Localito Crescillano 40063 VAL SAMIDOGIA (BO) - ITALY EMC CE

7. Subwoofer Delay

Technical line drawing of a mechanical device with two stacked components (no text or symbols)

UTILISATION SUR SUBWOOFER AVEC POTEAU TÉLESCOPIQUE

Two identical electrical enclosure units with vertical posts and mounting base (no text or symbols)

SUB915 - SUB918 Code 420120322 RÉV. 1.0

4. DÉPANNAGE

Commandes :

Delay, Xover/Link, Polarity, Sensitivity

ENTRÉES ET SORTIES

Entrées :	2 x XLR Balanced Inputs
Sorties :	2x XLR Balanced Outputs

SPÉCIFICATIONS D'ALIMENTATION (ABSORPTION / INSTALLATION)

USO EN SUBWOOFER CON POSTE TELESCÓPICO 69

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Pure technical drawing of a rectangular frame with dimension标注 (no text or symbols)

Simple line drawing of a rectangular frame with dimension label 720 (no text or symbols beyond the measurement)

SUB 915 - SUB918 Cód. 420120322 REV. 1.0

dBTechologies SERVICES DEVELOPED IN ICAVY Link Active Remote Preset Active USB Data Service Balanced Audio Input Output Xover/Link Subwoofer Delay [ms] Main Subwoofer Delay [ms] Limiter Signal Status ON Xover/Link [Hz] Input Sons. 0dB max Subwoofer Polarity Normal Reversed

Diagram of a device internal structure with arrows indicating direction (no text or symbols)

MAINS LINKAUTO-RANGE MAINS INPUT 230-360V~50-60Hz 2.7A 200-120V~50-6Hz 4.7A 238-360V~[43.3Amax] 390WMax 100-120V~[35.3Amax] 180WMax MAINS FUSE SUB OUT SUB OUT SUB INDUSTRIALS S.E.L. Sub Industrials S.E.L. Localized Capacitors 2022 CALIFORNICUM (BCL-TAIY) ENC CE ECE

4. Xover/Link rotary

6. LED (Limiter, Signal/ON)

CAUTION RISK OF ELECTRONIC SUPPORT NOT OPEN "ATTENTION" SUPPORT DE "CHASE" ELECTRONIC NET SUFFER MAINS INPUT 220-240V~ 50-60Hz 2,7A 100-120V~ 50-60Hz 4,7A MAINS LINKAUTO-RANGE 220-240V~ (13,3Amax) 3050Wmax 100-120V~ (15,3Amax) 1680Wmax MAINS FUSE 220-240V~ (T4A L 250V~ 100-120V~ (T8A L 250V~) RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE RESISTANCE WITH RESISTANCE SUB 915 SUB 918 The short coils with part 13 of the RC blocks. Occurrence is applied to the leading two conditions. The device may not cause horizontal protection, and the device must change any performance reduced, including interference, the may continue operation. AEB INDUSTRIALE S.R.L. Via Broodulin, B Localito Crescaggiano 40063 VAL SAMIDOGIA (BO) - ITALY EMC CE

7. Subwoofer Delay

- Subwoofer Polarity:

USO CON ALTAVOCES EN STACK

Technical line drawing of a mechanical device with two stacked components (no text or symbols)

USO EN SUBWOOFER CON POSTE TELESCÓPICO

Two identical electrical enclosure units with vertical posts and mounting holes, shown from different angles (no text or symbols)

SUB915 - SUB918 Cód. 420120322 REV. 1.0

Controles:

Delay, Xover/Link, Polarity, Sensitivity

ENTRADAS Y SALIDAS

Entradas:	2 x XLR Balanced Inputs
Salidas:	2x XLR Balanced Outputs
