USER MANUAL KRF-X9070D KENWOOD

Compared to standard remote controls, the remote control supplied with this receiver has several operation modes. These modes enable the remote control to control other audio/video components. In order to effectively use the remote control, it is important to read the operating instructions and obtain a proper understanding of the remote control and how to switch its operation modes (etc.). Using the remote control without completely understanding its design and how to switch the operation modes may result in incorrect operations.

DEUTSCH About the supplied remote control

ITALIANO ESPAÑOL B60-5345-00 01 MA

03.3.11, 0:21 PM Before applying the power

Units are designed for operation as follows.

ENGLISH U.S.A. and Canada AC 120 V only

Australia AC 240 V only Europe and U.K. AC 230 V only China and Russia AC 220 V only Other countries AC 110-120 / 220-240 V switchable*

Caution : Read this page carefully to ensure safe operation.

How to use this manual

This manual is divided into four sections, Preparations, Operations, Remote Control, and Additional Information.

Shows you how to connect your audio and video components to the receiver and prepare the surround processor. Since this receiver works with all your audio and video components, kindly follow the instructions in this manual for the correct connections.

Shows you how to operate the various functions available on the receiver.

Shows you how to operate other components using the remote control, as well as a detailed explanation of all remote control operations. Once you have registered your components with the proper setup codes, you’ll be able to operate both this receiver and your other AV components (TV, VCR, DVD player, CD player, etc.) using the remote control supplied with this receiver.

Additional Information

Shows you additional information such as “In case of difficulty” (troubleshooting) and “Specifications”.

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Maintenance of the unit

When the front panel or case becomes dirty, wipe with a soft, dry cloth. Do not use thinner, benzine, alcohol, etc. for these agents may cause discoloration.

In regard to contact cleaner

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Do not use contact cleaners because it could cause a malfunction. Be specially careful not to use contact cleaners containing oil, for they may deform the plastic component.

Before applying the power

Caution : Read the pages marked safe operation.

Basic remote control operations for other components 39

Before applying the power 2

Names and functions of parts 6

Main unit 6 Remote control unit 7

Setting up the system 8

Connecting the terminals 9 Connecting audio components 10 Connecting video components 11 Digital connections 12 Connecting video components (COMPONENT VIDEO) 13 Connecting a DVD player (6-channel input) 14 Connecting the speakers 15 PRE OUT connections 16 Connecting to another room (ROOM B) 17 Connecting to the AV AUX jacks 18 Connecting the antennas 19 Connecting the system control 20

Registering setup codes for other components 39

Searching for your codes 39 Checking the codes 39 Re-assigning device keys 40 Operating other components 40 Storing the remote control of the other components 41 Setup code chart 42 CASSETTE deck, CD player & MD recorder operations 47 Other components’ operations 48

In case of difficulty 50

Preparing for surround sound 21

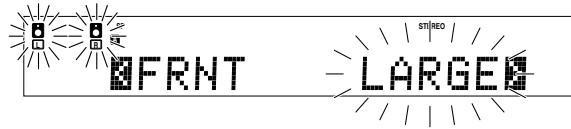

Speaker settings 21

Preparing for playback 24 Listening to a source component 24 Adjusting the sound 25

Listening to radio broadcasts 28

Tuning (non RDS) radio stations 28

Using RDS (Radio Data System) 28 Presetting radio stations manually 29 Receiving preset stations 29 Receiving preset stations in order (P.CALL) ... 29 Using the RDS DISP (Display) key 30 Presetting RDS stations (RDS AUTO MEMORY) 30 Tuning by Program TYpe (PTY search) 31

Safety precautions 2

How to use this manual 2 Unpacking 4 Preparing the remote control 4 Special features 5

Before applying the power

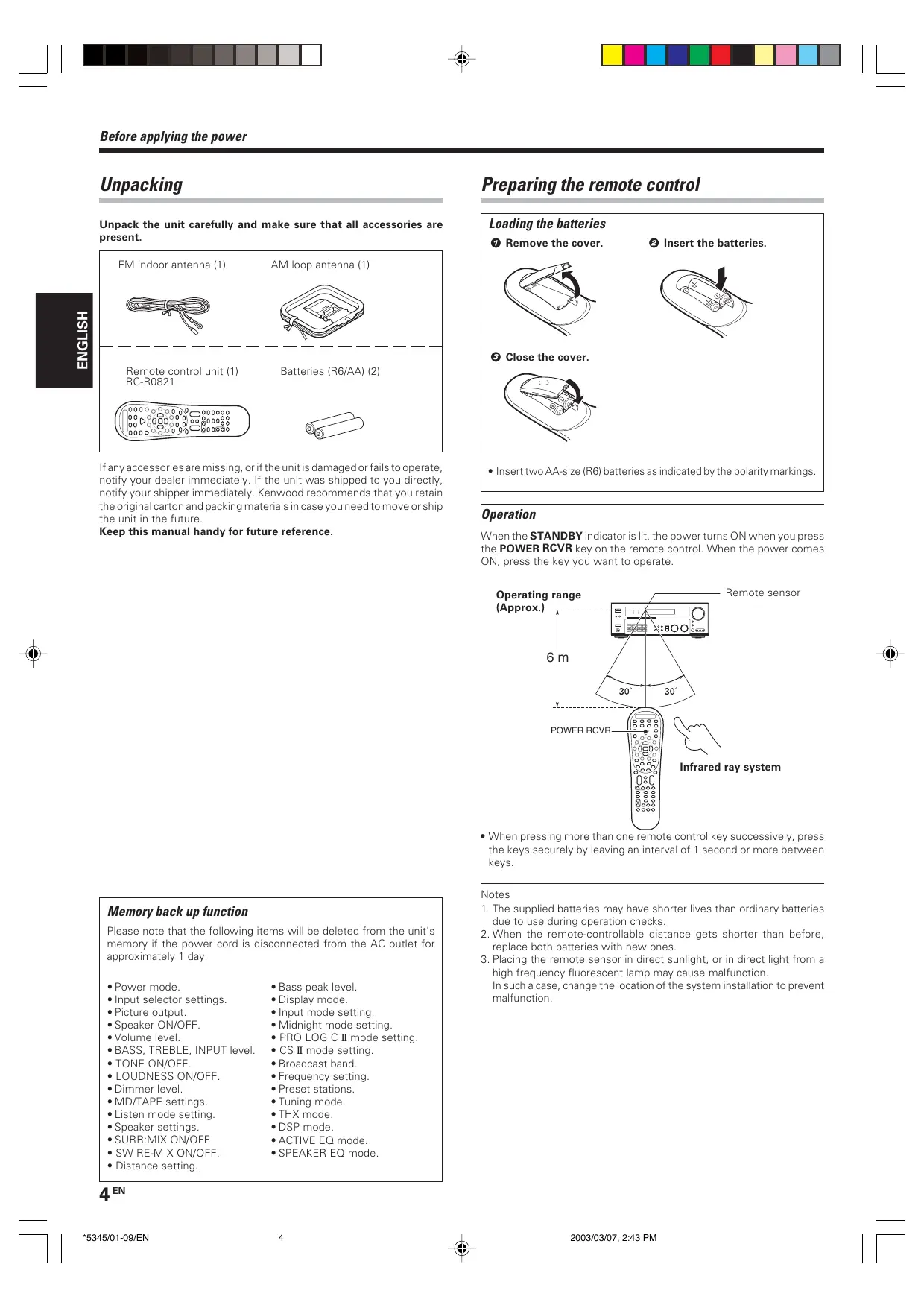

Preparing the remote control

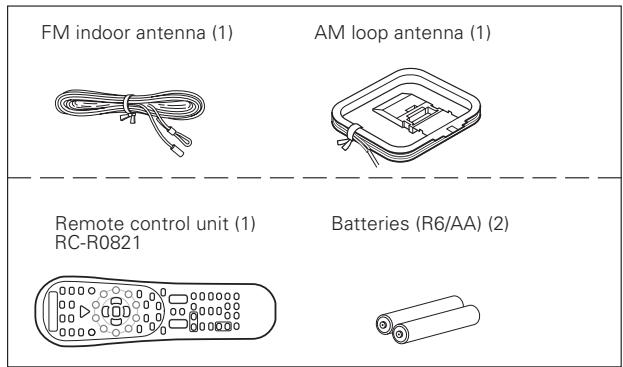

Unpack the unit carefully and make sure that all accessories are present.

ENGLISH FM indoor antenna (1)

Loading the batteries

2 Insert the batteries.

Remote control unit (1) RC-R0821

Batteries (R6/AA) (2)

If any accessories are missing, or if the unit is damaged or fails to operate, notify your dealer immediately. If the unit was shipped to you directly, notify your shipper immediately. Kenwood recommends that you retain the original carton and packing materials in case you need to move or ship the unit in the future.

Keep this manual handy for future reference.

• Insert two AA-size (R6) batteries as indicated by the polarity markings.

When the STANDBY indicator is lit, the power turns ON when you press the POWER RCVR key on the remote control. When the power comes ON, press the key you want to operate. Operating range (Approx.)

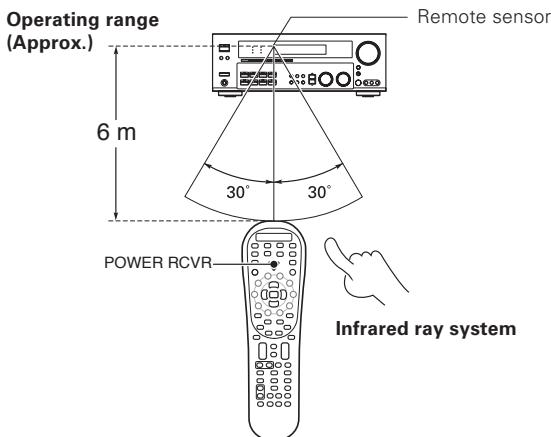

POWER RCVR Infrared ray system

• When pressing more than one remote control key successively, press the keys securely by leaving an interval of 1 second or more between keys.

Memory back up function

Please note that the following items will be deleted from the unit's memory if the power cord is disconnected from the AC outlet for approximately 1 day. • Power mode. • Input selector settings. • Picture output. • Speaker ON/OFF. • Volume level. • BASS, TREBLE, INPUT level. • TONE ON/OFF. • LOUDNESS ON/OFF. • Dimmer level. • MD/TAPE settings. • Listen mode setting. • Speaker settings. • SURR:MIX ON/OFF • SW RE-MIX ON/OFF. • Distance setting.

• Display mode. • Input mode setting. • Midnight mode setting. • PRO LOGIC II mode setting. • CS II mode setting. • Broadcast band. • Frequency setting. • Preset stations. • Tuning mode. • THX mode. • DSP mode. • ACTIVE EQ mode. • SPEAKER EQ mode.

1. The supplied batteries may have shorter lives than ordinary batteries due to use during operation checks. 2. When the remote-controllable distance gets shorter than before, replace both batteries with new ones. 3. Placing the remote sensor in direct sunlight, or in direct light from a high frequency fluorescent lamp may cause malfunction. In such a case, change the location of the system installation to prevent malfunction.

2003/03/07, 2:43 PM Before applying the power

True home theater sound This receiver incorporates a wide variety of surround modes to bring you maximum enjoyment from your video software. Select a surround mode according to your equipment or the software you are going to play and enjoy! ¤

THX mode activates proprietary THX features that help recreate the cinematic experience in a home environment.

THX Surround EX During THX Surround EX mode, film soundtracks that have been encoded with Dolby Digital Surround EX technology are able to reproduce an extra channel which has been added during the mixing of the program. This channel is called Surround Back.

THX Surround EX mode activates proprietary THX features that help recreate the cinematic experience in a home environment. fl

Dolby Digital and Dolby Digital EX The DOLBY DIGITAL mode lets you enjoy full digital surround from software processed in the Dolby Digital format. Dolby Digital provides up to 5.1 channels of independent digital audio for better sound quality and more powerful presence than conventional Dolby Surround.

As for Dolby Digital EX, it creates six full-bandwidth output channels from the 5.1 channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. For best results, Dolby Digital EX should be used with movie soundtracks recorded with Dolby Digital Surround EX.

Dolby PRO LOGIC II Dolby PRO LOGIC II, whilst totally compatible with its predecessor

PRO LOGIC, provides greater advantages in surround sound. It allows the user to enjoy the conventional stereo or Dolby Surround with a convincing “5.1 like” presentation. PRO LOGIC II offers special features for controlling the overall spatial, dimensionality and frontal sound field imaging. PRO LOGIC II produces an impressive surround sound from video software marked and three-dimensional space from music CD. When listening to music, you will be able to enjoy the experience of sheer STEREO surround sound.

DTS and DTS-ES DTS (Digital Theater System) is a 5.1 channel digital audio format that provides five full spectrum channels and one low-frequency (subwoofer) channel for unprecedented clarity, optimum channel separation and a

(wide) dynamic range. DTS-ES (Extended Surround) presents 6.1 channels surround system with additional Surround Back channel which evolved from the conventional 5.1 channels surround system. DTS-ES format that was recorded in DVD, CD or LD comprises of two modes. DTS-ES Discrete 6.1 produce the discrete surround back which is completely independent and DTS-ES Matrix 6.1 produces the surround back which synthesized within the left and right surround channels using matrix technology. DTS-ES has perfect compatibility with the conventional 5.1 channels surround system. 6.1 channels surround with an additional surround back presents a more natural presence and surround effects by increasing the impression of the sound image from back. Important: When a DTS disc is played on a CD, LD or DVD player, noise may be output from the analog output. It is recommended that you connect the digital output of the player to the digital input of this unit.

SRS Circle Surround II™ improves on its predecessor CS-5.1™ resulting in the CS-6.1™ system, enabling you to listen to realistic, multi-channel, surround sound playback from a stereo source or conventional surroundencoded video source. You already enjoy listening to Dolby digital/DTS multi-channel sound with your multi-speakers. Now you can listen to audio CDs, MDs, Broadcast and Home Theater using your multispeakers. You will discover a new type of sound through SRS Circle

The DSP (Digital Signal Processor) used for this receiver incorporates a variety of high quality adjustable sound fields, like “ARENA”, “JAZZ CLUB”, “THEATER”, “STADIUM” and “DISCO”. It is compatible with almost any kind of program source.

If you own a DVD player equipped with 6-channel output, this receiver allows you to obtain the full surround sound impact of DVD source material featuring multi-channel encoding. Since the source signals are digital and each channel is input independently, the resulting ambience is far superior to what can be achieved with conventional surround sound systems.

ACTIVE EQ ACTIVE EQ mode will produce a more dynamic sound quality in any condition. You can enjoy a more impressive sound effect when ACTIVE EQ is turned on during Dolby Digital and DTS playback.

SPEAKER EQ SPEAKER EQ function is to adjust the receiver’s audio output characteristics with the speakers’ characteristics which differs depending on the size of the speakers. Especially for the music sound source playback, the reproduced sound becomes more natural when adjusting the output characteristics. When activating the SPEAKER EQ function, you will be able to enjoy a more natural and dynamic sound experience even with small size speakers.

Universal IR (InfraRed) remote control

In addition to the basic receiver, the remote control supplied with this receiver can also operate almost all of your remote controllable audio and video components. Just follow the simple setup procedure to register the components you have connected.

RDS (Radio Data System) tuner

The receiver is equipped with an RDS tuner that provides several convenient tuning functions: RDS Auto Memory, to automatically preset up to 40 RDS stations broadcasting different programs; station name display, to show you the name of the current broadcast station; and PTY search to let you tune stations by program type.

PTY (Program TYpe) search

Tune the stations by specifying the type of program you want to hear.

Neo:6 is a new technology which was developed by DTS. It can produce high grade 6 channels surround with an astonishing fidelity from 2 channels content. Neo:6 has 2 mode, "CINEMA" mode is for movie playback and "MUSIC" mode is for music playback.

2003/03/07, 2:43 PM ENGLISH THX SRS Circle Surround II Names and functions of parts

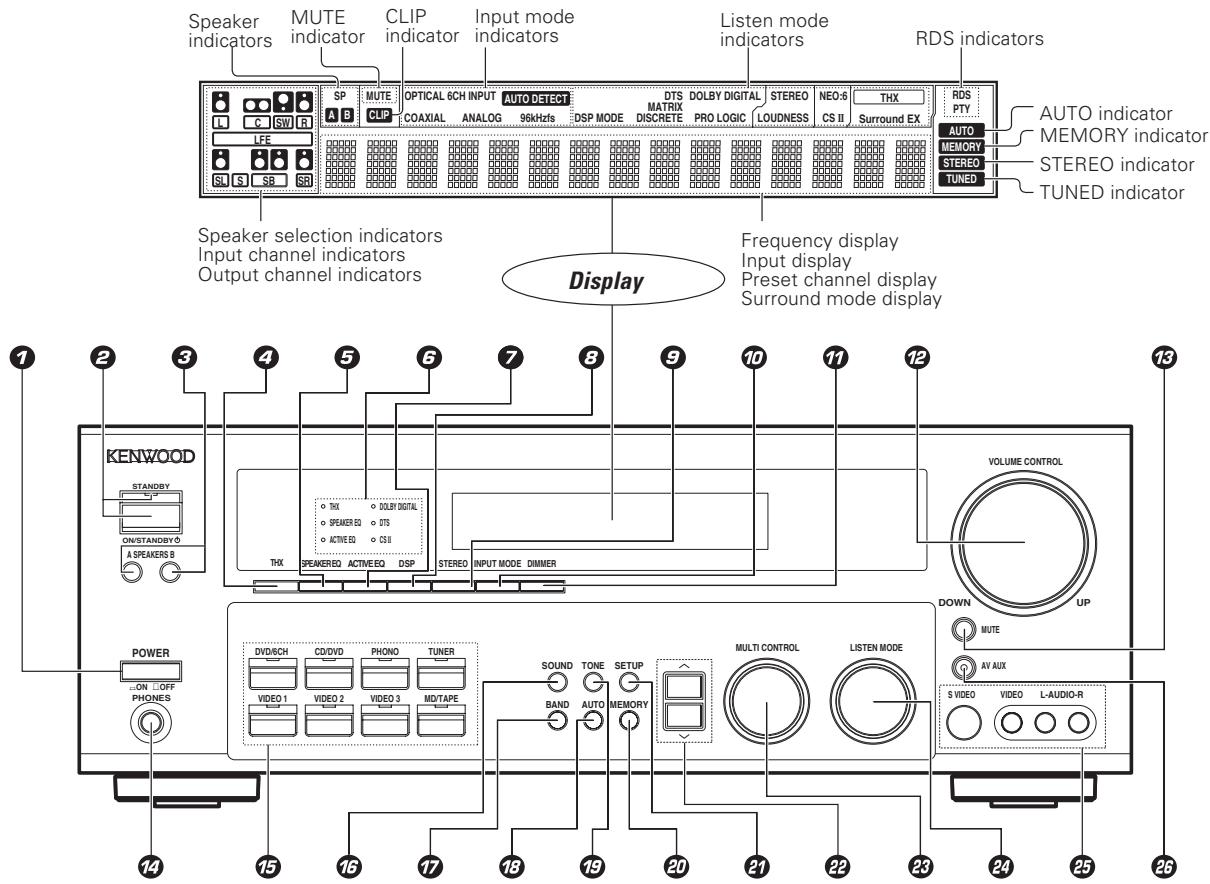

Main unit CLIP Input mode indicator indicators

MUTE Speaker indicators indicator

L ENGLISH SL S C SW R LFE SB SP MUTE RDS indicators

RDS PTY Speaker selection indicators

Input channel indicators Output channel indicators

SPEAKER EQ ACTIVE EQ DSP

¡ Use to turn the main power on or off. 2 ON/STANDBY key ¡ Use to turn the power ON/STANDBY when the POWER is turned on. STANDBY indicator 3 SPEAKERS keys ¢ Use to turn the A/B speakers on or off. 4 THX key fi Use to switch the status of THX. 5 SPEAKER EQ key ∞ Use to select SPEAKER EQ’s setting. 6 Surround LED (light-emitting diode) indicators THX indicator fl Lights when the THX mode has been chosen. THX mode may or may not be activated depending upon the applicable playback mode. SPEAKER EQ indicator § Lights when the receiver is in the SPEAKER EQ mode. ACTIVE EQ indicator ∞ Lights when the receiver is in the ACTIVE EQ mode. DOLBY DIGITAL indicator fi Lights when the receiver is in the Dolby Digital mode.

BAND LISTEN MODE SETUP AV AUX S VIDEO AUTO MEMORY DTS indicator

fi Lights when the receiver is in the DTS mode. CS II indicator fi Lights when the receiver is in the CIRCLE SURROUND II mode. ACTIVE EQ key ∞ Use to select ACTIVE EQ’s setting. DSP key fi Use to select any of the DSP mode. STEREO key fl Use to switch the listen mode to STEREO. INPUT MODE key 8 Use to switch between the full auto, digital and analog inputs. DIMMER key Use to select the REC MODE. ¶ Use to adjust the brightness of the display. fl VOLUME CONTROL knob ¢ MUTE key ∞ Use to temporarily mute the sound. PHONES jack § Use for headphone listening. Input Selector keys ¢ DVD/6CH, CD/DVD, PHONO , TUNER, VIDEO 1, VIDEO 2, VIDEO 3, MD/TAPE Use to select input sources.

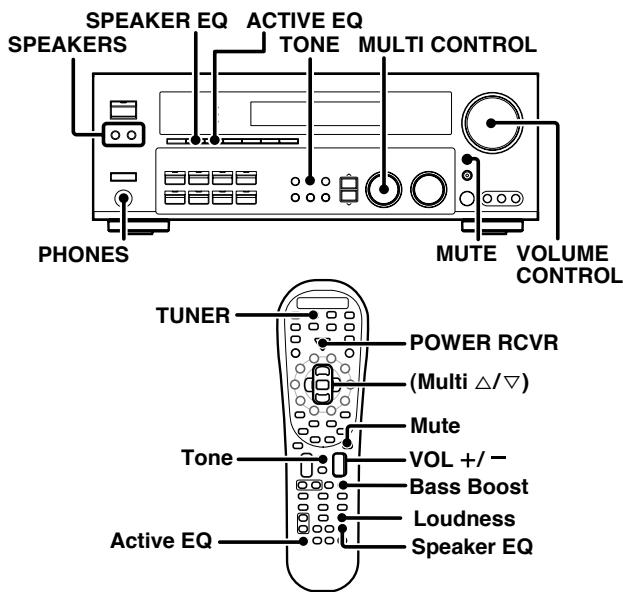

fl Use to adjust the sound quality and the ambience effects. & BAND key • Use to select the broadcast band. * AUTO key • Use to select the auto or manual tuning mode. ( TONE key ∞ Use to switch the status of TONE control. ) MEMORY key ª Use to store radio stations in the preset memory and to start the Auto Memory. ¡ SETUP key ¡ Use to select the speakers' settings etc. ™ keys ¡ Use for selection adjustments during sound, setup and preset channel functions. £ MULTI CONTROL knob ¡ Use to control a variety of settings. ¢ LISTEN MODE knob fi Use to select the listening mode. ∞ AV AUX (S VIDEO, VIDEO, L-AUDIO-R) jacks * § AV AUX key * Use to switch the input to AV AUX.

While the standby indicator is lit, a small amount of power is supplied to the system to back up the memory. This is called standby mode. Under the condition, the system can be turned ON by remote control unit.

CAUTION The power in this equipment will not be completely cut off from the

AC wall outlet when the main switch is turned OFF.

2003/03/07, 2:43 PM Names and functions of parts

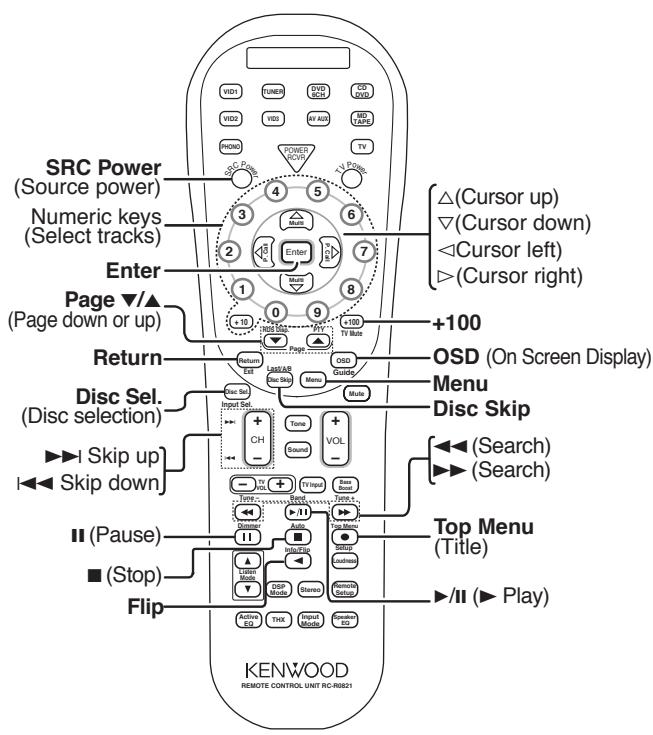

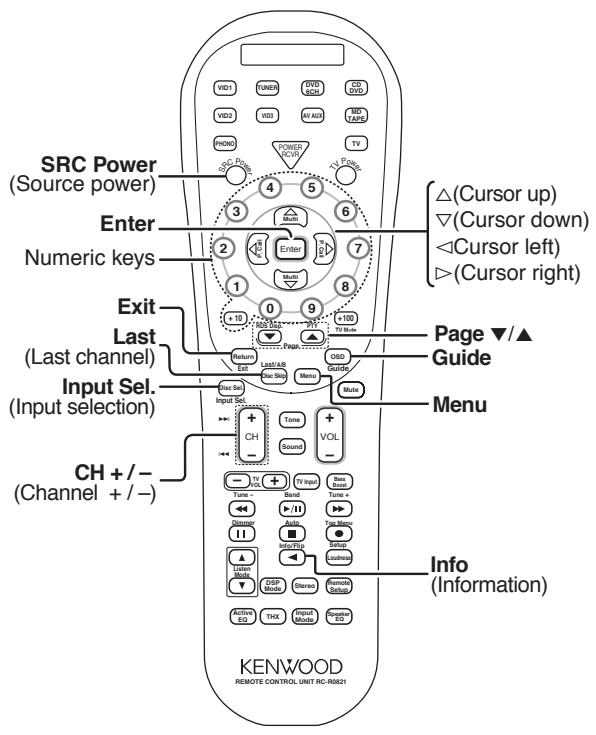

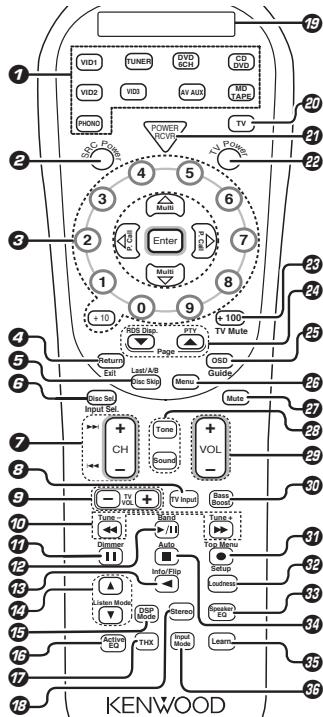

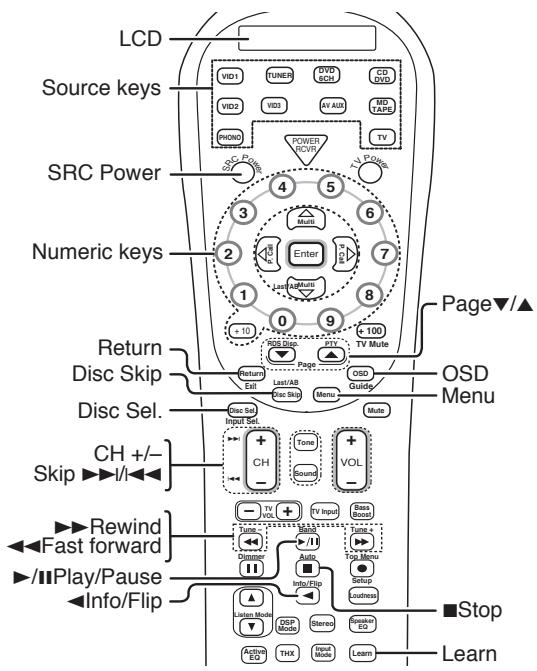

This remote control unit can be used not only for Kenwood products but also for other non-Kenwood products by setting the appropriate manufacturer’s setup codes. w

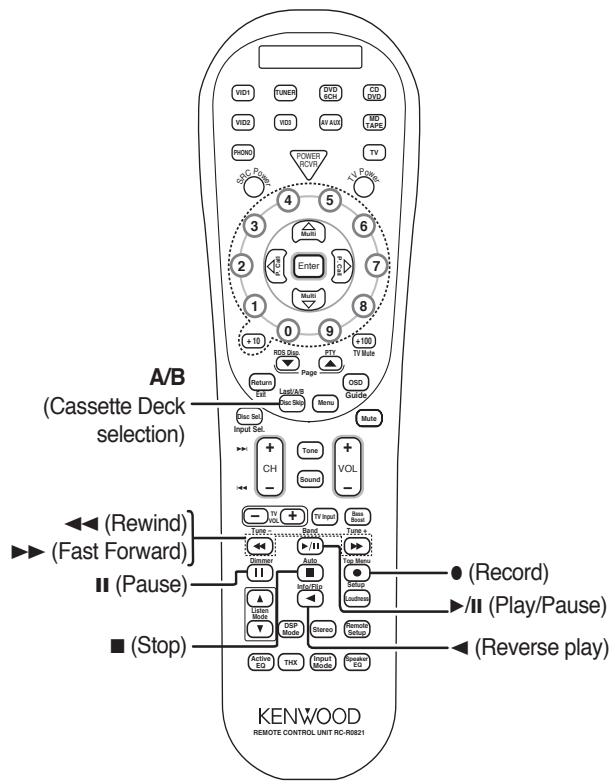

1 Source keys (MD/TAPE, CD/DVD, DVD/

6CH, TUNER, VID1, VID2, VID3, AV AUX, PHONO) · When press and hold for more than 3 seconds, they are used to select the registered components. Input Selector keys (MD/TAPE, CD/DVD, DVD/ 6CH, TUNER, VID1, VID2, VID3, AV AUX, PHONO) ¢ When press and release in less than 3 seconds, they are used to select the input sources. 2 SRC ( source) Power key Use to turn the other source components on or off. 3 Numeric keys · Provide functions identical to those of the original remote control supplied with the component you are controlling. Multi (multi control) %/fi keys ¡ Use to control a variety of settings. Use to operate other components. P.Call @/# keys ª Use for selection adjustments during sound, set up and preset channel functions. Enter key Use to operate other components. 4 Return key Use to operate the DVD component. Exit key Use to operate other components. 5 Disc Skip key If CD is selected as the input source, this key functions as the multi-CD player disc skip key. Last/ A/B key If TAPE is selected as the input source, this is A and B deck of a double cassette deck. Use to operate other components. 6 Disc Sel. key Use to operate other components. Input Sel. key Use to operate other components. 7 CH +/– keys Use to select the channels. ¢ / 4 keys If CD, MD and DVD as the input source, these keys function as skip keys. 8 TV Input key Use when in TV operation. 9 TV VOL +/– keys Use to adjust the TV’s volume. 0 1/¡ keys If CD, MD or Tape is selected as the input source, this key functions as search keys.

If the name of a function is different on the receiver and on the remote control, the name of the remote control key in this manual is indicated in parentheses.

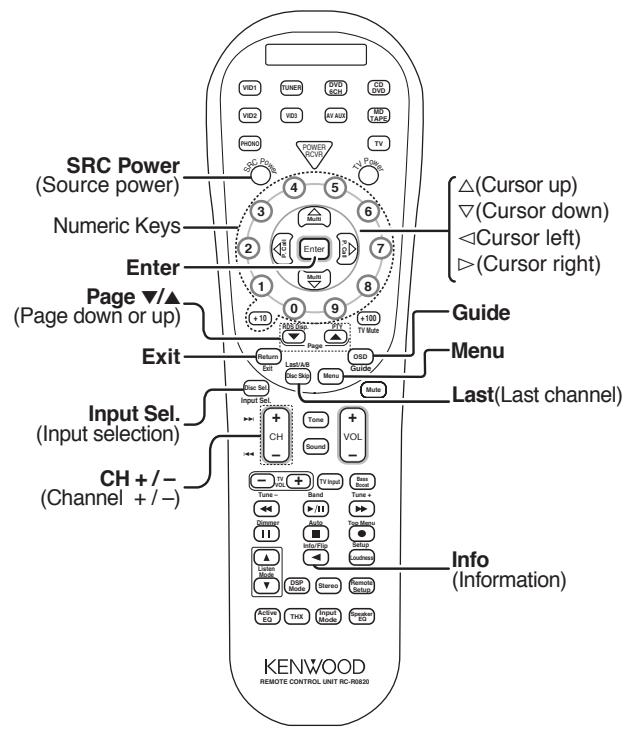

Use to operate the tuner mode. 8 key Use to operate other components. Dimmer key fl Use to adjust the brightness of the display. 3/8 key If CD is selected as the input source, this key functions as the play/pause key. If MD or TAPE key is selected as input source, this key functions as the play key. Band key • Use to select the broadcast band. 2 key If Tape is selected, this key functions as reverse play key. Info/Flip key Use to operate other components. Listen Mode 5/∞ keys fi Use to select the listening mode. DSP Mode key fi Use to select any of the DSP mode. Active EQ key ∞ Use to select ACTIVE EQ’s setting. THX key Use to switch the status of THX. fi Stereo key fl Use to switch the listen mode to STEREO. LCD (Liquid Crystal Display) TV key Use to select the TV equipment. ¡ POWER RCVR ( receiver) key Use to turn the receiver on or off. TV Power key Use to turn the TV on or off. +100 key Use to select the disc number with the multi-CD player. TV Mute key Use to temporarily mute the TV sound. Page 5/∞ key Use to operate the DVD component. RDS Disp. key º Use to receive RDS broadcast. PTY key ⁄ Use for PTY search.

∞ OSD (on screen display) key

Use to operate the DVD component. Guide key Use to operate other components. § Menu key Use to operate other components. ¶ Mute key ∞ Use to temporarily mute the sound. • Tone key ∞ Use to switch the status of TONE control. Sound key fl Use to adjust the sound quality and the ambience effects. ª VOL +/– keys ¢ Use to adjust the receiver’s volume. º Bass Boost key ∞ Use to select the maximum adjustment setting for the low frequency range. ⁄ ÷ key If MD or Tape is selected, this key functions as record key. If VCR is selected, this key functions as record key when it pressed twice sequentially. Top Menu key Use to operate the DVD component. Setup key ¡ Use to select the speakers’ settings etc. ¤ Loudness key ∞ Use to switch the status of LOUDNESS. ‹ Speaker EQ key ∞ Use to select SPEAKER EQ’s setting. › 7 key If CD, MD, or TAPE is selected as the input source, this key functions as the stop key. Auto key • Use to select the auto or manual tuning mode. fi Learn key Use to register other components.· Use to memorize the operation of the other remote controls. q fl Input Mode key 8 Use to switch between the full auto, digital and analog inputs.

2003/03/07, 2:43 PM Setting up the system

ENGLISH Make connections as shown in the following pages.

When connecting the related system components, be sure to refer to the instruction manuals supplied with the components you are connecting. Do not connect the power cord to a wall outlet until all connections are completed. Notes 1. Be sure to insert all connection cords securely. If their connections are imperfect, sound may not be produced or there will be noise inference. 2. Be sure to remove the power cord from the AC outlet before plugging or unplugging any connection cords. Plugging/unplugging connection cords without disconnecting the power cord can cause malfunctions and may damage the unit. 3. Do not connect power cords from components whose power consumption is larger than what is indicated on the AC outlet at the rear of this unit.

CD/DVD, VIDEO 2, VIDEO 3 and DVD/6CH inputs each include jacks for digital audio input and analog audio input. The initial factory settings for audio signal playback for CD/DVD, DVD/6CH and VIDEO 2 and VIDEO 3. After completing connections and turning on the receiver, follow the steps below.

INPUT MODE Input Selector

LISTEN MODE Analog connections

Audio connections are made using RCA pin cords. These cables transfer stereo audio signal in an “analog” form. This means the audio signal corresponds to the actual audio of two channels. These cables usually have 2 plugs on each end, one red for the right channel and one white for the left channel. These cables are usually packed together with the source unit, or are available at your local electronics retailer.

Microcomputer malfunction

If operation is not possible or an erroneous display appears, even though all connections have been made properly, reset the microcomputer referring to “In case of difficulty”. p

CAUTION Be sure to adhere to the following, or proper ventilation will be blocked causing damage or fire hazard.

• Do not place any objects impairing heat radiation onto the top of the unit. • Leave some space around the unit (from the largest outside dimension including projection) equal to or greater than, shown below. Top panel : 50 cm Side panel : 10 cm Back panel : 10 cm

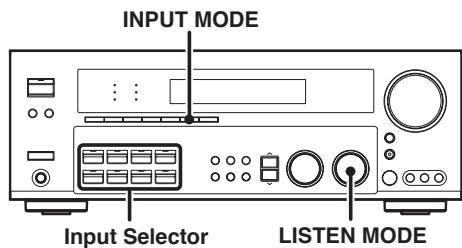

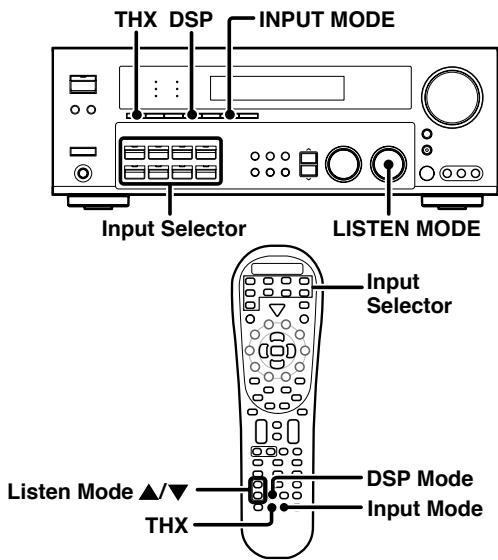

1 Use the Input Selector keys to select CD/DVD, VIDEO 2,

VIDEO 3 or DVD/6CH. 2 Press the INPUT MODE key. Each press switches the setting as follows: In DTS play mode 1 FULL AUTO (digital input, analog input) 2 DIGITAL MANUAL (digital input) In CD/DVD, VIDEO 2, VIDEO 3 or DVD/6CH play mode 1 FULL AUTO (digital input, analog input) 2 DIGITAL MANUAL (digital input) 3 6CH INPUT (DVD/6CH input) 4 ANALOG (analog input)

Select this setting to play digital signals from a DVD, CD, or LD player. Analog input: Select this setting to play analog signals from a cassette deck, VCR, or record player. Auto detect: In “FULL AUTO” mode (AUTO DETECT indicator light up), the receiver detects the digital or analog input signals automatically. Priority is given to digital signal during input mode selection. The receiver will select the input mode and listening mode automatically during playback to match the type of input signal (Dolby Digital, PCM, DTS) and the speaker setting. The OPTICAL and COAXIAL indicator on the display will light up when digital signal is detected. If the input signal is analog, the ANALOG indicator will light up. To keep the receiver set to the currently selected listening mode, use the INPUT MODE key to select “DIGITAL MANUAL” (manual sound). However, even when this setting is selected, there may be cases in which the listening mode is selected automatically to match a Dolby Digital source signal depending on the combination of listening mode and source signal. At DIGITAL MANUAL, if the audio reproduction stops in the middle due to change in the input signals, etc. press the LISTEN MODE knob. If the INPUT MODE key is pressed quickly, sound may not be produced. Press the INPUT MODE key again.

2003/03/07, 2:43 PM Setting up the system

Connecting the terminals

Front speakers (L,R) Surround speakers (L,R)

• Never short circuit the + and – speaker cords.

• If the left and right speakers are connected inversely or the speaker cords are connected with reversed polarity, the sound will be unnatural with ambiguous acoustic imaging. Be sure to connect the speakers correctly.

Surround back speakers

Front (left and right) speakers

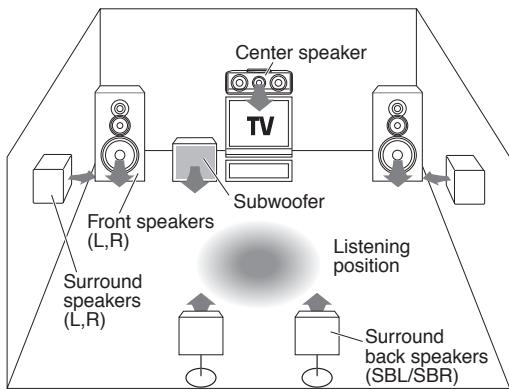

Place at the front left and right of the listening position. Front speakers are required for all surround modes. Center speaker Place front and center. This speaker stabilizes the sound image and helps recreate sound motion. Required for surround playback. Surround (left and right) speakers Place at the direct left and right, or slightly behind, the listening position at even heights, approximately 1 meter above the ears of the listeners. These speakers recreate sound motion and atmosphere. Required for surround playback. Subwoofer Reproduces powerful deep bass sounds. Surround back (left and right) speakers Place the speaker directly at the rear of the listening position. The optimum position depends mainly on the room condition.

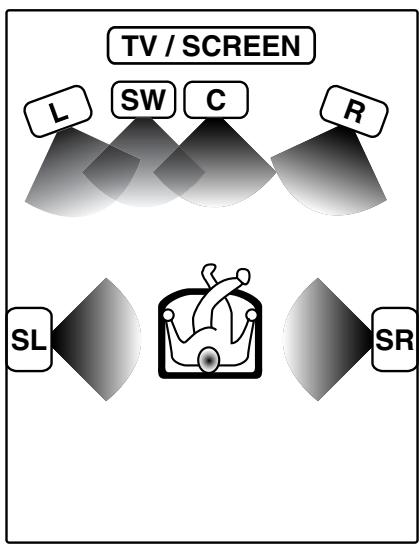

• Although the ideal surround system consists of all the speakers listed above, if you don't have a center speaker or a subwoofer, you can divide those signals between the available speakers in the speaker settings steps to obtain the best possible surround reproduction from the speakers you have available.

After confirming the speaker impedance indications printed on the rear panel of the receiver, connect speakers with matching impedance ratings. Using speakers with a rated impedance other than that indicated on the rear panel of the receiver could result in malfunctions or damage to the speakers or receiver.

2003/03/07, 2:43 PM Setting up the system

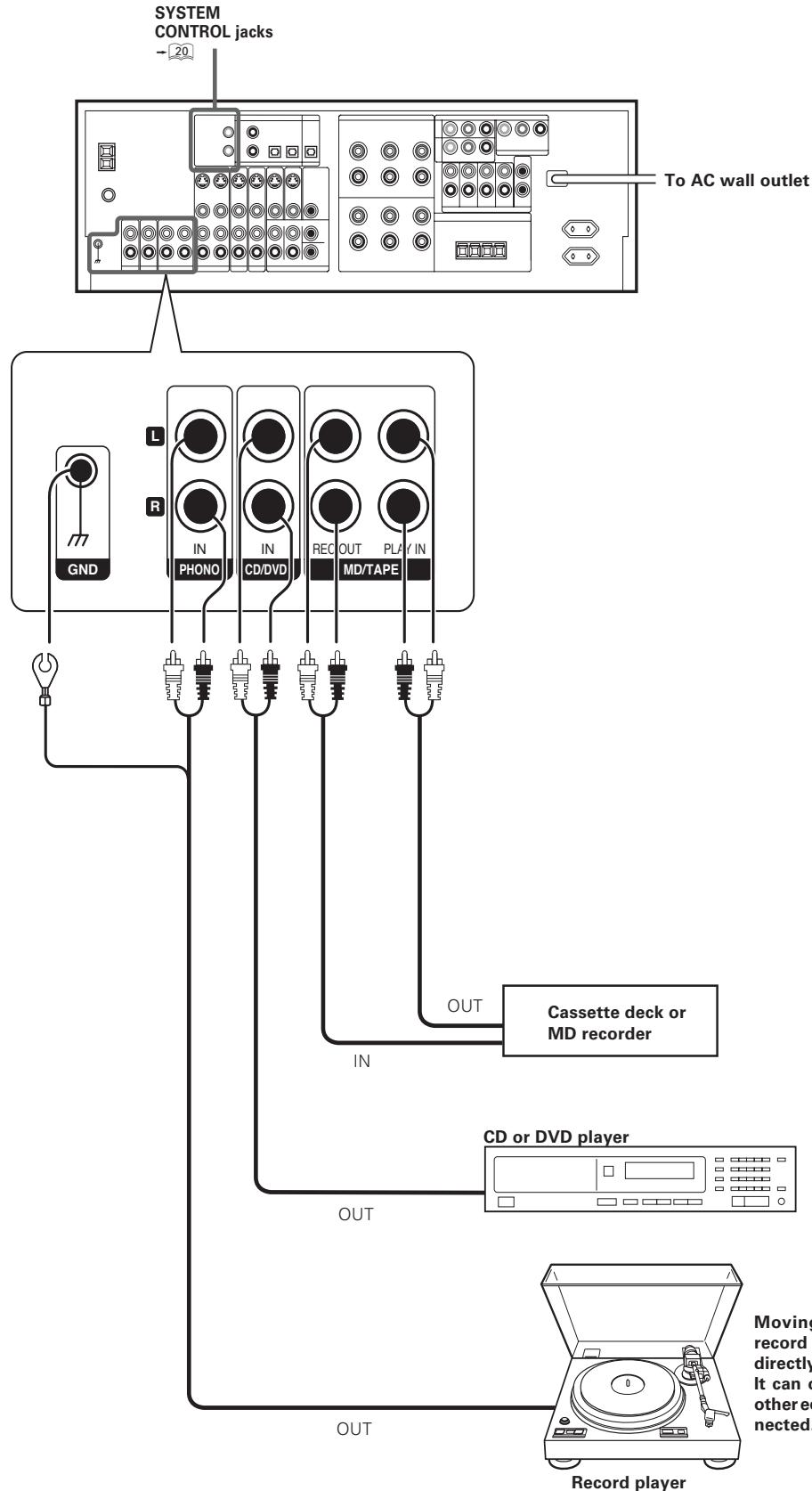

Connecting audio components

ENGLISH REC OUT PLAY IN MD/TAPE OUT Cassette deck or

OUT Moving coil (MC) cartridge record player cannot be used directly from the receiver unit.

It can only be used when another equalizer amplifier is connected.

2003/03/07, 2:04 PM Setting up the system

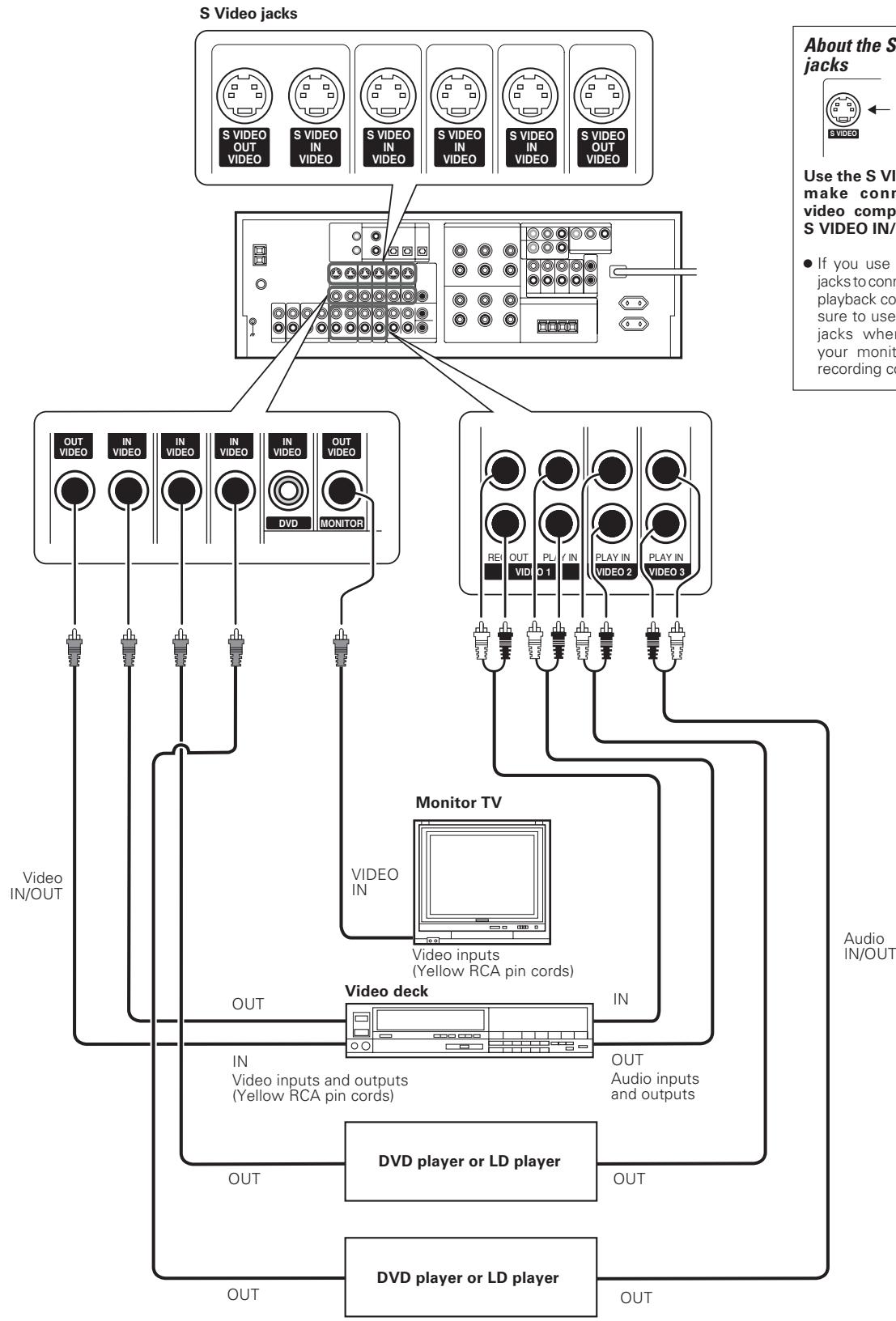

Connecting video components

About the S VIDEO jacks

Use the S VIDEO jacks to make connections to video components with

S VIDEO IN/OUT jacks.

S VIDEO jacks to connect your video playback components, be sure to use the S VIDEO jacks when connecting your monitor and video recording components.

OUT VIDEO IN VIDEO IN VIDEO IN VIDEO IN VIDEO OUT VIDEO DVD Video inputs

(Yellow RCA pin cords) Video deck

IN Video inputs and outputs

(Yellow RCA pin cords)

IN/OUT IN OUT Audio inputs and outputs

DVD player or LD player

OUT OUT DVD player or LD player

OUT OUT A video component with digital audio outputs should be connected to the VIDEO 2 or VIDEO 3 jacks.

2003/03/07, 2:04 PM ENGLISH Setting up the system

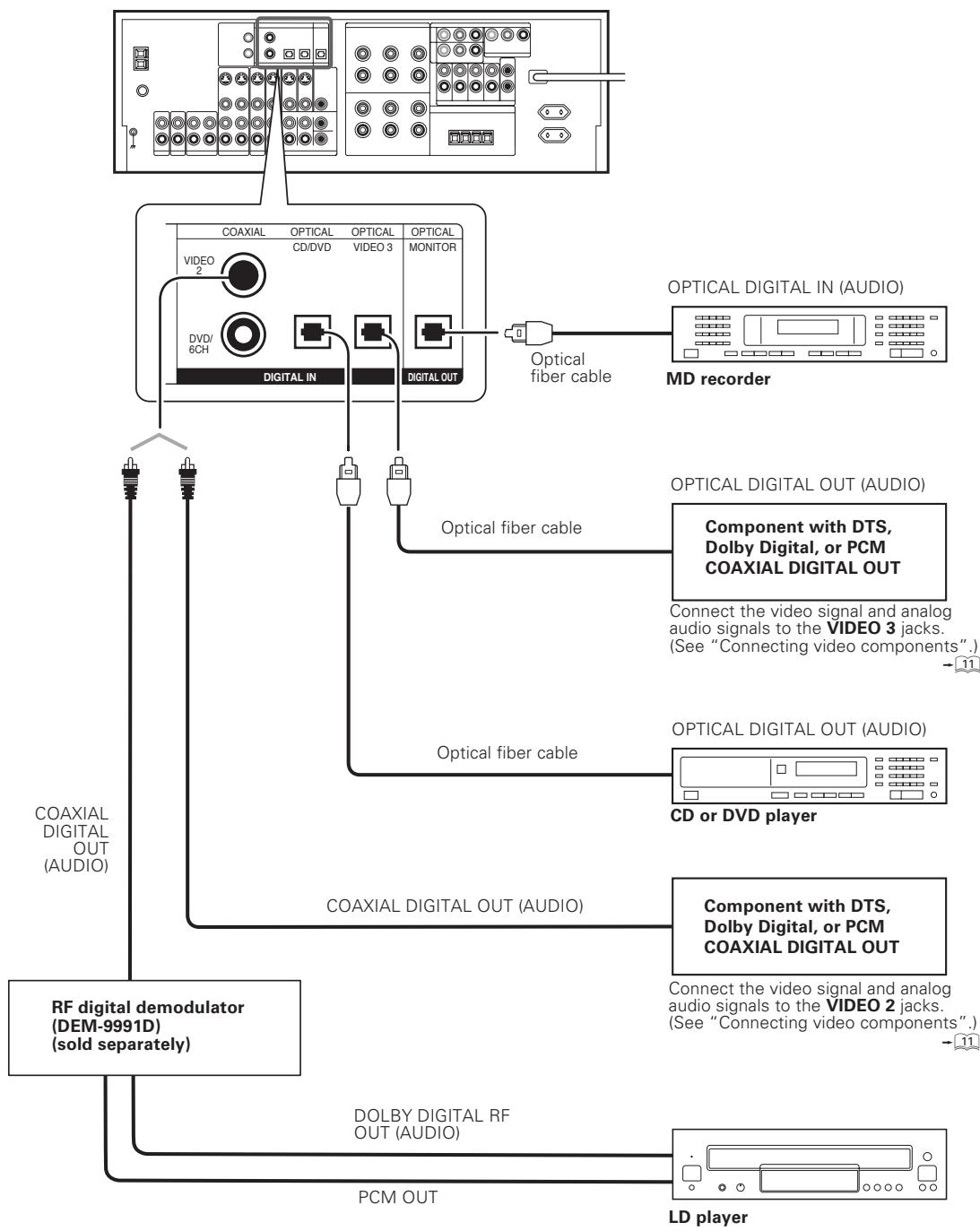

ENGLISH The digital in jacks can accept DTS, Dolby Digital, or PCM signals. Connect components capable of outputting DTS, Dolby Digital, or standard PCM (CD) format digital signals.

If you have connected any digital components to the receiver, be sure to read the “Input mode settings” section carefully. 8

COAXIAL OPTICAL CD/DVD OPTICAL VIDEO 3

OPTICAL MONITOR VIDEO

OPTICAL DIGITAL IN (AUDIO)

6CH DIGITAL IN DIGITAL OUT Optical fiber cable

OPTICAL DIGITAL OUT (AUDIO)

Dolby Digital, or PCM COAXIAL DIGITAL OUT Connect the video signal and analog audio signals to the VIDEO 3 jacks. (See “Connecting video components”.) !

OPTICAL DIGITAL OUT (AUDIO)

COAXIAL DIGITAL OUT (AUDIO)

Dolby Digital, or PCM COAXIAL DIGITAL OUT Connect the video signal and analog audio signals to the VIDEO 2 jacks. (See “Connecting video components”.) !

RF digital demodulator

(DEM-9991D) (sold separately)

DOLBY DIGITAL RF OUT (AUDIO)

To connect an LD player with a DIGITAL RF OUT, connect the LD player to the KENWOOD RF digital demodulator (DEM-9991D).

Next, connect the DIGITAL OUT jacks of the demodulator to the DIGITAL IN jacks of the receiver. Connect the video signal and analog audio signals to the VIDEO 2 or VIDEO 3 jacks. (See “Connecting video components”.) The RF digital demodulator (DEM-9991D) may not be on the market in certain areas countries.

2003/03/07, 2:04 PM Setting up the system

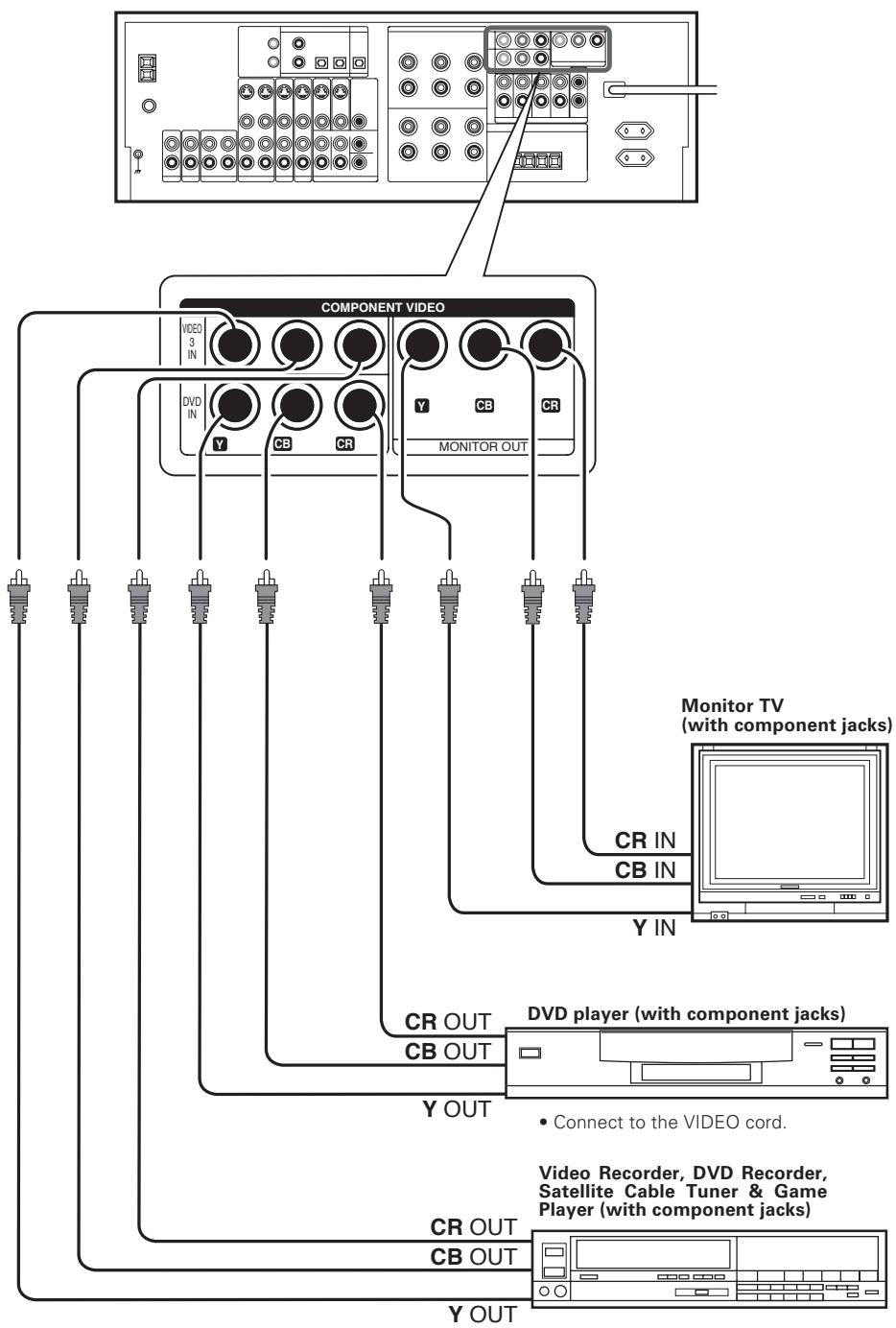

Connecting video components (COMPONENT VIDEO)

If you have connected the receiver to a video component with COMPONENT jacks, you can get a better picture quality than by connecting to the S-VIDEO jacks.

(with component jacks)

CR IN CB IN Y IN CR OUT CB OUT Y OUT CR OUT CB OUT DVD player (with component jacks)

• Connect to the VIDEO cord.

Video Recorder, DVD Recorder, Satellite Cable Tuner & Game Player (with component jacks)

Y OUT When connecting the TV to the COMPONENT jacks, be sure to connect all the other components to the COMPONENT jacks.

2003/03/07, 2:04 PM Setting up the system

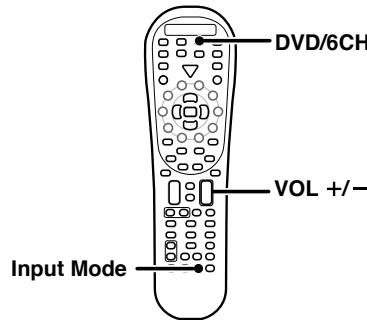

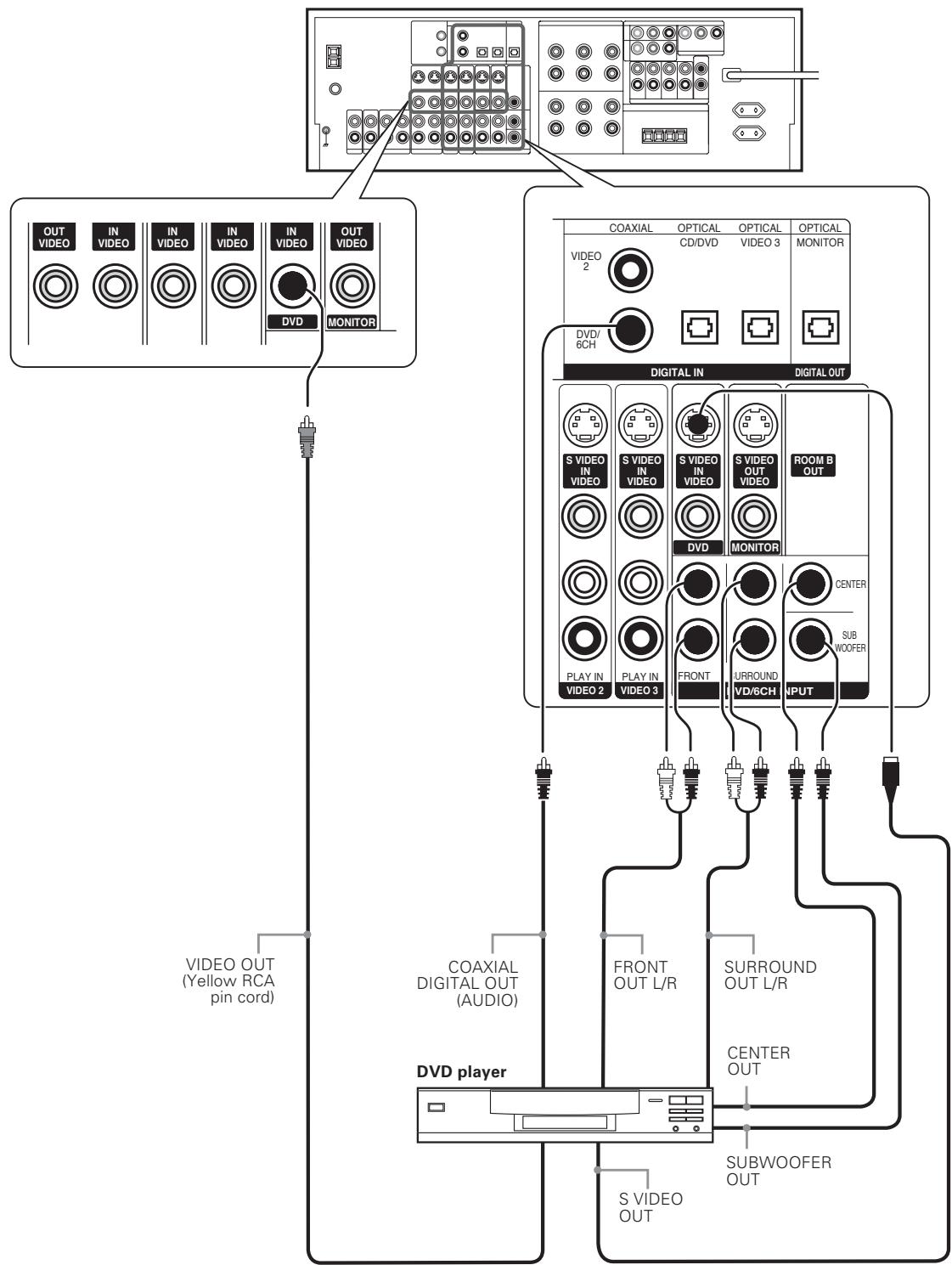

Connecting a DVD player (6-channel input)

ENGLISH If you have connected a DVD player to the receiver with digital connection, be sure to read the “Input mode settings” section carefully.

OUT VIDEO IN VIDEO IN VIDEO IN VIDEO IN VIDEO COAXIAL OUT VIDEO OPTICAL CD/DVD OPTICAL VIDEO 3

OPTICAL MONITOR VIDEO

DVD SUB WOOFER PLAY IN VIDEO 2

(Yellow RCA pin cord)

FRONT PLAY IN VIDEO 3

FRONT OUT L/R SUBWOOFER OUT S VIDEO OUT S VIDEO cord

Setting up the system

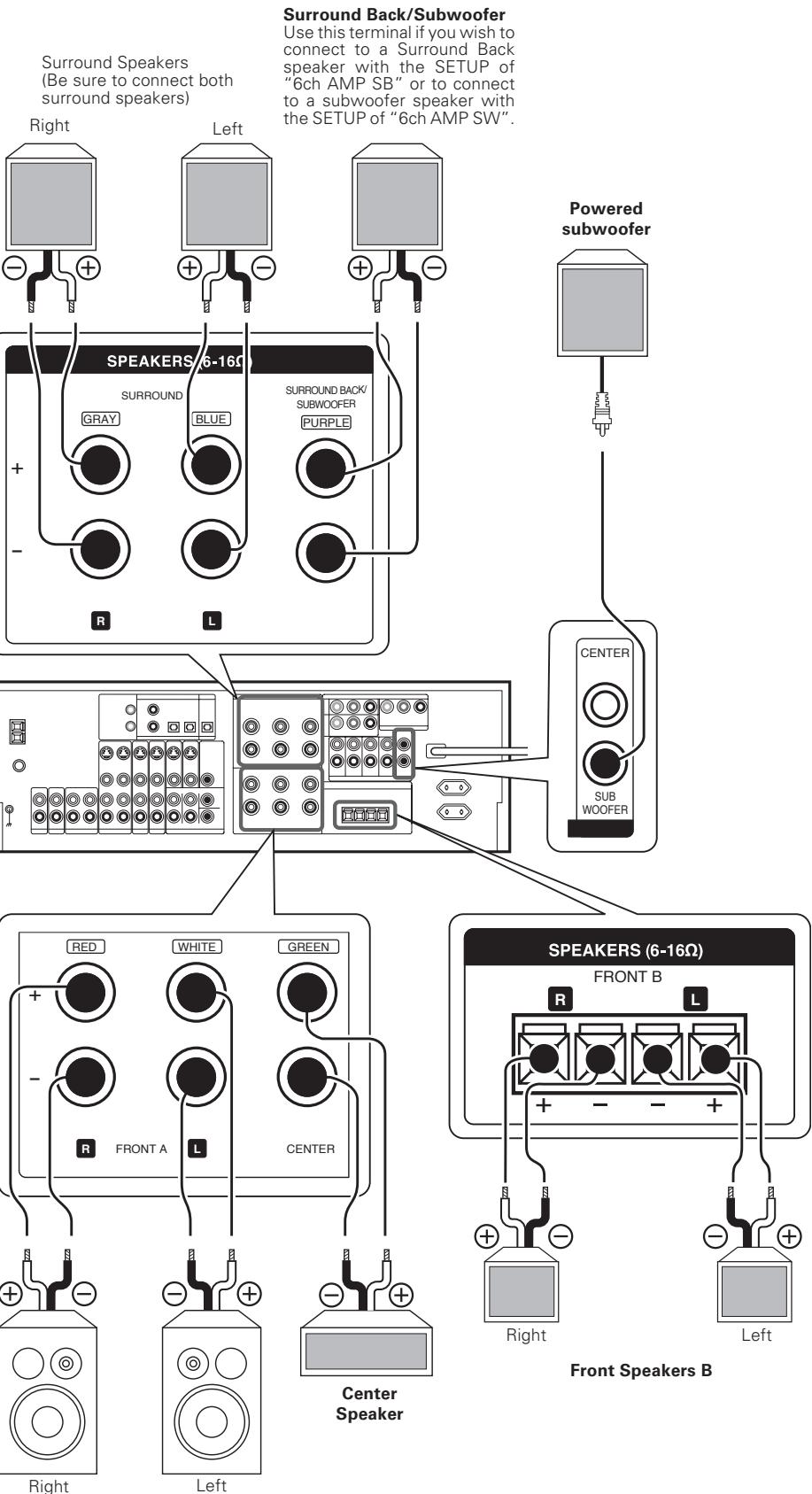

Connecting the speakers

Surround Speakers (Be sure to connect both surround speakers) Right

Surround Back/Subwoofer

Use this terminal if you wish to connect to a Surround Back speaker with the SETUP of “6ch AMP SB” or to connect to a subwoofer speaker with the SETUP of “6ch AMP SW”.

ENGLISH Powered subwoofer

Front Speakers B Center Speaker

2003/03/07, 2:04 PM Setting up the system

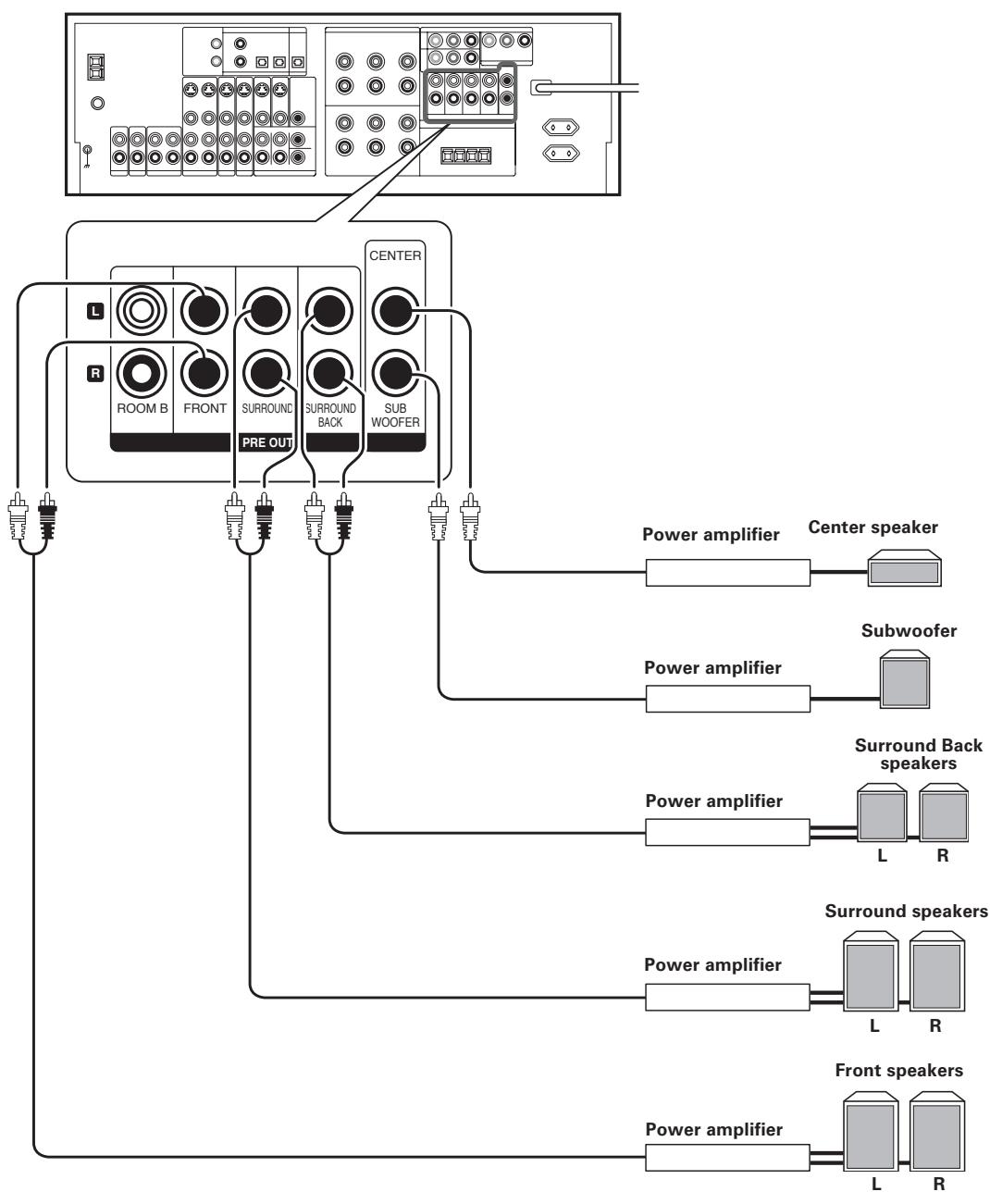

ENGLISH This receiver has additional PRE OUT jacks. These can be used for various purposes, but will need to be connected to an external power amplifier as shown in the example below.

CENTER L R ROOM B FRONT Surround Back speakers

L R Surround speakers

• Connecting a speaker cord directly to a PRE OUT jack will not produce any sound from the speaker.

• To use the PRE OUT jacks, press only the SPEAKERS A key to the ON position. • If you choose “6ch AMP SB”, sound will be heard from the PRE OUT Surround Back Left speaker (monaural) only. • This connection is available for listening in ROOM B.

2003/03/07, 2:04 PM R Setting up the system

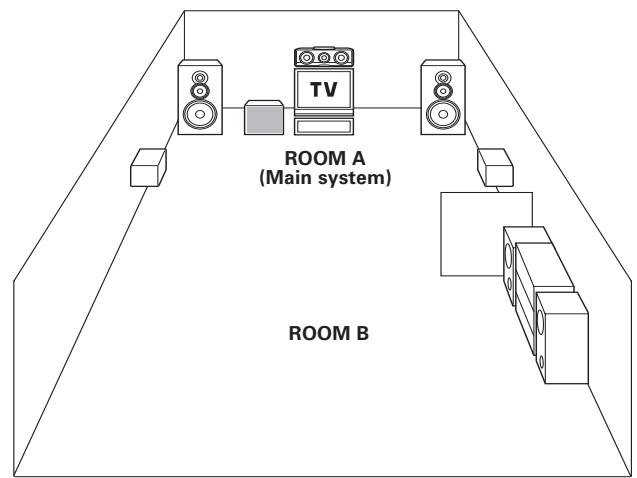

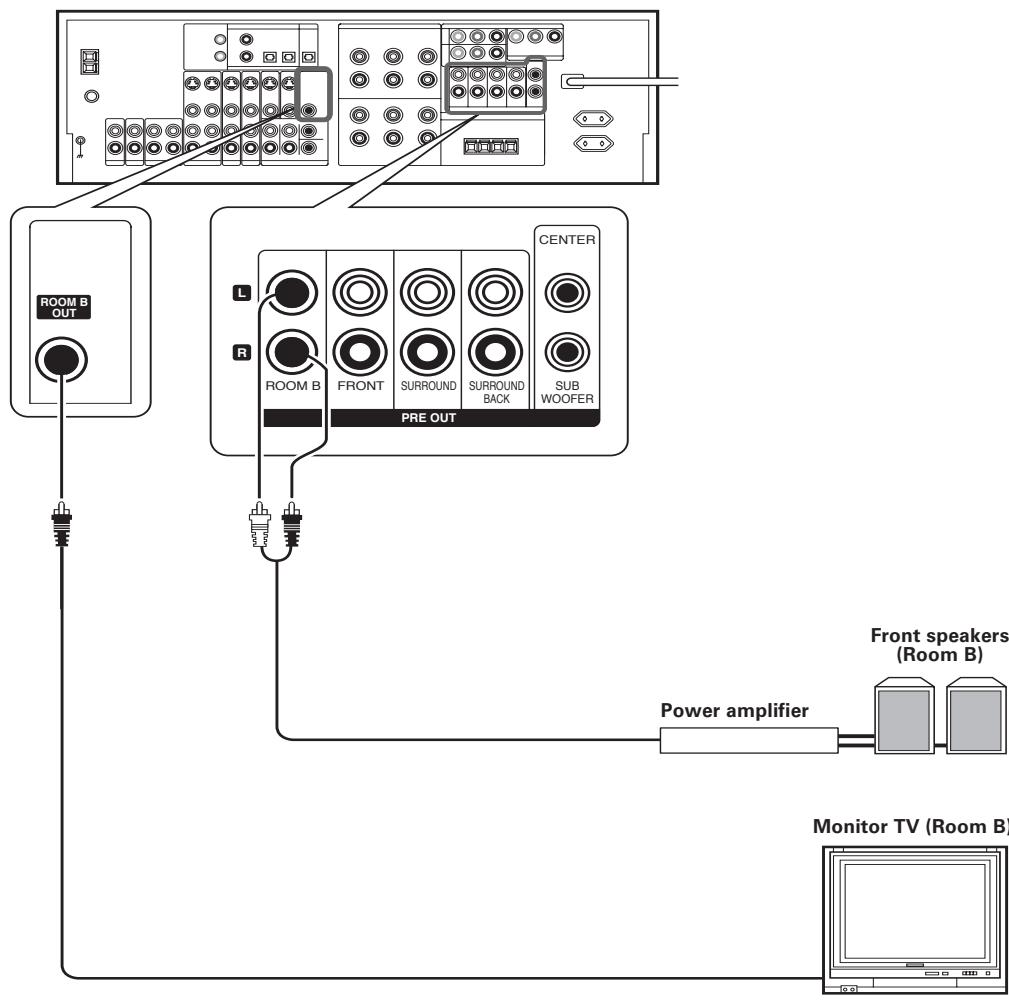

Connecting to another room (ROOM B)

This connection allows you to connect your main system to a monitor TV and speaker system located in another area (ROOM B).

ENGLISH CENTER L ROOM B OUT R ROOM B FRONT SURROUND SURROUND BACK SUB WOOFER PRE OUT Front speakers

(Room B) Power amplifier

Setting up the system

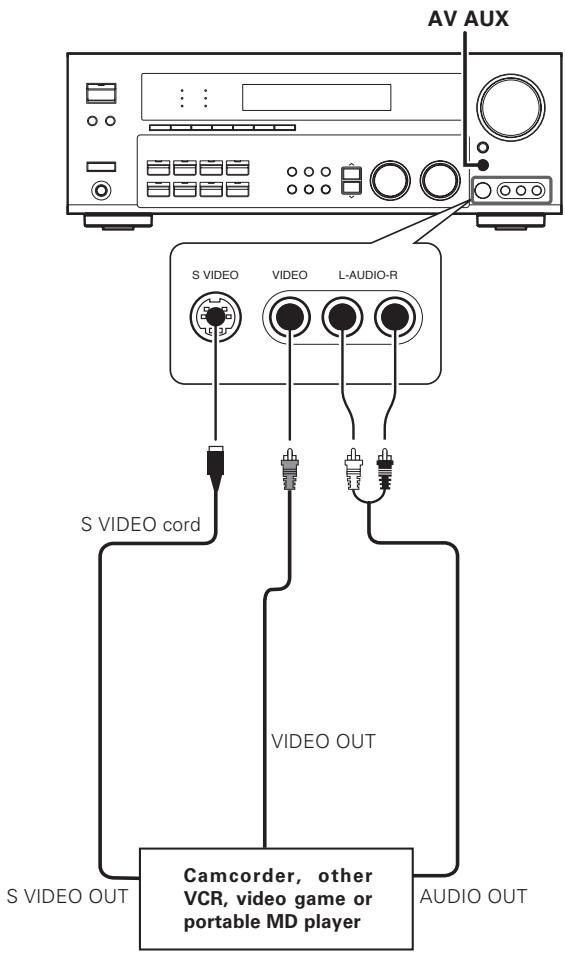

Connecting to the AV AUX jacks

The AV AUX jacks are convenient for connection of video components such as a camcorder or a video game.

ENGLISH AV AUX S VIDEO VIDEO L-AUDIO-R S VIDEO cord

VIDEO OUT S VIDEO OUT Camcorder, other

VCR, video game or portable MD player

• To select the source connected to the AV AUX jacks press AV AUX key.

¢ • When you connect the audio source such as the MD player, you do not need to connect the video cable. • When you connect the unit and the component with the S VIDEO cord, you can get better picture quality.

2003/03/07, 2:04 PM Setting up the system

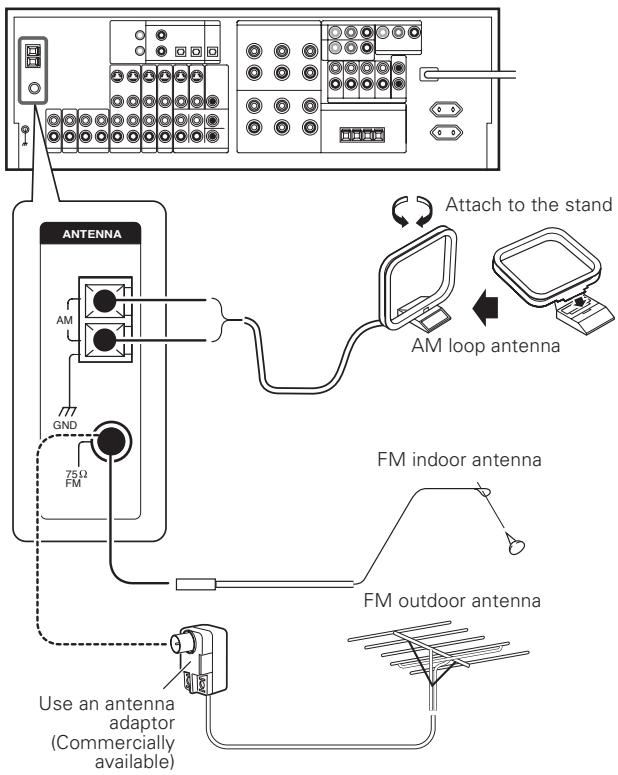

Connecting the antennas

AM loop antenna The supplied loop antenna is for indoor use. Place it as far as possible from the receiver, TV set, speaker cords and power cord, and adjust the direction for best reception.

AM antenna terminal connections

The supplied indoor antenna is for temporary use only. For stable signal reception we recommend using an outdoor antenna. Disconnect the indoor antenna when you connect one outdoors.

FM antenna terminal connections

Lead the 75Ω coaxial cable connected to the FM outdoor antenna into the room and connect it to the FM 75Ω terminal.

ANTENNA AM AM loop antenna

GND FM indoor antenna

FM FM outdoor antenna

Use an antenna adaptor

(Commercially available)

2003/03/07, 2:04 PM Setting up the system

Connecting the system control

Connecting system control cords after connecting a KENWOOD audio component system lets you take advantage of convenient system control operations.

ENGLISH This unit is compatible only with the [SL-16] mode. The system control operation is not available if the unit is connected in the

[XS8], [XS], or [XR] connection mode. If your component has the mode select switch, set the connected components to the [SL16] mode.

SYSTEM CONTROL OPERATIONS Remote Control

Lets you operate this unit with the system remote supplied with the receiver. Automatic Operation When you start playback from a source component, the input selector on this unit switches to that component automatically. Synchronized Recording Lets you synchronize recording with the start of playback when recording from CD, MD or analog discs.

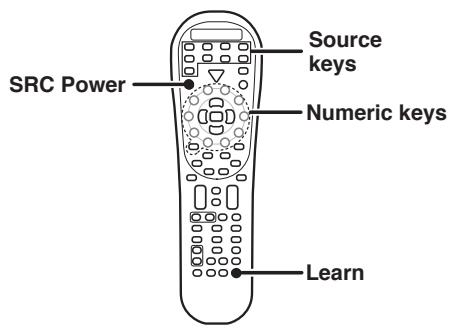

SYSTEM CONTROL Registering setup codes for KENWOOD audio components

• You may connect the system control cord to either the up or down jack.

EXAMPLE: [SL16] mode connections The underlined portion represents the setting of the system control mode. [SL16]

[SL16] [XS] [XS8] [XR]

Cassette deck or MD recorder

If you own remote controllable KENWOOD audio components that are not compatible with system control, registering the setup code enables you to control those components using the remote control supplied with this unit (without connecting system control cords). To register setup codes for your remote controllable KENWOOD audio components, see “Registering setup codes for other components”.

• In order to take advantage of the system control operations, the components must be connected to the correct jacks. To use a CD player it must be connected to the CD jacks. To use a cassette deck

(or MD recorder) it must be connected to the MD/TAPE jacks. When using more than one CD player (etc.) only the one connected to the specified jacks may be connected for system control. • Some CD players and cassette decks are not compatible with the [SL16] system control mode. Do not make system connections with equipment that is not [SL16] compatible. • Some MD players are not system control compatible. You cannot make system control connections to this kind of equipment. Notes 1. [SL16] equipment cannot be combined with [XR], [XS], and [XS8] equipment for system operations. If your equipment consists of this kind of combination, please do not connect any system control cords. Even without system control cords, normal operations can be carried out without effecting performance. 2. Do not connect system control cords to any components other than those specified by KENWOOD. It may cause a malfunction and damage your equipment. 3. Be sure the system control plugs are inserted all the way in to the system control terminals.

2003/03/07, 2:04 PM Preparing for surround sound

Speaker settings To enable you to obtain optimum enjoyment from the receiver’s listening modes, make sure to complete the speaker settings (subwoofer, front, center, and surround speakers) as described below.

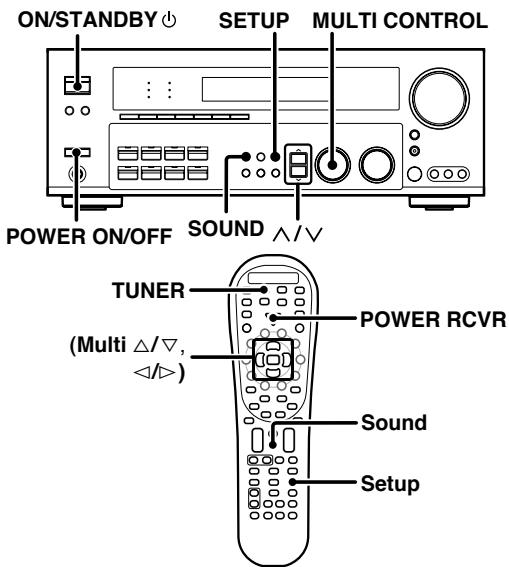

ON/STANDBY SETUP MULTI CONTROL

4 Select a speaker system.

If you have THX certified speakers, please set them to NML/THX. 1 Select the SP SETUP and press the SETUP key again so that the subwoofer setting indication “SUBW ON” appears.

C SW R LFE L SL S SB SP MUTE A B CLIP THX Surround EX

1 SUBW ON : Subwoofer setting mode to the receiver is

ON. 2 SUBW OFF : Subwoofer setting mode to the receiver is OFF.

• The initial setting is “SUBW ON”.

• When the setting “SUBW OFF” is selected, the front speakers are automatically set to “FRNT LARGE” and the procedure skips to step 6. Before step 6, press the SETUP key to accept the setting. • When subwoofer output sound is required, select “FRNT NML/ THX”, or select both “FRNT LARGE” and “SW RE-MIX ON”. • After setting SW (subwoofer) from OFF to ON, 6ch AMP setup display will appear to enable you to re-select either SW or SB from the surround back or subwoofer speaker terminal.

1 Turn on the power to this receiver by pressing the POWER ON/OFF and ON/STANDBY

key or POWER RCVR key.

3 Press the ∧ key or # key to accept the setting.

• The front speakers setting indication “FRNT” appears. L

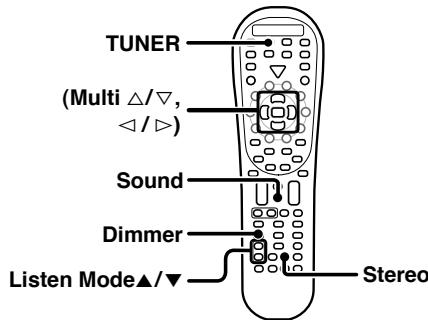

2 For the remote control, press and hold the TUNER key for

SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

more than 3 seconds to switch to receiver mode.

key to enter the SETUP mode.

The Surround Back and Subwoofer speaker output selections are displayed as follows:

: Surround Back/Subwoofer speaker terminal will output SB sound. Surround Back pre out will have output from SBL only.

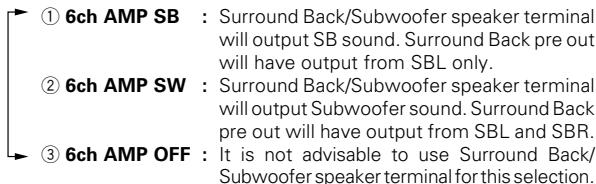

2 6ch AMP SW : Surround Back/Subwoofer speaker terminal will output Subwoofer sound. Surround Back pre out will have output from SBL and SBR. 3 6ch AMP OFF : It is not advisable to use Surround Back/ Subwoofer speaker terminal for this selection. Use the MULTI CONTROL knob or Multi (%/fi) keys to select the speakers. Press the SETUP key to proceed to the next SETUP selection.

∨ keys or @/ # keys for the following displays.

Center Surround Surround Back Surround Mix Subwoofer Re-mix

• For “FRNT LARGE” selection, no sound will be heard from subwoofer speaker even when it is set to on. However, if you select “SW RE-MIX ON” when subwoofer is selected, you will be able to hear sound from the subwoofer.

When in STEREO mode, the sound goes directly to front speaker. 5 Press the ∧ key or # key to accept the setting. • The center speaker setting indication “CNTR” appears.

1 CNTR LARGE BASS PEAK T. TONE T. TONE AUTO MANUAL L C R SR SB

: Large front speakers are connected to the receiver.

2 FRNT NML/THX : Average size front speakers are connected to the receiver.

If you selected “LARGE” as the front speakers setting,

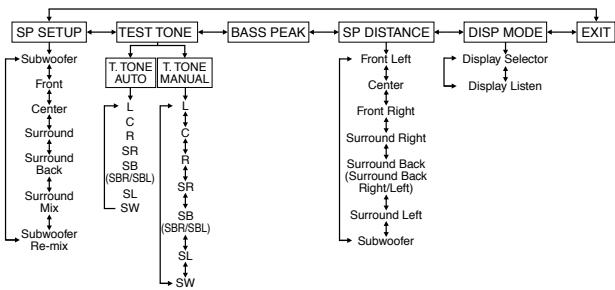

The flow of the SETUP is as follows:

6 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the appropriate center speaker setting.

SP SETUP TEST TONE SP DISTANCE DISP MODE EXIT SP SETUP

4 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the appropriate front speakers setting.

L SP DISTANCE DISP MODE Front Left

(Surround Back Right/Left)

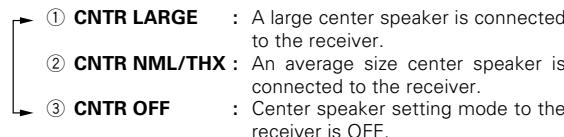

: A large center speaker is connected to the receiver.

2 CNTR NML/THX : An average size center speaker is connected to the receiver. 3 CNTR OFF : Center speaker setting mode to the receiver is OFF. If you selected “NML/THX” as the front speakers setting, 1 CNTR NML/THX : Center speaker setting mode to the receiver is ON. 2 CNTR OFF : Center speaker setting mode to the receiver is OFF. 7 Press the ∧ key or # key again to accept the setting. • The surround speaker indication “SURR” appears.

SL Continued to next page

2003/03/07, 2:05 PM ENGLISH

2 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the appropriate subwoofer setting.

Preparing for surround sound

8 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the appropriate surround speaker setting.

$ Use the MULTI CONTROL knob or Multi (%/fi) keys to select the appropriate subwoofer re-mix setting.

1 SW RE-MIX ON : Subwoofer re-mix setting mode to the receiver is ON. 2 SW RE-MIX OFF : Subwoofer re-mix setting mode to the receiver is OFF.

If you selected “LARGE” as the center speaker setting,

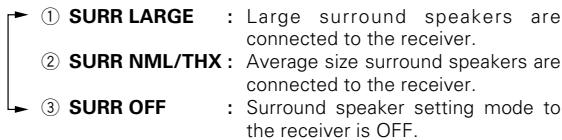

: Large surround speakers are connected to the receiver.

2 SURR NML/THX : Average size surround speakers are connected to the receiver. 3 SURR OFF : Surround speaker setting mode to the receiver is OFF.

If you selected other than “LARGE” as the center speaker setting,

1 SURR NML/THX : Surround speaker setting mode to the receiver is ON. 2 SURR OFF : Surround speaker setting mode to the receiver is OFF. • When the setting “SURR OFF” is selected, the procedure skips to step #. 9 Press the ∧ key or # key again to accept the setting. • The surround speaker setting indication “SB” appears.

• If subwoofer is turned off, subwoofer re-mix setting is not visible.

% Press the SETUP key again to return to the main setup displays. • The receiver enters the speaker volume level adjustment mode. • In steps 5 and 6, indications appear only for the selected channels of the speakers that require adjusting.

5 Adjust the speaker volume level.

From your usual listening position, adjust the volume levels. The volume levels from each speaker should be the same.

∨ keys or @/#keys to select TEST TONE.

1 Press the ∧/∨ 2 Press the SETUP key for the following displays: 1 T.TONE AUTO 2 T.TONE MANUAL

0 Use the MULTI CONTROL knob or Multi (%/fi) keys to select appropriate surround back speaker setting.

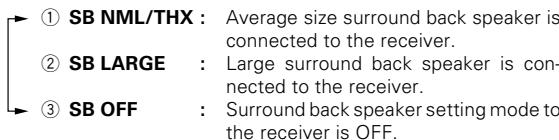

If you selected “LARGE” as the surround speaker setting, 1 SB NML/THX :

C SW R LFE SB SP MUTE A B CLIP Average size surround back speaker is connected to the receiver.

Large surround back speaker is connected to the receiver. Surround back speaker setting mode to the receiver is OFF.

3 The selection of AUTO/MANUAL TEST TONE is done by the

MULTI CONTROL knob or Multi (%/fi) keys. Press the SETUP key again to begin TEST TONE. Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the volume level of the test tone output from the speaker channel to be adjusted. For AUTO selection, the first test tone is heard from the front left speaker for 2.5 seconds. The next test tone is heard from the speakers in the following sequence for 2 seconds each. When the 6ch AMP SB has been selected LEFT

1 SB NML/THX : Surround back speaker setting mode to the receiver is ON.

2 SB OFF : Surround back speaker setting mode to the receiver is OFF. • After setting SB (surround back) from OFF to NML/THX, 6ch AMP setup display will appear to enable you to re-select either SW , SB or OFF from the surround back or subwoofer speaker terminal.

LEFT SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

@ Use the MULTI CONTROL knob or Multi (%/fi) keys to select the following.

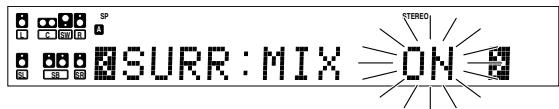

1 SURR:MIX ON : Surround mix setting mode to the receiver is ON. 2 SURR:MIX OFF : Surround mix setting mode to the receiver is OFF.

CNTR SUBW SL SL S C SW R LFE SB SP MUTE A B CLIP SR SBR NEO:6

CSII THX Surround EX

• If you change the volume level settings for the speakers while listening to music, the settings referred to on this page are also changed.

fl • If the speaker setting selects are OFF, the speaker level settings are reset.

∨ keys or @/# keys each

For MANUAL selection, press the ∧/∨ time to select the speaker channel. 4 Press the SETUP key again. • The test tone is turned off and return to the main setup displays.

# Press the ∧ key or # key again to accept the setting.

• The subwoofer remix setting indication “SW RE-MIX” appears.

• If surround back speaker is turned off, SURR:MIX setting is not visible and the procedure skips to step #.

*5345/21-31/EN SR SB The channel indication blinks while the test tone is being output.

L L RIGHT SL When the 6ch AMP SW or OFF has been selected

! Press the ∧ key or # key again to accept the setting and

“SURR:MIX” appears. • “SURR:MIX” is when the SL and SR speakers signals are mixed to produce sound from the surround back speaker which would enable the listener to enjoy sound coming from the back.

CNTR SUBW If you selected “NML/THX” as the surround speaker setting,

2003/03/07, 2:05 PM Preparing for surround sound

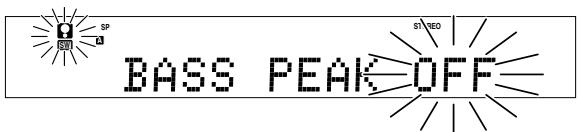

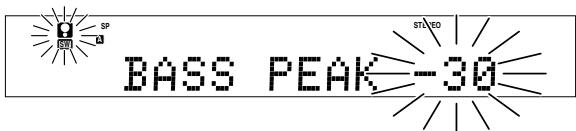

6 Adjust the bass peak level.

A restriction is put on the low frequency so that the bass peak level will not go higher than the acceptable level when the volume is increased.

If subwoofer speaker is OFF, the limitation will affect the low frequency of the front left and right speakers

SW SP MUTE A B CLIP THX Surround EX

2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the bass peak level to –30dB.

• The adjustment range is from – 30dB to 0dB and OFF. 3 For optimum bass peak level, keep increasing the bass peak level by using the MULTI CONTROL knob or Multi (%/fi)keys while test tone is being output until clip sound is heard from the subwoofer or front speaker.

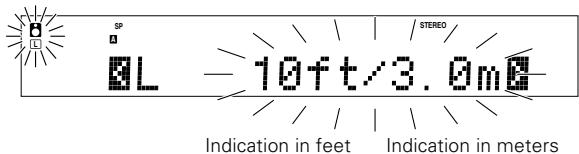

SW SP MUTE A B CLIP THX Surround EX Jot down the distance to each of the speakers.

Distance to Front left speaker (L) : ____ feet (meters) Distance to Center speaker (C) : ____ feet (meters) Distance to Front right speaker (R) : ____ feet (meters) Distance to Surround right (SR) : ____ feet (meters) Distance to Surround back (SBR) : ____ feet (meters) Distance to Surround back (SBL) : ____ feet (meters) Distance to Surround left (SL) : ____ feet (meters) Distance to Subwoofer (SW) : ____ feet (meters)

5 Use the ∧ key or # key to select EXIT.

L SL S C SW R LFE SB SP MUTE A B CLIP SL S SB Indication in feet

CSII THX Surround EX

6 Press the SETUP key to exit the SETUP mode.

Input level adjustment (analog sources only)

CSII THX Surround EX C SW R LFE SL S SB SP MUTE

1 Use the Input Selector keys to select the source of which the input level you want to adjust.

3 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the input level.

∨ keys or @/# keys repeatedly until

2 Press the SOUND and ∧/∨ the “INPUT” indication appears.

The speaker indicator to be adjusted blinks.

• You can store a separate input level for each input source.

∨ keys or @/# keys to select the speakers and the

3 Use the ∧/∨ MULTI CONTROL knob or Multi (%/fi) keys to adjust the distance to the front speakers.

CLIP THX Surround EX

4 Press the SETUP key again to accept the setting.

∨ keys or @/# keys to select the SP DISTANCE

1 Press the ∧/∨ on setup displays and press the SETUP key again. 2 Measure the distance from the listening position to each of the speakers.

7 Input the distance to the speakers.

A B If the input level of an analog source signal is too high, the CLIP indicator will blink to indicate the source signal. Adjust the input level.

4 Press the SETUP key to accept the setting.

: Displays the current input selector.

: Displays the current listen mode.

2 Press the SETUP key for the following displays:

SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

• The adjustment mode is displayed for approximately 8 seconds.

• The input level may be adjusted to any one of three settings: 0dB, -3dB, and -6dB. (The initial setting is 0dB.) 4 Press the SOUND key again to return to the input indication.

Indication in meters

• The allowable setting range is 1 to 30 feet (0.3 to 9.0 m), adjustable in 1 foot (0.3 m) increments.

4 Repeat steps 3 to input the distance for each of the speakers. 5 Press the SETUP key again to return to main setup displays. • The speakers you have selected should appear on the display. Confirm that all the speakers have been correctly selected.

2003/03/07, 2:05 PM ENGLISH

∨ keys or @/ # keys to select BASS PEAK and press

1 Press the ∧/∨ the SETUP key.

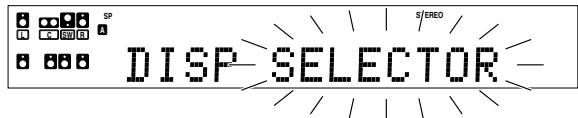

∨ keys or @/# keys to select the DISP MODE.

Listening to a source component

Preparing for playback

Some preparatory steps are needed before starting playback.

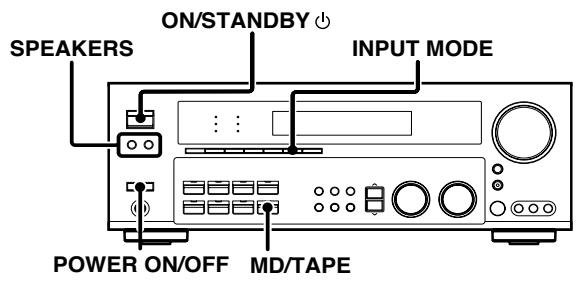

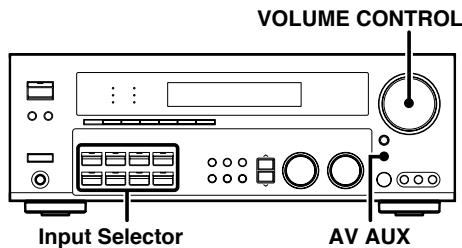

VOLUME CONTROL ON/STANDBY SPEAKERS ENGLISH INPUT MODE Input Selector

AV AUX Input Selector

Turning on the receiver

1 Turn on the power to the related components.

2 Turn on the power to this receiver by pressing the POWER ON/OFF and ON/STANDBY key.

Selecting the input mode

If you have selected a component connected to the CD/DVD, VIDEO 2, VIDEO 3 or DVD/6CH jacks, make sure that the input mode setting is correct for the type of audio signal to be used. 8

Selecting MD/TAPE Select the source name corresponding to the component connected to the MD/TAPE jacks. The initial factory setting is “TAPE”. To change the source to “MD”, follow the steps below:

Hold down the MD/TAPE key for more than 2 seconds. • The source indication changes to “MD”. • To return to the original indication, repeat the above procedure.

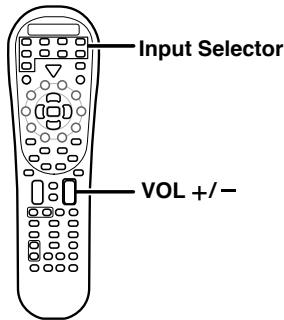

1 Use the Input Selector and AV AUX key to select the source you want to listen to.

Selecting a source using each key.

“CD/DVD” “PHONO” “TUNER” “VIDEO 1” “VIDEO 2“ “VIDEO 3” “MD/TAPE” “AV AUX”

Selecting the speaker system

2 Start playback from the selected source.

Press the SPEAKERS key to select the speaker system to be used.

3 Use the VOLUME CONTROL knob or VOL +/– keys to adjust

Sound from the speakers connected to the SPEAKERS A terminals on the rear panel.

Sound from the speakers connected to the SPEAKERS B terminals on the rear panel. No sound will be heard from the subwoofer. Sound from both the speakers connected to the SPEAKERS A and B terminals on the rear panel. No sound from the speakers. Use this setting when listening with headphones for stereo sound in all playback modes. The display segments are different depending on the type of input signal. The indicator for the speakers you want to use should be lit.

L SL S C SW R LFE SB SP MUTE OPTICAL 6CH INPUT AUTO DET A B CLIP COAXIAL ANALOG

• Selecting “6CH INPUT” by pressing the INPUT MODE key, whereby

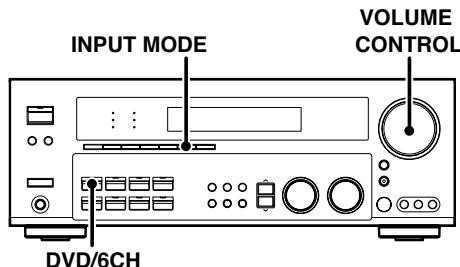

“DVD/6CH” is the input source will cause SPEAKERS A to be selected automatically.

2003/03/07, 2:05 PM Normal playback

Once-touch low frequency emphasis (BASS BOOST) (remote control only) You can adjust the sound quality when the receiver is in the PCM stereo mode, analog stereo mode and when “THX OFF”.

Switching back to the previous setting

MUTE VOLUME CONTROL PHONES TUNER Adjusting the LOUDNESS mode (remote control only)

POWER RCVR You can adjust the Loudness function which controls the low volume settings to maintain the music's richness. The adjustment can be made when the receiver is in the PCM stereo mode, analog stereo mode and when “THX OFF”.

Speaker EQ Active EQ Press the Bass Boost key again.

Press the Loudness key to turn the LOUDNESS setting ON.

Press the Loudness key again so that the “LOUDNESS” indicator goes off.

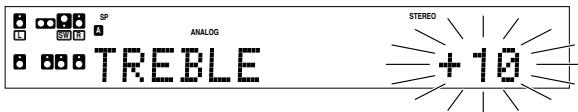

Adjusting the TONE Muting the sound

You can adjust the sound quality when the receiver is in the PCM stereo mode, analog stereo mode and when “THX OFF”.

The MUTE key lets you mute the sound of the speakers.

1 For the remote control, press and hold the TUNER key for more than 3 seconds to switch to receiver mode.

2 Press the TONE key to select the TONE mode.

3 Use the MULTI CONTROL knob or Multi (%/fi) keys to select

SP L SL S C SW R LFE SB A MUTE CLIP THX Surround EX

4 When in TONE ON selection, press the TONE key for the following displays.

5 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the sound quality.

SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX To cancel

Press the MUTE key again so that the “MUTE” indicator goes off. • MUTE ON can also be deactivated by turning the VOLUME CONTROL knob or pressing VOL +/– keys.

BASS : Select this to adjust the low frequency range.

TREBLE : Select this to adjust the high frequency range.

• The bass and treble levels are adjustable from -10 to +10 in 2 step increments.

• The adjustment item is displayed for approximately 8 seconds.

You can enjoy a more impressive sound effect when ACTIVE EQ is turned ON during Dolby Digital and DTS playback and, when in PCM and analog stereo mode.

Press the ACTIVE EQ key for the following selections; 1 ACTIVE EQ MUSIC

: Effective when listening to music.

(The ACTIVE EQ indicator lights up.) 2 ACTIVE EQ CINEMA : Effective when watching a movie. (The ACTIVE EQ indicator lights up.) 3 ACTIVE EQ TV : Effective when watching TV. (The ACTIVE EQ indicator lights up.) 4 ACTIVE EQ OFF : The ACTIVE EQ function is turned OFF. (The ACTIVE EQ indicator goes off.) • “ACTIVE EQ” will scroll from right to left. • When ACTIVE EQ and SPEAKER EQ are OFF and ACTIVE EQ (MUSIC) is turned ON, SPEAKER EQ (SMALL) will turn ON automatically. • ACTIVE EQ function will not be available when REC MODE, AUTO TUNING, PRESET MEMORY or DTS-ES MATRIX is ON, and during 96kHz LPCM playback.

2003/03/07, 2:05 PM ENGLISH Press the Bass Boost key.

• Press the key once to select the maximum (+10) low frequency emphasis setting. • This key does not function when the receiver is in the sound quality or ambience effects adjustment mode.

ENGLISH SPEAKER EQ function is to adjust the receiver’s audio output characteristics with the speakers’ characteristics which differs depending on the size of the speakers. Especially for the music sound source playback, the reproduced sound becomes more natural when adjusting the output characteristics. When activating the SPEAKER EQ function, you will be able to enjoy a more natural and dynamic sound experience even with small size speakers.

Press the SPEAKER EQ key to switch the following setting; 1 SPEAKER EQ SMALL

: To select a small size speaker.

(The SPEAKER EQ indicator lights up.) 2 SPEAKER EQ NORMAL : To select an average size speaker. (The SPEAKER EQ indicator lights up.) 3 SPEAKER EQ LARGE : To select a large size speaker. (The SPEAKER EQ indicator lights up.) 4 SPEAKER EQ OFF : The SPEAKER EQ function is turned OFF. (The SPEAKER EQ indicator goes off.) • “SPEAKER EQ” will scroll from right to left. • SPEAKER EQ cannot be turned OFF when ACTIVE EQ is turned ON. • SPEAKER EQ function will not be available when REC MODE, AUTO TUNING, PRESET MEMORY or DTS-ES MATRIX is ON, and during 96kHz LPCM playback.

Listening with headphones

1 Press the A and B Speaker keys so that the speaker indicator goes off. Make sure the SPEAKERS indicators are turned off.

SP MUTE OPTICAL 6CH INPUT AUTO DETEC A B CLIP COAXIAL ANALOG

• If you turn off all of the speakers when in surround mode, the surround mode will be cancelled as well, resulting in stereo playback.

2 Connect headphones to the PHONES jack. PHONES

3 Use the VOLUME CONTROL knob or VOL +/– keys to adjust the volume.

2003/03/07, 2:05 PM Recording

Recording audio (analog sources) 3 Press and hold the DIMMER key for more than 2 seconds to select the AUTO REC or MANUAL REC mode. 1 REC MODE off

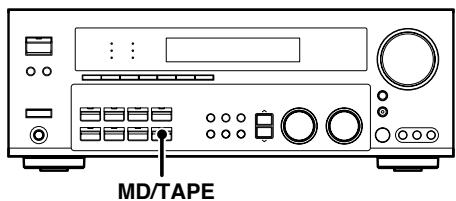

MD/TAPE Recording a music source

1 Use the Input Selector keys to select the source (other than “MD/ TAPE”) you want to record.

2 Set the MD or TAPE recorder to record.

SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

3 Start playback, then start recording.

1 Use the Input selector keys to select the video source (other than

“VIDEO 1”) you want to record. 2 Set the video deck connected to VIDEO 1 to record. • Select the REC mode to record a digital input source. 3 Start playback, then start recording. • Recording may not be normal for some video software. This is due to the copy guard condition. p

SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX For MANUAL REC mode :

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX Recording audio (digital sources)

Switch on the REC mode to record a digital input source. Usually use the AUTO REC mode to record audio input sources. When the digital mode changes during recording in the AUTO REC mode, the audio input source may be interrupted momentarily.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

4 Start playback, then start recording.

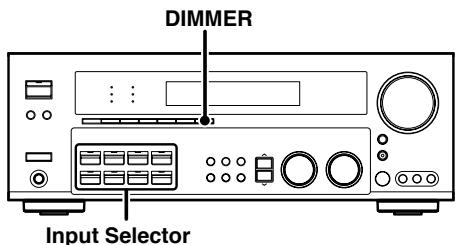

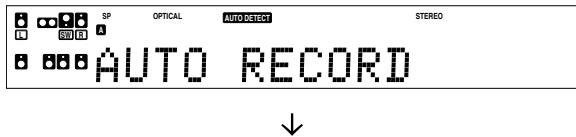

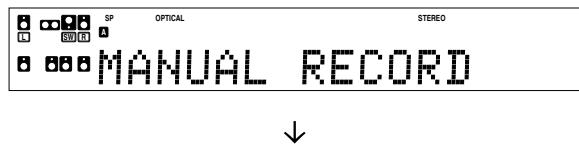

Recording music in AUTO REC or MANUAL REC mode

• If the audio reproduction stops in the middle due to change in the input signals, etc., press the DIMMER key.

DIMMER Input Selector

1 Use the Input Selector keys to select the source (CD/DVD, DVD/6CH, VIDEO 2, VIDEO 3 ) you want to record. 2 Set the MD or TAPE recorder to record.

2003/03/07, 2:05 PM ENGLISH

: The digital input record mode is switched off.

2 AUTO REC mode : The digital input signals (DTS, Dolby Digital, or PCM) are identified automatically and converted into stereo signals that are ready for recording. 3 MANUAL REC mode : The input signal type at the moment this mode is selected is held throughout this mode.

Listening to radio broadcasts

The receiver can store up to 40 stations in the memory and recall them by one-touch operation. Radio stations can be classified into RDS (Radio Data System) stations and other stations. To listen to or store RDS stations in the preset memory see “Using RDS (Radio Data System)”.

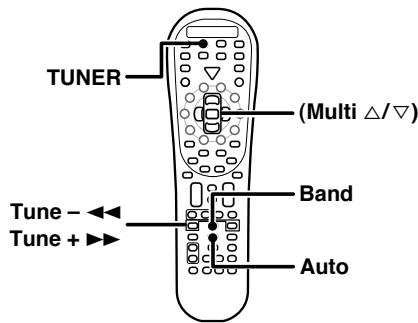

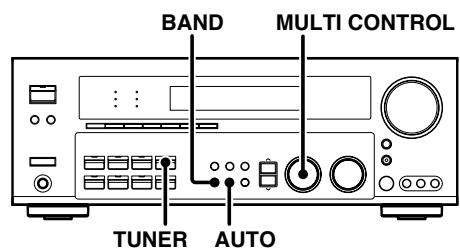

Tuning (non RDS) radio stations

Using RDS (Radio Data System)

RDS is a system that transmits useful information (in the form of digital data) for FM broadcasts along with the broadcast signal. Tuners and receivers designed for RDS reception can extract the information from the broadcast signal for use with various functions, such as automatic display of the station name.

ENGLISH RDS functions:

PTY (Program TYpe Identification) Search ⁄ Automatically tunes to a station that is currently broadcasting the specified program type (genre).

MULTI CONTROL BAND PS (Program Service Name) Display

Automatically displays the station name transmitted by the RDS station.

TUNER RDS AUTO MEMORY function

º Automatically selects and stores up to 40 RDS stations in the preset memory. If fewer than 40 RDS stations have been stored in the preset memory, regular FM stations will be stored in the remaining places.

AUTO Radio Text function

Displays the radio text data transmitted by some RDS stations when you press the RDS Disp (display) key. There is “NO RT” if no text data is transmitted. The “RDS” indicator lights up when an RDS broadcast (signal) is received.

1 Use the TUNER key to select the tuner.

2 Use the BAND key to select the desired broadcast band. Each press switches the band.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX RDS RTY C SW R LFE SB SP MUTE A B CLIP

“AUTO” indicator lights up in the display.

CSII THX Surround EX

• Normally, set to “AUTO” (auto tuning). If the radio waves are weak and there is a lot of interference, switch to manual tuning. (With manual tuning, stereo broadcasts will be received in monaural.)

4 Use the MULTI CONTROL knob or Multi (%/ fi) keys, or

Tune – 1 /+ ¡ keys to select the station.

“STEREO” lights when a broadcast is being received in stereo.

DTS. DOLBY DIGITAL STEREO TICAL 6CH INPUT AUTO DETECT CINEMA EQ. ACTIVE EQ. MATRIX DSP MODE DISCRETE PRO LOGIC LOUDNESS AXIAL ANALOG 96kHzfs

CSII THX Surround EX

“TUNED” is displayed when a station is received.

: The next station is tuned automatically. Manual tuning : Turn the knob or use the Multi (%/fi) keys to select the desired station.

RDS RTY Before using a function utilizing the RDS, be sure to perform the RDS Auto Memory operation by referring to the description in “Presetting

RDS stations (RDS AUTO MEMORY)”. º

Each press switches the tuning method to either auto or manual tuning.

THX Surround EX Note

Some functions and function names may differ for certain countries and areas.

3 Use the AUTO key to select the desired tuning method.

XIAL CSII Listening to radio broadcasts

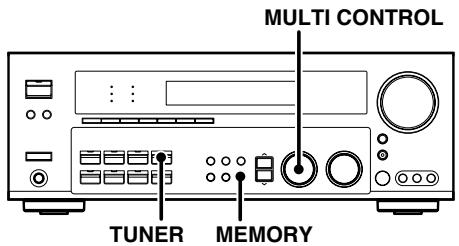

Presetting radio stations manually

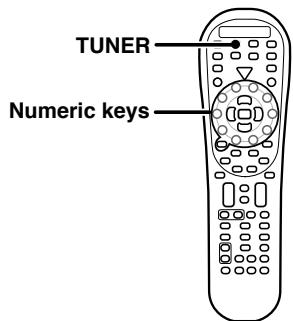

2 Enter the number of the preset station you want to receive

The RDS auto memory function assigns preset numbers to RDS stations starting from preset number “1”. Therefore, be sure to execute the RDS auto memory function before using the following operations to manually store AM stations and other FM stations, and RDS stations. See

“Presetting RDS stations (RDS AUTO MEMORY)”. º

Press the numeric keys in the following order:

For “15”, press For “20”, press

• If you make a mistake entering a two digit number, press the +10 key repeatedly to return to the original display and start again.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX Receiving preset stations in order (P.CALL)

1 Tune to the station you want to store.

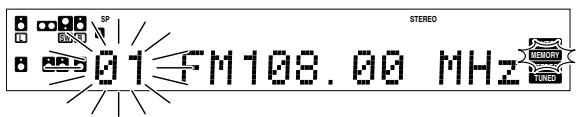

2 Press the MEMORY key while receiving the station. Blinks for 5 seconds

L C SW R LFE SL S SB SP MUTE A B CLIP TUNER

Lights for 5 seconds

THX Surround EX Proceed to step 3 within 5 seconds.

(If more than 5 seconds elapse, press the MEMORY key again).

3 Use the MULTI CONTROL knob or Multi (%/ fi) keys to select one of the station presets (1 – 40).

4 Press the MEMORY key again to confirm the setting.

• Repeat steps 1, 2, 3 and 4 to store as many stations as necessary. • If you store a station at a previously used preset, the old station will be replaced by the new one.

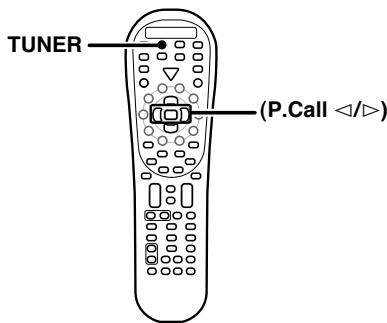

Receiving preset stations

1 Press the TUNER key to select the tuner as the source.

2 Use the P.Call @/ # keys to select the desired station. • Each time you press the key, another preset station is received in order. Pressing the P.Call # does the following:

Pressing the P.Call @ does the following:

Holding down the # or @ keys, lets you skip through the presets, receiving each preset station at 0.5 second intervals.

1 Press the TUNER key to select tuner as the source.

2003/03/07, 2:05 PM ENGLISH MULTI CONTROL Listening to radio broadcasts

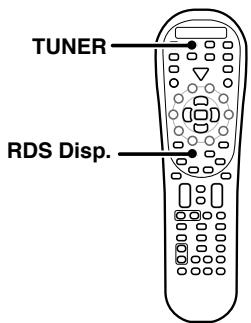

Using the RDS DISP (Display) key

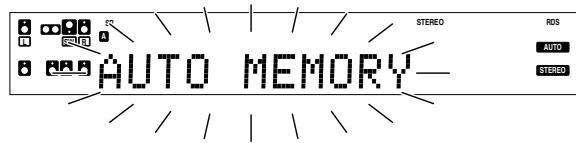

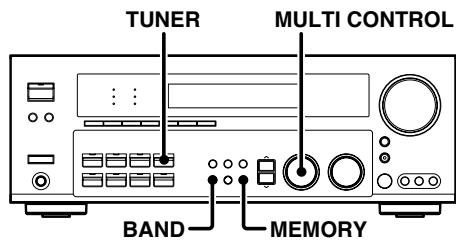

Presetting RDS stations (RDS AUTO MEMORY)

This function automatically stores up to 40 RDS stations in the preset memory. In order to use the PTY function, the RDS stations must be stored in the preset memory using the RDS AUTO MEMORY function.

TUNER TUNER MULTI CONTROL BAND MEMORY ENGLISH RDS Disp.

Pressing the RDS Disp. key changes the contents of the display.

Each press switches the display mode as follows :

will start AUTO MEMORY.

1 PS (Program Service name) display :

The station name is displayed automatically when an RDS broadcast is received. If no PS data was sent, “NO PS” is displayed.

C SW R LFE SL S SB SP MUTE A B CLIP THX Surround EX

2 RT (Radio Text) display :

Text data accompanying the RDS broadcast scrolls across the display. “NO RT” is displayed if the current RDS station does not provide RT data.

L C SW R LFE SL S SB SP MUTE A B CLIP

2 Use the BAND key to set the broadcast band to “FM”.

3 Press the MEMORY key continuously for more than 3 seconds

1 Press the TUNER key to enter tuner mode.

CSII THX Surround EX L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX RDS RTY THX Surround EX RDS RTY

• After a few minutes, up to 40 RDS stations are preset in order from channel “01”.

• Stations already stored in the preset memory may be replaced by RDS stations. (i.e., If the RDS AUTO MEMORY function detects 15 RDS stations, the stations currently preset at numbers 01~15 will be replaced by the RDS stations.)

3 Frequency display :

Displays the frequency of the current station.

L CSII Listening to radio broadcasts

Tuning by Program TYpe (PTY search)

This function lets you set the tuner to automatically search for stations which are currently broadcasting the type of program (genre) you want to listen to.

3 Press the PTY key to start searching.

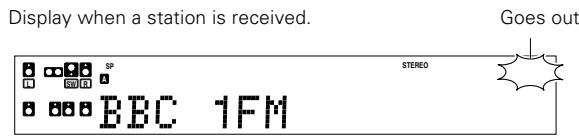

EXAMPLE : Searching for a Pop Music broadcast. Display while searching.

Under certain receiving conditions, it may take more than 1 minute to complete the search.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR Display when a station is received.

L PTY SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX Station name display

• No sound is heard while “PTY” is blinking.

• If the desired program type cannot be found, “NO PROGRAM” is displayed, then after several seconds the display returns to the original display.

To select another program type.

• Execute the RDS auto memory procedure.

• Set the broadcast band to FM. • Tune to an RDS station.

Repeat steps 1, 2 and 3.

1 Press the PTY key to activate the PTY search mode.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX RDS PTY RTY AUTO MEMO STEREO TUNED SR When an RDS broadcast is received, the program type is shown on the display. If no PTY data is available, or if the station is not an RDS station, “NONE” is displayed.

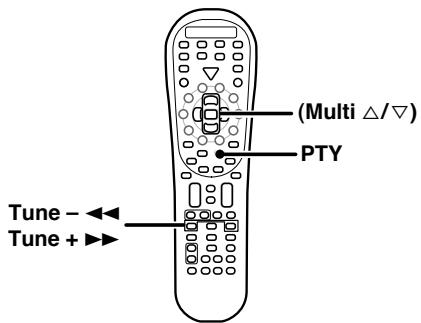

2 While the “PTY” indicator is lit, use the Multi (%/ fi) keys or

Tune – 1 /+ ¡ keys select the program type of your choice.

Program Type Name Pop Music Rock Music Easy Music Light Classical Music Serious Classical Music Other Music News Current Affairs Information Sport Education Drama Culture Science Varied Speech

POP M ROCK M EASY M LIGHT M CLASSICS OTHER M NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED Program Type Name

Weather Finance Children’s Program Social Affairs Religion Phone In Travel Leisure Jazz Music Country Music National Music Oldies Music Folk Music Documentary

“NO PROGRAM” is displayed if this operation is attempted before performing the RDS Auto Memory operation.

2003/03/07, 2:05 PM ENGLISH Ambience effects

This receiver is equipped with listening modes that allow you to enjoy an enhanced sonic ambience with a variety of video sources. In order to obtain the optimum effect from the surround modes, make sure to input the proper speaker settings beforehand. ¡

ENGLISH Surround modes

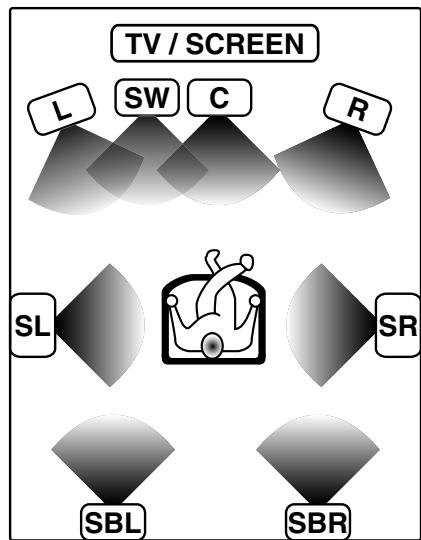

The below speaker placements are for 5.1 channel surround sound system which are; • Dolby Digital • Dolby Pro Logic II • THX • DTS • DSP • DVD 6-channel

The below speaker placements are for 6.1 channel surround sound system which are;

• Dolby Digital EX • DTS-ES • Neo:6 • THX Sorround EX • SRS Circle Surround II • Dolby Digital, Dolby Pro logic II and DSP if "SURR: MIX ON" ™

TV / SCREEN TV / SCREEN L SW C R SL L SW C R SL SR SR SBL No Surround Back speaker

SBR Surround Back speakers

L Front left speaker

SL Surround left speaker

Center speaker Front right speaker

SR SBL SBR Surround right speaker

Surround back left speaker Surround back right speaker

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro

Logic”,”Surround EX” and the double-D symbol are trademarks of Dolby Laboratories.

Circle Surround II, SRS and (O) symbol are trademarks of SRS Labs, Inc. Circle

Surround II technology is incorporated under license from SRS Labs, Inc.

Lucasfilm and THX are trademarks or registered trademarks of

Lucasfilm, Ltd. ©Lucasfilm Ltd. & TM. Surround EX is a jointly developed technology of THX and Dolby Laboratories Inc. and is a trademark of Dolby Laboratories Inc. All rights reserved. Used under authorization.

“DTS”, “DTS-ES Extended

Surround” and “Neo:6” are registered trademarks of Digital Theater Systems, Inc.

2003/03/07, 2:06 PM Ambience effects

DTS The Dolby Digital surround format lets you enjoy up to 5.1 channels of digital surround sound from Dolby Digital program sources (such as Laserdisc or DVD software marked

). Compared with previous Dolby surround, Dolby Digital provides even better sound quality, greater spatial accuracy, and improved dynamic range.

DTS (Digital Theater System) is a 5.1 channel digital audio format that provides five full spectrum channels and one low-frequency

(subwoofer) channel for unprecedented clarity, optimum channel separation and a (wide) dynamic range. In the DTS mode, the 5.1 channel digital input from a DTS CD, LD or DVD disc (carrying the "DTS" marking) can be played in Digital Surround.

Although a full set of speakers (front left, right, and center, surround left and right, and a subwoofer) is required for true 5.1 channel Dolby

Digital surround sound, this receiver lets you enjoy Dolby Digital (and Dolby Surround) program sources, even if you connect only the front speakers.

Dolby Digital EX Dolby Digital EX is an extension of Dolby Digital technology, Dolby

Digital EX creates six full-bandwidth output channels from 6.1channel sources. This is done using a matrix decoder that derives three surround channels from the two in the original recording. This is achieved by using three different surround signals, Left Surround, Right Surround, and Back Surround, each driving its own array of speakers. Think of it as adding a center channel for the rear speakers, which give more diffuse and natural surround effect, even if you wanted the ability to completely encircle the audience with sound, positioning sound effects exactly where they would be heard in real life. For best results, Dolby Digital EX should be used with movie soundtracks recorded with Dolby Digital Surround EX which contain a digital flag that will automatically activate this feature. However, for titles released prior to late 2001, this feature has to be activated manually. Although a full set of speakers (front left, right, and center, surround left and right, surround back and a subwoofer) is required for true 6.1 channel Dolby Digital Surround EX sound, this receiver lets you enjoy Dolby Digital (and Dolby Surround) program sources, even if you connect only the front speakers.

DTS-ES DTS-ES (Digital Theater System-Extended Surround) presents 6.1 channels surround system with additional Surround Back channel which evolved from the conventional 5.1 channels surround system.

DTS-ES format that was recorded in DVD, CD or LD comprises of two modes. DTS-ES Discrete 6.1 produce the discrete surround back which is completely independent and DTS-ES Matrix 6.1 produces the surround back which synthesised within the left and right surround channels using matrix technology. DTS-ES has perfect compatibility with the conventional 5.1 channels surround system. 6.1 channels surround with an additional surround back presents a more natural presence and surround effects by increasing the impression of the sound image from back. Programs which are recorded using DTS-ES technology consist of information flags which will be able to control the Discrete and Matrix mode. Thus, it can automatically select the best matched mode.

Neo:6 is a new technology which was developed by DTS. It can produce high grade 6 channels surround with an astonishing fidelity from 2 channels content. Neo:6 has 2 mode, "CINEMA" mode is for movie playback and "MUSIC" mode is for music playback. DTS has a .1 or LFE channel. The indication “LFE” appears in the display when a signal is being input for this channel.

Although only Dolby Digital soundtracks incorporate a separate low frequency channel, connecting a subwoofer will also improve deep bass performance in the other surround modes.

The indication “LFE” appears in the display when a signal is being input for this channel.

Dolby PRO LOGIC II Dolby Pro Logic II was designed specifically to provide a new sense of spatiality, directionality and articulation of sounds from Dolby

Surround encoded sources (such as video and Laserdisc software marked ). This is achieved with an intelligent, built-in feedback logic design, a matrix surround decoding and the decoding of stereo, full bandwidth surround outputs. The PRO LOGIC II modes programmed into this receiver are “MOVIE”, “MUSIC” and “PRO LOGIC”. The “MOVIE” mode of the PRO LOGIC II has preset characteristics to produce a calibrated, high-level surround sound playback while the “MUSIC” mode has user-adjustable characteristics to offer the three optional controls, like “Dimension”, “Center Width” and “Panorama” modes to allow optimization of the soundfields as desired. The “Dimension” control allows the user to gradually adjust the soundfield either towards the front or towards the rear; the “Center Width” control allows various adjustment of the left-center-right speakers’ balance; the “Panorama” mode extends the front stereo image to include the surround speakers for an exciting “wraparound” effect with side wall imaging.

SRS Circle Surround II SRS Circle Surround II™ improves on its predecessor CS-5.1™ resulting in the CS-6.1™ system, enabling you to listen to realistic, multi-channel, surround sound playback from a stereo source or conventional surround-encoded video source. You already enjoy listening to Dolby Digital/DTS multi-channel sound with your multispeakers. Now you can listen to audio CDs, MDs, Broadcast and

Home Theater using your multi-speakers. You will discover a new type of sound through SRS Circle Surround II. The CS system dramatically reduces storage space requirements for multi-channel content. It creates a listening environment that places the listener “inside” music performances, and dramatically improves both hi-fi audio and conventional surround-encoded video material. The CS decoder also includes the SRS technologies Focus™ and TruBass™. Focus electronically raises the sound stage from the speaker location to an optimal position. TruBass creates deep, rich bass in small speaker systems without the need for a subwoofer.

LFE = Low Frequency Effects. This channel delivers separate nondirectional bass signals to the subwoofer for more dynamic deep bass sound effects.

2003/03/07, 2:06 PM ENGLISH Dolby Digital

ENGLISH Ambience effects

THX THX Surround EX mode

Movie soundtracks are mixed in special movie theatres called dubbing stages and are designed to be played back in movie theatres with similar equipment and conditions. This same soundtrack is then transferred directly onto Laserdisc, VHS tape, DVD, etc., and is not changed for playback in a small home theatre environment.

THX engineers developed patented technologies to accurately translate the sound from the movie theatre environment into the home, correcting the tonal and spatial errors that occur. Activate THX whenever watching a movie that was intended for the playback in a Cinema. On this product, when the THX indicator is on, the following THX features are automatically added in movie playback modes (e.g. Dolby Digital+THX, DTS+THX, THX Surround EX, etc):

THX Surround EX-Dolby Digital Surround EX is a joint development of

Dolby Laboratories and the THX division of Lucasfilm Ltd. In a movie theatre, film soundtracks that have been encoded with Dolby Digital Surround EX technology are able to reproduce an extra channel which has been added during the mixing of the program. This channel, called Surround Back, places sounds behind the listener in addition to the currently available front left, front center, front right, surround right, surround left and subwoofer channels. This additional channel provides the opportunity for more detailed imaging behind the listener and brings more depth, spacious ambience and sound localization than ever before.

Re-equalization (Re-EQ)

The tonal balance of a film soundtrack will be excessively bright and harsh when played back over audio equipment in the home because film soundtracks were designed to be played back in large movie theatres using very different professional equipment. Re-Equalization restores the correct tonal balance for watching a movie soundtrack in a small home environment.

Movies that were created using the Dolby Digital Surround EX technology, when released into the home consumer market may exhibit a Dolby Digital Surround EX logo on the packaging. A list of movies created using this technology can be found on the Dolby web site at http://www.dolby.com.

Only receiver and controller product bearing the THX Surround EX logo, when in the THX Surround EX mode, faithfully reproduce this new technology in the home.

The human ear changes our perception of a sound depending on the direction from which the sound is coming. In a movie theatre, there is an array of surround speakers so that the surround information is all around you. In a home theatre, you use only two speakers located to the side of your head. The Timbre Matching feature filters the information going to the surround speakers so that they more closely match the tonal characteristics of the sound coming from the front speakers. This ensures seamless panning between the front and surround speakers.

This product may also engage the “THX Surround EX” mode during the playback of 5.1 channel material that is not Dolby Digital Surround

EX encoded. In such case the information delivered to the Surround Back channel will be program dependent and may or may not be very pleasing depending on the particular soundtrack and the taste of the individual listener.

Adaptive Decorrelation

In a movie theatre, a large number of surround speakers help create an enveloping surround sound experience, but in a home theatre there are usually only two speakers. This can make the surround speakers sound like headphones that lack spaciousness and envelopment. The surround sounds will also collapse into the closest speaker as you move away from the middle seating position. Adaptive Decorrelation slightly changes one surround channel's time and phase relationship with respect to the other surround channel. This expands the listening position and creates - with only two speakers - the same spacious surround experience as in a movie theatre.

Before any home theatre component can be THX Select certified, it must incorporate all the features above and also pass a rigorous series of quality and performance tests. Only then can a product feature the THX Select logo. Hundreds of parameters in both the digital and analog domain are tested and required to meet very specific high quality standards which is your guarantee that the Home Theatre products you purchase will give you superb performance for many years to come. THX Select requirements cover every aspect of the product including pre-amplifier and power amplifier performance and operation

The DSP mode lets you add the atmosphere of a live concert or hall to almost any type of program source. These modes are particularly effective when used with stereo program sources, like CD, television, and FM radio. You might enjoy trying the ARENA, JAZZ CLUB,

THEATER, STADIUM or DISCO mode the next time you watch a concert or sporting event!

DSP stands for Digital Signal Processor. The way a sound is heard in an actual environment depends on a variety of different factors. One of the most important is reverberation (the act of decaying elements of sound echoing in various places). The DSP modes produce the feeling of presence by using the DSP to create reverberation, without spoiling the sound quality of the original signal.

Using a DVD player or the like equipped with six (5.1) output channels and the receiver, you can enjoy multi-channel encoded DVD source material in all its splendor. Since the source signals are digital and each channel is input independently, the resulting sound quality, sense of spaciousness, and dynamic range are superb. The indication "LFE" appears in the display during DVD 6-channel mode selection.

2003/03/07, 2:06 PM Ambience effects

The DTS compatible models can reproduce a CD, DVD, or LD carrying the DTS mark. DOLBY DIGITAL can be used when playing DVD or LD software bearing the mark and DOLBY DIGITAL format digital broadcasts (etc.). DOLBY PRO LOGIC can be used when playing video, DVD, or LD mark. software bearing the SRS Circle Surround II enables you to listen to multi channel sound from the stereo source.

INPUT MODE L SL C SW R LFE SB SP MUTE A B CLIP THX Surround EX When the DTS or DTS-ES (matrix or discrete) signal is input :

(DTS indicator lights up.)

(DTS and MATRIX indicators light up.) (DTS and DISCRETE indicators light up.) Normal stereo playback.

When the analog signal or the digital signal (except for

DOLBY DIGITAL or DTS signal) is input :

1 PLII MOVIE Input Selector

• Turn ON related components. • Complete “Preparing for surround sound” (speaker settings). ¡ • Use the Input Selector keys to select the component you wish to play back with surround sound. • Use the INPUT MODE key to select the input mode (analog or digital) for the source you wish to play back. 8 • Noise will be produced when a DTS source is played by selecting the analog input.

1 Start playing the video software.

2 Use the LISTEN MODE knob or Listen Mode 5/ ∞ keys to select the listening mode.

The listening mode settings are stored separately for each input. If the input mode is set to full auto (“AUTO DETECT” lights), the receiver selects the optimal listening mode automatically based on the type of input signal and the speaker settings.

Each turn of the LISTEN MODE knob or press of the Listen Mode 5/ ∞ keys switches the setting as listed below. The listening mode settings are different depending on the type of input signal.

: PRO LOGIC II surround MOVIE mode.

(The PRO LOGIC indicator lights up.) 2 PLII MUSIC : PRO LOGIC II surround MUSIC mode. (The PRO LOGIC indicator lights up.) 3 PRO LOGIC : PRO LOGIC II surround PRO LOGIC mode. (The PRO LOGIC indicator lights up.) 4 NEO:CINEMA : NEO:6 surround. (The NEO:6 indicator lights up.) 5 NEO:MUSIC : NEO:6 surround. (The NEO:6 indicator lights up.) 6 CSII CINEMA : CS 6.1 surround. (The CS II indicator lights up.) 7 CSII MUSIC : CS 6.1 surround. (The CS II indicator lights up.) 8 CSII MONO : CS 6.1 surround. (The CS II indicator lights up.) 9 STEREO : Normal stereo playback. (The STEREO indicator lights up.)

• Dolby Digital or DTS signal having more channels than the maximum number of playback channels available using the receiver’s current settings is input, downmixing is performed to match the number of available channels.

3 DSP mode (Digital Signal Processor).

DSP can produce these effects without spoiling the sound quality of the original music or video source. 1 Pressing the DSP key or DSP Mode key will display the current DSP MODE status. 2 Each press of the key will switch to the next status as shown bellow: 1 ARENA 2 JAZZ CLUB 3 THEATER 4 STADIUM 5 DISCO

DSP surround ARENA mode.

DSP surround JAZZ CLUB mode. DSP surround THEATER mode. DSP surround STADIUM mode. DSP surround DISCO mode.

• The DSP mode selection is displayed for approximately 3 seconds.

When the DOLBY DIGITAL or DOLBY DIGITAL EX signal is input :

(The DOLBY DIGITAL or PRO LOGIC, indicator lights up.) 1 DOLBY DIGITAL : DOLBY DIGITAL surround. 2 DOLBY D EX : DOLBY DIGITAL EX surround. 3 PLII MOVIE : PRO LOGIC II surround MOVIE mode. (The PRO LOGIC indicator lights up.) 4 PLII MUSIC : PRO LOGIC II surround MUSIC mode. (The PRO LOGIC indicator lights up.) 5 PRO LOGIC : PRO LOGIC II surround PRO LOGIC mode. (The PRO LOGIC indicator lights up.) 6 STEREO : Normal stereo playback. Continued to next page

2003/03/07, 2:06 PM ENGLISH THX DSP When you select DOLBY DIGITAL

“DOLBY DIGITAL” will be displayed.

This mode creates a home theater environment which is able to reproduce a cinema surround sound system featuring improved special representation and acoustic imaging of surround channels by translating THX Surround EX technology.

VOLUME CONTROL INPUT MODE Press the THX key to switch the following setting :

: THX Surround EX function is turned ON when Dolby Digital 5.1ch signal is detected.

(THX indicator lights up.) 2 THX Sur EX AUTO : THX Surround EX function is turned ON when Dolby Digital Surround EX signal is detected. (THX indicator lights up.) 3 THX ON : THX mode is turned ON. (THX indicator lights up.) 4 THX OFF : THX mode is turned OFF. (THX indicator goes off.) • THX functions when the display segment is turned ON. • THX Sur EX ON and THX Sur EX AUTO will not be available if surround back speakers are turned OFF. • The THX setting differs depending on the input selector. • When CS II, PL II MUSIC, NEO:MUSIC, ACTIVE EQ or SPEAKER EQ is ON, THX function will not be effective.

5 Adjust the volume.

• Connect your DVD player to the DVD/6CH jacks of the receiver.

• Turn on all other components that will be used. • Complete “Preparing for surround sound”. ¡

• Depending on the type of the signal or speaker setting, some listening modes cannot be selected. • When playback is started, the sound may be cut or interrupted before the input source is confirmed as Dolby Digital. • To enjoy Dolby Digital surround (as well as all the other listening modes) from a single component, be sure to use a Dolby Digital compatible source component. • Dialogue Normalization (Dial Norm) is a feature of Dolby Digital. It is able to automatically maintain the overall audio output level constant.

1 Press “DVD/6CH” as the input source.

L C SL S SW R SB SP MUTE A B CLIP THX Surround EX When playing some Dolby Digital sources, you may see in the display a message "DIALNORM OFFSET xxdB". This is because some soundtracks may be recorded either louder or quieter than normal. The xx number shows by how much.

For example, if the message says “DIALNORM OFFSET +4dB” you know that this particular recording was encoded 4dB louder than normal. If you wish, you can turn down the volume control by 4dB to keep the playback level consistent.

• If speaker system B is on when “DVD/6CH” is selected as the input source, it switches off and speaker system A turns on automatically.

2 Select "6CH INPUT" by pressing the INPUT MODE key.

3 Start playback of the DVD software. 4 Adjust the volume. • It is not possible to adjust the volume level or sound quality (SET UP, SOUND, LISTEN MODE, ACTIVE EQ and TONE key will not be functional) of the channels separately when the receiver is in the 6CH INPUT mode. Adjust the volume with the controls of the DVD player. For the powered subwoofer, you can adjust the volume of the subwoofer using the subwoofer’s own volume control.

DVD 6-channel playback

Using a DVD player or the like equipped with six (5.1) output channels and the receiver, you can enjoy surround sound playback. Connecting a DVD player which can decode the surround signal itself is also acceptable.

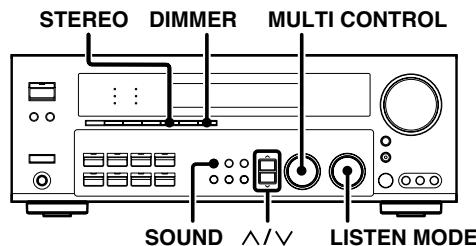

SOUND LISTEN MODE TUNER Ambience effects

Dimension mode (Pro Logic II Music mode only)

You can make further adjustments to the sound while listening to playback in the surround mode.

When listening to music with certain recordings, you will also be able to achieve a suitable balance from all the speakers by adjusting the dimension mode.

1 For the remote control, press and hold the TUNER key for more than 3 seconds to switch to receiver mode.

∨ keys or @/# keys 2 Press the SOUND key and then use the ∧/∨ until the desired item appears in the display.

1 CNTR (Center speaker level adjustment)*

2 SR (Right surround speaker level adjustment)* 3 SBR (Surround back right speaker level adjustment)* 4 SBL (Surround back left speaker level adjustment)* 5 SL (Left surround speaker level adjustment)* 6 SUBW (Subwoofer level adjustment)* 7 INPUT (Input level adjustment - analog mode only) £ 8 MIDNIGHT (Midnight mode ON/OFF - Dolby Digital mode only) 9 PANORAMA (Panorama mode ON/OFF)** 0 DIMENSION (Dimension adjustment)** - CENTER WIDTH (Center width adjustment)** = CENTER FOCUS (Center focus adjustment)*** ~ CSII DLY (Rear speaker delay adjustment)*** ! CSII GAIN (Input gain adjustment)*** @ TruBass (TruBass adjustment)*** * The adjustment is only temporary for the current input selection. The value will return automatically to the original setup value when the power is turned on/off or when the input selection is changed. ** Pro Logic II Music mode only. *** CS II mode only. 3 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the setting as desired. • The adjustment item is displayed for approximately 8 seconds.

Midnight mode (Dolby Digital mode only)

When watching movies at night , you might not be able to raise the volume as loud as normal. Midnight mode compresses the dynamic range of previously specified heavy sound passage of the Dolby Digital sound track (like scenes with sudden increases in volume) to minimize the difference in volume between the scenes with heavy sound passage and scenes with normal sound passage. This makes it easy to hear all of the sound track, even when listening at low volumes.

2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the soundfield towards the rear or the front.

Soundfield is adjusted towards the front.

L C SW R LFE SL S SB SP MUTE A B CLIP THX Surround EX Soundfield is in neutral position.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX Soundfield is adjusted towards the rear.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX Center Width mode (Pro Logic II Music mode only)

Center width adjustment allows you to enjoy an enhanced sound when listening to music through center image from only center speaker, or left and right speakers or various combinations adjustments.

∨ keys or @/# keys until

1 Press the SOUND key, then press the ∧/∨ “CENTER WIDTH” appears on the display. • The CENTER WIDTH indication scrolls across the display. • When the center speaker is switched OFF, this mode will not be effective. 2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the left-center-right output. Center image will be heard from center speaker only.

∨ keys or @/# keys until

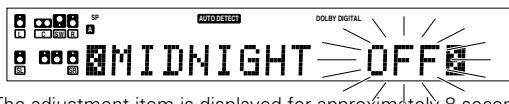

1 Press the SOUND key, then press the ∧/∨ “MIDNIGHT” appears on the display. • This can be selected only if CD/DVD, DVD/6CH, VIDEO 2 or VIDEO3 is selected as the source and the listen mode is set to “DOLBY DIGITAL.” 2 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the ON or OFF setting.

L C SW R LFE SL S SB SP MUTE A B CLIP THX Surround EX RDS RTY SL S SL S

• The adjustment item is displayed for approximately 8 seconds.

• Some Dolby Digital software may not be compatible with the Midnight mode.

C SW R LFE SB SP MUTE A B CLIP THX Surround EX Center image will be heard from left and right speakers only.

• When in other position, center image from center speaker, left and right speakers can be heard simultaneously with various combinations.

Panorama mode (Pro Logic II Music mode only)

When listening to music, you will be able to enjoy the “wraparound” sound effect when you adjust the panorama mode.

∨ keys or @/# keys until

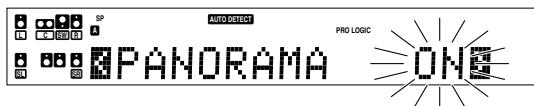

1 Press the SOUND key, then press the ∧/∨ “PANORAMA” appears on the display. 2 Use the MULTI CONTROL knob or Multi (%/fi) keys to select PANORAMA ON or OFF. 1 PANORAMA ON : PANORAMA mode is ON. 2 PANORAMA OFF : PANORAMA mode is OFF.

L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX

∨ keys or @/# keys, the menu

Each time you press the ∧/∨ changes as follows: Note that some items are not displayed in certain modes.

∨ keys or @/# keys until

1 Press the SOUND key, then press the ∧/∨ “DIMENSION” appears on the display.

ENGLISH Ambience effects

Circle Surround II mode

TruBass adjustment mode (CS II mode only)

When you select the circle surround II mode, you will be able to enjoy the multi surround sound from the stereo source.

TruBass adjustment provides deep, rich bass sound to various speakers.

Use the LISTEN MODE knob or Listen Mode 5/∞ keys for CS II selection.

∨ keys or @/# keys until

1 Press the SOUND key, then press the ∧/∨ “TruBass” appears.

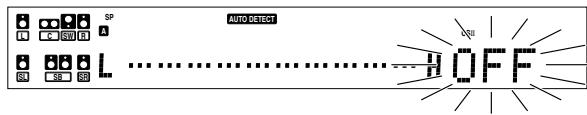

Center Focus mode (CS II mode only)

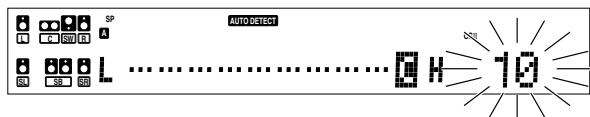

2 Use the MULTI CONTROL knob or Multi (%/fi) keys to select the following;

Center focus elevate level adjustment allows you to enjoy an enhanced sound when you select CS II CINEMA/MUSIC/MONO. It repositions the sound image to an optimal position more natural to the listener through the center image.

∨ keys or @/# keys until

1 Press the SOUND key, then press the ∧/∨ “CENTER FOCUS” appears on the display.

L SL C SW R LFE SB SP MUTE A B CLIP THX Surround EX

2 TruBass SW 3 TruBass LR 4 TruBass SW + LR • After selecting 2, 3 or 4, TruBass speaker size and level adjustment selection will be available. 3 For TruBass speaker selection, use the MULTI CONTROL knob or Multi (%/fi) keys to select any of the following display; 1 TruBass LARGE 2 TruBass MID 3 TruBass SMALL

2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the center elevation level.

• The adjustment range is from 0 to 10.

L SL C SW R LFE SB SP MUTE A B CLIP THX Surround EX

• CENTER FOCUS will not be available when the center speaker is OFF.

CS II Rear Delay adjustment provides a better sound effect from the rear speakers.

∨ keys or @/# keys until

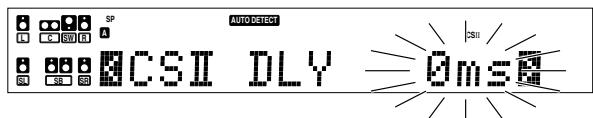

1 Press the SOUND key, then press the ∧/∨ “CSII DLY” appears on the display. 2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the rear speaker. • The adjustment range is from 0 ms to 25 ms.

SL C SW R LFE SB SP MUTE A B CLIP CS II Rear Delay adjustment mode (CS II mode only)

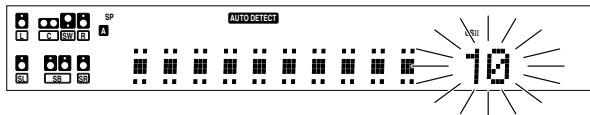

4 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the TruBass Level.

• The adjustment range is from 0 (Trubass OFF) to 10.

THX Surround EX MUTE CLIP THX Surround EX Display dimmer adjustment

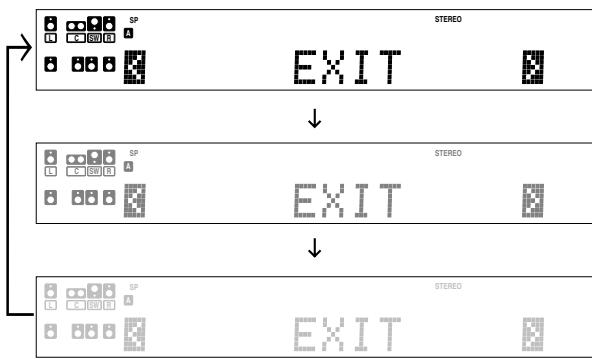

The dimmer function lets you select the brightness of the receiver's display. You might find this useful if you darken your room to watch movies or listen to music. Each time you press the DIMMER key, the display brightness changes among the three available settings. Select the brightness level you find most pleasing.

THX Surround EX CS II Gain adjustment mode (CS II mode only)

CS II GAIN allows user to adjust the input gain for the Circle Surround II processing.

∨ keys or @/# keys until

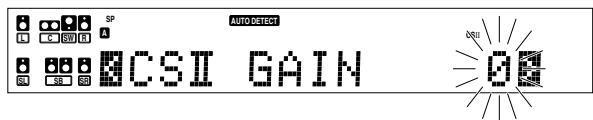

1 Press the SOUND key, then press the ∧/∨ “CSII GAIN” appears on the display. 2 Use the MULTI CONTROL knob or Multi (%/fi) keys to adjust the input gain. • The adjustment range is from 0 to -18.

L SL C SW R LFE SB SP MUTE A B CLIP THX Surround EX

The receiver is compatible with the 96kHz LPCM playback. To play a 96kHz DVD, set the listen mode to “STEREO”. • In FULL AUTO input mode the listen mode will automatically be STEREO. • When in DIGITAL MANUAL input mode (listen mode is not STEREO), “96kHz LPCM” will appear in the display and no sound can be heard from the speakers. Press the Listen Mode or Stereo key (the listen mode changes to the STEREO mode) to output sound from the speakers.

2003/03/07, 2:06 PM Basic remote control operations for other components

The remote control supplied with this receiver is also capable of controlling components from a variety of manufacturers once you register the appropriate setup codes into the remote control unit.

• To initialize the remote control, press the Learn key until blinks twice. Then press the numeric key to enter “9-8-1”. will blink twice.

component to be registered.

• If performed correctly, will blink twice.

• Point the remote control at the component and press SRC Power key once. It should turn on/off but if it does not, repeat step 2 to 4 • If the component still does not work, try searching for the code.

5 Repeat steps 2 to 4 to register additional components until all components have been registered.

Although each setup code is designed to work with a number of different models, certain codes may not work with some models. (Also, certain codes may only operate some of the functions available on a given model.)

Registering setup codes for other components

Searching for your codes Source keys

If your component does not respond after trying all the codes listed for your component, or if your component is not listed at all, try searching for your code.

For example, to search for code for your TV:

1 Press the TV key once. Next, press and hold the Learn key until

blinks twice, then release the Learn key.

2 Press the numeric key to enter "9 - 9 - 1".

1 Find the setup code of the component to be registered.

• Refer to the setup code lists to find the setup code for the component to be registered. w Example: To register a DVD made by KENWOOD, you would enter “0534”. Input

TUNER Receiver (Kenwood)

DVD/6CH DVD CD/DVD CD and MD (Kenwood)

MD/TAPE Cassette deck (Kenwood)

VID1 , AV AUX VCR and PVR VID2

Cable and DTV decoder

3 Point the remote control at the TV and slowly alternate between pressing the TV Power and TV key.

• Stop when the TV turns on/off.

• In the search mode, the remote control will send IR codes from its library to the selected device, starting with the most popular code first.

4 Press the Learn key once to lock in the code.

5 To search for the codes of your other components, repeat

steps 1 through 4, but substitute the appropriate key (i.e.,

DVD/6CH, CD/DVD, VID1, VID2, VID3, TV, MD/TAPE, AV AUX, PHONO, SRC Power).

• PHONO key has to be re-assigned to another key before a setup code can be programmed.

PHONO Additional key for re-assigning

TV TV/VCR combo, TV/DVD combo, TV Checking the codes

If you have setup the remote control using the procedures described in “Searching for your codes”, you may need to find out which four-digit code is operating your equipment: For example, to find out which code is operating your TV:

1 Press the TV key once. Next, press and hold the Learn key until

2 Press the Source keys (DVD/6CH, CD/DVD, VID1, VID2, VID3,

TV, MD/TAPE, AV AUX, PHONO).

• PHONO key has to re-assigned to another key before a setup code can be registered. w

• While in Tuner mode, setup code function will not be available.

3 Press and hold the Learn key until the release the Learn key.

blinks twice, then release the Learn key.

2 Press the numeric key to enter "9 - 9 - 0".

• will blink twice. 3 To view the code for the first digit, press “1” once. Wait for 3 seconds, counts the number of times and write down that number.

• If a code digit is “0”, the

blinks (e.g., blinks=3)

2003/03/07, 2:07 PM ENGLISH Replace all two batteries with new ones when you notice a shortening of the distance from which the remote control will operate.The remote control is designed to retain setup codes in memory while you change batteries.

4 Press the Numeric keys to enter the four-digit code for the

Basic remote control operations for other components next page

4 Repeat step 3 three more times for the remaining digits. Use

“2” for the second digit, “3” for the third digit, and “4” for the fourth digit.

Operating other components

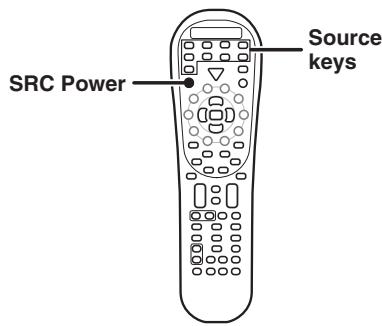

This operation lets you operate the registered components. KENWOOD audio components with system control turn on and off automatically with the receiver via the system control connections.

5 To check the codes of your other components, repeat steps

1 through 4, but substitute the appropriate key (i.e.,

DVD/6CH, CD/DVD, VID1, VID2, VID3, TV, MD/TAPE, AV AUX, PHONO) for the component you are checking.

As suggested earlier on, write down each of the four-digit code.

PHONO key has to be re-assigned to another key before a setup code can be programmed.

Re-assigning device keys

The remote control can be setup to control second TV or VCR, or any combination of eight home entertainment components. For example, to control the operation of two different VCR using the remote control, the user need to re-assign the unused VID2 key to operate the second VCR(VID1) as follows:

1 Press and hold the Learn key until

release the Learn key.

4 To re-assign other device keys, repeat steps 1 through 3 by

substituting the key sequence from the below chart for the most popular components:

TV as 2nd VID2 key TV as 2nd CD/DVD key TV back to TV key VID1 as 2nd TV key VID1 as 2nd VID2 key VID1 as 2nd CD/DVD key VID1 back to VID1 key

• When you operate your registered CD player, MD recorder

,DVD player, Cable, Satellite, DTV Decoder or VCR, go to step 2.

2 Press the SRC Power key.

3 Press VID1 key once, then press the VID2 key once.

• The user now can operate VID2 as a second VCR along with VID1. • Refer to the table in the previous page for the combination of

• Pressing the source keys also changes the input selector on the receiver.

• When you operate the CD player, Cassette deck, MD player, or

Tuner with system control connection, go to step 3.

2 Press the Numeric key to enter "9 - 9 - 2".

source keys and the other components assignment.

1 Use the Source keys to select the component you desire.

• To return to the receiver operation mode, press the TUNER key for more than 3 seconds.

3 Press the operation keys you desire.

• Be sure to point the remote control at the remote sensor on the receiver when you want to operate KENWOOD components connected by system control cords. Otherwise, point the remote control at the component you want to operate.

5 To clear the re-assignment and reset the remote control to its original operation mode:

1 Press and hold the Learn key until the Learn key.

blinks twice, then release

2 Press the numeric key to enter "9 - 9 - 2".

3 Press VID2 key twice.

When a re-assignment is done, will blink twice to confirm your choice. At that time, you will need to program the remote control in order to control the new component.

If an invalid key sequence is entered, blink once and return to normal operation. When in Tuner mode, re-assignment is not available.

The remote control mode remains at the selected input. If you wish to operate another component, repeat step 2 or 3.

03.3.11, 10:37 AM Basic remote control operations for other components

Storing the remote control code of the other components

The remote control unit can store the remote control code of the other components and you can operate the other components from the remote control unit. The remote control code is stored on the key or memory of the remote control unit.

that you want to store.

• The remote control code is sent to the remote control unit. • “OK” appears when finished. • If the code cannot be stored after a few attempts, “ERROR” will appear. Repeat from step 2 onwards.

7 The remote control code is stored on the key of this remote control unit.

8 Repeat step 4 or 6 to store additional components until all the desired components are stored.

3 Press the Source key, then press the stored key twice until blinks twice.

2 Press the numeric key to enter “9-7-6”.

blinks twice to indicate that the stored remote control code are deleted.

1 Press and hold the Learn key for 3 seconds until then release the Learn key.

0 To clear the stored remote control code of the other sources:

MD TAPE POWER RCVR C Po

9 To exit the learning mode, press and hold the Learn key for 3

CD DVD AV AUX PHONO SRC Power

1 Point the infrared ray system part of another remote control unit to the remote sensor of the remote control unit.

Remote control unit of the other source.

Infrared ray system part

2 Press and hold the Learn key for 3 seconds until

twice, then release the Learn key.

3 Press the numeric key to enter “9-7-5”.

4 Press any of the source keys (PHONO, VID1, VID2, VID3, DVD/ 6CH, AV AUX, CD/DVD, MD/TAPE, TV ) to select the input of the desired remote control unit. • While in Tuner mode, learning code function will not be available.

5 Press the desired key of the remote control unit.

• “LEARN” appears on the display.

2003/03/07, 2:07 PM ENGLISH You can store the remote control code to the key as shown below:

6 From the remote control unit of the other source, press the key

Basic remote control operations for other components

ENGLISH Cassette deck setup codes

Admiral Adyson Aiwa Akai

Condor Contec Continental Edison Crosley Crown

CD and MD player setup codes

0338, 0626, 0826, 1490

Receiver setup codes

Setup codes for Kenwood components with

System Control connection Component

CTC Carrefour Cascade Cathay Centurion Century Cimline Clarivox

Basic remote control operations for other components

TV setup codes (continue) Setup codes

Mediator Medion Memorex Memphis Metz Minerva Minoka Mitsubishi Mivar Multitech Murphy Myryad NEC NEI Neckermann Nesco Nikkai Nobliko Nokia Nordmende Oceanic Onwa Orion Osaki Oso Osume Otto Versand Palladium Panama Panasonic Pathe Cinema Pathe Marconi Pausa Perdio Philco Philips Phoenix Phonola Pioneer Polytron Prandoni Prince Profex Profitronic Proline

R-Line RBM RFT Radiola Radiomarelli Rank Arena Rediffusion Revox Rex Roadstar SBR SEG SEI Saba Saccs Sagem Saisho Salora Sambers Samsung Sandra Sansui Sanyo Schaub Lorenz Schneider Seleco Sharp Shintom Shorai Siarem Siemens Silva Silver Singer Sinudyne Skysonic Solavox Sonitron Sontec Sonoko Sonolar Sony

2003/03/07, 2:07 PM ENGLISH Maker

Basic remote control operations for other components

Tec Technics Technol Ace Telefunken Teletech Teleton Tensai Tenosal Texet Thomson Thorn

Toshiba Triumph Uher Ultra Ultravox Universum Vestel Videosat Videotechnic Videomagic Villain Voxson Waltham Watson Watt Radio Wega White Westinghouse Yamishi Yapshe Yoko Yokan Zanussi

0250 0037, 0217, 0264, 0804 0803 0206

Basic remote control operations for other components

Satellite setup codes Setup codes

Basic remote control operations for other components

ENGLISH DVD player setup codes

Sherwood Skyworth Sony Tatung Teac Technics TerraTec Thomson Toshiba Tredex Umax Wesder Wharfedale Xoro Xwave Yamakawa Yelo Zeus

Birmingham cable Communications British Telecom Cable & Wireless Cabletime Cryptovision Decsat Director Filmnet France Telecom Golden Channel Grundig HyperVision Jerrold MNet Mr. Zap Noos Ono PVP Stereo Visual Matrix Pace Philips Pioneer Sagem Scientific Atlanta Supercable Tele+1 Thomson Torx Tudi United Cable Videoway Visionetics Westminster Zenith

Basic remote control operations for other components

Cassette deck, CD player & MD recorder operations

You can perform these basic operations using the keys described below when connected to KENWOOD cassette deck, CD player or MD recorder equipped with system control operations. )

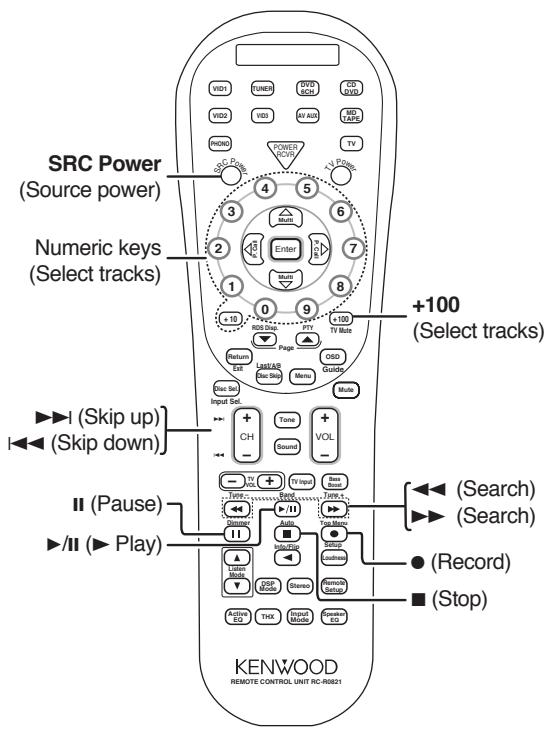

Cassette deck operations keys

AV AUX MD TAPE CD DVD DVD

6CH TUNER MD TAPE AV AUX PHONO T P. Call

(Cassette Deck selection)

RC T TV POWER RCVR S PHONO ENGLISH VID1

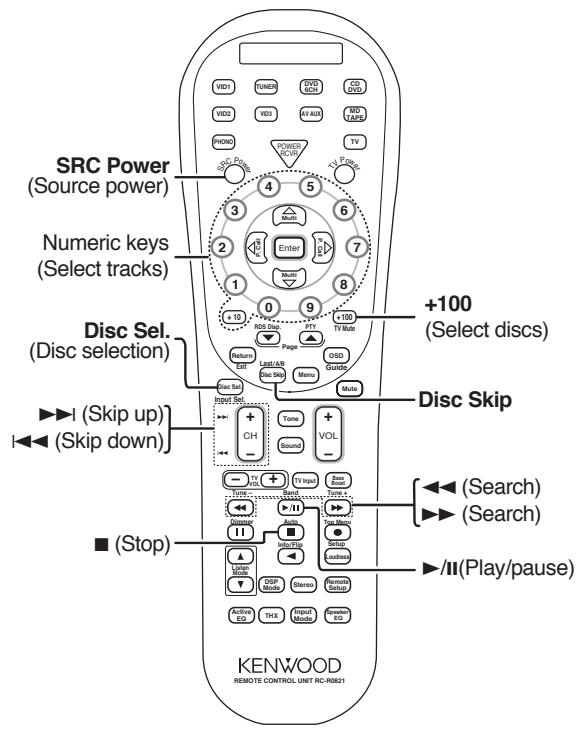

CD player operation keys

REMOTE CONTROL UNIT RC-R0821

MD recorder operation keys

AV AUX MD TAPE PHONO T S V Pow

¡ (Search) ¶ (Record) 7 (Stop)

Basic remote control operations for other components

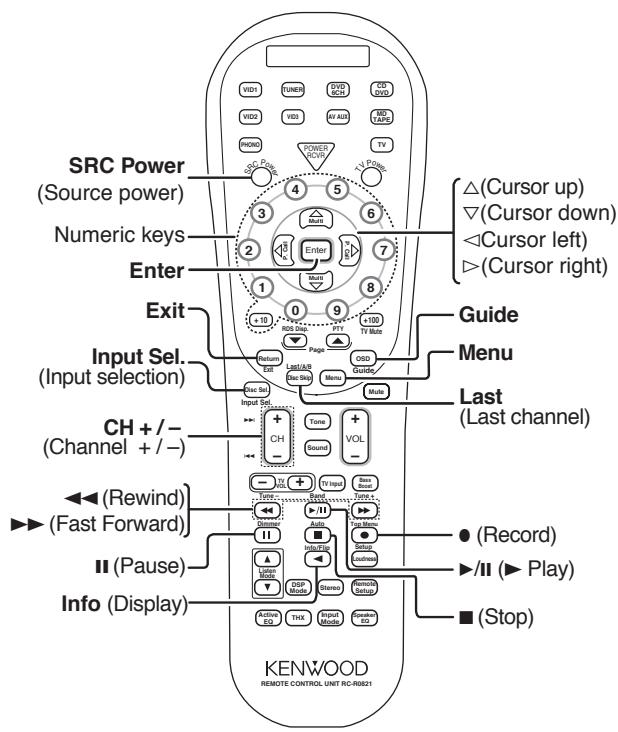

Other components’ operations

Refer to the following for the type of remote control operations available for each component. 1 Select the input source.

These keys can be used to perform the basic operations of KENWOOD and other manufacturers’ components which the setup code for each component had been entered beforehand. w

AV AUX MD TAPE S P. Call

(Last channel) CH + / – (Channel + / –)

PHONO TV POWER RCVR Po

2 Press the keys corresponding to the operations you desire.

Refer to the following sections for details.

• When pressing keys in succession, press each key firmly and be sure to wait at least 1 second before pressing the next key.

• Numeric keys function the same as the numeric keys on the original remote.

3/8 (3 Play) 7 (Stop)

Basic remote control operations for other components

Satellite operation keys

Cable operation keys

Last (Last channel) Input Sel. (Input selection)

EQ Last(Last channel)

DVD player operation keys

AV AUX MD TAPE PHONO T S

Disc Sel. (Disc selection)

(Source power) Numeric keys (Select tracks)

fi(Cursor down) @Cursor left) #(Cursor right) +100 OSD (On Screen Display) Menu Disc Skip 1 (Search) ¡ (Search) Top Menu (Title)

1. Certain codes may only operate some of the function available on a given model. 2. The above show the typical type functions available for each component. Some manufacturers use different key combinations to perform similar functions. For that reason, we have programmed extra functions on some of the unused number keys to help you control your equipment.

2003/03/07, 2:07 PM ENGLISH

In case of difficulty

Resetting the Microcomputer With the power cord plugged in, turn the POWER ON/OFF key OFF. Then, while holding down the ON/STANDBY key, press POWER ON/OFF.

The microcomputer may malfunction (unit cannot be operated, or shows an erroneous display) if the power cord is unplugged while the power is ON, or due to some other external factor. If this happens, execute the following procedure to reset the microcomputer and return the unit to its normal operating condition.

• Please note that resetting the microcomputer will clear the contents of the memory and returns the unit to the state it was in when it left the factory.

No sound from the speakers.

• Connect them properly referring to

“Connecting the speakers” % • Adjust the volume to a proper level. • Turn OFF the MUTE. ∞ • Set the SPEAKERS switches to ON. ¢

• The speaker cords are disconnected.

• VOLUME is set to the minimum position. • MUTE is ON. • The SPEAKERS switches are set to OFF.

The standby indicator blinks and sound is not output.

• Speaker cords are short-circuited.

• Turn the power off, eliminate the shortcircuiting, then turn on the power again.

Sound is not output from one of the speakers.

• The speaker cord is disconnected.

• Connect it properly referring to “Connecting the speakers”.

Sound is not output from the surround speakers and / or the center speaker, or their sound is very small.

• The surround speaker cords and/or the center speaker cord is disconnected.

• A surround mode has not been engaged. • The surround and/or center volume controls are set to the minimum level.

• Connect it properly referring to “Connecting the speakers”.

% • Select a surround mode. • Adjust the speaker levels using the test tone. ™

A humming noise is generated when the

PHONO input selector is selected.

• The audio cord from the record player is not connected to the PHONO jacks.

• The record player is not grounded.

• Insert the audio cord plugs securely into the

PHONO jacks. • Connect the grounding wire to the GND terminal on the rear panel.

When playing a Dolby Digital source signal using a DVD player, the sound is cut off soon after it starts.

• There are many possible causes for this problem, depending on the type of DVD player used.

• Set the input mode to digital manual before starting playback of the Dolby Digital source.

No sound is produced during playback from a DVD player.

• The input mode is set to digital manual.

• Press the INPUT MODE key to select to full auto mode.

A video source cannot be recorded normally.

• The software is copy-guarded.

• Copy-guarded video software cannot be recorded.

Radio stations cannot be received.

• No antenna is connected.

• The broadcast band is not set properly. • The frequency of the desired station is not tuned.

• Connect an antenna.

( • Set the broadcast band properly. • Tune the frequency of the desired station. •

• Noise due to ignition noise from an automobile.

• Noise due to interference from an electric appliance. • Noise due to a nearby TV set.

• Install the outdoor antenna away from the road.

• Turn off the power to the appliance.

• Install the receiver farther away from the TV.

A station which was preset cannot be received by pressing the corresponding numeric key.

• The preset station belongs to a frequency that cannot be received.

• The preset memory was cleared because the power cord had been unplugged for a long period of time.

• Preset a station with a receivable frequency.

• Preset the station again.

2003/03/07, 2:07 PM In case of difficulty

Remote control unit Cause

Certain inputs cannot be selected using the remote control.

• No setup codes registered for the respective input(s).

• Register a setup code at the respective input(s). w

Remote control operation is not possible.

• The remote control is set to a different operation mode.

• Batteries are exhausted. • The remote control unit is too far away from the main system, controlling angle is too large, or there is an obstacle between the receiver and the remote. • The audio cords and system control cords are not connected properly. • No tape or CD is placed in the source component. • An attempt is made to play a tape which is being recorded in the cassette deck. • The remote control has not been set to the operation mode for the component you wish to control.

• Press any of the Input Selector keys to select the appropriate operation mode.

• Replace with new batteries. • Operate the remote control unit within the controllable range.

• Connect properly referring to “Setting up the system”.

• Place the tape or CD in the source component which you want to play. • Wait until recording has completed. • Press any of the source keys or SRC Power key to activate the operation mode for the component you want to control before operation. ‚

2003/03/07, 2:07 PM ENGLISH Symptom

Caution : Read this page carefully to ensure safe operation.

ENGLISH Specifications

DIGITAL AUDIO section

Sampling frequency 32 kHz, 44.1 kHz, 48 kHz, 96 kHz

Input level / impedance / wave length Optical (–15 dBm ~ –24 dBm), 660 nm ±30 nm Coaxial 0.5 Vp-p / 75 W Output level / impedance / wave length Optical (–21 dBm ~ –15 dBm), 660 nm ±30 nm

1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your dealer for information or service on this product. Model __________________ Serial Number ________________________

2003/03/07, 2:07 PM AVERTISSEMENT :

POUR EVITER TOUT INCENDIE OU CHOC ELECTRIQUE, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L’HUMIDITE.

ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR Piles (R6/AA) (2)

SRS Circle Surround II THX Surround EX SPEAKER EQ ACTIVE EQ DSP REC OUT PLAY IN MD/TAPE OUT OPTICAL DIGITAL IN (AUDIO)

6CH DIGITAL IN DIGITAL OUT DOLBY DIGITAL RF OUT (AUDIO)

CR IN CB IN Y IN CR OUT CB OUT Y OUT SUB WOOFER PLAY IN VIDEO 2

FRONT FRONT OUT L/R Lecteur de

DVD SUBWOOFER OUT S VIDEO OUT Câble S VIDEO

2003/03/07, 2:46 PM Raccordement aux prises AV AUX

[SL16] [XS] [XS8] [XR]

T. TONE T. TONE AUTO MANUAL L C R SR SB

Surround Surround Back Surround Mix Subwoofer Re-mix

L SP DISTANCE DISP MODE Front Left

(Surround Back Right/Left)

THX Surround EX SP SETUP TEST TONE SP DISTANCE DISP MODE EXIT THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX RDS RTY THX Surround EX THX Surround EX RDS RTY C SW R LFE SB SP MUTE A B CLIP THX Surround EX THX Surround EX THX Surround EX OPTICAL 6CH INPUT AUTO DET A B CLIP COAXIAL ANALOG

Speaker EQ Active EQ THX Surround EX THX Surround EX Lecture normale

Mode ACTIVE EQ OPTICAL 6CH INPUT AUTO DETEC A B CLIP COAXIAL ANALOG

LFE SL S SB SR THX Surround EX THX Surround EX THX Surround EX THX Surround EX Functions RDS:

MULTI CONTROL BAND THX Surround EX C SW R LFE SB SP MUTE A B CLIP THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX

L SL S SB C SW R LFE SB SP MUTE A B CLIP THX Surround EX SL S SB SR RDS RTY RDS RTY THX Surround EX THX Surround EX RDS RTY THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR

PTY L SB SP MUTE A B CLIP THX Surround EX THX Surround EX RDS PTY RTY AUTO MEMO STEREO TUNED SR Afficheur

POP M ROCK M EASY M LIGHT M CLASSICS OTHER M NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED Mode THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX Mode Centre Width (mode Music Pro Logic II uniquement)

THX Surround EX THX Surround EX Mode Center Focus (mode CS II uniquement)

THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX Lecture 96kHz LPCM THX Surround EX Platine cassette (Kenwood)

VID1 , AV AUX Disc Sel.

Admiral Adyson Aiwa Akai

0338, 0626, 0826, 1490

CTC Carrefour Cascade Cathay Centurion Century Cimline Clarivox

Clatronic Condor Contec Continental Edison Crosley Crown Cybertron Daewoo Dainichi Dansai Dayton De Graaf Decca Dixi Dual Dual Tec Dumont Elbe Elcatech Elin Elite Elta Emerson Erres ESC Europhon Expert Ferguson Firstline Fidelity Finlandia Finlux Fisher Flint Forgestone Formenti Frontech Fujitsu Funai GEC GPM Geloso Genexxa GoldStar Goldhand Goodmans

Marantz Marelli Mark Matsui

Mediator Medion Memorex Memphis Metz Minerva Minoka Mitsubishi Mivar Multitech Murphy Myryad NEC NEI Neckermann Nesco Nikkai Nobliko Nokia Nordmende Oceanic Onwa Orion Osaki Oso Osume Otto Versand Palladium Panama Panasonic Pathe Cinema Pathe Marconi Pausa Perdio Philco Philips Phoenix Phonola Pioneer Polytron Prandoni Prince Profex Profitronic Proline

R-Line RBM RFT Radiola Radiomarelli Rank Arena Rediffusion Revox Rex Roadstar SBR SEG SEI Saba Saccs Sagem Saisho Salora Sambers Samsung Sandra Sansui Sanyo Schaub Lorenz Schneider Seleco Sharp Shintom Shorai Siarem Siemens Silva Silver Singer Sinudyne Skysonic Solavox Sonitron Sontec Sonoko Sonolar Sony

Hypson ICE ICeS IR ITS ITT ITV Imperial

Standard Stern Sunkai Sunstar Suntronic Susumu Sysline T+A Tandy Tashiko Tatung Teac Tec Technics Technol Ace Telefunken Teletech Teleton Tensai Tenosal Texet Thomson Thorn

Toshiba Triumph Uher Ultra Ultravox Universum Vestel Videosat Videotechnic Videomagic Villain Voxson Waltham Watson Watt Radio Wega White Westinghouse Yamishi Yapshe Yoko Yokan Zanussi

Alcatel Birmingham cable Communications British Telecom Cable & Wireless Cabletime Cryptovision Decsat Director Filmnet France Telecom Golden Channel Grundig HyperVision Jerrold MNet Mr. Zap Noos Ono PVP Stereo Visual Matrix Pace Philips Pioneer Sagem Scientific Atlanta Supercable Tele+1 Thomson Torx Tudi United Cable Videoway Visionetics Westminster Zenith

Sherwood Skyworth Sony Tatung Teac Technics TerraTec Thomson Toshiba Tredex Umax Wesder Wharfedale Xoro Xwave Yamakawa Yelo Zeus

PHONO TV POWER RCVR Po

SRS Circle Surround II SPEAKER EQ ACTIVE EQ DSP REC OUT PLAY IN MD/TAPE OUT OPTICAL DIGITAL IN (AUDIO)

6CH DIGITAL IN DIGITAL OUT Optisches

DEUTSCH COAXIAL DIGITAL OUT (AUDIO)

DOLBY DIGITAL RF OUT (AUDIO)

CR IN CB IN Y IN SUB WOOFER PLAY IN VIDEO 2

FRONT SUBWOOFER OUT S VIDEO OUT S-Videokabel

[SL16] [XS] [XS8] [XR]

Surround Surround Back Surround Mix Subwoofer Re-mix

SP DISTANCE DISP MODE Front Left

(Surround Back Right/Left)

SR EXIT Surround Left

SP SETUP TEST TONE SP DISTANCE DISP MODE EXIT THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX SR SBR NEO:6

CSII THX Surround EX THX Surround EX RDS RTY THX Surround EX SR Anzeige in Fuß

MUTE CLIP THX Surround EX THX Surround EX THX Surround EX OPTICAL 6CH INPUT AUTO DET A B CLIP COAXIAL ANALOG

Speaker EQ THX Surround EX THX Surround EX OPTICAL 6CH INPUT AUTO DETEC A B CLIP COAXIAL ANALOG

LFE SL S SB SR THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX TUNER THX Surround EX SL S SB MUTE CLIP THX Surround EX THX Surround EX RDS RTY THX Surround EX THX Surround EX THX Surround EX THX Surround EX RDS PTY RTY AUTO MEMO STEREO TUNED SR THX Surround EX-Modus

THX Surround EX DSP-Surround-Modus ARENA.

DSP-Surround-Modus JAZZ CLUB. DSP-Surround-Modus THEATER. DSP-Surround-Modus STADIUM. DSP-Surround-Modus DISCO.

THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX RDS RTY THX Surround EX THX Surround EX THX Surround EX Circle Surround II-Modus

2 TruBass SW 3 TruBass LR

4 TruBass SW + LR THX Surround EX THX Surround EX THX Surround EX THX Surround EX L C SW R LFE L C SW R L C SW R THX Surround EX THX Surround EX Komponente Hersteller

DVD player KENWOOD Code

TUNER Receiver (Kenwood)

DVD/6CH CD/DVD Disc Sel.

Admiral Adyson Aiwa Akai

Condor Contec Continental Edison Crosley Crown

CTC Carrefour Cascade Cathay Centurion Century Cimline Clarivox

Mediator Medion Memorex Memphis Metz Minerva Minoka Mitsubishi Mivar Multitech Murphy Myryad NEC NEI Neckermann Nesco Nikkai Nobliko Nokia Nordmende Oceanic Onwa Orion Osaki Oso Osume Otto Versand Palladium Panama Panasonic Pathe Cinema Pathe Marconi Pausa Perdio Philco Philips Phoenix Phonola Pioneer Polytron Prandoni Prince Profex Profitronic Proline

R-Line RBM RFT Radiola Radiomarelli Rank Arena Rediffusion Revox Rex Roadstar SBR SEG SEI Saba Saccs Sagem Saisho Salora Sambers Samsung Sandra Sansui Sanyo Schaub Lorenz Schneider Seleco Sharp Shintom Shorai Siarem Siemens Silva Silver Singer Sinudyne Skysonic Solavox Sonitron Sontec Sonoko Sonolar Sony

2003/03/07, 2:49 PM DEUTSCH Hersteller

Tec Technics Technol Ace Telefunken Teletech Teleton Tensai Tenosal Texet Thomson Thorn

Toshiba Triumph Uher Ultra Ultravox Universum Vestel Videosat Videotechnic Videomagic Villain Voxson Waltham Watson Watt Radio Wega White Westinghouse Yamishi Yapshe Yoko Yokan Zanussi

0250 0037, 0217, 0264, 0804 0803 0206

Sherwood Skyworth Sony Tatung Teac Technics TerraTec Thomson Toshiba Tredex Umax Wesder Wharfedale Xoro Xwave Yamakawa Yelo Zeus

Birmingham cable Communications British Telecom Cable & Wireless Cabletime Cryptovision Decsat Director Filmnet France Telecom Golden Channel Grundig HyperVision Jerrold DEUTSCH MNet Mr. Zap Noos Ono PVP Stereo Visual Matrix Pace Philips Pioneer Sagem Scientific Atlanta Supercable Tele+1 Thomson Torx Tudi United Cable Videoway Visionetics Westminster Zenith

Antenna AM ad anello (1)

Batteria (R6/AA) (2)

SRS Circle Surround II SPEAKER EQ ACTIVE EQ DSP REC OUT PLAY IN MD/TAPE ITALIANO GND OUT Monitor TV Video

IN/OUT VIDEO IN OUT OPTICAL DIGITAL IN (AUDIO)

6CH DIGITAL IN DIGITAL OUT COAXIAL DIGITAL OUT

COAXIAL DIGITAL OUT (AUDIO)

DOLBY DIGITAL RF OUT (AUDIO)

PCM OUT Lettore LD CR IN CB IN Y IN CR OUT CB OUT Y OUT COAXIAL DIGITAL OUT

FRONT FRONT OUT L/R SUBWOOFER OUT S VIDEO OUT Cavo S VIDEO

[SL16] [XS] [XS8] [XR]

Surround Surround Back Surround Mix Subwoofer Re-mix

SP DISTANCE DISP MODE Front Left

(Surround Back Right/Left)

SR EXIT Surround Left

2 TEST TONE 3 SP DISTANCE 4 DISP MODE

5 EXIT THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX SUBW SL SR SB THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX OPTICAL 6CH INPUT AUTO DET A B CLIP COAXIAL ANALOG

Speaker EQ Active EQ THX Surround EX L THX Surround EX OPTICAL 6CH INPUT AUTO DETEC A B CLIP COAXIAL ANALOG

LFE SL S SB SR THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX TUNER THX Surround EX SR SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX L SL S C SW R LFE SB SP MUTE A B CLIP THX Surround EX RDS RTY THX Surround EX RDS RTY THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR THX Surround EX THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR ITALIANO Visualizzazione

POP M ROCK M EASY M LIGHT M CLASSICS OTHER M NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIED Visualizzazione

WEATHER FINANCE CHILDREN SOCIAL RELIGION PHONE IN TRAVEL LEISURE JAZZ COUNTRY NATION M OLDIES FOLK M DOCUMENT SRS Circle Surround II Modo THX Surround EX THX Surround EX Modo ARENA surround DSP.

Modo JAZZ CLUB surround DSP. Modo THEATER surround DSP. Modo STADIUM surround DSP. Modo DISCO surround DSP.

THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX C SW R LFE SB SP MUTE A B CLIP THX Surround EX THX Surround EX THX Surround EX THX Surround EX

2 TruBass SW 3 TruBass LR

4 TruBass SW + LR L SL C SW R LFE SB SP MUTE A B CLIP THX Surround EX THX Surround EX THX Surround EX THX Surround EX CD e MD (Kenwood)

MD/TAPE Televisore (TV), TV/VCR Combo, TV/DVD Combo

CTC Carrefour Cascade Cathay Centurion Century Cimline Clarivox

Hypson ICE ICeS IR ITS ITT ITV Imperial Indiana Ingelen Inno Hit Interfunk Intervision

Mediator Medion Memorex Memphis Metz Minerva Minoka Mitsubishi Mivar Multitech Murphy Myryad NEC NEI Neckermann Nesco Nikkai Nobliko Nokia Nordmende Oceanic Onwa Orion Osaki Oso Osume Otto Versand Palladium Panama Panasonic Pathe Cinema Pathe Marconi Pausa Perdio Philco Philips Phoenix Phonola Pioneer Polytron Prandoni Prince Profex Profitronic Proline

R-Line RBM RFT Radiola Radiomarelli Rank Arena Rediffusion Revox Rex Roadstar SBR SEG SEI Saba Saccs Sagem Saisho Salora Sambers Samsung Sandra Sansui Sanyo Schaub Lorenz Schneider Seleco Sharp Shintom Shorai Siarem Siemens Silva Silver Singer Sinudyne Skysonic Solavox Sonitron Sontec Sonoko Sonolar Sony

Soundwave Standard Stern Sunkai Sunstar Suntronic Susumu Sysline T+A Tandy Tashiko Tatung Teac Tec Technics Technol Ace Telefunken Teletech Teleton Tensai Tenosal Texet Thomson Thorn

Toshiba Triumph Uher Ultra Ultravox Universum Vestel Videosat Videotechnic Videomagic Villain Voxson Waltham Watson Watt Radio Wega White Westinghouse Yamishi Yapshe Yoko Yokan Zanussi

Alcatel Birmingham cable Communications British Telecom Cable & Wireless Cabletime Cryptovision Decsat Director Filmnet France Telecom Golden Channel Grundig HyperVision Jerrold MNet Mr. Zap Noos Ono PVP Stereo Visual Matrix Pace Philips Pioneer Sagem Scientific Atlanta Supercable Tele+1 Thomson Torx Tudi United Cable Videoway Visionetics Westminster Zenith

Last / A/B Disc Skip

SPEAKER EQ ACTIVE EQ DSP REC OUT PLAY IN MD/TAPE ESPAÑOL GND OUT OPTICAL DIGITAL IN (AUDIO)

6CH DIGITAL IN DIGITAL OUT COAXIAL DIGITAL OUT

(AUDIO) COAXIAL DIGITAL OUT (AUDIO)

DOLBY DIGITAL RF OUT (AUDIO)

CR IN CB IN Y IN Y OUT COAXIAL DIGITAL OUT

FRONT FRONT OUT L/R SUBWOOFER OUT S VIDEO OUT Cable S VIDEO

[SL16] [XS] [XS8] [XR]

ON/STANDBY SETUP MULTI CONTROL BASS PEAK Surround

Surround Back Surround Mix Subwoofer Re-mix

L SP DISTANCE DISP MODE Front Left

(Surround Back Right/Left)

SL SW THX Surround EX THX Surround EX SP SETUP TEST TONE SP DISTANCE DISP MODE EXIT THX Surround EX THX Surround EX THX Surround EX RDS RTY ESPAÑOL THX Surround EX THX Surround EX SB THX Surround EX THX Surround EX CSII THX Surround EX CSII THX Surround EX OPTICAL 6CH INPUT AUTO DET A B CLIP COAXIAL ANALOG

Speaker EQ Active EQ THX Surround EX THX Surround EX OPTICAL 6CH INPUT AUTO DETEC A B CLIP COAXIAL SL S SB SR THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX RDS RTY THX Surround EX RDS RTY THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR THX Surround EX THX Surround EX RDS RTY PTY AUTO MEMO STEREO TUNED SR Modo THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX THX Surround EX

2 TruBass SW 3 TruBass LR

4 TruBass SW + LR THX Surround EX THX Surround EX THX Surround EX RDS RTY THX Surround EX THX Surround EX CD MD Cassette deck

CTC Carrefour Cascade Cathay Centurion Century Cimline Clarivox

Mediator Medion Memorex Memphis Metz Minerva Minoka Mitsubishi Mivar Multitech Murphy Myryad NEC NEI Neckermann Nesco Nikkai Nobliko Nokia Nordmende Oceanic Onwa Orion Osaki Oso Osume Otto Versand Palladium Panama Panasonic Pathe Cinema Pathe Marconi Pausa Perdio Philco Philips Phoenix Phonola Pioneer Polytron Prandoni Prince Profex Profitronic Proline

R-Line RBM RFT Radiola Radiomarelli Rank Arena Rediffusion Revox Rex Roadstar SBR SEG SEI Saba Saccs Sagem Saisho Salora Sambers Samsung Sandra Sansui Sanyo Schaub Lorenz Schneider Seleco Sharp Shintom Shorai Siarem Siemens Silva Silver Singer Sinudyne Skysonic Solavox Sonitron Sontec Sonoko Sonolar Sony

2003/03/07, 3:04 PM ESPAÑOL Fabricant

Tec Technics Technol Ace Telefunken Teletech Teleton Tensai Tenosal Texet Thomson Thorn

Uher Ultra Ultravox Universum Vestel Videosat Videotechnic Videomagic Villain Voxson Waltham Watson Watt Radio Wega White Westinghouse Yamishi Yapshe Yoko Yokan Zanussi

0250 0037, 0217, 0264, 0804 0803 0206

Alcatel Birmingham cable Communications British Telecom Cable & Wireless Cabletime Cryptovision Decsat Director Filmnet France Telecom Golden Channel Grundig HyperVision Jerrold MNet Mr. Zap Noos Ono PVP Stereo Visual Matrix Pace Philips Pioneer Sagem Scientific Atlanta Supercable Tele+1 Thomson Torx Tudi United Cable Videoway Visionetics Westminster Zenith

Sherwood Skyworth Sony Tatung Teac Technics TerraTec Thomson Toshiba Tredex Umax Wesder Wharfedale Xoro Xwave Yamakawa Yelo Zeus

PHONO TV POWER RCVR Po
