USER MANUAL DMX129BT KENWOOD

ÉCRAN AVEC RÉCEPTEUR

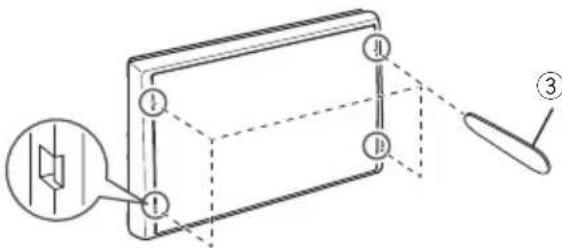

Model name indication position See "Removing the trim plate" (P.

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or service on the product.

Model DMX129BT Serial number

US Residence Only

Register Online

Register your KENWOOD product at www.kenwood.com/usa/

Contents Before use

Before use 2

How to read this manual. 2

Precautions 2

Getting Started. 3

Clock settings 3

Basics 4

Functions of the Buttons on the Front Panel. 4

Common operations 4

HOME screen descriptions 4

Source control screen. 4

Radio. 5

Radio Basic Operation. 5

Presetting stations 5

Radio Setup. 5

USB 6

Preparation. 6

Playback operations.. 6

iPhone 7

Preparation. 7

Playback operations 7

External Components 8

Using external audio/video players. 8

Rear view camera. 8

Reverse with ATT. 8

Bluetooth 9

Register your smartphone to the unit 9

Receive a phone call. 9

Make a phone call. 9

Playing Bluetooth Audio Device. 10

Controlling Audio 10

Controlling General Audio. 10

Installation 11

Before Installation. 11

Installing the unit. 12

About this Unit. 16

More information. 16

Note for specifications. 16

Copyrights 17

How to read this manual

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

• In operation procedures, bracket shape indicates the key or button you should control.

< >:indicates the name of panel buttons.

[ ]:indicates the name of touch keys

This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual.

Precautions

WARNING

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.
• Do not watch or fix your eyes on the unit's display when you are driving for any extended period.
  If you experience problems during installation, consult your KENWOOD dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.
• You can select a language to display menus, audio file tags, etc. See Getting Started (P.3)
• The Radio Data System or Radio Broadcast Data System feature won't work where the service is not supported by any broadcasting station

Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ballpoint pen or similar tool with the sharp tip.

Cleaning the Unit

If the front panel of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the front panel is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

CAUTION

• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the front panel with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

How to reset your unit

If the unit or the connected unit fails to operate properly, reset the unit.

Reset button

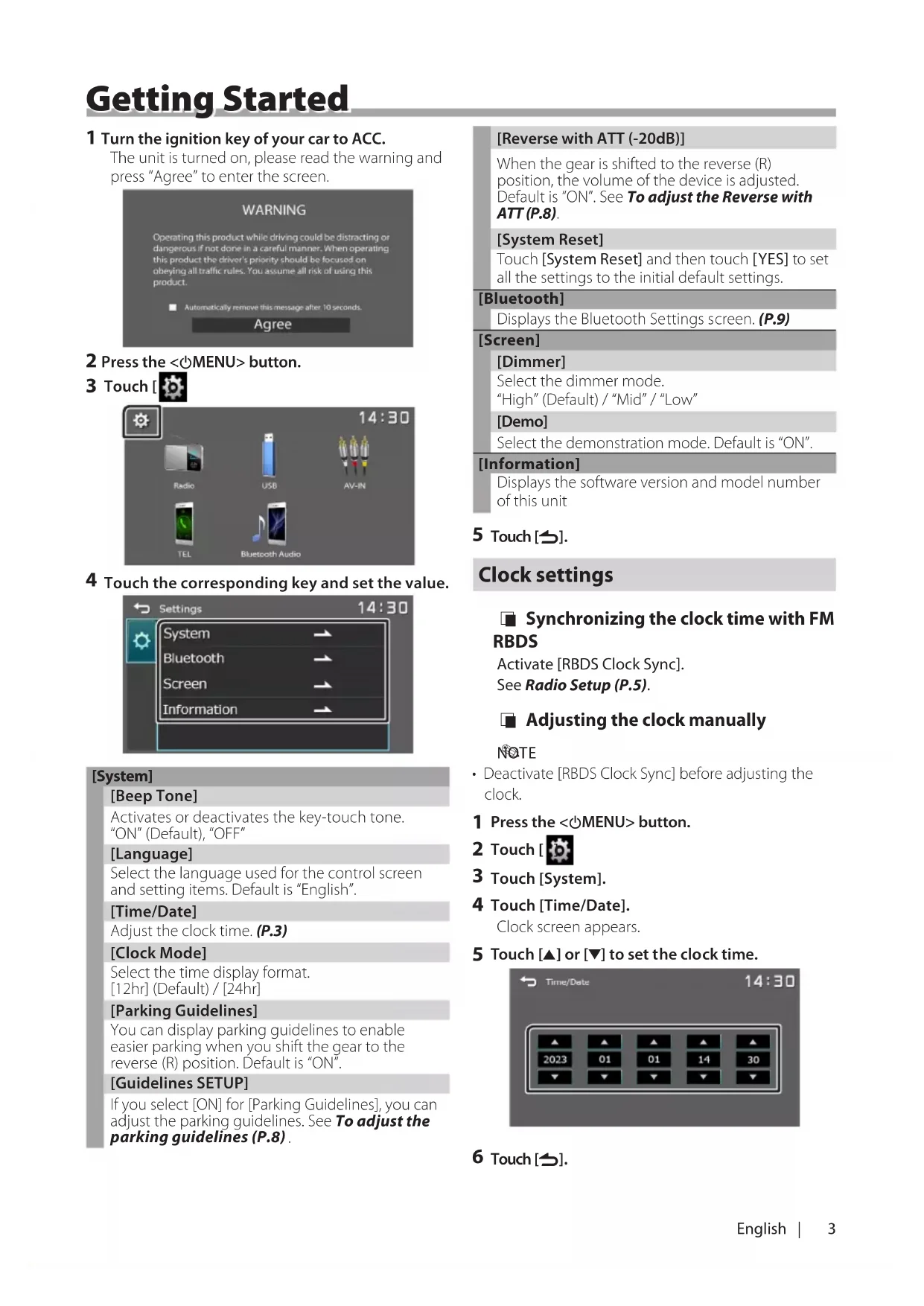

Getting Started

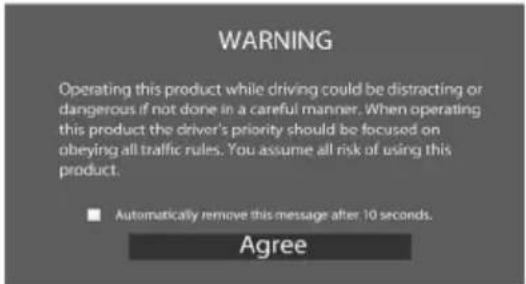

1 Turn the ignition key of your car to ACC.

The unit is turned on, please read the warning and press "Agree" to enter the screen.

2 Press the<> button.

3 Touch

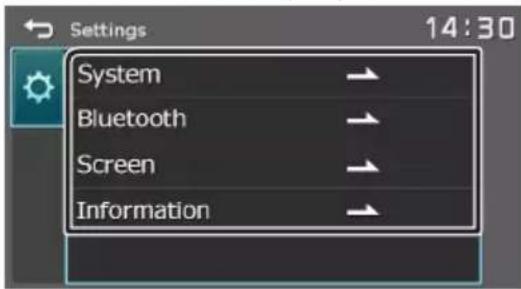

4 Touch the corresponding key and set the value.

[System]

[Beep Tone]

Activates or deactivates the key-touch tone. "ON" (Default), "OFF"

[Language]

Select the language used for the control screen and setting items. Default is "English".

[Time/Date]

Adjust the clock time. (P.3)

[Clock Mode]

Select the time display format. [12hr] (Default) / [24hr]

[Parking Guidelines]

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position. Default is "ON".

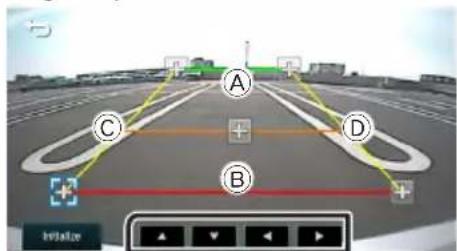

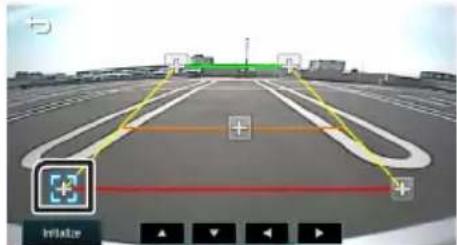

[Guidelines SETUP]

If you select [ON] for [Parking Guidelines], you can adjust the parking guidelines. See To adjust the parking guidelines (P.8).

[Reverse with ATT (-20dB)]

When the gear is shifted to the reverse (R) position, the volume of the device is adjusted. Default is "ON". See To adjust the Reverse with ATT(P.8).

[System Reset]

Touch [System Reset] and then touch [YES] to set all the settings to the initial default settings.

[Bluetooth]

Displays the Bluetooth Settings screen. (P.9)

[Screen]

[Dimmer]

Select the dimmer mode. "High" (Default) / "Mid" / "Low"

[Demo]

Select the demonstration mode. Default is "ON".

[Information]

Displays the software version and model number of this unit

5 Touch [].

Clock settings

Synchronizing the clock time with FM/DS

Activate [RBDS Clock Sync].

See Radio Setup (P.5).

Adjusting the clock manually

NOTE

• Deactivate [RBDS Clock Sync] before adjusting the clock.
  1 Press the<> button.
  3 Touch [System].

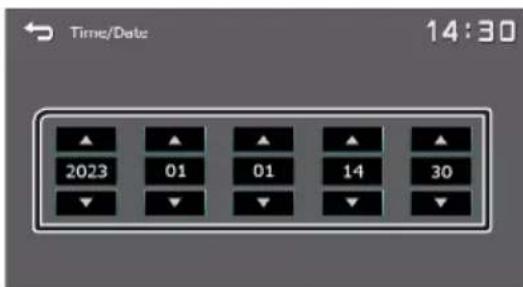

  4 Touch [Time/Date]. Clock screen appear
  5 Touch [▲] or [▼] to set the clock time.

6 Touch [S].

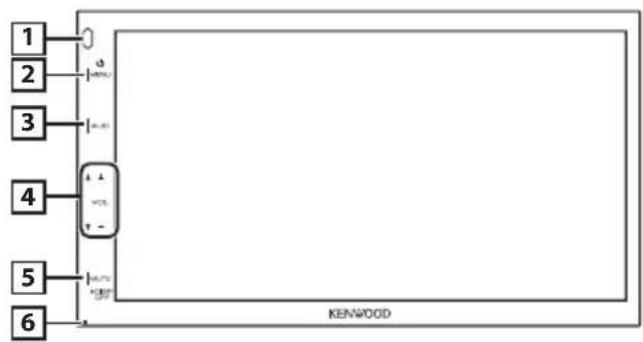

Functions of the Buttons on the Front Panel

Remote Sensor

• Receives the remote control signal.

2

• Displays the HOME screen. (P.4)
• Press and hold second turns the power off.
• When the power off, turns the power on.

3 AUD

• Displays the Audio screen.* (P.10)
• The Audio screen is not displayed during SETUP screen or on the list screen etc,

+，- (Volume)

• Adjusts volume. The volume will go up until 15 when you keep pressing [+ ]

MUTE/ DISP OFF (Display off)

• Mutes/restores the sound.
• Press and hold turns the screen off.

When the screen is off, touch the display to turn on the screen.

6 Reset

• If the unit or the connected unit fails to operate properly, the unit returns to factory settings when this button is pressed.

Common operations

Turning on the power

1 Press the<> button.

Turning off the power

1 Press and hold the button.

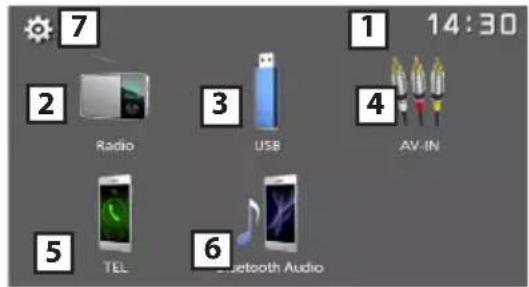

HOME screen descriptions

1 Press the button.

HOME screen appears.

1Clock display

Touch to displays the Clock screen.

[2] Switches to

[USB]

Plays files on a USB device. (P.6)

[iPhone]

Plays an iPhone. (P.7)

• When iPhone is connected.

[Mirroring]

Displays the Mirroring screen.

When android device with "Mirroring OB for

KENWOOD" application installed is connected.

Switches to an external component connected to the AV-IN input terminal. (P.8)
5 Displays the Hands Free screen. (P.9)
6 Plays a Bluetooth audio player. (P.10)
7 Displays the SETUP screen. (P.3)

Source control screen

[1]: Returns to previous screen.
[11]: Displays the Audio screen. (P.10)

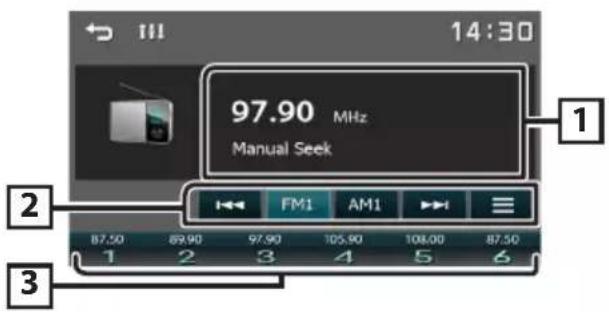

Radio Basic Operation

1 Press the button.
2 Touch [Radio].

Source control screen

1 Displays the information of the current station: PS name, Frequency, PTY Genre, Indicator Items
[FM]: Switches the FM band. "FM1", "FM2", "FM3"

[AM]: Switches the AM band. "AM1", "AM2"

[T]:Tunes in a station with good reception automatically. Touch and hold to switch to the next frequency manually.

[目]: Displays the Radio Setup screen. (P.5)

Recalls the memorized station.
When touched for 2 seconds, stores the current receiving station in memory.

Presetting stations

Auto memory

You can preset 6 stations for the current band (FM1/ FM2/FM3/AM1/AM2).

1 Touch [FM] or [AM] to select the band.
2 Touch [
3 Touch [Auto Store].

The local stations with the strongest signals are found and stored automatically.

Manual memory

You can store the current receiving station in memory.

1 Tune in to a station you want to preset.
2 Touch and hold [#] (#:1-6) in which you want to store the station.

Recalling the preset station

1 Touch[#] (#:1-6).

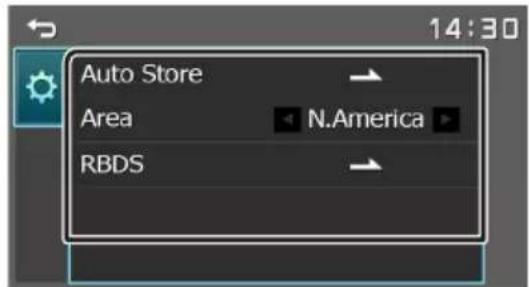

Radio Setup

1 Touch [
2 Set each item as follows.

[Auto Store]

Automatically searches and stores the 6 stations with the strongest signals for the selected band.

"Auto Store" appears.

[Area]

"N.America": AM/FM intervals: 10 kHz/200 kHz.

[RBDS]*1

Displays the RBDS Settings screen.

[TA]

Switches to the traffic information automatically when the traffic bulletin starts. (Tl indicator lights up.)

"ON", "OFF" (Default)

[RBDS Clock Sync]

Synchronizing the Radio Broadcast Data System station time data and this unit's clock.

"ON" (Default), "OFF"

[PTY]

Select a program type.

[PTY Seek]

Searches for a program by program type.

*1 FM only

3 Touch [].

Preparation

Connecting a USB device

1 Remove the cap of the USB terminal.
2 Connect the USB device with the USB cable.

The unit reads the device and playback starts.

To disconnect the USB device:

1 Press the button.
2 Touch a source other than [USB].
3 Detach the USB device.

Useable USB device

This unit can play MPEG1/MPEG2/MPEG4/H.264/ MKV/ MP3/WMA/AAC/WAV/FLAC/OGG files stored in a USB mass storage class device. (P.16)

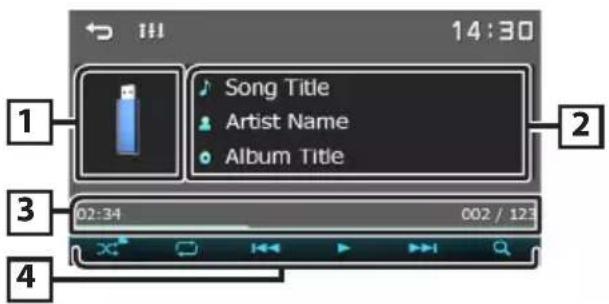

Playback operations

Control the music you are listening to on the source control screen.

The jacket of the currently playing file is displayed.
2] Displays the information of the current file.
3 Playing time/File number Play time bar:For confirmation of current playing position.
4]:Selects Random playback mode. [ ]:Selets Repeat playback mode.
[▶], [■]: Plays or pauses.
[←], [▶]: Searches the previous/next content.
Touch and hold to fast forward or fast backward.
[Q]: Searches file. (P.6)

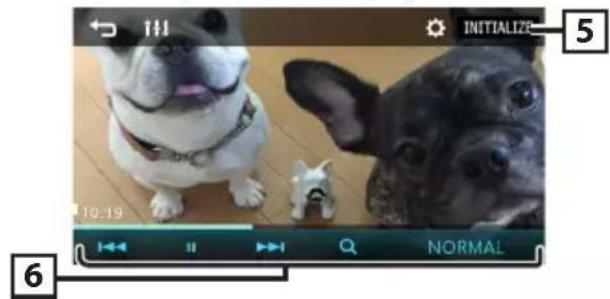

For Video playback

1 When the operation buttons are not displayed on the screen, touch the display.

5 [ ]: You can adjust image quality in video screen.

[INITIALIZE]: To clear the adjustment.

6 [▶], [■]: Plays or pauses.

[14], [15]: Searches the previous/next content. Touch and hold to fast forward or fast backward.
[Q]: Searches file. (P.6)
[NORMAL]/[16:9]/[4:3]:Select a screen mode.

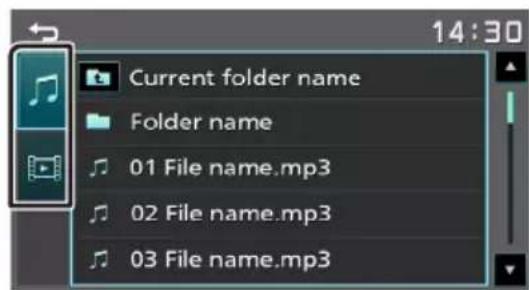

Selecting a track in a list (Searches file)

1 Touch [Q].
2 Select whether you search by audio files [ video files [

3 Touch [ ] moves to the upper hierarchy.
4 Touch the desired folder.

When you touch a folder its contents are displayed.
- Touch [3] to moves to the upper hierarchy.

5 Touch desired item from the content list.

Playback starts.

NOTE

• The source control screen appears when you touch [B] at the top hierarchy.

Preparation

Connecting iPhone

• For details about connecting iPhone, see page 15.

1 Remove the cap of the USB terminal.
2 Connect the iPhone.

The unit reads the device and playback starts.

To disconnect the iPhone

1 Press the<> button.
2 Touch a source other than [iPhone].
3 Detach the iPhone.

Connectable iPhone

The following models can be connected to this unit.

Made for

iPhone 14 Pro Max

iPhone 11 Pro Max

iPhone 14 Pro

iPhone 11 Pro

iPhone 14 Plus

iPhone 11

iPhone 14

iPhone XS Max

iPhone 13 Pro Max

iPhone XS

iPhone 13 Pro

• iPhone XR

iPhone 13

iPhoneX

iPhone 13 mini

iPhone 8 Plus

iPhone 12 Pro Max

iPhone 8

iPhone 12 Pro

iPhone 7 Plus

iPhone 12

iPhone 7

iPhone 12 mini

iPhone SE

iPhone SE (2nd generation)

iPhone 6s Plus

NOTE

iPhone 6s

• If you start playback after connecting the iPhone, the music that has been played by the iPhone is played first.
• Cap the USB terminal whenever not using.

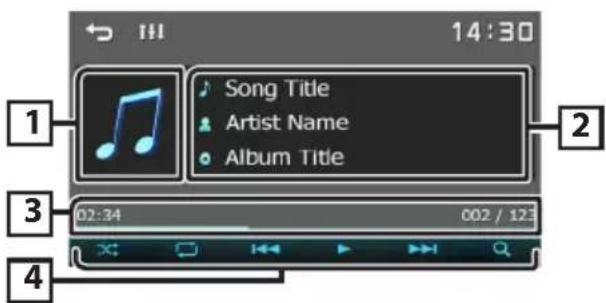

Playback operations

Control the music you are listening to on the source control screen.

1 Artwork (Shown if the track contains artwork)
2 Displays the information of the current file.
3 Playing time/File number Play time bar:For confirmation of current playing position.
4]: Selects Random playback mode.
[ Selects Repeat playback mode.

[▶], [II]: Plays or pauses.

[14], [15]: Searches the previous/next content. Touch and hold to fast forward or fast backward.
[Q]: Searches content. (P.7)

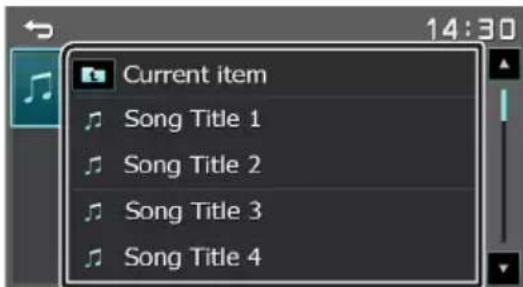

Selecting a content in a list

1 Touch [Q].
2 Touch desired item.

When you touch a category its contents are displayed.

3 Touch desired item from the content list. Playback starts.

• Touch [3] to moves to the upper hierarchy.

NOTE

• The source control screen appears when you touch [5] at the top hierarchy.

Using external audio/video players

Starting playback

1 Connect an external component to the AV-IN input terminal. (P.14)
2 Press the

button.
3 Touch [AV-IN].
4 Turn on the connected component and start playing the source.

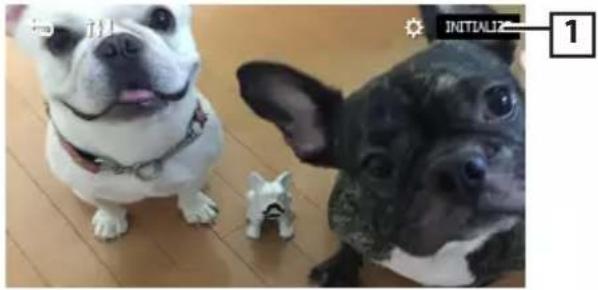

For Video playback

1 When the operation buttons are not displayed on the screen, touch the display.

1:You can adjust image quality in videoscreen.

[INITIALIZE]: To clear the adjustment.

NOTES

• When the picture from the rear view camera is displayed on the AV-IN screen, the picture output from the Visual Output terminal disappears.

Rear view camera

To use a rear view camera, the REVERSE lead connection is required. For connecting a rear view camera. (P.14)

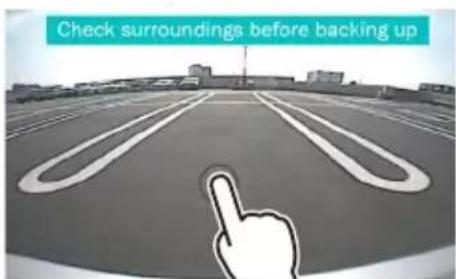

Displaying the picture from the rear view camera

The rear view screen is displayed when you shift the gear to the reverse (R) position.

The first touch removes the Caution, and the second touch closes the Camera Screen.

To adjust the parking guidelines

NOTE

• Install the rear view camera in the appropriate position according to the instruction manual supplied with the rear view camera.
• When adjusting the parking guidelines, make sure to apply the parking brake to prevent the car from moving.

1 Press the button.
2 Touch [
3 Touch [System].
4 Touch [<] or [> of [Parking Guidelines] and set to [ON].
5 Touch [Guidelines SETUP].
6 Adjust the parking guidelines by selecting the [mark.

7 Adjusting the position of the selected mark.

Make sure that lines A and B are horizontally parallel, and that lines C and D are of the same length.

NOTE

• Touch [Initialize] and then touch [Yes] to set all the marks to their initial default position.

Reverse with ATT ( -20dB)

When the gear is shifted to the reverse (R) position, the volume of the device is adjusted.

1 Press the button.
2 Touch[
3 Touch [System].
4 Touch [Reverse with ATT].
5 Touch [<] or [>] set to [ON/OFF].

NOTE

The setting value is ON (default)

Register your smartphone to the unit

You can use your Bluetooth smartphone when paired to this unit.

1 Turn on the Bluetooth function on your smartphone/cell-phone.
2 Search the unit ("DMX129BT") from your smartphone/cell-phone.

If a PIN code is required, enter the PIN code ("0000").

• 3 years when the Bluetooth smartphone is connected.

Disconnecting the device

• Turn off the Bluetooth function from your smartphone/cell-phone.
• Turn off the ignition switch.

Receive a phone call

1 Touch [].

• [ ] : Reject an incoming call.

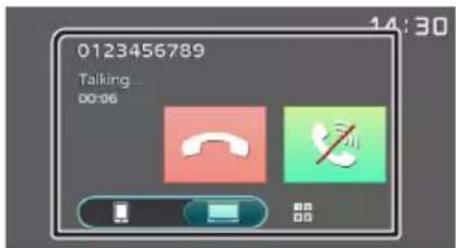

Operations during a call

[ ] Ending a call

Mute your voice

You can send tones by touching desired keys on the screen.

• Touch [B] to close the window.

Switches the speaking voice output between smartphone/cell-phone and speaker.

• Adjust the receiver volume

Press the < + > or < - > button.

Make a phone call

1 Press the

button.
2 Touch [TEL].
3 See the table below for each operation method.

Call by entering a phone number

1) Enter a phone number with number keys.
2) Touch [].

Make a call

• Touch [x] to delete the last entry.

Call using call records

1) Touch [9].
2) Touch [Incoming Calls), [ ] Outgoing Calls), [Missed Calls).
3) Select the phone number from the list. Make a call

Call using the phonebook

1) Touch [B].
2) Select the name from the list.

Make a call

• [G] Updates the phonebook. Touch this button after you have made a change to the phonebook of your smartphone/ cell-phone.

Call Waiting

When you receive a new call while talking on the phone:

1) Touch [L], the current call is put on hold and you can answer the newly received call.
2) Each time you touch [ the caller will change to the other one.
3) If you touch [ ] during call waiting, reject an incoming call.
4) If you touch [ when someone is on hold, the current call will end to be swtched to the call waiting on hold.
5) Touch [mute your voice

Playing Bluetooth Audio Device

1 Press the

button.
2 Touch [Bluetooth Audio].

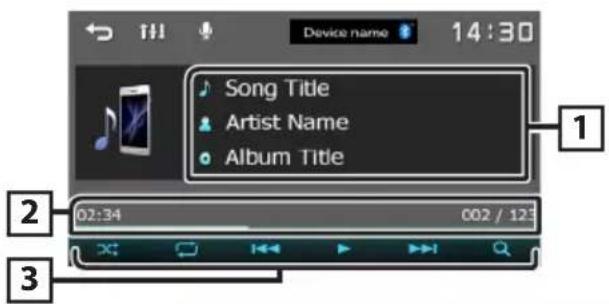

Source control screen

1] Displays the information of the current file.
2]Playing time/File number

Play time bar: For confirmation of current playing position.

3 Selects Random playback mode.

Selects Repeat playback mode.
[ ], [ ] : Plays or pauses.

[1<1],[>I]:Searches the previous/next

content.

Touch and hold to fast forward or fast backward.

[Q]: Searches file. (P.10)

NOTE

• Operations and display indications may differ according to their availability on the connected device.

Selecting a content in a list

1 Touch [Q].
2 Touch desired item.

When you touch a category its contents are displayed.

3 Touch desired item from the content list.

Playback starts.

• Touch [3] to moves to the upper hierarchy.

NOTE

• The source control screen appears when you touch [1] at the top hierarchy.

Controlling Audio

You can adjust various settings such as audio balance or subwoofer level.

1 Press the <AUD> button.
2 See the below for each operation method.

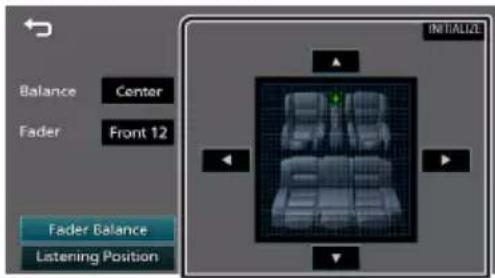

Controlling General Audio

1 Press the <AUD> button.
2 Touch [Fader / Balance].
3 Set each item as follows.

[Fader Balance]

Balance [←] [►]	Adjust the left and right volume balance. 15 (left) to 15 (right)
Fader [▲] [▼]	Adjust the front and rear volume balance. 15 (front) to 15 (rear)
[INITIALIZE]	To clear the adjustment.

[Listening Position]

[●]	Select a listening position from “Front Left”, “Front All”, “Front Right”, and “Middle”.
[INITIALIZE]	To clear the adjustment.

Before Installation

Before installation of this unit, please note the following precautions.

WARNING

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
  Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.
• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Secure the wires with cable clamps and wrap vinyl tape around the wires that comes into contact with metal parts to protect the wires and to prevent short circuit.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30^ or less.
• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.
• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

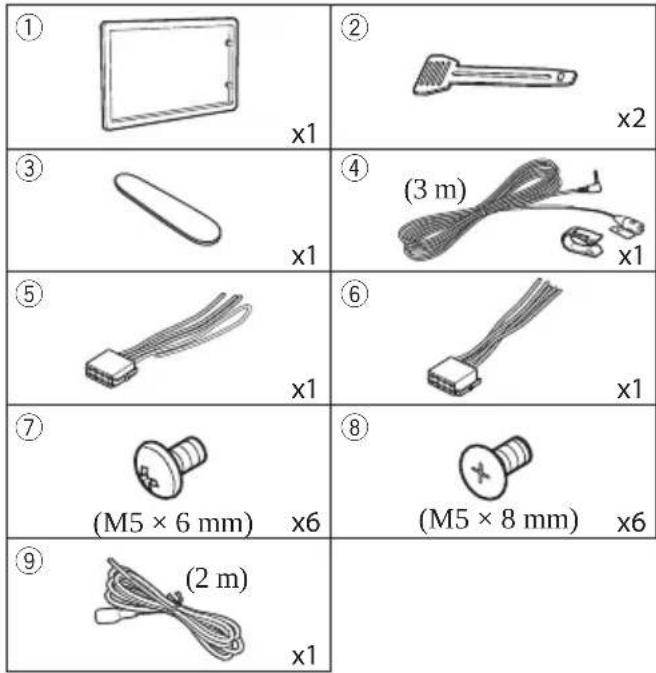

Supplied accessories for installation

Installation procedure

1) To prevent a short circuit, remove the key from the ignition and disconnect the terminal of the battery.
2) Make the proper input and output wire connections for each unit.
3) Connect the wire on the wiring harness.
4) Take Connector B on the wiring harness and connect it to the speaker connector in your vehicle.
5) Take Connector A on the wiring harness and connect it to the external power connector on your vehicle.
6) Connect the wiring harness connector to the unit.
7) Install the unit in your car.
8) Reconnect the terminal of the battery.
9) Press the reset button.

Installing the unit

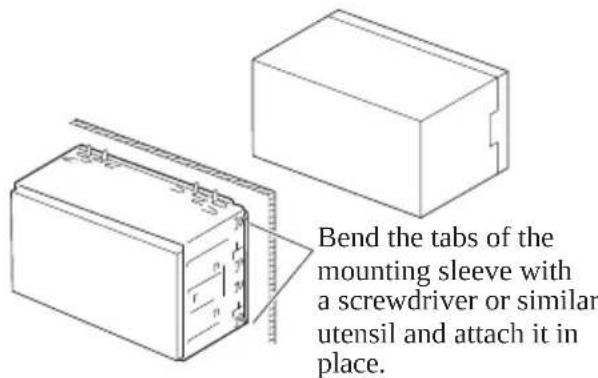

Non-Japanese cars

NOTE

• Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

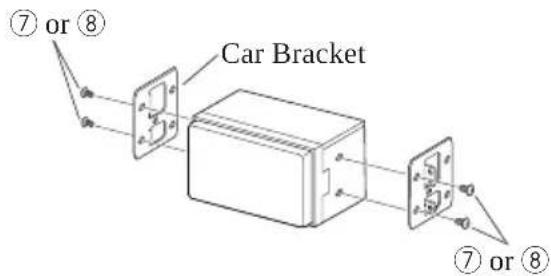

Japanese cars (North America, South America sales area only)

Trim plate

1) Attach accessory ① to the unit.

Installation

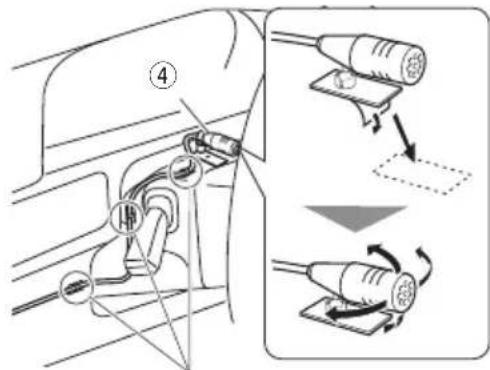

Microphone unit

1) Check the installation position of the microphone (accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone (accessory 4), and stick the microphone to the place shown below.
4) Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method.
5) Adjust the direction of the microphone (accessory 4) to the driver.

Fix a cable with a commercial item of tape.

NOTE

• Swap the clips if necessary.

Removing the trim plate

1) Use the extraction key (accessory 3) to lever out the four tabs (two on the left part, two on the right part).

2) Pull the trim plate forward.

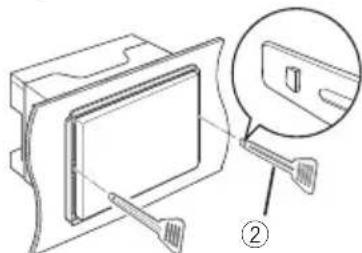

Removing the unit

1) Remove the trim plate by referring to step 1 in "Removing the trim plate".
2) Insert the extraction key (accessory ②) deeply into the slot as shown. (The protrusion at the tip of the extraction key must face toward the unit.)

3) With the inserted extraction key secured, insert the other extraction key into the slot.

4) Pull out the unit halfway.

NOTE

• Be careful to avoid injury from the catch pins on the extraction key.

5) Pull the unit all the way out with your hands, being careful not to drop it.

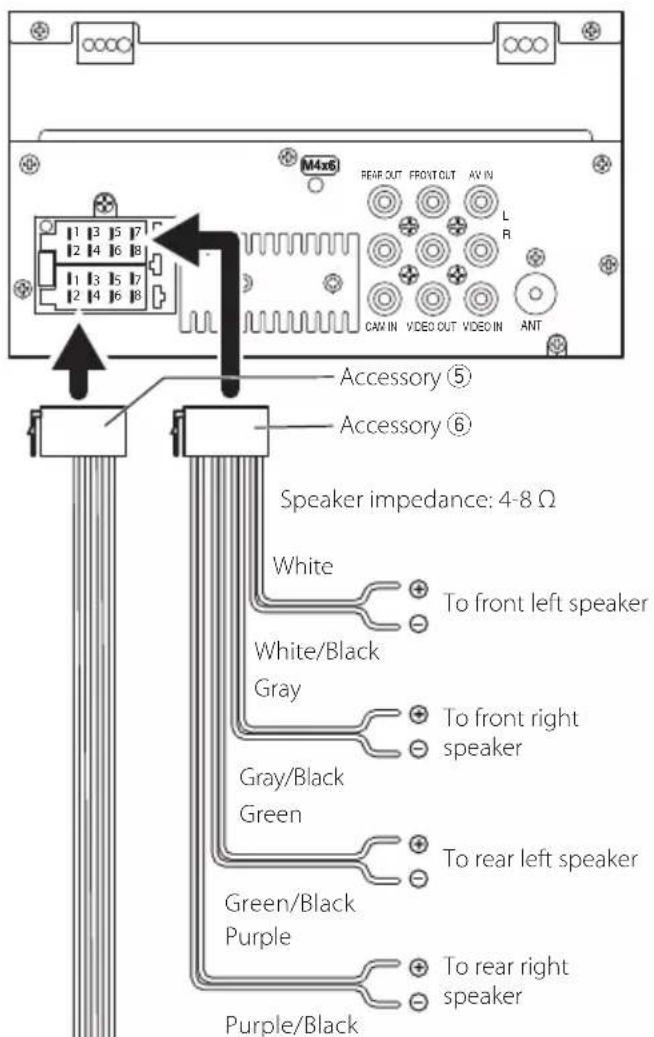

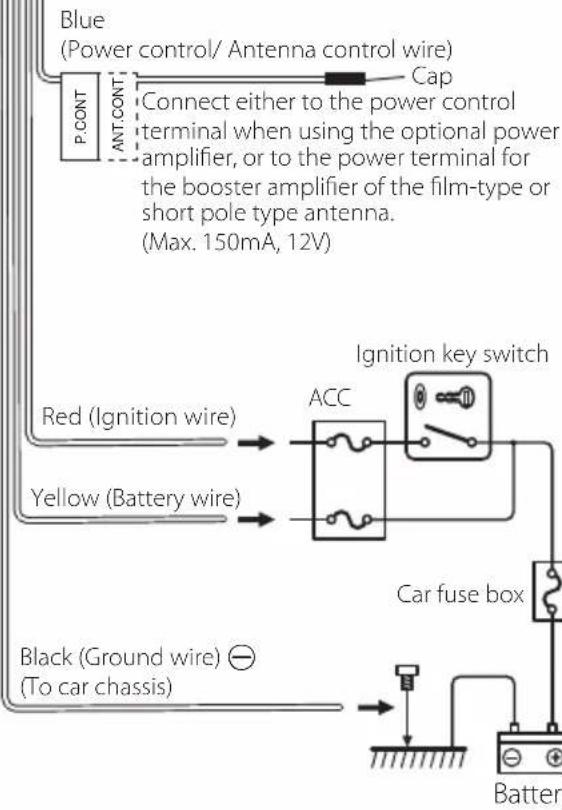

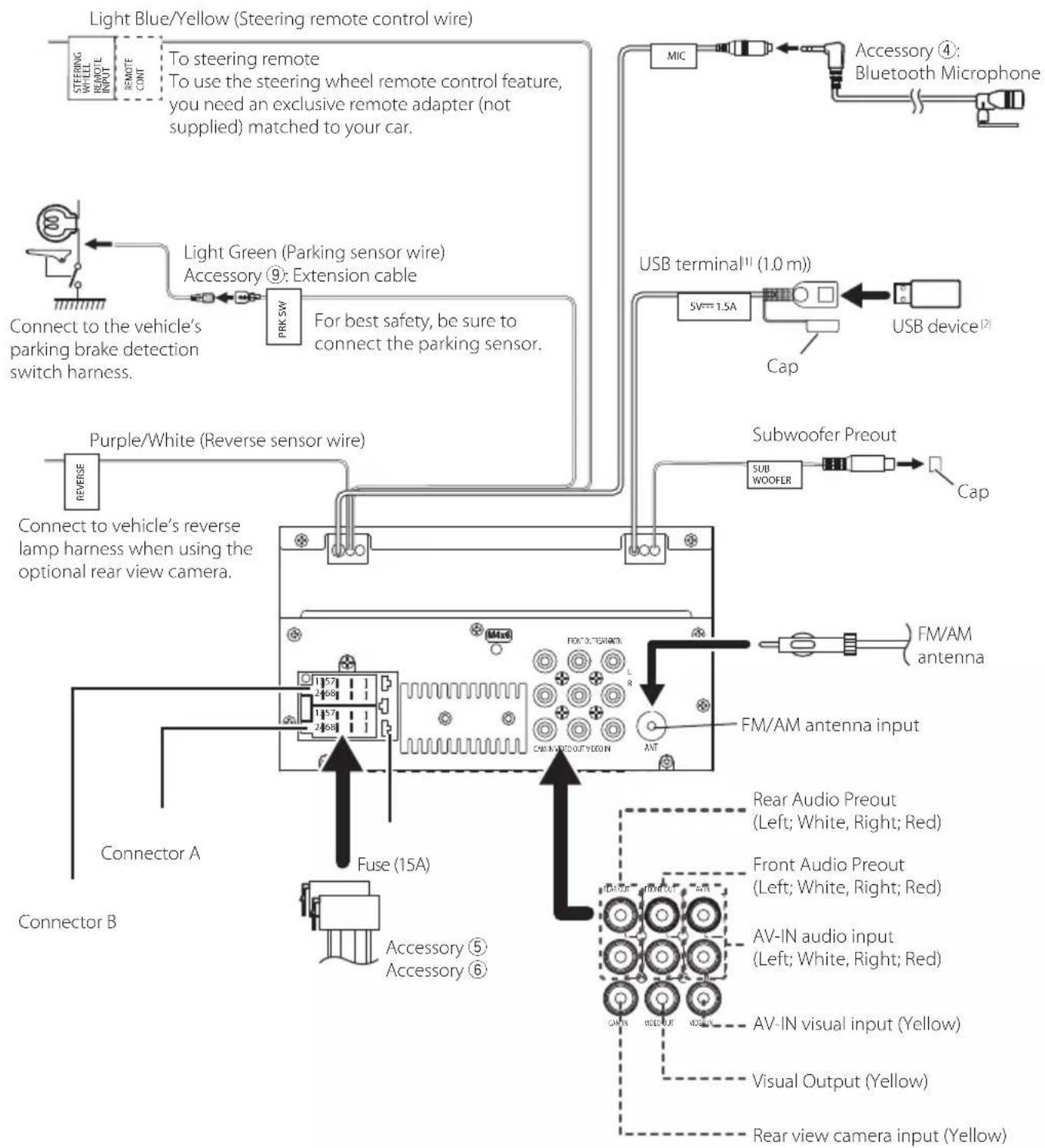

Connecting wires to terminals

USB maximum power supply current: DC 5 V = 1.5A
[2] Sold separately

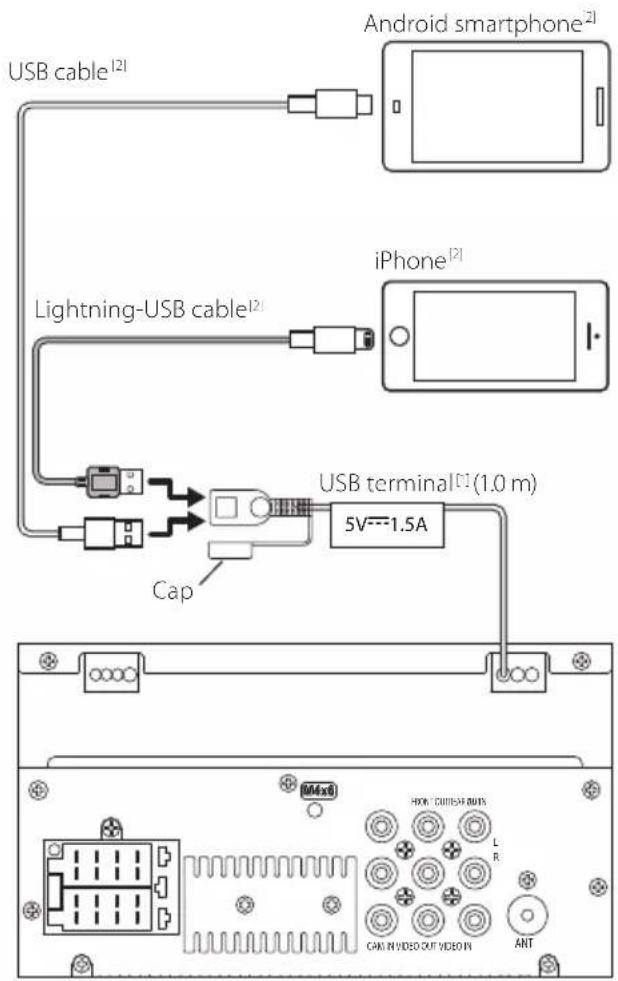

Connecting an iPhone/Android

[USB maximum power supply current: DC 5 V = 1.5A
Sold separately

More information

Usable USB device

This unit can play MPEG1/MPEG2/MPEG4/H.264/ MKV/ MP3/WMA/AAC/WAV/ FLAC/ OGG files stored in a USB mass storage class device.

• File system: FAT16 / FAT32 / NTFS / exFAT

• This unit can recognize a total of 9,999 files and 320 folders (a maximum of 9,999 files per folder).
  The maximum number of characters:

• Folder names : 70 characters

• File names : 70 characters
• Tag : 70 characters

NOTE

• When the USB device is connected to this unit, it can be charged through the USB cable.
• Install the USB device in the place where it will not affect safe driving.
• You cannot connect a USB device via a USB hub and Multi Card Reader.
• Take backups of the audio files used with this unit. The files may be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.
• No USB device comes with this unit. You need to purchase a commercially available USB device.
• Cap the USB terminal whenever not using.

Playable Audio files

Audio format Bit rate/ (Bit count)	Sampling frequency
MP3 (.mp3) 16 – 320 kbps, VBR	16 – 48 kHz
WMA (.wma) 16 – 320kbps 16 – 48 kHz
AAC-LC (.m4a) 16 – 320kbps 16 – 48 kHz
Linear PCM (WAVE) (.wav)	(16/24 bit) 8 – 192 kHz
FLAC (.flac) (16/24 bit) 8 – 192 kHz
Vorbis (.ogg) (16/24 bit) 8 – 192 kHz

This unit can show ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3).

NOTE

WMA and AAC of which is covered with DRM cannot be played.
- Although the audio files are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device.

Acceptable Video files

Video format	Video codec Audio codec
MPEG-1 (.mpg, .mpeg)	MPEG-1 MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg)	MPEG-2	MPEG Audio Layer 2
MPEG-4 (.mp4, .avi)	MPEG-4 (SP,ASP)	MP3, AAC-LC (2ch)
H.264/MPEG-4 AVC (.mp4, mkv, avi, .flv, .f4v)	H.264/MPG-4 AVC (BP/MP/HP)	MP3, AAC (2ch)
MKV (.mkv)	Video Format follows H.264/ MPEG-4 AVC, MPEG4, XVID	MP3, AAC, Vorbis, FLAC

Note for specifications

Bluetooth section

Frequency

:2.4-2.48GHz

Audio section

Speaker Impedance

:4-8Ω

General

Operating Voltage

:12VDCcarbattery

Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
  Android is a trademark of Google LLC.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (j) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (jj) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• libFLAC

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

·libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS AS ISAND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Table des matieres

[Parking Guidelines]

Activer [RBDS Clock Sync].

Voir Configuration radio (P.21)

La lecture commence.

REMARQUE

3 3 Debranchez I'iPhone.

Phone connectables

La lecture commence.

La lecture commence.

[Listening Position]

Procedure installation

• La marque et les logos Bluetooth sont des marques déposées appartenant à Bluetooth® SIG, Inc. et toute utilisation de ces marques par JVCKENWOOD Corporation est sous licence. Les autres marques déposées et appellations commerciales appartiennent à leurs propriétaires respectifs.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
  Android is a trademark of Google LLC.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (j) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (jj) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• libFLAC

Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation

• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS AS IS AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• libogg

Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS AS IS AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Contenido

Re verse with ATT. 40

Blu etooth. 41

[Parking Guidelines]

[Listening Position]

• La marca denominativa y los logos de Bluetooth® son MARCAS registRADAS propidad de Bluetooth SIG, Inc. yrialquier uso de dichas MARCAS por JVCKENWOOD Corporation esta sujeeto a los teminos de licencia.El resto de MARCAS commerciales y nombres commerciales corresponden a sus respectivos propietarios.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
  Apple, iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
  Android is a trademark of Google LLC.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (j)ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (jj)DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/ OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMplied FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
• libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation
• Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS AS ISAND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS AS IS AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

For USA

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

• This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

For Canada

■ ISED CAUTION

This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions: (1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

CAUTION

This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body.

Pour le Canada

Attention de 'ISED

Supplier's Declaration of Conformity

Trade Name: KENWOOD

Products: MONITOR WITH RECEIVER

Model Name: DMX129BT

Responsible Party: JVCKENWOOD USA

CORPORATION

4001 Worsham Avenue,

Long Beach, CA 90808, U.S.A.

PHONE: [phone]

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
