• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference. Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

• USB rating is indicated on the main unit. To view, detach the faceplate.

: USB rating for the USB cable from the rear of the unit is indicated on a label.

• Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (

31, 32 ). Turn off the unit or change the source to STANDBY when parking at a low ceiling area. Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately. How to read this manual

• Operations are explained mainly using buttons on the faceplate of .

• English indications are used for the purpose of explanation. You can select the display language from the

] indicates the selected items.

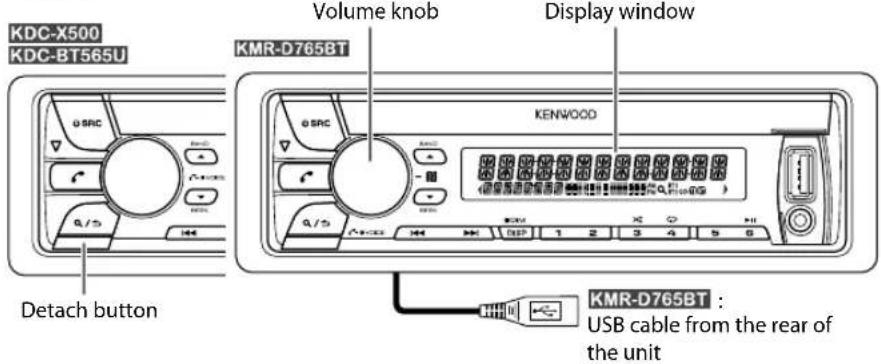

BASICS To On the faceplate On the remote control Turn on the power Press

• Press and hold to turn off the power.* Press and hold SRC to turn off the power. ( Pressing SRC does not turn on the power. ) Adjust the volume Turn the volume knob. Press or . Press ATT during playback to attenuate the sound.

• Press again to cancel. Select a source Press repeatedly. Press SRC repeatedly. Change the display information Press DISP repeatedly.

For : The power will automatically turn off after 20minutes when in standby mode (Auto Power Off). Faceplate How to resetAttach Detach Remote control (RC-406) ( supplied for

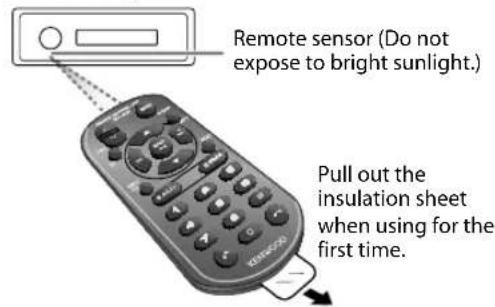

Remote control functions are not available for

Press the switch twice within 5seconds after detaching the faceplate. ENGLISH Pull out the insulation sheet when using for the first time. How to replace the battery Remote sensor (Do not expose to bright sunlight.) Volume knob Detach button Display window

Press repeatedly to enter STANDBY. 2 Press the volume knob to enter [ FUNCTION

3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press . Default:

:Both display and button illumination change to white color when entering [ FUNCTION

OFF :Both display and button illumination remain as [ COLOR

TUNER SETTING PRESET TYPE NORMAL :Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM).; MIX :Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel. GETTING STARTED Select the display language and cancel the demonstration When you turn on the power for the first time (or [ FACTORY RESET ] is set to

Turn the volume knob to select [ ENG ] (English) or [ SPA ] (Spanish), then press the knob.

ENG ] is selected for the initial setup.

YES ] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears. Set the clock and date

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. DATE SET (For

DD/MM/YY : Sets the date for marine remote control display. ENGLISH Select the display language for [ FUNCTION ] menu and music information if applicable. By default, [ ENGLISH ] is selected. ESPANOL SYSTEM KEY BEEP

CD READ 1 :Automatically distinguishes between audio file disc and music CD.;

:Forces to play as a music CD. No sound can be heard if an audio file disc is played.

:Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/

:Resets the settings to default (except the stored station).;

:Cancels. REM SETTING

Remote control ID list is displayed. YES : Indicates that this ID is already registered. ;

: Indicates that this ID is available. Turn the volume knob to select an available ID ( REM ID1

ID3 DELETE : Selects the registered remote control ID to delete. YES : Deletes the selected remote control ID. ;

Displayed only when KCA-RC55MR (optional accessory) is connected. (

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

TUNER SETTING AUTO MEMORY YES :Automatically starts memorizing 6 stations with good reception.;

Selectable only if [ NORMAL ] is selected for [ PRESET TYPE

:Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels. TI ON : Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF : Cancels. PTY SEARCH Select the available Program Type (see below), then, press

:Synchronizes the unit’s time to the Radio Broadcast Data System station time.; OFF :Cancels. Available Program Type for PTY SEARCH SPEECH

REL TALK (religious talk), PERSNLTY (personality), PUBLIC

HABL ESP (spanish talk), WEATHER MUSIC

CLASSICL (classical), R & B (rhythm and blues),

(soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP The unit will search for the Program Type categorized under [ SPEECH ] or [ MUSIC ] if selected.

PTY SEARCH ] is selectable only when the band is FM1/ FM2/ FM3.

If the volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically. It will be applied the next time traffic information is turned on. RADIO Search for a station

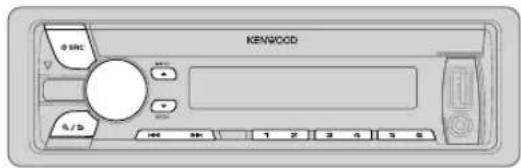

Press repeatedly to select TUNER. 2 Press repeatedly (or press / on RC-406) to select FM1/ FM2/ FM3/ AM. 3 Press S/T (or press S/ on RC-406) to search for a station.

• To change the searching method for S/T: Press repeatedly. AUTO1 : Automatically search for a station. AUTO2 : Search for a preset station. MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1to6).

• To select a stored station: Press one of the number buttons (1to6) (or press one of the number buttons (1to6) on RC-406). Direct Access Tuning (using RC-406)

Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a frequency. 3 Press to search for a station.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. JS_KWD_KDC_X500_KW_EN_00_6.indd 6JS_KWD_KDC_X500_KW_EN_00_6.indd 6 27/8/2015 3:00:24 PM27/8/2015 3:00:24 PMENGLISH

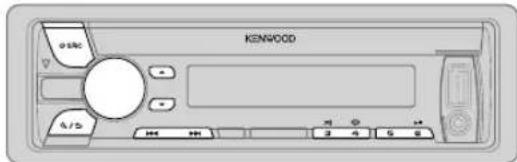

Do not leave the cable inside the car when not using. To On the faceplate On the remote control Playback / pause Press . Press

Reverse / Fast-forward

Press repeatedly. TRACK REPEAT

Press repeatedly. DISC RANDOM

When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (

For ANDROID: Applicable only when [ BROWSE MODE ] is selected. (

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.

BROWSE MODE ] is selected. (

For CD: Only for MP3/WMA/AAC files. Label side

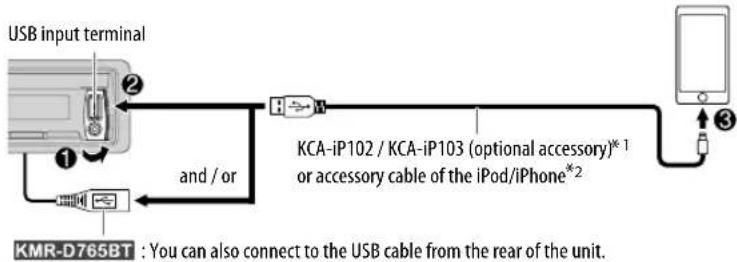

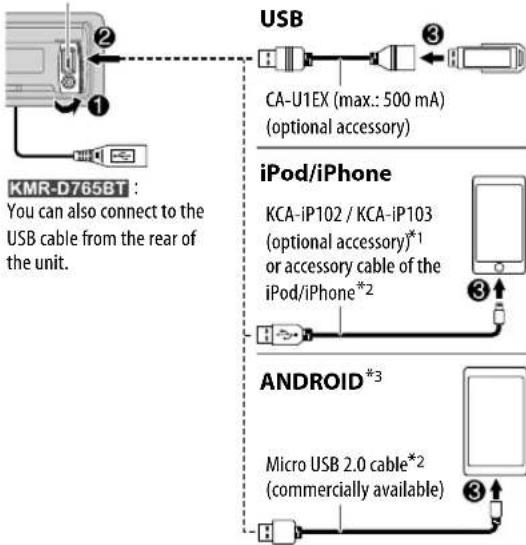

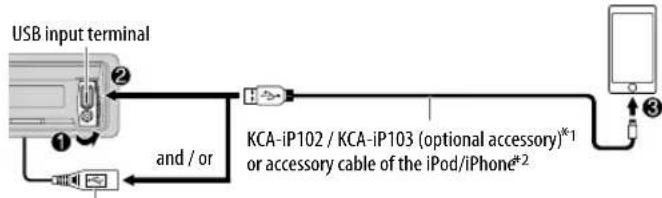

(commercially available) KCA-iP102 / KCA-iP103 (optional accessory)

or accessory cable of the iPod/iPhone

You can also connect to the USB cable from the rear of the unit. JS_KWD_KDC_X500_KW_EN_10_FF.indd 7JS_KWD_KDC_X500_KW_EN_10_FF.indd 7 12/10/2015 10:23:37 AM12/10/2015 10:23:37 AM8 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) CD / USB / iPod / ANDROID Select a file from a folder/list

Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly.

Not applicable for iPod. (or) Press S/T to search at a preset skip search ratio. (

• Pressing and holding S/T searches at a 10

ratio. – Not applicable for audio CD and MP3/WMA/AAC/WAV/FLAC files. (or) Alphabet search (applicable only for iPod) If you have many files in the iPod, you can search through them quickly according to the first character of the file name. Turn the volume knob quickly to enter character search. Turn the volume knob to select the character. To search for a character other than A to Z and 0to9, enter only “

Press S/T to move to the entry position.

• You can enter up to 3characters. Press the volume knob to start searching.

• For iPod, applicable only when [ MODE OFF ] is selected.

• For ANDROID, applicable only when [ BROWSE MODE ] is selected. Select control mode While in iPod/ iPod FRONT/ iPod REAR source, press 5 repeatedly. MODE ON : Control iPod using the iPod itself . However, you can still play/pause, file skip, fast-forward or reverse from this unit. MODE OFF : Control iPod from this unit. While in ANDROID/ ANDROID FRONT/ ANDROID REAR source, press 5 repeatedly. BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device. HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit. Select music drive Press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Direct Music Search (using RC-406)

Press DIRECT. 2 Press the number buttons to enter a track/file number. 3 Press to search for music.

• To cancel, press or DIRECT.

• Not available if Random Play is selected.

• The unit will output the sound from these applications. Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:The next drive ([ DRIVE 1 ] to [ DRIVE 4 ]) is selected automatically and playback starts. Repeat steps

to select the following drives. SKIP SEARCH 0.5%

10% : While listening to iPod or ANDROID, selects the skip search ratio over the total files. AUX Preparation: Select [

] for [ BUILT-IN AUX

Connect a portable audio player (commercially available). 2 Press repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [ FUNCTION

5 Press and hold to exit. To return to the previous setting item, press . Auxiliary input jack Portable audio player 3.5mm (1/8") stereo mini plug with “L” shaped connector (commercially available) JS_KWD_KDC_X500_KW_EN_00_2.indd 9JS_KWD_KDC_X500_KW_EN_00_2.indd 9 10/7/2015 5:02:01 PM10/7/2015 5:02:01 PM10 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Create and save a new station

Press . 2 Turn the volume knob to select [ NEW STATION ], then press the knob. 3 Turn the volume knob to select [ FROM TRACK ] or [ FROM ARTIST ], then press the knob. A new station is created based on the current song or artist. 4 Press and hold one of the number buttons (1to5) to store. To select a stored station, press one of the number buttons (1to5). Search for a registered station

SORT BY DATE ]:According to the registered date

(or using RC-406) Press J / K to search for a station, then press . Bookmark current song information Press and hold the volume knob. “BOOKMARKED” appears and the information is stored to your device. The bookmark is available on your Pandora account but not on this unit. Pandora® Preparation: Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

Open the Pandora application on your device. 2 Connect your device to the USB input terminal.

Skip a track Press T. Press

Thumbs up or thumbs down

Do not leave the cable inside the car when not using.

If thumbs down is selected, the current track is skipped. USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)

or accessory cable of the iPod/iPhone

You can also connect to the USB cable from the rear of the unit. JS_KWD_KDC_X500_KW_EN_00_9.indd 10JS_KWD_KDC_X500_KW_EN_00_9.indd 10 18/9/2015 12:12:18 PM18/9/2015 12:12:18 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) iHeartRadio® Preparation: Install the latest version of iHeartAuto application on your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

Open the iHeartAuto application on your device. 2 Connect your device to the USB input terminal.

Do not leave the cable inside the car when not using. To On the faceplate On the remote control Playback / pause Press . Press

Skip a track for custom station Press T. Press

Thumbs up or thumbs down Press J/K. ( Not available ) Create a new/custom station Press 1. ( Not available ) Scan for live station

Press 2 to start scanning.

Press to listen to the station. ( Not available ) USB input terminal KCA-iP102 / KCA-iP103 (optional accessory)

or accessory cable of the iPod/iPhone

], then press the knob. 5 Turn the volume knob to select the desired station to delete, then press the knob. 6 Turn the volume knob to select [ YES ], then press the knob. 7 Press and hold to exit. To return to the previous setting item, press . and / or : You can also connect to the USB cable from the rear of the unit. JS_KWD_KDC_X500_KW_EN_00_9.indd 11JS_KWD_KDC_X500_KW_EN_00_9.indd 11 18/9/2015 12:12:19 PM18/9/2015 12:12:19 PM12 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SiriusXM® Radio Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com. Preparation: 1 Connect the optional SiriusXM Vehicle Tuner (commercially available). 2 Check your Radio ID for activation. The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. The Radio ID does not include the letters I, O, S or F. 3 Activate the subscription. For users in the U.S.A.: Online: Go to www.siriusxm.com Phone: Call 1-866-635-2349 For users in Canada: Online: Go to www.siriusxm.ca/activatexm Phone: Call 1-877-438-9677 4 Press repeatedly to select SIRIUSXM to start updating. Start listening

Press repeatedly to select SIRIUSXM. 2 Press repeatedly to select a band. 3 Press .

” lights up. 4 Turn the volume knob to select a category, then press the knob. If “ALL CHANNELS” is selected, all the available channels will be shown. Expansion port on the rear panel SiriusXM Vehicle Tuner Antenna Search and store a station

Press . 2 Turn the volume knob to select a category, then press the knob. 3 Turn the volume knob to select the desired station, then press the knob. When a city list appears, you can search cities in alphabetical order by turning the volume knob quickly. To cancel, press and hold

(or using RC-406) Press J / K to search for a station, then press

• To store a station: Press and hold one of the number buttons (3to5).

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 5 Turn the volume knob to select a channel, then press the knob. (or) Press S / T to search for a channel manually.

• Pressing and holding S / T changes the channel rapidly. If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (

To change the tuning method for S/T: Press

Each time you press , the tuning method switches between “CHANNEL” (manually search for a channel) and “PRESET” (searches for a preset channel of the selected band). Direct Access Tuning (using RC-406)

Press DIRECT to enter Direct Access Tuning. 2 Press the number buttons to enter a channel number. 3 Press to start searching.

• To cancel, press or DIRECT.

• If no operation is done for 10seconds after step 2, Direct Access Tuning is automatically canceled. SiriusXM Keymode Press and hold to change the keymode (channel or replay). (Default: Channel keymode)

” lights up when replay keymode is selected. SiriusXM® Radio When channel keymode is selected... To On the faceplate On the remote control Select a channel Press S/T. Press S /

Change a channel rapidly Press and hold S/T. Press and hold S /

Store a channel of the current band Press and hold one of the number buttons (1to6). (Not available) Select a stored channel of the current band Press one of the number buttons (1to6). When replay keymode is selected... To On the faceplate On the remote control Playback / pause Press . Press

Select a track Press S/T. Press S/

Rewind / Fast-forward Press and hold S/T. Press and hold S/

Go to Live Press 1. SmartFavorites and TuneStart™ User stored channels are recognized as SmartFavorite channels*. The SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM Vehicle Tuner.

SXV300 (and later) SiriusXM Vehicle Tuner can use all 18 stored channels as SmartFavorites. The SXV200 SiriusXM Vehicle Tuner can use 6 stored channels from the current band as SmartFavoites. When you select a SmartFavorite channel, you can rewind and replay up to 30minutes of any of the missed news, talk, sports or music content.

• Playback starts from the beginning of the song if [ TUNE START ] is set to [

) for most music channels stored as a SmartFavorite. Press one of the number buttons (1 to 6) to select a stored channel. JS_KWD_KDC_X500_KW_EN_00_8.indd 13JS_KWD_KDC_X500_KW_EN_00_8.indd 13 15/9/2015 3:07:17 PM15/9/2015 3:07:17 PM14 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Default:

CHANNEL LOCK To unlock settings:

Press S / T to move to the entry position.

to enter the current pass code. (Initial pass code is 0000.)

Press the volume knob to confirm. CODE SET

Press S / T to move to the entry position.

to enter a new 4-digit pass code.

Press the volume knob to confirm.

to reconfirm the pass code.

Make a note of the new pass code to enter channel lock settings for next time.

LOCK SETTING MATURE CH

:Selects the SiriusXM-defined lock setting.; USER DEFINED :Selects the individual channels the user wants to lock.; OFF :Cancels. CHANNEL EDIT

Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number.

Press and hold to exit. CHANNEL CLEAR

YES :Clears all the locked channels.;

:All qualified music channels in the SmartFavorite will start playback from the beginning of the song.; OFF :Cancels.

STRONG :Shows the strength of the current received signal. BUFFER USAGE 0%

):Shows the memory usage for Replay buffer.

:Resets stored channel and lock setting to default.;

Displayed only when [ USER DEFINED ] is selected.

Available only if the connected SiriusXM Vehicle Tuner is SXV200 or later that supports SmartFavorites. SiriusXM® Radio TuneScan™ You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or currently tuned music channel. Press and hold to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.

• To select the previous/next song, press S/T.

• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you entered TuneScan. SiriusXM settings

2 Turn the volume knob to select [ SIRIUS XM ], then press the knob. 3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press and hold to exit. To return to the previous setting item, press . JS_KWD_KDC_X500_KW_EN_00_8.indd 14JS_KWD_KDC_X500_KW_EN_00_8.indd 14 4/9/2015 2:18:14 PM4/9/2015 2:18:14 PMENGLISH

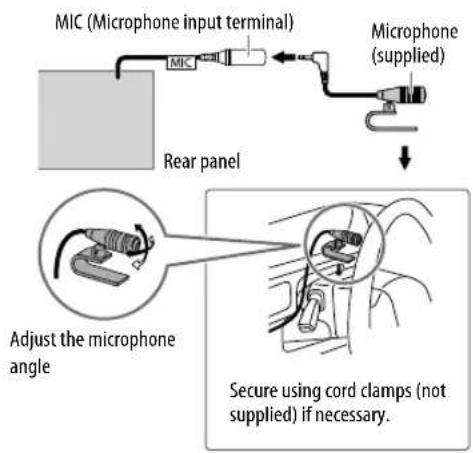

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) – aptX Codec (aptX) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. MIC (Microphone input terminal) Microphone (supplied) Rear panel Pair and connect a Bluetooth device for the first time

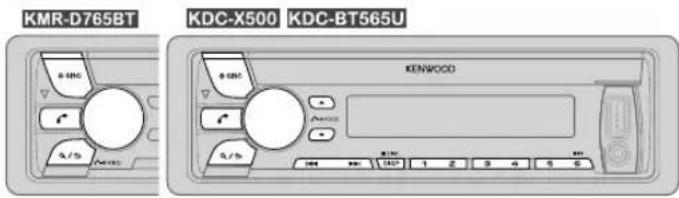

Press to turn on the unit. 2 Search and select this unit model name (KDC-X5

BT) on the Bluetooth device. “PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” scrolls on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed.

• This unit supports Secure Simple Pairing (SSP).

• Up to 10 devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device,

Once pairing is completed, Bluetooth connection is established automatically. “BT1” and/or “BT2” on the display window lights up.

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. Auto Pairing When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected devcie is turned on.

AUTO PAIRING ] is set to [

– KENWOOD MUSIC PLAY application is installed on the Android device (

) and [ BROWSE MODE ] is selected (

JS_KWD_KDC_X500_KW_EN_00_2.indd 15JS_KWD_KDC_X500_KW_EN_00_2.indd 15 10/7/2015 5:02:02 PM10/7/2015 5:02:02 PM16 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

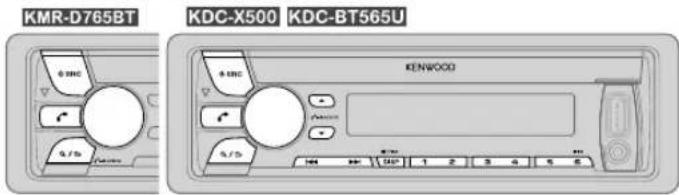

• The unit answers the call automatically if [ AUTO ANSWER ] is set to a selected time. (

• The buttons and display illuminate according to the settings made for [ DISPLAY

• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected. The following operations may differ or not available depending on the connected phone. To On the faceplate On the remote control First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Press

BLUETOOTH® Connect with a remote device by One-touch (NFC) (for ) Near Field Communication (NFC) enables short-range wireless communication between the unit and remote devices. By holding an NFC-compatible remote device near to the N-Mark on the unit (volume knob), the unit and remote device proceed to complete pairing and established the BLUETOOTH connection automatically. 1 Activate the NFC function on the remote device. Refer to the instruction manual of the remote device for more information. 2 Hold the remote device near to the N-Mark on the unit (volume knob). The device vibrates when pairing is completed.

• To disconnect, hold the remote device near to the N-Mark on the unit (volume knob) again.

• This unit only can recognize and connect to one NFC- compatible device at a time. JS_KWD_KDC_X500_KW_EN_00_9.indd 16JS_KWD_KDC_X500_KW_EN_00_9.indd 16 18/9/2015 11:20:26 AM18/9/2015 11:20:26 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® To On the faceplate On the remote control While talking on the first incoming call... Answer another incoming call and hold the current call Press . Press . Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press . Press . Adjust the phone volume [00]

Turn the volume knob during a call.

• This adjustment will not affect the volume of the other sources. ( Not available ) Switch between hands-free and private talk modes Press during a call.

• Operations may vary according to the connected Bluetooth device. ( Not available ) Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [ FUNCTION

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

):The sensitivity of the microphone increases as the number increased. NR LEVEL –5

):Adjust the noise reduction level until the least noise is being heard during a phone conversation. ECHO CANCEL –5

):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the settings for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:The unit answers incoming call automatically in the selected time (in seconds).; OFF :Cancels. BATT/SIGNAL

AUTO :Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected.; OFF :Cancels. Clock time is shown.

Functionality depends on the type of the phone used. JS_KWD_KDC_X500_KW_EN_00_9.indd 17JS_KWD_KDC_X500_KW_EN_00_9.indd 17 18/9/2015 4:14:18 PM18/9/2015 4:14:18 PM18 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . CALL HISTORY (Applicable only if the phone supports PBAP)

• “INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part of the display to indicate the previous call status.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history.

Press the volume knob to call. PHONE BOOK (Applicable only if the phone supports PBAP)

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears.

• To go to the other menu (LMNOPQRSTUV or WXYZ1

• To select the desired first letter, turn the volume knob or press S / T , then press the knob. Select “1” to search with numbers and select “

” to search with symbols.

The phonebook of the connected phone is automatically transferred to the unit when pairing.

Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL

This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.) NUMBER DIAL

Turn the volume knob to select a number (0 to 9) or character (

Press S / T to move the entry position. Repeat steps

until you finish entering the phone number.

) to enter the phone number.

Press to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions.

Make a call using voice recognition

:Shows the strength of the battery. NO SIGNAL

:Shows the strength of the current received signal.

Functionality depends on the type of the phone used. Make a call using voice recognition

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. JS_KWD_KDC_X500_KW_EN_00_3.indd 18JS_KWD_KDC_X500_KW_EN_00_3.indd 18 21/7/2015 8:38:22 AM21/7/2015 8:38:22 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [ CALL HISTORY

NUMBER DIAL ], then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [ NUMBER DIAL ] in step 2 and store a blank number. Make a call from memory

Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call. “NO MEMORY” appears if there is no contacts stored. Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . Default:

BT MODE PHONE SELECT Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. AUDIO SELECT DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [ YES ] or [

to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm. RECONNECT ON :The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ; OFF :Cancels. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

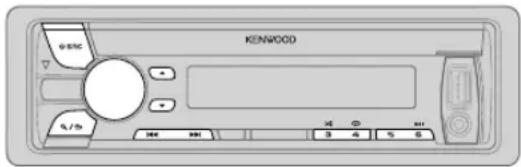

Press repeatedly to select BTAUDIO (or press SRC on RC-406). 2 Operate the Bluetooth audio player to start playback. To On the faceplate On the remote control Playback / pause Press . Press

Select group or folder Press J / K. Press

Reverse / Fast-forward Press and hold S/T. Press and hold S/

Repeat play Press repeatedly. ALL REPEAT

REPEAT OFF ( Not available ) Random play Press and hold to select ALL RANDOM

• Press to select RANDOM OFF

( Not available ) Select a file from a folder/list Refer to “Select a file from a folder/list” on page 8. ( Not available ) Operations and display indications may differ according to their availability on the connected device. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears. 2 Search and select this unit model name (KDC-X5

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® Internet radio via Bluetooth Listen to Pandora You can listen to Pandora on the Android device via Bluetooth on this unit. Preparation: Select [

1 Open the Pandora application on your device. 2 Connect your Bluetooth audio player via Bluetooth connection. (

3 Press repeatedly to select PANDORA. The source switches and broadcast starts automatically. You can operate Pandora in the same way as Pandora for iPod/iPhone. (

Listen to iHeartRadio You can listen to iHeartRadio on the Android device via Bluetooth on this unit. Preparation: Select [

1 Open the iHeartAuto application on your smart phone. 2 Connect your smart phone via Bluetooth connection. (

3 Press repeatedly to select IHEARTRADIO. The source switches and broadcast starts automatically. You can operate iHeartRadio in the same way as iHeartRadio for iPod/iPhone. (

2 Turn the volume knob to select [ AUDIO CONTROL ], then press the knob. 3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. (or using RC-406) 1 Press AUD to enter [ AUDIO CONTROL

): The sound elements (frequency level, tone level, Q factor) are preset into each selection ( BAND1 LEVEL

Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) Q FACTOR 1.35

:Adjust the quality factor.

USER : Selects a preset equalizer suitable to the music genre. (Select [ USER ] to use the settings made in [ MANUAL EQ

LEVEL5 :Selects your preferred bass boost level.; OFF :Cancels. LOUDNESS LEVEL1

LEVEL2 :Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF :Cancels.

):Adjusts the rear and front speaker output balance. BALANCE L15

):Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.) SOUND EFFECT SOUND RECNSTR (Sound reconstruction) (Not applicable for TUNER source, AUX source and SIRIUS XM source.)

:Creates realistic sound by compensating the high- frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF :Cancels. SPACE ENHANCE (Not applicable for TUNER source.) SMALL

LEVEL3 :Virtually makes the sound more realistic.; OFF :Cancels.

HIGH :Virtually adjust the sound position heard from the speakers.; OFF :Cancels.

: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF :Cancels. SPEAKER SIZE The frequency and slope settings are automatically set for the crossover of the selected speaker. FRONT SIZE 3.5"

7×10 : Selects according to the connected speaker size for optimum performance. TWEETER SMALL

LARGE :Selects according to the size range of the connected tweeter for optimum performance.; NONE :Not connected. REAR 3.5"

7×10 : Selects according to the connected speaker size for optimum performance.; NONE :Not connected. SUBWOOFER 6.5"

15" OVER : Selects according to the connected speaker size for optimum performance.; NONE :Not connected.

12.5KHZ: Adjusts the crossover frequency for the tweeter speaker. GAIN LEFT

250HZ: Adjusts the crossover frequency for the selected speakers (high pass filter).

THROUGH : All signals are sent to the selected speakers.

–24DB: Adjusts the crossover slope. (Selectable only if a setting other than [ THROUGH ] is selected for

:Adjusts the output volume of the selected speaker.

250HZ : Adjusts the crossover frequency for the subwoofer (low pass filter).; THROUGH : All signals are sent to the subwoofer. SW LPF SLOPE –6DB

–24DB: Adjusts the crossover slope. (Selectable only if a setting other than [ THROUGH ] is selected for

SW LPF PHASE REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance.

:Adjusts the output volume of the subwoofer.

SUBWOOFER ] of [ SPEAKER SIZE

SUBWOOFER LPF ] of [ X ‘ OVER ] is selectable only if [ SUBWOOFER SET ] is set to [

[REAR HPF] and [SUBWOOFER LPF]

[X ‘ OVER] is selectable only if a setting other than [NONE] is selected for [TWEETER]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DISPLAY SETTINGS Set the dimmer Press and hold DISP (DIM) to turn on or off the dimmer.

• If you have set [ DIMMER TIME ], it will be canceled once you press and hold this button. Other settings

2 Turn the volume knob to select [ DISPLAY ], then press the knob. 3 Turn the volume knob to select an item (see the following table), then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press and hold to exit. To return to the previous setting item, press .

(R = 9/ G = 9/ B = 9) To make your own color, select [

]. The color you have made will be stored in [

Press the volume knob to enter the detailed color adjustment.

to select the color (

Turn the volume knob to adjust the level (

:Dimmer is turned on.; OFF :Cancels. DIMMER TIME :Set the dimmer on and off time.

Turn the volume knob to adjust the [

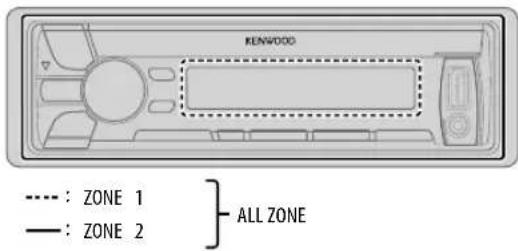

Select a zone for setting.

: Selects your preferred brightness level for display illumination and button illumination.

Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit. Unplayable discs

Discs that are not round.

Discs with coloring on the recording surface or discs that are dirty.

Recordable/ReWritable discs that have not been finalized.

8cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.

You cannot connect a USB device via a USB hub.

Connecting a cable whose total length is longer than 5m may result in abnormal playback.

This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A. About iPod/iPhone Made for

iPod touch (2nd, 3rd, 4th, and 5th generation)

iPod nano (3rd, 4th, 5th, 6th, and 7th generation)

You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Android device

This unit supports Android OS 4.1 and above.

Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs

Do not touch the recording surface of the disc.

Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

Do not use any accessories for the disc.

Clean from the center of the disc and move outward.

Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

When removing discs from this unit, pull them out horizontally.

Remove burrs from the center hole and disc edge before inserting a disc. More information Visit also the following website <www.kenwood.com/cs/ce/> for:

This unit can only play the following CDs:

Detailed information and notes about the playable audio files are stated in an online manual on the following website: www.kenwood.com/cs/ce/audiofile/ Connector (on the reverse side of the faceplate) JS_KWD_KDC_X500_KW_EN_00_6.indd 24JS_KWD_KDC_X500_KW_EN_00_6.indd 24 27/8/2015 3:08:41 PM27/8/2015 3:08:41 PMENGLISH

Pandora is only available in certain countries. Please visit <http://www.pandora.com/legal> for more information.

Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.

Some functions of Pandora cannot be operated from this unit.

For issues using the application, please contact Pandora at [e-mail]. About iHeartRadio

iHeartRadio® is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

Some iHeartRadio® functionality cannot be operated from this unit. About Bluetooth

Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

This unit may not work with some Bluetooth devices.

Signal conditions vary, depending on the surroundings.

Compatible remote device for NFC function: Remote devices with a NFC function (OS: Android™ 2.3.3 or later, excluding Android 3.x). If the OS version of your remote device is older than Android

4.1.x, download and start the “NFC Easy Connect” application.

If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name, playing time) appears. Source name Display information STANDBY Source name (Date/Clock)* TUNER Frequency (Date/Clock)* (For FM Radio Broadcast Data System stations only) Station name (Date/Clock)* Radio text (Date/Clock)* Radio text+ (R.TEXT+) Title (Artist) Title (Date/Clock)* Frequency (Date/Clock)* (back to the beginning) CD or USB / USB FRONT / USB REAR (For CD-DA) Track title (Artist) Track title (Disc name) Track title (Date/Clock)* Playing time (Date/Clock)* (back to the beginning) (For MP3/WMA/AAC/WAV/FLAC files) Track title (Artist) Track title (Album title) Track title (Date/Clock)* File name (Folder name) File name (Date/Clock)* Playing time (Date/Clock)* (back to the beginning) iPod / iPod FRONT / iPod REAR or ANDROID / ANDROID FRONT/ ANDROID REAR Track title (Artist) Track title (Album name) Track title (Date/Clock)* Playing time (Date/Clock)* (back to the beginning)

PANDORA /PANDORA FRONT /

PANDORA REAR Station name (Date/Clock)* Shared / Radio station (Date/Clock)* Track title (Artist) Track title (Album title) Track title (Date/Clock)* Playing time (Date/Clock)* (back to the beginning)

IHEARTRADIO / IHEART FRONT /

IHEART REAR Station name (Date/Clock)* Track title (Artist) Track title (Date/Clock)* (back to the beginning) SIRIUS XM Channel number (Status) Channel name (Status) Artist name (Status) Song title (Status) Content information (Status) Category name (Status) Clock (Status) (back to the beginning) BT AUDIO Track title (Artist) Track title (Album name) Track title (Date/Clock)* Playing time (Date/Clock)* (back to the beginning) AUX Source name (Date/Clock)*

Battery and signal strength of the Bluetooth device will be shown if [ BATT/SIGNAL ] is set to [ AUTO

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. Correct characters are not displayed (e.g. album name).

This unit can only display uppercase letters, numbers, and a limited number of symbols.

Depending on the display language you have selected

), some characters may not be displayed correctly. “NA FILE” Make sure the disc contains supported audio files. (

“NO DISC” Insert a playable disc into the loading slot. “TOC ERROR” Make sure the disc is clean and inserted properly. “PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center. “READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device. “NO DEVICE” Connect a USB device, and change the source to USB again. “COPY PRO” A copy-protected file is played. “NA DEVICE” Connect a supported USB device, and check the connections. “NO MUSIC” Connect a USB device that contains playable audio files. “iPod ERROR”

Sound cannot be heard during playback.

Sound output only from the Android device.

Reconnect the Android device.

If in [ HAND MODE ], launch any media player application on the Android device and start playback.

If in [ HAND MODE ], relaunch the current media player application or use another media player application.

Restart the Android device.

If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (

TROUBLESHOOTING Symptom Remedy General Sound cannot be heard.

Adjust the volume to the optimum level.

Check the cords and connections.

“MISWIRING CHECK WIRING

THEN PWR ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE”

appears. Send the unit to the nearest service center.

Sound cannot be heard.

The unit does not turn on.

Information shown on the display is incorrect. Clean the connectors. (

The unit does not work at all. Reset the unit. (

“SET ERROR” / “DEL ERROR”

Setting/deleting the remote control ID is unsuccessful. Turn the power off, then turn on the power and perform the operation again.

Radio reception is poor.

Static noise while listening to the radio. Connect the antenna firmly. CD / USB / iPod Disc cannot be ejected. Press and hold

to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit.

Noise is generated. Skip to another track or change the disc. Tracks do not play back as you intended them to play. Playback order is determined when files are recorded. “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. JS_KWD_KDC_X500_KW_EN_00_6.indd 26JS_KWD_KDC_X500_KW_EN_00_6.indd 26 27/8/2015 3:08:56 PM27/8/2015 3:08:56 PMENGLISH

Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (

Reconnect the Android device and select the appropriate control mode. (

If this does not solve the problem, the connected Android device does not support [ BROWSE MODE

“NO DEVICE” or “READING” keeps flashing.

Switch off the developer options on the Android device.

Reconnect the Android device.

If this does not solve the problem, the connected Android device does not support [ BROWSE MODE

Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “ANDROID ERROR” / “NADEVICE”

Reconnect the Android device.

Restart the Android device. Pandora “ADDERROR” New station creation is unsuccessful. “CHECKDEVICE” Check the Pandora application on your device. “NOSKIPS” The skip limit has been reached. “NOSTATIONS” No stations are found. “STATIONLIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device. “CONNECT ERROR” Communication is unstable. “RATING ERROR” Registration of thumbs up/thumbs down has failed due to insufficient network connectivity. “THUMBS N/A” Registration of thumbs up/thumbs down is not allowed. “LICENSE ERROR” You try to access from a country which Pandora is not deliverable. Symptom Remedy iHeartRadio iHeartRadio station cannot be selected. If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable. “NOT CONNECTED” Link to the application is impossible. SiriusXM® Radio “CHLOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass code to unlock. (

“CHANUNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in the U.S.A. or 1-877-438-9677 in Canada to subscribe. (

“CHUNAVAIL” The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup. “CHECKANTENNA” Check that the antenna and its connection are in good condition. “CHECKTUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit. “NOSIGNAL” Make sure the antenna is mounted outside the vehicle.

Your subscription is updated. Press the volume knob to continue. “CODE ERROR” Make sure you have entered the correct pass code. (

“NO CONTENT” There is insufficient content to start TuneScan. “SCAN CANCEL” TuneScan has been aborted. Bluetooth® No Bluetooth device is detected.

Search from the Bluetooth device again.

Make sure you have entered the same PIN code to both the unit and Bluetooth device.

Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (

105dB Dynamic Range 90dB Channel Separation 85dB Symptom Remedy Bluetooth® Echo or noise is heard during a phone conversation.

Check the [ ECHO CANCEL ] setting. (

Phone sound quality is poor.

Reduce the distance between the unit and the Bluetooth device.

Move the car to a place where you can get a better signal reception. Voice calling method is not successful.

Use voice calling method in a more quiet environment.

Reduce the distance from the microphone when you speak the name.

Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

Reduce the distance between the unit and the Bluetooth audio player.

Turn off, then turn on the unit and try to connect again.

Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled.

Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

Disconnect and connect the Bluetooth player again. “DEVICE FULL” The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (

“N/A VOICE TAG” Make sure the same voice as the registered voice tag is used. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY” / “NO PAIR” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO” / “NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. JS_KWD_KDC_X500_KW_EN_00_2.indd 28JS_KWD_KDC_X500_KW_EN_00_2.indd 28 10/7/2015 5:02:06 PM10/7/2015 5:02:06 PMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) SPECIFICATIONS CD player MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files USB USB Standard USB1.1, USB2.0 (Full speed) File System FAT12/16/32 Maximum Supply Current DC5V 1.5A MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files WAV Decode Linear-PCM FLAC Decode FLAC file (Up to 48kHz / 16bit) Bluetooth Version Bluetooth Ver.2.1+EDR / Bluetooth 3.0 Frequency Range 2.402GHz — 2.480GHz Output Power +4dBm (MAX), 0dBm (AVE) Power Class 2 Maximum Communication Range Line of sight approx. 10m (32.8ft) Profile HFP (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) Auxiliary

The unit can only be used with a 12V DC power supply, negative ground.

Disconnect the battery’s negative terminal before wiring and mounting.

Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

Insulate unconnected wires with vinyl tape to prevent a short circuit.

Be sure to ground this unit to the car’s chassis again after installation. Caution

For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

Mount the unit at an angle of less than 30º.

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

Keep all cables away from heat dissipate metal parts.

After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure

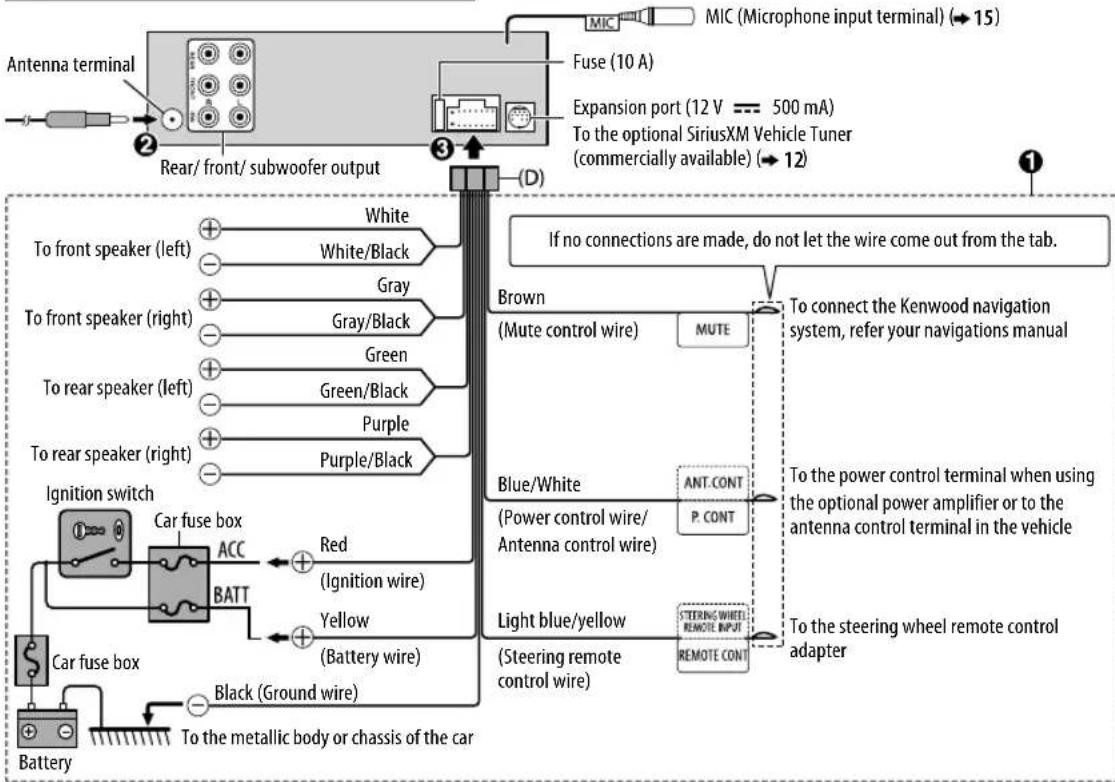

Remove the key from the ignition switch, then disconnect the [ terminal of the car battery. 2 Connect the wires properly. See Wiring connection. (

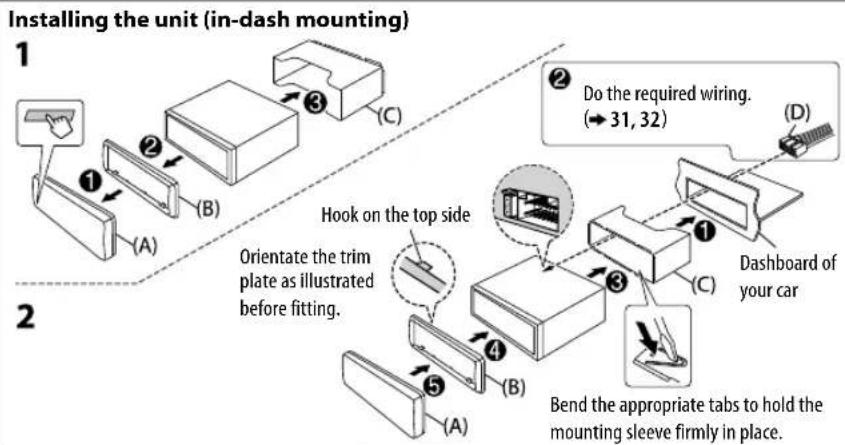

3 Install the unit to your car. See Installing the unit (in-dash mounting). 4 Connect the [ terminal of the car battery. 5 Press to turn on the power. 6 Detach the faceplate and reset the unit within 5seconds. (

Do the required wiring.

Dashboard of your car Bend the appropriate tabs to hold the mounting sleeve firmly in place. How to remove the unit

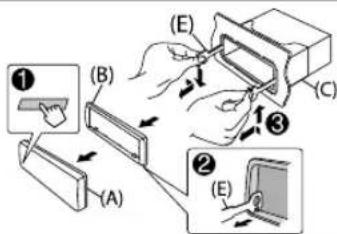

Detach the faceplate. 2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. 3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right. Installing the unit (in-dash mounting) When installing without the mounting sleeve

Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. Hook on the top side Orientate the trim plate as illustrated before fitting. JS_KWD_KDC_X500_KW_EN_10_FF.indd 30JS_KWD_KDC_X500_KW_EN_10_FF.indd 30 12/10/2015 10:27:08 AM12/10/2015 10:27:08 AMENGLISH

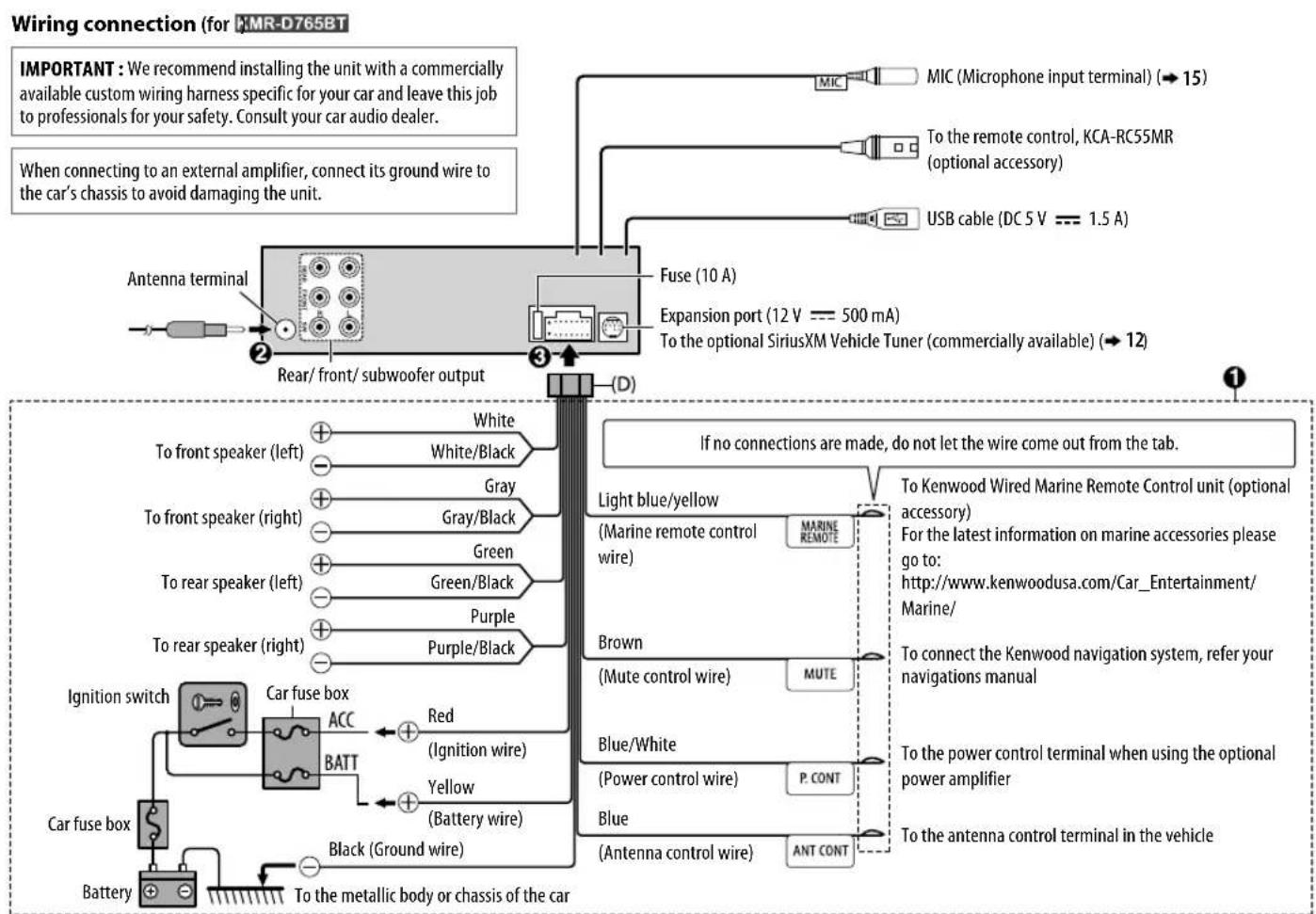

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Part list for installation (A) Faceplate Wiring connection (for / ) Fuse (10A) Rear/ front/ subwoofer output Antenna terminal Car fuse box Car fuse box Battery Ignition switch Blue/White (Power control wire/ Antenna control wire) Light blue/yellow (Steering remote control wire) Red (Ignition wire) Yellow (Battery wire) Black (Ground wire) To the metallic body or chassis of the car To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) White Gray Green Purple White/Black Gray/Black Green/Black Purple/Black To connect the Kenwood navigation system, refer your navigations manual To front speaker (left) To rear speaker (left) To front speaker (right) To rear speaker (right) If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter (C) Mounting sleeve (B) Trim plate (D) Wiring harness (E) Extraction key MIC (Microphone input terminal) (

IMPORTANT : We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. JS_KWD_KDC_X500_KW_EN_00_2.indd 31JS_KWD_KDC_X500_KW_EN_00_2.indd 31 10/7/2015 5:02:06 PM10/7/2015 5:02:06 PM32 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Wiring connection (for ) Fuse (10A) Rear/ front/ subwoofer output Antenna terminal Car fuse box Car fuse box Battery Ignition switch Red (Ignition wire) Yellow (Battery wire) Black (Ground wire) To the metallic body or chassis of the car White Gray Green Purple White/Black Gray/Black Green/Black Purple/Black To front speaker (left) To rear speaker (left) To front speaker (right) To rear speaker (right) If no connections are made, do not let the wire come out from the tab. MIC (Microphone input terminal) (

IMPORTANT : We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. To the remote control, KCA-RC55MR (optional accessory) USB cable (DC 5 V

“PRESS” “VOLUME KNOB”

:Annulation. REM SETTING

iPod touch (2nd, 3rd, 4th et 5th generation)

iPod nano (3rd, 4th, 5th, 6th et 7th generation)

“SET ERROR” / “DEL ERROR”

iPod touch (2nd, 3rd, 4th y 5th generation)

iPod nano (3rd, 4th, 5th, 6th y 7th generation)

“SET ERROR” / “DEL ERROR”

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.

are trademarks owned by iHeartMedia, Inc. All uses are authorized under license.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

• The “AAC” logo is a trademark of Dolby Laboratories.

• Google, Google Play and Android are trademarks of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

• © 2013 CSR plc and its group companies. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_KWD_KDC_X500_KW_C00_9.indd 2JS_KWD_KDC_X500_KW_C00_9.indd 2 18/9/2015 11:18:02 AM18/9/2015 11:18:02 AM
