Brand	Kenwood
Model	KDCX599
Product Type	Audio-video receiver
Installation Dimensions (W × H × D)	182 mm × 53 mm × 159 mm
Weight	1.3 kg
Operating Voltage	14.4 V (10.5 V – 16 V allowable)
Maximum Current Consumption	10 A
Maximum Output Power	50 W × 4
Speaker Impedance	4 Ω – 8 Ω
FM Frequency Range	87.9 MHz – 107.9 MHz (200 kHz step)
AM Frequency Range	530 kHz – 1700 kHz (10 kHz step)
Bluetooth	Version 2.1+EDR / 3.0, range up to 10 m
Compatible Audio Formats	MP3, WMA, AAC, WAV (CD, USB)
Inputs	USB (5 V, 1 A max), AUX (3.5 mm mini jack), microphone (for Bluetooth)
Outputs	Preamp output 4000 mV/10 kΩ, subwoofer output

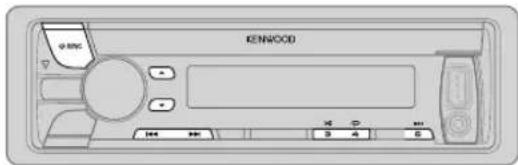

Main Functions	Radio (FM/AM), CD, USB, iPod/iPhone, Android, Bluetooth hands-free and audio, Pandora, iHeartRadio, SiriusXM (optional tuner)
Maintenance and Cleaning	Clean the faceplate with a dry silicone cloth; clean the connector with a cotton swab
Included Accessories	RC-406 remote control, microphone, extraction keys, wiring harness, mounting sleeve
Repairability and Spare Parts	Contact Kenwood authorized service center for any repairs

Frequently Asked Questions - KDCX599 KENWOOD

How to reset the device?

To reset the device, press the reset button located on the faceplate with a pen or paperclip. This erases preset settings and Bluetooth connections.

How to connect a phone via Bluetooth?

Enable Bluetooth on your phone, search for devices and select 'KDC-X5' or 'KDC-BT5**U' (depending on the model). You may be asked for a PIN code '0000'. Confirm on the car radio by pressing the volume knob.

Can I play music from a USB flash drive?

Yes, connect a USB flash drive to the front port. The device plays MP3, WMA, AAC, and WAV files. Use the car radio controls to navigate folders.

How to set the clock?

Press the volume knob to enter [FUNCTION], turn to select [CLOCK], then [CLOCK ADJUST]. Set the day, hour, and minutes by turning and pressing the volume knob.

What to do if the car radio displays 'PROTECTING'?

This indicates a wiring problem or short circuit. Check the speaker connections and wiring. If the message persists, contact customer service.

How to use the hands-free function for calls?

Once the phone is connected via Bluetooth, an incoming call is indicated by flashing buttons. Press the volume knob or a numeric key (1 to 6) to answer. To make a call, use the phonebook or direct dialing via the Bluetooth menu.

What types of CDs can the device play?

It plays audio CDs, CD-R, CD-RW, and CD-ROM containing MP3/WMA/AAC files. 8 cm CDs are not compatible.

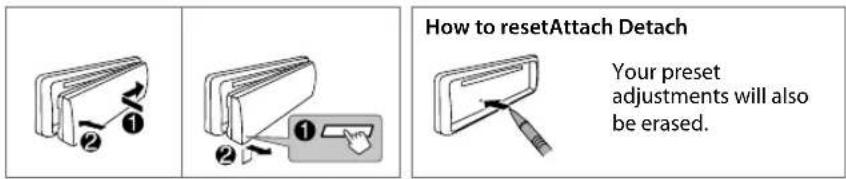

How to detach the faceplate for cleaning?

Press the detach button (usually marked 'RELEASE'), then gently pull the faceplate towards you. Clean it with a dry cloth and avoid contact with water.

Can I listen to Internet radio (Pandora, iHeartRadio)?

Yes, via a USB connection with an iPhone/iPod or via Bluetooth with an Android smartphone. Install the corresponding app on your device, then select the PANDORA or IHEARTRADIO source on the car radio.

How to improve FM reception?

Make sure the antenna is properly connected and extended. You can enable [MONO SET] mode in the tuner settings to reduce noise, but stereo sound will be lost.

USER MANUAL KDCX599 KENWOOD

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model KDC-X599/KDC-BT562U/KMR-D562BT

Serial number

US Residents Only

Register Online

Register your Kenwood product at www.Kenwoodusa.com

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location:Top Plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

IC (Industry Canada) Notice

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
The term "IC:" before the certification/ registration number only signifies that the Industry Canada technical specification were met.

Note de IC (Industrie Canada)

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body (excluding extremities: hands, wrists, feet and ankles).

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

ATTENTION

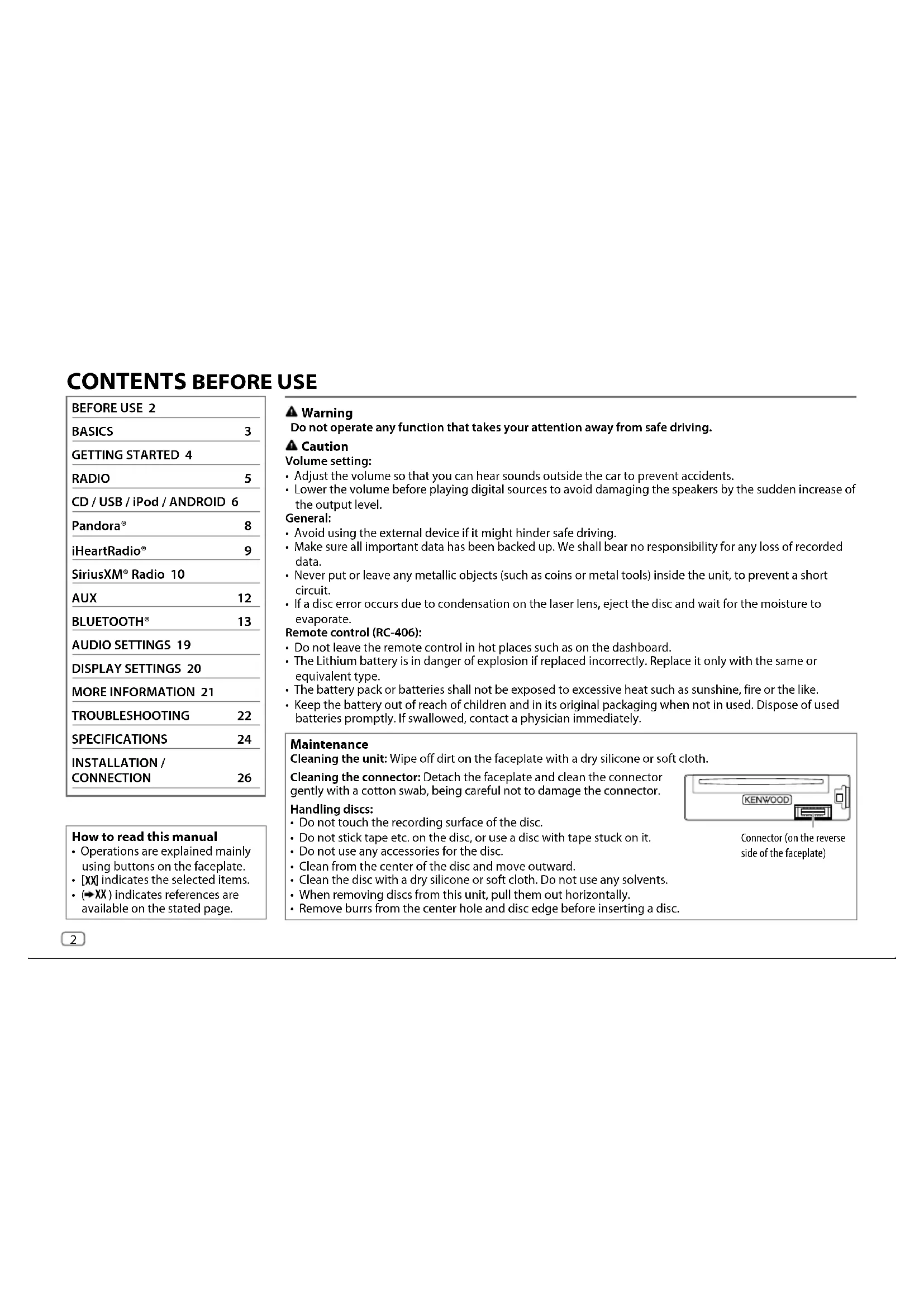

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
• [XX] indicates the selected items.
• ( XX) indicates references are available on the stated page.

Warning

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

Remote control (RC-406):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispse of used batteries promptly. If swallowed, contact a physician immediately.

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector: Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

Connector (on the reverse
side of the faceplate)

BASICS

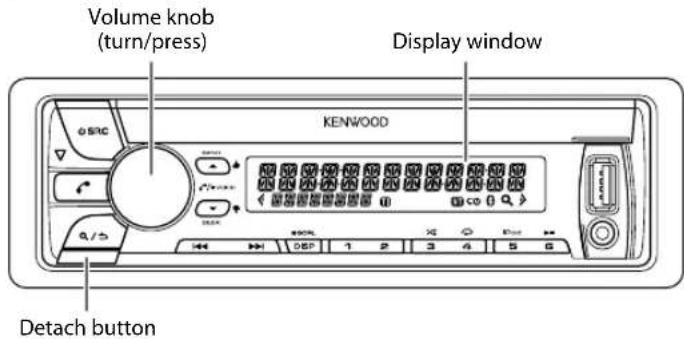

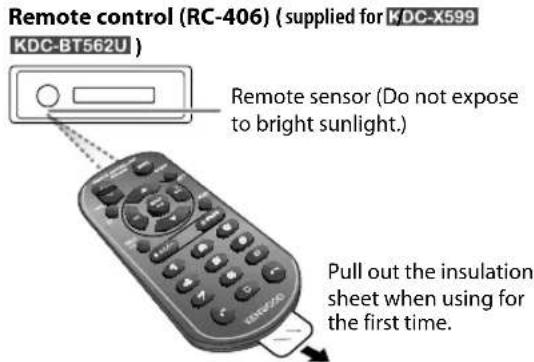

Faceplate

Remote control functions are not available for KMR-D562BT.

To On the faceplate On the remote control

Turn on the power	Press SRC. • Press and hold to turn off the power.*	Press and hold SRC to turn off the power. (Pressing SRC does not turn on the power.)
Adjust the volume Turn the volume knob. Press		VOL^ or VOL^
		Press ATT during playback to attenuate the sound. • Press again to cancel.
Select a source	Press SRC repeatedly.	Press SRC repeatedly.
Change the display information	Press DISP SCRL repeatedly. • Press and hold to scroll the current display information.	(not available)

• For KMR-D562BT : The power will automatically turn off after 20 minutes when in standby mode (Auto Power Off).

GETTING STARTED

Cancel the demonstration (for XDC-X599 KDC-BT562U)

When you turn on the power (or after you reset the unit), the display shows: "CANCEL DEMO" "PRESS" "VOLUME KNOB"

1 Press the volume knob. [YES] is selected for the initial setup.

2 Press the volume knob again. "DEMO OFF" appears.

Set the clock

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [ CLOCK], then press the knob.
3 Turn the volume knob to select [ CLOCK ADJUST], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Day Hour Minute
5 Turn the volume knob to select [ CLOCK FORMAT], then press the knob.
6 Turn the volume knob to select [12H] or [24H], then press the knob.
7 Press and hold

To return to the previous setting item, press R/

Set the initial settings

1 Press to enter STANDBY.
2 Press the volume knob to enter [FUNCTION].
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold

To return to the previous setting item, press a/b

4

Default: XX

AUDIO CONTROL
SP SELECT	OFF/5/4/6×9/6/OEM: Selects according to the speaker size (5 inches or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum performance.
DISPLAY
EASY MENU	ON: Both display and button illumination change to white color when entering [FUNCTION].;OFF: Both display and button illumination remain as [COLOR SELECT] color. (⇒20)
TUNER SETTING
PRESET TYPE	NORMAL: Memorizes one station for each preset button in each band (FM1/FM2/FM3/AM).;MIX: Memorizes one station or SiriusXM channel for each preset button, regardless of the selected band or SiriusXM channel.
SYSTEM
KEY BEEP	ON: Activates the keypress tone. ;OFF: Deactivates.
SOURCE SELECT
PANDORA SRC	ON: Enables PANDORA in source selection. ;OFF: Disables. (⇒8)
IHEART SRC ON	: Enables IHEARTRADIO in source selection. ;OFF: Disables. (⇒9)
BUILT-IN AUX ON	: Enables AUX in source selection. ;OFF: Disables. (⇒12)
CD READ 1	: Automatically distinguishes between audio file disc and music CD. ;2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.
F/W UPDATE
UPDATE SYSTEM / UPDATE BT
F/W UP xx.xx	YES: Starts upgrading the firmware. ;NO: Cancels (upgrading is not activated).For details on how to update the firmware, see:www.kenwood.com/cs/ce/
CLOCK
CLOCK DISPLAY	ON: The clock time is shown on the display even when the unit is turned off. ;OFF: Cancels.

RADIO

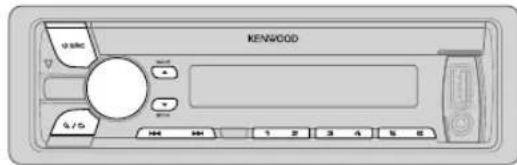

Search for a station

1 Press (heptatedly to select TUNER.
2 Press #ANGLy (or press / on #FM+ *AM- RC-406) to select FM1/ FM2/ FM3/ AM.
3 Press / (or press / (+) on RC-406) to search for a station.
To change the searching method for 一 一 / :Press SEeK repeatedly.

AUTO1: Automatically search for a station.

AUTO2 : Search for a preset station.

MANUAL:Manually search for a station.

To store a station: Press and hold one of the number buttons (1 to 6).
To select a stored station: Press one of the number buttons (1 to 6) (or press one of the number buttons (1 to 6) on RC-406).

Direct Access Tuning (using RC-406)

(except for KMR-D562BT)

1 Press DIRECT to enter Direct Access Tuning.
2 Press the number buttons to enter a frequency.
3 Press for a station.
To cancel, press DIRECT.
- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold

To return to the previous setting item, press

Default: XX

TUNER SETTING
AUTO MEMORY	YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels. • Selectable only if [NORMAL] is selected for [PRESET TYPE]. (→ 4)
MONO SET ON	: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels.
TI ON	: Allows the unit to temporarily switch to Traffic Information if available ("TI" lights up). ; OFF: Cancels.
PTY SEARCH	Selects the available Program Type (see below), then, press ↓/▶ to start.
CLOCK
TIME SYNC	ON: Synchronizes the unit's time to the Radio Broadcast Data System station time. ; OFF: Cancels.

• [MONO SET]/[T]//[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.
  Available Program Type:

SPEECH: NEWS INFORM (information), SPORTS, TALK, LANGUAGE, REL TALK (religious talk), PERSNLYT(y/personality), PUBLIC, COLLEGE, HABL ESP (spanish talk), WEATHER

MUSIC: ROCK, CLS ROCK (classic rock), ADLT HIT (adult hits), SOFT RCK (softrock), TOP 40 COUNTRY, OLDIES, SOFT, NOSTALGA (nostalgia), JAZZ, CLASSICL (classical), R & B (rhythm and blues), SOFT R&B (soft rhythm and blues), REL MUSC (religious music), MUSC ESP (spanish music), HIP HOP

The unit will search for the Program Type categorized under [SPEECH] or [MUSIC] if selected.

• If the volume is adjusted during reception of traffic information, the adjusted volume is memorized automatically. It will be applied the next time traffic information is turned on.

CD / USB / iPod /Android

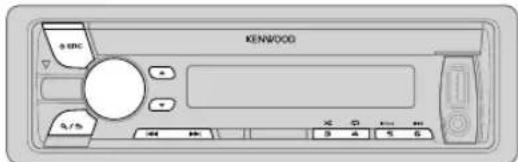

Start playback

The source changes automatically and playback starts.

USB input terminal

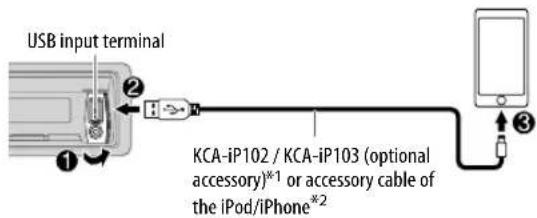

*1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
Do not leave the cable inside the car when not using.

To On the faceplate On the remote control
Playback / pause Press . 6▶II		Press ENT▶II.
Reverse / Fast-forward*4	Press and hold ↓/▶I. Press and hold ↓/ . ▷▶(+)
Select a track/file	Press ↓/▶I. Press ↓/	▶▶(+) .
Select a folder*5	Press ▲ / ▼.	Press #FM+ / *AM-
Repeat play*6	Press repeatedly.
	TRACK REPEAT/ REPEAT OFF : Audio CD
	FILE REPEAT/ FOLDER REPEAT / REPEAT OFF: MP3/WMA/AAC/WAV file, iPod or ANDROID
	FILE REPEAT/ REPEAT OFF : KME Light/ KMC file	*7
Random play*6	Press repeatedly.
	DISC RANDOM/ RANDOM OFF : Audio CD
	FOLDER RANDOM/ RANDOM OFF: MP3/WMA/AAC/WAV file, KME Light/ KMC file, iPod or ANDROID
	Press and hold 3× to select ALL RANDOM.*8
Select control mode	While in iPod source, press 5 iPod repeatedly.
	MODE ON : Control from the iPod *9
	MODE OFF: Control from the unit
	While in ANDROID source, (→7, [ANDROID SETUP])
Select music drive (→7, [MUSIC DRIVE])	Press 5 iPod repeatedly.
	The stored songs in the following start playback.
	• Selected internal or external memory of a smartphone (Mass Storage Class).
	• Selected drive of a multiple drives device.

3 When connecting an Android device, "Press [VIEW] to install KENWOOD MUSIC PLAY APP" is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. (→21)
4 For ANDROID: Applicable only when [BROWSE MODE] is selected. (ANDROID SETUP])
5 For CD: Only for MP3/WMA/AAC files. This does not work for iPod/Android.
6 For iPod/ ANDROID: Applicable only when [MODE OFF]/[BROWSE MODE] is selected.
7 KME Light: KENWOOD Music Editor Light, KMC: KENWOOD Music Control (→ 21)
8 For CD: Only for MP3/WMA/AAC files.
*9 You can still play/pause, file skip, fast-forward or reverse files from the unit.

Select a file from a folder/list

1 Press /
2 Turn the volume knob to select a folder/list, then press the knob.
3 Turn the volume knob to select a file, then press the knob.

Quick Search

If you have many files, you can search through them quickly.

For USB (for KME Light/ KMC files):

Press / to search at a preset skip search ratio. (→[SKIP SEARCH])

Press and hold / to search at a 10% ratio.

Not applicable for CD and MP3/WMA/AAC/WAV files.

For iPod:

You can search for a file according to the first character.

Turn the volume knob quickly to enter character search.
Turn the volume knob to select the character.
To search for a character other than A to Z and 0 to 9, enter only " *".
Press / to move to the entry position.
- You can enter up to 3 characters.
4 Press the volume knob to start searching.

• To return to the root folder/ first file/ top menu, press 5 iPod.
  To return to the previous setting item, press a/b.
  To cancel, press and hold a/5
• For iPod, applicable only when [MODE OFF] is selected. (→ 6)
• For ANDROID, applicable only when [BROWSE MODE] is selected.
  (→ [ANDROID SETUP])

Direct Music Search (using RC-406) (except for KMR-D562BT)

1 Press DIRECT.
2 Press the number buttons to enter a track/file number.
3 Press for music.
To cancel, press direct.
Not available if Random Play is selected.
Not applicable for iPod,Android,KME Light/KMC file.

Listen to Tuneln Radio/Tuneln Radio Pro/Aupeo

While listening to Tuneln Radio, Tuneln Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.
- The unit will output the sound from these applications.

Other settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold

To return to the previous setting item, press

Default: XX

ANDROID SETUP

BROWSE MODE: Control from the unit (using KENWOOD MUSIC PLAY application).; HAND MODE: Control other media player applications from the Android device (without using KENWOOD MUSIC PLAY application). However, you can still play/pause and file skip from the unit.

USB

MUSIC DRIVE DRIVE CHANGE : The next drive ([DRIVE 1] to [DRIVE 5]) is selected automatically and playback starts. Repeat steps 1 to 3 to select the following drives.

SKIP SEARCH 0.5% / 1% / 5% / 10%: While listening to iPod,Android or KME Light/KMC file, selects the skip search ratio over the total files.

Pandora®

Preparation:

Install the latest version of the Pandora application on your device (iPhone/ iPod touch), then create an account and log in to Pandora.

• Select ON] for [PANDORA SRC]. (4)

Start listening

1 Open the Pandora application on your device.
2 Connect your device to the USB input terminal.

The source changes to PANDORA and broadcast starts.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Skip a track	Press▶i.	Press▶i(+)
Thumbs up or thumbs down*3	Press▲▼	Press #FM+ / *AM-

KCA-iP102:30-pin type, KCA-iP103:Lightning type
*2 Do not leave the cable inside the car when not using.
*3 If thumbs down is selected, the current track is skipped.

Create and save a new station

1 Press and hold the volume knob.
2 Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.

A new station is created based on the current song or artist.

3 Press and hold one of the number buttons (1 to 5) to store.
To select a stored station, press one of the number buttons (1 to 5).

Search for a registered station

1 Press / 当
2 Turn the volume knob to make a selection, then press the knob. [BY DATE]: According to the registered date [A-Z]: Alphabetical order
3 Turn the volume knob to the desired station, then press the knob.
To cancel, press and hold 9/5

or using RC-406)

Press / to search for a station, then press ENT

Bookmark a song or artist information

1 Press and hold ▲.
2 Turn the volume knob to make a selection, then press the knob. [THIS TRACK]: Current song information [THIS ARTIST]: Current artist information

"BOOKMARKED" appears and the information is stored to your device. The bookmark is available on your Pandora account but not on this unit.

iHeartRadio®

Preparation:

Install the latest version of iHeart Link for KENWOOD application on your device (iPhone/ iPod touch), then create an account and log in to iHeartRadio.

• Select ON] for [IHEART SRC. (一 4)

Start listening

1 Open the iHeart Link application on your device.
2 Connect your device to the USB input terminal.

3 Press repeatedly to select IHEARTRADIO.

Broadcast starts automatically.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Skip a track for custom station	Press▶I.	Press▶I (+).
Thumbs up or thumbs down*3 for custom station	Press▲♣/▼♣	—
Create a new/custom station Press 1.		—
Add to favorite stations for live station	Press 2.	—
Scan for live station Press 5.	—

1 KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type
2 Do not leave the cable inside the car when not using.
*3 If thumbs down is selected, the current track is skipped.

Search for a station

1 Press R/
2 Turn the volume knob to select a category, then press the knob.
3 Turn the volume knob to the desired station, then press the knob. When a city list appears, you can skip cities in alphabetical order.

To cancel, press and hold 9/5

(or using RC-406)

Press / to search for a station, then press ENT

Skip cities by alphabetical order

While a city list appears during search...

1 Turn the volume knob quickly to enter character search.
2 Turn the volume knob or press / to select the character to be searched for.

3 Press / to move to the previous/next page.

4 Press the volume knob to start searching.

To cancel, press and hold R/5

Delete a station

While listening to IHEARTRADIO...
1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [STATION DEL], then press the knob.
4 Turn the volume knob to select [ LIVE] or [CUSTOM], then press the knob.
5 Turn the volume knob to select the desired station to delete, then press the knob.
6 Turn the volume knob to select [ YES], then press the knob.
7 Press and hold to ext.

To return to the previous setting item, press

SiriusXM® Radio

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

Preparation:

1 Connect the optional SiriusXM Vehicle Tuner (commercially available).

2 Check your Radio ID for activation.

The SiriusXM Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its' packaging.

The Radio ID does not include the letters I, O, S or F.

3 Activate the subscription.

For users in U.S.A.:

Online: Go to www.siriusxm.com

Phone: Call 1-866-635-2349

For users in Canada:

Online: Go to www.siriusxm.ca/activatem

Phone: Call 1-877-438-9677

4 Press repeatedly to select SIRIUS XM to start updating.

Start listening

1 Press iteratedly to select SIRIUS XM.
2 Press to select a band.
3 Press .Q/5 "Q" lights up
4 Turn the volume knob to select a category, then press the knob. If "ALL CHANNELS" is selected, all the available channels will be shown.
5 Turn the volume knob to select a channel, then press the knob. (or)

Press / to search for a channel manually.

• Pressing and holding changes the channel rapidly.

If a locked channel or a mature channel is selected, a pass code input screen appears. Enter the pass code to receive the channel. (12)

To change the tuning method for / : Press SEEK.

Each time you press SEEK, the tuning method switches between

"CHANNEL" (manually search for a channel) and "PRESET" (searches for a preset channel of the selected band).

Direct Access Tuning (using RC-406) (except for KMR-D562BT)

1 Press DIRECT to enter Direct Access Tuning.
2 Press the number buttons to enter a channel number.
3 Press Searching.
To cancel, press direct.
- If no operation is done for 10 seconds after step 2, Direct Access Tuning is automatically canceled.

SiriusXM® Radio

SiriusXM Keymode

Press and hold the keymode (channel or replay). (Default: Channel keymode)

"lights up when replay keymode is selected.

When channel keymode is selected...

To On the faceplate On the remote control
Select a channel	Press |▶/▶.	Press |▶/▶ (+).
Change a channel rapidly	Press and hold |▶/▶.	Press and hold |▶/▶ (+).
Store a channel of the current band	Press and hold one of the number buttons (1 to 6).	—
Select a stored channel of the current band	Press one of the number buttons (1 to 6).

When replay keymode is selected...

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Select a track	Press |▶/▶. Press |▶	|▶ (+).
Rewind / Fast-forward	Press and hold |▶/▶. Press and hold |▶/▶ (+).
Go to Live Press 1.

SmartFavorites and TuneStart™

User stored channels (1 to 6) of the current band are recognized as SmartFavorite channels. SiriusXM Vehicle Tuner automatically buffers the broadcast content in the background.

• SmartFavorites feature is available with SXV200 or later SiriusXM tuner models.

When you select a SmartFavorite channel, you can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content.

• Playback starts from the beginning of the song if [TUNE START] is set to [ON] (→12) for most music channels stored as a SmartFavorite.

1 Press one of the number buttons (1 to 6) to select a channel.
2 For operation ( SiriusXM Keymode)

TuneScanTM

You can get a short preview of the songs that you have missed on each of your SmartFavorite music channels or current tuned music channel. Press and hold BAND to start scanning the first 6 seconds of the recorded music contents.

• To listen to the current song, press the volume knob to stop scanning. The unit continues playing the current song.
  To select the previous/next song, press 1 / 2
• To cancel scanning, press and hold the volume knob. Playback returns to the channel before you enter TuneScan.

SiriusXM settings

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SIRIUS XM], then press the knob.
3 Turn the volume knob to make a selection ( 12) , then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press and hold

To return to the previous setting item, press

Default: XX

SiriusXM® Radio

CHANNEL LOCK	To unlock settings: 1 Turn the volume knob to select a number. 2 Press ↓/▶to move to the entry position. 3 Repeat steps and 2 to enter the current pass code. (Initial pass code is 0000.) 4 Press the volume knob to confirm.
CODE SET	1 Turn the volume knob to select a number. 2 Press ↓/▶to move to the entry position. 3 Repeat steps and 2 to enter a new 4-digit pass code. 4 Press the volume knob to confirm. 5 Repeat steps to 4 to reconfirm the pass code. • Make a note of the new pass code to enter channel lock settings from next time.
LOCK SETTING MATURE CH : Selects the SiriusXM-defined lock setting. ; USER DEFINED: Selects the user-defined lock setting. ; OFF: Cancels.
CHANNEL EDIT*1	1 Turn the volume knob to select a category, then press the knob. 2 Turn the volume knob to select a channel you want to lock, then press the knob. “L” appears in front of the channel number. 3 Press and hold to exit.
CHANNEL CLEAR*1	YES: Clears all the locked channels. ; NO Cancels.
TUNE START*2	ON: Selected SmartFavorite channel starts playback from the beginning of the song. ; OFF: Cancels.
SIGNAL LEVEL NO SIGNAL /WEAK/ GOOD STRONG: Shows the strength of the current received signal.
BUFFER USAGE 0%	—100% (0): Shows the memory usage for Replay buffer.
SXM RESET YES	: Resets stored channel and lock setting to default. ; NO: Cancels.

^1 Displayed only when [USER DEFINED] is selected.
2 Available only if the connected SiriusXM Vehical Tuner is SXV200 or later that supports SmartFavorites.

AUX

Preparation:

Select [ON] for [BUILT-IN AUX. ( 4)

Start listening

1 Connect a portable audio player (commercially available).

3.5 mm (1 / 8^ ) stereo mini plug with "L"

shaped connector (commercially available)

2 Press repeatedly to select AUX.
3 Turn on the portable audio player and start playback.

Set the AUX name

While listening to a portable audio player connected to the unit...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [SYSTEM], then press the knob.
3 Turn the volume knob to select [ AUX NAME SET], then press the knob.
4 Turn the volume knob to make a selection, then press the knob. AUX (default)/DVD/ PORTABLE/GAME/VIDEO/TV
5 Press and hold Q etit.
To return to the previous setting item, press /

BLUETOOTH®

BLUETOOTH - Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Serial Port Profile (SPP)
  Phonebook Access Profile (PBAP)
• Advanced Audio Distribution Profile (A2DP)
  Audio/Video Remote Control Profile (AVRCP)

Supported Bluetooth codes

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)
• aptX Codec (aptX)

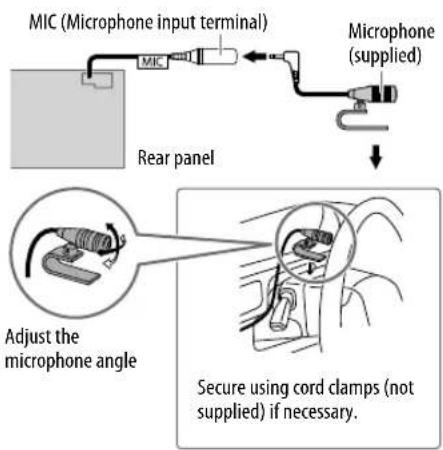

Connect the microphone

Pair a Bluetooth device

When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device.

1 Press to on the unit.
2 Search and select this unit model name (KDC-X5 / KDC-BT5**U/KMR-D5**BT) on the Bluetooth device.

"PAIRING" "PASS XXXXXX" Device name PRESS"VOLUME KNOB" scrolls on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.
  Refer also to the manual supplied with your Bluetooth device.

3 Press the volume knob to start pairing.

"PAIRING OK" appears when pairing is completed and " " will light up when the Bluetooth connection is established.

• Up to five devices can be registered (paired) in total.
• Only one Bluetooth device can be connected at any time.
• This unit supports Secure Simple Pairing (SSP).
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.
• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 17, [DEVICE DELETE].
• When you connect iPhone/iPod touch/Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name.

Automatic pairing request is activated only if:

• Bluetooth function of the connected devcie is turned on.
• [AUTO PAIRING] is set to [ON]. (→ 17)
• KENWOOD MUSIC PLAY application is installed on the Android device.

BLUETOOTH

BLUETOOTH - Mobile phone

Receive a call

When there is an incoming call:
- All the buttons and display flash.
- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (→ 15)
During a call:
- The buttons and display illuminate according to the settings made for [DISPLAY]. (→ 20)
- If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected.

To On the faceplate On the remote control
Answer a call	Press or the volume knob or one of the number buttons (1 to 6).	Press
Reject a call	Press SRC.	Press
End a call	Press or SRC	Press
Adjust the phone volume [00] to [35] (Default: [15]*)	Turn the volume knob during a call. ·This adjustment will not affect the volume of the other sources.	—
Switch between hands-free and private talk modes	Press during a call. ·Operations may vary according to the connected Bluetooth device.	—

• Not applicable for iPhone. During a call, the unit synchronizes the phone volume on the iPhone to the unit.

Improve the voice quality

While talking on the phone...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected or activated.
4 Press and hold to exist.

To return to the previous setting item, press Q/

Default: XX

MIC GAIN -10	\( + {10}\left( {-4}\right) \) : The sensitivity of the microphone increases as the number increased.
NR LEVEL -5	\( + 5\left( 0\right) \) : Adjust the noise reduction level until the least noise is being heard during a phone conversation.
ECHO CANCEL -5	\( + 5\left( 0\right) \) : Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

BLUETOOTH

Make the settings for receiving a call

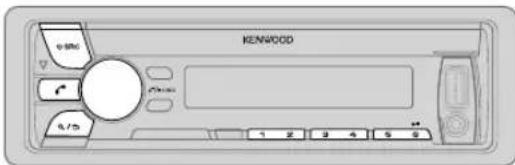

1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired Item is selected or activated.
4 Press and hold

To return to the previous setting item, press

Default: XX

SETTINGS

AUTO ANSWER 1-30 The unit answers incoming call automatically in the selected time (in seconds). ; OFE: Cancels.

BATT/SIGNAL AUTO :Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected. ; OFF: Cancels. Clock time is shown.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

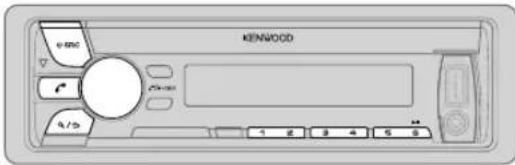

1 Press to enter Bluetooth mode.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

4 Press and hold

To return to the previous setting item, press

CALL HISTORY

1 Press the volume knob to select a name or a phone number. ·“INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part of the display to indicate the previous call status. ·PreDISP SCRL to change the display category (NUMBER or NAME). ·“NO DATA” appears if there is no recorded call history. 2 Press the volume knob to call.

PHONE BOOK

1 Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJK) appears. ·To go to the other menu (LMNOPQRSTUV or WXYZ1 *) , press▲/▼. ·To select the desired first letter, turn the volume knob or press ↓←/▶→, then press the knob. Select “1” to search with numbers and select “*” to search with symbols. 2 Turn the volume knob to select a name, then press the knob. 3 Turn the volume knob to select a phone number, then press the knob to call. ·If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing. ·Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL ·This unit can display only non-accent letters. (Accent letters such as “U” is shown as “U.”)

BLUETOOTH

NUMBER DIAL

1 Turn the volume knob to select a number (0 to 9) or character (, #, +) .
2 Press to move the entry position. Repeat steps 1 and 2 until you finish entering the phone number.
3 Press the volume knob to call. (or using RC-406)
1 Press the number buttons ( 0 to 9) to enter the phone number.
2 Press to call.

VOICE

Speak the name of the contact you want to call or the voice command to control the phone functions. (Make a call using voice recognition)

BATT*

LOW/ MID/FULL: Shows the strength of the battery.

SIGNAL*

NO SIGNAL/ LOW/MID/MAX: Shows the strength of the current received signal.

• Functionality depends on the type of the phone used.

Make a call using voice recognition

1 Press and hold to activate the connected phone.
2 Speak the name of the contact you want to call or the voice command to control the phone functions.
- Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
- This unit also supports the intelligent personal assistant function of iPhone.

Delete a contact

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], then press the knob.
3 Turn the volume knob to select a contact.
4 Press and hold the volume knob to enter delete mode.
5 Turn the volume knob to select [DELETE ONE] or [DELETE ALL], then press the knob. DELETE ONE: Selected name or phone number in step 3 is deleted. DELETE ALL: All names or phone numbers in [CALL HISTORY] in step 2 is deleted.
6 Turn the volume knob to select [ YES], then press the knob.
7 Press and hold to exit.
To return to the previous setting item, press R/
- Not applicable for mobile phone that supports PBAP.

Settings in memory

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [CALL HISTORY], [PHONE BOOK], or [NUMBER DIAL], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6). "STORED" appears when the contact is stored.

To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.

"NO MEMORY" appears if there is no contacts stored.

BLUETOOTH

Other settings

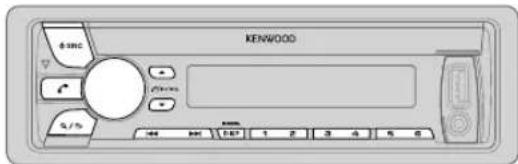

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold eit.

To return to the previous setting item, press

Default: XX

BT MODE

PHONE SELECT	Selects the phone or audio device to connect or disconnect. “*” appears in front of the device name when connected.
AUDIO SELECT	·You can only connect another Bluetooth device by disconnecting the connected Bluetooth device first. “*” disappears when disconnected.
DEVICE DELETE	1 Turn the volume knob to select a device to delete, then press the knob. 2 Turn the volume knob to select [YES] or [NO], then press the knob.
PIN CODE EDIT (0000)	Changes the PIN code (up to 6 digits). 1 Turn the volume knob to select a number. 2 Press ↓/→to move the entry position. Repeat steps and 2 until you finish entering the PIN code. 3 Press the volume knob to confirm.
RECONNECT ON	: The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF: Cancels.
AUTO PAIRING ON	: The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.; OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.); NO Cancels.

Bluetooth test mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.
  1 Press and hold

"PLEASE PAIR YOUR PHONE PIN 0000" appears.

2 Search and select this unit model name (KDC-X5/ KDC-BT5U/ KMR-D5**BT) on the Bluetooth device.
3 Operate the Bluetooth device to confirm pairing.

"TESTING" flashes on the display.

The connectivity result (OK or NG) appears after the test.

PAIRING: Pairing status
HF CNT: Hands-Free Profile (HFP) compatibility
AUD CNT: Advanced Audio Distribution Profile (A2DP) compatibility
PB DL: Phonebook Access profile (PBAP) compatibility

To cancel test mode, press and hold SRC to turn off the unit.

BLUETOOTH

BLUETOOTH - Audio

Audio player via Bluetooth

1 Press iteratedly to select BT AUDIO (or press SRC on RC-406).
2 Operate the Bluetooth audio player to start playback.

To On the faceplate On the remote control
Playback / pause	Press 6▶II. Press	ENT▶II.
Select group or folder	Press ▲/▼.	Press #FM+ / #AM-
Reverse / Forward skip	Press |←/ ▷▶. Press |←/	▶▶ (+).
Reverse / Fast-forward	Press and hold |←/ ▷▶. Press and hold |←/ ▷▶ (+).
Repeat play Press	4▶ repeatedly. ALL REPEAT, FILE REPEAT, REPEAT OFF	—
Random play Press	3▶ repeatedly. FOLDER RANDOM, RANDOM OFF	—
	Press and hold 30▶select ALL RANDOM

Operations and display indications may differ according to their availability on the connected device.

Internet radio via Bluetooth

Listen to Pandora

Preparation:

Select [ON] for [PANDORA SRC]. (一 4)

You can listen to Pandora on your smart phone

Android OS) through Bluetooth on this unit.

1 Open the Pandora application on your device.
2 Connect your Bluetooth audio player via Bluetooth connection. (→ 13)
3 Press repeatedly to select PANDORA.

The source switches and broadcast starts automatically.

You can operate Pandora in the same way as Pandora for iPod/iPhone. (▶ 8)

Listen to iHeartRadio

Preparation:

Select [ON] for [IHEART SRC]. (→ 4)

You can listen to iHeartRadio on your smart phone

Android OS) through Bluetooth on this unit.

1 Open the iHeart Link application on your smart phone.
2 Connect your smart phone via Bluetooth connection. (→13)
3 Press repeatedly to select IHEARTRADIO.

The source switches and broadcast starts automatically.

You can operate iHeartRadio in the same way as iHeartRadio for iPod/iPhone. (一 9)

AUDIO SETTINGS

While listening to any source...

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [AUDIO CONTROL], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated.
5 Press and hold

or using RC-406)

1 Press AUD to enter [AUDIO CONTROL].
2 Press / to make a selection, then press ENT

To return to the previous setting item, press a/b.

Default: XX

SUB-W LEVEL -15 to +15 (0) Adjusts the subwoofer output level.

For KOC-X599:

BAND1 LEVEL -8 to +8 (±6)

BAND2 LEVEL -8 to +8 (±6)

BAND3 LEVEL -8 to +8 (+7)

BAND4 LEVEL -8 to +8 (+3)

BAND5 LEVEL -8 to +8 (0)

For KOC-BT562U / KMR-D562BT

BASS LEVEL -8 to +8 (±6)

MID LEVEL -8 to +8 (+5)

TRE LEVEL -8 to +8 (0)

EQ PRO (for KOC-3T562U KMR-D562BT

BASS ADJUST BASS CTR FRQ 60HZ /80HZ/100HZ/200HZ: Selects the center frequency.

BASS LEVEL -8 to +8 (+6): Adjusts the level.

BASS Q FACTOR 1.00 /1.25/ 1.50/ 2.00: Adjusts the quality factor.

BASS EXTEND ON : Turns on the extended bass.; OFF: Cancels.

MID ADJUST MID CTR FRQ 0.5KHZ/ 1.0KHZ/ 1.5KHZ/ 2.5KHZ: Selects the center frequency.

MID LEVEL -8 to +8 (+5): Adjusts the level.

MID Q FACTOR 0.75 /1.00/ 1.25: Adjusts the quality factor.

TRE ADJUST TRE CTR FRQ 10.0KHZ/12.5KHZ/ 15.0KHZ/ 17.5KHZ: Selects the center frequency.

TRE LEVEL -8 to +8 (0): Adjusts the level.

PRESET EQ DRIVE EQ/ TOP40/ POWERFUL/ROCK/POPS/ EASY/JAZZ/NATURAL/ USER: Selects a preset equalizer suitable to the music genre. (Select [USER] to use the customized settings.) [DRIVE EQ] is a preset equalizer that reduces noise outside the car or running noise of the tyres.

BASS BOOST LEVEL1/ LEVEL2/LEVEL3: Selects your preferred bass boost level.; OFF: Cancels.

LOUDNESS LEVEL1/ LEVEL2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF: Cancels.

For KOC-X599 :

EXTRA EQ LEVEL1/ LEVEL2/LEVEL3: Selects your preferred elevation level to enhance the sound in [PRESET EQ]. ; OFF: Cancels.

SUBWOOFER SET ON : Turns on the subwoofer output. ; OFF: Cancels.

AUDIO SETTINGS

LPF SUBWOOFER THROUGH : All signals are sent to the subwoofer. ; 85HZ/ 120HZ/ 160HZ: Audio signals with frequencies lower than \( {85}\mathrm{\;{Hz}}/{120}\mathrm{\;{Hz}}/ \) 160 Hz are sent to the subwoofer.

SUB-W PHASE REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER].)

HPF THROUGH : All signals are sent to the speakers.; 100HZ/120HZ/ 150HZ: Audio signals with frequencies higher than \( {100}\mathrm{\;{Hz}}/{120}\mathrm{\;{Hz}}/ \) 150 Hz are sent to the speakers.

FADER R15 toF15 (0): Adjusts the rear and front speaker output balance.

BALANCE L15 toR15 (0): Adjusts the left and right speaker output balance.

VOLUME OFFSET For AUX: -8 to +8 (0); For other sources: -8 to 0 Presets the volume adjustment level of each source. (Before adjustment, select the source you want to adjust.)

SOUND RECNSTR ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.

SUB-W LEVEL]/[LPF SUBWOOFER]/[SUB-W PHASE] is selectable only if SUBWOOFER SET] is set to [ON].

DISPLAY SETTINGS

1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [DISPLAY], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item.

5 Press and hold ext.

To return to the previous setting item, press

Default: XX

COLOR SELECT VARIABLE SCAN / CUSTOM R/G/B/ preset colors*: Selects your preferred key and display illumination color.

You can create your own color (when [CUSTOM R/G/B] or preset colors* is selected). The color you have created can be stored in [CUSTOM R/G/B].1 Press and hold the volume knob to enter the detailed color adjustment.2 Press ↑/▶ to select the color (R/ G/B) to adjust.3 Turn the volume knob to adjust the level (0 — 9), then press the knob.

DIMMER ON : Dims the display and button illumination. ; QEE: Cancels.

BRIGHTNESS 0 — 31: Selects your preferred brightness level for display and button illumination.

TEXT SCROLL AUTO / ONCE: Selects whether to scroll the display information automatically, or scroll only once. ; OFF: Cancels.

* Preset colors:RED1/ RED2/RED3/ PURPLE1/PURPLE2/PURPLE3/PURPLE4/ BLUE1/ BLUE2/ BLUE3/ SKYBLUE1/ SKYBLUE2/LIGHTBLUE/AQUA1/AQUA2/GREEN1/ GREEN2/ GREEN3/YELLOWGREEN1/YELLOWGREEN2/YELLOW/ORANGE1/ORANGE2/ ORANGERED

MORE INFORMATION

General

This unit can only play the following CDs:

• Detailed information and notes about the playable audio files are stated in an online manual on the following web site: www.kenwood.com/cs/ce/audiofile/

Playable files

• Playable audio file: MP3 (.mp3), WMA (.wma), AAC (.m4a)
• Playable disc media: CD-R/CD-RW/CD-ROM
• Playable disc file format: ISO 9660 Level 1/2 , Joliet, Long file name.
• Playable USB device file system: FAT12, FAT16, FAT32
  Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device.

Unplayable discs

• Discs that are not round.
• Discs with coloring on the recording surface or discs that are dirty.
• Recordable/ReWritable discs that have not been finalized.
• 8 cm CD. Attempting to insert using an adapter may cause malfunction.

About USB devices

This unit can play MP3/WMA/AAC/WAV files stored on a USB mass storage class device.
- You cannot connect a USB device via a USB hub.
- Connecting a cable whose total length is longer than 5m may result in abnormal playback.
- This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About KENWOOD Music Editor Light and KENWOOD Music Control

• This unit supports the PC application KENWOOD Music Editor Light and Android™ application KENWOOD Music Control.
• When you play audio files with song data added using the KENWOOD Music Editor Light or KENWOOD Music Control, you can search for audio files by Genres, Artists, Albums, Playlists, and Songs.
• KENWOOD Music Editor Light and KENWOOD Music Control are available on the following web site: www.kenwood.com/cs/ce/

About iPod/Phone

Made for
- iPod touch (2nd, 3rd, 4th, and 5th generation)
- iPod classic
- iPod nano (3rd, 4th, 5th, 6th, and 7th generation)
iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C
- For the latest compatible list and software versions of iPhone/iPod, see: www.kenwood.com/cs/ce/ipod
- You cannot operate iPod if "KENWOOD" or "√" is displayed on iPod.

About Android device

• This unit supports Android OS 4.1 and above.
• Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (A0A) 2.0.
• If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.
  For more information and the latest compatible list, see: www.kenwood.com/cs/ce/

About Pandora

• Pandora is available only in the U.S., Australia and New Zealand.
• Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired, or some or all of the services may become unavailable.
• Some functions of Pandora cannot be operated from this unit.
• For issues using the application, please contact Pandora at [e-mail].

About iHeartRadio

• iHeartRadio is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some iHeartRadio® functionality cannot be operated from this unit.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
• Signal conditions vary, depending on the surroundings.
  For more information about Bluetooth, visit the following website: www.kenwood.com/cs/ce/

TROUBLESHOOTING

Symptom Remedy

General	Sound cannot be heard.	·Adjust the volume to the optimum level. ·Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	·Sound cannot be heard. ·The unit does not turn on. ·Information shown on the display is incorrect.	Clean the connectors. (→2)
	The unit does not work at all. Reset the unit. (→3)
Radio	·Radio reception is poor. ·Static noise while listening to the radio.	·Connect the antenna firmly. ·Pull the antenna out all the way.
CD/USB/ipod	Disc cannot be ejected.	Press and hold▲to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. (→3)
	Noise is generated. Skip to another track or change the disc.
	Tracks do not play back as you intended them to play.	Playback order is determined when files are recorded.
	"READING" keeps flashing. Do not use too many hierarchical levels or folders.
	Elapsed playing time is not correct.	This is caused by how the tracks are recorded.
	Correct characters are not displayed (e.g. album name).	This unit can only display uppercase letters, numbers, and a limited number of symbols.
	"NA FILE" Make sure the disc contains supported audio files. (→21)

Symptom Remedy

CD/USB/IPod	“NO DISC” Insert a playable disc into the loading slot.
	“TOC ERROR” Make sure the disc is clean and inserted properly.
	“PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center.
	“READ ERROR” Copy the files and folders onto the USB device again. If this does not solve the problem, reset the USB device or use another USB device.
	“NO DEVICE” Connect a USB device, and change the source to USB again.
	“COPY PRO” A copy-protected file is played.
	“NA DEVICE” Connect a supported USB device, and check the connections.
	“NO MUSIC” Connect a USB device that contains playable audio files.
	“iPod ERROR” Reconnect the iPod. Reset the iPod.
Android	• Sound cannot be heard during playback. • Sound output only from the Android device. • Reconnect the Android device. If in [HAND MODE], launch any media player application on the Android device and start playback. If in [HAND MODE], relaunch the current media player application or use another media player application. Restart the Android device. If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (⇒ 21)
	Cannot playback at [BROWSE MODE]. Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. (⇒ 7) • Reconnect the Android device and make the appropriate setting in [ANDROID SETUP]. (⇒ 7) • If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (⇒ 21)

TROUBLESHOOTING

SymptomRemedy
ANDROID	“NO DEVICE” or “READING” keeps flashing.	• Switch off the developer options on the Android device. • Reconnect the Android device. • If this does not solve the problem, the connected Android device does not support [BROWSE MODE]. (⇒ 21)
	Playback is intermittent or sound skips.	Turn off the power saving mode on the Android device.
	“ANDROID ERROR” / “NA DEVICE”	• Reconnect the Android device. • Restart the Android device.
Pandora	“ADD ERROR” / “SEARCH ERROR”	New station creation is unsuccessful.
	“CHECK DEVICE” Check the Pandora application on your device.
	“NO SKIPS”	The skip limit has been reached.
	“NO STATIONS”	No stations are found.
	“STATION LIMIT” The number of registered stations has reached its limit. Retry after deleting unnecessary stations from your device.
	“CONNECT ERROR”	Communication is unstable.
	“RATING ERROR”	Registration of thumbs up/thumbs down has failed.
	“LICENSE ERROR”	You try to access from a country which Pandora is not deliverable.
iHeartRadio	iHeartRadio station cannot be selected.	If “Explicit Content” in [Account Settings] is checked in the web version of iHeartRADIO, custom stations become unavailable.
	“CANNOT CREATE”	Custom station name creation is unsuccessful.
	“CANNOT SAVE” Addition to the favorite category failed.
	“DISCONNECTED”	Check the connection to the device.
	“NO SKIPS”	The skip limit has been reached. Retry later.

SymptomRemedy
iHeartRadio	“NO STATIONS” No stations are found.
	“NOT CONNECTED” Link to the application is impossible.
	“IHEARTLINK UP” Make sure you have installed the latest version of the iHeart Link for KENWOOD application on your device.
	“PLEASE LOGIN” You haven’t log in. Log in again.
	“STATION NOT AVAILABLE” Broadcast from the station is over.
	“STATION NOT SELECTED” No station is selected.
	“STREAM ERROR” Broadcast data is interrupted.
	“THUMB FAILD” Registration of Thumbs Up/Down has failed.
	“TIMED OUT” The request has resulted in time-out.
SiriusXM® Radio	“CH LOCKED LOCK CODE?” The selected channel is locked. Enter the correct pass code to unlock. (→12)
	“CHAN UNSUB” The selected channel is unsubscribed. Call 1-866-635-2349 in U.S.A. or 1-877-438-9677 in Canada to subscribe. (→10)
	“CH UNAVAIL” The selected channel is unavailable. Visit www.siriusxm.com for more information about the SiriusXM channel lineup.
	“CHECK ANTENNA” Check the antenna and its connection are in good condition.
	“CHECK TUNER” Make sure the SiriusXM Vehicle Tuner is connected to the unit.
	“NO SIGNAL” Make sure the antenna is mounted outside the vehicle.
	“SUBSCRIPTION UPDATE – PRESS ENTER TO CONTINUE.” Your subscription is updated. Press the volume knob to continue.
	“CODE ERROR” Make sure you have entered the correct pass code. (→12)
	“NO CONTENT” There is insufficient content to start TuneScan.
	“SCAN CANCEL” TuneScan has been aborted.

TROUBLESHOOTING

Symptom Remedy

Bluetooth®	No Bluetooth device is detected.	·Search from the Bluetooth device again. ·Reset the unit. (→3)
	Bluetooth pairing cannot be made.	·Make sure you have entered the same PIN code to both the unit and Bluetooth device. ·Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (→13)
	Echo or noise is heard during a phone conversation.	·Adjust the microphone unit's position. (→13) ·Check the [ ECHO CANCEL] setting. (→14)
	Phone sound quality is poor.	·Reduce the distance between the unit and the Bluetooth device. ·Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful.	·Use voice calling method in a more quiet environment. ·Reduce the distance from the microphone when you speak the name. ·Make sure the same voice as the registered voice tag is used.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	·Reduce the distance between the unit and the Bluetooth audio player. ·Turn off, then turn on the unit and try to connect again. ·Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	·Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) ·Disconnect and connect the Bluetooth player again.
	"DEVICE FULL" The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (→17,DEVICE DELETE)
	"N/A VOICE TAG"	Make sure the same voice as the registered voice tag is used.
	"NOT SUPPORT"	The connected phone does not support Voice Recognition feature.
	"NO ENTRY" / "NO PAIR"	There is no registered device connected/found via Bluetooth.
	"ERROR"	Try the operation again. If "ERROR" appears again, check if the device supports the function you have tried.
	"NO INFO"	Bluetooth device cannot get the contact information.
	"HF ERROR XX" / "BT ERROR"	Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center.

SPECIFICATIONS

Tuner	FM Frequency Range 87.9 MHz — 107.9 MHz(200 kHz space)
	Usable Sensitivity(S/N = 26 dB)	8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity(DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response(±3 dB)	30 Hz — 15 kHz
	Signal-to-Noise Ratio(MONO)	64 dB
	Stereo Separation(1 kHz)	40 dB
	AM Frequency Range 530 kHz — 1700 kHz(10 kHz space)
	Usable Sensitivity(S/N = 20 dB)	29 dBμ (28.2 μV)

CD player	Laser Diode GaAlAs
	Digital Filter (D/A) 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz)	0.01 %
	Signal-to-Noise Ratio (1 kHz)	KDC-X599: 110 dB Other models: 105 dB
	Dynamic Range 90 dB
	Channel Separation 85 dB

SPECIFICATIONS

CD player	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC“.m4a” files
USB	USB Standard USB 1.1, USB 2.0 (Full speed)
	File System FAT12/16/32
	Maximum Supply Current DC 5 V ——1 A
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode AAC-LC“.m4a” files
	WAV Decode Linear-PCM
Bluetooth	Version Bluetooth Ver.2.1+EDR / Bluetooth 3.0
	Frequency Range 2.402 GHz ——2.480 GHz
	Output Power +4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range Line of sight approx. 10 m (32.8 ft)
	Profile HFP (Hands-Free Profile)
	SPP (Serial Port Profile)
	PBAP (Phonebook Access Profile)
	A2DP (Advanced Audio Distribution Profile)
	AVRCP (Audio/Video Remote Control Profile)
Auxiliary	Frequency Response (±3 dB) 20 Hz ——20 kHz
	Input Maximum Voltage 1000 mV
	Input Impedance 30 kΩ

Audio	Maximum Output Power	50 W × 4
	Full Bandwidth Power(at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Tone Action	KOC-X599:Band 1: 100 Hz ±8 dBBand 2: 315 Hz ±8 dBBand 3: 1 kHz ±8 dBBand 4: 4 kHz ±8 dBBand 5: 12.5 kHz ±8 dBOther models:Bass: 200 Hz ±8 dBMiddle: 2.5 kHz ±8 dBTreble: 12.5 kHz ±8 dB
	Preout Level/Load (CD)	KOC-X599: 4 000 mV/10 kΩOther models: 2 500 mV/10 kΩ
	Preout Impedance	≤600 Ω
General	Operating Voltage	14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption	10 A
	Operational Temperature Range	0°C — +40°C
	Installation Size (W × H × D)	182 mm × 53 mm × 159 mm(7-3/16" × 2-1/16" × 6-1/4")
	Weight	1.3 kg (2.87 lbs)

Subject to change without notice.

Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
• Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Mount the unit at an angle of less than 30^ .

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.
  After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
  If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.
2 Connect the wires properly.

See Wiring connection. (→27)
3 Install the unit to your car.

See Installing the unit (in-dash mounting).
4 Connect the terminal of the car battery.
5 Reset the unit. (→3)

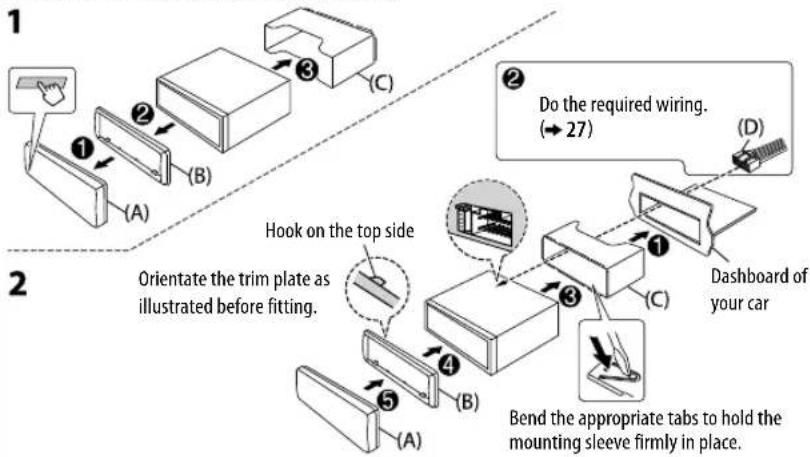

Installing the unit (in-dash mounting)

When installing without the mounting sleeve

1 Remove the mounting sleeve and trim plate from the unit.
2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).
Use only the specified screws. Using wrong screws might damage the unit.

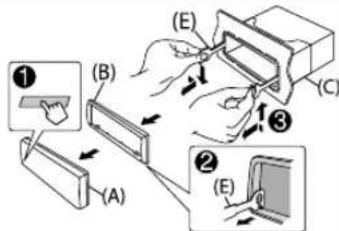

How to remove the unit

1 Detach the faceplate.

2 Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.
3 Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the right.

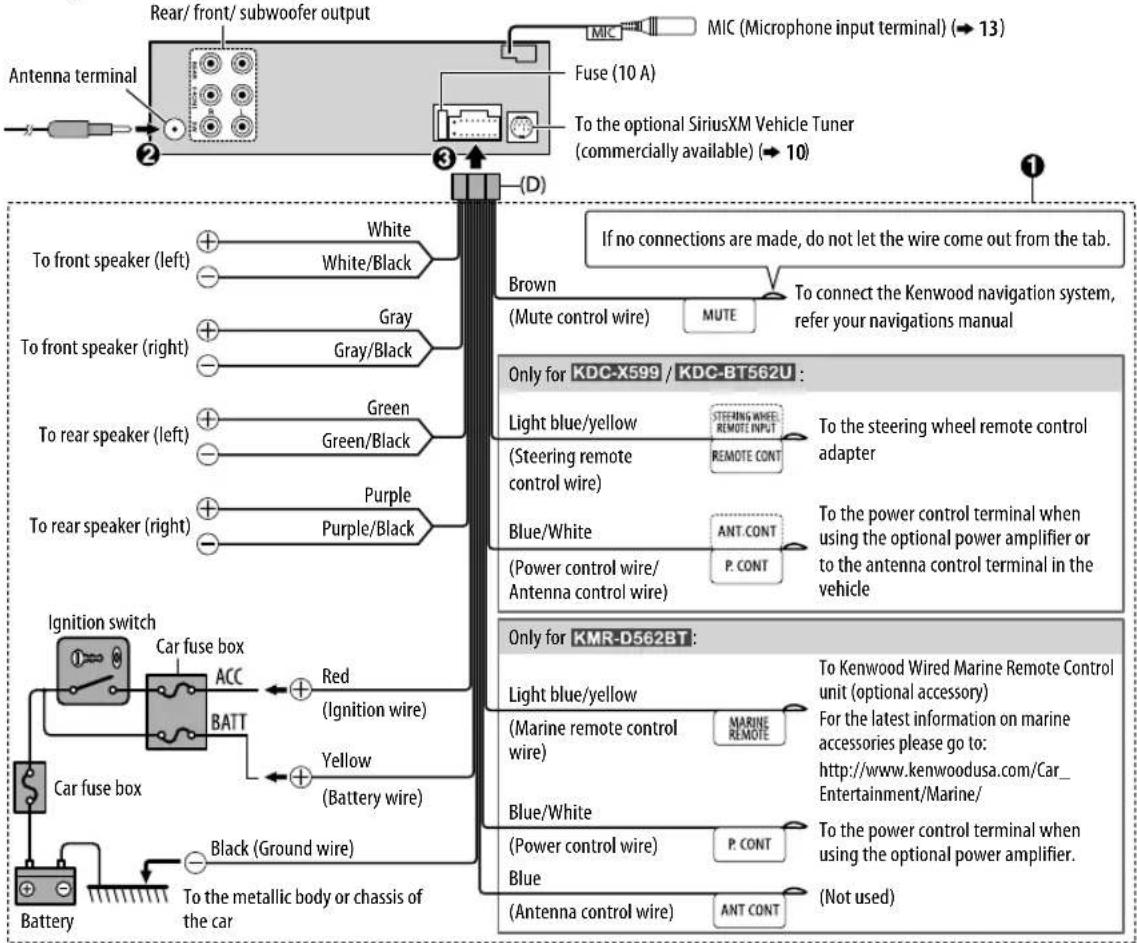

Wiring connection

Part list for installation

When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.

(A) Faceplate

(B) Trim plate

(C) Mounting sleeve

(D) Wiring harness

(E) Extraction key

TABLE DES MATIERES

AVANT L'UTILISATION

AVANT L'UTILISATION 2
FONCTIONNEMENT DE BASE 3
PRISE EN MAIN 4
RADIO 5
CD/USB/iPod/Android 6
Pandora 8
iHeartRadio 9
Radio SiriusXM 10
AUX 12
BLUETOOTH 13
RéGLAGES AUDIO 19
RéGLAGES D'AFFICHAGE 20
PLUS D'INFORMATIONS 21
GUIDE DE DÉPANNAGE 22
SPECIFICATIONS 24
INSTALLATION /
RACCORDEMENT 26

BLUETOOTH — Telephone portable

Comment retiree I'appareil

Listedespiecespour I'installation
(A) Facade

CD/USB/iPod/Android 6

Pandora 8

iHeartRadio 9

Radio SiriusXM 10

AUX 12

BLUETOOTH 13

AJUSTES DE AUDIO 19

• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
  iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  Lightning is a trademark of Apple Inc.
  Pandora, the Pandora logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
  iHeartRadio is a registered mark of Clear Channel Broadcasting, Inc. in the United States and other countries. Such marks are used under license.
  Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
  The "AAC" logo is a trademark of Dolby Laboratories.
  Android is trademark of Google Inc.
  The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
  © 2013 CSR plc and its group companies. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.
