050ACTWFLK - Garage door LIFT-MASTER - Free user manual and instructions

Product Type	Garage door opener with backup battery and myQ connectivity
Brand	Lift-Master
Model	050ACTWFLK (replaces 050ACTWF and 050ACTWFLK)
Power Supply	AC (120 V) and integrated backup battery
Motor	DC motor with backup battery
Main Functions	Automatic open/close, travel programming, safety reverse, Protector(r) system, remote control, and door control
Connectivity	Built-in Wi-Fi for myQ app, remote control programming via Learn button
Safety	Safety reverse system (monthly test required), obstruction detectors, automatic lock
Spare Parts	Receiver logic board (ref. 041DG210-1), antenna, end panel, lens
Repairability	Replacement of the receiver logic board possible by user (follow instructions)
Maintenance	Check the safety reverse system monthly, clean the lens with a soft, dry cloth
General Information	Warranty maintained if provided label affixed to the end panel, myQ certified product

Frequently Asked Questions - 050ACTWFLK LIFT-MASTER

How to program a remote control on the Lift-Master 050ACTWFLK garage door opener?

Press and release the Learn button on the opener. The indicator light turns on for 30 seconds. Within this time, press and release the remote control button. Release when the opener light flashes or two clicks are heard.

How to adjust the travel limits of the door?

Hold down the adjustment button until the UP button flashes. Use the UP and DOWN buttons to move the door to the desired position. Press the adjustment button to confirm each position. The lights flash twice at each step. If the lights flash 5 times, the time has expired; if they flash 10 times, the sensors are misaligned.

How to test the safety reverse system?

Place a 1.5-inch (3.8 cm) thick board centered under the open door. Close the door with the remote. The door MUST reverse upon contact with the board. If it stops without reversing, increase the close travel limit and repeat the test. Perform this test monthly.

How to change the receiver logic board?

Disconnect the AC power and battery. Remove the lens, disconnect wires and harnesses, remove screws and fasteners to remove the old board. Install the new board by connecting the harnesses (tabs toward the end panel), insert the antenna wires, secure with screws, reconnect the wires (white to white, white/red to red, etc.) and replace the lens.

What to do if the lights flash 10 times during travel adjustment?

This indicates that the safety reversing sensors are misaligned or obstructed. Align the sensors (the LEDs must be on) and clear any obstruction. Then perform a full open/close cycle with the remote or the UP/DOWN buttons. If the door does not move, repeat the travel programming.

Can I use the opener without the backup battery?

Yes, the opener operates on AC power. The backup battery serves in case of power outage. If the battery is discharged, the opener will operate normally as long as AC power is present. For optimal use, keep the battery charged.

How to connect the opener to Wi-Fi and the myQ app?

After installing the new logic board, use the provided myQ serial number to add the opener to your myQ account. Follow the instructions in the myQ manual to program the Wi-Fi signal. The Learn button also allows you to configure the connection.

Why does the door control not sync with the opener?

Press the push bar of the door control until the opener activates (this may take up to 3 presses). Then, each press should activate the opener. If the problem persists, check the connections or replace the battery in the door control.

What are the dangers associated with improper installation of the reverse system?

Without a functioning reverse system, the door may not reverse upon encountering an obstacle, risking serious injury or death to people, especially children. It is essential to test the system monthly and verify that the door reverses upon contact with a 1.5-inch high object.

Where to find the replacement receiver logic board?

The replacement receiver logic board is referenced under part number 041DG210-1. You can order it from your authorized dealer or from Lift-Master customer service. Make sure to use the provided label to maintain the warranty.

USER MANUAL 050ACTWFLK LIFT-MASTER

RECEIVER LOGIC BOARD REPLACEMENT

Models 050ACTBMC and 050ACTBLKMC

Replaces 050ACTWF and 050ACTWFLK

Installation

1 Before you begin

Your garage door opener has an internal gateway located on the receiver logic board. After installing the new receiver logic board, use the myQ ^® serial number found on the provided label to add your garage door opener to your myQ account. The products illustrated in the instructions are for reference. Your product may look different.

WARNING

To prevent possible SERIOUS INJURY or DEATH:

- Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.

CAUTION

To prevent damage to the receiver/logic board, DO NOT touch printed circuit board of replacement receiver/logic board during installation.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

1.1 Remove the light lens by pulling the top sides of the light lens and rotate the light lens down. Squeeze the light lens clips to remove lens from end panel.

Line drawing of a camera with a curved arrow indicating rotation (no text or symbols)

1.2 To maintain your warranty, place the provided label over the existing label on the end panel of the garage door opener.

Technical diagram of a camera with accompanying control panel interface in Chinese

1.3 Disconnect power to the garage door opener.

S-3

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

2 Remove the receiver logic board

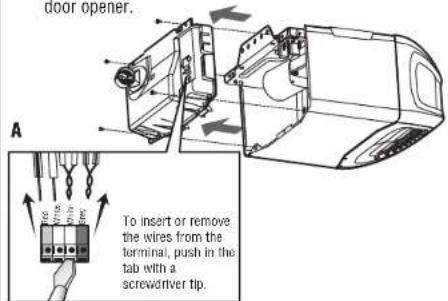

2.1 Disconnect the wires from the quick-connect terminals (A) Remove the receiver logic board end panel from the garage door opener.

door opener. A To insert or remove the wires from the terminal, push in the tab with a screwdriver tip.

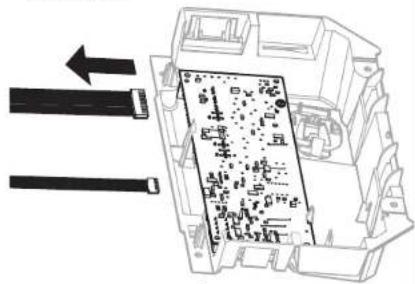

2.2 Unplug the wire harnesses from the receiver logic board. You may need needle-nosed pliers to remove the harnesses.

Diagram of an electronic circuit board with arrows indicating direction (no text or symbols present)

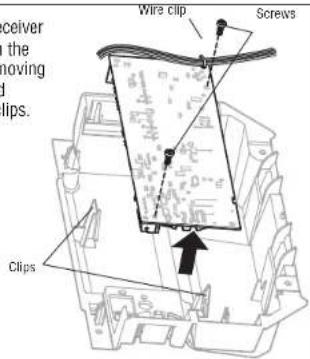

2.3 Remove the receiver logic board from the end panel by removing the 2 screws and releasing the 2 clips.

Wire clip Screws Clips

3 Install new receiver logic board

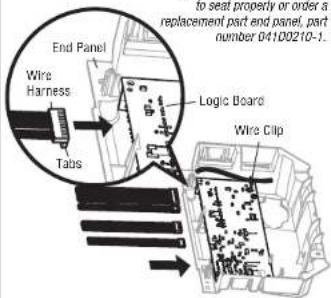

3.1 Connect the wire harnesses to the

new receiver logic board. When reconnecting the wire harness, be sure the tabs on the wire harness are facing the end panel, not the logic board.

NOTE: If you have model

8365W-267 or 8365WRGD-267,

remove the plastic post off the

end panel for the logic board

to seat properly or order a

replacement part end panel, part

number 04100210-1.

End Panel Wire Harness Tabs Logic Board Wire Clip to seat property or order a replacement part end panel, part number 041D0210-1.

3.2 Insert the antenna wires through

the holes in the end panel. Snap the receiver logic board into place on the end panel and fasten with screws.

Antenna wires

Reconnect the end panel to the garage door opener.

NOTE: Some models

will require the short

antenna wire to be

placed in the traps of

the end panel.

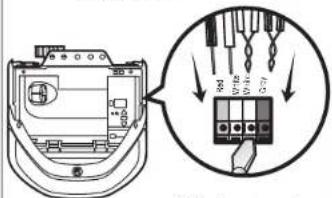

3.3 Reinsert the wires.

Door control wires:

- white wire into the white terminal.

- white/red wire into the red terminal.

Safety sensor wires:

- white wires into the white terminal.

- white/black wires into the

grey terminal.

Diagram showing a device with labeled components and a magnified view of its internal structure, likely illustrating a component assembly or inspection.

To insert or remove the

wires from the terminal,

push in the tab

screwdriver tip

3.4 Install the light lens by aligning with

the hinges and snapping into place.

Reconnect power.

Line drawing of a camera with an arrow indicating rotation (no text or symbols)

NOTE: When installing the light lens, ensure the antenna

wires are hanging straight down.

NOTE: A test of the safety reverse system is necessary for safe operation.

Programming

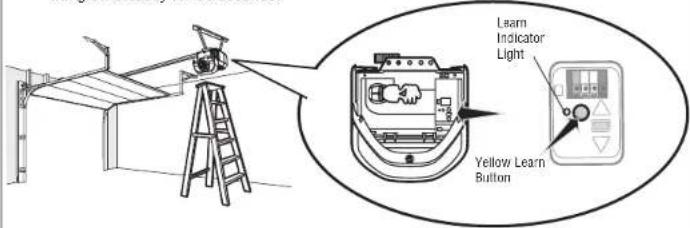

1 Program a remote control using the learn button

1.1 Press and release the Learn button on the garage door opener. The Learn indicator light will glow steadily for 30 seconds.

Learn Indicator Light Yellow Learn Button

1.2 Within 30 seconds, press and hold the button on the remote control.

1.3 Release the button when the garage door opener light blinks. It has learned the code. If light bulbs are not installed, two clicks will be heard.

Illustration of two hands holding a small electronic device and a close-up of its internal components (no text or symbols visible)

To program the Wi-Fi garage door opener to your network refer to your owner's manual.

Adjustment

1

Program the travel

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.
  •AfterANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor

While programming the travel, the UP and DOWN buttons can be used to move the door as needed. The Safety Reversing Sensors will be disconnected during the Program the Travel process. During the Automatic Force Setup the door will automatically open and close.

1.1 Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is heard.

The Safety Reversing Sensors will be disconnected during the Program the Travel process.

1.2 Press and hold the UP Button until the door is in the desired UP position.

1.3 Once the door is in the desired UP position press and release the Adjustment Button. The garage door opener lights will flash twice and the DOWN Button will begin to flash.

1.4 Press and hold the DOWN button until the door is in the desired DOWN position.

1.5 Once the door is in the desired DOWN position press and release the Adjustment Button. The garage door opener lights will flash twice. Program the Travel is now complete. If the garage door opener lights flash 5 times, then programming has timed out and the Travel Limits have not been set. Please restart the Program the Travel process.

1.6 Add the Step Saver sticker under the yellow program button.

2

Automatic Force Set Up

Once both the up and down positions have been manually set, the Safety Reversing Sensors will reconnect and become operational. Then, the opener will enter a force-sensing operation by automatically moving the door open and close. The garage door opener will sound an audible and visual alert before automatically opening and closing the door. The garage door opener will beep three times, confirming that the Automatic Force Setup completed successfully. Adjustment is complete.

If you hear one long beep after the door attempts to move, then the Automatic Force Set Up has not completed successfully. Please start over at step 1 of Program the Travel..

Test the Safety Reversal System

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on the floor.

3.1 With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

Line drawing of a two-story house with a garage and roof, no text or symbols present

3.2 Press the remote control push button to close the door. The door MUST reverse when it makes contact with the board.

Illustration of a hand holding a small car with a house in front (no text or symbols)

If the door stops but does not reverse:

1. Repeat Program the Travel (see Adjustment Step 1);
2. Repeat the Safety Reversal test. If the test continues to fail, call a trained door systems technician.

Test the Protector System®

WARNING

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

4.1 Open the door. Place an obstruction in the path of the door.

Line drawing of a two-story house with a garage and parked door (no text or symbols)

4.2 Pressthe remote control push button to close the door. The door will not move more than an inch (2.5 cm).

Line drawing of a hand holding a small car near a house (no text or symbols)

The garage door opener will not close from a remote control if the LED in either safety reversing sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the garage door opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6 inches [15 cm] above the floor), call for a trained door systems technician.

REMPLACEMENT DE LA CARTE LOGIQUE

Line drawing of a digital camera with a curved blade and lens, no text or symbols present

Technical diagram of a digital camera with labeled components and a control panel interface in Chinese

Diagram of a device interior with arrows indicating directional flow, showing internal components and wiring (no text or symbols)

R-0.021 R-0.022 R-0.023 R-0.024 R-0.025 Circuit Panel 1 Circuit Panel 2

Line drawing of a digital camera with an arrow indicating rotation (no text or symbols)

Illustration of a hand interacting with a control panel and a house-shaped door (no text or symbols)

Illustration of a hand interacting with an electrical control panel and a house with a downward arrow (no text or symbols)

Illustration showing a hand interacting with a control panel and a warehouse interior (no text or symbols)

Illustration of a hand holding an electronic device next to a simple house outline (no text or symbols)

Line drawing of a two-story house with a garage and parked door (no text or symbols)

Line drawing of a hand holding a car with a door, next to a house (no text or symbols)

Simple line drawing of a two-story house with a garage and parked space (no text or symbols)

Line drawing of a camera module with a curved arrow indicating rotation (no text or symbols)

Technical diagram of a camera with labeled components and warning signs in Chinese

Diagram of an electronic component with wires and a circuit board, no visible text or symbols

terminal grids. Pac Gm Mn Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc Pc

Line drawing of a camera with an arrow indicating rotation (no text or symbols)

Illustration of a hand interacting with a device and a garage (no text or symbols)

Diagram showing a hand interacting with an electronic device and a house-shaped diagram with a downward arrow indicating a decrease or reduction.

Illustration showing a hand interacting with a digital display and a house-shaped diagram with an upward arrow (no text or symbols)

Illustration of a hand holding an electrical meter next to a house with a door (no text or symbols)

Line drawing of a two-story house with a garage and windows (no text or symbols)

Line drawing of a hand holding a small car near a two-story house (no text or symbols)

Line drawing of a two-story house with a garage and parked door (no text or symbols)

Illustration of a hand holding a small electronic device next to a house outline, with an inset showing a close-up of the interior (no text or symbols)
