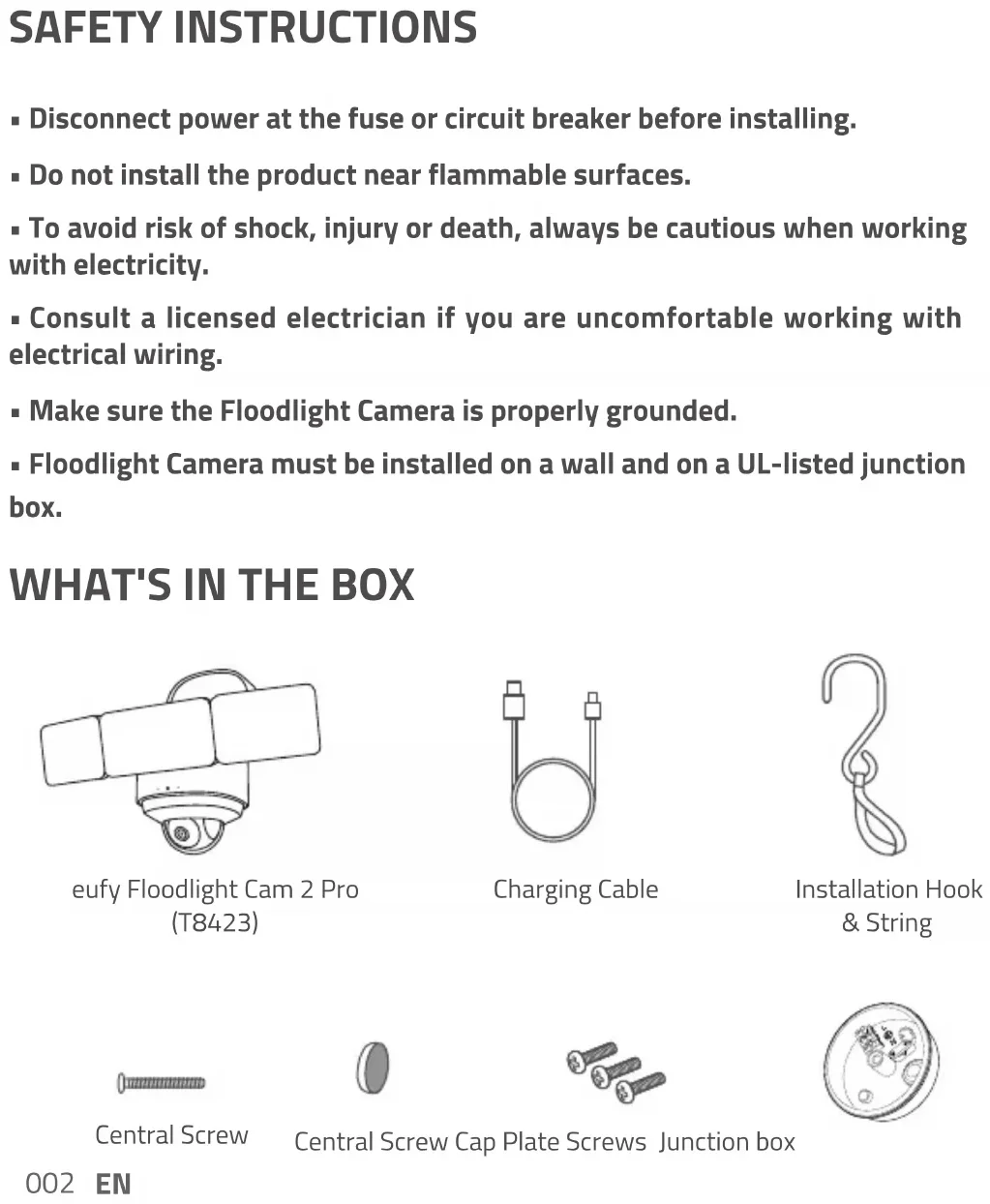

Table of Contents SAFETY INSTRUCTIONS 02

• Disconnect power at the fuse or circuit breaker before installing.

• Do not install the product near flammable surfaces.

• To avoid risk of shock, injury or death, always be cautious when working with electricity.

• Consult a licensed electrician if you are uncomfortable working with electrical wiring.

• Make sure the Floodlight Camera is properly grounded.

• Floodlight Camera must be installed on a wall and on a UL-listed junction box.

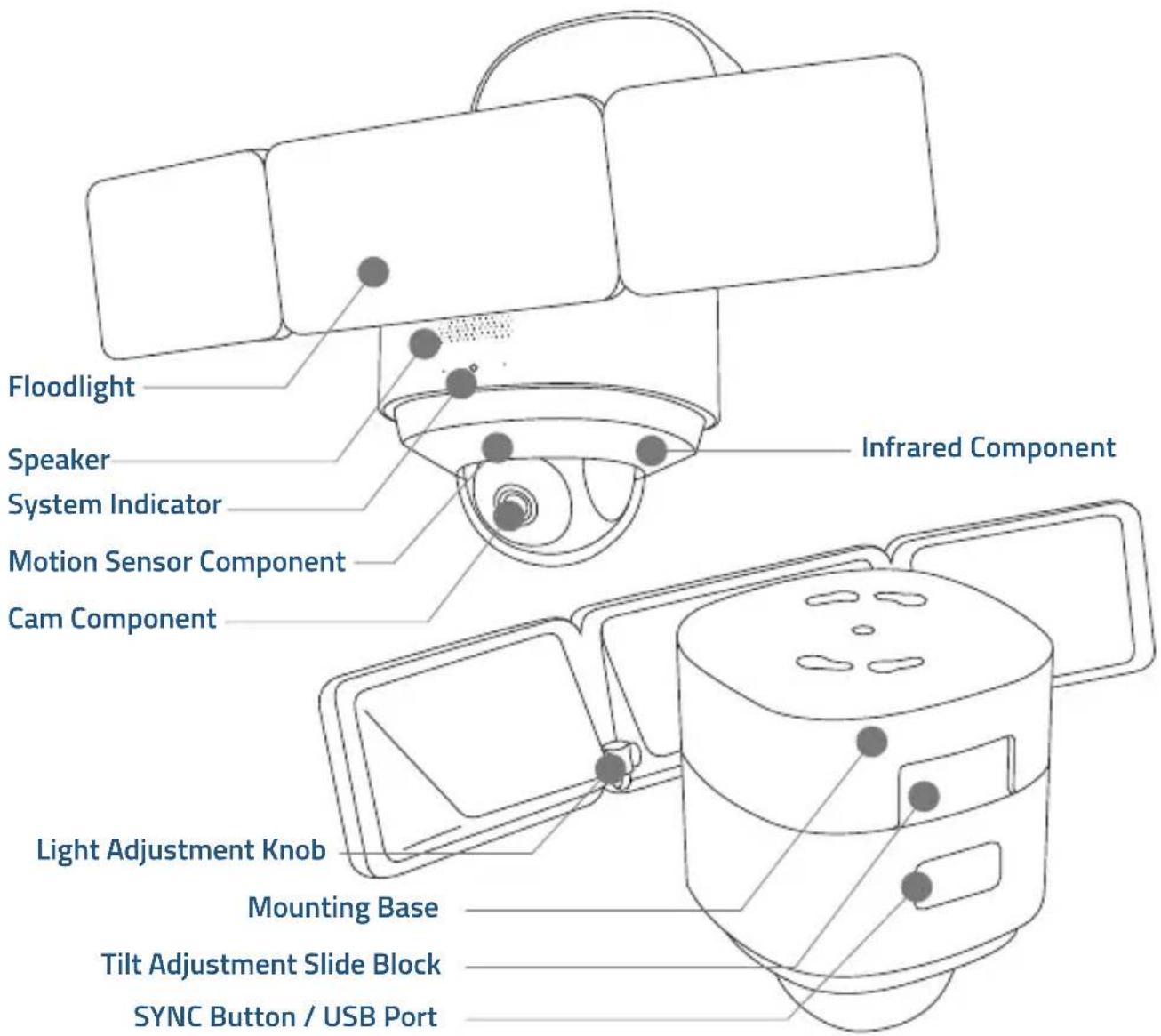

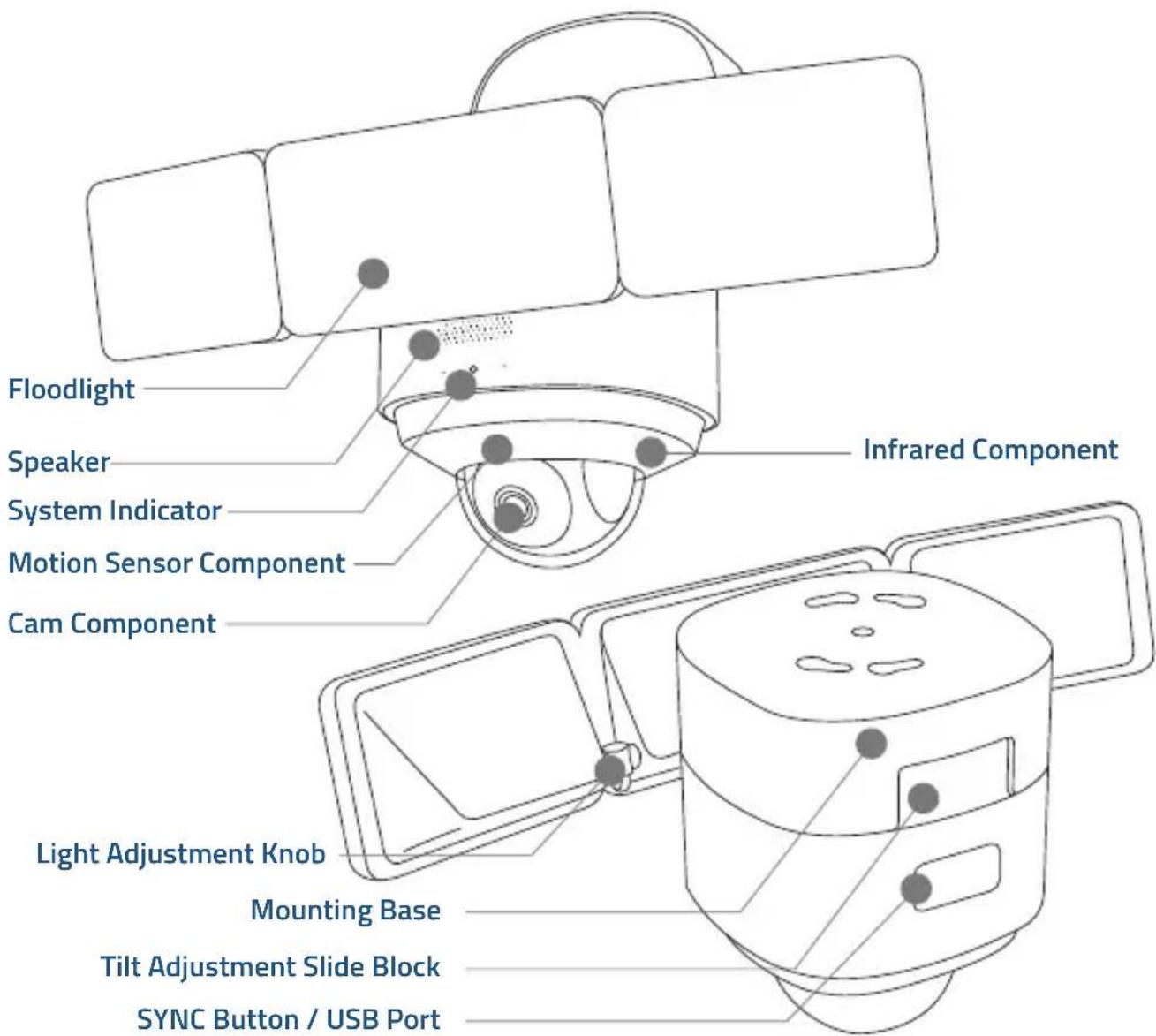

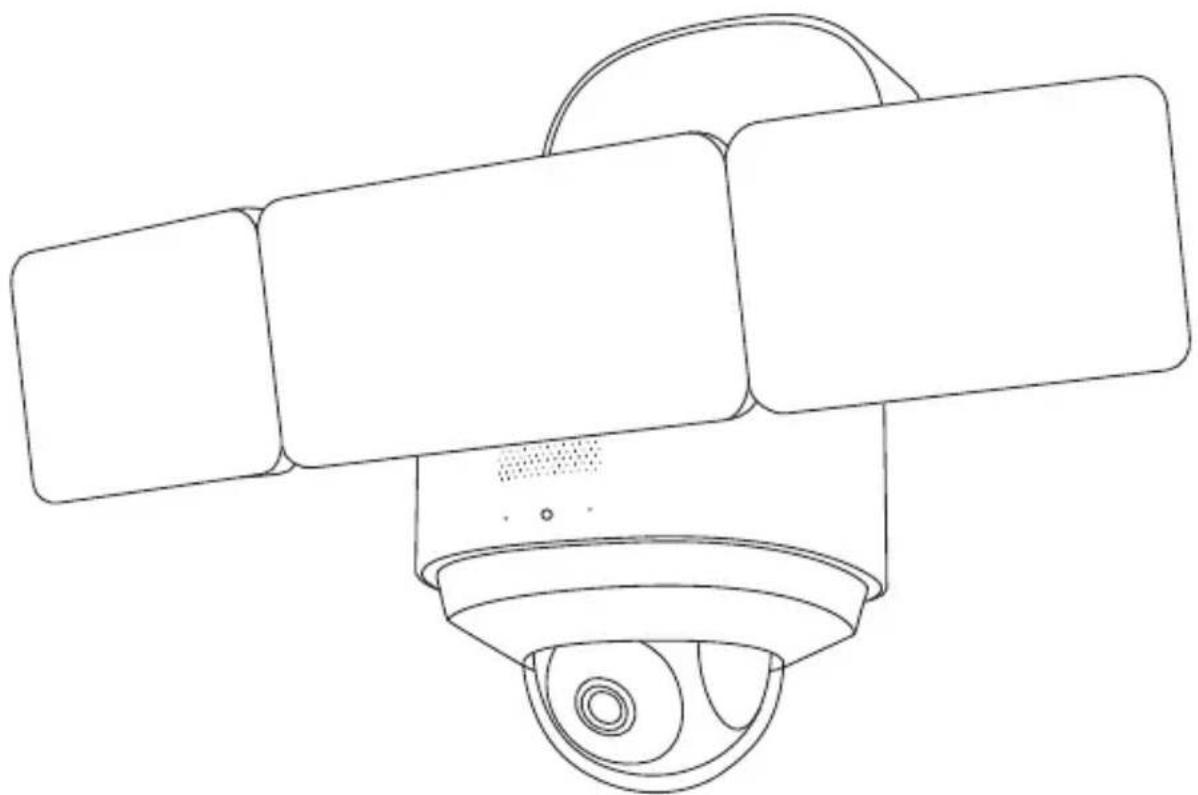

Required (not included): USB Power Adapter (5V/1A) Power Drill (15/64 mm) Crosshead Screwdriver PRODUCT OVERVIEW Floodlight Speaker System Indicator Cam Component Infrared Component Light Adjustment Knob Mounting Base Tilt Adjustment Slide Block SYNC Button / USB Port Motion Sensor Component004

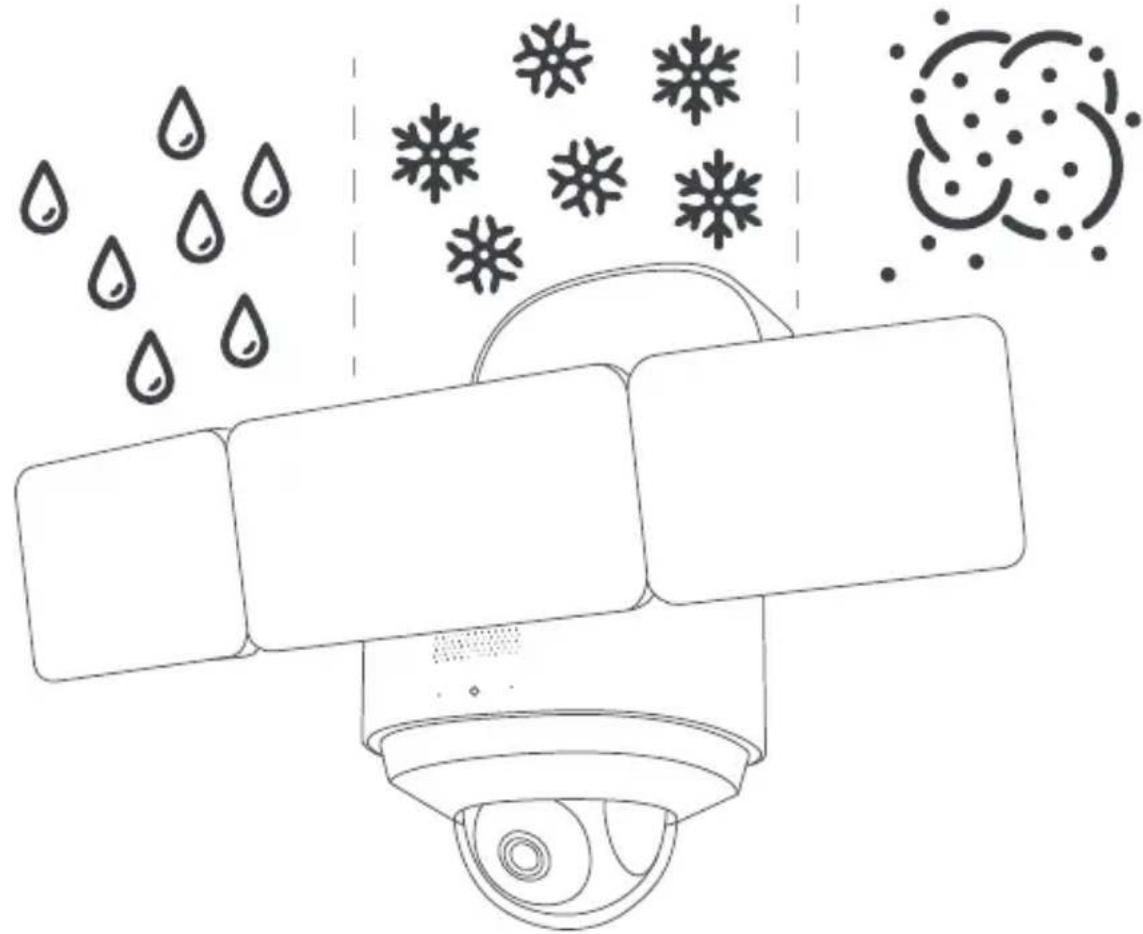

DECLARATIONS IP65-rated dustproof and waterproof This product meets IP65 (dustproof and waterproof) requirements. For dustproof testing, the product was vacuumed and placed in a dust box. After 8 hours of testing, no dust was found in the product. For waterproof testing, the product was sprayed by a nozzle with an inner diameter of 6.3mm, and water flow of 12.5 L/min. After the test, the product operated normally with no water found inside.EN

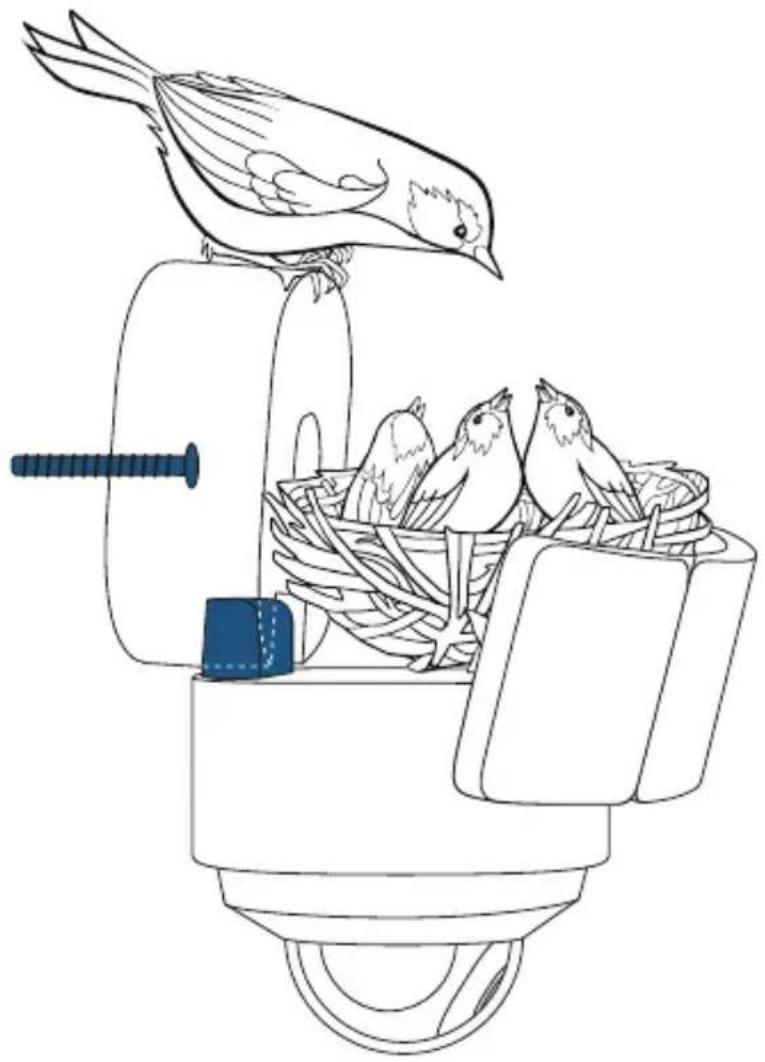

Anti-corrosion The metal surface of the product is galvanized, and can survive continuous exposure to salt spray at 35 ° C +/- 2 ° C (relative humidity: 90%-95%) with a salt concentration of 5% NaCl for 48 hours in the salt spray test. Load-bearing tests The L-shaped bracket and center screw of the product are made of SUS304 steel and have passed industrial-grade outdoor reliability and durability tests. NOTE: The total weight of the product is 2.2kg (4.9lbs), and the L-shaped bracket and center screw is strong enough to carry a load of 10kg (22lbs). 10kg006

To avoid scratching the Floodlight Camera, do not peel off the protective film for the time being

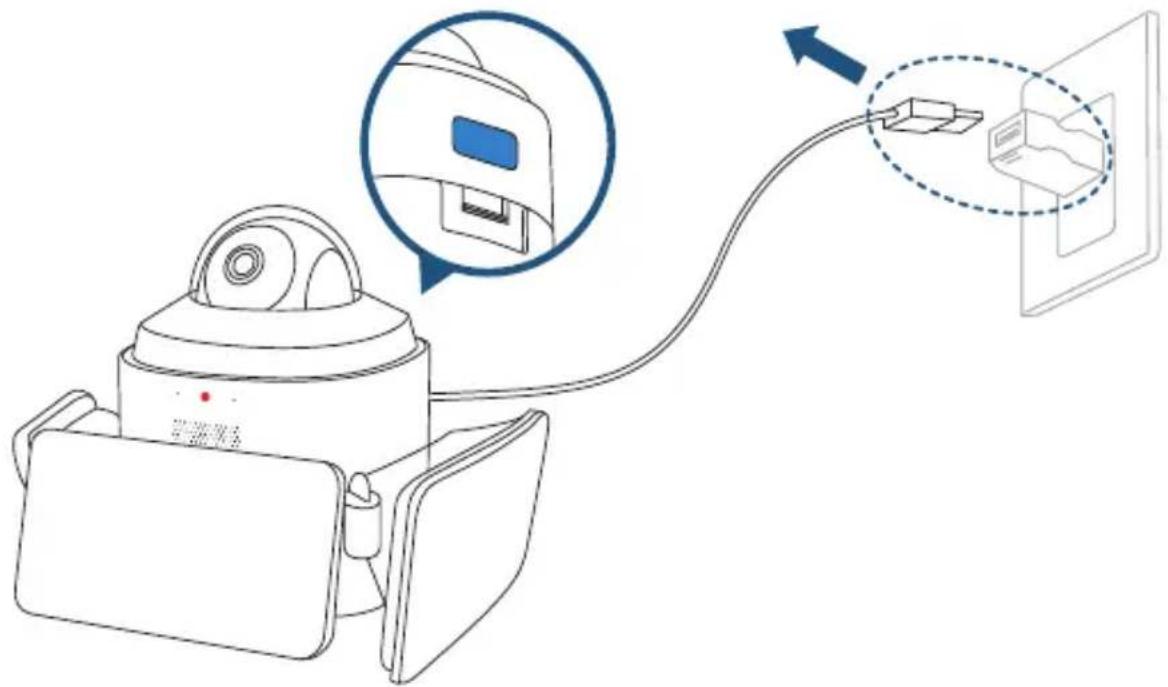

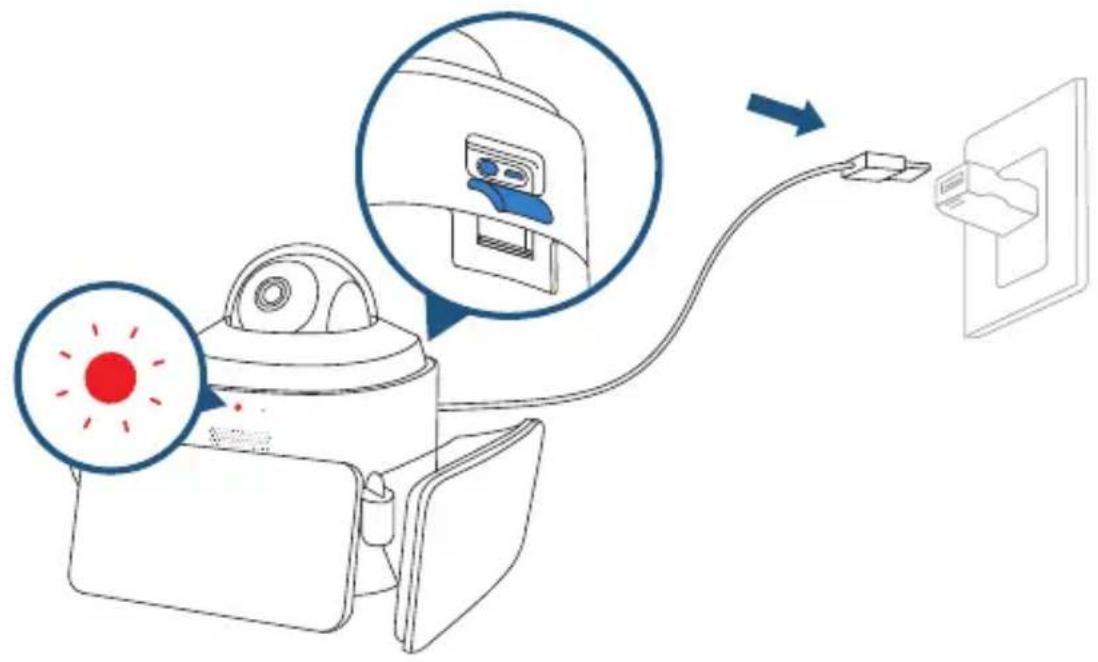

Put your Floodlight Camera in the direction as illustrated on a table, and open the USB port cover. Connect the device to a power source inside your home using the micro USB charging cable and a power adapter (5V/1A, not provided). Wait 1 minute or until the LED indicator blinks red. The Floodlights will only light up when in wired power mode. The USB-powered connection is used for setting up the camera safely inside your home.EN

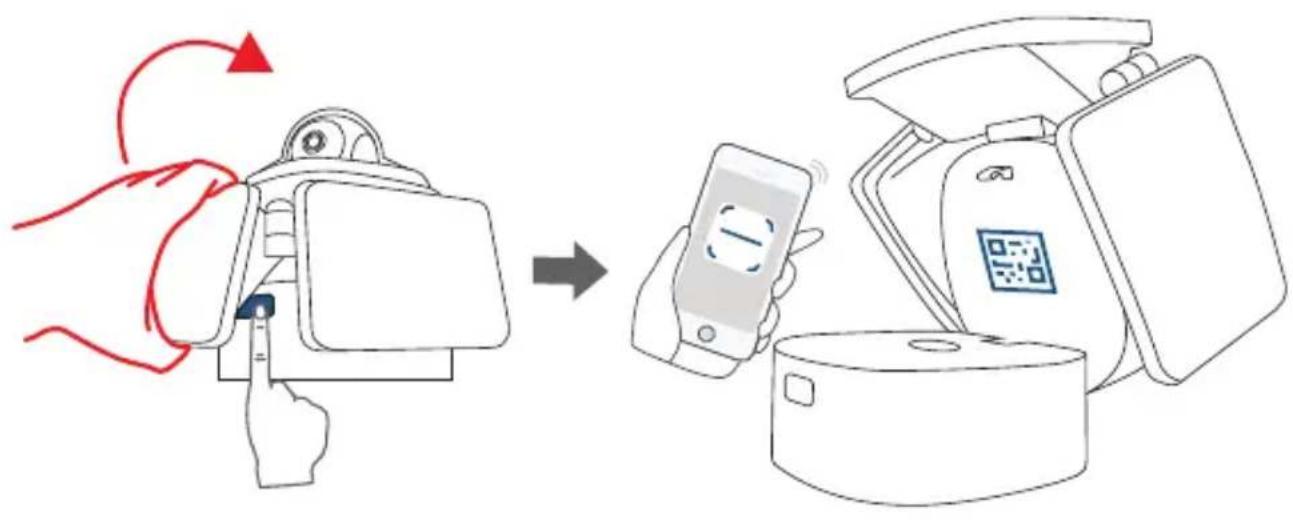

Push and hold the button to open the mounting base and find a QR Code. Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices). Log in or sign up for a eufy Security account, then follow the on-screen instructions to complete the setup.008

Make sure you can livestream video from Floodlight Camera before mounting. If the Floodlight Camera LED keeps blinking red, it means the floodlight is not connected to the Internet. Please make sure the Wi-Fi signal is strong at the desired location. You may consider moving the wireless router closer to Floodlight Camera or using a Wi-Fi range extender.

1. Unplug the power adapter. Close the mounting base and USB port cover.

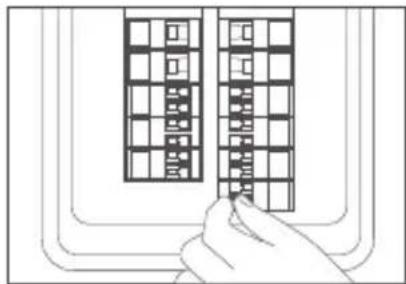

2. Shut down the circuit breaker in your house. Switch on/off the lights to

make sure the electricity in your house is properly shut off.EN

To avoid risk of shock, injury or death, always be cautious when working with electricity.

INSTALLING THE JUNCTION BOX

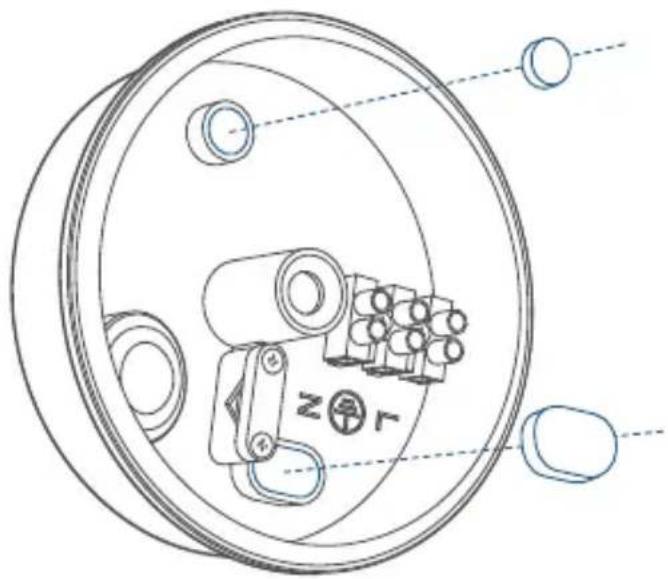

1. Remove the rubber plugs indicated in the illustration below.010

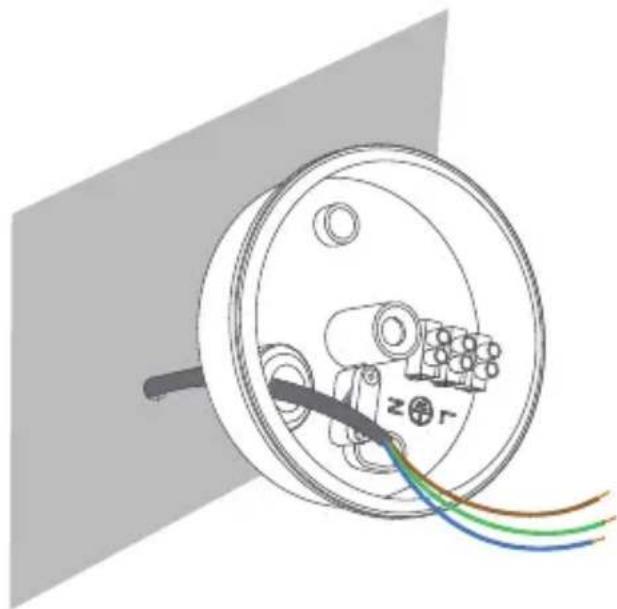

Run the existing wire through the hole. If you don’t have existing wires outdoors, contact a licensed electrician to run the wires.

3. Install the junction box:

• Orient the two mounting holes vertically to ensure stable mounting.

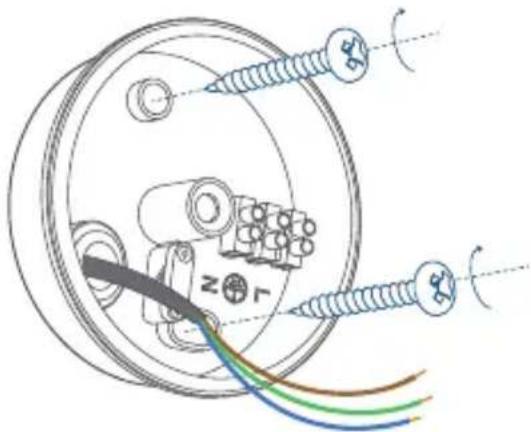

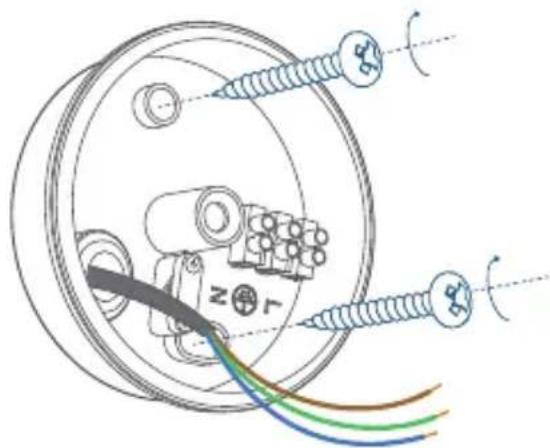

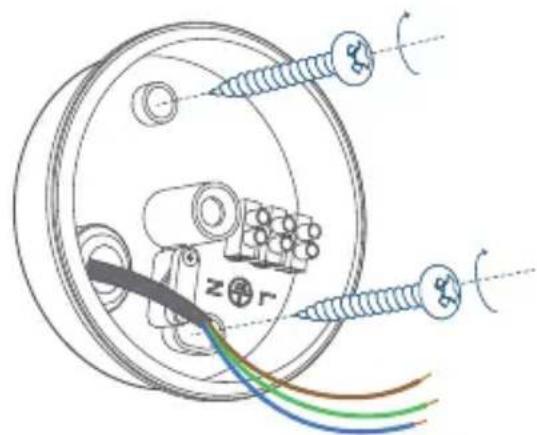

• On wooden walls, DO NOT pre-drill holes. Use the screws provided to fix the junction box onto the wall.EN

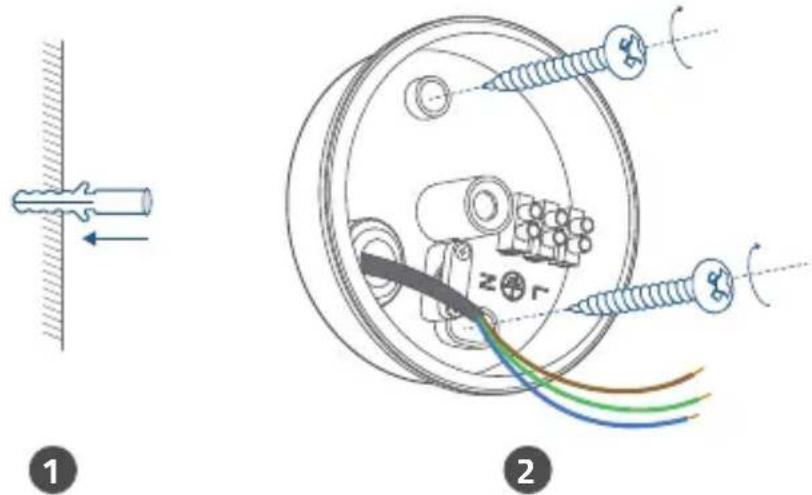

• On walls that are made out of hard materials, such as stucco, brick, or concrete, drill holes with a 15/64 inch (6 mm) drill bit, and then insert the anchors provided into the holes. Use the screws provided to fix the junction box on the wall.

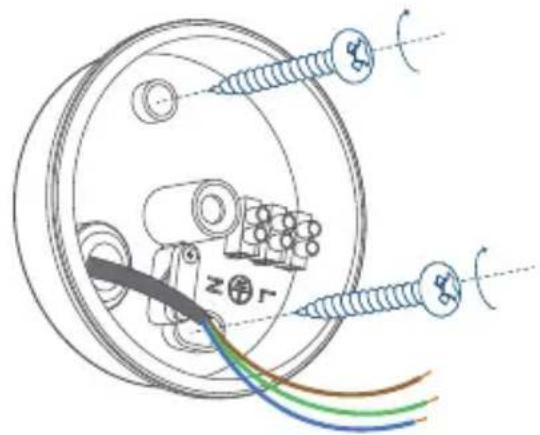

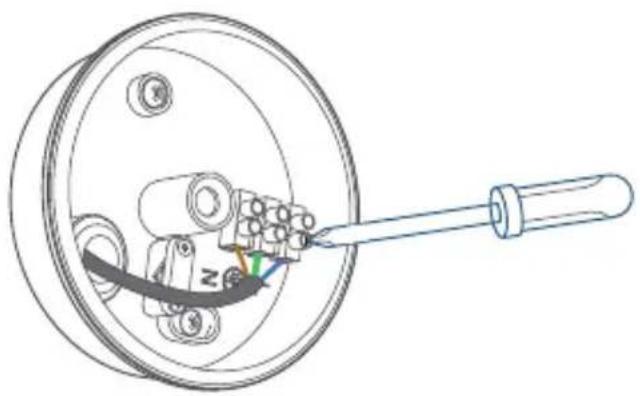

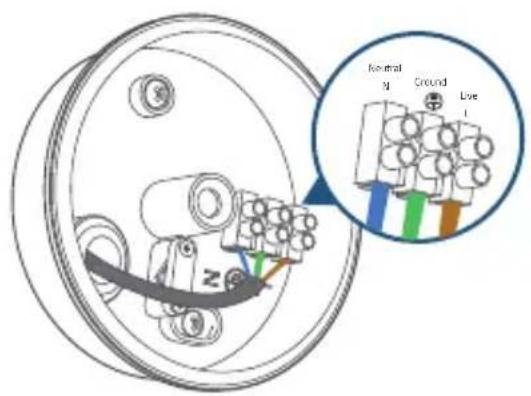

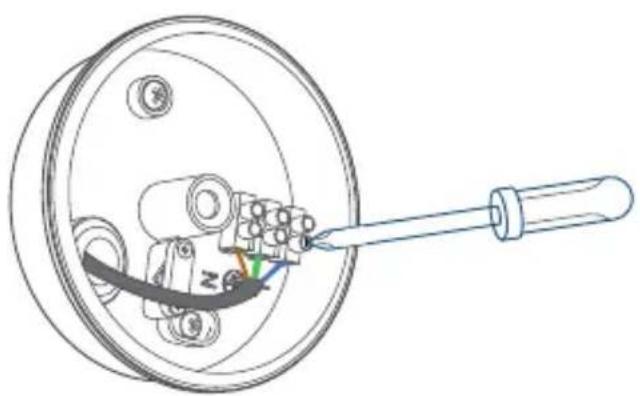

4. Unscrew the bolt with a flat-head screwdriver. Connect the Neutral (blue)

/ Ground (green / green and yellow) / Live (brown) wire to the Neutral / Ground / Live wire connector in the junction box respectively. Secure the wires tightly to prevent wires from falling.

MOUNTING YOUR FLOODLIGHT CAMERA

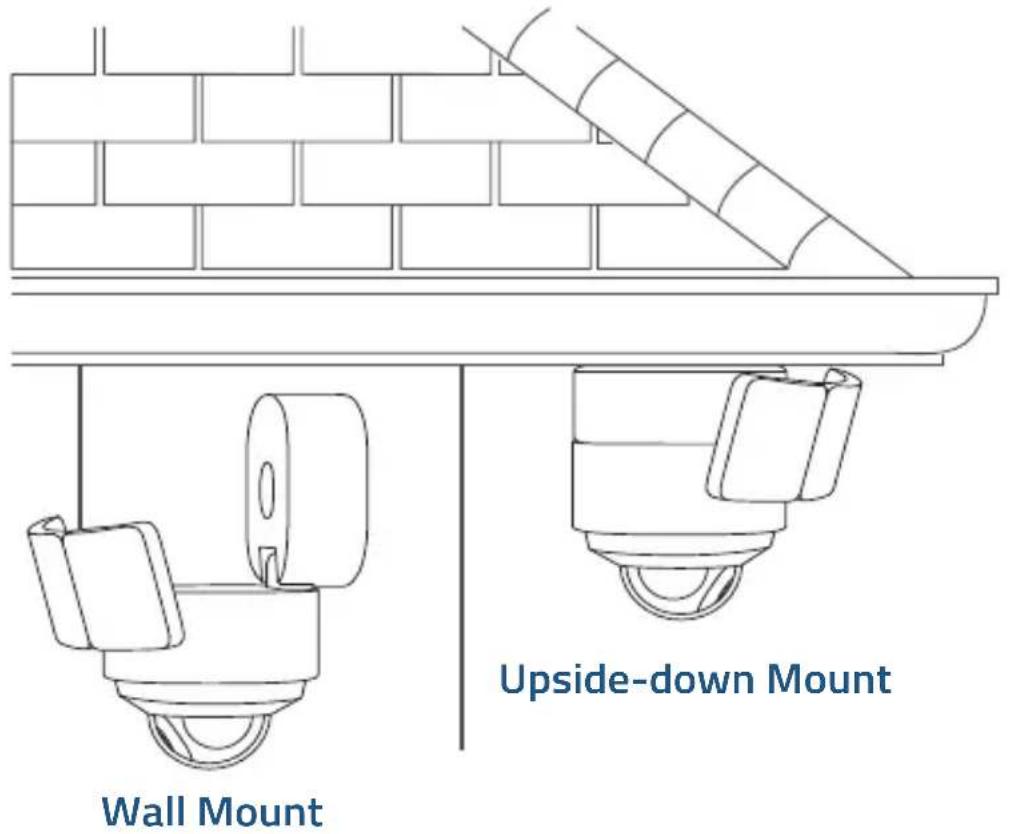

To ensure the best motion detection range, we recommend in- stalling the Floodlight Camera within 2-3 meters of the ground. You can hang Floodlight Camera upside down or install it vertically on the wall. Select the installation method that best suits the position of your junction box. Wall Mount Upside-down MountEN

Mount Floodlight Camera onto a Wall STEP 1. Before Mounting

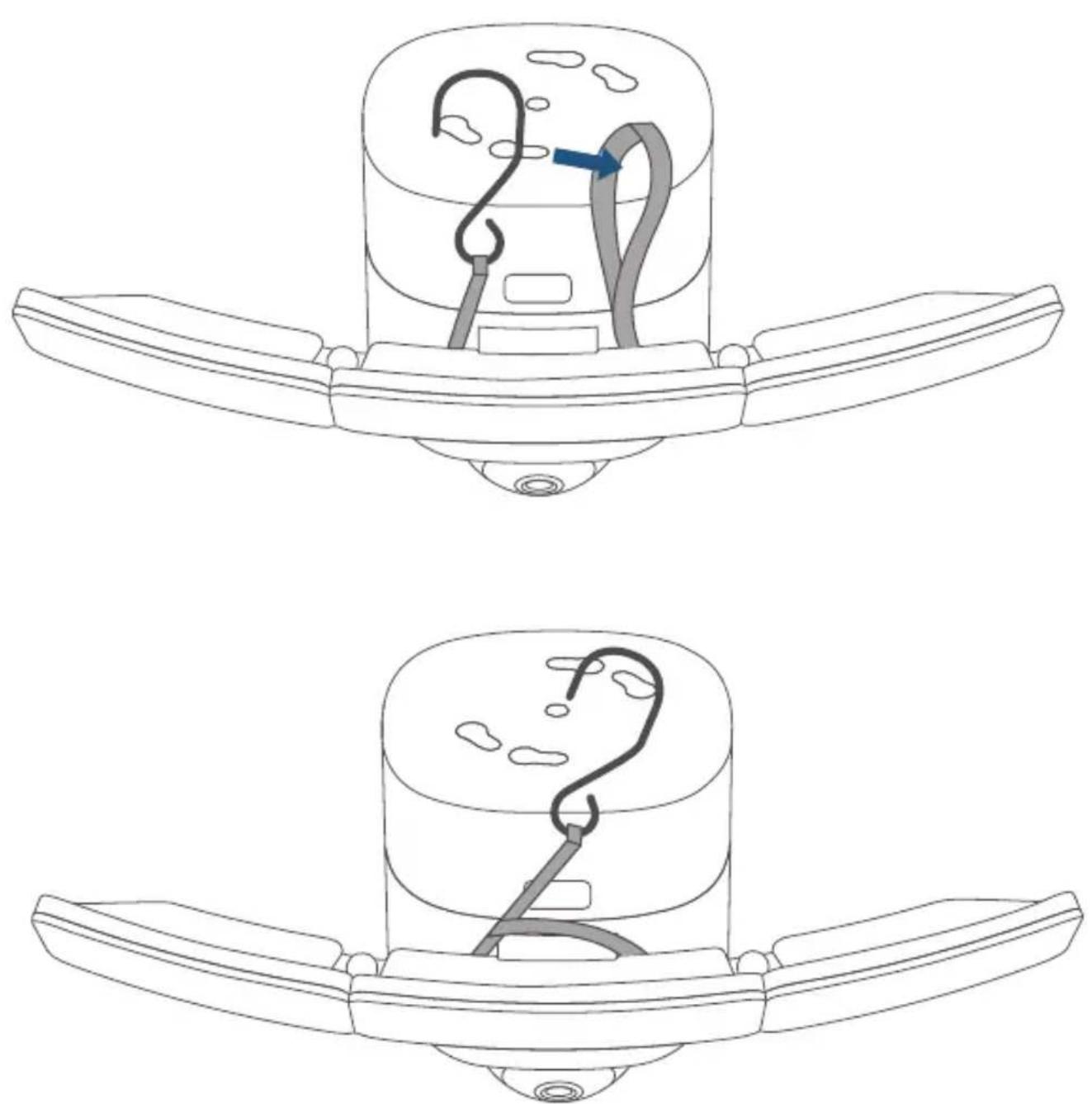

1. Pass the hook through the other end of the string as illustrated.014

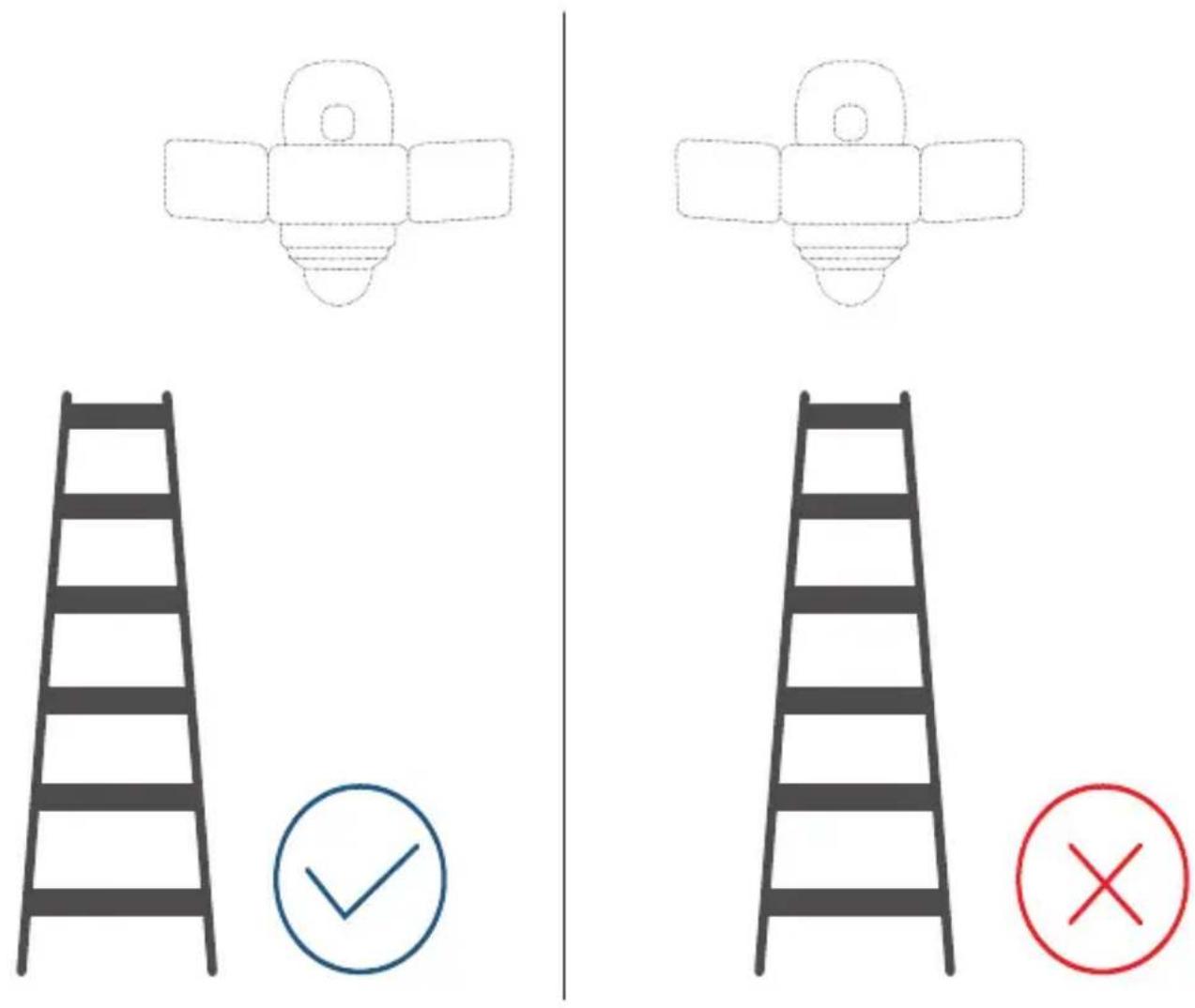

2. You need a ladder to mount your Floodlight Camera on the wall. Make

sure you do not place your ladder right under the Floodlight Camera. Place it to the lower left or right of the Floodlight Camera as illustrated below to avoid obstructing your view while mounting.EN

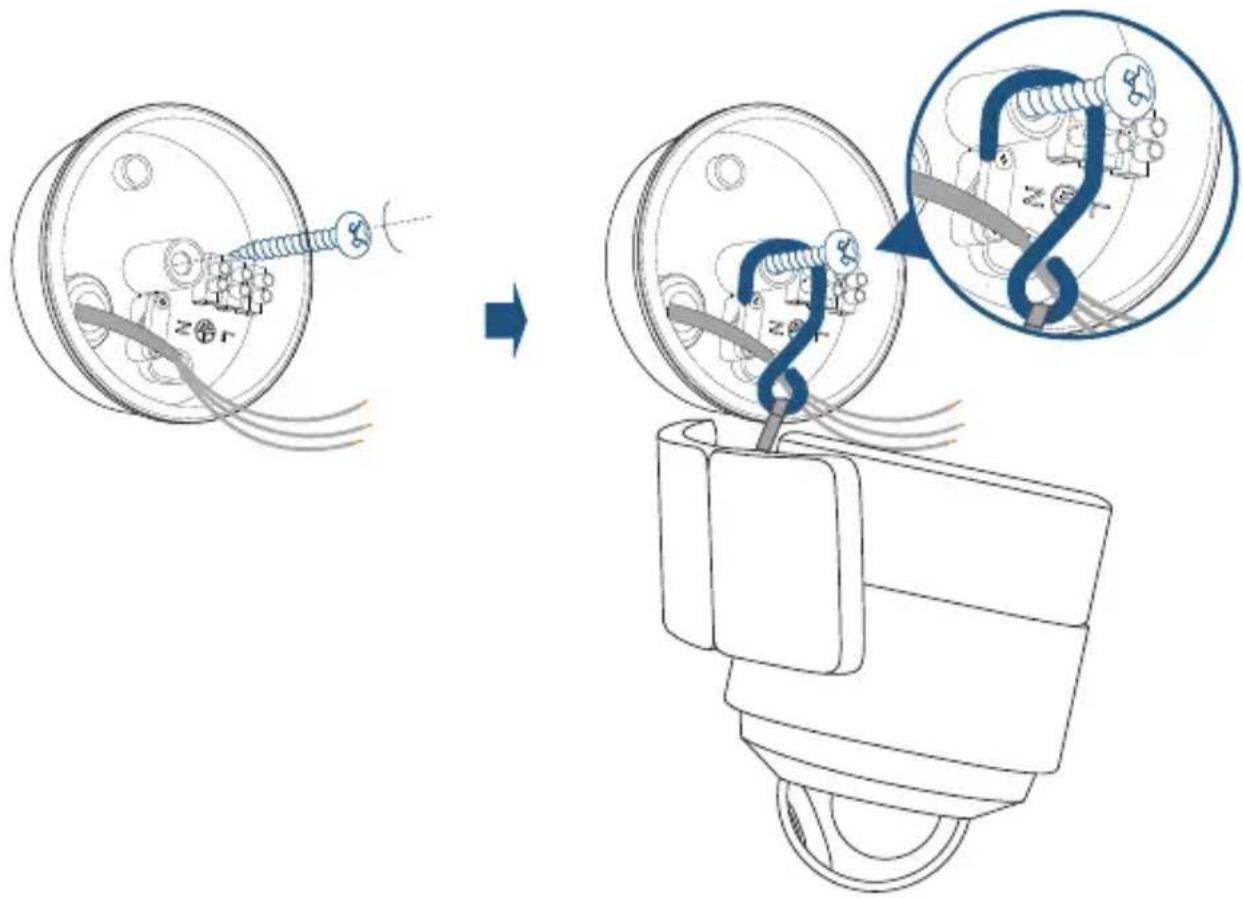

3. Screw part of the central screw through the center of the Junction box

and leave the screw long enough to hang the Floodlight Camera using the provided hook. STEP 2. Connect Wires

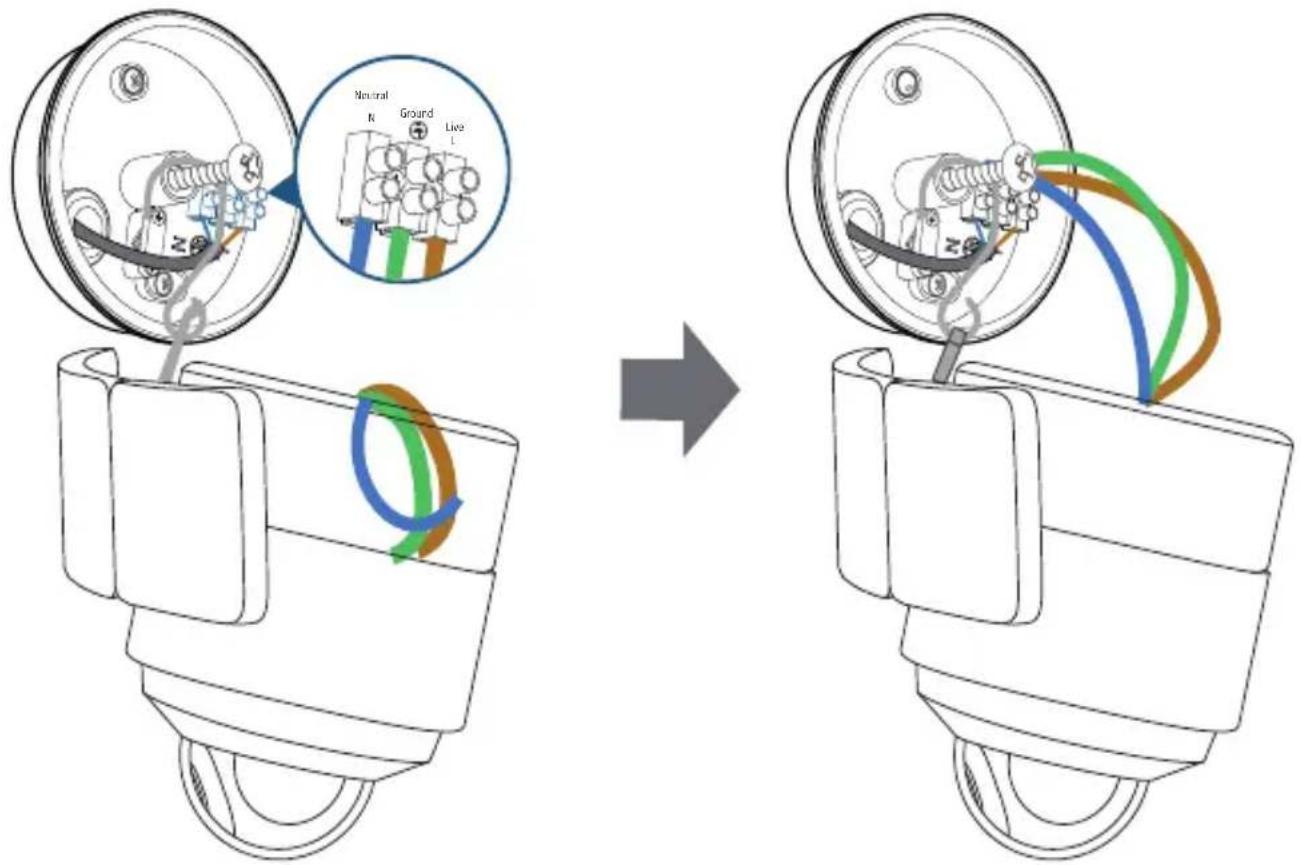

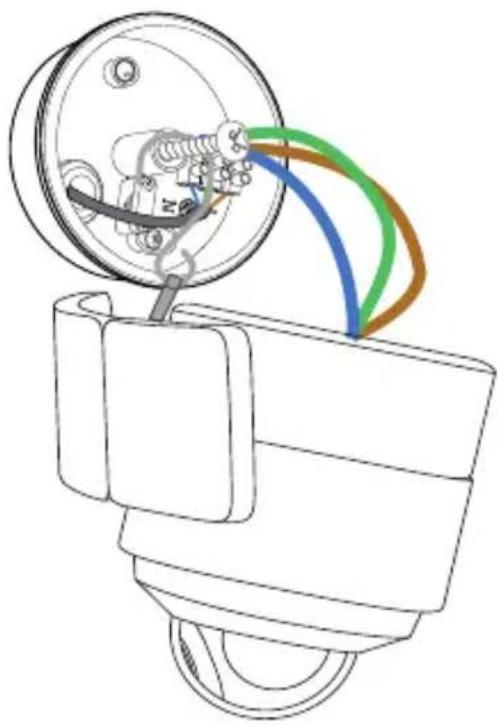

1. Connect the ground wire from the Floodlight Camera to the ground wire

from the wire connector in the junction box.016

2. Connect the live / neutral wire from the Floodlight Camera to the live /

neutral wire from the wire connector in the junction box respectively.

3. Secure the wires with a screwdriver.

4. Hold the Floodlight Camera, and remove the hook, strings, and central

screw from the junction box. box.

• If you have problems with the proper operation of Flood- light Camera, consult a licensed technician.

• Green / green and yellow, brown and blue wires must con- nect to the matching colors. Never cross connect.EN

STEP 3. Mount the Floodlight Camera

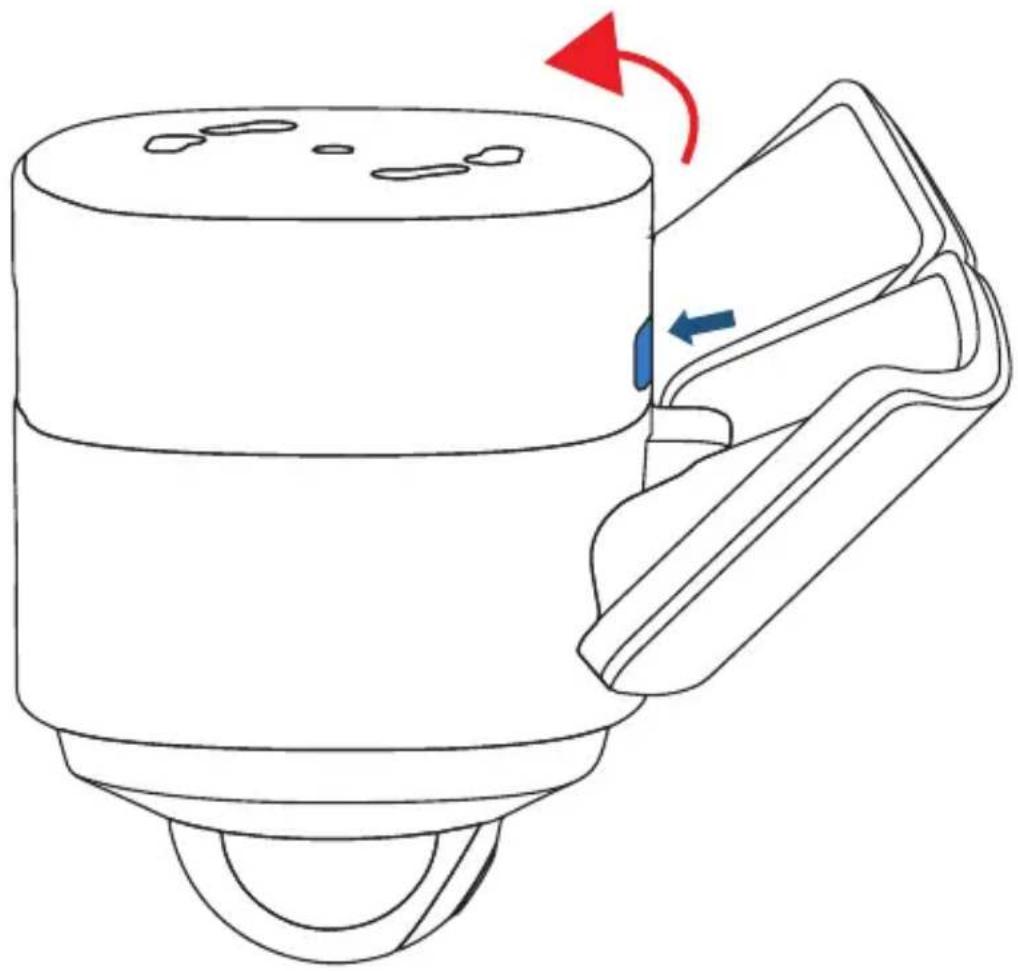

1. Press the button to open the mounting base.

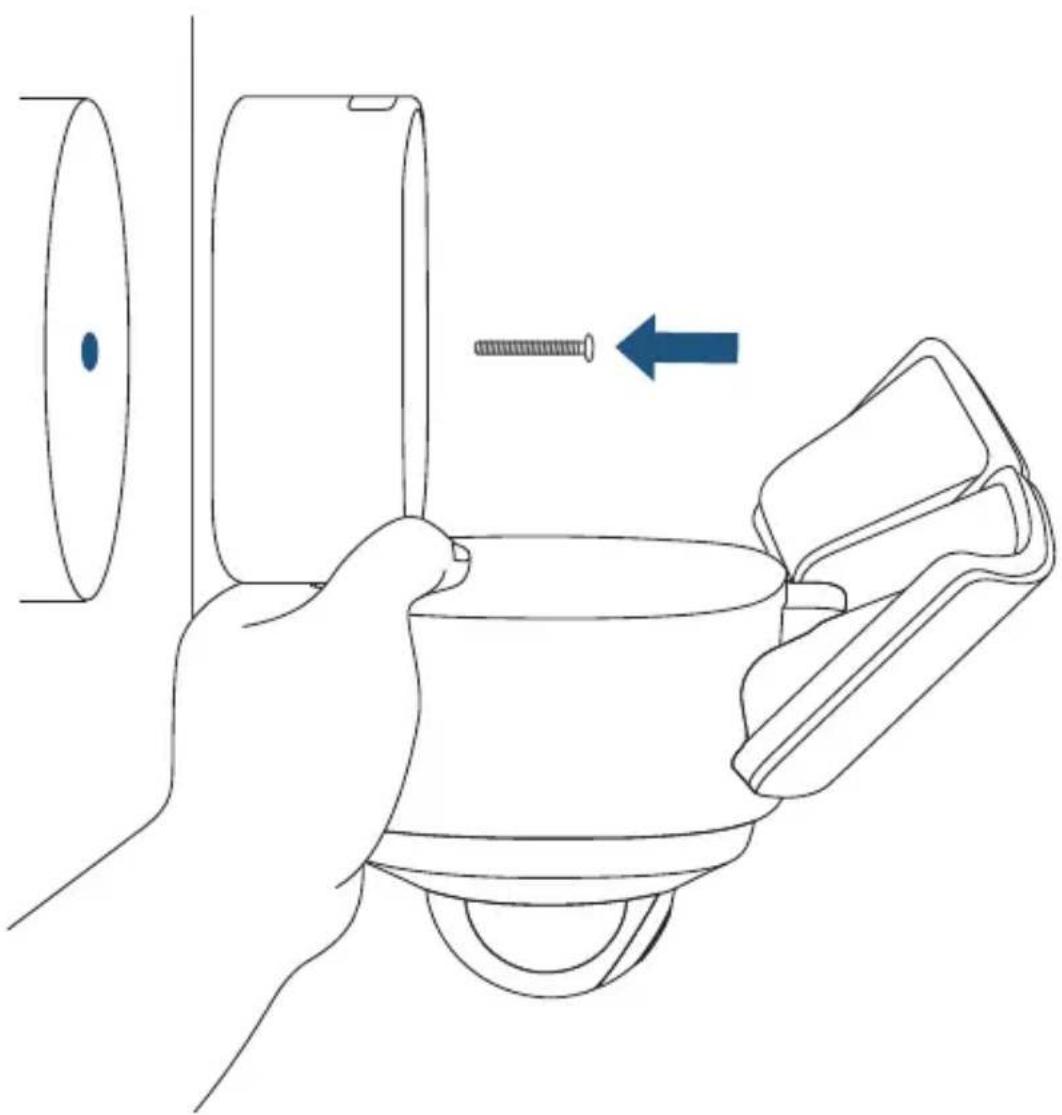

2. Hold the mounting base, and insert the central screw through the center

of the mounting base and screw it tightly. Use the central screw cap to cover the central screw to prevent it from rusting.

3. Cover the central screw with the provided cap.018

Side view makes it easier for you to align the screws.

4. Adjust the angle as mentioned in the section "Adjusting the Lighting

Angle" to get the best view.

5. Remove the label and protective film on the Floodlight.

6. Switch on the main circuit breaker in the house.EN

Mount Floodlight Camera on the Ceiling

1. Follow steps mentioned in the section “

Mount Floodlight Camera onto a Wall ” to choose the place for mounting and connecting wires.

2. Insert the central screw through the center of the mounting base and

3. Cover the central screw with the provided cap.

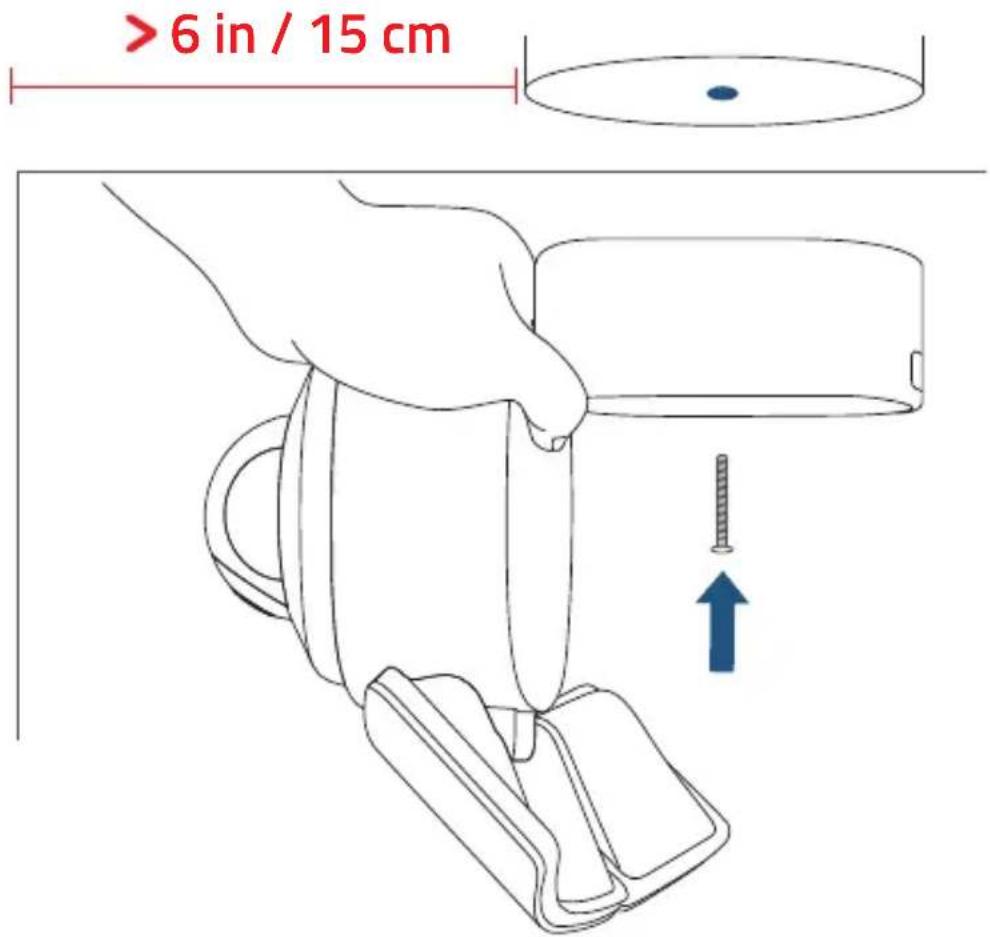

6 in / 15 cm Make sure you place the Floodlight Camera more than 6 in / 15 cm away from a side wall.020

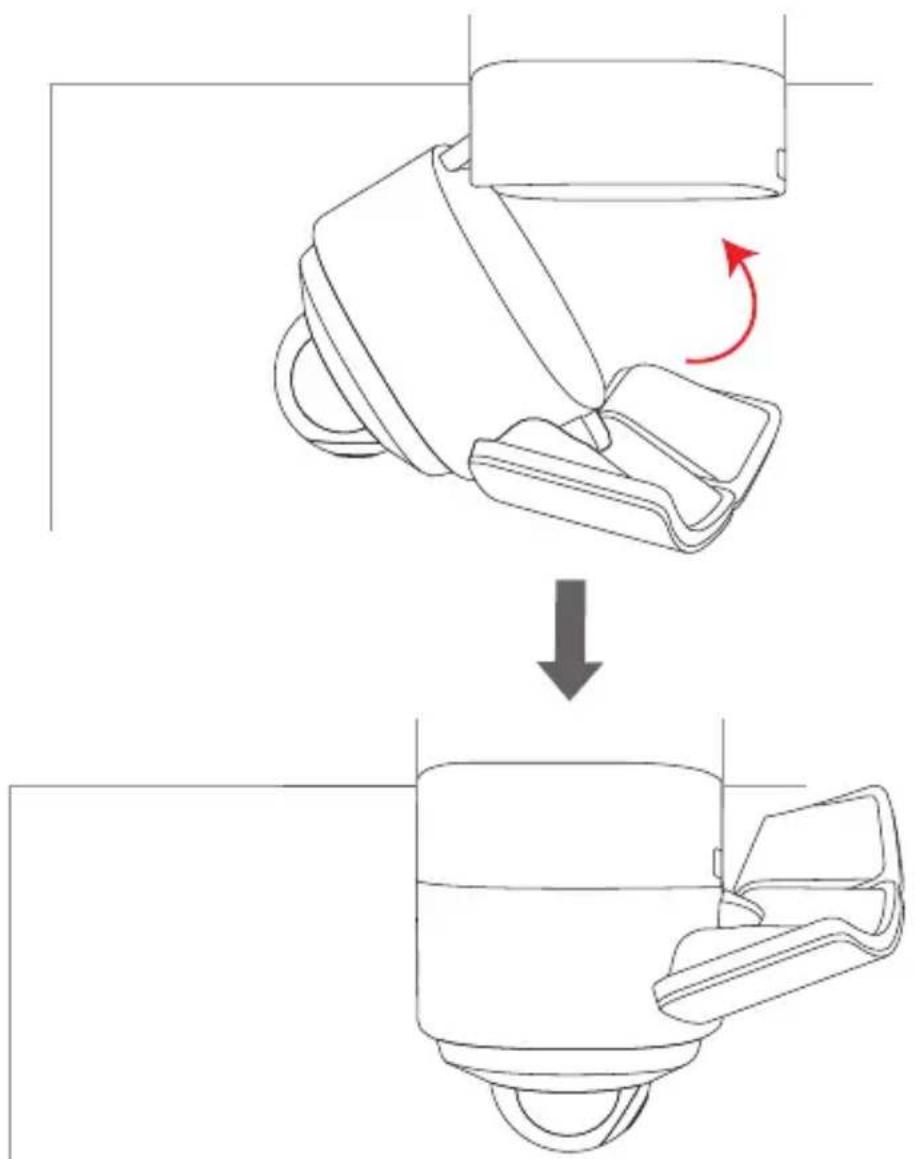

4. Snap the camera onto its base.

5. Adjust the angle as mentioned in the section “

Adjusting the Lighting Angle ” to get the best view.

6. Remove the label and protective film on the Floodlight.

7. Switch on the main circuit breaker in the house.EN

In case Floodlight Camera is not powered on, switch off the circuit breaker before checking the wiring of Floodlight Camera. To avoid risk of shock, injury or death, always be cautious when working with electricity. Remember, do hire a professional electrician if you’re uncomfortable working with electrical wiring.

ADJUSTING THE LIGHTING ANGLE

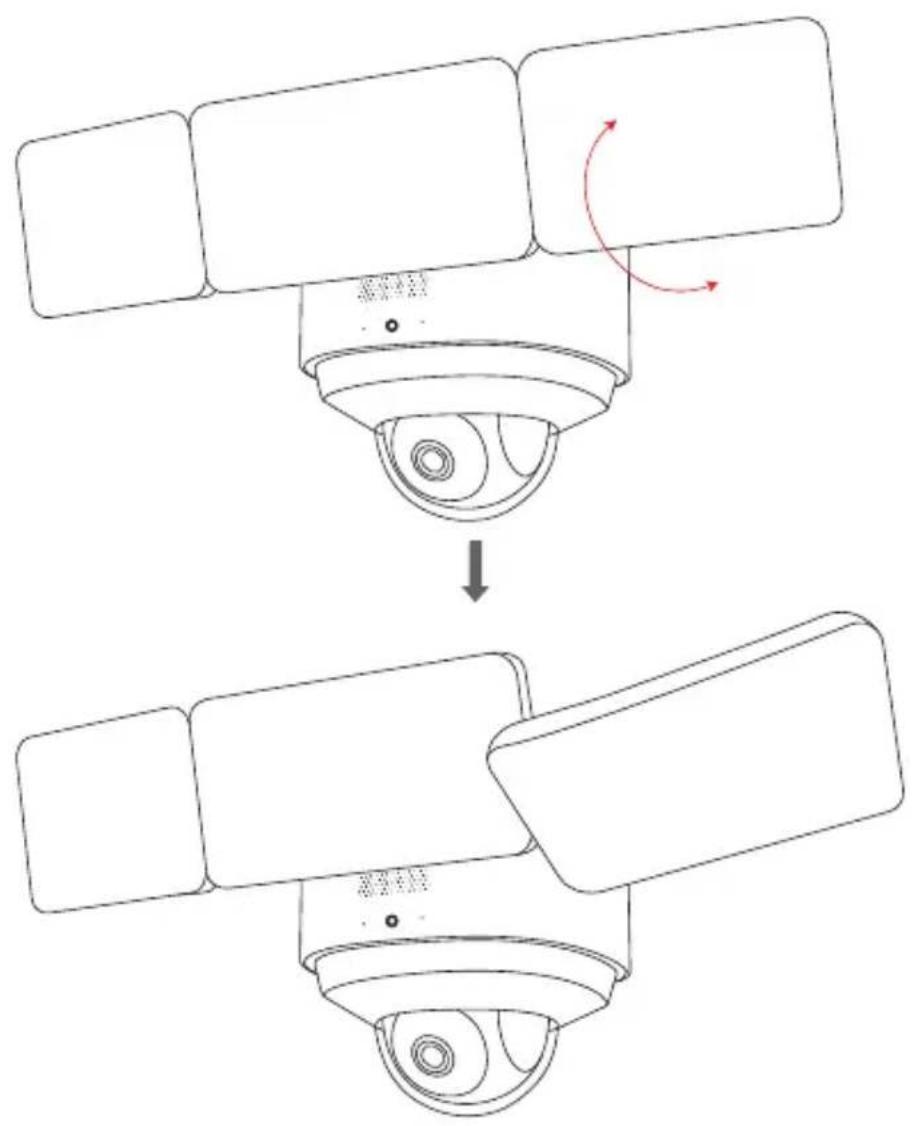

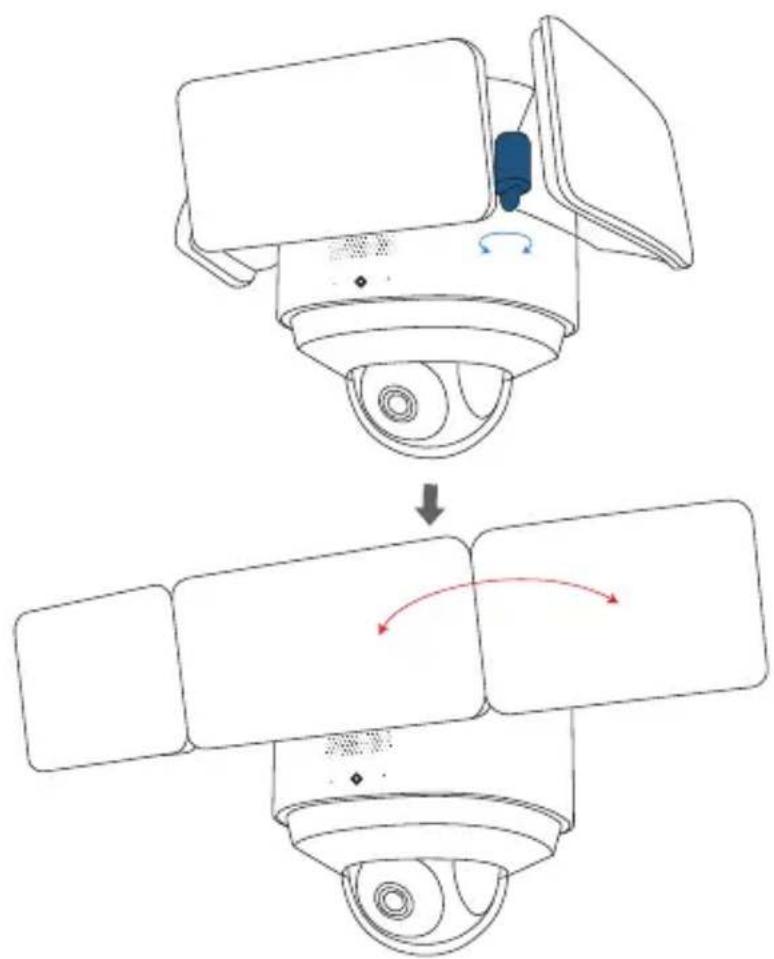

1. Turn the knobs counter-clockwise to extend the Floodlight. Adjust

the Floodlight horizontally and then tighten the knobs by turning them clockwise.022

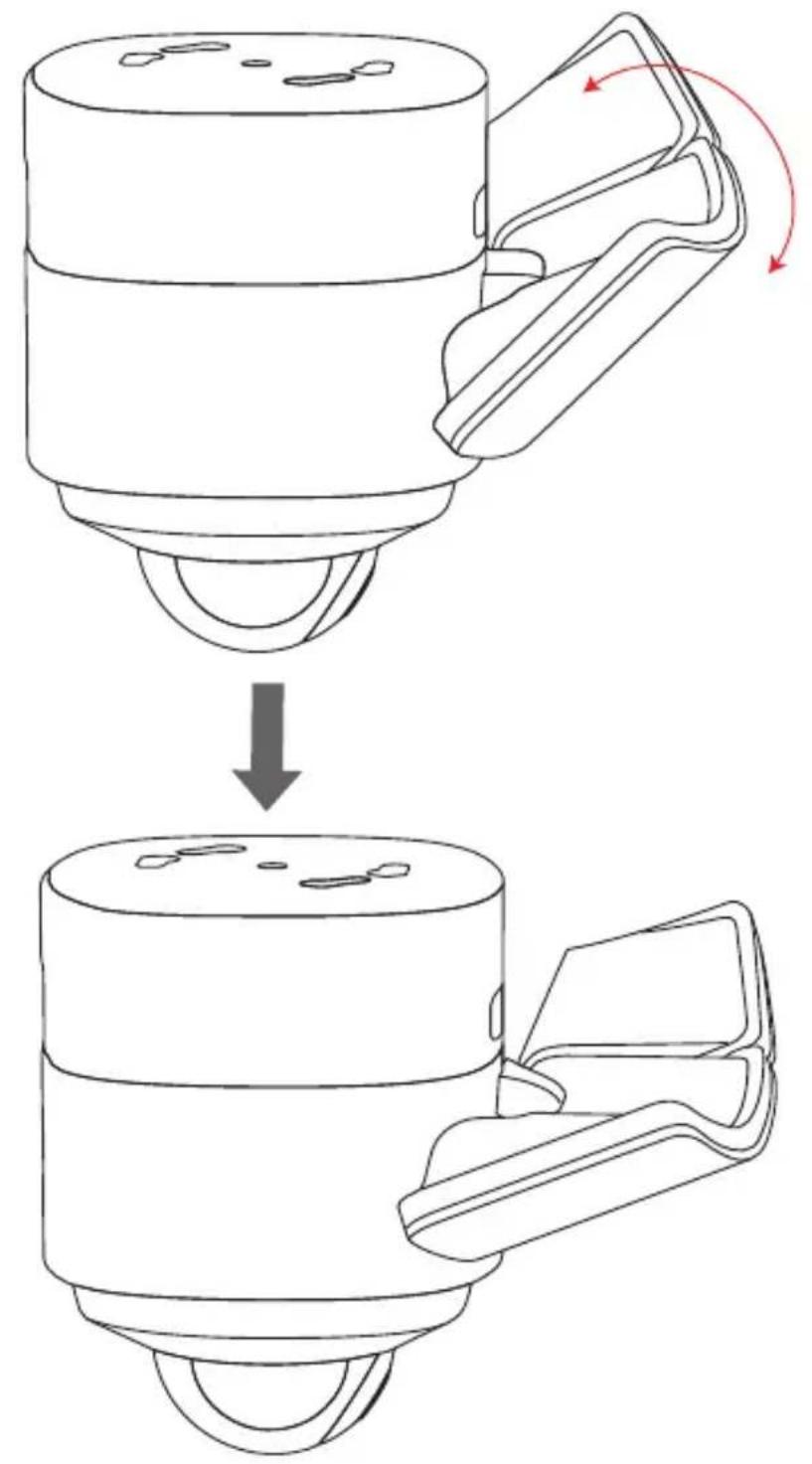

2. Manually pull down the Floodlight in the middle.

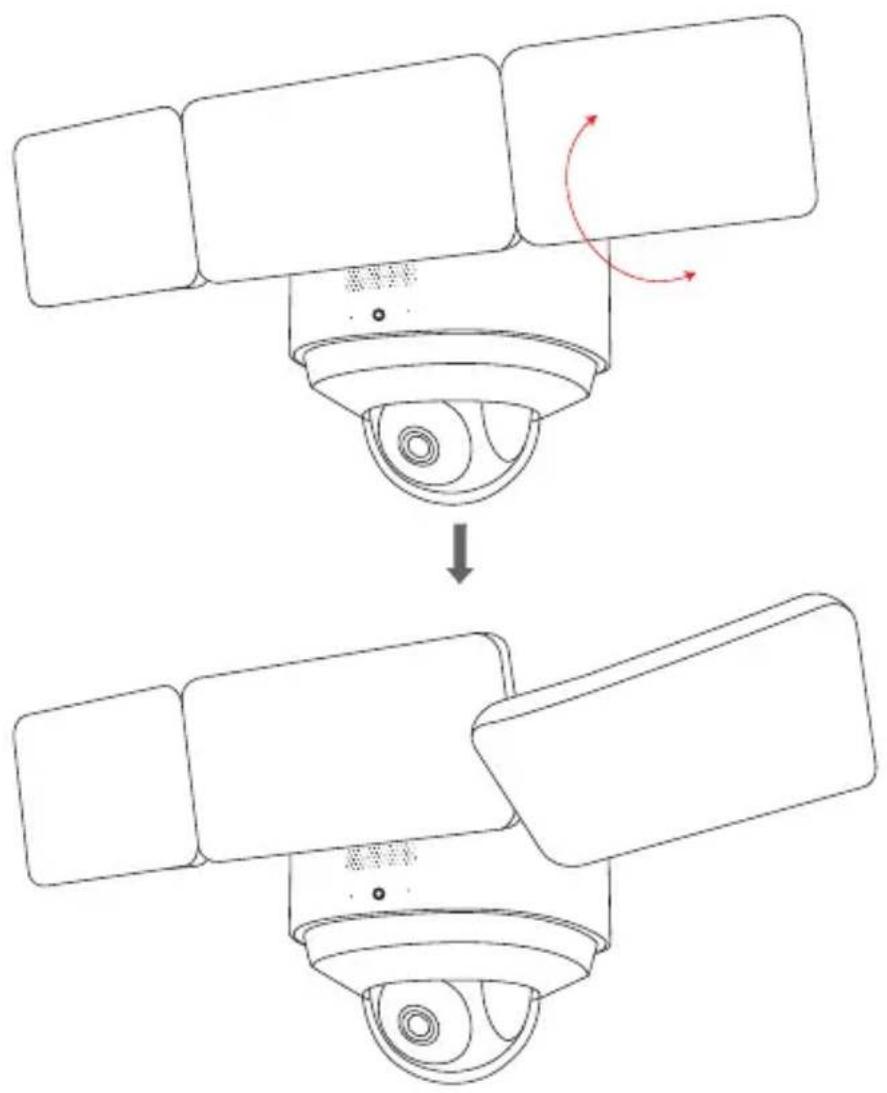

3. Manually pull down the Floodlight on the side.

To check whether Floodlight Camera is operating, confirm the LED indicator has turned solid white. For troubleshooting, check the Help section in the eufy Security app. Refer to the app page for what the LED indicator status lights mean.024

NOTICE This product complies with the radio interference requirements of the European Community. Declaration of Conformity Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site https://uk.eufylife.com/ Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature for the product and accessories is -20°C-60°C. Please place the device in an environment that has a normal room temperature and good ventilation. It is recommended to charge the device in an environment with a temperature that ranges from 5°C~25°C. RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use product that maintain a 20cm distance between the device and human body. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED

BATTERIES ACCORDING TO THE INSTRUCTIONS

Wi-Fi Operating Frequency Range: 2412~2472MHz for EU; Wi-Fi Max Output Power: 19.85 dBm(EIRP for 2.4G). Bluetooth Operating Frequency Range: 2402~2480 MHz; Bluetooth Max Output Power: 4.81 dBm(EIRP). Anker Innovations Deutschland GmbH I Georg-Muche-Strasse 3, 80807 Munich, Germany This product is designed and manufactured with high quality materials and components, which can be recycled and reused. This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.EN

This product complies with the radio interference requirements of the United Kingdom Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type T8423 is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom026 DEDE
