Introduction

Information on user guide

Dear Customer,

Thank you for purchasing this product. This device is a product that has been built using state-of-the-art technology.

These instructions contain important installation and operation information. Follow the directions and instructions in this user manual to ensure safe operation. Store this manual in a safe place for future reference. This manual constitutes part of the device. If you pass the device on to third parties, please remember to include this manual.

Intended use

Only use the device for the purpose for which it was built and designed. Any other use is considered unintended. This product complies with current domestic and European regulations. Conformity has been certified, and all related certifications are available from the manufacturer on request.

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation as the user to observe this user guide. If you have any questions, please contact your specialist dealer. Further general information and information on product support can be found at www.abus.com on the general page or for dealers and installers, in the Partner portal.

Note

Please observe the notes and instructions in this user manual! If you do not follow these instructions, any guarantee claim is invalidated. No liability can be accepted for resulting damage.

No part of the product may be changed or modified in any way.

Danger

Set the alarm panel to installer mode before starting any installation or maintenance work. Installer mode prevents alarms from being activated when the motion detector is opened.

Limitation of liability

Everything possible has been done to ensure that the content of these instructions is correct. However, neither the author nor ABUS Security-Center GmbH & Co. KG can be held liable for loss or damage caused by incorrect or improper installation and operation or failure to observe the safety instructions and warnings. No liability can be accepted for resulting damage. No part of the product may be changed or modified in any way. If you do not follow these instructions, your warranty claim becomes invalid. Subject to technical modifications.

© ABUS Security-Center GmbH & Co. KG, 03/2018

Safety information

Explanation of symbols

The following symbols are used in this manual and on the device:

Symbol	Signal word	Meaning
	Danger	Indicates a risk of injury or health hazards.
	Danger	Indicates a risk of injury or health hazards caused by electrical voltage.
	Important	Indicates possible damage to the device/accessories.
	Note	Indicates important information.
		The EU Directive WEEE 2012/19/EU governs the proper recovery, treatment and recycling of used electronic devices. This symbol means that, in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its lifespan in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserve natural resources and ensure that all the provisions for protecting health and the environment are observed when recycling the product.

Packaging

Danger

Keep packaging material and small parts away from children.

There is a risk of suffocation!

Remove all packaging material before using the device.

Information on the battery

Danger

Danger

The device is supplied with direct current from batteries. To guarantee a long lifespan and avoid fire and injury, please note the following:

• Do not dispose of the battery with household waste.
• The battery must not be directly exposed to heat or sunlight, and must not be stored in hot places.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.

• The battery contacts must not be short-circuited.

• The battery must be kept out of reach of small children.

• The battery cannot be recharged.

Note

Battery life

The battery life can reach 48 months under the following conditions.

• 160 activations per day
- 160 activations = 1x every 3 minutes (continuous movement) for 8 hours per day

Scope of delivery

• 1x Secvest Wireless Motion Detector
- 2x batteries, type AA
- 1x Housing screw
- Quick guide

Technical data

Product name	Secvest Wireless Motion Detector
Item number	FUBW50100	FUBW50110
Environmental class	II (EN 50131-1 + A1:2009 Section 7)
Protection class, IP protection class	IP34 (internal spaces, in its installed state)IP = international protection or ingress protection3 = tools and wires4 = splashing water
Operating temperature	-10 °C to +55 °C
Humidity, max.	Non-condensing average relative humidity approx. 75 %
Housing material	PC/ABS
Dimensions (W x H x D)	55 x 115 x 55 mm
Weight	0.096 kg (without batteries)0.148 kg (with batteries)
Security level	Grade 2 (EN 50131-1 + A1:2009 Section 6)
Tamper monitoring	yes
Displays	Status LED for software status, IR programming and displaying detection/sending (only in the first 30 min)
Optimal installation height	Between 1.8 m and 2.2 m
Detection range	12 m x 90°	9 m x 90°/5 m x 90°
Operating voltage	3 V DC
Battery under voltage threshold	2.4 V‘Flat battery’ fault at < 2.4 VIf the voltage is below the lower threshold of 2.4 V, a fault report is sent to the alarm control panel and the user is informed.
Battery type	2 x AA alkaline batteriesDuracell Procell MN1500, Duracell Industrial ID1500,Energizer E91
Battery life	up to 3 years
Operating frequency	868.6625 MHz narrow band
HF transmission power	max. 10 mW
Transmission and reception range	up to 1000 m range outdoors
Supervision notification	approx. every 4 minutes
Standards for intrusion and panic button devices	complies with EN 50131-2-2:2008
EU Directives	RED: 2014/53/EUEMC: 2014/30/EURoHS: 2011/65/EUWEEE: 2012/19/EUErP: 2009/125/EULow voltage: 2014/35/EUGeneral safety: 2001/95/EG
Certification authority	Telefication
General	This product must be installed by a qualified service engineer.

Functional principle and features

General

FUBW50100 and FUBW50110 are passive infrared (PIR) detectors and are designed for indoor use. They are suitable for use with the Secvest wireless alarm system and wireless extension of the Terxon LX and Terxon MX.

The PIR detector reacts to temperature changes.

FUBW50100 has a fan-shaped detection field with a radius of approx. 12 m and aperture angle of approx. 90°.

FUBW50110 has a fan-shaped detection field with a radius of approx. 9 m and aperture angle of approx. 90°. FUBW50110 has a lower sensitivity to pets (up to approx. 20 kg) than FUBW50100, based on a lower sensitivity.

Note

FUBW50110

Despite being “animal-proof up to 20 kg,” animals weighing less than this amount may occasionally trigger the detector. The danger of false triggering is particularly high if the animal moves, jumps or flies in the vicinity of the detector.

However, this also has an effect on the trigger behaviour in general. The lower sensitivity to e.g. pets can be explained by lower heat emission – an adult emits more heat than a pet weighing up to 20 kg.

Thanks to an internal tamper contact, it is not possible to tamper with the housing of either detector model or for them to be removed from a wall.

Note

A moulded part in the recess of the back plate serves as an anti-removal wall contact. This moulded part is mounted to the wall with screws.

If this is not done, tamper detection for the wall is deactivated.

Danger

If the moulded part is not mounted to the wall, the detector will lose its certification for security level 2.

Main features

• Uniform and technologically optimised ABUS design
• More even coverage thanks to the spherical lens, five beam planes and dual element sensor

• Fast reaction times

• FUBW50110 is less sensitive to pets up to 20 kg

• Easily accessible batteries
• For indoor use

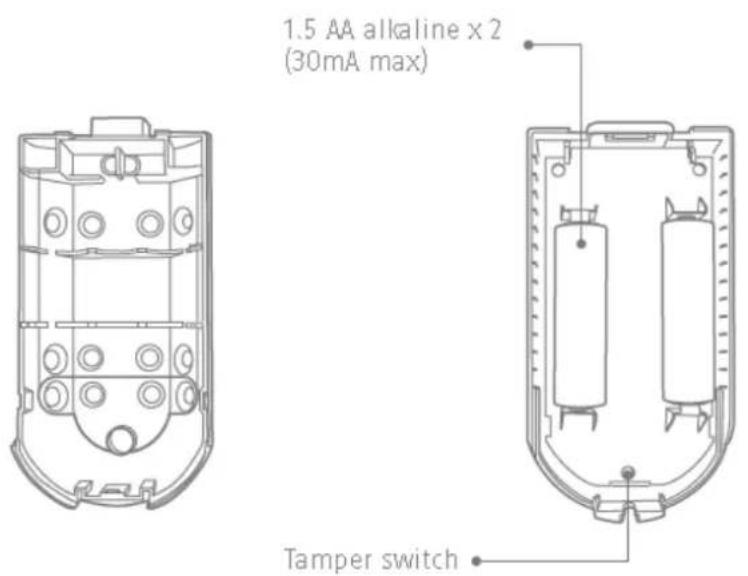

Device description

1.5 AA alkaline x 2 (30mA max) Tamper switch

Figure 2: FUBW50100

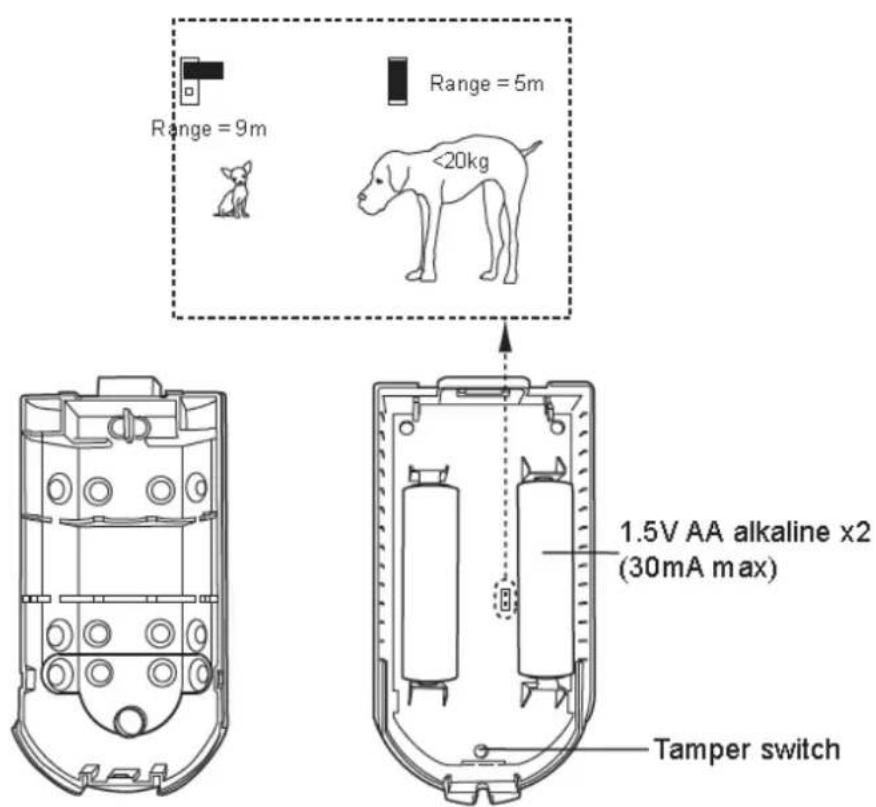

Range = 9m Range = 5m <20kg 1.5V AA alkaline x2 (30mA max) Tamper switch

Figure 2: FUBW50110

Rest period

To increase the battery life and to prevent unnecessary radio emissions, a rest period function is integrated in the detector. It lasts for 3 minutes after each detection.

To make it easier for you to test the detector, the rest period lasts for only 7 seconds within the first 30 minutes after installing the battery or after activating the tamper switch.

Compatible equipment

• FUAA50xxx Secvest alarm panels
• FUMO50010 Repeater Secvest
• FUMO50020 Universal module Secvest
- Wireless extensions Terxon MX and LX (IR programming)
- FU8000 and FU5000 Secvest alarm control panels

Position

The motion detector may only be installed upright

Simple line drawing of a cylindrical device with a checkmark symbol (no text or labels)

Simple line drawing of a cylindrical device with a cross symbol on the side (no text or labels)

Note

To ensure trouble-free operation, the detector must NOT be installed:

• opposite heat sources or windows
• above a radiator
• close to the ground
  • closer than 30 mm to the ceiling
  • behind cupboards, room partitions and partition walls
• at a distance of less than 1 m from large metal structures (such as metal doors or frames, water tanks, refrigerators), household electrical systems, power distributors or metal pipes
  • inside metal housings
• close to the main power supply, or close to water or gas pipelines
• close to high-voltage devices or electronic devices such as computers, photocopiers or other wireless devices
• close to fluorescent lighting.

The following wall material can lead to a reduction in the wireless range:

• bricks
  • steel-reinforced concrete, reinforced concrete
  • corrugated sheet metal.

Installation

Step 1: Select installation location for the motion detector

Select an installation location which:

- is within the wireless range of the receiver component (max. 1000 m outdoors)

• captures the desired surveillance area.

Note

- Before starting installation, identify a suitable installation location for the motion detector if necessary using the wireless test box.

- Incorrect or unclean installation work may lead to erroneous interpretation of signals, the consequences of which may include false alarms. The costs incurred by potential dispatches of rescue services, such as the fire service or police, must be borne by the operator of the system.

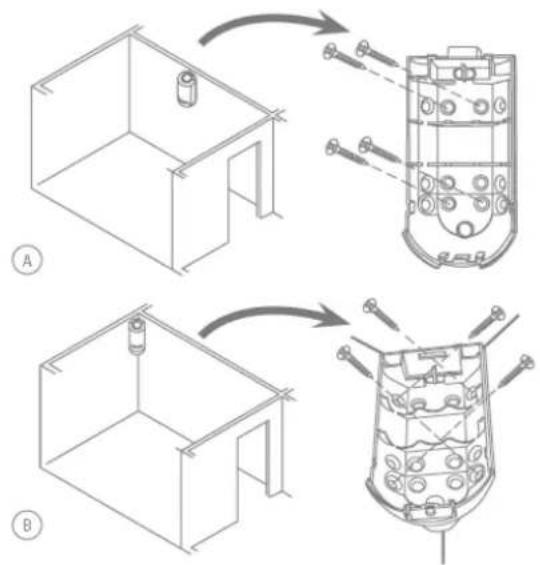

The detector can be installed either flush to the wall (see A) or in a corner (see B).

Technical diagram showing two stages of a mechanical assembly or installation, labeled A and B, with arrows indicating process flow.

Danger

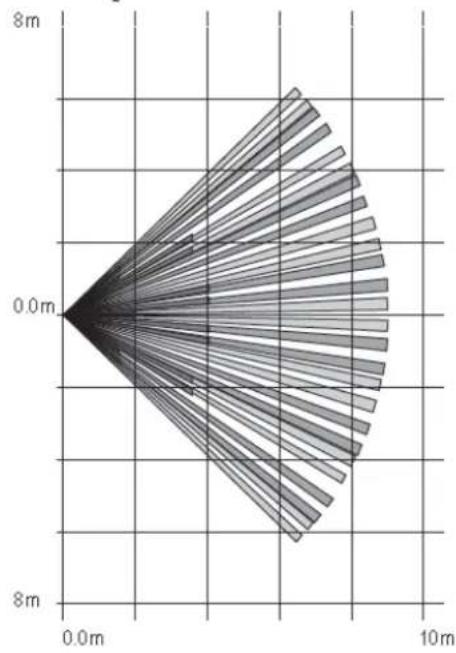

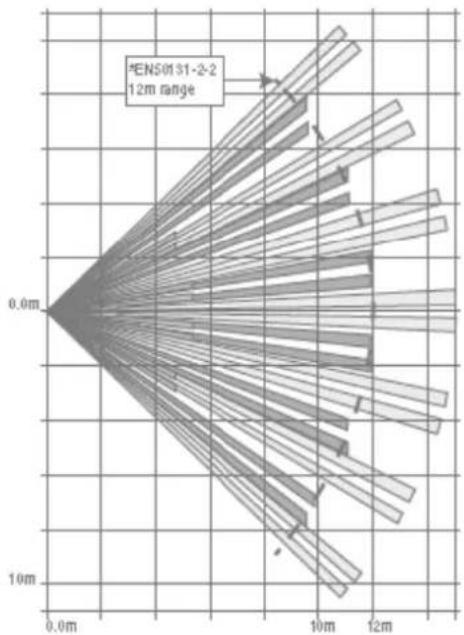

Surveillance area:

The following diagrams show the region captured by the detector.

Horizontal
FUBW50100

FUBW50110

Vertical:
FUBW50100

FUBW50110

For optimal detection, the detector should be mounted at a height of 180–220 cm.

Step 2: Installing the motion detector

• Open the housing by removing the screw on the bottom of the detector and taking off the front housing panel.
• Insert the AA batteries provided, ensuring the polarity is correct.
• Remove the insulation sheet after the batteries have been inserted.
• Mount the detector as described in step 1 either on the wall or in the corner. To do this, use the holes provided on the rear housing panel.

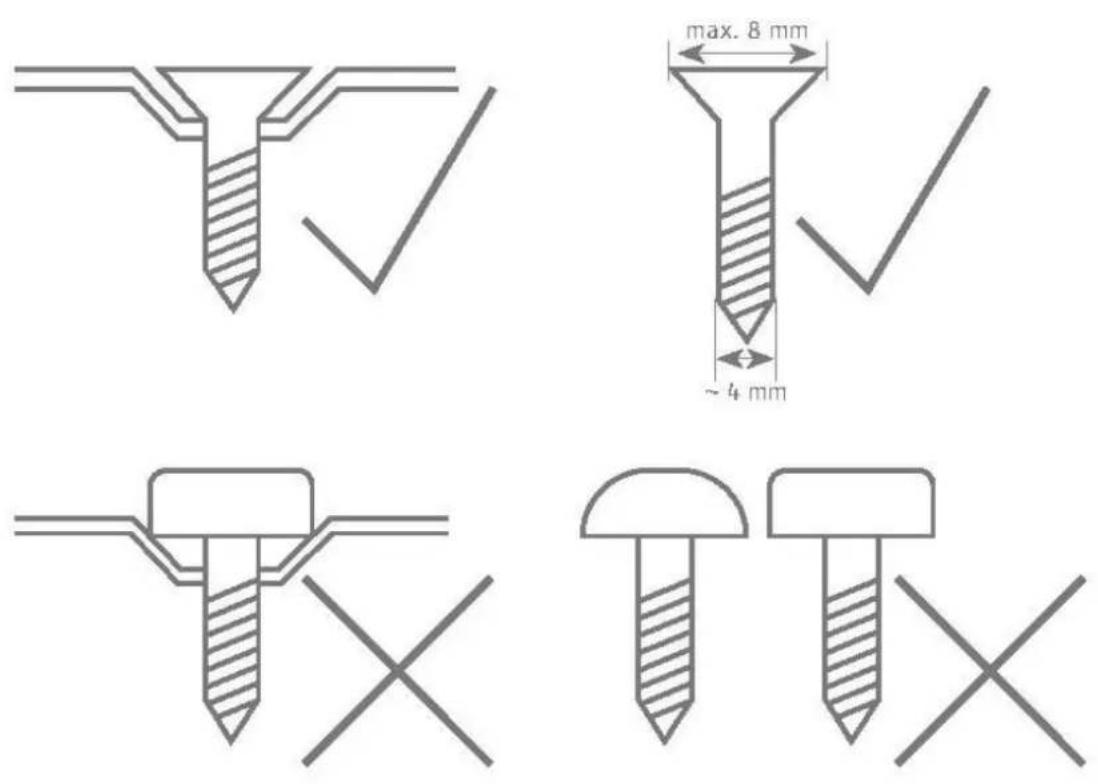

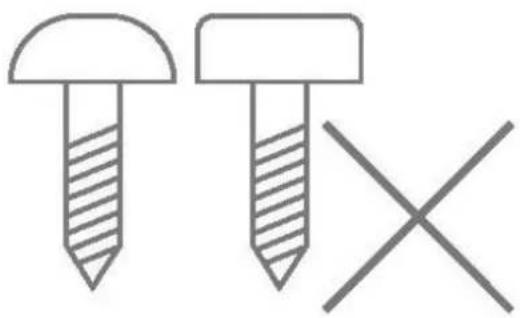

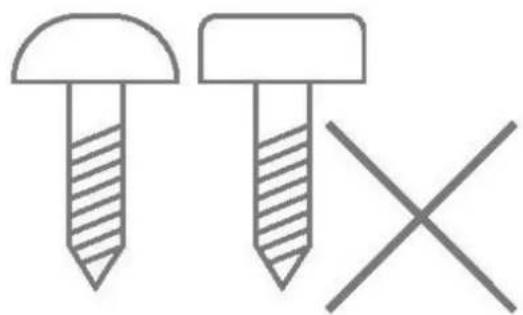

• Only use corresponding dowels and screws for the installation.

Danger

Note

Thanks to an internal tamper contact, it is not possible to tamper with the housing of either detector model or for them to be removed from a wall.

A moulded part in the recess of the back plate serves as an anti-removal wall contact. This moulded part is mounted to the wall with screws.

If this is not done, tamper detection for the wall is deactivated.

Step 3: Programming the motion detector

- Set the receiver component to programming mode. Follow the instructions provided in your receiver instructions.

Wireless option

- Trigger the tamper contact of the motion detector to send a tamper message to the receiver component.

IR option

- Hold the LED of the motion detector close to the IR receiver of the wireless extension (RFX). Now trigger the tamper contact of the motion detector to send a tamper message to the receiver component.

- Ensure that the motion detector has been recognised by your receiver component.

Step 4: Closing the housing

- Close the cover and tighten the cover fixing screws.

Step 5: Test the system

• Set the alarm system to walk test mode (see corresponding user guide).
• Leave the area monitored by the detector and wait for the rest period after each test (see "Rest period").
• Carry out several walk tests to test the surveillance area.
• If the detector is triggered when it is not meant to be triggered, please check the installation location of the detector again (see "Position").

Note

A 30-minute walk test period is integrated in the detector. It begins when the batteries are inserted or when the tamper contact is opened.

The LED is activated during this period and the 3-minute rest period is deactivated. The detector can be triggered again during this period approx. 7 seconds after completion of the last HF transmission.

Functions and displays

Function of the LED

The LED displays the version number at the start by flashing.

The LED can then be used for IR programming (Step 3 Installation).

Over the next 30 minutes, the LED displays the detection and sending.

After this walk test period has elapsed, the LED is deactivated:

• to extend battery life
- to prevent someone from identifying the surveillance area during the day when the alarm panel is deactivated.

Error and tamper monitoring

The detector continually monitors error and tamper states and reports all events to the receiver component. The following is monitored:

• Tamper contact:
  The detector's tamper contact is continually monitored.
• Battery voltage:
  The detector monitors the battery voltage under load conditions and reports faults to the receiver component.
• Supervision
  The detector continually sends supervision messages to the alarm panel.

Maintenance

Danger

Before opening the detector housing, make sure that the alarm panel is in installer mode. This prevents the tamper alarm from being triggered.

Test during routine maintenance that the detector works properly. Check the tamper contact. Check for signs of insects having made their way in to the device and clean as required. Replace the batteries every two to three years or if the alarm panel displays the message "Flat battery in detector". You can find the battery type to be used as a replacement under Technical data.

Note

After removing the old batteries, wait 30 seconds before inserting the new batteries.

Note:

How to replace the batteries:

• Put the alarm panel in installer mode.
• Remove the screw from the underside and open the housing.
  • Take out the batteries.
• Wait 30 seconds, then insert the new batteries.
• Close the housing and re-tighten the screw on the underside.
• Test the system.

Warranty

Note

• ABUS products are designed and manufactured with the greatest care and tested according to the applicable regulations.
• The warranty only covers defects caused by material or manufacturing errors at the time of sale. If there are demonstrable material or manufacturing errors, the component will be repaired or replaced at the warrantor's discretion.
• In such cases, the warranty ends when the original warranty period of two years expires. All further claims are expressly rejected.
• ABUS will not be held liable for defects and damage caused by external influences (e.g. transport, use of force, operating errors), inappropriate use, normal wear and tear, or failure to observe the instructions in this manual.
• In the event of a warranty claim, the original proof of purchase with the date of purchase and a short written description of the problem must be supplied with the product.
• Should you discover a defect on your product that was already present at the time of purchase, please contact your dealer directly within the first two years.

Disposal

Dispose of the device in accordance with EU Directive 2012/19/EU – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the municipal authority responsible for disposal. You can get information on collection points for waste equipment from your local authority, from local waste disposal companies or your dealer, for example.

Declaration of conformity

ABUS Security-Center hereby declares that the radio system type FUBW50100 and FUBW50110 complies with RED Directive 2014/53/EU. The full EU Declaration of Conformity text can be found at: www.abus.com > Item search > FUBW50100/FUBW50110 > Downloads

The Declaration of Conformity can also be obtained from the following address:

Simple line drawing of a cylindrical object with a curved base and a flat top (no text or symbols)

DE

Installation instructions and user manual

FR

Simple line drawing of a cylindrical container with a checkmark symbol (no text or labels)

Simple line drawing of a cylindrical object with a cross symbol on the right side (no text or labels)

Remarque

Pure technical line drawing of a T-shaped component with a checkmark, no text or symbols present

max. 8 mm -4 mm

Pure technical diagram of a screw with cross mark, no text or symbols present

Simple line drawing of two screws with different fill patterns and a cross symbol (no text or labels)

FUBW50110

Vertical :
FUBW50100

FUBW50110

Pure technical line drawing of a mechanical component or assembly without any text, numbers, or symbols

max. 8 mm -4 mm

Pure technical diagram of a screw with cross mark, no text or symbols present

Simple line drawing of two screws with one shaded and one crossed, no text or symbols present

Remarque

Simple line drawing of a cylindrical object with a curved base and a flat top (no text or symbols)

Installation instructions and user manual

Simple line drawing of a cylindrical device with a checkmark symbol (no text or labels)

Simple line drawing of a cylindrical device with a cross symbol on the side (no text or labels)

Aanwijzing

Technical diagram showing two stages of a mechanical assembly with labeled components and directional arrows indicating process flow.

Gevaar

Bewakingsgebied:

FUBW50110

Verticaal:
FUBW50100

FUBW50110

Simple line drawing of a cylindrical object with a curved base and a flat top (no text or symbols)

DE

Installation instructions and user manual

FR

Illustration of a cylindrical device with a checkmark symbol (no text or labels)

Simple line drawing of a cylindrical device with a cross symbol on the side (no text or labels)

Bemærk

Simple line drawing of a cylindrical object with a curved base and a flat top (no text or symbols)

DE

Installation instructions and user manual

FR

Illustration of a cylindrical device with a checkmark symbol (no text or labels)

Simple line drawing of a cylindrical device with a cross symbol on the side (no text or labels)

Nota
