MISSY PRF0151543 - Range hood ELICA - Free user manual and instructions

Brand	ELICA
Model	MISSY PRF0151543
Product type	Extractor or recirculation hood
Use version	External extraction or internal recirculation
Minimum safety distance	50 cm (electric cooking) / 65 cm (gas or mixed cooking)
Power supply	220-240 V ~ 50/60 Hz (according to rating plate)
Lighting	LED bulb 3 W max, socket E14
Grease filter	Washable metal filter in dishwasher (monthly cleaning)
Active carbon filter	Optional for recirculation version, replacement every 4 months
Control	Control panel with speed selection and lighting
Mounting type	Wall or ceiling, with supplied dowels
Material	Stainless steel or paint (depending on finish)
Maintenance	Exterior cleaning with damp cloth and mild detergent
Safety	Do not flambé under the hood, do not use without filter
Domestic use	Suitable for domestic and similar applications

Frequently Asked Questions - MISSY PRF0151543 ELICA

Can the ELICA MISSY PRF0151543 hood be used in recirculation mode?

Yes, it can be used in recirculation mode with an active carbon filter (optional) and the supplied deflector.

What is the minimum distance between the hood and the cooking surface?

50 cm for an electric hob, 65 cm for a gas or mixed hob. Follow the hob manufacturer's instructions if a greater distance is specified.

How to clean the grease filter?

The metal filter should be cleaned once a month by hand with a mild detergent or in the dishwasher at low temperature and short cycle. The dishwasher may alter its colour but not its effectiveness.

When should the active carbon filter be replaced?

The carbon filter must be changed every 4 months maximum, as it cannot be cleaned or regenerated.

How to replace the hood's bulb?

Unplug the appliance, ensure the bulb is cold, remove the cover, replace with an LED bulb of max 3 W, socket E14.

Can I use the hood without the grease filter?

No, never use the hood without the grid properly mounted, as this presents a fire risk.

How to install the hood in external extraction mode?

If your hood is equipped with a carbon filter, remove it. Connect the top air outlet to an extraction duct (not supplied) to the outside.

What type of electrical cable to use for connection?

The voltage must match that indicated on the rating plate. Use an accessible wall socket after installation or a circuit breaker complying with standards.

Does the hood work with a peripheral suction unit?

Models without a suction motor must be connected to a peripheral unit (not supplied). Follow the external unit's instructions.

How to recycle the hood at end of life?

Do not dispose of it with household waste. Take it to a WEEE collection centre or return it to your retailer. Check www.quefairedemesdechets.fr for collection points in France.

USER MANUAL MISSY PRF0151543 ELICA

EN - Instruction on mounting and use

2

R

EN - Instruction on mounting and use

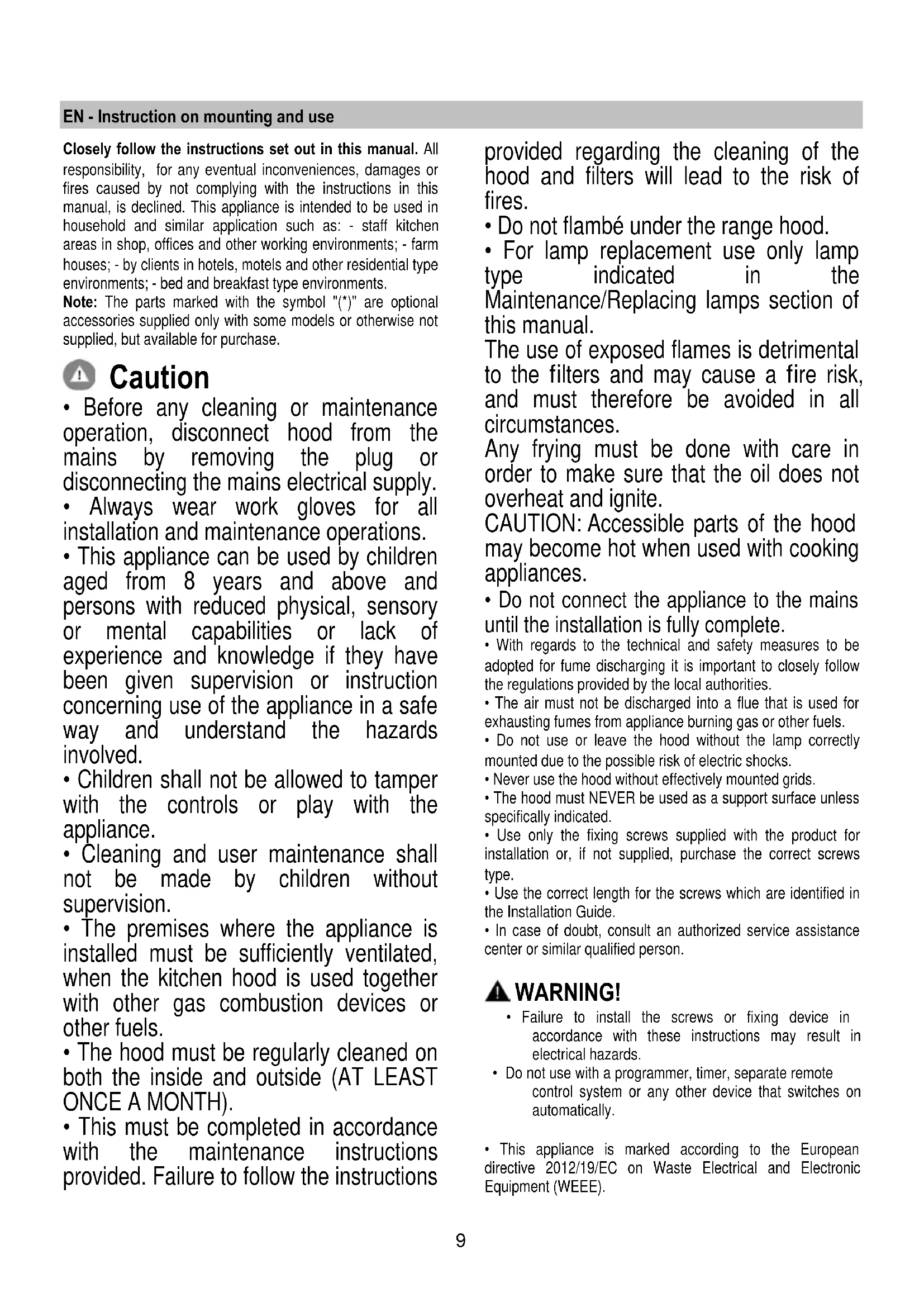

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply. • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions

provided regarding the cleaning of the hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

- In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

- This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

The hood is equipped with a top air outlet B for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided).

Attention! If the hood is supplied with carbon filter, then it must be removed.

Filter version

If it is not possible to discharge cooking fumes and steam outside, the hood can be used in filter mode by mounting the F deflector on the flue and one or more carbon filters (depending on the model). The fumes and steam are then recycled into the kitchen through the upper grill H.

Attention! If the hood is not supplied with a carbon filter,

it must be ordered and installed.

Models without a suction motor operate only in ducting mode and must be connected to an external suction device (not supplied).

The connection instructions are provided with the peripheral suction unit.

Installation

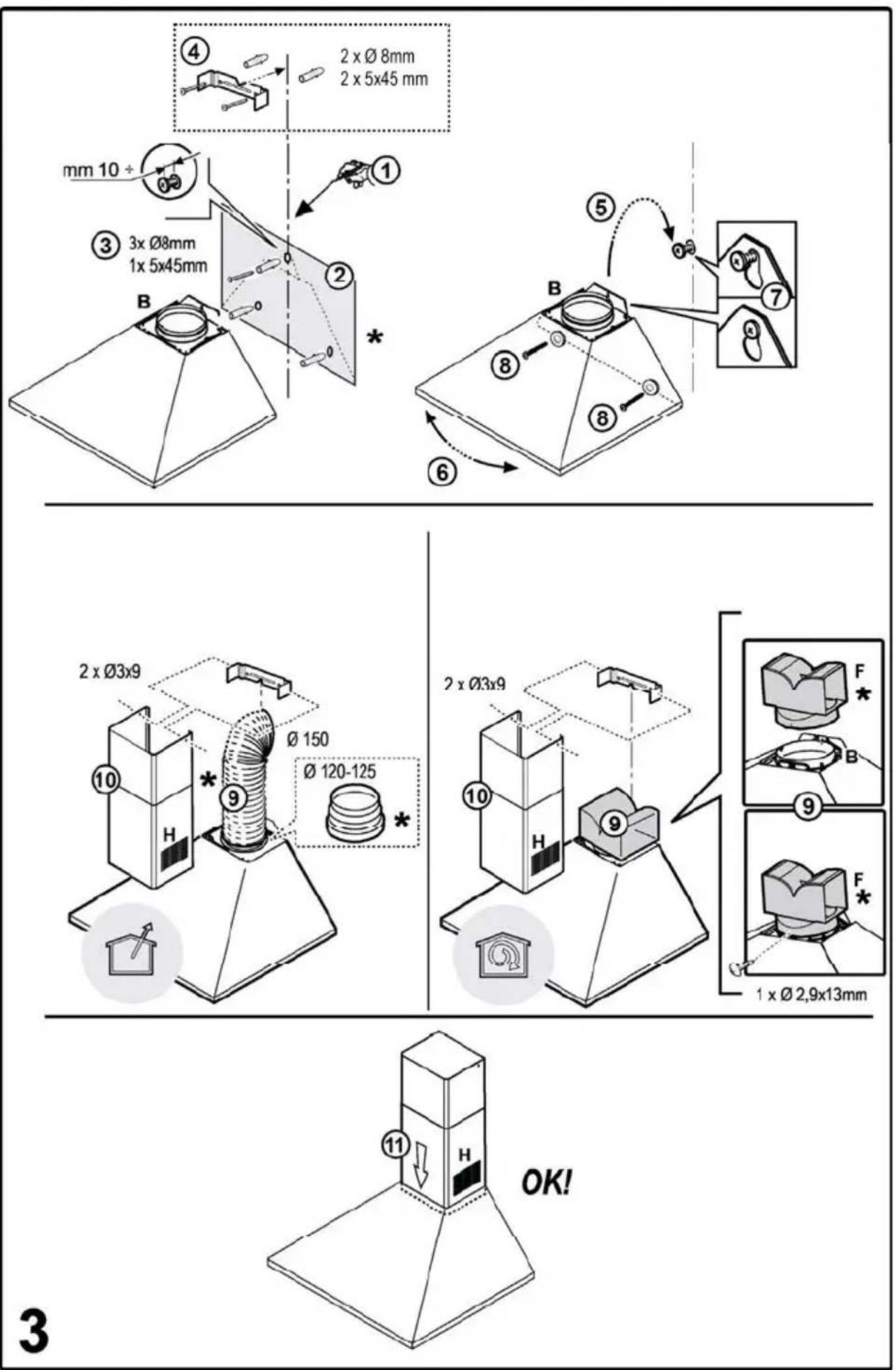

Fig. 3

The minimum distance between the supporting surface for cooking equipment on the hob and the lowest part of the range hood must be at least 50 cm for electric cookers and 65 cm for gas or mixed cookers.

If the installation instructions for the gas hob specify a greater distance, that distance must be adhered to.

Electrical connection

The mains power supply must match the rating indicated on the plate located inside the hood. If a plug is provided, connect the hood to a socket that complies with current regulations and is accessible after installation. If the hood is not fitted with a plug (direct mains connection) or if the plug is not accessible after installation, install a double-pole switch that complies with standards and ensures complete disconnection from the mains under overcurrent category III conditions, in accordance with the installation instructions.

WARNING!

Before reconnecting the hood circuit to the mains supply and checking proper operation, always verify that the mains cable is correctly assembled.

Mounting

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify the suitability of the materials for the specific wall/ceiling type. The wall/ceiling must be strong enough to support the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Fig. 1 Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

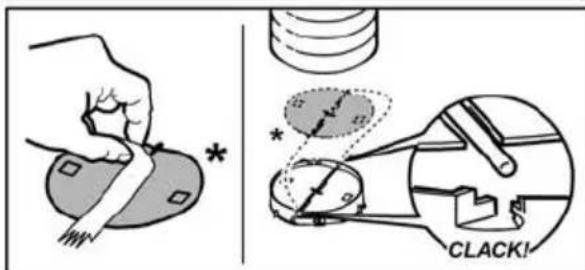

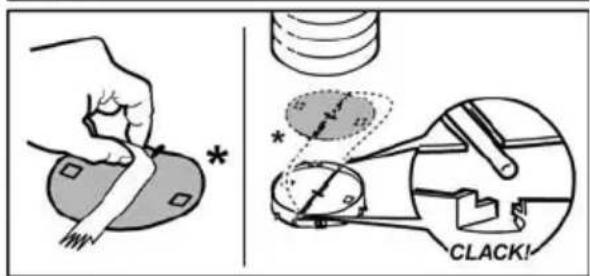

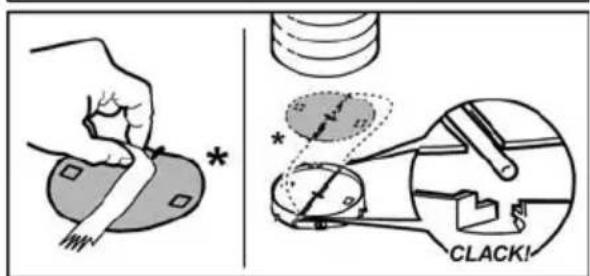

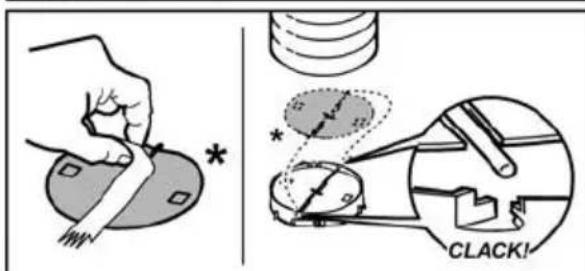

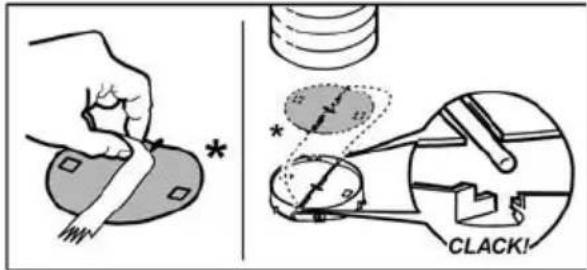

Fig. 2 It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Remove the grease filters.

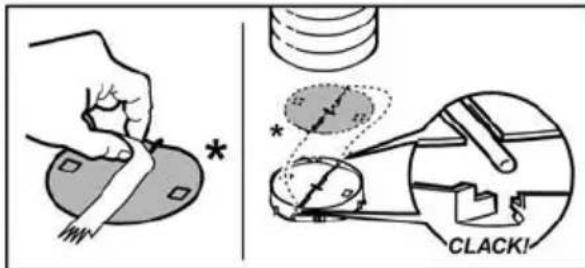

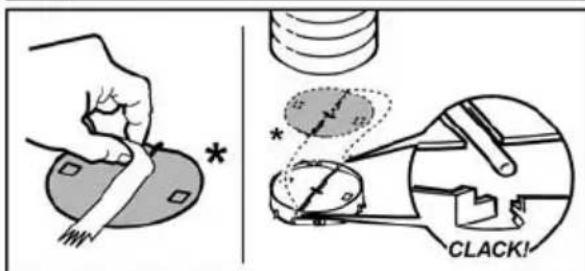

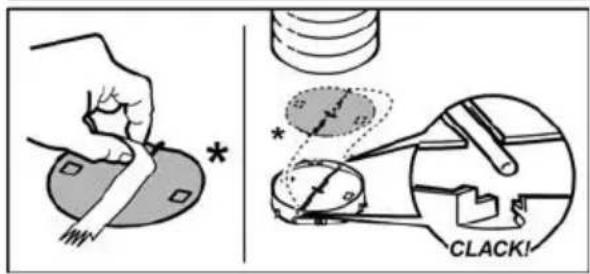

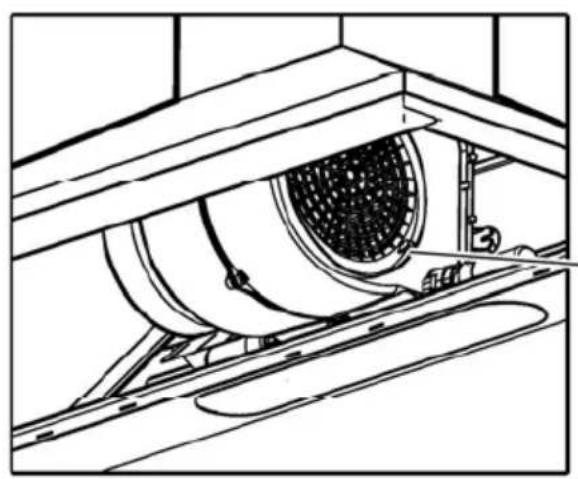

Fit the charcoal filters over the motor.

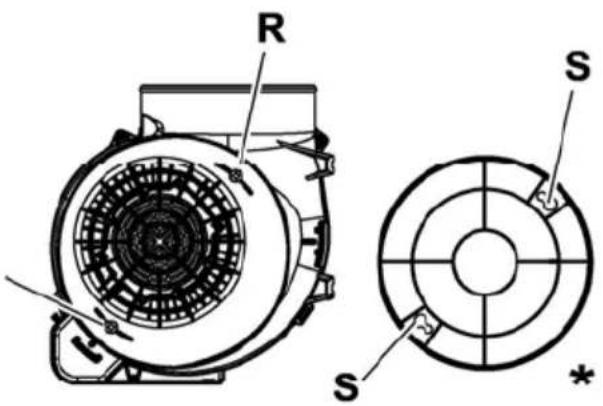

Align the pins R on the cowl with the slots S, then turn the filter clockwise until it locks in place.

Reverse the above procedure to remove the charcoal filters.

Refit the grease filters.

Replacing lamps

Fig. 1 Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove cover A to access the lamp housing A.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

On some models ONLY:

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.

Replace the defective bulb.

SL - Installation and use instructions

Strictly adhere to the instructions provided in this manual. We disclaim any liability for accidents, malfunctions, or fires on the appliance resulting from failure to follow the instructions in this manual. The kitchen hood has the function of extracting smoke and steam during cooking and is intended for household use only.
