Product type	Electronic lock with profile cylinder
Brand	Burg Wächter
Model	secuENTRY 7116 DUO
Dimensions (exterior button)	Diameter 30 mm, height 52 mm
Dimensions (interior button)	Diameter 34 mm, height 57 mm (adjustable)
Maximum door thickness	119 mm (61 mm exterior side, 59 mm interior side)
Exterior button power supply	1 CR123A lithium battery
Interior button power supply	2 LR6 (AA) alkaline batteries
Number of user codes	Up to 2000
Opening modes	6-digit PIN code, fingerprint, passive transponder (15693, 1444A), active transponder (BLE), KeyApp
Mechanical emergency opening	Yes, with provided emergency key
Lockout time after errors	1 minute after 3 incorrect entries, then 3 minutes each time
Optional software functions	User management, calendar, timer, hotel function, limited code, 2000 entry history
LED signaling	Indicates opening, closing, denial, programming mode, low battery
Anti-tamper protection	Yes, via integrated threaded stud
Programming	Via keypad (optional) or secuENTRY software
Smartphone compatibility	Android 4.3+ / iOS 10.3.2+ (Samsung Galaxy S4+, Apple iPhone 4S+)
Installation	No drilling, adjustable with included adapters
Maintenance	Do not grease or oil. Clean with a soft, dry cloth
Warranty	Subject to presentation of proof of purchase and valid QR codes
Compliance	RED 2014/53/EU, EMC 2014/30/EU, RoHS 2011/65/EU
Delivery contents	Cylinder, set of adapters, screws, emergency key, battery change tool, QR codes

Frequently Asked Questions - secuENTRY 7116 DUO Burg Wächter

How to program the PIN code on the secuENTRY 7116 DUO lock?

To program a PIN code, activate the keypad with the FUNC key, then navigate through the menu to Administrator menu > Setup. Enter the administrator code (found on the QR code of the interior button) and follow the on-screen instructions. The default PIN code is 123456.

How to open the door with a fingerprint?

Activate the keypad with the FUNC key, then slide your registered finger from top to bottom on the fingerprint sensor. If the fingerprint is recognized, the screen displays 'Please turn the rotating knob!' and the LED flashes once. Then turn the cylinder knob to open.

How to replace the batteries of the lock?

For the exterior button: use the provided tool to remove the sleeve, then replace the CR123A battery respecting polarity. For the interior button: unscrew the threaded stud with an Allen key, open the cover, replace the two LR6 (AA) batteries respecting polarity, then close. Be careful not to crush the cable.

What to do in case of loss of administrator code or QR code?

In case of loss of the administrator code and/or QR code, it is no longer possible to reprogram the cylinder or use administrator functions. Keep these items safe, ideally as a photo or electronic file on a secure medium.

How to use the mechanical emergency key?

Open the joint of the emergency key and insert it into the slot on the exterior button cover. Turn the key 90° clockwise while slightly turning the exterior button to unlock the mechanism. Then turn the exterior button to open the door. To close, turn the key in the opposite direction and remove it.

How to register an additional keypad on the cylinder?

Activate the keypad with the FUNC key, go to Administrator menu > Setup, enter the cylinder's administrator code. Ensure no other secuENTRY unit is powered on nearby. Once the procedure is successful, the message 'Data saved' is displayed.

How to connect the lock to the KeyApp?

Download the KeyApp from the App Store or Google Play. Bring your smartphone close to the exterior button and press the opening button in the app. If the connection is successful, the LED flashes. For first use, scan the QR code on the interior button with the app.

What is the range of the active transponder?

The active transponder (BLE) can be used up to a maximum distance of 4 meters from the cylinder. Briefly press the transponder's opening button to trigger opening.

How to adjust the cylinder to the thickness of my door?

The cylinder is delivered in telescoped position (minimum thickness). To adjust, remove the exterior button, slide the interior button on the notches (every 2.85 mm) to the desired position. Use the provided adapters if the screw-fixing distance exceeds 43 mm. Consult the mounting table to choose the appropriate screw.

What does the LED flashing on the button mean?

The LED signals are: 1 flash = opening successful, 2 flashes = closing, 3 flashes = transponder recognized but not authorized, 4 flashes = permanent opening activated, 1 short + 1 long (repeated) = programming mode, 5 flashes (repeated for 20s) = battery exhausted.

USER MANUAL secuENTRY 7116 DUO Burg Wächter

Mechanical component with cylindrical body and internal assembly (no visible text or symbols)

SN: 10:2D:00:3E MAC: 30:42:25:00:00:60 AES: E1:25:F3:E2:DB:86:C0:70: F7:EA:04:93:17:2E:BF:9E ADM: 123456 1

1 Zylinder (SN; MAC; AES; ADM)

Two black-and-white photos showing hands adjusting a door lock and screwdriver (no text or symbols visible)

Close-up of a metallic door clip and a door lock mechanism (no text or symbols visible)

Mechanical component diagram showing a shaft and housing assembly with dimension label A (no text or symbols present)

Close-up of two mechanical components with cross-hatching, no visible text or symbols

Bluetooth Low Energy

Maximum Transmit Output Power 7,5dBm

Frequency usage range 2,402GHz ... 2,483GHz

Close-up of a hand holding a mechanical component, showing a metallic cylindrical part inserted into a circular housing (no visible text or symbols)

Close-up of a mechanical component with internal structure and mounting holes (no visible text or symbols)

Close-up of a hand holding a cylindrical mechanical component, alongside a close-up of its internal black and metallic component (no visible text or symbols)

Close-up of a mechanical component with metallic cylindrical body and flange (no visible text or symbols)

Close-up of a metallic mechanical component with flanged base and central hub (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

F. Notschlüssel

Close-up of a hand pressing down on a wall-mounted device with a black cylindrical component and directional arrows (no text or symbols visible)

Two identical line diagrams of a trash bin with diagonal lines indicating no waste or discharge, no text or symbols present.

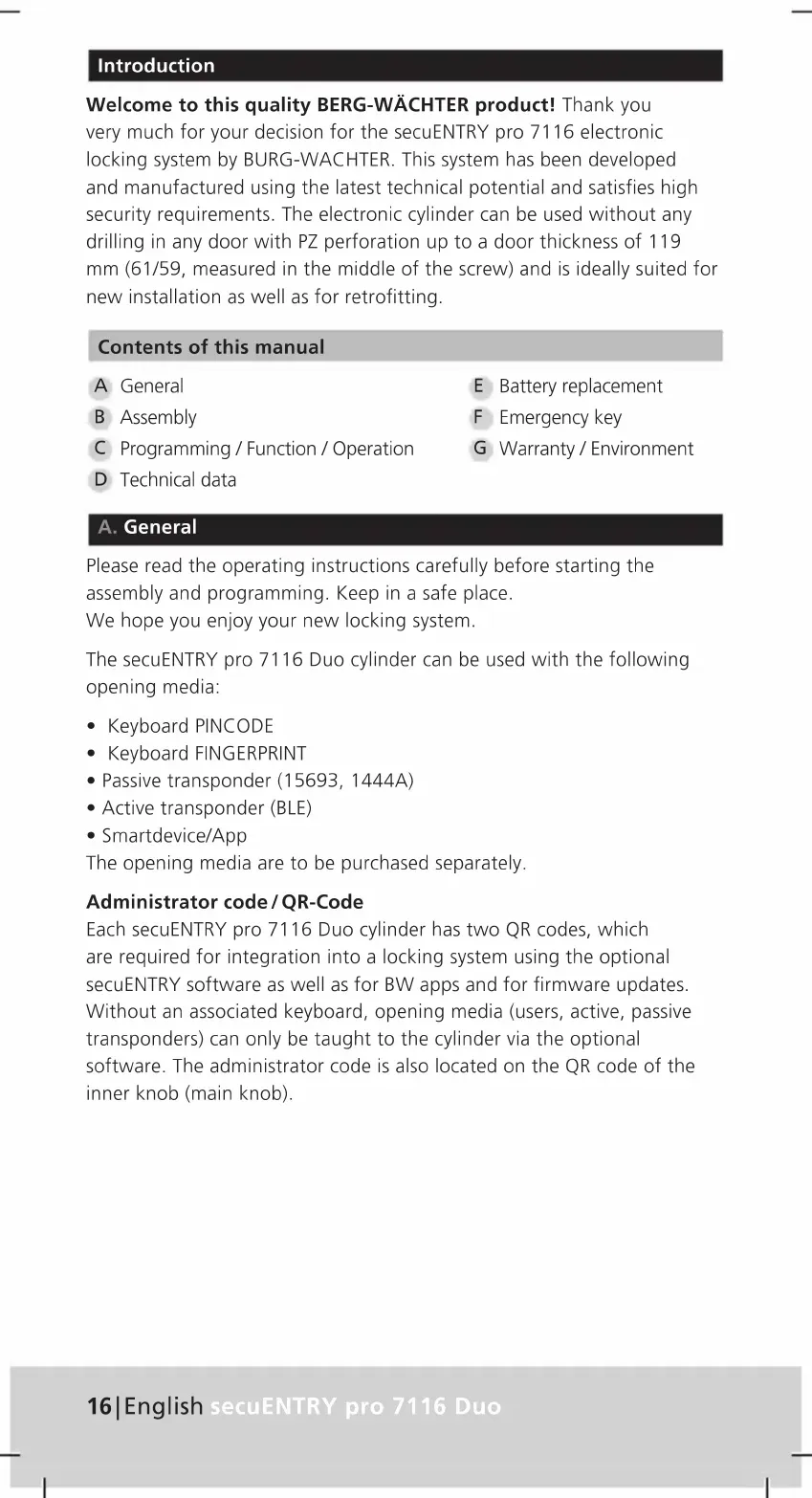

Welcome to this quality BERG-WÄCHTER product! Thank you very much for your decision for the secuENTRY pro 7116 electronic locking system by BURG-WACHTER. This system has been developed and manufactured using the latest technical potential and satisfies high security requirements. The electronic cylinder can be used without any drilling in any door with PZ perforation up to a door thickness of 119 mm (61/59, measured in the middle of the screw) and is ideally suited for new installation as well as for retrofitting.

Contents of this manual

A General

E Battery replacement

B Assembly

F Emergency key

C Programming / Function / Operation

G Warranty / Environment

D Technical data

A. General

Please read the operating instructions carefully before starting the assembly and programming. Keep in a safe place.

We hope you enjoy your new locking system.

The secuENTRY pro 7116 Duo cylinder can be used with the following opening media:

• Keyboard PINCODE
• Keyboard FINGERPRINT
  • Passive transponder (15693, 1444A)
  • Active transponder (BLE)
• Smartdevice/App

The opening media are to be purchased separately.

Administrator code / QR-Code

Each secuENTRY pro 7116 Duo cylinder has two QR codes, which are required for integration into a locking system using the optional secuENTRY software as well as for BW apps and for firmware updates. Without an associated keyboard, opening media (users, active, passive transponders) can only be taught to the cylinder via the optional software. The administrator code is also located on the QR code of the inner knob (main knob).

SN: 10:2D:00:3E MAC: 30:42:25:00:00:60 AES: E1:25:F3:E2:DB:86:C0:70: F7:EA:04:93:17:2E:BF:9E ADM: 123456 1

1 cylinder (SN; MAC; AES; ADM)

Attention! If the administrator and / or the QR code is lost, reprogramming or the use of all of the administrator functions is no longer possible. Please store it in at a safe place.

Tip: The QR code can also be scanned electronically as a file or saved as a photo on a protected data carrier.

The manufacturer assumes no liability for any injuries or damage that may occur during installation or through improper handling.

B. Assembly

The installation of the secuENTRY pro 7116 Duo cylinder is described below. Please read this Assembly Manual carefully prior to the assembly.

Remarks:

The base size of the cylinder is 30 mm per side. The cylinder has a special latching system on the inside and an adapter kit for the outer knob which allows the cylinder to be used on door thicknesses up to 119 mm (61/59, measured at the of the centre cuff screw). No prior adjustment is necessary. The appropriate screws for the adapter lengths are included with the set.

When delivered, the cylinder inner knob is completely collapsed (the smallest

door thickness). Before you insert the cylinder into the door, you should adjust it to your door thickness.

The inner knob is loosened and fixed using an integrated blade screw in the rotary knob.

Attention! Never pull the inner knob completely from the shaft, as this might cause damage to the electronics! The locking screw, which ensures the detent on the shaft, may be loosened only lightly and it always remains in the plastic knob. The locking screw provides protection against pulling out!

Care must be taken during installation. Avoid impacts or falls. The lock should not be greased or oiled.

When installing the cylinder, proceed as follows:

1 Take a rough measurement of the door thickness (incl. fi ttings)
2 Pull the outer knob from the shaft, move the inner knob over the detent system (spacing 2.85 mm) to the required dimension.

Inner knob 30 mm adjustment path

Schematic illustration Inner knob

3 Depending on the door thickness, you can affi x an appropriate adapter on the outer side, in order to improve the path for the emergency key.

The following combinations are possible:

Space detent bolt/ fi tting (mm) on the outer side	Adapter 1	Adapter 2
< 43 --
44-53 X -
54-60 X X

Tab. 1: Space detent bolt/mounting [mm] on the outer side and the required adapter.

M2 × 10 Adapter 1 2.9 × 16 Adapter 2

Systematic illustration of adapter fi xing

4 Move the secuENTRY pro 7116 Duo cylinder from inside to outside through the mortise lock into the door and then tighten the detent bolt.

Two black-and-white photos showing hands adjusting a door lock and screwdriver (no text or symbols visible)

5 Shift the inner knob over the shaft until attaining the required dimension. Please make sure that the clearance between the rotary knob and the door mounting is at least 1mm. Then fix the rotary knob using the hex key.

6 Before you fix the outer knob, please consider whether you wish to use the attached cover panel for the profile cylinder section. If so, remove the protective sheet and fix the cover panel onto the lock section.

Close-up of a metallic door clip and a door lock mechanism (no text or symbols visible)

7 Insert the outer knob of the cylinder or the appropriate adapter and tighten with the screw. Please refer to the table for suitable assignment and grading.

Assembly of outer knob

Screw Adapter

Screws Adapter length Dimension A
M4x16 7 mm <= 32
M4x20 11 mm 32.5 × 36.0
M4x25 16 mm 36.5 × 41.0
M4x30 21 mm 41.5 × 46.0
M4x35 26 mm 46.5 × 51.0
M4x40 31 mm 51.5 × 56.0
M4x45 36 mm 56.5 × 61.0

Mechanical component diagram showing a shaft and housing assembly with dimension label 'A' (no text or symbols beyond the label)

Overview of the screws and hexagonal adapter Fig. in scale 1:1

Adapter (L = length in mm)

Dimensions secuENTRY pro 7116 Duo

Diameter 34 Inner side 57 1-29 30 30 1-31 Outer side 52 Diameter 30 Dim

Dimensions in mm

8 Insert the CR123A lithium battery with the correct polarity (positive pole forward)
9 Slide the sleeve onto the inner knob and snap in place.

Close-up of two mechanical components with cross-hatching, no visible text or symbols

C. Programming / Function / Operation

The keyboard can be registered to a cylinder either via the keyboard itself or via the secuENTRY software. To operate a cylinder via a keyboard, both units must be matched. Proceed as follows:

Registration using the keyboard

• Activate the keypad using the key
• Then press FUNC, the "Code Change" menu is displayed
• Scroll using the 1 or 2 keys until reaching the Administrator menu
• Confirm with
• Scroll using the 1 or 2 keys until reaching the Administrator menu setup options "Setup"
• Confirm with
• Enter the Admin. Code of the unit to be read
• "Data has been saved" is displayed after a successful registration

Attention! Please make sure that no other powered secuENTRY unit is placed within direct reach of the device during installation of

a new keypad or cylinder, as by mistake such unit could be addressed instead of the intended one. When in doubt, disconnect these units from power.

Registration via the secuENTRY software

Please refer to the operating instructions of the respective software.

Attention! For the registration of the secuENTRY pro 7116 Duo profile cylinder, please use only the QR code of the internal knob in the PC software. This is provided with the administrator code. It is not necessary to register the external connector in the PC software.

Opening

The secuENTRY pro 7116 Duo can be operated with fingerprint, the passive transponder or the active transponder, depending on the equipment variant, using a 6-digit number code, the BURG-WÄCHTER KeyApp.

Opening with Pincode

• Activate the keypad using the key
• Enter the 6 digit PIN code (factory-set to "1-2-3-4-5-6").
  The display indicates "Please use rotating knob!" and the LED integrated in the cylinder flashes once when the opening is successful.
• Turn the cylinder knob

Opening with Fingerprint

• Activate the keypad using the key
• Move the registered finger from the top to the bottom centrally over the sensor.
  The display indicates "Please use rotating knob!" and the LED integrated in the cylinder flashes once when the opening is successful.
• Turn the cylinder knob

Opening with passive transponder

• Hold the transponder at the front end at a maximum distance of 1 cm from the cylinder knob. The LED which is integrated in the cylinder flashes once upon successful opening.
• Turn the cylinder knob

Opening with active transponder

• Briefly press the opening button 1x at a maximum of 4 m distance from the secuENTRY pro 7116 Duo cylinder knob. The LED which is integrated in the cylinder flashes once upon successful opening.
• Turn the cylinder knob

Opening with BURG-WÄCHTER KeyApp

• Hold your SmartDevice in front of the cylinder knob and press the KeyApp opening button.
• The LED which is integrated in the cylinder flashes once upon successful opening.
• Turn the cylinder knob.

The BURG-WÄCHTER KeyApp can be downloaded from the App Store or from Google Play Store. Just enter the keyword "secuENTRY" or "KeyApp". Compatible with Samsung Galaxy S4, S4 mini, S5 and S5 mini, S6, S6-Edge, S7, S7-Edge, S8, S8Plus from Android 4.3 KitKat or 5.0 Lollipop, Apple iPhone 4S, 5, 5S, 6, 6Plus, 6S, 6S-Plus,7 and 7-Plus from IOS 10.3.2.

Please check under: www.burg.biz/ secuentry/description whether other Smartphones are compatible with the App.

When using the Key App opening procedure, please note that the active or passive transponder should not be previously activated using the ⏻key!

D. Technical data
Number of User Codes max. 2000
Mechanical emergency opening	✓
Blocking times After 3 x wrong code	is entered1 minute, then always 3 minutes
Power supply 1 x CR 123A Lithium	2 x MIGNON LR6 ALKALINE
Date / Time	✓
Calendar*	✓
Stopwatch*	✓
Permanent Timer*	✓
Hotel function / Guest code*	✓
Hotel function / Transponder*	✓
Temporary code	✓
Smart Device / KeyApp*	✓
Smart Device / KeylessEntry*	✓
Apple Watch / KeyApp*	✓
History number 2000

* Functions only via the optional secuENTRY Software

Bluetooth Low Energy

Maximum Transmit Output Power 7.5dBm

Frequency usage range 2,402GHz ... 2.483GHz

Additional functions available using the optional secuENTRY Software, for example:

• Setup User
• Timer and calendar functions
• Assignment of authorisations

Optical signalling inner knob

The optical signal in form of a LED is incorporated in the knob on the inner side of the door.

This LED informs you on the following:

• 1 x short: Cylinder is engaged
• 2 x short: Cylinder is released
• 3 x short: Transponder Tag recognized, no opening authorization
• 4 x short: Permanent opening activated
• 1 × short, 1 × long, 2 sec. pause, Repeat: Lock in programming mode
  5 × short, 2 sec. pause, Repeat after 20 seconds: Empty battery in the cylinder

Optical signalling outer knob

The optical signal in form of a LED is incorporated in the knob on the outer side of the door.

This LED informs you on the following:

• 1 x short: Cylinder is engaged
- 2 x short: Cylinder is released
- 3 x short: Transponder Tag recognized, no opening authorization
- 4 x short: Permanent opening activated
- 1 × short, 1 × long, 2 sec. pause, Repeat: Lock in programming mode

5 × short, 2 sec. pause, Repeat after 20 seconds: Empty battery in the cylinder

E. Battery replacement

E-1. Battery replacement inner knob

• Using the attached hex key, loosen the top locking screw on the cylinder cover. It can be turned out only up to the opening of the cover and will not fall out.
• Open the cover.

Close-up of a hand holding a mechanical component, showing a metallic cylindrical part inserted into a circular housing (no visible text or symbols)

- Replace the batteries. Make sure the batteries are inserted with the correct polarity, indicated at the marked point on the housing. Replace the cover.

Close-up of a mechanical component with internal components and mounting holes, shown from two angles (no text or symbols visible)

E-2. Battery replacement outer knob

- Push the ratchets with the enclosed tool and remove the knob sleeve.

Close-up of a hand holding a cylindrical mechanical component, shown from two angles (no text or symbols visible)

- Replace the battery with the correct polarity.

Close-up of a mechanical cylindrical component mounted on a flanged base (no visible text or symbols)

- Carefully push the knob again. Please note: Latching is only possible in one position!

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Attention! Be careful not to nip the cable. Make sure that the O-ring is correctly placed.

• Re-engage the knob sleeve.

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

F. Emergency key

Using the mechanical emergency key, you can provide access in case of failure of the system.

1 Swing the emergency key open and then insert it into the indicted slot in the cover panel.

Close-up of a hand using a screwdriver to press a black cylindrical object on a wall (no text or symbols visible)

2 Turn the key 90 ° clockwise. If required, move the outer knob slightly to the right and left in order to release the mechanism.
3 Turn the outer knob. The lock opens when fully turned at the latest.

Turn the key to its initial position and take it out. To close the emergency lock, the knob shall be turned twice fully in both directions.

G. Warranty / Environment

Warranty

In order to provide you with a perfect, high-quality product and to help you if service or repair is required, the faulty or defective devices together with the valid administrator code and the QR code (s) should be submitted to your handler with the original purchase document.

In the case of returns due to your right of withdrawal all parts of the device must be in the factory setting and the seals on the cylinder and the knob must be undamaged. If these conditions are not met, the warranty expires.

Important information about our electronic locks

General: Please take care that the codes and the code carrier do not fall into the wrong hands. Therefore, store the codes and code carrier at a safe location so that these can only be accessed by authorised persons. In case you loose a code or code carrier, the lock must be converted to a new code / code carrier, or replaced.

• The factory code must be changed as soon as the lock is commissioned.
• Simple codes that are easy to guess (e.g. 1, 2, 3, 4, 5, 6) must not be used.
• Personal data (e.g. birthday) or other data that may be concluded with knowledge of the code owner must not be used as code.
• After changing the code, the lock must be checked several times with the safety door opened.

Disposal of the device

Dear Customer,

Please help us avoid unnecessary waste. Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials, which can be recycled. Please do not throw out the device as general waste, but rather obtain information on the collecting points for electrical waste from the responsible authority of you municipality.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please be aware that electrical and electronic equipment and batteries shall not be disposed of as household waste, but rather collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of you municipality.

BURG-WÄCHTER KG hereby declares that this device Directive (RED) 2014/30/EU, (EMC), (toHS). The full text of the EU Declaration of Conformity can be found on www.burg.biz

Regarding interferences from Bluetooth devices

Bluetooth devices use the same frequency bandwidth (2.4 GHz) as Wi-Fi devices. This can lead to interference, which causes errors or interrupts communication. In such cases devices that are not required should be de-energized.

Print and typesetting errors as well as technical changes reserved.

Introduction

SN: 10:2D:00:3E MAC: 30:42:25:00:00:60 AES: E1:25:F3:E2:DB:86:C0:70: F7:EA:04:93:17:2E:BF:9E ADM: 123456 1

1 cylindre (SN ; MAC ; AES ; ADM)

Two black-and-white photos showing hands adjusting a door lock and screwdriver (no text or symbols visible)

Close-up of a metallic door handle and door lock mechanism (no text or symbols visible)

Mechanical component diagram showing a shaft and housing assembly with dimension label A (no text or symbols present)

Close-up of two mechanical components with cross-hatching, no visible text or symbols

Bluetooth Low Energy

Maximum Transmit Output Power 7,5dBm

Frequency usage range 2,402GHz ... 2,483GHz

Close-up of a hand holding a metallic cylindrical object with a pointed tip, against a wooden background (no visible text or symbols)

Close-up of a hand holding a black circular knob on a metallic knob (no text or symbols visible)

Close-up of a mechanical component with internal structure and mounting holes (no visible text or symbols)

Close-up of a hand holding a cylindrical mechanical component, shown from two angles (no text or symbols visible)

Close-up of a mechanical cylindrical component mounted on a flanged base (no visible text or symbols)

Close-up of a mechanical component with metallic and black casing (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

F. Clé de secours

Close-up of a hand holding a black cylindrical object with an arrow pointing to it, against a plain wall (no text or symbols visible)

SN: 10:2D:00:3E MAC: 30:42:25:00:00:60 AES: E1:25:F3:E2:DB:86:C0:70: F7:EA:04:93:17:2E:BF:9E ADM: 123456 1

1 cilinder (SN; MAC; AES; ADM)

Two black-and-white photos showing hands using a tool to adjust or install a door lock (no text or symbols visible)

Close-up of a metallic door clip and door lock mechanism (no text or symbols visible)

Mechanical component diagram showing a shaft and housing assembly with dimension label A (no text or symbols present)

Adapter ( L = lengte in mm)

Maten secuENTRY pro 7116 Duo

Close-up of two mechanical components with cross-hatching, no visible text or symbols

Bluetooth Low Energy

Maximum Transmit Output Power 7,5dBm

Frequency usage range 2,402GHz ... 2,483GHz

Two black-and-white photos showing a hand holding a mechanical component, one with a circular end and the other with a ring (no visible text or symbols)

Close-up of a mechanical component with internal components and mounting holes, shown from top and side views (no text or symbols visible)

Close-up of a hand holding a metallic cylindrical component, alongside a close-up of its black cylindrical body (no text or symbols visible)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

F. Noodsleutel

Close-up of a hand holding a black cylindrical object with a metallic rim, being adjusted by a finger (no text or symbols visible)
