UH 173803 E - Basket AMICA - Free user manual and instructions

Brand	Amica
Model	UH 173803 E
Category	Kitchen hood
Installation type	Wall-mounted, island, built-in or telescopic depending on version
Dimensions (W x D x H)	60 cm x 50 cm x 50 cm (estimation)
Weight	Approx. 10 kg (estimation)
Power supply	220-240 V ~ 50 Hz
Power consumption	200 W (estimation)
Lighting	Halogen or LED lamp (depending on version)
Number of speeds	3 speeds + stop
Operating modes	Extraction or recirculation (charcoal filter required for recirculation)
Exhaust duct diameter	120 mm or 150 mm
Grease filter	Aluminum, dishwasher-safe or hand-washable
Charcoal filter	Replaceable, to be changed every 2 months approximately
Maintenance	Clean exterior and interior monthly; use a damp cloth and mild detergent
Mounting height	Above an electric hob: according to technical data sheet; for gas: respect the minimum distance indicated
Safety	Unplug before cleaning; do not flambé under the hood; use of filters mandatory
Warranty	2 years (according to warranty card)
After-sales service	Repairs by qualified personnel or authorized service center

Frequently Asked Questions - UH 173803 E AMICA

What is the operating mode of the Amica UH 173803 E hood?

The hood can operate in extraction mode (air expelled outside) or recirculation mode (air filtered through a charcoal filter and returned to the room). The default mode is extraction.

How to clean the grease filter?

The aluminum grease filter should be cleaned every month in the dishwasher or by hand with mild detergent. After several washes, the color may change, but this does not affect its effectiveness.

How often should the charcoal filter be replaced?

The charcoal filter should be replaced every 2 months approximately, or more often with heavy use. It is neither washable nor reusable.

How to adjust the hood speed?

Use the buttons on the control panel: speed 1 for light smoke, speed 2 for medium amounts, speed 3 for heavy smoke (frying, grilling). Button 4 stops the motor.

Can I use the hood without the grease filter?

No, it is forbidden to use the hood without the grease filter. Without it, grease can accumulate and pose a fire risk.

What mounting height should be respected?

For an electric hob, follow the height indicated in the technical data sheet. For a gas hob, if the manufacturer's instructions specify a greater distance, that takes precedence (see figure 1 of the manual).

How to change a hood lamp?

Use a bulb with the same characteristics as the original. Replacement is illustrated in figure 7 of the manual. If the module is integrated, call an authorized service.

Can the hood be installed in recirculation mode without an external duct?

Yes, in recirculation mode, no external duct is needed. It is necessary to install a charcoal filter and, depending on the model, an air deflector to redirect air into the room.

What to do if the power cord is damaged?

The cord must be replaced by a specialized repair center to avoid any electrical hazard.

How to maintain stainless steel surfaces?

Clean with a damp cloth and mild detergent. Avoid solvents, alcohols, caustic substances and abrasive sponges that could tarnish the stainless steel.

USER MANUAL UH 173803 E AMICA

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

UH 17380-3 E

EN- Table of contents

NOTES ON SAFETY 7

UNPACKING 10

DISPOSAL OF OLD APPLIANCE 10

OPERATION 11

KITCHEN HOOD CONTROLS 11

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 12

CLEANING AND MAINTENANCE 13

MAINTENANCE 13

GREASE FILTER 13

ACTIVATED CHARCOAL FILTER 13

LIGHT 13

WARRANTY AND AFTER SALES SERVICE 14

WARRANTY 14

GARANTIE, NACHVERKAUF-SERVICE 24

GARANTIE 24

CS- Obsah

BEZPEČNOSTNÍ POKYNY 26

VYBALENÍ 29

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 29

OBSLUHA 30

OVLÁDÁNÍ ODSAVAČE 30

JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 31

ČISTĚNÍ A ÚDRŽBA 32

ÚDRŽBA 32

PROTITUKOVÝ FILTR 32

UHLÍKOVÝ FILTR 32

OSVĚTLENÍ 32

ZÁRUKA, POPRODEJNÍ SERVIS 33

ZÁRUKA 33

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 35

ROZBALENIE 39

LIKVIDÁCIA ZARIADENÍ 39

OBSLUHA 40

OVLÁDANIE ODSÁVAČA 40

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 41

ČISTENIE A ÚDRŽBA 42

KONZERVÁCIA 42

PROTITUKOVÝ FILTER 42

UHLÍKOVÝ FILTER 42

OSVETLENIE 42

ZÁRUKA, POPREDAJNY SERVIS 43

ZÁRUKA 43

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap-

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no visible text or labels

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

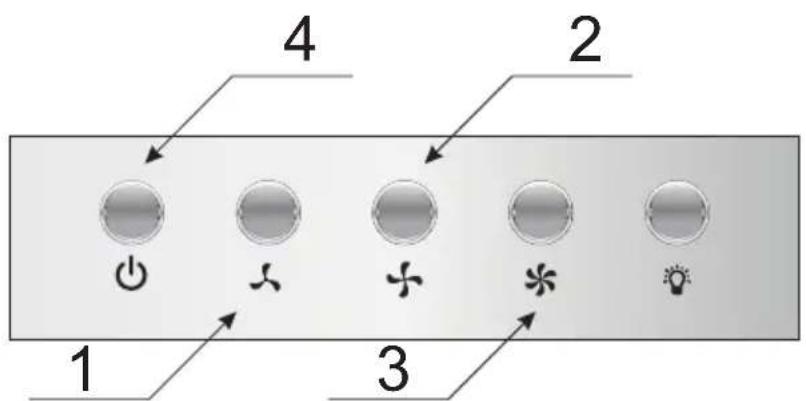

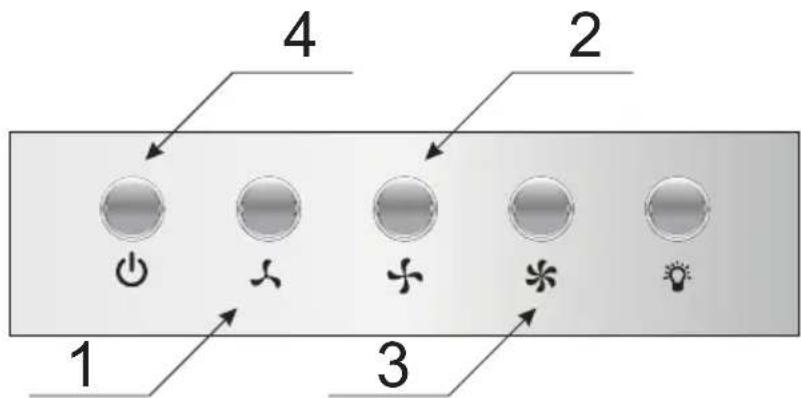

Control Panel is shown in Figure 4, for reference it is also shown below:

1 2 3 4

The control panel is equipped with buttons (isostat switch).

To turn on the kitchen hood, press one of the button to select the desired speed:

1- Low speed. Use this speed when cooking a little food with hardly any fumes.
2- Medium speed. Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3- High speed. Use this speed when frying or grilling, with large amount of fumes.
4- Turn off the appliance

Press 🙏 to turn the lighting on/off. The lighting operates independently of hood fan.

Other important information concerning the operation of the hood

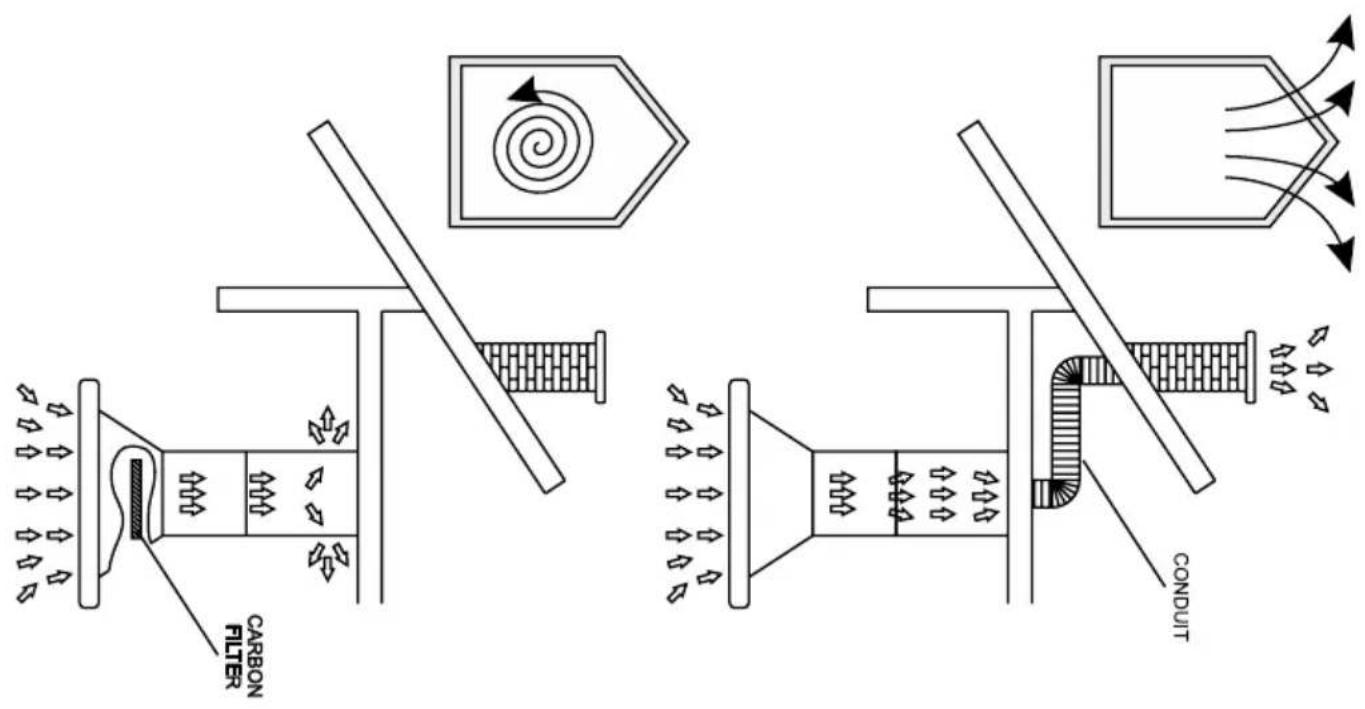

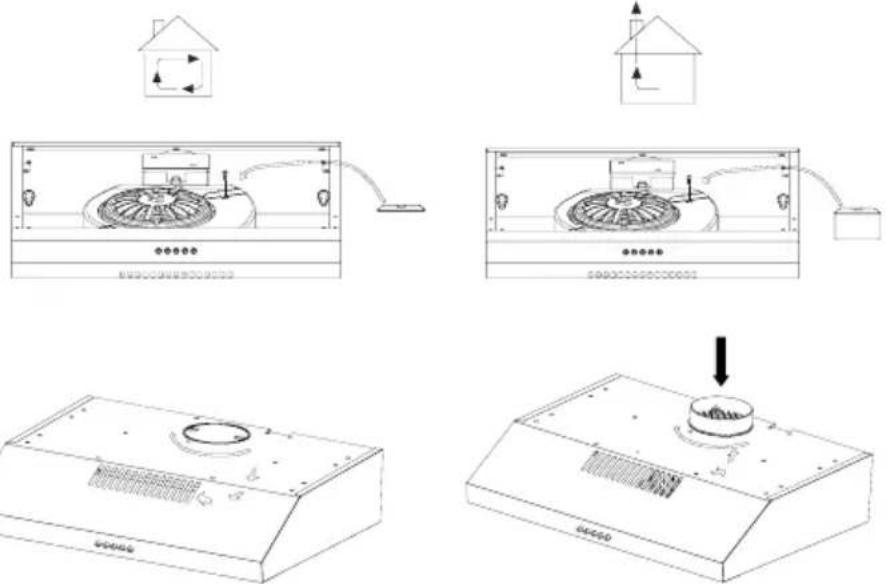

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

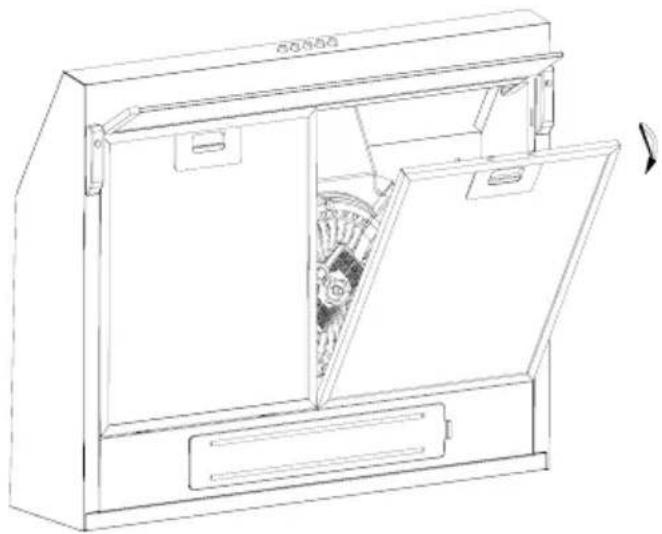

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

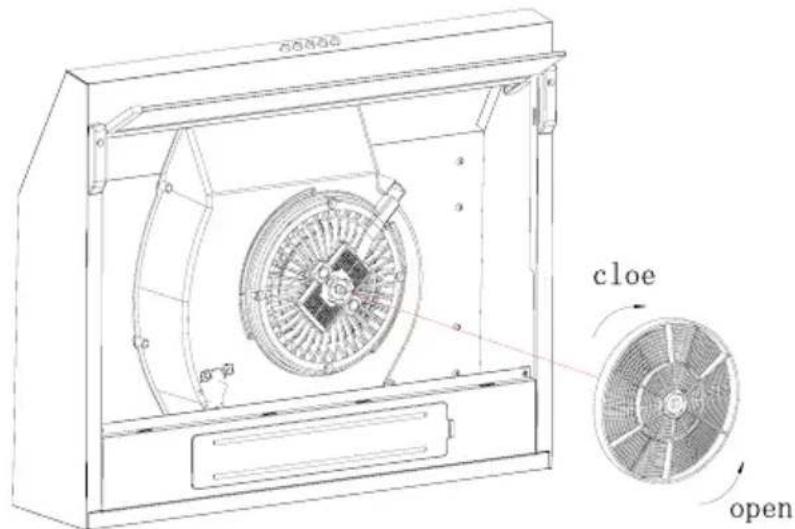

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala je prikladno za rečikliranje, stoga su označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja amba-laze držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU i poljskim zakonom o potrosenom električnom i elektroničkom otpadu.

Ujedno je označen simbolom prekriženog spremnika za otpatke. Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeka ne može biti tretiran kao obični kučanski otpad. Korisnik ima obvezu ovaj proizvod predati na od- govarajuće sabirno mjesto za recikliranje potrošene električne i elektroničke opreme. Ustanove za priku- pljanje ovakvog otpada, uključujući lokalne sabirne točke, kupoyna mjesta, općinske jedinice, stvaraju odgovarajući sustav koji omogućava zbrinjavanje ovakve opreme. Pravilno odlaganje potrošene električne i elektronič- ke opreme sprečava potencijalne negativne poslje- dice za okoliš i ljudsko zdravlje, koje inače mogu biti uzrokovane neodgovarajućim odlaganjem i pre- radom ovog proizvoda.

UPORABA

Upravljanje napom

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

		size pcs
1	Plastic tube	10 × 45 mm	2
2	Screw	ST 5x45mm	2
3	Screw	ST4.2x30mm	4

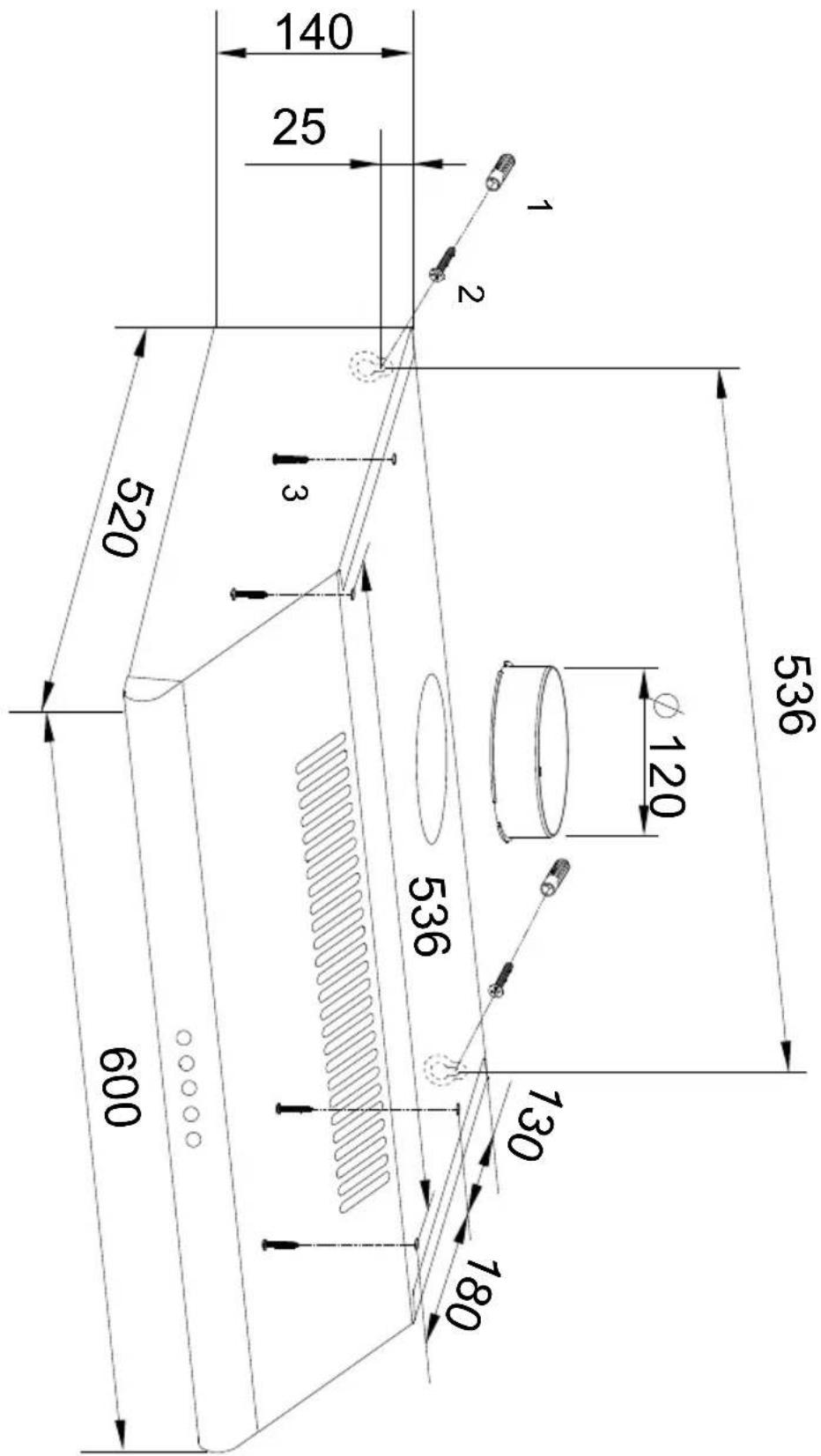

000 520 3 25 140 536 780 730 φ120 536

CONDUIT CARBON FILTER

h = 650mm h = 650mm h = 650mm h = 450mm h h 1

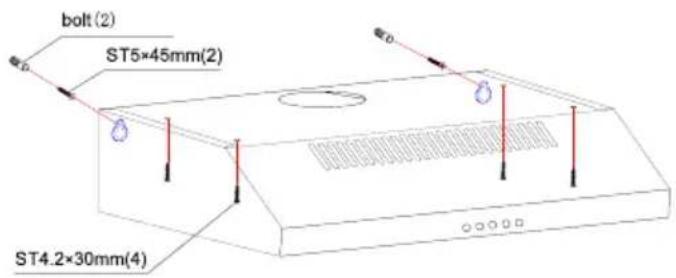

bolt (2) ST5×45mm(2) ST4.2×30mm(4)

3a

flue pipe(1)

Line drawing of a kitchen air conditioner unit with ventilation grilles and a top-mounted lid (no text or symbols)

3b

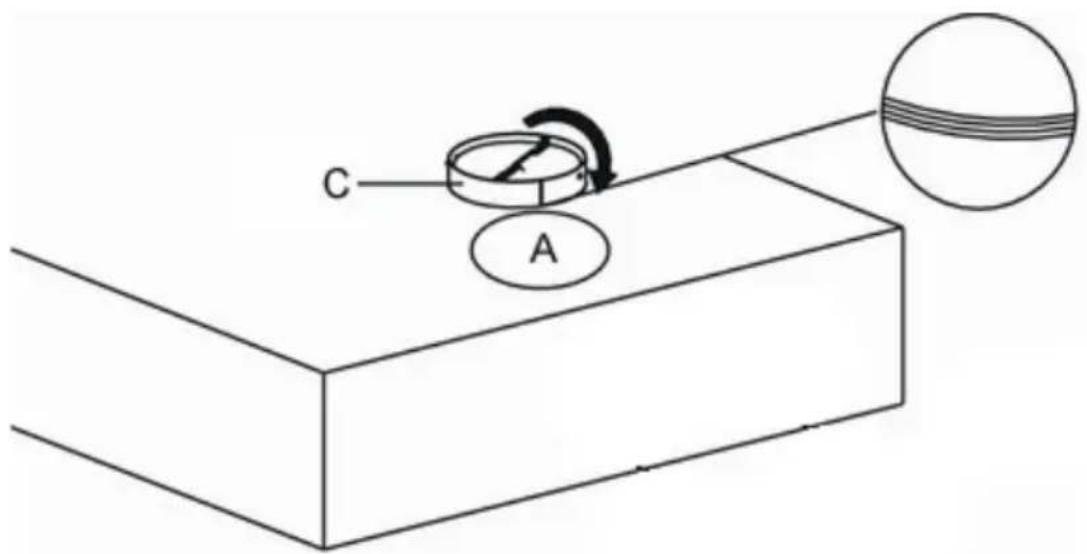

C A

3c

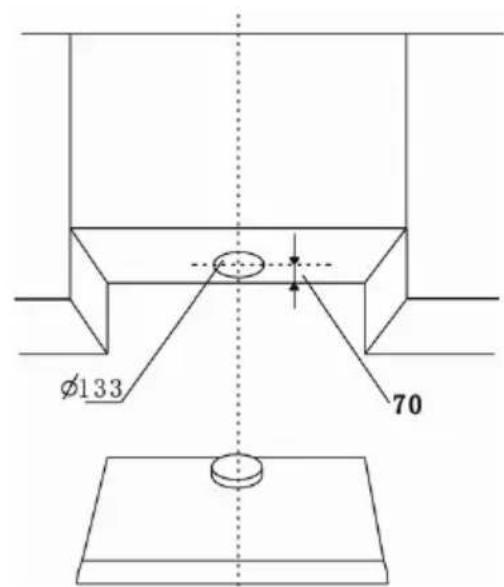

Ø133 70

3d

1 2 3 4

4

Line drawing of a cabinet with open door and internal fan mechanism (no text or symbols)

Hand pressing a rectangular object with a diagonal arrow indicating downward motion (no text or symbols)

5

cloe open

6

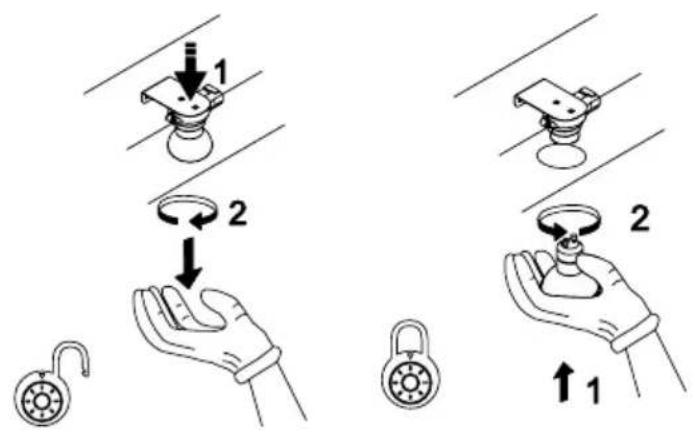

Diagram illustrating hand positioning and rotation of a mechanical device, labeled with steps 1 and 2.

7

Diagram showing four steps of a household air conditioner system with labeled components and airflow indicators.

8

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki

tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
