Product type	Kitchen hood
Brand	Amica
Model	IN600WS
Width	60 cm
Depth	50 cm
Height	15 cm
Net weight	10 kg
Power supply	220-240 V / 50 Hz
Maximum consumption	150 W
Energy class	A
Maximum airflow	600 m³/h
Number of speeds	3
Maximum noise level	65 dB(A)
Lighting type	LED
Control type	Mechanical push buttons
Filter type	Aluminum grease filter (washable)
Recirculation possibility	Yes, with charcoal filter (optional)
Main material	Stainless steel
Installation	Wall-mounted or under cabinet
Filter maintenance	Monthly cleaning of grease filters in dishwasher
Charcoal filter replacement	Every 3 to 6 months depending on use
Repairability index	7.5/10 (estimate)

Frequently Asked Questions - IN600WS AMICA

How to clean the grease filters of my Amica IN600WS hood?

The aluminum grease filters can be cleaned in the dishwasher or by hand with warm soapy water. It is recommended to clean them every month to maintain hood efficiency.

How often should I replace the charcoal filter?

The charcoal filter should be replaced every 3 to 6 months depending on hood usage. A saturated filter reduces suction efficiency and may generate odors.

My hood is making noise, is that normal?

A noise level up to 65 dB(A) is normal for this model. If the noise is excessive, check that the filters are clean and the hood is properly installed. A mounting defect can amplify vibrations.

How to install my Amica IN600WS hood?

The hood can be wall-mounted or under a cabinet. Maintain a minimum distance of 65 cm above an electric cooktop and 75 cm above a gas cooktop. Follow the provided drilling template and use wall plugs suitable for the wall.

The LED lights of my hood no longer turn on, what should I do?

First check the power supply. If the LEDs are integrated and defective, contact after-sales service. LEDs are generally not user-replaceable.

Can I use the hood in recirculation mode without ducting?

Yes, the hood can operate in recirculation mode. You must install a charcoal filter (not included) and ensure the air is expelled into the room via the outlet grilles.

What is the power consumption of the hood?

The maximum consumption is 150 W. At reduced speed, it consumes less. The hood is rated energy class A, making it economical.

How to adjust the hood speeds?

Use the mechanical push buttons on the front panel. There are generally 3 speeds: low for simmering, medium for normal cooking, and high for strong odors or steam.

What to do if the hood has poor suction?

Clean the grease filters, check that the exhaust duct is not blocked, and ensure the hood is installed at the correct height. If the problem persists, the motor may be defective.

Where to find spare parts for my Amica IN600WS hood?

Spare parts (filters, bulbs, etc.) are available from authorized Amica dealers or online. Use the model number IN600WS to identify compatible parts.

USER MANUAL IN600WS AMICA

Kitchen extractor hood / kaminhaube /

Simple line drawing of a kitchen chimney with steam rising (no text or symbols)

IN600*S / IN900*S /

KH 67192 W / KH 67193 M

EN- Table of contents

NOTES ON SAFETY 8

UNPACKING 11

DISPOSAL OF OLD APPLIANCE 11

OPERATION 12

KITCHEN HOOD CONTROLS 12

CONTROL PANEL 12

OFF TIMER 12

OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 13

CLEANING AND MAINTENANCE 14

MAINTENANCE 14

GREASE FILTER 14

ACTIVATED CHARCOAL FILTER 14

LIGHT 14

WARRANTY AND AFTER SALES SERVICE 15

WARRANTY 15

GARANTIE, NACHVERKAUF-SERVICE 25

GARANTIE 25

CS- Obsah

BEZPEČNOSTNÍ POKYNY 27

VYBALENI 30

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 30

OBSLUHA 31

OVLÁDÁNÍ ODSAVAČE 31

OVLÁDACÍ PANEL 31

ČASOVAČ (OPOŽDĚNÉ VYPNUTÍ ODSAVAČE) 31

JINÉ DŮLEŽITÉ INFORMACE O OBSLUZE ODSAVAČE 32

ČISTĚNÍ A ÚDRŽBA 33

ÚDRŽBA 33

PROTITUKOVÝ FILTR 33

UHLÍKOVÝ FILTR 33

OSVĚTLENÍ 33

ZÁRUKA, POPRODEJNÍ SERVIS 34

ZÁRUKA 34

SK- Obsah

BEZPEČNOSTNÉ POKYNY POUŽÍVANIA 36

ROZBALENIE 40

LIKVIDÁCIA ZARIADENÍ 40

OBSLUHA

41

OVLÁDANIE ODSÁVAČA 41

OVLÁDACÍ PANEL 41

ČASOVAČ (ONESKORENÉ VYPNUTIE ODSÁVANIA) 41

INÉ DÔLEŽITÉ INFORMÁCIE TÝKAJÚCE SA POUŽÍVANIA ODSÁVAČA 42

ČISTENIE A ÚDRŽBA 43

KONZERVÁCIA

43

PROTITUKOVÝ FILTER 43

UHLÍKOVÝ FILTER 43

OSVETLENIE

43

ZÁRUKA, POPREDAJNÝ SERVIS 44

ZÁRUKA

44

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of ∅ 120 or 150 mm) should not be longer than 4-5 m. An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture

over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- When cooking on fat, supervise the pans constantly, because overheated fat can ignite.

- Unplug the appliance before any cleaning, replacing the filter or repair work.

- Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.

- Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter)

- Do not lean on the hood.

- The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)..Failure to adhere to the rules concerning cleaning the hood and replacing filters

results in a fire risk.

- If the power cord is damaged it should be replaced by a specialised service centre.

- Ensure that it is possible to disconnect the appliance from the mains by removing the plug or switching off the bi-polar switch.

- This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.

- Particular attention should be paid not to allow unaccompanied children to use the appliance.

- Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.

- Before use, extend and straighten the power cord.

- Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

- Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.

- Do not operate your kitchen hood without the aluminium grease filters.

- It is strictly forbidden to cook dishes under on an open flame (flambé) under your kitchen hood.

- Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.

- Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.

- Hanging kitchen hoods operate only in air circulation / odour absorber mode

UNPACKING

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Kitchen hood controls

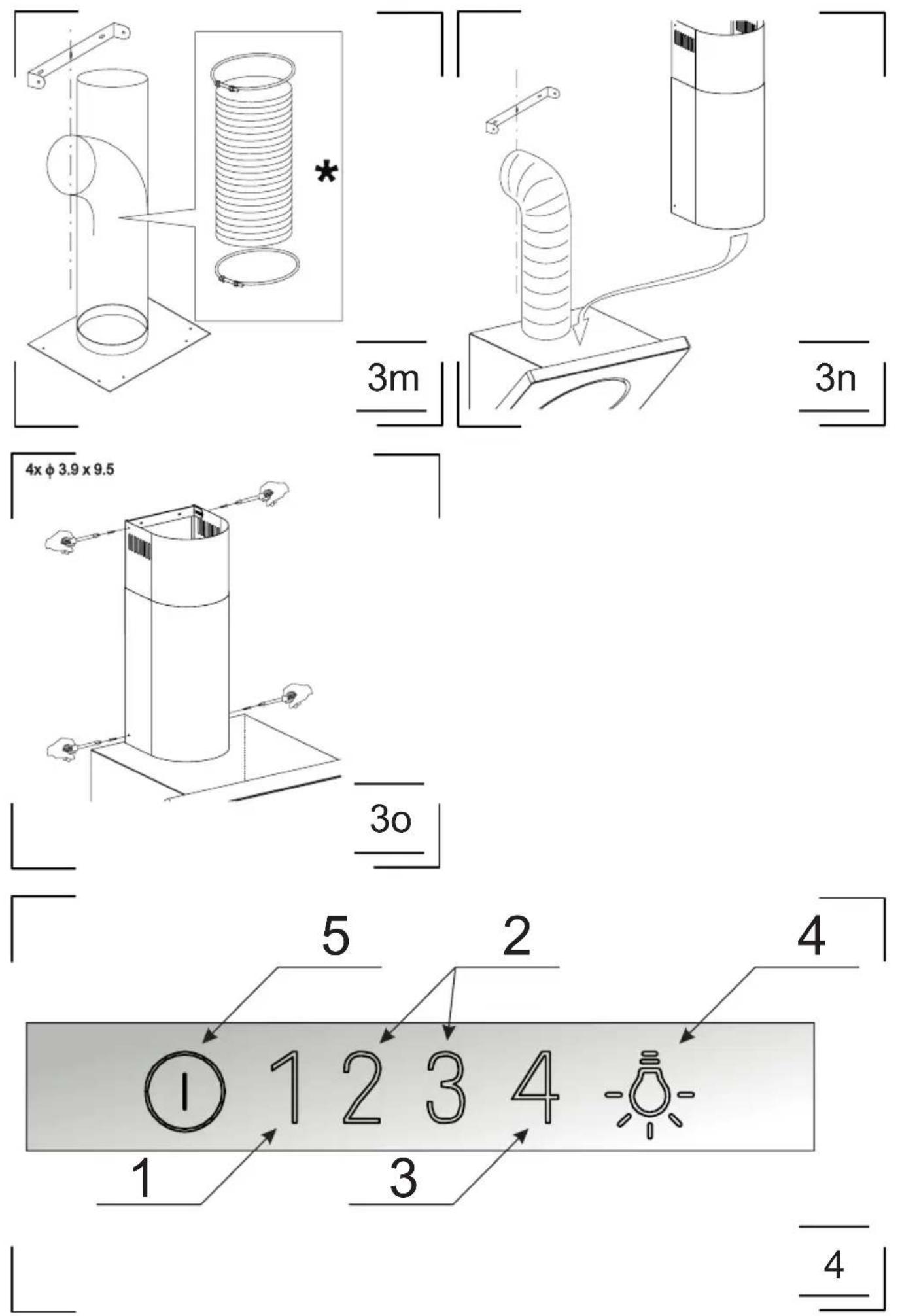

Control Panel is shown in Figure 4, for reference it is also shown below:

Control Panel

It is equipped with a touch controls. Touch one the sensors to enable the desired function:

1 Low speed (1). Use this speed when cooking a little food with hardly any fumes.
2 Medium speed (2, 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
3 High speed (4). Use this speed when frying or grilling, with large amount of fumes.
4 Lighting on/off The lighting operates independently of hood fan.
5 Hood on/off

Off Timer

Use off timer to turn off the hood after a specified time. Use off timer to filter the fumes out of the air after cooking. The delay time is about 10 minutes. To enable Off-Timer at any fan speed touch the active speed sensor for at least 2 seconds. Sensor flashes. Flashing indicates that Off-Timer has been enabled. To cancel Off-Timer touch the active speed sensor. The appliance will turn off. To turn on the appliance, touch the sensor corresponding to the desired fan speed. Cancelling the off-timer does not turn off the lighting.

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120 mm, and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

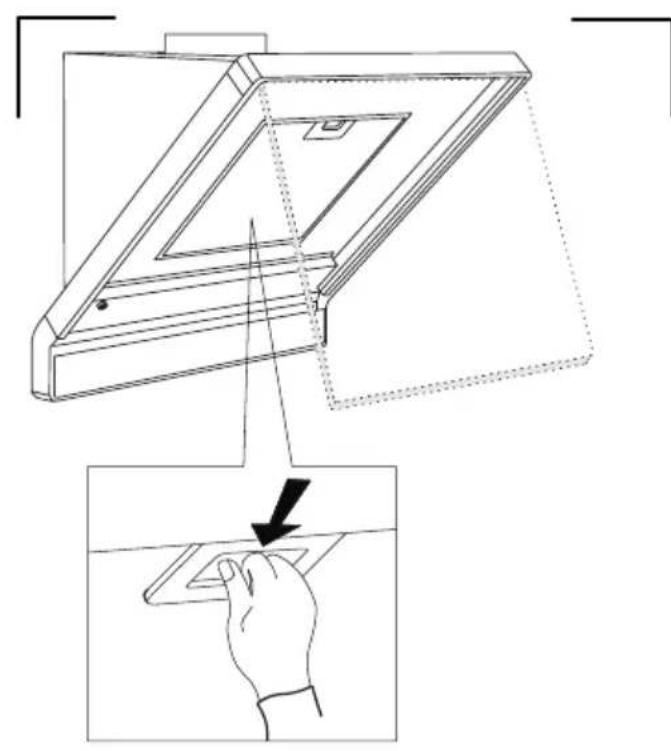

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

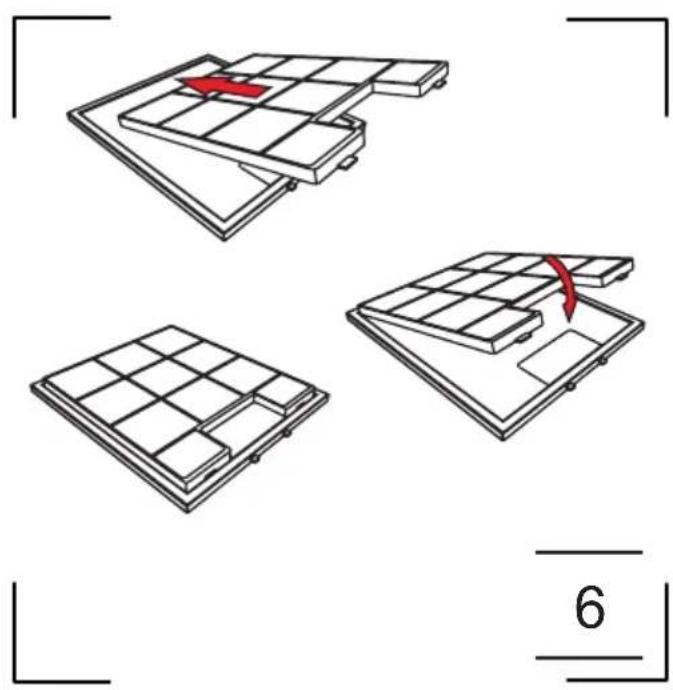

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or disposal (no text or labels)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with two crossed lines (no text or symbols)

2

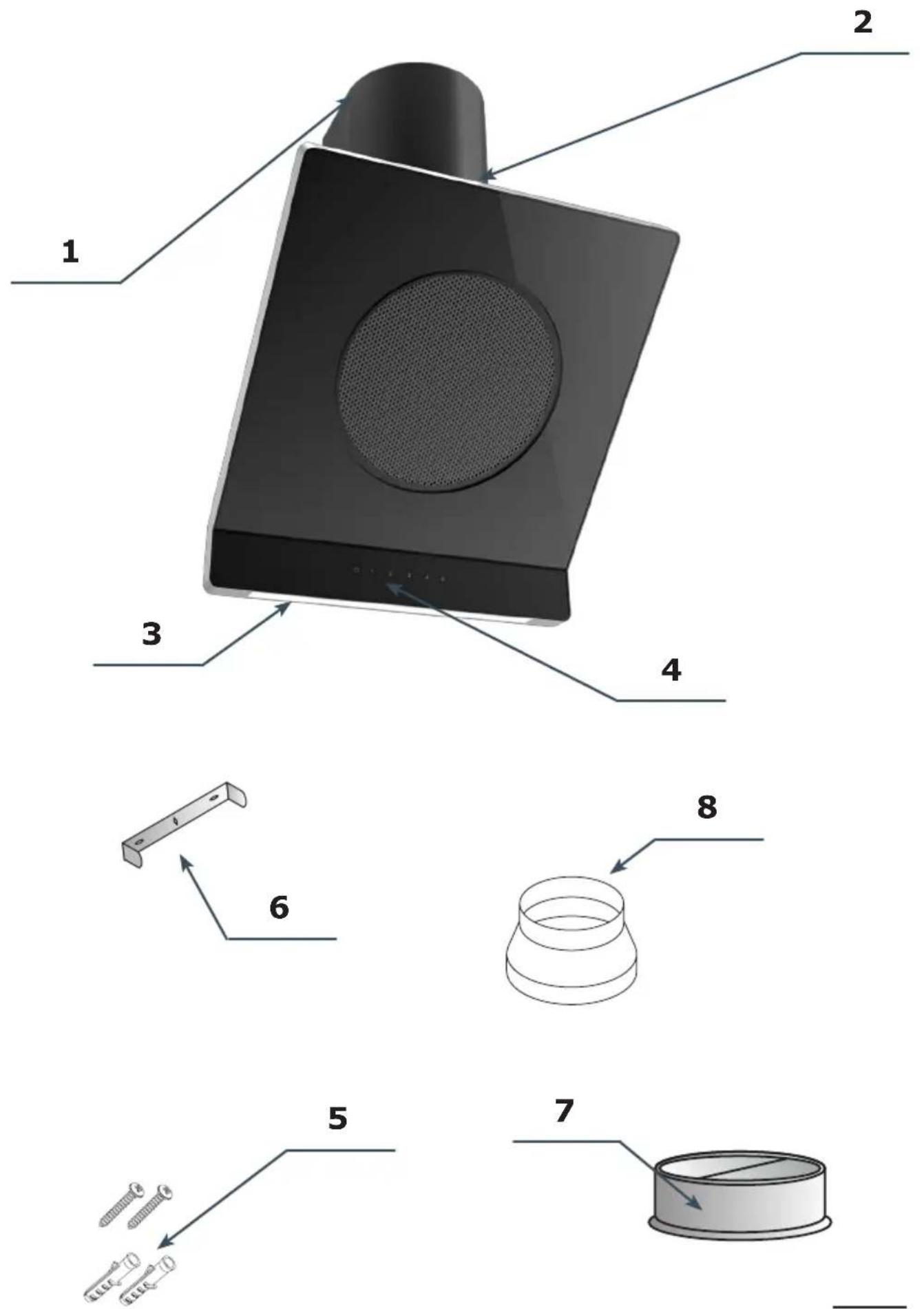

	EN DE CS SK FR	NL PL SL ES PT
1	Upper chimney cover	obere Abdeckung	Horní krycí lišta	Horná krycia lista	Cheminée supérieure	Bovenste sierkap	Maskownica gorna	Zgornje ohišje	Panel superior	Chaminé superior
2	Lower chimney cover	untere Abdeckung	Spodní krycí lista	Dolná krycia lista	Cheminée inférieure	Onderste sierkap	Maskownica dolna	Spodnje ohišje	Panel inferior	Chaminé inferior
3	Lighting	Beleuchtung	Osvětlení	Osvetlenie	Éclairage	Verlichting	Oświetlenie	Osvetlitev	Iluminación	Iluminação
4	Control Panel	Bedienfeld	Ovládací panel	Ovládací panel	Panneau de commande	Bedie-ningspaneel	Panel sterowania	Panel za upravljanje	Panel de control	Painel de comando
5	Screws and wall plugs	Schrauben und Spreizdúbel	Vruty a hmož-dinky	Skrutky a, roz-perné koliky	Vis et chevilles	Schroeven en pluggen	Wkręty i kolki rozpòrowe	Vijaki in vložki za vijake	Tornillos y tacos	Parafusos e bu-chas de fixação
6	Upper chimney cover holder	Halterung der oberen Abdeckung	Úchyt horní krycí listy	Držiak hornej krycej listy	Fixation de la cheminée supérieure	Houder sierkap boven	Uchwyt ma-skownicy górnej	Ročaj zgornjega ohišja	Mango de panel superior	Fixação da chaminé superior
7	Air flaps	Rückschlagklap-pen	Zpětné klapky	Spätné klapky	Clapets anti-re-tour	Terugslagklep-pen	Klapki zwrotne	Protipovratne lopute	Tapas de retorno	Válvula anti-re-torno
8	Connecting piece	Anschlussstut-zen	Připojovací hrdlo	Prípojné hrdlo	Tubulure de raccordement	Aansluitstuk	Króciec przyłą-czeniowy	Cevna spojka	Racor de cone-xion	Redutor de conexão

Technical line drawing of a mechanical component with an inset showing a hand holding a tool, no text or symbols present.

Three technical diagrams showing a solar panel installation process with red arrows indicating direction, no text or symbols present.

5
