USER MANUAL DLM382CM2 MAKITA

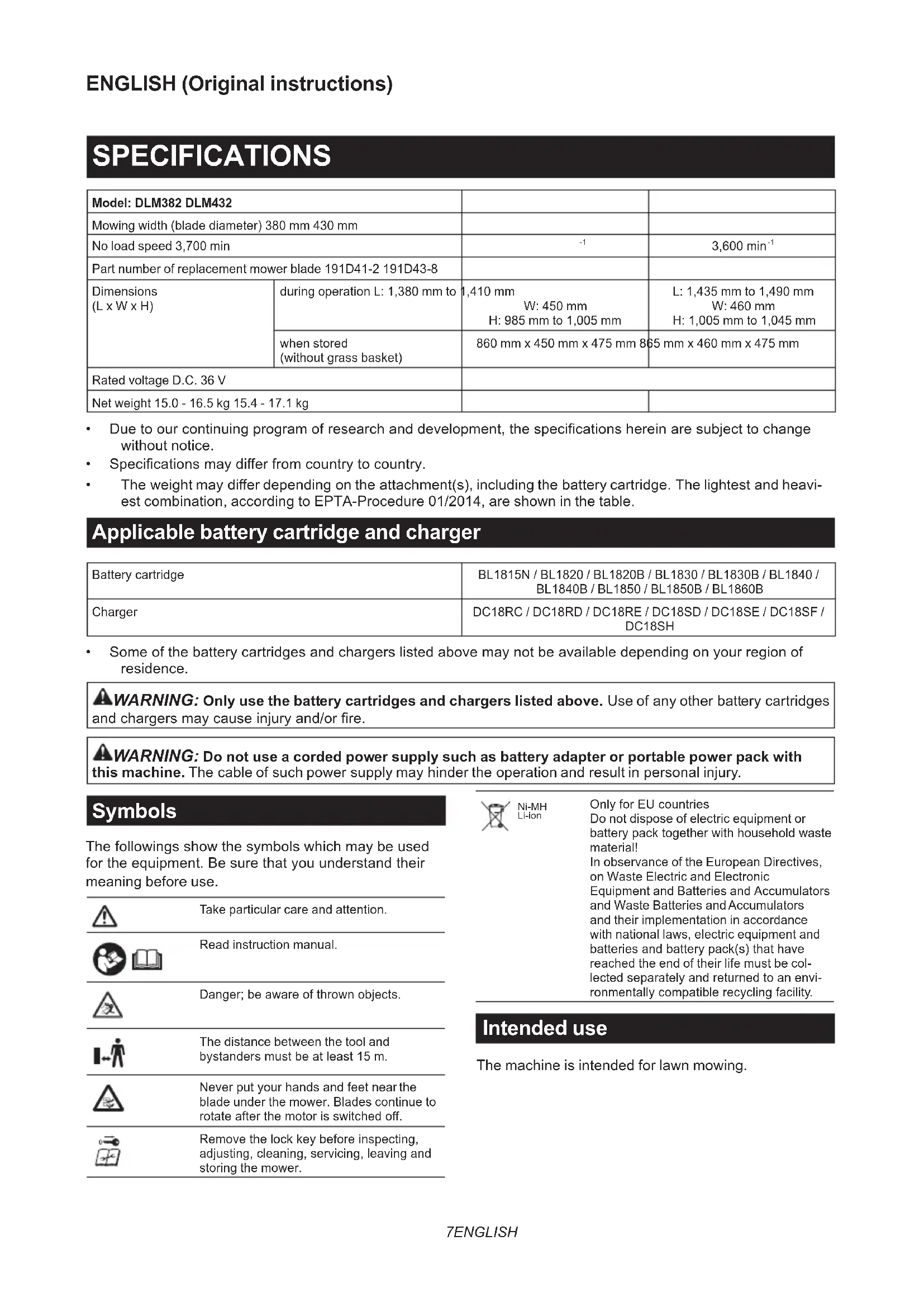

Cordless Lawn Mower INSTRUCTION MANUAL 7

Part number of replacement mower blade 191D41-2 191D43-8 Dimensions (L x W x H) during operation L: 1,380 mm to 1,410 mm W: 450 mm H: 985 mm to 1,005 mm L: 1,435 mm to 1,490 mm W: 460 mm H: 1,005 mm to 1,045 mm when stored (without grass basket) 860 mm x 450 mm x 475 mm 865 mm x 460 mm x 475 mm Rated voltage D.C. 36 V Net weight 15.0 - 16.5 kg 15.4 - 17.1 kg

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Batterycartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre.

WARNING: Do not use a corded power supply such as battery adapter or portable power pack with

this machine.Thecableofsuchpowersupplymayhindertheoperationandresultinpersonalinjury. Symbols Thefollowingsshowthesymbolswhichmaybeused fortheequipment.Besurethatyouunderstandtheir meaning before use. Take particular care and attention. Read instruction manual. Danger;beawareofthrownobjects. The distance between the tool and bystandersmustbeatleast15m. Neverputyourhandsandfeetnearthe blade under the mower. Blades continue to rotateafterthemotorisswitchedo󰀨. Removethelockkeybeforeinspecting, adjusting,cleaning,servicing,leavingand storing the mower. Ni-MH Li-ion OnlyforEUcountries Do not dispose of electric equipment or batterypacktogetherwithhouseholdwaste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteriesandbatterypack(s)thathave reached the end of their life must be col- lectedseparatelyandreturnedtoanenvi- ronmentallycompatiblerecyclingfacility. Intended use The machine is intended for lawn mowing.8 ENGLISH Noise ThetypicalA-weightednoiseleveldeterminedaccord- ing to EN60335-2-77: Model DLM382 Sound pressure level (L

) : 92 dB (A) Uncertainty(K):3dB(A) NOTE: The declared noise emission value(s) has been measured in accordance with a standard test methodandmaybeusedforcomparingonetoolwith another. NOTE: The declared noise emission value(s) mayalsobeusedinapreliminaryassessmentof exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter- mined according to EN60335-2-77: Model DLM382 Vibration emission (a

Model DLM432 Vibration emission (a

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only TheECdeclarationofconformityisincludedasAnnexA to this instruction manual. SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructionsmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Training

1. Read the instructions carefully. Be familiar

with the controls and the proper use of the mower.

2. Never allow children or people unfamiliar with

these instructions to use the mower. Local regulations can restrict the age of the operator.

3. Never operate the mower while people, espe-

cially children, or pets are nearby.

4. Keep in mind that the operator or user is

responsible for accidents or hazards occurring to other people or their property.

5. Children should be supervised to ensure that

they do not play with the mower.

6. Physical condition - Do not operate mower

while under the inuence of drugs, alcohol, or any medication. Preparation

1. While operating the mower, always wear sub-

stantial footwear and long trousers. Do not operate the mower when barefoot or wearing open sandals. Avoid wearing clothing or jew- elry that is loose tting or that has hanging cords or ties. They can be caught in moving parts.

2. Before use, always visually inspect the mower

for damaged, missing or misplaced guards or shields.

3. Be sure the area is clear of other people before

mowing. Stop mower if anyone enters the area.

4. Do not insert the lock key into mower until it is

5. Always wear protective goggles to protect

your eyes from injury when using power tools. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too.9 ENGLISH It is an employer's responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area.

6. Check the blades or blade bolts carefully for

cracks or damage before operation. Replace cracked or damaged blades or blade bolts immediately.

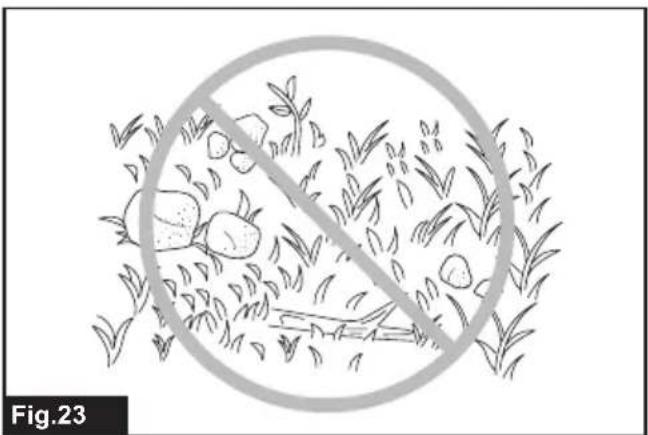

7. Remove foreign matters such as rocks, wire,

bottles, bones and large sticks from the work area before mowing to prevent personal injury or damage to the mower.

8. Objects struck by the mower blade can cause

severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

9. Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles. Operation

1. Do not overreach. Keep the balance at all

times. Always be sure of the footing on slopes. Walk, never run.

2. Stop the mower and remove the lock key, and

make sure that all moving parts have come to a complete stop: - whenever you leave the mower, - before clearing blockages or unclogging chute, - before checking, cleaning or working on the mower, - after striking a foreign object. Inspect the mower for damage and make repairs before restarting and operating the mower, - whenever the mower starts vibrating abnormally.

3. Never operate the mower with defective

guards or shields, or without safety devices, for example deectors and/or grass basket, in place.

4. Avoid using the mower in bad weather con-

ditions especially when there is a risk of lightning.

5. Wear eye protection and stout shoes at all

times while operating the mower.

6. Operate the mower only in daylight or in good

7. Switch on the mower carefully according to

instructions and with feet well away from the blade(s).

8. Take care against injury to feet and hands from

9. Always ensure that the ventilation openings

are kept clear of debris.

10. Mow across the face of slopes, never up and

down. Exercise extreme caution when chang- ing direction on slopes. Do not mow exces- sively steep slopes.

11. Use extreme caution when reversing or pulling

the mower towards you.

12. Stop the blade(s) if the mower has to be tilted

for transportation when crossing surfaces other than grass, and when transporting the mower to and from the area to be used.

13. Do not tilt the mower when switching on the

motor, except if the mower has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator. Always ensure that both hands are in the operating position before returning the mower to the ground.

14. Do not put hands or feet near or under rotating

parts. Keep clear of the discharge opening at all times.

15. Do not transport the mower while the mower is

16. Avoid operating the mower in wet grass.

17. Never operate the mower in the rain.

18. Always keep a rm hold on the handle.

19. Don't grasp the exposed cutting blades or

cutting edges when picking up or holding the mower.

20. Keep hands and feet away from rotating

blades. Caution - Blades coast after the mower is switched o󰀨.

21. Stop operation immediately if you notice

anything unusual. Switch o󰀨 the mower and remove the lock key. Then inspect the mower.

22. Never attempt to make cutting height adjust-

ments while mower is running if the mower has cutting height adjustment feature.

23. Release switch lever and wait for blade rota-

tion to stop before crossing driveways, walks, roads, and any gravel-covered areas. Also remove the lock key if you leave the mower, reach to pick up or remove something out of your way, or for any other reason that may distract you from what you are doing.

24. If the mower strikes a foreign object, follow

these steps: - Stop the mower, release the switch lever and wait until the blade comes to a complete stop. - Remove the lock key and the battery cartridge. - Thoroughly inspect the mower for any damage. - Replace the blade if it is damaged in any way. Repair any damage before restarting and con- tinuing to operate the mower.

25. Do not start the mower when standing in front

of the discharge opening.

26. If the mower starts to vibrate abnormally

(check immediately)10 ENGLISH - inspect for damage, - replace or repair any damaged parts, - check for and tighten any loose parts.

27. Never direct discharged material toward

anyone. Avoid discharging material against a wall or obstruction.Materialmayricochetback toward the operator. Stop the blade when crossing gravel surfaces.

28. Do not pull the mower backwards unless

absolutely necessary.Whenyouarecompelled to back the mower from a fence or other similar obstruction, look down and behind before and while moving backwards.

29. Shut the motor o󰀨 and wait until the blade

comes to a complete stop before removing the grass catcher. Beware that the blades coast after turno󰀨. Maintenance and storage

1. Replace worn or damaged parts for safety.

Use only genuine replacement parts and accessories.

2. Inspect and maintain the mower regularly.

3. When not in use, store the mower out of the

4. Keep all nuts, bolts, and screws tight to

be sure the equipment is in safe working condition.

Check the grass basket frequently for wear or deterioration. For storage, always make sure the grass basket is empty. Replace a worn grass basket with a new factory replacement for safety.

6. Use only the manufacturer genuine blades

specied in this manual.

7. Be careful during adjustment of the mower

to prevent entrapment of the ngers between moving blades and xed parts of the mower.

8. Do not wash with a hose; avoid getting water

in motor and electrical connections.

9. Check the blade mounting bolt at frequent

intervals for proper tightness.

Always allow the mower to cool down before storing.

11. When servicing the blades be aware that, even

though the power source is switched o󰀨, the blades can still be moved.

12. Never remove or tamper with safety devices.

Check their proper operation regularly. Never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device. Battery tool use and care

1. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for onetypeofbatterypackmaycreateariskofre whenusedwithanotherbatterypack.

2. Use power tools only with specically desig-

nated battery packs.Useofanyotherbattery packsmaycreateariskofinjuryandre.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.Shortingthebatterytermi- nalstogethermaycauseburnsorare.

4. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help.Liquidejectedfromthebatterymaycause irritation or burns.

5. Do not use a battery pack or tool that is dam-

aged or modied.Damagedormodiedbatteries mayexhibitunpredictablebehaviourresultingin re,explosionorriskofinjury.

6. Do not expose a battery pack or tool to re or

excessive temperature.Exposuretoreortem- peratureabove130°Cmaycauseexplosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instruc- tions.Chargingimproperlyorattemperatures outsidethespeciedrangemaydamagethe batteryandincreasetheriskofre. Electrical and battery safety

1. Do not dispose of the battery(ies) in a re.

Thecellmayexplode.Checkwithlocalcodesfor possible special disposal instructions.

2. Do not open or mutilate the battery(ies).

Releasedelectrolyteiscorrosiveandmaycause damagetotheeyesorskin.Itmaybetoxicif swallowed.

Do not charge battery in rain, or in wet locations.

4. Do not charge the battery outdoors.

5. Do not handle charger, including charger plug,

and charger terminals with wet hands. Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement parts.Thiswillensurethatthesafetyofthepower tool is maintained.

2. Never service damaged battery packs. Service

ofbatterypacksshouldonlybeperformedbythe manufacturer or authorized service providers. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.11 ENGLISH

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge.Suchconductmayresultina re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmayresultinpoorperformanceor breakdownofthetoolorbatterycartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near a high-voltage elec- trical power lines.Itmayresultinamalfunction orbreakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). ASSEMBLY

WARNING: Always be sure that the lock key

and battery cartridge are removed before carrying out any work on the mower. Failure to remove the lockkeyandthebatterycartridgemayresultinseri- ouspersonalinjuryfromaccidentalstart-up.

WARNING: Never start the mower unless it is

completely assembled. Operation of the machine inapartiallyassembledstatemayresultinserious personalinjuryfromaccidentalstart-up. Installing the battery cover

WARNING: Do not insert the lock key and bat-

tery cartridge before installing the battery cover. Failuretodosomaycauseaseriousinjury. Installthebatterycovercompletelybeforetheopera- tion.Thebatterycoverprotectsthemowerandbattery cartridge from mud, dirt, and water.

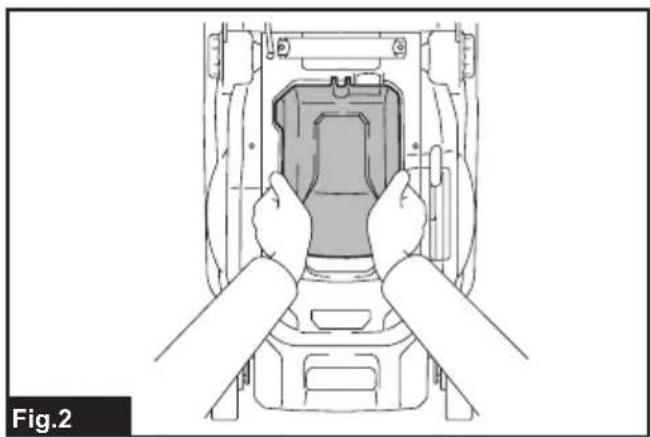

2. Placeyourhandsinthemiddleofthebattery

cover and push it. ►Fig.2

3. Beforetherstoperation,checkthatthepivot

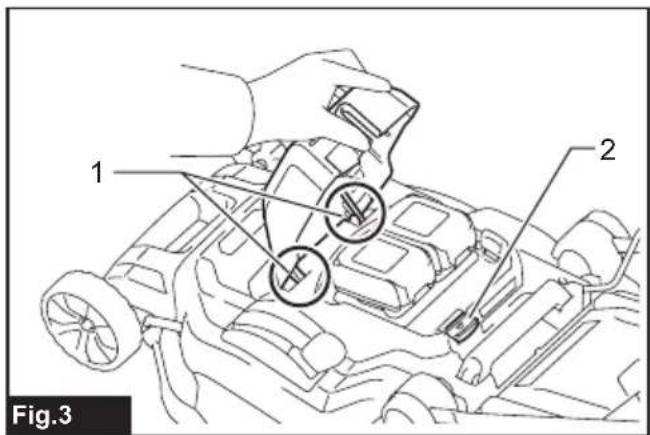

pointofthebatterycoverisattachedproperly.Ifthe batterycoverisinstalledcorrectly,itwillnotopenuntil thebatterycoverlockingleverispulled. ►Fig.3: 1. Pivot point 2.Batterycoverlockinglever12 ENGLISH Installing the handle NOTICE: When installing handles, position the cords so that they are not caught by anything between the handles. If the cord is damaged, the mower switch may not work.

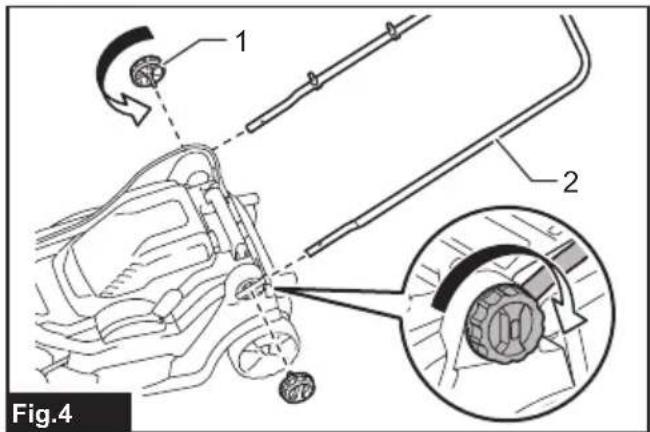

1. Slide the both ends of lower handle into the

groovesofthemowerthenfullytightentheclamping screws. ►Fig.4: 1. Clamping screw 2. Lower handle

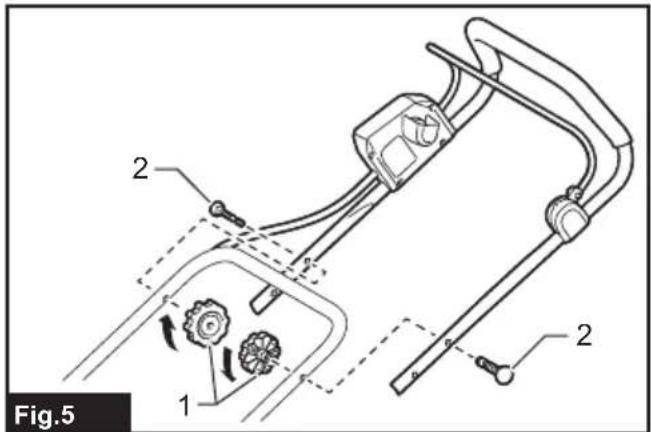

2. Align the screw holes of upper handle and lower

handle. Secure them with the clamping screws and nuts. ►Fig.5: 1. Clamping nut 2. Clamping screw NOTE:Holdtheupperhandlermlysothatitdoes notdropo󰀨yourhand.

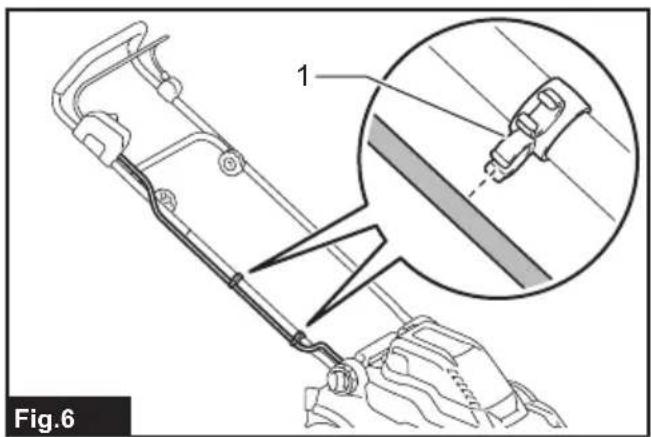

3. Attach the holders to the handle. Position the

powersupplycordasshowninthegure. ►Fig.6: 1. Holder Removing the mulching plug Optional accessory

1. Open the rear cover.

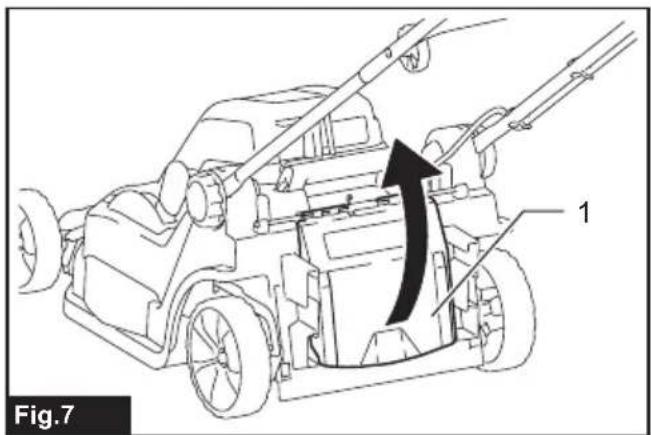

►Fig.7: 1. Rear cover

1. Open the rear cover.

►Fig.9: 1. Rear cover

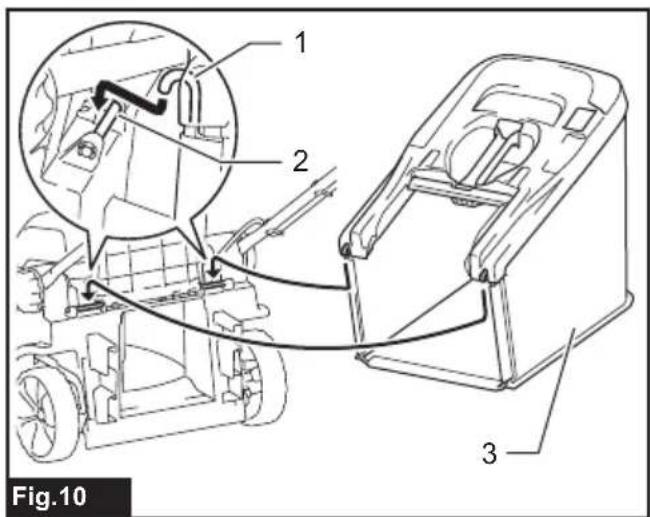

2. Hook the grass basket on the rod of the mower

bodyasshowninthegure. ►Fig.10: 1. Hook 2. Rod 3. Grass basket Attaching the mulching plug Optional accessory

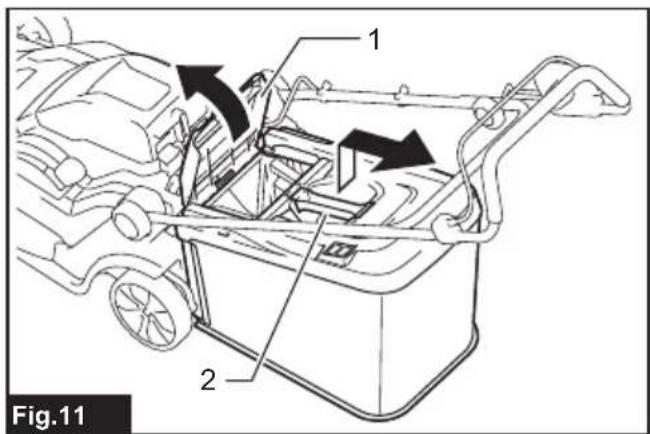

1. Open the rear cover, and then remove the grass

basket. ►Fig.11: 1. Rear cover 2. Grass basket

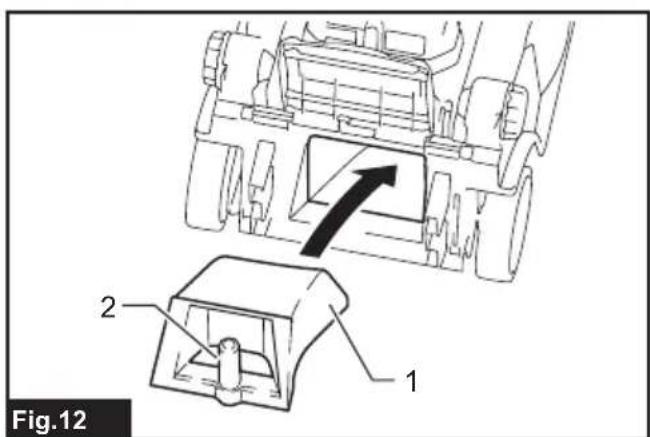

2. Holdthemulchingplugbythehandle,andthen

attachittothemowerbodyasshowninthegure. ►Fig.12: 1. Mulching plug 2. Handle FUNCTIONAL DESCRIPTION Installing or removing battery cartridge CAUTION: Always switch o󰀨 the machine before installing or removing of the battery cartridge. CAUTION: Make sure that you lock the battery cover before use. Otherwise,mud,dirt,orwatermay causedamagetotheproductorthebatterycartridge. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthemachine,causing injurytoyouorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. NOTE:Themachinedoesnotworkwithonlyone batterycartridge. To install the battery cartridge;

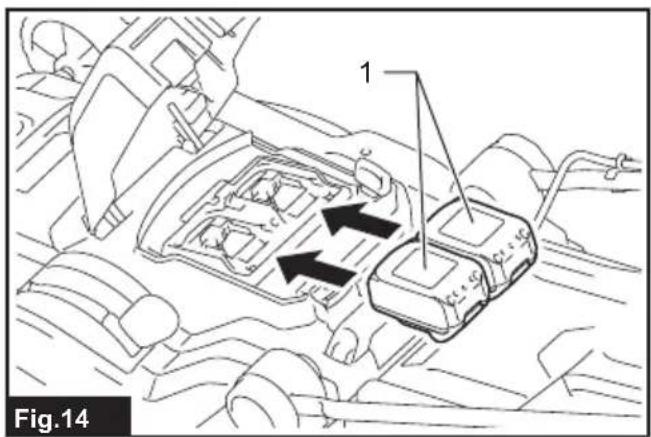

slot on the mower then slide the cartridge until it locks in place with a little click. ►Fig.14: 1.Batterycartridge

3. Insertthelockkeyintheplaceshowninthegure

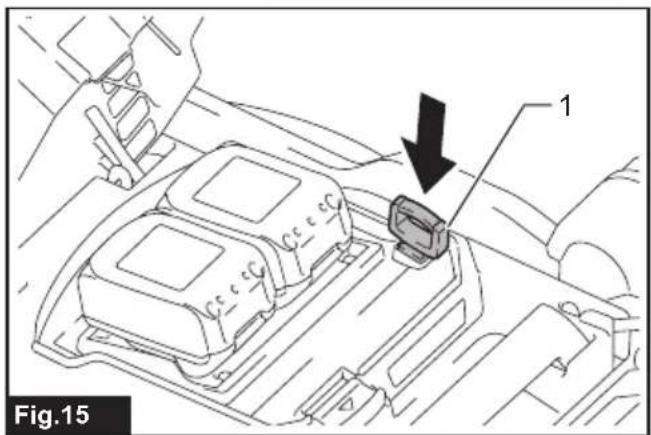

as far as it will go. ►Fig.15: 1.Lockkey

4. Closethebatterycoverandpushituntilitis

latched with the locking lever. To remove the battery cartridge from the mower;

2. Pulloutthebatterycartridgefromthemowerwhile

sliding the button on the front of the cartridge.

Machine / battery protection system Themachineisequippedwithamachine/battery protectionsystem.Thissystemautomaticallycutso󰀨 powertothemotortoextendtoolandbatterylife.The machinewillautomaticallystopduringoperationifthe machineorbatteryisplacedunderoneofthefollowing conditions. Overload protection When the machine is operated in a manner that causes ittodrawanabnormallyhighcurrent,themachine automaticallystopswithoutanyindication.Inthissitu- ation,turnthemachineo󰀨andstoptheapplicationthat caused the machine to become overloaded. Then turn the machine on to restart.13 ENGLISH Overheat protection When the machine is overheated, the machine stops automatically.Letthemachinecooldownbeforeturning the machine on again. Overdischarge protection Whenthebatterycapacitybecomeslow,themachine stopsautomatically.Iftheproductdoesnotoperate even when the switches are operated, remove the bat- teries from the machine and charge the batteries. Indicating the remaining battery capacity ►Fig.16: 1.Batteryindicator Whentheremainingbatterycapacitygetslow,thebat- teryindicatorblinksontheapplicablebatteryside.By furtheruse,themachinestopsandthebatteryindicator lights up about 10 seconds. In this situation, charge the batterycartridge. Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.17: 1. Indicator lamps 2. Check button Pressthecheckbuttononthebatterycartridgetoindi- catetheremainingbatterycapacity.Theindicatorlamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. Thebattery mayhave malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly fromtheactualcapacity. Switch action

WARNING: Before installing the battery car-

tridge, always check to see that the switch lever actuates properly and returns to the original position when released. Operating a machine with a switchthatdoesnotactuateproperlycanleadtoloss ofcontrolandseriouspersonalinjury. NOTE: The mower does not start without pressing the switch button even the switch lever is pulled. NOTE:Mowermaynotstartduetotheoverload whenyoutrytomowlongordensegrassatatime. Increase the mowing height in this case. This mower is equipped with the interlock switch and handleswitch.Ifyounoticeanythingunusualwitheither oftheseswitches,stopoperationimmediatelyand havethemcheckedbyyournearestMakitaAuthorized Service Center.

2. Press the switch button and hold it.

4. Release the switch button as soon as the motor

startsrunning.Themowerwillcontinuetorununtilyou release the switch lever.

5. Release the switch lever to stop the motor.

Adjusting the mowing height

WARNING: Never put your hand or leg under

the mower body when adjusting the mowing height.

WARNING: Always make sure that the lever

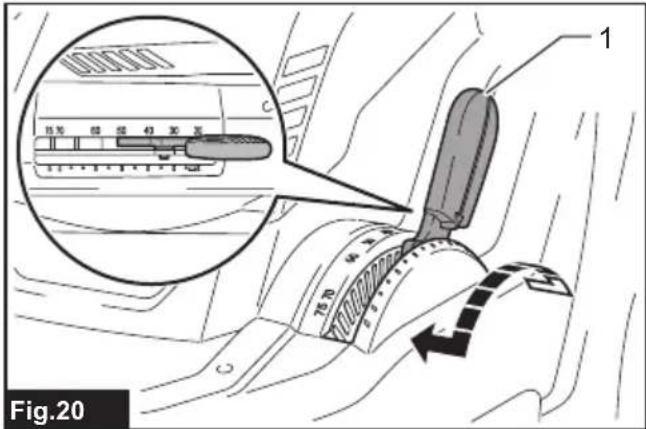

ts in the groove properly before operation. Themowingheightcanbeadjustedintherangeof between 20 mm and 75 mm.

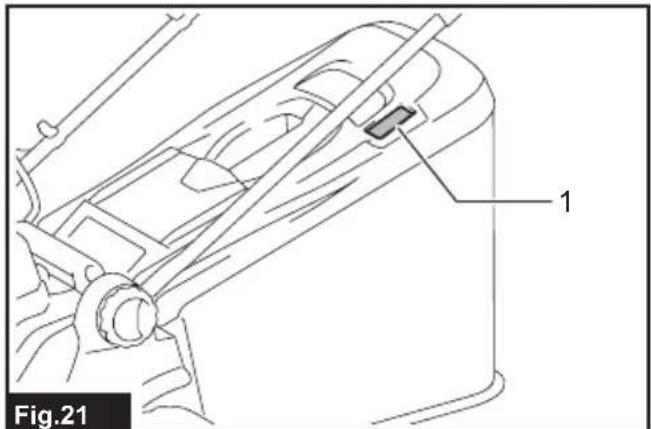

• When the grass basket is not full, the indicator oatsduringmowing.

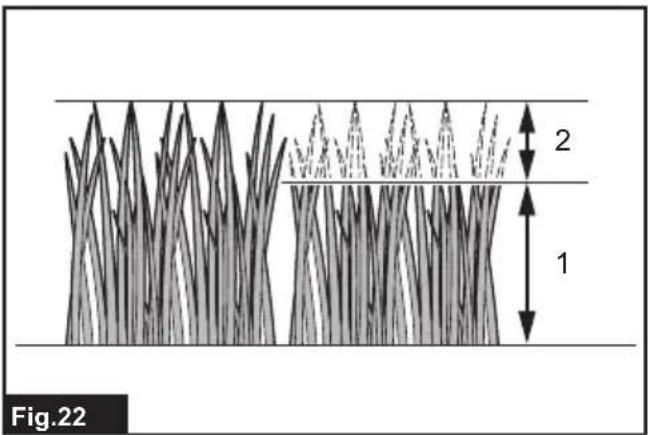

• When the grass basket is full, the indicator does notoatduringmowing.Inthiscase,stopmowing immediatelyandemptythebasket.Afteremptying the basket, clean it so that its meshwork vents the air. NOTE: This indicator is a rough guide. Depending on the conditions of inside of the basket, this indicator maynotworkproperly.14 ENGLISH Using mulching plug Optional accessory Themulchingplugallowsyoutoreturnthecutgrassto the ground without gathering the cut grass in the grass basket.Whenyouoperatethemachinewiththemulch- ing plug, be sure to remove the grass basket. NOTICE: When using the machine with the mulching plug, make sure that the total length of grass after cutting is 30 mm or more, and the cut length is 15 mm or less. ►Fig.22: (1) 30 mm or more (2) 15 mm or less OPERATION Mowing

WARNING: Before mowing, clear away sticks

and stones from mowing area. Furthermore, clear away any weeds from mowing area in advance.

WARNING: Always wear the safety goggles or

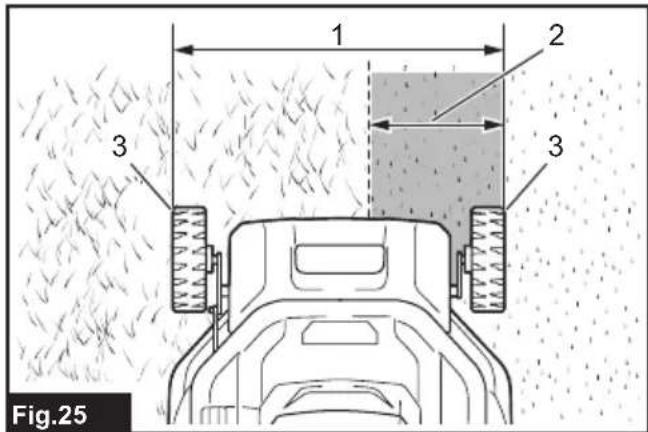

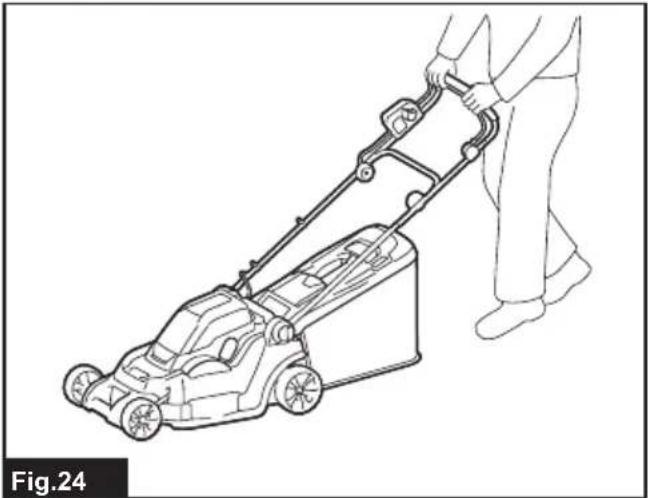

safety glasses with side shields when operating the mower. CAUTION: If the cut grass or foreign object blocks up inside of the mower body, be sure to remove the lock key and battery cartridge and wear gloves before removing the grass or foreign object. NOTICE: Use this machine for mowing lawn only. Do not mow weeds with this machine. ►Fig.23 Firmlyholdthehandlewithbothhandswhenmowing. Themowingspeedguidelineisapproximately1meter per 4 seconds. ►Fig.24 The outside edges of the front wheels are guidelines to mowing width. Using the outside edges of the front wheelsasguidelines,mowinstrips.Overlapbyonehalf toonethirdthepreviousstriptomowthelawnevenly. ►Fig.25: 1. Mowing width 2. Overlapping area

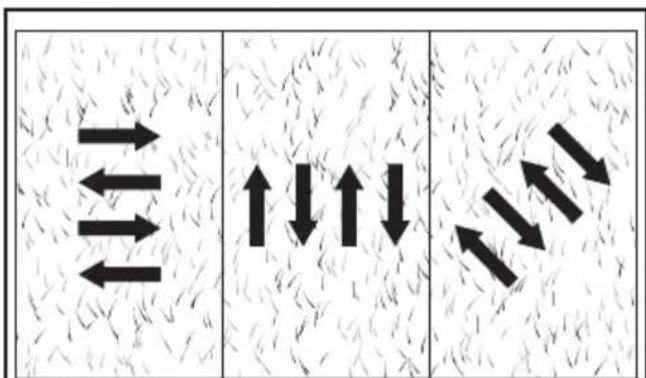

Change the mowing direction each time to prevent the grassgrainpatternfromforminginjustonedirection. ►Fig.26 Periodicallycheckthegrassbasketformowedgrass. Emptythegrassbeforeitbecomesfull.Beforeevery periodical check, be sure to stop the mower then removethelockkeyandthebatterycartridge. NOTICE: Using the mower with the grass basket full prevents smooth blade rotation and places an extra load on the motor, which may cause breakdown. Mowing a long-grass lawn Donottrytocutlonggrassallinonego.Instead,mow thelawninsomesteps.Leaveadayortwobetween mowsuntilthelawnbecomesevenlyshort. NOTE: Mowing long grass to a short length all in one gomaycausethegrasstodie.Thecutgrassmay alsoblockupinsideofthemowerbody. Emptying the grass basket

WARNING: To reduce a risk of accident, reg-

ularly check the grass basket for any damage or weakened strength. Replace the grass basket if necessary.

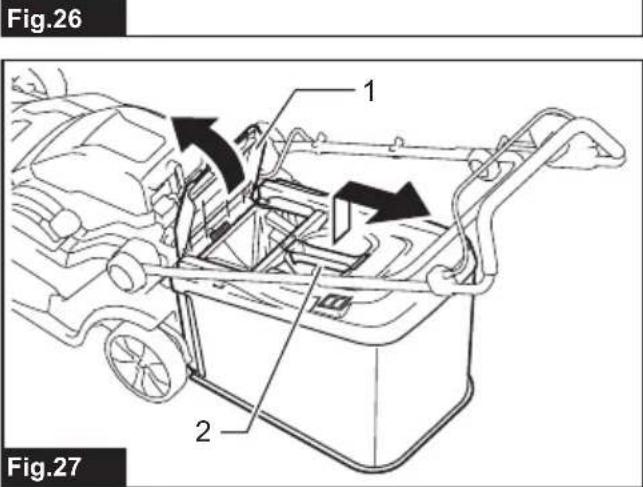

3. Open the rear cover and take out the grass basket

byholdingthehandle. ►Fig.27: 1. Rear cover 2. Handle

WARNING: Always be sure that the lock

key and battery cartridge are removed from the mower before storing or carrying the mower or attempting to perform inspection or maintenance.

WARNING: Always remove the lock key when

the mower is not in use. Store the lock key in a safe place out of reach of children.

WARNING: Wear gloves when performing

inspection or maintenance.

WARNING: Always wear the safety goggles or

safety glasses with side shields when performing inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. Maintenance

1. Removethelockkey.Storeitinasafeplaceoutof

the reach of children.

2. Cleanthemowerusingonlyawetcloth.Donot

sprayorpourwateronthemowerwhencleaning.

3. Put the mower on its side and clean grass clip-

pings accumulated on the underside of mower deck.

4. Check all nuts, bolts, knobs, screws, fasteners etc.

Inspect moving parts for damage, breakage, and wear. Damaged or missing parts should be repaired or replaced.15 ENGLISH Storage

WARNING: When carrying or storing the

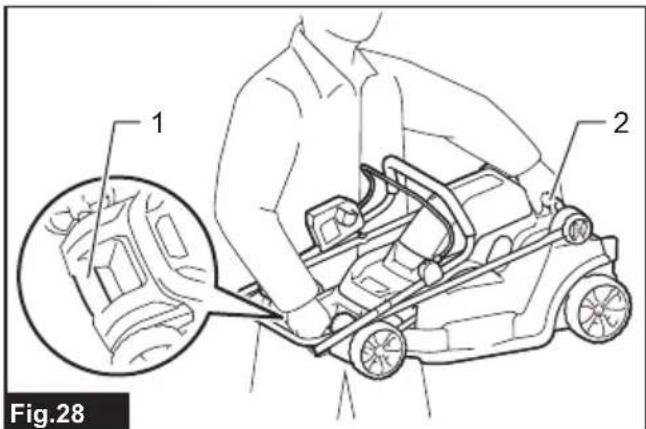

mower, do not hold the folded handles but the front grip of the mower. Holding the folded handles maycauseaseriousinjuryordamagetothemower. Beforestoringthemower,removethebatterycartridge andlockkey. Storemowerindoorsinacool,dryandlockedplace. Don't store the mower and charger in locations where thetemperaturemayreachorexceed40°C. ►Fig.28: 1. Front grip 2. Rear grip

1. Loosen the clamping screws and expand the

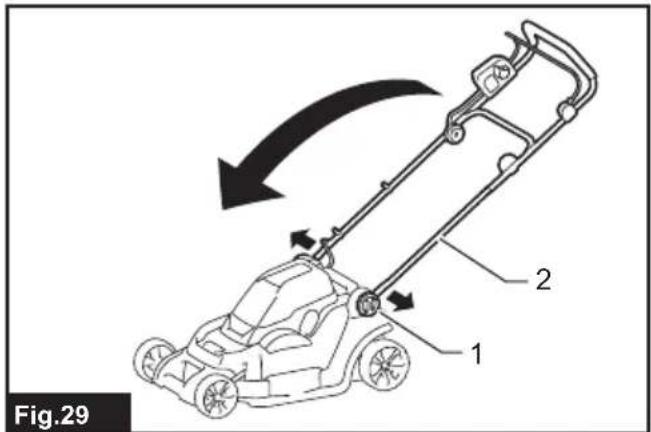

lower handle to both sides. Move down the handle for- ward.Atthistime,keeparmgriponthelowerhandle so that the handle does not fall down to the far side from themowerbody. ►Fig.29: 1. Clamping screw 2. Lower handle

3. Store the grass basket between the handle and

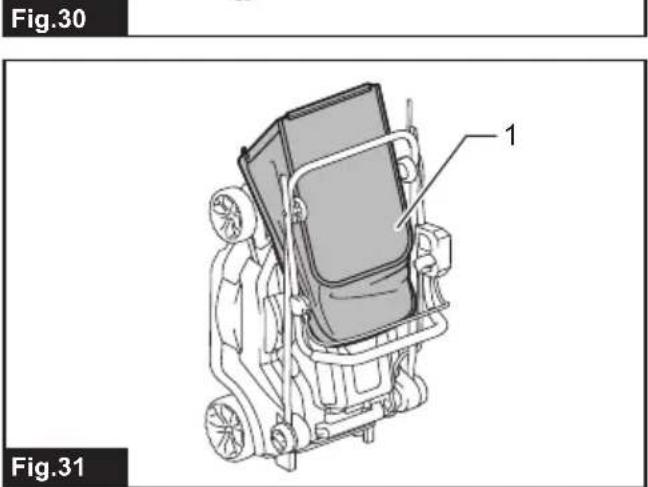

themowerbody. ►Fig.31: 1. Grass basket NOTE: When putting the mower in the upright posi- tion, do not hold the handle but use the front grip of the mower. Removing or installing the mower blade

WARNING: Always remove the lock key and

battery cartridge when removing or installing the blade. Failure to remove the lock key and battery cartridge may cause a serious injury.

WARNING: The blade coasts for a few sec-

onds after releasing the switch. Do not start any operation until the blade comes to a complete stop.

WARNING: Always wear gloves when han-

dling the blade. Removing the mower blade For DLM382

1. Put the mower on its side so that the mowing

heightadjustinglevercomestotheupperside.

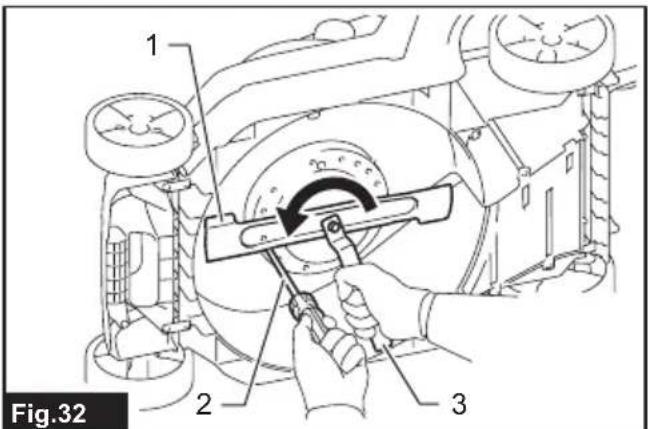

2. To lock the blade rotation, insert a screwdriver or a

similartoolintoaholeonthemowerbody.

3. Turn the bolt counterclockwise with the wrench.

►Fig.32: 1. Mower blade 2. Screwdriver 3. Wrench

4. Remove the bolt and blade in order.

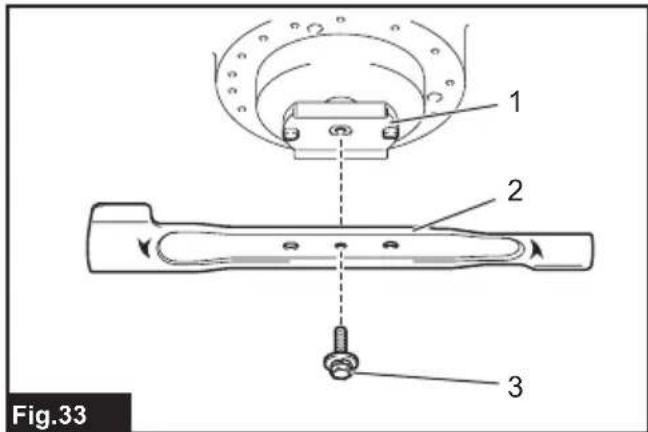

►Fig.33: 1. Blade support 2. Mower blade 3. Bolt For DLM432

1. Put the mower on its side so that the mowing

heightadjustinglevercomestotheupperside.

2. To lock the blade rotation, insert a screwdriver or a

similartoolintoaholeonthemowerbody.

3. Turn the bolt counterclockwise with the wrench.

WARNING: Install the mower blade carefully.

It has a top/bottom facing. Place the blade so that the rotational direction arrow faces outward.

WARNING: Tighten the bolt clockwise rmly

to secure the blade.

WARNING: Make sure that the mower blade

and all the xing parts are installed correctly and tightened securely.

WARNING: When you replace the blades,

always follow the instructions provided in this manual.16 ENGLISH TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual, donotattempttodismantlethetool.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakitareplace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Mower does not start. Twobatterycartridgesarenotinstalled. Installthechargedbatterycartridges. Batteryproblem(undervoltage) Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Thelockkeyisnotinserted. Insertthelockkey. Motor stops running after a little use. Battery'schargelevelislow. Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Cutting height is too low. Increase the cutting height. Motor does not reach maximum RPM. Batterycartridgeisinstalledimproperly. Installthebatterycartridgeasdescribedinthis manual. Batterypowerisdropping. Rechargethebatterycartridge.Ifrechargingisnot e󰀨ective,replacebatterycartridge. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Mower blade does not rotate: stopthemowerimmediately! Foreignobjectsuchasabranchis jammedneartheblade. Removetheforeignobject. Thedrivesystemdoesnotwork correctly. Askyourlocalauthorizedservicecenterforrepair. Abnormal vibration: stopthemowerimmediately! Bladeisimbalanced,excessivelyor unevenlyworn. Replace the blade. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

Model DLM432 Trillingsemissie (a

Model DLM432 Vibrationsemission (a
