USER MANUAL CR3.4 Absima

bouton-poussoir (CH4) Three-position toggle switch (Ch3)

• Misuse of this product may lead to serious injury or death. To ensure the safety of you and your equipment, read this manual and follow the instructions.

• Make sure the product is properly installed in your model. Failure to do so may result in serious injury.

to do so may lead to unintended operation and cause an accident.

• Do not use the product at night or in bad weather like rain or thunderstorm. It can cause erratic operation or loss of control.

• Do not use the product when visibility is limited.

• Do not use the product on rain or snow days. Any exposure to moisture (water or snow) may cause erratic operation or loss of control.

• Interference may cause loss of control. To ensure the safety of you and others, do not operate in the following places:

• Near any site where other radio control activity may occur

• Near power lines or communication broadcasting antennas

• Near people or roads

• On any body of water when passenger boats are present

alcohol or drugs. Doing so may cause serious injury to yourself or others.

• The 2.4GHz radio band is limited to line of sight. Always keep your model in sight as a large object can block the RF signal and lead to loss of control.

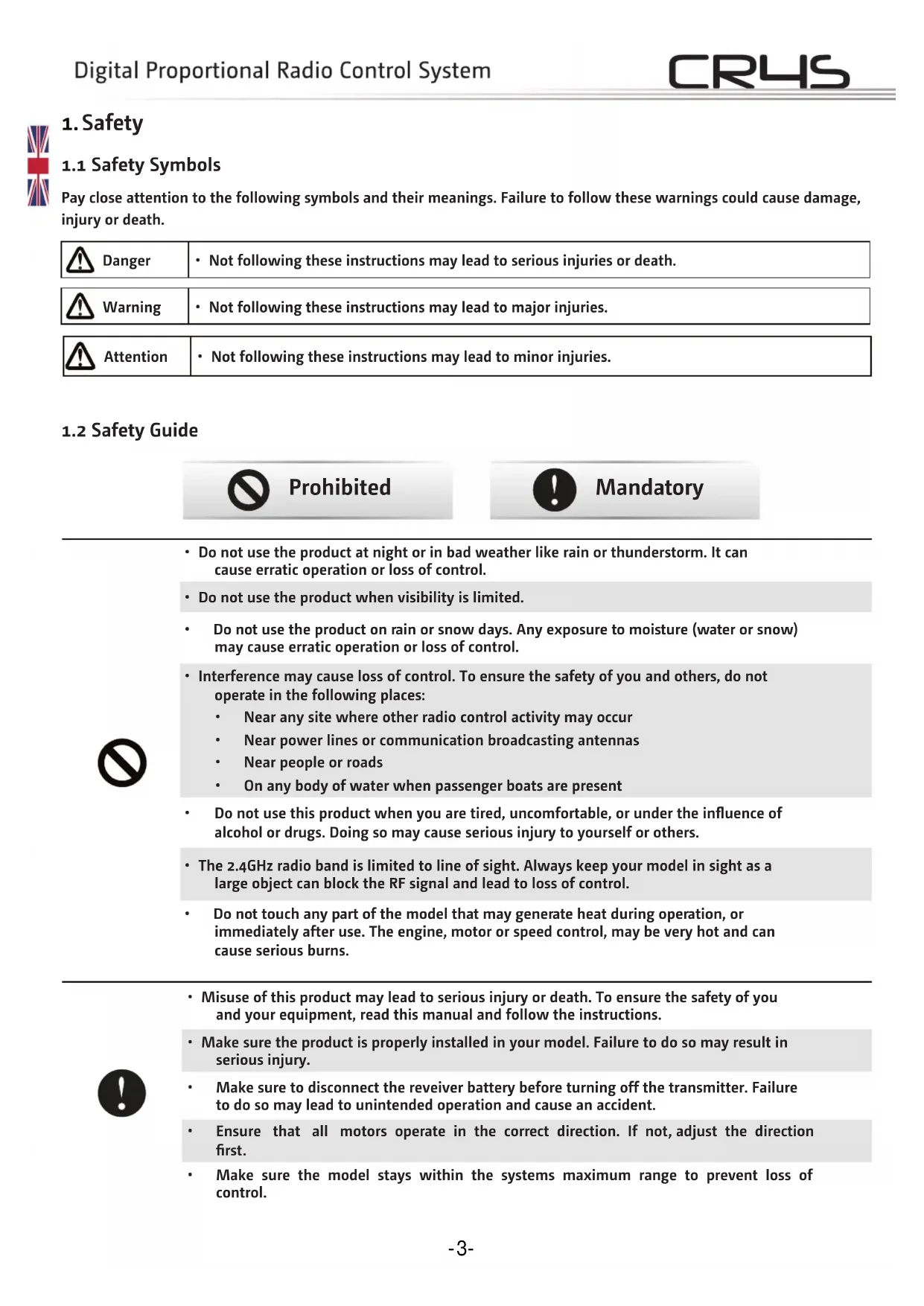

• Do not touch any part of the model that may generate heat during operation, or immediately after use. The engine, motor or speed control, may be very hot and can cause serious burns. Prohibited Mandatory 1.Safety

Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death.

Warning • Not following these instructions may lead to major injuries. Danger • Not following these instructions may lead to serious injuries or death. Attention • Not following these instructions may lead to minor injuries. Do not use this product when you are tired, uncomfortable, or under the influence of Make sure to disconnect the reveiver battery before turning off the transmitter. Failure Ensure that all motors operate in the correct direction. If not, adjust the direction first. Make sure the model stays within the systems maximum range to prevent loss of control. -3-2.Introduction The CR4S is a simple 4 channel transmitter using the latest 2.4GHz ATN frequency hopping technology from Absima.The transmitter is lightweight and compact in design, comfortable and ergonomic. It has a beginne r mode and is easy for beginner players to use.2.1 Transmitter overview [1] Traversing handwheel, 35 degrees on each side (Ch1)ST. D/R [2]

12.5 degrees at rear (CH2)TH. D/R

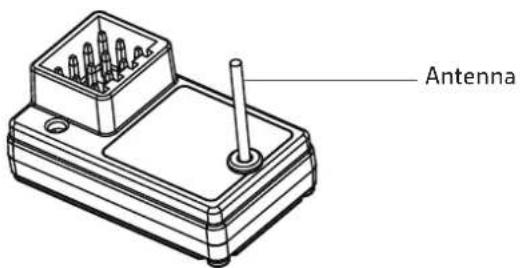

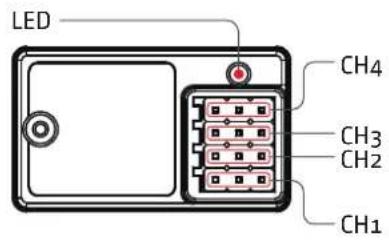

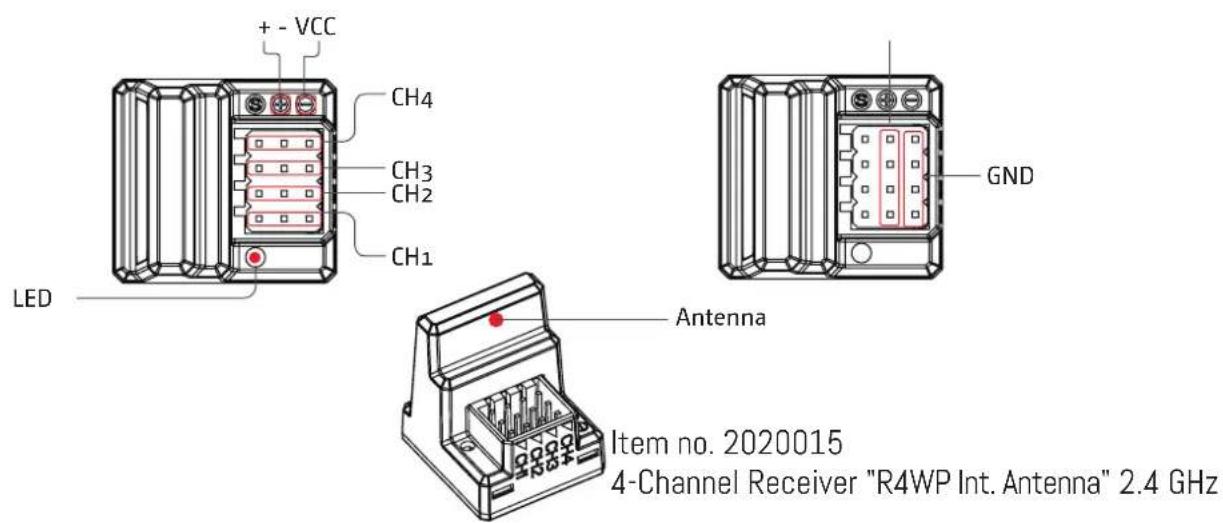

• To ensure the best signal quality make sure that the antenna is mounted perpendicular to the model body in an upright position. CH4 CH3 CH2 CH1 CH4 CH3 CH2 CH1 LED LED Antenna Antenna + - VCC GND + S

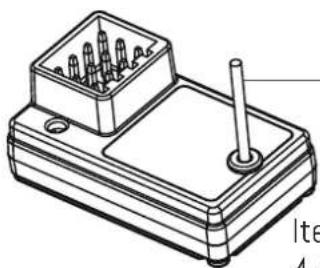

Item no. 2020016 4-Channel Receiver "R4WP-Micro" 2.4 GHz Item no. 2020015 4-Channel Receiver "R4WP Int. Antenna" 2.4 GHz Item no. 4140016 TX LiPo 2S 7.4V 1200mAh SC with LiPo Protect (JR/FUT) -5-3.Getting Started Before operation, install the battery and connect the system as instructed below.

3.1 Transmitter Battery Installation

Danger • Danger • Do not open, disassemble, or attempt to repair the battery. Danger • Do not crush/puncture the battery, or short the external contacts. Danger • Do not expose to excessive heat or liquids. Danger • Do not drop the battery or expose to strong shocks or vibrations. Danger • Always store the battery in a cool, dry place. Danger • Do not use the battery if damaged.Battery Type: LR6 “AA” size or 2S Lipo rechargeable batteryBattery Installation:1. Open the battery compartment cover.2. Insert 4 fully-charged “AA” batteries into the compartment.Make sure that the battery makes good contact with the battery compartment's contacts. 3. Replace battery compartment cover. Low batter y alarm: When the battery is lower than 4.2v, the G.LED on the panel will flash slowly. Note: When installing the batteries, be careful to handle the positive and negative poles. (As shown in the picture on the right) Only use specified battery. Battery cover Slide to open 1.5V LR6 (AA)1.5V LR6 (AA)1.5V LR6 (AA)1.5V LR6 (AA) Plug-in rechargeable batteryLR6 “AA” size Plug-in a 2S Lipo rechargeable battery (Absima’s item no.4140016) -6-5 4.Instructions After setting up, follow the instructions below to operate the system. Follow the steps below to turn on the transmitter:

1. Check to make sure that that battery is fully charged and installed correctly.

2. Toggle the switch to the [ON] position. When active the R.LED will be lit.

3. Connect the receiver to power.

• For safety always power on the transmitter before the receiver.

The transmitter and receiver have already been bound at the factory.

2. The receiver will enter bind mode atomically when powered on.

e binding is successful the receiver’s LED will flash slowly and the transmitter’s LED will remain solid after being rebooted. Note: When binding, put the transmitter into bind mode first, then the receiver.

However if the receiver needs to be replaced or additional receivers bound follow these steps: Note • Operate with caution in order to avoid damage or injury. Note

• Make sure that the throttle is at its lowest position and the switches are set to their up position.

• applicable to the CR4S transmitter and the R4WP receiver. Different receivers have different bind procedures. For more information visit the ABSIMA website for manuals and other related information.

• Product information is updated regularly, please visit our website for more information.

3. Low battery alarm: When the battery is lower than 4.2v, the G.LED on the panel will flash slowly.

-7-4.4 Stick Calibration This function is used to set the neutral position for throttle and wheel. Every transmitter is calibrated before leaving the factory, however if recalibration is required, please follow these steps:

1. Turn and hold the wheel as far clockwise as it will turn, hold the throttle all the way forward,

then turn on the transmitter in calibration mode.

2. Calibrate wheel: Turn the wheel completely clockwise, then completely counterclockwise.

3. Trigger calibration: Pull the trigger back then for ward as far as it will go.

4. Once calibration is complete press the bind key to save and exit .

Follow the steps below to turn off the system:

1. Disconnect the receiver power.

2. Toggle the transmitter's power switch to the off position.

The R.LED and G.LED will flash twice. When calibration is completed the R.LED will be off. When calibration is completed the G.LED will be off. Make sure to disconnect the receiver power before turning off the transmitter. Failure to do so may lead to damage or serious injury.

-8-5.System Functions This section focuses on the functions and how to use them.

5.1 Channel Description

The transmitter outputs a total of 4 channels, which are allocated as follows:

• CH4 : Reset Button Note: By default the output of CH4 is 1000us, after which pressing the button will toggle between 1000 and 2000us.

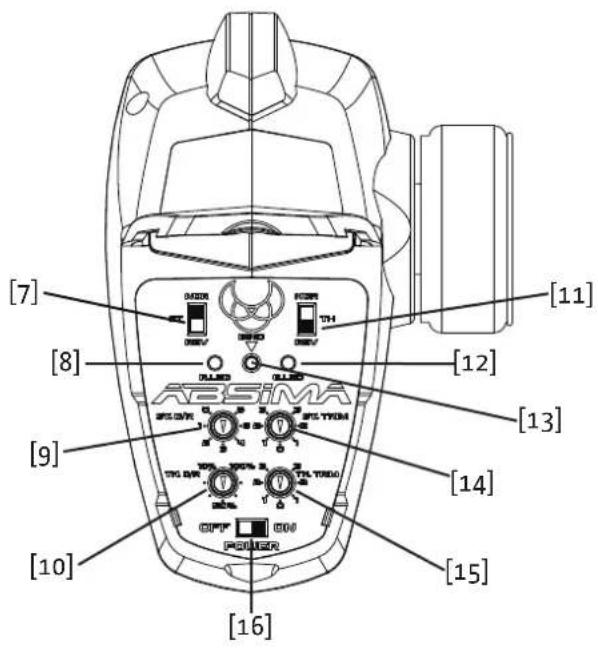

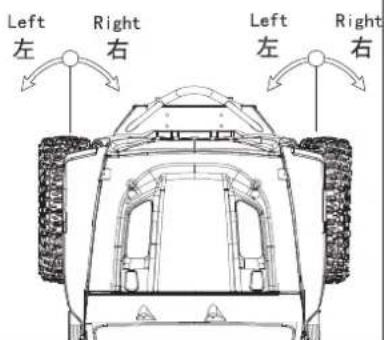

This function is used to adjust the action direction of the ser vo or motor. The ST.REV / TH.REV knobs are the reverse buttons for CH1 and CH2. If the knob is up it indicates reverse, and the down indicates normal. The ST.TRIM is the trims for CH1 (steering),and can be multiplexed as Trims of CH3 ; The TH.TRIM is the trims for CH2 (throttle).and can be multiplexed as Trims of CH4 ; For multiplexing switching mode, see [5.5 Mode Switching]. Adjustment range: -120us- + 120us; ST.TRIM/TH.TRIM: counterclockwise adjustment to increase the trim value. The maximum value is 120 us. ST.TRIM- / TH.TRIM-: clockwise adjustment to decrease the trim value. The minimum value is -120 us.

The ST.D/R is the trims for CH1 (steering),and can be multiplexed as Trims of CH3 ; The ST.D/R is the trims for CH2 (throttle).and can be multiplexed as Trims of CH4 ; For multiplexing switching mode, see [5.5 Mode Switching]. Adjustment range: 0-120%; ST.D/R: counterclockwise adjustment to increase the ser vo amount. The maximum value is 120%. ST.D/R: clockwise adjustment to decrease the ser vo amount. The minimum value is 0%. TH.D/R: counterclockwise adjustment to increase the ser vo amount. The maximum value is 100%. TH.D/R: clockwise adju stment to decrease the ser vo amoun t. The minimum value is 10%. -9-5.5 Mode switching This function is for reusing the ST.TRIM and ST.D / R buttons for different channels (see [5.3 Trims], [5.4 D/R). Function setting: Under normal power-on condition, press the BIND button twice (within 1S) to switch between mode 1 and mode 2. By default, mode 1 is used. Mode 1: R.LED is always on. G.LED is off. ST.TRIM is for CH1 trim. ST.D/R is for CH1 ser vo adjustment. TH.TRIM is for CH2 throttle trim. TH.D/R is for CH2 throttle servo adjustment. Mode 2: R.LED and G.LED are flashing alternately. ST.TRIM is for CH3 trim. ST.D/R is for CH3 servo adjustment. TH.TRIM is for CH4 trim. TH.D/R is for CH4 ser vo adjustment. This function dictates what the receiver will do in the event that it loses signal from the transmitter, this includes servo position etc. Setup: When the transmitter is switched on in normal communication state, keep the channel to be set at the position of the failsafe setup, and press and hold the BIND button for 3S. The G.LED flashes for 2S, ind icating that the setting is successf ul. Th at is, when the rece i ver ca nnot receive the signal, it will output the set failsafe value.

te: The fail-sa fe function has no default set at the factory and as such must be set manually. If no failsafe setting has been set, then the receiver will not output anything when signal is lost.

Beginner mode is designed for people new to the hobby. In this mode the throttle will be limited to 50 percent, The channel range defaults to 1250~1500~1750us. Setup: To switch between beginner and normal modes,first press and hold the channel 4 button and Turn the handwheel to the bottom counterclockwise ,then turn on the transmitter . Note: By default, the system is set to normal mode. The GLED will flash slowly for 3 seconds during power on if the system is set to beginner mode.

-10-Warranty Terms By purchasing and using your Absima product, you agree to the warranty terms of Absima GmbH. The warranty applies only to material and/or functional defects already present at the time of purchase of the product. Excluded from the guarantee:

Damage caused by incorrect use

• Damage due to neglect of duty of care

Damage due to improper handling and maintenance errors

• Fluid damages Please report warranty claims to your dealer. If it is necessary to return your product, please enclose your proof of purchase and a detailed description of the fault with the shipment. We also need your complete contact details (legible). The direct sending to the service department of Absima GmbH requires the previous arrangement. This can be done by telephone under [phone] or by e-mail to [e-mail] The shipping costs are borne by the sender. Parcels that are not free of charge or are subject to charges will not be accepted. Each incoming warranty case is first checked by our service department for admissibility. Complaints that are not covered by the warranty may incur costs for the inspection. Repairs or services that are not covered by the warranty will be charged in advance. Disclaimer Since Absima GmbH cannot at any time monitor the observance of the operating instructions as well as the operation and conditions of use of the product, Absima GmbH does not assume any liability for damages, costs, losses resulting from incorrect handling and/or incorrect operation or in any way related thereto. To the extent permitted by law, the obligation to pay damages, for whatever legal reason, will be limited to the invoice value of the Absima product involved in the event. This does not apply as far as we have to assume unlimited liability due to mandatory legal regulations or gross negligence. Declaration of conformity The manufacturer hereby declares that the product complies with the essential requirements and other relevant provisions of the EU Directive. The declaration of conformity can be found at http://absima.com/index.php/downloads/erklaerungen/ or can be consulted under Absima GmbH - Gibitzenhofstrasse 127a/RG - 90443 Nuremberg, Germany can be requested. Disposal Waste electronic equipment is a raw material and should not be disposed of with household waste. If the product is at the end of its service life, dispose of it at your local collection points in accordance with the applicable legal regulations. Disposal with household waste or at the expense of the environment is prohibited. Important! Remove the batteries or rechargeable batteries before disposal. A separate take-back system applies to batteries and rechargeable batteries. By properly disposing of your old appliances, you make an important contribution to environmental protection. Absima GmbH Gibitzenhofstrasse 127 a / RG 90443 Nürberg , Germany Phone: [phone] / Fax: [phone] www.absima.com Technical changes, design and equipment subject to change without notice.

• Water-proof and dust-proof, suitable for all-weather condition races.

• Small size with built-in capacitor module.

• Three running modes: Forward /Brake, Forward/Brake/Reverse and Forward /Reverse, fits for various vehicles.

• Great current endurance capability.

• Great built-in BEC output capacity.

• Automatic throttle range calibration, easy to use.

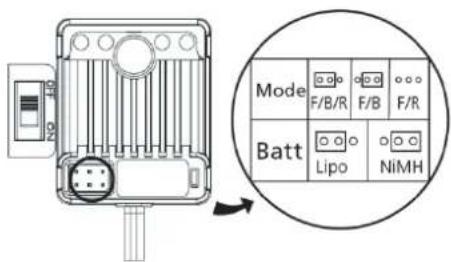

• Easy to set the ESC parameters with jumpers.

• Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection. ESC Specification: Fwd. Cont. /Peak Current: 60A/360A Voltage Range: 2-3S LiPo or 5-9 NiMH Motor Limit 2S or 6 NiMH: 540/550 Motor ≥12T or RPM<30000 @7.2V Motor Limit 3S or 9 NiMH: 540 or 550 Size Motor: ≥18T or RPM< 20000 @7.2V Resistance: Forward 0.001Ω, Reverse 0.002Ω BEC Output: 3A / 6V (Switch Mode) Dimension/Weight: 36.5x32x18 mm / 39g Cooling Fan: Without cooling fan Set the ESC parameters: How to set: 1060-BRUSHED ESC uses the jumper cap to set running mode & battery type. Way to set: We suggest users use the tweezers to set parameters by plugging / unplugging the jumper cap (as shown in the picture beside); For example, if want set the battery type to the “LiPo” mode, you only need to plug the jumper cap into left two pins of the battery pin header. Programmable items: 1. Running Mode: 3 Options (Fwd / Br / Rev, Fwd / Br, Fwd / Rev). “Fwd / Br / Rev” is the default option (Fwd=Forward, Br=Brake, Rev=Reverse) “Fwd / Br / Rev” mode indicates the vehicle can go forward, backward and brake. This mode uses “Double-click” method to make the vehicle reverse. When moving the throttle stick from the neutral zone to backward zone for the 1st time, the ESC begins to brake the motor and the motor slows down but still running, so the backward action is NOT performed immediately. When the throttle stick is moved to the backward zone again, if the motor speed slows down to zero (i.e. stopped), the backward action will happen. This “Double-click” method prevents mistakenly reversing action when the brake function is frequently used in steering. Therefore, this mode is often used in daily practice. For the “Fwd / Br” mode, the vehicle can go forward and brake, but no reversing, so this mode is often used in competition. And the “Fwd / Rev” mode uses “Single-click” method to make the vehicle reverse, when moving the throttle stick from neutral zone to backward zone, the vehicle reverses immediately, so this mode is usually used for rock crawling.

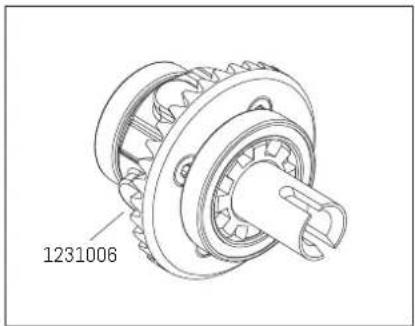

Differential Gear Assembly

3x10 Round head HEX screw 3x14 Round head HEX screw

3x8 Round head HEX screw

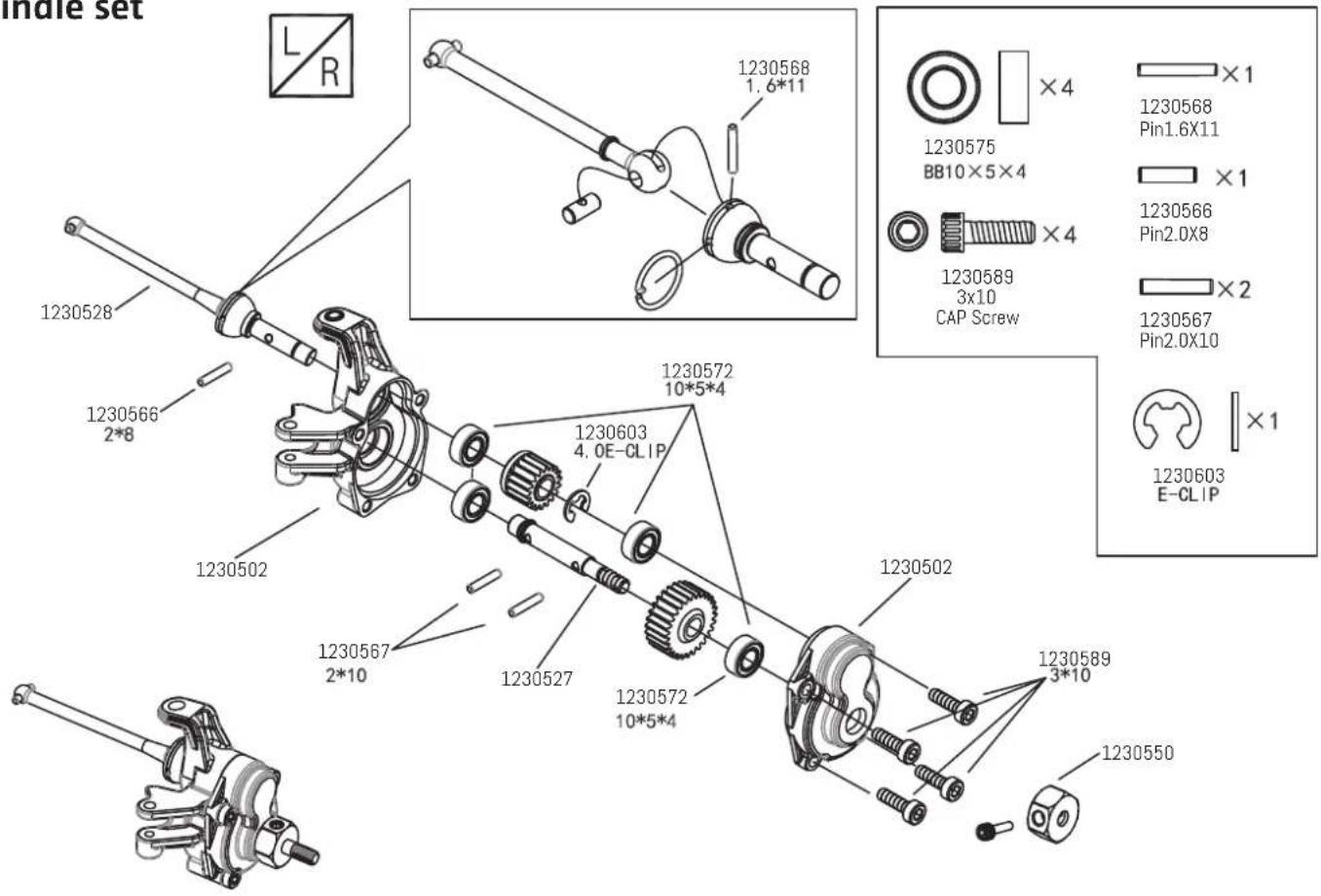

Portal Axle Housing Assembly Front portal Assembly

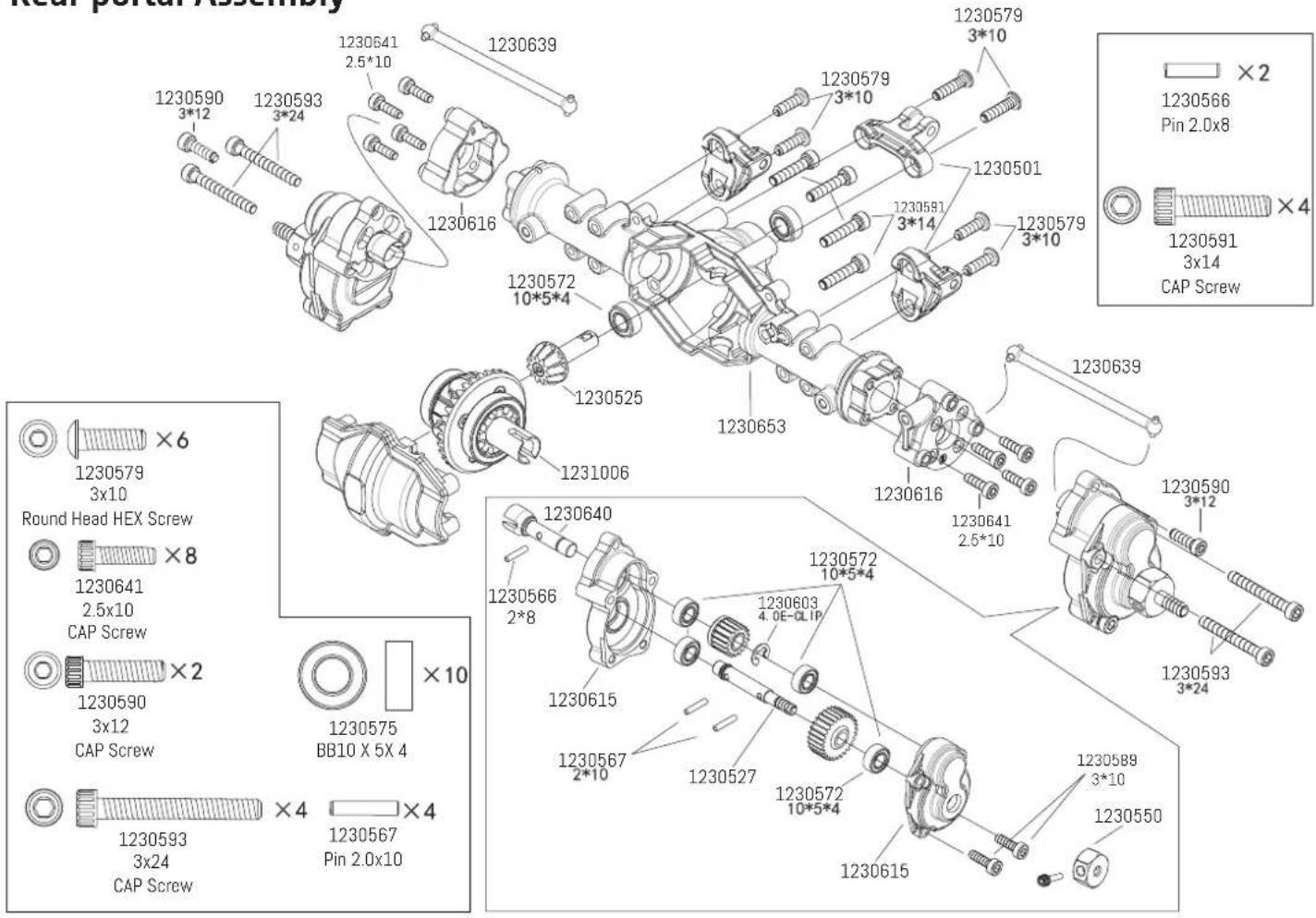

12310131231013Rear portal Assembly

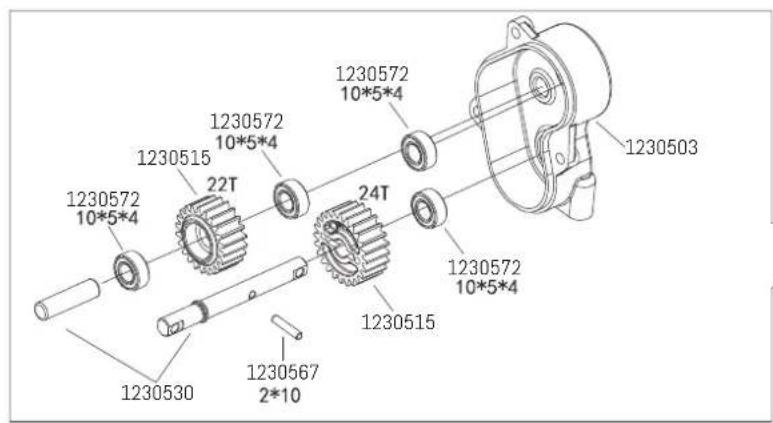

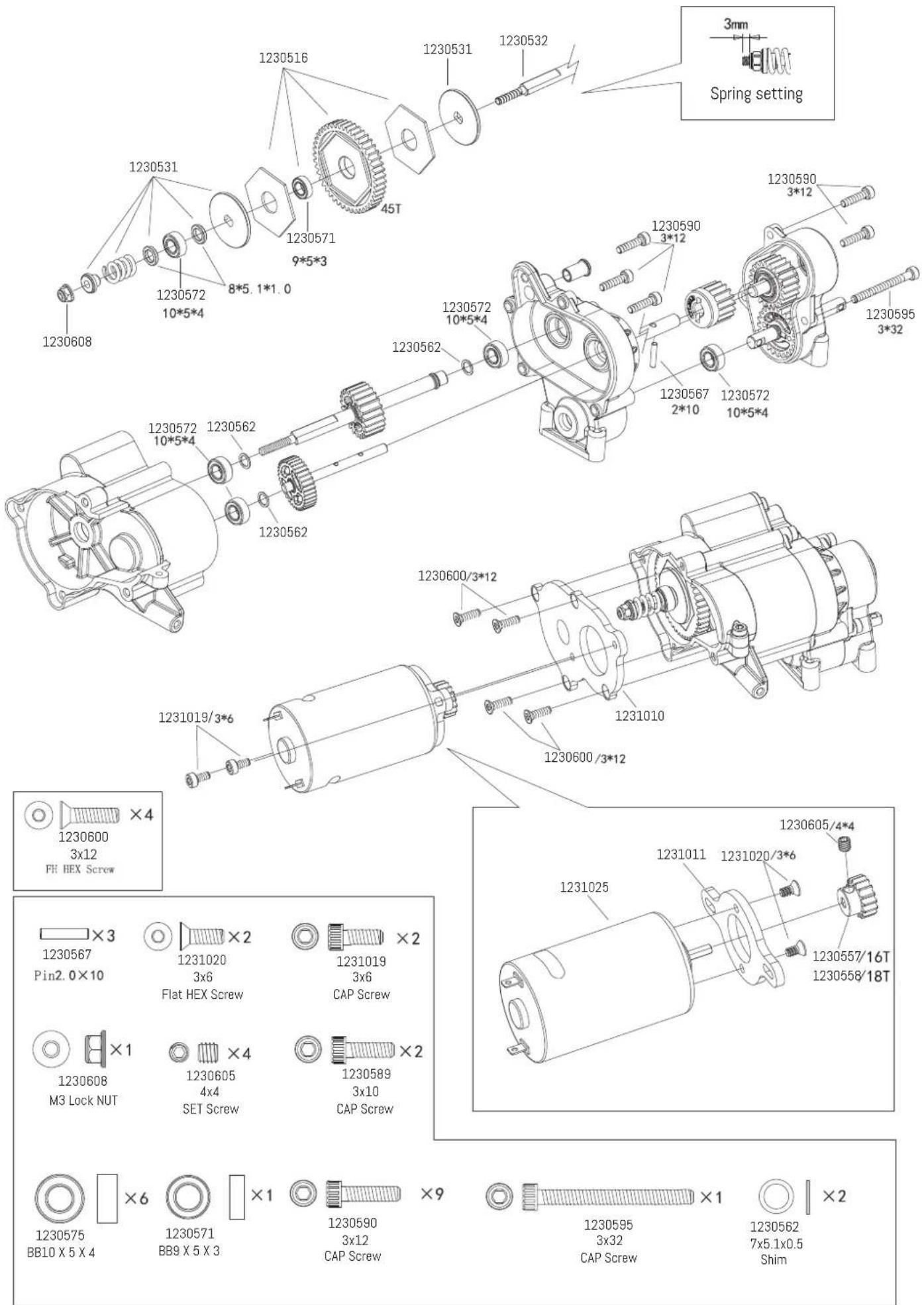

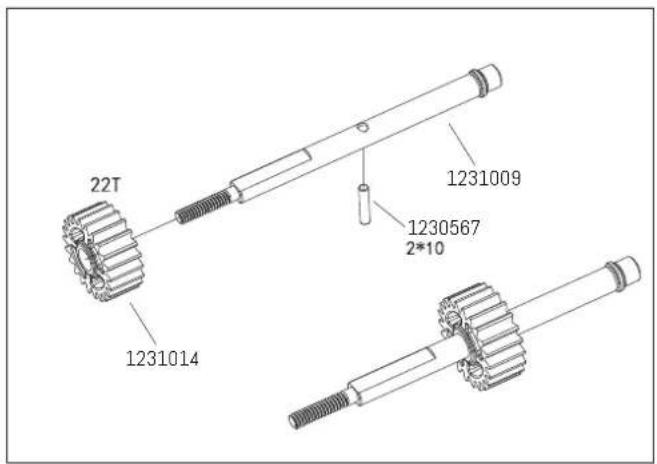

1231009Gearbox Assembly Spring setting

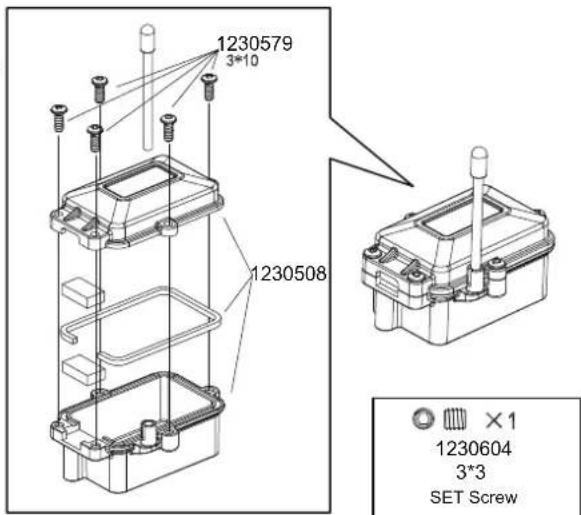

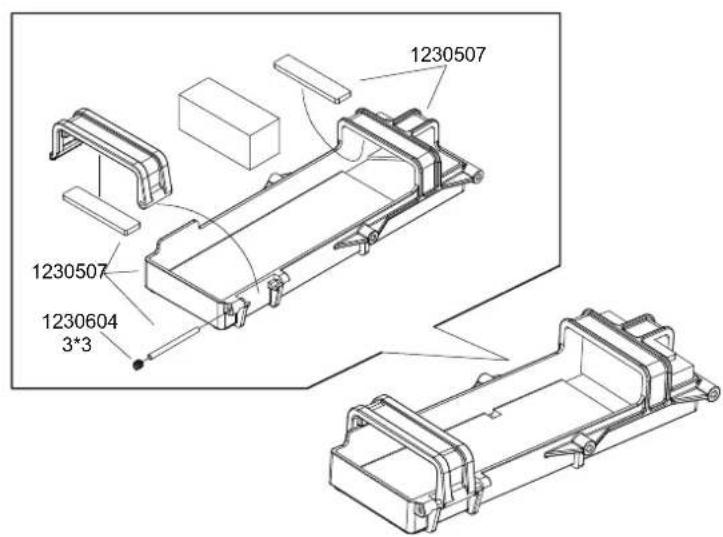

M3 Lock NUT 1231010Battery box Assembly Receiver box Assembly

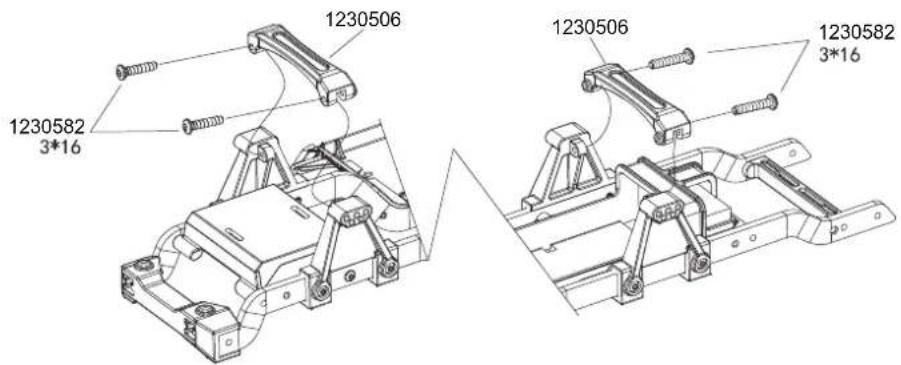

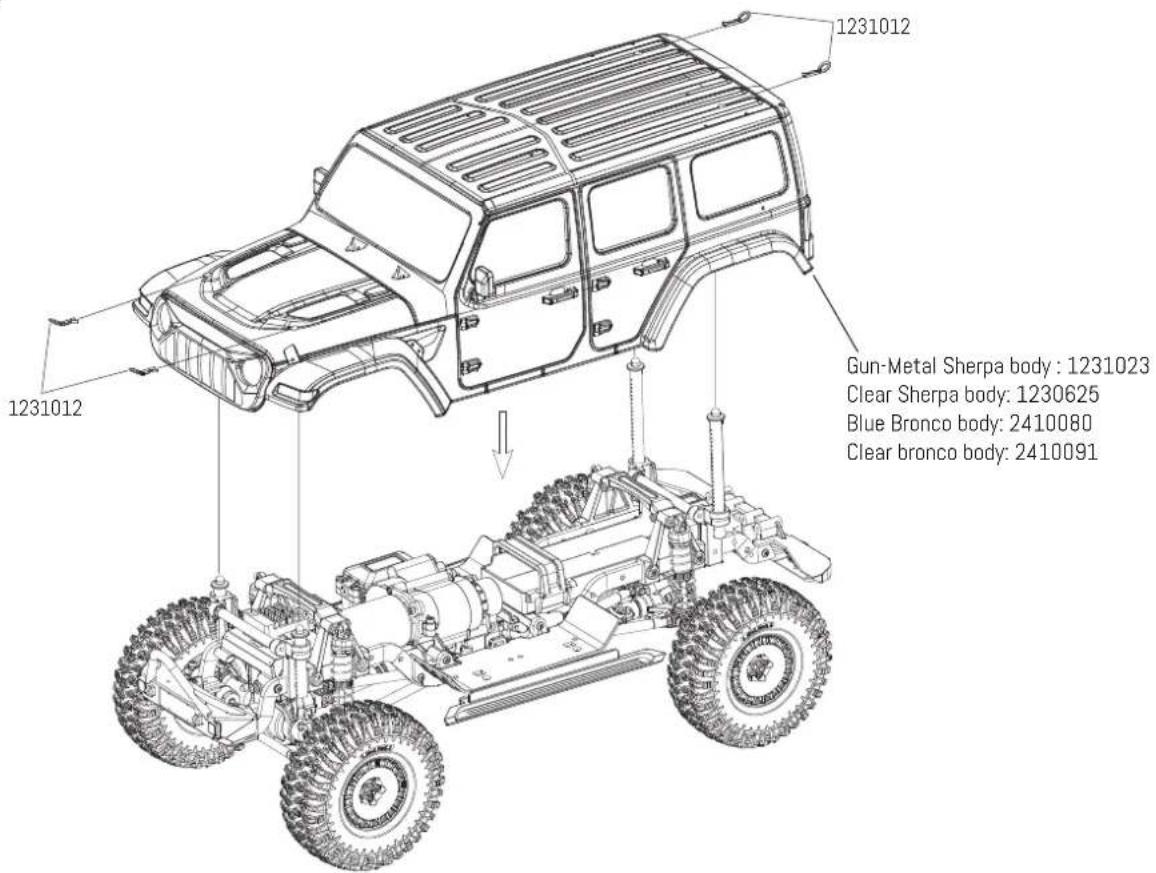

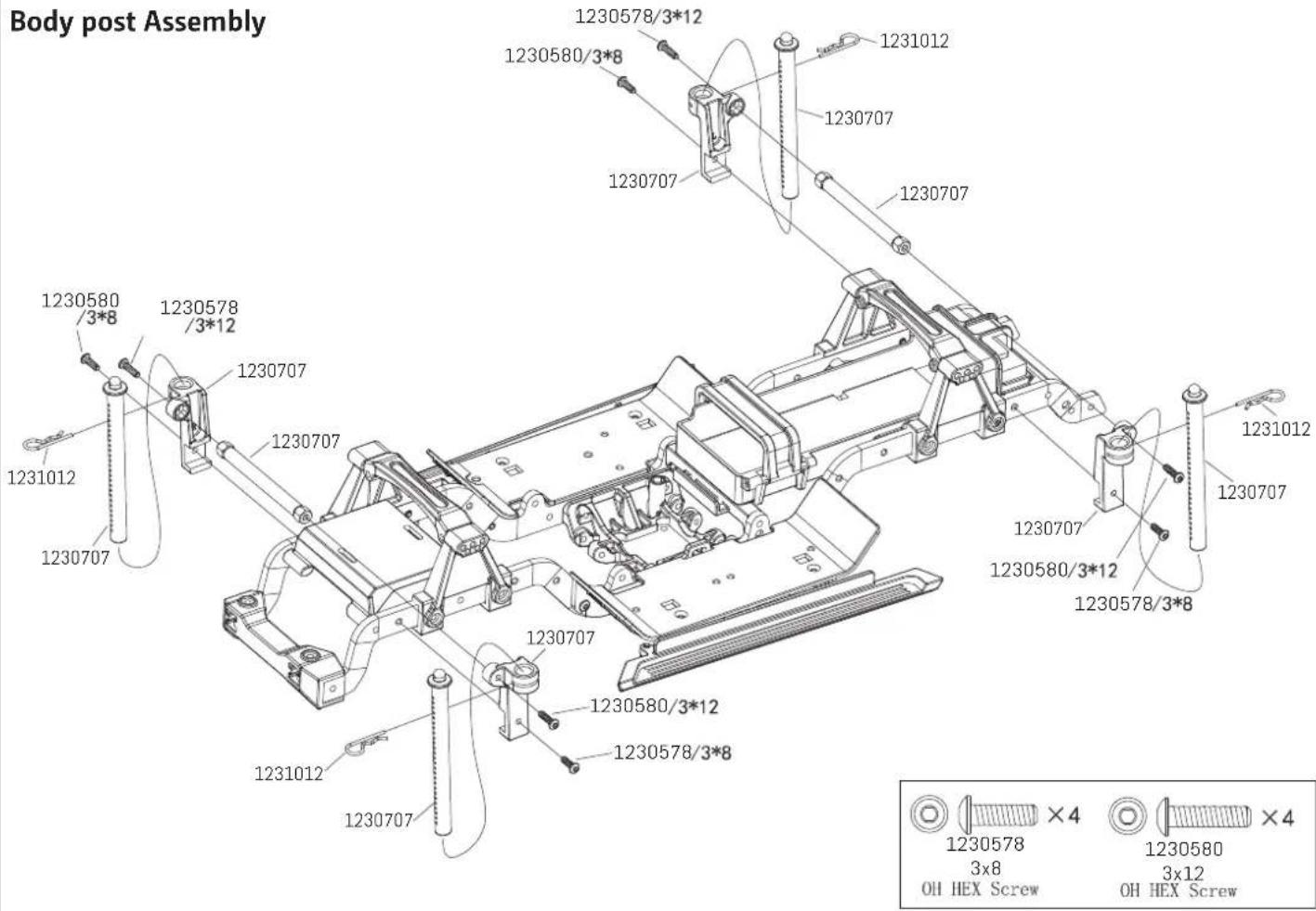

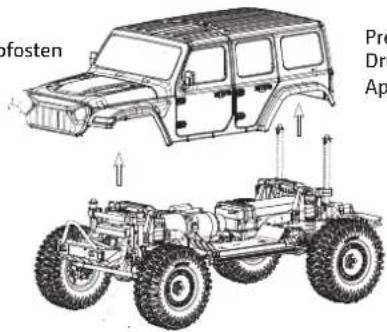

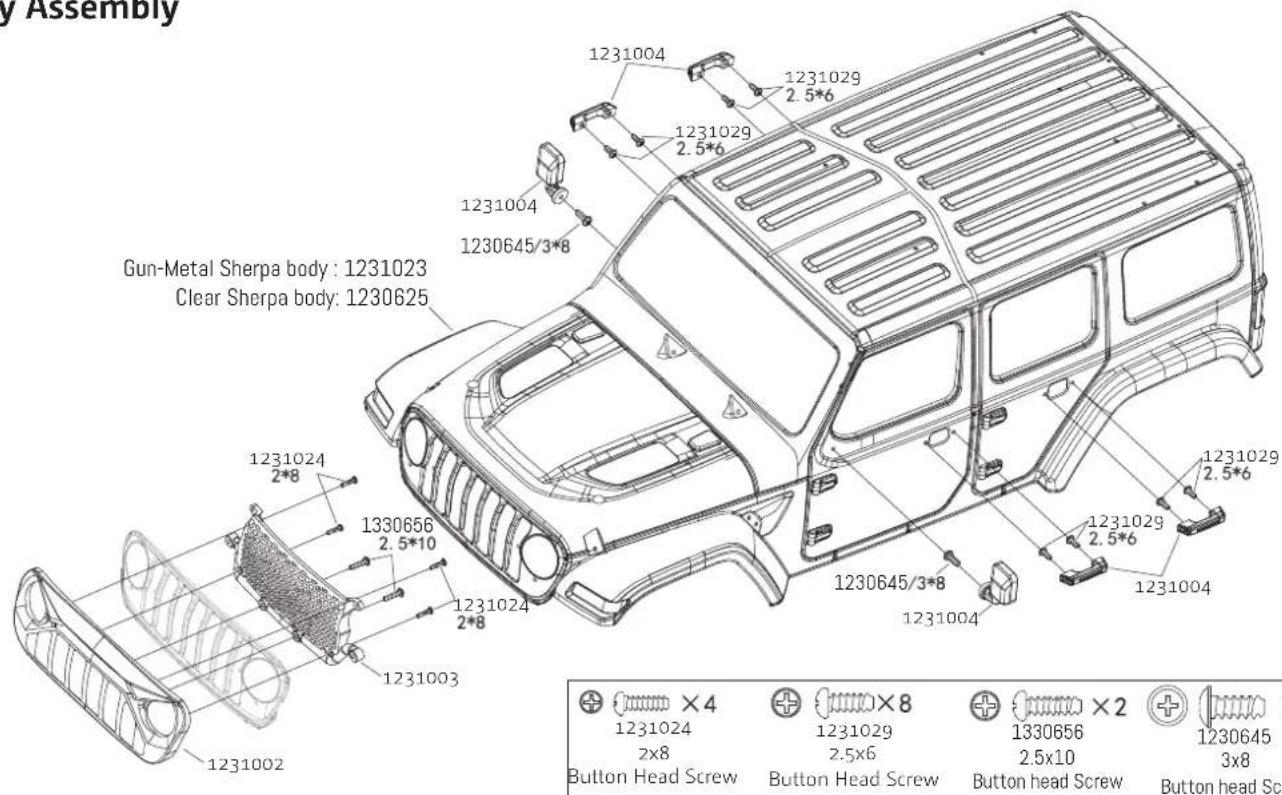

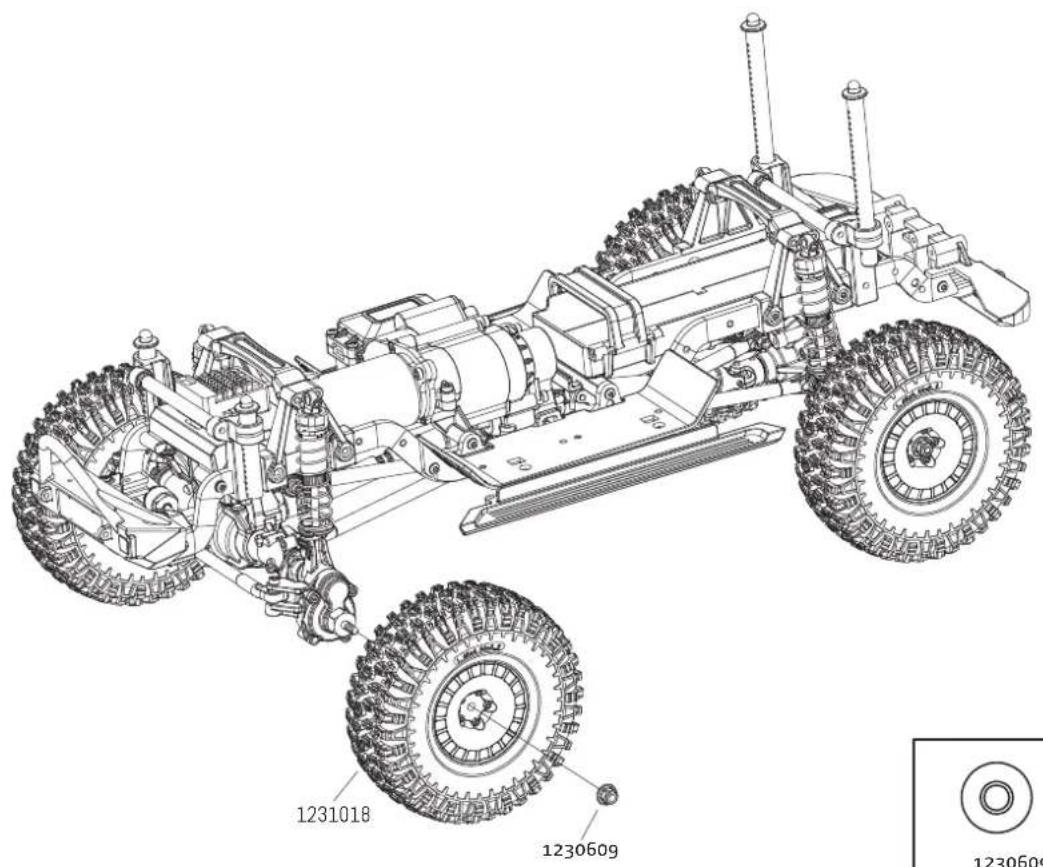

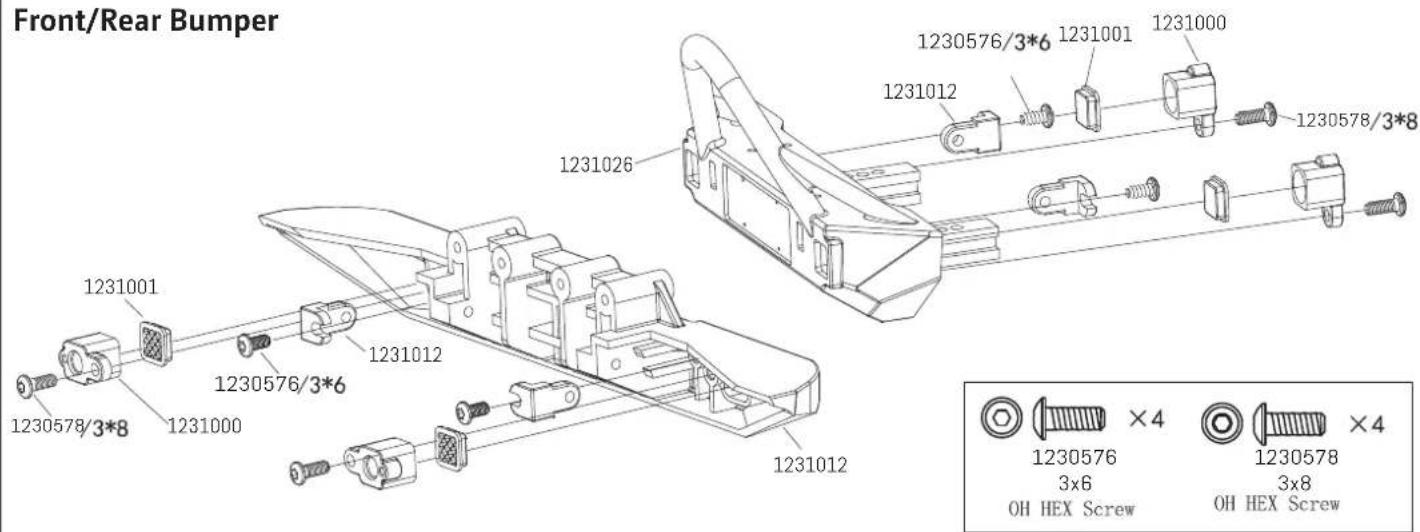

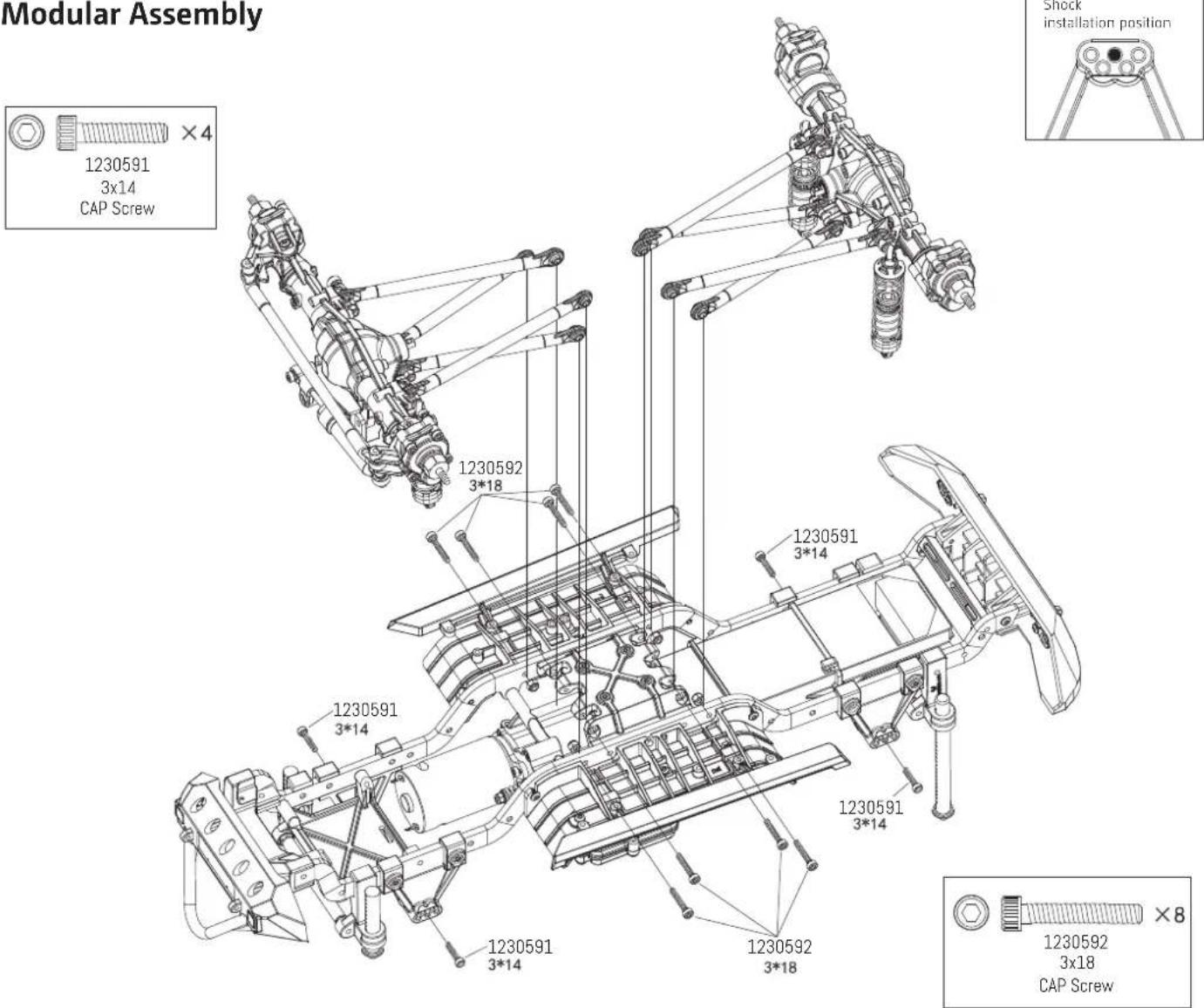

Chassis Assembly Body post Assembly Front/Rear Bumper

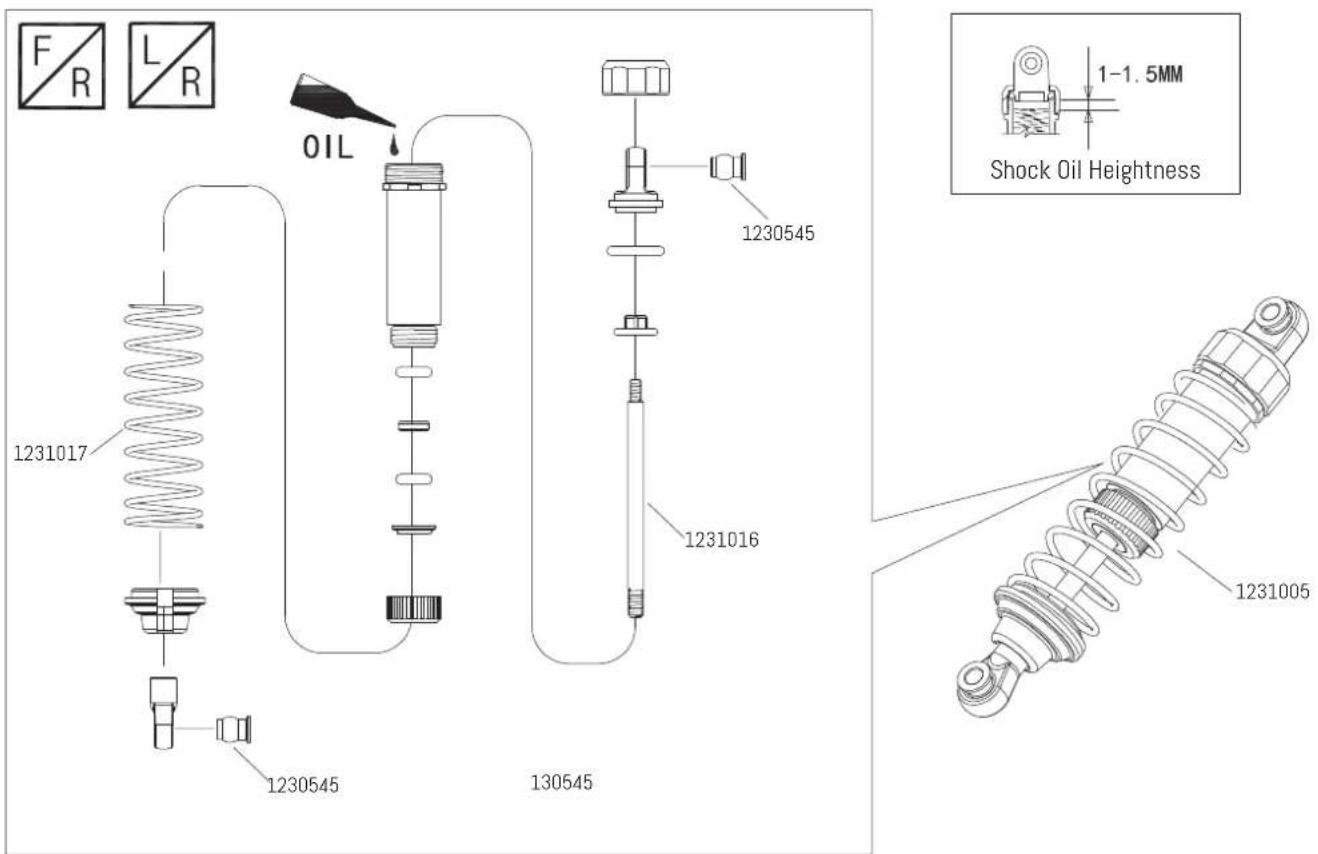

Shock Oil Heightness

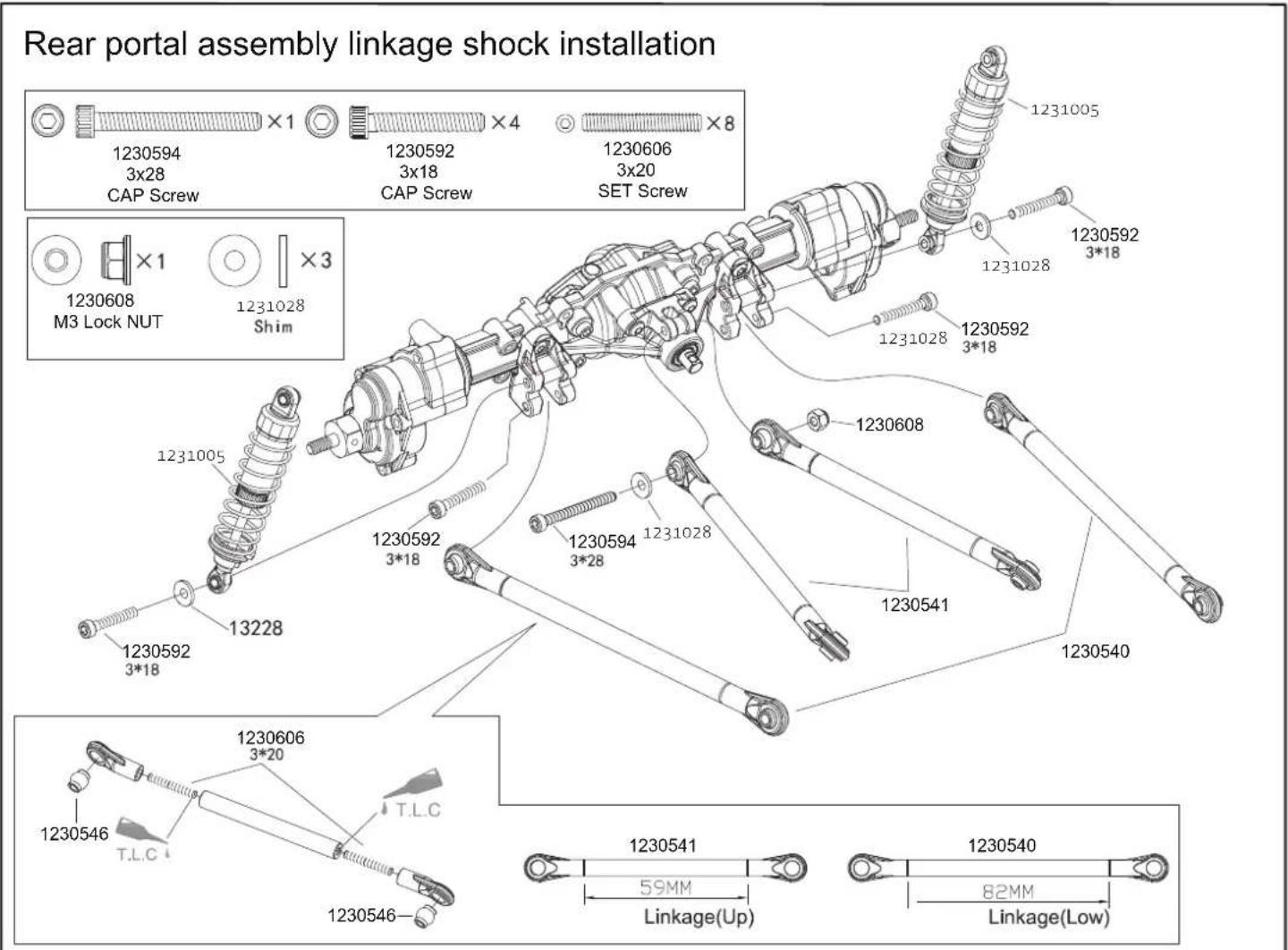

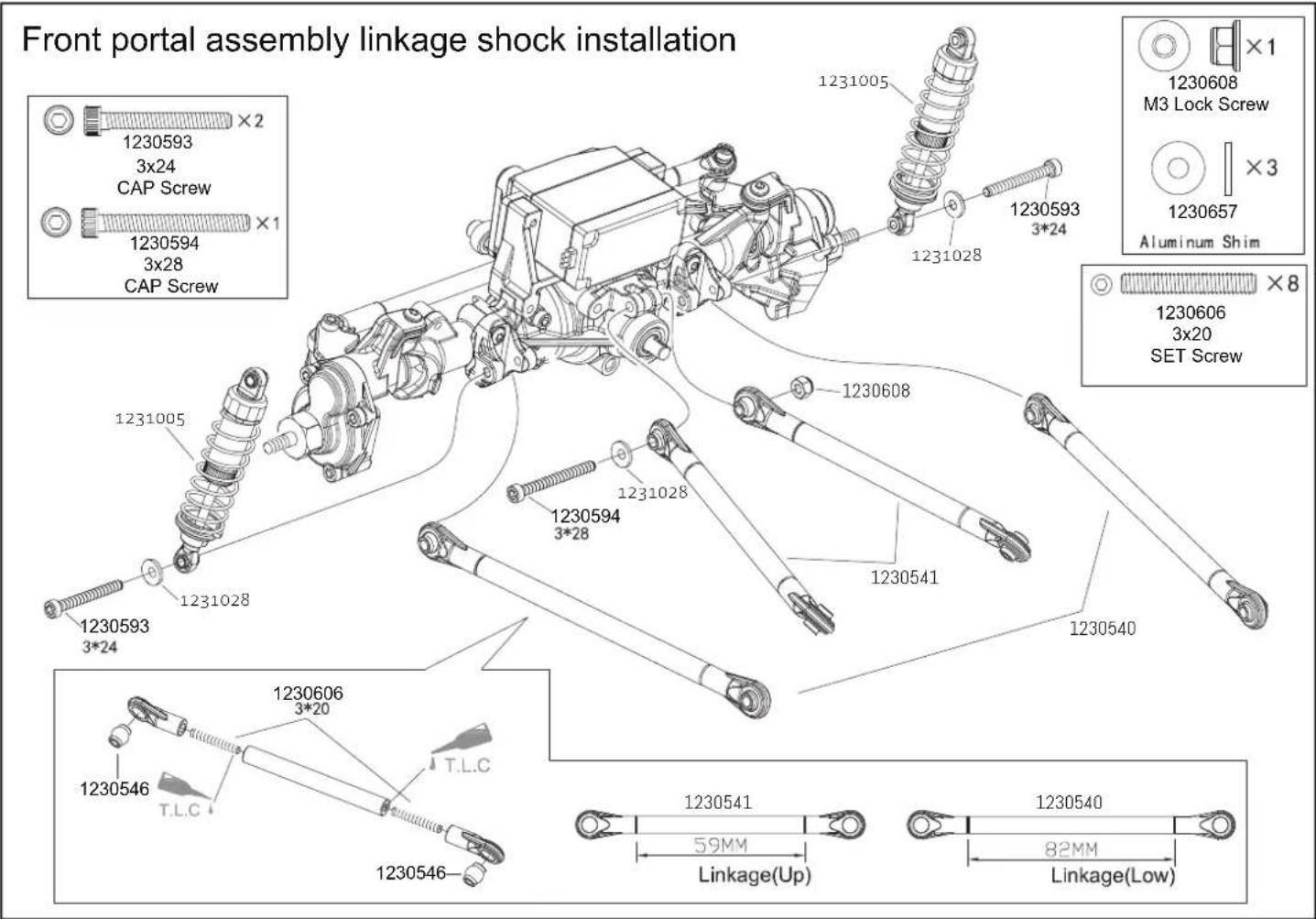

Rear portal assembly linkage shock installation

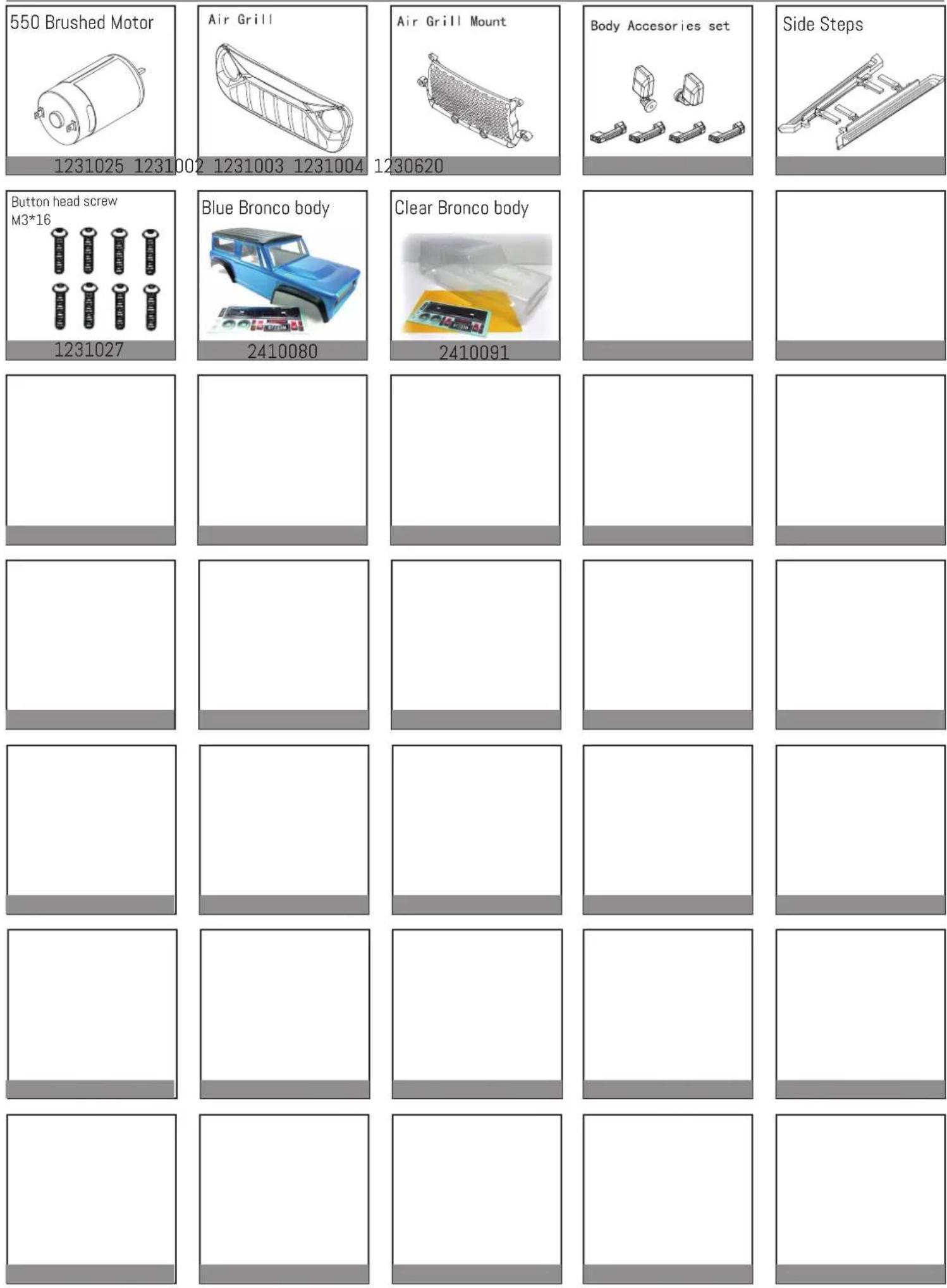

1231018Spare Part List

Button head Self-Tappling Screw ST2*8 Button head Self-Tappling Screw ST2.5*6 Button head Self-Tappling Screw ST2.5*10 Button head Self-Tappling Screw ST3*8 CAP head Screw M2.5*10 FLAT head Screw M3*6 Ring gear set without differential Rear Driveshaft Rear wheel Axle Motor Plate Motor Adjustment Plate Body ClipSpare Part List

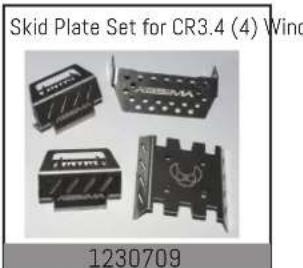

Tires and Rack set Damper Spring for CR3.4 Soft (4)

Metal Clump weight, 110g(2)

Rack set OPTION OPTION Cockpit for Sherpa scale 1:10 Damper Spring for CR3.4 Soft (4)

750 Motor with 16T Pinion Brass 4-Link and Steering Rods CR3.4 (11)

Motor mount (for 750 motor) Motor Adjustment Mounting (for 750 motor)
