USER MANUAL AIRPD001 Perel

To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules. If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not disassemble the appliance. There are no user-serviceable parts.

• This appliance is for household use only.

• Never clean the tank with abrasive or corrosive materials.

• Unplug the appliance from the mains before filling up the tank. Fill the tank up to the limit level only.

• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.

• Disconnect the appliance from the mains to clean it or when it is not in use. Handle the power cord by the plug only. Avoid touching the power cord with wet hands.

• Only use the appliance when the tank is filled with water. Never fill the tank with flammable or combustible materials.

• Never leave the appliance unattended when plugged in.

• Keep the appliance away from heat sources such as radiators. Operate only on a dry and level surface.

• Do not immerse the appliance.AIRPD001

• Refer to the Velleman

Service and Quality Warranty on the last pages of this manual.

• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.

• Keep this manual for future reference.

Refer to the illustrations on page 2 of this manual.

1. Install the appliance on a non-slippery and flat surface.

2. Make sure the appliance is unplugged from the mains.

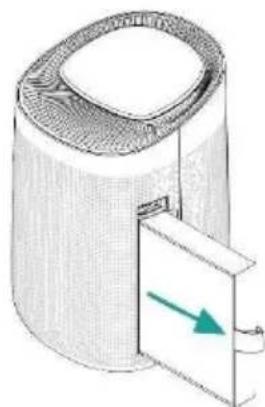

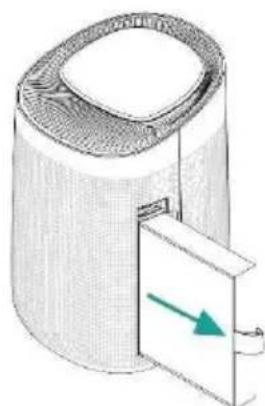

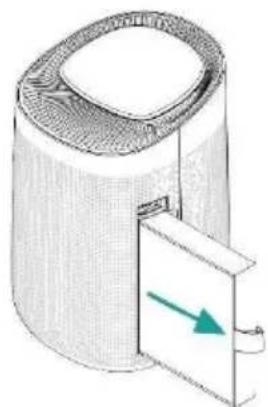

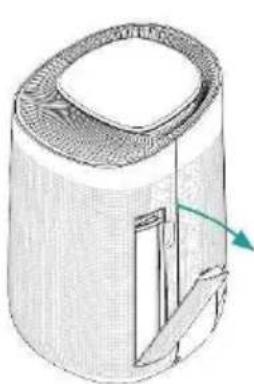

3. Pull and lift the filter cover on the front of the housing. Remove the (old) filter and

check if it is clean.AIRPD001

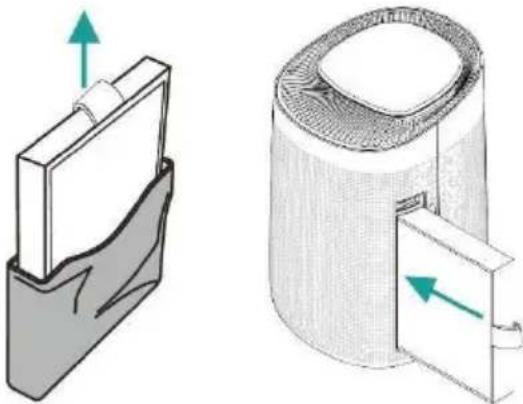

4. Remove the new filter from its packaging or take the clean filter and insert it in the

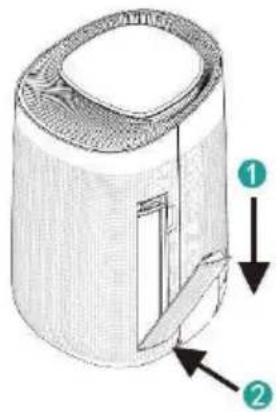

5. Put the filter cover back into place: lock the bottom of the cover in the bottom of

the housing [1] and click into place [2].

• Ensure the filter handle sits on the outside when the filter is installed.

• Only replace the filter with a similar filter (Velleman order code AIRPD001SP).

6. Connect the appliance to the mains and switch on the appliance. Press and hold

the purification button to reset.

Press this button to start the purification process. The LED will burn. Press again to stop. The LED will switch off.

Press this button to start the dehumidification with purification process. The LED will burn. Press again to cancel the dehumidification process. The purification process will continue working and the LED will still burn.AIRPD001

Press this button to select the low/high mode for the purification process. The corresponding LED will burn.

1. Switch off the appliance and unplug from the mains.

2. Do not leave water in the tank. Pour the remaining water from the tank and dry

How to Empty the Tank

1. The tank has a maximum capacity of 1000 ml. To empty the tank, switch off the

appliance and disconnect from the mains.

2. Take the tank out of the appliance, open it carefully and pour out the water. Take

care not to damage the float.

3. Clean the tank with a dry cloth and re-install the tank in the appliance.

4. Re-connect the appliance to the mains, switch it on and reset.

• When the water tank is full, the appliance will automatically switch off and the LED will flash red. In that case, empty the tank and restart the appliance if desired.

• The air purifier LED will flash orange when the filter needs replacing. Please refer to the paragraph above on how to replace the filter.

• The ideal ambient operating temperature for this appliance should be between 5 °C and 50 °C.

6. Care and Maintenance

Before starting any cleaning or maintenance activities:

1. Unplug the appliance from the mains.

2. Let the appliance cool down.

• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

• Wipe the interior of the tank clean with a soft cloth dampened with a soap and water solution.

• Never clean the filter with a vacuum cleaner or wash it directly.

• The appliance does not need any maintenance apart from descaling. To do so, weekly wipe the tank with undiluted white vinegar to remove the scales, rinse with fresh water and wipe dry with a clean cloth.

• To sanitize the appliance, fill the tank with white vinegar, let the vinegar sit for 20 minutes, rinse with fresh water and wipe dry with a clean cloth.

• Store the appliance and its accessories in its original package in a clean and dry area.AIRPD001

The appliance is not working. Check the connection to the mains.

Check the water level.

Poor performance. Check the water level.

Make sure the air outlet and inlets are not being blocked.

Ambient temperature is too low.

Leakage. Make sure the appliance is installed on a horizontal surface.

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.AIRPD001

A Velleman NV detém os direitos de autor deste manual do utilizador. Todos os direitos mundiais reservados. Nenhuma parte deste manual pode ser copiada, reproduzida, traduzida ou resumida por qualquer eletrónica, ou de outra forma, sem prévio consentimento por parte da detentora dos direitos de autor.Velleman® Service and Quality Warranty Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions). General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty: - all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non- rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list); - flaws resulting from fire, water damage, lightning, accident, natural disaster, etc.…; - flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer’s instructions; - damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally); - damage resulting from an inappropriate packing and shipping of the article; - all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties. The above enumeration is subject to modification according to the article (see article’s manual).
