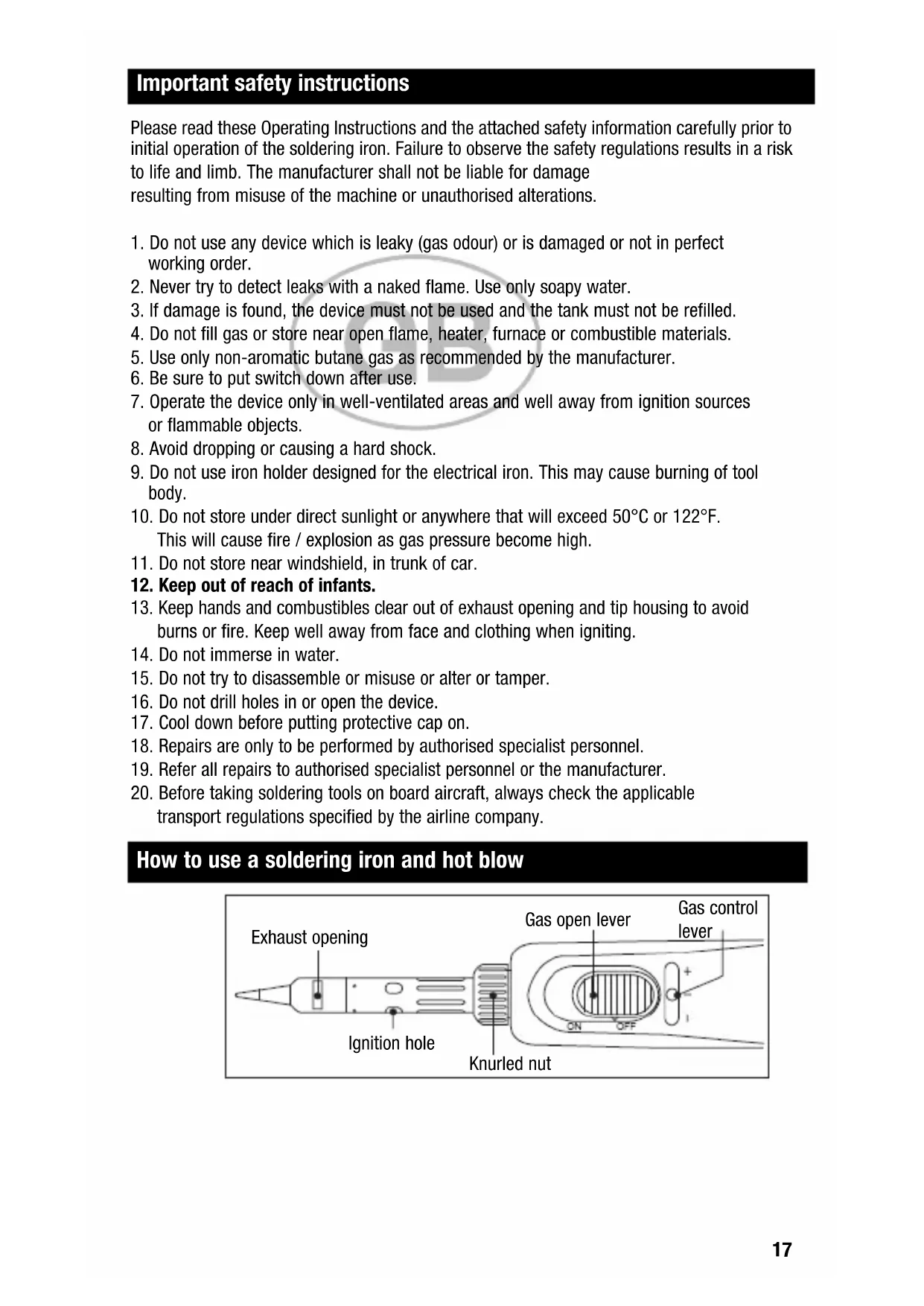

1. Do not use any device which is leaky (gas odour) or is damaged or not in perfect

2. Never try to detect leaks with a naked flame. Use only soapy water.

3. If damage is found, the device must not be used and the tank must not be refilled.

4. Do not fill gas or store near open flame, heater, furnace or combustible materials.

5. Use only non-aromatic butane gas as recommended by the manufacturer.

6. Be sure to put switch down after use.

7. Operate the device only in well-ventilated areas and well away from ignition sources

or flammable objects.

8. Avoid dropping or causing a hard shock.

9. Do not use iron holder designed for the electrical iron. This may cause burning of tool

10. Do not store under direct sunlight or anywhere that will exceed 50°C or 122°F.

This will cause fire / explosion as gas pressure become high.

11. Do not store near windshield, in trunk of car.

12. Keep out of reach of infants.

13. Keep hands and combustibles clear out of exhaust opening and tip housing to avoid

burns or fire. Keep well away from face and clothing when igniting.

14. Do not immerse in water.

15. Do not try to disassemble or misuse or alter or tamper.

16. Do not drill holes in or open the device.

17. Cool down before putting protective cap on.

18. Repairs are only to be performed by authorised specialist personnel.

19. Refer all repairs to authorised specialist personnel or the manufacturer.

20. Before taking soldering tools on board aircraft, always check the applicable

transport regulations specified by the airline company. Important safety instructions How to use a soldering iron and hot blow Exhaust opening Ignition hole Knurled nut Gas control lever Gas open lever WP 60K_9x15:Pyropen jr.qxd 06.12.12 16:04 Seite 1618 Ignition Instructions

1. Place gas control lever at the middle and push gas open switch up.

2. Push the knurled nut upward to open ignition holes.

3. Ignite keeping air take-in hole open as illustrated below.

Hold knurled nut until glows the catalyst.

4. Temperature of the soldering tip can be adjusted by moving gas control lever between

left / right. Sbloccare e rimuovere la punta girando il dado zigrinato e poi montareuna punta a fiaccola. L’accensione è uguale a quella della punta di saldatura. Accendere nel foro e non nella parte superiore della punta afiaccola. The hot exhaust air comes out of the exhaust opening in the tip. Be sure to keep combustibles, hands, clear from the opening to avoid fire and burns. Temperature of the hotblow can be adjusted by moving gas control lever from left / right. Loosen and remove tip by turning the knurled nut to right and mount a hotblow tip. Ignition is same as for the soldering tip. Ignite at the ignition hole and not at top of a hotblow tip. Ignition hole Gas open lever Gas control lever To use a hotblow tip How to fill butane gas (T005 16 160 99) Use only high quality butane gas.

1. Check the window for fuel level.

2. Before filling, make sure switch is down.

3. Hold the unit with the refill nozzle upward.

4. Insert nozzle of the butane gas container into the

clogging, or used up breakage, clogging or used up

3. Gas pressure too 3. Gas pressure too

high or too low high or too low Tip does not heat 1. Used up catalyst 1. Used up catalyst

Place gas control lever at the middle and push gas open switch up.
