| Product type | LED Projector |
| Brand | Perel |
| Model | LEDA5010NWB |
| Housing color | Black / White |
| Power (LED module) | 100 W COB |
| Rated power | 100 W |
| Rated voltage | 220-240 V~, 50 Hz |
| Power factor | 0.99 |
| Energy consumption | 100 kWh / 1000 h |
| Color temperature | Neutral white (4000 K) |
| Beam angle | 120° |
| Luminous flux | 10800 lm |
| Color rendering index (CRI) | 80 |
| Warm-up time (60%) | < 1 s |
| Rated lifespan | 30000 h |
| Number of switching cycles | 15000 |
| Dimensions (L x H x D) | 360 x 255 x 56 mm |
| Weight | 3600 g |
| Cable length | ± 50 cm |
| Max. mounting height | 3 m |
| Min. distance from illuminated surface | 0.5 m |
| Dimmer compatibility | No |
| Replaceable light source | No (replace entire unit) |
| Maintenance | Clean with glass cleaner and a soft cloth |
Frequently Asked Questions - LEDA5010NWB Perel
User questions about LEDA5010NWB Perel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual LEDA5010NWB - Perel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LEDA5010NWB by Perel.
USER MANUAL LEDA5010NWB Perel


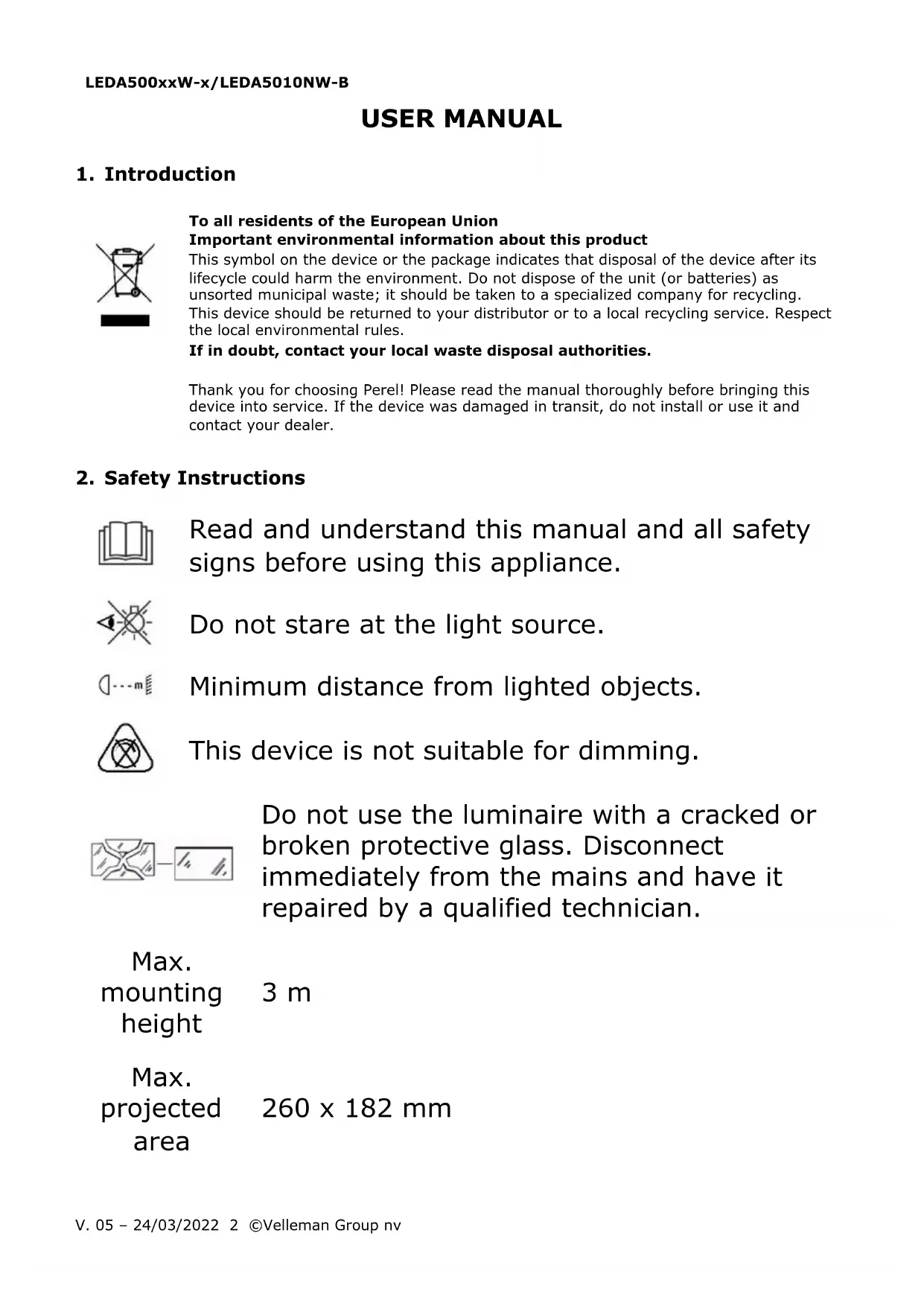

USER MANUAL 2
HANDLEIDING 9
MODE D'EMPLOI 16
MANUAL DEL USUARIO 23
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
Do not stare at the light source.
Minimum distance from lighted objects.
This device is not suitable for dimming.
Do not use the luminaire with a cracked or broken protective glass. Disconnect immediately from the mains and have it repaired by a qualified technician.
Max. mounting 3 m height
Max. projected 260 x 182 mm area
- This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
- A qualified technician should install and service this device.
- Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
- The external flexible cable or cord of this luminaire cannot be replaced; the method of attachment of the cable or cord is such that it cannot be replaced without breaking or destroying the luminaire.
- The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
3. General Guidelines
- Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
- Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
- Keep this manual for future reference.
4. Installation
Guidelines
- The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
- Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
- Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
- This device is not suitable for dimming.
Distances
- Keep at least 20 cm distance at the top and 30 cm on either side.
- Respect a minimum distance of 0.5m between the device's light output and any illuminated surface.
Choosing an Appropriate Location
- You can adjust the detection area according to your needs: turn the device to the left or right and aim it up or down. Note that the detector is much more sensitive to objects moving across the detection area than it is to objects coming straight at it. This is a very important consideration when selecting the mounting location.
- Please avoid installing the floodlight upside-down in order to ensure its watertightness.
- The floodlight should be fixed to a stable outdoor wall made of a non-flammable material approximately between 0.5-3.0 m above the ground and at an angle of ±60^ , preferably in a location under eaves where the unit is protected from the elements and shielded from direct sunlight.
- Do not block the front of the detection window and make sure the detection area holds no moving objects.
- Do not install the device close to air conditioning vents, radiators, etc.
Mounting the Lamp
- This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
- Use the mounting bracket to determine the location of the mounting holes.
- Drill the holes and secure the bracket using screws and wall plugs.
- Connect the power cable to the screw terminal. Make sure there is no strain on the cable; leave sufficient slack.
E = earth, yellow/green
L = line, brown
-
To point the lamp in the desired direction: loosen the hinges using a screwdriver.
-
Tilt the lamp in the desired angle and tighten the hinges.
5. Care and Maintenance
Before starting any cleaning or maintenance activities:
-
Unplug the device's power cord from the outlet.
-
Let the device cool down.
Cleaning
- Use normal glass cleaner and a soft cloth to wipe off the outside casing.
• Always be sure to dry all parts completely before plugging the device back in.
- Cleaning frequency depends on the environment in which the unit operates (i.e. smoke, fog residue, dust, dew).
- Do not immerse the device in any liquid.
Maintenance
- This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
- All screws should be tightened and free of corrosion.
- The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
- The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
• There are no user-serviceable parts, apart from the fuse and the lamp.
- Refer to an authorized dealer for service and/or spare parts.
6. Technical Specifications
LEDA5001NW-x/LEDA5001WW-x
body colour .... black/white
electrical data
power LED module 10 W COB
total nominal power....10 W
nominal voltage driver 220-240 V\~, 50 Hz
power factor....0.57
energy consumption 10 kWh/1000 h
light technical data
colour
LEDA5001NW-x neutral white
LEDA5001WW-x warm white
colour temperature
LEDA5001NW-x 4000 K
LEDA5001WW-x 3000 K
beam angle 120°
luminous flux....1000 lm
colour rendering index 80
starting time....< 0.5 s
warm-up time (60 %)....< 1 s
lifespan
nominal lifetime 30000 h
number of switching cycles.... 15000
dimensions (W x H x D) 130 x 90 x 35 mm
weight 560 g
cable length.... ± 50 cm
LEDA5002NW-x/LEDA5002WW-x
body colour .... black/white
electrical data
power LED module 20 W COB
total nominal power....20 W
nominal voltage driver 220-240 V\~, 50 Hz
power factor....0.8
energy consumption 20 kWh/1000 h
light technical data
colour
LEDA5002NW-x neutral white
LEDA5002WW-x warm white
colour temperature
LEDA5002NW-x 4000 K
LEDA5002WW-x 3000 K
beam angle 120°
luminous flux....2050 lm
colour rendering index 80
starting time....< 0.5 s
warm-up time (60 %)....< 1 s
lifespan
nominal lifetime 30000 h
number of switching cycles.... 15000
dimensions (W x H x D) 180 x 126 x 36 mm
weight 750 g
cable length.... ± 50 cm
detection angle 160°
LEDA5003NW-x/LEDA5003WW-x
body colour .... black/white
electrical data
power LED module .... 30 W COB
total nominal power....30 W
nominal voltage driver 220-240 V\~, 50 Hz
power factor....0.9
energy consumption 30 kWh/1000 h
light technical data
colour
LEDA5003NW-x neutral white
LEDA5003WW-x warm white
colour temperature
LEDA5003NW-x 4000 K
LEDA5003WW-x 3000 K
beam angle 120°
luminous flux....3200 lm
colour rendering index 80
starting time....< 0.5 s
warm-up time (60 %)....< 1 s
lifespan
nominal lifetime 30000 h
number of switching cycles.... 15000
dimensions (W x H x D) 210 x 147 x 37 mm
weight 1050 g
cable length.... ± 50 cm
detection angle 160°
LEDA5005NW-x/LEDA5005WW-x
body colour .... black/white
electrical data
power LED module ....50 W COB
total nominal power....50 W
nominal voltage driver 220-240 V\~, 50 Hz
power factor 0.95
energy consumption 50 kWh/1000 h
light technical data
colour
LEDA5005NW-x neutral white
LEDA5005WW-x warm white
colour temperature
LEDA5005NW-x 4000 K
LEDA5005WW-x 3000 K
beam angle 120°
luminous flux....5400 lm
colour rendering index 80
starting time....< 0.5 s
warm-up time (60 %)....< 1 s
lifespan
nominal lifetime 30000 h
number of switching cycles.... 15000
dimensions (W x H x D) 260 x 182 x 51 mm
weight 1530 g
cable length.... ± 50 cm
detection angle 160°
LEDA5010NW-B
body colour .... black/white
electrical data
power LED module 100 W COB
total nominal power....100 W
nominal voltage driver 220-240 V\~, 50 Hz
power factor 0.99
energy consumption 100 kWh/1000 h
light technical data
colour....neutral white
colour temperature....4000 K
beam angle 120°
luminous flux....10800 lm
colour rendering index 80
starting time....< 0.5 s
warm-up time (60 %)....< 1 s
lifespan
nominal lifetime 30000 h
number of switching cycles.... 15000
dimensions (W x H x D) 360 x 255 x 56 mm
weight 3600 g
cable length.... ± 50 cm
Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
1. Inleiding
E = aarding, geel/groen
L = fasedraad, bruin
LEDA5001NW-x/LEDA5001WW-x
LEDA5001WW-x warmwit
kleurtemperatuur
LEDA5001NW-x 4000 K
LEDA5001WW-x 3000 K
stralingshoek 120°
lichtstroom 1000 lm
kleurweergave-index 80
LEDA5002NW-x/LEDA5002WW-x
LEDA5002WW-x warmwit
kleurtemperatuur
LEDA5002NW-x 4000 K
LEDA5002WW-x 3000 K
stralingshoek 120°
lichtstroom 2050 lm
kleurweergave-index 80
LEDA5003NW-x/LEDA5003WW-x
LEDA5003WW-x warmwit
kleurtemperatuur
LEDA5003NW-x 4000 K
LEDA5003WW-x 3000 K
stralingshoek 120°
lichtstroom 3200 lm
kleurweergave-index 80
LEDA5005WW-x warmwit
kleurtemperatuur
LEDA5005NW-x 4000 K
LEDA5005WW-x 3000 K
stralingshoek 120°
lichtstroom 5400 lm
kleurweergave-index 80
LEDA5001NW-x/LEDA5001WW-x
LEDA5001WW-x .... blanc chaud
LEDA5002NW-x/LEDA5002WW-x
LEDA5002WW-x .... blanc chaud
LEDA5003NW-x/LEDA5003WW-x
LEDA5005WW-x .... blanc chaud
LEDA5001NW-x/LEDA5001WW-x
color de la carcasa......negro/blanco
datos eléctricos
LEDA5002NW-x/LEDA5002WW-x
color de la carcasa......negro/blanco
datos eléctricos
LEDA5003NW-x/LEDA5003WW-x
color de la carcasa......negro/blanco
datos eléctricos
LEDA5003NW-x....blanco neutro
N = Neutralleiter, blau
LEDA5001NW-x/LEDA5001WW-x
LEDA5002NW-x/LEDA5002WW-x
LEDA5003NW-x/LEDA5003WW-x
LEDA5001NW-x/LEDA5001WW-x
kolor korpusu....czarno-białe
dane elektryczne
LEDA5002NW-x/LEDA5002WW-x
LEDA5003NW-x/LEDA5003WW-x
kolor korpusu....czarno-białe
dane elektryczne
LEDA5001NW-x/LEDA5001WW-x
LEDA5001NW-x branco neutro
LEDA5001WW-x ...... branco quente
temperatura de cor
LEDA5001NW-x 4000 K
LEDA5001WW-x 3000 K
LEDA5002NW-x/LEDA5002WW-x
LEDA5003NW-x/LEDA5003WW-x
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
• Not covered by warranty:
- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;
- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
- damage resulting from an inappropriate packing and shipping of the article;
- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
- The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article (see article's manual).
