206 S - Shredder Genie - Free user manual and instructions

Product Type	Document Destroyer (Shredder)
Brand	Genie
Model	206 S
Cut Type	Strip Cut
Cut Width	6 mm
Cut Capacity	6 sheets A4 (80 g/m²)
Feed Width	Approximately 220 mm
Dimensions (L x W x H)	Approximately 326 x 115 x 71 mm
Noise Level	Approximately 72 dB
Power Supply	220-240 V AC, 50 Hz, 0.9 A
Security Level	P-2 (DIN 66399)
Bin Capacity	Compatible paper bin (width 270-340 mm)
Accepted Materials	Paper only (no CDs, DVDs, credit cards, staples)
Functions	Auto start, reverse (REV), stop (OFF)
Overload Protection	Yes (automatic motor stop)
Overheat Protection	Yes (60-minute pause after 2 minutes of continuous use)
Recommended Usage	2 minutes of operation, then 60 minutes of pause
Maintenance and Cleaning	Unplug before cleaning; damp cloth and mild detergent; empty bin regularly
Safety	Keep fingers, clothing, hair, jewelry away; use on stable surface; do not use unattended near children
Warranty	Return in original packaging with receipt to point of sale
Disposal	Do not dispose with household waste; take to recycling center

Frequently Asked Questions - 206 S Genie

How to use the Genie 206 S document shredder?

Set the switch to AUTO. Insert paper straight into the feed slot. The device starts automatically. After cutting, it goes into standby. Use REV for paper jams and OFF to stop.

What is the maximum cutting capacity?

The Genie 206 S can shred up to 6 sheets A4 (80 g/m²) at once. Do not exceed this limit to avoid damaging the device.

What to do in case of paper jam?

Set the switch to OFF, unplug the device, wait 60 minutes. Remove the protruding paper. Plug back in, set to REV to eject the jammed paper.

Can I destroy CDs, DVDs or credit cards?

No, this shredder is designed for paper only. Do not insert CDs, DVDs, credit cards, staples or paper clips.

How to clean the document shredder?

Always unplug the device before cleaning. Use a slightly damp cloth with mild detergent. Remove paper residue with a suitable object. Beware of sharp blades.

Why does the device suddenly stop?

The overload protection activates if you exceed the capacity or use the device for more than 2 minutes continuously. Let it cool down for 60 minutes before using again.

What is the required power supply voltage?

The device operates on a standard mains socket of 220-240 V AC, 50 Hz. The power cord must not be altered.

Can the shredder be used continuously?

No, usage is limited to 2 minutes followed by a 60-minute break to avoid overheating. It is a device for occasional home use.

How to install the shredder on a bin?

Use the extension arm to place the device on a bin with a width between 270 and 340 mm. Make sure it is stable and do not pinch your fingers.

What to do if the shredder does not start in AUTO mode?

Check that the bin is not full and there are no residue in the blades. If the problem persists, unplug and wait 60 minutes to reset the overload protection.

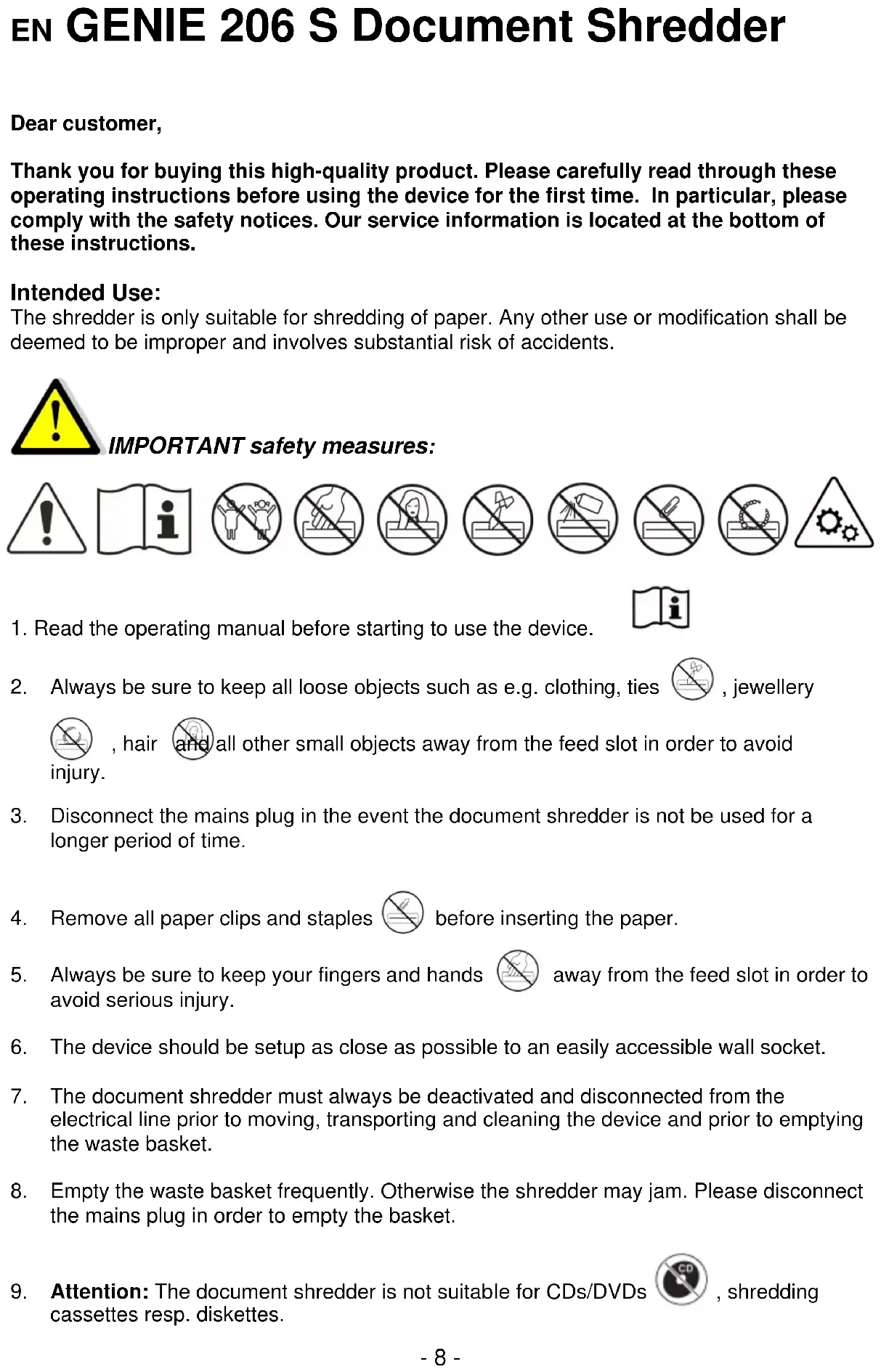

USER MANUAL 206 S Genie

Thank you for buying this high-quality product. Please carefully read through these operating instructions before using the device for the first time. In particular, please comply with the safety notices. Our service information is located at the bottom of these instructions.

Intended Use:

The shredder is only suitable for shredding of paper. Any other use or modification shall be deemed to be improper and involves substantial risk of accidents.

IMPORTANT safety measures:

1. Read the operating manual before starting to use the device.

2. Always be sure to keep all loose objects such as e.g. clothing, ties ⏚, jewellery

, hair

all

1. Disconnect the mains plug in the event the document shredder is not be used for a longer period of time.

2. Remove all paper clips and staples 📋 before inserting the paper.

3. Always be sure to keep your fingers and hands ⏚ away from the feed slot in order to avoid serious injury.

4. The device should be setup as close as possible to an easily accessible wall socket.

5. The document shredder must always be deactivated and disconnected from the electrical line prior to moving, transporting and cleaning the device and prior to emptying the waste basket.

6. Empty the waste basket frequently. Otherwise the shredder may jam. Please disconnect the mains plug in order to empty the basket.

7. Attention: The document shredder is not suitable for CDs/DVDs, shredding cassettes resp. diskettes.

1. Please do not leave the document shredder unattended e.g. in the event children or pets are nearby.
2. The document shredder is only suitable for shredding paper, please do not insert any other materials, the paper must be dry and clean.
3. Never open the casing. In the event of problems with the device, please contact our hotline.
4. The device may not be operated with a damaged power cord.
5. For indoor use only.
6. Please do not spray any flammable gas or oil onto this shredder, it may cause fire.
7. Unplug this equipment when not in use for an extended period of time.

Remark: For optimum results and to protect the machine, we suggest the user to operate it for 2 minutes and then rest 60 minutes.

ELECTRICAL SAFETY GUIDELINES

• Please disconnect the mains plug before not using the unit for a prolonged period of time!
• In the event of damage to the mains cord, the mains plug or the device itself, please cease operating the device (risk of injury)!
• Please do not attempt to repair the u nit yourself!
• Please do not overload the capacity of the socket!
• The mains connection of the device must be freely accessible!
• Do not modify the mains cord as it complies with the prescribed grid voltage!

Delivery:

Shredder GENIE 206S, Manual

Setting up the document shredder:

1. The shredder attachment is equipped with a pull-out arm which can be used to fit the attachment on various sized waste bins.
2. When fitting it, pay attention that the attachment fits securely and that your fingers do not get jammed between the top edge of the waste bin and shredder. Risk of injury!

Note: Thanks to the removable arm, you may also mount the document shredder on other round and rectangular waste baskets. The arm is located on the left side of the document shredder and is suitable for waste baskets with a width of 270 mm to 340 mm.

1. Connect the main plug to a standard 220-240 volt AC socket.

Starting the document shredder:

Important note:

This device is designed solely for private use in enclosed quarters and for brief operation not exceeding 2 minutes. Do not use the document shredder for commercial applications nor outdoors. Improper use poses risk of accidents.

The main switch has 3 positions. To start the device set the button into position "AUTO".

1. AUTO (ready to operate, Standby): The device is ready to operate after setting the sliding switch to "AUTO". The shredding process begins automatically when the paper to be shredded is fed into the insertion slot.

The paper must be fed STRAIGHT into the insertion slot to prevent paper jamming. After the paper has been shredded by the cutting mechanism, the shredder switches off automatically and enters Standby mode. If the device does not switch off automatically, check whether the waste bin is full or there is still residual paper in the cutting mechanism.

Only insert paper into the designated feed slots!

1. REV (reverse operation): "REV" make the cutting unit turn backward. With these function paper jams can be removed (please refer to chapter "Protection against paper jams and overloading").

2. OFF position is recommended when emptying the wastebasket or when the shredder is not in use for a prolonged period of time.

Capacity of the document shredder:

The GENIE 206S shreds up to 6 sheets of paper (DIN A4, 80 g). The paper width may comprise up to 21.8 cm. When shredding small paper sizes such as letters or credit card receipts, please insert them into the middle of the shredding slot.

Please ensure that never more than the above-mentioned maximum quantity is inserted in the shredder. Otherwise the device may sustain damage.

Protection against paper jams and overloading:

The GENIE 206S is equipped with a motor overload guard. To protect the machine well, we suggest the user to operate it in this way: work 2 minutes then rest 60 minutes. Under the following conditions, the current feed to the unit's motor is interrupted:

- Continual operation of the document shredder with maximum capacity for a prolonged period of time, e.g. longer than 2 minutes without interruption.

- Overrunning the shredding capacity e.g. adding more than 6 sheets of paper (80 g) in one operation or in the event the paper is not inserted length-wise into the feed slot.

Under the above-mentioned conditions, the automatic overload guard of the motor is triggered, whereupon the current feed to the device is interrupted. In such a case, please take the following steps:

1. Switch the main switch to OFF. Disconnect the main plug from the AC socket in order to avoid the risk of serious injuries and wait at least 60 minutes until the overload guard has reset. Now tear off excess paper from the top of the shredder or remove it.
2. Reconnect the main plug to the AC socket and switch to REV. Pull the remaining paper away from the shredding blades. If necessary, repeat this step.

Technical data:

Shredding type: Strip-cut

Size of cut: 6 mm (paper)

Shredding capacity: 6 pages DIN A4 (80 g)

Feed width: approx. 220 mm

Input voltage: 220-240 VAC, 50 Hz, 0.9A

Dimensions: approx. 326 x 115 x 71 mm

Noise level: approx. 72 dB

We declare that this device, with regard to its task of the destruction of documents, fulfils the conditions defined for Security Level P-2 in accordance with DIN 66399.

P-2: Recommended for data media containing in-house data which should be rendered illegible. Material particle area ≤ 800 mm ^2 or strip width ≤ 6 mm, strip length unlimited.

Cleaning:

Danger! Unplug the power cord before cleaning. There is a risk of electric shock!

Warning! The blades of the device are very sharp! Danger of injury!

1. Empty the drip trays regularly.
2. Clean the drip trays and paper cutter with a slightly dampened cloth and possibly with a mild detergent.
3. Remove any residue in the cutting holes with a suitable object. Make sure that while cleaning the plug is pulled in order to avoid injuries.

The CE Mark on the device confirms conformity. The Declaration of Conformity can be read online at www.go-europe.com.

The «Geprüfte Sicherheit» mark (GS tested safety mark) certifies that the product satisfies the requirements defined by the German Product Safety Act (ProdSG). The GS tested safety mark indicates that when implemented for its intended use and in the event of foreseeable misuse the identified product will not endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.

Warranty

Dear customer,

we are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Disposal

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.

The device and packaging materials can be recycled; sort them for disposal to simplify waste management. The Triman logo is only relevant for France.

The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy.

The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.
