Product Type	Air purifier with mosquito trap
Brand	Sharp
Model	UAPM50EB
Purification technology	Plasmacluster (positive and negative ions)
HEPA filter	Captures 99.97% of particles down to 0.3 microns
Deodorizing filter	Absorbs household odors (washable)
Pre-filter	Traps large particles (washable)
Mosquito trap	UV lamp + sticky sheet (no insecticide)
UV lamp	Attracts mosquitoes (blue)

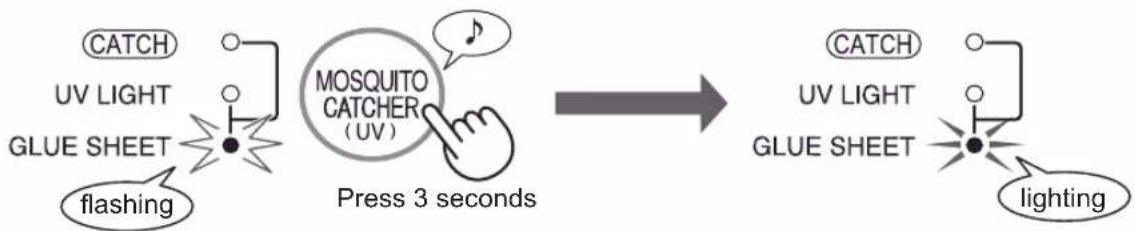

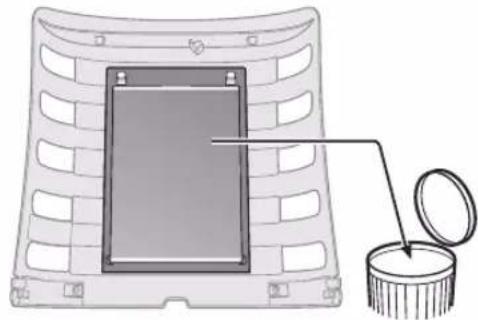

Sticky sheet	Model UZ-PM5ST, replacement approximately every 2 months
Sensors	Dust and odor
Sleep mode	Silent operation, lights off
Clean ion shower	High-density ion release for 60 minutes
Fan speed	Auto, Max, Med, Sleep
Rated power (max)	51 W
Airflow (max)	306 m³/h
Recommended area	Up to 40 m² (purification); up to 23 m² (high-density ions)
Power supply	220-240 V, 50/60 Hz
Dimensions (W x D x H)	394 x 281 x 540 mm
Weight	6.1 kg
Cable length	2.0 m
Filter lifespan	Approximately 10 years (depending on usage conditions)
Replacement filter	UZ-PM5HF (HEPA + deodorizing)
Power consumption in standby	1.0 W
Safety	Automatic UV lamp shutoff if capture panel removed

Frequently Asked Questions - UAPM50EB SHARP

How to install the sticky sheet?

Remove the capture panel, hang the sticky sheet on the upper hooks then insert it into the lower hooks. Slowly peel off the protective film starting from a corner. Replace the panel.

How to use the mosquito trap?

Press the MOSQUITO CATCHER button for 3 seconds to activate the UV lamp and sticky sheet. Preferably use MAX mode for effective capture.

When to replace the HEPA filter?

The HEPA filter has a lifespan of approximately 10 years. Replace it sooner if odor persists or performance decreases. Use model UZ-PM5HF.

What to do if the UV lamp flashes?

If the UV lamp flashes, it indicates a malfunction. Contact a Sharp authorized service center for repair. Do not attempt to repair yourself.

How to clean the pre-filter?

Remove the pre-filter and gently vacuum the dust. If very dirty, wash with a little kitchen detergent, rinse, and dry completely before reinstalling.

How does Plasmacluster technology work?

The system emits a balanced mixture of positive and negative ions, similar to those found in nature, to purify the air by neutralizing impurities.

Can the purifier be used at night?

Yes, use SLEEP mode for silent operation. The lights turn off automatically, and the mosquito capture function remains active.

What to do if the lights turn off?

If the DUST AND ODOR SIGNAL and PLASMACLUSTER lights are off, press the ON/OFF button (hold for 3 seconds) to turn them back on. In SLEEP mode, they turn off automatically.

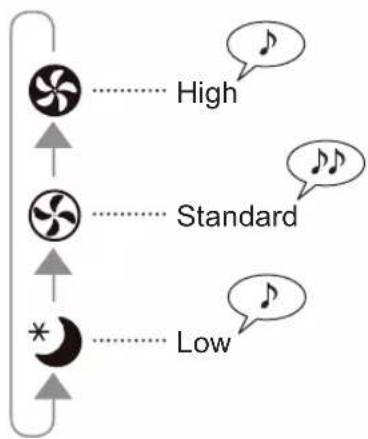

How to adjust the sensor sensitivity?

With the unit off, hold down the MODE button for more than 3 seconds. Use the fan speed buttons to select Low, Standard, or High. The setting is saved automatically.

What to do if no mosquitoes are trapped?

Check that windows and doors are closed, keep the unit away from drafts (air conditioner, fan). Change the unit's location if necessary.

USER MANUAL UAPM50EB SHARP

Line drawing of a white cylindrical device with side grilles and a small logo on the top (no text or symbols)

Operation Manual

UA-PM50E

Air Purifier

EN ESDE PT FR PL NL

UA-PM50E

HIGH-DENSITY 7000 *

"Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation.

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

*The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm ^3 , which is measured around the centre of a room with the "high-density plasmcluster 7000" applicable floor area (at 1.2 m height above the floor) at the medium wind volume in air purifying mode, when an air purifier using the high-density Plasmcluster ion evolving device is placed close to a wall. This product is equipped with a device corresponding to this capacity.

Free standing type

AIR PURIFIER WITH MOSQUITO CATCHER OPERATION MANUAL

Please read before operating your new Air Purifi er

The air purifi er draws in room air from the air intake, passes the air through a Pre-Filter, a Deodorizing Filter and a HEPA Filter inside of the unit, then discharges the air through the air outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns that pass through the filter.

The Deodorizing Filter gradually absorbs odours as they pass through the fi Iter.

Some odours absorbed by the fi Iters may break down over time, resulting in additional odour. Depending on the usage environment, especially when the product is used in extreme environments (significantly more severe than normal household use), this odour may become strong in a shorter period than expected. If the odour persists, the fi Iters should be replaced.

FEATURES

Air Purifier with Mosquito Catcher protects your family's health by catching mosquitoes and cleaning the air by plasmcluster technology.

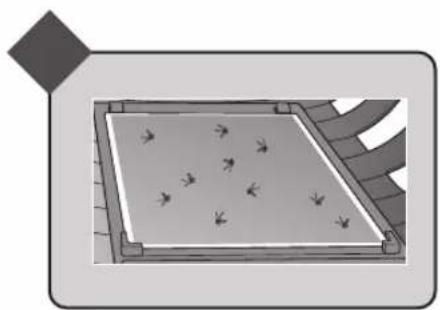

Catches mosquitoes with Insecticide-free material.

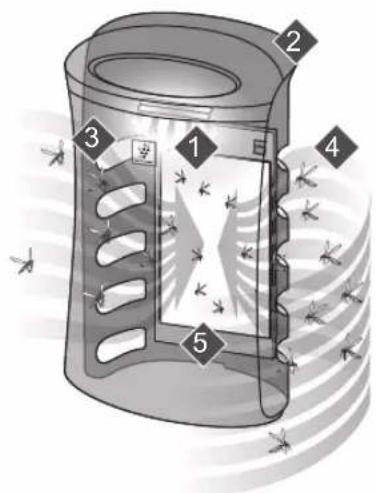

5 eff ective steps* based on fi ndings about mosquito habits, and by using air purifi er function.

*1 In collaboration with Institute for Medical Research, Malaysia

Illustration of ceiling-mounted lighting fixtures with a numbered label (1) in the top-left corner, no text or symbols on the main image area.

UV light attracts mosquitoes

Illustration of a cylindrical device with horizontal stripes and a small black square on its side, next to a small bird (no text or symbols)

Enticing 'Black' colour

Top-down view of a vehicle with two curved plates and a small car, no visible text or symbols

Diagram showing airflow or mechanical interaction between two circular components with directional arrows (no text or symbols)

Diagram of a rectangular tray with scattered bird-like symbols and arrows, no text or labels present

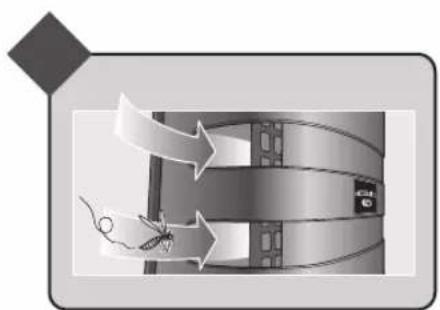

Ideal entrance design Powerful airflow and suction Strong glue sheet

ENGLISH

High density Plasmacluster 7000

Plasmacluster treats the air similar to the way nature cleans the environment by emitting a balance of positive and negative ions.

Filtration System

Traps Dust ^2

Pre-filter traps dust and other large airborne particles.

Reduces Odours

Deodorizing fi Iter absorbs many common household odours.

Reduces Pollen & Mold ^*2

HEPA filter traps 99.97% of particles as small as 0.3 microns.

*2 When air is drawn through the filter system.

Quiet operation while capture the mosquitoes at the time of sleep

When you switch to Sleep mode, it operates quietly with the Plasmacluster sign and Dust and Odour sign light off and the UV light less bright, while mosquito catcher function is still on.

Stylized graphic with a starburst shape containing moon, crescent moon, and wind turbine symbols (no text or labels)

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..... E-2

PART NAMES ...... E-4

FILTER AND GLUE SHEET

INSTALLATION E-6

OPERATION ......E-8

USEFUL FUNCTIONS ...... E-10

CARE AND MAINTENANCE ...... E-12

REPLACEMENT GUIDELINES ...... E-14

TROUBLESHOOTING ...... E-16

SPECIFICATIONS ...... E-17

Thank you for purchasing the SHARP Air Purifi er. Please read this manual carefully.

Before using this product, be sure to read the section: "Important Safety Instructions."

After reading this manual, keep it in a convenient location for future reference.

For your reference, we recommend to keep this manual in the place where you can read at any time.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of electric shock, fi re or injury to persons:

• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.

Electric shock and/or fire from short circuit may occur as a result.

- Be careful not to damage the power cord, it may cause electric shock, excess heat or fi res.

- Do not remove the plug when your hands are wet.

- Do not use this unit near gas appliances or fi replaces.

- Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.

Electric shock from bad insulation and/or fire from short circuit may occur as a result.

- When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electric shock and/or fi re from a short circuit may result.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp Authorized Service Centre or similarly qualified person in order to avoid a hazard.

- Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity conditions, such as a bathroom.

- Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.

- Only a Sharp Authorized Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

NOTE - Radio or TV Interference

If this air purifi er should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam.
• Do not lay the unit down when using.
  • Always hold the handle on the back of the unit when moving it.
• Do not use without the filters inside the unit.
• Do not wash and reuse the HEPA fi Iter and Deodorizing fi Iter.
  Not only does it not improve filter performance, it may cause electric shock or malfunction.

- Do not look directly into the UV light. UV light meet the standards of IEC (62471).

CAUTIONS CONCERNING GLUE SHEET

• Handle the Glue Sheet with care. Avoid children or pet from touching the sticky surface.
• If the glue material adheres to hands or clothing, wash them quickly and carefully with soap and water after removing the material by using cooking oil.
• Dust and dirt collecting on the sheet may reduce the effectiveness of Glue Sheet.
• If no mosquitoes are collected on the sheet, try changing the location of this unit.
• When disposal, dispose it according to the local disposal laws and regulations.
• This is a completely safe adhesive type product. No toxic ingredients.

INSTALLATION GUIDELINES

• When using the unit, place it away from equipment utilizing electric waves such as televisions or radios to avoid electrical interference.
• Avoid use in locations where furniture, fabrics or other items may come in contact with and restrict the air intake and/or air outlet.
• Avoid use in locations where the unit is exposed to condensation or drastic temperature changes. Appropriate conditions are when room temperature is between 0 – 35 °C.
• Place on a stable surface with sufficient air circulation.
  When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.

The unit surface may crack as a result.

- The dust collecting ability of the unit is effective even when the unit is close to the wall, the surrounding walls and floor may get dirty. Please place the unit at a distance from the wall. The wall directly behind the air outlet may become dirty over time. When using the unit for an extended period of time at the same location, periodically clean the walls adjacent to it.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filters

PART NAMES

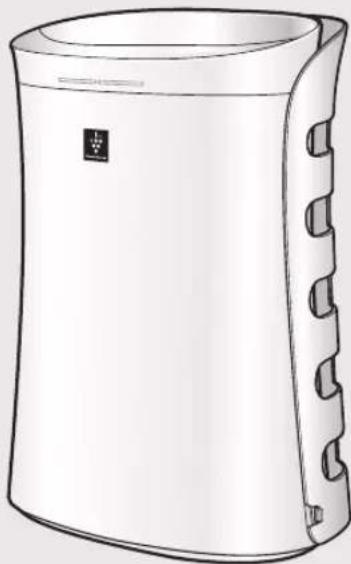

FRONT

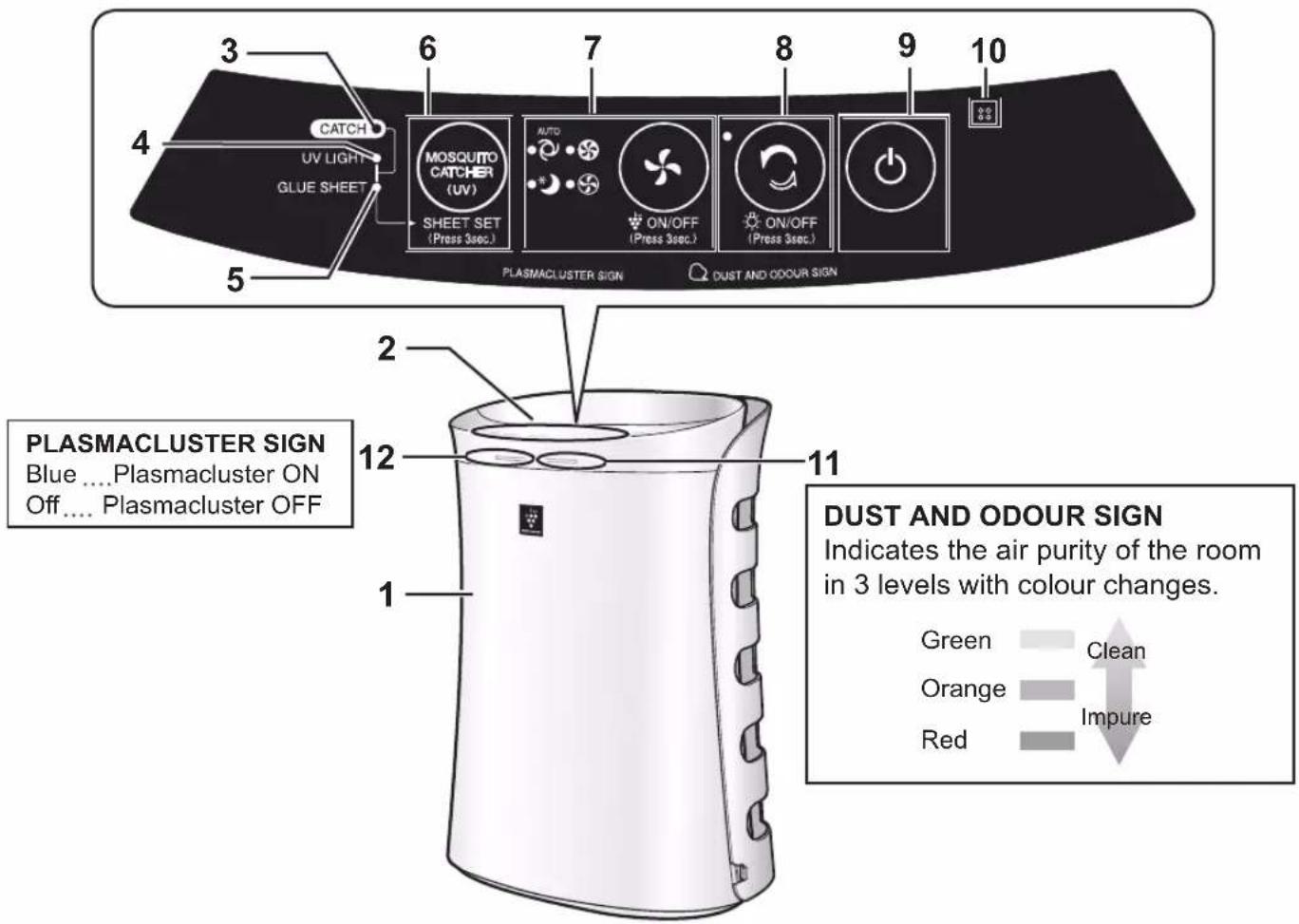

1	Main Unit	7	MODE Button, Indicator Light (green)(Press 3 sec.) Plasmacluster Ion ON/OFF Button
2	Air Outlet	8	CLEAN ION SHOWER Button, Indicator Light(green)(Press 3 sec.) Light ON/OFF Button
3	CATCH Lamp (blue)
4	UV LIGHT Lamp (blue)	9	POWER ON/OFF Button
5	GLUE SHEET Lamp (blue)	10	Odour Sensor
6	MOSQUITO CATCHER Button(Press 3 sec.)SHEET SET Button	11	DUST AND ODOUR SIGN
		12	PLASMACLUSTER SIGN

BACK

INCLUDED

- Glue Sheet : 1unit

- Glue Sheet Operation Manual

X 3 SETS

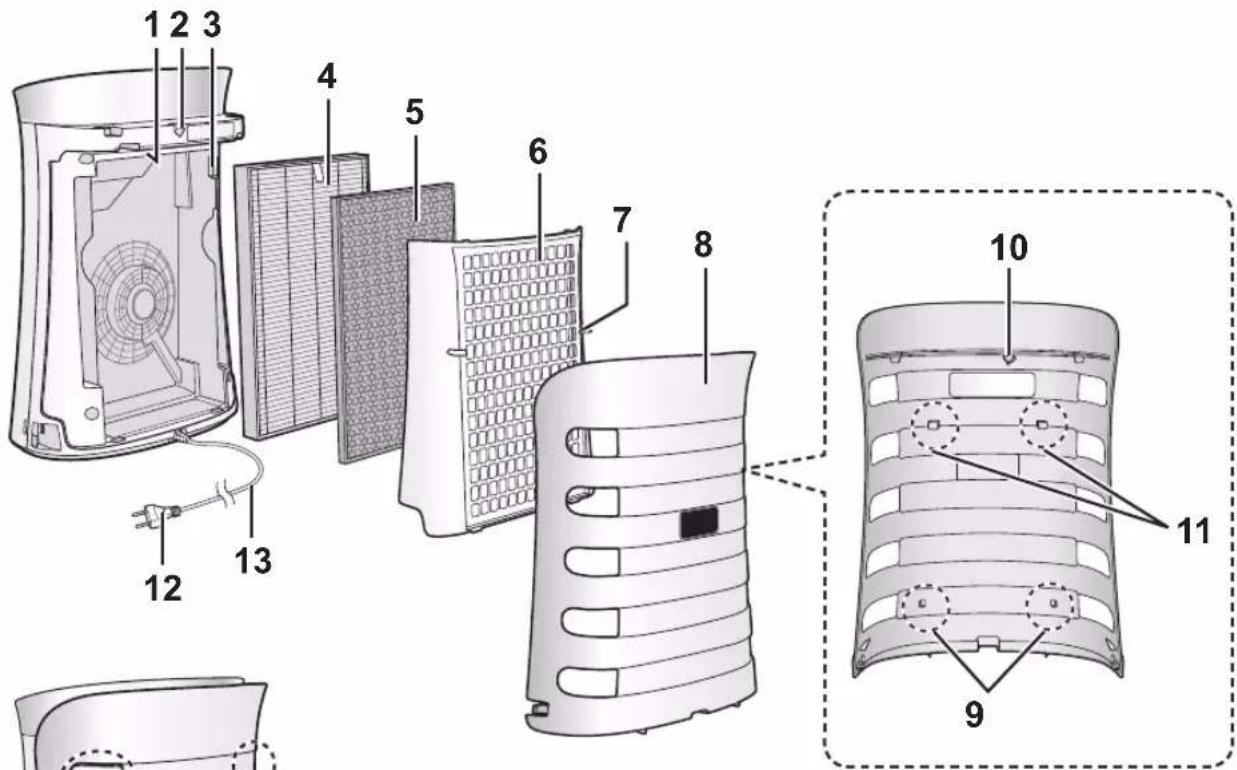

1	UV Light	9	Bottom Hooks
2	Magnet Sensor	10	Magnet
3	Dust sensor / Dust sensor Filter	11	Upper Hooks
4	HEPA Filter	12	Power Plug
5	Deodorizing Filter	13	Power Cord

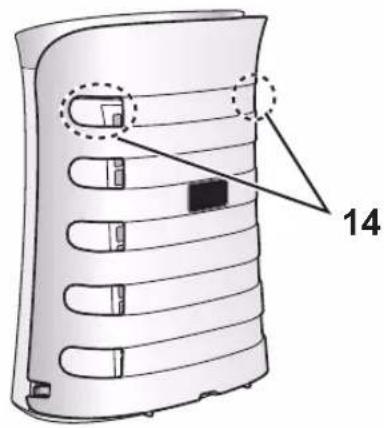

6	Pre-Filter	14	Handles
7	Pre-Filter Tabs	15	Glue Sheet
8	Catch panel

FILTER AND GLUE SHEET INSTALLATION

To maintain the quality of the filter and Glue Sheet, it is installed in the main unit and packed in plastic bag. Be sure to remove the filter and Glue Sheet from the plastic bag before using the unit.

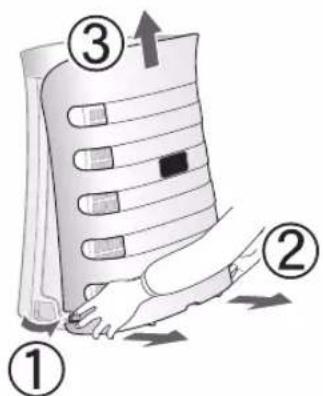

1 Remove the Catch Panel from underpart.

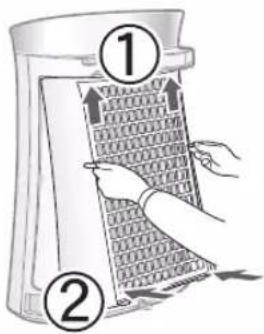

2 Hold the tabs of Pre-fi Iter, lift it and remove it from its under-part.

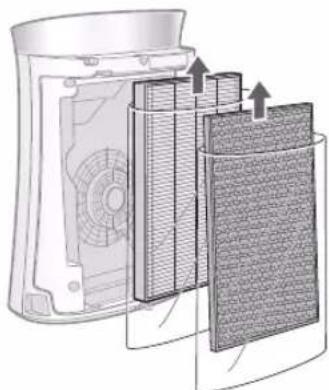

3 Remove the plastic bags and take out the Filter.

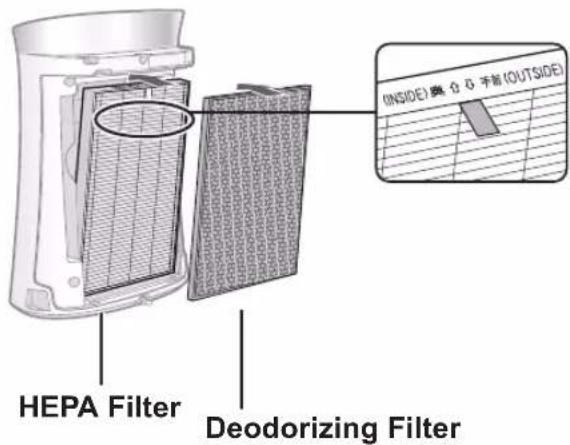

Diagram of a device's internal structure showing layered components and airflow direction (no text or symbols)

4 Place the Filter inside the main unit.

5 Hold the tabs of Pre-Filter, and replace it from upper part.

6 Remove the plastic bag and take out the Glue Sheet.

- Keep the additional Glue Sheet from direct sunlight and lay it fl at with glue side face up.

7 Hang the Glue Sheet on Upper Hooks and then insert into Bottom Hooks.

8 Remove the protective fi Im slowly from the corner of Glue Sheet.

• Dispose protective fi lm as burnable rubbish.
  • Make sure that its bottom part is properly inserted to the Bottom Hooks.

Be careful that Glue Sheet doesn't stick to hairs and clothes.

Illustration of hands inserting a device into a curved device (no text or symbols visible)

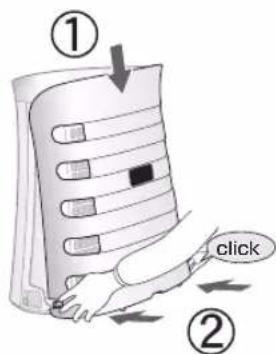

9 Replace Catch Panel to the main unit.

CLEAN AIR

START

STOP

• Select the desired fan speed.
• Unless the power cord has been unplugged, the operation starts in the previous mode it was operated in.

CLEAN ION SHOWER

Releases high-density Plasmacluster ions and discharges strong air flow for 60 minutes.

START

Simple line drawing of a hand pointing at a circular button with a smiling face and sound waves (no text or symbols)

NOTE

• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be released.
• When the operation finishes, the unit will return to the prior operation mode.
  It is able to change the other mode or turn off during this mode.

FAN SPEED

NOTE

AUTO

- The fan speed is automatically switched depending on the amount of impurities in the air. The sensors detect impurities for efficient air purification.

SLEEP

- The unit will operate very quietly, and the fan speed is automatically switched depending on the amount of impurities in the air. It will darken the brightness of the following lamp. CATCH Lamp / UV Light Lamp / GLUE SHEET Lamp / UV Light of the backside. DUST AND ODOUR / PLASMACLUSTER SIGN go off automatically. Even though the indicator is off, Plasmacluster Ion is released into air unless Plasmacluster Ion is turned off by

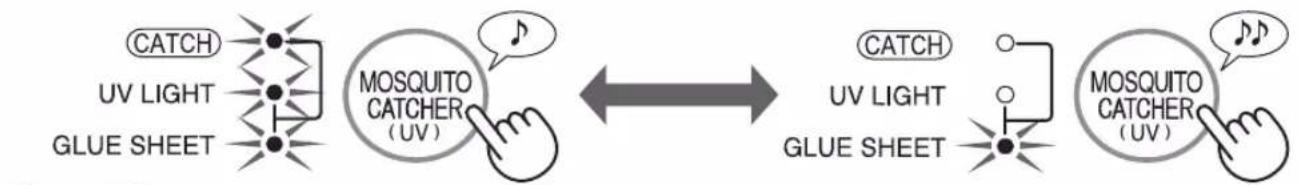

MOSQUITO CATCHER

Use this function to catch mosquitoes.

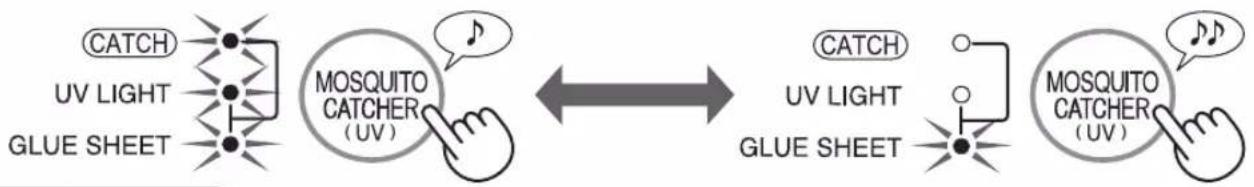

Mosquito catching function (CATCH lamp) will turn on when both UV LIGHT and GLUE SHEET work properly.

UV Light ON UV Light OFF

NOTE

Select Max mode to catch mosquitoes more effectively.

The higher the air volume is, the easier to capture mosquitoes becomes.

CATCH lamp

When UV LIGHT lamp is on and GLUE SHEET lamp is on, CATCH lamp is on.

When UV LIGHT lamp is off or GLUE SHEET lamp is flashing, CATCH lamp is off.

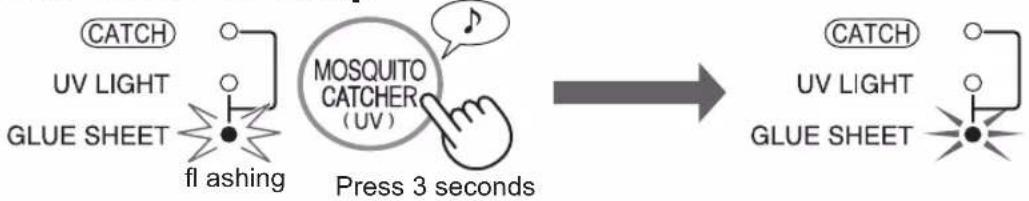

UV LIGHT lamp

When Mosquito Catcher button is pressed, UV LIGHT lamp is turned on and conversely.

UV LIGHT

When Catch Panel comes off, UV light is turned off automatically by Magnet sensor. Check whether catch panel is properly attached.

UV LIGHT

When UV LIGHT lamp is flashing, UV Light has failed. Contact the service centre authorized by Sharp.

GLUE SHEET lamp

- Flashing Glue Sheet lamp indicates time to change Glue Sheet.

① Replace with a new sheet.(Ref.E-15)
② Press the Mosquito Catcher button for 3 seconds.
③ Glue Sheet lamp changes from fl ashing to lighting.

- Glue Sheet lamp flashes approx. 2 month (24 hours x 60 days) after you press Mosquito Catcher button for 3 seconds.

- At the first time of using the product, after inserting the power plug in socket and turning on the power, Glue Sheet lamp will be flashing by default. Install Glue Sheet to catch panel (Ref. E-7), then press the Mosquito Catcher button for 3 seconds.

- We recommend you to keep this air purifire working as much as possible to maximize its function except for exchanging fi Iter and Glue sheet.

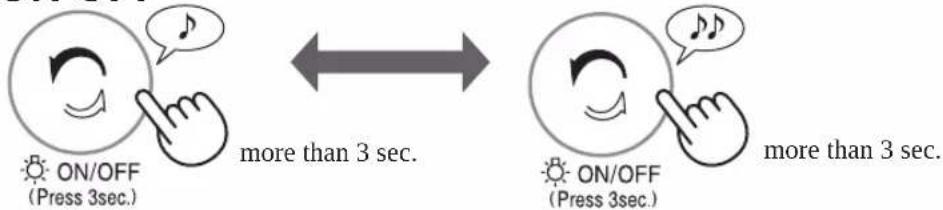

LIGHT CONTROL

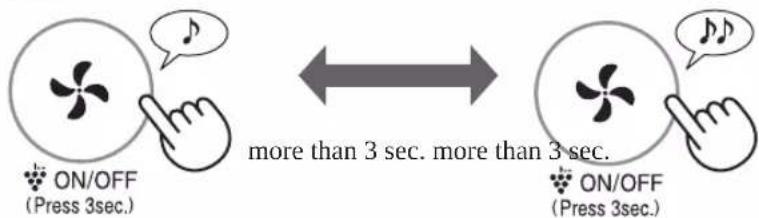

You can set the DUST AND ODOUR / PLASMACLUSTER SIGN to OFF when their SIGN is bright.

ON OFF

NOTE

• DUST AND ODOUR / PLASMACLUSTER SIGN go off.
It will darken the brightness of the following lamp.
CATCH Lamp / UV Light Lamp / GLUE SHEET Lamp / UV Light of the backside.
- When the unit restarts its operation, Light Control resumes its setting set before turning off.
- At Sleep Mode, Light Control is available.

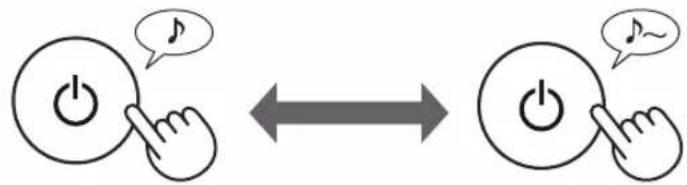

PLASMACLUSTER ION ON/OFF

When Plasmacluster Ion is ON, the PLASMACLUSTER SIGN will turn on. (blue)

(In operation)

ON OFF

ADJUSTMENT OF SENSOR DETECTION SENSITIVITY

Set to "Low" if the DUST AND ODOUR SIGN is constantly red to reduce sensitivity, and set to "High" if the DUST AND ODOUR SIGN is constantly green to increase sensitivity.

(with the unit OFF)

1

more than 3 sec.

2

Select the sensor detection sensitivity.

3

NOTE

• If the POWER ON/OFF button is not pressed within 8 seconds of adjusting sensor sensitivity, the setting will be saved automatically.
• The sensor sensitivity setting will be saved even if the unit is unplugged.

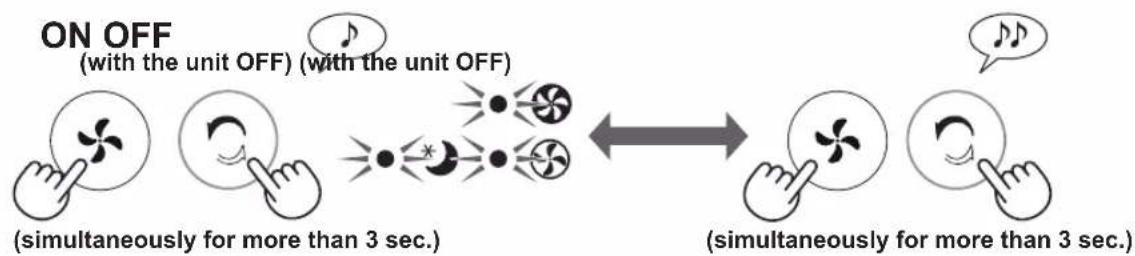

AUTO RESTART

If the unit is unplugged or there is a power failure, the unit will resume operation with the previous settings after power is restored.

If the 📋, lamps light up for 10 seconds, the setting is completed.

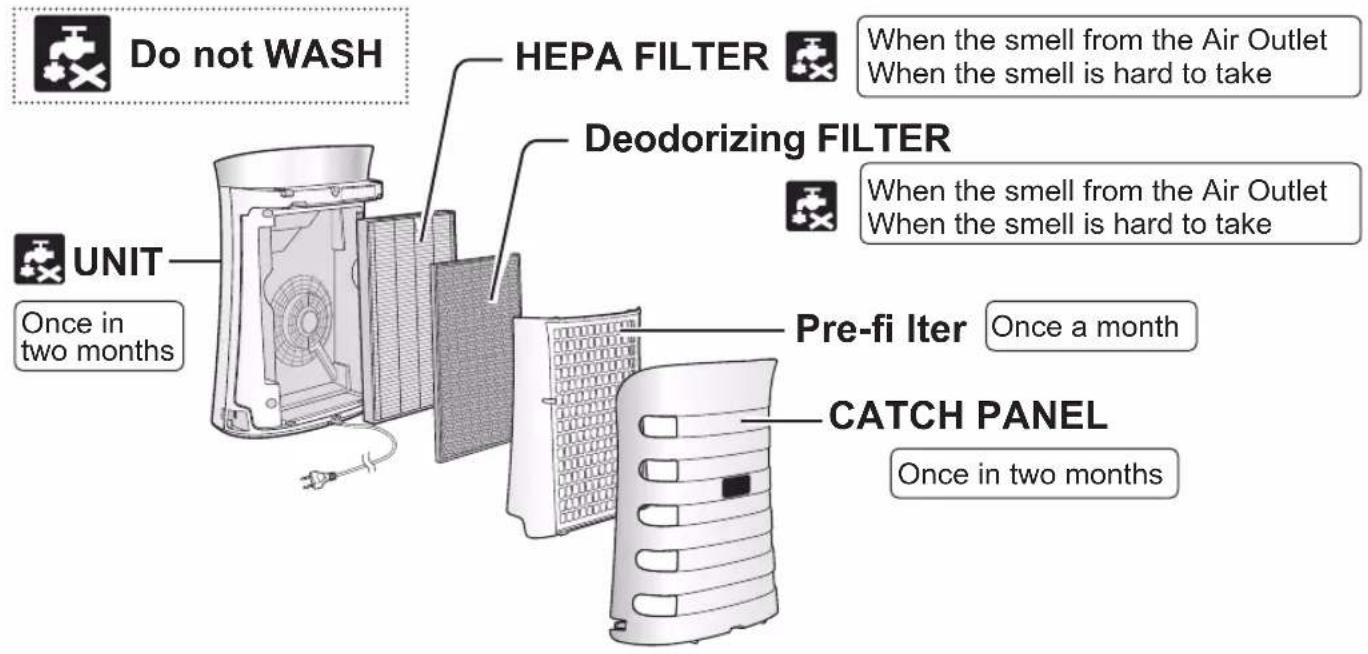

CARE AND MAINTENANCE

To maintain optimum performance of this air purifier, please clean the unit including the filter periodically.

Be sure to disconnect the power cord from the wall outlet before performing any maintenance.

Pre-fi Iter

Gently remove dust from the Pre-fi Iter panel by using a vacuum cleaner attachment or similar tool.

CAUTION

Do not apply excessive pressure, when scrubbing the pre-fi iter.

NOTE

How to clean hard to remove dirt

Pre-fi Iter

Illustration of a rectangular container with a grid pattern inside, no text or symbols present

1. Add a small amount of kitchen detergent to water and soak for about 10 minutes.
2. Rinse off the kitchen detergent with clean water.
3. Completely dry the filter in a well-ventilated area.

CATCH PANEL

Illustration of a hand holding a flexible object over a curved, grid-patterned object (no text or symbols)

Remove the Glue Sheet and Mosquito Tray, and then gently remove dust from the Catch Panel by using a vacuum cleaner attachment or similar tool.

CAUTION

Do not apply excessive pressure, when scrubbing the catch panel.

FILTERS

HEPA Filter

Gently remove dust from HEPA Filter and Deodorizing Filter with a vacuum cleaner attachment or similar tool.

Tag

Illustration of a hand using a tool to interact with a device on a textured surface (no text or symbols visible)

CAUTION

Deodorizing Filter

Illustration of a hand using a tool to interact with a device on a flat surface (no text or symbols visible)

Do not WASH in water and DRY in the sun.

The fi Iters are fragile, be careful not to apply too much force.

- HEPA Filter

Apply the maintenance only on the side with the tag.

Do not clean the opposite side; otherwise, the filter will be damaged.

- Deodorizing Filter

The maintenance can be applied to the both sides.

UNIT

Illustration of a hand cleaning a large appliance with a scroll wheel (no text or symbols)

Wipe with a dry, soft cloth

For stubborn stains or dirt, use a soft cloth dampened with warm water.

CAUTION

- Do not use volatile fluids

Benzine, paint thinner, polishing powder, etc., may damage the surface.

- Do not use detergents

Detergent ingredients may damage the unit.

SENSORS

Dust sensor

1. Remove the Catch Panel.
2. Remove the Pre-fi Iter.
3. Remove the Dust sensor filter.
4. If it is very dirty, wash it with water and dry it thoroughly.

Odour sensor

Gently remove dust from the odour sensor, using a vacuum cleaner attachment or similar tool.

FILTERS

Replacement timing About 10 years after operating

Do not wash and reuse the fi Iters

The filter life and replacement period are based on the condition of smoking 5 cigarettes per day and the dust and odour collection power is reduced by half compared with that of new fi liter. Filter life varies depending on the room environment, usage, and location of the unit. We recommend to replace the fi liter more frequently if the product is used in a condition signifi cantly severer than normal household use.

REPLACING THE FILTER

Replacement Filter

Model: UZ-PM5HF
• HEPA Filter : 1 unit

Pure diagram of a grid-patterned rectangular structure with no text, numbers, or symbols

Model: UZ-PM5DF
- Deodorizing Filter : 1 unit

3D rendering of a rectangular panel with a grid pattern and a vertical line above it (no text or symbols)

See page E-6 for directions on how to install the filter when replacing.

• Please consult your dealer for purchase of replacement fi Iter.
• Use only filters designed for this product.

Disposal of Filter

Please dispose of the replaced fi Iter according to the local disposal laws and regulations.

HEPA Filter materials :

Deodorizing Filter materials :

-Filter: Polypropylene

•Polypropylene, Polyester, Activated charcoal

•Frame : Polyester

Glue Sheet

Replacement timing

When Glue sheet lamp is fl ashing.

Model : UZ-PM5ST

Replace the Glue sheet according to the operation manual included in the replacement glue sheet.

Please discard the used glue sheet carefully.

Diagram of a device with a rectangular panel and a circular component inserted into a container (no text or symbols)

Do not touch the adhesive surface.

After the exchange, insert the power plug in socket and press the POWER button, and MOS-QUITO CATCHER(UV) button 3 seconds.

Glue sheet lamp will flash approx.2 month (24 hours x 60 days) later when you insert the power plug in socket.

The replacement timing is about 2 months, but it may be early depending on the room environment.

Check the glue sheet sometimes.

• Please consult your dealer for purchase of replacement Glue Sheet.
• Use only Glue Sheet designed for this product.

Disposal of Glue Sheet

Please dispose of the replaced Glue Sheet according to the local disposal laws and regulations.

Glue Sheet materials :

• Glue:Acrylic copolymer
  •Film:paper
• Base Sheet: Polycarbonate

TROUBLESHOOTING

Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction.

SYMPTOM REMEDY (not a malfunction)
Odours and smoke are not removed.	Clean or replace the fi Iters if they appear to be heavily soiled.(Ref. E-13,E-14)
The DUST AND ODOUR SIGN illuminates green even when the air is impure.	The air could be impure at the time the unit was plugged in.Unplug the unit, wait one minute, and plug the unit in again.
The DUST AND ODOUR SIGN illuminates orange or red even when the air is clean.	Sensor operation is affected if the odour sensor and dust sensor fi Iter are dirty or clogged. Gently clean the odour sensor and dust sensor fi Iter. (Ref. E-13).
A clicking or ticking sound is heard from the unit.	Clicking or ticking sounds may be audible when the unit is generating ions.
The discharged air has an odour.	Check to see if the fi Iters are heavily soiled.Clean or replace the fi Iters.Plasmacluster Air Purifi ers emit small traces of ozone which may produce an odour. These ozone emissions are well below safety level.
The unit does not operate properly when cigarette smoke is in the air.	Is the unit installed in a location that is difficult for the sensor to detect cigarette smoke?Is the dust sensor fi Iter blocked or clogged?(In this case, clean the fi Iter.) (Ref. E-13)
The DUST AND ODOUR SIGN is turned off .	Check to see if the Lights OFF Mode is selected.Press for 3 seconds to turn light ON.(Ref. E-10)Check to see if the SLEEP mode is selected.The DUST AND ODOUR /PLASMACLUSTER SIGN are turned off automatically after the SLEEP mode is selected.
The DUST AND ODOUR SIGN changes colour frequently.	The DUST AND ODOUR SIGN automatically changes colours as impurities are detected by the dust sensor and odour sensor.The sensor detection sensitivity can be adjusted lower.(Ref.E-11)
Catch lamp is turned off .	Please check whether the following 2 lamps are on.1) UV LIGHT lamp lights in blue.2) GLUE SHEET lamp lights in blue.When UV LIGHT lamp is off or GLUE SHEET lamp is fl ashing,CATCH lamp does not turn on.
UV LIGHT lamp is turned off .	This lamp is the indicator of the UV Light at the back. If Catch Panel comes off or is not properly set, UV light is automatically turned off by Magnet Sensor. Please confi rm whether catch panel is properly attached.
UV LIGHT lamp is fl ashing.	UV Light has failed. Please call the service centre authorized by Sharp.
SYMPTOM	REMEDY (not a malfunction)
GLUE SHEET Lamp is fl ashing	It's replacement timing of glue sheet.Please exchange to new glue sheet.Then, press the Mosquito Catcher button for 3 sec.
No mosquitoes are collected on the Glue Sheet.	Aren't windows or doors opened?Don't you set up in the place where the wind blows such as air-conditioner or fan?⇒ Try to relocate the unit.
When the adhesive glue remains on clothes, skin, floor, etc.	Wipe with cooking oil, then wash with soap and water.
SLEEP lamp is fl ashing.	Fan motor error. Turn the power OFF. Wait one minute, and then turn the power ON.

SPECIFICATIONS

Power supply 220-240V 50-60Hz
Fan Speed Operation	Fan Speed MAX MED SLEEP			*1
	Rated Power (W) 51 17 4.0~6.0
	Airflow ( m^3/hr ) 306 186 48~90
Recommended Room Size( m^2 )*2		~40
High density Plasmacluster ion recommended room size ( m^2 )*3		~23
Cord Length (m) 2.0
Dimensions (mm) 394(W)x281(D)x540(H)
Weight (kg) 6.1

*1 The fan speed is automatically switched depending on the amount of impurities in the air.
*2 Size of a room which is appropriate for operating the unit at maximum fan speed.

- It indicates the space where a certain amount of dust particles can be removed in 30 minutes (JEM1467).

*3 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the centre of the room (at a height of approximately 1.2 meters from the floor) when the product is placed next to a wall and run at the MED fan speed.

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product consumes about 1.0W of standby power. For energy saving, unplug the power cord when the unit is not in use.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!

Used electrical and electronic equipment should always be collected and treated SEPARATELY in accordance with local law.

Separate collection promotes an environment-friendly treatment, recycling of materials, and minimizing fi nal disposal of waste. IMPROPER DISPOSAL can be harmful to human health and the environment due to certain substances! Take USED EQUIPMENT to a local, usually municipal, collection facility, where available.

If in doubt about disposal, contact your local authorities or dealer and ask for the correct method of disposal.

ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES; FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection is requested by law.

The symbol shown above appears on electrical and electronic equipment (or the packaging) to remind the users of this.

Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for used equipment. Return is free of charge.

If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility. For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

SHARP®

UA-PM50E

HIGH-DENSITY 7000 *

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

Interior ceiling view showing two recessed lighting fixtures (no text or symbols visible)

Illustration of a cylindrical device with horizontal bars and a small black square on its side, next to a small arrow (no text or symbols)

Top-down view of a mechanical component with a numbered label '345' and a small attached tool (no readable text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a rectangular tray with scattered arrows, no text or symbols present

Starkes Klebeblatt

DEUTSCH

High Density Plasmacluster 7000

INKLUSIVE

Diagram of a device's internal structure showing layered components and ventilation (no text or symbols)

Diagram of hands installing or adjusting a car body panel, no text or symbols present

Illustration of hands inserting a device into a curved device (no text or symbols visible)

STOPP

Simple line drawing of a hand pointing at a smiling face with a speech bubble (no text or symbols)

HINWEIS

Illustration of a rectangular tray with a grid pattern and a pointer, no text or symbols present

Illustration of a hand placing a curved panel into a grid (no text or symbols)

Illustration of a hand using a tool to interact with a device on a grid-patterned surface (no text or symbols)

Deofi Iter

Illustration of a hand using a tool to interact with a digital screen (no text or symbols visible)

Illustration of a hand cleaning a large cylindrical appliance with a scroll wheel (no text or symbols)

Pure diagram of a grid-like structure with vertical lines and a small arrow, no text or symbols present.

Modell: UZ-PM5DF

3D rendering of a rectangular panel with a grid pattern and a vertical line above it (no text or symbols)

Diagram of a device with a rectangular panel and a circular component connected by a wire (no text or symbols)

HIGH-DENSITY 7000 *

"Plasmacluster" y "Device of a cluster of grapes" son marcas comerciales de Sharp Corporation.

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

Abstract graphic with a starburst shape containing symbols like moon, crescent, and wind turbine (no readable text or labels)

ÍNDICE

INSTRUCCIONES IMPORTANTES

DE SEGURIDAD ......ES-2

NOMBRE DE LAS PIEZAS ......ES-4

INCLUIDO

Cross-sectional diagram of a device showing internal components and airflow direction (no text or symbols)

Illustration of hands installing or adjusting a component on a vehicle chassis (no text or symbols visible)

Illustration of hands inserting a device into a curved panel (no text or symbols visible)

PARADA

Simple line drawing of a hand pointing at a circular button with a smiling face and sound waves (no text or symbols)

NOTA

PLASMACLUSTER ION ON/OFF

ON/OFF (Press 3sec.)

Illustration of a rectangular tray with a grid pattern and a pointer, no text or symbols present

Illustration of a hand holding a flexible object over a curved, layered structure (no text or symbols)

Illustration of a hand pressing down on a rectangular electronic device with arrows indicating motion (no text or symbols)

Illustration of a hand cleaning a cylindrical appliance with a label 'P' on the lid (no text or symbols on the appliance itself)

Cross-sectional diagram of a device showing internal components and a labeled component (no text or symbols present)

Filtro del sensor de polvo

Sensor de olores

Sensor de olores

Pure diagram of a grid-like structure with vertical lines and a small arrow, no text or symbols present.

Modelo: UZ-PM5DF

3D rendering of a rectangular panel with a grid pattern and a vertical line above it (no text or symbols)

Diagram of a device with a rectangular panel and a circular component connected by a wire (no text or symbols)

No toque la super- fi cie adhesiva

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

HIGH-DENSITY 7000 *

"Plasmacluster" e "Device of a cluster of grapes" são marcas registadas da Sharp Corporation.

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

Abstract graphic with a starburst shape containing symbols like moon, crescent, and wind turbine (no readable text or labels)

CONTEÚDOS

MEDIDAS DE SEGURANÇA IMPORTANTES.. PT-2

NOMES DAS PEÇAS PT-4

INCLUÍDO

Cross-sectional diagram of a device showing internal components and layered structure (no text or symbols)

Illustration of hands placing a component into a curved container (no text or symbols visible)

PARAR

Simple line drawing of a hand pointing at a circular button with a smiling face and sound waves (no text or symbols)

NOTA

Illustration of a rectangular tray with a grid pattern and a pointer, no text or symbols present.

Illustration of a hand holding a flexible object over a curved panel (no text or symbols visible)

Illustration of a hand using a tool to interact with a device on a screen (no text or symbols visible)

Filtro desodorizante

Illustration of a hand using a tool to interact with a device on a flat surface (no text or symbols visible)

ATENÇÃO

Illustration of a hand cleaning a large cylindrical appliance with a scroll wheel (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a labeled component (no text or symbols beyond label)

Pure diagram of a grid-like structure with vertical lines and a small protrusion, no text or symbols present.

3D rendering of a rectangular panel with a hexagonal pattern and a vertical line above it (no text or symbols)

Diagram of a device with a rectangular panel and a circular component connected by a wire (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

HIGH-DENSITY 7000 *

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

Illustration of ceiling-mounted lighting fixtures with a numbered label (1) in the top-left corner, no text or symbols on the main image area.

Illustration of a cylindrical device with horizontal stripes and a small black square on the side, next to a small star symbol (no text or labels)

Top-down view of a mechanical component with a numbered label '345' and a small attached object (no readable text or symbols)

Diagram showing airflow or mechanical interaction between two circular components with directional arrows (no text or symbols)

Diagram of a rectangular tray with scattered birds, no text or symbols present

Feuille de colle forte

FRANÇAIS

Plasmacluster 7000 haute densité

REPLACEMENT ....FR-14

DÉPANNAGE ......FR-16

SPÉCIFICATIONS ......FR-17

CONSIGNES RELATIVES AU FILTRE

INCLUS

Cross-sectional diagram of a device showing internal components and airflow direction (no text or symbols)

Illustration of hands installing or adjusting a component on a car chassis (no text or symbols visible)

Illustration of hands inserting a device into a device casing (no text or symbols visible)

ARRÊT

Simple line drawing of a hand pointing at a circular button with a smiling face and sound waves (no text or symbols)

REMARQUE

Lampe UV ON Lampe UV OFF

REMARQUE

REMARQUE

IONS PLASMACLUSTER ON/OFF (MARCHE/ARRÊT)

RÉGLAGE DE LA SENSIBILITÉ DU DÉTECTEUR

3D diagram of a rectangular container with a grid pattern inside, labeled 'e' pointing to the side (no text or symbols on the container itself)

Illustration of a hand holding a flexible object over a curved, grid-patterned object (no text or symbols)

Illustration of a hand using a tool to interact with a device on a screen (no text or symbols visible)

Filtre désodorisant

Illustration of a hand using a tool to press or interact with a device on a flat surface (no text or symbols visible)

Illustration of a hand cleaning a large appliance with a scroll wheel (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and a labeled part (no text or symbols beyond label)

Pure diagram of a grid-like structure with vertical lines and a small protrusion, no text or symbols present.

Modèle : UZ-PM5DF

Gray textured rectangular panel with a vertical line above it (no text or symbols)

Diagram of a device with a rectangular panel and a circular component inserted into a container (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

HIGH-DENSITY 7000 *

Line drawing of a white cylindrical device with side slots and a small logo on the top (no text or symbols)

Illustration of ceiling-mounted lighting fixtures with a numbered label (1) in the top-left corner, no text or symbols on the main image area.

Illustration of a cylindrical device with horizontal stripes and a small black square on its side, next to a small star symbol (no text or labels)

Top-down view of a mechanical component with a numbered label '345' and a small attached tool (no readable text or symbols)

Doskonale zaprojektowane wloty

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Diagram of a square tray with scattered birds, no text or symbols present

Wytrzymały lep

POLSKI

Abstract graphic with starburst shape containing crescent moon, windmill, and swirls (no text or symbols)

SPIS TREŚCI

ŚRODKI OSTROŻNOŚCI ......PL-2

NAZWY CZEŚCI ......PL-4

MONTAŻ FILTRA I LEPU ....PL-6

OBSŁUGA PL-8

PRZYDATNE FUNKCJE ......PL-10

CZYSZCZENIE I KONSERWACJA ......PL-12

WSKAZÓWKI DOTYCZĄCE

WYMIANY FILTRÓW PL-14

ROZWIAZYWANIE PROBLEMÓW ......PL-16

DANE TECHNICZNE ......PL-17

ELEMENTY ZESTAWU

• Lep: 1 sztuka

Cross-sectional diagram of a device showing internal components and airflow direction (no text or symbols)

Illustration of hands inserting a device into a curved device (no text or symbols visible)

ZATRZYMANIE

Simple line drawing of a hand pointing at a smiling face with motion lines and a musical note (no text or symbols)

UWAGA

ON/OFF (Press 3sec.)

ON/OFF ess 3sec.)
ON/OFF ess 3sec.)
ON/OFF ess 3sec.)
ON/OFF ess 3sec.)
ON/OFF ess 3sec.)

REGULACJA CZUŁOŚCI CZUJNIKÓW

Illustration of a hand inserting a grid into a rack (no text or symbols)

Illustration of a rectangular tray with a grid pattern and a pointer, no text or symbols present.

Illustration of a hand holding a tool interacting with a curved, grid-patterned object (no text or symbols visible)

Illustration of a hand interacting with a device on a screen, showing directional arrows and a magnified view (no text or symbols)

Illustration of a hand pressing down on a digital tablet with arrows indicating motion (no text or symbols)

Illustration of a hand pressing down on a cylindrical device with a label 'P' on the top (no text or symbols on the device itself)

Pure grid pattern with vertical lines and a vertical line, no text or symbols present

Close-up of a textured gray panel with a vertical seam, no visible text or symbols

Diagram of a device with a rectangular panel and a circular component connected by a rod (no text or symbols)

HIGH-DENSITY 7000 *

Line drawing of a white cylindrical appliance with side slots and a small logo on the top (no text or symbols)

Air Purifier with Mosquito Catcher protects your family's health by catching mosquitoes and cleaning the air by plasmcluster technology.

PROBLEEMOPLOSSING ....NL-16

SPECIFICATIES ....NL-17

INCLUSIEF
- Kleefblad: 1unit

Cross-sectional diagram of a device showing internal components and airflow direction (no text or symbols)

Illustration of hands installing or adjusting a component on a vehicle chassis (no text or symbols visible)

Illustration of hands inserting a device into a curved storage unit (no text or symbols visible)

STOP

Simple line drawing of a hand pointing at a smiling face with sound waves and musical notes (no text or symbols)

OPMERKING

AAN

ON/OFF (Press 3sec.)

meer dan 3 sec.

UIT

ON/OFF (Press 3sec.)
meer dan 3 sec.

OPMERKING

- STOF- EN GEURTJES/PLASMACLUSTERICOON gaan uit.

PLASMACLUSTERION AAN/UIT

AAN UIT

ON/OFF (Press 3sec.)

ON/OFF (Press 3sec.)

AANPASSEN VAN DE SENSORDETECTIEGEVOELIGHEID

3D diagram of a rectangular container with a grid pattern inside, labeled 'er' pointing to the interior (no text or symbols on the container itself)

Illustration of a hand holding a flexible object over a curved panel (no text or symbols visible)

Illustration of a hand using a tool to interact with a device on a grid-patterned surface (no text or symbols)

Geurfi Iter

Illustration of a hand using a tool to press or mark a rectangular object with arrows, no text or symbols present.

VOORZICHTIG

Illustration of a hand pressing down on a cylindrical device with a label 'P' on the lid (no text or symbols on the device itself)

Pure diagram of a grid-like structure with vertical lines and a small arrow, no text or symbols present.

Model: UZ-PM5DF

- Geurfi Iter : 1 stuks

3D rendering of a rectangular panel with a grid pattern and a vertical line above it (no text or symbols)

Diagram of a device with a rectangular panel and a circular component inserted into a container (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)
