USER MANUAL 943676 SILVERLINE

Technical Abbreviations Key

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76.7dB(A) SoundpowerL ..................................................89.71dB(A) Uncertainty K..........................................................2.5dB Weighted vibration a ...............................................<2.5m/s According to Outdoor Noise Directive 2000/14/EC: Guaranteed sound power L ..........................................93dB(A)The sound intensity level for the operator may exceed 85dB(A) and sound protection measure are necessary. Specication Description of Symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.Wear hearing protection. Wear eye protection. Wear breathing protection.Wear head protection.Wear hand protection.Read instruction manual.Caution!Risk of electrocution!Class I construction (protective earth)According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separatorConforms to relevant legislation and safety standardsEnvironmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling adviceV Volts~, a.c. Alternating currentA, mA Ampere, milli-Amp

No load speed˚ DegreesØ DiameterHz HertzW, kW Watt, kilowatt/min or min Operations per minute Introduction ThankyouforpurchasingthisSilverlinetool.Thismanualcontainsinformationnecessaryfor safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual. Original Instructions 943676_Manual.indd 8 04/07/2019 16:062100W Pressure Washer

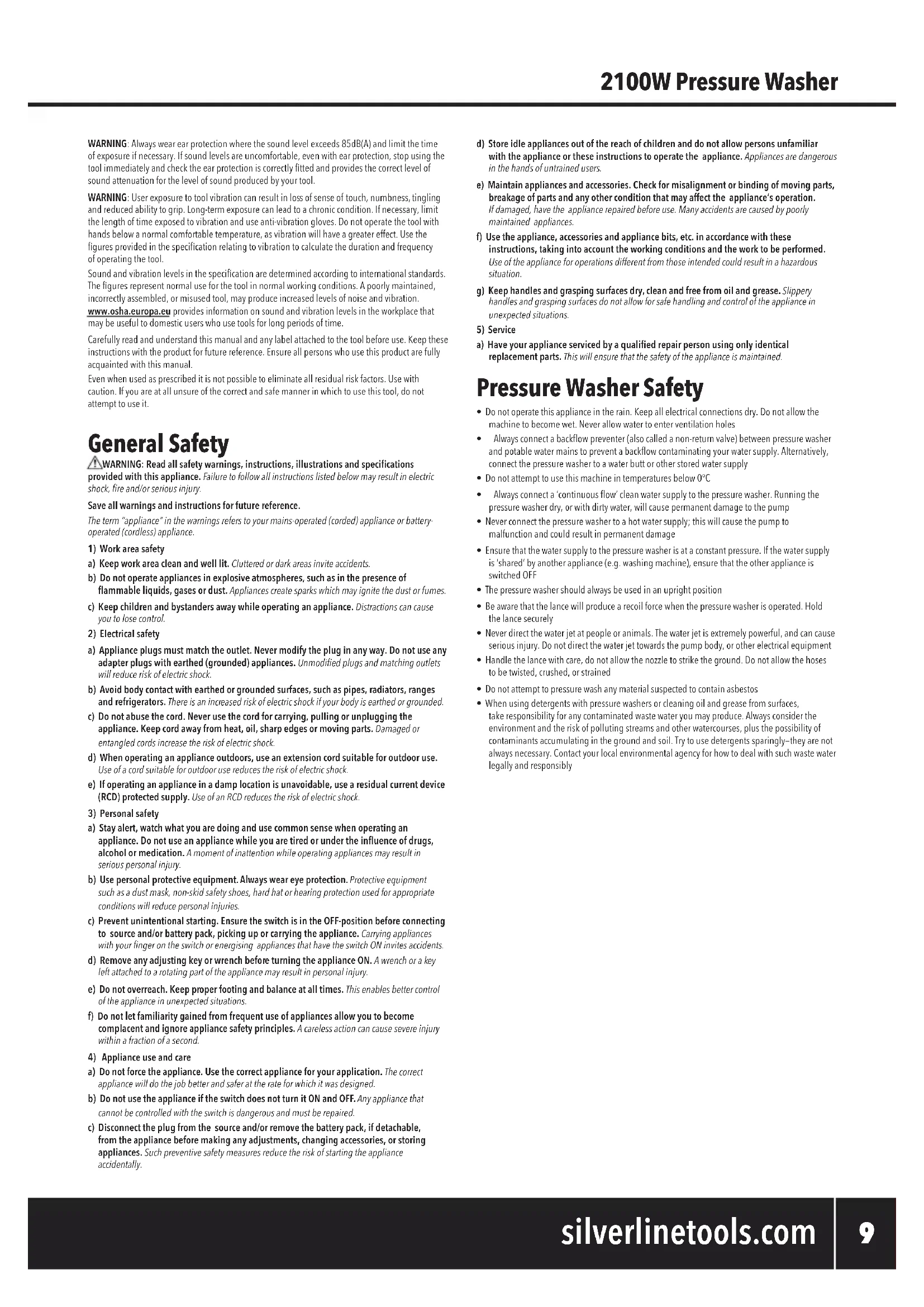

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time

of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the toolimmediatelyandchecktheearprotectioniscorrectlyttedandprovidesthecorrectlevelof sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling

and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the guresprovidedinthespecicationrelatingtovibrationtocalculatethedurationandfrequency of operating the tool. Soundandvibrationlevelsinthespecicationaredeterminedaccordingtointernationalstandards. Theguresrepresentnormaluseforthetoolinnormalworkingconditions.Apoorlymaintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time. Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual. Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it. General Safety

WARNING: Read all safety warnings, instructions, illustrations and specications

provided with this appliance. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term “appliance” in the warnings refers to your mains-operated (corded) appliance or battery- operated (cordless) appliance.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate appliances in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Appliances create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating an appliance. Distractions can cause you to lose control.

2) Electrical safety

a) Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) appliances. Unmodied plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the appliance. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. d) When operating an appliance outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. e) If operating an appliance in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an appliance while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating appliances may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to source and/or battery pack, picking up or carrying the appliance. Carrying appliances with your nger on the switch or energising appliances that have the switch ON invites accidents. d) Remove any adjusting key or wrench before turning the appliance ON. A wrench or a key left attached to a rotating part of the appliance may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the appliance in unexpected situations. f) Do not let familiarity gained from frequent use of appliances allow you to become complacent and ignore appliance safety principles. A careless action can cause severe injury within a fraction of a second.

4) Appliance use and care

a) Do not force the appliance. Use the correct appliance for your application. The correct appliance will do the job better and safer at the rate for which it was designed. b) Do not use the appliance if the switch does not turn it ON and OFF. Any appliance that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the source and/or remove the battery pack, if detachable, from the appliance before making any adjustments, changing accessories, or storing appliances. Such preventive safety measures reduce the risk of starting the appliance accidentally. d) Store idle appliances out of the reach of children and do not allow persons unfamiliar with the appliance or these instructions to operate the appliance. Appliances are dangerous in the hands of untrained users. e) Maintain appliances and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the appliance’s operation. If damaged, have the appliance repaired before use. Many accidents are caused by poorly maintained appliances. f) Use the appliance, accessories and appliance bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the appliance for operations different from those intended could result in a hazardous situation. g) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the appliance in unexpected situations.

a) Have your appliance serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained. Pressure Washer Safety

• Do not operate this appliance in the rain. Keep all electrical connections dry. Do not allow the machine to become wet. Never allow water to enter ventilation holes

• Alwaysconnectabackowpreventer(alsocalledanon-returnvalve)betweenpressurewasher andpotablewatermainstopreventabackowcontaminatingyourwatersupply.Alternatively, connect the pressure washer to a water butt or other stored water supply

• Do not attempt to use this machine in temperatures below 0°C

• Alwaysconnecta‘continuousow’cleanwatersupplytothepressurewasher.Runningthe pressure washer dry, or with dirty water, will cause permanent damage to the pump

• Never connect the pressure washer to a hot water supply; this will cause the pump to malfunction and could result in permanent damage

• Ensure that the water supply to the pressure washer is at a constant pressure. If the water supply is‘shared’byanotherappliance(e.g.washingmachine),ensurethattheotherapplianceis switched OFF

• The pressure washer should always be used in an upright position

• Be aware that the lance will produce a recoil force when the pressure washer is operated. Hold the lance securely

• Never direct the water jet at people or animals. The water jet is extremely powerful, and can cause serious injury. Do not direct the water jet towards the pump body, or other electrical equipment

• Handle the lance with care, do not allow the nozzle to strike the ground. Do not allow the hoses to be twisted, crushed, or strained

• Do not attempt to pressure wash any material suspected to contain asbestos

• When using detergents with pressure washers or cleaning oil and grease from surfaces, take responsibility for any contaminated waste water you may produce. Always consider the environment and the risk of polluting streams and other watercourses, plus the possibility of contaminants accumulating in the ground and soil. Try to use detergents sparingly—they are not always necessary. Contact your local environmental agency for how to deal with such waste water legally and responsibly 943676_Manual.indd 9 04/07/2019 16:06GB

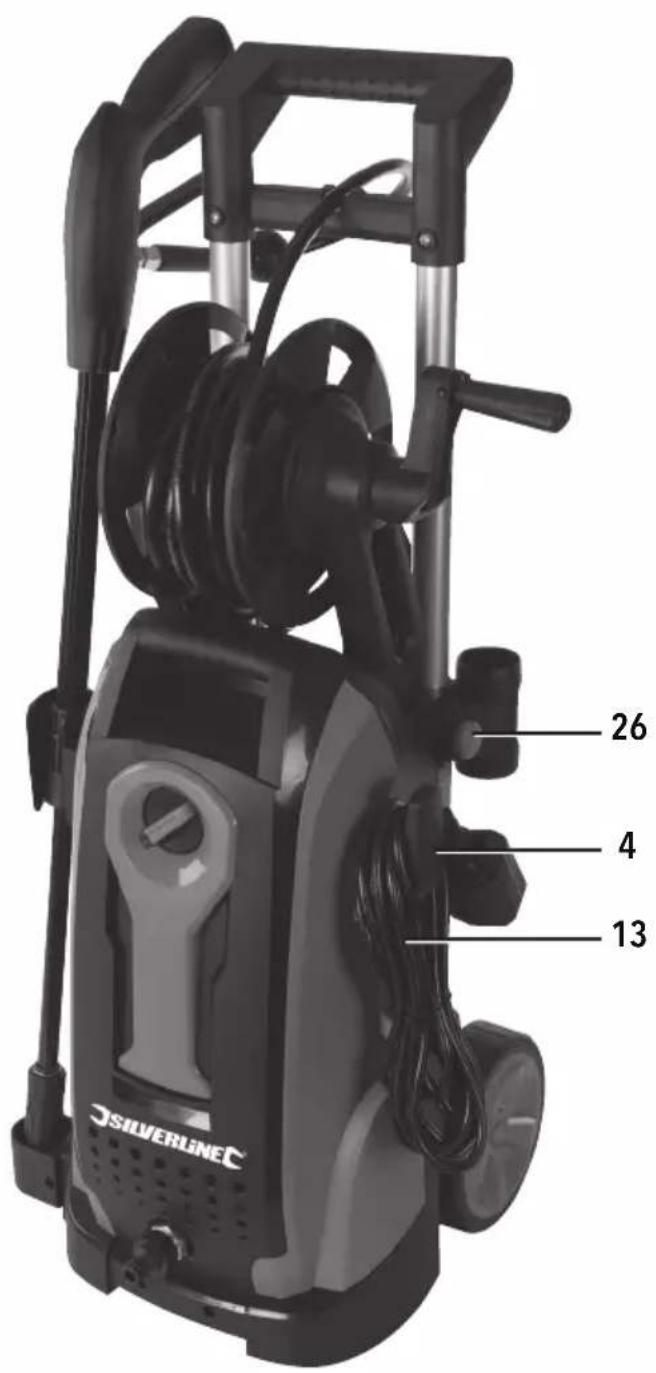

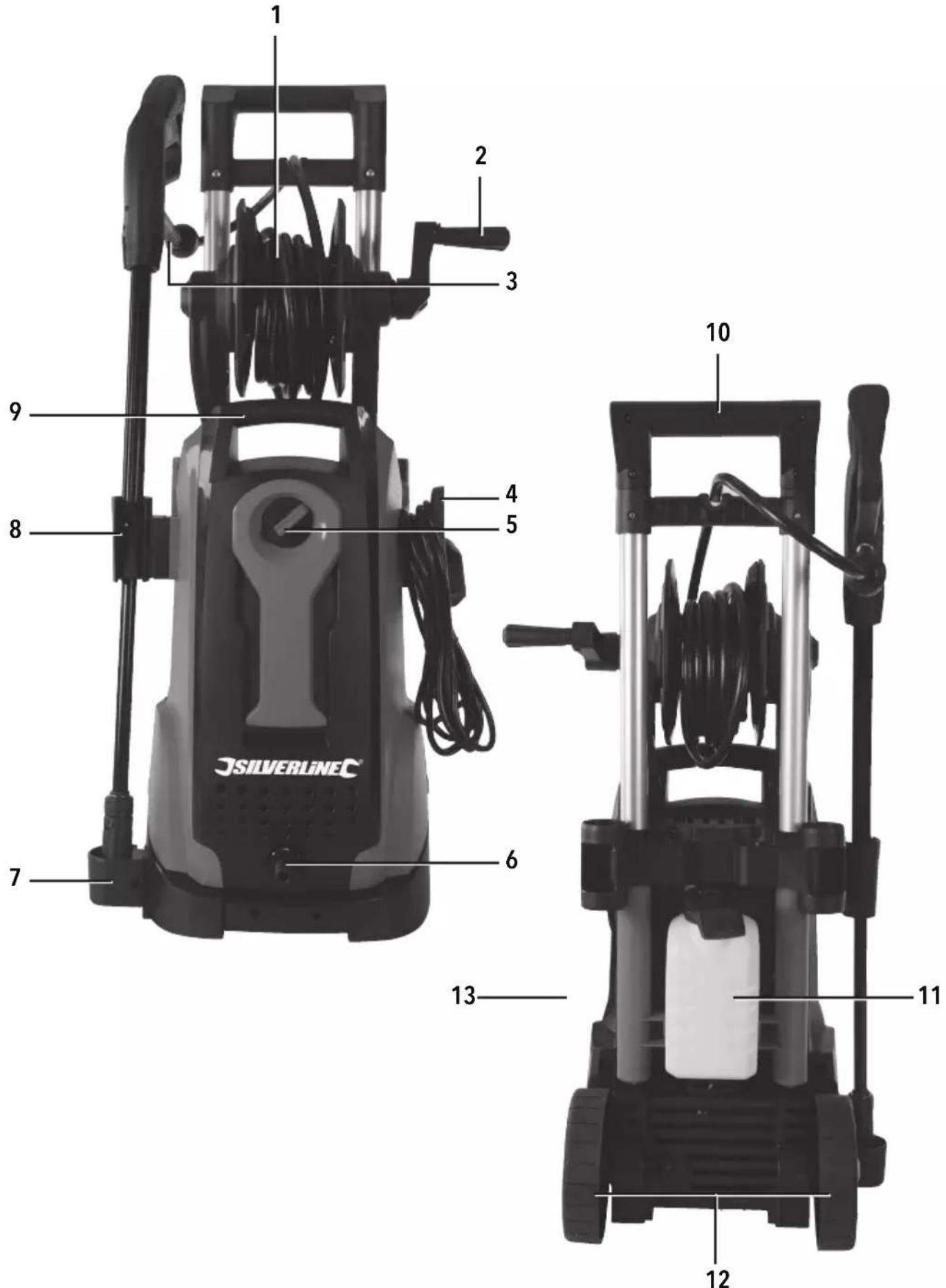

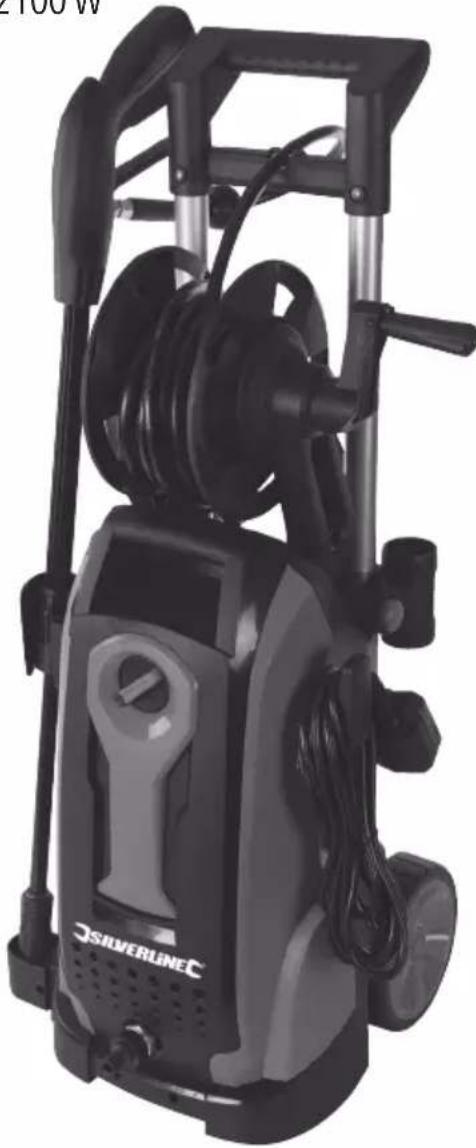

1. High Pressure Hose Reel

Lance High Pressure Hose Connector

Inlet Hose Connector

Rear Handle Release Button Product Familiarisation Intended Use Pressure washer for general, light to medium duty cleaning tasks on vehicles, buildings and other suitable surfaces, using a jet of cold, pressurised water, with or without detergent. Unpacking Your Tool

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions• Ensure that all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product Before Use
• Always check all parts and attachments are secure, and that hoses are not kinked or obstructed• Always wear appropriate personal protective equipment for the job at hand. Use of this appliance requires safety goggles and waterproof clothing• Always use an RCD when connecting a pressure washer to the mains with a tripping current of no more than 30mA, and a delay in operating of no more than 30ms• Make sure mains connection points are out of reach of the pressure washer water spray and any water that may collect on surrounding surfaces• Only use a mains extension cable suitable for outdoor use and capable of carrying the required current for this product. The cable must be protected against water ingress and maintain water-tight connections where it connects to the pressure washer• This product must be earthed and any extension cables used must have an earth connection• Alwaysusethepressurewasherverticallyandmakesureitisusedonaat,levelsurface Assembly
• Do not connect the pressure washer to the water or electrical supply until fully assembled and ready for use• Remove all packaging materials from the product Hooks & holders

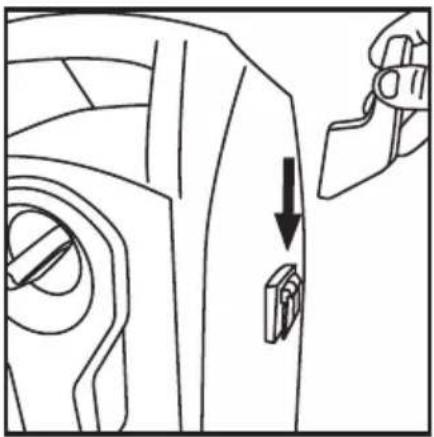

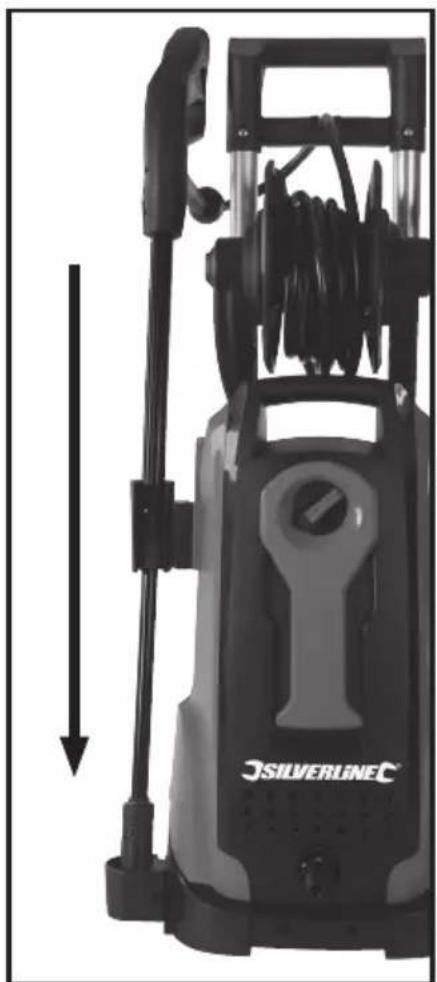

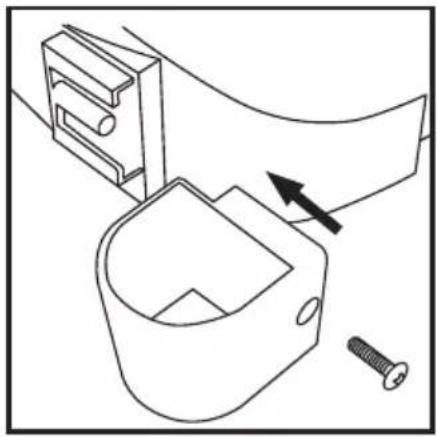

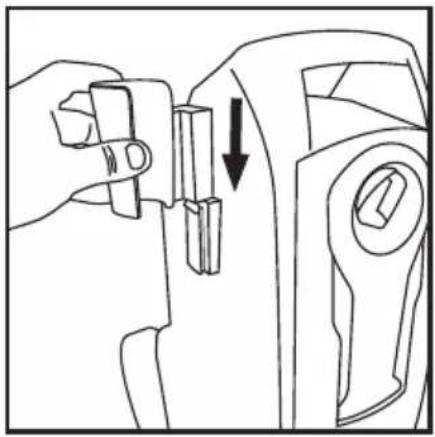

• SlidetheLanceBracket(8)downontothesideclip(Fig.I)• SlidetheNozzleRest(7)backontotheclip(Fig.II)andxwiththesuppliedscrew• SlidethePowerCordHook(4)downontothesideclip(Fig.III) Lance

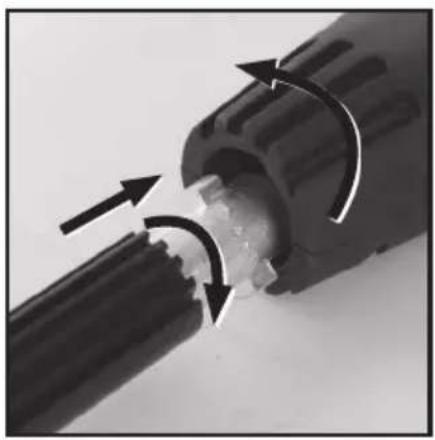

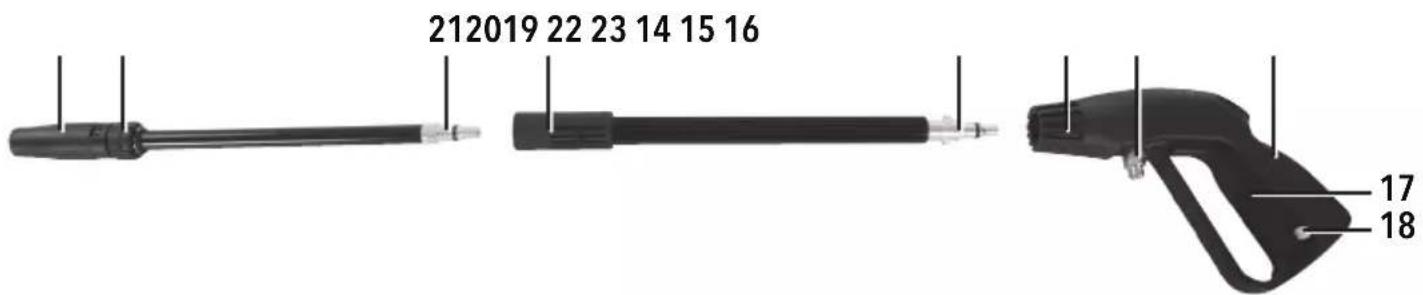

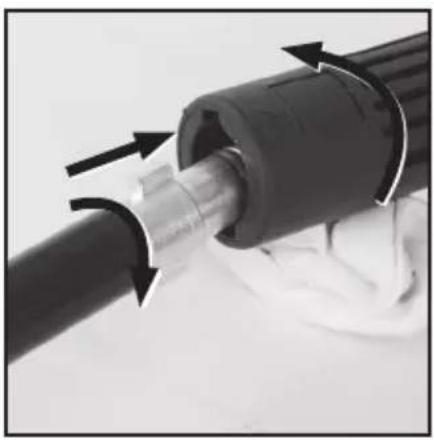

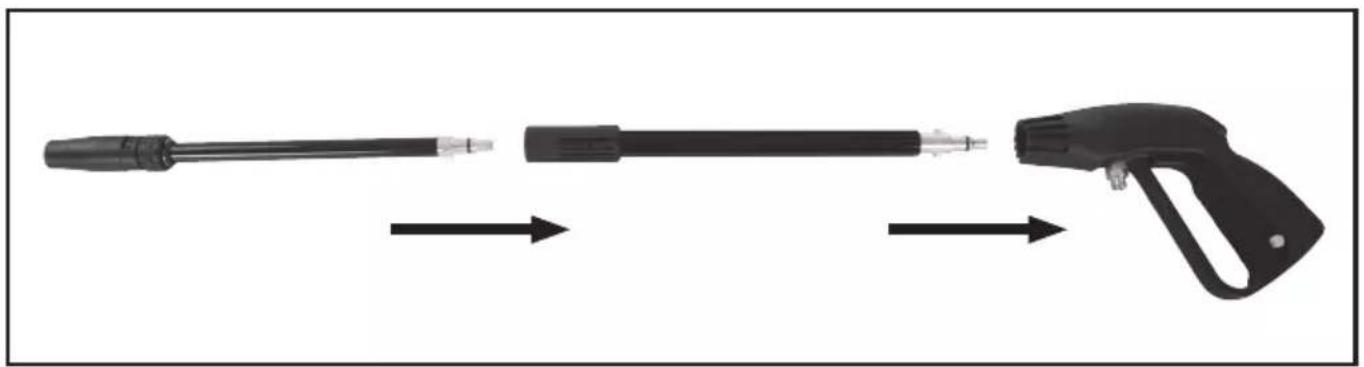

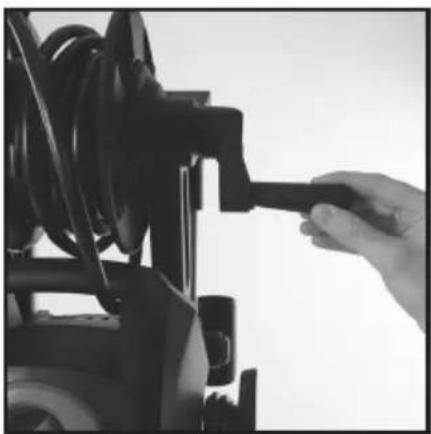

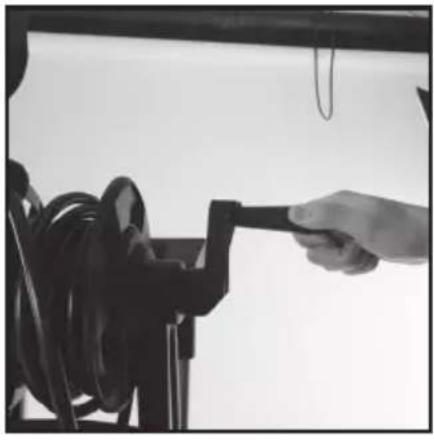

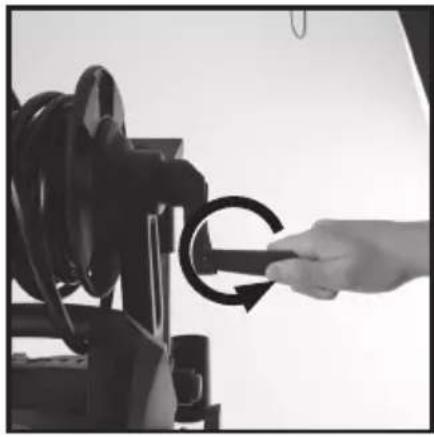

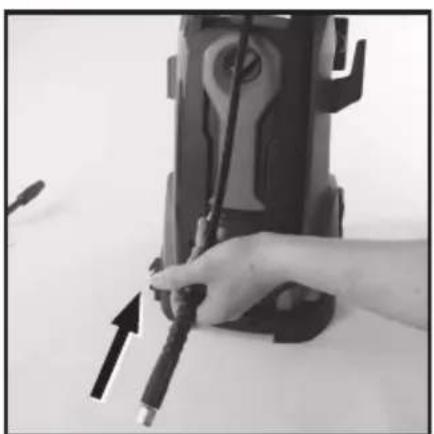

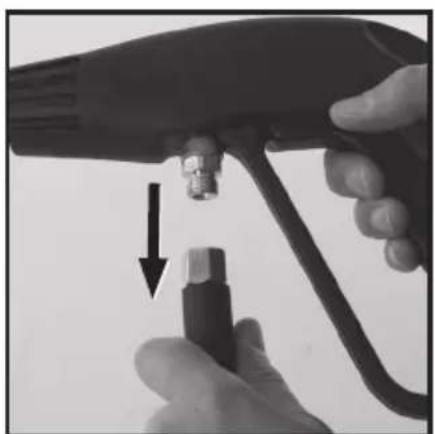

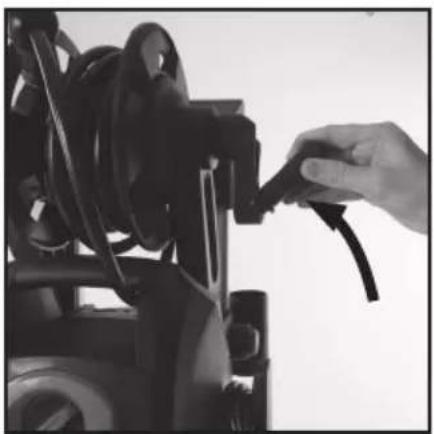

• Assemble the Lance by connecting the Nozzle (19) shaft to the lance extension shaft, and these to the lance handle (Image A)• Todothis,inserttheNozzleBayonetConnector(21)intotheLanceExtensionBayonetSocket(22), then push and rotate to lock into place (Image B)• InserttheLanceExtensionBayonetConnector(23)intotheLanceHandleBayonetSocket(14),then push and rotate to lock into place (Image C) Note: When not in use, the assembled lance can be held in the Lance Bracket (8) with the Nozzle (19) in the Nozzle Rest (7) (Image D). High pressure hose 1. Carefully pull out a length of hose from the High Pressure Hose Reel (1) (Image E)2. Attach the end of the hose to the Lance High Pressure Hose Connector (15) (Image F) and screw the nut on tightWARNING: If the high pressure hose is damaged it could burst and cause injury. A damaged hose must be replaced, not repaired. Inspect regularly and prevent the hose from coming into contact with sharp objects or rough surfaces. After use, always wind the hose back in using the Hose Reel Handle (2) (Image G then H). Connecting to water supply

WARNING: When connecting a pressure washer to a normal domestic water supply, it is important a

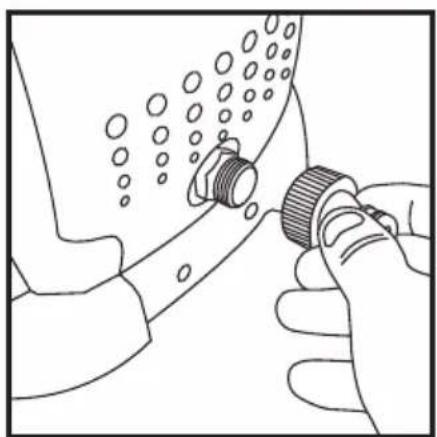

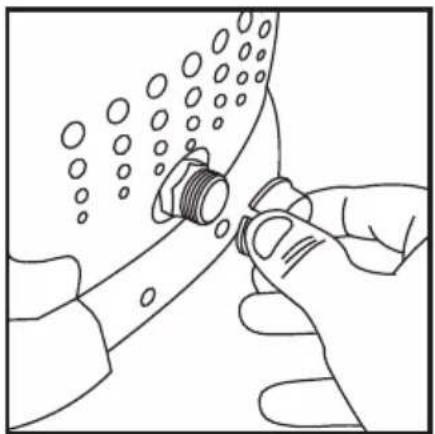

non-returnvalveisttedtothehose(alsocalledbackowpreventer)toensurethepressurewashercannotcontaminateyourwatersupplyifthereisabackow.1. RemovetheplasticcapfromtheWaterInlet(6)(Fig.IV)andcheckthatthelterinsideisclearofdebris or other material; clean if required2. Fit the Inlet Hose Connector (25) (Fig. V) and tighten by hand3. Connect a hose from your water supply to the Inlet Hose ConnectorNotes:• Thespecicationlistssuitablewaterinletpressures.Atypical,normalUKhouseholdwatersupplycan range from 1–8bar pressure but 2–5bar is more typical. Do not exceed the maximum water pressurestatedinthespecication• If you do not know or are unable to measure the water pressure, keep the pressure low to prevent damage to the pressure washer. Aim to set the pressure at mid-point between the lowest and highest pressure accepted by the pressure washer. If preferred, a third party water pressure gauge is available that connects directly to the tap. This will allow the water pressure to be set more accurately• Do not connect to a hot water supply. This will prevent the pump from cooling and may damage the seals over time• It is important that a good water connection is maintained while operating a pressure washer as the pump will be damaged if run without water. Make sure the connections are secure before switching on the pressure washer Connecting to other water sources Note: The pump featured in this pressure washer features a self-priming feature that allows use of other water sources typically a water butt or other container of captured rain water or similar.• Ensurethewatersupplyiscleanandlteredbeforeenteringthepressurewasher.Ensurethereisno sediment• For water butts, where the output is at the bottom, gravity will provide some pressure to assist the pressure washer• The hose to the water supply should not exceed 3m in length and the diameter should not be less than 19mm or ¾” Filling the detergent bottle

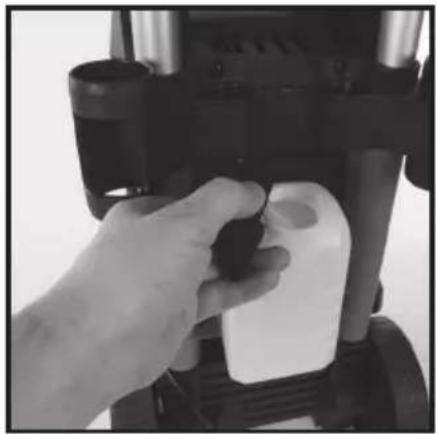

• RemovethecapontheDetergentBottle(11)andllwithapressurewasher-compatibledetergent if required (Image I)• The pressure washer is designed to dispense detergent on the low pressure setting, and dispense clear liquid on the high pressure setting• The detergent ratio is variable depending on the pressure adjuster setting943676_Manual.indd 10 04/07/2019 16:062100W Pressure Washer

silverlinetools.com Adjusting the telescopic rear handle

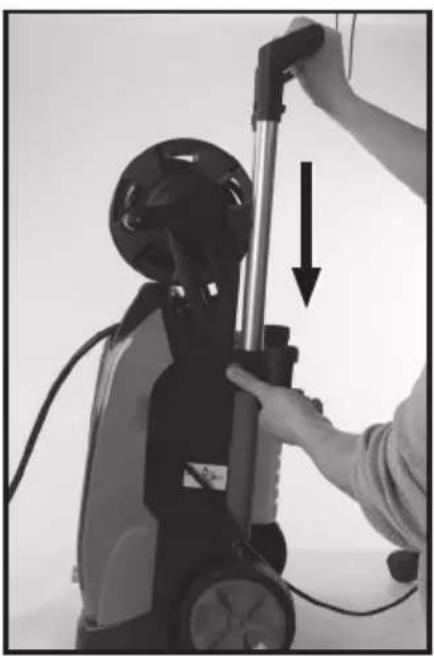

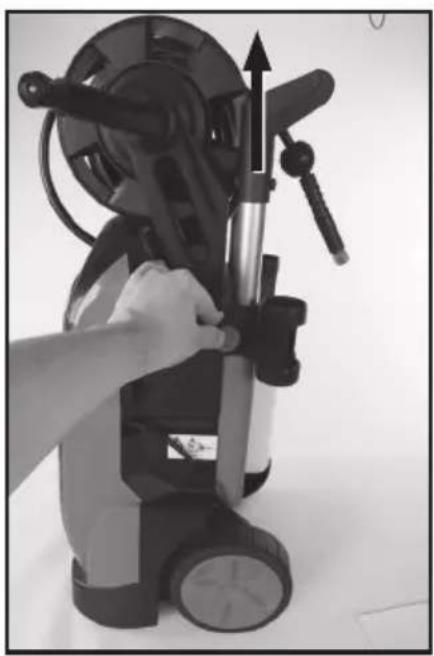

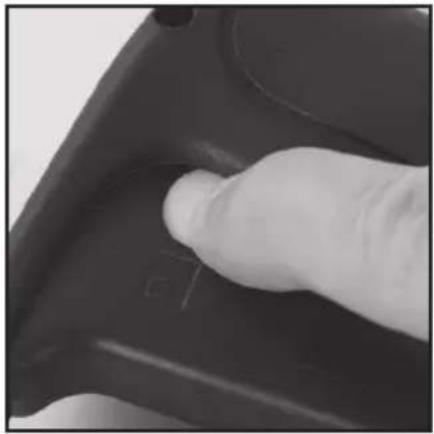

• Press the Rear Handle Release Button (26) and raise or lower the Telescopic Rear Handle (10) (Image K) Operation Switching ON

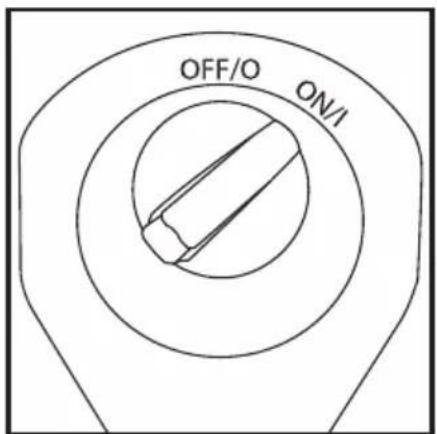

• Always open the water supply tap before switching the pressure washer ON, to protect the pump from damage• SettheTriggerLock(18)topreventtheTrigger(17)frombeingpressed(ImageJ)• ConnectthepressurewashertothemainspowersupplyandmovetheON/OFFSwitch(5)toON(Fig. VI). The pump will operate immediately to build up pressure and each time the Trigger is pressedtorestorewaterpressure.WhenrstswitchedON,thepumpmayoperatecontinuouslyuntil the trigger is pressed. Do not allow this to exceed 3 minutes. Press and release the Trigger to deactivate this mode and ideally start using within 2 minutes of switching ON• It is important that all air is bled from the hoses and lance before using the pressure washer. Disable the Trigger Lock and squeeze and hold the Trigger until water is sprayed in a steady stream.Thismaytakeupto2minutesorpossiblylongeronrstuse Switching OFF

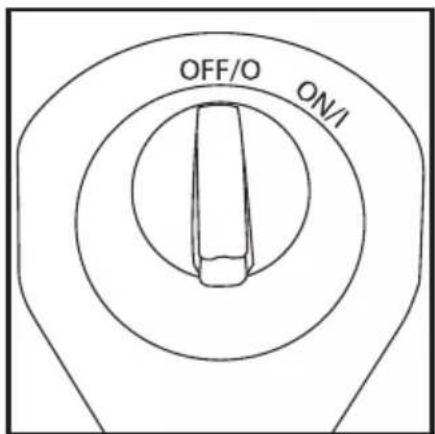

• Whenyouhavenishedusingtheappliance,alwaysperformthefollowingsteps:1. SwitchOFFtheapplianceanddisconnectfromthemainspowersupply2. Turn OFF the water supply3. SqueezetheTrigger(17)andallowallresidualwaterpressuretobleed4. Disconnect the water supply5. Drain all water from the appliance and hoses, and store in a dry placeWARNING: Do not switch OFF the water supply before turning OFF the pump as the pump must not be run without water.WARNING: Neverdisconnectthehighpressurehoseateitherendwithoutdepressurisingrst. Using your pressure washer

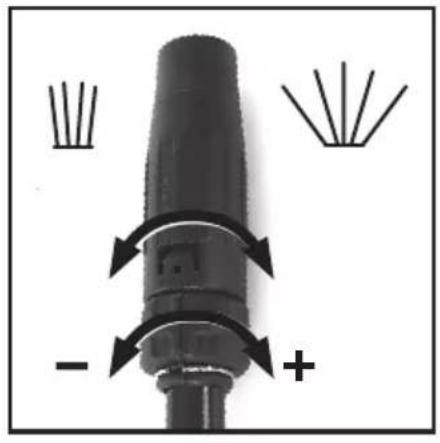

• To spray water, ensure you are holding the lance securely with both hands and squeeze the Trigger (17). Beware of slight recoil• TodisabletheTrigger,usetheTriggerLock(18)whennecessary(ImageJ)• The Nozzle (19) is adjustable for a wide fan pattern and a strong narrow jet by rotating (Image M)• Experiment with narrower patterns and different spray distances until the correct strength is achieved. Release the Trigger when changing the setting• Use the Pressure Adjustment (20) (Image M) to adjust pressure output. Release the Trigger when changing the setting• The pressure washer will protect the motor from over-heating if used continuously for too long, and will prevent the Trigger from operating. It will reset after cooling for a few minutes. It is recommended to have a work pattern that prevents the over-heating protection feature activating by not holding down the trigger continuously• If you are unsure of the durability of the surface that is being cleaned, avoid using the narrow jet setting. Reduce the pressure and start at a longer distance from the surface• It is recommended to hold the lance at an angle of 45° to the surface being cleaned. This will give maximum control, and most effective cleaning• Alwaystest-cleananinconspicuousarearsttocheckthatthecleaningprocessordetergentwillnot damage the surface being cleaned, especially mortar between bricks or patio slabs, which can be easily removed with a pressure washer if not careful Using detergent
• Many products are available that are suitable for pressure washers, including patio cleaners, glasscleaners,carshampoos,trafclmremovers,woodandplasticcleaningsolutions,andgeneral pressure washer detergents.• Fill the Detergent Bottle (11) with the required detergent solution• Dispense the detergent on a low pressure setting by adjusting the Pressure Adjustment (20) (ImageM),whichismarkedwith‘-‘and‘+’• Increase the pressure with the Pressure Adjustment and spray away the detergent with a clear sprayNotes:• Atypicalpatternofuseforusingdetergentfoamwouldberstcleaningwithwatertoremovelightsurfacedeposits,thenapplydetergentfoam,andthennallyrinseoffwithcleanwater• Detergent foam requires a few minutes to work when applied to surfaces. Normally for maximum cleaning, leave for 2–5 minutes between applying foam and removing with clean water, which is an ideal time to brush/scrub the surface where most dirt has collected. Do not allow foam to dry on the surface, for instance on a hot day there may be limited time between dispensing foam and rinsing off depending on the surface• Do not use detergents not designed for pressure washers. They may contain chemicals unsuitable for use with pressure washers that could damage seals• Read the instructions provided with the detergent thoroughly, especially if concentrated. Diluting tothedetergentmanufacturer’srecommendationswillensureeffectivecleaningwithoutusingexcessive detergent. As this pressure washer has a variable detergent ratio, set to a middle pressure setting and adjust the pressure downwards until a satisfactory detergent mixture is achieved Accessories
• ArangeofaccessoriesisavailablefromyourSilverlinestockisttoenhancethefunctionalityofyourpressurewasher,includingbrushesandreplacementorhigherspecicationparts Maintenance Cleaning

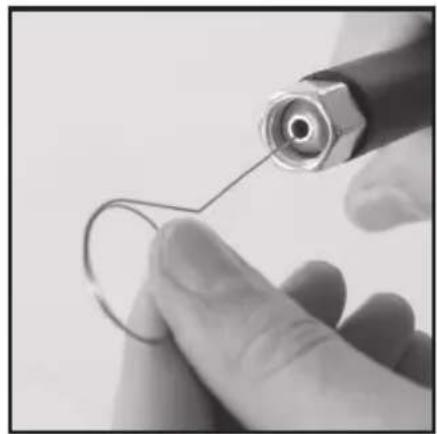

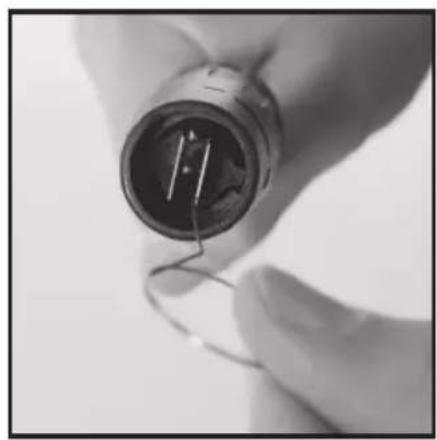

• Keep your appliance clean at all times• Always allow all water to drain from the pump before storing• The lance Nozzle (19) may become dirty or blocked over time, which will affect operation. Clean the lance nozzle using the Cleaning Pin (24) (Image L) supplied. A garden hose can also be usedtocleanthenozzlebyback-ushingwaterthroughthenozzle.Combininguseofthepinandback-ushingshouldenablethenozzletobefullycleaned.Thefrequencyofdoingthiswilldepend on the water quality in your area with hard water areas requiring more frequent cleaning• RegularlychecktheInletHoseConnector(25)ltertomakesureitisclear.Thisltermustbechecked regularly to ensure it is clear from debris and other materials. Remove the Inlet Hose Connectortoaccessthelter Storage
• Always store this machine in a dry place that will not fall below 0°C Disposal Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste• Contact your local waste disposal authority for information on the correct way to dispose of power tools 943676_Manual.indd 11 04/07/2019 16:06GB

Problem Possible Cause Solution No detergent suction Lance not in low pressure mode Change setting with trigger released Smoke Overload or damaged motor DONOTUSE.ContactdealerorauthorisedSilverlineservicecentreimmediately Pressurewasherdoesn’tstartPressurised SqueezetriggerongunbeforestartingMains plug not fully inserted or mains socket is switched OFF Check and correct issuesRCD has operated or not been reset Reset RCDPlug fuse has blown (UK only) Replace fuse and contact dealer if it blows again immediately Thermal safety switch has operated SwitchOFFandallowpressurewashermotortocoolbeforestarting Poor water spray pressureWaterinletlterisclogged CleanlterWater hose connection is leaking or allowing air to enter Check water hose connection Pressure washer valves or seals are worn or damaged ContactdealerorauthorisedSilverlineservicecentreimmediately Fluctuating water pressurePump is sucking in air Check water hose connectionsClogged nozzle SeeMaintenanceforcleaningprocedure Motor stops suddenly Thermal safety switch has operated SwitchOFFandallowtocoolbeforerestarting Water leaking from pump Sealswornout ContactdealerorauthorisedSilverlineservicecentreimmediately Troubleshooting 943676_Manual.indd 12 04/07/2019 16:062100W Pressure Washer
