WC224 - Weather Station Perel - Free user manual and instructions

Brand	Perel
Model	WC224
Category	Weather station
Main unit dimensions	188 x 118 x 21 mm
Outdoor sensor dimensions	338 x 296 x 214 mm
Base unit weight	240 g
Sensor weight	580 g
Base unit power	5 VDC, 1 A mains adapter (included); backup batteries: 3 x LR03 (AAA)
Outdoor sensor power	2 x LR6 (AA) + built-in solar panel
Measurement ranges	Indoor temperature: -10 °C to 60 °C; outdoor: -40 °C to 60 °C; indoor/outdoor humidity: 10-99%; wind speed: 0-50 m/s; atmospheric pressure: 700-1100 hPa
Main functions	Indoor/outdoor temperature/humidity measurement, wind speed and direction, rainfall, atmospheric pressure, UV index, light intensity, moon phase, weather forecast, alarms, Wi-Fi connectivity
Wireless range	Up to 100 m in open field
Transmission frequency	868.3 MHz (sensor); Wi-Fi 2412-2472 MHz
Display	Adjustable backlight, trend indicators, weather forecast, moon phase
Care and cleaning	Clean with a soft cloth and mild detergent; never immerse; do not use solvents
Safety	Use indoors only for the station; outdoor sensor weather-resistant; do not open the housing; suitable for children aged 8 and above under supervision
Warranty	24 months for consumer products (Velleman conditions)

Frequently Asked Questions - WC224 Perel

Which batteries to use for the outdoor sensor?

Use alkaline or lithium batteries type AA/LR6. Rechargeable batteries are not recommended.

How to synchronize the sensor with the station?

Place the sensor near the station for 30 minutes. Spin the wind cups and pour water into the rain gauge to simulate conditions.

What to do if the station does not receive the sensor signal?

Check batteries, distance, and obstacles. Reset the sensor by pressing the reset button with a paperclip for 3 seconds, then remove batteries for 5 minutes.

How to set the time and date?

Press and hold the SET button for 2 seconds, then use WIND + and PRESSURE - to adjust. The order is: 12/24h, hour, minutes, date format, year, month, day.

How to display maximum and minimum values?

Press MAX/MIN to display maximums, press again for minimums. Press and hold to reset.

How to set weather alarms?

Press ALARM to display thresholds, then press and hold ALARM to enter setting mode. Use WIND + and PRESSURE - to change values.

Can the station operate without mains adapter?

Yes, with 3 AAA batteries as backup. However, the backlight only stays on when using mains power.

What is the measurement accuracy?

Temperature: ±1 °C. Humidity: ±5%. Wind speed: ±1 m/s (if <5 m/s) otherwise ±10%. Pressure: not specified.

How to clean the weather station?

Unplug the device, then clean the housing with a soft cloth and mild detergent. Do not immerse in water.

How to reset the station to factory settings?

Unplug the adapter and remove batteries. Reconnect mains, then press and hold WIND + and PRESSURE - simultaneously until reset.

USER MANUAL WC224 Perel

Weather station weather instrument with radar system and digital display (no readable text or symbols)

USER MANUAL 3

HANDLEIDING 15

MODE D'EMPLOI 28

MANUAL DEL USUARIO 41

Technical diagram of a mechanical device with numbered parts for identification

18 17 16 15 DST 5:88 5.17 TUE INDOOR 29.6 > 56% PRESSURE ABS hpa inhg mmhg 100.9.2 28.2 > 72% UVI LIGHT Klux 1 LOW 19.8.9 6 8 9 10 7 MAX/MIN DAAT RATE WIND GUST N 00 RAIN MM/HR 0.0

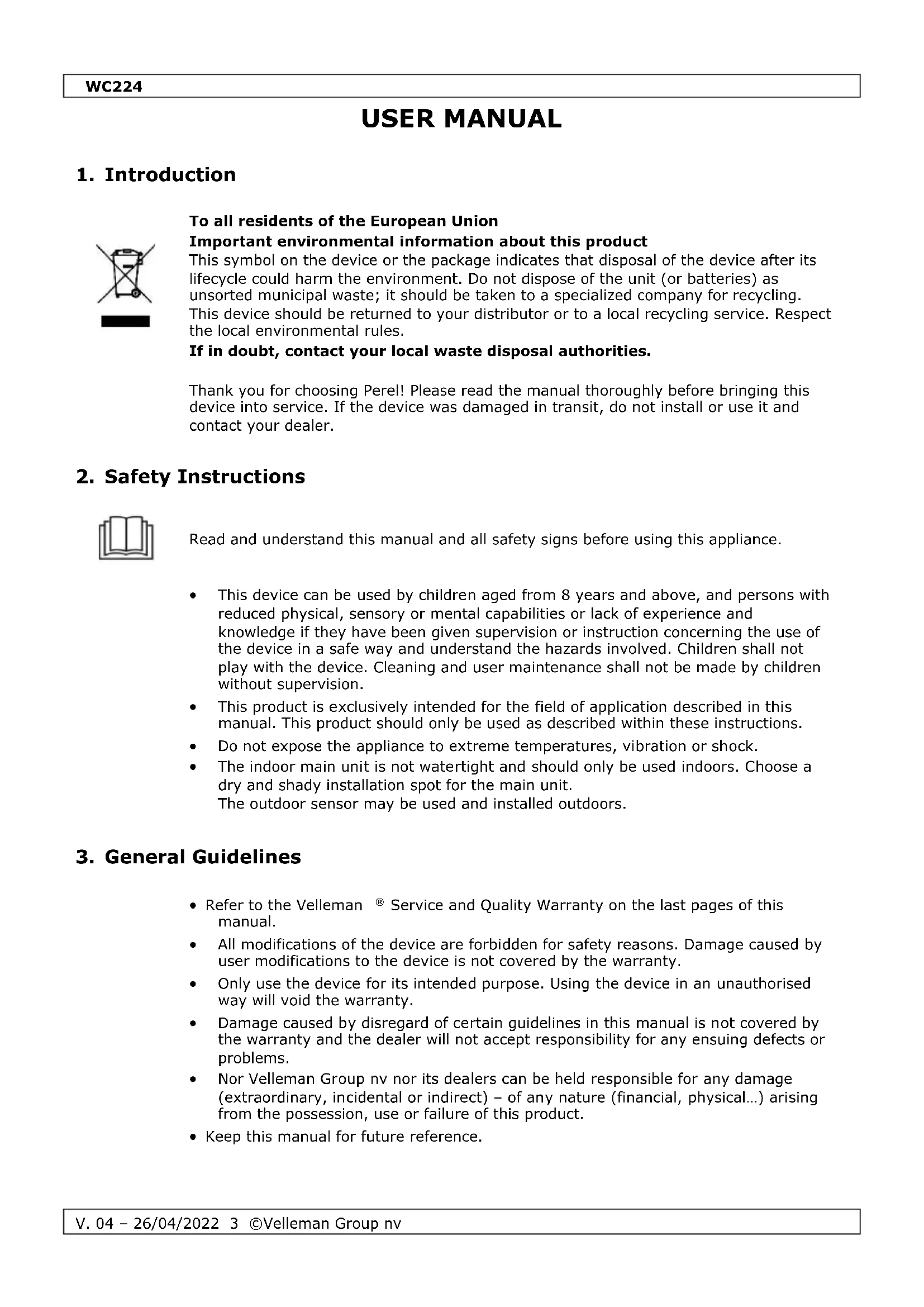

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read and understand this manual and all safety signs before using this appliance.

• This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• This product is exclusively intended for the field of application described in this manual. This product should only be used as described within these instructions.
• Do not expose the appliance to extreme temperatures, vibration or shock.
• The indoor main unit is not watertight and should only be used indoors. Choose a dry and shady installation spot for the main unit.
  The outdoor sensor may be used and installed outdoors.

3. General Guidelines

• Refer to the Velleman ^® Service and Quality Warranty on the last pages of this manual.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman Group nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Keep this manual for future reference.

4. Overview

Refer to the illustrations on page 2 of this manual.

Sensor

1	wind vane
2	wind speed sensor
3	UV sensor
4	thermo-hygro sensor
5	rain collector
6	bubble level

7	solar panel
8	U-bolt
9	battery compartment
10	reset button
11	LED indicator

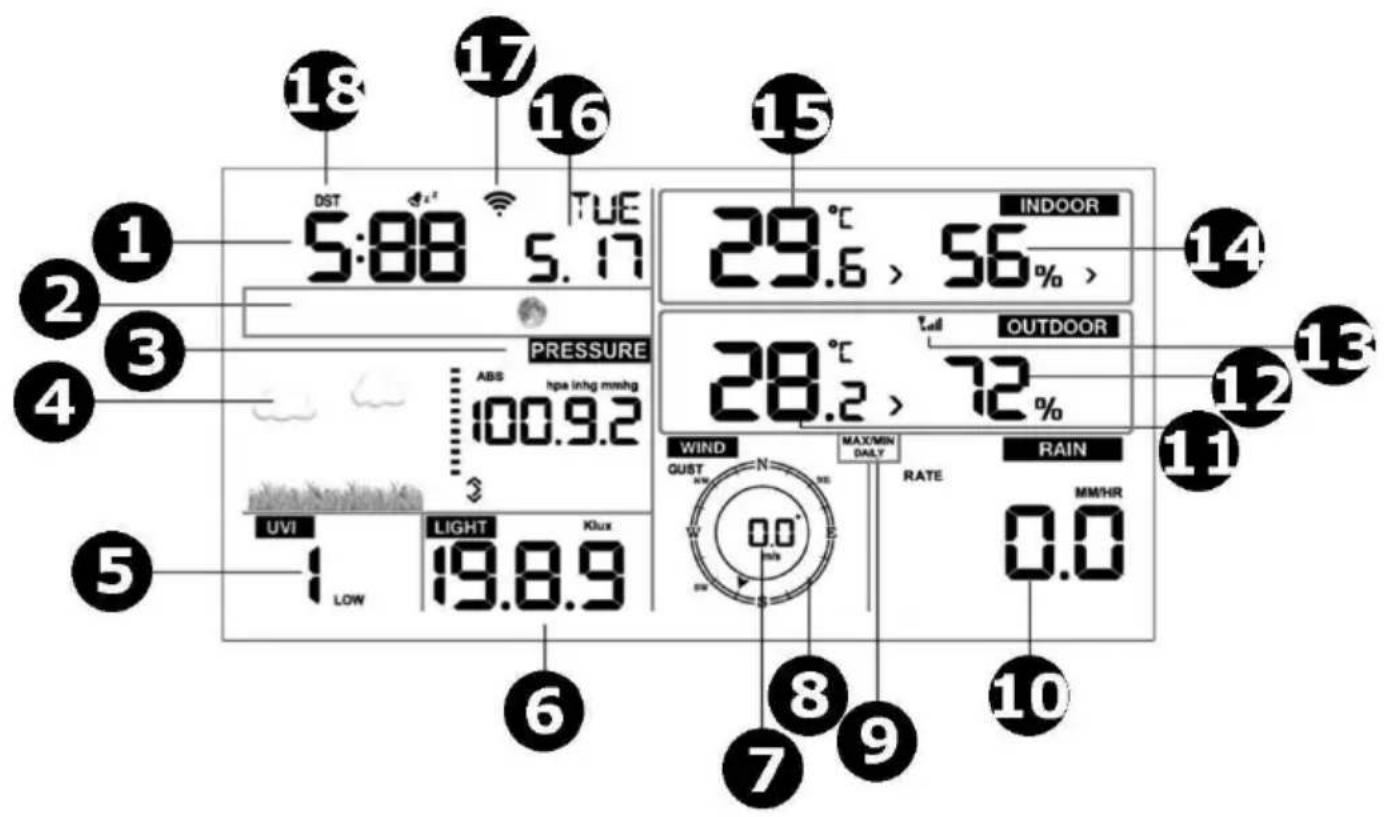

Display

1	time
2	moon phase
3	barometric pressure
4	weather forecast
5	UV index
6	light
7	wind speed
8	wind direction
9	max/min daily

10	rain fall
11	outdoor temperature
12	outdoor humidity
13	RF icon
14	indoor humidity
15	indoor temperature
16	date
17	wifi icon
18	DST

5. Installation

5.1 Sensor

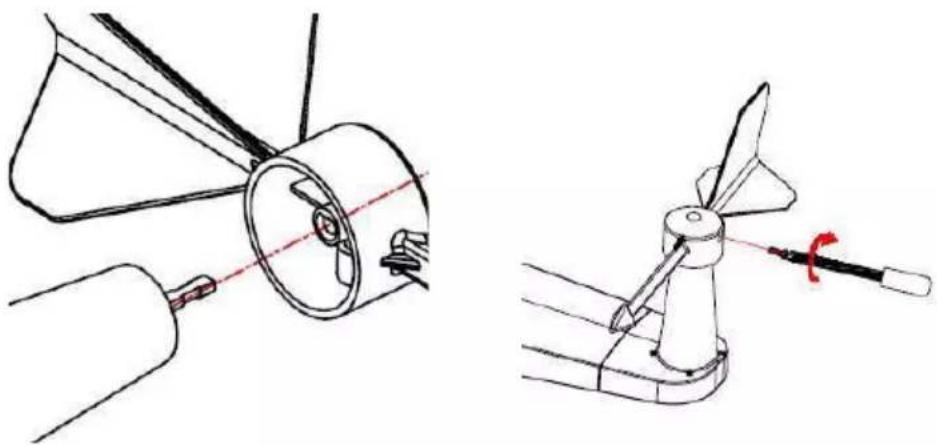

Assembling the Wind Vane and Anemometer

Slide the wind vane onto the shaft and tighten the screw, making sure the vane will spin freely.

Technical line drawing of a propeller and its fan assembly (no text or symbols)

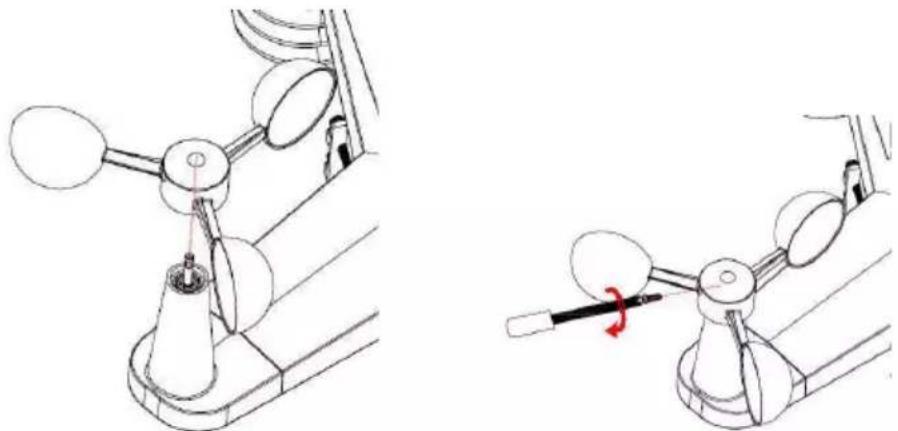

Do the same with the anemometer.

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Powering the Outdoor Sensor

The outdoor sensor requires two AA/R6 batteries. Open the battery compartment of the weather station. Insert the battery observing the correct polarity and re-insert the battery door.

We recommend using lithium or alkaline batteries. Rechargeable batteries are not recommended as they have lower voltages, do not operate well at wide temperature ranges and do not last long, resulting in poorer reception.

Synchronizing the Sensor and Weather Station

Before mounting the outdoor sensor, please refer to the chapter 5.2 Synchronizing the Sensor and Weather Station below.

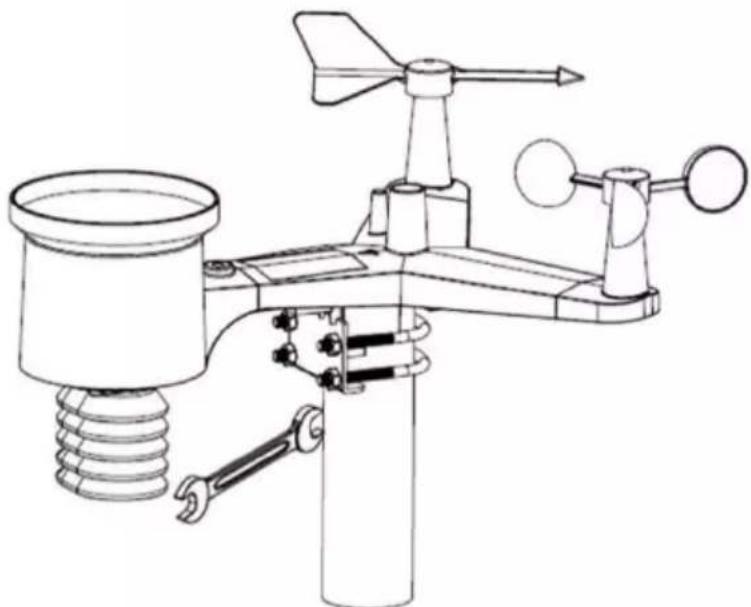

Mounting the Outdoor Sensor

The mounting assembly includes two U-bolts and a bracket that tightens around a 1 to 2" diameter pole (not included) using the four nuts.

Technical line drawing of a weathering instrument with a cylindrical tank, spring, and directional arrows (no text or labels)

Mount the sensor so that the wind directions (N, E, S and W) on the sensor are matching with the real cardinal directions. Permanent wind direction errors will occur when the sensor is not mounted correctly. Also, use the bubble level next to the rain sensor as a guide to verify that the sensor is level.

Resetting/Transmission LED

Reset the outdoor sensor in the unlikely event it is not transmitting.

1. With an open-ended paperclip, press and hold the reset button on the sensor for three seconds to completely discharge its circuit.
2. Remove the batteries from the batter compartment and cover the solar panel. Leave the sensor to rest for 5 minutes as this will drain the voltage.
3. Re-insert the batteries and re-synchronize with the console (see below).

5.2 Weather Station

Powering the Weather Station

The weather station requires three AAA/R03 batteries as back-up power in case of power interruption. Open the battery compartment of the weather station. Insert the batteries observing the correct polarity and re-insert the battery door.

Connect the weather station to the mains using the included power adapter or an exact equivalent.

Installing the Weather Station

Install the weather station indoors in a dry and shady spot, away from direct sunlight or rain.

5.3 Synchronizing the Sensor and Weather Station

Synchronizing the Sensor and Weather Station

Keep the outdoor sensor close to the weather station for 30 minutes. Spin the wind cups to simulate wind, and hold the rain collector under a dripping tap to simulate rain.

Once the weather station is receiving data, follow the mounting instructions for the outdoor sensor.

To Obtain the Best Wireless Communication

To ensure proper communication, mount the outdoor sensor in a vertical position.

Also, wireless communication is susceptible to interference, distance, walls and metal barriers. Mind following points:

• Electro-Magnetic Interference (EMI). Keep the weather station away from EMI, e.g. computer monitors and TV sets.
• Radio-Frequency Interference (RFI). Devices operating at a 433 MHz frequency will affect the wireless communication between the outdoor sensor and the weather station. You may need to relocate those devices to avoid interference.
• Line of Sight Rating. This weather station is rated at 100 m line of sight. However, you will typically get 30 m due to environmental barriers.
• Metal Barriers. Keep in mind that radio waves will not pass through metal barriers such as armoured concrete.

Following is a table of barrier vs. reception factor as a guide.

Barrier	Signal Reduction
glass	5-15 %
plastics	10-15 %
wood	10-40 %
brick	10-40 %
concrete	40-80 %
metal	90-100 %

6. Settings

6.1 Key Function

Key	Description
SET	Hold this key to enter the setting mode.
TEMP.	Press this key to view wind chill, heat index and dew point temperature.
RAIN	Press this key to view rain rate, event, rain day, rain week, rain month and rain total.Hold this key pressed for 2 seconds to reset the current displayed rain value.
WIND +	Press this key to view wind/gust and wind direction.
PRESSURE -	Press this key to view the absolute pressure average of 12 h, 24 h, 48 h and 72 h.Hold this key pressed for 2 seconds to view the absolute and relative pressure.
ALARM	Press this key to view the alarm value of temperature/humidity/rain rate/rain day/wind.
MAX/MIN	Press this key to view the max/min value of temperature/humidity/rain rate/rain day/wind/UVI/light/absolute pressure.
LIGHT/SNOOZE	Press this key to adjust the LCD brightness.Hold this key pressed to register a new transmitter.

Notes:

• Press WIND + and PRESSURE – simultaneously to reset the weather station and clear all records. All user settings will return to default.
• Press TEMP. to skip the RF signal reception.
• In setting mode, press WIND + or PRESSURE - to set the value.
• Press LIGHT/SNOOZE or wait 30 seconds to exit the setting mode.

6.2 Setting Mode

Hold SET pressed for 2 seconds to enter the setting mode. The basic settings can now be performed in following order.

Beep

Press WIND + or PRESSURE - to select on (beep at every key press) or off (beep off).

Max/Min Daily

H :Lo RST ON

Press SET again. Press WIND + or PRESSURE - to activate/deactivate the max/min daily function (default: on + clear at 00:00 every day).

Time/Date

5:08 5.17 TUE

Press SET again to set the time. Press WIND + or PRESSURE - to set the values. The setting sequence is:

12/24 h → hour → minute → DD-MM/MM-DD → year → month → day

Pressure

PRESSURE 25 ABS hpa -100.92 -1 -2 -3 -4 -5

- Absolute vs. Relative Pressure Hold PRESSURE – pressed to select the absolute or relative pressure.

- Pressure Graph Rate of Change This graphic is shown on the left of the barometric pressure and signifies the difference between the daily average pressure and the 30-day average in hPa.

- Pressure History Press PRESSURE – to select the 12 h/24 h/48 h/72 h pressure average.

- Relative Pressure Calibration Pressure conditions should be compared only at sea-level conditions. To determine the relative pressure for your location, locate an official reporting station near you (the internet is the best source for real-time barometer conditions, such as weather.com or wunderground.com), and set your weather station to match the official reporting station.

Light

LIGHT 102.8 Klux

Press SET again to select the light unit (lux, fc, w/m², default: w/m²).

Temperature

0C 0C

Press SET again to select the outdoor temperature unit (°C or °F, default: °C). In normal mode, press TEMP. to view wind chill, heat index and dew point temperature. Hold TEMP. pressed to register a new transmitter.

Note that an out-of-range temperature will be displayed as --.

Wind Speed

Press SET again to select the wind speed unit (km/h, mph, knots, m/s, bft, default: km/h). In normal mode, press WIND + to view the wind/gust and wind direction.

Rain

100% 100% 0.0

Press SET again to select the rainfall unit (in/mm, default: mm). In normal mode, press RAIN to view the rain rate, event, rain day, rain week, rain month and rain total. Hold RAIN pressed to reset the current displayed rain value.

Moon Phase

Press SET again to select the Northern or Southern hemisphere.

6.3 Alarm Mode

Alarm Value

1. Press ALARM to display the high alarm.

12:00 AM 28.0 78% 30.6 85% 5.0 5.8

1. Press ALARM again to display the low alarm.

MIN 18.2 °C 45% 99 7.3 13.8 °C 40%

Press RAIN to select the display rate or day rain alarm data.

Press WIND + to display the wind or gust alarm data.

Press ALARM or LIGHT/SNOOZE to return to normal mode.

Alarm Mode Setting

1. Hold ALARM pressed to enter the alarm setting mode.

2. Press WIND + or PRESSURE - to activate/deactivate the alerts and adjust the alert values.

3. Press SET to confirm and move to the next item.

4. Press ALARM to switch the alarm on or off.

When the alarm is triggered, the triggering source icon, the icon for the high value and the icon for the low value will be flashing.

1. Press ALARM or LIGHT/SNOOZE to return to normal mode.

Alarm Setting Sequence

time alarm → indoor high temperature → indoor low temperature → indoor high humidity → indoor low humidity → outdoor high temperature → outdoor low temperature → outdoor high humidity → outdoor low humidity → high wind → rain rate high → rain day high

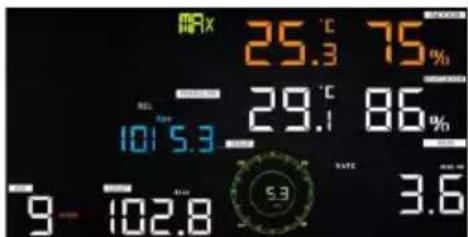

6.4 Max/Min Mode

1. Press MAX/MIN to display the maximum data.

MPX 25.3 75% 101 5.3 29.1 86% 9 - 102.8 3.6

Press TEMP. to view wind chill, heat index and dew point temperature.

Press RAIN to view rain rate, rain day, rain week and rain month maximum.

Press WIND + to view wind and gust maximum.

Hold PRESSURE – pressed to view the absolute and relative maximum pressure.

1. Press MAX/MIN again to display the minimum data.

MIN 18.2 °C 45% 99°7.3 13.8 °C 40%

Press TEMP. to view wind chill and dew point temperature.

Hold PRESSURE – pressed to view the absolute and relative minimum pressure.

Hold MAX/MIN pressed to reset all maximum or minimum values.

1. Press MAX/MIN or LIGHT/SNOOZE to return to normal mode.

6.5 Calibration

1. Hold TEMP. and MAX/MIN pressed to enter the calibration mode.

CAL 20.2

Press WIND + or PRESSURE - to set the values.

Press SET to confirm and move to the next item.

Press ALARM to reset any adjusted value.

1. Press LIGHT/SNOOZE to exit the calibration mode.

The setting sequence is:

indoor temperature offset → indoor humidity offset → outdoor temperature offset → outdoor humidity offset → absolute pressure offset → wind direction offset → wind speed factor → rain factor

6.6 Other Functions

Factory Reset/Memory Clearance

1. Remove the power by removing the batteries and disconnecting from the mains.
2. Re-apply the power by connecting the appliance to the mains.
3. Wait for the appliance to initialize.
4. Hold WIND + and PRESSURE - pressed simultaneously to reset the weather station and clear all records. All user settings will return to default.
5. Re-insert the batteries into the appliance.

Registering a New Transmitter

Hold LIGHT/SNOOZE pressed to register a new transmitter.

Backlight

The display will only be permanently backlit when the appliance is powered through the mains. Adjust the backlight intensity with LIGHT/SNOOZE.

When the appliance is powered through batteries, the display backlight will switch off after 15 seconds to reduce power consumption.

Tendency Arrows

These arrows allow you to quickly determine temperature or pressure tendency.

arrow		humidity	temperature	pressure
[5X6Y]	rising	>3%	≥ 1 ^/2 ^	>1 hPa
	steady	≤ 3 %	<1 ^/2 ^	≤ 1 hPa
	falling	>3%	≥ 1 ^/2 ^	>1 hPa

Wireless Signal Indicator

This indicator displays reception quality. If no signal is lost, the indicator will display 5 bars; if the signal is lost once, four bars will be displayed.

Weather Forecast

Weather forecast is indicated by weather symbols. Note that the appliance needs at least one month of atmospheric pressure registration to learn the barometric pressure over time.

Sunset over a grassy field with white flowers at the base against a black sky (no text or symbols)

sunny

Illustration of a sun partially behind clouds and grass at night (no text or symbols)

partly cloudy

Simple illustration of two white clouds above a green grassy field under a black sky (no text or symbols)

cloudy

Illustration of two clouds with raindrops falling over grass under a black sky (no text or symbols)

rainy

Illustration of a black sky with white clouds, green grass at the base, and scattered white flowers (no text or symbols)

snowy

Green grass field with small white flowers on the ground against a black background (no text or symbols)

rainstorm

Illustration of two clouds with raindrops falling on grass under a black sky (no text or symbols)

snowstorm

Note that weather forecasts are just predictions and that errors in predictions are normal.

Snooze

When time alarm has been triggered, the alarm will sound and the alarm icon will flash for 120 seconds. Press LIGHT/SNOOZE to silence the alarm for 10 minutes. The alarm will sound again when that time is up. Press any key except LIGHT/SNOOZE to stop the alarm.

7. Internet Connection

Please visit the product page on www.velleman.eu and refer to the online manual.

8. Care and Maintenance

Cleaning

• Before starting any cleaning or maintenance activities, unplug the appliance from its power source.
• Wipe all exterior surfaces of the appliance clean with a soft cloth dampened with a soap and water solution. Do not immerse or submerge any part of the appliance in water or any other liquid. Never use solvents or cleaning agents containing petroleum (petrol, kerosene, oil), paint thinner, turpentine, alcohol, or ammonia.

Maintenance

- This appliance does not need any maintenance. Do not open exterior casing of the appliance. There are no user-serviceable parts inside. Opening or visible attempts to open or repair the appliance may void any guarantee and/or cause damage to the product or personal injury.

Storage

- Store the appliance and its accessories in its original package in a clean and dry area.

9. Technical Specifications

temperature

indoor range....-10 °C to 60 °C

outdoor range....-40 °C to 60 °C

indoor accuracy ....

outdoor accuracy +/- 1 °C

humidity

indoor range....10-99 %

outdoor range....10-99 %

indoor accuracy ....+/- 5 %

outdoor accuracy ....+/- 5 %

wind

speed range 0-50 m/s

speed accuracy ....+/- 1 m/s (v < 5 m/s), +/- 10 % (v > 5 m/s)

air pressure range 700-1100 hPa

measuring interval

indoor....60 s

outdoor....16 s

transmission distance.... ± 100 (open area)

dimensions

main unit 188 x 118 x 21 mm

sensor 338 x 296 x 214 mm

weight

main unit 240 g

sensor 580 g

power supply main unit

power adapter (incl.) 5 VDC, 1 A

battery (not incl.)....3 x LR03

power supply sensor

battery (not incl.) 2 x LR6

built-in solar panel

frequency

weather station 868.3 MHz

wifi....2412-2472 MHz

FM radio....-

DCF....

max. RF power transmission.... < 20 mW

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

RED Declaration of Conformity

Hereby, Velleman Group nv declares that the radio equipment type WC224 is in compliance with Directive 2014/53/EU.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Technical line drawing of a propeller and its fan assembly (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Technical line drawing of a weathering instrument with a cylindrical component and directional arrows (no text or labels)

H:Lo RST ON

12:00 R.M HI 28.0 78% 30.0 85% 5.0 5.8

Night sky with a bright orange sun and grass at the base (no text or symbols)

zonnig

Illustration of a sun and clouds over green grass under a black sky (no text or symbols)

licht bewolkt

Simple illustration of white clouds above a grassy field with small white flowers, set against a black background (no text or symbols)

bewolkt

Illustration of two clouds with raindrops falling over grass under a black sky (no text or symbols)

regenachtig

Night sky with white clouds and scattered stars, green grass at base (no text or symbols)

sneeuw

Green grass field with two small white flowers on the ground against a black background (no text or symbols)

Illustration of two clouds with raindrops falling and green grass at the base (no text or symbols)

zware regenval

Green grassy field with two small white flowers on the ground against a black background (no text or symbols)

Black-and-white illustration of two clouds above a grassy field with scattered white flowers and stars (no text or symbols)

sneeuwstorm

Technical line drawing of a propeller and its fan assembly (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Technical line drawing of a weathering instrument with a cylindrical component and directional arrows (no text or labels)

STH O ( )

Night sky with a glowing orange sun and grass at the base (no text or symbols)

ensoleillé

Illustration of a sun and clouds over green grass under a black sky (no text or symbols)

Simple illustration of two white clouds above a green grassy field under a black sky (no text or symbols)

nuageux

Illustration of two clouds with raindrops falling over grass under a black sky (no text or symbols)

pluvieux

Black-and-white illustration of a night sky with clouds, green grass, and scattered white flowers (no text or symbols)

neige

Green grass field with white flowers on black background (no text or symbols)

pluie orageuse

Illustration of two clouds with raindrops falling over green grass under a black sky (no text or symbols)

Green grass field with two small white flowers on the ground against a black background (no text or symbols)

tempête de neige

Black background with white clouds and green grass at the bottom, no text or symbols present

Technical line drawing of a propeller and its fan assembly (no text or symbols)

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Alimentar el sensor exterior

Technical line drawing of a weathering instrument with a cylindrical tank, spring, and directional indicators (no text or labels)

12/24 h → hour → minute → DD-MM/MM-DD → year → month → day

Presión atmosférica

Digital pressure reading showing 100.92 hpa with vertical scale from -5 to 28 and 'PRESSURE' label above

STH O ( )

Night sky with a glowing orange sun and grass at the base (no text or symbols)

soleado

Illustration of a sun partially behind clouds and grass at night (no text or symbols)

Simple illustration of two white clouds above a green grassy field under a black sky (no text or symbols)

nublado

Illustration of two white clouds with raindrops falling against a black background, next to a grassy field (no text or symbols)

Iluvioso

Night sky with white clouds and green grass at the base, no text or symbols present

nieve

Green grass field with two small white flowers on the ground against a black background (no text or symbols)

Illustration of two clouds with raindrops falling on grass under a black sky (no text or symbols)

tormenta con lluvia

Green grass field with two small white flowers on the ground against a black background (no text or symbols)

Night sky with white clouds and green grass at the base, no text or symbols present

tormenta con nieve

Technical line drawing of a propeller and its base propeller assembly (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Technical line drawing of a weathering instrument with a cylindrical tank, spring, and directional arrows (no text or labels)

H :Lo RST ON

12:00 R.M 28.0 78% 30.0 85% 5.0 5.8

MAX 25.3 75% REL 101.5.3 29.1 86% 5.3 9 102.8 3.6

MIN 18.2 °C 45% 99°7.3 13.8 °C 40%

Sunset over a grassy field with white flowers at the base against a black background (no text or symbols)

sonnig

Illustration of a sun and clouds over a grassy field with white flowers, against a black sky (no text or symbols)

teilweise bewölkt

Simple illustration of two white clouds above a green grassy field under a black sky (no text or symbols)

bewölkt

Illustration of two clouds with raindrops falling on grass under a black sky (no text or symbols)

regnerisch

Night sky with white clouds and scattered stars, green grass at base (no text or symbols)

verschneit

Grassy grass at the base with two small white flowers on the ground against a black background (no text or symbols)

Illustration of two white clouds with raindrops falling over green grass under a black sky (no text or symbols)

stürmisch (Regen)

stürmisch (Schnee)

Wetterstation....868.3 MHz

WiFi....2412-2472 MHz

UKW-Radio....

DCF....

Technical line drawing of a propeller and its fan assembly (no text or symbols)

Technical line drawings of mechanical components with no visible text or symbols

Technical line drawing of a weathering instrument with a cylindrical component and directional arrows (no text or labels)

100% 100%

12:00 A.M HI 28.0 78% 30.0° 85% 5.8

MAX 25.3 75% 29.1 86% 5.3 3.6 9 102.8

Night sky with a full moon and grass at the base (no text or symbols)

słonecznie

Illustration of a sun and clouds against a black sky with grass at the base (no text or symbols)

częściowo pochmurno

Simple illustration of two white clouds above a grassy field with small white flowers, set against a black background (no text or symbols)

pochmurno

Illustration of two white clouds with raindrops falling and scattered blue dots, set against a black background with green grass at the base (no text or symbols)

deszczowo

Illustration of a black sky with white clouds and scattered stars, no text or symbols present

śnieżnie

Green grass field with two small white flowers in the foreground against a black background (no text or symbols)

ulewa

Illustration of two clouds with raindrops falling and green grass at the base (no text or symbols)

Green grass field with two small white flowers in the foreground against a black background (no text or symbols)

śnieżyca

Night sky with white clouds and green grass, no text or symbols present

Technical line drawing of a propeller and its fan assembly (no text or symbols)

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Ligar o Sensor Exterior

Technical line drawing of a weathering instrument with a cylindrical tank, spring, and directional indicators (no text or labels)

12:00 R.M HI 28.0 78% 30.0 85% 5.0 5.8

Indicador do Sinal Sem Fios (wireless)

Night sky with a bright orange sun and grass at the base (no text or symbols)

sol

Illustration of a sun and clouds over green grass under a black sky (no text or symbols)

Simple illustration of white clouds and green grass on black background (no text or symbols)

nublado

Illustration of two clouds with raindrops falling on grass under a black sky (no text or symbols)

chuvoso

Night sky with white clouds, green grass, and falling snowflakes (no text or symbols)

neve

Green grass field with two small white flowers on the ground against a black background (no text or symbols)

Illustration of two clouds with raindrops falling and green grass at the base (no text or symbols)

tempestade de chuva

Green grassy field with two small white flowers on the ground against a black background (no text or symbols)

Black-and-white illustration of two clouds above a grassy field with scattered white flowers and stars (no text or symbols)

tempestade de neve

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

- All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

- Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

• Not covered by warranty:

- all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

- consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

- flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

- flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

- damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

- damage resulting from an inappropriate packing and shipping of the article;

- all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

- Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

- Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

- The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
