USER MANUAL LX792 LANDXCAPE

Original instructions EN

1.1 General & Additional Safety Instruction

WARNING: Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in

electric shock, fire and/or serious injury.

Carefully read the instructions for the safe operation of the machine.

Save all warnings and instructions for future reference.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

SAFE OPERATION PRACTICES

Training

a) Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance;
b) Never allow people unfamiliar with these instructions or children to use the appliance. Local regulations can restrict the age of the operator;
c) The operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

a) Ensure the correct installation of the boundary wire as instructed.
b) Periodically inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
c) Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
d) On multi-spindle appliances, take care as rotating one blade can cause other blades to rotate.
e) WARNING! The lawnmower shall not be operated without the guard in place.

OPERATION

1. GENERAL

a) Never operate the appliance with defective guards, or without safety devices, for example deflectors, in place.
b) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.
c) Never pick up or carry an appliance while the motor is running.
d) Operate the disabling device from the appliance.

• Before clearing a blockage;
• Before checking, cleaning or working on the appliance.
  e) It is not permitted to modify the original design of robotic lawnmower. All modifications are made at your own risk.
  f) Start robotic lawnmower according to the instructions. When the

power key is switched on, make sure you keep your hands and feet away from the rotating blades. Never put your hands and feet under the mower.

g) Never lift up robotic lawnmower or carry it when the power key is switched on.
h) Do not let persons who do not know how robotic lawnmower works and behaves use the mower.
i) Do not put anything on top of robotic lawnmower or its charging station.
j) Do not allow robotic lawnmower to be used with a defective blade disc or body. Neither should it be used with defective blades, screws, nuts or cables.
k) Always switch off robotic lawnmower when you do not intend to use the mower. Robotic lawnmower can only start when the power key is switched on and the correct PIN code has been entered.
I) Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when robotic lawnmower is in operation.
m) To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
n) Not to touch moving hazardous parts before these have come to a complete stop.
o) For machines used in public areas, that warning signs shall be placed around the working area of the machine. They shall show the substance of the following text:

WARNING! Automatic lawnmower! Keep away from the machine! Supervise children!

2. ADDitionally WHEN THE APPLIANCE IS OPERATING AUTOMATICALLY

a) Do not leave the machine to operate unattended if you know that there are pets, children or people in the vicinity.

MAINTENANCE AND STORAGE

When the mower is turned upside down the power key must always be switched off.

The power key should be switched off during all work on the mower's underframe, such as cleaning or replacing the blades.

a) Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Inspect the robotic lawnmower each week and replace worn or damaged parts for safety.
c) Check especially that the blades and blade disc are not damaged. Replace all blades and screws at the same time if necessary so that the rotating parts are balanced.
d) Ensure that only replacement cutting means of the right type are used.
e) Ensure that batteries are charged using the correct charger recommended by the manufacturer. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
f) In the event of leakage of electrolyte flush with water/neutralizing agent, seek medical help if it comes into contact with the eyes etc.
g) Servicing of the appliance should be according to manufacturers' instructions.

Recommendation

To connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30mA .

Residual risks

To avoid injuries, wear protective gloves when replacing the blades.

Transport

The original packaging should be used when transporting robotic lawnmower over long distances.

To safely move from or within the working area:
a) Press the STOP button to stop the mower.

You select the four digit PIN code when you start the mower for the first time.

b) Always switch off robotic lawnmower if you intend to carry the mower.
c) Carry the mower by the handle at the front under the mower. Carry the mower with the blade disc away from the body.

SafetyWarnings for battery pack inside the tool

a) Do not dismantle, open or shred battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Battery pack gives its best performance when it is operated at normal room temperature [20^ ± 5^] .
D When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
Recharge only with the charger specified by Landxcape TM. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
k) Do not use any battery pack which is not designed for use with the equipment.
D Keep battery pack out of the reach of children.
m) Retain the original product literature for future reference.
n) Dispose of properly.

2. Information on the Landxcape™

WARNING - Robotic lawnmower can be dangerous if incorrectly used.

Read through the Operator's manual carefully and understand the content before using your robotic lawn mower.

WARNING - Keep a safe distance from the machine when operating.

WARNING - Operate the disabling device before working on or lifting the machine.

WARNING - Do not ride on the machine.

Do not burn

Do not expose to rain or water.

Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point.

Do not wash the machine with a high pressure washer

Class III appliance

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

2. Component List

1. STOP BUTTON
2. CUTTING HEIGHT ADJUSTMENT KNOB
3. ON/OFF KEY
4. START KEY
   5.HOMEBUTTON
5. DISPLAY
6. CHARGING STRIPS
7. RAIN SENSOR
8. FRONT WHEEL
9. BLADE TURNING DISC
10. CUTTING BLADE
11. BATTERY PACK
12. USB PORT
13. REAR DRIVING WHEEL
14. HANDLE
15. CONTACT PINS
16. CHARGING BASE
17. POWER ADAPTER
    19.WIRE PEGS
18. BOUNDARY WIRE
19. CHARGING BASE FIXING NAILS
20. BOUNDARY WIRE DISTANCE GAUGE
21. HEX KEY
22. CONNECTOR

Not all the accessories illustrated or described are included in standard delivery.

3. Technical data and noise data 3.1 Technical data

Type LX790 LX791 LX792 LX793 LX794 LX795 (790-799 - designation of machinery, representative of Robotic Lawn mower)

	LK790 LX792 LX791 LX793 LX794 LX795
Rated voltage 20V	--- Max.*
No load speed 2800/min
Cutting area 600m	2	900m²	700m²
Cutting diameter 16cm	18cm 18cm
Cutting height 30-60mm
Cutting height positions	4
Battery type Lithium-ion
Battery model LA0001	LA0002 LA0001
Charging time approx.	1.3hrs	2hrs	1.3hrs
Charger model	LA8001 / LA8002
Charger rating	Input: 100-240V~50/60Hz, 38W, Output: 20V --- , 1.5A
Machinery weight	8.4kg
Protection degree	III

*Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.

Accessories

	U790 U792 U791 U793	U794 U795
Screw	9	9
Charging base	1	1
Charging base fixing nails	7	7
Boundary wire	150m	180m
Wire pegs	210	250
Hex key	1	1
Boundary wire distance gauge	2	2
Blade	9	9
Connector	2	2
Battery pack (LA0001/ LA0002)	1	1
Charger (LA8001 / LA8002)	1	1

We recommend that you purchase genuine accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

3.2 Noise data

A weighted sound pressure	LpA= 44.2dB (A), KpA= 0.4dB(A)
A weighted sound power	LwA= 64.2dB (A) KwA= 0.4dB(A)
Wear ear protection when sound pressure is over	80dB(A)

A degree of noise from the machine is not avoidable. Route noisy work is to be licensed and limits for certain periods. Keep rest periods and they may need to restrict the working hours to a minimum. For their personal protection and protection of people working nearby, an appropriate hearing protection shall be worn.

Intended Use

The garden product is intended for domestic lawn mowing. It is designed to mow often, maintaining a healthier and better looking lawn than ever before. Depending on the size of your lawn, your LandxcapeTM may be programmed to operate at any time or frequency. It is impossible for digging, sweeping or snow cleaning.

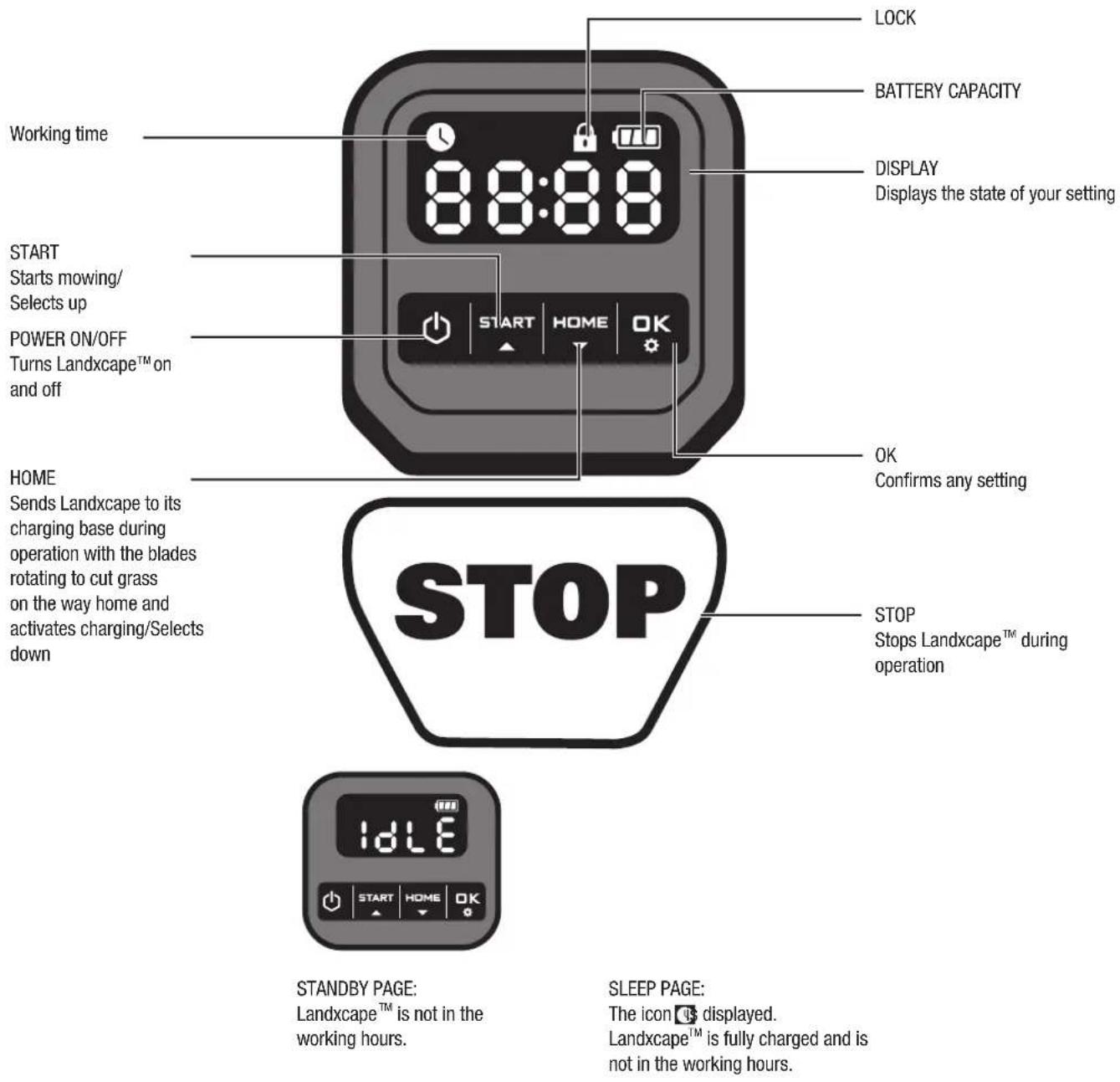

4. Control panel

Start

1) After the boundary wire installation, you can start using Landxcape ^TM (Please refer to Installation Guide for boundary wire installation).
2) Press until LandscapeTM turns on. For the first use, input the default PIN code 0000 by pressing four times when the number 0 is blinking. (The PIN code can be changed, please refer to "Setting" in the Installation Guide). NOTE: LandscapeTM will turn off if it does not receive any input within 30 seconds after it is turned on. If you enter wrong PIN code three times, LandscapeTM will raise the alarm "di-di" and then turn off.
3) Press START, then press start mowing.
4) Press then make Landxcape TM go to the charging base, with the blades rotating to cut grass on the way home. LandxcapeTM will work continuously until reaching low battery power level and then it will return to the charging base. Once charging is complete, LandxcapeTM will automatically resume mowing or it stay in the charging base according to the mowing schedule.

NOTE: When Landscape™ turns on, all lights on the display will be illuminated and then turn off. Check if there is any light damaged. It is recommended to shield the display with your hand when the outdoor light gets too strong.

5. Understanding Your Landscape™

Congratulations on your new purchase of LandxcapeTM and welcome to the care-free life of automatic mowing. In the following, we want to help you to better understand how your LandxcapeTM thinks.

5.1 How does my LandxcapeTM know what to mow?

LandxcapeTM chooses its direction at random. It will make sure your entire lawn is evenly mowed without leaving unattractive mowing paths (See Fig. A).

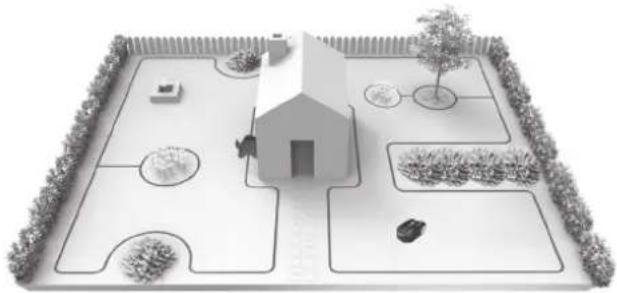

5.2 How does my Landxcape™ know where to go?

Your LandxcapeTM is made to work on its own. LandxcapeTM knows when it needs to go to its charging base to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, draw back, and turn around when it bumps into something blocking its path. LandxcapeTM will also automatically stop its blade turning disc from rotating if it is lifted off the ground to prevent an accident.

A. Finding the Charging Base

When your LandxcapeTM needs to recharge, it will stop mowing and follow the boundary wire in an anti-clockwise direction back to its charging base. LandxcapeTM is pre-programmed to mow the grass near the boundary wire twice a week. By default, LandxcapeTM will mow near the boundary wire every Monday and Friday after it is powered on.

B. Rain sensors

LandxcapeTM is equipped with a rain sensor which detects rain and tells LandxcapeTM to stop mowing and follow the boundary wire back to its charging base (See Fig. B).

LandscapeTM will resume mowing after passing the delay time. The default delay time is 180mins.

When the rain sensors are wet, LandxcapeTM returns to its charging base. When the rain sensors are dry, LandxcapeTM will begin the delay time countdown. If you want to exit from the rain delay, dry the sensor area, and perform a power cycle by operating the on/off key. After the power cycle has been performed, you can operate again.

C. Sensing the boundary wire

LandxcapeTM always obeys the border set by the boundary wire and uses sensors at its front to detect it. (See Fig. C)

D. Starting and stopping while mowing (See Fig. D, E1, E2)

To start mowing, press the on/off key and input the PIN code. Press

, then press you would like LandxcapeTM to stop mowing, simply press the STOP button on top of the mower.

If Landxcape™ senses something is wrong, it will display a fault message on the display. For information on these messages, refer to the Error Messages. Landxcape™ will turn off if it does not receive any input from the user within 20 minutes.

To resume:

Press start, then press
- Now Landxcape™ will begin to mow!

5.3 Setting

First please set the height to a desired grass level after cut and you can do the program setting manually.

NOTE: When doing the program setting manually, LandxcapeTM will enter the standby page if it does not receive any input from the user within 30 seconds.

(1) Change PIN code

To change the PIN code, keep pressing both and clicks at the same time for 5 seconds. The icon will be blinking, and "P will! be rolling flashing. After that, the first number will be blinking, use or to select the number you want and press confirm. The next number will be blinking. Use the same method to complete other numbers. For example, the new PIN code is set to be 0326. After that, P in2" will be rolling flashing and the first number will be blinking again. Use the same method to input the new PIN code you set just now (in this example, 0326). Then "P will bing flashing on the display. Your PIN code has been changed successfully.

Only for reference

[2] Set year, date and time

Set year, date and time are compulsory setting items. If you don't set these items, it will influence the schedule time in the following setting. These items should be set in the order of year, date and time. For the year setting, keep pressing for 3 seconds until the icon and a number are blinking on the display, for example. Use to act the year you want. Then press to confirm to finish the year setting.

Only for reference

Meanwhile, the icon will be flashing again and a number will be displayed to indicate the date, for example, 09.29, meaning September 29. When 09 is flashing, use to object the number and press OK to confirm. Then will be flashing. Use the same method to select the number and press OK to confirm to finish the date setting.

Only for reference

Meanwhile, the icon will be flashing and the time will be displayed, for example, 14:08. When blinking, use to select the number and press to confirm. Then will be blinking, use the same method to select the number and press to confirm. Now the time setting is completed and LandscapeTM will enter the standby page.

Only for reference

Standby page

(3) Set work area

Keep pressing for 3 seconds. When the icon blinking, press A number will be blinking on the display, for example, which is the lawn area. The working time will be automatically set according to the size of your garden. Use or set the lawn area, and press OK to confirm. Then LandscrapeTM will enter the standby page. NOTE: When the number displayed is less than 200, the area will be adjusted in increments / decrements of 50m^2 each time the pressed. If the number displayed reaches 200 or bigger, the area will be adjusted in increments / decrements of 100m^2 each time the is pressed.

Only for reference

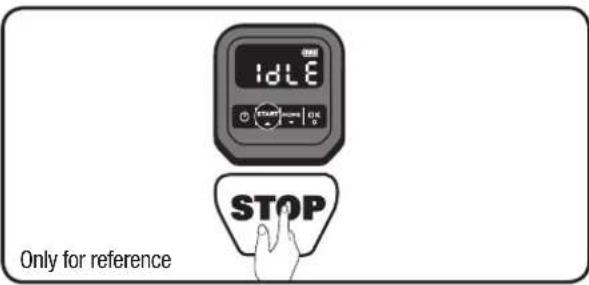

[4] Change default start time

The default start time of 9:00 can be changed to anytime by keep pressing

both and at the same time until a ding sound is heard. For example, keep pressing both and at 14:05, and your LandscapeTM will start mowing from 14:05.

5.4 How efficiently will my Landxcape™ mow the grass?

Mowing times are different for every lawn depending on the factors mentioned below. Gradually adjust the time you allow Landscrape™ to mow each day until you find the most suitable setting.

Your LandxcapeTM is capable of mowing areas of different sizes, although this depends on various factors, such as:

Species of grass in your lawn and its growth rate
- Sharpness of the cutting blades
Humidity
- Surrounding temperature
Amount of obstacles in your Lawn

Unlike most other mowers, LandxcapeTM uses a side charging system, which is able to cut the surrounding grass as much as possible. The holes on the bottom of the charging base allow the grass to grow through the base to help disguise it and create an elegant appearance.

LandscapeTM's cutting height can be adjusted between 3cm-6cm. Before starting your LandscapeTM for the first time, you should cut the grass to the height no more than 9 cm with your manual lawnmower. Then, set the cutting height of your LandscapeTM to its maximum setting (6cm) for its first time mowing. (See Fig. F)

Your LandxcapeTM will cut best in dry weather. Wet grass can build up on the blade turning disc and within the motor, and can also cause loose traction and slippage while working. Your LandxcapeTM is afraid of lightning storms. In case of a lightning storm, protect LandxcapeTM by unplugging the charging base, disconnecting the boundary wire, and making sure LandxcapeTM is not allowed to charge. Your LandxcapeTM loves mowing grass and requires the cutting blades to be kept in good condition to cut at its best. LandxcapeTM can do most things by itself, but will sometimes need your help to prevent damage to itself.

• Never let Landxcape ^TM travel over gravel.
• Remove or prevent access to obstacles that Landxcape™ could accidentally climb on and damage its blade turning disc.
• Remove all debris and foreign objects from your lawn.

6. Boundary Wire Basics

6.1. Pegging the Boundary Wire

Use the boundary wire distance gauge to set the correct distance between the wire and the border of your lawn (more than 26cm). This

is the recommended distance. The provided distance gauge ensures proper installation.

If your neighbor also uses a Landxcape™, keep a spacing of at least 1 metre between your boundary wire and your neighbor's.

The boundary wire must outline the intended mowing area exactly. Your LandscrapeTM will become confused by extra bends or coils of boundary wire that are not part of its mowing area (See Fig. G). If there is excess boundary wire after the mowing area has been outlined, cut it off and store this additional wire in a separate location. It is important to leave the necessary length where it connects to the charging base so it can be connected and still remain buried.

6.2 Burying the Boundary Wire

If you are planning to bury the boundary wire, it is recommended to first peg it down. This allows you to easily change the layout if necessary before burying the wire. When the boundary wire installation is complete, have LandxcapeTM follow and check the path by pressing . T allows your LandxcapeTM to adjust to its new environment.

While observing LandxcapeTM you can easily make alterations to the boundary wire to ensure LandxcapeTM's trouble-free tracking when locating the charging station. Confirm that LandxcapeTM docks in the charging station successfully, and bury the wire if desired.

6.3 Joining the boundary wire

If you want to extend and splice the boundary wire, use a connector. The connector is waterproof and provides optimal connection. Insert both wire ends in any two of the three holes of the connector. Insert the wires fully until both wire ends are visible on the other side of the connector. (See Fig. H) Press the connector together by using a pair of pliers. (See Fig. I, J)

WARNING! It is not recommended to simply splice the boundary wire with insulating tape or use a screw terminal block for connection. A broken circuit may occur after a period of time as soil moisture can oxidize the wire.

7. Software update

The software can be updated when new versions become available. The latest software can be downloaded from our website www.landscape-robotics.com.

Update via USB. See below for download and installation instructions:

(1) Locate the latest software version at: www.lanxcape-robotics. com. Save the file to an empty FAT32 formatted USB (flash drive). Delete any other files on the drive and check the format. If the drive is not formatted in FAT32, please reformat the drive.

NOTE: the software update is downloaded as a zipped file. You will need to unzip or extract it before proceeding.

(2) Place LandxcapeTM on a secure and level surface. Press turn off your LandxcapeTM.
(3) Insert the USB drive (flash drive) in the port. (See Fig. K1)
(4) Turn Landscrape™ on. The update will begin automatically. Wait until the display shows "US b" (See Fig. K2), then remove the USB drive (flash drive) and tightly close the protective cover. When the display shows "0 - - - ", the update is complete and Landscrape™ will enter the PIN page.

The manual included with your LandscapeTM is based on the default software at the time of production. Some new features/functions in the new version may not exist in the manual. If you found some settings not

in the manual, please visit www.landcape-robotics.com to download the latest manual.

8. Maintenance

Your Landxcape™ works hard and needs to be cleaned and checked from time to time. Some parts will require replacement as they become worn. Never use your Landxcape™ with defective main switch.

Switch off the machine before carrying out any service or maintenance. Here's how to take care of your LandscapeTM.

8.1 Keep it sharp

WARNING: Before cleaning, adjusting, or replacing the blades, turn your Landscape™ OFF and put on protective gloves.

WARNING: When fitting new blades, make sure you replace ALL the blades. Always use new screws when fitting blades. This is important to ensure blade retention and balance the blade turning disc. Failure to use new screws could cause serious injury.

LandxcapeTM does not cut grass like other mowers. Its cutting blades are razor sharp on 2 edges and rotate in both directions for maximum cutting capacity (See Fig. L). Each blade of your LandxcapeTM has 2 cutting edges. The blade turning disc will make forward and reverse rotation at random to use both cutting edges and minimize the frequency of replacing the blades. Each cutting blade will last up to 2 months when it is programmed to mow everyday. Always check to see if the blades are chipped or damaged and replace them if they are. When the cutting blades are dull and worn out, they should be replaced with the spare blades provided with your LandxcapeTM. Spare blades are also available at your nearest LandxcapeTM retailer.

A. Replace the Blades

After some time, usually every season, your Landscape™s Blades will need to be replaced. When replacing the blades, make sure to replace ALL of them at the same time. You can replace them with one of the spare blade kits and extra blade screws supplied with your Landscape™.

Before attempting to replace your LandxcapeTM's blades, turn the power off and put on protective gloves and follow these steps:

1. Gently flip Landxcape TM over.
2. Remove the battery cover and remove the battery.
3. Take the screws off the blades with a screwdriver. (See Fig. M)
4. Firmly screw on the new blades.
5. Refit the battery and the battery cover.

IMPORTANT: After screwing the blade to the blade disc, make sure the blade is able to spin freely.

6.2 Keep it clean

WARNING: Before cleaning, turn your Landscape™ OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water.

A. Cleaning the body

Your Landscape™ will live a much happier and longer life if it is cleaned regularly. Although, since your Landscape™ is an electric machine, you will need to take care when cleaning. DO NOT use a hose, high pressure washers and do not pour running water on your Landscape™. It is best to use a spray bottle filled with water. When cleaning the machine body, use a soft brush or clean cloth and avoid using solvents or polishes (See Fig. N). Lastly, remove all build

up of grass clippings and debris.

B. Cleaning the Underside

Again, it is important that you power Landxcape™ OFF and wear protective gloves before touching the blade turning disc.

First, flip your Landxcape™ upside down to expose its underside. Here you will see the blade disc, the chassis, and the front wheel and driving wheels. Clean everything thoroughly with a soft brush or moist rag.

WARNING:NEVER clean the underside of LandxcapeTM with running water. Component damage can occur. (See Fig. 01

Rotate the blade disc to ensure it rotates freely. Check the blades spin freely around the fixing screws. Remove any obstructions.

IMPORTANT: Remove any lodged debris so that it does not cause a crack in the blade disc. Even the tiniest crack can decrease your Landscape™s mowing output.

C. Clean the contact pins and the charging strips

Clean the contact pins located on the charging base and the charging strips located on LandxcapeTM using a cloth. Remove any built up grass clippings or debris around the contact pins and charge strips periodically to ensure LandxcapeTM successfully charges each time.

8.3 Battery life

The heart of Landxcape™ is its 20V Li-ion battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place.

NOTE: The recommended Landscape™ operation temperature is between 0-55°C.

The life-span of LandxcapeTM's battery depends on various factors, such as:

The length of the mowing season in your region
Amount of hours Landxcape TM mows per day
- Battery maintenance during storage

Landxcape™ can be charged manually without the boundary wire.

1. Connect the charging base to a suitable power supply. The green light on the charging base will turn on.
2. Manually dock Landxcape ^TM into the charging base while Landxcape ^TM is powered off. (See Fig. P)
3. The green light on the charging base will be flashing. Landxcape™ will begin to charge.

8.4 Winter hibernation

Your LandscapeTM will live longer and healthier if it is allowed to hibernate. So even though it is troublesome, we recommend storing your LandscapeTM in your shed or garage during the winter. Before you prepare your LandscapeTM for winter hibernation, we recommend you:

Thoroughly clean your Landxcape TM
- Fully charge the battery and remove it from Landxcape™
- Turn power off

To maximize the battery life, fully charge the battery and remove it from LandxcapeTM before storage during winter.

WARNING: Protect the underside of Landxcape™ from water. NEVER store Landxcape™ upside down outdoors.

The boundary wire can be left in the ground but its ends should be protected, such as placed in a tin can with grease. If the charging base is left outside for the winter, leave the boundary wire connected.

NOTE: When bringing LandxcapeTM back to work after winter hibernation, make sure the charging strips and contact pins are clean.

We recommend using a fine grade emery cloth to clean the contacts.

8.5 Replacing the battery

WARNING: Power off before attempting any adjustment, replacement or repair.

Before replacing the blades, turn your Landscrape™ OFF and put on protective gloves.

If you need to replace the battery, follow these steps:

1. Gently turn your Landscape™ upside down.

2. Remove the screws on the battery cover. Remove the battery cover. (See Fig. Q1)

3. Lift out the old battery carefully. Press the latch and release the connectors. (See Fig. Q2)

NOTE: Do not pull by the cables. Hold the connectors and release the latch.

1. Connect a new original battery by attaching the connectors until they click into position. (See Fig. Q3, Q4)
2. Fit the battery as shown. (See Fig. Q5) Place the cover back in its position and tighten the screws.

9. Function Messages

Display Message	Action
-F !-	Rain delay activated. No action is required.

10. Error Messages

Display Cause Action
-81-	LandxcapeTM is outside working area.	1. If LandxcapeTM is actually outside its territory: turn LandxcapeTM off, take LandxcapeTM inside its territory. TumLandxcapeTM on. Press OK 2. If LandxcapeTM is inside its territory, check if the LED on the charging base is green. If not, verify that the charging base is properly connected to the charger and that the charger is connected to a suitable power supply. If they are properly connected, the boundary wires are clamped incorrectly and must be reversed.3. If the LED light on the charging base turns on red, confirm that the boundary wire is well connected to the clamps on the charging base. If the problem persists, check that the boundary wire hasn't been cut.
-82-	Wheel motor blocked	1. Turn LandxcapeTM off; take LandxcapeTM to an area free of obstacles.2. Turn LandxcapeTM on. Press OK 3. If the error message is still displayed, turn power off; turn LandxcapeTM upside-down and check if there's anything preventing the wheels from rotating.4. Remove any obstruction, turn LandxcapeTM upright, turn power on. Press OK 5. Turn LandxcapeTM on. Press OK 6
-83-	Blade disc blocked	1. Turn LandxcapeTM off.2. Turn LandxcapeTM upside down and check if there's anything preventing the blade disc to rotate.3. Remove any obstruction.4. Turn LandxcapeTM upright and take it to an area with short grass or adjust the cutting height;5. Turn LandxcapeTM on. Press OK 6
-84-	LandxcapeTM is trapped.	1. Turn LandxcapeTM off;2. Take LandxcapeTM to an area in your lawn free of obstacles obstacles.3. Turn LandxcapeTM on. Press OK 4. If the error message is still displayed, turn power off; turn LandxcapeTM upside-down. Check if there is anything preventing the wheels from rotating.5. Remove any obstruction, turn LandxcapeTM upright, turn power on. Press OK 6
-85-	LandxcapeTM is lifted up.	1. Turn LandxcapeTM off.2. Take LandxcapeTM to a lawn area clear of obstacles, turn LandxcapeTM on. Press OK then OK 3. If the error message is still displayed, turn LandxcapeTM off, turn LandxcapeTM upside-down and check if there's anything preventing the front wheels from rotating.4. Remove any possible object, turn LandxcapeTM upright, turn LandxcapeTM on. Press OK then OK 6
-86-	LandxcapeTM is upside down.	Turn LandxcapeTM upright. Press OK 6
-87-	Battery error	1. Check the battery temperature. If the temperature is too high, wait until the temperature has cooled down. Press OK then OK 2. If the error message is still displayed, replace a new battery. Restart LandxcapeTM. Press OK then OK 3. If the error repeatedly occurs, try to change the working schedule.
-88-	It takes too long for LandxcapeTM to go back to the charging base.	Manually dock LandxcapeTM in the charging base for charging. After LandxcapeTM is fully charged, Press OK then OK
- - -	Error unknown.	Restart LandcapeTM. Press Start... error message is still displayed, contact a service agent for help.

NOTES

• Before turning power on, always return Landxcape ^TM to its territory. If not, " - will be displayed. This message is also displayed when Landxcape ^TM is sitting over the boundary wire when turned on.
• If for any reason-i.e. a party, children playing...you want to park your Landxcape ^TM in the charging base: Press . Lxcape ^TM will go to its charging base and stay there. Press to turn LandxcapeTM off.
• If an error repeatedly occurs in the same area of your lawn, you might have a problem with the boundary wire. Please refer to the Installation Guide and check your set up with its help.
• If your lawn is divided in two separate areas connected by a corridor less than 1m , one of which is not provided with the charging base: when Landxcape™ runs out of charge, take it manually to the charging base, the charge process will start.
  If LandxcapeTM runs abnormally once in a while, please try to restart it. If the problem is not resolved, try to removing and reinstalling the battery. If the problem is still not resolved, please contact a LandxcapeTM service agent for help.
• Do not wash your Landscape ^TM with a high pressure washer. This could cause damage to the battery or the machine.

11. Troubleshooting

If your LandscapeTM does not work correctly, follow the troubleshooting guide below. If the issue persists, contact your Dealer.

Symptom Cause Action
The LED light on the charging base does not turn on.	There is no power.	Check the charging base is connected properly to the charger and the charger is connected to a suitable power supply.
Red light turns on the charging base. The	boundary wire isn't connected.	Check that the boundary wire has been connected correctly to the charging base. Check there are no breaks in the boundary wire, especially in the wire ends.
\( Landxcape^{TM} \) turns on, but the blade disc does not move.	\( Landxcape^{TM} \) is searching for the charging base (unless you press \( \text{then } \text{ button to make it go to the charging base} \) )	This is normal. \( Landxcape^{TM} \) needs to recharge, the blade disc does not rotate while it is searching for the charging base automatically.
\( Landxcape^{TM} \) vibrates.	Blades may be damaged. Check condition of the blade disc.	Check the blades, and replace them if damaged. Remove debris and foreign objects from the blades and blade disc.
Grass is being cut unevenly.	\( Landxcape^{TM} \) does not work enough hours per day.	Add more hours to the scheduled mowing time.
	Mowing area is too big.	Try decreasing the size of the mowing area or adding more hours to the mowing time.
	Blades are dull.	Change all the blades and screws in order to balance the blade disc.
	The cutting height is too low for the length of the grass.	Raise the cutting height and then gradually lower.
	Grass or other object has wrapped around the blade disc.	Check the blade disc and remove the grass or other object.
	There is a build-up of grass in the blade disc or motor frame box.	Make sure the blade disc rotates easily. If need be, you may take off the blade disc and remove the debris.
\( Your Landxcape^{TM} \) is inside its territory and the boundary wire is connected. And “-E:-” is displayed.	The boundary wire ends are clamped incorrectly.	Reverse the boundary wire ends.
	The boundary wire is broken. Repair damaged	boundary wire with connectors.
The charging time is far more than the rated charging time.	Poor connection caused by debris on the charging strip.	Clean the contact pins located on the charging base and the charging strip on \( Landxcape^{TM} \) using a cloth.
	The charging protection program has activated due to high temperature.	Place the charging base in a shady area or wait until the temperature has cooled down.
The mower does not charge.	There is no power.	Check the power cord is connected properly to the charger and the charger is connected to a suitable power supply.
	LandxcapeTM does not operate correctly while manually charging.	Refer to manual charging in Section 8.3.
LandxcapeTM is starting to have shorter run-times between charges.	Something is clogging in the blade disc. Take off the blade disc and clean it.
	The grass is too high and too thick.	Check the Blade Disc and blades, remove debris and foreign objects from the blades and Blade Disc.
	LandxcapeTM is shaking heavily.	Check the blade disc and blades, remove debris and foreign objects from the blades and blade disc.
LandxcapeTM is not operating at the correct time.	The clock is not set to the correct time. Set the programmed cutting times for LandxcapeTM are not correct.	clock to the correct time, refer to Section 5.3.
	LandxcapeTM is manually docked in the charging base.	Change the time settings for the mower to start and stop.
	The battery does not charge as its temperature rises above 55°C in hot weather.	Press then OK
	The environmental influences. Restart Landxcape	Wait until the battery has cooled down.
LandxcapeTM cannot correctly dock with the charging base.	Poor connection caused by debris on the charging strip.	TM. Clean the contact pins located on the charging base and the charging strip on LandxcapeTM using a cloth.
The green light on the charging base turns on before charging is complete.	The charging base is overheated.	Place the charging base in a shady area or wait until the temperature has cooled down.
LandxcapeTM runs outside the boundary wire. LandxcapeTM does not mow an area within a boundary wire zone. LandxcapeTM reverses or rotates erratically near the boundary wire.	The boundary wire of another LandxcapeTM or another robotic mower is positioned too closely.	Ensure your LandxcapeTM boundary wire has at least 1m of space between the neighboring boundary wire.
	The boundary wire has been installed with tight corners.	Check the boundary wire to ensure the corners are smooth.
	In wet conditions, the boundary wire electric signal may leak were wire has been joined or repaired.	Check boundary wire joints. Insulate to provide a fully waterproof connection.
	There is boundary wire electric signal leakage due to broken insulation.	Repair damaged boundary wire insulation with connectors.
	The cutting area is larger than the allowable cutting area for LandxcapeTM.	Reduce the cutting area or use LandxcapeTM with a larger allowable cutting area.
LandxcapeTM wheels skid or damage lawn.	Foreign obstacles, such as twigs and branches may be lodged under LandxcapeTM.	Remove foreign objects from underside of LandxcapeTM.
	The lawn is too wet. Wait until lawn has dried.
LandxcapeTM exits the boundary wire due to high speed when going down a hill.	The boundary wire is placed on a slope steeper than 17% (10°).	Reposition the boundary wire away from slopes that are steeper than 17% (10°). Please refer Installation Guide for details.
Erro	Software update failure occurs. Try again according to section "Software update".

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

Declaration of Conformity

We,

Positec Germany GmbH

Grüner Weg 10, 50825 Cologne, Germany

Declare that the product,

Description Robotic Lawn mower

Type LX790 LX791 LX792 LX793 LX794 LX795 (790-799 - designation of machinery, representative of Robotic Lawnmower) (Year, article number and month of serial number are placed on the back page. The complete serial number is clearly stated on the enclosure of lawnmower) with battery charger LA8001 / LA8002 and charging base LA3000

Function Cutting grass

Complies with the following Directives,

2006/42/EC, 2014/30/EU, 2014/35/EU, 2011/65/EU, 2000/14/EC amended by 2005/88/EC, 2014/53/EU

2000/14/EC amended by 2005/88/EC

• Conformity Assessment Procedure as per Annex V
• Measured Sound Power Level 64.2dB (A)
• Declared Guaranteed Sound Power Level 65 dB [A]

The notified body involved

Name: Intertek Testing & Certification Ltd. (notified body 0359)

Address: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Certification No.: 181000479SHA-V1

Standards conform to,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010.

EN 62233:2008. EN ISO 3744:2005. EN 55014-1:2017. EN 55014-2:2015. EN 61000-3-2:2014.

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447V1.1.1

The person authorized to compile the technical file,

Name Marcel Filz

Address Positec Germany GmbH, Gruner Weg 10, 50825 Cologne, Germany

2019/04/22

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China

2000/14/EC amendeepar 2005/88/EC

Adresse: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

No de certification: 181000479SHA-V1

Et conforme aux normes,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010.

EN 62233:2008, EN ISO 3744:2005, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447 V1.1.1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Indirizzo: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Your LandxcapeTM will live longer and healthier if it is allowed to hibernate. So even though it is troublesome, we recommend storing your LandxcapeTM in your shed or garage during the winter. Before you prepare your LandxcapeTM for winter hibernation, we recommend you:

Güner Weg 10, 50825 Cologne, Germany

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Adres: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Certificataitr.: 181000479SHA-V1

Standaards in overeenstemming met,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010.

EN 62233:2008, EN ISO 3744:2005, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447V1.1.1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Adres: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Nr certyfikatu:181000479SHA-V1

Standardy zgodne z,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010,

EN 62233:2008, EN ISO 3744:2005, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447 V1.1.1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Cim: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Tanusitvany szama:181000479SHA-V1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Tineti apasat DK htru 3 secunde Atunci cand icoana ci ste, apasati CK Un numar va clipe pe afisaj, spre exemplu, ca se zona gazon Timpul de lucru va fi automat setat conform marmii gradinii. Folositi SAH HSAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAH SAAI

Nume: Intertek Testing & Certification Ltd. (organism notificat 0359)

Adresa: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Nr. certificate:181000479SHA-V1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Nume: Intertek Testing & Certification Ltd. (organism notificat 0359)

Adresa: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Nr. certificate:181000479SHA-V1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Adresa: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Cislo certifikatu:181000479SHA-V1

Spina poziadavky noriem,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010.

EN 62233:2008, EN ISO 3744:2005, EN 55014-1:2017, EN 55014-2:2015, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447V1.1.1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Segurarca do Produkt

A. Substitua as laminas

Morada: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Certificacao N^公 :181000479SHA-V1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Ürün Güvenligi

1.1 Genel ve Ek Güvenlik Talimatu

Adres: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

Sertifika No.: 181000479SHA-V1

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

1. Varnost izdelka

1.1 Splośna in dodatna varmostna navodila

OPOZORILO Preberite vsa varnostna opozorila in navodila.

Naslov: Cleeve Road, Leatherhead, Surrey, KT22 7SB United Kingdom

St. certifikata: 181000479SHA-V1

Oseba, ki je pooblascena za skladnost tehniene dokumentacije,

EN 60335-1:2012+A11+A13:2017, EN 50636-2-107:2015+A1:2018, EN 60335-2-29:2004+A2:2010,

EN 62233:2008. EN ISO 3744:2005. EN 55014-1:2017. EN 55014-2:2015. EN 61000-3-2:2014.

EN 61000-3-3:2013, EN 61558-1:2005+A1:2009, EN 61558-2-16:2009+A1:2013, EN 303447V1.1.1

Oseba, ki je pooblascena za skladnost tehniene dokumentacije,

Ime Marcel Filz

Naslov Positec Germany GmbH, Gruner Weg 10, 50825 Cologne, Germany

2019/04/22

Allen Ding

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Copyright © 2019, Positec. All Rights Reserved.

AR01410803
