Product type	Petrol chainsaw
Brand	Güde
Model	KS 401 BW
Category	Saw
Displacement	37.2 cm³
Max. power	1.3 kW (1.8 hp)
Cutting length	390 mm
Guide bar length	455 mm
Chain speed	21 m/s
Fuel tank capacity	0.31 L
Chain oil tank capacity	0.21 L
Weight (net, without chain and guide bar)	4.6 kg
Saw chain	Oregon 91PX057E (pitch 3/8", gauge 1.3 mm, 57 links)
Guide bar	Oregon 7F 534038160SDEA041
Sound pressure level (LpA)	100 dB(A)
Guaranteed sound power level (LWA)	114 dB(A)
Vibration emission (a_h)	10 m/s² (K=1.5 m/s²)
Warranty	24 months for end consumer, 12 months for professional use
Customer service	Phone [phone] / 700-360, Email [e-mail]

Frequently Asked Questions - KS 401 BW Güde

How to cold start the KS 401 BW chainsaw?

Place the ON/OFF switch to 'ON', activate the choke (closed position), pull the starter until the engine tries to start, then open the choke and pull again. Do not let the chain touch anything when starting.

How to adjust chain tension?

Loosen the guide bar lock nut, turn the tension screw clockwise to tighten (the chain should touch the bottom of the guide without sag), then retighten the nut. Check after a few cuts: a new chain requires readjustment after about 5 cuts, then every 50 cuts.

Why is the chain not getting enough oil?

Check the oil level in the tank (0.21 L). The oil flow is adjustable via a screw on the saw. If the problem persists, clean the guide bar oil slot and the oil outlet. Use only biodegradable chain oil.

What are the essential safety instructions?

Always wear safety glasses, hearing protection, a helmet, gloves, and safety shoes. Hold the saw with both hands (right hand on the rear handle, left hand on the front handle). Avoid kickback by not cutting with the nose of the guide bar. Chain brake and hand guard are mandatory.

How to maintain the chain and guide bar?

After each use, clean the chain and guide with an oiled cloth. Sharpen the chain regularly (respect depth gauges). Check the drive sprocket wear. Immediately replace dull, bent, or damaged parts. Store the saw in a dry place.

What fuel mixture to use?

Use a mixture of unleaded gasoline (95 octane minimum) and quality two-stroke oil (ratio 50:1 or according to oil instructions). Do not use E85 gasoline. Shake the mixture before filling the tank. Drain the fuel before prolonged storage.

What to do if the engine does not start?

Check: 1) Switch on 'ON', 2) Tank full, 3) Spark plug clean and gap 0.6-0.8 mm, 4) Suppressor in good condition, 5) If engine flooded, remove the plug, dry it, and pull several times without plug. If nothing works, consult an authorized workshop.

How to store the chainsaw long-term?

Empty the fuel tank and run the engine until it stops to empty the carburetor. Clean the chain and guide, apply a thin oil layer. Store in a dry, frost-free place out of reach of children. After storage, have the saw checked by a workshop before reuse.

Where to find spare parts for the KS 401 BW?

Spare parts are available on the website www.guede.com in the Service section. You will need the order number (94116) and serial number (on the nameplate). Use only original Güde parts to ensure safety and compliance.

What warranty applies?

The warranty is 24 months for the end consumer (domestic use) and 12 months for industrial use. It covers material and manufacturing defects. Keep the original receipt. Normal wear, overload, or unauthorized modifications are not covered.

USER MANUAL KS 401 BW Güde

Blue and white chain-link electric shaver with black handle (no text or symbols visible)

KS 401 BW

94116

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

GB Safe work with chain saw

2

Simple line drawing of a skull and two elongated shapes with dashed outlines (no text or symbols)

7

D Betrieb

GB operation

11

D Wartung

GB Maintenance

F Entretien

I Manutenzione

NL Onderhoud

CZ Údržba

SK Údrzba

H Karbantartás

SLO Vzdrževanje

Hr Održavanje

BG Поддръжка

Ro Întreținere

BIH Održavanje

Silhouette of a wrench tool against a white background (no text or symbols)

14

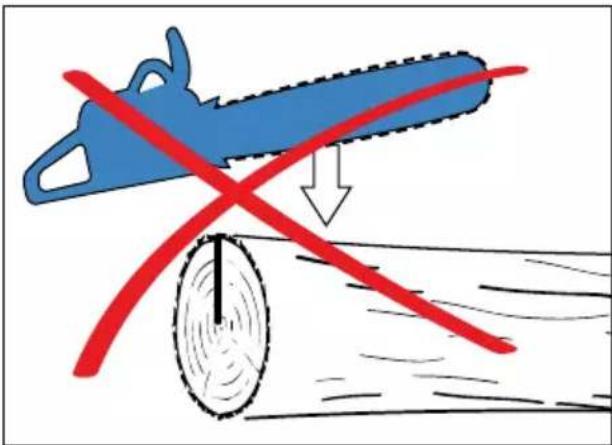

GB Instructions for cutting

F Consignes de sciage HR Upute za rezanje

SK Pokyny pre rezanie

SLO Napotki za žaganje

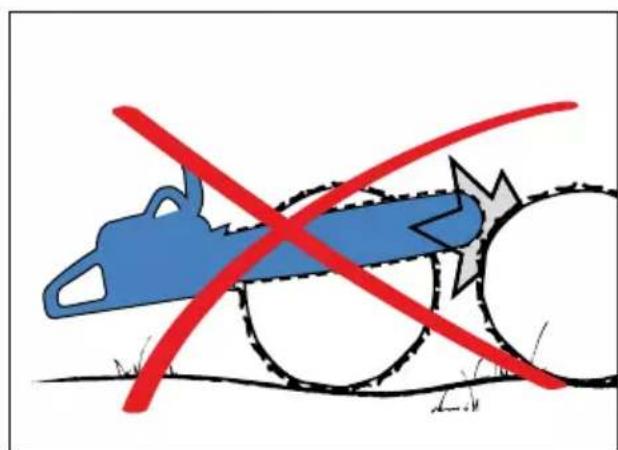

Illustration of a blue saw cutting through a tire with a red diagonal line crossing through it (no text or symbols)

Blue chainsaw with a circular wheel, warning symbol (no text or labels)

Blue silhouette of a chainocorder cutting through a coin, with motion arrows indicating process flow (no text or symbols)

Illustration of a person using a power shaver next to a tree with an exclamation mark (no text or symbols on the figures)

Illustration of a blue chain-linking device with a red diagonal line crossing it, no text or symbols present.

Illustration of a blue chainsaw crossing over a circular object with a red diagonal line (no text or symbols)

Illustration of a worker using a power tool next to a tree with an exclamation mark (no text or symbols on the diagram itself)

Illustration of a worker using a manual power tool next to a tree with an exclamation mark (no text or symbols)

Illustration of a blue chainsaw cutting through water with red diagonal lines indicating cutting direction (no text or symbols)

Illustration of a blue-handled saw cutting through water with red and gray arrows indicating direction (no text or symbols)

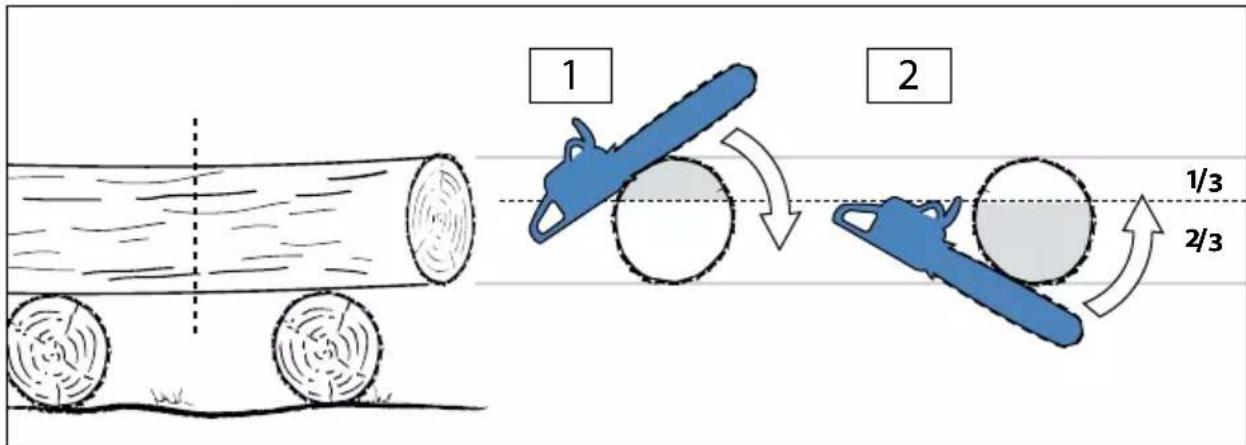

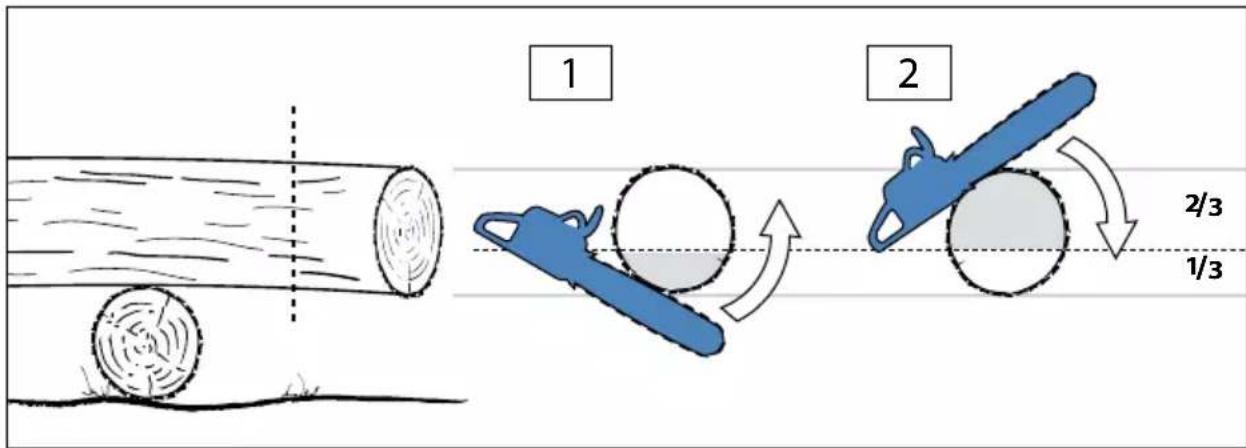

D Baumstamm ablängen H A fatörzs felvágása

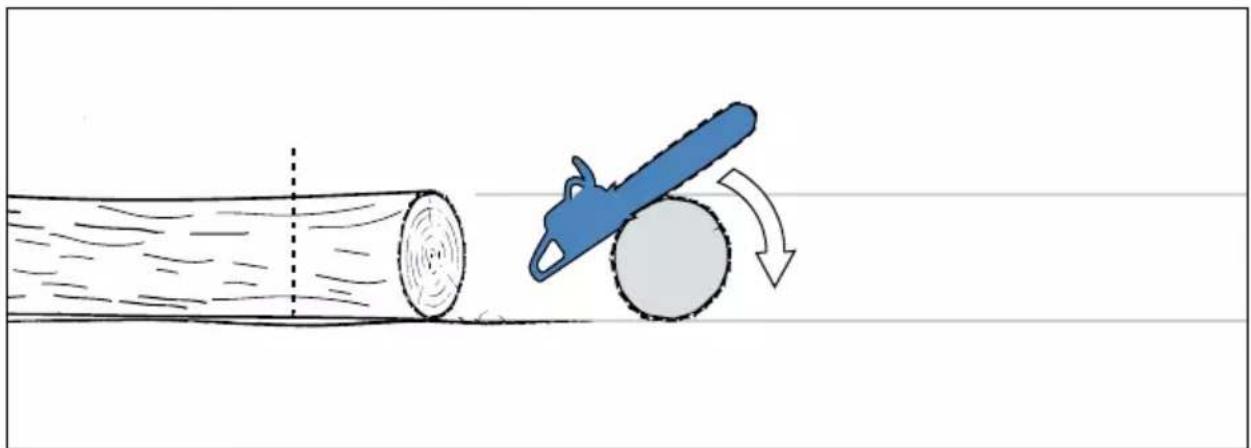

GB Trunk trimming

SLO Obrezovanje hloda

Five blue circular icons representing different workplace safety symbols: hand, helmet, head, boot, and person (no text or labels)

Illustration of a wooden log rolling down with a chainsaw and moving a ball, showing motion direction (no text or symbols)

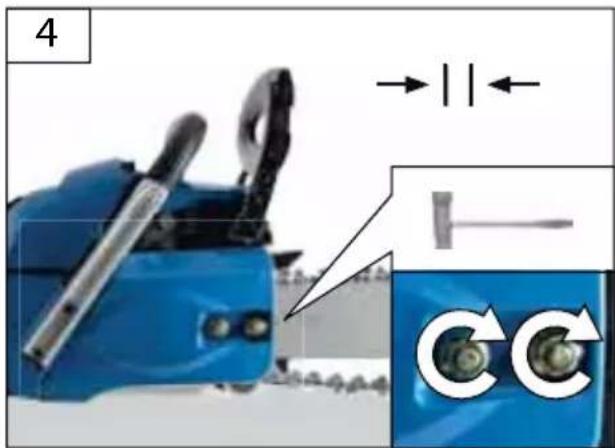

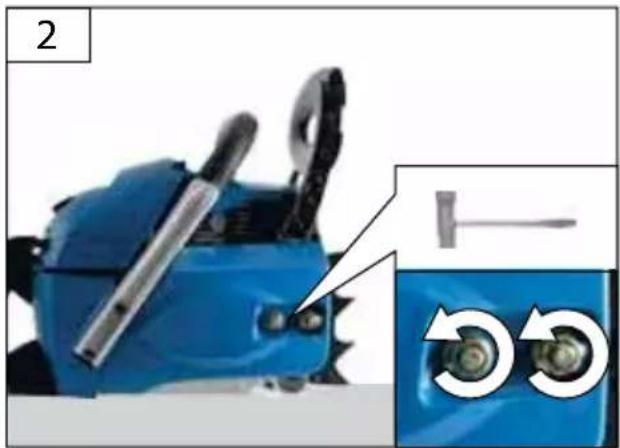

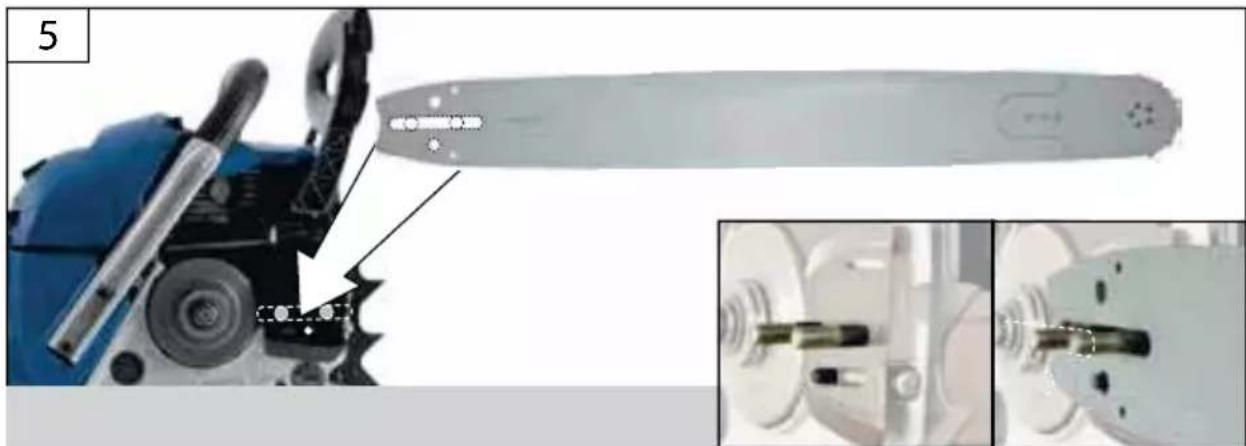

GB Assembly of chain bar and chain

Close-up of a blue chain-link robotic device with a tool and spool, showing no visible text or symbols.

Blue robotic device with mechanical components and a close-up inset showing rotational eye mechanism (no text or symbols)

Close-up of a blue industrial machine with a camera module and tool, no visible text or symbols

Close-up of a blue industrial machine with mechanical components and close-up insets showing internal components (no visible text or symbols)

Simple line drawing of a skull and two elongated shapes (no text or symbols)

GB Assembly of chain bar and chain

Close-up of a blue chain-linking machine with a tool and gear assembly, showing mechanical components (no text or symbols visible)

10

Simple line drawing of a car hood and two elongated objects (no text or symbols)

TIP

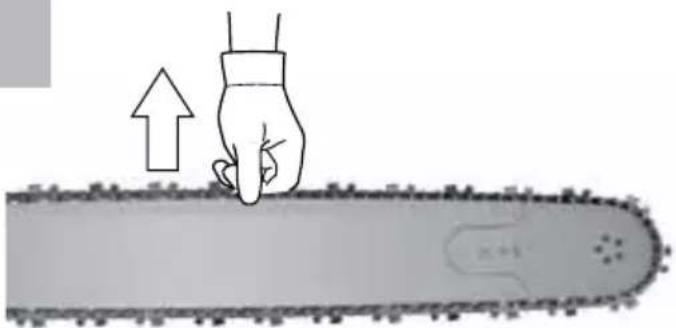

Illustration of a hand pressing down on a chain with an upward arrow indicating motion (no text or symbols)

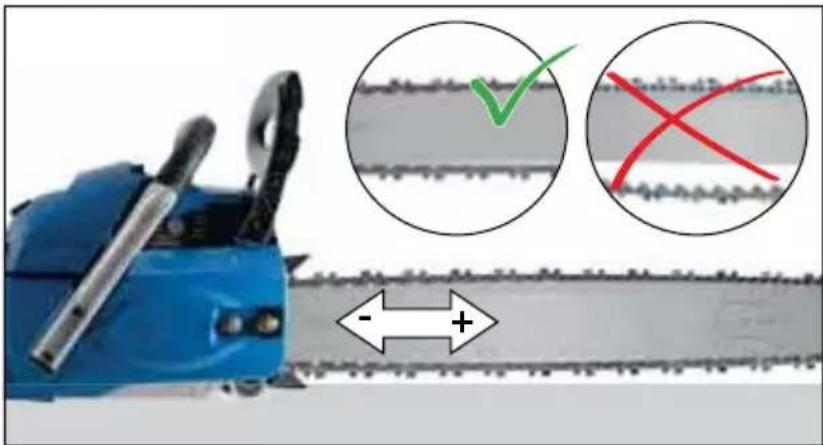

GB Repeat tensioning of new chain after approx. 5 cuts. With the engine off, check and adjust the chain tension after every 50 cuttings.

Simple line drawing of a skull and two oval shapes (no text or symbols)

D Tanken H Tankolás

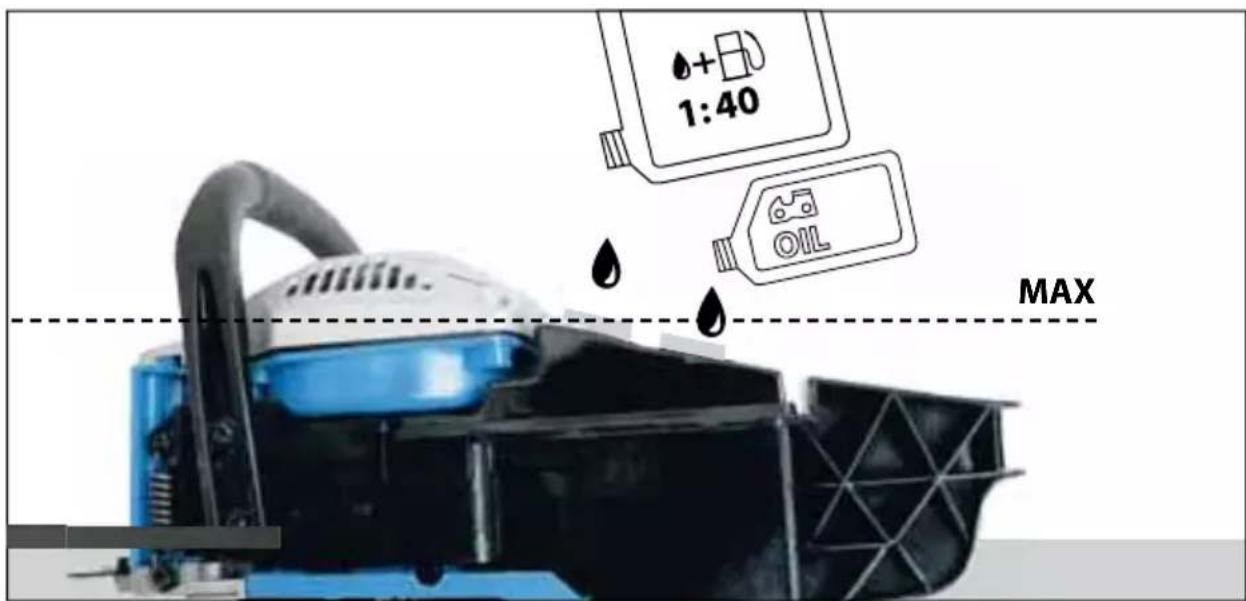

GB Fuel tank filling SLO Dolivanje goriva

F Ravitaillement HR Dopunjavanje goriva

Simple line drawing of a gear and two elongated shapes (no text or symbols)

START STOP

1

Close-up of a blue and white chainsaw with a black handle, showing blade and gear details (no text or symbols visible)

2

Simple diagram with a vertical line and circle inside a rectangular frame, no text or symbols present.

3

D Kaltstart

GB Cold start

F Démarrage à froid

I Start a freddo

NL Koude start

CZ Studený start

SK Studený štart

H Hideg startolás

SLO Hladni zagon

HR Hladni start

BG Студен старт

RO Start la rece

BIH Hladni start

6

D Warmstart

GB Warm start

F Démarrage à chaud

I Start a caldo

NL Warme start

CZ Teplý start

SK Teplý štart

H Meleg startolás

SLO Topli zagon

HR Toplistart

BG Топъл старт

RO Start la cald

BIH Topli start

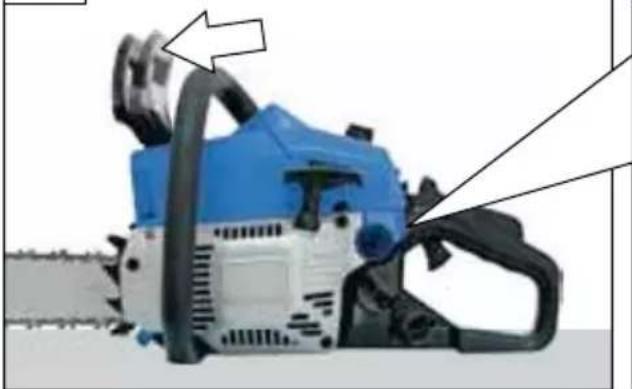

GB operation / Cold start

Close-up of a blue chain-linking tool with a circular inset showing a gear shift (no text or symbols visible)

D Anwerfseil ca. 3-5x kräftig ziehen bis erste hörbare Zündung erfolgt.
GB Pull firmly the starting rope approx. 3-5 times till the first noise of running is evident.
F DTirez fermement 3-5x sur le câble de démarrage, jusqu'au premier allumage audible.
Tirare fortemente cca 3-5 volte la funicella d'avviamento, finché non avviene la prima accensione udibile.
NL Aan het startkoord ca. 3-5x krachtig trekken, tot de eerste hoorbare ontsteking plaatsvindt.
CZ Za nahazovací lanko zatáhněte silně cca 3-5x, dokud nedojde k prvnímu slyšitelnému zapálení.
SK Za štartovacie lanko zatiahnite silno cca 3 – 5×, pokým nedôjde k prvému počutelnému zapáleniu
H A startoló zsinórt 3-5X erösen rántsa meg, addig, mig hallhatóan be nem kapcsolódik.
SLO Vžigalno vrv potegnite približno 3-5x, dokler ne zaslišite ustrezen zagonski zvok motorja
HR Za pokretanje stroja povucite sajlu za paljenje (3-5 puta) dok ne čujete zvuk paljenja motora.
BG Дръпнете прибл. 3-5 пъти стартиращото въженце, докато не се стигне до първото чуваемо запалване.
RO Tragetii puternic de circa 3-5 ori de cablul de pornire până la prima aprindere perceptibilă.
BIH Za pokretanje uređaja povucite sajlu za paljenje (3-5 puta) dok ne čujete zvuk paljenja motora.

START STOP

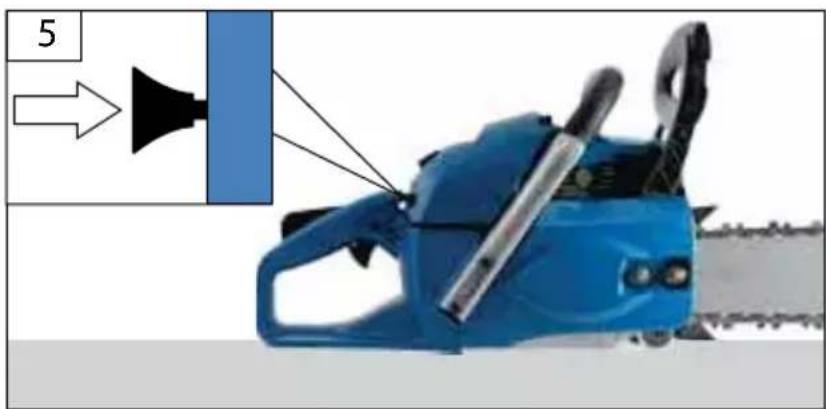

D Betrieb / Warmstart H Üzemeltetés / Meleg startolás

GB operation / Warm start SLO Delovanje / Topli zagon

GB Start-up of warm engine. Start-up of cool engine.

Illustration of a person using a blue chain-linking device with an upward arrow, no text or symbols present

GB If the engine does not start after first 2-3 attempts, repeat completely the cold start-up procedure.

Close-up of a blue and black chain-linking machine (no visible text or symbols)

STOP

Close-up of a blue and white chainsaw with a black handle and mechanical components, no visible text or symbols.

START STOP

Close-up of a blue chain-linking tool with metal blades and a white arrow pointing to it (no text or symbols visible)

2

START

3

CHECK

Simple diagram of a rod with arrows pointing upward (no text or symbols)

GB Chain runs out briefly after switching off!

GB Chain lubrication adjustment

Blue chain-linking machine with metal blades and a water drop icon (no text or symbols on the device itself)

Silhouette of a wrench tool against a white background (no text or symbols)

GB Idle run adjustment

Close-up of a blue chain-linking machine with warning symbol and arrow pointing to the handle (no text or labels)

Close-up of a blue and white chain-linker with a close-up inset showing the blade detail (no text or symbols visible)

GB Saw chain sharpening

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Chain break / Front hands protection
2 Handle
3 Bowden starter
4 Choke
5 Safety switch
6 throttle-lever
7 ON/OFF switch
8 Fuel top-up funnel
9 Chain oil top-up funnel
10 Saw chain
11 Saw bar

Specified Conditions Of Use

The chainsaw may only be used for cutting wood – across the fibres, with regard to the technical specifications and safety instructions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Use the appliance only outside, never use it onfined and bad ventilated areas.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Sawing and felling, as well as all related work may only be carried, who is doing very educated and trained.

Those who have no experience with the chainsaw or denArbeitstechniken, should not perform this work. First-time users are advised to practice cutting round wood on a sawhorse.

The operator is responsible for accidents or risks to third parties.

Residual risks

Danger of injury!

Contact with the saw chain can cause casualties.

Never touch moving chain by hands.

Danger of kickback!

Kickback can lead to casualties.

Danger of burns!

Chain and guiding groove warm up in operation.

Risk of poisoning!

Toxic exhaust fumes and oil vapors can cause poisoning.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site

2. Accident type

3. Number of injured persons

4. Injury type(s)

Symbols

Warning/caution!

Read the Operating Instructions

Wear eye protective goggles! Wear ear protectors!

Wear protective helmet!

Wear protective gloves!

Wear safety cut through resistant shoes with safety sole and steel toe!

Wear protective clothing with cut through resistant ply!

Warning against dangerous kickback

Keep distance of persons! Observe to keep out of dangerous zone

Fire danger: Prohibited smoking and open fire using.

Switch off the engine before any work on it.

CE marking

Protect against humidity

This side up

Safety Instructions

WARNUNG

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

• Keep all parts of your body in safe distance from the saw when running. Before starting the saw, make sure the saw chain does not touch anything. A moment of inattention when working with the chainsaw is able to cause the saw chain to catch your clothes or parts of your body.
• Use your right hand to hold the chainsaw by its rear handle and your left hand to hold it by its front handle. Holding the chainsaw the opposite way increases the risk of injury and you must not do that.
• Wear protective glasses and ear protectors. Further, wearing head, hand and leg protection equipment is recommended. Suitable protective clothing minimises the risk of injury by thrown-away wood chips and possible contact with the saw chain.
• Do not work on trees with the chainsaw.There is a risk of injury when working on a tree.

• Provide safe posture at all times and use the chainsaw only when standing on a solid, safe and level surface. A slippery or unstable surface, such as ladder, may lead to loss of balance or loss of control over the chainsaw.

• When cutting a tense branch, be sure to know that the branch will bounce back. If tension in the wood fibres gets released, the tense branch may hit the operator and/or cause a loss of control over the chainsaw.

• Be especially careful when cutting scrubs and saplings. Thin material may get caught in the chainsaw and hit you or you may lose your balance.
• Carry the chainsaw by the front handle in a switched-off condition and the saw chain must be deflected from your body. Fit a protection cover on the chainsaw whenever it is transported or stored. Careful chainsaw treatment reduces the likelihood of an accidental contact with the running saw chain.
• Follow the lubrication, chain tension and accessory equipment replacement instructions. A chain that is not tightened or lubricated in a professional manner may crack or increase the risk of backlash.
• Keep the handles dry, clean and with no oil and fat. Handles dirty with fat or oil are slippery and lead to loss of control.
• Wood to be cut only. Do not use the chainsaw for works for which it has not been designed – example: do not use the chainsaw to cut plastic material, masonry or building materials not made of wood. Using the chainsaw for works that are in conflict with the designation may lead to dangerous situations.

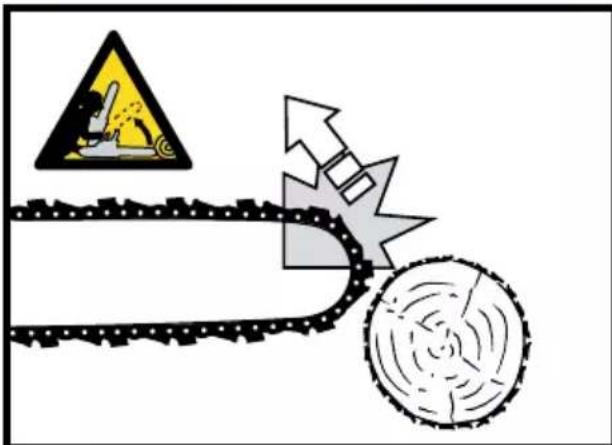

Backlash causes and prevention:

Backlash may take place when the saw bar point touches an item or when the wood bends and the saw chain gets stuck in the cutting.

In many cases, a contact with the bar point may lead to a situation when the operator unexpectedly bends backward and the bar is ejected upward toward the operator as a result.

Sticking of the saw chain on the upper edge of the bar may throw the bar intensely off toward the operator.

Each such reaction may lead to losing control over the saw and you may get seriously injured. Do not fully rely on the safety equipment fitted in the chainsaw. As the chainsaw user, you should take various measures to be able to work without any accident and injury.

Back impact is a result of an improper or wrong use of power tools. This can be prevented by appropriate preventive measures, as described below:

• Hold the saw firmly with both hands; clamp the chainsaw handle with thumbs and fingers. Position your body and arms so that you could absorb the back impact. If appropriate measures are taken, the operator is able to control the back impact force. Never drop the chainsaw.

• Avoid abnormal body posture and do not cut above the shoulder level. This will prevent a contact with the bar point and the chainsaw will be controlled better in unexpected situations.

• Spare bars and saw chains specified by the manufacturer to be used at all times. Wrong spare bars and saw chains may lead to chain overloading and/or backlash.

• Follow the manufacturer instructions for chain-saw sharpening and maintenance. Too low depth limiters increase the tendency to back impact.

Observe national regulations and instructions for chain saws operation.

Take care to prevent from fuel and oil leakage during transport.

BThe dust that arises when working with this tool can be detrimental to health and therefore not reach the body. Wear a suitable dust protection mask.

Other safety instructions

Provide adequate lighting or good lighting conditions when working with the machine.

⚠ Be careful when going backwards – risk of tripping!

Do not run! Immediately remove cut branches/knots from the work area to prevent injuries. Watch out for falling branches!

The ON/OFF switch and safety switch must not be locked.

Before using, check the tightness and proper seating of all screwed and socket joints and protective equipment and if all moving parts are moving smoothly.
⚠ It is strictly prohibited to demount, adjust and alienate the protective equipment on the machine or put other protective equipment on the machine.
Do not use the appliance if damaged or the safety equipment is defective. Replace any worn and damaged parts.

Maintenance

⚠️ Switch the engine off and remove the socket plug before any work on the engine.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Biodegradable oil for chains to be used only.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts.

After each use, clean the saw and sword chain carefully. Wipe it with a cloth moistened in oil or apply metal treatment spray on it.

Blunt, bent or damaged chains and swords must be replaced.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Machine to be stored in a dry place.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Dispose the waste oil in an environment-friendly manner!

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Generally Complete saw		Regularly clean the outer partLet regularly checked by authorized workshopCheck for cracks and fissuresLet regularly sharpen.Clean regularlyClean regularlyRegular functional testRegular functional test (Chain can not move in idle run).
	Plastic bodySaw chainChain saw barChain saw wheelChain breakClutch
Before any start-up Saw chain		Check for damages and sharpnessCheck the chain tensionFunctional testFunctional testFunctional testFunctional testCheck for tightnessIn case damage let repaired in authorized workshop
	Chain saw barChain lubricationChain breakFollow-up brakeON/OFF switchOil tank cap
After every take out of service	Chain saw barBar fixture	Clean the oil top-up openingClean above all guiding oil groove
storage Chain oil tank		DrainDismount, clean and lubricate slightly by oil Clean the saw guiding grooveCleaned chain saw store safely in dry room - out of children reach.Let the chain saw checked by authorized workshop after long term storage (remaining oil can be resinous and clog the oil pump valve)

Defects searching

Defect Cause Failure removal
The motor does not start 1.	Put the operational switch to OFF positionEmpty fuel tankOver floated motorSooted spark plug (carbon residues on electrodes), electrodes distance too bigDirty carburettor, dirty carburettor nozzlesDamaged spark plug contact, faulty ignition cableMissing spark	1. Put the operational switch to ON positionTop-up fully the fuel tankReduce throttle, start couple times, in case of necessity dismantle spark plug, clean and dry itClean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mmVLet the carburettor cleansed, blow through by air in authorized workshoplet changed in authorized workshopCheck the switch-off button, cable and ignition module, poss. Let replaced in authorized workshop, let adjusted gap to 0.3-0.4 mm
Idle speed too high 1.	Cold engine 1. Heat up slowly, poss. Close slightly	choke
Engine does not give max. output	Sooted spark plug (carbon residues on electrodes), electrodes distance too bigDirty carburettor, dirty carburettor nozzlesDirty carburettor, dirty carburettor nozzlesExhaust, exhaust channel of cylinderLeaky sealing gasket in crankcasetWorn-down cylinders, pistons, piston ringsBad fuel/oil mix (too much oil)Bad ignition	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mmLet the carburettor cleansed, blow through by air in authorized workshopCleanLet the exhaust dismantle and clean in authorized workshop, let clean the carbon residuesLet replaced in authorized workshopLet replaced cylinders, pistons and piston rings in authorized workshop, let the cylinders ground with end lap and let installed oversize pistonFill the fuel tank according to the manualContact gap size of ignition module (0.3-0.4 mm) let adjusted in authorized workshop
Motor can not be switched off	Light-grey spark plug with traces of burning (melting pearls)residues of carbon in the combustion chamber	Install spark plug of higher thermal valueLet cleaned the cylinder head, piston top and cylinder channels in authorized workshop

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

2006/42/EC 2011/88/EC

Annex IV

Notified Body: No:0905 Name:Intertek Deutschland GmbH
