USER MANUAL Styrke II Skandika

Wooden Skandika rowing machine with beige frame and black buttons, no visible text or symbols on the device itself.

Styrke II

Designed by TUKiENDORF DESIGN / GERMANY

Inhalt

04 Service

skandika.com/service/

Person using a Pilates reformer machine on a white surface, no visible text or symbols on the equipment or background.

NOCH FRAGEN?

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

Technical diagram of a Skandka device with numbered components and exploded view, including labeled parts and part numbers.

Person using a Pilates reformer machine on a table, no visible text or symbols in the image.

SCHRITT 2

A1 tool A A2

8 4 5 27 28 29 27 30

SCHRITT 7

Max water level 9 8 7 6 5 4 3 2 1 Resistance level Min water level

HINWEISE:

Technical line drawing of a person using a mechanical machine (no text or symbols present)

Line drawing of a person using a rowing machine (no text or symbols present)

Technical line drawing of a person using a rowing machine (no text or symbols present)

Technical line drawing of a vertical crane lifting a wall-mounted device (no text or symbols)

LAGERUNG

24 Service
25 Safety precautions
26 Explosion drawing
28 Parts list
29 Checklist
30 Set-up instructions / Video set-up instructions
36 Filling / emptying the water tank
37 Exercise instructions
38 Warm-up and cool-down
39 Transportation and storage
40 Using apps
42 Guarantee conditions

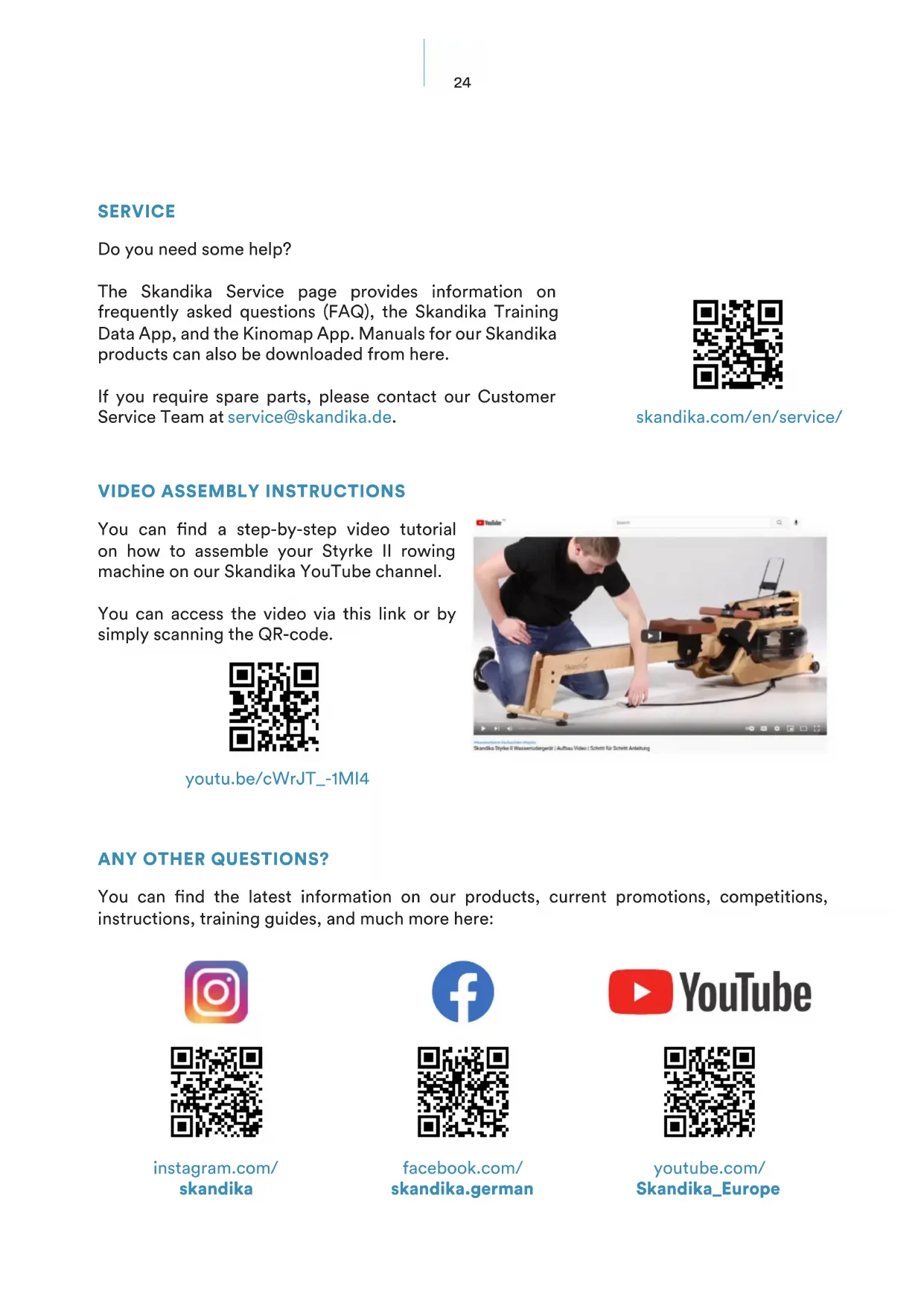

Do you need some help?

The Skandika Service page provides information on frequently asked questions (FAQ), the Skandika Training Data App, and the Kinomap App. Manuals for our Skandika products can also be downloaded from here.

If you require spare parts, please contact our Customer Service Team at [e-mail].

skandika.com/en/service/

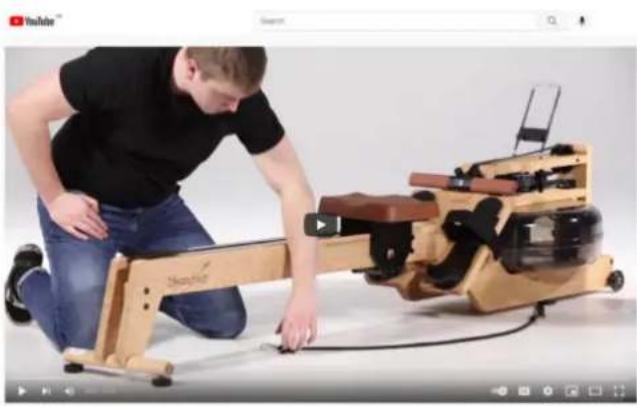

VIDEO ASSEMBLY INSTRUCTIONS

You can find a step-by-step video tutorial on how to assemble your Styrke II rowing machine on our Skandika YouTube channel.

You can access the video via this link or by simply scanning the QR-code.

youtu.be/cWrJT_-1MI4

Person using a wooden exercise machine with a blue sensor, displayed in a video browser (no visible text or symbols on the equipment)

ANY OTHER QUESTIONS?

You can find the latest information on our products, current promotions, competitions, instructions, training guides, and much more here:

instagram.com/ skandika

facebook.com/ skandika.german

youtube.com/ Skandika_Europe

WARNING

To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use.

SAFETY PRECAUTIONS

1. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine. It is not suitable for commercial use.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout immediately. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a plain, leveled surface. DO NOT use the machine near liquids or outdoors. If you want to protect the installation site against pressure marks, dirt, etc., we recommend that you place a suitable, non-slip mat under the device (e.g. the SKANDIKA floor mat for rowing machines).
5. Before starting any exercise program, consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking any medication that may affect your heart rate, blood pressure or cholesterol level.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the machine. Running or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp objects around the machine.
9. Disabled persons should not use the machine without a qualified person or physician, who can provide qualified surveillance / assistance.
10. Before using the device, always do stretching exercises to properly warm up.
11. Never operate the device if it is not functioning properly.
12. Do not place fingers or objects in the range of moving parts of the device.

13. The max. user capacity of this class HC device is 180 KGS.

14. Before using the equipment, check if all nuts and bolts are securely tightened. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear. No adjustable part should protrude and/or obstruct user movements.

15. Do not use this device directly after meals or drinks.
16. This device is not suitable for therapeutically use. Only use this unit according to the intended purpose and as directed in the instruction manual.
17. Please do not attempt to repair the unit yourself in the event of malfunctions, since this will void all warranty claims. Only have repairs carried out by authorised service centres. It is recommended to lightly lubricate all moving parts from time to time to maintain functionality.
18. Please only exercise with a minimum clearance area of 2 meters around the device.
19. If you do not use the rower for more than 1 week, please remove the batteries of the Bluetooth module.

Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

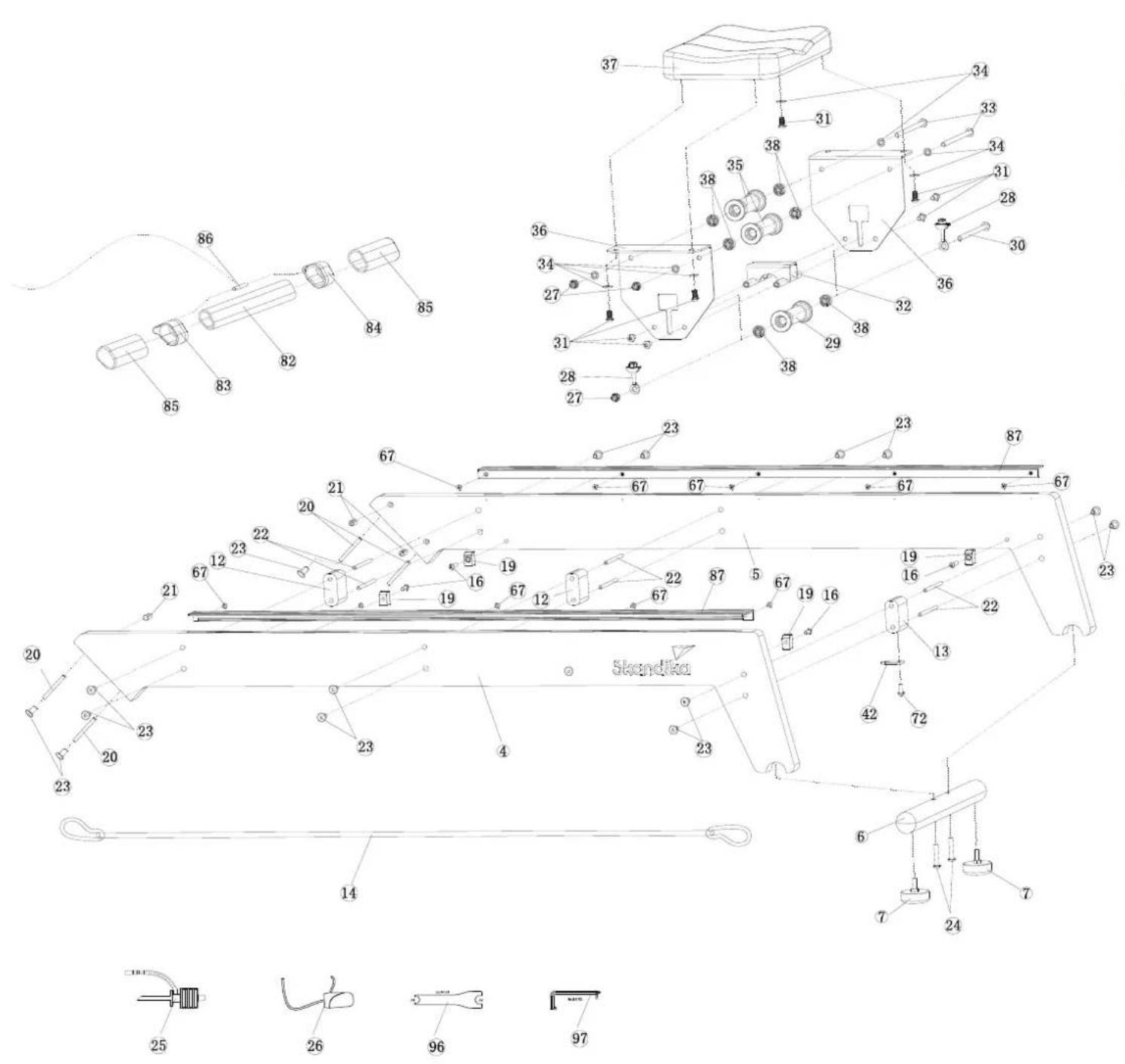

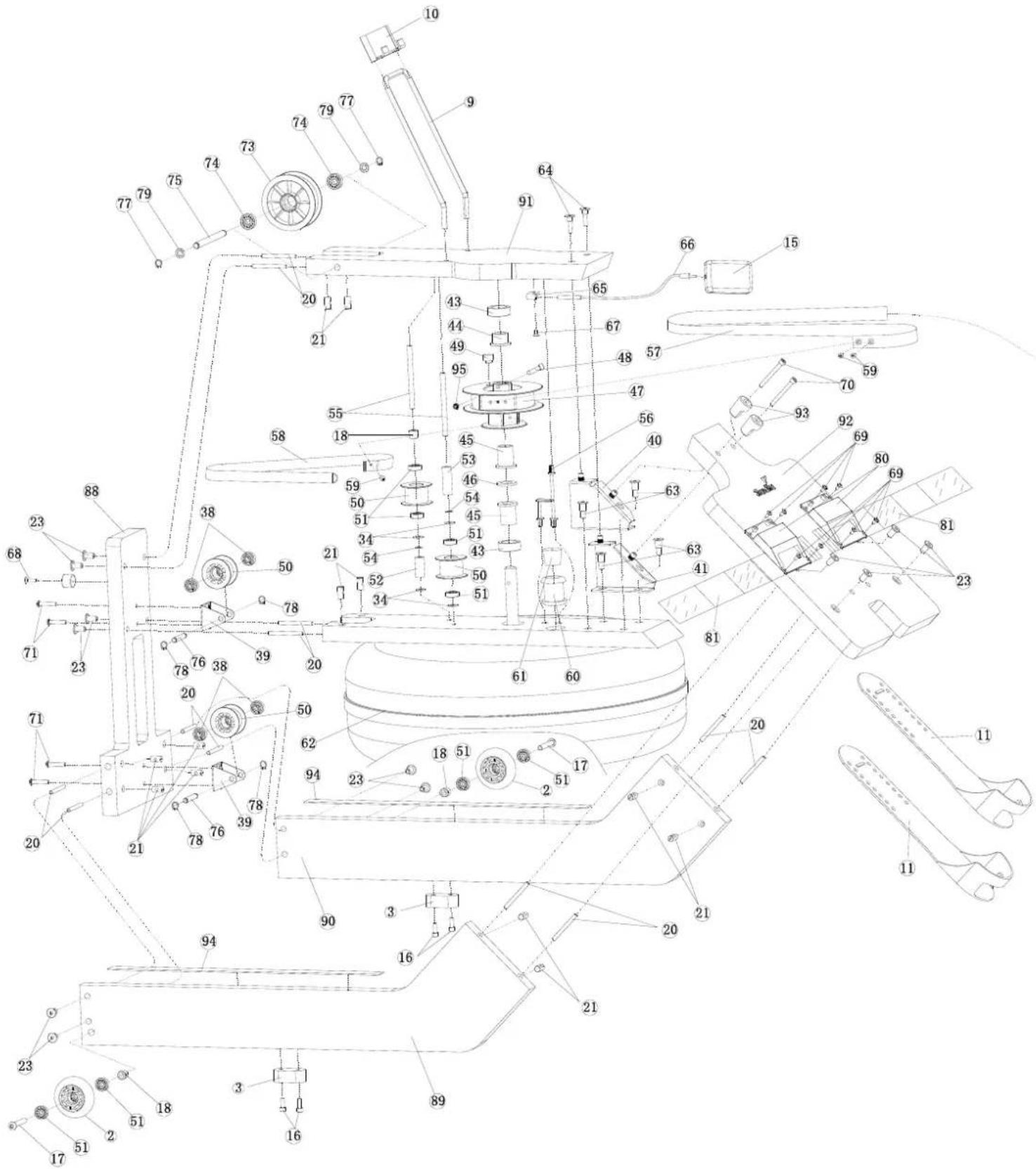

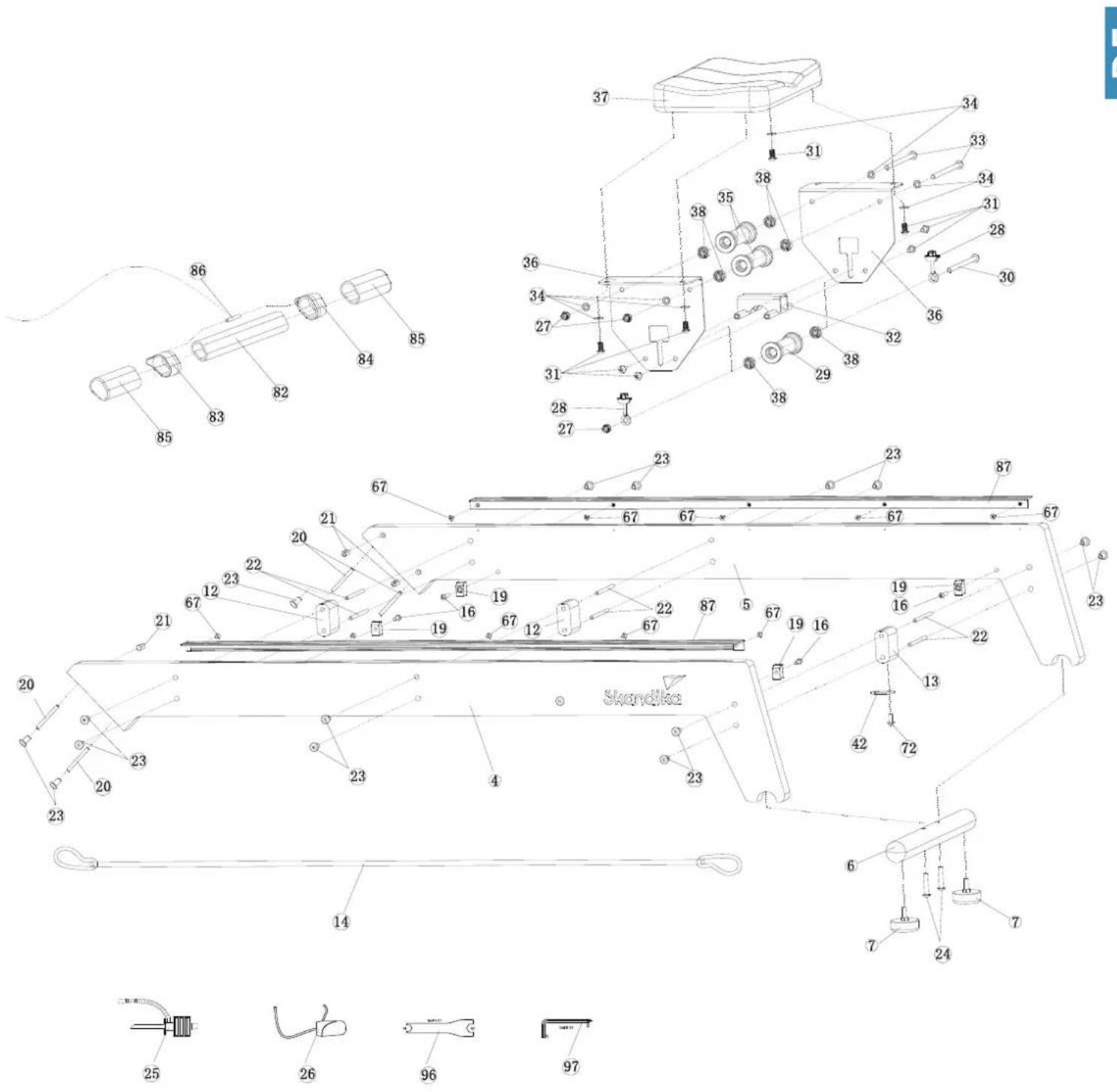

Part No.	Description	Q'ty
1 Tank assembly 1
2 Trolley wheel 2
3 Cushion foot pad 2
4 Left rail 1
5 Right rail 1
6 Solid wood support foot 1
7 Adjustable foot pad 2
8 Seat cushion assembly 1
9 iPad holder 1
10 iPad support 1
11	Foot pedal	2
12	Rail connecting block 1	2
13	Rail connecting block 2	1
14 Elastic rope		1
15	Bluetooth module	1
16 Screw M6 × 20		8
17	Screw M8 × 55	2
18	Roller spacer D15xD8×13	3
19 Stopper 25×15×15		4
20	Screw M6 × 60	16
21	Nut M6 × D10 × 15	16
22	Screw M6 × 85	6
23	Nut M6 × D9 × 18	28
24	Screw M8 × 45	2
25	Siphon pump	1
26	Electric water pump	1
27	Nut M8	3
28	Screw M6	2
29	Cushion roll	1
30	Screw M8 × 140	1
31	Screw M8 × 15 8
32	Stop device	1
33	Screw M8 × 135	2
34	Washer D8	12
35	Upholstery roll -1	2
36	Seat cushion fixation	2
37	Seat cushion	1
38	Bearing 608RS	10
39	U-roller 2
40	Connecting plate left	1
41 Connecting plate right		1
42	Connecting plate for pull cable	1
43	Plastic axle guide D36.5 × 13	2
44	Plastic axle guide D33 × 19	1
45	Plastic axle guide D33 × 35	2
46	Washer D33 × 3	1
47	Aluminium webbing roller	1
48	Screw M6 × 35	1
49	Magnet	1
50	Small webbing roller	4
51	Bearing 608RS	8
52	Plastic guide D15 × 8.5 × 33	1
53	Plastic guide D15 × 8.5 × 46	1
54	Shaft pulley D13 × 8.5 × 0.5	2
55	Pulley shaft D8 × 106	2
56	Strap limiter	1
57	Nylon webbing L3660	1

Part No.	Description	Q'ty
58	Nylon webbing L1800	1
59	M6 × 8 bolt	3
60	Locking ring	1
61 Tank plug		1
62	Water tank	1
63	Cylindrical bolt M8 4
64	Cylindrical bolt M6 2
65	Sensor clip	1
66	Sensor with cable	1
67	Screw ST4.2 × 12	11
68	Screw ST4.2 × 25	1
69	Screw ST4.2 × 20	8
70	Screw M6 × 55	2
71	Screw M6 × 35	5
72	Screw M6 × 15	1
73	Large belt roller	1
74	Bearing 6000ZZ	2
75 Webbing roller axle D10 × 126		1
76 Webbing roller axle D8 × 48		2
77	C-ring D10 2
78	C-ring D8	4
79	Washer D10	2
80	Plastic pedal fixation	2
81	Foot strap	2
82	Handle	1
83	Plastic belt fixation left	1
84	Plastic belt fixation right	1
85	PVC handle cover	2
86	Axle D6 × 60	1
87	Aluminium strip	2
88	Rear stand board 1
89	Lower base plate left	1
90	Lower base plate right	1
91	Upper connecting plate	1
92	45° board	1
93	Handle stopper	2
94	EVA pad	2
95	Nut M6	1
96	Tool A	1
97	Tool B	2

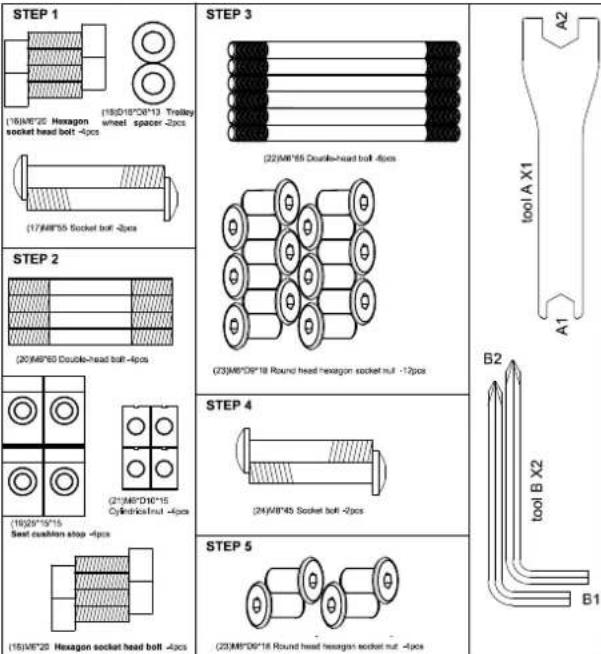

(1) Tank assembly x1	(8)Seat cushion assembly x1		(12) Rail connecting block 1 x2
	(9) iPad holder x1		(13)Rail connecting block 2 x1
(2)Trolley wheel x2
(3)Cushion foot pad x2	(10)Ipad support x1		(14)Elastic rope x1
(4)Left rail x1	(11)Foot pedal x2		(15) Bluetooth module x1
	(25) Siphon pump x1		(26)Electric Water Pump x1
(5)Right rail x1	Hardware pack x1		STEP 3(22MP16 Double-head bolt -4pcs(23MP16"18 Round head hexagon socket nut -17pcs)
(6)Solid wood support foot x1		(17MP15 Socket bolt -2pcs)
		STEP 2(20MP16 Double-head bolt -4pcs)
(7) adjustable foot pad x2		(21MP16"15 Double-headed -4pcsSeat cushion stop -4pcs(15VP20 Hexagon socket head bolt -4pcs)	STEP 4(20MP16 Socket bolt -4pcs)
			STEP 5

STEP 1

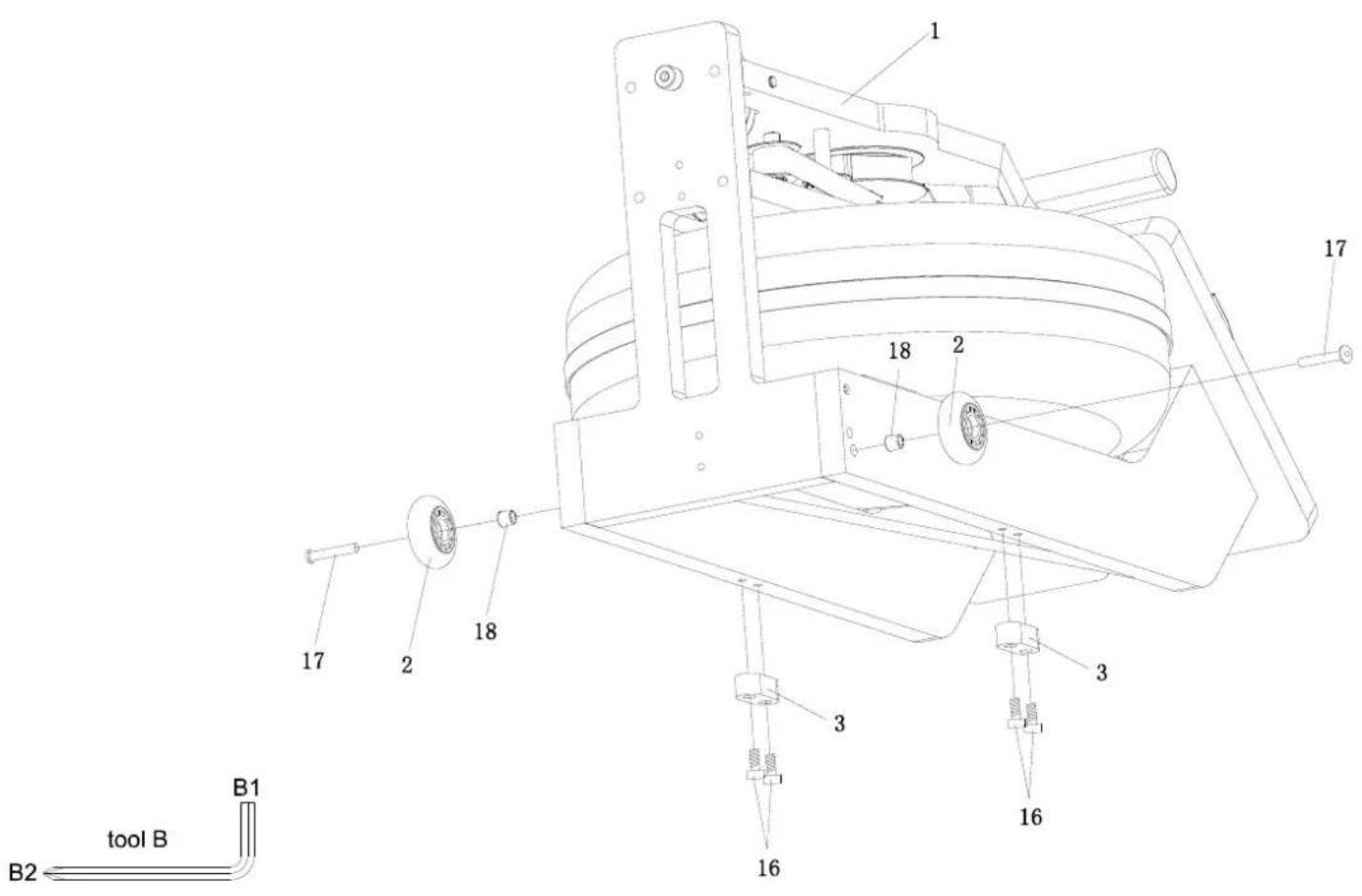

Attach the two foot pads (3) to the tank assembly (1) by fixing it with 4 screws (16). The wheels (2) and the spacers (18) must then be mounted to the tank assembly (1) with 2 screws (17).

1 2 3 16 17 18 19 20 B1 tool B B2

Or simply watch the set-up video online:

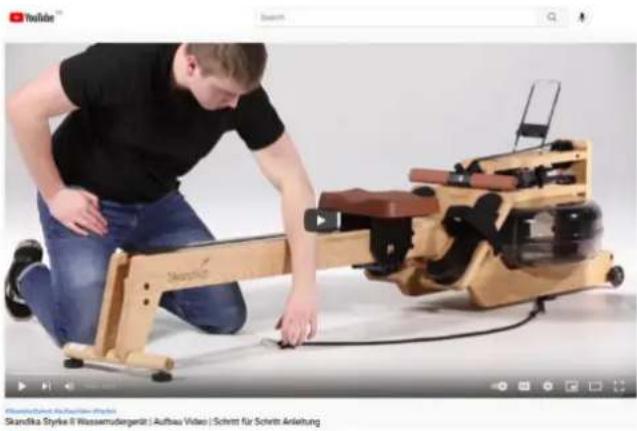

Find our step by step video tutorial on how to assemble Styrke II on the Skandika YouTube channel.

You can find the video via this link or simply scan the QR code.

Person using a Pilates reformer machine on a white surface, no visible text or symbols

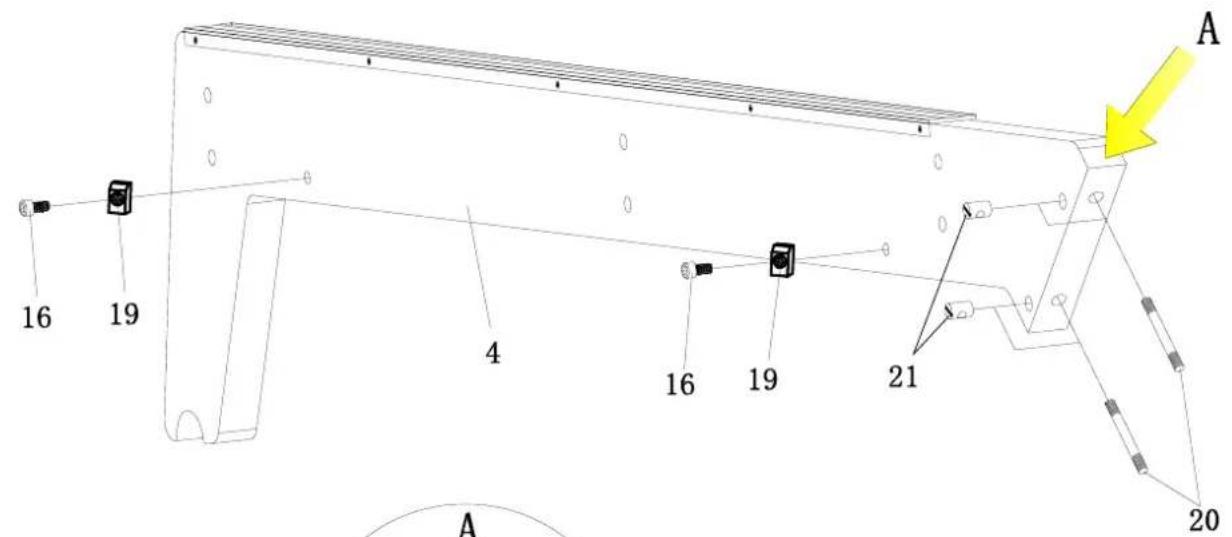

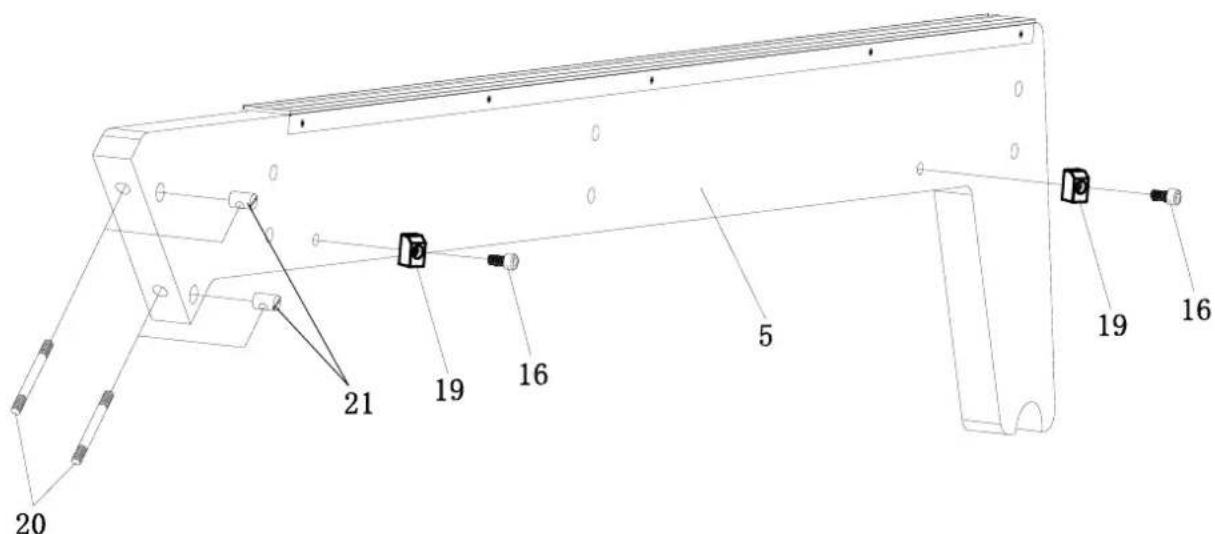

Attach the stoppers (19) to the left (4) and right (5) rails with 2 screws (16) each. Then attach the nut (21) and the bolt (20) to each rail as shown.

16 19 4 16 19 21 20 A

A 21 4 20

20 21 19 16 5 19 16

STEP 3

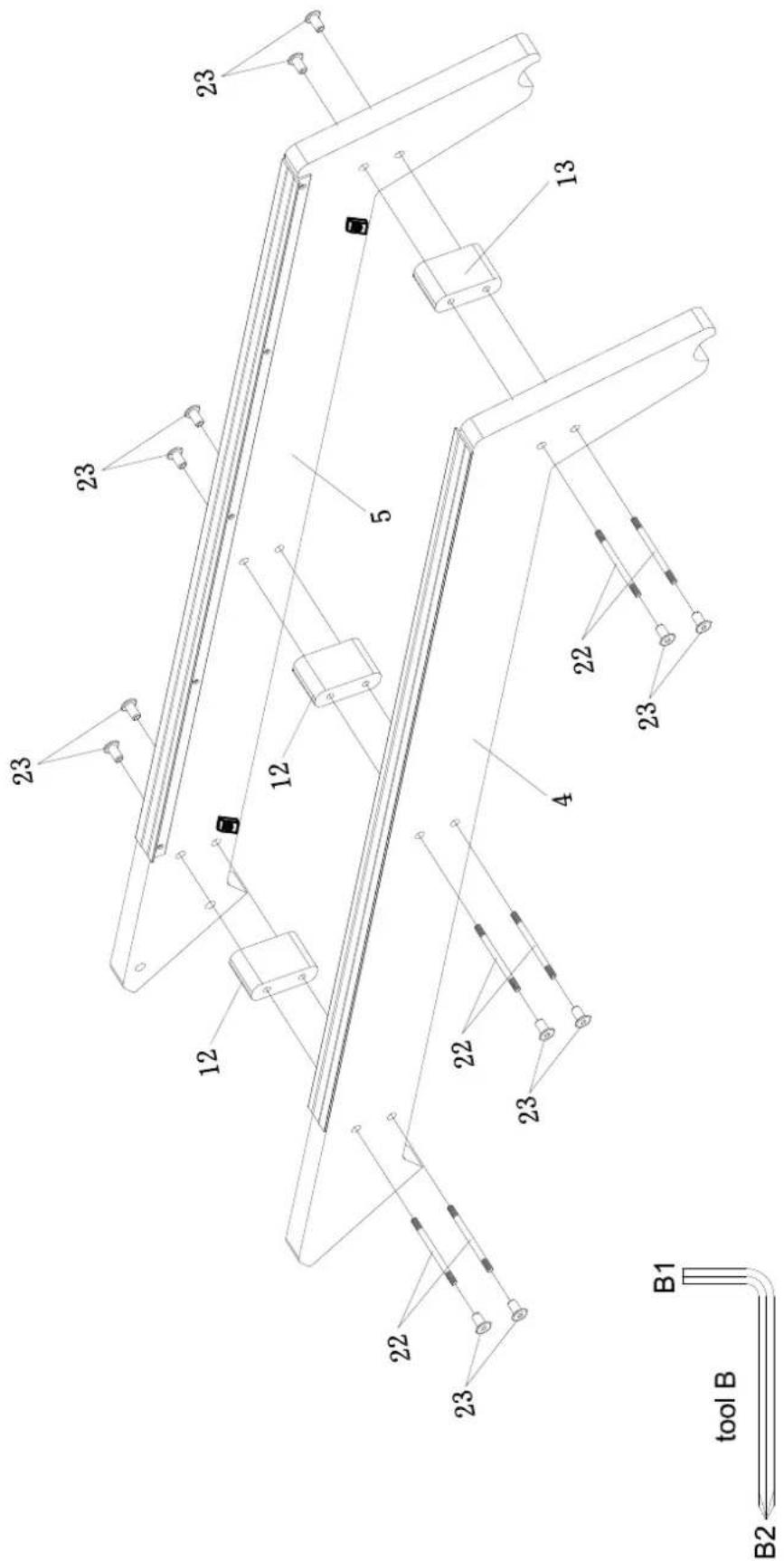

Fit the bolts (22) and nuts (23) as shown, thus joining the connecting blocks 1 and 2 (12 & 13) and the two rails (4 & 5).

23 23 23 5 12 12 4 22 23 22 23 22 23 B1 tool B B2

STEP 4

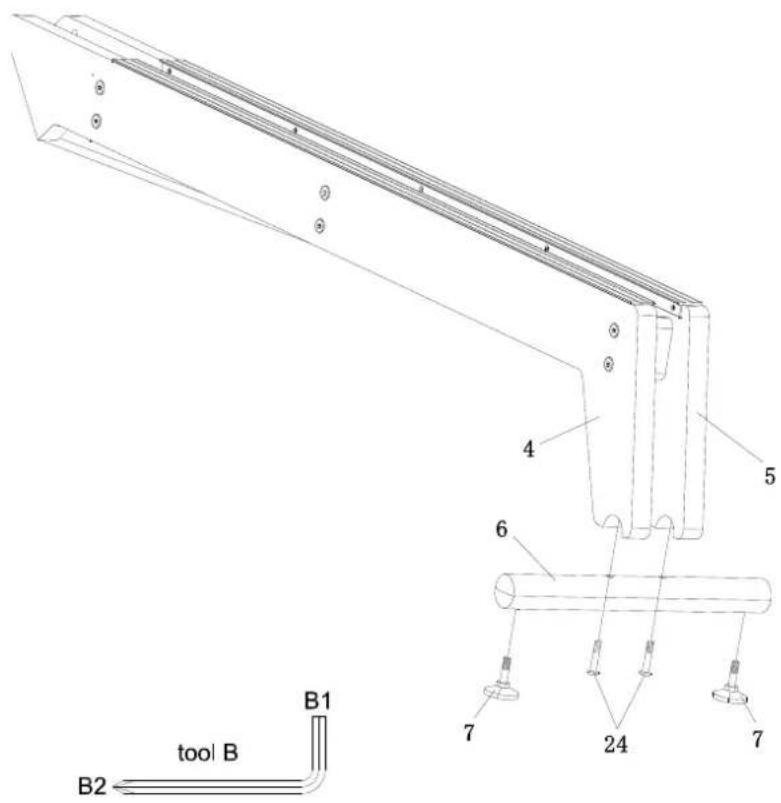

Attach the adjustable foot pads (7) and the solid wood foot (6) to the left and right rail (4 & 5) using two screws (24) as shown.

tool B B2 B1 4 5 6 7 24 7

STEP 5

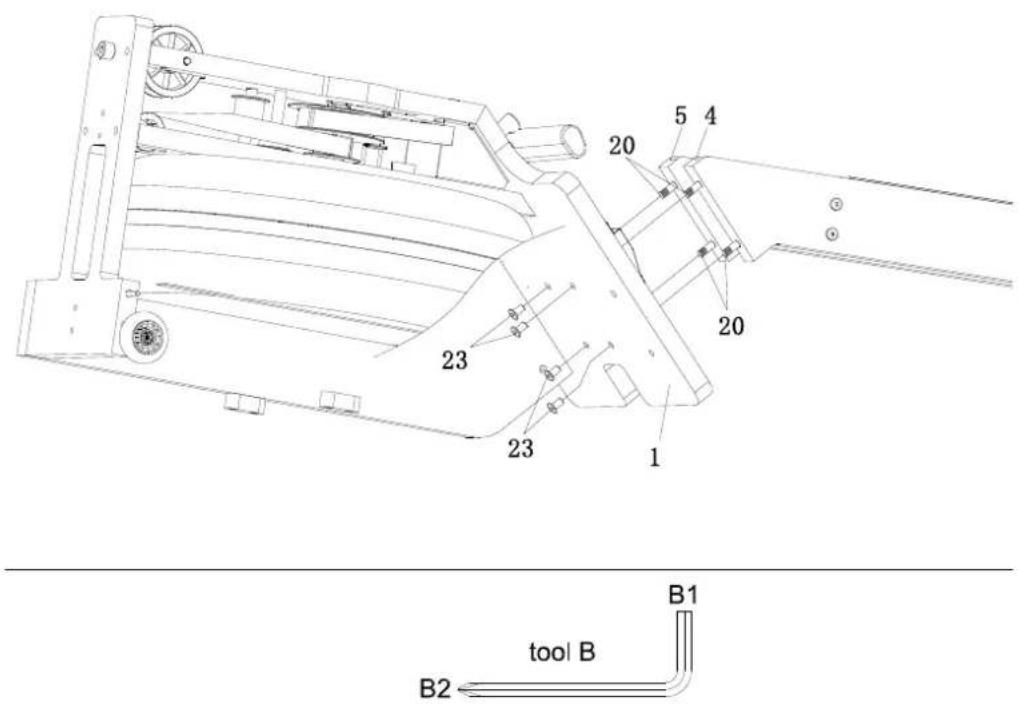

Secure the rails (4 & 5) to the tank assembly (1) with 4 bolts (20) and nuts (23) as shown.

20 5 4 23 23 1 20 tool B B1 B2

STEP 6

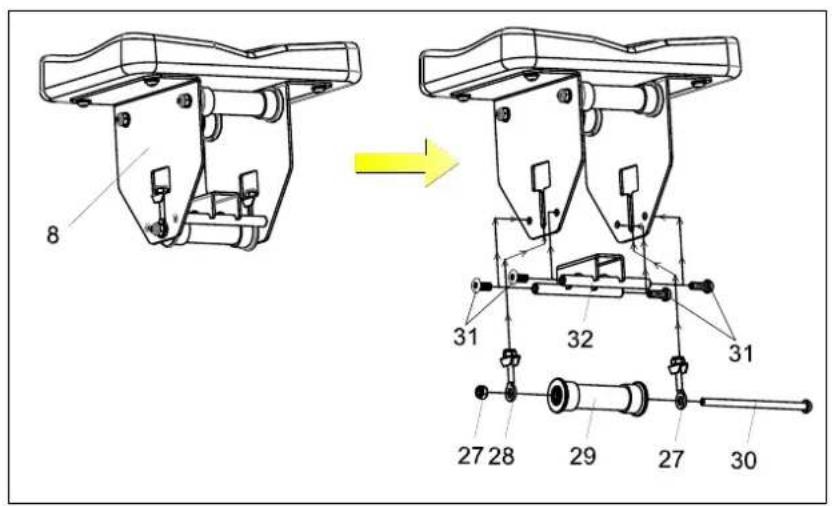

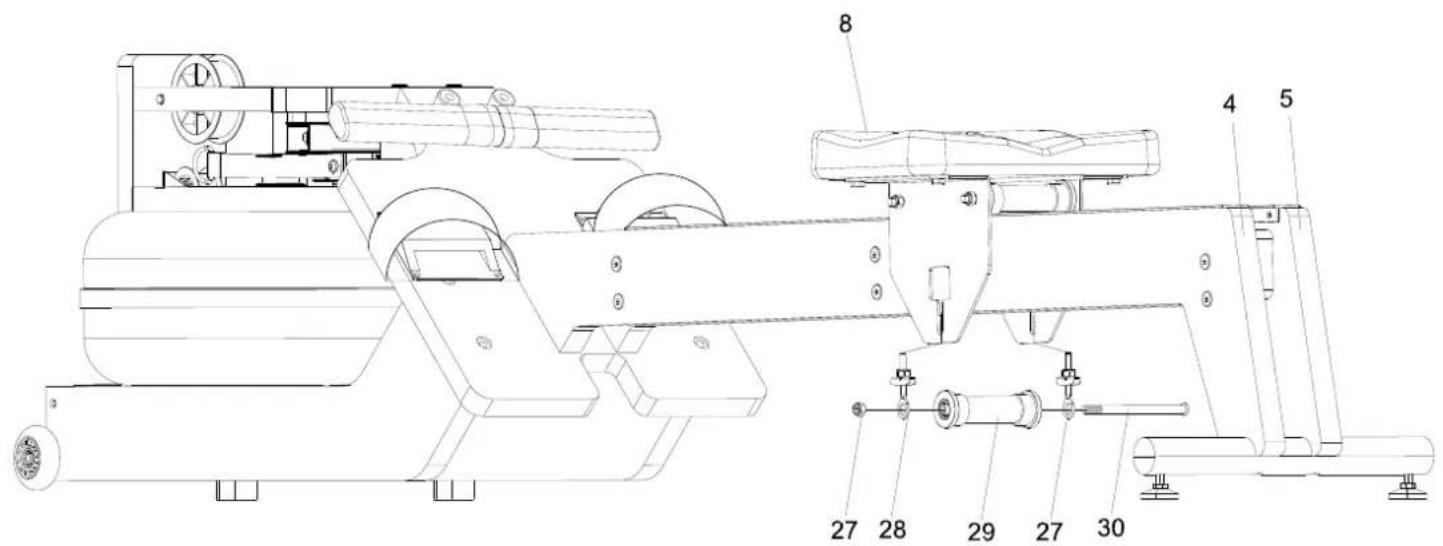

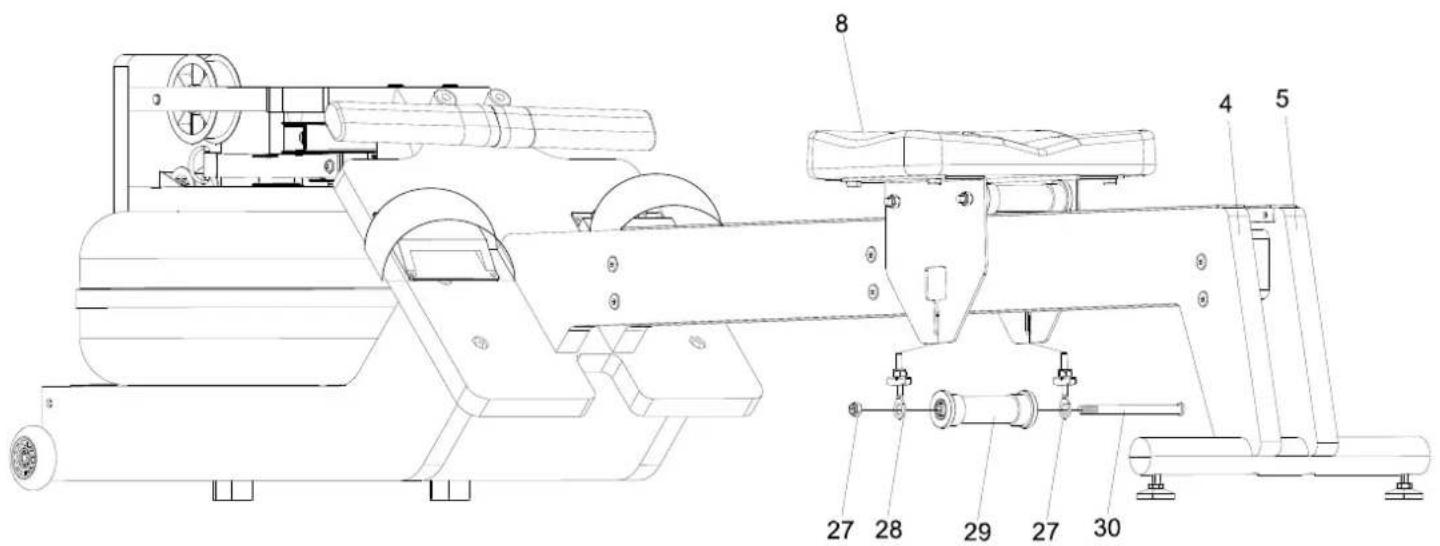

Now the seat assembly (8) is attached. The necessary parts [nut M8 (27), screw M6 (28), roller (29), screw M8×135 (30), Socket bolt M8×15 (31), Stop plate assembly (32)] must first be removed from the unit in order to attach it to the rails (4 & 5). After assembly, the seat unit should be able to slide on the rails so that the rowing movement can be carried out correctly later.

8 31 32 31 27 28 29 27 30

A1 tool A A2

Technical schematic diagram of a mechanical device with numbered components and labeled parts

STEP 7

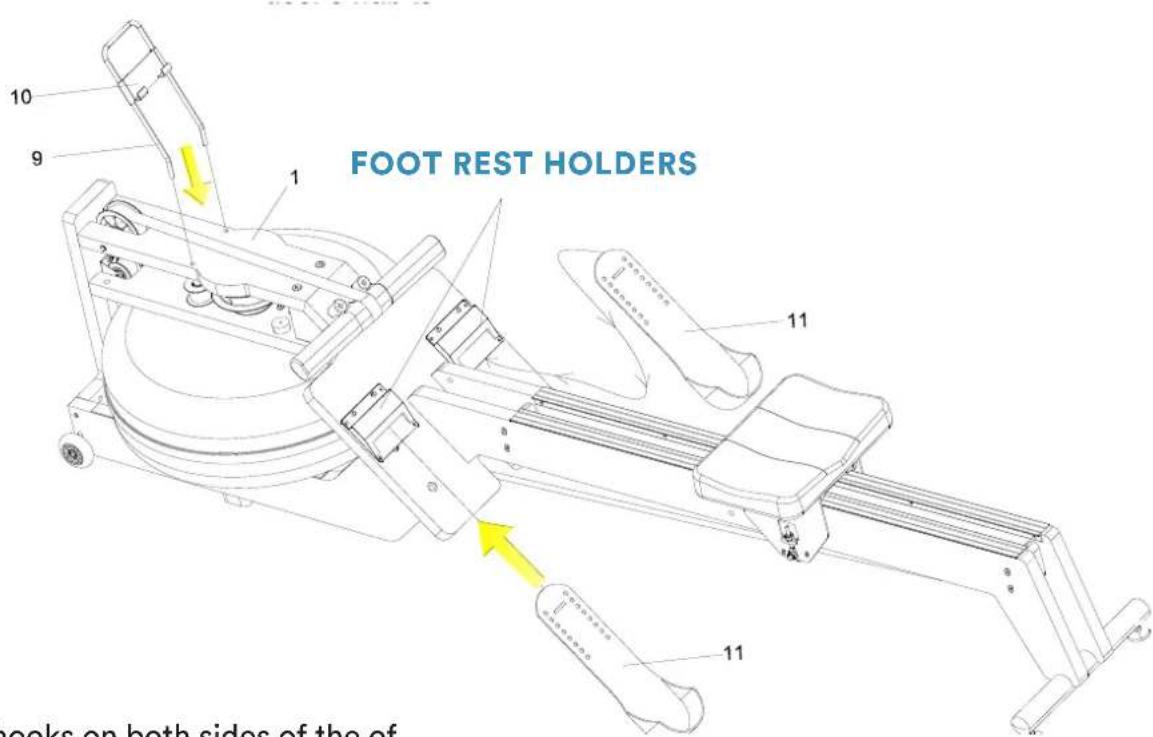

Attach the iPad holder (9) and the iPad support (10) to the tank assembly (1).

Then fit the foot pedals (11) to the footrest holders as shown. The holders are 8-way adjustable and can thus be adapted to the respective size of the user.

10 9 1 FOOT REST HOLDERS 11 11 hooks on both sides of the of

STEP 8

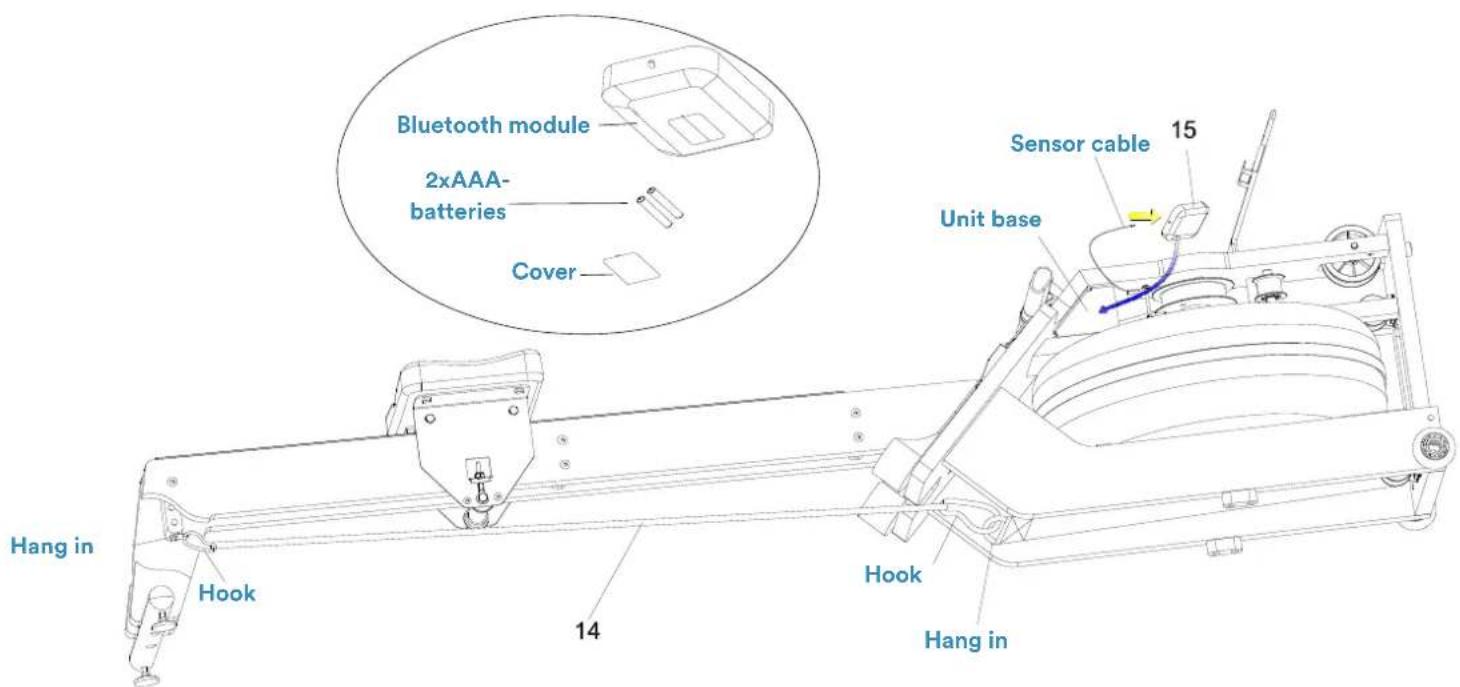

Hang the hooks on both sides of the of the elastic pull rope (14) as shown below.

The unit comes with a Bluetooth module (15), as well as 2 Varta AAA batteries and a Varta battery charger. This allows you to operate the module in an environmentally friendly way. We recommend that you fully charge the batteries before inserting them for the first time. After inserting them, connect the sensor cable to the module and place the module (15) on the base of the device as shown. The module has a magnet that fixes the module to the base of the unit.

Bluetooth module 2xAAA- batteries Cover Hang in Hook 14 Hang in Sensor cable 15 Unit base

FILLING AND EMPTYING THE WATER TANK

1. Remove the plug of the tank.

2. Fig. A shows how to fill the tank with water. Place the hose in the tank and use either the supplied siphon pump or the USB pump and a bucket of water to fill the tank. Pay attention to the filling quantity, which is indicated on the tank side wall by the level indicator.

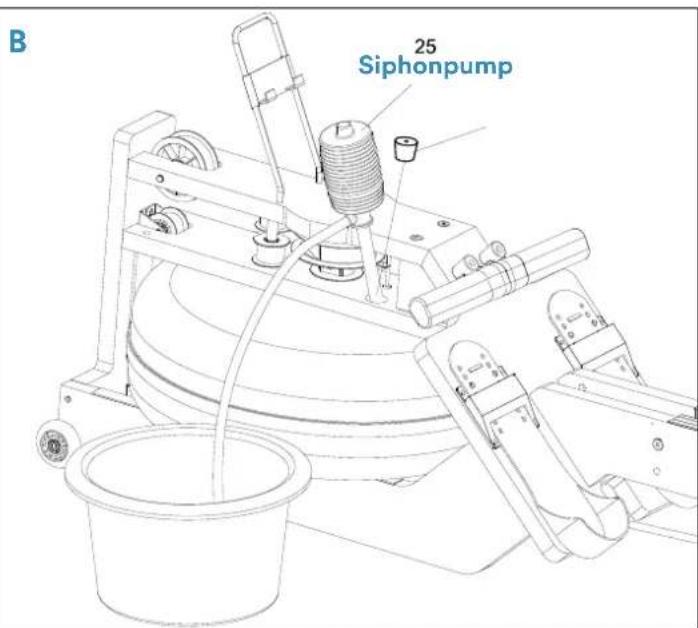

3. Fig. B shows how to empty the tank. Place a bucket

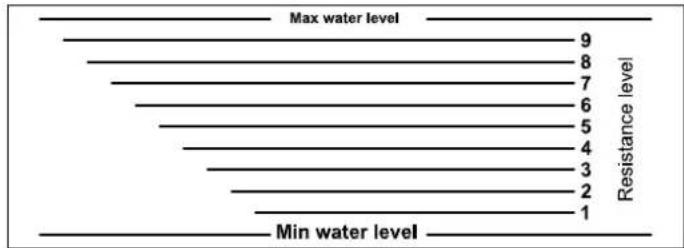

Max water level 9 8 7 6 5 4 3 2 1 Resistance level Min water level

in close proximity to the water tank and use the supplied siphon pump or the USB pump to pump water from the tank into the bucket.

1. Put the plug back into the tank. If any water has spilled, wipe it away.

NOTES:

- Always fill the tank with tap water or drinking water. Do NOT use distilled water, as this no longer contains any additives and so algae may develop more quickly. Never use pure chlorine bleach instead of a commercially available water treatment/chlorine tablet. Chlorine bleach, unlike chlorine tablets, may damage the tank.

- From now on, add a water treatment tablet to the tank every approx. 2 months. If the water remains cloudy despite the tablet, change the water in the tank.

- The water from the tank is not suitable for consumption. After emptying, pour the water away.

The water level

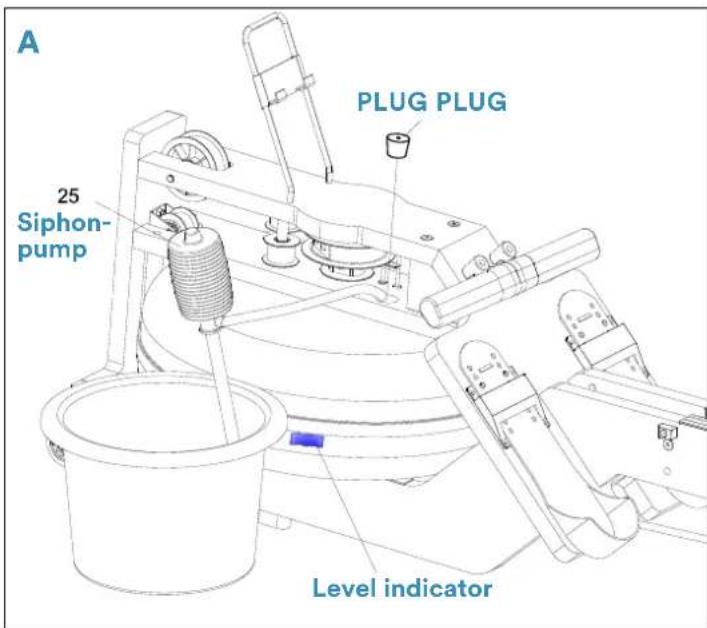

- Fig. A shows where the level indicator is located (side wall of the tank). You may fill the tank to a maximum of the „Max“ mark. Never overfill the tank beyond this! This will void the warranty (minimum = 8 litres / maximum = 16 litres).

- The resistance during rowing depends on the fill level of the tank. Filling level 1 means the lowest resistance when rowing, level 9 is the highest resistance.

A 25 Siphon- pump PLUG PLUG Level indicator

B 25 Siphonpump

EXERCISE INSTRUCTIONS

Rowing is a very effective form of exercise. It strengthens the heart and circulation as well as all the major muscle groups: The back, abdomen, arms, shoulders, buttocks and legs.

Rowing basics:

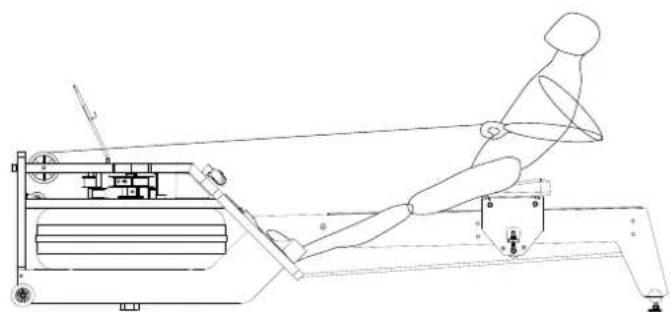

1. Sit on the seat and put your feet on the footrests and fix them with the Velcro. Grasp the handles.
2. Assume the start position, leaning forward with arms outstretched and bending the legs.

Technical line drawing of a person using a mechanical machine (no text or symbols present)

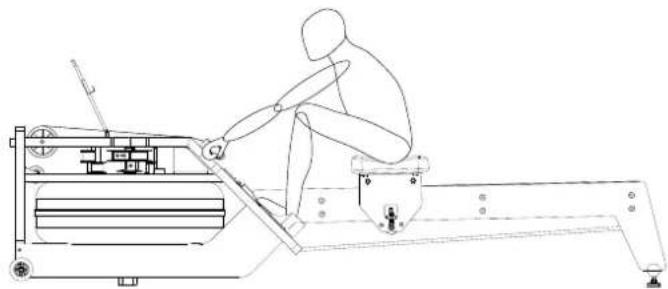

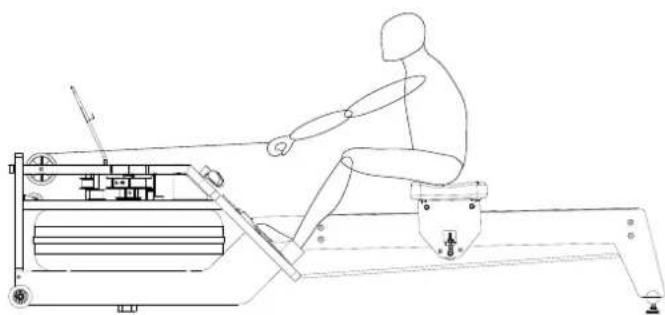

1. Push yourself backwards. The back and legs are stretched at the same time and the body slowly opens as the seat slides back.

Line drawing of a person using a rowing machine (no text or symbols present)

1. Carry out this movement until you lean slightly backwards. At this stage the elbows should point outwards. Return to the posture under point 2) and repeat the sequence.

Line drawing of a person using a Pilates reformer machine (no text or symbols present)

As a beginner, you should first learn the correct sequence and the rhythm of movement. You can increase the speed and resistance later.

WARM-UP and COOL-DOWN

A successful exercise program consists of a warm-up, aerobic exercise and a cool-down. Exercise for at least two or preferably three times a week, resting for a day between workouts. After several months, you may increase the frequency to four or five times per week.

WARM-UP

This stage helps to improve the blood circulation and prepares the muscles for your workout. It additionally helps to reduce the risk of injury or cramps. It is recommended to do some stretching exercises as shown here below. Hold each stretching position for approximately 30 seconds. Never force or jerk yourself into a stretching position – if you feel pain, STOP immediately. Warm-up exercises may also include brisk walking, jogging, jumping jacks, jump rope exercises or running in place.

STRETCHING

Muscles can be stretched more easily when these are warm. This reduces the risk of injury. DO NOT BOUNCE.

COOL-DOWN

This stage helps to soothe your muscles and your cardiovascular system after your workout. At the end of your workout, reduce the speed and exercise for approximately 5 minutes at this lower speed level. Afterwards, repeat the warm-up exercises as described above.

TRANSPORTING THE UNIT

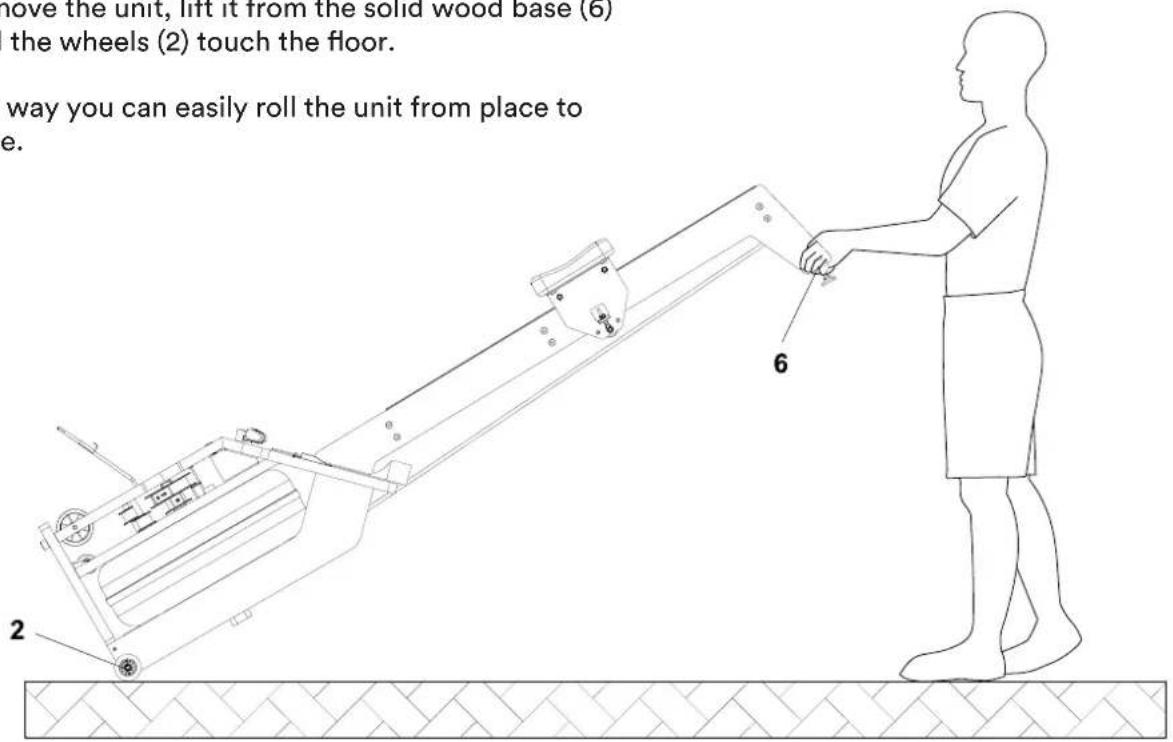

To move the unit, lift it from the solid wood base (6) until the wheels (2) touch the floor.

This way you can easily roll the unit from place to place.

move the unit, lift it from the solid wood base (6) the wheels (2) touch the floor. way you can easily roll the unit from place to e. 2 6

Technical line drawing of a mechanical lifting device with no visible text or symbols

STORAGE

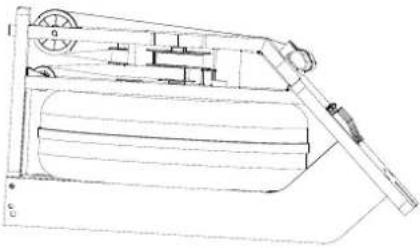

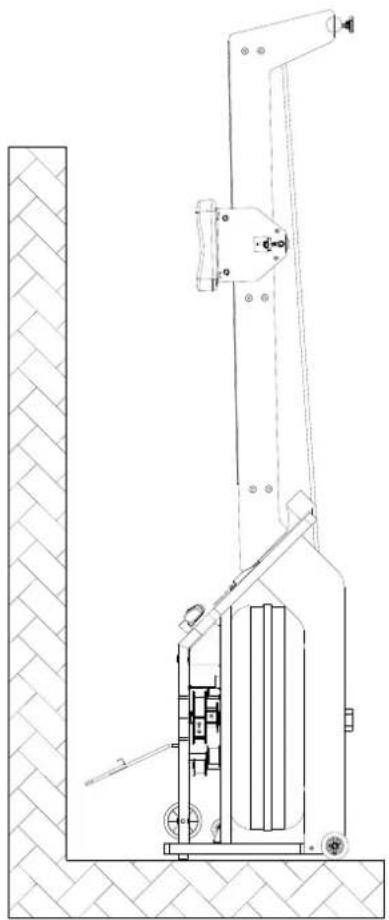

1. Store the rowing machine vertically after working out to save space. Empty the tank if it to be stored upright for more than 2 weeks to avoid algae forming in the stagnant water.
2. Watch your head when standing the unit upright - you could bump the rear stand!
3. Caution! Before setting up the unit in the vertical position, please push the seat all the way forward to the final position!

SKANDIKA TRAINING DATA APP

Turn your smartphone or tablet into a modern Styrke II training computer with the Skandika Training Data App. Download the app either via the search function of your app store or by scanning the QR code and then install it on your iOS or Android device. After successful installation, start the app on your mobile device.

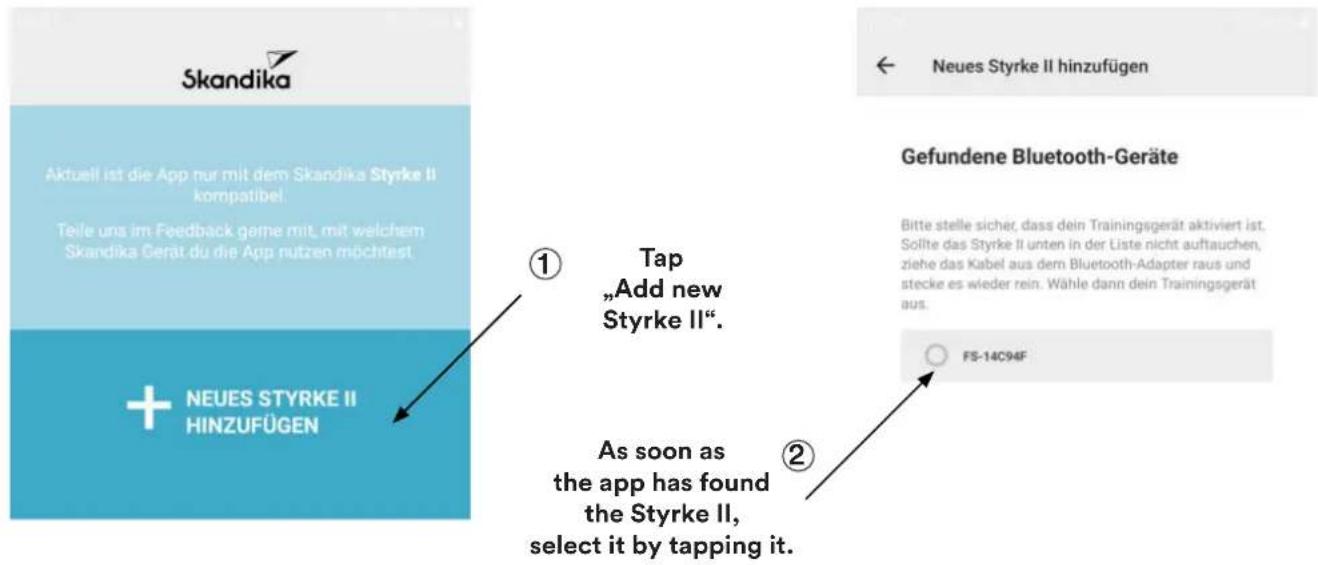

In order to record training data, the Styrke II must first be connected to the app. For iOS, make sure the Bluetooth connection is switched on. For Android, both the Bluetooth connection and location connection must be switched on.

Chat Reading Phone/Car Downloading Chat Reading Phone/Car Downloading

As soon as the Styrke II is connected to the app, it appears under „My devices“ (see adjacent figure).

To start training, select the Training tab and tap on „Start training“.

If there are problems with the connection, the following steps may help:

1. Make sure the Bluetooth and location settings are activated in the device settings of the smartphone or tablet. For Android devices, „Wi-Fi scanning“ and „Bluetooth scanning“ must also be activated in the location settings.
2. Restart the Bluetooth adapter by removing the batteries and then reinserting them.
3. Make sure the Styrke II is not connected to any other apps (such as Kinomap).
4. Update the app to the latest version.
5. Replace the batteries in the Bluetooth adapter if they are flat.

Enjoy a powerful workout that's fun with the free Kinomap! Choose one of the videos in the Kinomap app and get started. Download the Kinomap app from the App Store or Play Store (just scan the QR code) or search for Kinomap.

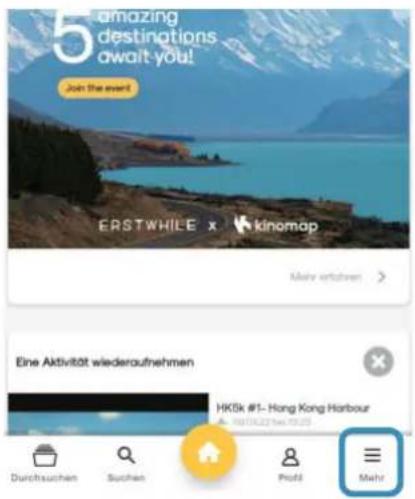

Install and open the app and log in or register. Switch on Bluetooth and then add the training device as follows:

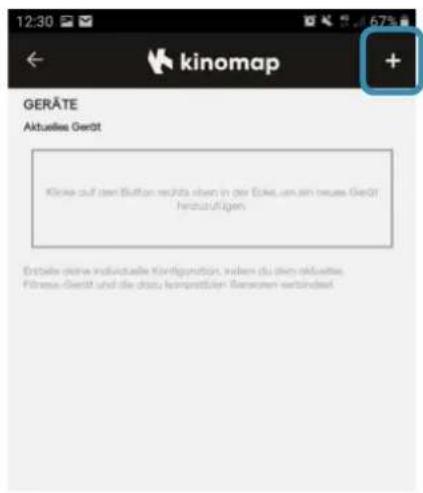

1. Equipment management

1. Styrke II is connected

GUARANTEE CONDITIONS

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.
2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.
3. The warranty is void if repairs or adjustments are made, which are not authorized by us or if our devices are

equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observance of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

1. Warranty services do not extend the warranty period nor do they initiate a new warranty period.
2. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.
3. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.
4. Parts of wear and tear are not included in the warranty.
5. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

ENVIRONMENTAL PROTECTION

The symbol of the crossed-out dustbin on batteries or accumulators indicates that they must not be disposed of in household waste at the end of their life. If batteries or accumulators contain mercury (Hg), cadmium (Cd) or lead (Pb), you will find the respective chemical symbol below the symbol of the crossed-out dustbin. You are legally obliged to return old batteries and accumulators after use. You can do this free of charge at a retail outlet or at another collection point near you. You can obtain addresses of suitable collection points

from your city or local government. Batteries may contain substances that are harmful to the environment and human health. Particular care should be taken when handling batteries containing lithium because of the special risks involved. The separate collection and recycling of old batteries and accumulators is intended to avoid negative impacts on the environment and human health. Please avoid the generation of waste from old batteries as far as possible, e.g. by giving preference to batteries with a longer life or rechargeable batteries. Please avoid littering public spaces by not carelessly leaving batteries or electrical and electronic equipment containing batteries. Please consider ways to reuse a battery instead of disposing of it, for example by reconditioning or repairing the battery.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For spare parts please contact: [e-mail]

Service centre:

Man kneeling beside a wooden exercise machine with cable, displayed in a video editing interface (no visible text or symbols on the machine or background)

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

Person using a Pilates reformer machine on a table, no visible text or symbols in the image.

ÉTAPE 2

Technical diagram of a mechanical device with numbered components and labeled parts

ÉTAPE 6

A1 tool A A2

Technical schematic diagram of a mechanical device with numbered components and labeled parts

ÉTAPE 7

NOTES:

Technical line drawing of a person using a mechanical machine (no text or symbols present)

Line drawing of a person using a rowing machine (no text or symbols present)

Technical line drawing of a person using a rowing machine (no text or symbols present)

Technical line drawing of a mechanical lifting device with no visible text or symbols

STOCKAGE
