USER MANUAL Lykke Skandika

Skandika stationary exercise machine with transparent spherical body and wooden frame (no visible text or symbols)

Lykke

DE GB FR

Inhalt

skandika.com/service

A	B	C
D	E	F
G	H	I
J	K	L

Technical line drawing of a humanoid robot with a robotic arm and labeled component G (no text or symbols beyond basic labels)

Technical schematic diagram of a mechanical assembly with numbered components and exploded view, likely for engineering or manufacturing purposes.

20 Safety precautions
21 Checklist
22 Set-up instructions
25 How to fill/empty the tank
26 Transportation & Storage
27 Computer instructions
29 Connecting to Kinomap app
30 Using a chest belt
31 Parts list
32 Explosion drawing
33 Warm-up and cool-down
33 Exercise instructions
35 Cleaning & care
35 Guarantee conditions

skandika.com/service

Please visit the Skandika Service portal on our website for setup & help videos, FAQs and downloadable instructions. For more information about Skandika, simply visit our main page www.skandika.com

To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use.

SAFETY PRECAUTIONS

1. Only use the unit in enclosed spaces!

2. Place the device on a solid and level and surface only. Use a floor protection to avoid traces through the device's feet.

3. Only assemble the unit as specified in these instructions. The unit must not be modified.

4. Wipe off any sweat with a soft, absorbent cloth at the end of training. Do not use aggressive solvents or hard brushes.

5. Only use in cool, dry environments. Do not store in extreme cold, hot or damp places.

6. Cleaning and user maintenance may not be carried out by children without supervision.

7. Before starting any exercise program, consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician's advice is essential if you are taking any medication that may affect your heart rate, blood pressure or cholesterol level.

8. Your health can be affected by incorrect or excessive training. Consult a doctor before beginning a training program. If you experience dizziness, nausea, chest pain or any other abnormal symptoms, STOP the workout immediately. CONSULT A PHYSICIAN IMMEDIATELY.

9. Keep children and pets away from the appliance. This device is suitable for adult use only.

10. Do not leave children unattended in the same room with the machine.

11. Before using the equipment, check if all nuts and bolts are securely tightened. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.

12. Never use the unit if it is damaged.

13. Do not place fingers or objects in the range of moving parts of the device.

14. Before using the machine to exercise, always do stretching exercises to properly warm up.

15. Increase speed intensity and duration gradually.

16. The HB class unit may only be used by one person at a time (max. weight load = 150 kg).

17. Do not use this device directly after meals or drinks. Never use the device under the influence of drugs, alcohol or medication that causes disorientation.

18. This device is not suitable for therapeutically or commercial use. Only use this unit according to the intended purpose and as directed in the instruction manual.

19. Set aside any jewelry, watches, or other items such as cell phone, keys, or knives before exercising on this unit. There is a risk of accident or injury!

20. Please do not attempt to repair the unit yourself in the event of malfunctions, since this will void all warranty claims. Only have repairs carried out by authorised service centres. Only original spare parts may be used.

21. Please only exercise with a minimum clearance area of 2 meters around the device.

22. Always wear appropriate clothing and shoes which are suitable for your workout on the device. The clothes must

2 meter 2 meter2 meter 2 meter 2 meter

be designed in a way so that they will not get caught in any part of the device during the work-out due to their form (for example, length). Be sure to wear appropriate shoes which are suitable for the work-out, firmly support the feet and which are provided with a non-slip sole.

Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

A	B	C
D	E	F
G	H	I
J	K	L

Fig. Description Q'ty
A Base unit 1
B Fixing plates 2
C Connector 1
D Rail right/left 1 set
E Footrest unit 1 set
F Handle attachment 1
G Seat unit 1
H Computer holder 1
I Manual		1
J Component bag		1 set
K Sphon pump		1
L Water purification tablets		1 set

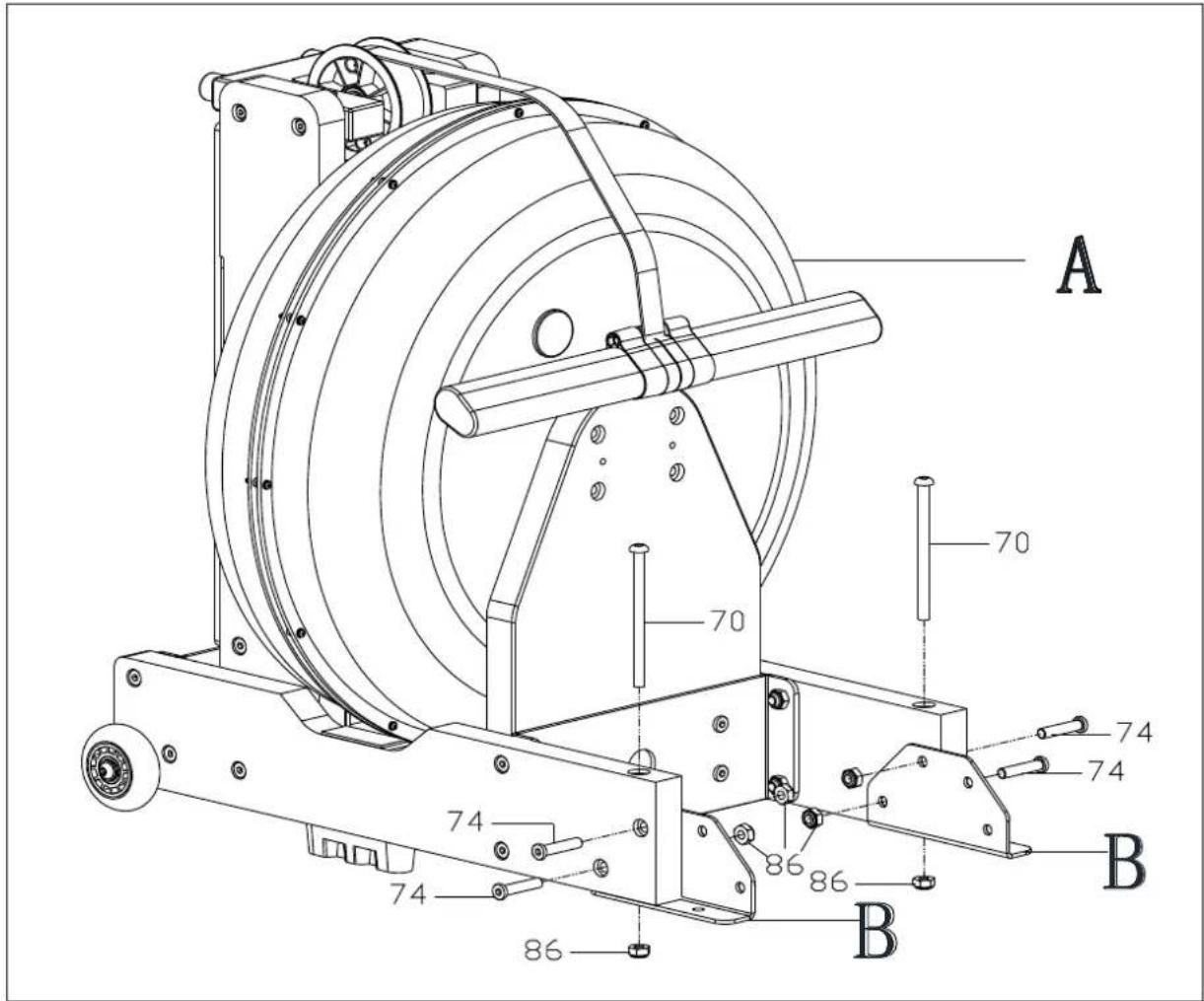

STEP 1

1. Remove the appliance from the box and put all parts on the floor.
2. Fix the two fixing plates (B) to the base unit (A) with the screws M8×110 (70), M8×35 (74) and nuts M8 (86) as shown.

A 70 70 74 74 74 86 86 B B 74 74 86

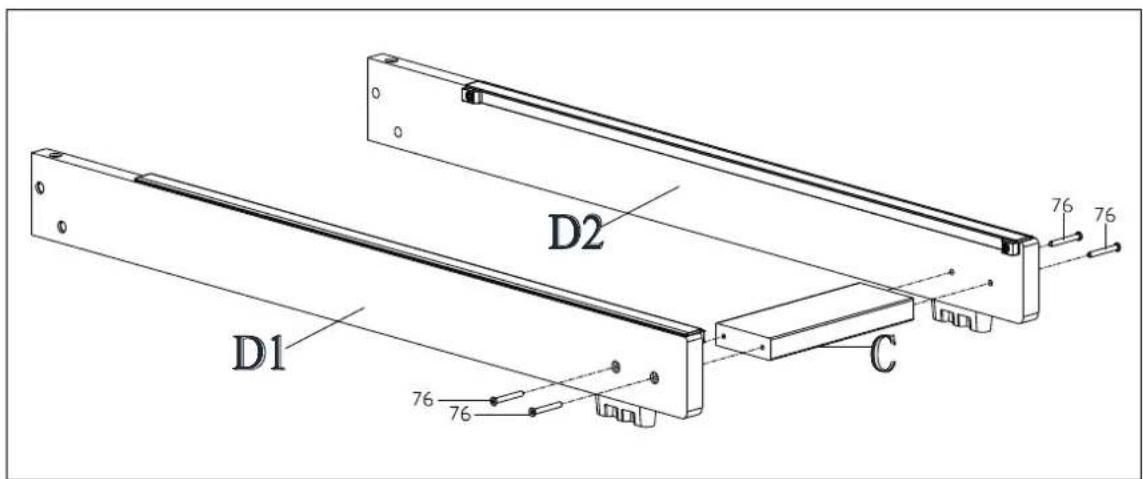

STEP 2

Connect the left and right rail (D1/D2) using the connector (C) and 4 screws M6×50 (76).

D1 D2 C 76 76 76 76

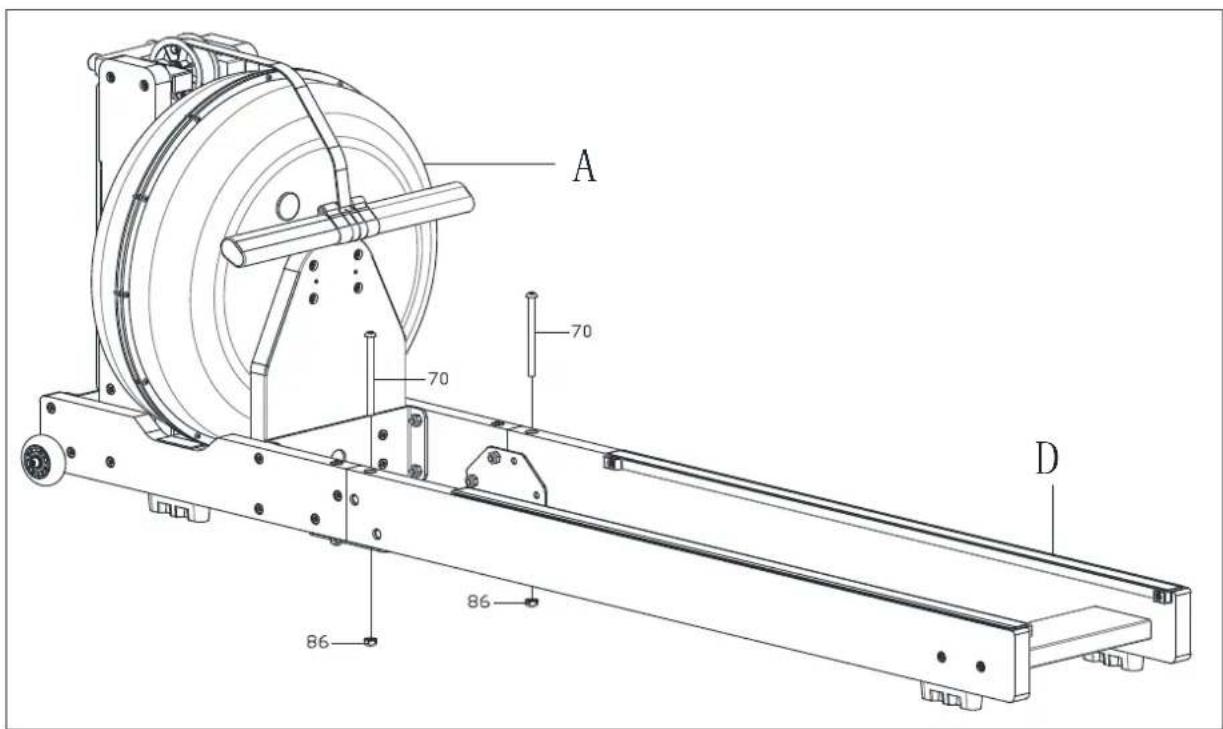

STEP 3

Now fix the rails (D) to the base unit (A) with the screws M8×110 (70) and nuts M8 (86).

A 70 70 D 86 86

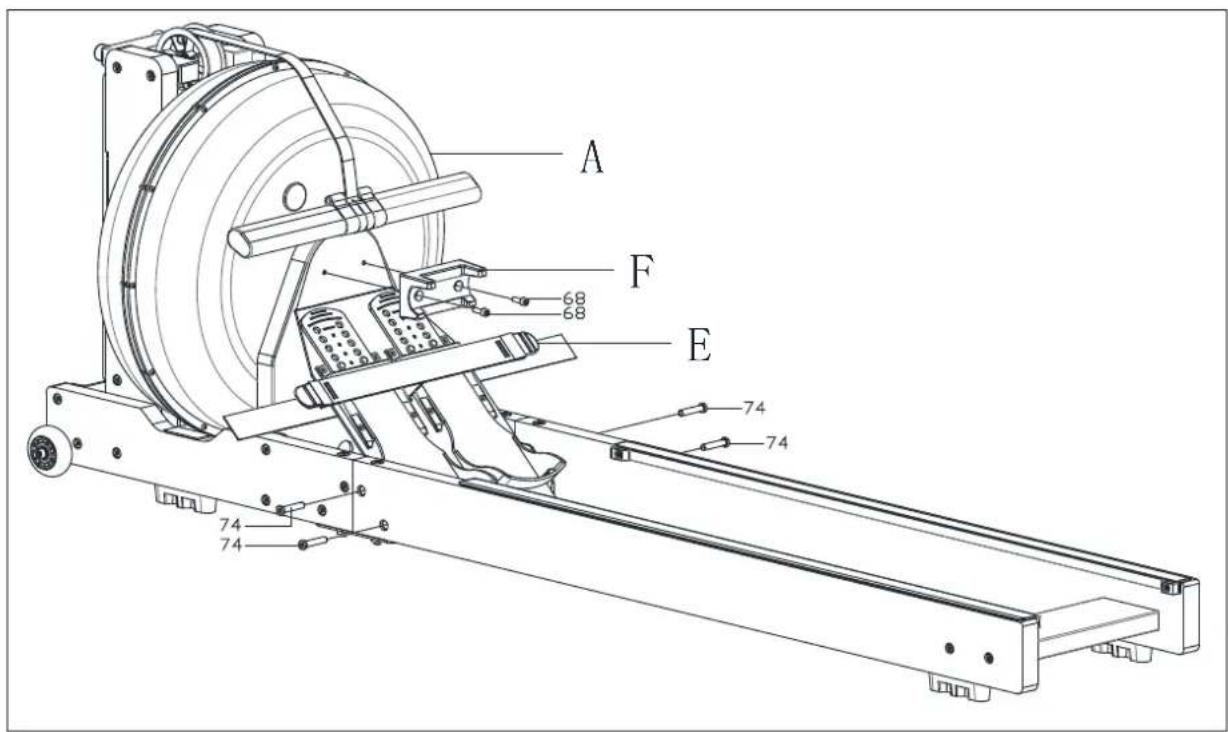

STEP 4

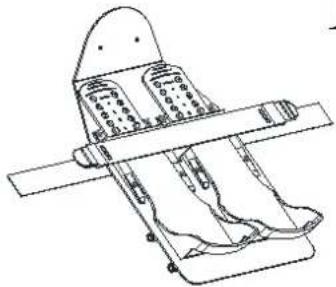

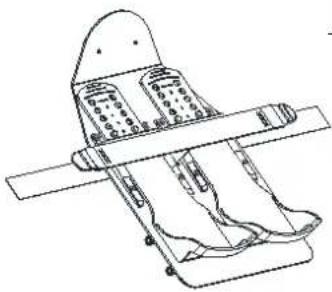

1. Fix the footrest unit (E) and the handle attachment (F) to the base unit (A) with 2 screws M8×16 (68) as shown.
2. Additionally fix the footrest unit (E) to the base unit (A) using 4 screws M8×35 (74).

A F E 68 68 74 74 74

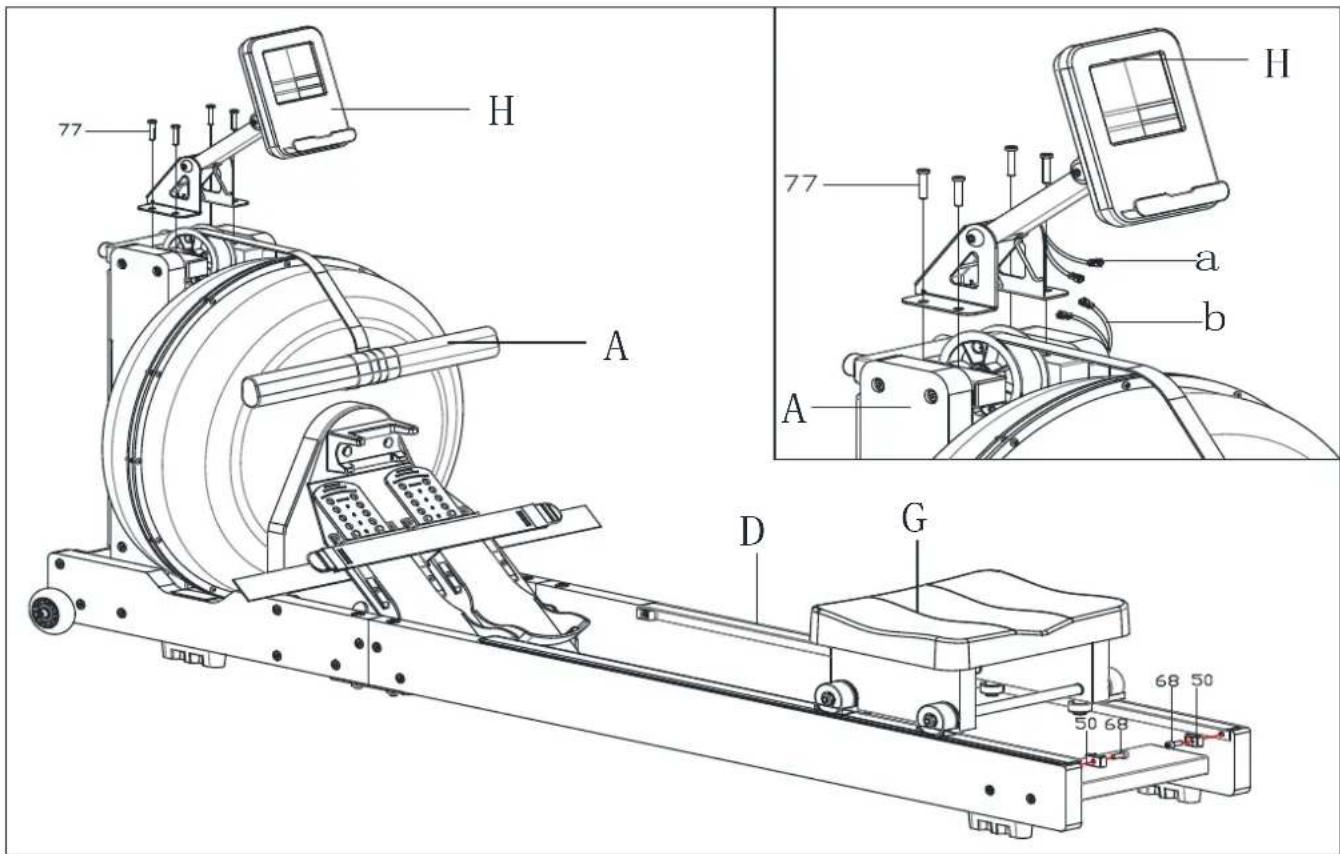

STEP 5

1. Mount the computer bracket to the base unit (A) with 4 M6×30 screws (77).
2. Connect the cable ends (b) and (a) as shown.
3. Remove the screws (68) with the stoppers (50) from the rails (D) and slide on the seat unit (G). The seat must be able to slide on the rails. Then fasten the screws (68) with the stoppers (50) again.

77 H A D G 68 50 50 68 77 a b H

Make sure that all connections are correctly tightened before using the unit.

HOW TO FILL / EMPTY THE TANK

1. Remove the plug (28) from upper tank.
2. Fig. A shows how to fill the tank with water. Use the supplied siphon pump (K) and a bucket of water to fill the tank. The pump is placed in the bucket of water and the flexible hose must go into the water tank. Ideally, the bucket of water should be higher than the water tank of the appliance. Pay attention to the filling quantity which is indicated on the side wall of the tank by the level indicator.

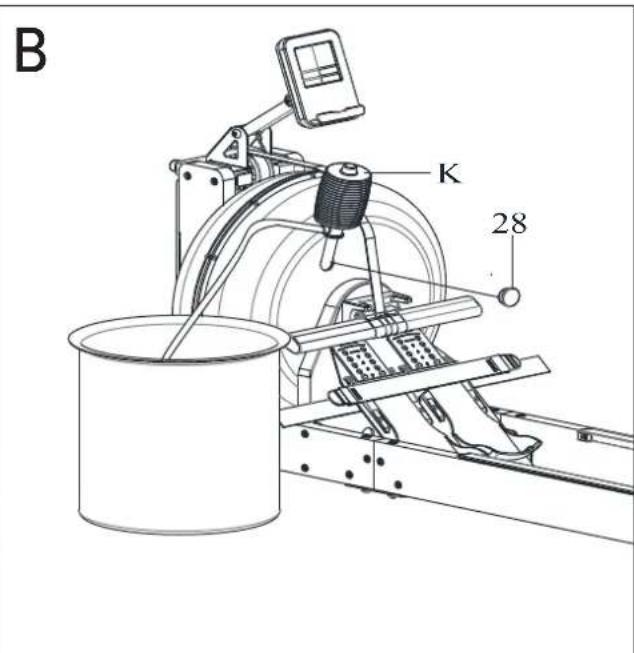

3. Illustration B shows how to empty the tank. Place a bucket next to the device. Use the syphon pump (K) to pump out the water from the tank into the bucket.
4. Once completed, re-insert plug (28) into the upper tank. Wipe away excess water from the frame.

NOTES:

• The tank may be filled with tap water or distilled water. Add a waterpurification tablet if necessary. Never use chlorine or chlorine bleach - this could damage the tank and lead to cancellation of the warranty.
• Depending on the environment of the installation site and the frequency of use, the water should be changed regularly, but at the latest every 6 months or if there are signs of discolouration, bacteria or algae, etc. Use distilled water if possible!
• Never expose the tank to direct sunlight and empty it if it is not going to be used for a long time.
• Water purification tablets (enclosed) are suitable for keeping the water clean. One tablet is sufficient for the maximum filled water tank. Stir the water well after adding one tablet. Add one tablet to the tank about every 2-3 months.
• The water from the tank is not suitable for consumption. After emptying, pour the water away.

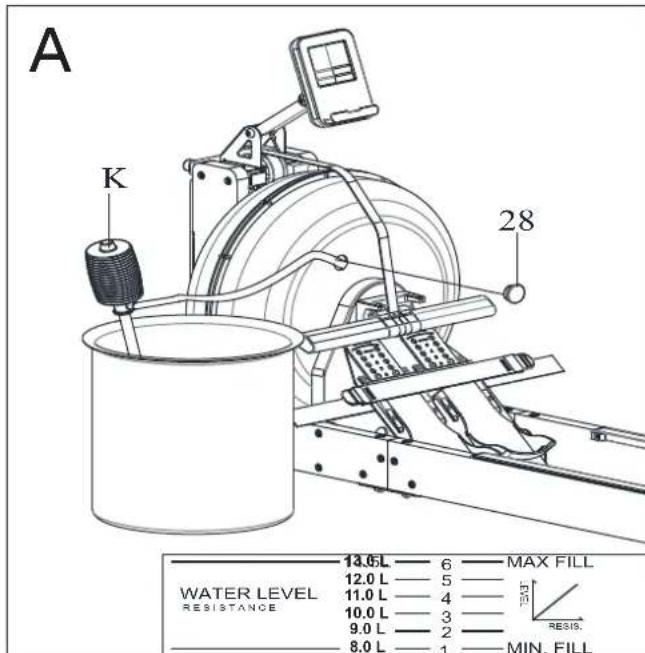

The water level

• Fig. A shows the fill level indicator. You may fill the tank to a maximum of filling level 6 (approx. 13,0 litres). Never overfill the tank beyond this! This will invalidate the warranty.
• The resistance when rowing depends on the level of the tank. Level 1 means the lowest resistance when rowing, level 6 is the highest resistance.

A K 28 WATER LEVEL RESISTANCE 13.6 L — 6 — MAX FILL 12.0 L — 5 — 11.0 L — 4 — 10.0 L — 3 — 9.0 L — 2 — 8.0 L — 1 — MIN. FILL

B K 28

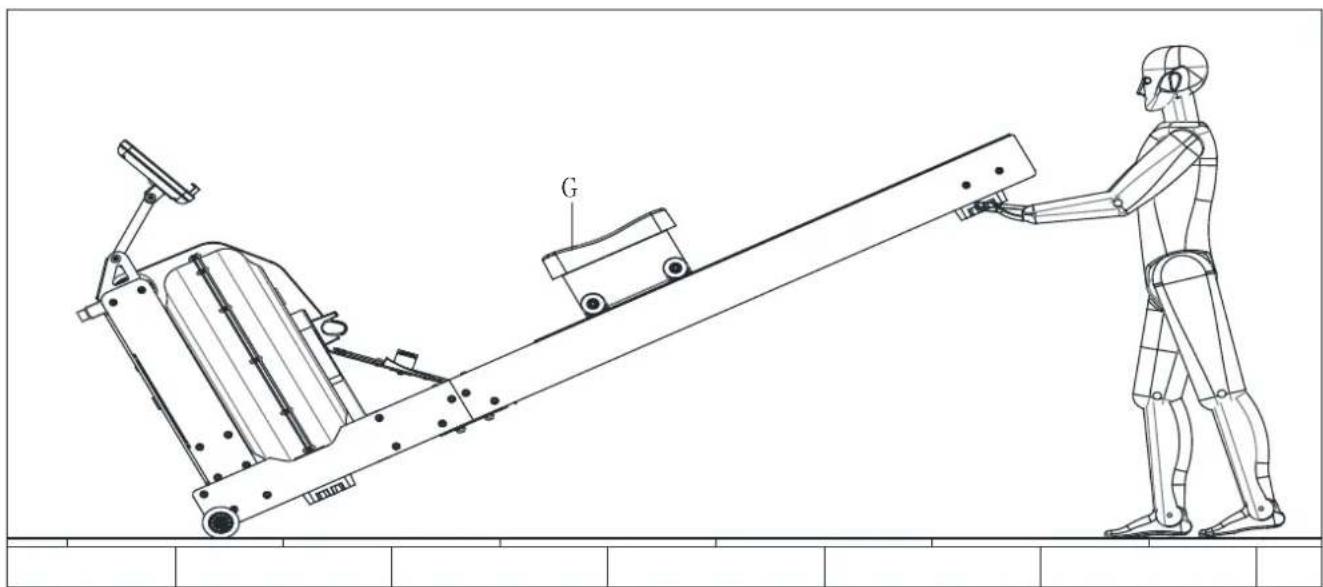

TRANSPORTATION & STORAGE

To move the unit, slide the seat (G) forward and lift the rear stand as shown until the transport wheels at the front touch the floor. This allows you to easily roll the unit from place to place.

ATTENTION! Moving parts such as the seat (G) could cause injury by slipping.

Do not touch the running rail when moving or exercising on the unit!

Technical line drawing of a humanoid robot with a robotic arm and labeled component G (no text or symbols beyond basic labels)

The unit should only be stored in a clean, dry and temperature-controlled environment. Empty the tank and remove the batteries if you do not use the unit for 1 month or longer.

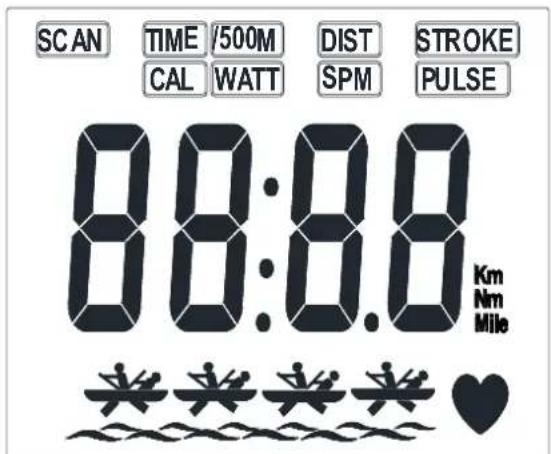

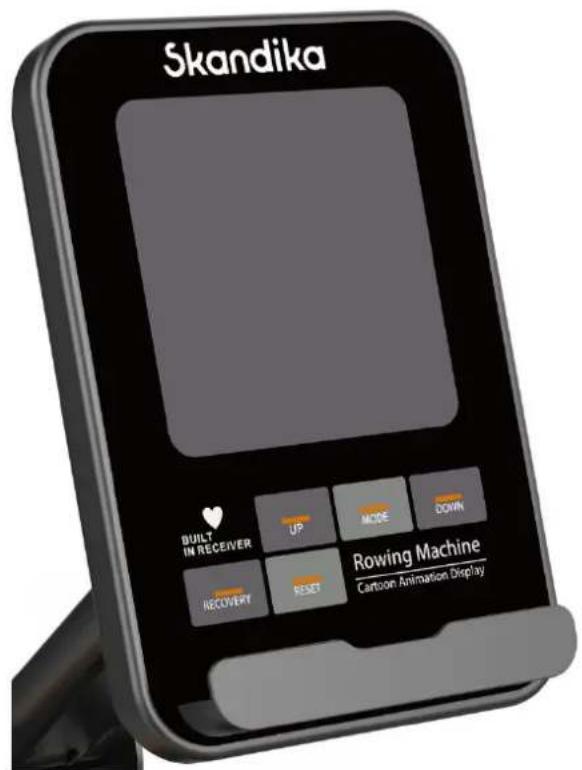

Skandika BUILT IN RECEIVER UP MODE DOWN Recovery RESET Rowing Machine Cartoon Animation Display

SCAN TIME /500M DIST STROKE CAL WATT SPM PULSE 88:8.8 Km Nm Mile

TIME / 500M	DIST STROKE
88:88	88.8.8KmNmMile
CAL WATT	SPM PULSE
888.8	888.♥

COMPUTER INSTRUCTIONS

BATTERIES:

The computer requires 2 AA batteries (supplied). If the batteries are changed, all settings will be lost. If there is a display problem, change the batteries first. Always change both batteries at the same time and do not mix different types of batteries. Only use new batteries and do not use an old and new battery together. Always dispose of batteries in accordance with the applicable legal regulations.

Function keys:

RECOVERY: Activates the RECOVERY PROGRAM that will automatically evaluate your fitness immediately after your work out.

RESET: Press to return to main menu or to set the value to 0 during an input procedure. Press and hold for approx. 3 seconds to set all values to 0.

MODE: Confirms a selection or a default value. During training, this key can be used to show another function in the large display. Pressing and holding the key for approx. 1.5 seconds puts the computer into preset value setting mode.

UP/DOWN: With these two keys you may select or preset function values. Pressing and holding the „DOWN“ key for approx. 5 seconds switches between the units „km“ and „mile“.

FUNCTIONS

TIME: Exercise time (0:00 to 99:59 min.) - presettable from 0 to 99 minutes.

TIME / 500M: Display of the average time for 500 metres of rowing. (0:00 - 99:59 min.)

SPM: Rowing strokes per minute (stroke frequency from 0 to 999).

DISTANCE: Rudder distance (0.00 - 99.99) - presettable from 0.1 - 99.9 km/mile.

STROKES: Stroke count display (rudder strokes from 0 to 9999) - presettable from 10 - 9990.

CALORIES: Displays the approx. calorie consumption (0 to 999.9 kcal) - presettable from 0 - 990 kcal.

WATT: Display of the power in watts (0-999.9 watts).

PULSE: The computer displays the user's pulse rate during training (a suitable chest strap must be worn for this). A pulse setting of 30 to 240 heartbeats per minute is possible (H.R.C.) - when the set heart rate is reached, the computer will emit a corresponding, acoustic signal.

COMPUTER OPERATION

After inserting the batteries, all the indicators on the display light up for about half a second and a beep sounds. The computer then automatically switches to standby mode. The computer automatically starts recording the training data when you start training. By pressing UP or DOWN you can change the displays in the 4 small windows (TIME / TIME/500M, DIST / STROKE, CAL/WATT, SPM/PULSE. By pressing MODE you change the value shown in large numbers on the display.

If no training takes place for approx. 4 minutes, the computer switches off automatically.

Setting default values (target values)

Before starting a training session (or during a training interruption) you have the possibility to set certain functions as target values. Press and hold the MODE key for approx. 1.5 seconds. Then use MODE, UP and DOWN to select default values for the flashing function value. Pressing RESET sets the selected function value to 0. After completing the entries, start the training.

RECOVERY (PULSE RECOVERY):

With this special function, you can check your hearts recovery rate after a training session. This is a very important indication for the physical condition of your body. Try to improve your recovery rate with regular training sessions. The aim is, to calm down to a normal pulse frequency (frequency, when you are not in motion) as quickly as possible.

To use this function, you must wear an additional chest belt. The computer is equipped with a built-in receiver for wireless pulse frequency transmission using an optional SKANDIKA chest belt (frequency: 5.3 kHz). Recommended range: 100 - 150 cm. Follow the instructions for the chest belt.

After you have completed the training, please keep the chest belt on and press „RECOVERY“.

The computer will start to countdown 60 seconds. During this period the computer will constantly measure your heart rate through the hand sensors. After this minute, your recovery rate will be displayed on the display. The range is F1.0 to F6.0, whereby F1.0 is very good and F6.0 is insufficient. Improve your value by intense and regular training! Press „RECOVERY“ again to exit the heart rate measurement.

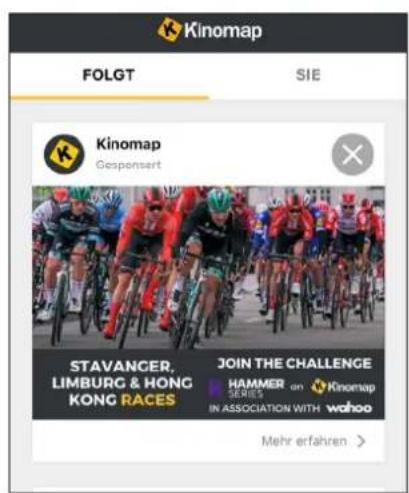

KINOMAP

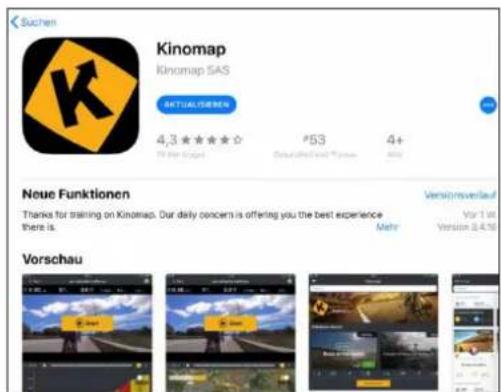

The free KinoMap app turns your device into a powerful and fun fitness product! Choose from the geotagged video on Kinomap and go! Your position is shown in the video and as icon on the map. Download the Kinomap Fitness app in the app or play store by searching for 'Kinomap Fitness' or follow one of the links below.

Install and open the app and register resp. log in. Activate Bluetooth. Now add the training device as follows:

Suchen Kinomap Kinomap SAS ACTUALISEMEN 4.3 ★★★★☆ $53 4+ Deutschland & Czechos Vorschau Neue Funktionen Thanks for training on Kinomap. Our daily concerns are offering you the best experience there is. Versionverlauf Vor 1 in Version 2.4.10 Vorschau

Kinomap FOLGT SIE Kinomap Gesponsert STAVANGER, LIMBURG & HONG KONG RACES JOIN THE CHALLENGE HAMMER SERIES in ASSOCIATION WITH wahoo Mehr erfahren >

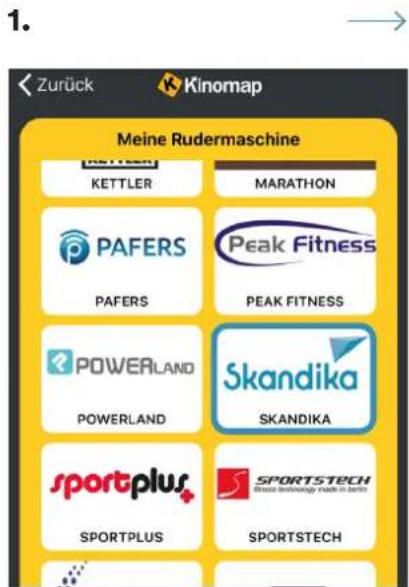

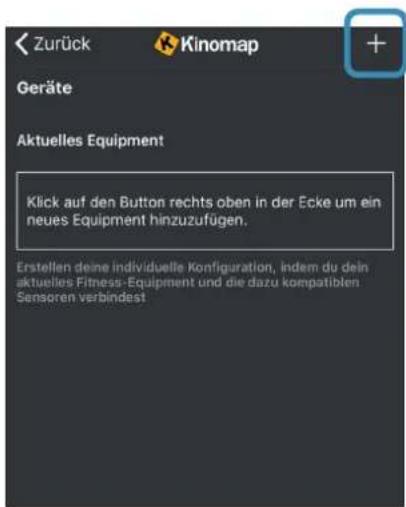

1. Zurück Kinomap Meine Rudermaschine KETTLER MARATHON PAFERS Peak Fitness PAFERS PEAK FITNESS POWERLAND Skandika POWERLAND SKANDIKA sportplus SPORTSTECH SPORTPLUS SPORTSTECH

1. Select Skandika

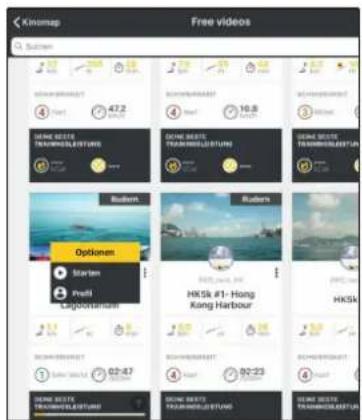

1. Rower Now tap on OK and return to main menu. You can now choose a course for your exercise (depending on your type of KinoMap account maybe only some free courses). Press Start and begin to exercise!


Kinmap Free videos Sutter 4 47.2 10.8 36.5 SHANG BEETE TOMMELLESTUM SHANG BEETE TOMMELLESTUM SHANG BEETE TOMMELLESTUM Shutter Options Starten Prefil Lagostamari HKSik #1-Hong Kang Harbour SHANG BEETE TOMMELLESTUM SHANG BEETE TOMMELLESTUM SHANG BEETE TOMMELLESTUM

Using a chest-belt

The computer is equipped with a built-in receiver for the wireless receipt of the pulse frequency with a compatible SKANDIKA chest-belt (frequency: 5.3 kHz, included in the scope of delivery). Recommended range: 100 - 150 cm.

If you want to transmit your pulse frequency via chest-belt, follow these instructions:

1. Make sure, the correct battery is inserted into the chest belt (button cell of type CR-2032, 3 volts). Battery replacement: Open the battery case cover on the back side of your transmitter (you may use a coin for easier handling) and replace the old battery by a fitting new one. The „+“ symbol should point upwards. Make sure, the sealing ring ist correctly placed. Close the case cover properly.
2. The transmitter needs to be attached to the belt with the 2 buttons. Moisten the electrodes slightly before wearing the belt. This increases the contact sensibility and enables a better wireless signal transmitting.
3. Put on the chest belt and make sure the electrodes are touching your breast directly. You may adjust the belt to a comfortable length. However, the electrodes must have contact with your skin in order to measure your heart rate correctly.
4. The 5.3 kHz-chest-belt communicates with the computer via the built-in receiver. It may last up to one minute before a correct display can be seen.

Safety hint:

Do not use the chest-belt if you have a pacemaker, unless you double-checked with the producer of the pacemaker and with your doctor!

Battery-Disposal:

Batteries should not be considered as regular garbage. As consumer you are obliged to return finished batteries. The finished batteries can be returned to a collection base at your residential area or at places, where batteries can be bought.

Part no.	Description Specification Q'ty
1 Left front Rail 545*100*27 1
2 Right front Rail 545*100*27 1
3 Left rear Rail 1190*100*27 1
4 Right rear Rail 1190*100*27 1
5 Rail connecting plate 260*100*27 1
6 Seat fixing plate 220*100*27 2
7 Left upright 550*100*27 1
8 Right upright		550*100*27	1
9 Console panel		140*129*27	1
10	Support plate	363*250*27	1
11	Cover plate	424*180*6	1
12	Front fixed U-shaped plate	310*100*ø4	1
13	Upright connecting assembly		1
14	Console fixing		1
15	Console bracket		1
16	Console post		1
17	Tank fixing		1
18	Fixed plate	220*178*ø3	2
19	Pedal assembly		1
20	Connector	99.4*140*ø3	2
21	Tank top cover	ø518*100	1
22	Tank bottom cover	ø518*100	1
23	Blade	ø462*124	1
24	Seal ring	ø501*7	1
25	Rubber washer	ø40*7	2
26	Seal ring fixing seat	ø60*ø45*30	1
27	TC frame oil seal	ø20*ø40*8	2
28	Plug	ø31.3*10.4	1
29	Plastic bearing seat	110*98*12	1
30	Rubber sealing gasket	ø60*ø45*□2	1
31	Pullback device ø110*220 1
32	Top bearing cover	ø30*ø17*15	1
33	Foot pad	ø20*15	2
34	Foot pad	100*25*25	4
35	Shaft	ø18*ø10.2*13	2
36	Shaft 2	ø20*10.2*16.5	2
37	Little wheel	ø51*ø38*32	1
38	Big wheel 2	ø95*ø82*32	1
39	Pedal base plate	132*106*18	2
40	Adjustable foot rest	343*106*56	2
41	Pu roller	ø69*23.5	2
42	PVC casing 2	ø15*ø8.2*195	2
43	PVC casing 3	ø15*ø8.2*10	4
44	PVC casing 5	ø16*ø10.2*5	2
45	Left webbing fixing seat	54*39*35	1
46	Right webbing fixing seat	54*39*35	1
47	Handle bar fixing	108*60*50	1
48	Handle tube	40*25*390	1
49	PVC grip sleeve 46*31*170 2
50	Cushion stop	25*15*10	4
51	Small roller	ø28*11.5	4

Part no.	Description Specification Q'ty
52	Roller positioning seat	46*43.5*32.4	4
53	Seat roller	ø46*22	4
54	Seat	320*260*52	1
55	Foot strip	38.1*2*800	1
56	Edge strip	30*17.5*1070	2
57	EVA pad	90*25*ø2	2
58	Siphon pump	570	1
59	Seat roller shaft ø8*320 2
60	Fixing pin	ø8*40	1
61	Pulley shaft 3	ø10*150	1
62	Bushing	ø12*ø8*27	2
63	Bushing 2	ø12*ø8*22.5	18
64	Reinforcing tube	20*10*1.5*370	1
65	Shaft sleeve	ø18*ø14*ø10*10	2
66	Bearing	6904ZZ	2
67	Screw	M6*60*16 S5	1
68	Screw	M6*16	6
69	Screw	M10×65×15×S6	3
70	Screw	M8×110×30×S6	4
71	Screw	M8×65×20×S5	2
72	Screw	M6×32×S4	6
73	Screw	M8×20×S5	1
74	Screw	M8×35×S5	34
75	Screw	M6×65×S4	4
76	Screw	M6×50×S4	4
77	Screw	M6×30×S4	8
78	Screw	M8×140×20×S14	4
79	Screw	M6×25×S10	10
80	Screw	M6*8	2
81	Screw	M4×6x∅7	12
82	Screw	M3×17x∅6	12
83	Screw	ST4.2×16x∅7	17
84	Screw	ST4.2×16x∅7	8
85	Nylon nut	M10×1.25xH12xS17	3
86	Nylon nut	M8xH7.5xS13	40
87	Nylon nut	M6xH6xS10	5
88	Nylon nut	M3xH3.8xS6	12
89	Flat washer	SUS304 d8×∅16×1.5	1
90	Shaft ring	d8×∅16×1.5	20
91	Shaft ring	D8×0.8	1
92	Webbing	25*3100	1
93	Console	LCD76.8*80.8	1
94	Console wire		1
95	Sensor wire	400mm	2
96	Allen key S6	S6	1
97	Allen key S5	S5	1
98	Allen key S4	S4	1
99	Combi tool	13 14 17	1
100	Water purification tablet		1 set
101	Chest belt	5.3 kHz	1

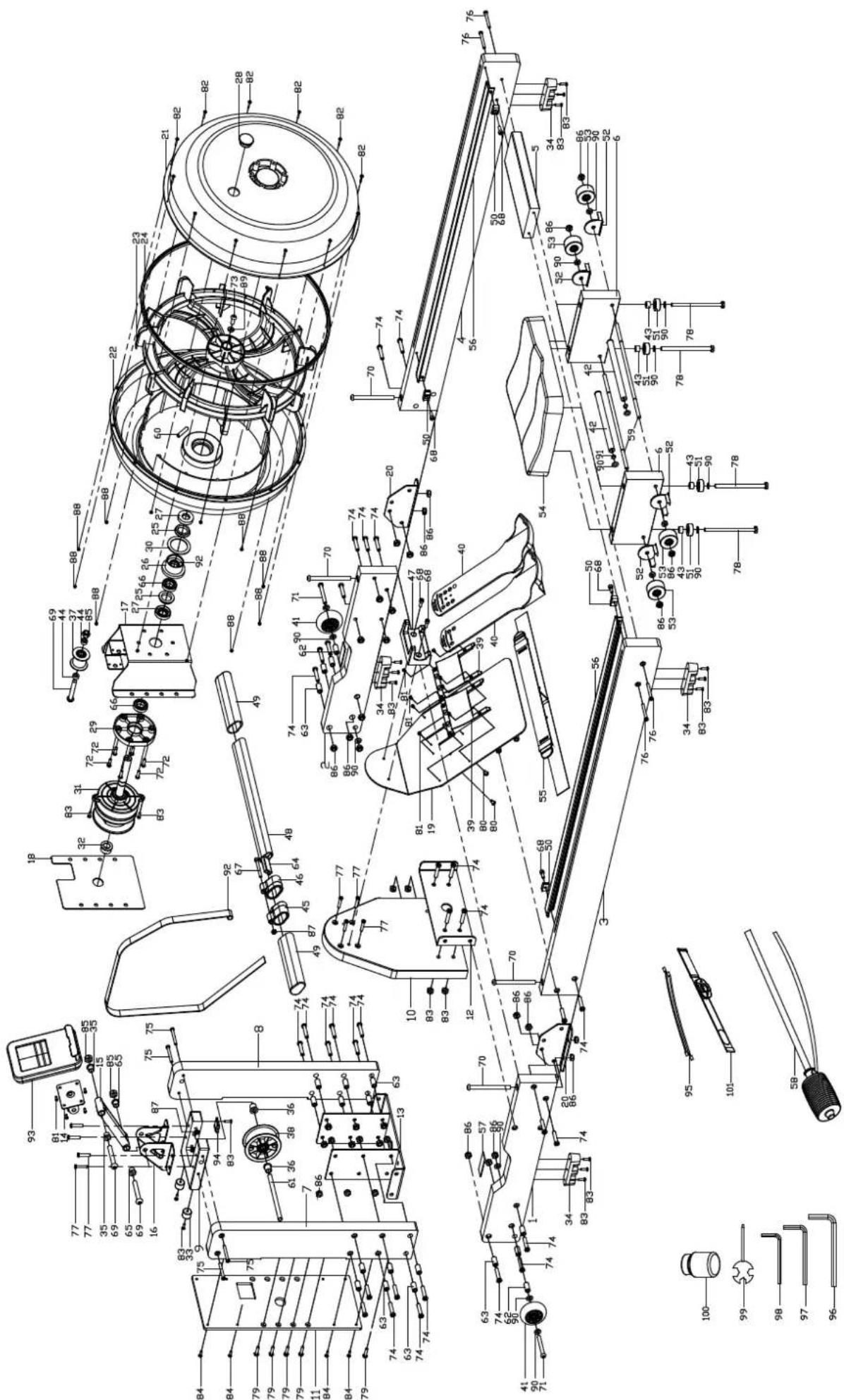

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts

WARM-UP and COOL-DOWN

A successful exercise program consists of a warm-up, aerobic exercise and a cool-down. Exercise for at least two or preferably three times a week, resting for a day between workouts. After several months, you may increase the frequency to four or five times per week.

WARM-UP

This stage helps to improve the blood circulation and prepares the muscles for your workout. It additionally helps to reduce the risk of injury or cramps. It is recommended to do some stretching exercises as shown here below. Hold each stretching position for approximately 30 seconds. Never force or jerk yourself into a stretching position – if you feel pain, STOP immediately. Warm-up exercises may also include brisk walking, jogging, jumping jacks, jump rope exercises or running in place.

STRETCHING

Muscles can be stretched more easily when these are warm. This reduces the risk of injury. DO NOT BOUNCE.

Side Stretch Toe Touch Inner Thigh Stretch Calf-Achilles Stretch Hamstring Stretch

Remember always to check with your physician before starting any exercise program.

COOL-DOWN

This stage helps to soothe your muscles and your cardiovascular system after your workout. At the end of your workout, reduce the speed and exercise for approximately 5 minutes at this lower speed level. Afterwards, repeat the warm-up exercises as described above.

Exercise instructions

Rowing is a very effective form of exercise. It strengthens the heart and circulation as well as all the major muscle groups: The back, abdomen, arms, shoulders, buttocks and legs. To prolong the life of the band, return the handles to the starting position after each use.

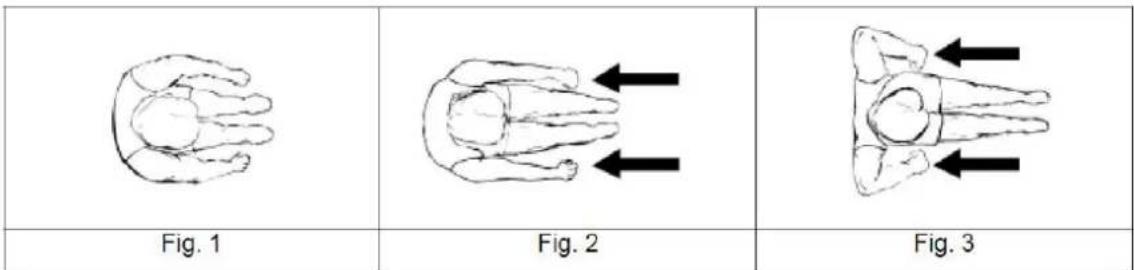

Rowing essential moves

1. Seat on the seat and place your feet on the pedals. Use the Velcro to secure your feet and grasp the rowing handles.
2. For the starting position, lean forward with arms outstretched and bend your knees as shown in figure 1.
3. Move your arms backwards while stretching your back and legs (see figure 2).
4. Continue this movement until you are in a lean-back position. Your elbows should point outwards (figure 3). Now continue as described under point 2 to repeat the movement.

Exercise time

Rowing is relatively exhausting - we therefore recommend starting with a short and easy workout program. You should increase the challenges for further workouts. Start with a 5-minute workout for your first training session and increase the time slowly with further workouts until you reach 15 to 20 minutes. Take your time to increase and try to do a workout every second day or three times a week. Your muscles should get enough time to relax between different workouts.

Rowing with the arms only

With this exercise, you can improve your arm and shoulder muscles, as well as the back and abdominal muscles. Start the movement with legs straight as shown in figure 4, lean forward and grasp the handles. Move your upper body slowly to the rear side until you reach a position as shown in figure 6, while pulling the handles in direction of your upper body. Repeat this movement.

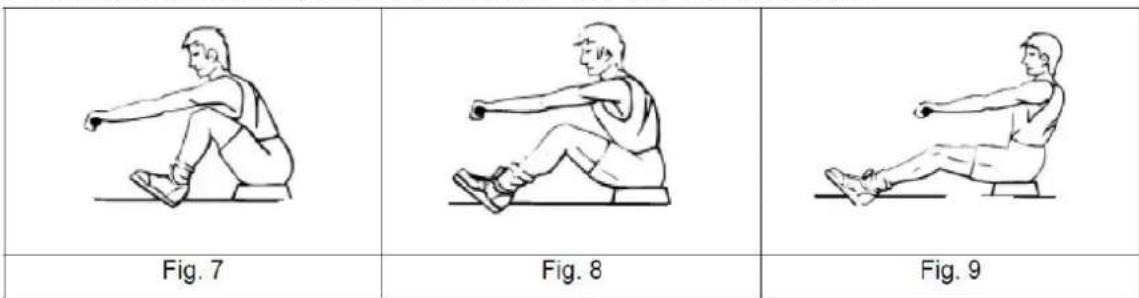

Rowing with the legs only

With this exercise, you can improve your leg and back muscles. With straight back and extended legs, bend your knees until you reach the handles as shown in figure 7. Now stretch your legs, what moves your body backwards. Arms and Back stay straight. Repeat this movement.

Using your rower will provide you with several benefits, e.g. it will improve your physical fitness, tone your muscles and - in conjunction with a calorie-controlled diet - help you to reduce weight.

Cleaning & Care

• Before cleaning the unit, make sure that the unit is switched off.
• Clean the unit only with a slightly damp cloth. Never use brushes, strong detergents, petrol, thinner or alcohol. Wipe the unit dry with a clean, soft cloth.
• Do not use the unit again until it is completely dry.

GUARANTEE CONDITIONS

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.

2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.

3. The warranty is void if repairs or adjustments are made,

which are not authorized by us or if our devices are equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observance of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

1. Warranty services do not extend the warranty period nor do they initiate a new warranty period.

2. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.

3. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.

4. Parts of wear and tear are not included in the warranty.

5. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

ENVIRONMENTAL PROTECTION

The symbol of the crossed-out dustbin on batteries or accumulators indicates that they must not be disposed of in household waste at the end of their life. If batteries or accumulators contain mercury (Hg), cadmium (Cd) or lead (Pb), you will find the respective chemical symbol below the symbol of the crossed-out dustbin. You are legally obliged to return old batteries and accumulators after use. You can do this free of charge at a retail outlet or at another collection point near you. You can obtain addresses of suitable collection points from your city or local government. Batteries may contain substances that are harmful to the environment and human health. Particular care should be taken when handling batteries containing lithium because of the special risks involved. The separate collection and recycling of old batteries and accumulators is intended to avoid negative impacts on the environment and human health. Please avoid the generation of waste from old batteries as far as possible, e.g. by giving preference to batteries with a longer life or rechargeable batteries. Please avoid littering public spaces by not carelessly leaving batteries or electrical and electronic equipment containing

batteries. Please consider ways to reuse a battery instead of disposing of it, for example by reconditioning or repairing the battery.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For spare parts please contact: [e-mail] Service centre: MAX Trader GmbH, Wilhelm-Beckmann-Straße 19, 45307 Essen, Germany

Contenu

skandika.com/service

A	B	C
D	E	F
G	H	I
J	K	L

Technical line drawing of a humanoid robot with a robotic arm and labeled component G (no text or symbols beyond basic labels)

Technical schematic diagram of a mechanical assembly with numbered components and exploded view
