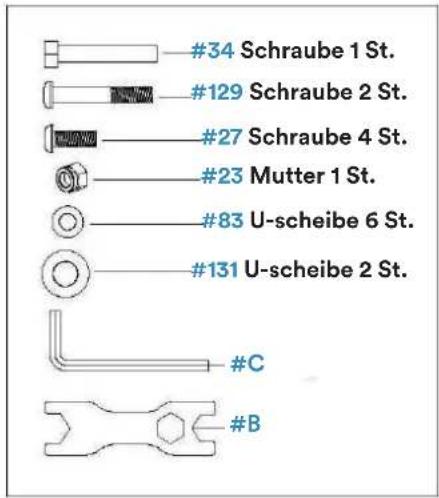

#34 Schraube 1 St. #129 Schraube 2 St. #27 Schraube 4 St. #23 Mutter 1 St. #83 U-scheibe 6 St. #131 U-scheibe 2 St. #C #B

SCHRITT 4

DISTANCE (DIST) TOTAL DIST

SPEED STROKE

Zielwerte vorgeben

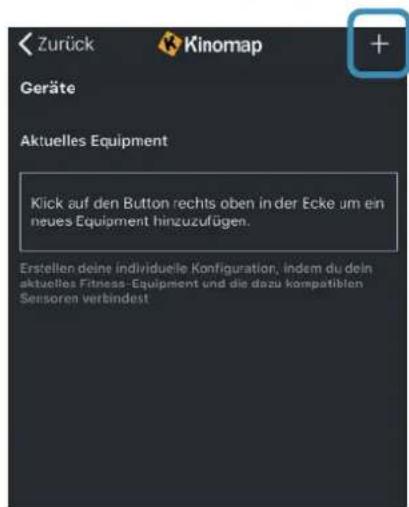

Training beginnen / beenden

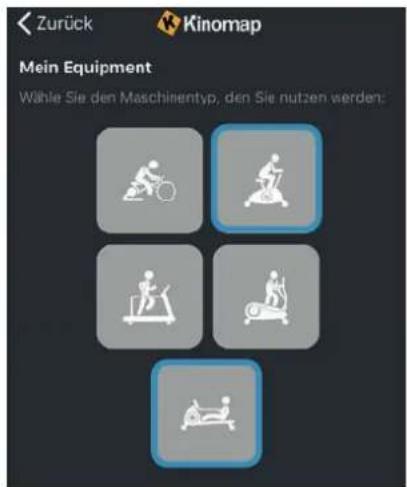

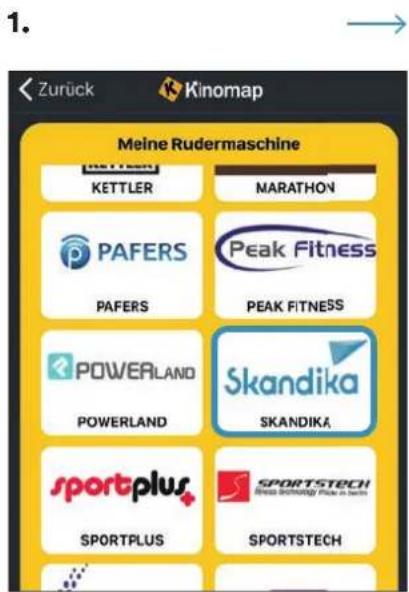

Suechen Kinomap Kinomap SAS ACT/ALGREN 4.3 ★★★★☆ #53 4+ #100000000000000000000000000000000000000000000000000000 Neue Funktionen Thanks for training on Kinomap. Our daily concern is offering you the best experience there is. Vorschau

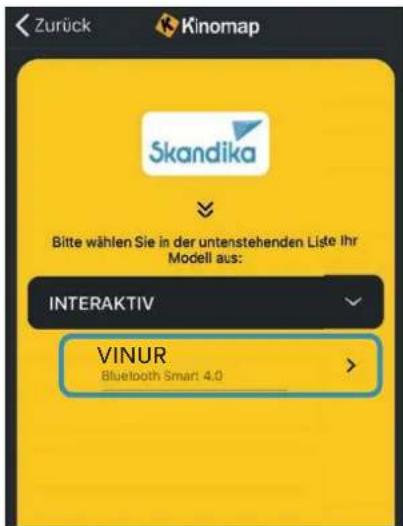

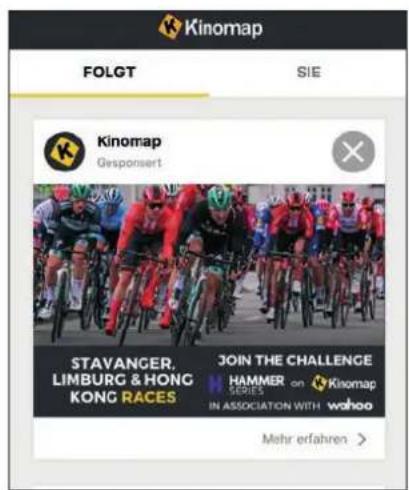

Kinomap FOLGT SIE Kinomap Gesponsert STAVANGER, LIMBURG & HONG KONG RACES JOIN THE CHALLENGE HAMMER on Kisomap SERIES IN ASSOCIATION WITH wahoo Mehr erfahren >

1.

23 Safety precautions

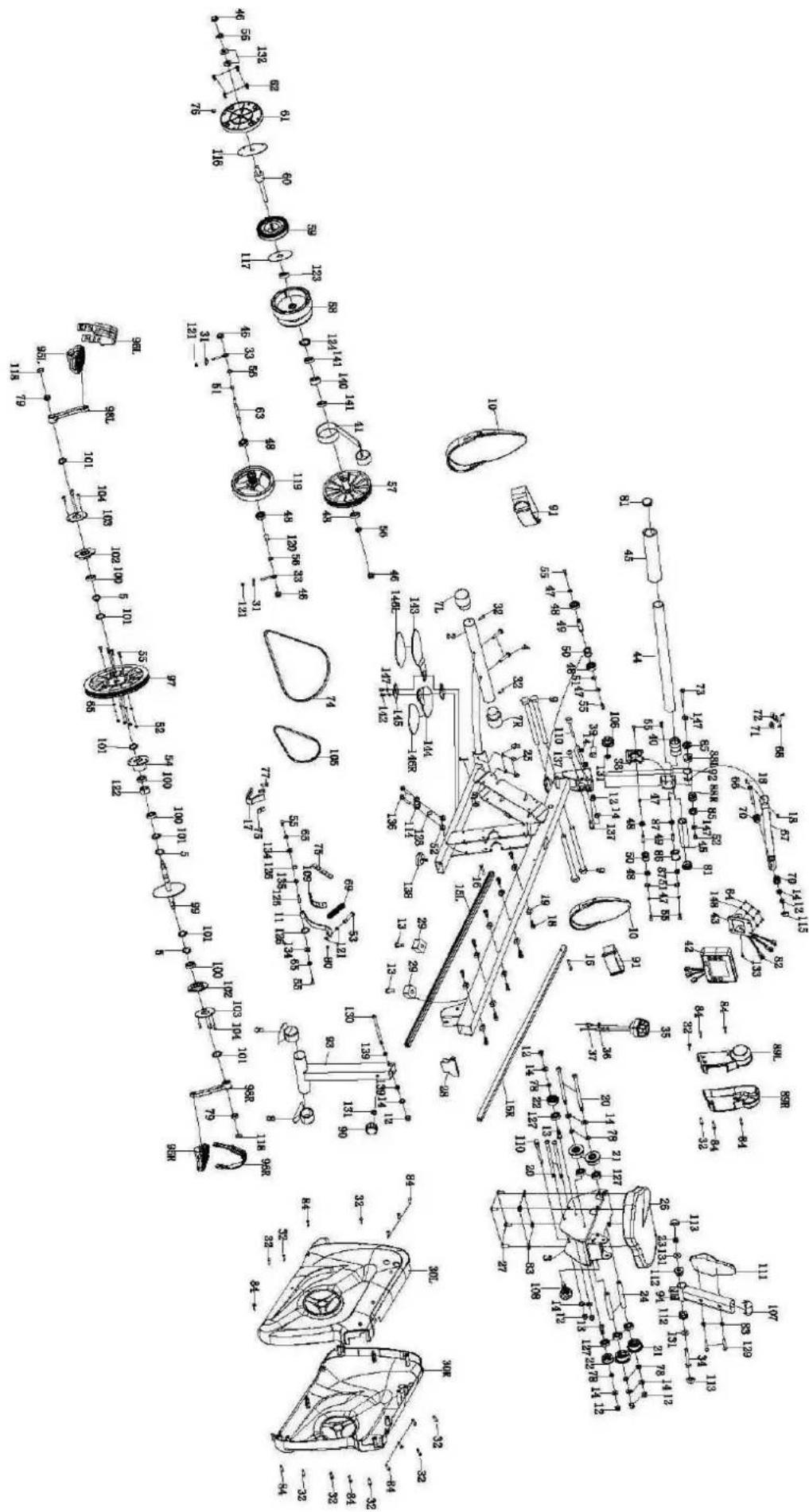

24 Exploded diagram
25 Parts list
27 Assembly instructions
32 Adjustment guide
34 Warm-Up and Cool-Down
35 Computer instructions
38 Using a chest belt

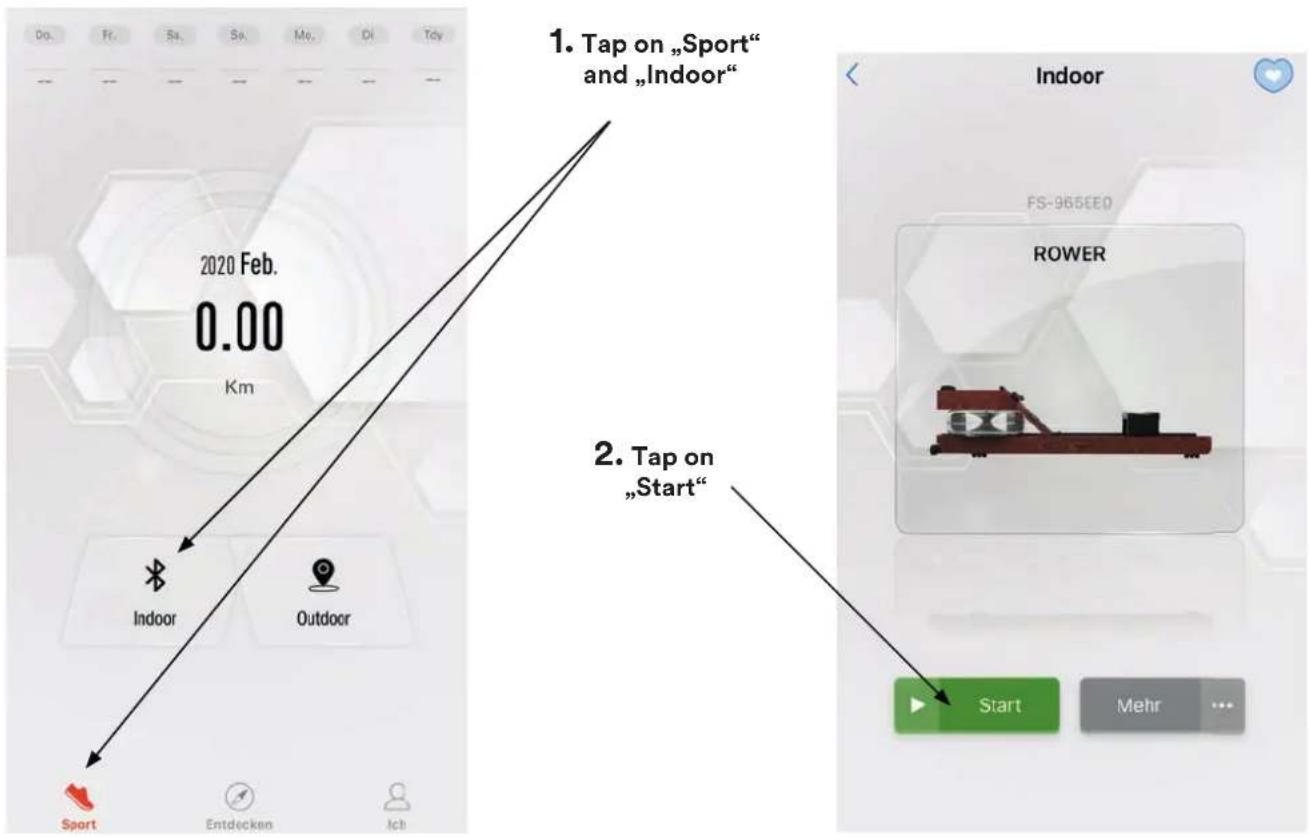

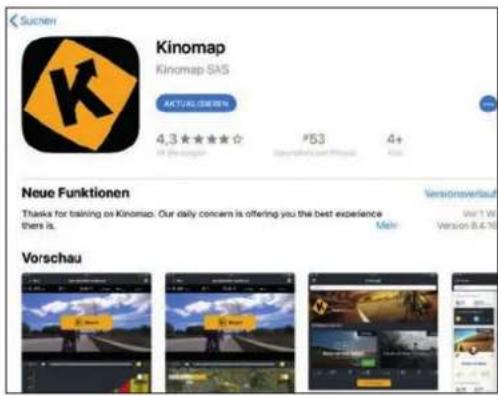

39 Using the apps Fitshow & Kinomap
41 Guarantee conditions

skandika.com/service

Please visit the Skandika Service portal on our website for setup & help videos, FAQs and downloadable instructions.

For more information about Skandika, simply visit our main page www.skandika.com

WARNING

To reduce risk of injury, read and understand this instruction manual before using the device! This machine is intended for home use only in accordance with the instructions provided in this manual. Read the instruction manual carefully before using this device and keep the instruction manual for future use.

SAFETY PRECAUTIONS

1. Keep children and pets away from the appliance. This device is suitable for adult use only. Do not leave children unattended in the same room with the machine.
2. Do not operate the appliance on deeply padded, plush or shag carpet. Damage to both carpet and device may result.
3. Only one person at a time should use the machine.
4. Not suitable for children under the age of 14 or pregnant women.
5. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, stop the workout at once. Consult a physician immediately.
6. Place the device on a solid and level and surface only. Only use the unit in enclosed spaces. Only use in cool, dry environments.
7. Do not place fingers or objects in the range of moving parts of the device.
8. Always wear appropriate clothing and shoes which are suitable for your workout on the device. The clothes must be designed in a way so that they will not get caught in any part of the device during the work-out due to their form (for example, length). Be sure to wear appropriate shoes which are suitable for the work-out, firmly support the feet and which are provided with a non-slip sole.
9. Use the machine only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
10. Do not place any sharp object around the machine. Never drop or insert any object into any openings.
11. Children, disabled and handicapped persons should use the device only under supervision and in presence of another person who may give support and useful instructions.

12. Before using the machine to exercise, always do stretching exercises to properly warm up.

13. Never operate the machine if the machine is not functioning properly.

14. We recommend using a floor protection mat to prevent damage to floors.
15. Keep the cord away from heated surfaces.
16. To disconnect, turn all controls to the off position, then remove the plug from the outlet.
17. Excessive training can be harmful to health. Contact your doctor if you have any questions. This device is not suitable for therapeutic purposes.
18. The service or replacement of parts can only be conducted by certifi ed professionals. Service without certifi ed professional is prohibited.
19. The max. user capacity is 120 kgs (264 lb.)
20. Please only exercise with a minimum clearance area of 2 meters around the device.

2 meter 2 meter 2 meter 2 meter

Be sure to consult a physician before you start any device program. He may give you proper hints and advice with respect to the individual intensity of stress for you, your workout and sensible eating habits. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts in English.

Part no.	Description Q'ty
1	Main frame 1
2	Front bottom tube 1
3	Slider seat welding group 1
4	Square Bolt M8×65 2
5	Washer D17 3
6	Washer D8 2
7L/R	Foot cap with transportation rolls 2
8	Rear end cap 2
9	Bolt M12×160	4
10	Footrest (L/R)	2
12	Nylon nut M8	10
13	Inner Hexagon Pan Bolt M8×25	4
14	Flat Washer ø8.5xø16×1.5	12
15L	L Aluminum rail	1
15R	R Aluminum rail	1
16	Bolt M5×30	2
17	Magnetic board 2	1
18	Bolt M5×15	12
19	Buffer	10
20	Bolt M8×130	4
21	Slider wheel	4
22	Limit position wheel	2
23	Nylon nut M10	1
24	Long bushing	2
25	Nut M8	2
26	Seat cushion 1
27	Bolt M6×15	4
28	Slider tube cap	1
29	Square limit position cushion	2
30L	L chain cover	1
30R	R chain cover	1
31	U-plate	2
32	Screw ST4.2×20	12
33	Bolt	2
34	Screw M10×95	1
35	Tension knob	1
36	Washer ø18xø5×1.5	1
37	Screw M5×50	1
38	Pull-guidance	1
39	Stop pad	1
40	Webbing guidance 1
41	Webbing	1
42	Computer	1
43	Computer support	1
44	Handlebars 1
45	Foamgrip	2
46	Nut M10×1	4
47	Ring D10	6
48	Axis 6000RS	7
49	Webbing roller sleeve	3
50	Webbing roller	2
51	Waved Washer D10	4
52	Nylon nut M6	7
53	Bolt M6×50	1
54	Inner cap & Disc	1
55	Bolt M6×15	12
56	Nut M10×1xH5	4

Part no.	Description Q'ty
57	Belt disc & Axle sleeve	1
58	Webbing disk	1
59	Spring	1
60	Webbing disk axle	1
61	Webbing disk axle cover	1
62	Screw 4x15	4
63	Flywheel axle	1
64	Screw M4x12	4
65	Spring washer D6	6
66	Screw M8x80	1
67	Computer frame	1
68	Screw M4x10	2
69	Spring	1
70	32-8 axis sleeve	2
71	Handpulse frame 2 1
72	Handpulse frame 1	1
73	Screw M6x98	1
74	Belt 400PJ5 1
75	Square magnet	8
76	Round magnet	1
77	Bolt M5x15	2
78	Short Bushing	6
79	Hexagon Nut M10x1.25	2
80	Tube cap	1
81	Round Inner Tube cap	2
82	Sensor wires	3
83	Washer ø6.2xø16x1.5	6
84	Screw ST4.2x20	14
85	Buffer	2
86	Webbing roller 2	1
87	Bearing 6900RS	2
88L/R	38-6 L&R axis sleeve	2
89L/R	L&R upright decoration cover	2
90	Knob	1
91	Strap	2
92	Front upright tube	1
93	Rear support tube	1
94	Backrest frame	1
95L/R	L&R Pedal	2
96L/R	L&R Pedal strap	2
97	Belt disc	1
98L/R	L&R crank	2
99	Mid axle & Disc	1
100	Bearing 6003Z	4
101	Snap ring D17	6
102	Nylon frame (D-shaped)	2
103	Plate for axle	2
104	Screw M6x10	6
105	Belt 210PJ4	1
106	Knob	1
107	Inner Elliptical Round cap 1
108	Knob	1
109	Magnet holder	1
110	Spring pin	2
111	Backrest	1
112	Endcap	2
113	Domed Nut Cap S17	2
114	Magnet holder 1
115	Nut cap 1
116	PC Board 2 1
117	PC Board 1 1
118	Crank cover 2
119	Flywheel 1
120	Idler bushing 1
121	Hexagon Nut M6 4
122	Axle & Cover	1
123	Bearing 6300Z	1
124	Ring D35	1
125	Magnetic board axle	1
126	Snap Ring D12	2
127	Bearing 608Z	6
128	Square Magnet	1
129	Inner Hexagon Pan Bolt M6×40	2
130	Inner Hexagon Pan Screw M8×75	1
131	Flat Washer ø10.2xø20×2	4
132	Flat Washer ø10.2xø14*1	2
133	Cross Pan Screw M5×5	1
134	Flat Washer ø6xø16×1.5	2
135	Waved washer D12	1
136	Inner Hexagon screw M6×20	2
137	Inner Hexagon Pan bolt M8×20	2
138	Adjustable Washer	1
139	16-8 Axle end cap	2
140	Single axle 1
141	Bearing 16003	2
142	Inner Hexagon Pan screw M6×25	2
143	Left support 1
144	Right support	1
145	Board	2
146L/R	EVA Washer	2
147	Flat Washer ø6.2xø12×1.5	4
148	Flat Washer ø4xø12×1.0	4
A	Wrench S13/14/15	1
B	Wrench S17/19	2
C	Allen key	1

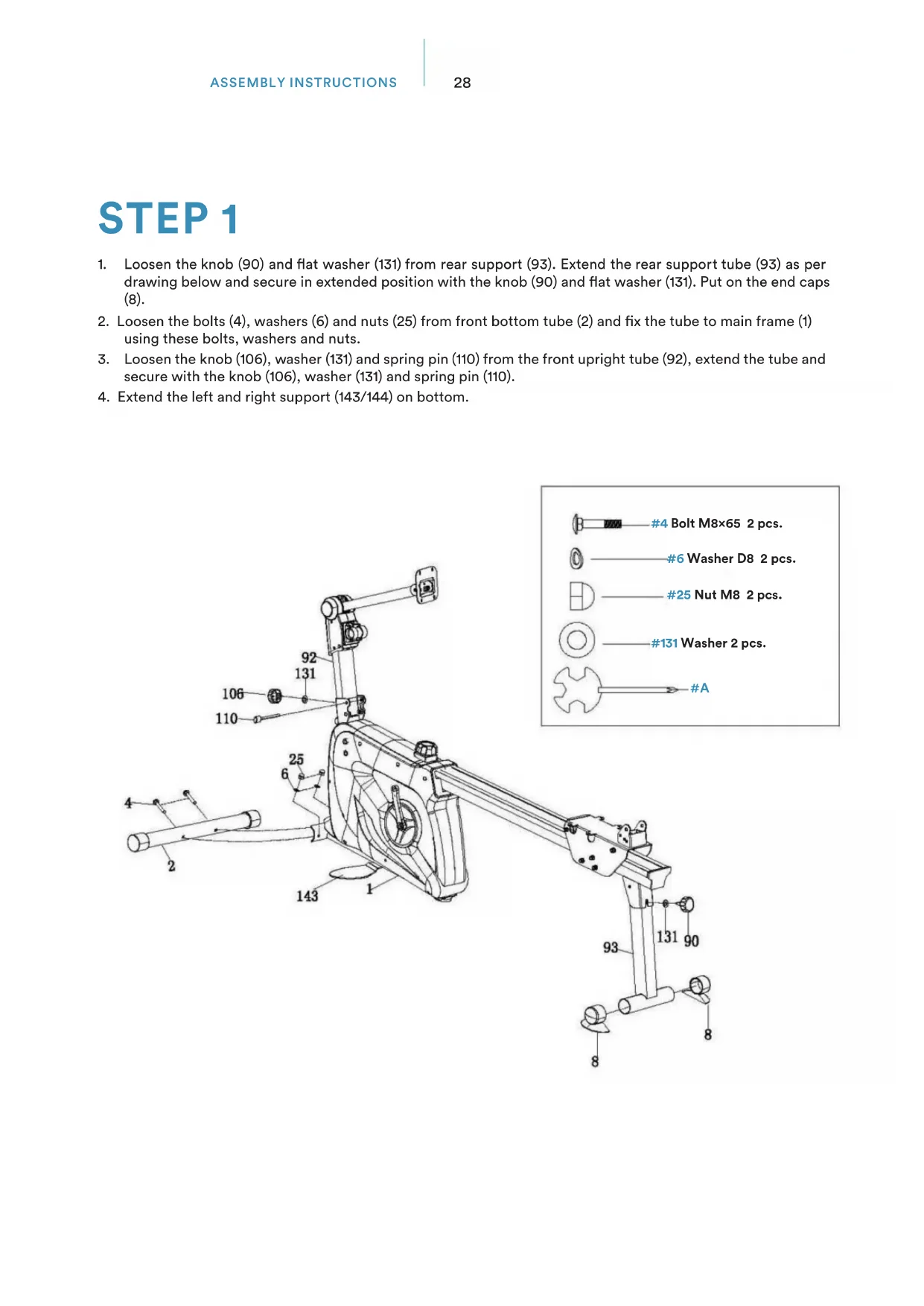

ASSEMBLY INSTRUCTIONS

STEP 1

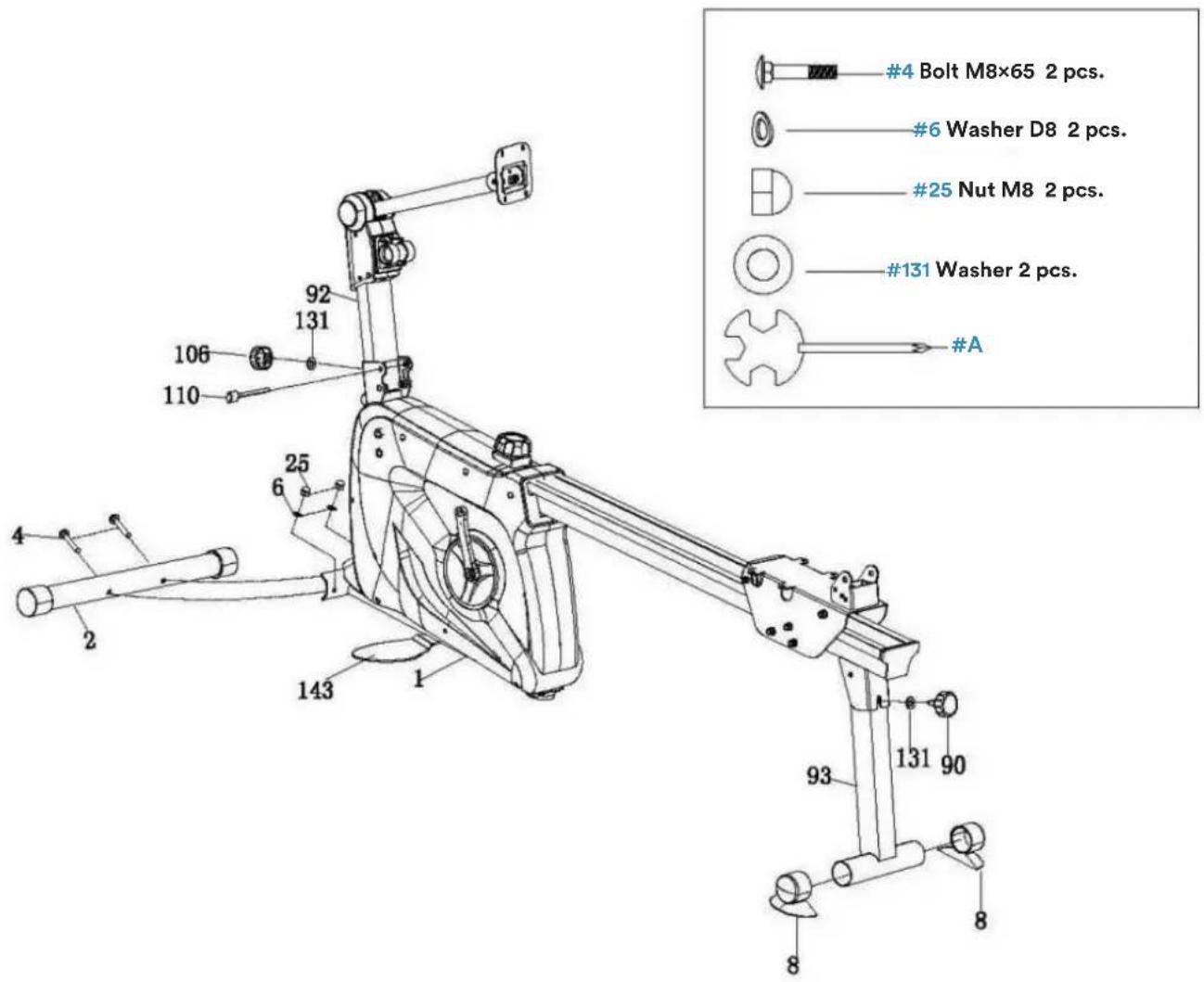

1. Loosen the knob (90) and flat washer (131) from rear support (93). Extend the rear support tube (93) as per drawing below and secure in extended position with the knob (90) and flat washer (131). Put on the end caps (8).
2. Loosen the bolts (4), washers (6) and nuts (25) from front bottom tube (2) and fix the tube to main frame (1) using these bolts, washers and nuts.
3. Loosen the knob (106), washer (131) and spring pin (110) from the front upright tube (92), extend the tube and secure with the knob (106), washer (131) and spring pin (110).
4. Extend the left and right support (143/144) on bottom.

#4 Bolt M8×65 2 pcs. #6 Washer D8 2 pcs. #25 Nut M8 2 pcs. #131 Washer 2 pcs. #A 92 131 106 110 25 6 143 1 4 2 93 131 90 8 8

STEP 2

1. Fix the left and right footrest (10) on main frame (1) with totally 4 bolts M12 × 160 (9).

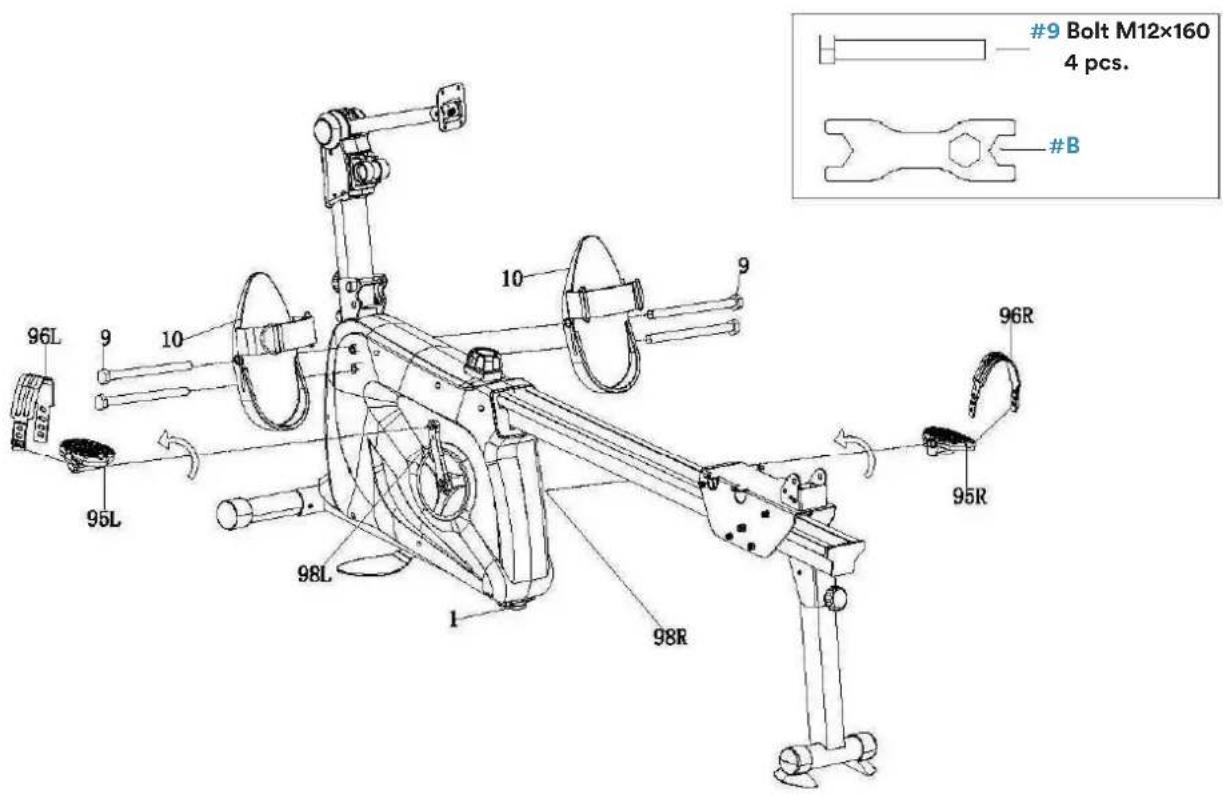

2. Tighten the pedals (95L/R) on left and right crank (98L/R) by screwing them onto the crank arm. The left pedal needs to be fixed in anti-clockwise direction and the right pedal in clockwise direction. Afterwards, fix the pedal straps (96L/R).

#9 Bolt M12×160 4 pcs. #B 96L 9 9 10 10 9 98L 98R 1 96R 95R

STEP 3

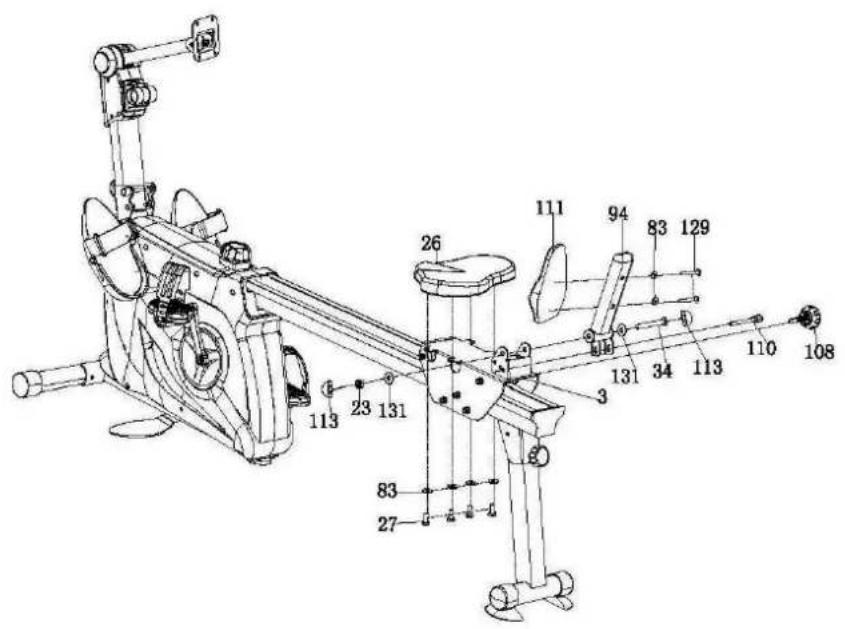

1. Loosen the bolts (27) and washers (83) from seat cushion (26), position the seat cushion (26) correctly and fix it properly with the bolts (27) and washers (83) as per below drawing.

2. Secure the backrest (111) as shown on backrest frame (94) with 2 bolts (129) and 2 washers (83).

3. Fix the backrest frame (94) with the screw (34), nut (23) and flat washers (131) on the slider seat welding group (3) as shown below. Press the nut caps (113) onto the ends.

4. Adjust the backrest position according to your needs and lock with the spring pin (110). Adjust the seat cushion (26) and lock with the knob (108).

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

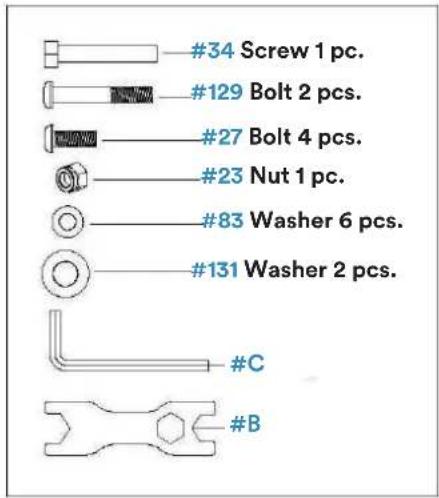

#34 Screw 1 pc. #129 Bolt 2 pcs. #27 Bolt 4 pcs. #23 Nut 1 pc. #83 Washer 6 pcs. #131 Washer 2 pcs. #C #B

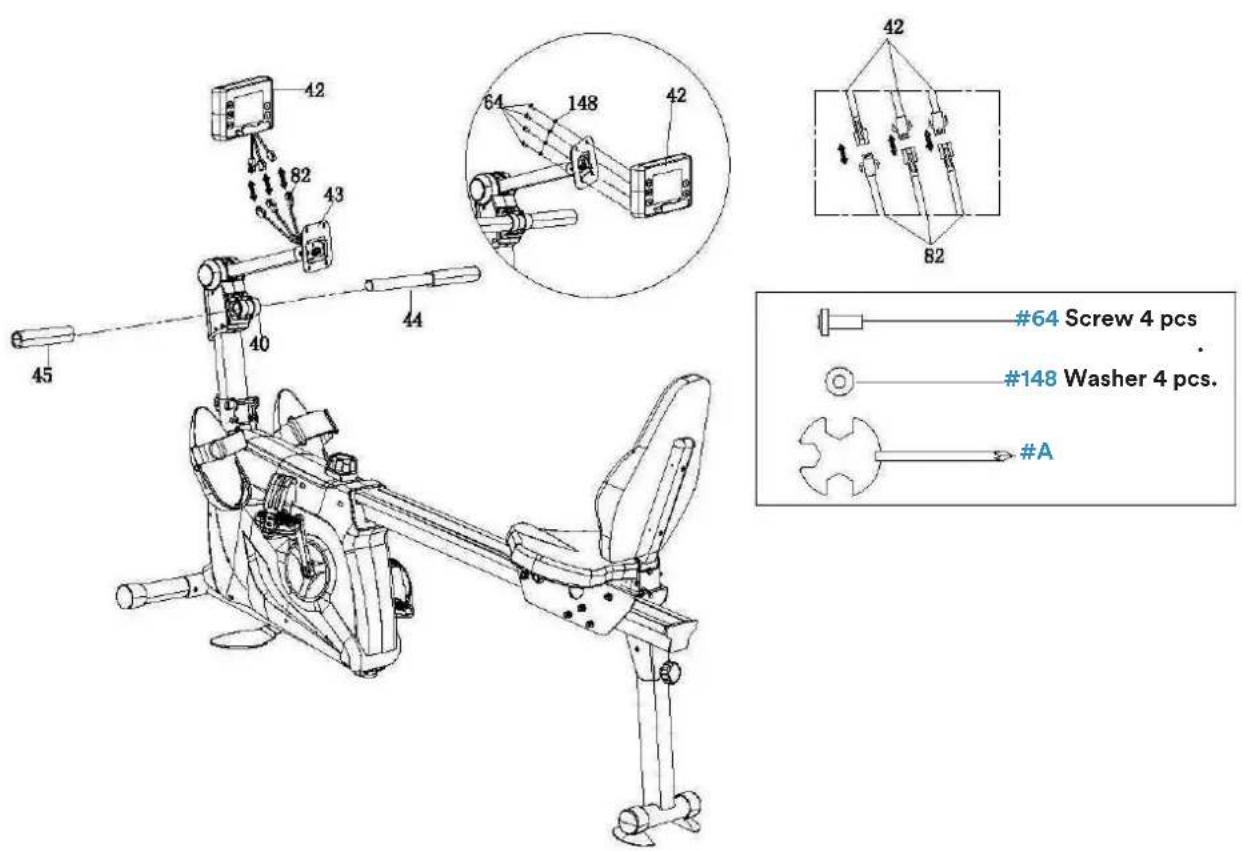

STEP 4

1. Put handlebars (44) through the webbing guidance (40) and slide foam (45) onto the handlebars (44).
2. Connect the sensor wires (82) to computer (42) and carefully fix the computer (42) on the computer support (43) with the provided screws (64) and flat washers (148).

42 82 43 44 45 40 64 148 42 42 82 #64 Screw 4 pcs #148 Washer 4 pcs. #A

CHECK IF ALL BOLTS AND NUTS ARE TIGHTENED BEFORE USING THE DEVICE!

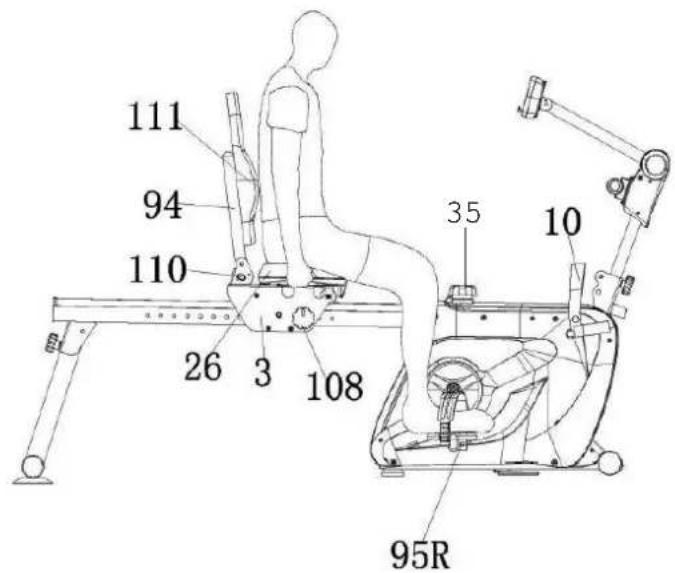

USING AS EXERCISE BIKE

Adjust the seat (26) and the backrest (111) before using and use the knob (108) to fix the slider seat welding group (3) in its position on main frame.

Pay attention, that the footrests (10) are as far away from the pedals (95 L/R) as possible to avoid interference with the pedalling movement. You can adjust the resistance with the tension knob (35) in 8 levels.

111 94 110 26 3 108 35 10 95R

USING AS ROWER

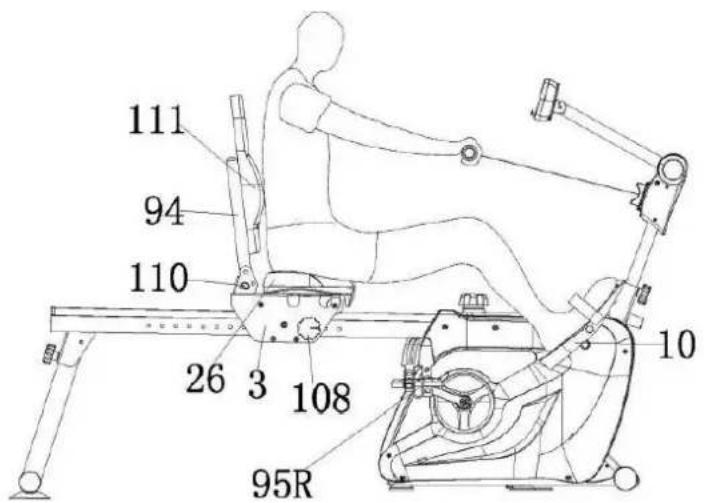

Use the knob (108) to loose the slider seat welding group (3) from the main frame - so it can freely move along the rails. Adjust backrest (111) according to your needs.

Pay attention, that the the pedals (95 L/R) are pointing away from the footrests (10) as in below drawing to avoid interference with the rowing movement. You can adjust the resistance with the tension knob in 8 levels.

111 94 110 26 3 108 10 95R

ROPE PULL EXERCISE

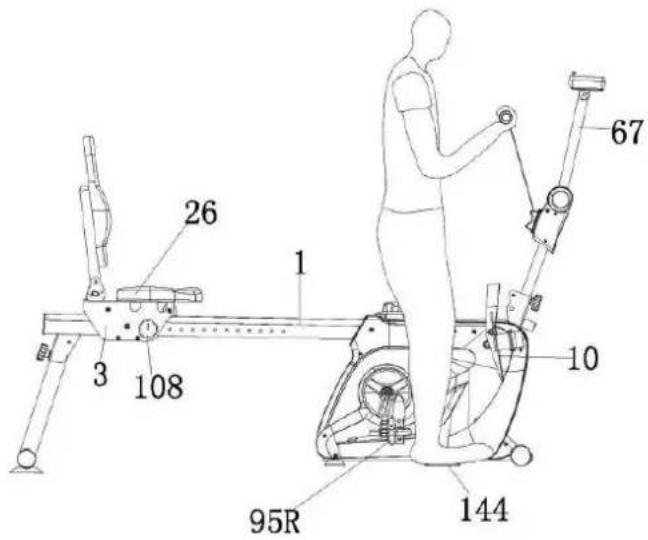

You may use the device also for rope pulling exercises (for upper arm training). Adjust the seat (26) in a position as far back as possible before using and use the knob (108) to fix the slider seat welding group (3) in its position on main frame. The footrests (10) should be in a non-disturbing front/upward position.

Move computer frame (67) to a forward/up position as shown below, extend the left and right support (143/144), step onto the left and right support and pull the rope up. You can adjust the resistance with the tension knob in 8 levels.

26 1 3 108 144 95R 10 67

STOW AWAY

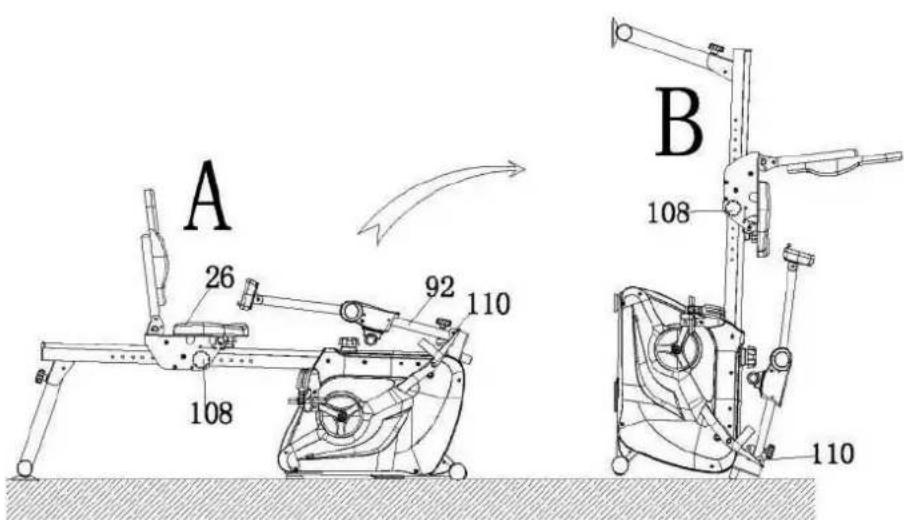

When the device is not in use, you may stow it away in upright position. Therefore pull out the spring pin (110) from the front upright tube (92), carefully rotate the upright tube and secure it in the upright position with the spring pin (110). Secure the seat (26) / seat welding group (3) with the knob (108) in its position.

A 26 92 110 108 B 108 110

WARM-UP and COOL-DOWN

A successful exercise program consists of a warm-up, aerobic exercise and a cool-down. Exercise for at least two or preferably three times a week, resting for a day between workouts. After several months, you may increase the frequency to four or five times per week.

WARM-UP

This stage helps to improve the blood circulation and prepares the muscles for your workout. It additionally helps to reduce the risk of injury or cramps. It is recommended to do some stretching exercises as shown here below. Hold each stretching position for approximately 30 seconds. Never force or jerk yourself into a stretching position – if you feel pain, STOP immediately. Warm-up exercises may also include brisk walking, jogging, jumping jacks, jump rope exercises or running in place.

STRETCHING

Muscles can be stretched more easily when these are warm. This reduces the risk of injury. DO NOT BOUNCE.

Side Stretch Toe Touch Inner Thigh Stretch Calf-Achilles Stretch Hamstring Stretch

Remember always to check with your physician before starting any exercise program.

COOL-DOWN

This stage helps to soothe your muscles and your cardiovascular system after your workout. At the end of your workout, reduce the speed and exercise for approximately 5 minutes at this lower speed level. Afterwards, repeat the warm-up exercises as described above.

COMPUTER INSTRUCTIONS

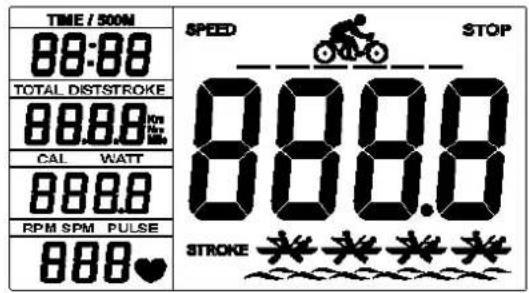

TIME / 500N 88:88 TOTAL DISTSTROKE 88.88 Km CAL WATT 88.8 RPM SPM PULSE 889 SPEED STOP 888.8 STROKE

FUNCTIONAL BUTTONS

MODE 1. Confirm setting or value

1. Select window display
2. Press & hold for approx. 3 seconds to reset computer

UP 1. Setting selection

1. Select window display
2. Convert the display (Rower or Exercise bike)

DOWN Setting selection

RESET 1. Clear setting data

1. Press & hold for approx. 3 seconds to reboot computer

RECOVERY Start or end a pulse recovery rate measurement

FUNCTION DESCRIPTION - EXERCISE BIKE

SPEED Speed display 0.0 - 99.9 km/h

TIME Time display 0:00 - 99:59 min:sec, can be preset up to 99 minutes

DISTANCE (DIST) TOTAL DIST

Distance display 0.00 - 99.99 km, can be preset up to 99.9 km.

The display of the current training distance alternates every 6 seconds with the display of the total distance.

CALORIES (CAL)

Shows the calories burned during exercise 0.0 - 999.9 kcal. Can be preset up to 990 kcal. The calories display alternates every 6 seconds with the Watt display.

The calorie consumption values calculated and displayed by this computer are only intended as a guide for a person of average stature at an average resistance setting and may differ significantly from the actual (medical) calorie consumption.

WATT Shows the acutal Watt value from 0 - 9999 Watt.

RPM RPM display 0 \~ 999 rounds per minute, alternates with PULSE display.

PULSE Shows the current pulse frequency (30-240 bpm). Can be preset. You need to wear a compatible chest belt to have a proper pulse display.

FUNCTION DESCRIPTION - ROWER

STROKE Number of rowing strokes (0 - 9999). Can be preset up to 9990 strokes.
TIME	Time display 0:00 - 99:59 min:sec, can be preset up to 99 minutes. Display alternates every 6 seconds with the display of the TIME/500m.
TIME / 500M	Displays the time needed to row 500 meters with current speed (0:00 - 99:59 min:sec).
DISTANCE (DIST) TOTAL STROKE	Distance display 0.00 - 99.99 km, can be preset up to 99.9 km.The display of the current training distance alternates every 6 seconds with the display of the total strokes (total strokes after installing the batteries - up to 9999).
CALORIES (CAL)	Shows the calories burned during exercise 0.0 - 999.9 kcal. Can be preset up to 990 kcal. The calories display alternates every 6 seconds with the Watt display.The calorie consumption values calculated and displayed by this computer are only intended as a guide for a person of average stature at an average resistance setting and may differ significantly from the actual (medical) calorie consumption.
WATT Shows the acutal Watt value from 0 - 9999 Watt.
SPM Display of strokes per minute (0 - 999), alternates with PULSE display.
PULSE Shows the current pulse frequency (30-240 bpm). Can be preset. You need to wear a compatible chest belt to have a proper pulse display.

Insert / Replace batteries

The computer needs 2 pcs. of 1.5V AA (UM-3) batteries to operate properly. To insert / replace batteries, open the battery compartment cover and insert 2 pcs. of new batteries.

Operation

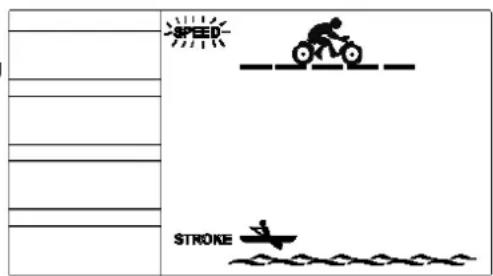

After switching on, all display segments will be displayed shortly, the computer will beep and enter into standby mode (see drawing on right side). If you want to enter this mode later on again, press and hold RESET for 3 seconds. Press UP or DOWN to select "SPEED" (Exercise bike mode) or "STROKE" (Rower mode) and MODE to confirm your selection. Alternatively, you may pedal or row constantly - the computer will then enter the correct mode automatically.

SPEED STROKE

Setting target values

Before exercise you may preset target values for different functions. Select a pre-settable function with MODE and adjust the value with UP or DOWN and MODE to confirm.

Start / Stop exercise

Start to exercise and the computer will show all training values. With UP or MODE you may change the displayed values according to your needs. Without any movement or button pressed within 4 minutes, the computer will automatically be switched off.

Pulse recovery rate measurement

With this special function, you can check your hearts recovery rate after a training session. This is a very important indication for the physical condition of your body. Please ensure that you wear a compatible chest-belt properly. Now press the button RECOVERY. The computer will start to countdown 60 seconds. During this period the computer will constantly measure your heart rate. After this minute, your recovery rate will be displayed on the display. The range is 1.0 (F1) to 6.0 (F6), whereas F1 is very good and F6 = insufficient. Improve your value by intense and regular training!

Press RECOVERY again to exit the pulse recovery function.

Using a chest belt

The computer is equipped with a built-in receiver for the wireless receipt of the pulse frequency with a compatible SKANDIKA chest-belt (frequency: 5.3 kHz). Recommended range: 100 - 150 cm.

If you want to transmit your pulse frequency via chest-belt, follow these instructions:

1. Make sure, the correct battery is inserted into the chest belt (button cell of type CR-2032, 3 volts). Battery replacement: Open the battery case cover on the back side of your transmitter (you may use a coin for easier handling) and replace the old battery by a fitting new one. The „+“ symbol should point upwards. Make sure, the sealing ring ist correctly placed. Close the case cover properly.
2. The transmitter needs to be attached to the belt with the 2 buttons. Moisten the electrodes slightly before wearing the belt. This increases the contact sensibility and enables a better wireless signal transmitting.
3. Put on the chest belt and make sure the electrodes are touching your breast directly. You may adjust the belt to a comfortable length. However, the electrodes must have contact with your skin in order to measure your heart rate correctly.
4. The 5.3 kHz-chest-belt communicates with the computer via the built-in receiver. It may last up to one minute before a correct display can be seen.

Safety hint:

Do not use the chest-belt if you have a pacemaker, unless you double-checked with the producer of the pacemaker and with your doctor!

Battery-Disposal:

Batteries should not be considered as regular garbage. As consumer you are obliged to return finished batteries. The finished batteries can be returned to a collection base at your residential area or at places, where batteries can be bought.

USING THE APPS FITSHOW & KINOMAP

The computer can be connected via Bluetooth® to communicate with the apps Fitshow or KinoMap.

FITSHOW

Turn on Bluetooth® on your mobile device, download the app and install it on your iOS or Android device. You can find the app through your device's app search feature. After successful installation, you can launch the app on your mobile device.

To record training data, you need to register in the app. However, a simple training without permanent data recording is also possible without registration.

If you are not registered, a corresponding message may appear.

Confir rm by tapping „Continue“. Now you can start training and the corresponding data will be displayed in the app, while the device computer does not display the values anymore.

If your device's training computer is not found, please check if Bluetooth ^® is enabled on your mobile device. If you want to fi nish the workout, tap and hold the red STOP button in the app.

KINOMAP

The free KinoMap app turns your device into a powerful and fun fi tness product! Choose from the geotagged video on Kinomap and go! Your position is shown in the video and as icon on the map. Download the Kinomap Fitness app in the app or play store by searching for 'Kinomap Fitness' or follow one of the links below.

Install and open the app and register resp. log in. Activate Bluetooth®. Now add the training device as follows:

Suehen Kinomap Kinomap SAS AKTUALSBERN 4,3 ★★★★☆ 10 Wertengen *53 Geschatens und Kipinap 4+ A##s Neue Funktionen Thanks for training on Kinomap. Our daily concern is offering you the best experience there is. Vorschau Versionswertlauf Ver 1 W Version 8.4 M

Kinomap FOLGT SIE Kinomap Gesponsert STAVANGER, LIMBURG & HONG KONG RACES JOIN THE CHALLENGE HAMMER on Kisomap SERIES IN ASSOCIATION WITH wahoo Mehr erfahren >

1. Zurück Kinomap Meine Rudermaschine KETTLER MARATHON PAFERS Peak Fitness PAFERS PEAK FITNESS POWERLAND Skandika POWERLAND SKANDIKA sportplus SPORTSTECH SPORTPLUS SPORTSTECH

1. Select Skandika

1. Tap on „+“ 3. Select Exercise bike

Now tap on OK and return to main menu. You can now choose a course for your exercise (depending on your type of KinoMap account maybe only some free courses). Press Start and begin to exercise!

For our devices we provide a warranty as defined below.

1. In accordance with the following conditions (numbers 2-5) we repair defect or damage to the device free of charge, if the cause is a manufacturing defect. Therefore, these defects / damages need to be reported to us without delay after appearance and within the warranty period of 24 months after delivery to the end user. The warranty does not cover parts, which easily break (e.g. glass or plastic). The warranty does not cover slight deviations of the product, which are insignificant for usability and value of the device and damage caused by chemical or electrochemical effects and damages caused by penetration of water or generally force majeure damage.
2. The warranty achievement is the replacement or repair of defective parts, depending on our decision. The cost of material and labor will be borne by us. Repairs at customer site cannot be demanded. The proof of purchase along with the date of purchase and / or delivery is required. Replaced parts become our property.
3. The warranty is void if repairs or adjustments are made, which are not authorized by us or if our devices are

equipped with additional parts or accessories that are not adapted to our devices. Furthermore, the warranty is void if the device is damaged or destroyed by force majeure or due to environmental influences and in case of improper handling / maintenance (e.g. due to non-observance of the instruction manual) or mechanical damages. The customer service may authorize you to replace or repair defective parts after telephone consultation. In this case, the warranty is not void.

1. Warranty services do not extend the warranty period nor do they initiate a new warranty period.
2. Further demands, especially claims for damages which occurred outside the device, are excluded as long as a liability is not obligatory legal.
3. Our warranty terms - which cover the requirements and scope of our warranty conditions - do not affect the contractual warranty obligations of the seller.
4. Parts of wear and tear are not included in the warranty.
5. The warranty is void if not used properly or if used in gyms, rehabilitation centers and hotels. Even if most of our units are suitable for a professional use, this requires a separate agreement.

ENVIRONMENTAL PROTECTION

At the end of its life cycle, this product must not be disposed of with household waste but must be taken to a collection unit for the recycling of electric and electronic equipment. The symbol on the product, the instructions for use or the packaging express mention of this. The basic materials can be recycled as specified on the labelling.

When recycling the materials and finding other utilisation for used equipment, you are making a significant contribution towards protecting our environment. Ask at your council about the respective local disposal sites.

In accordance with our policy of continual product improvement, we reserve the right to make technical and visual changes without notice.

For service, accessories and spare parts, please contact: [e-mail] Service centre: MAX Trader GmbH, Wilhelm-Beckmann-Straße 19, 45307 Essen, Germany

Contenu

skandika.com/service

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts in English.

Technical diagram of a mechanical exercise machine with numbered components and labeled parts

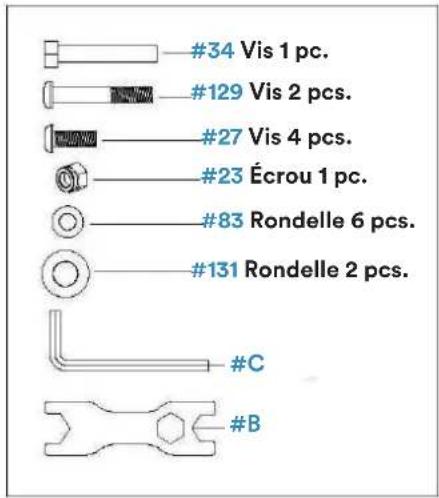

#34 Vis 1 pc. #129 Vis 2 pcs. #27 Vis 4 pcs. #23 Écrou 1 pc. #83 Rondelle 6 pcs. #131 Rondelle 2 pcs. #C #B

ÉTAPE 4

DISTANCE (DIST) TOTAL DIST

SPEED STROKE

Suechen Kinomap Kinomap SAS ACT/ALGREN 4.3 ★★★★☆ #53 4+ #100000000000000000000000000000000000000000000000000000 Neue Funktionen Thanks for training on Kinomap. Our daily concern is offering you the best experience there is. Vorschau

Kinomap FOLGT SIE Kinomap Gesponsert STAVANGER, LIMBURG & HONG KONG RACES JOIN THE CHALLENGE HAMMER on Kisomap SERIES IN ASSOCIATION WITH wahoo Mehr erfahren >

1. Zurück Kinomap Meine Rudermaschine KETTLER MARATHON PAFERS Peak Fitness PAFERS PEAK FITNESS POWERLAND Skandika POWERLAND SKANDIKA sportplus SPORTSTECH SPORTPLUS SPORTSTECH

Kingsup Free videos Options Starten Profit Enerbonkore HKSs.41 - Hong Kong Harbour HKSs HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong HKSs.41 - Hong

CONDITIONS DE GARANTIE ET DE RÉPARATIONS
