Product type	High-pressure cleaner
Brand	Hyundai
Model	57511
Power	2,200 W
Mains voltage	230 V~
Mains frequency	50 Hz
Working pressure	120 bar
Maximum pressure	180 bar
Water consumption	5.0 l/min
Soap tank capacity	1.0 L
Max. water inlet pressure	4.0 bar
Max. water temperature	50 °C
Weight	13.5 kg
Main functions	Outdoor cleaning of stone, wood, metal, plastic; use with patio cleaner; integrated soap tank
Safety	Automatic stop when trigger is released; thermal protection; safety catch on the gun
Maintenance and cleaning	Regular cleaning of inlet filter and nozzle; cleaning pin included
Spare parts and repairability	Use only original or manufacturer-approved parts
General information	Warranty according to enclosed conditions; WEEE-compliant recycling

Frequently Asked Questions - 57511 HYUNDAI

How to start the high-pressure cleaner?

Fully open the water tap, press the trigger to purge air, then turn on the machine with the switch to ON/I.

What to do if the pump does not reach the required pressure?

Check that the inlet filter is not clogged, that the connections are tight (no air entry), and that the nozzle is not blocked. Clean the filter and nozzle if necessary.

How to clean the nozzle?

Make sure the machine is off and the tap is closed. Use the cleaning pin provided to unclog the nozzle opening.

Why does the device not start?

Possible causes: residual pressure (press the trigger), plug not connected properly, extension cord too long, voltage too low, or thermal protection triggered (let it cool down).

How to use the soap tank?

Unscrew the cap, pour a suitable cleaning product (pH 6-8), then screw back. Use it only when the machine is off and the tap is closed. To dispense, remove the nozzle and press the trigger.

What safety precautions to observe?

Wear goggles, hearing protection and gloves. Never direct the jet at people, animals, the machine, or electrical sources. Use a 30 mA residual current circuit breaker.

How to assemble the patio cleaner?

Tighten the bayonet of the patio cleaner into the lance socket. Make sure the machine is unplugged and depressurized before assembly or disassembly.

What to do in case of overheating?

The thermal protection automatically stops the machine. Let the motor cool down. To avoid it, use original accessories and clean the nozzle regularly.

How to store the device for a long period?

Before storage (more than 3 months), let the pump suck in some antifreeze to prevent freezing and oxidation. Clean the filter and store in a dry, ventilated place.

What voltage and power are required?

The device operates on a 230 V~, 50 Hz socket with a power of 2,200 W. Use a suitable extension cord protected by a residual current circuit breaker.

USER MANUAL 57511 HYUNDAI

HYUNDAI

Nederlands 6

English 11

Français 16

Deutsch 21

Svenska 26

Dansk 30

• Verklaring van overeenstemming 35
- Declaration of conformity
- Certificat de conformité
- Konformitätserklärung
- Förklaring om överensstämmelse
• Overensstemmelseserklæring

A

HOGEDRUKREINIGER 57511

WAARSCHUWING

VEILIGHEIDSWAARSCHUWINGEN

BESCHRIJVING (FIG. A)

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY WARNINGS

When using the machine, always observe the enclosed safety warnings as well as the additional safety instructions below.

The following symbols are used throughout this manual:

Denotes risk of personal injury or damage to the machine.

Denotes important information concerning the use of the machine.

The following pictograms are shown on the machine:

Never point the water jet to yourself or other persons. Never point the water jet to the machine itself. Never point the water jet to electrical wiring or power outlets.

ADDITIONAL SAFETY WARNINGS FOR HIGH-PRESSURE CLEANERS

Electrical safety

• Never point the water jet to electrical wiring or power outlets because of risk of electric shock.
• If you use an extension cord, it must be of a watertight construction.
• Always remove the plug from the socket before carrying out any maintenance.

Using the wrong type of extension cord can be dangerous!

Personal safety

• High-pressure cleaners must not be used by children or untrained persons.
• Attention: when switching on the machine it kicks back by the force of outgoing ater.
• Never use the machine near human beings, unless they are wearing protective clothing.
• Never point the water jet to yourself or others to clean clothing or footwear.
• Keep the high-pressure hose connected to the machine as long as the system is under pressure. Disconnecting the high-pressure hose while the system is under pressure is dangerous.
• Do not use acids or flammable liquids in the machine. Only use detergents with ph-value of 6-8.
• Never use the machine if the connecting line, safety provisions or other important parts have been damaged.
• When not in use, the machine must be switched off to avoid unintentional starting.

Power tool use and care

- Never point the water jet to the machine itself.

Service

• High-pressure hoses, couplings, etc. are important for the safety of the machine. Only use high-pressure hoses, couplings, etc. which are recommended by the manufacturer.
• Only use spare parts from the manufacturer or which have been approved by the
• manufacturer.

ELECTRICAL SAFETY

Always check that the power supply corresponds to the voltage on the rating plate.

- Preferably connect the machine to an electric group which is protected with an earth leakage switch of max. 30 mA.

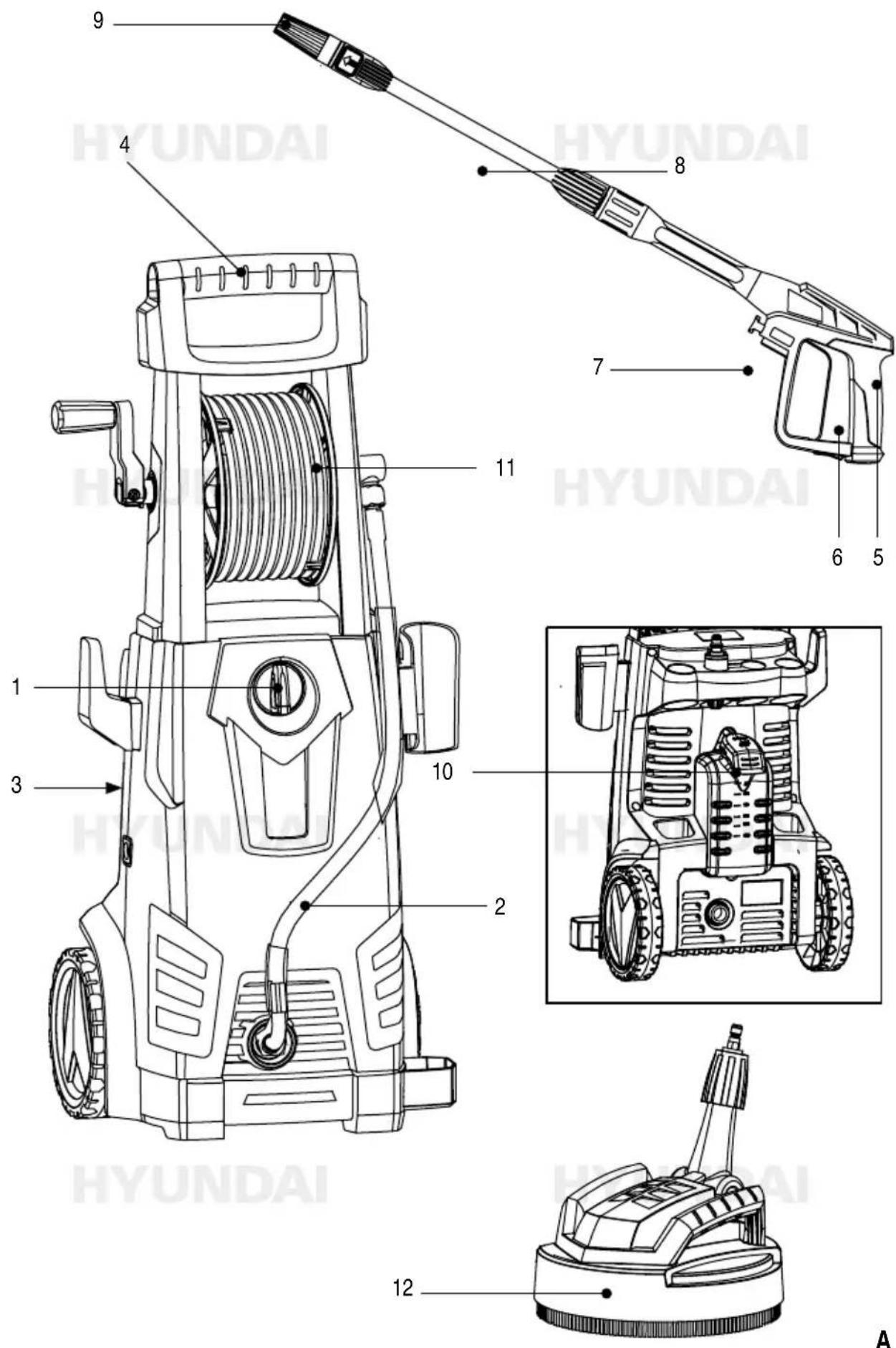

DESCRIPTION (FIG. A)

Your high-pressure cleaner has been designed for outdoor cleaning of stone, wood, metal and plastic materials.

1. On/off switch
2. Transfer hose
3. Connection for water supply
4. Handle
5. Pistol grip
6. Trigger
7. Safety catch
8. Lance
9. Nozzle
10. Soap reservoir
11. Hose winder
12. Patio brush

Package contents

• High-pressure cleaner
- Patio brush
- Soap reservoir
• High-pressure hose
- Pistol grip
- Lance
- Coupler
- Cleaning pin

Mounting the lance (fig. B)

• Tighten the bayonet of the lance (8) in the connection of the pistol grip (5).
• Tighten the bayonet of the nozzle in the connection of the lance (8).

Before mounting or removing the lance, always remove the plug from the wall socket and make sure that the pressure is off the system.

Connecting the high-pressure hose (fig. C)

• Screw the coupling nut (131) to the one end of the high-pressure hose (14) onto the connection (15) on the pistol grip (5).
• Tighten the coupling nuts firmly.

Connecting to the water supply

• Remove the protective cap.
• Connect a garden hose which has been connected to the water mains directly or via a reducing nipple to the connection (3).

Adding a cleaning agent (fig. A)

Only use cleaning agents that are suitable for use with a high-pressure cleaner.

• Unscrew the reservoir cap (10) and pour a measured amount of cleaning agent into the reservoir.
• Replace the cap and tighten it securely.

Only add a cleaning agent if the machine is switched off and the tap of the water mains has been closed.

Instructions for use

• Fully open the tap of the water mains before switching on the machine.
• Hold the trigger of the pistol grip until all air is released from the hose.
• As soon as water starts flowing out of the nozzle, release the trigger and switch on the machine.
  • Take hold of the pistol grip and move the lance evenly along the surface to be cleaned.
• Direct the nozzle as required in order to achieve optimal cleaning results. Determining the correct distance for the water jet is a matter of experience.
• Close the tap of the water mains after having switched off the machine.
• Hold the trigger of the pistol grip until the pressure is off the system.
• Lock the trigger using the safety catch.

Never let the machine run idle for more than 2 minutes. Within that period the temperature of the water in the system can become so high that the pump will be damaged beyond repair.

Switching on and off (fig. A)

• To switch the machine on, set the on/off switch (1) to 'ON/I'.
• To switch the machine off, set the on/off switch (1) to 'OFF/0'.

Auto-stop

The auto-stop switch avoids that the maximum operating pressure is exceeded. When releasing the trigger of the pistol grip, the auto-stop switch switches off the pump and the water jet stops spraying. When pressing the trigger of the pistol grip, the auto-stop switch switches on the pump again.

Allow no part of the body anywhere near the rotor when the high-pressure cleaner is switched on.

Assembling the patio cleaner

• Tighten the bayonet of the patio cleaner (10) into the socket of the lance (8).
• Tighten the bayonet of the lance (8) into the socket of the pistol grip (5).

Overheating protection

The machine has been fitted with a thermal protection. In case of overheating, the machine switches off automatically. After the motor has cooled down the machine automatically switches on again.

Before connecting or removing the patio cleaner, always remove the mains plug of the high-pressure cleaner from the socket and make sure that the pressure is released from the system.

Always use the original lance and hoses to decrease the risk of overheating.

Instructions for use

Clean the nozzle using the cleaning pin to decrease the risk of overheating.

Start the high-pressure cleaner only once the pavement scrubber is positioned on the surface to be cleaned.

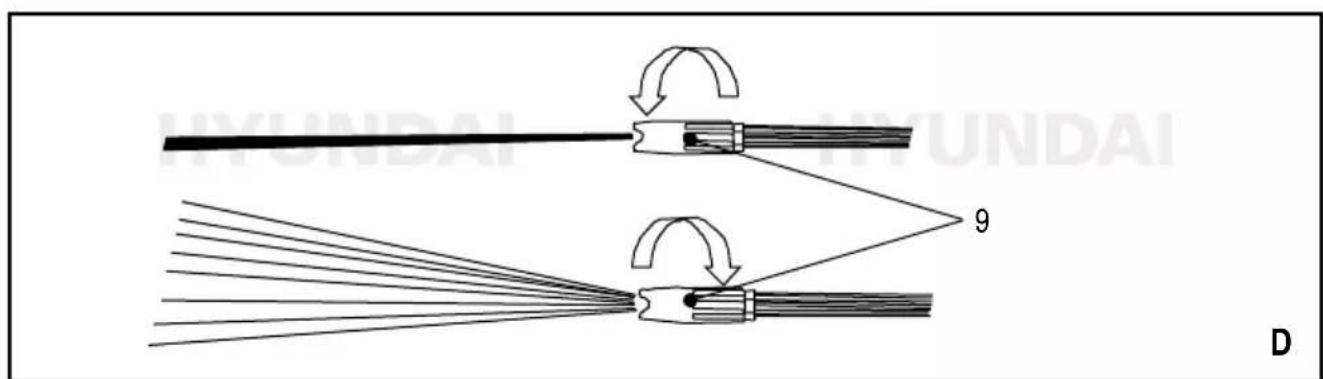

Adjusting the water jet (fig. D)

• Turn the nozzle (9) counterclockwise for a pointed jet.
• Turn the nozzle clockwise for a flat jet.

Soap supply (fig. E)

• Press the release button on the lance (8) and remove the nozzle (9).
• Depress the trigger of the pistol grip and distribute the cleaning agent over the surface to be cleaned.

Make sure the system is depressurized before removing the nozzle.

USING THE PATIO CLEANER (FIG. F)

The patio cleaner is ideally suited for cleaning floor and wall surfaces made of different materials, such as wood, concrete, tiles and natural stone. Not suitable for commercial use.

- Hold the pistol grip of the high-pressure cleaner and move the pavement scrubber evenly across the surface to be cleaned.

CLEANING AND MAINTENANCE

The machine does not require any special maintenance.

• Regularly clean the ventilation slots.
• If the machine is not used for a longer period of time (3 months or more) or if it is stored in an unheated area, then let the motor before storage suck some anti-freeze to prevent the risk of freezing and oxidation.

Cleaning the inlet filter

Before use always check the inlet filter and clean it if necessary.

• Use your fingers to remove the filter from the connection. Beware not to damage the filter.
• Use your fingers to re-install the filter.
• Check whether the filter has been placed into the connection correctly.

Cleaning the nozzle (fig. F)

During use, if the water jet decreases or stops, the nozzle needs to be cleaned.

- Make sure that the machine is switched off and that the tap of the water mains has been closed.

- Use the pricking tool (16) provided, to clean the opening (17) in the nozzle (9).

POSSIBLE PROBLEMS AND SOLUTIONS

Symptom	Possible causes	Corrective actions
No cleaning agent 1. Nozzle	is clogged2. Detergent is too thick	1. Clean with the supplied cleaning pin.2. Use a suitable cleaning agent
Unit begins to smoke 1. Overheated, overloaded or damaged motor		1. Turn off unit and call the dealer
Pressure cleaner does not start up	Unit is pressurizedPlug is not well connected or electric socket is faultyExtension cord is too long or wire size too smallMain voltage supply is too lowThermal safety switch has tripped	Squeeze trigger on gunCheck plug, socket and fuseRemove extension cordCheck that main supply voltage age is adequateSwitch off unit and allow motor to cool down
Pump does not reach necessary pressure	Water inlet filter is cloggedPump is sucking air from hose connectionsNozzle is worn or not correct sizeUnloader is clogged or wornValves is clogged or worn	Clean water inlet filterCheck that connections and locking ring are properly tightenedCall the dealerCall the dealerCall the dealer
Fluctuating pressure 1. Pump	is sucking airClogged nozzleValves dirty, worm or stuckWater seals worn	Check that hoses and connections are tightClean with pricking toolCall the dealerCall the dealer

TECHNICAL DATA

Mains voltage V\~ 230

Mains frequency Hz 50

Power input W 2,200

Operating pressure bar 120

Max. operating pressure bar 180

Water consumption I/min 5,0

Soap reservoir content | 1.0

Max. pressure water supply bar 4.0

Max. water temperature °C 50

Weight kg 13.5

GUARANTEE

Refer to the enclosed guarantee conditions for the terms and conditions of guarantee.

ENVIRONMENT

Your product, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

Subject to change; specifications can be changed without further notice.
